RAVENOL Hydraulikoel HVLP-D 68 is designed with selected base oils with additives to prevent corrosion, wear and friction.
Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136
SAE: 68
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1323366-020
Volume:
60 L
vendor code:
1323366-060
Volume:

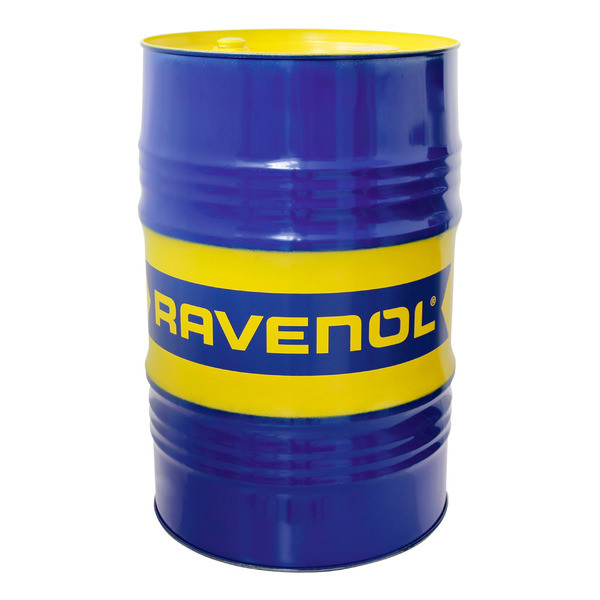

208 L
vendor code:
1323366-208
RAVENOL Hydraulikoel HVLP-D 68 is designed with selected base oils with additives to prevent corrosion, wear and friction.
RAVENOL Hydraulikoel HVLP-D 68 is characterized by a good viscosity-temperature behavior, high aging resistance and reliable corrosion protection.
RAVENOL Hydraulikoel HVLP-D 68 also contains detergent and dispersing agents, which always provide for a clean hydraulic system.
These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.
Application Note
RAVENOL Hydraulikoel HVLP-D 68 is used in hydraulic systems which are exposed to very fluctuating operating temperatures, abrasion, dirt and water.
RAVENOL Hydraulikoel HVLP-D 68 is designed for heavily loaded hydraulic systems of agricultural, forestry and construction machinery and stationary hydraulic systems, e.g. Industrial equipment.
Characteristics
- Reliable corrosion protection even when absorbing moisture
- Good air and water separation capacity, prevention of foam formation
- Excellent wear protection
- Good oxidation stability
- Excellent detergent and dispersing properties
- Neutral behavior against sealing materials
- Very low flow point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 68 |
68
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR 48-603 HV, Cetop RP 91H HV, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136 |
AFNOR 48-603 HV, Cetop RP 91H HV, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136
|
||
| specification | DIN 51524-3 |
DIN 51524-3
|
||
| Density at 20 °C | kg/m³ | 858 | EN ISO 12185 |
858
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.6 | DIN 51562-1 |
11.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 66.5 | DIN 51562-1 |
66.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 171 | DIN ISO 2909 |
171
DIN ISO 2909
|
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Flashpoint | °C | 242 | DIN EN ISO 2592 |
242
°C
DIN EN ISO 2592
|
| Approvals | AFNOR 48-603 HV, Cetop RP 91H HV, DIN 51524-3, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136 |
AFNOR 48-603 HV, Cetop RP 91H HV, DIN 51524-3, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136
|
RAVENOL Hydraulikoel HVLP-D 46 is designed with selected base oils with additives to prevent corrosion, wear and friction.
Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136
SAE: 46
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1323365-020
Volume:
60 L
vendor code:
1323365-060
Volume:
208 L
vendor code:
1323365-208
Volume:
1000 L
vendor code:
1323365-700
RAVENOL Hydraulikoel HVLP-D 46 is designed with selected base oils with additives to prevent corrosion, wear and friction.
RAVENOL Hydraulikoel HVLP-D 46 is characterized by a good viscosity-temperature behavior, high aging resistance and reliable corrosion protection.
RAVENOL Hydraulikoel HVLP-D 46 also contains detergent and dispersing agents, which always provide for a clean hydraulic system.
These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.
Application Note
RAVENOL Hydraulikoel HVLP-D 46 is used in hydraulic systems which are exposed to very fluctuating operating temperatures, abrasion, dirt and water.
RAVENOL Hydraulikoel HVLP-D 46 is designed for heavily loaded hydraulic systems of agricultural, forestry and construction machinery and stationary hydraulic systems, e.g. Industrial equipment.
Characteristics
- Reliable corrosion protection even when absorbing moisture
- Good air and water separation capacity, prevention of foam formation
- Excellent wear protection
- Good oxidation stability
- Excellent detergent and dispersing properties
- Neutral behavior against sealing materials
- Very low flow point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 46 |
46
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR 48-603 HV, Cetop RP 91H HV, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136 |
AFNOR 48-603 HV, Cetop RP 91H HV, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136
|
||
| specification | DIN 51524-3 |
DIN 51524-3
|
||
| Density at 20 °C | kg/m³ | 858 | EN ISO 12185 |
858
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 8.5 | DIN 51562-1 |
8.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 46.1 | DIN 51562-1 |
46.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 163 | DIN ISO 2909 |
163
DIN ISO 2909
|
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Flashpoint | °C | 230 | DIN EN ISO 2592 |
230
°C
DIN EN ISO 2592
|
| Approvals | AFNOR 48-603 HV, Cetop RP 91H HV, DIN 51524-3, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136 |
AFNOR 48-603 HV, Cetop RP 91H HV, DIN 51524-3, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136
|
Application NoteRAVENOL Hydraulikoel TSX 100 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136
SAE: 100
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1323207-020
Volume:

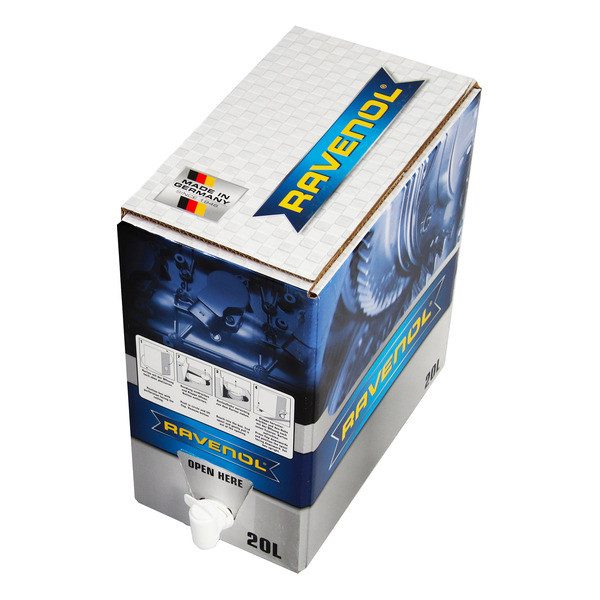

20 L, ecobox
vendor code:
1323207-B20
Volume:
60 L
vendor code:
1323207-060
Application Note
RAVENOL Hydraulikoel TSX 100 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Characteristics
- A high and stable viscosity index
- An excellent corrosion protection
- An excellent protection against wear
- A very good air and water separation behaviour to prevent foam formation
- Neutral behaviour towards sealing of plastics
- A very low pour point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 100 |
100
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR 48-603 HV, Cetop RP 91H HV, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136 |
AFNOR 48-603 HV, Cetop RP 91H HV, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136
|
||
| specification | DIN 51524, DIN 51524-3, ISO 6743-4 HV |
DIN 51524, DIN 51524-3, ISO 6743-4 HV
|
||
| Density at 20 °C | kg/m³ | 871 | EN ISO 12185 |
871
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.4 | DIN 51562-1 |
14.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 99.9 | DIN 51562-1 |
99.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 148 | DIN ISO 2909 |
148
DIN ISO 2909
|
|
| Pourpoint | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
| Flashpoint | °C | 260 | DIN EN ISO 2592 |
260
°C
DIN EN ISO 2592
|
| Approvals | AFNOR 48-603 HV, Cetop RP 91H HV, DIN 51524, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136 |
AFNOR 48-603 HV, Cetop RP 91H HV, DIN 51524, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136
|
Application NoteRAVENOL Hydraulikoel TSX 22 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
SAE: 22
Equivalents OEM:
GM 88865214, GM 88865214, Scania 2252146
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1323203-005
Volume:
20 L, ecobox
vendor code:
1323203-B20
Volume:
60 L
vendor code:
1323203-060
Volume:
1000 L
vendor code:
1323203-700
Application Note
RAVENOL Hydraulikoel TSX 22 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Characteristics
- A high and stable viscosity index
- An excellent corrosion protection
- An excellent protection against wear
- A very good air and water separation behaviour to prevent foam formation
- Neutral behaviour towards sealing of plastics
- A very low pour point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 22 |
22
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump |
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
|
||
| specification | DIN 51524-3, ISO 6743-4 HV |
DIN 51524-3, ISO 6743-4 HV
|
||
| Density at 20 °C | kg/m³ | 840 | EN ISO 12185 |
840
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 5 | DIN 51562-1 |
5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 22.5 | DIN 51562-1 |
22.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 156 | DIN ISO 2909 |
156
DIN ISO 2909
|
|
| Pourpoint | °C | -51 | DIN ISO 3016 |
-51
°C
DIN ISO 3016
|
| Flashpoint | °C | 206 | DIN EN ISO 2592 |
206
°C
DIN EN ISO 2592
|
| Approvals | AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump |
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
|
Application NoteRAVENOL Hydraulikoel TSX 68 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Manufacturer Approved:
LOVAT LOV-204
Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
SAE: 68
Equivalents OEM:
Volvo 11708322, Volvo 11708323, Volvo VOE11708322, Volvo VOE11708323, Volvo VOE11708323
- Available packaging
- Product parameters
Volume:
20 L, ecobox
vendor code:
1323206-B20
Volume:
60 L
vendor code:
1323206-060
Volume:
208 L
vendor code:
1323206-208
Volume:
1000 L
vendor code:
1323206-700
Application Note
RAVENOL Hydraulikoel TSX 68 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Characteristics
- A high and stable viscosity index
- An excellent corrosion protection
- An excellent protection against wear
- A very good air and water separation behaviour to prevent foam formation
- Neutral behaviour towards sealing of plastics
- A very low pour point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 68 |
68
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Manufacturer Approved | LOVAT LOV-204 |
LOVAT LOV-204
|
||
| Recomendations | AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump |
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
|
||
| specification | DIN 51524, DIN 51524-3, ISO 6743-4 HV |
DIN 51524, DIN 51524-3, ISO 6743-4 HV
|
||
| Density at 20 °C | kg/m³ | 862 | EN ISO 12185 |
862
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.4 | DIN 51562-1 |
11.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 68.5 | DIN 51562-1 |
68.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 161 | DIN ISO 2909 |
161
DIN ISO 2909
|
|
| Pourpoint | °C | -35 | DIN ISO 3016 |
-35
°C
DIN ISO 3016
|
| Flashpoint | °C | 242 | DIN EN ISO 2592 |
242
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 0.4 | ASTM D2896 |
0.4
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.06 | DIN 51575 |
0.06
%wt.
DIN 51575
|
| Approvals | AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, LOVAT LOV-204, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump |
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, LOVAT LOV-204, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
|
Application NoteRAVENOL Hydraulikoel TSX 15 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Compliance with the requirements:
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS 1004, Sauer-Danfoss 520L0463
SAE: 15
Equivalents OEM:
Scania 2252143
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
-
Volume:
20 L, ecobox
vendor code:
1323202-B20
Volume:
1000 L
vendor code:
1323202-700
Volume:
20 L
vendor code:
1323202-020
Volume:
1 L
vendor code:
1323202-001
Volume:
5 L
vendor code:
1323202-005
Application Note
RAVENOL Hydraulikoel TSX 15 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Characteristics
- A high and stable viscosity index
- An excellent corrosion protection
- An excellent protection against wear
- A very good air and water separation behaviour to prevent foam formation
- Neutral behaviour towards sealing of plastics
- A very low pour point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 15 |
15
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS 1004, Sauer-Danfoss 520L0463 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS 1004, Sauer-Danfoss 520L0463
|
||
| specification | DIN 51524-3, ISO 6743-4 HV |
DIN 51524-3, ISO 6743-4 HV
|
||
| Density at 20 °C | kg/m³ | 839.2 | EN ISO 12185 |
839.2
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 3.9 | DIN 51562-1 |
3.9
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 15.1 | DIN 51562-1 |
15.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 166 | DIN ISO 2909 |
166
DIN ISO 2909
|
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Flashpoint | °C | 180 | DIN EN ISO 2592 |
180
°C
DIN EN ISO 2592
|
| Approvals | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, SAE MS 1004, Sauer-Danfoss 520L0463 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, SAE MS 1004, Sauer-Danfoss 520L0463
|
Application NoteRAVENOL Hydraulikoel TSX 46 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1323205-005
Volume:
20 L, ecobox
vendor code:
1323205-B20
Volume:
60 L
vendor code:
1323205-060
Volume:
208 L, print
vendor code:
1323205-D28
Volume:
1000 L
vendor code:
1323205-700
Volume:
10 L
vendor code:
1323205-010
Application Note
RAVENOL Hydraulikoel TSX 46 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Characteristics
- A high and stable viscosity index
- An excellent corrosion protection
- An excellent protection against wear
- A very good air and water separation behaviour to prevent foam formation
- Neutral behaviour towards sealing of plastics
- A very low pour point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 46 |
46
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump |
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
|
||
| specification | DIN 51524-3, ISO 6743-4 HV |
DIN 51524-3, ISO 6743-4 HV
|
||
| Density at 20 °C | kg/m³ | 855 | EN ISO 12185 |
855
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.9 | DIN 51562-1 |
7.9
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 45 | DIN 51562-1 |
45
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 148 | DIN ISO 2909 |
148
DIN ISO 2909
|
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Flashpoint | °C | 232 | DIN EN ISO 2592 |
232
°C
DIN EN ISO 2592
|
| Approvals | AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump |
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
|
Application NoteRAVENOL Hydraulikoel TSX 32 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Compliance with the requirements:
Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463
SAE: 32W
Equivalents OEM:
Alpine 0100836, Alpine 0100837, Alpine 0100837, Scania 2252140, Volvo 11706208, Volvo 11706209, Volvo VOE11706208, Volvo VOE11706209
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1323204-005
Volume:
20 L, ecobox
vendor code:
1323204-B20
Volume:
1000 L
vendor code:
1323204-700
Volume:
1 L
vendor code:
1323204-001
Application Note
RAVENOL Hydraulikoel TSX 32 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Characteristics
- A high and stable viscosity index
- An excellent corrosion protection
- An excellent protection against wear
- A very good air and water separation behaviour to prevent foam formation
- Neutral behaviour towards sealing of plastics
- A very low pour point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 32W |
32W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463 |
Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463
|
||
| specification | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, SAE MS 1004, U.S. Steel 127, U.S. Steel 136 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, SAE MS 1004, U.S. Steel 127, U.S. Steel 136
|
||
| Density at 20 °C | kg/m³ | 845 | EN ISO 12185 |
845
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 6.3 | DIN 51562-1 |
6.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 32 | DIN 51562-1 |
32
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 152 | DIN ISO 2909 |
152
DIN ISO 2909
|
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Flashpoint | °C | 227 | DIN EN ISO 2592 |
227
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 0.4 | ASTM D2896 |
0.4
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.06 | DIN 51575 |
0.06
%wt.
DIN 51575
|
| Approvals | AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GB 111118.1 L-HV, GM LH-03-1-04, GM LS-2, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004, Sauer-Danfoss 520L0463, U.S. Steel 127, U.S. Steel 136 |
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GB 111118.1 L-HV, GM LH-03-1-04, GM LS-2, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004, Sauer-Danfoss 520L0463, U.S. Steel 127, U.S. Steel 136
|
RAVENOL Frostlube F 22 is a high quality, anti-wear hydraulic oil with a very high viscosity index, good shear stability and excellent low-temperature properties.
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1323351-010
Volume:
208 L
vendor code:
1323351-208
RAVENOL Frostlube F 22 is a high quality, anti-wear hydraulic oil with a very high viscosity index, good shear stability and excellent low-temperature properties.
Application Note
RAVENOL Frostlube F 22 is excellently suitable for application in extremely low temperatures, e.g. equipment in refrigerated warehouses or mobile facilities, which are used outdoors under extreme winter conditions.
RAVENOL Frostlube F 22 is specifically formulated so that a consistent viscosity is extensively given even in the case of extremely varying temperatures.
RAVENOL Frostlube F 22 is a shear stable, high quality hydraulic oil and therefore, suitable for application under extreme hydraulic conditions without risk for the system. If the oil temperature is permanently above 80°C, the hydraulic system should be pressurized to minimize oil loss due to evaporation.
Characteristics
- An extremely high viscosity index so that the good lubrication properties and the protection in the eventof minimal viscosity alterations are ensured by a wide temperature range.
- A low pour point; therefore, application at extremely low temperatures is permitted without the risk offreezing.
- An extremely good resistance to oxidation and a very good shear stability; therefore, longer service lifeof the oil under the usually extreme application conditions.
- Protection of the hydraulic system against corrosive influences.
- Anti-wear effect.
- Load bearing capability.
- Longer service life of the oil.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| specification | ISO 6743-4 HV |
ISO 6743-4 HV
|
||
| Density at 20 °C | kg/m³ | 837 | EN ISO 12185 |
837
kg/m³
EN ISO 12185
|
| Color | Green | visual |
Green
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.3 | DIN 51562-1 |
7.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 25.4 | DIN 51562-1 |
25.4
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 274 | DIN ISO 2909 |
274
DIN ISO 2909
|
|
| Pourpoint | °C | -63 | DIN ISO 3016 |
-63
°C
DIN ISO 3016
|
| Flashpoint | °C | 156 | DIN EN ISO 2592 |
156
°C
DIN EN ISO 2592
|
| Approvals | ISO 6743-4 HV |
ISO 6743-4 HV
|

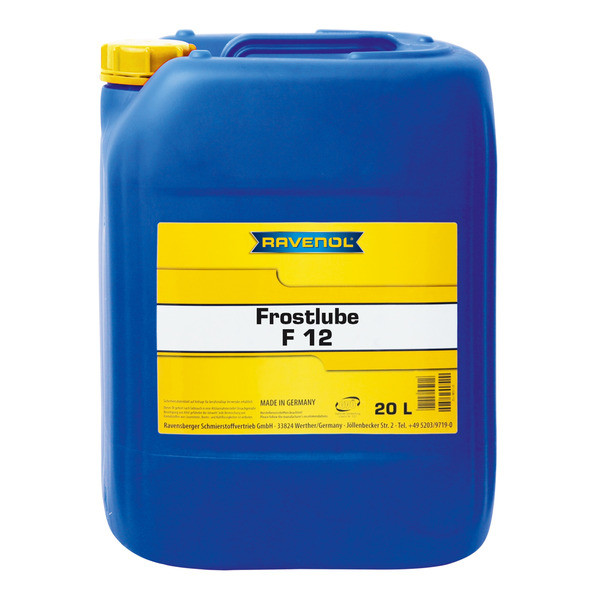

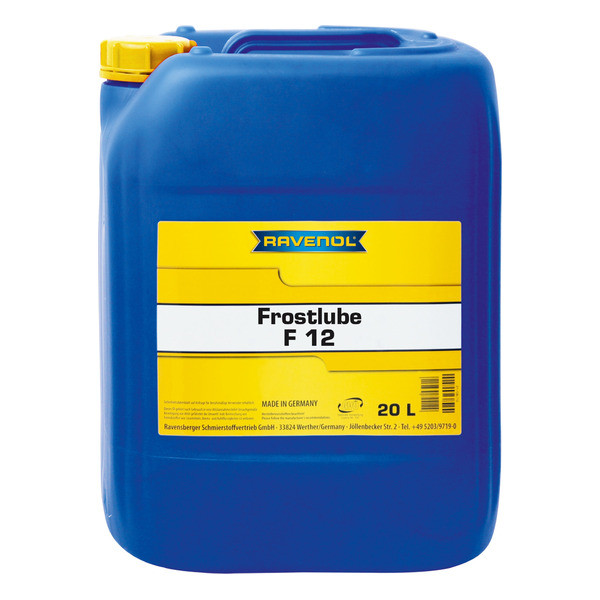

RAVENOL Frostlube F 12 is a high quality, anti-wear hydraulic oil with a very high viscosity index, good shear stability and excellent low-temperature properties.
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1323350-020
Volume:
20 L, ecobox
vendor code:
1323350-B20
Volume:
60 L
vendor code:
1323350-060
Volume:
208 L
vendor code:
1323350-208
RAVENOL Frostlube F 12 is a high quality, anti-wear hydraulic oil with a very high viscosity index, good shear stability and excellent low-temperature properties.
Application Note
RAVENOL Frostlube F 12 is excellently suitable for application in extremely low temperatures, e.g. equipment in refrigerated warehouses or mobile facilities, which are used outdoors under extreme winter conditions.
RAVENOL Frostlube F 12 is specifically formulated so that a consistent viscosity is extensively given even in the case of extremely varying temperatures.
RAVENOL Frostlube F 12 is a shear stable, high quality hydraulic oil and therefore, suitable for application under extreme hydraulic conditions without risk for the system. If the oil temperature is permanently above 80°C, the hydraulic system should be pressurised to minimise oil loss due to evaporation.
Characteristics
- An extremely high viscosity index so that the good lubrication properties and the protection in the eventof minimal viscosity alterationss are ensured by a wide temperature range.
- A low pour point; therefore, application at extremely low temperatures is permitted without the risk offreezing.
- An extremely good resistance to oxidation and a very good shear stability; therefore, longer service lifeof the oil under the usually extreme application conditions.
- Protection of the hydraulic system against corrosive influences.
- Anti-wear effect.
- Load bearing capability.
- Longer service life of the oil.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| specification | ISO 6743-4 HV |
ISO 6743-4 HV
|
||
| Density at 20 °C | kg/m³ | 828 | EN ISO 12185 |
828
kg/m³
EN ISO 12185
|
| Color | Green | visual |
Green
visual
|
|
| Viscosity at 100 °C | mm²/s | 6.7 | DIN 51562-1 |
6.7
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 19.9 | DIN 51562-1 |
19.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 332 | DIN ISO 2909 |
332
DIN ISO 2909
|
|
| Pourpoint | °C | -49 | DIN ISO 3016 |
-49
°C
DIN ISO 3016
|
| Flashpoint | °C | 172 | DIN EN ISO 2592 |
172
°C
DIN EN ISO 2592
|
| Approvals | ISO 6743-4 HV |
ISO 6743-4 HV
|
