Search results for Parker Denison HF-0. Selection of RAVENOL oil.

RAVENOL Hydraulikoel HVLP-D 68

RAVENOL Hydraulikoel HVLP-D 68 is designed with selected base oils with additives to prevent corrosion, wear and friction.

Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136

show details

SAE: 68

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1323366-020

Volume:
60 L

vendor code:
1323366-060

Volume:
208 L

vendor code:
1323366-208

RAVENOL Hydraulikoel HVLP-D 68 is designed with selected base oils with additives to prevent corrosion, wear and friction.

RAVENOL Hydraulikoel HVLP-D 68 is characterized by a good viscosity-temperature behavior, high aging resistance and reliable corrosion protection.

RAVENOL Hydraulikoel HVLP-D 68 also contains detergent and dispersing agents, which always provide for a clean hydraulic system.

These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.

Application Note

RAVENOL Hydraulikoel HVLP-D 68 is used in hydraulic systems which are exposed to very fluctuating operating temperatures, abrasion, dirt and water.

RAVENOL Hydraulikoel HVLP-D 68 is designed for heavily loaded hydraulic systems of agricultural, forestry and construction machinery and stationary hydraulic systems, e.g. Industrial equipment.

Characteristics

Reliable corrosion protection even when absorbing moisture
Good air and water separation capacity, prevention of foam formation
Excellent wear protection
Good oxidation stability
Excellent detergent and dispersing properties
Neutral behavior against sealing materials
Very low flow point

Parameter	Unit	Value	Audit
SAE		68		68
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		AFNOR 48-603 HV, Cetop RP 91H HV, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136		AFNOR 48-603 HV, Cetop RP 91H HV, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136
specification		DIN 51524-3		DIN 51524-3
Density at 20 °C	kg/m³	858	EN ISO 12185	858 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	11.6	DIN 51562-1	11.6 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	66.5	DIN 51562-1	66.5 mm²/s DIN 51562-1
Viscosity Index VI		171	DIN ISO 2909	171 DIN ISO 2909
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Flashpoint	°C	242	DIN EN ISO 2592	242 °C DIN EN ISO 2592
Approvals		AFNOR 48-603 HV, Cetop RP 91H HV, DIN 51524-3, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136		AFNOR 48-603 HV, Cetop RP 91H HV, DIN 51524-3, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136

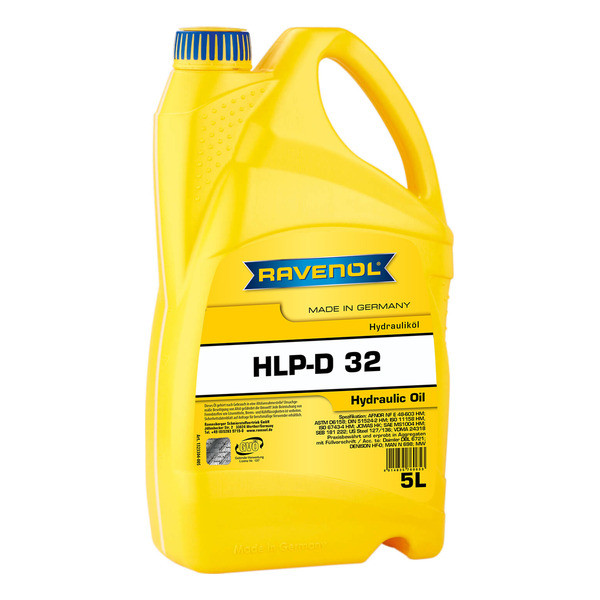

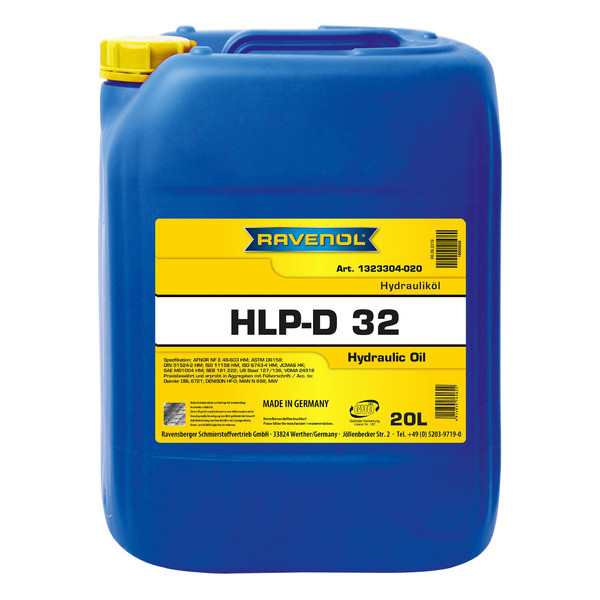

HLP-D 32 Hydraulikol

RAVENOL Hydraulikoel HLP-D 32 is designed with selected base oils with additives to prevent corrosion, wear and friction.

Compliance with the requirements:
Daimler DBL 6721, MAN N 698, Müller, Parker Denison HF-0

show details

SAE: 32W

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1323304-005

Volume:
20 L

vendor code:
1323304-020

Volume:
20 L, ecobox

vendor code:
1323304-B20

Volume:
60 L

vendor code:
1323304-060

Volume:
208 L

vendor code:
1323304-208

Code:
4014835760684

Volume:
1000 L

vendor code:
1323304-700

RAVENOL Hydraulikoel HLP-D 32 is designed with selected base oils with additives to prevent corrosion, wear and friction.

RAVENOL Hydraulikoel HLP-D 32 also contains detergent and dispersing agents, which always provide for a clean hydraulic system. These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.

RAVENOL Hydraulikoel HLP-D 32 is zinc and ash-free.

Application Note

RAVENOL Hydraulikoel HLP-D 32 is for use in agriculture hydraulic systems, construction machinery, cement factories, foundries, and electro-plate clutches. It can also be used as functional test oil, inlet oil for aggregates and machinery, textile machinery and machine tools.

Characteristics

High aging resistance and high corrosion protection
Good air release
Excellent wear protection and proper conduct foam
Very good viscosity-temperature behaviour
neutral behaviour towards sealing materials
Extremely good detergent and dispersant characteristics
Excellent corrosion protection even at the ingress of wetness
zinc and ash-free

Parameter	Unit	Value	Audit
SAE		32W		32W
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		Daimler DBL 6721, MAN N 698, Müller, Parker Denison HF-0		Daimler DBL 6721, MAN N 698, Müller, Parker Denison HF-0
specification		AFNOR NF E 48-603 HM, DIN 51524-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, SAE MS 1004 HM, SEB 181.222, U.S. Steel 127, U.S. Steel 136, VDMA 24318		AFNOR NF E 48-603 HM, DIN 51524-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, SAE MS 1004 HM, SEB 181.222, U.S. Steel 127, U.S. Steel 136, VDMA 24318
Density at 20 °C	kg/m³	865	EN ISO 12185	865 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	5.5	DIN 51562-1	5.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	31.8	DIN 51562-1	31.8 mm²/s DIN 51562-1
Viscosity Index VI		107	DIN ISO 2909	107 DIN ISO 2909
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	224	DIN EN ISO 2592	224 °C DIN EN ISO 2592
Approvals		AFNOR NF E 48-603 HM, Daimler DBL 6721, DIN 51524-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MAN N 698, Müller, Parker Denison HF-0, SAE MS 1004 HM, SEB 181.222, U.S. Steel 127, U.S. Steel 136, VDMA 24318		AFNOR NF E 48-603 HM, Daimler DBL 6721, DIN 51524-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MAN N 698, Müller, Parker Denison HF-0, SAE MS 1004 HM, SEB 181.222, U.S. Steel 127, U.S. Steel 136, VDMA 24318

Hydraulikoel TS 32 (HLP)

RAVENOL Hydraulikoel TS 32 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.

Compliance with the requirements:
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, JCMAS HK, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest

show details

SAE: 32W

Equivalents OEM:
Alpine 0100823, Alpine 0100824, Alpine 0100825, GM 88861678, GM 88861679, GM 88861693, GM 88861693

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1323104-001

Code:
4014835759312

Volume:
5 L

vendor code:
1323104-005

Code:
4014835759350

Volume:
20 L

vendor code:
1323104-020

Code:
4014835759329

Volume:
20 L, ecobox

vendor code:
1323104-B20

Volume:
60 L

vendor code:
1323104-060

Code:
4014835759367

Volume:
208 L

vendor code:
1323104-208

Code:
4014835759381

Volume:
1000 L

vendor code:
1323104-700

RAVENOL Hydraulikoel TS 32 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.

RAVENOL Hydraulikoel TS 32 (HLP) is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection.

Application Note

RAVENOL Hydraulikoel TS 32 (HLP) is for universally use in all hydraulic systems.

RAVENOL Hydraulikoel TS 32 (HLP) is recommended in high performance hydraulic systems with high pressure pumps of all types, in sensitive control systems.

RAVENOL Hydraulikoel TS 32 (HLP) is used for hydraulic systems in agriculture, to supply small gearboxes and for use in circulating systems.

Characteristics

a high performance level
a very good viscosity temperature behaviour
a high aging resistant
an excellent corrosion protection
a solid corrosion protection
neutrality of sealing materials

Parameter	Unit	Value	Audit
SAE		32W		32W
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
ASTM		D6158		D6158
Recomendations		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, JCMAS HK, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, JCMAS HK, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest
specification		DIN 51524-2, ISO 6743-4 HM		DIN 51524-2, ISO 6743-4 HM
Suitable for		Atos, Metso		Atos, Metso
Density at 20 °C	kg/m³	848	EN ISO 12185	848 kg/m³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mm²/s	5.8	DIN 51562-1	5.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	32.1	DIN 51562-1	32.1 mm²/s DIN 51562-1
Viscosity Index VI		123	DIN ISO 2909	123 DIN ISO 2909
Pourpoint	°C	-30	DIN ISO 3016	-30 °C DIN ISO 3016
Flashpoint	°C	224	DIN EN ISO 2592	224 °C DIN EN ISO 2592
Approvals		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, DIN 51524-2, Eaton Vickers I-286-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, DIN 51524-2, Eaton Vickers I-286-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest

Hydraulikoel TS 46 (HLP)

RAVENOL Hydraulikoel TS 46 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.

Compliance with the requirements:
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cetop RP 2950-S, Danieli Hydraulics, Eaton Vickers I-286-S, Fives Cincinnati P-55, Fives Cincinnati P-70, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, ISO 11158 HM, JCMAS HK, MIL-PRF-17672 E, NATO H-573, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers Pumpentest, ZF TE-ML 07H

show details

SAE: 46

Equivalents OEM:
Alpine 0100843, Alpine 0100844, Alpine 0100845, GM 88861680, GM 88861680

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1323105-005

Code:
4014835759459

Volume:
10 L

vendor code:
1323105-010

Volume:
20 L

vendor code:
1323105-020

Code:
4014835759428

Volume:
20 L, ecobox

vendor code:
1323105-B20

Volume:
60 L

vendor code:
1323105-060

Code:
4014835759466

Volume:
208 L

vendor code:
1323105-208

Code:
4014835759480

Volume:
208 L, print

vendor code:
1323105-D28

Volume:
1000 L

vendor code:
1323105-700

Code:
4014835759473

Volume:
1 L

vendor code:
1323105-001

RAVENOL Hydraulikoel TS 46 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.

RAVENOL Hydraulikoel TS 46 (HLP) is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection.

Application Note

RAVENOL Hydraulikoel TS 46 (HLP) is for universally use in all hydraulic systems.

RAVENOL Hydraulikoel TS 46 (HLP) is recommended in high performance hydraulic systems with high pressure pumps of all types, in sensitive control systems.

RAVENOL Hydraulikoel TS 46 (HLP) is used for hydraulic systems in agriculture, to supply small gearboxes and for use in circulating systems.

Characteristics

a high performance level
a very good viscosity temperature behaviour
a high aging resistant
an excellent corrosion protection
neutrality of sealing materials

Parameter	Unit	Value	Audit
SAE		46		46
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
ASTM		D6158		D6158
Recomendations		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 2950-S, Cetop RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Fives Cincinnati P-55, Fives Cincinnati P-70, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, ISO 11158 HM, JCMAS HK, MIL-PRF-17672 E, Müller, NATO H-573, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers Pumpentest, ZF TE-ML 07H		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 2950-S, Cetop RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Fives Cincinnati P-55, Fives Cincinnati P-70, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, ISO 11158 HM, JCMAS HK, MIL-PRF-17672 E, Müller, NATO H-573, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers Pumpentest, ZF TE-ML 07H
specification		DIN 51524-2, ISO 6743-4 HM		DIN 51524-2, ISO 6743-4 HM
Suitable for		Arburg, Atos, Metso		Arburg, Atos, Metso
Density at 20 °C	kg/m³	857	EN ISO 12185	857 kg/m³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mm²/s	7.2	DIN 51562-1	7.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	47	DIN 51562-1	47 mm²/s DIN 51562-1
Viscosity Index VI		113	DIN ISO 2909	113 DIN ISO 2909
Pourpoint	°C	-27	DIN ISO 3016	-27 °C DIN ISO 3016
Flashpoint	°C	238	DIN EN ISO 2592	238 °C DIN EN ISO 2592
Demulsification		40ml/40ml/10min.	DIN 51757	40ml/40ml/10min. DIN 51757
Aging stability	TOST	2000	DIN 51587	2000 TOST DIN 51587
FZG-Test A/8.3/90 Damage loading step	%wt.	12	DIN 51354/2	12 %wt. DIN 51354/2
Approvals		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 2950-S, Cetop RP 91H HM, Danieli Hydraulics, DIN 51524-2, Eaton Vickers I-286-S, Fives Cincinnati P-55, Fives Cincinnati P-70, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MIL-PRF-17672 E, Müller, NATO H-573, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers Pumpentest, ZF TE-ML 07H		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 2950-S, Cetop RP 91H HM, Danieli Hydraulics, DIN 51524-2, Eaton Vickers I-286-S, Fives Cincinnati P-55, Fives Cincinnati P-70, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MIL-PRF-17672 E, Müller, NATO H-573, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers Pumpentest, ZF TE-ML 07H

Hydraulikoel TS 22 (HLP)

RAVENOL Hydraulikoel TS 22 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.

Compliance with the requirements:
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron -68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Danieli Hydraulics, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest

show details

SAE: 22

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1323103-001

Volume:
5 L

vendor code:
1323103-005

Volume:
10 L

vendor code:
1323103-010

Volume:
20 L

vendor code:
1323103-020

Code:
4014835759220

Volume:
20 L, ecobox

vendor code:
1323103-B20

Volume:
60 L

vendor code:
1323103-060

Volume:
208 L

vendor code:
1323103-208

Code:
4014835759282

Volume:
1000 L

vendor code:
1323103-700

RAVENOL Hydraulikoel TS 22 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.

RAVENOL Hydraulikoel TS 22 (HLP) is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection.

Application Note

RAVENOL Hydraulikoel TS 22 (HLP) is for universally use in all hydraulic systems.

RAVENOL Hydraulikoel TS 22 (HLP) is recommended in high performance hydraulic systems with high pressure pumps of all types, in sensitive control systems.

RAVENOL Hydraulikoel TS 22 (HLP) is used for hydraulic systems in agriculture, to supply small gearboxes and for use in circulating systems.

Characteristics

a high performance level
a very good viscosity temperature behaviour
a high aging resistant
an excellent corrosion protection
neutrality of sealing materials

Parameter	Unit	Value	Audit
SAE		22		22
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
ASTM		D6158		D6158
Recomendations		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Cincinnati Milacron З-68, Danieli Hydraulics, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Cincinnati Milacron З-68, Danieli Hydraulics, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest
specification		DIN 51524-2, ISO 6743-4 HM		DIN 51524-2, ISO 6743-4 HM
Suitable for		Metso		Metso
Density at 20 °C	kg/m³	843	EN ISO 12185	843 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	4.5	DIN 51562-1	4.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	22.6	DIN 51562-1	22.6 mm²/s DIN 51562-1
Viscosity Index VI		114	DIN ISO 2909	114 DIN ISO 2909
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Flashpoint	°C	214	DIN EN ISO 2592	214 °C DIN EN ISO 2592
Aging stability	TOST	2000	DIN 51587	2000 TOST DIN 51587
Approvals		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Cincinnati Milacron З-68, Danieli Hydraulics, DIN 51524-2, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, ISO 6743-4 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Cincinnati Milacron З-68, Danieli Hydraulics, DIN 51524-2, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, ISO 6743-4 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest

Hydraulikol TSX 32

Application NoteRAVENOL Hydraulikoel TSX 32 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Compliance with the requirements:
Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463

show details

SAE: 32W

Equivalents OEM:
Alpine 0100836, Alpine 0100837, Alpine 0100837, Scania 2252140, Volvo 11706208, Volvo 11706209, Volvo VOE11706208, Volvo VOE11706209

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1323204-005

Volume:
20 L

vendor code:
1323204-020

Code:
4014835760127

Volume:
20 L, ecobox

vendor code:
1323204-B20

Volume:
60 L

vendor code:
1323204-060

Code:
4014835760165

Volume:
208 L

vendor code:
1323204-208

Code:
4014835760189

Volume:
1000 L

vendor code:
1323204-700

Volume:
1 L

vendor code:
1323204-001

Application Note

RAVENOL Hydraulikoel TSX 32 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Characteristics

A high and stable viscosity index
An excellent corrosion protection
An excellent protection against wear
A very good air and water separation behaviour to prevent foam formation
Neutral behaviour towards sealing of plastics
A very low pour point

Parameter	Unit	Value	Audit
SAE		32W		32W
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463		Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463
specification		AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, SAE MS 1004, U.S. Steel 127, U.S. Steel 136		AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, SAE MS 1004, U.S. Steel 127, U.S. Steel 136
Density at 20 °C	kg/m³	845	EN ISO 12185	845 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	6.3	DIN 51562-1	6.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	32	DIN 51562-1	32 mm²/s DIN 51562-1
Viscosity Index VI		152	DIN ISO 2909	152 DIN ISO 2909
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Flashpoint	°C	227	DIN EN ISO 2592	227 °C DIN EN ISO 2592
tbn	mgKOH/g	0.4	ASTM D2896	0.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.06	DIN 51575	0.06 %wt. DIN 51575
Approvals		AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GB 111118.1 L-HV, GM LH-03-1-04, GM LS-2, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004, Sauer-Danfoss 520L0463, U.S. Steel 127, U.S. Steel 136		AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GB 111118.1 L-HV, GM LH-03-1-04, GM LS-2, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004, Sauer-Danfoss 520L0463, U.S. Steel 127, U.S. Steel 136

Hydraulikol TSX 46

Application NoteRAVENOL Hydraulikoel TSX 46 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump

show details

SAE: 46

Equivalents OEM:
Alpine 0100831, Alpine 0100832, Alpine 0100832, Scania 2252141, Volvo 11706210, Volvo 11706211, Volvo 11713238, Volvo 15030482, Volvo 15030580, Volvo VOE11706210, Volvo VOE11706211, Volvo VOE11713238, Volvo VOE15030482, Volvo VOE15030580

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1323205-005

Volume:
20 L

vendor code:
1323205-020

Code:
4014835760226

Volume:
20 L, ecobox

vendor code:
1323205-B20

Volume:
60 L

vendor code:
1323205-060

Volume:
208 L

vendor code:
1323205-208

Code:
4014835760288

Volume:
208 L, print

vendor code:
1323205-D28

Volume:
1000 L

vendor code:
1323205-700

Volume:
10 L

vendor code:
1323205-010

Application Note

RAVENOL Hydraulikoel TSX 46 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Characteristics

A high and stable viscosity index
An excellent corrosion protection
An excellent protection against wear
A very good air and water separation behaviour to prevent foam formation
Neutral behaviour towards sealing of plastics
A very low pour point

Parameter	Unit	Value	Audit
SAE		46		46
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
specification		DIN 51524-3, ISO 6743-4 HV		DIN 51524-3, ISO 6743-4 HV
Density at 20 °C	kg/m³	855	EN ISO 12185	855 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	7.9	DIN 51562-1	7.9 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	45	DIN 51562-1	45 mm²/s DIN 51562-1
Viscosity Index VI		148	DIN ISO 2909	148 DIN ISO 2909
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
Approvals		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump

Hydraulikol TS 10 (HLP)

RAVENOL Hydraulikoel TS 10 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.

Compliance with the requirements:
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron -68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Danieli Hydraulics, FZG Test A 8,3/90, ISO 11158 HM, MIL-H-24459, Parker Denison HF-0, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, VDMA 24318, Vickers Pumpentest

show details

SAE: 10

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1323101-001

Volume:
5 L

vendor code:
1323101-005

Volume:
20 L

vendor code:
1323101-020

Code:
4014835741126

Volume:
20 L, ecobox

vendor code:
1323101-B20

Volume:
60 L

vendor code:
1323101-060

Volume:
208 L

vendor code:
1323101-208

Volume:
1000 L

vendor code:
1323101-700

RAVENOL Hydraulikoel TS 10 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.

RAVENOL Hydraulikoel TS 10 (HLP) is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection.

Application Note

RAVENOL Hydraulikoel TS 10 (HLP) is for universally use in all hydraulic systems.

RAVENOL Hydraulikoel TS 10 (HLP) is recommended in high performance hydraulic systems with high pressure pumps of all types, in sensitive control systems.

RAVENOL Hydraulikoel TS 10 (HLP) is used for hydraulic systems in agriculture, to supply small gearboxes and for use in circulating systems.

Characteristics

a high performance level
a very good viscosity temperature behaviour
a high aging resistant
an excellent corrosion protection
mainly neutrality of sealing materials

Parameter	Unit	Value	Audit
SAE		10		10
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
ASTM		D6158		D6158
Recomendations		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Cincinnati Milacron З-68, Danieli Hydraulics, FZG Test A 8,3/90, ISO 11158 HM, MIL-H-24459, Parker Denison HF-0, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, VDMA 24318, Vickers Pumpentest		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Cincinnati Milacron З-68, Danieli Hydraulics, FZG Test A 8,3/90, ISO 11158 HM, MIL-H-24459, Parker Denison HF-0, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, VDMA 24318, Vickers Pumpentest
specification		DIN 51524-2, ISO 6743-4 HM		DIN 51524-2, ISO 6743-4 HM
Suitable for		Metso		Metso
Density at 20 °C	kg/m³	833	EN ISO 12185	833 kg/m³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mm²/s	2.7	DIN 51562-1	2.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	9.9	DIN 51562-1	9.9 mm²/s DIN 51562-1
Viscosity Index VI		110	DIN ISO 2909	110 DIN ISO 2909
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	190	DIN EN ISO 2592	190 °C DIN EN ISO 2592
Approvals		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Cincinnati Milacron З-68, Danieli Hydraulics, DIN 51524-2, FZG Test A 8,3/90, ISO 11158 HM, ISO 6743-4 HM, MIL-H-24459, Parker Denison HF-0, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, VDMA 24318, Vickers Pumpentest		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Cincinnati Milacron З-68, Danieli Hydraulics, DIN 51524-2, FZG Test A 8,3/90, ISO 11158 HM, ISO 6743-4 HM, MIL-H-24459, Parker Denison HF-0, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, VDMA 24318, Vickers Pumpentest

Hydraulikoel TS 15 (HLP)

RAVENOL Hydraulikoel TS 15 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.

Compliance with the requirements:
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron -68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Danieli Hydraulics, FZG Test A 8,3/90, GB 111118.1 L-HL, ISO 11158 HM, MIL-H-24459, Parker Denison HF-0, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, Swedish Standard 155434, VDMA 24318

show details

SAE: 15

Equivalents OEM:
Volvo 21732287, Volvo 21732287, Volvo 22618337

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1323102-001

Volume:
5 L

vendor code:
1323102-005

Volume:
20 L

vendor code:
1323102-020

Volume:
20 L, ecobox

vendor code:
1323102-B20

Volume:
60 L

vendor code:
1323102-060

Volume:
208 L

vendor code:
1323102-208

Volume:
1000 L

vendor code:
1323102-700

RAVENOL Hydraulikoel TS 15 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.

RAVENOL Hydraulikoel TS 15 (HLP) is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection.

Application Note

RAVENOL Hydraulikoel TS 15 (HLP) is for universally use in all hydraulic systems.

RAVENOL Hydraulikoel TS 15 (HLP) is recommended in high performance hydraulic systems with high pressure pumps of all types, in sensitive control systems.

RAVENOL Hydraulikoel TS 15 (HLP) is used for hydraulic systems in agriculture, to supply small gearboxes and for use in circulating systems.

Characteristics

a high performance level
a very good viscosity temperature behaviour
a high aging resistant
an excellent corrosion protection
neutrality of sealing materials

Parameter	Unit	Value	Audit
SAE		15		15
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
ASTM		D6158		D6158
Recomendations		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Cincinnati Milacron З-68, Danieli Hydraulics, FZG Test A 8,3/90, GB 111118.1 L-HL, ISO 11158 HM, MIL-H-24459, Parker Denison HF-0, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, Swedish Standard 155434, VDMA 24318		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Cincinnati Milacron З-68, Danieli Hydraulics, FZG Test A 8,3/90, GB 111118.1 L-HL, ISO 11158 HM, MIL-H-24459, Parker Denison HF-0, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, Swedish Standard 155434, VDMA 24318
specification		DIN 51524-2, ISO 6743-4 HM		DIN 51524-2, ISO 6743-4 HM
Suitable for		Metso		Metso
Density at 20 °C	kg/m³	837	EN ISO 12185	837 kg/m³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mm²/s	3.5	DIN 51562-1	3.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	15	DIN 51562-1	15 mm²/s DIN 51562-1
Viscosity Index VI		113	DIN ISO 2909	113 DIN ISO 2909
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	186	DIN EN ISO 2592	186 °C DIN EN ISO 2592
Approvals		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Cincinnati Milacron З-68, Danieli Hydraulics, DIN 51524-2, FZG Test A 8,3/90, GB 111118.1 L-HL, ISO 11158 HM, ISO 6743-4 HM, MIL-H-24459, Parker Denison HF-0, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, Swedish Standard 155434, VDMA 24318		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Cincinnati Milacron P-69, Cincinnati Milacron P-70, Cincinnati Milacron З-68, Danieli Hydraulics, DIN 51524-2, FZG Test A 8,3/90, GB 111118.1 L-HL, ISO 11158 HM, ISO 6743-4 HM, MIL-H-24459, Parker Denison HF-0, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, Swedish Standard 155434, VDMA 24318

Hydraulikol TSX 68

Application NoteRAVENOL Hydraulikoel TSX 68 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Manufacturer Approved:
LOVAT LOV-204

Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump

show details

SAE: 68

Equivalents OEM:
Volvo 11708322, Volvo 11708323, Volvo VOE11708322, Volvo VOE11708323, Volvo VOE11708323

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1323206-020

Code:
4014835760325

Volume:
20 L, ecobox

vendor code:
1323206-B20

Volume:
60 L

vendor code:
1323206-060

Volume:
208 L

vendor code:
1323206-208

Volume:
1000 L

vendor code:
1323206-700

Application Note

RAVENOL Hydraulikoel TSX 68 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Characteristics

A high and stable viscosity index
An excellent corrosion protection
An excellent protection against wear
A very good air and water separation behaviour to prevent foam formation
Neutral behaviour towards sealing of plastics
A very low pour point

Parameter	Unit	Value	Audit
SAE		68		68
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Manufacturer Approved		LOVAT LOV-204		LOVAT LOV-204
Recomendations		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
specification		DIN 51524, DIN 51524-3, ISO 6743-4 HV		DIN 51524, DIN 51524-3, ISO 6743-4 HV
Density at 20 °C	kg/m³	862	EN ISO 12185	862 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.4	DIN 51562-1	11.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	68.5	DIN 51562-1	68.5 mm²/s DIN 51562-1
Viscosity Index VI		161	DIN ISO 2909	161 DIN ISO 2909
Pourpoint	°C	-35	DIN ISO 3016	-35 °C DIN ISO 3016
Flashpoint	°C	242	DIN EN ISO 2592	242 °C DIN EN ISO 2592
tbn	mgKOH/g	0.4	ASTM D2896	0.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.06	DIN 51575	0.06 %wt. DIN 51575
Approvals		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, LOVAT LOV-204, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, LOVAT LOV-204, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump

Hydraulikoel TSX 22 (HVLP)

Application NoteRAVENOL Hydraulikoel TSX 22 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump

show details

SAE: 22

Equivalents OEM:
GM 88865214, GM 88865214, Scania 2252146

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1323203-005

Volume:
20 L

vendor code:
1323203-020

Code:
4014835760028

Volume:
20 L, ecobox

vendor code:
1323203-B20

Volume:
60 L

vendor code:
1323203-060

Volume:
208 L

vendor code:
1323203-208

Code:
4014835760080

Volume:
1000 L

vendor code:
1323203-700

Application Note

RAVENOL Hydraulikoel TSX 22 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Characteristics

A high and stable viscosity index
An excellent corrosion protection
An excellent protection against wear
A very good air and water separation behaviour to prevent foam formation
Neutral behaviour towards sealing of plastics
A very low pour point

Parameter	Unit	Value	Audit
SAE		22		22
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
specification		DIN 51524-3, ISO 6743-4 HV		DIN 51524-3, ISO 6743-4 HV
Density at 20 °C	kg/m³	840	EN ISO 12185	840 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	5	DIN 51562-1	5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	22.5	DIN 51562-1	22.5 mm²/s DIN 51562-1
Viscosity Index VI		156	DIN ISO 2909	156 DIN ISO 2909
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	206	DIN EN ISO 2592	206 °C DIN EN ISO 2592
Approvals		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump

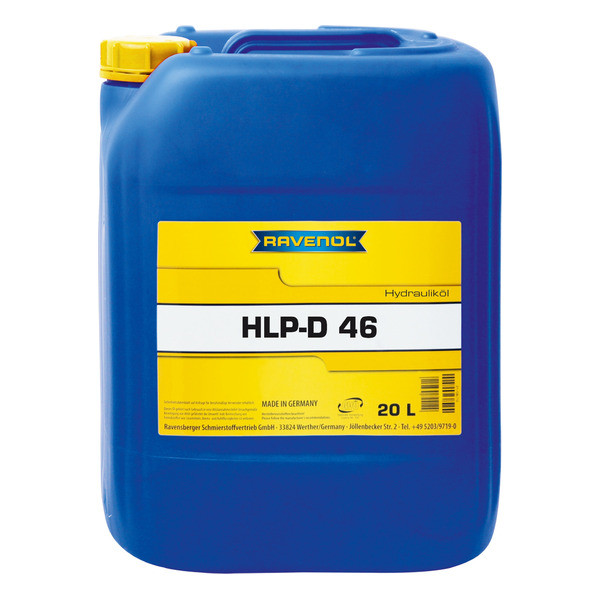

Hydraulikoel HLP-D 46

RAVENOL Hydraulikoel HLP-D 46 is designed with selected base oils with additives to prevent corrosion, wear and friction.

Compliance with the requirements:
Daimler DBL 6721, MAN N 698, Parker Denison HF-0

show details

SAE: 46

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1323305-020

Volume:
20 L, ecobox

vendor code:
1323305-B20

Volume:
60 L

vendor code:
1323305-060

Volume:
208 L

vendor code:
1323305-208

Code:
4014835760783

RAVENOL Hydraulikoel HLP-D 46 is designed with selected base oils with additives to prevent corrosion, wear and friction.

RAVENOL Hydraulikoel HLP-D 46 also contains detergent and dispersing agents, which always provide for a clean hydraulic system. These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.

Application Note

RAVENOL Hydraulikoel HLP-D 46 is for use in agriculture hydraulic systems, construction machinery, cement factories, foundries, and electro-plate clutches. It can also be used as functional test oil, inlet oil for aggregates and machinery, textile machinery and machine tools.

Characteristics

High aging resistance and high corrosion protection
Good air release
Excellent wear protection and proper conduct foam
Very good viscosity-temperature behaviour
neutral behaviour towards sealing materials
Extremely good detergent and dispersant characteristics
Excellent corrosion protection even at the ingress of wetness

Parameter	Unit	Value	Audit
SAE		46		46
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		Daimler DBL 6721, MAN N 698, Parker Denison HF-0		Daimler DBL 6721, MAN N 698, Parker Denison HF-0
specification		DIN 51524-2		DIN 51524-2
Density at 20 °C	kg/m³	863	EN ISO 12185	863 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	7.2	DIN 51562-1	7.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	47.3	DIN 51562-1	47.3 mm²/s DIN 51562-1
Viscosity Index VI		111	DIN ISO 2909	111 DIN ISO 2909
Pourpoint	°C	-30	DIN ISO 3016	-30 °C DIN ISO 3016
Flashpoint	°C	244	DIN EN ISO 2592	244 °C DIN EN ISO 2592
Approvals		Daimler DBL 6721, DIN 51524-2, MAN N 698, Parker Denison HF-0		Daimler DBL 6721, DIN 51524-2, MAN N 698, Parker Denison HF-0

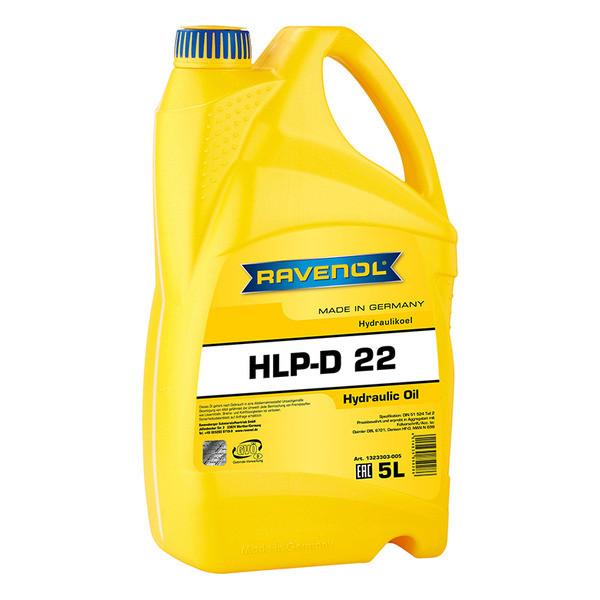

HLPD 22 Hydraulikol

RAVENOL Hydraulikoel HLP-D 22 is designed with selected base oils with additives to prevent corrosion, wear and friction.

Compliance with the requirements:
Daimler DBL 6721, MAN N 698, Parker Denison HF-0

show details

SAE: 22

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1323303-005

Volume:
20 L

vendor code:
1323303-020

Code:
4014835760523

Volume:
20 L, ecobox

vendor code:
1323303-B20

Volume:
208 L

vendor code:
1323303-208

Code:
4014835760585

Volume:
1000 L

vendor code:
1323303-700

RAVENOL Hydraulikoel HLP-D 22 is designed with selected base oils with additives to prevent corrosion, wear and friction.

RAVENOL Hydraulikoel HLP-D 22 also contains detergent and dispersing agents, which always provide for a clean hydraulic system. These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.

Application Note

RAVENOL Hydraulikoel HLP-D 22 is for use in agriculture hydraulic systems, construction machinery, cement factories, foundries, and electro-plate clutches. It can also be used as functional test oil, inlet oil for aggregates and machinery, textile machinery and machine tools.

Characteristics

High aging resistance and high corrosion protection
Good air release
Excellent wear protection and proper conduct foam
Very good viscosity-temperature behaviour
neutral behaviour towards sealing materials
Extremely good detergent and dispersant characteristics
Excellent corrosion protection even at the ingress of wetness

Parameter	Unit	Value	Audit
SAE		22		22
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		Daimler DBL 6721, MAN N 698, Parker Denison HF-0		Daimler DBL 6721, MAN N 698, Parker Denison HF-0
specification		DIN 51524-2		DIN 51524-2
Density at 20 °C	kg/m³	849	EN ISO 12185	849 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	4.6	DIN 51562-1	4.6 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	23	DIN 51562-1	23 mm²/s DIN 51562-1
Viscosity Index VI		120	DIN ISO 2909	120 DIN ISO 2909
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	200	DIN EN ISO 2592	200 °C DIN EN ISO 2592
Approvals		Daimler DBL 6721, DIN 51524-2, MAN N 698, Parker Denison HF-0		Daimler DBL 6721, DIN 51524-2, MAN N 698, Parker Denison HF-0

Hydraulikol TSX 100

Application NoteRAVENOL Hydraulikoel TSX 100 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136

show details

SAE: 100

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1323207-020

Volume:
20 L, ecobox

vendor code:
1323207-B20

Volume:
60 L

vendor code:
1323207-060

Volume:
208 L

vendor code:
1323207-208

Code:
4014835760486

Application Note

RAVENOL Hydraulikoel TSX 100 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Characteristics

A high and stable viscosity index
An excellent corrosion protection
An excellent protection against wear
A very good air and water separation behaviour to prevent foam formation
Neutral behaviour towards sealing of plastics
A very low pour point

Parameter	Unit	Value	Audit
SAE		100		100
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		AFNOR 48-603 HV, Cetop RP 91H HV, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136		AFNOR 48-603 HV, Cetop RP 91H HV, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136
specification		DIN 51524, DIN 51524-3, ISO 6743-4 HV		DIN 51524, DIN 51524-3, ISO 6743-4 HV
Density at 20 °C	kg/m³	871	EN ISO 12185	871 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	14.4	DIN 51562-1	14.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	99.9	DIN 51562-1	99.9 mm²/s DIN 51562-1
Viscosity Index VI		148	DIN ISO 2909	148 DIN ISO 2909
Pourpoint	°C	-30	DIN ISO 3016	-30 °C DIN ISO 3016
Flashpoint	°C	260	DIN EN ISO 2592	260 °C DIN EN ISO 2592
Approvals		AFNOR 48-603 HV, Cetop RP 91H HV, DIN 51524, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136		AFNOR 48-603 HV, Cetop RP 91H HV, DIN 51524, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136

Hydrauliköl TS 100

RAVENOL Hydraulikoel TS 100 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.RAVENOL Hydraulikoel TS 100 (HLP) is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection.

Compliance with the requirements:
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, FZG Test A 8,3/90, GB 111118.1 L-HM, ISO 11158 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest

show details

SAE: 100

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1323107-001

Volume:
5 L

vendor code:
1323107-005

Volume:
10 L

vendor code:
1323107-010

Volume:
20 L

vendor code:
1323107-020

Volume:
20 L, ecobox

vendor code:
1323107-B20

Volume:
60 L

vendor code:
1323107-060

Volume:
208 L

vendor code:
1323107-208

Volume:
1000 L

vendor code:
1323107-700

RAVENOL Hydraulikoel TS 100 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.RAVENOL Hydraulikoel TS 100 (HLP) is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection.

Application Note

RAVENOL Hydraulikoel TS 100 (HLP)

is for universally use in all hydraulic systems.

RAVENOL Hydraulikoel TS 100 (HLP)

is recommended in high performance hydraulic systems with high pressure pumps of all types, in sensitive control systems.

RAVENOL Hydraulikoel TS 100 (HLP) is used for hydraulic systems in agriculture, to supply small gearboxes and for use in circulating systems.

Characteristics

a high performance level
a very good viscosity temperature behaviour
a high aging resistant
an excellent corrosion protection
neutrality of sealing materials

Parameter	Unit	Value	Audit
Viscosity index		100		100
SAE		100		100
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
ASTM		D6158		D6158
Recomendations		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, FZG Test A 8,3/90, GB 111118.1 L-HM, ISO 11158 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, FZG Test A 8,3/90, GB 111118.1 L-HM, ISO 11158 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest
specification		DIN 51524-2, ISO 6743-4 HM		DIN 51524-2, ISO 6743-4 HM
Density at 20 °C	kg/m³	875	EN ISO 12185	875 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	11.2	DIN 51562-1	11.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	100.2	DIN 51562-1	100.2 mm²/s DIN 51562-1
Viscosity Index VI		98	DIN ISO 2909	98 DIN ISO 2909
Pourpoint	°C	-21	DIN ISO 3016	-21 °C DIN ISO 3016
Flashpoint	°C	264	DIN EN ISO 2592	264 °C DIN EN ISO 2592
Approvals		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, DIN 51524-2, FZG Test A 8,3/90, GB 111118.1 L-HM, ISO 11158 HM, ISO 6743-4 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, DIN 51524-2, FZG Test A 8,3/90, GB 111118.1 L-HM, ISO 11158 HM, ISO 6743-4 HM, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, Swedish Standard 155434, VDMA 24318, Vickers Pumpentest

Hydraulikoel HLP-D 68

RAVENOL Hydraulikoel HLP-D 68 is designed with selected base oils with additives to prevent corrosion, wear and friction.

Compliance with the requirements:
Daimler DBL 6721, MAN N 698, Parker Denison HF-0

show details

SAE: 68

Available packaging
Full description
Product parameters

Volume:
60 L

vendor code:
1323306-060

RAVENOL Hydraulikoel HLP-D 68 is designed with selected base oils with additives to prevent corrosion, wear and friction.

RAVENOL Hydraulikoel HLP-D 68 also contains detergent and dispersing agents, which always provide for a clean hydraulic system. These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.

Application Note

RAVENOL Hydraulikoel HLP-D 68 is for use in agriculture hydraulic systems, construction machinery, cement factories, foundries, and electro-plate clutches. It can also be used as functional test oil, inlet oil for aggregates and machinery, textile machinery and machine tools.

Characteristics

High aging resistance and high corrosion protection
Good air release
Excellent wear protection and proper conduct foam
Very good viscosity-temperature behaviour
neutral behaviour towards sealing materials
Extremely good detergent and dispersant characteristics
Excellent corrosion protection even at the ingress of wetness

Parameter	Unit	Value	Audit
SAE		68		68
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		Daimler DBL 6721, MAN N 698, Parker Denison HF-0		Daimler DBL 6721, MAN N 698, Parker Denison HF-0
specification		DIN 51524-2		DIN 51524-2
Density at 20 °C	kg/m³	869	EN ISO 12185	869 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	9.4	DIN 51562-1	9.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	69.2	DIN 51562-1	69.2 mm²/s DIN 51562-1
Viscosity Index VI		113	DIN ISO 2909	113 DIN ISO 2909
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
Approvals		Daimler DBL 6721, DIN 51524-2, MAN N 698, Parker Denison HF-0		Daimler DBL 6721, DIN 51524-2, MAN N 698, Parker Denison HF-0

Hydraulikoel HVLP-D 46

RAVENOL Hydraulikoel HVLP-D 46 is designed with selected base oils with additives to prevent corrosion, wear and friction.

Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136

show details

SAE: 46

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1323365-020

Volume:
60 L

vendor code:
1323365-060

Volume:
208 L

vendor code:
1323365-208

Volume:
1000 L

vendor code:
1323365-700

RAVENOL Hydraulikoel HVLP-D 46 is designed with selected base oils with additives to prevent corrosion, wear and friction.

RAVENOL Hydraulikoel HVLP-D 46 is characterized by a good viscosity-temperature behavior, high aging resistance and reliable corrosion protection.

RAVENOL Hydraulikoel HVLP-D 46 also contains detergent and dispersing agents, which always provide for a clean hydraulic system.

These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.

Application Note

RAVENOL Hydraulikoel HVLP-D 46 is used in hydraulic systems which are exposed to very fluctuating operating temperatures, abrasion, dirt and water.

RAVENOL Hydraulikoel HVLP-D 46 is designed for heavily loaded hydraulic systems of agricultural, forestry and construction machinery and stationary hydraulic systems, e.g. Industrial equipment.

Characteristics

Reliable corrosion protection even when absorbing moisture
Good air and water separation capacity, prevention of foam formation
Excellent wear protection
Good oxidation stability
Excellent detergent and dispersing properties
Neutral behavior against sealing materials
Very low flow point

Parameter	Unit	Value	Audit
SAE		46		46
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		AFNOR 48-603 HV, Cetop RP 91H HV, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136		AFNOR 48-603 HV, Cetop RP 91H HV, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136
specification		DIN 51524-3		DIN 51524-3
Density at 20 °C	kg/m³	858	EN ISO 12185	858 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	8.5	DIN 51562-1	8.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	46.1	DIN 51562-1	46.1 mm²/s DIN 51562-1
Viscosity Index VI		163	DIN ISO 2909	163 DIN ISO 2909
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Flashpoint	°C	230	DIN EN ISO 2592	230 °C DIN EN ISO 2592
Approvals		AFNOR 48-603 HV, Cetop RP 91H HV, DIN 51524-3, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136		AFNOR 48-603 HV, Cetop RP 91H HV, DIN 51524-3, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136

Hydraulikoil TS 68 (HLP)

RAVENOL Hydraulikoel TS 68 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.

Compliance with the requirements:
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-55, Fives Cincinnati P-70, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, Hoesch HWN 2333, ISO 11158 HM, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, SIS SS 155434, Swedish Standard 155434, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest, ZF TE-ML 07H

show details

SAE: 68

Equivalents OEM:
Alpine 0100863, Alpine 0100864, Alpine 0100865, GM 88861681, GM 88861681

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1323106-001

Volume:
5 L

vendor code:
1323106-005

Volume:
20 L

vendor code:
1323106-020

Code:
4014835759527

Volume:
20 L, ecobox

vendor code:
1323106-B20

Volume:
60 L

vendor code:
1323106-060

Code:
4014835759565

Volume:
208 L

vendor code:
1323106-208

Code:
4014835759589

Volume:
1000 L

vendor code:
1323106-700

RAVENOL Hydraulikoel TS 68 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.

RAVENOL Hydraulikoel TS 68 (HLP) is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection.

Application Note

RAVENOL Hydraulikoel TS 68 (HLP) is for universally use in all hydraulic systems.

RAVENOL Hydraulikoel TS 68 (HLP) is recommended in high performance hydraulic systems with high pressure pumps of all types, in sensitive control systems.

RAVENOL Hydraulikoel TS 68 (HLP) is used for hydraulic systems in agriculture, to supply small gearboxes and for use in circulating systems.

Characteristics

a high performance level
a very good viscosity temperature behaviour
a high aging resistant
an excellent corrosion protection
a solid corrosion protection
neutrality of sealing materials

Parameter	Unit	Value	Audit
SAE		68		68
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
ASTM		D6158		D6158
Recomendations		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-55, Fives Cincinnati P-70, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, Hoesch HWN 2333, ISO 11158 HM, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, SIS SS 155434, Swedish Standard 155434, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest, ZF TE-ML 07H		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-55, Fives Cincinnati P-70, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, Hoesch HWN 2333, ISO 11158 HM, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, SIS SS 155434, Swedish Standard 155434, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest, ZF TE-ML 07H
specification		DIN 51524-2, ISO 6743-4 HM		DIN 51524-2, ISO 6743-4 HM
Suitable for		Atos, Metso		Atos, Metso
Density at 20 °C	kg/m³	866	EN ISO 12185	866 kg/m³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mm²/s	9	DIN 51562-1	9 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	68	DIN 51562-1	68 mm²/s DIN 51562-1
Viscosity Index VI		106	DIN ISO 2909	106 DIN ISO 2909
Pourpoint	°C	-27	DIN ISO 3016	-27 °C DIN ISO 3016
Flashpoint	°C	256	DIN EN ISO 2592	256 °C DIN EN ISO 2592
Approvals		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, DIN 51524-2, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-55, Fives Cincinnati P-70, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, Hoesch HWN 2333, ISO 11158 HM, ISO 6743-4 HM, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, SIS SS 155434, Swedish Standard 155434, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest, ZF TE-ML 07H		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, DIN 51524-2, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-55, Fives Cincinnati P-70, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, Hoesch HWN 2333, ISO 11158 HM, ISO 6743-4 HM, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, SIS SS 155434, Swedish Standard 155434, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest, ZF TE-ML 07H

Hydraulikoil TS AF 32

RAVENOL Hydraulikoel TS AF 32 exceeds the requirements of DIN 51 524 part 2 for HLP hydraulic oils.

Compliance with the requirements:
Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GM LH-03-1-04, MAN N 698, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SEB 181.222, SEB 181.226, Thyssen TH-N256-142, Timken-Test DIN E 51434, Vickers Pumpentest

show details

SAE: 32W

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1323124-020

Volume:
20 L, ecobox

vendor code:
1323124-B20

Volume:
60 L

vendor code:
1323124-060

Volume:
208 L

vendor code:
1323124-208

Code:
4014835759787

RAVENOL Hydraulikoel TS AF 32 exceeds the requirements of DIN 51 524 part 2 for HLP hydraulic oils.

Application Note

RAVENOL Hydraulikoel TS AF 32 is for use as a hydraulic fluid in the metal industry, if zinc and ash-free hydraulic oil and the specification DIN 51 524, Part 2 is required.

Characteristics

High performance level
Good oxidation stability
High resistance to ageing
Outstanding wear protection
High level of corrosion protection
Neutral to sealants
No foaming

Parameter	Unit	Value	Audit
SAE		32W		32W
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GM LH-03-1-04, MAN N 698, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SEB 181.222, SEB 181.226, Thyssen TH-N256-142, Timken-Test DIN E 51434, Vickers Pumpentest		Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GM LH-03-1-04, MAN N 698, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SEB 181.222, SEB 181.226, Thyssen TH-N256-142, Timken-Test DIN E 51434, Vickers Pumpentest
specification		AFNOR NF E 48-603 HM, DIN 51524-2, GB 111118.1 L-HM, ISO 11158, ISO 6743-4 HM, MS1004 HM, SAE MS 1004 HM, U.S. Steel 127, U.S. Steel 136		AFNOR NF E 48-603 HM, DIN 51524-2, GB 111118.1 L-HM, ISO 11158, ISO 6743-4 HM, MS1004 HM, SAE MS 1004 HM, U.S. Steel 127, U.S. Steel 136
Density at 20 °C	kg/m³	855	EN ISO 12185	855 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	5.8	DIN 51562-1	5.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	32.2	DIN 51562-1	32.2 mm²/s DIN 51562-1
Viscosity Index VI		124	DIN ISO 2909	124 DIN ISO 2909
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	214	DIN EN ISO 2592	214 °C DIN EN ISO 2592
Approvals		AFNOR NF E 48-603 HM, DIN 51524-2, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-03-1-04, ISO 11158, ISO 6743-4 HM, MAN N 698, MS1004 HM, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, SEB 181.222, SEB 181.226, Thyssen TH-N256-142, Timken-Test DIN E 51434, U.S. Steel 127, U.S. Steel 136, Vickers Pumpentest		AFNOR NF E 48-603 HM, DIN 51524-2, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-03-1-04, ISO 11158, ISO 6743-4 HM, MAN N 698, MS1004 HM, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, SEB 181.222, SEB 181.226, Thyssen TH-N256-142, Timken-Test DIN E 51434, U.S. Steel 127, U.S. Steel 136, Vickers Pumpentest

Search results for query «Parker Denison HF-0»

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics
