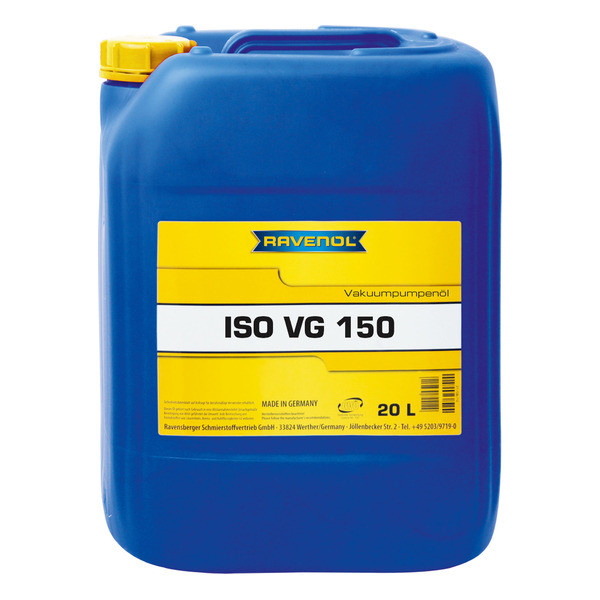

Application NoteRAVENOL Vakuumpumpenoel ISO VG 150 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
Compliance with the requirements:
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
SAE: 150
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1330708-020
Volume:
20 L, ecobox
vendor code:
1330708-B20
Volume:
60 L
vendor code:
1330708-060
Volume:
208 L
vendor code:
1330708-208
Application Note
RAVENOL Vakuumpumpenoel ISO VG 150 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
RAVENOL Vakuumpumpenoel ISO VG 150 oil pumps can be used very well for the lubrication of crankcases. This vacuum pump oil should not be used in systems with silver or silver alloys.
Characteristics
- High performance level
- Very good viscosity-temperature behavior
- High resistance to aging
- Excellent wear protection
- Reliable corrosion protection
- Very good oxidation stability
- Very good demulsification
- Excellent air release, which largely eliminates foam formation
- Neutral from over plastic seals
- Low pour point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 150 |
150
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
||
| specification | DIN 51506 VC, DIN 51524-2 |
DIN 51506 VC, DIN 51524-2
|
||
| Density at 20 °C | kg/m³ | 886 | EN ISO 12185 |
886
kg/m³
EN ISO 12185
|
| Color | Light brown | visual |
Light brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.6 | DIN 51562-1 |
14.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 150 | DIN 51562-1 |
150
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 95 | DIN ISO 2909 |
95
DIN ISO 2909
|
|
| Pourpoint | °C | -21 | DIN ISO 3016 |
-21
°C
DIN ISO 3016
|
| Flashpoint | °C | 240 | DIN EN ISO 2592 |
240
°C
DIN EN ISO 2592
|
| Acid Number TAN | mgKOH/g | 0.4 | ASTM D664 |
0.4
mgKOH/g
ASTM D664
|
| Sulphated Ash | %wt. | 0.06 | DIN 51575 |
0.06
%wt.
DIN 51575
|
| Approvals | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump
|
Application NoteRAVENOL Hydraulikoel TSX 22 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
SAE: 22
Equivalents OEM:
GM 88865214, GM 88865214, Scania 2252146
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1323203-005
Volume:
20 L, ecobox
vendor code:
1323203-B20
Volume:
60 L
vendor code:
1323203-060
Volume:
1000 L
vendor code:
1323203-700
Application Note
RAVENOL Hydraulikoel TSX 22 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Characteristics
- A high and stable viscosity index
- An excellent corrosion protection
- An excellent protection against wear
- A very good air and water separation behaviour to prevent foam formation
- Neutral behaviour towards sealing of plastics
- A very low pour point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 22 |
22
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump |
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
|
||
| specification | DIN 51524-3, ISO 6743-4 HV |
DIN 51524-3, ISO 6743-4 HV
|
||
| Density at 20 °C | kg/m³ | 840 | EN ISO 12185 |
840
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 5 | DIN 51562-1 |
5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 22.5 | DIN 51562-1 |
22.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 156 | DIN ISO 2909 |
156
DIN ISO 2909
|
|
| Pourpoint | °C | -51 | DIN ISO 3016 |
-51
°C
DIN ISO 3016
|
| Flashpoint | °C | 206 | DIN EN ISO 2592 |
206
°C
DIN EN ISO 2592
|
| Approvals | AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump |
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
|
Application NoteRAVENOL Hydraulikoel TSX 68 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Manufacturer Approved:
LOVAT LOV-204
Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
SAE: 68
Equivalents OEM:
Volvo 11708322, Volvo 11708323, Volvo VOE11708322, Volvo VOE11708323, Volvo VOE11708323
- Available packaging
- Product parameters
Volume:
20 L, ecobox
vendor code:
1323206-B20
Volume:
60 L
vendor code:
1323206-060
Volume:
208 L
vendor code:
1323206-208
Volume:
1000 L
vendor code:
1323206-700
Application Note
RAVENOL Hydraulikoel TSX 68 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Characteristics
- A high and stable viscosity index
- An excellent corrosion protection
- An excellent protection against wear
- A very good air and water separation behaviour to prevent foam formation
- Neutral behaviour towards sealing of plastics
- A very low pour point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 68 |
68
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Manufacturer Approved | LOVAT LOV-204 |
LOVAT LOV-204
|
||
| Recomendations | AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump |
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
|
||
| specification | DIN 51524, DIN 51524-3, ISO 6743-4 HV |
DIN 51524, DIN 51524-3, ISO 6743-4 HV
|
||
| Density at 20 °C | kg/m³ | 862 | EN ISO 12185 |
862
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.4 | DIN 51562-1 |
11.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 68.5 | DIN 51562-1 |
68.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 161 | DIN ISO 2909 |
161
DIN ISO 2909
|
|
| Pourpoint | °C | -35 | DIN ISO 3016 |
-35
°C
DIN ISO 3016
|
| Flashpoint | °C | 242 | DIN EN ISO 2592 |
242
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 0.4 | ASTM D2896 |
0.4
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.06 | DIN 51575 |
0.06
%wt.
DIN 51575
|
| Approvals | AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, LOVAT LOV-204, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump |
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, LOVAT LOV-204, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
|
Application NoteRAVENOL Hydraulikoel TSX 46 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1323205-005
Volume:
20 L, ecobox
vendor code:
1323205-B20
Volume:
60 L
vendor code:
1323205-060
Volume:
208 L, print
vendor code:
1323205-D28
Volume:
1000 L
vendor code:
1323205-700
Volume:
10 L
vendor code:
1323205-010
Application Note
RAVENOL Hydraulikoel TSX 46 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Characteristics
- A high and stable viscosity index
- An excellent corrosion protection
- An excellent protection against wear
- A very good air and water separation behaviour to prevent foam formation
- Neutral behaviour towards sealing of plastics
- A very low pour point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 46 |
46
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump |
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
|
||
| specification | DIN 51524-3, ISO 6743-4 HV |
DIN 51524-3, ISO 6743-4 HV
|
||
| Density at 20 °C | kg/m³ | 855 | EN ISO 12185 |
855
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.9 | DIN 51562-1 |
7.9
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 45 | DIN 51562-1 |
45
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 148 | DIN ISO 2909 |
148
DIN ISO 2909
|
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Flashpoint | °C | 232 | DIN EN ISO 2592 |
232
°C
DIN EN ISO 2592
|
| Approvals | AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump |
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
|
Application NoteRAVENOL Vakuumpumpenoel ISO VG 100 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
Compliance with the requirements:
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
SAE: 100
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1330707-005
Volume:
20 L, ecobox
vendor code:
1330707-B20
Volume:
60 L
vendor code:
1330707-060
Application Note
RAVENOL Vakuumpumpenoel ISO VG 100 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
RAVENOL Vakuumpumpenoel ISO VG 100 oil pumps can be used very well for the lubrication of crankcases. This vacuum pump oil should not be used in systems with silver or silver alloys.
Characteristics
- High performance leve
- Very good viscosity-temperature behavior
- High resistance to aging
- Excellent wear protection
- Reliable corrosion protection
- Very good oxidation stability
- Very good demulsification
- Excellent air release, which largely eliminates foam formation
- Neutral from over plastic seals
- Low pour point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 100 |
100
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
||
| specification | DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC |
DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC
|
||
| Density at 20 °C | kg/m³ | 875 | EN ISO 12185 |
875
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.2 | DIN 51562-1 |
11.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 100.2 | DIN 51562-1 |
100.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 98 | DIN ISO 2909 |
98
DIN ISO 2909
|
|
| Pourpoint | °C | -21 | DIN ISO 3016 |
-21
°C
DIN ISO 3016
|
| Flashpoint | °C | 264 | DIN EN ISO 2592 |
264
°C
DIN EN ISO 2592
|
| Approvals | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, ISO 6743-3 DVA, ISO 6743-3 DVC, Vickers Vane Pump
|

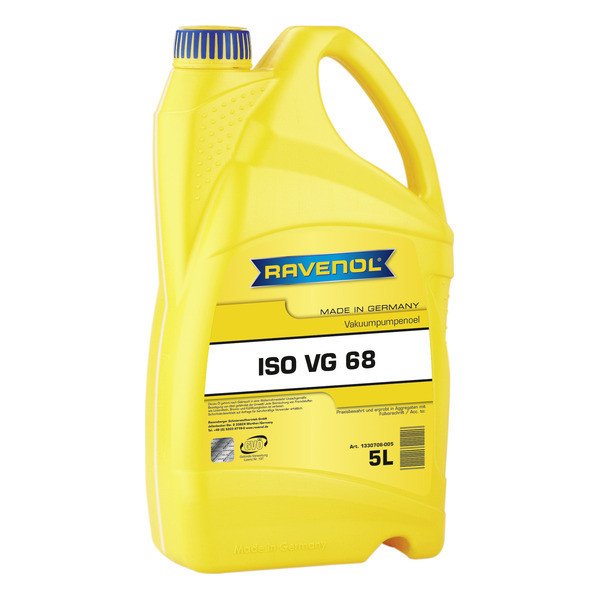

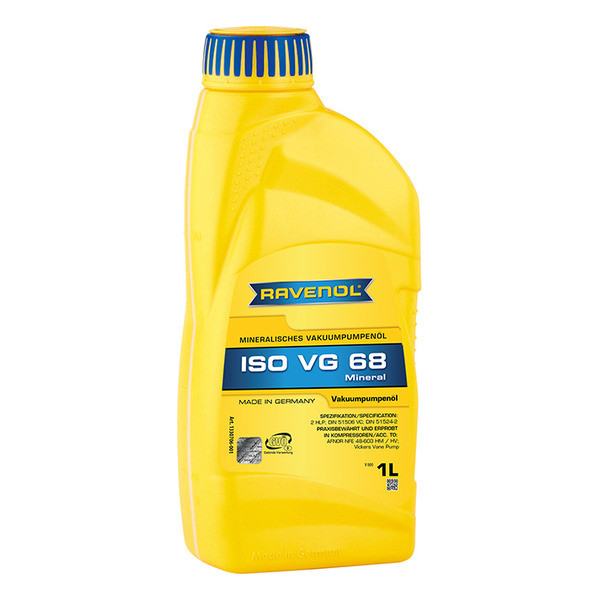

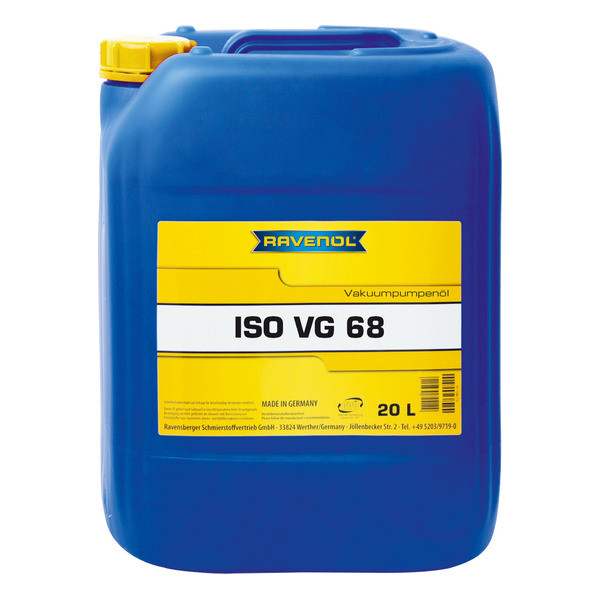

Application NoteRAVENOL Vakuumpumpenoel ISO VG 68 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
Compliance with the requirements:
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
SAE: 68
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1330706-001
Volume:
5 L
vendor code:
1330706-005
Volume:
20 L, ecobox
vendor code:
1330706-B20
Volume:
208 L
vendor code:
1330706-208
Application Note
RAVENOL Vakuumpumpenoel ISO VG 68 is suitable for the lubrication of vacuum pumps (rotary vane pumps, diffusion pumps, turbo pumps), where mineral oils are required, as well as for mist lubrication and crankcase.
RAVENOL Vakuumpumpenoel ISO VG 68 oil pumps can be used very well for the lubrication of crankcases. This vacuum pump oil should not be used in systems with silver or silver alloys.
Characteristics
- High performance level
- Very good viscosity-temperature behavior
- High resistance to aging
- Excellent wear protection
- Reliable corrosion protection
- Very good oxidation stability
- Very good demulsification
- Excellent air release, which largely eliminates foam formation
- Neutral from over plastic seals
- Low pour point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 68 |
68
|
||
| Type | Mineral |
Mineral
|
||
| Recomendations | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, Vickers Vane Pump
|
||
| specification | DIN 51506 VC, DIN 51524-2 |
DIN 51506 VC, DIN 51524-2
|
||
| Density at 20 °C | kg/m³ | 866 | EN ISO 12185 |
866
kg/m³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 9 | DIN 51562-1 |
9
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 68 | DIN 51562-1 |
68
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 106 | DIN ISO 2909 |
106
DIN ISO 2909
|
|
| Pourpoint | °C | -27 | DIN ISO 3016 |
-27
°C
DIN ISO 3016
|
| Flashpoint | °C | 256 | DIN EN ISO 2592 |
256
°C
DIN EN ISO 2592
|
| Approvals | AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump |
AFNOR NFE 48-603 HM, AFNOR NFE 48-603 HV, DIN 51506 VC, DIN 51524-2, Vickers Vane Pump
|
