Oil for Hyundai - Azera, HG - Azera 2.4 GDI

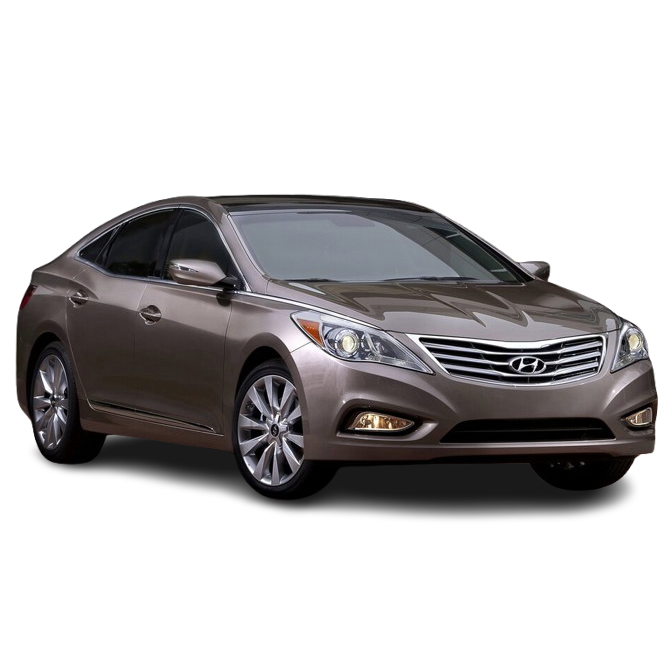

Hyundai Azera, HG Azera 2.4 GDI, year of issue from 2011 date to 2016 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Fuel: Gasoline
car drive: Front-wheel drive
Engine: Single row
Number of cylinders: 4
Valves per cylinder: 4
Working volume: 2359 cc
Power: 200 hp / 150 kW

Add to Garage

Nodes and assemblies

Engine Theta II
Transmission, automatic in a unit with final drive 6/1
Power steering
Hydraulic brake system
Cooling system

Engine Theta II

Liquid volume (basic): 4.2 L

VollSynth Turbo VST 5W-40

For engine

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
BMW Longlife-01, MB-Approval 229.5, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296

show details

SAE: 5W-40

API: SN Plus, SP

ACEA: A3, B4

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111136-001

Code:
4014835790117

Volume:
4 L

vendor code:
1111136-004

Code:
4014835790193

Volume:
5 L

vendor code:
1111136-005

Code:
4014835790155

Volume:
10 L

vendor code:
1111136-010

Code:
4014835790148

Volume:
20 L, ecobox

vendor code:
1111136-B20

Code:
4014835790223

Volume:
60 L

vendor code:
1111136-060

Volume:
60 L, print

vendor code:
1111136-D60

Code:
4014835790131

Volume:
208 L

vendor code:
1111136-208

Volume:
208 L, print

vendor code:
1111136-D28

Code:
4014835798502

Volume:
1000 L

vendor code:
1111136-700

Volume:
20 L

vendor code:
1111136-020

Code:
4014835798526

RAVENOL VollSynth Turbo VST SAE 5W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL VollSynth Turbo VST SAE 5W-40 guarantees operational safety concerning all driving conditions as for example regarding extreme stop and go traffic as well as high speed drives on motorways.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL VollSynth Turbo VST SAE 5W-40 is suitable for the energy saving operation all the year of all modern cars with petrol and diesel engines in passenger cars, vans, small transporters and similar vehicles and was specially developed for turbo chargers as well as the catalytic operation.

Characteristics

High abrasion resistance.
Fuel saving because of easy running characteristics.
Excellent detergent and dispersant characteristics.
Prevention of black sludge creation.
Long endurance because of high oxidation stability.
Excellent cold start performance.
Very good viscosity temperature behaviour.
Low evaporation.
Suitable for catalysts.

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-12991 (MS-10896), Fiat 9.55535-Z2, MB 226.5, MB 229.3, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-12991 (MS-10896), Fiat 9.55535-Z2, MB 226.5, MB 229.3, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296
Brand		RAVENOL		RAVENOL
SAE		5W-40		5W-40
Type		Full synthetic		Full synthetic
API		SN Plus, SP		SN Plus, SP
ACEA		A3, B4		A3, B4
Manufacturer Approved		BMW Longlife-01, MB-Approval 229.5, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00		BMW Longlife-01, MB-Approval 229.5, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
Recomendations		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296
Density at 20 °C	g/cm³	848	EN ISO 12185	848 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	13.5	DIN 51562-1	13.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	79.4	DIN 51562-1	79.4 mm²/s DIN 51562-1
Viscosity Index VI		174	DIN ISO 2909	174 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.9	ASTM D5481	3.9 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4700	ASTM D5293	4700 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	13.900	ASTM D4684	13.900 mPa*s ASTM D4684
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Noack Volatility	%	7.3	ASTM D5800	7.3 % ASTM D5800
Flashpoint	°C	236	DIN EN ISO 2592	236 °C DIN EN ISO 2592
tbn	mgKOH/g	11.9	ASTM D2896	11.9 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.1	DIN 51575	1.1 %wt. DIN 51575
Approvals		BMW Longlife-01, Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, MB 229.5, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, MB 229.5, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

SSO 0W-30

Engine oil

Manufacturer Approved:
BMW Longlife-98, MB-Approval 229.5, Renault RN 0710, Volvo VCC 95200356 - Service Fill, VW 502.00, VW 505.00

Compliance with the requirements:
BMW Longlife-01, GM GM-LL-A-025, GM GM-LL-B-025, Renault RN 0700, VW 503.01

show details

SAE: 0W-30

API: CF, SN

ACEA: A3, B4

Equivalents OEM:
Alpine 0100241, Alpine 0100242, Alpine 0100243, Alpine 0100244, Alpine 0100245, Alpine 0100248, Alpine 100241, Alpine 100242, Alpine 100243, Alpine 100244, Alpine 100245, BMW 83122219738, BMW 83122219739, BMW 83210144462, BMW 83210144464, BMW 83210144467, BMW 83212365953, BMW 83212405630, BMW 83212405636, BMW 83212405849, BMW 83212405945, BMW 83212410200, BMW 83212410201, BMW 83212410731, BMW 83212420599, BMW 83212420694, BMW 83212420694, Ford CXO0W30LAS12, Mitsubishi MZ320753, Mitsubishi MZ320754, Mitsubishi MZ320755 Alpine 0100241, Alpine 0100242, Alpine 0100243, Alpine 0100244, Alpine 0100245, Alpine 0100248, Alpine 100241, Alpine 100242, Alpine 100243, Alpine 100244, Alpine 100245, BMW 83122219738, BMW 83122219739, BMW 83210144462, BMW 83210144464, BMW 83210144467, BMW 83212365953, BMW 83212405630, BMW 83212405636, BMW 83212405849, BMW 83212405945, BMW 83212410200, BMW 83212410201, BMW 83212410731, BMW 83212420599, BMW 83212420694, BMW 83212420694, Ford CXO0W30LAS12, Mitsubishi MZ320753, Mitsubishi MZ320754, Mitsubishi MZ320755, Mitsubishi MZ321032, Mitsubishi MZ321033, Nissan KE90090132, Nissan KE90090132R, Pentosin 1000117, Toyota 0888080360, Toyota 0888080360GO, Toyota 0888080365, Toyota 0888080365G0, Toyota 0888080365GO, Toyota 0888080366, Toyota 0888080366GO, Toyota 0888082645GO, VAG G055195M4, VAG GE55167C2, VAG GR55167M2, Volvo 1161830, Volvo 1161831, Volvo 1161832

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111100-001

Code:
4014835718319

Volume:
4 L

vendor code:
1111100-004

Code:
4014835718395

Volume:
5 L

vendor code:
1111100-005

Code:
4014835718357

Volume:
10 L

vendor code:
1111100-010

Code:
4014835718340

Volume:
20 L

vendor code:
1111100-020

Code:
4014835718326

Volume:
20 L, ecobox

vendor code:
1111100-B20

Code:
4014835772427

Volume:
60 L

vendor code:
1111100-060

Volume:
60 L, print

vendor code:
1111100-D60

Code:
4014835718333

Volume:
208 L, print

vendor code:
1111100-D28

Code:
4014835718302

Volume:
208 L

vendor code:
1111100-208

Code:
4014835718388

Volume:
1000 L

vendor code:
1111100-700

With its new formulation, RAVENOL SSO SAE 0W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL SSO SAE 0W-30 helps to protect the environment by reducing emissions.

RAVENOL SSO SAE 0W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics. Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL SSO SAE 0W-30 is universal, fuel-efficient engine oil. It is a premium product for gasoline and diesel engine passenger cars. Suitable for all petrol and diesel passenger cars with and without turbo charger, especially recommended for full synthetic all-season motor oils.

Characteristics

Universal application in all modern petrol and diesel engines.
Quick lubrication of the engine even at temperatures below -30 °C.
Low evaporation tendency, therefore a lower oil consumption.
Safety against accumulation of sludge, coking and corrosion even under unfavourable operating conditions.
Guarantee of the function of the hydro tappets at all temperatures.
No oil limited deposits in combustion chambers, at the piston ring and valves.
Unchanged viscosity during the whole oil change interval, high viscosity index.
Neutral against sealing materials.
Miscibility with all commercially available engine oils. Flushing is not required.

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-01, GM-LL-A-025, GM-LL-B-025, Renault RN0700, VW 503 01		BMW Longlife-01, GM-LL-A-025, GM-LL-B-025, Renault RN0700, VW 503 01
Brand		RAVENOL		RAVENOL
SAE		0W-30		0W-30
Type		Full synthetic		Full synthetic
API		CF, SN		CF, SN
ACEA		A3, B4		A3, B4
Manufacturer Approved		BMW Longlife-98, MB-Approval 229.5, Renault RN 0710, Volvo VCC 95200356 - Service Fill, VW 502.00, VW 505.00		BMW Longlife-98, MB-Approval 229.5, Renault RN 0710, Volvo VCC 95200356 - Service Fill, VW 502.00, VW 505.00
Recomendations		BMW Longlife-01, GM GM-LL-A-025, GM GM-LL-B-025, Renault RN 0700, VW 503.01		BMW Longlife-01, GM GM-LL-A-025, GM GM-LL-B-025, Renault RN 0700, VW 503.01
Density at 20 °C	g/cm³	843	EN ISO 12185	843 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12	DIN 51562-1	12 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	60.9	DIN 51562-1	60.9 mm²/s DIN 51562-1
Viscosity Index VI		198	DIN ISO 2909	198 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.57	ASTM D5481	3.57 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5580	ASTM D5293	5580 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	16.300	ASTM D4684	16.300 mPa*s ASTM D4684
Pourpoint	°C	-60	DIN ISO 3016	-60 °C DIN ISO 3016
Noack Volatility	%	9.2	ASTM D5800	9.2 % ASTM D5800
Flashpoint	°C	236	DIN EN ISO 2592	236 °C DIN EN ISO 2592
tbn	mgKOH/g	12.5	ASTM D2896	12.5 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.3	DIN 51575	1.3 %wt. DIN 51575
Approvals		BMW Longlife-01, BMW Longlife-98, GM GM-LL-A-025, GM GM-LL-B-025, MB 229.5, Renault RN0700, Renault RN0710, Volvo VCC 95200356 - Service Fill, VW 502.00, VW 503.01, VW 505.00		BMW Longlife-01, BMW Longlife-98, GM GM-LL-A-025, GM GM-LL-B-025, MB 229.5, Renault RN0700, Renault RN0710, Volvo VCC 95200356 - Service Fill, VW 502.00, VW 503.01, VW 505.00

DXG 5W-30

For engine

For the development of RAVENOL DXG SAE 5W-30 the proven formulation of tri-nuclear molybdenum and OFM (Organic Friction Modifiers) was used. A highly polar Group V base oil was used in this formula, which has good compatibility with the PAO used.

Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034

Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30

show details

SAE: 5W-30

ILSAC: GF-7A

API: SQ (RC)

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111124-001

Code:
4014835732315

Volume:
4 L

vendor code:
1111124-004

Code:
4014835732391

Volume:
5 L (4+1)

vendor code:
1111124-A05

Code:
4014835851689

Volume:
5 L

vendor code:
1111124-005

Code:
4014835732353

Volume:
10 L

vendor code:
1111124-010

Code:
4014835732346

Volume:
20 L, ecobox

vendor code:
1111124-B20

Code:
4014835773820

Volume:
60 L, print

vendor code:
1111124-D60

Code:
4014835732339

Volume:
208 L

vendor code:
1111124-208

Code:
4014835732384

Volume:
208 L, print

vendor code:
1111124-D28

Volume:
20 L

vendor code:
1111124-020

Code:
4014835732322

Volume:
60 L

vendor code:
1111124-060

For the development of RAVENOL DXG SAE 5W-30 the proven formulation of tri-nuclear molybdenum and OFM (Organic Friction Modifiers) was used. A highly polar Group V base oil was used in this formula, which has good compatibility with the PAO used.

Due to the USVO®technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

With its new formulation, RAVENOL DXG SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL DXG SAE 5W-30 helps to protect the environment by reducing emissions.

RAVENOL DXG SAE 5W-30 helps to avoid low speed pre-ignition LSPI (Low Speed Pre-ignition). This can help avoid engine damage.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL DXG SAE 5W-30 is a high-performance low-friction engine oil for modern engines, and is recommended by OPEL/GENERAL MOTORS to the latest GM dexos 1 specification for modern GM gasoline-engined vehicles under all operating conditions.

RAVENOL DXG SAE 5W-30 is also suitable fort he shown specifications of Ford, Chrysler and Honda.

Characteristics

New formula with dexos1™ Gen 3 approval
Particularly suitable for GDI engines
Avoids low speed pre-ignition (LSPI)
No oil-related deposits in combustion chambers, in the piston ring zone and on valves
Fuel savings potential under both part and full load operation
Latest low SAPS technology = low Sulphated Ash, Phosphorus and Sulphur
A very stable viscosity behavior and an excellent shear stability
Very good cold starting properties
A safe lubricant film even at very high operating temperatures
Exceptional wear and corrosion protection
Excellent detergent and dispersant capabilities for cleaner engines, prevents foaming
Long service life through high oxidation stability
Suitable for catalyst-equipped vehicles

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Full synthetic		Full synthetic
API		SQ (RC)		SQ (RC)
ILSAC		GF-7A		GF-7A
Manufacturer Approved		GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034		GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034
Recomendations		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
Density at 20 °C	g/cm³	846	EN ISO 12185	846 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	11.1	DIN 51562-1	11.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	65.6	DIN 51562-1	65.6 mm²/s DIN 51562-1
Viscosity Index VI		163	DIN ISO 2909	163 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.25	ASTM D5481	3.25 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	3990	ASTM D5293	3990 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	11.800	ASTM D4684	11.800 mPa*s ASTM D4684
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Noack Volatility	%	6	ASTM D5800	6 % ASTM D5800
Flashpoint	°C	244	DIN EN ISO 2592	244 °C DIN EN ISO 2592
tbn	mgKOH/g	7.8	ASTM D2896	7.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.8	DIN 51575	0.8 %wt. DIN 51575
Approvals		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034

FEL 5W-30

For engine

RAVENOL FEL SAE 5W-30 is based on additives with low ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. HTHS >2,9 mPa*s. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

Compliance with the requirements:
Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290

show details

SAE: 5W-30

API: CF, SN

ACEA: C2

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111123-001

Code:
4014835723412

Volume:
4 L

vendor code:
1111123-004

Code:
4014835723498

Volume:
10 L

vendor code:
1111123-010

Code:
4014835723443

Volume:
20 L

vendor code:
1111123-020

Code:
4014835723429

Volume:
20 L, ecobox

vendor code:
1111123-B20

Code:
4014835773721

Volume:
60 L

vendor code:
1111123-060

Volume:
60 L, print

vendor code:
1111123-D60

Code:
4014835723436

Volume:
208 L, print

vendor code:
1111123-D28

Code:
4014835723405

Volume:
1000 L

vendor code:
1111123-700

Volume:
5 L

vendor code:
1111123-005

Code:
4014835723450

Volume:
208 L

vendor code:
1111123-208

Code:
4014835723481

RAVENOL FEL SAE 5W-30 is based on additives with low ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. HTHS >2,9 mPa*s. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

RAVENOL FEL SAE 5W-30 achieved by its formulation with special base oils a high viscosity index. The excellent cold start behaviour ensures a optimal lubrication safety in the cold running phase.

Because of a considerable fuel saving RAVENOL FEL SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL FEL SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL FEL SAE 5W-30 is an universal fuel economy, especially collected engine oil for modern gasoline and diesel engines with and without turbo charger in passenger cars and vans with extended oil change intervals. Extend the lifespan of the particle filter. Due to the specific composition is RAVENOL FEL SAE 5W-30 excellent suitable for use for indicated OEM requirements.

Characteristics

Fuel economy in part and full power operation
Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine
Excellent cold starting characteristics also at low temperatures below -25°C
A safe lubricant film at high operating temperatures
Low evaporative tendency, so lower oil consumption
No deposits in combustion chambers, in the piston ring zone and valves because of oil conditioned
Neutrality towards sealing materials
Extended oil change intervals to protect natural resources

Parameter	Unit	Value	Audit
Recommendations		Fiat 9.55535-S1, Honda i-CTDi, Honda i-DTEC, IVECO 18-1811 CLASSE SC1, Mazda MZ-CD, Mazda 183418, Mazda 183419, Mazda CiTD, Mazda MZR-CD, PSA B71 2290, Subaru Boxer Diesel, Suzuki, Toyota 08880-83388, Toyota 08880-83389		Fiat 9.55535-S1, Honda i-CTDi, Honda i-DTEC, IVECO 18-1811 CLASSE SC1, Mazda MZ-CD, Mazda 183418, Mazda 183419, Mazda CiTD, Mazda MZR-CD, PSA B71 2290, Subaru Boxer Diesel, Suzuki, Toyota 08880-83388, Toyota 08880-83389
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		C2		C2
JASO		DL-1		DL-1
Recomendations		Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290		Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290
Suitable for		Honda i-CTDi, Honda i-DTEC, Mazda CiTD, Mazda MZ-CD, Mazda MZR-CD, Subaru Boxer Diesel, Suzuki		Honda i-CTDi, Honda i-DTEC, Mazda CiTD, Mazda MZ-CD, Mazda MZR-CD, Subaru Boxer Diesel, Suzuki
Compliant products		Mazda 183418, Mazda 183419, Toyota 08880-83388, Toyota 08880-83389		Mazda 183418, Mazda 183419, Toyota 08880-83388, Toyota 08880-83389
Density at 20 °C	g/cm³	850	EN ISO 12185	850 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	10.7	DIN 51562-1	10.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	61.4	DIN 51562-1	61.4 mm²/s DIN 51562-1
Viscosity Index VI		166	DIN ISO 2909	166 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.2	ASTM D5481	3.2 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4765	ASTM D5293	4765 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	16.100	ASTM D4684	16.100 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	9	ASTM D5800	9 % ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	7.7	ASTM D2896	7.7 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.53	DIN 51575	0.53 %wt. DIN 51575
Approvals		Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290		Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290

HLS 5W-30

For engine

RAVENOL HLS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01

Compliance with the requirements:
Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00

show details

SAE: 5W-30

API: CF, SN

ACEA: C3

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111119-001

Code:
4014835723016

Volume:
4 L

vendor code:
1111119-004

Code:
4014835723092

Volume:
5 L

vendor code:
1111119-005

Code:
4014835723054

Volume:
10 L

vendor code:
1111119-010

Code:
4014835723047

Volume:
20 L

vendor code:
1111119-020

Code:
4014835723023

Volume:
20 L, ecobox

vendor code:
1111119-B20

Code:
4014835773325

Volume:
60 L

vendor code:
1111119-060

Code:
4014835723061

Volume:
60 L, print

vendor code:
1111119-D60

Code:
4014835723030

Volume:
208 L

vendor code:
1111119-208

Code:
4014835723085

Volume:
208 L, print

vendor code:
1111119-D28

Code:
4014835723009

Volume:
1000 L

vendor code:
1111119-700

RAVENOL HLS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HLS SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL HLS SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL HLS SAE 5W-30 is Mid SAPS Oils which prevents effectively the reset of the diesel soot particulate filter.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HLS SAE 5W-30 is suitable for demanding motors as a high performance low friction motor oil. It is recommended for all modern passenger car gasoline and diesel engines, including turbo versions, for direct injection motors and it is also recommended for all operation conditions. RAVENOL HLS SAE 5W-30 is recommended for use in vehicles with diesel particulate filters.

Characteristics

Fuel economy in part and full power operation.
Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine.
Excellent cold starting characteristics also at low temperatures below -30°C.
A safe lubricant film at high operating temperatures.
Low evaporative tendency, so lower oil consumption.
No deposits in combustion chambers, in the piston ring zone and valves.
Neutrality towards sealing materials.
Extended oil change intervals to protect natural resources.

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502 00		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502 00
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01		BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01
Recomendations		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00
Density at 20 °C	g/cm³	847	EN ISO 12185	847 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	72.7	DIN 51562-1	72.7 mm²/s DIN 51562-1
Viscosity Index VI		166	DIN ISO 2909	166 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.51	ASTM D5481	3.51 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5216	ASTM D5293	5216 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	23000	ASTM D4684	23000 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	%	6.9	ASTM D5800	6.9 % ASTM D5800
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
tbn	mgKOH/g	7.8	ASTM D2896	7.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.8	DIN 51575	0.8 %wt. DIN 51575
Approvals		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S3, GM dexos2®, MB 229.31, MB 229.51, MB 229.52, Opel OV 040 1547 - D30, Stellantis FPW9.55535/03, VW 502.00, VW 505.00, VW 505.01		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S3, GM dexos2®, MB 229.31, MB 229.51, MB 229.52, Opel OV 040 1547 - D30, Stellantis FPW9.55535/03, VW 502.00, VW 505.00, VW 505.01

HCS 5W-40

Engine oil

Application NoteRAVENOL HCS SAE 5W-40 is suitable for an energy saving all year use for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.

Manufacturer Approved:
MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296

show details

SAE: 5W-40

API: CF, SN

ACEA: A3, B4

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1112105-001

Code:
4014835723917

Volume:
4 L

vendor code:
1112105-004

Code:
4014835723993

Volume:
5 L

vendor code:
1112105-005

Code:
4014835723955

Volume:
10 L

vendor code:
1112105-010

Code:
4014835723948

Volume:
20 L, ecobox

vendor code:
1112105-B20

Code:
4014835774322

Volume:
60 L

vendor code:
1112105-060

Code:
4014835723962

Volume:
60 L, print

vendor code:
1112105-D60

Code:
4014835723931

Volume:
208 L

vendor code:
1112105-208

Code:
4014835723986

Volume:
208 L, print

vendor code:
1112105-D28

Code:
4014835723900

Volume:
1000 L

vendor code:
1112105-700

Volume:
20 L

vendor code:
1112105-020

Code:
4014835723924

Application Note

RAVENOL HCS SAE 5W-40 is suitable for an energy saving all year use for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.

Characteristics

High protection against wear
Fuel economy by low friction property
Excellent detergent- and dispersant property
Prevention of black sludge formation
Improved cleaner engine
Extended lifetime because of oxidation stability
Excellent cold starting characteristics
Excellent viscosity-temperature- characteristics
Low evaporation tendency
Catalyst cleaning

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, MB 226.5, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, MB 226.5, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296
Brand		RAVENOL		RAVENOL
SAE		5W-40		5W-40
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		A3, B4		A3, B4
Manufacturer Approved		MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00		MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
Recomendations		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296
Density at 20 °C	g/cm³	849	EN ISO 12185	849 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.4	DIN 51562-1	14.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	87.5	DIN 51562-1	87.5 mm²/s DIN 51562-1
Viscosity Index VI		171	DIN ISO 2909	171 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.9	ASTM D5481	3.9 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5370	ASTM D5293	5370 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	28.500	ASTM D4684	28.500 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	8.4	ASTM D5800	8.4 % ASTM D5800
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	10.4	ASTM D2896	10.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.26	DIN 51575	1.26 %wt. DIN 51575
Approvals		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

Available packaging
Full description
Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

Long-term effectiveness and clean fresh oil
Remedy for soiled engines
Protection against compression loss in the area of the piston rings
Leads to better exhaust emissions and increases the performance of the engine

Parameter	Unit	Value	Audit
Color		Light brown	visual	Light brown visual
Flashpoint (PM)	°C	62	DIN ISO 3679	62 °C DIN ISO 3679
Density at 20 °C		805	EN ISO 12185	805 EN ISO 12185
Viscosity at 40 °C	mm²/s	7	DIN EN ISO 3104	7 mm²/s DIN EN ISO 3104
Brand		RAVENOL		RAVENOL

Transmission, automatic in a unit with final drive 6/1

Liquid volume (basic): 7.1 L

ATF SP-IV Fluid

For automatic transmission

RAVENOL ATF SP-IV Fluid meets the requirements of the latest gear oil specifications from Hyundai and KIA.

show details

Equivalents OEM:
Chrysler 68171866AA, Chrysler 68171866AB, Chrysler 68171866GA, Chrysler 68171866GA, Chrysler 68171869AA, Chrysler 68171869AB, Chrysler 68171869GB, Hyundai 0450000125, Hyundai 0450000125EU, Hyundai Motor 002321904, Hyundai Motor 0023219045, Hyundai Motor 0023219057, Hyundai Motor 0023219059, Hyundai Motor 0450000A15, Hyundai Motor 0450000115, Hyundai Motor 450000115, Hyundai Motor UM090CH042, Hyundai XTeer 1011006, Hyundai XTeer 1041017, Hyundai XTeer 1121014, Hyundai XTeer 1200017, SsangYong 0000000850, SsangYong LLKSPIV001

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1211107-001

Code:
4014835714014

Volume:
4 L

vendor code:
1211107-004

Code:
4014835714090

Volume:
10 L

vendor code:
1211107-010

Code:
4014835719149

Volume:
20 L

vendor code:
1211107-020

Code:
4014835719125

Volume:
20 L, ecobox

vendor code:
1211107-B20

Code:
4014835785021

Volume:
60 L

vendor code:
1211107-060

Volume:
60 L, print

vendor code:
1211107-D60

Code:
4014835719132

Volume:
208 L

vendor code:
1211107-208

Volume:
208 L, print

vendor code:
1211107-D28

Code:
4014835719101

RAVENOL ATF SP-IV Fluid meets the requirements of the latest gear oil specifications from Hyundai and KIA.

Application Note

RAVENOL ATF SP-IV Fluid is recommended for all vehicles with Hyundai/ KIA 6-stroke automatic transmission A6LF1/2/3, A6GF1, A6MF1/2 from 2009 and 8-speed Hyundai/KIA automatic transmission A8LF1/2, A8MF1 from 2019.

Follow the recommendations of the instruction manual of your vehicle.

ATTENTION!

For 8-speed Hyundai/KIA automatic transmissions A8LR1 and A8TR1 from 2010 only RAVENOL ATF SP-IV RR Fluid is recommended.

Characteristics

phenomenal resistance of lubricant failure under hard operating conditions
a long oil durability, extension of the durability of the transmission, offers longer changing intervals
phenomenal resistance of oil sludge and deposit accumulation
an excellent corrosion protection, a much better foaming resistance for a smooth switching operation as well as a lower corrosion of the bearings, sleeves and gear wheels
an excellent flow behaviour at low temperatures
a constant switching operation performance, optimised friction characteristics
prevention of coupling grinding regarding modulation rotary conversion
a long durability of oil and coupling, offers a smooth switching operation at low temperatures
an improved shear stability

Parameter	Unit	Value	Audit
Recommendations		6-Gang Hyundai Automatik, 8-Gang Hyundai/KIA Automatikgetriebe, Azera TG 2011- V6 3.3L 3.8L, Forte/Forte Koup 2010- L4 2.0L 2.4L, Grandeur HG 2011- V6 3.3L 3.8L, Hyundai 00232-19045, Hyundai 00232-19057, Hyundai 00232-19107, Hyundai 04500-00115, Hyundai Elantra UD 2011- L4 1.6L L4 2.0L, Hyundai Grandeur 6 (IG) 2019-22, Hyundai Grandeur 7 (GN7) 2022-, Hyundai iX35 2009 - L4 2.0 L 2.4L, Hyundai Palisade 1 (LX2) 2018-, Hyundai Santa Fe 2009 - L4 2.0L 2.2L 2.4L V6 3.5L, Hyundai Santa Fe 4 (TM) 2018-2024, Hyundai Santa Fe 5 (MX5) 2023-, Hyundai Sonata 2009- L4 2.0L 2.4L V6 3.5L, Hyundai Sonata 8 (DN8) 2019-, Hyundai Sorento XM 2011 – L4 2.4L V6 3.5L, Hyundai SP-IV-M, Hyundai SP-IV-M1, Hyundai Staria 1 (US4) 2021-, Hyundai Tucson 2009- L4 2.0L 2.4L, Hyundai Tucson 3 (TL) 2018-21, Hyundai Tucson 4 (NX4) 2020-, KIA Cadenza 2 (YG) 2019-2021, KIA Carnival 3 (YP) 2018-21, KIA Carnival 4 (KA4) 2020-, KIA K5 (DL3) 2019-, KIA K8 1 (GL3) 2021-, KIA Sorento 3 (UM) 2017-2020, KIA Sorento 4 (MQ4) 2020-, KIA Sportage 2010- L4 2.0L 2.4L, KIA Sportage 4 (QL) 2018-21, KIA Sportage 5 (NQ5) 2021-, KIA Telluride 1 (ON) 2019-, KIA UM090 CH042 für Sorento 2009- V6 3.3L 3.5L 3.8, Optima TF 2011- L4 2.0L 2.4L, Sedona VQ 2011- V6 3.5L, Veracruz 2011- V6 3.0		6-Gang Hyundai Automatik, 8-Gang Hyundai/KIA Automatikgetriebe, Azera TG 2011- V6 3.3L 3.8L, Forte/Forte Koup 2010- L4 2.0L 2.4L, Grandeur HG 2011- V6 3.3L 3.8L, Hyundai 00232-19045, Hyundai 00232-19057, Hyundai 00232-19107, Hyundai 04500-00115, Hyundai Elantra UD 2011- L4 1.6L L4 2.0L, Hyundai Grandeur 6 (IG) 2019-22, Hyundai Grandeur 7 (GN7) 2022-, Hyundai iX35 2009 - L4 2.0 L 2.4L, Hyundai Palisade 1 (LX2) 2018-, Hyundai Santa Fe 2009 - L4 2.0L 2.2L 2.4L V6 3.5L, Hyundai Santa Fe 4 (TM) 2018-2024, Hyundai Santa Fe 5 (MX5) 2023-, Hyundai Sonata 2009- L4 2.0L 2.4L V6 3.5L, Hyundai Sonata 8 (DN8) 2019-, Hyundai Sorento XM 2011 – L4 2.4L V6 3.5L, Hyundai SP-IV-M, Hyundai SP-IV-M1, Hyundai Staria 1 (US4) 2021-, Hyundai Tucson 2009- L4 2.0L 2.4L, Hyundai Tucson 3 (TL) 2018-21, Hyundai Tucson 4 (NX4) 2020-, KIA Cadenza 2 (YG) 2019-2021, KIA Carnival 3 (YP) 2018-21, KIA Carnival 4 (KA4) 2020-, KIA K5 (DL3) 2019-, KIA K8 1 (GL3) 2021-, KIA Sorento 3 (UM) 2017-2020, KIA Sorento 4 (MQ4) 2020-, KIA Sportage 2010- L4 2.0L 2.4L, KIA Sportage 4 (QL) 2018-21, KIA Sportage 5 (NQ5) 2021-, KIA Telluride 1 (ON) 2019-, KIA UM090 CH042 für Sorento 2009- V6 3.3L 3.5L 3.8, Optima TF 2011- L4 2.0L 2.4L, Sedona VQ 2011- V6 3.5L, Veracruz 2011- V6 3.0
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Suitable for		Hyundai 6-Gang Automatik, Hyundai Azera TG 2011- V6 3.3L 3.8L, Hyundai Elantra UD 2011- L4 1.6L L4 2.0L, Hyundai Grandeur 6 (IG) 2019-22, Hyundai Grandeur 7 (GN7) 2022-, Hyundai Grandeur HG 2011- V6 3.3L 3.8L, Hyundai iX35 2009 - L4 2.0 L 2.4L, Hyundai Palisade 1 (LX2) 2018-, Hyundai Santa Fe 2009 - L4 2.0L 2.2L 2.4L V6 3.5L, Hyundai Santa Fe 4 (TM) 2018-2024, Hyundai Santa Fe 5 (MX5) 2023-, Hyundai Sedona VQ 2011- V6 3.5L, Hyundai Sonata 2009- L4 2.0L 2.4L V6 3.5L, Hyundai Sonata 8 (DN8) 2019-, Hyundai Sorento XM 2011 – L4 2.4L V6 3.5L, Hyundai Staria 1 (US4) 2021-, Hyundai Tucson 2009- L4 2.0L 2.4L, Hyundai Tucson 3 (TL) 2018-21, Hyundai Tucson 4 (NX4) 2020-, Hyundai Veracruz 2011- V6 3.0, Hyundai/KIA 8-speed automatic transmission, KIA Cadenza 2 (YG) 2019-2021, KIA Carnival 3 (YP) 2018-21, KIA Carnival 4 (KA4) 2020-, KIA Forte/Forte Koup 2010- L4 2.0L 2.4L, KIA K5 (DL3) 2019-, KIA K8 1 (GL3) 2021-, KIA Optima TF 2011- L4 2.0L 2.4L, KIA Sorento 2009- V6 3.3L 3.5L 3.8, KIA Sorento 3 (UM) 2017-2020, KIA Sorento 4 (MQ4) 2020-, KIA Sportage 2010- L4 2.0L 2.4L, KIA Sportage 4 (QL) 2018-21, KIA Sportage 5 (NQ5) 2021-, KIA Telluride 1 (ON) 2019-		Hyundai 6-Gang Automatik, Hyundai Azera TG 2011- V6 3.3L 3.8L, Hyundai Elantra UD 2011- L4 1.6L L4 2.0L, Hyundai Grandeur 6 (IG) 2019-22, Hyundai Grandeur 7 (GN7) 2022-, Hyundai Grandeur HG 2011- V6 3.3L 3.8L, Hyundai iX35 2009 - L4 2.0 L 2.4L, Hyundai Palisade 1 (LX2) 2018-, Hyundai Santa Fe 2009 - L4 2.0L 2.2L 2.4L V6 3.5L, Hyundai Santa Fe 4 (TM) 2018-2024, Hyundai Santa Fe 5 (MX5) 2023-, Hyundai Sedona VQ 2011- V6 3.5L, Hyundai Sonata 2009- L4 2.0L 2.4L V6 3.5L, Hyundai Sonata 8 (DN8) 2019-, Hyundai Sorento XM 2011 – L4 2.4L V6 3.5L, Hyundai Staria 1 (US4) 2021-, Hyundai Tucson 2009- L4 2.0L 2.4L, Hyundai Tucson 3 (TL) 2018-21, Hyundai Tucson 4 (NX4) 2020-, Hyundai Veracruz 2011- V6 3.0, Hyundai/KIA 8-speed automatic transmission, KIA Cadenza 2 (YG) 2019-2021, KIA Carnival 3 (YP) 2018-21, KIA Carnival 4 (KA4) 2020-, KIA Forte/Forte Koup 2010- L4 2.0L 2.4L, KIA K5 (DL3) 2019-, KIA K8 1 (GL3) 2021-, KIA Optima TF 2011- L4 2.0L 2.4L, KIA Sorento 2009- V6 3.3L 3.5L 3.8, KIA Sorento 3 (UM) 2017-2020, KIA Sorento 4 (MQ4) 2020-, KIA Sportage 2010- L4 2.0L 2.4L, KIA Sportage 4 (QL) 2018-21, KIA Sportage 5 (NQ5) 2021-, KIA Telluride 1 (ON) 2019-
Compliant products		Hyundai 00232-19045, Hyundai 00232-19057, Hyundai 00232-19107, Hyundai 04500-00115, Hyundai SP-IV-M, Hyundai SP-IV-M1, KIA UM090-CH042		Hyundai 00232-19045, Hyundai 00232-19057, Hyundai 00232-19107, Hyundai 04500-00115, Hyundai SP-IV-M, Hyundai SP-IV-M1, KIA UM090-CH042
Density at 20 °C	g/cm³	838	EN ISO 12185	838 g/cm³ EN ISO 12185
Color		Red	visual	Red visual
Pourpoint	°C	-54	DIN ISO 3016	-54 °C DIN ISO 3016

Power steering

Liquid volume (basic): 0.9 L

SSF Special Servolenkung Fluid

For power steering

Application NoteRAVENOL SSF Special Servolenkung Fluid is designed for use from -55°C bis +130°C and is therefore recommended for the latest developments in the vehicle market.

Compliance with the requirements:
DTFR 31B120 (MB 345.0), Ford WSS-M2C204-A, Ford WSS-M2C204-A2, Hyundai/Kia PSF-4, Land Rover Cold Climate PAS Fluid 14315, MB 343.0, MB 344.0, MB 345.0, Toyota PSF NEW-W, VW G 002 000, VW G 004 000, VW TL 521 46, ZF TE-ML 02K

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1181100-001

Code:
4014835736412

Volume:
4 L

vendor code:
1181100-004

Code:
4014835736498

Volume:
10 L

vendor code:
1181100-010

Code:
4014835736443

Volume:
20 L

vendor code:
1181100-020

Code:
4014835736429

Volume:
20 L, ecobox

vendor code:
1181100-B20

Code:
4014835784321

Volume:
60 L

vendor code:
1181100-060

Code:
4014835736467

Volume:
208 L

vendor code:
1181100-208

Code:
4014835736481

Application Note

RAVENOL SSF Special Servolenkung Fluid is designed for use from -55°C bis +130°C and is therefore recommended for the latest developments in the vehicle market.

RAVENOL SSF Special Servolenkung Fluid fulfils the requirements of VW-Specification TL 521 46 and has therefore an optimal performance behaviour as central hydraulic oil in power steering, rear axle steering, level control, hydro pneumatic suspension, shock absorbers, for active damping and engine protection, for hydrostatic drive of fan, alternator and air conditioning, for stability and traction systems (ABS/ASR/ASC), central locking, electro-hydraulic convertible top control, hydraulic brake booster and hydro pneumatic suspension for VW, Audi, Seat, Skoda. Especially to be used in cold countries.

Characteristics

Extremely low pour point
Improved viscosity and coefficient of friction behaviour
A very good protection against consumption
Excellent thermal stability
Improved EP-characteristics
A good foaming behaviour
Neutral behaviour towards sealing materials
Reliable protection against corrosion

Parameter	Unit	Value	Audit
Recommendations		BMW 83290429576, CHF11S, CHF202, Citroën 9979 A1, DTFR 31B120 (MB 345.0), Ford 1384110, Ford M2C-204 A2, Hyundai/Kia PSF-4 03100-00130, Land Rover Cold Climate PAS Fluid 14315 LRN2261, MB 343.0, MB 344.0, MB 345.0, Opel 1940715, Opel 1940766, SAAB 93160548, Toyota 08886-01115, Toyota PSF NEW-W, Volvo 30741424, VW G 002 000, VW G 004 000 M2, VW TL 52146, ZF TE-ML 02K		BMW 83290429576, CHF11S, CHF202, Citroën 9979 A1, DTFR 31B120 (MB 345.0), Ford 1384110, Ford M2C-204 A2, Hyundai/Kia PSF-4 03100-00130, Land Rover Cold Climate PAS Fluid 14315 LRN2261, MB 343.0, MB 344.0, MB 345.0, Opel 1940715, Opel 1940766, SAAB 93160548, Toyota 08886-01115, Toyota PSF NEW-W, Volvo 30741424, VW G 002 000, VW G 004 000 M2, VW TL 52146, ZF TE-ML 02K
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
Recomendations		DTFR 31B120 (MB 345.0), Ford WSS-M2C204-A, Ford WSS-M2C204-A2, Hyundai/Kia PSF-4, Land Rover Cold Climate PAS Fluid 14315, MB 343.0, MB 344.0, MB 345.0, Toyota PSF NEW-W, VW G 002 000, VW G 004 000, VW TL 521 46, ZF TE-ML 02K		DTFR 31B120 (MB 345.0), Ford WSS-M2C204-A, Ford WSS-M2C204-A2, Hyundai/Kia PSF-4, Land Rover Cold Climate PAS Fluid 14315, MB 343.0, MB 344.0, MB 345.0, Toyota PSF NEW-W, VW G 002 000, VW G 004 000, VW TL 521 46, ZF TE-ML 02K
specification		DIN 51524-2, ISO 7308		DIN 51524-2, ISO 7308
Compliant products		BMW 83290429576, Ford 1384110, Hyundai/Kia 03100-00130, Land Rover LRN2261, Opel 1940715, Opel 1940766, Pentosin CHF 11S, Pentosin CHF 202, PSA 9979.A1, SAAB 93160548, Toyota 08886-01115, Volvo 30741424, VW G 004 000		BMW 83290429576, Ford 1384110, Hyundai/Kia 03100-00130, Land Rover LRN2261, Opel 1940715, Opel 1940766, Pentosin CHF 11S, Pentosin CHF 202, PSA 9979.A1, SAAB 93160548, Toyota 08886-01115, Volvo 30741424, VW G 004 000
Density at 20 °C	g/cm³	829	EN ISO 12185	829 g/cm³ EN ISO 12185
Color		Green	visual	Green visual
Viscosity at 100 °C	mm²/s	6.6	DIN 51562-1	6.6 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	19.7	DIN 51562-1	19.7 mm²/s DIN 51562-1
Viscosity at -40 °C	mm²/s	900	ASTM D445	900 mm²/s ASTM D445
Viscosity Index VI		333	DIN ISO 2909	333 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	980	ASTM D2983	980 mPa*s ASTM D2983
Pourpoint	°C	-55	DIN ISO 3016	-55 °C DIN ISO 3016
Flashpoint	°C	166	DIN EN ISO 2592	166 °C DIN EN ISO 2592
Approvals		DIN 51524-2, DTFR 31B120 (MB 345.0), Ford WSS-M2C204-A, Ford WSS-M2C204-A2, Hyundai/Kia PSF-4, ISO 7308, Land Rover Cold Climate PAS Fluid 14315, MB 343.0, MB 344.0, MB 345.0, Toyota PSF NEW-W, VW G 002 000, VW G 004 000, VW TL 521 46, ZF TE-ML 02K		DIN 51524-2, DTFR 31B120 (MB 345.0), Ford WSS-M2C204-A, Ford WSS-M2C204-A2, Hyundai/Kia PSF-4, ISO 7308, Land Rover Cold Climate PAS Fluid 14315, MB 343.0, MB 344.0, MB 345.0, Toyota PSF NEW-W, VW G 002 000, VW G 004 000, VW TL 521 46, ZF TE-ML 02K

Hydraulic brake system

Liquid volume (basic): 0.8 L

DOT 4

For brake system

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

show details

Available packaging
Full description
Product parameters

Volume:
250 ml

vendor code:
1350601-250

Code:
4014835692121

Volume:
500 ml

vendor code:
1350601-500

Code:
4014835692152

Volume:
1 L

vendor code:
1350601-001

Code:
4014835692114

Volume:
20 L

vendor code:
1350601-020

DOT 4

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

Application Note

RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.

RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.

RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113).

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

optimum ABS characteristics
chemical stability
best lubrication efficiency
neutral behaviour regarding brake parts
low viscosity at low temperatures
miscible with all brake fluids of the same specifications

Parameter	Unit	Value	Audit
FMVSS 116 specifications (DOT)		DOT-4		DOT-4
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
specification		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704
Density at 20 °C	g/cm³	1052	EN ISO 12185	1052 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mPa*s	2.41	ASTM D445	2.41 mPa*s ASTM D445
Viscosity at -40 °C	cSt	1340	ASTM D445	1340 cSt ASTM D445
Boiling point	°C	271	FMVSS 116	271 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point	°C	169	FMVSS 116	169 °C FMVSS 116
High Temperature Stability	°C	-1	FMVSS 116	-1 °C FMVSS 116
Chemical Stability	°C	1	FMVSS 116	1 °C FMVSS 116
Evaporation	%w/w	61	FMVSS 116	61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C		i.O., 4s	FMVSS 116	i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C		i.O., 8s	FMVSS 116	i.O., 8s FMVSS 116
Water Tolerance at -40 °C		transparent, 3s	FMVSS 116	transparent, 3s FMVSS 116
Water Tolerance at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at -40 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Water content	%	— 0.2	DIN 51777-1	— 0.2 % DIN 51777-1
Tinned Iron	Δ mg/cm²	0.04	FMVSS 116	0.04 Δ mg/cm² FMVSS 116
Steel	mg/cm²	-0.01	FMVSS 116	-0.01 mg/cm² FMVSS 116
Aluminium	mg/cm²	0.02	FMVSS 116	0.02 mg/cm² FMVSS 116
Cast Iron	Δ mg/cm²	-0,03	FMVSS 116	-0,03 Δ mg/cm² FMVSS 116
Brass	mg/cm²	-0.08	FMVSS 116	-0.08 mg/cm² FMVSS 116
Copper	mg/cm²	-0.05	FMVSS 116	-0.05 mg/cm² FMVSS 116
Zinc	mg/cm²	0.01	FMVSS 116	0.01 mg/cm² FMVSS 116
Sediment	%	— 0.05	FMVSS 116	— 0.05 % FMVSS 116
pH - value		8.2	FMVSS 116	8.2 FMVSS 116
Rubber Diameter Change		0.16	FMVSS 116	0.16 FMVSS 116
Hardness Change	°IRHD	-4	FMVSS 116	-4 °IRHD FMVSS 116
Appearance		i.O.	FMVSS 116	i.O. FMVSS 116
SBR at 70 °C	mm	0.56	FMVSS 116	0.56 mm FMVSS 116
SBR at 120 °C	mm	0.73	FMVSS 116	0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703)	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
EPDM at 120 °C	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925)	mm	0.38	FMVSS 116	0.38 mm FMVSS 116
Approvals		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704

Cooling system

Liquid volume (basic): 6.8 L

OTC Organic Technology Coolant Premix -40°C

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

Compliance with the requirements:
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

show details

Usage mode: normal

Replacement every 40000 KM or 24 MONTH.

Replacement via, KM: 200000

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410112-150

Code:
4014835755512

Volume:
5 L

vendor code:
1410112-005

Code:
4014835755550

Volume:
10 L

vendor code:
1410112-010

Volume:
20 L

vendor code:
1410112-020

Code:
4014835755529

Volume:
20 L, ecobox

vendor code:
1410112-B20

Code:
4014835855953

Volume:
60 L, plastic

vendor code:
1410112-060

Code:
4014835755567

Volume:
208 L

vendor code:
1410112-208

Code:
4014835755581

Volume:
1000 L

vendor code:
1410112-700

RAVENOL OTC Organic Techn. Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL OTC Organic Techn. Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL OTC Organic Techn. Coolant Premix -40°C to radiator to fill line.

RAVENOL OTC Organic Techn. Coolant Premix -40°C can also be used as a “ready for use” dilution in geothermal probes and geothermal collectors as recommended list of LAWA (Federal / State Working Group on Water in Germany). RAVENOL OTC Organic Techn. Coolant Concentrate is included in the list of recommendations of the LAWA for water management requirements for geothermal probes and geothermal collectors.

Characteristics

Excellent for light metal engines
Good reserve alkalinity
Premium corrosion additives for optimal rust protection for all metals and metal alloys used in coolsystems, including aluminium
Prevents sediments and foaming in the cooling system
Compatible with elastomers used in automotive radiators
Can be mixed with other coolant types

Parameter	Unit	Value	Audit
Recommendations		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, MB 326.3 (Premix), Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, MB 326.3 (Premix), Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
Brand		RAVENOL		RAVENOL
Recomendations		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
Suitable for		Jaguar Land Rover STJLR.651.5003, Porsche		Jaguar Land Rover STJLR.651.5003, Porsche
Compliant products		Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F		Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
Density at 20 °C	g/cm³	1070	EN ISO 12185	1070 g/cm³ EN ISO 12185
Color		Violet	visual	Violet visual
pH - value at 20 °C		7,5 - 8,5	ASTM D1287	7,5 - 8,5 ASTM D1287
Freezing point	°C	-40	ASTM D1177	-40 °C ASTM D1177
Approvals		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

OTC - Protect C12+ Concentrate

Coolant

Compliance with the requirements:
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

show details

Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.

Usage mode: normal

Replacement every 40000 KM or 24 MONTH.

Replacement via, KM: 200000

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410110-150

Code:
4014835755413

Volume:
5 L

vendor code:
1410110-005

Code:
4014835755451

Volume:
10 L

vendor code:
1410110-010

Volume:
20 L

vendor code:
1410110-020

Code:
4014835755420

Volume:
20 L, ecobox

vendor code:
1410110-B20

Code:
4014835855212

Volume:
60 L, plastic

vendor code:
-

Code:
4014835755437

Volume:
60 L

vendor code:
1410110-060

Code:
4014835755468

Volume:
60 L, print

vendor code:
1410110-D60

Volume:
1000 L

vendor code:
1410110-700

Volume:
208 L

vendor code:
1410110-208

Code:
4014835755482

RAVENOL OTC Organic Techn. Coolant Concentrate C12+ protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with highly effective frost and rust protection. Usable in cooling systems with all-aluminium engines. Mix according to chart. Follow manufacturer's recommendations.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

RAVENOL OTC Organic Techn. Coolant Concentrate C12+ can also be used in geothermal probes and geothermal collectors as recommended list of LAWA (Federal / State Working Group on Water in Germany).

MAN information for use:

Mixing prohibited with Type NF and Type N. Do not use silicone radiator hoses per MAN 334 Type 3 (blue) with coolants per MAN 324 Type SNF.

Table of mixing ratios
Antifreeze protection until	Parts Antifreeze	Parts Water
-20°C	35%	65%
-37°C	50%	50%
-50°C	60%	40%

Characteristics

Excellent for light metal engines
Good reserve alkalinity
Premium corrosion additives for optimal rust protection for all metals and metal alloys used in cool
systems, including aluminium
Prevents sediments and foaming in the cooling system
Compatible with elastomers used in automotive radiators
Can be mixed with other coolant types

Parameter	Unit	Value	Audit
Recommendations		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
Brand		RAVENOL		RAVENOL
Recomendations		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
Suitable for		Jaguar Land Rover STJLR.651.5003, Porsche		Jaguar Land Rover STJLR.651.5003, Porsche
Compliant products		Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F		Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
Density at 20 °C	g/cm³	1130	EN ISO 12185	1130 g/cm³ EN ISO 12185
Color		Violet	visual	Violet visual
Reserve alkalinity	mgKOH/g	5.5 —	ASTM D1120	5.5 — mgKOH/g ASTM D1120
Boiling point	°C	187	ASTM D1121	187 °C ASTM D1121
Water content	%	— 5	ASTM D1123	— 5 % ASTM D1123
Flashpoint	°C	110 —	DIN 51758	110 — °C DIN 51758
Freezing point (50 % solution)	°C	-37	ASTM D1177	-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %)		7,5 - 8,5	ASTM D1287	7,5 - 8,5 ASTM D1287
Approvals		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

Usage mode: normal

Replacement every 40000 KM or 24 MONTH.

Replacement via, KM: 200000

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter	Value
Recommendations	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand	RAVENOL	RAVENOL
Recomendations	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272
Approvals	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272

Professional Radiator Cleaner

Additive

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

show details

Equivalents OEM:
Ford MP14300500AB

Usage mode: normal

Replacement every 40000 KM or 24 MONTH.

Replacement via, KM: 200000

Available packaging
Full description
Product parameters

Volume:
0.25 L

vendor code:
1390302-250

Code:
4014835802667

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.

Application Note

RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.

Area of application:

Radiator repairs

In the event of reduced radiator performance

In the event of deposits in the cooling system

Changing coolant

For cleaning purposes after engine repairs due to oil in the cooling system

Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.

Fill in

RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.

RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.

Characteristics

Cleaning of the cooling and heating system
Protection of the new coolant against prior contamination
Elimination of sludge and corrosion residue

Parameter	Unit	Value	Audit
Color		Colorless	visual	Colorless visual
Density at 20 °C	g/cm³	1003	EN ISO 12185	1003 g/cm³ EN ISO 12185
pH - value at 20 °C		10,25	DIN 19268	10,25 DIN 19268
Brand		RAVENOL		RAVENOL
