Oil for Hyundai - Sonata VI / i45, YF - Sonata / i45 2.0 MPI Hybrid 2WD

Hyundai Sonata VI / i45, YF Sonata / i45 2.0 MPI Hybrid 2WD, year of issue from 2011 date to 2014 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Fuel: Gasoline + electricity (hybrid)
car drive: Front-wheel drive
Engine: Single row
Number of cylinders: 4
Valves per cylinder: 4
Working volume: 1999 cc
Power: 150 hp / 110 kW

Add to Garage

Nodes and assemblies

Engine G4NE / Nu MPI
Transmission, automatic in a unit with final drive A6MF2H 6/1 A6MF2H
Hydraulic brake system

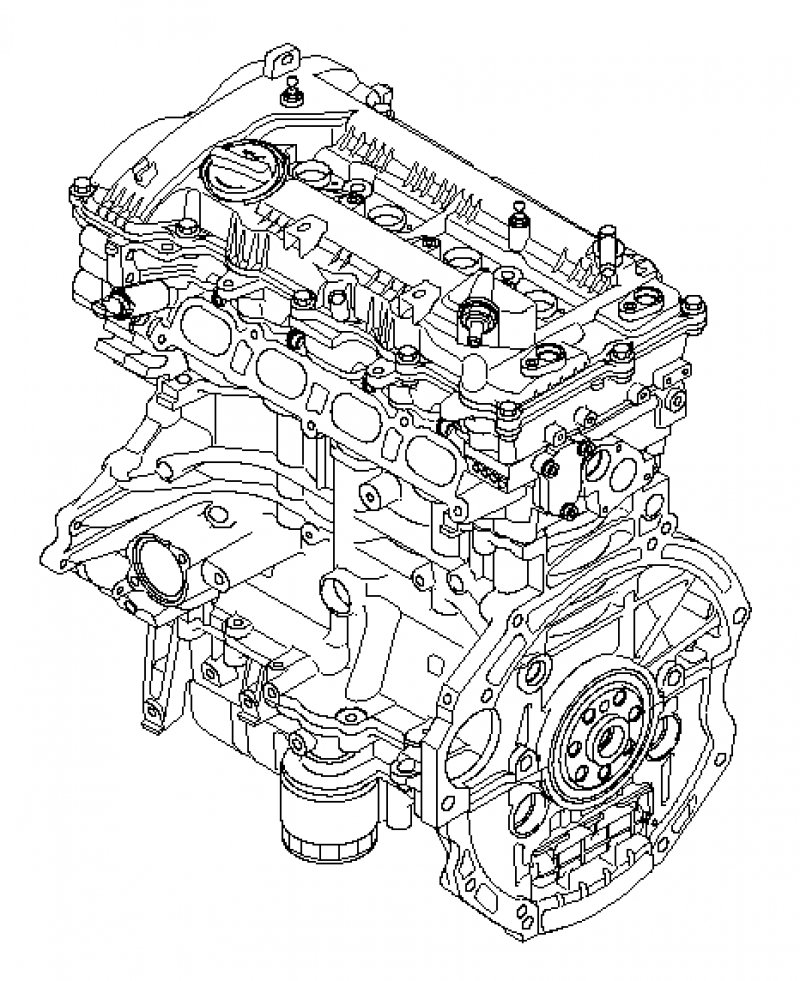

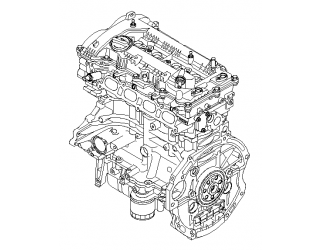

Engine G4NE / Nu MPI
OEM: 1S11H-2EA03

Liquid volume (basic): 6.1 L

Super Fuel Economy SFE 5W-20

For engine

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
Ford WSS-M2C 948-B, Jaguar/Land Rover STJLR.03.5004

Compliance with the requirements:
Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Honda/Acura HTO-06

show details

SAE: 5W-20

ILSAC: GF-6A

API: SN Plus, SP (RC)

ACEA: A5, B5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111110-001

Code:
4014835722514

Volume:
4 L

vendor code:
1111110-004

Code:
4014835722590

Volume:
5 L

vendor code:
1111110-005

Code:
4014835722552

Volume:
10 L

vendor code:
1111110-010

Code:
4014835722545

Volume:
20 L

vendor code:
1111110-020

Code:
4014835722521

Volume:
20 L, ecobox

vendor code:
1111110-B20

Code:
4014835772823

Volume:
60 L, print

vendor code:
1111110-D60

Code:
4014835722538

Volume:
1000 L

vendor code:
1111110-700

Volume:
60 L

vendor code:
1111110-060

Volume:
208 L

vendor code:
1111110-208

RAVENOL Super Fuel Economy SFE SAE 5W-20 has a high viscosity index because of its formulation with special base oils. The formulation avoids premature fuel ignition LSPI (Low Speed Prevention), thereby avoiding engine damage. Recommended for turbo gasoline engines with direct injection (Turbo-GDI).

Because of a considerable fuel saving RAVENOL Super Fuel Economy SFE SAE 5W-20 contributes to protect the environment by reducing the emissions.

RAVENOL Super Fuel Economy SFE SAE 5W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL Super Fuel Economy SFE SAE 5W-20 is an universal fuel-efficient engine oil, a top-quality product for modern passenger cars with gasoline and diesel engines of the latest generation.

Characteristics

Guaranteed fastest possible lubrication of the engine.
High fuel economy (FE) effect due to the base oils and additives used. Low volatilization tendency, thereby lower oil consumption.
Provides protection against sludging, coking, varnish and corrosion even under unfavorable operatingconditions.
No oil-related deposits in combustion chambers in the piston ring zone and on valves.
Ensures the function of the hydraulic tappets at all temperatures.
Stable engine oil, no NOx oxidation.
Good aging behavior, confirmed by the Hot Tube Test.
Good soot absorption and dispersion.
Neutral towards sealing materials.
Protects turbocharger, EPS and engines running with ethanol-containing fuels up to E85.
Compatibility with exhaust gas after treatment systems.

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C925-A, Ford WSS-M2C925-B, Ford WSS-M2C930-A, Ford WSS-M2C930-B, Honda/Acura HTO-06, Mazda, Nissan, Suzuki, Toyota		Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C925-A, Ford WSS-M2C925-B, Ford WSS-M2C930-A, Ford WSS-M2C930-B, Honda/Acura HTO-06, Mazda, Nissan, Suzuki, Toyota
Brand		RAVENOL		RAVENOL
SAE		5W-20		5W-20
Type		Full synthetic		Full synthetic
API		SN Plus, SP (RC)		SN Plus, SP (RC)
ACEA		A5, B5		A5, B5
ILSAC		GF-6A		GF-6A
Manufacturer Approved		Ford WSS-M2C 948-B, Jaguar/Land Rover STJLR.03.5004		Ford WSS-M2C 948-B, Jaguar/Land Rover STJLR.03.5004
Recomendations		Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Honda/Acura HTO-06		Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Honda/Acura HTO-06
Suitable for		Mazda, Nissan, Suzuki, Toyota		Mazda, Nissan, Suzuki, Toyota
Density at 20 °C	g/cm³	842	EN ISO 12185	842 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	8.5	DIN 51562-1	8.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	47.2	DIN 51562-1	47.2 mm²/s DIN 51562-1
Viscosity Index VI		160	DIN ISO 2909	160 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	2.9	ASTM D5481	2.9 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	3640	ASTM D5293	3640 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	9.700	ASTM D4684	9.700 mPa*s ASTM D4684
Pourpoint	°C	-63	DIN ISO 3016	-63 °C DIN ISO 3016
Noack Volatility	%	8.3	ASTM D5800	8.3 % ASTM D5800
Flashpoint	°C	238	DIN EN ISO 2592	238 °C DIN EN ISO 2592
tbn	mgKOH/g	8	ASTM D2896	8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.8	DIN 51575	0.8 %wt. DIN 51575
Approvals		Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Ford WSS-M2C 948-B, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5004		Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Ford WSS-M2C 948-B, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5004

SSO 0W-30

Engine oil

Manufacturer Approved:
BMW Longlife-98, MB-Approval 229.5, Renault RN 0710, Volvo VCC 95200356 - Service Fill, VW 502.00, VW 505.00

Compliance with the requirements:
BMW Longlife-01, GM GM-LL-A-025, GM GM-LL-B-025, Renault RN 0700, VW 503.01

show details

SAE: 0W-30

API: CF, SN

ACEA: A3, B4

Equivalents OEM:
Alpine 0100241, Alpine 0100242, Alpine 0100243, Alpine 0100244, Alpine 0100245, Alpine 0100248, Alpine 100241, Alpine 100242, Alpine 100243, Alpine 100244, Alpine 100245, BMW 83122219738, BMW 83122219739, BMW 83210144462, BMW 83210144464, BMW 83210144467, BMW 83212365953, BMW 83212405630, BMW 83212405636, BMW 83212405849, BMW 83212405945, BMW 83212410200, BMW 83212410201, BMW 83212410731, BMW 83212420599, BMW 83212420694, BMW 83212420694, Ford CXO0W30LAS12, Mitsubishi MZ320753, Mitsubishi MZ320754, Mitsubishi MZ320755 Alpine 0100241, Alpine 0100242, Alpine 0100243, Alpine 0100244, Alpine 0100245, Alpine 0100248, Alpine 100241, Alpine 100242, Alpine 100243, Alpine 100244, Alpine 100245, BMW 83122219738, BMW 83122219739, BMW 83210144462, BMW 83210144464, BMW 83210144467, BMW 83212365953, BMW 83212405630, BMW 83212405636, BMW 83212405849, BMW 83212405945, BMW 83212410200, BMW 83212410201, BMW 83212410731, BMW 83212420599, BMW 83212420694, BMW 83212420694, Ford CXO0W30LAS12, Mitsubishi MZ320753, Mitsubishi MZ320754, Mitsubishi MZ320755, Mitsubishi MZ321032, Mitsubishi MZ321033, Nissan KE90090132, Nissan KE90090132R, Pentosin 1000117, Toyota 0888080360, Toyota 0888080360GO, Toyota 0888080365, Toyota 0888080365G0, Toyota 0888080365GO, Toyota 0888080366, Toyota 0888080366GO, Toyota 0888082645GO, VAG G055195M4, VAG GE55167C2, VAG GR55167M2, Volvo 1161830, Volvo 1161831, Volvo 1161832

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111100-001

Code:
4014835718319

Volume:
4 L

vendor code:
1111100-004

Code:
4014835718395

Volume:
5 L

vendor code:
1111100-005

Code:
4014835718357

Volume:
10 L

vendor code:
1111100-010

Code:
4014835718340

Volume:
20 L

vendor code:
1111100-020

Code:
4014835718326

Volume:
20 L, ecobox

vendor code:
1111100-B20

Code:
4014835772427

Volume:
60 L

vendor code:
1111100-060

Volume:
60 L, print

vendor code:
1111100-D60

Code:
4014835718333

Volume:
208 L, print

vendor code:
1111100-D28

Code:
4014835718302

Volume:
208 L

vendor code:
1111100-208

Code:
4014835718388

Volume:
1000 L

vendor code:
1111100-700

With its new formulation, RAVENOL SSO SAE 0W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL SSO SAE 0W-30 helps to protect the environment by reducing emissions.

RAVENOL SSO SAE 0W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics. Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL SSO SAE 0W-30 is universal, fuel-efficient engine oil. It is a premium product for gasoline and diesel engine passenger cars. Suitable for all petrol and diesel passenger cars with and without turbo charger, especially recommended for full synthetic all-season motor oils.

Characteristics

Universal application in all modern petrol and diesel engines.
Quick lubrication of the engine even at temperatures below -30 °C.
Low evaporation tendency, therefore a lower oil consumption.
Safety against accumulation of sludge, coking and corrosion even under unfavourable operating conditions.
Guarantee of the function of the hydro tappets at all temperatures.
No oil limited deposits in combustion chambers, at the piston ring and valves.
Unchanged viscosity during the whole oil change interval, high viscosity index.
Neutral against sealing materials.
Miscibility with all commercially available engine oils. Flushing is not required.

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-01, GM-LL-A-025, GM-LL-B-025, Renault RN0700, VW 503 01		BMW Longlife-01, GM-LL-A-025, GM-LL-B-025, Renault RN0700, VW 503 01
Brand		RAVENOL		RAVENOL
SAE		0W-30		0W-30
Type		Full synthetic		Full synthetic
API		CF, SN		CF, SN
ACEA		A3, B4		A3, B4
Manufacturer Approved		BMW Longlife-98, MB-Approval 229.5, Renault RN 0710, Volvo VCC 95200356 - Service Fill, VW 502.00, VW 505.00		BMW Longlife-98, MB-Approval 229.5, Renault RN 0710, Volvo VCC 95200356 - Service Fill, VW 502.00, VW 505.00
Recomendations		BMW Longlife-01, GM GM-LL-A-025, GM GM-LL-B-025, Renault RN 0700, VW 503.01		BMW Longlife-01, GM GM-LL-A-025, GM GM-LL-B-025, Renault RN 0700, VW 503.01
Density at 20 °C	g/cm³	843	EN ISO 12185	843 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12	DIN 51562-1	12 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	60.9	DIN 51562-1	60.9 mm²/s DIN 51562-1
Viscosity Index VI		198	DIN ISO 2909	198 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.57	ASTM D5481	3.57 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5580	ASTM D5293	5580 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	16.300	ASTM D4684	16.300 mPa*s ASTM D4684
Pourpoint	°C	-60	DIN ISO 3016	-60 °C DIN ISO 3016
Noack Volatility	%	9.2	ASTM D5800	9.2 % ASTM D5800
Flashpoint	°C	236	DIN EN ISO 2592	236 °C DIN EN ISO 2592
tbn	mgKOH/g	12.5	ASTM D2896	12.5 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.3	DIN 51575	1.3 %wt. DIN 51575
Approvals		BMW Longlife-01, BMW Longlife-98, GM GM-LL-A-025, GM GM-LL-B-025, MB 229.5, Renault RN0700, Renault RN0710, Volvo VCC 95200356 - Service Fill, VW 502.00, VW 503.01, VW 505.00		BMW Longlife-01, BMW Longlife-98, GM GM-LL-A-025, GM GM-LL-B-025, MB 229.5, Renault RN0700, Renault RN0710, Volvo VCC 95200356 - Service Fill, VW 502.00, VW 503.01, VW 505.00

DXG 5W-30

For engine

For the development of RAVENOL DXG SAE 5W-30 the proven formulation of tri-nuclear molybdenum and OFM (Organic Friction Modifiers) was used. A highly polar Group V base oil was used in this formula, which has good compatibility with the PAO used.

Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034

Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30

show details

SAE: 5W-30

ILSAC: GF-7A

API: SQ (RC)

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111124-001

Code:
4014835732315

Volume:
4 L

vendor code:
1111124-004

Code:
4014835732391

Volume:
5 L (4+1)

vendor code:
1111124-A05

Code:
4014835851689

Volume:
5 L

vendor code:
1111124-005

Code:
4014835732353

Volume:
10 L

vendor code:
1111124-010

Code:
4014835732346

Volume:
20 L, ecobox

vendor code:
1111124-B20

Code:
4014835773820

Volume:
60 L, print

vendor code:
1111124-D60

Code:
4014835732339

Volume:
208 L

vendor code:
1111124-208

Code:
4014835732384

Volume:
208 L, print

vendor code:
1111124-D28

Volume:
20 L

vendor code:
1111124-020

Code:
4014835732322

Volume:
60 L

vendor code:
1111124-060

For the development of RAVENOL DXG SAE 5W-30 the proven formulation of tri-nuclear molybdenum and OFM (Organic Friction Modifiers) was used. A highly polar Group V base oil was used in this formula, which has good compatibility with the PAO used.

Due to the USVO®technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

With its new formulation, RAVENOL DXG SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL DXG SAE 5W-30 helps to protect the environment by reducing emissions.

RAVENOL DXG SAE 5W-30 helps to avoid low speed pre-ignition LSPI (Low Speed Pre-ignition). This can help avoid engine damage.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL DXG SAE 5W-30 is a high-performance low-friction engine oil for modern engines, and is recommended by OPEL/GENERAL MOTORS to the latest GM dexos 1 specification for modern GM gasoline-engined vehicles under all operating conditions.

RAVENOL DXG SAE 5W-30 is also suitable fort he shown specifications of Ford, Chrysler and Honda.

Characteristics

New formula with dexos1™ Gen 3 approval
Particularly suitable for GDI engines
Avoids low speed pre-ignition (LSPI)
No oil-related deposits in combustion chambers, in the piston ring zone and on valves
Fuel savings potential under both part and full load operation
Latest low SAPS technology = low Sulphated Ash, Phosphorus and Sulphur
A very stable viscosity behavior and an excellent shear stability
Very good cold starting properties
A safe lubricant film even at very high operating temperatures
Exceptional wear and corrosion protection
Excellent detergent and dispersant capabilities for cleaner engines, prevents foaming
Long service life through high oxidation stability
Suitable for catalyst-equipped vehicles

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Full synthetic		Full synthetic
API		SQ (RC)		SQ (RC)
ILSAC		GF-7A		GF-7A
Manufacturer Approved		GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034		GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034
Recomendations		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
Density at 20 °C	g/cm³	846	EN ISO 12185	846 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	11.1	DIN 51562-1	11.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	65.6	DIN 51562-1	65.6 mm²/s DIN 51562-1
Viscosity Index VI		163	DIN ISO 2909	163 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.25	ASTM D5481	3.25 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	3990	ASTM D5293	3990 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	11.800	ASTM D4684	11.800 mPa*s ASTM D4684
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Noack Volatility	%	6	ASTM D5800	6 % ASTM D5800
Flashpoint	°C	244	DIN EN ISO 2592	244 °C DIN EN ISO 2592
tbn	mgKOH/g	7.8	ASTM D2896	7.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.8	DIN 51575	0.8 %wt. DIN 51575
Approvals		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034

FDS 5W-30

For engine

Manufacturer Approved:
Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB-Approval 229.6, Renault RN 0700

Compliance with the requirements:
Fiat 9.55535-G1, Ford WSS-M2C 913-C, VWC 53036

show details

SAE: 5W-30

API: CF, SP

ACEA: A5, A7, B5, B7

Equivalents OEM:
Alpine 0100181, Alpine 0100182, Alpine 100181, Alpine 100182, Alpine 100189, Ford 14E8B9, Ford 14E8BA, Ford 14E9EC, Ford 14E9ED, Ford 15CF53, Ford 15CF54, Ford 15D5E4, Ford 15D5E7, Ford 15D5E9, Ford 151FF2, Ford 151FF2, Ford 151FF3, Ford 151FF5, Ford 155D3A, Ford 155D4A, Ford 155D4B, Ford 1515DA, Ford 15594D, Ford 15595E, Ford 15595F, Ford 1370044, GM 12345885, Hyundai Motor 0510000141, Hyundai Motor 0510000441, Land Rover STC50527, Mazda 053001TFE Alpine 0100181, Alpine 0100182, Alpine 100181, Alpine 100182, Alpine 100189, Ford 14E8B9, Ford 14E8BA, Ford 14E9EC, Ford 14E9ED, Ford 15CF53, Ford 15CF54, Ford 15D5E4, Ford 15D5E7, Ford 15D5E9, Ford 151FF2, Ford 151FF2, Ford 151FF3, Ford 151FF5, Ford 155D3A, Ford 155D4A, Ford 155D4B, Ford 1515DA, Ford 15594D, Ford 15595E, Ford 15595F, Ford 1370044, GM 12345885, Hyundai Motor 0510000141, Hyundai Motor 0510000441, Land Rover STC50527, Mazda 053001TFE, Mazda 053005TFE, Mazda 53005TFE, Mazda 830077279, Mazda 830077280, Mazda 830077991, Mazda 830077992, Mazda 8300771772, Nissan KE90099933, Nissan KE90099933R, Nissan KE90099933VA, Nissan KE90099943, Nissan KE90099943R, Pentosin 1082107, Pentosin 1082206, Pentosin 4008849132117, Pentosin 4008849152238, Renault 7711943682, Renault 7711943683, Renault 7711943684, Toyota 0888083944, Volvo 31316299, Volvo 31316300

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111139-001

Code:
4014835795617

Volume:
4 L

vendor code:
1111139-004

Code:
4014835795693

Volume:
5 L

vendor code:
1111139-005

Code:
4014835795655

Volume:
10 L

vendor code:
1111139-010

Code:
4014835795648

Volume:
20 L

vendor code:
1111139-020

Code:
4014835795624

Volume:
20 L, ecobox

vendor code:
1111139-B20

Code:
4014835797925

Volume:
60 L

vendor code:
1111139-060

Code:
4014835795662

Volume:
60 L, print

vendor code:
1111139-D60

Volume:
208 L

vendor code:
1111139-208

Code:
4014835795686

Volume:
208 L, print

vendor code:
1111139-D28

Volume:
1000 L

vendor code:
1111139-700

With its new formulation, RAVENOL FDS SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL FDS SAE 5W-30 helps to protect the environment by reducing emissions. It minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL FDS SAE 5W-30 ensures operational safety in all driving conditions such as in extreme stop-and-go traffic and high-speed motorway driving.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL FDS SAE 5W-30 is suitable as motor oil for fuel-efficient year-round use in modern petrol and diesel engines in passenger cars, station wagon's, vans and similar vehicles from FORD, RENAULT, Toyota, Hyundai, KIA, Mazda, Honda, Nissan und Mitsubishi, when the specifications ACEA A5/B5 are required.

Characteristics

Excellent cold starting properties even at low temperatures of below -30 ° C
A very stable and excellent viscosity characteristics, shear stability
Fuel efficiency under all operating conditions
Excellent detergency and dispersing properties
Neutrality towards sealing materials
Low evaporation loss, thereby lower oil consumption
An extensive protection against wear, corrosion and foaming
Catalyst suitability
Extended oil change intervals to protect natural resources

Parameter	Unit	Value	Audit
Recommendations		Fiat 9.55535-G1, Ford WSS-M2C913-C, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C913-C, VWC 53036
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Full synthetic		Full synthetic
API		CF, SP		CF, SP
ACEA		A5, A7, B5, B7		A5, A7, B5, B7
Manufacturer Approved		Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB-Approval 229.6, Renault RN 0700		Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB-Approval 229.6, Renault RN 0700
Recomendations		Fiat 9.55535-G1, Ford WSS-M2C 913-C, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C 913-C, VWC 53036
Density at 20 °C	g/cm³	843	EN ISO 12185	843 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	10.2	DIN 51562-1	10.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	58.35	DIN 51562-1	58.35 mm²/s DIN 51562-1
Viscosity Index VI		163	DIN ISO 2909	163 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3	ASTM D5481	3 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	3880	ASTM D5293	3880 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	10.400	ASTM D4684	10.400 mPa*s ASTM D4684
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Noack Volatility	%	8.9	ASTM D5800	8.9 % ASTM D5800
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	12.5	ASTM D2896	12.5 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.2	DIN 51575	1.2 %wt. DIN 51575
Approvals		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036

TSJ 10W-30

For engine

RAVENOL TSJ SAE 10W-30 is especially produced for the use in cars of Japanese and Asian manufacturers.

Compliance with the requirements:
Chrysler MS-6395, Fiat 9.55535-CR1

show details

SAE: 10W-30

ILSAC: GF-7A

API: SQ (RC)

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1112106-001

Code:
4014835724013

Volume:
4 L

vendor code:
1112106-004

Code:
4014835724099

Volume:
5 L

vendor code:
1112106-005

Code:
4014835724051

Volume:
10 L

vendor code:
1112106-010

Code:
4014835852464

Volume:
20 L

vendor code:
1112106-020

Volume:
20 L, ecobox

vendor code:
1112106-B20

Code:
4014835774421

Volume:
60 L, print

vendor code:
1112106-D60

Code:
4014835724037

Volume:
208 L

vendor code:
1112106-028

Code:
4014835724006

Volume:
208 L, print

vendor code:
1112106-D28

Volume:
1000 L

vendor code:
1112106-700

Volume:
60 L

vendor code:
1112106-060

Volume:
208 L

vendor code:
1112106-208

RAVENOL TSJ SAE 10W-30 is especially produced for the use in cars of Japanese and Asian manufacturers.

Application Note

RAVENOL TSJ SAE 10W-30 is suitable for the use in all modern cars of Japanese and Asian manufacturers all the year.

Characteristics

An universal use in all modern petrol and diesel engines
A quick lubrication of the engine even at low temperatures
A low evaporation tendency, therefore a low oil consumption
Safety against sludge accumulations, cokings and corrosion even under unfavourable operating conditions
Guarantee of the function of the hydro tappets at all temperatures
No oil limited deposits in combustion chambers, at the piston ring and valves
Unchanged viscosity during the whole oil change interval, a high viscosity index
Neutral behaviour against sealing materials

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-6395, Daewoo, Daihatsu, Fiat 9.55535-CR1, Honda, Hyundai, Isuzu, KIA, Mazda, Mitsubishi, Nissan, SsangYong, Subaru, Suzuki, Toyota		Chrysler MS-6395, Daewoo, Daihatsu, Fiat 9.55535-CR1, Honda, Hyundai, Isuzu, KIA, Mazda, Mitsubishi, Nissan, SsangYong, Subaru, Suzuki, Toyota
Brand		RAVENOL		RAVENOL
SAE		10W-30		10W-30
Type		Semi-synthetic		Semi-synthetic
API		SQ (RC)		SQ (RC)
ILSAC		GF-7A		GF-7A
Recomendations		Chrysler MS-6395, Fiat 9.55535-CR1		Chrysler MS-6395, Fiat 9.55535-CR1
Suitable for		Daewoo, Daihatsu, Honda, Hyundai, Isuzu, KIA, Mazda, Mitsubishi, Nissan, SsangYong, Subaru, Suzuki, Toyota		Daewoo, Daihatsu, Honda, Hyundai, Isuzu, KIA, Mazda, Mitsubishi, Nissan, SsangYong, Subaru, Suzuki, Toyota
Density at 20 °C	g/cm³	854	EN ISO 12185	854 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	10.2	DIN 51562-1	10.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	64.3	DIN 51562-1	64.3 mm²/s DIN 51562-1
Viscosity Index VI		145	DIN ISO 2909	145 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.11	ASTM D5481	3.11 mPa*s ASTM D5481
CCS Viscosity at -25 °C	mPa*s	4830	ASTM D5293	4830 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -30 °C	mPa*s	11.300	ASTM D4684	11.300 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	9.9	ASTM D5800	9.9 % ASTM D5800
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	7.4	ASTM D2896	7.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.76	DIN 51575	0.76 %wt. DIN 51575
Approvals		Chrysler MS-6395, Fiat 9.55535-CR1		Chrysler MS-6395, Fiat 9.55535-CR1

VFE 5W-20

For engine

RAVENOL VFE SAE 5W-20 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Compliance with the requirements:
Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Ford WSS-M2C 948-B, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5004

show details

SAE: 5W-20

ILSAC: GF-6A

API: SN Plus, SP (RC)

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111311-001

Code:
4014835846036

Volume:
4 L

vendor code:
1111311-004

Code:
4014835853638

Volume:
5 L

vendor code:
1111311-005

Code:
4014835846067

Volume:
10 L

vendor code:
1111311-010

Code:
4014835846159

Volume:
20 L

vendor code:
1111311-020

Code:
4014835846173

Volume:
20 L, ecobox

vendor code:
1111311-B20

Code:
4014835849587

Volume:
60 L

vendor code:
1111311-060

Code:
4014835846197

Volume:
60 L, print

vendor code:
1111311-D60

Volume:
208 L

vendor code:
1111311-208

Code:
4014835846210

Volume:
208 L, print

vendor code:
1111311-D28

Code:
4014835863019

Volume:
1000 L

vendor code:
1111311-700

RAVENOL VFE SAE 5W-20 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL VFE SAE 5W-20 contributes to protect the environment by reducing the emissions.

RAVENOL VFE SAE 5W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL VFE SAE 5W-20 is an universal fuel-efficient engine oil, a top-quality product for modern passenger cars with gasoline and diesel engines.

Characteristics

Guaranteed fastest possible lubrication of the engine.
High fuel economy (FE) effect due to the base oils and additives used.
Low volatilization tendency, thereby lower oil consumption.
Provides protection against sludging, coking, varnish and corrosion even under unfavorable operating conditions.
No oil-related deposits in combustion chambers in the piston ring zone and on valves.
Ensures the function of the hydraulic tappets at all temperatures.
Stable engine oil, no NOx oxidation.
Good soot absorption and dispersion.
Neutral towards sealing materials.

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C925-A, Ford WSS-M2C925-B, Ford WSS-M2C930-A, Ford WSS-M2C930-B, Ford WSS-M2C948-B, Honda/Acura HTO-06, Hyundai, Jaguar Land Rover STJLR.03.5004, KIA, Mazda, Mitsubishi, Nissan, Suzuki, Toyota		Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C925-A, Ford WSS-M2C925-B, Ford WSS-M2C930-A, Ford WSS-M2C930-B, Ford WSS-M2C948-B, Honda/Acura HTO-06, Hyundai, Jaguar Land Rover STJLR.03.5004, KIA, Mazda, Mitsubishi, Nissan, Suzuki, Toyota
Brand		RAVENOL		RAVENOL
SAE		5W-20		5W-20
Type		Synthetic		Synthetic
API		SN Plus, SP (RC)		SN Plus, SP (RC)
ILSAC		GF-6A		GF-6A
Recomendations		Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Ford WSS-M2C 948-B, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5004		Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Ford WSS-M2C 948-B, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5004
Suitable for		Hyundai, KIA, Mazda, Mitsubishi, Nissan, Suzuki, Toyota		Hyundai, KIA, Mazda, Mitsubishi, Nissan, Suzuki, Toyota
Density at 20 °C	g/cm³	853	EN ISO 12185	853 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	8.2	DIN 51562-1	8.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	47.8	DIN 51562-1	47.8 mm²/s DIN 51562-1
Viscosity Index VI		147	DIN ISO 2909	147 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	2.7	ASTM D5481	2.7 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	6000	ASTM D5293	6000 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	17500	ASTM D4684	17500 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	%	9	ASTM D5800	9 % ASTM D5800
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
tbn	mgKOH/g	7.8	ASTM D2896	7.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.8	DIN 51575	0.8 %wt. DIN 51575
Approvals		Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Ford WSS-M2C 948-B, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5004		Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Ford WSS-M2C 948-B, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5004

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

Available packaging
Full description
Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

Long-term effectiveness and clean fresh oil
Remedy for soiled engines
Protection against compression loss in the area of the piston rings
Leads to better exhaust emissions and increases the performance of the engine

Parameter	Unit	Value	Audit
Color		Light brown	visual	Light brown visual
Flashpoint (PM)	°C	62	DIN ISO 3679	62 °C DIN ISO 3679
Density at 20 °C		805	EN ISO 12185	805 EN ISO 12185
Viscosity at 40 °C	mm²/s	7	DIN EN ISO 3104	7 mm²/s DIN EN ISO 3104
Brand		RAVENOL		RAVENOL

Transmission, automatic in a unit with final drive A6MF2H 6/1 A6MF2H
OEM: 45000-3D100

Liquid volume (basic): 6.5 L

ATF SP-IV Fluid

For automatic transmission

RAVENOL ATF SP-IV Fluid meets the requirements of the latest gear oil specifications from Hyundai and KIA.

show details

Equivalents OEM:
Chrysler 68171866AA, Chrysler 68171866AB, Chrysler 68171866GA, Chrysler 68171866GA, Chrysler 68171869AA, Chrysler 68171869AB, Chrysler 68171869GB, Hyundai 0450000125, Hyundai 0450000125EU, Hyundai Motor 002321904, Hyundai Motor 0023219045, Hyundai Motor 0023219057, Hyundai Motor 0023219059, Hyundai Motor 0450000A15, Hyundai Motor 0450000115, Hyundai Motor 450000115, Hyundai Motor UM090CH042, Hyundai XTeer 1011006, Hyundai XTeer 1041017, Hyundai XTeer 1121014, Hyundai XTeer 1200017, SsangYong 0000000850, SsangYong LLKSPIV001

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1211107-001

Code:
4014835714014

Volume:
4 L

vendor code:
1211107-004

Code:
4014835714090

Volume:
10 L

vendor code:
1211107-010

Code:
4014835719149

Volume:
20 L

vendor code:
1211107-020

Code:
4014835719125

Volume:
20 L, ecobox

vendor code:
1211107-B20

Code:
4014835785021

Volume:
60 L

vendor code:
1211107-060

Volume:
60 L, print

vendor code:
1211107-D60

Code:
4014835719132

Volume:
208 L

vendor code:
1211107-208

Volume:
208 L, print

vendor code:
1211107-D28

Code:
4014835719101

RAVENOL ATF SP-IV Fluid meets the requirements of the latest gear oil specifications from Hyundai and KIA.

Application Note

RAVENOL ATF SP-IV Fluid is recommended for all vehicles with Hyundai/ KIA 6-stroke automatic transmission A6LF1/2/3, A6GF1, A6MF1/2 from 2009 and 8-speed Hyundai/KIA automatic transmission A8LF1/2, A8MF1 from 2019.

Follow the recommendations of the instruction manual of your vehicle.

ATTENTION!

For 8-speed Hyundai/KIA automatic transmissions A8LR1 and A8TR1 from 2010 only RAVENOL ATF SP-IV RR Fluid is recommended.

Characteristics

phenomenal resistance of lubricant failure under hard operating conditions
a long oil durability, extension of the durability of the transmission, offers longer changing intervals
phenomenal resistance of oil sludge and deposit accumulation
an excellent corrosion protection, a much better foaming resistance for a smooth switching operation as well as a lower corrosion of the bearings, sleeves and gear wheels
an excellent flow behaviour at low temperatures
a constant switching operation performance, optimised friction characteristics
prevention of coupling grinding regarding modulation rotary conversion
a long durability of oil and coupling, offers a smooth switching operation at low temperatures
an improved shear stability

Parameter	Unit	Value	Audit
Recommendations		6-Gang Hyundai Automatik, 8-Gang Hyundai/KIA Automatikgetriebe, Azera TG 2011- V6 3.3L 3.8L, Forte/Forte Koup 2010- L4 2.0L 2.4L, Grandeur HG 2011- V6 3.3L 3.8L, Hyundai 00232-19045, Hyundai 00232-19057, Hyundai 00232-19107, Hyundai 04500-00115, Hyundai Elantra UD 2011- L4 1.6L L4 2.0L, Hyundai Grandeur 6 (IG) 2019-22, Hyundai Grandeur 7 (GN7) 2022-, Hyundai iX35 2009 - L4 2.0 L 2.4L, Hyundai Palisade 1 (LX2) 2018-, Hyundai Santa Fe 2009 - L4 2.0L 2.2L 2.4L V6 3.5L, Hyundai Santa Fe 4 (TM) 2018-2024, Hyundai Santa Fe 5 (MX5) 2023-, Hyundai Sonata 2009- L4 2.0L 2.4L V6 3.5L, Hyundai Sonata 8 (DN8) 2019-, Hyundai Sorento XM 2011 – L4 2.4L V6 3.5L, Hyundai SP-IV-M, Hyundai SP-IV-M1, Hyundai Staria 1 (US4) 2021-, Hyundai Tucson 2009- L4 2.0L 2.4L, Hyundai Tucson 3 (TL) 2018-21, Hyundai Tucson 4 (NX4) 2020-, KIA Cadenza 2 (YG) 2019-2021, KIA Carnival 3 (YP) 2018-21, KIA Carnival 4 (KA4) 2020-, KIA K5 (DL3) 2019-, KIA K8 1 (GL3) 2021-, KIA Sorento 3 (UM) 2017-2020, KIA Sorento 4 (MQ4) 2020-, KIA Sportage 2010- L4 2.0L 2.4L, KIA Sportage 4 (QL) 2018-21, KIA Sportage 5 (NQ5) 2021-, KIA Telluride 1 (ON) 2019-, KIA UM090 CH042 für Sorento 2009- V6 3.3L 3.5L 3.8, Optima TF 2011- L4 2.0L 2.4L, Sedona VQ 2011- V6 3.5L, Veracruz 2011- V6 3.0		6-Gang Hyundai Automatik, 8-Gang Hyundai/KIA Automatikgetriebe, Azera TG 2011- V6 3.3L 3.8L, Forte/Forte Koup 2010- L4 2.0L 2.4L, Grandeur HG 2011- V6 3.3L 3.8L, Hyundai 00232-19045, Hyundai 00232-19057, Hyundai 00232-19107, Hyundai 04500-00115, Hyundai Elantra UD 2011- L4 1.6L L4 2.0L, Hyundai Grandeur 6 (IG) 2019-22, Hyundai Grandeur 7 (GN7) 2022-, Hyundai iX35 2009 - L4 2.0 L 2.4L, Hyundai Palisade 1 (LX2) 2018-, Hyundai Santa Fe 2009 - L4 2.0L 2.2L 2.4L V6 3.5L, Hyundai Santa Fe 4 (TM) 2018-2024, Hyundai Santa Fe 5 (MX5) 2023-, Hyundai Sonata 2009- L4 2.0L 2.4L V6 3.5L, Hyundai Sonata 8 (DN8) 2019-, Hyundai Sorento XM 2011 – L4 2.4L V6 3.5L, Hyundai SP-IV-M, Hyundai SP-IV-M1, Hyundai Staria 1 (US4) 2021-, Hyundai Tucson 2009- L4 2.0L 2.4L, Hyundai Tucson 3 (TL) 2018-21, Hyundai Tucson 4 (NX4) 2020-, KIA Cadenza 2 (YG) 2019-2021, KIA Carnival 3 (YP) 2018-21, KIA Carnival 4 (KA4) 2020-, KIA K5 (DL3) 2019-, KIA K8 1 (GL3) 2021-, KIA Sorento 3 (UM) 2017-2020, KIA Sorento 4 (MQ4) 2020-, KIA Sportage 2010- L4 2.0L 2.4L, KIA Sportage 4 (QL) 2018-21, KIA Sportage 5 (NQ5) 2021-, KIA Telluride 1 (ON) 2019-, KIA UM090 CH042 für Sorento 2009- V6 3.3L 3.5L 3.8, Optima TF 2011- L4 2.0L 2.4L, Sedona VQ 2011- V6 3.5L, Veracruz 2011- V6 3.0
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Suitable for		Hyundai 6-Gang Automatik, Hyundai Azera TG 2011- V6 3.3L 3.8L, Hyundai Elantra UD 2011- L4 1.6L L4 2.0L, Hyundai Grandeur 6 (IG) 2019-22, Hyundai Grandeur 7 (GN7) 2022-, Hyundai Grandeur HG 2011- V6 3.3L 3.8L, Hyundai iX35 2009 - L4 2.0 L 2.4L, Hyundai Palisade 1 (LX2) 2018-, Hyundai Santa Fe 2009 - L4 2.0L 2.2L 2.4L V6 3.5L, Hyundai Santa Fe 4 (TM) 2018-2024, Hyundai Santa Fe 5 (MX5) 2023-, Hyundai Sedona VQ 2011- V6 3.5L, Hyundai Sonata 2009- L4 2.0L 2.4L V6 3.5L, Hyundai Sonata 8 (DN8) 2019-, Hyundai Sorento XM 2011 – L4 2.4L V6 3.5L, Hyundai Staria 1 (US4) 2021-, Hyundai Tucson 2009- L4 2.0L 2.4L, Hyundai Tucson 3 (TL) 2018-21, Hyundai Tucson 4 (NX4) 2020-, Hyundai Veracruz 2011- V6 3.0, Hyundai/KIA 8-speed automatic transmission, KIA Cadenza 2 (YG) 2019-2021, KIA Carnival 3 (YP) 2018-21, KIA Carnival 4 (KA4) 2020-, KIA Forte/Forte Koup 2010- L4 2.0L 2.4L, KIA K5 (DL3) 2019-, KIA K8 1 (GL3) 2021-, KIA Optima TF 2011- L4 2.0L 2.4L, KIA Sorento 2009- V6 3.3L 3.5L 3.8, KIA Sorento 3 (UM) 2017-2020, KIA Sorento 4 (MQ4) 2020-, KIA Sportage 2010- L4 2.0L 2.4L, KIA Sportage 4 (QL) 2018-21, KIA Sportage 5 (NQ5) 2021-, KIA Telluride 1 (ON) 2019-		Hyundai 6-Gang Automatik, Hyundai Azera TG 2011- V6 3.3L 3.8L, Hyundai Elantra UD 2011- L4 1.6L L4 2.0L, Hyundai Grandeur 6 (IG) 2019-22, Hyundai Grandeur 7 (GN7) 2022-, Hyundai Grandeur HG 2011- V6 3.3L 3.8L, Hyundai iX35 2009 - L4 2.0 L 2.4L, Hyundai Palisade 1 (LX2) 2018-, Hyundai Santa Fe 2009 - L4 2.0L 2.2L 2.4L V6 3.5L, Hyundai Santa Fe 4 (TM) 2018-2024, Hyundai Santa Fe 5 (MX5) 2023-, Hyundai Sedona VQ 2011- V6 3.5L, Hyundai Sonata 2009- L4 2.0L 2.4L V6 3.5L, Hyundai Sonata 8 (DN8) 2019-, Hyundai Sorento XM 2011 – L4 2.4L V6 3.5L, Hyundai Staria 1 (US4) 2021-, Hyundai Tucson 2009- L4 2.0L 2.4L, Hyundai Tucson 3 (TL) 2018-21, Hyundai Tucson 4 (NX4) 2020-, Hyundai Veracruz 2011- V6 3.0, Hyundai/KIA 8-speed automatic transmission, KIA Cadenza 2 (YG) 2019-2021, KIA Carnival 3 (YP) 2018-21, KIA Carnival 4 (KA4) 2020-, KIA Forte/Forte Koup 2010- L4 2.0L 2.4L, KIA K5 (DL3) 2019-, KIA K8 1 (GL3) 2021-, KIA Optima TF 2011- L4 2.0L 2.4L, KIA Sorento 2009- V6 3.3L 3.5L 3.8, KIA Sorento 3 (UM) 2017-2020, KIA Sorento 4 (MQ4) 2020-, KIA Sportage 2010- L4 2.0L 2.4L, KIA Sportage 4 (QL) 2018-21, KIA Sportage 5 (NQ5) 2021-, KIA Telluride 1 (ON) 2019-
Compliant products		Hyundai 00232-19045, Hyundai 00232-19057, Hyundai 00232-19107, Hyundai 04500-00115, Hyundai SP-IV-M, Hyundai SP-IV-M1, KIA UM090-CH042		Hyundai 00232-19045, Hyundai 00232-19057, Hyundai 00232-19107, Hyundai 04500-00115, Hyundai SP-IV-M, Hyundai SP-IV-M1, KIA UM090-CH042
Density at 20 °C	g/cm³	838	EN ISO 12185	838 g/cm³ EN ISO 12185
Color		Red	visual	Red visual
Pourpoint	°C	-54	DIN ISO 3016	-54 °C DIN ISO 3016

Hydraulic brake system

Liquid volume (basic): 0.8 L

DOT 4

For brake system

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

show details

Available packaging
Full description
Product parameters

Volume:
250 ml

vendor code:
1350601-250

Code:
4014835692121

Volume:
500 ml

vendor code:
1350601-500

Code:
4014835692152

Volume:
1 L

vendor code:
1350601-001

Code:
4014835692114

Volume:
20 L

vendor code:
1350601-020

DOT 4

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

Application Note

RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.

RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.

RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113).

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

optimum ABS characteristics
chemical stability
best lubrication efficiency
neutral behaviour regarding brake parts
low viscosity at low temperatures
miscible with all brake fluids of the same specifications

Parameter	Unit	Value	Audit
FMVSS 116 specifications (DOT)		DOT-4		DOT-4
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
specification		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704
Density at 20 °C	g/cm³	1052	EN ISO 12185	1052 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mPa*s	2.41	ASTM D445	2.41 mPa*s ASTM D445
Viscosity at -40 °C	cSt	1340	ASTM D445	1340 cSt ASTM D445
Boiling point	°C	271	FMVSS 116	271 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point	°C	169	FMVSS 116	169 °C FMVSS 116
High Temperature Stability	°C	-1	FMVSS 116	-1 °C FMVSS 116
Chemical Stability	°C	1	FMVSS 116	1 °C FMVSS 116
Evaporation	%w/w	61	FMVSS 116	61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C		i.O., 4s	FMVSS 116	i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C		i.O., 8s	FMVSS 116	i.O., 8s FMVSS 116
Water Tolerance at -40 °C		transparent, 3s	FMVSS 116	transparent, 3s FMVSS 116
Water Tolerance at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at -40 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Water content	%	— 0.2	DIN 51777-1	— 0.2 % DIN 51777-1
Tinned Iron	Δ mg/cm²	0.04	FMVSS 116	0.04 Δ mg/cm² FMVSS 116
Steel	mg/cm²	-0.01	FMVSS 116	-0.01 mg/cm² FMVSS 116
Aluminium	mg/cm²	0.02	FMVSS 116	0.02 mg/cm² FMVSS 116
Cast Iron	Δ mg/cm²	-0,03	FMVSS 116	-0,03 Δ mg/cm² FMVSS 116
Brass	mg/cm²	-0.08	FMVSS 116	-0.08 mg/cm² FMVSS 116
Copper	mg/cm²	-0.05	FMVSS 116	-0.05 mg/cm² FMVSS 116
Zinc	mg/cm²	0.01	FMVSS 116	0.01 mg/cm² FMVSS 116
Sediment	%	— 0.05	FMVSS 116	— 0.05 % FMVSS 116
pH - value		8.2	FMVSS 116	8.2 FMVSS 116
Rubber Diameter Change		0.16	FMVSS 116	0.16 FMVSS 116
Hardness Change	°IRHD	-4	FMVSS 116	-4 °IRHD FMVSS 116
Appearance		i.O.	FMVSS 116	i.O. FMVSS 116
SBR at 70 °C	mm	0.56	FMVSS 116	0.56 mm FMVSS 116
SBR at 120 °C	mm	0.73	FMVSS 116	0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703)	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
EPDM at 120 °C	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925)	mm	0.38	FMVSS 116	0.38 mm FMVSS 116
Approvals		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704
