Oil for Peugeot 307 307 2.0 HDi 90 2WD (66 kW) (DW10TD) (RHY) (year of issue from 2001 date to present). Motor, automatic transmission oil, transmission, antifreeze, gur fluid, brake fluid

Search by VIN, make, model, vehicle type, unit name, or by article number of any oil:

Oil for Peugeot - 307 - 2.0 HDi 90 2WD (66 kW) (DW10TD) (RHY)

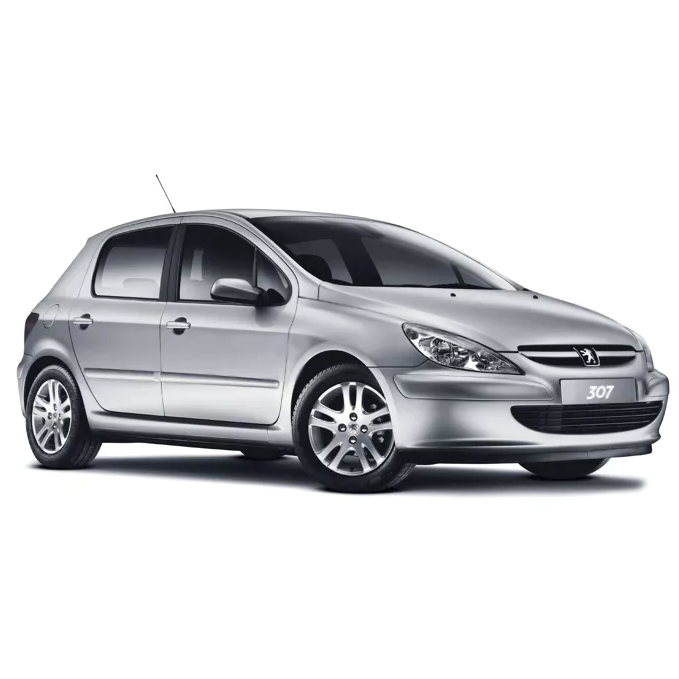

Peugeot 307 2.0 HDi 90 2WD (66 kW) (DW10TD) (RHY), year of issue from 2001 date to 2005 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Fuel: Diesel fuel
car drive: Front-wheel drive
Engine: Single row
Number of cylinders: 4
Valves per cylinder: 2
Working volume: 1997 cc
Power: 90 hp / 66 kW

Add to Garage

Nodes and assemblies

Engine DW10TD
Mechanical gearbox in a unit with final drive BE3/5 5/1 BE3 / BE3-5 / BE4 / BE4R / BE4-5L / BVM5
Power steering
Hydraulic brake system ABS
Cooling system

Engine DW10TD

Liquid volume (basic): 4.5 L

FEL 5W-30

For engine

RAVENOL FEL SAE 5W-30 is based on additives with low ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. HTHS >2,9 mPa*s. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

Compliance with the requirements:
Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290

show details

SAE: 5W-30

API: CF, SN

ACEA: C2

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111123-001

Code:
4014835723412

Volume:
4 L

vendor code:
1111123-004

Code:
4014835723498

Volume:
10 L

vendor code:
1111123-010

Code:
4014835723443

Volume:
20 L

vendor code:
1111123-020

Code:
4014835723429

Volume:
20 L, ecobox

vendor code:
1111123-B20

Code:
4014835773721

Volume:
60 L

vendor code:
1111123-060

Volume:
60 L, print

vendor code:
1111123-D60

Code:
4014835723436

Volume:
208 L, print

vendor code:
1111123-D28

Code:
4014835723405

Volume:
1000 L

vendor code:
1111123-700

Volume:
5 L

vendor code:
1111123-005

Code:
4014835723450

Volume:
208 L

vendor code:
1111123-208

Code:
4014835723481

RAVENOL FEL SAE 5W-30 is based on additives with low ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. HTHS >2,9 mPa*s. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

RAVENOL FEL SAE 5W-30 achieved by its formulation with special base oils a high viscosity index. The excellent cold start behaviour ensures a optimal lubrication safety in the cold running phase.

Because of a considerable fuel saving RAVENOL FEL SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL FEL SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL FEL SAE 5W-30 is an universal fuel economy, especially collected engine oil for modern gasoline and diesel engines with and without turbo charger in passenger cars and vans with extended oil change intervals. Extend the lifespan of the particle filter. Due to the specific composition is RAVENOL FEL SAE 5W-30 excellent suitable for use for indicated OEM requirements.

Characteristics

Fuel economy in part and full power operation
Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine
Excellent cold starting characteristics also at low temperatures below -25°C
A safe lubricant film at high operating temperatures
Low evaporative tendency, so lower oil consumption
No deposits in combustion chambers, in the piston ring zone and valves because of oil conditioned
Neutrality towards sealing materials
Extended oil change intervals to protect natural resources

Parameter	Unit	Value	Audit
Recommendations		Fiat 9.55535-S1, Honda i-CTDi, Honda i-DTEC, IVECO 18-1811 CLASSE SC1, Mazda MZ-CD, Mazda 183418, Mazda 183419, Mazda CiTD, Mazda MZR-CD, PSA B71 2290, Subaru Boxer Diesel, Suzuki, Toyota 08880-83388, Toyota 08880-83389		Fiat 9.55535-S1, Honda i-CTDi, Honda i-DTEC, IVECO 18-1811 CLASSE SC1, Mazda MZ-CD, Mazda 183418, Mazda 183419, Mazda CiTD, Mazda MZR-CD, PSA B71 2290, Subaru Boxer Diesel, Suzuki, Toyota 08880-83388, Toyota 08880-83389
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		C2		C2
JASO		DL-1		DL-1
Recomendations		Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290		Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290
Suitable for		Honda i-CTDi, Honda i-DTEC, Mazda CiTD, Mazda MZ-CD, Mazda MZR-CD, Subaru Boxer Diesel, Suzuki		Honda i-CTDi, Honda i-DTEC, Mazda CiTD, Mazda MZ-CD, Mazda MZR-CD, Subaru Boxer Diesel, Suzuki
Compliant products		Mazda 183418, Mazda 183419, Toyota 08880-83388, Toyota 08880-83389		Mazda 183418, Mazda 183419, Toyota 08880-83388, Toyota 08880-83389
Density at 20 °C	g/cm³	850	EN ISO 12185	850 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	10.7	DIN 51562-1	10.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	61.4	DIN 51562-1	61.4 mm²/s DIN 51562-1
Viscosity Index VI		166	DIN ISO 2909	166 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.2	ASTM D5481	3.2 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4765	ASTM D5293	4765 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	16.100	ASTM D4684	16.100 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	9	ASTM D5800	9 % ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	7.7	ASTM D2896	7.7 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.53	DIN 51575	0.53 %wt. DIN 51575
Approvals		Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290		Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290

HCS 5W-40

Engine oil

Application NoteRAVENOL HCS SAE 5W-40 is suitable for an energy saving all year use for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.

Manufacturer Approved:
MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296

show details

SAE: 5W-40

API: CF, SN

ACEA: A3, B4

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1112105-001

Code:
4014835723917

Volume:
4 L

vendor code:
1112105-004

Code:
4014835723993

Volume:
5 L

vendor code:
1112105-005

Code:
4014835723955

Volume:
10 L

vendor code:
1112105-010

Code:
4014835723948

Volume:
20 L, ecobox

vendor code:
1112105-B20

Code:
4014835774322

Volume:
60 L

vendor code:
1112105-060

Code:
4014835723962

Volume:
60 L, print

vendor code:
1112105-D60

Code:
4014835723931

Volume:
208 L

vendor code:
1112105-208

Code:
4014835723986

Volume:
208 L, print

vendor code:
1112105-D28

Code:
4014835723900

Volume:
1000 L

vendor code:
1112105-700

Volume:
20 L

vendor code:
1112105-020

Code:
4014835723924

Application Note

RAVENOL HCS SAE 5W-40 is suitable for an energy saving all year use for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.

Characteristics

High protection against wear
Fuel economy by low friction property
Excellent detergent- and dispersant property
Prevention of black sludge formation
Improved cleaner engine
Extended lifetime because of oxidation stability
Excellent cold starting characteristics
Excellent viscosity-temperature- characteristics
Low evaporation tendency
Catalyst cleaning

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, MB 226.5, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, MB 226.5, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296
Brand		RAVENOL		RAVENOL
SAE		5W-40		5W-40
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		A3, B4		A3, B4
Manufacturer Approved		MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00		MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
Recomendations		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296
Density at 20 °C	g/cm³	849	EN ISO 12185	849 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.4	DIN 51562-1	14.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	87.5	DIN 51562-1	87.5 mm²/s DIN 51562-1
Viscosity Index VI		171	DIN ISO 2909	171 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.9	ASTM D5481	3.9 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5370	ASTM D5293	5370 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	28.500	ASTM D4684	28.500 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	8.4	ASTM D5800	8.4 % ASTM D5800
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	10.4	ASTM D2896	10.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.26	DIN 51575	1.26 %wt. DIN 51575
Approvals		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

SVS Standard Viscosity Synto Oil 5W-40

For engine

RAVENOL SVS Standard Viscosity Synto Oil SAE 5W-40 is particularly recommended for vehicles with high mileage petrol and diesel engines with and without turbocharge and direct injection.

Compliance with the requirements:
BMW Longlife-01, GM GM-LL-B-025, MB 229.5, Porsche A40, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00

show details

SAE: 5W-40

API: SN Plus, SP

ACEA: A3, B4

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1115100-001

Code:
4014835802827

Volume:
5 L

vendor code:
1115100-005

Code:
4014835802841

Volume:
20 L

vendor code:
1115100-020

Code:
4014835843257

Volume:
60 L

vendor code:
1115100-060

Volume:
60 L, print

vendor code:
1115100-D60

Volume:
208 L

vendor code:
1115100-208

RAVENOL SVS Standard Viscosity Synto Oil SAE 5W-40 is particularly recommended for vehicles with high mileage petrol and diesel engines with and without turbocharge and direct injection.

The extremely conditioning and cleaning agents in RAVENOL SVS Standard Viscosity Synto Oil SAE 5W-40 revitalise critical engine parts and particularly protect gaskets. This can extend the life, particularly in older vehicles with high mileage.

RAVENOL SVS Standard Viscosity Synto Oil SAE 5W-40 features outstanding lubrication and excellent shear stability, and the added conditioners simultaneously reduce oil consumption and protect from sludge and wear.

Application Note

RAVENOL SVS Standard Viscosity Synto Oil SAE 5W-40 is perfectly suited for year-round use in high mileage petrol and diesel engines with 100,000 km and more, and promotes low oil consumption. A very clean engine is guaranteed.

RAVENOL SVS Standard Viscosity Synto Oil SAE 5W-40 extends the life of the engine in older vehicles by reducing oil consumption and protecting from sludge and wear. A very clean engine is guaranteed.

Characteristics

High wear protection
Fuel saving because of easy running characteristics
Outstanding detergent and dispersant properties prevent sludge
High oxidation stability for a long life
Brilliant cold cranking behaviour
Excellent viscosity-temperature behaviour
Low vaporisation characteristics, therefore reduced oil consumption
Suitable for catalytic converters

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-01, MB 229.5, Opel/GM-LL-B-025, Porsche A40, Renault RN0700, Renault RN0710, VW 502 00, VW 505 00		BMW Longlife-01, MB 229.5, Opel/GM-LL-B-025, Porsche A40, Renault RN0700, Renault RN0710, VW 502 00, VW 505 00
Brand		RAVENOL		RAVENOL
SAE		5W-40		5W-40
Type		Synthetic		Synthetic
API		SN Plus, SP		SN Plus, SP
ACEA		A3, B4		A3, B4
Recomendations		BMW Longlife-01, GM GM-LL-B-025, MB 229.5, Porsche A40, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00		BMW Longlife-01, GM GM-LL-B-025, MB 229.5, Porsche A40, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
Density at 20 °C	g/cm³	847	EN ISO 12185	847 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	13.3	DIN 51562-1	13.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	78.2	DIN 51562-1	78.2 mm²/s DIN 51562-1
Viscosity Index VI		173	DIN ISO 2909	173 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.91	ASTM D5481	3.91 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5480	ASTM D5293	5480 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	25.000	ASTM D4684	25.000 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	8.7	ASTM D5800	8.7 % ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	12	ASTM D2896	12 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.19	DIN 51575	1.19 %wt. DIN 51575
Approvals		BMW Longlife-01, GM GM-LL-B-025, MB 229.5, Porsche A40, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, GM GM-LL-B-025, MB 229.5, Porsche A40, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

HST 5W-40

Engine oil

RAVENOL HST SAE 5W-40 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
BMW Longlife-01, MB-Approval 229.5, Porsche A40, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, PSA B71 2296

show details

SAE: 5W-40

API: SN Plus, SP

ACEA: A3, B4

Equivalents OEM:
Geely 92432F100, Geely 92432F100, Geely 92432F101, Renault 7711658110, Renault 7711658111, Renault 7711943689, Renault 7711943690, Renault 7711943691, UAZ 000000473400600, UAZ 000101001054002, UAZ 000101004054002, UAZ 473400600

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111147-001

Code:
4014835856523

Volume:
4 L

vendor code:
1111147-004

Code:
4014835856554

Volume:
5 L

vendor code:
1111147-005

Code:
4014835856585

Volume:
10 L

vendor code:
1111147-010

Code:
4014835856615

Volume:
20 L

vendor code:
1111147-020

Volume:
20 L, ecobox

vendor code:
1111147-B20

Code:
4014835856639

Volume:
60 L

vendor code:
1111147-060

Volume:
60 L, print

vendor code:
1111147-D60

Volume:
208 L

vendor code:
1111147-208

Volume:
208 L, print

vendor code:
1111147-D28

Volume:
1000 L

vendor code:
1111147-700

RAVENOL HST SAE 5W-40 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HST SAE 5W-40 contributes to protect the environment by reducing the emissions.

RAVENOL HST SAE 5W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL HST SAE 5W-40 guarantees operational safety concerning all driving conditions as for example regarding extreme stop and go traffic as well as high speed drives on motorways.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HST SAE 5W-40 is suitable for the energy saving operation year-round of all modern cars with gasoline and diesel engines in passenger cars, vans, small transporters and similar vehicles and was specially developed for turbo chargers as well as the catalytic operation.

Characteristics

High abrasion resistance
Fuel saving because of easy running characteristics
Excellent detergent and dispersant characteristics
Prevention of black sludge creation
Long endurance because of high oxidation stability
Excellent cold start performance
Very good viscosity temperature behaviour
Low evaporation
Suitable for catalysts

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-12991 (MS-10896), Fiat 9.55535-Z2, MB 226.5, MB 229.3, Opel/GM-LL-B-025, PSA B71 2296		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-12991 (MS-10896), Fiat 9.55535-Z2, MB 226.5, MB 229.3, Opel/GM-LL-B-025, PSA B71 2296
Brand		RAVENOL		RAVENOL
SAE		5W-40		5W-40
Type		Synthetic		Synthetic
API		SN Plus, SP		SN Plus, SP
ACEA		A3, B4		A3, B4
Manufacturer Approved		BMW Longlife-01, MB-Approval 229.5, Porsche A40, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00		BMW Longlife-01, MB-Approval 229.5, Porsche A40, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
Recomendations		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, PSA B71 2296		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, PSA B71 2296
Density at 20 °C	g/cm³	847	EN ISO 12185	847 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	13.3	DIN 51562-1	13.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	78.2	DIN 51562-1	78.2 mm²/s DIN 51562-1
Viscosity Index VI		173	DIN ISO 2909	173 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.91	ASTM D5481	3.91 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5480	ASTM D5293	5480 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	25.000	ASTM D4684	25.000 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	7.4	ASTM D5800	7.4 % ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	12	ASTM D2896	12 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.19	DIN 51575	1.19 %wt. DIN 51575
Approvals		BMW Longlife-01, Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, MB 229.5, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, MB 229.5, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

Available packaging
Full description
Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

Long-term effectiveness and clean fresh oil
Remedy for soiled engines
Protection against compression loss in the area of the piston rings
Leads to better exhaust emissions and increases the performance of the engine

Parameter	Unit	Value	Audit
Color		Light brown	visual	Light brown visual
Flashpoint (PM)	°C	62	DIN ISO 3679	62 °C DIN ISO 3679
Density at 20 °C		805	EN ISO 12185	805 EN ISO 12185
Viscosity at 40 °C	mm²/s	7	DIN EN ISO 3104	7 mm²/s DIN EN ISO 3104
Brand		RAVENOL		RAVENOL

Mechanical gearbox in a unit with final drive BE3/5 5/1 BE3 / BE3-5 / BE4 / BE4R / BE4-5L / BVM5

Liquid volume (basic): 2 L

Getriebeol PSA 75W-80

For transmission

RAVENOL Getriebeoel PSA SAE 75W-80 has a special formula for outstanding wear protection and lubrication properties.

Compliance with the requirements:
PSA B71 2315

show details

SAE: 75W-80

API: GL-4

Equivalents OEM:
GM 1940711, GM 9163335, Nissan 999MPMTF20P, Nissan KE91600Q40, Nissan KE91699012, Nissan KE91699012, Nissan KE91699033, Nissan KE91699071R, Nissan KE9169903301, Nissan KLD9275801, Peugeot 9730AG, Peugeot 1615100080, Peugeot 1618078480, Peugeot 1635055880, PSA 9730A2, PSA 9730AA, PSA 973641, Renault 7711143534

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1222100-001

Code:
4014835734111

Volume:
4 L

vendor code:
1222100-004

Code:
4014835734197

Volume:
10 L

vendor code:
1222100-010

Code:
4014835734142

Volume:
20 L

vendor code:
1222100-020

Volume:
20 L, ecobox

vendor code:
1222100-B20

Code:
4014835788824

Volume:
60 L

vendor code:
1222100-060

Volume:
60 L, print

vendor code:
1222100-D60

Volume:
208 L

vendor code:
1222100-208

Volume:
208 L, print

vendor code:
1222100-D28

Volume:
1000 L

vendor code:
1222100-700

RAVENOL Getriebeoel PSA SAE 75W-80 has a special formula for outstanding wear protection and lubrication properties.

Application Note

RAVENOL Getriebeoel PSA SAE 75W-80 is used in manual shift transmissions requiring trouble-free lubrication.

RAVENOL Getriebeoel PSA SAE 75W-80 can be used in manual transmissions where the manufacturer specifies a low-viscosity oil.

Characteristics

Outstanding oxidation protection.
Low viscosity in low temperatures.
Excellent wear protection.
Enhanced EP properties.
Good foaming properties.
Neutral to sealants.
Outstanding protection from rust and corrosion.

Parameter	Unit	Value	Audit
Recommendations		PSA B71 2315		PSA B71 2315
Brand		RAVENOL		RAVENOL
SAE		75W-80		75W-80
Type		Semi-synthetic		Semi-synthetic
API		GL-4		GL-4
Recomendations		PSA B71 2315		PSA B71 2315
Density at 20 °C	g/cm³	843	EN ISO 12185	843 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mm²/s	8.5	DIN 51562-1	8.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	43.1	DIN 51562-1	43.1 mm²/s DIN 51562-1
Viscosity Index VI		178	DIN ISO 2909	178 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	52.500	ASTM D2983	52.500 mPa*s ASTM D2983
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		PSA B71 2315		PSA B71 2315

Power steering

Liquid volume (basic): 0.8 L

E-PSF Fluid

For power steering

RAVENOL E- PSF Fluid is guaranteeing an optimized power transmission.

Compliance with the requirements:
Fiat 9.55550-AG3, JTEKT EHPS, JTEKT EHS, MAN M3289, Nissan E-PSF, PSA S71 2710, Renault PSF Class 1, Toyota PSF-EH

show details

Equivalents OEM:
Chrysler 68068618AA, Chrysler 68088485AA, Chrysler 68088485AB, Chrysler 68088485GA, Chrysler 68088485GB, Chrysler 68088485LB, Citroen 333263012255, Nissan 999MPEPSF00P, Nissan KLF3000001, Nissan KLF3000004, Nissan KLF5100001, Nissan KLF5100001EU, Nissan KLF300000101, Nissan KLF300000401, PSA 9730A5, PSA 9979A3, PSA 1615099680, PSA 1615099680, Toyota 0888601206, Toyota 0888681250, Toyota SU001A2832, Toyota SU001A4824

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1181002-001

Code:
4014835839908

RAVENOL E- PSF Fluid is guaranteeing an optimized power transmission.

RAVENOL E- PSF Fluid is designed on the basis of particularly high quality base oils with special additives and inhibition which ensures the proper functioning of the electro-hydraulic power steering system.

Application Note

RAVENOL E- PSF Fluid is especially developed for the use in electro-hydraulic power steering systems of Nissan and Toyota (JTEKT EHS Elektro-Hydraulik Servolenkung/EHPS Electro-Hydraulic Power Steering).

RAVENOL E- PSF Fluid is also suitable for the hydropneumatic Hydractive III und Hydractive III+ suspension of Citroën.

Characteristics

A very low pour point
An excellent foam prevention, no foam formation
A good lubricating ability even at low temperatures in winter
A high and stable viscosity index
A very good oxidation stability
Excellent protection against wear and tear, corrosion and foam formation
Well-tuned friction characteristics
Neutral behaviour against sealing materials
Neutral behaviour because of inhibition against non-ferrous metals

Parameter	Unit	Value	Audit
Recommendations		Citroën DA 9730 A5, Citroën LDS 9979 A3, Fiat 9.55550-AG3, JTEKT EHS/ EHPS, MAN M 3289, Nissan 999MP-EPSF00P, Nissan E-PSF, Nissan KLF51-00001, PSA S71 2710, Renault PSF Klasse 1 (Renault Laguna III), Toyota 08886-01206, Toyota PSF-EH		Citroën DA 9730 A5, Citroën LDS 9979 A3, Fiat 9.55550-AG3, JTEKT EHS/ EHPS, MAN M 3289, Nissan 999MP-EPSF00P, Nissan E-PSF, Nissan KLF51-00001, PSA S71 2710, Renault PSF Klasse 1 (Renault Laguna III), Toyota 08886-01206, Toyota PSF-EH
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
Recomendations		Fiat 9.55550-AG3, JTEKT EHPS, JTEKT EHS, MAN M3289, Nissan E-PSF, PSA S71 2710, Renault PSF Class 1, Toyota PSF-EH		Fiat 9.55550-AG3, JTEKT EHPS, JTEKT EHS, MAN M3289, Nissan E-PSF, PSA S71 2710, Renault PSF Class 1, Toyota PSF-EH
Suitable for		PSA DA, PSA LSD		PSA DA, PSA LSD
Compliant products		Nissan 999MP-EPSF00P, Nissan KLF51-00001, PSA 9730.A5, PSA 9979.A3, Toyota 08886-01206		Nissan 999MP-EPSF00P, Nissan KLF51-00001, PSA 9730.A5, PSA 9979.A3, Toyota 08886-01206
Density at 20 °C	g/cm³	821	EN ISO 12185	821 g/cm³ EN ISO 12185
Color		Colorless	visual	Colorless visual
Viscosity at 100 °C	mm²/s	6.1	DIN 51562-1	6.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	19	DIN 51562-1	19 mm²/s DIN 51562-1
Viscosity at -40 °C	mm²/s	960	ASTM D445	960 mm²/s ASTM D445
Viscosity Index VI		312	DIN ISO 2909	312 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	900	ASTM D2983	900 mPa*s ASTM D2983
Pourpoint	°C	-75	DIN ISO 3016	-75 °C DIN ISO 3016
Flashpoint	°C	154	DIN EN ISO 2592	154 °C DIN EN ISO 2592
Approvals		Fiat 9.55550-AG3, JTEKT EHPS, JTEKT EHS, MAN M 3289, Nissan E-PSF, PSA S71 2710, Renault PSF Class 1, Toyota PSF-EH		Fiat 9.55550-AG3, JTEKT EHPS, JTEKT EHS, MAN M 3289, Nissan E-PSF, PSA S71 2710, Renault PSF Class 1, Toyota PSF-EH

Hydraulic brake system ABS

DOT 4

For brake system

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

show details

Available packaging
Full description
Product parameters

Volume:
250 ml

vendor code:
1350601-250

Code:
4014835692121

Volume:
500 ml

vendor code:
1350601-500

Code:
4014835692152

Volume:
1 L

vendor code:
1350601-001

Code:
4014835692114

Volume:
20 L

vendor code:
1350601-020

DOT 4

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

Application Note

RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.

RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.

RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113).

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

optimum ABS characteristics
chemical stability
best lubrication efficiency
neutral behaviour regarding brake parts
low viscosity at low temperatures
miscible with all brake fluids of the same specifications

Parameter	Unit	Value	Audit
FMVSS 116 specifications (DOT)		DOT-4		DOT-4
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
specification		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704
Density at 20 °C	g/cm³	1052	EN ISO 12185	1052 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mPa*s	2.41	ASTM D445	2.41 mPa*s ASTM D445
Viscosity at -40 °C	cSt	1340	ASTM D445	1340 cSt ASTM D445
Boiling point	°C	271	FMVSS 116	271 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point	°C	169	FMVSS 116	169 °C FMVSS 116
High Temperature Stability	°C	-1	FMVSS 116	-1 °C FMVSS 116
Chemical Stability	°C	1	FMVSS 116	1 °C FMVSS 116
Evaporation	%w/w	61	FMVSS 116	61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C		i.O., 4s	FMVSS 116	i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C		i.O., 8s	FMVSS 116	i.O., 8s FMVSS 116
Water Tolerance at -40 °C		transparent, 3s	FMVSS 116	transparent, 3s FMVSS 116
Water Tolerance at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at -40 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Water content	%	— 0.2	DIN 51777-1	— 0.2 % DIN 51777-1
Tinned Iron	Δ mg/cm²	0.04	FMVSS 116	0.04 Δ mg/cm² FMVSS 116
Steel	mg/cm²	-0.01	FMVSS 116	-0.01 mg/cm² FMVSS 116
Aluminium	mg/cm²	0.02	FMVSS 116	0.02 mg/cm² FMVSS 116
Cast Iron	Δ mg/cm²	-0,03	FMVSS 116	-0,03 Δ mg/cm² FMVSS 116
Brass	mg/cm²	-0.08	FMVSS 116	-0.08 mg/cm² FMVSS 116
Copper	mg/cm²	-0.05	FMVSS 116	-0.05 mg/cm² FMVSS 116
Zinc	mg/cm²	0.01	FMVSS 116	0.01 mg/cm² FMVSS 116
Sediment	%	— 0.05	FMVSS 116	— 0.05 % FMVSS 116
pH - value		8.2	FMVSS 116	8.2 FMVSS 116
Rubber Diameter Change		0.16	FMVSS 116	0.16 FMVSS 116
Hardness Change	°IRHD	-4	FMVSS 116	-4 °IRHD FMVSS 116
Appearance		i.O.	FMVSS 116	i.O. FMVSS 116
SBR at 70 °C	mm	0.56	FMVSS 116	0.56 mm FMVSS 116
SBR at 120 °C	mm	0.73	FMVSS 116	0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703)	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
EPDM at 120 °C	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925)	mm	0.38	FMVSS 116	0.38 mm FMVSS 116
Approvals		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704

Cooling system

Liquid volume (basic): 8.3 L

TTC - Protect C11 Premix -40ºC

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

Compliance with the requirements:
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C

show details

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410105-150

Code:
4014835755314

Volume:
5 L

vendor code:
1410105-005

Code:
4014835755352

Volume:
10 L

vendor code:
1410105-010

Code:
4014835755345

Volume:
20 L

vendor code:
1410105-020

Code:
4014835755321

Volume:
20 L, ecobox

vendor code:
1410105-B20

Code:
4014835855939

Volume:
60 L

vendor code:
1410105-060

Code:
4014835755369

Volume:
208 L

vendor code:
1410105-208

Code:
4014835755383

Volume:
1000 L

vendor code:
1410105-700

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL TTC Trad. Techn. Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL TTC Trad. Techn. Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL TTC Trad. Techn. Coolant Premix -40°C to radiator to fill line.

Characteristics

Excellent for light metal engines
Good reserve alkalinity
High-quality corrosion additives for optimal corrosion protection
Elastomer compatible with elastome

Parameter	Unit	Value	Audit
Recommendations		AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)		AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
Brand		RAVENOL		RAVENOL
ASTM		D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF		D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF
Recomendations		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
Suitable for		Suzuki		Suzuki
Density at 20 °C	g/cm³	1080	EN ISO 12185	1080 g/cm³ EN ISO 12185
Color		yellow green	visual	yellow green visual
pH - value at 20 °C		7,8	ASTM D1287	7,8 ASTM D1287
Freezing point	°C	-40	ASTM D1177	-40 °C ASTM D1177
Approvals		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C

TTC - Protect C11 Concentrate

Coolant

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

show details

Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410100-150

Code:
4014835755215

Volume:
5 L

vendor code:
1410100-005

Code:
4014835755253

Volume:
10 L

vendor code:
1410100-010

Volume:
20 L

vendor code:
1410100-020

Code:
4014835755222

Volume:
20 L, ecobox

vendor code:
1410100-B20

Volume:
60 L

vendor code:
1410100-060

Code:
4014835755260

Volume:
60 L, plastic

vendor code:
-

Code:
4014835755239

Volume:
60 L, print

vendor code:
1410100-D60

Volume:
208 L

vendor code:
1410100-208

Code:
4014835755208

Volume:
1000 L

vendor code:
1410100-700

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

Therefore manufacturers subject coolants to long corrosion and cavitation tests.

RAVENOL TTC Trad. Techn. Coolant Concentrate protects the cooling system from corrosion, frost, and in the summer from overheating.

Application Note

RAVENOL TTC Trad. Techn. Coolant Concentrate with frost and rust protection. Use according to the mixing chart. Follow manufacturer’s recommendations.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL TTC Trad. Techn. Coolant Concentrate with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

Table of mixing ratios
Antifreeze protection until	Parts Antifreeze	Parts Water
-20°C	35%	65%
-37°C	50%	50%
-50°C	60%	40%

Characteristics

Excellent for light metal engines
Good reserve alkalinity
High-quality corrosion additives for optimal corrosion protection
Elastomer compatible with elastomers used in automotive radiators

Parameter	Unit	Value	Audit
Recommendations		AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)		AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
Brand		RAVENOL		RAVENOL
ASTM		D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF		D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF
Recomendations		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
Suitable for		Suzuki		Suzuki
Density at 20 °C	g/cm³	1130	EN ISO 12185	1130 g/cm³ EN ISO 12185
Color		yellow green	visual	yellow green visual
Reserve alkalinity	mgKOH/g	— 20	ASTM D1121	— 20 mgKOH/g ASTM D1121
Boiling point	°C	155	ASTM D1120	155 °C ASTM D1120
Water content	%	— 5	ASTM D1123	— 5 % ASTM D1123
Flashpoint	°C	112	DIN 51758	112 °C DIN 51758
Freezing point (50 % solution)	°C	-37	ASTM D1177	-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %)		8,4	ASTM D1287	8,4 ASTM D1287
Approvals		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter	Value
Recommendations	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand	RAVENOL	RAVENOL
Recomendations	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272
Approvals	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272

Professional Radiator Cleaner

Additive

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

show details

Equivalents OEM:
Ford MP14300500AB

Available packaging
Full description
Product parameters

Volume:
0.25 L

vendor code:
1390302-250

Code:
4014835802667

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.

Application Note

RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.

Area of application:

Radiator repairs

In the event of reduced radiator performance

In the event of deposits in the cooling system

Changing coolant

For cleaning purposes after engine repairs due to oil in the cooling system

Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.

Fill in

RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.

RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.

Characteristics

Cleaning of the cooling and heating system
Protection of the new coolant against prior contamination
Elimination of sludge and corrosion residue

Parameter	Unit	Value	Audit
Color		Colorless	visual	Colorless visual
Density at 20 °C	g/cm³	1003	EN ISO 12185	1003 g/cm³ EN ISO 12185
pH - value at 20 °C		10,25	DIN 19268	10,25 DIN 19268
Brand		RAVENOL		RAVENOL
