Oil for Porsche Macan, 95B Macan 2.0 R4 TFSI (180 kW) / (185 kW) / (195 kW) (year of issue from 2015 date to present). Motor, automatic transmission oil, transmission, antifreeze, gur fluid, brake fluid

Search by VIN, make, model, vehicle type, unit name, or by article number of any oil:

Oil for Porsche - Macan, 95B - Macan 2.0 R4 TFSI (180 kW) / (185 kW) / (195 kW)

Porsche Macan, 95B Macan 2.0 R4 TFSI (180 kW) / (185 kW) / (195 kW), year of issue from 2015 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Add to Garage

Nodes and assemblies

Engine DKNA / DMTD / DLHB / DLH
Transmission S-tronic, clutch unit and mechatronics (valve unit) 7/1 DSG7 0B5 / 0FD / A5B03
Mechanical gearbox S-tronic part, final drive, center differential 7/1 DSG7 0B5 / 0FD / A5B03

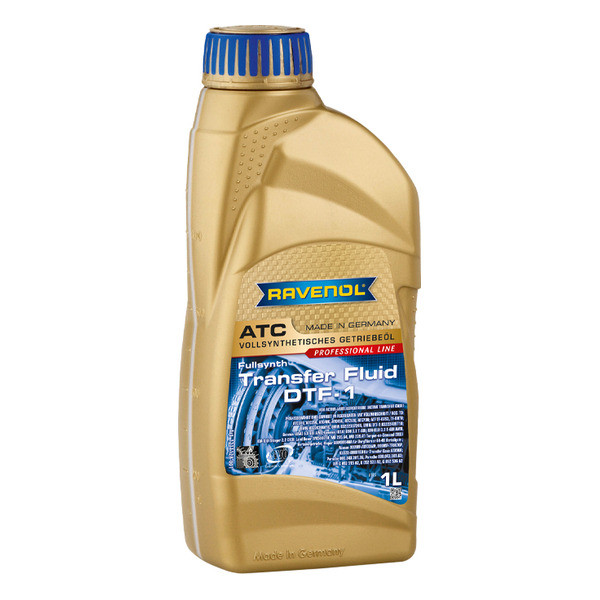

Transfer case Hang-On
Differential, rear self-locking
Differential, rear Hang-On

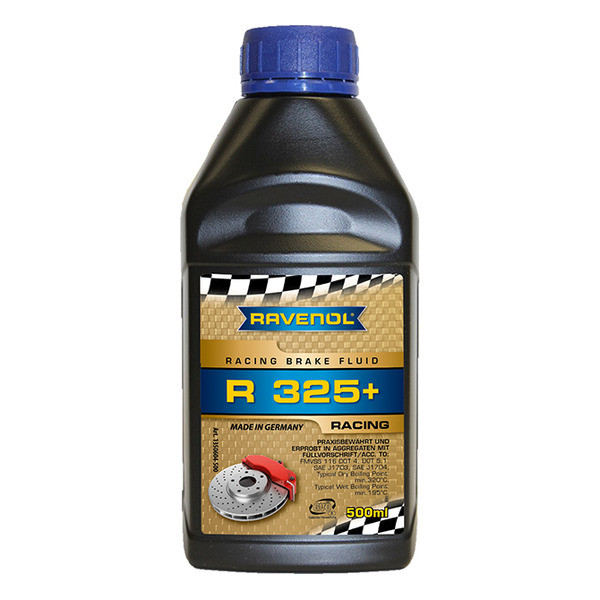

Hydraulic brake system
Cooling system

Engine DKNA / DMTD / DLHB / DLH

Liquid volume (basic): 5.2 L

VSE 0W-20

For engine

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
Porsche C20, VW 508.00, VW 509.00

Compliance with the requirements:
Ford WSS-M2C 956-A1

show details

SAE: 0W-20

ACEA: C5

Equivalents OEM:
Alpine 0101461, Alpine 0101462, Alpine 0101463, Alpine 0101464, Alpine 0101465, Alpine 101461, Alpine 101462, Alpine 101463, Alpine 101464, Alpine 101465, FEBI 177649, FEBI 177650, FEBI 177651, Porsche 00004321046, VAG G052577, VAG G052577A2, VAG G052577M2, VAG G052577M4, VAG G052577M6, VAG G052577M9, VAG G052577Z2, VAG G052577Z2, VAG G055577A2, VAG G055577M2, VAG G055577M4, VAG G055577M6, VAG GAUR52577M2, VAG GOIS60577M2EUR, VAG GR52577M2, VAG GR52577M4, VAG GR52577M6 Alpine 0101461, Alpine 0101462, Alpine 0101463, Alpine 0101464, Alpine 0101465, Alpine 101461, Alpine 101462, Alpine 101463, Alpine 101464, Alpine 101465, FEBI 177649, FEBI 177650, FEBI 177651, Porsche 00004321046, VAG G052577, VAG G052577A2, VAG G052577M2, VAG G052577M4, VAG G052577M6, VAG G052577M9, VAG G052577Z2, VAG G052577Z2, VAG G055577A2, VAG G055577M2, VAG G055577M4, VAG G055577M6, VAG GAUR52577M2, VAG GOIS60577M2EUR, VAG GR52577M2, VAG GR52577M4, VAG GR52577M6, VAG GR52577M9, VAG GS52577M2, VAG GS60577C2, VAG GS60577C2EUR, VAG GS60577D2, VAG GS60577D2EUR, VAG GS60577F2, VAG GS60577F2EUR, VAG GS60577G2, VAG GS60577G2EUR, VAG GS60577M2, VAG GS60577M2EUR, VAG GS60577M4, VAG GS60577M4EUR, VAG GS60577M6, VAG GS60577M6EUR, VAG GS60577M9, VAG GS60577M9EUR, VAG GS560577M4, VAG GS560577M4EUR, VAG GSKR52577M2, VAG GVWR52577M2

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111112-001

Code:
4014835862036

Volume:
4 L

vendor code:
1111112-004

Code:
4014835862067

Volume:
5 L

vendor code:
1111112-005

Code:
4014835862098

Volume:
10 L

vendor code:
1111112-010

Code:
4014835862128

Volume:
20 L

vendor code:
1111112-020

Code:
4014835862166

Volume:
20 L, ecobox

vendor code:
1111112-B20

Code:
4014835862142

Volume:
60 L

vendor code:
1111112-060

Volume:
60 L, print

vendor code:
1111112-D60

Code:
4014835862180

Volume:
208 L

vendor code:
1111112-208

Volume:
208 L, print

vendor code:
1111112-D28

RAVENOL VSE SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL VSE SAE 0W-20 has a high viscosity index because of its formulation with special base oils. The formulation contains chemical marker for identification and is green colored. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

RAVENOL VSE SAE 0W-20 ensures compliance with the viscosity class even with a long oil life over the entire change interval.

By significantly reducing fuel consumption, RAVENOL VSE SAE 0W-20 helps to protect the environment by reducing emissions.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL VSE SAE 0W-20 is universal fuel-economy engine oil, suitable for all modern passenger car gasoline and diesel engines where this grade of oil is recommended.

RAVENOL VSE SAE 0W-20 is specially developed for the latest Volkswagen Specification VW 508 00 / 509 00 (VW Blue Oil).

Characteristics

Guaranteed fastest possible lubrication of the engine.
High fuel economy (FE) effect due to the base oils and additives used.
Low volatilization tendency, thereby lower oil consumption.
Provides protection against sludging, coking, varnish and corrosion even under unfavorable operating conditions.
No oil-related deposits in combustion chambers in the piston ring zone and on valves.
Lowered HTHS viscosity for maximum fuel economy.
Stable engine oil, no NOx oxidation.
Good soot absorption and dispersion.
Neutral towards sealing materials.
Contains chemical markers for identification and is green colored.

Parameter	Unit	Value	Audit
Recommendations		Ford WSS-M2C956-A1		Ford WSS-M2C956-A1
Brand		RAVENOL		RAVENOL
SAE		0W-20		0W-20
Type		Full synthetic		Full synthetic
ACEA		C5		C5
Manufacturer Approved		Porsche C20, VW 508.00, VW 509.00		Porsche C20, VW 508.00, VW 509.00
Recomendations		Ford WSS-M2C 956-A1		Ford WSS-M2C 956-A1
Density at 20 °C	g/cm³	846.4	EN ISO 12185	846.4 g/cm³ EN ISO 12185
Color		Green	visual	Green visual
Viscosity at 100 °C	mm²/s	8.3	DIN 51562-1	8.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	45.3	DIN 51562-1	45.3 mm²/s DIN 51562-1
Viscosity Index VI		161	DIN ISO 2909	161 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	2.73	ASTM D5481	2.73 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	4700	ASTM D5293	4700 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	10.900	ASTM D4684	10.900 mPa*s ASTM D4684
Pourpoint	°C	-60	DIN ISO 3016	-60 °C DIN ISO 3016
Noack Volatility	%	10.4	ASTM D5800	10.4 % ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	8.3	ASTM D2896	8.3 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.77	DIN 51575	0.77 %wt. DIN 51575
Approvals		Ford WSS-M2C 956-A1, Porsche C20, VW 508.00, VW 509.00		Ford WSS-M2C 956-A1, Porsche C20, VW 508.00, VW 509.00

VSH 0W-20

For engine

RAVENOL VSH SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Manufacturer Approved:
Porsche C20, VW 508.00, VW 509.00

Compliance with the requirements:
Ford WSS-M2C 956-A1

show details

SAE: 0W-20

API: SP

ACEA: C5, C6

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111154-001

Code:
4014835873490

Volume:
4 L

vendor code:
1111154-004

Code:
4014835873520

Volume:
5 L

vendor code:
1111154-005

Code:
4014835873568

Volume:
10 L

vendor code:
1111154-010

Code:
4014835873599

Volume:
20 L

vendor code:
1111154-020

Code:
4014835873612

Volume:
20 L, ecobox

vendor code:
1111154-B20

Code:
4014835873674

Volume:
60 L

vendor code:
1111154-060

Code:
4014835873636

Volume:
208 L

vendor code:
1111154-208

Code:
4014835873650

RAVENOL VSH SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL VSH SAE 0W-20 has a high viscosity index because of its formulation with special base oils. The formulation contains chemical marker for identification and is green colored. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

RAVENOL VSH SAE 0W-20 ensures compliance with the viscosity class even with a long oil life over the entire change interval.

By significantly reducing fuel consumption, RAVENOL VSH SAE 0W-20 helps to protect the environment by reducing emissions.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL VSH SAE 0W-20 is universal fuel-economy engine oil, suitable for all modern passenger car gasoline and diesel engines where this grade of oil is recommended.

RAVENOL VSH SAE 0W-20 is specially developed for the latest Volkswagen Specification VW 508 00 / 509 00 (VW Blue Oil).

Characteristics

Guaranteed fastest possible lubrication of the engine.
High fuel economy (FE) effect due to the base oils and additives used.
Low volatilization tendency, thereby lower oil consumption.
Lowered HTHS viscosity for maximum fuel economy.
Good soot absorption and dispersion.
Neutral towards sealing materials.
Contains chemical markers for identification and is green colored.
Excellent for extended oil change intervals.

Parameter	Unit	Value	Audit
Recommendations		Ford WSS-M2C956-A1		Ford WSS-M2C956-A1
Brand		RAVENOL		RAVENOL
SAE		0W-20		0W-20
Type		Synthetic		Synthetic
API		SP		SP
ACEA		C5, C6		C5, C6
Manufacturer Approved		Porsche C20, VW 508.00, VW 509.00		Porsche C20, VW 508.00, VW 509.00
Recomendations		Ford WSS-M2C 956-A1		Ford WSS-M2C 956-A1
Density at 20 °C	g/cm³	841	DIN 51757	841 g/cm³ DIN 51757
Color		Green	visual	Green visual
Viscosity at 100 °C	mm²/s	8.6	DIN 51562-1	8.6 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	44.9	DIN 51562-1	44.9 mm²/s DIN 51562-1
Viscosity Index VI		172	DIN ISO 2909	172 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	2.77	ASTM D5481	2.77 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5860	ASTM D5293	5860 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	26000	ASTM D4684	26000 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	9.5	ASTM D5800	9.5 % ASTM D5800
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	8.2	ASTM D2896	8.2 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.8	DIN 51575	0.8 %wt. DIN 51575
Approvals		Ford WSS-M2C 956-A1, Porsche C20, VW 508.00, VW 509.00		Ford WSS-M2C 956-A1, Porsche C20, VW 508.00, VW 509.00

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

Available packaging
Full description
Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

Long-term effectiveness and clean fresh oil
Remedy for soiled engines
Protection against compression loss in the area of the piston rings
Leads to better exhaust emissions and increases the performance of the engine

Parameter	Unit	Value	Audit
Color		Light brown	visual	Light brown visual
Flashpoint (PM)	°C	62	DIN ISO 3679	62 °C DIN ISO 3679
Density at 20 °C		805	EN ISO 12185	805 EN ISO 12185
Viscosity at 40 °C	mm²/s	7	DIN EN ISO 3104	7 mm²/s DIN EN ISO 3104
Brand		RAVENOL		RAVENOL

Transmission S-tronic, clutch unit and mechatronics (valve unit) 7/1 DSG7 0B5 / 0FD / A5B03

Liquid volume (basic): 7.5 L

DCT/DSG Getriebe Fluid

For DCT/DSG

RAVENOL DCT-HV Fluid guarantees good lubricating properties even at extremely temperatures in summer and low winter temperatures.

Compliance with the requirements:
BMW DCTF-1, BOT 341, DTFR 13C130 (MB 236.21), Fiat 9.55550-MZ6, Ford WSD-M2C 200-D2, Ford WSS-M2C 936-A, MB 236.21, Mitsubishi Dia Queen SSTF-I, VW G 052 182, VW G 052 529, VW TL 52529-A

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1212106-001

Code:
4014835718913

Volume:
4 L

vendor code:
1212106-004

Code:
4014835718999

Volume:
10 L

vendor code:
1212106-010

Code:
4014835718944

Volume:
20 L

vendor code:
1212106-020

Code:
4014835718920

Volume:
20 L, ecobox

vendor code:
1212106-B20

Code:
4014835787629

Volume:
60 L

vendor code:
1212106-060

Volume:
60 L, print

vendor code:
1212106-D60

Code:
4014835718937

Volume:
208 L

vendor code:
1212106-208

Volume:
208 L, print

vendor code:
1212106-D28

Code:
4014835718906

Volume:
1000 L

vendor code:
1212106-700

RAVENOL DCT-HV Fluid guarantees good lubricating properties even at extremely temperatures in summer and low winter temperatures.

RAVENOL DCT-HV Fluid allows virtually slip-free operation and thus minimal torque losses. Ensures low wear and long life of the transmission. Fuel economy.

Application Note

RAVENOL DCT-HV Fluid has been developed especially for Dual Clutch Gear of several manufacturers like VW/Audi, Ford, Volvo, Chrysler, Dodge, Mitsubishi and others.

RAVENOL DCT-HV Fluid is also recommended for use in Dual Clutch Gear DQ-250 (02E) and DQ-500 (0BT) acc. to VW Part-No. G 052 182 of VW, Audi, Seat and Skoda.

RAVENOL DCT-HV Fluid is recommended by Fa. Drexler for all DCG-transmissions with MibaCarbon plates.

Characteristics

Good lubricating properties also at low temperatures in winter
Stable lubricant film even under extreme loads in summer
Low wear
Excellent viscosity-temperature behaviour
Very low pour point
Low foaming even under heavy demands
Extensive protection against wear, corrosion and foaming
Neutral behavior towards sealing materials

Parameter	Unit	Value	Audit
Viscosity at 100 °C	mm²/s	7.4	DIN 51562-1	7.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	35.1	DIN 51562-1	35.1 mm²/s DIN 51562-1
Viscosity Index VI		184	DIN ISO 2909	184 DIN ISO 2909
Recommendations		BMW 83220440214, BMW 83222147477, BMW 83222148578, BMW 83222148579, BMW 83222446673, BMW DCTF-1, BOT 341, Chrysler 68044345 EA, Citroën/Peugeot 9734.S2 für DCS6, Drexler DSG-Getriebe mit Miba-Carbon-Lamelle, DTFR 13C130 (MB 236.21), Fiat 9.55550-MZ6 für TCT (Twin Clutch Transmission, Ford 1490761, Ford 1490763, Ford USA XT-11-QDC, Ford WSD-M2C200-D2, Ford WSS-M2C936-A, MB 236.21, Mitsubishi Dia Queen SSTF-I, Mitsubishi MZ320065, Renault EDC (Efficiency Dual Clutch System), Volvo 1161838, Volvo 1161839, VW G 052 182 A2, VW G 052 529, VW TL 52529-A		BMW 83220440214, BMW 83222147477, BMW 83222148578, BMW 83222148579, BMW 83222446673, BMW DCTF-1, BOT 341, Chrysler 68044345 EA, Citroën/Peugeot 9734.S2 für DCS6, Drexler DSG-Getriebe mit Miba-Carbon-Lamelle, DTFR 13C130 (MB 236.21), Fiat 9.55550-MZ6 für TCT (Twin Clutch Transmission, Ford 1490761, Ford 1490763, Ford USA XT-11-QDC, Ford WSD-M2C200-D2, Ford WSS-M2C936-A, MB 236.21, Mitsubishi Dia Queen SSTF-I, Mitsubishi MZ320065, Renault EDC (Efficiency Dual Clutch System), Volvo 1161838, Volvo 1161839, VW G 052 182 A2, VW G 052 529, VW TL 52529-A
Flashpoint	°C	216	DIN EN ISO 2592	216 °C DIN EN ISO 2592
Type		Synthetic		Synthetic
Brand		RAVENOL		RAVENOL
Recomendations		BMW DCTF-1, BOT 341, DTFR 13C130 (MB 236.21), Fiat 9.55550-MZ6, Ford WSD-M2C 200-D2, Ford WSS-M2C 936-A, MB 236.21, Mitsubishi Dia Queen SSTF-I, VW G 052 182, VW G 052 529, VW TL 52529-A		BMW DCTF-1, BOT 341, DTFR 13C130 (MB 236.21), Fiat 9.55550-MZ6, Ford WSD-M2C 200-D2, Ford WSS-M2C 936-A, MB 236.21, Mitsubishi Dia Queen SSTF-I, VW G 052 182, VW G 052 529, VW TL 52529-A
Suitable for		Drexler, PSA DCS6, Renault EDC (Efficiency Dual Clutch System)		Drexler, PSA DCS6, Renault EDC (Efficiency Dual Clutch System)
Compliant products		BMW 83220440214, BMW 83222147477, BMW 83222148578, BMW 83222148579, BMW 83222446673, Chrysler 68044345EA, Ford 1490761, Ford 1490763, Mitsubishi MZ320065, Motorcraft XT-11-QDC, PSA 9734.S2, Volvo 1161838, Volvo 1161839, VW G 052 182		BMW 83220440214, BMW 83222147477, BMW 83222148578, BMW 83222148579, BMW 83222446673, Chrysler 68044345EA, Ford 1490761, Ford 1490763, Mitsubishi MZ320065, Motorcraft XT-11-QDC, PSA 9734.S2, Volvo 1161838, Volvo 1161839, VW G 052 182
Density at 20 °C	g/cm³	840	EN ISO 12185	840 g/cm³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Approvals		BMW DCTF-1, BOT 341, DTFR 13C130 (MB 236.21), Fiat 9.55550-MZ6, Ford WSD-M2C 200-D2, Ford WSS-M2C 936-A, MB 236.21, Mitsubishi Dia Queen SSTF-I, VW G 052 182, VW G 052 529, VW TL 52529-A		BMW DCTF-1, BOT 341, DTFR 13C130 (MB 236.21), Fiat 9.55550-MZ6, Ford WSD-M2C 200-D2, Ford WSS-M2C 936-A, MB 236.21, Mitsubishi Dia Queen SSTF-I, VW G 052 182, VW G 052 529, VW TL 52529-A

Mechanical gearbox S-tronic part, final drive, center differential 7/1 DSG7 0B5 / 0FD / A5B03

Liquid volume (basic): 4.5 L

MTF-2 75W-80

For gearbox

RAVENOL MTF-2 SAE 75W-80 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538

show details

SAE: 75W-80

API: GL-4, MT-1

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221103-001

Code:
4014835719712

Volume:
4 L

vendor code:
1221103-004

Code:
4014835719798

Volume:
10 L

vendor code:
1221103-010

Code:
4014835719743

Volume:
20 L

vendor code:
1221103-020

Volume:
20 L, ecobox

vendor code:
1221103-B20

Code:
4014835788428

Volume:
60 L

vendor code:
1221103-060

Code:
4014835719767

Volume:
60 L, print

vendor code:
1221103-D60

Volume:
208 L

vendor code:
1221103-208

Volume:
208 L, print

vendor code:
1221103-D28

Volume:
1000 L

vendor code:
1221103-700

RAVENOL MTF-2 SAE 75W-80 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL MTF-2 SAE 75W-80 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.

Application Note

RAVENOL MTF-2 SAE 75W-80 is a full synthetic transmission oil for manual transmissions.

Characteristics

A high-pressure stable lubricating film even at high oil temperatures and under high stress.
Outstanding shearing stability and excellent thermal stability.
Excellent viscosity-temperature properties.
High oxidation stability.
Excellent wear protection, outstanding EP properties.
Low foaming property even at high speeds
Good shifting behaviour even in low temperatures, extremely low pour point.
Extended life.

Parameter	Unit	Value	Audit
Recommendations		AC Delco 10-403, Audi G052532, Audi G055532, BMW 23001434404 MTF-LT-1, BMW 23007533513 MTF-LT-2, BMW 83220309031 MTF-LT-1, Fiat 14621616, Fiat 9.55550-MZ2, Fiat F178.B06, Ford 1382914, Ford 1547953, Ford WSS-M2C200-C3, Ford WSS-M2C200-D2, GM 1940711, GM 88861800, GM 88861801, Honda 08261-99964 Genuine MTF Fluid, Honda 08798-9031 MTF-7289, Hyundai 02200-00130 TOD, Land Rover STC 9157, Land Rover STC 9158, Land Rover TYK500030, MB 235.10 (A 001 989 26 03), Mitsubishi 3005401, Mitsubishi MZ312644, MTF-94 Fluid für Land Rover, MG und Mini Cooper, Nissan 999MP-MTF20P, Nissan KE91699932R, Peugeot 9730A2, PSA B71 2330, Subaru K0321-F0090, Toyota 08885-00705, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, Volvo 1161681, Volvo 1161745, VW/Audi G 052 911 A2, VW/Audi G 055 538 A2 für ZF 6S450 Amarok 0C6		AC Delco 10-403, Audi G052532, Audi G055532, BMW 23001434404 MTF-LT-1, BMW 23007533513 MTF-LT-2, BMW 83220309031 MTF-LT-1, Fiat 14621616, Fiat 9.55550-MZ2, Fiat F178.B06, Ford 1382914, Ford 1547953, Ford WSS-M2C200-C3, Ford WSS-M2C200-D2, GM 1940711, GM 88861800, GM 88861801, Honda 08261-99964 Genuine MTF Fluid, Honda 08798-9031 MTF-7289, Hyundai 02200-00130 TOD, Land Rover STC 9157, Land Rover STC 9158, Land Rover TYK500030, MB 235.10 (A 001 989 26 03), Mitsubishi 3005401, Mitsubishi MZ312644, MTF-94 Fluid für Land Rover, MG und Mini Cooper, Nissan 999MP-MTF20P, Nissan KE91699932R, Peugeot 9730A2, PSA B71 2330, Subaru K0321-F0090, Toyota 08885-00705, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, Volvo 1161681, Volvo 1161745, VW/Audi G 052 911 A2, VW/Audi G 055 538 A2 für ZF 6S450 Amarok 0C6
SAE		75W-80		75W-80
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
API		GL-4, MT-1		GL-4, MT-1
Recomendations		BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538		BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538
Compliant products		AcDelco 10-403, Fiat 14621616, Ford 1382914, Ford 1547953, GM 1940711, GM 88861800, GM 88861801, Honda 08261-99964, Honda 08798-9031, Hyundai 02200-00130 TOD, Land Rover STC9157, Land Rover STC9158, Land Rover TYK500030, MB A 001 989 26 03, Mitsubishi 3005401, Mitsubishi MZ312644, Nissan 999MP-MTF20P, Nissan KE91699932R, PSA 9730.A2, Subaru K0321-F0090, Toyota 08885-00705, Volvo 1161681, Volvo 1161745, VW G 052 911, VW G 055 538		AcDelco 10-403, Fiat 14621616, Ford 1382914, Ford 1547953, GM 1940711, GM 88861800, GM 88861801, Honda 08261-99964, Honda 08798-9031, Hyundai 02200-00130 TOD, Land Rover STC9157, Land Rover STC9158, Land Rover TYK500030, MB A 001 989 26 03, Mitsubishi 3005401, Mitsubishi MZ312644, Nissan 999MP-MTF20P, Nissan KE91699932R, PSA 9730.A2, Subaru K0321-F0090, Toyota 08885-00705, Volvo 1161681, Volvo 1161745, VW G 052 911, VW G 055 538
Density at 20 °C	g/cm³	847.5	EN ISO 12185	847.5 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	9.1	DIN 51562-1	9.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	50.8	DIN 51562-1	50.8 mm²/s DIN 51562-1
Viscosity Index VI		163	DIN ISO 2909	163 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	21.900	ASTM D2983	21.900 mPa*s ASTM D2983
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	248	DIN EN ISO 2592	248 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538		BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538

Transfer case Hang-On

Liquid volume (basic): 0.58 L

Transfer Fluid DTF-1

For transfer cases

RAVENOL Transfer Fluid DTF-1 is a full synthetic gear lubricant for use in electronically controlled active transfer case.

Compliance with the requirements:
ATF TF-0753, ATF TF-0870, BMW DTF-1, BorgWarner BorgWarner, MB 235.64, MB 239.41, VW G 052 515, VW G 052 533, VW G 052 536

show details

Equivalents OEM:
BMW 83220306816, BMW 83220397224, BMW 83220397224, BMW 83220397244, BMW 83222397244, BMW 83222409710, FEBI 170367, GM 104100, GM 19331044, Hyundai 0023219066, Hyundai Motor 0220000140, Jaguar C2Z25586, Land Rover IYK500010, MB A0009893402, MB A000989340209, MB A0009894406, MB A000989440611CDNW, Nissan 999MPTF0870P, Nissan KLD2200001, Nissan KLD2200001EU, Nissan KLD2299901EU, Porsche 00004330036, Porsche 00004330036K01, Porsche 00004330136, Porsche 00004330563, SWAG 33100200, VAG G05251A2, VAG G052515, VAG G052515A2, VAG G052515B1, VAG G052515S0 BMW 83220306816, BMW 83220397224, BMW 83220397224, BMW 83220397244, BMW 83222397244, BMW 83222409710, FEBI 170367, GM 104100, GM 19331044, Hyundai 0023219066, Hyundai Motor 0220000140, Jaguar C2Z25586, Land Rover IYK500010, MB A0009893402, MB A000989340209, MB A0009894406, MB A000989440611CDNW, Nissan 999MPTF0870P, Nissan KLD2200001, Nissan KLD2200001EU, Nissan KLD2299901EU, Porsche 00004330036, Porsche 00004330036K01, Porsche 00004330136, Porsche 00004330563, SWAG 33100200, VAG G05251A2, VAG G052515, VAG G052515A2, VAG G052515B1, VAG G052515S0, VAG G052533, VAG G052533A2, VAG G052533S0, VAG G052536, VAG G052536A2, VAG G052536S0, VAG G055015A2, VAG G055515, VAG G055515A2, VAG N052515A0, VAG N052515B0, ZF S671090710

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1211128-001

Code:
4014835795419

Volume:
4 L

vendor code:
1211128-004

Code:
4014835840073

Volume:
10 L

vendor code:
1211128-010

Code:
4014835795440

Volume:
20 L

vendor code:
1211128-020

Volume:
20 L, ecobox

vendor code:
1211128-B20

Code:
4014835828612

Volume:
60 L

vendor code:
1211128-060

Code:
4014835840102

Volume:
208 L

vendor code:
1211128-208

Volume:
1000 L

vendor code:
1211128-700

RAVENOL Transfer Fluid DTF-1 is a full synthetic gear lubricant for use in electronically controlled active transfer case.

RAVENOL Transfer Fluid DTF-1 ensures optimum power transmission.

Application Note

RAVENOL Transfer Fluid DTF-1 was developed for use in active transfer case (Active Transfer Case).

RAVENOL Transfer Fluid DTF-1 provides a stable viscosity even under the highest loads.

RAVENOL Transfer Fluid DTF-1is tried and tested for aggregates specifying:

Land Rover IYK500010, ATF TF-0753, ATF TF-0870;

MB 239.41 Torque-on-Demand (TOD) Transfer case in Type 167 GLE, Type 463 G-Class, Type 470 X-Class, Type 471 with engine OM642;

Porsche 000.043.301.36 Cayenne 9PA/9PA1 955 / 957 (from 2002 to 2010) Transfer Case PL72 ATC (NV325), 000.043.305.63 Porsche Macan 95B (from 2014) and Cayenne 92A / 958 (Petrol engines from 2010 to 2018) Transfer Case Hang-On PL72 ATC;

VW G052 515 A2 (afterwards: G055 515 A2) for Transfer Case 0AD and 0BV for Touareg, Q7; VW G052 533 A2 for Transfer Case 0C7 for Amarok;VW G052 536 A2 for Transfer Case 0BU for Touareg, Amarok and Audi Q7

Characteristics

Very good lubricating ability even at very low temperatures in winter
A high, stable viscosity index
Very good oxidation stability
Protection against wear, corrosion and foam formation
Good balanced coefficient of friction
Neutral towards sealing materials
Neutral behavior by inhibition compared with non-ferrous metals

Parameter	Unit	Value	Audit
Recommendations		ATC300, ATC350, ATC400, ATC450, ATC500, ATC700, ATF TF-0753, ATF TF-0870, BMW 83220306816 für Transfer Case xDrive, BMW 83222397244, BMW DTF-1 83222409710, Genesis (USA) 5.0 GDI AWD, Genesis (USA) G90 3.3 T-GDI, KIA (EU) 3.3 T-GDI AWD, KIA (EU) Stinger 2.2 CRDI, Land Rover IYK500010, MB 235.64, MB 239.41 Torque-on-Demand (TOD) Verteilergetriebe, Mopar 68049954AA für BorgWarner 44-40 Verteilgetr., NIssan 999MP-ATFD3MP, Nissan 999MP-TF0870P, Nissan KLD22-00001EU für Transfer Case ATX90A, Porsche 000.043.301.36, Porsche 000.043.305.63, VW G 052 515 A2, VW G 052 533 A2, VW G 052 536 A2		ATC300, ATC350, ATC400, ATC450, ATC500, ATC700, ATF TF-0753, ATF TF-0870, BMW 83220306816 für Transfer Case xDrive, BMW 83222397244, BMW DTF-1 83222409710, Genesis (USA) 5.0 GDI AWD, Genesis (USA) G90 3.3 T-GDI, KIA (EU) 3.3 T-GDI AWD, KIA (EU) Stinger 2.2 CRDI, Land Rover IYK500010, MB 235.64, MB 239.41 Torque-on-Demand (TOD) Verteilergetriebe, Mopar 68049954AA für BorgWarner 44-40 Verteilgetr., NIssan 999MP-ATFD3MP, Nissan 999MP-TF0870P, Nissan KLD22-00001EU für Transfer Case ATX90A, Porsche 000.043.301.36, Porsche 000.043.305.63, VW G 052 515 A2, VW G 052 533 A2, VW G 052 536 A2
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
Recomendations		ATF TF-0753, ATF TF-0870, BMW DTF-1, BorgWarner BorgWarner, MB 235.64, MB 239.41, VW G 052 515, VW G 052 533, VW G 052 536		ATF TF-0753, ATF TF-0870, BMW DTF-1, BorgWarner BorgWarner, MB 235.64, MB 239.41, VW G 052 515, VW G 052 533, VW G 052 536
Suitable for		BMW ATC300, BMW ATC350, BMW ATC400, BMW ATC450, BMW ATC500, BMW ATC700, Hyundai Genesis (USA) 5.0 GDI AWD, Hyundai Genesis (USA) G90 3.3 T-GDI, KIA (EU) 3.3 T-GDI AWD, KIA (EU) Stinger 2.2 CRDI, Nissan Transfer Case ATX90A		BMW ATC300, BMW ATC350, BMW ATC400, BMW ATC450, BMW ATC500, BMW ATC700, Hyundai Genesis (USA) 5.0 GDI AWD, Hyundai Genesis (USA) G90 3.3 T-GDI, KIA (EU) 3.3 T-GDI AWD, KIA (EU) Stinger 2.2 CRDI, Nissan Transfer Case ATX90A
Compliant products		BMW 83220306816, BMW 83222397244, BMW 83222409710, Land Rover IYK500010, Mopar 68049954AA, NIssan 999MP-ATFD3MP, Nissan 999MP-TF0870P, Nissan KLD22-00001EU, Porsche 000.043.301.36, Porsche 000.043.305.63, VW G 052 515, VW G 052 533, VW G 052 536		BMW 83220306816, BMW 83222397244, BMW 83222409710, Land Rover IYK500010, Mopar 68049954AA, NIssan 999MP-ATFD3MP, Nissan 999MP-TF0870P, Nissan KLD22-00001EU, Porsche 000.043.301.36, Porsche 000.043.305.63, VW G 052 515, VW G 052 533, VW G 052 536
Density at 20 °C	g/cm³	831	EN ISO 12185	831 g/cm³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Pourpoint	°C	-63	DIN ISO 3016	-63 °C DIN ISO 3016
Approvals		ATF TF-0753, ATF TF-0870, BMW DTF-1, BorgWarner BorgWarner, MB 235.64, MB 239.41, VW G 052 515, VW G 052 533, VW G 052 536		ATF TF-0753, ATF TF-0870, BMW DTF-1, BorgWarner BorgWarner, MB 235.64, MB 239.41, VW G 052 515, VW G 052 533, VW G 052 536

Differential, rear self-locking

Liquid volume (basic): 1.45 L

MDL Multi-Disc locking differentials

For differentials

RAVENOL MDL Multi-Disc locking differentials is designed based on high-quality base oils with special additive treatment and inhibition for higher stress on clutch-type lamella limited slip differentials and ensuring trouble-free transmission function.

Compliance with the requirements:
BOT 720, VW G 052 196

show details

Equivalents OEM:
BMW 83120445832, BMW 83120445838, BMW 83120446012, BMW 83122149458, Land Rover LR019727, Land Rover LR050750, Land Rover LR093996, Land Rover LRN500070, Land Rover LRN500070, Land Rover TYK500070, Porsche 00004330037, VAG G052196A2

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1222103-001

Code:
4014835795716

Volume:
20 L, ecobox

vendor code:
1222103-B20

Code:
4014835828735

Volume:
1000 L

vendor code:
1222103-700

RAVENOL MDL Multi-Disc locking differentials is designed based on high-quality base oils with special additive treatment and inhibition for higher stress on clutch-type lamella limited slip differentials and ensuring trouble-free transmission function.

Application Note

RAVENOL MDL Multi-Disc locking differentials was developed specifically for use in lamella limited slip differentials. RAVENOL MDL Multi-Disc locking differentials is suitable for Porsche Cayenne, Porsche Panamera.

Characteristics

excellent oxidation stability
excellent protection against rust and corrosion
prevents foaming
outstanding extreme pressure properties
excellent limited slip properties
fuel savings

Parameter	Unit	Value	Audit
Recommendations		AC Delco 10-4032, GM 92184900, Land Rover BOT 720, Land Rover LR019727, Land Rover TYK500070, Porsche 000.043.300.37, Porsche 000.043.305.03, VW G 052 196 A2 für VW Touareg		AC Delco 10-4032, GM 92184900, Land Rover BOT 720, Land Rover LR019727, Land Rover TYK500070, Porsche 000.043.300.37, Porsche 000.043.305.03, VW G 052 196 A2 für VW Touareg
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Recomendations		BOT 720, VW G 052 196		BOT 720, VW G 052 196
Compliant products		AcDelco 10-4032, GM 92184900, Land Rover LR019727, Land Rover TYK500070, Porsche 000.043.300.37, Porsche 000.043.305.03, VW G 052 196		AcDelco 10-4032, GM 92184900, Land Rover LR019727, Land Rover TYK500070, Porsche 000.043.300.37, Porsche 000.043.305.03, VW G 052 196
Density at 20 °C	g/cm³	839	EN ISO 12185	839 g/cm³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Brookfield Viscosity at -40 °C	mPa*s	84.300	ASTM D2983	84.300 mPa*s ASTM D2983
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		BOT 720, VW G 052 196		BOT 720, VW G 052 196

Differential, rear Hang-On

Liquid volume (basic): 1.2 L

VSG 75W-90

For transmission

RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.

Compliance with the requirements:
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.8, MB 235.9, MB 235.11, MB 235.21, MB 235.72, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B

show details

SAE: 75W-90

API: GL-4, GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221101-001

Code:
4014835733916

Volume:
4 L

vendor code:
1221101-004

Code:
4014835733992

Volume:
10 L

vendor code:
1221101-010

Code:
4014835733947

Volume:
20 L

vendor code:
1221101-020

Code:
4014835733923

Volume:
20 L, ecobox

vendor code:
1221101-B20

Code:
4014835846654

Volume:
60 L

vendor code:
1221101-060

Code:
2200000083081

Volume:
60 L, print

vendor code:
1221101-D60

Code:
4014835733930

Volume:
208 L

vendor code:
1221101-208

Code:
4014835733985

Volume:
208 L, print

vendor code:
1221101-D28

Code:
4014835733909

Volume:
1000 L

vendor code:
1221101-700

RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.

Application Note

RAVENOL VSG SAE 75W-90 is excellent for use of highly stressed axle drives.

RAVENOL VSG SAE 75W-90 is suitable for synchronised and non-synchronised manual transmissions, transfer cases and ancillary transmission requiring API GL-5 or GL-4 oil.

RAVENOL VSG SAE 75W-90 is suitable for Ford-transmission IB5, B5, MTX75, GM5, MT285/6, MMT6/6, MT75, R15M-D, R15MX-D, MT82 and Porsche Full-Time Transfer Case with Torsen (PL72T) for Cayenne 92A / 958 Diesel and S Hybrid from 2010 to 2018.

Characteristics

high additive reserves for prolonged oil change intervals according to the manufacturer specifications
excellent cold flow properties
best wear protection and best transmission efficiency
Fuel savings even with short distances in low outdoor temperatures
stable lubricating film even under high stress
extraordinary corrosion protection and good compatibility with non-ferrous metal
high oxidation resistance prevents oil thickening and deposits
outstanding dirt-carrying capacity, i.e. aggregates are clean even after very long oil change intervals
excellent elastomer compatibility to prevent leaks
extreme shearing stability, remains within the clean oil viscosity per SAE class 75W-90 even after very long periods of use
very high protection from rust, corrosion and foaming
extreme low pour point
excellent EP properties
fuel savings

Parameter	Unit	Value	Audit
Recommendations		BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 911 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B		BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 911 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
Brand		RAVENOL		RAVENOL
SAE		75W-90		75W-90
Type		Full synthetic		Full synthetic
API		GL-4, GL-5		GL-4, GL-5
Recomendations		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
Suitable for		IVECO		IVECO
Compliant products		BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911		BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911
Density at 20 °C	g/cm³	839.8	EN ISO 12185	839.8 g/cm³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	16.8	DIN 51562-1	16.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	108.8	DIN 51562-1	108.8 mm²/s DIN 51562-1
Viscosity Index VI		168	DIN ISO 2909	168 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	47.000	ASTM D2983	47.000 mPa*s ASTM D2983
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Flashpoint	°C	224	DIN EN ISO 2592	224 °C DIN EN ISO 2592
Seq. I at 24 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Copper Strip Test at 121 °C		1a	ASTM D130	1a ASTM D130
Approvals		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B

Hydraulic brake system

Liquid volume (basic): 1 L

DOT 4

For brake system

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

show details

Available packaging
Full description
Product parameters

Volume:
250 ml

vendor code:
1350601-250

Code:
4014835692121

Volume:
500 ml

vendor code:
1350601-500

Code:
4014835692152

Volume:
1 L

vendor code:
1350601-001

Code:
4014835692114

Volume:
20 L

vendor code:
1350601-020

DOT 4

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

Application Note

RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.

RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.

RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113).

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

optimum ABS characteristics
chemical stability
best lubrication efficiency
neutral behaviour regarding brake parts
low viscosity at low temperatures
miscible with all brake fluids of the same specifications

Parameter	Unit	Value	Audit
FMVSS 116 specifications (DOT)		DOT-4		DOT-4
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
specification		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704
Density at 20 °C	g/cm³	1052	EN ISO 12185	1052 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mPa*s	2.41	ASTM D445	2.41 mPa*s ASTM D445
Viscosity at -40 °C	cSt	1340	ASTM D445	1340 cSt ASTM D445
Boiling point	°C	271	FMVSS 116	271 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point	°C	169	FMVSS 116	169 °C FMVSS 116
High Temperature Stability	°C	-1	FMVSS 116	-1 °C FMVSS 116
Chemical Stability	°C	1	FMVSS 116	1 °C FMVSS 116
Evaporation	%w/w	61	FMVSS 116	61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C		i.O., 4s	FMVSS 116	i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C		i.O., 8s	FMVSS 116	i.O., 8s FMVSS 116
Water Tolerance at -40 °C		transparent, 3s	FMVSS 116	transparent, 3s FMVSS 116
Water Tolerance at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at -40 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Water content	%	— 0.2	DIN 51777-1	— 0.2 % DIN 51777-1
Tinned Iron	Δ mg/cm²	0.04	FMVSS 116	0.04 Δ mg/cm² FMVSS 116
Steel	mg/cm²	-0.01	FMVSS 116	-0.01 mg/cm² FMVSS 116
Aluminium	mg/cm²	0.02	FMVSS 116	0.02 mg/cm² FMVSS 116
Cast Iron	Δ mg/cm²	-0,03	FMVSS 116	-0,03 Δ mg/cm² FMVSS 116
Brass	mg/cm²	-0.08	FMVSS 116	-0.08 mg/cm² FMVSS 116
Copper	mg/cm²	-0.05	FMVSS 116	-0.05 mg/cm² FMVSS 116
Zinc	mg/cm²	0.01	FMVSS 116	0.01 mg/cm² FMVSS 116
Sediment	%	— 0.05	FMVSS 116	— 0.05 % FMVSS 116
pH - value		8.2	FMVSS 116	8.2 FMVSS 116
Rubber Diameter Change		0.16	FMVSS 116	0.16 FMVSS 116
Hardness Change	°IRHD	-4	FMVSS 116	-4 °IRHD FMVSS 116
Appearance		i.O.	FMVSS 116	i.O. FMVSS 116
SBR at 70 °C	mm	0.56	FMVSS 116	0.56 mm FMVSS 116
SBR at 120 °C	mm	0.73	FMVSS 116	0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703)	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
EPDM at 120 °C	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925)	mm	0.38	FMVSS 116	0.38 mm FMVSS 116
Approvals		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704

Racing Brake Fluid R325+

For brakes

RAVENOL Racing Brake Fluid R325+ is an ideal brake fluid for motor sports (car and motorbike racing) due to its very high dry and wet boiling point. The braking system is more responsive even under extreme conditions. Please always observe the vehicle manufacturers specifications.

show details

Equivalents OEM:
BRP 779152, Land Rover LR067409, Land Rover T2R13675, Nissan KN91041001, Nissan KN91041001EU, Nissan KN9104100111, Nissan KN9104100111

Available packaging
Full description
Product parameters

Volume:
500 ml

vendor code:
1350604-500

Code:
4014835817456

DOT 5.1

RAVENOL Racing Brake Fluid R325+ is an ideal brake fluid for motor sports (car and motorbike racing) due to its very high dry and wet boiling point. The braking system is more responsive even under extreme conditions. Please always observe the vehicle manufacturers specifications.

Application Note

To achieve optimum results the braking system should be freshly filled with RAVENOL Racing Brake Fluid R325+ before each race. In particular when the brakes are inordinately hot or racing under tropical conditions.

Do not mix with other brake fluids!

Not suitable for vehicles that require a mineral brake fluid (LHM). Observe manufacturer's specifications. Not recommended if the components used are made of magnesium or are alloys with a high magnesium content.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113)

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

Optimum ABS properties
Chemical stability.
Highest lubricating power
Neutral behaviour towards brake parts
Low viscosity even at low temperatures
Can be mixed with all braking fluids of the same specification.

Parameter	Unit	Value	Audit
FMVSS 116 specifications (DOT)		DOT-4		DOT-4
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
specification		DOT 4, DOT 5.1, SAE J 1703, SAE J 1704		DOT 4, DOT 5.1, SAE J 1703, SAE J 1704
Density at 20 °C	g/cm³	1078	EN ISO 12185	1078 g/cm³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mPa*s	2.59	ASTM D445	2.59 mPa*s ASTM D445
Viscosity at -40 °C	cSt	1495	ASTM D445	1495 cSt ASTM D445
Boiling point	°C	328 —	FMVSS 116	328 — °C FMVSS 116
Wet Equilibrium Reflux Boiling Point	°C	204	FMVSS 116	204 °C FMVSS 116
High Temperature Stability	°C	-1	FMVSS 116	-1 °C FMVSS 116
Chemical Stability	°C	1	FMVSS 116	1 °C FMVSS 116
Evaporation	%w/w	50	FMVSS 116	50 %w/w FMVSS 116
Fluidity & Appearance at -40 °C		i.O., 4s	FMVSS 116	i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C		i.O., 7s	FMVSS 116	i.O., 7s FMVSS 116
Water Tolerance at -40 °C		transparent, 5s	FMVSS 116	transparent, 5s FMVSS 116
Water Tolerance at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at -40 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Water content	%	— 0.2	DIN 51777-1	— 0.2 % DIN 51777-1
Tinned Iron	Δ mg/cm²	0.03	FMVSS 116	0.03 Δ mg/cm² FMVSS 116
Steel	mg/cm²	0.01	FMVSS 116	0.01 mg/cm² FMVSS 116
Aluminium	mg/cm²	-0.01	FMVSS 116	-0.01 mg/cm² FMVSS 116
Cast Iron	Δ mg/cm²	-0,10	FMVSS 116	-0,10 Δ mg/cm² FMVSS 116
Brass	mg/cm²	-0.04	FMVSS 116	-0.04 mg/cm² FMVSS 116
Copper	mg/cm²	-0.05	FMVSS 116	-0.05 mg/cm² FMVSS 116
Sediment	%	— 0.05	FMVSS 116	— 0.05 % FMVSS 116
pH - value		7.51	FMVSS 116	7.51 FMVSS 116
Rubber Diameter Change		0.03	FMVSS 116	0.03 FMVSS 116
Hardness Change	°IRHD	-4	FMVSS 116	-4 °IRHD FMVSS 116
Appearance		i.O.	FMVSS 116	i.O. FMVSS 116
SBR at 70 °C	mm	0.76	FMVSS 116	0.76 mm FMVSS 116
SBR at 120 °C	mm	1.05	FMVSS 116	1.05 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703)	IRHD	-1	FMVSS 116	-1 IRHD FMVSS 116
EPDM at 120 °C	IRHD	-2.5	FMVSS 116	-2.5 IRHD FMVSS 116
Approvals		DOT 4, DOT 5.1, SAE J 1703, SAE J 1704		DOT 4, DOT 5.1, SAE J 1703, SAE J 1704

Cooling system

Liquid volume (basic): 10 L

OTC Organic Technology Coolant Premix -40°C

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

Compliance with the requirements:
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

show details

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410112-150

Code:
4014835755512

Volume:
5 L

vendor code:
1410112-005

Code:
4014835755550

Volume:
10 L

vendor code:
1410112-010

Volume:
20 L

vendor code:
1410112-020

Code:
4014835755529

Volume:
20 L, ecobox

vendor code:
1410112-B20

Code:
4014835855953

Volume:
60 L, plastic

vendor code:
1410112-060

Code:
4014835755567

Volume:
208 L

vendor code:
1410112-208

Code:
4014835755581

Volume:
1000 L

vendor code:
1410112-700

RAVENOL OTC Organic Techn. Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL OTC Organic Techn. Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL OTC Organic Techn. Coolant Premix -40°C to radiator to fill line.

RAVENOL OTC Organic Techn. Coolant Premix -40°C can also be used as a “ready for use” dilution in geothermal probes and geothermal collectors as recommended list of LAWA (Federal / State Working Group on Water in Germany). RAVENOL OTC Organic Techn. Coolant Concentrate is included in the list of recommendations of the LAWA for water management requirements for geothermal probes and geothermal collectors.

Characteristics

Excellent for light metal engines
Good reserve alkalinity
Premium corrosion additives for optimal rust protection for all metals and metal alloys used in coolsystems, including aluminium
Prevents sediments and foaming in the cooling system
Compatible with elastomers used in automotive radiators
Can be mixed with other coolant types

Parameter	Unit	Value	Audit
Recommendations		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, MB 326.3 (Premix), Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, MB 326.3 (Premix), Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
Brand		RAVENOL		RAVENOL
Recomendations		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
Suitable for		Jaguar Land Rover STJLR.651.5003, Porsche		Jaguar Land Rover STJLR.651.5003, Porsche
Compliant products		Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F		Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
Density at 20 °C	g/cm³	1070	EN ISO 12185	1070 g/cm³ EN ISO 12185
Color		Violet	visual	Violet visual
pH - value at 20 °C		7,5 - 8,5	ASTM D1287	7,5 - 8,5 ASTM D1287
Freezing point	°C	-40	ASTM D1177	-40 °C ASTM D1177
Approvals		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

OTC - Protect C12+ Concentrate

Coolant

Compliance with the requirements:
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

show details

Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410110-150

Code:
4014835755413

Volume:
5 L

vendor code:
1410110-005

Code:
4014835755451

Volume:
10 L

vendor code:
1410110-010

Volume:
20 L

vendor code:
1410110-020

Code:
4014835755420

Volume:
20 L, ecobox

vendor code:
1410110-B20

Code:
4014835855212

Volume:
60 L, plastic

vendor code:
-

Code:
4014835755437

Volume:
60 L

vendor code:
1410110-060

Code:
4014835755468

Volume:
60 L, print

vendor code:
1410110-D60

Volume:
1000 L

vendor code:
1410110-700

Volume:
208 L

vendor code:
1410110-208

Code:
4014835755482

RAVENOL OTC Organic Techn. Coolant Concentrate C12+ protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with highly effective frost and rust protection. Usable in cooling systems with all-aluminium engines. Mix according to chart. Follow manufacturer's recommendations.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

RAVENOL OTC Organic Techn. Coolant Concentrate C12+ can also be used in geothermal probes and geothermal collectors as recommended list of LAWA (Federal / State Working Group on Water in Germany).

MAN information for use:

Mixing prohibited with Type NF and Type N. Do not use silicone radiator hoses per MAN 334 Type 3 (blue) with coolants per MAN 324 Type SNF.

Table of mixing ratios
Antifreeze protection until	Parts Antifreeze	Parts Water
-20°C	35%	65%
-37°C	50%	50%
-50°C	60%	40%

Characteristics

Excellent for light metal engines
Good reserve alkalinity
Premium corrosion additives for optimal rust protection for all metals and metal alloys used in cool
systems, including aluminium
Prevents sediments and foaming in the cooling system
Compatible with elastomers used in automotive radiators
Can be mixed with other coolant types

Parameter	Unit	Value	Audit
Recommendations		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
Brand		RAVENOL		RAVENOL
Recomendations		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
Suitable for		Jaguar Land Rover STJLR.651.5003, Porsche		Jaguar Land Rover STJLR.651.5003, Porsche
Compliant products		Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F		Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
Density at 20 °C	g/cm³	1130	EN ISO 12185	1130 g/cm³ EN ISO 12185
Color		Violet	visual	Violet visual
Reserve alkalinity	mgKOH/g	5.5 —	ASTM D1120	5.5 — mgKOH/g ASTM D1120
Boiling point	°C	187	ASTM D1121	187 °C ASTM D1121
Water content	%	— 5	ASTM D1123	— 5 % ASTM D1123
Flashpoint	°C	110 —	DIN 51758	110 — °C DIN 51758
Freezing point (50 % solution)	°C	-37	ASTM D1177	-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %)		7,5 - 8,5	ASTM D1287	7,5 - 8,5 ASTM D1287
Approvals		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter	Value
Recommendations	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand	RAVENOL	RAVENOL
Recomendations	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272
Approvals	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272

Professional Radiator Cleaner

Additive

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

show details

Equivalents OEM:
Ford MP14300500AB

Available packaging
Full description
Product parameters

Volume:
0.25 L

vendor code:
1390302-250

Code:
4014835802667

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.

Application Note

RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.

Area of application:

Radiator repairs

In the event of reduced radiator performance

In the event of deposits in the cooling system

Changing coolant

For cleaning purposes after engine repairs due to oil in the cooling system

Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.

Fill in

RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.

RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.

Characteristics

Cleaning of the cooling and heating system
Protection of the new coolant against prior contamination
Elimination of sludge and corrosion residue

Parameter	Unit	Value	Audit
Color		Colorless	visual	Colorless visual
Density at 20 °C	g/cm³	1003	EN ISO 12185	1003 g/cm³ EN ISO 12185
pH - value at 20 °C		10,25	DIN 19268	10,25 DIN 19268
Brand		RAVENOL		RAVENOL
