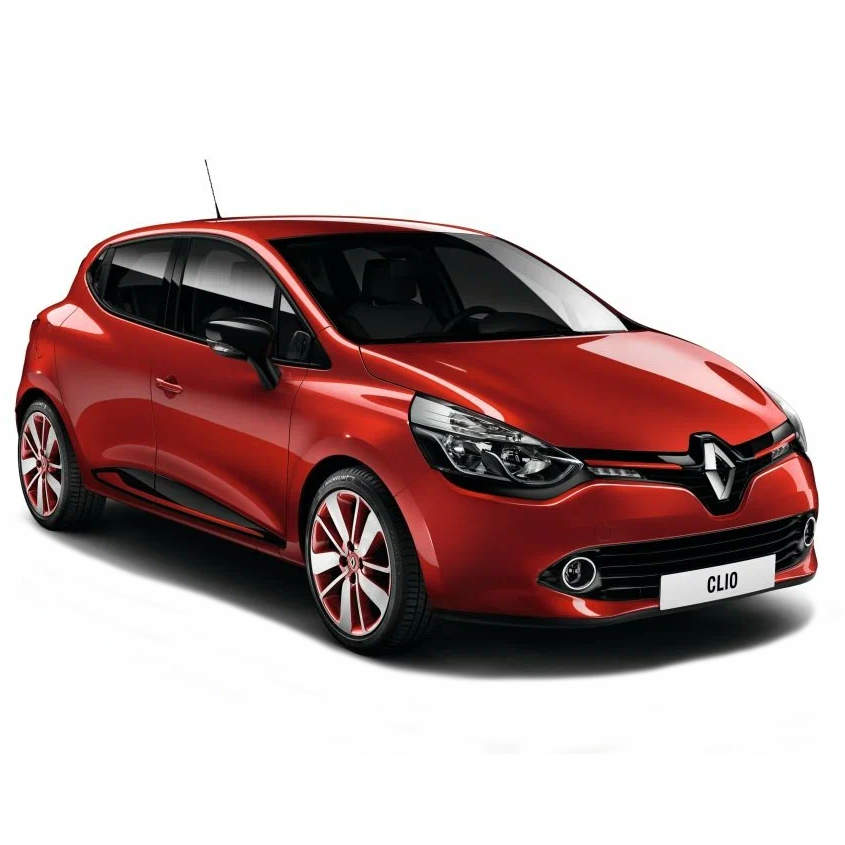

Renault Clio IV, B98 / BH98 / K98 / KH98 / X98 0.9 TCe 2WD (H4B), year of issue from 2012 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.
Fuel: Gasoline
car drive: Front-wheel drive
Engine: Single row
Number of cylinders: 3
Valves per cylinder: 4
Working volume: 898 cc
Power: 90 hp / 66 kW
Engine H4B / H4B400 / H4B408 / H4B412
For engine
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
Manufacturer Approved:
BMW Longlife-01, MB-Approval 229.5, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
Compliance with the requirements:
Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296
- Available packaging
- Product parameters
Volume:
60 L
vendor code:
1111136-060
Volume:
208 L
vendor code:
1111136-208
Volume:
1000 L
vendor code:
1111136-700
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
RAVENOL VollSynth Turbo VST SAE 5W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
RAVENOL VollSynth Turbo VST SAE 5W-40 guarantees operational safety concerning all driving conditions as for example regarding extreme stop and go traffic as well as high speed drives on motorways.
Extended oil change intervals according to the manufacturer’s instructions.
Application Note
RAVENOL VollSynth Turbo VST SAE 5W-40 is suitable for the energy saving operation all the year of all modern cars with petrol and diesel engines in passenger cars, vans, small transporters and similar vehicles and was specially developed for turbo chargers as well as the catalytic operation.
Characteristics
- High abrasion resistance.
- Fuel saving because of easy running characteristics.
- Excellent detergent and dispersant characteristics.
- Prevention of black sludge creation.
- Long endurance because of high oxidation stability.
- Excellent cold start performance.
- Very good viscosity temperature behaviour.
- Low evaporation.
- Suitable for catalysts.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-12991 (MS-10896), Fiat 9.55535-Z2, MB 226.5, MB 229.3, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296 |
Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-12991 (MS-10896), Fiat 9.55535-Z2, MB 226.5, MB 229.3, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-40 |
5W-40
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | SN Plus, SP |
SN Plus, SP
|
||
| ACEA | A3, B4 |
A3, B4
|
||
| Manufacturer Approved | BMW Longlife-01, MB-Approval 229.5, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00 |
BMW Longlife-01, MB-Approval 229.5, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
|
||
| Recomendations | Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296 |
Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296
|
||
| Density at 20 °C | g/cm³ | 848 | EN ISO 12185 |
848
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 13.5 | DIN 51562-1 |
13.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 79.4 | DIN 51562-1 |
79.4
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 174 | DIN ISO 2909 |
174
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 3.9 | ASTM D5481 |
3.9
mPa*s
ASTM D5481
|
| CCS Viscosity at -30 °C | mPa*s | 4700 | ASTM D5293 |
4700
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 13.900 | ASTM D4684 |
13.900
mPa*s
ASTM D4684
|
| Pourpoint | °C | -57 | DIN ISO 3016 |
-57
°C
DIN ISO 3016
|
| Noack Volatility | % | 7.3 | ASTM D5800 |
7.3
%
ASTM D5800
|
| Flashpoint | °C | 236 | DIN EN ISO 2592 |
236
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 11.9 | ASTM D2896 |
11.9
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.1 | DIN 51575 |
1.1
%wt.
DIN 51575
|
| Approvals | BMW Longlife-01, Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, MB 229.5, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00 |
BMW Longlife-01, Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, MB 229.5, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00
|
For engine
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
Manufacturer Approved:
MB-Approval 229.5, Renault RN 0710, VW 502.00, VW 505.00
Compliance with the requirements:
BMW Longlife-01, Chrysler MS-10725, Chrysler MS-12633, Chrysler MS-A0921, Fiat 9.55535-M2, Ford WSS-M2C 937-A, MB 226.5, MB 229.3, Porsche A40, Renault RN 0700
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1111108-020
Volume:
60 L
vendor code:
1111108-060
Volume:
208 L
vendor code:
1111108-208
Volume:
1000 L
vendor code:
1111108-700
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
With its new formulation, RAVENOL Super Synthetik Öl SSL SAE 0W-40 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
By significantly reducing fuel consumption, RAVENOL Super Synthetik Öl SSL SAE 0W-40 helps to protect the environment by reducing emissions.
RAVENOL Super Synthetik Öl SSL SAE 0W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
Extended oil change intervals according to the manufacturer’s instructions.
Application Note
RAVENOL Super Synthetik Öl SSL SAE 0W-40 guarantees operational safety in all driving conditions such as extreme stop-and-go traffic and high-speed highway driving.
RAVENOL Super Synthetik Öl SSL SAE 0W-40 is universal fuel-efficient synthetic engine oil suitable for petrol and diesel engines, with or without turbocharger, in cars and vans with the specified quality classifications.
Characteristics
- Excellent cold starting behavior.
- Fuel savings for part and full load.
- A very stable and excellent viscosity behavior.
- Good shear stability.
- A safe smear layer at very high operating temperatures.
- Excellent detergent and dispersant properties.
- A broad protection against wear, corrosion and foaming
- Excellent aging stability.
- Low evaporation loss.
- Excellent engine cleanliness.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | BMW Longlife-01, Chrysler MS-10725, Chrysler MS-12633, Chrysler MS-A0921, Fiat 9.55535-M2, Ford WSS-M2C937-A, MB 226.5, MB 229.3, Porsche A40, Renault RN0700 |
BMW Longlife-01, Chrysler MS-10725, Chrysler MS-12633, Chrysler MS-A0921, Fiat 9.55535-M2, Ford WSS-M2C937-A, MB 226.5, MB 229.3, Porsche A40, Renault RN0700
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 0W-40 |
0W-40
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | CF, SN Plus, SP |
CF, SN Plus, SP
|
||
| ACEA | A3, B4 |
A3, B4
|
||
| Manufacturer Approved | MB-Approval 229.5, Renault RN 0710, VW 502.00, VW 505.00 |
MB-Approval 229.5, Renault RN 0710, VW 502.00, VW 505.00
|
||
| Recomendations | BMW Longlife-01, Chrysler MS-10725, Chrysler MS-12633, Chrysler MS-A0921, Fiat 9.55535-M2, Ford WSS-M2C 937-A, MB 226.5, MB 229.3, Porsche A40, Renault RN 0700 |
BMW Longlife-01, Chrysler MS-10725, Chrysler MS-12633, Chrysler MS-A0921, Fiat 9.55535-M2, Ford WSS-M2C 937-A, MB 226.5, MB 229.3, Porsche A40, Renault RN 0700
|
||
| Density at 20 °C | g/cm³ | 842.9 | EN ISO 12185 |
842.9
g/cm³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 13.8 | DIN 51562-1 |
13.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 78.1 | DIN 51562-1 |
78.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 182 | DIN ISO 2909 |
182
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 3.7 | ASTM D5481 |
3.7
mPa*s
ASTM D5481
|
| CCS Viscosity at -35 °C | mPa*s | 4560 | ASTM D5293 |
4560
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -40 °C | mPa*s | 21.300 | ASTM D4684 |
21.300
mPa*s
ASTM D4684
|
| Pourpoint | °C | -60 | DIN ISO 3016 |
-60
°C
DIN ISO 3016
|
| Noack Volatility | % | 8.5 | ASTM D5800 |
8.5
%
ASTM D5800
|
| Flashpoint | °C | 236 | DIN EN ISO 2592 |
236
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 10 | ASTM D2896 |
10
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.21 | DIN 51575 |
1.21
%wt.
DIN 51575
|
| Approvals | BMW Longlife-01, Chrysler MS-10725, Chrysler MS-12633, Chrysler MS-A0921, Fiat 9.55535-M2, Ford WSS-M2C 937-A, MB 226.5, MB 229.3, MB 229.5, Porsche A40, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00 |
BMW Longlife-01, Chrysler MS-10725, Chrysler MS-12633, Chrysler MS-A0921, Fiat 9.55535-M2, Ford WSS-M2C 937-A, MB 226.5, MB 229.3, MB 229.5, Porsche A40, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00
|
For engine
RAVENOL VMO SAE 5W-40 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.
Manufacturer Approved:
BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, VW 505.00, VW 505.01
Compliance with the requirements:
Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, Porsche C40, VW 502.00
- Available packaging
- Product parameters
RAVENOL VMO SAE 5W-40 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.
RAVENOL VMO SAE 5W-40 extends long life of DPF and TWC. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).
RAVENOL VMO SAE 5W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics. Because of a considerable fuel saving RAVENOL VMO SAE 5W-40 contributes to protect the environment by reducing the emissions.
Suitable for extended oil change intervals where recommended by manufacturer.
Application Note
RAVENOL VMO SAE 5W-40 is an universal, synthetic low friction motor oil especially developed for Pumpe-Düse-diesel engines. Moreover, this lubricant is excellent suitable for gasoline and diesel engines in passenger cars and vans with and without turbo charger. Due to the specific composition is RAVENOL VMO SAE 5W-40 excellent suitable for use for several OEM requirements.
Characteristics
- Fuel economy in part and full power operation.
- MID SAPS = reduced Sulphated Ash, Phosphorous and Sulphur.
- Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine.
- Excellent cold starting characteristics also at low temperatures below -30°C.
- The function of the hydro tappet is ensure at all temperatures.
- A safe lubricant film at high operating temperatures.
- Low evaporative tendency, so lower oil consumption.
- No deposits in combustion chambers, in the piston ring zone and valves because of oil conditioned.
- Neutrality towards sealing materials.
- Extended oil change intervals to protect natural resources.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C917-A, Porsche C40, VW 502 00 |
Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C917-A, Porsche C40, VW 502 00
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-40 |
5W-40
|
||
| Type | Synthetic |
Synthetic
|
||
| API | CF, SN |
CF, SN
|
||
| ACEA | C3 |
C3
|
||
| Manufacturer Approved | BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, VW 505.00, VW 505.01 |
BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, VW 505.00, VW 505.01
|
||
| Recomendations | Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, Porsche C40, VW 502.00 |
Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, Porsche C40, VW 502.00
|
||
| Density at 20 °C | g/cm³ | 848 | EN ISO 12185 |
848
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 13.3 | DIN 51562-1 |
13.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 80 | DIN 51562-1 |
80
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 170 | DIN ISO 2909 |
170
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 4 | ASTM D5481 |
4
mPa*s
ASTM D5481
|
| CCS Viscosity at -30 °C | mPa*s | 6375 | ASTM D5293 |
6375
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 27.000 | ASTM D4684 |
27.000
mPa*s
ASTM D4684
|
| Pourpoint | °C | -45 | DIN ISO 3016 |
-45
°C
DIN ISO 3016
|
| Noack Volatility | % | 8.8 | ASTM D5800 |
8.8
%
ASTM D5800
|
| Flashpoint | °C | 242 | DIN EN ISO 2592 |
242
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 8.7 | ASTM D2896 |
8.7
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.77 | DIN 51575 |
0.77
%wt.
DIN 51575
|
| Approvals | BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, GM dexos2®, MB 229.31, MB 229.51, Porsche C40, VW 502.00, VW 505.00, VW 505.01 |
BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, GM dexos2®, MB 229.31, MB 229.51, Porsche C40, VW 502.00, VW 505.00, VW 505.01
|
Engine oil
Application NoteRAVENOL HCS SAE 5W-40 is suitable for an energy saving all year use for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.
Manufacturer Approved:
MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
Compliance with the requirements:
BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296
- Available packaging
- Product parameters
Application Note
RAVENOL HCS SAE 5W-40 is suitable for an energy saving all year use for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.
Characteristics
- High protection against wear
- Fuel economy by low friction property
- Excellent detergent- and dispersant property
- Prevention of black sludge formation
- Improved cleaner engine
- Extended lifetime because of oxidation stability
- Excellent cold starting characteristics
- Excellent viscosity-temperature- characteristics
- Low evaporation tendency
- Catalyst cleaning
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, MB 226.5, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296 |
BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, MB 226.5, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-40 |
5W-40
|
||
| Type | Synthetic |
Synthetic
|
||
| API | CF, SN |
CF, SN
|
||
| ACEA | A3, B4 |
A3, B4
|
||
| Manufacturer Approved | MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00 |
MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
|
||
| Recomendations | BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296 |
BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296
|
||
| Density at 20 °C | g/cm³ | 849 | EN ISO 12185 |
849
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.4 | DIN 51562-1 |
14.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 87.5 | DIN 51562-1 |
87.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 171 | DIN ISO 2909 |
171
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 3.9 | ASTM D5481 |
3.9
mPa*s
ASTM D5481
|
| CCS Viscosity at -30 °C | mPa*s | 5370 | ASTM D5293 |
5370
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 28.500 | ASTM D4684 |
28.500
mPa*s
ASTM D4684
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Noack Volatility | % | 8.4 | ASTM D5800 |
8.4
%
ASTM D5800
|
| Flashpoint | °C | 232 | DIN EN ISO 2592 |
232
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 10.4 | ASTM D2896 |
10.4
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.26 | DIN 51575 |
1.26
%wt.
DIN 51575
|
| Approvals | BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00 |
BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00
|
Engine oil
RAVENOL HST SAE 5W-40 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.
Manufacturer Approved:
BMW Longlife-01, MB-Approval 229.5, Porsche A40, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
Compliance with the requirements:
Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, PSA B71 2296
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1111147-020
Volume:
60 L
vendor code:
1111147-060
Volume:
60 L, print
vendor code:
1111147-D60
Volume:
208 L
vendor code:
1111147-208
Volume:
208 L, print
vendor code:
1111147-D28
Volume:
1000 L
vendor code:
1111147-700
RAVENOL HST SAE 5W-40 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.
Because of a considerable fuel saving RAVENOL HST SAE 5W-40 contributes to protect the environment by reducing the emissions.
RAVENOL HST SAE 5W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
RAVENOL HST SAE 5W-40 guarantees operational safety concerning all driving conditions as for example regarding extreme stop and go traffic as well as high speed drives on motorways.
Suitable for extended oil change intervals where recommended by manufacturer.
Application Note
RAVENOL HST SAE 5W-40 is suitable for the energy saving operation year-round of all modern cars with gasoline and diesel engines in passenger cars, vans, small transporters and similar vehicles and was specially developed for turbo chargers as well as the catalytic operation.
Characteristics
- High abrasion resistance
- Fuel saving because of easy running characteristics
- Excellent detergent and dispersant characteristics
- Prevention of black sludge creation
- Long endurance because of high oxidation stability
- Excellent cold start performance
- Very good viscosity temperature behaviour
- Low evaporation
- Suitable for catalysts
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-12991 (MS-10896), Fiat 9.55535-Z2, MB 226.5, MB 229.3, Opel/GM-LL-B-025, PSA B71 2296 |
Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-12991 (MS-10896), Fiat 9.55535-Z2, MB 226.5, MB 229.3, Opel/GM-LL-B-025, PSA B71 2296
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-40 |
5W-40
|
||
| Type | Synthetic |
Synthetic
|
||
| API | SN Plus, SP |
SN Plus, SP
|
||
| ACEA | A3, B4 |
A3, B4
|
||
| Manufacturer Approved | BMW Longlife-01, MB-Approval 229.5, Porsche A40, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00 |
BMW Longlife-01, MB-Approval 229.5, Porsche A40, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
|
||
| Recomendations | Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, PSA B71 2296 |
Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, PSA B71 2296
|
||
| Density at 20 °C | g/cm³ | 847 | EN ISO 12185 |
847
g/cm³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 13.3 | DIN 51562-1 |
13.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 78.2 | DIN 51562-1 |
78.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 173 | DIN ISO 2909 |
173
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 3.91 | ASTM D5481 |
3.91
mPa*s
ASTM D5481
|
| CCS Viscosity at -30 °C | mPa*s | 5480 | ASTM D5293 |
5480
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 25.000 | ASTM D4684 |
25.000
mPa*s
ASTM D4684
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Noack Volatility | % | 7.4 | ASTM D5800 |
7.4
%
ASTM D5800
|
| Flashpoint | °C | 240 | DIN EN ISO 2592 |
240
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 12 | ASTM D2896 |
12
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.19 | DIN 51575 |
1.19
%wt.
DIN 51575
|
| Approvals | BMW Longlife-01, Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, MB 229.5, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00 |
BMW Longlife-01, Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, MB 229.5, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00
|
Additive
RAVENOL Professional Engine Cleaner can also be used in motorcycles.
- Available packaging
- Product parameters
RAVENOL Professional Engine Cleaner can also be used in motorcycles.
RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.
RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.
Application Note
RAVENOL Professional Engine Cleaner is added to the warm motor oil.
Area of application:
-If black sludge is suspected
-In the event of hydraulic tappets rattling
-In the event of delayed oil change
-For soiled engines or used oil
-Preventively at every oil change to avoid contamination of the engine
-Also suitable for oldtimers
Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.
Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.
RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.
Characteristics
- Long-term effectiveness and clean fresh oil
- Remedy for soiled engines
- Protection against compression loss in the area of the piston rings
- Leads to better exhaust emissions and increases the performance of the engine
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Color | Light brown | visual |
Light brown
visual
|
|
| Flashpoint (PM) | °C | 62 | DIN ISO 3679 |
62
°C
DIN ISO 3679
|
| Density at 20 °C | 805 | EN ISO 12185 |
805
EN ISO 12185
|
|
| Viscosity at 40 °C | mm²/s | 7 | DIN EN ISO 3104 |
7
mm²/s
DIN EN ISO 3104
|
| Brand | RAVENOL |
RAVENOL
|
Mechanical gearbox in a unit with final drive JH3 5/1 JH3
For transmission
RAVENOL Getriebeoel PSA SAE 75W-80 has a special formula for outstanding wear protection and lubrication properties.
Compliance with the requirements:
PSA B71 2315
SAE: 75W-80
API: GL-4
Equivalents OEM:
GM 1940711, GM 9163335, Nissan 999MPMTF20P, Nissan KE91600Q40, Nissan KE91699012, Nissan KE91699012, Nissan KE91699033, Nissan KE91699071R, Nissan KE9169903301, Nissan KLD9275801, Peugeot 9730AG, Peugeot 1615100080, Peugeot 1618078480, Peugeot 1635055880, PSA 9730A2, PSA 9730AA, PSA 973641, Renault 7711143534
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1222100-020
Volume:
60 L
vendor code:
1222100-060
Volume:
60 L, print
vendor code:
1222100-D60
Volume:
208 L
vendor code:
1222100-208
Volume:
208 L, print
vendor code:
1222100-D28
Volume:
1000 L
vendor code:
1222100-700
RAVENOL Getriebeoel PSA SAE 75W-80 has a special formula for outstanding wear protection and lubrication properties.
Application Note
RAVENOL Getriebeoel PSA SAE 75W-80 is used in manual shift transmissions requiring trouble-free lubrication.
RAVENOL Getriebeoel PSA SAE 75W-80 can be used in manual transmissions where the manufacturer specifies a low-viscosity oil.
Characteristics
- Outstanding oxidation protection.
- Low viscosity in low temperatures.
- Excellent wear protection.
- Enhanced EP properties.
- Good foaming properties.
- Neutral to sealants.
- Outstanding protection from rust and corrosion.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | PSA B71 2315 |
PSA B71 2315
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-80 |
75W-80
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | GL-4 |
GL-4
|
||
| Recomendations | PSA B71 2315 |
PSA B71 2315
|
||
| Density at 20 °C | g/cm³ | 843 | EN ISO 12185 |
843
g/cm³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 8.5 | DIN 51562-1 |
8.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 43.1 | DIN 51562-1 |
43.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 178 | DIN ISO 2909 |
178
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 52.500 | ASTM D2983 |
52.500
mPa*s
ASTM D2983
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Flashpoint | °C | 234 | DIN EN ISO 2592 |
234
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | PSA B71 2315 |
PSA B71 2315
|
Mechanical gearbox in a unit with final drive JR5 5/1 JR5
For transmission
RAVENOL Getriebeoel PSA SAE 75W-80 has a special formula for outstanding wear protection and lubrication properties.
Compliance with the requirements:
PSA B71 2315
SAE: 75W-80
API: GL-4
Equivalents OEM:
GM 1940711, GM 9163335, Nissan 999MPMTF20P, Nissan KE91600Q40, Nissan KE91699012, Nissan KE91699012, Nissan KE91699033, Nissan KE91699071R, Nissan KE9169903301, Nissan KLD9275801, Peugeot 9730AG, Peugeot 1615100080, Peugeot 1618078480, Peugeot 1635055880, PSA 9730A2, PSA 9730AA, PSA 973641, Renault 7711143534
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1222100-020
Volume:
60 L
vendor code:
1222100-060
Volume:
60 L, print
vendor code:
1222100-D60
Volume:
208 L
vendor code:
1222100-208
Volume:
208 L, print
vendor code:
1222100-D28
Volume:
1000 L
vendor code:
1222100-700
RAVENOL Getriebeoel PSA SAE 75W-80 has a special formula for outstanding wear protection and lubrication properties.
Application Note
RAVENOL Getriebeoel PSA SAE 75W-80 is used in manual shift transmissions requiring trouble-free lubrication.
RAVENOL Getriebeoel PSA SAE 75W-80 can be used in manual transmissions where the manufacturer specifies a low-viscosity oil.
Characteristics
- Outstanding oxidation protection.
- Low viscosity in low temperatures.
- Excellent wear protection.
- Enhanced EP properties.
- Good foaming properties.
- Neutral to sealants.
- Outstanding protection from rust and corrosion.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | PSA B71 2315 |
PSA B71 2315
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-80 |
75W-80
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | GL-4 |
GL-4
|
||
| Recomendations | PSA B71 2315 |
PSA B71 2315
|
||
| Density at 20 °C | g/cm³ | 843 | EN ISO 12185 |
843
g/cm³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 8.5 | DIN 51562-1 |
8.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 43.1 | DIN 51562-1 |
43.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 178 | DIN ISO 2909 |
178
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 52.500 | ASTM D2983 |
52.500
mPa*s
ASTM D2983
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Flashpoint | °C | 234 | DIN EN ISO 2592 |
234
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | PSA B71 2315 |
PSA B71 2315
|
Hydraulic brakes/clutch system
For brake system
Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.
- Available packaging
- Product parameters
DOT 4
Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.
Application Note
RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.
RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.
RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).
FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.
STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.
Dispose of used brake fluid responsibly (EU waste code 160113).
Brake fluid damages paint work –if spilt wash off immediately with plenty of water.
Characteristics
- optimum ABS characteristics
- chemical stability
- best lubrication efficiency
- neutral behaviour regarding brake parts
- low viscosity at low temperatures
- miscible with all brake fluids of the same specifications
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| FMVSS 116 specifications (DOT) | DOT-4 |
DOT-4
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| specification | DOT 4, ISO 4925 Class 4, SAE J 1704 |
DOT 4, ISO 4925 Class 4, SAE J 1704
|
||
| Density at 20 °C | g/cm³ | 1052 | EN ISO 12185 |
1052
g/cm³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mPa*s | 2.41 | ASTM D445 |
2.41
mPa*s
ASTM D445
|
| Viscosity at -40 °C | cSt | 1340 | ASTM D445 |
1340
cSt
ASTM D445
|
| Boiling point | °C | 271 | FMVSS 116 |
271
°C
FMVSS 116
|
| Wet Equilibrium Reflux Boiling Point | °C | 169 | FMVSS 116 |
169
°C
FMVSS 116
|
| High Temperature Stability | °C | -1 | FMVSS 116 |
-1
°C
FMVSS 116
|
| Chemical Stability | °C | 1 | FMVSS 116 |
1
°C
FMVSS 116
|
| Evaporation | %w/w | 61 | FMVSS 116 |
61
%w/w
FMVSS 116
|
| Fluidity & Appearance at -40 °C | i.O., 4s | FMVSS 116 |
i.O., 4s
FMVSS 116
|
|
| Fluidity & Appearance at -50 °C | i.O., 8s | FMVSS 116 |
i.O., 8s
FMVSS 116
|
|
| Water Tolerance at -40 °C | transparent, 3s | FMVSS 116 |
transparent, 3s
FMVSS 116
|
|
| Water Tolerance at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at -40 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Water content | % | — 0.2 | DIN 51777-1 |
— 0.2
%
DIN 51777-1
|
| Tinned Iron | Δ mg/cm² | 0.04 | FMVSS 116 |
0.04
Δ mg/cm²
FMVSS 116
|
| Steel | mg/cm² | -0.01 | FMVSS 116 |
-0.01
mg/cm²
FMVSS 116
|
| Aluminium | mg/cm² | 0.02 | FMVSS 116 |
0.02
mg/cm²
FMVSS 116
|
| Cast Iron | Δ mg/cm² | -0,03 | FMVSS 116 |
-0,03
Δ mg/cm²
FMVSS 116
|
| Brass | mg/cm² | -0.08 | FMVSS 116 |
-0.08
mg/cm²
FMVSS 116
|
| Copper | mg/cm² | -0.05 | FMVSS 116 |
-0.05
mg/cm²
FMVSS 116
|
| Zinc | mg/cm² | 0.01 | FMVSS 116 |
0.01
mg/cm²
FMVSS 116
|
| Sediment | % | — 0.05 | FMVSS 116 |
— 0.05
%
FMVSS 116
|
| pH - value | 8.2 | FMVSS 116 |
8.2
FMVSS 116
|
|
| Rubber Diameter Change | 0.16 | FMVSS 116 |
0.16
FMVSS 116
|
|
| Hardness Change | °IRHD | -4 | FMVSS 116 |
-4
°IRHD
FMVSS 116
|
| Appearance | i.O. | FMVSS 116 |
i.O.
FMVSS 116
|
|
| SBR at 70 °C | mm | 0.56 | FMVSS 116 |
0.56
mm
FMVSS 116
|
| SBR at 120 °C | mm | 0.73 | FMVSS 116 |
0.73
mm
FMVSS 116
|
| EPDM at 70 °C (as required by SAE J1703) | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| EPDM at 120 °C | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| Natural at 70 °C (as required by ISO 4925) | mm | 0.38 | FMVSS 116 |
0.38
mm
FMVSS 116
|
| Approvals | DOT 4, ISO 4925 Class 4, SAE J 1704 |
DOT 4, ISO 4925 Class 4, SAE J 1704
|
For brake system
The specific formulation of RAVENOL DOT 5.1 offers international DOT 5.1 specifications SAE J 1704, ISO 4925 and fulfills FMVSS 116 DOT 5.1.
- Available packaging
- Product parameters
DOT 5.1
The specific formulation of RAVENOL DOT 5.1 offers international DOT 5.1 specifications SAE J 1704, ISO 4925 and fulfills FMVSS 116 DOT 5.1.
RAVENOL DOT 5.1 fluid is an ideal brake fluid for modern vehicles with the brake circuit accompanying systems such as ESP and ABS due to its low viscosity. The safety potential of the aggregates is enhanced by the excellent properties of RAVENOL DOT 5.1 even at low temperatures.
Application Note
RAVENOL DOT 5.1 brake fluid can be used in all vehicles where DOT 5.1 specification is required. It is suitable for all hydraulic brake systems with synthetic fluid.
RAVENOL DOT 5.1 brake fluid is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT 5.1, a complete change of the brake fluid is recommended.
RAVENOL DOT 5.1 is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).
FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.
STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.
Dispose of used brake fluid responsibly (EU waste code 160113).
Brake fluid damages paint work –if spilt wash off immediately with plenty of water.
Characteristics
- Optimal ABS properties
- Chemical stability
- High lubricating power
- Neutral behavior towards brake parts
- Low viscosity at low temperatures
- Miscibility with all brake fluids of the same specification.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| FMVSS 116 specifications (DOT) | DOT-5.1 |
DOT-5.1
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| specification | DOT 5.1, ISO 4925 Class 5.1, SAE J 1704 |
DOT 5.1, ISO 4925 Class 5.1, SAE J 1704
|
||
| Density at 20 °C | g/cm³ | 1069 | EN ISO 12185 |
1069
g/cm³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mPa*s | 2.16 | ASTM D445 |
2.16
mPa*s
ASTM D445
|
| Viscosity at -40 °C | cSt | 810 | ASTM D445 |
810
cSt
ASTM D445
|
| Boiling point | °C | 269 | FMVSS 116 |
269
°C
FMVSS 116
|
| Wet Equilibrium Reflux Boiling Point | °C | 187 | FMVSS 116 |
187
°C
FMVSS 116
|
| Chemical Stability | °C | 1.5 | FMVSS 116 |
1.5
°C
FMVSS 116
|
| Evaporation | %w/w | 68 | FMVSS 116 |
68
%w/w
FMVSS 116
|
| Fluidity & Appearance at -40 °C | i.O., 2s | FMVSS 116 |
i.O., 2s
FMVSS 116
|
|
| Fluidity & Appearance at -50 °C | i.O., 4s | FMVSS 116 |
i.O., 4s
FMVSS 116
|
|
| Water Tolerance at -40 °C | transparent, 2s | FMVSS 116 |
transparent, 2s
FMVSS 116
|
|
| Water Tolerance at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at -40 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Water content | % | 0.1 | DIN 51777-1 |
0.1
%
DIN 51777-1
|
| Tinned Iron | Δ mg/cm² | -0.01 | FMVSS 116 |
-0.01
Δ mg/cm²
FMVSS 116
|
| Steel | mg/cm² | -0.004 | FMVSS 116 |
-0.004
mg/cm²
FMVSS 116
|
| Aluminium | mg/cm² | -0.01 | FMVSS 116 |
-0.01
mg/cm²
FMVSS 116
|
| Cast Iron | Δ mg/cm² | -0,01 | FMVSS 116 |
-0,01
Δ mg/cm²
FMVSS 116
|
| Brass | mg/cm² | -0.05 | FMVSS 116 |
-0.05
mg/cm²
FMVSS 116
|
| Copper | mg/cm² | -0.03 | FMVSS 116 |
-0.03
mg/cm²
FMVSS 116
|
| Zinc | mg/cm² | 0.03 | FMVSS 116 |
0.03
mg/cm²
FMVSS 116
|
| Sediment | % | — 0.05 | FMVSS 116 |
— 0.05
%
FMVSS 116
|
| pH - value | 7.33 | FMVSS 116 |
7.33
FMVSS 116
|
|
| Rubber Diameter Change | 0.03 | FMVSS 116 |
0.03
FMVSS 116
|
|
| Hardness Change | °IRHD | -6 | FMVSS 116 |
-6
°IRHD
FMVSS 116
|
| Appearance | i.O. | FMVSS 116 |
i.O.
FMVSS 116
|
|
| SBR at 70 °C | mm | 0.44 | FMVSS 116 |
0.44
mm
FMVSS 116
|
| SBR at 120 °C | mm | 0.72 | FMVSS 116 |
0.72
mm
FMVSS 116
|
| EPDM at 70 °C (as required by SAE J1703) | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| EPDM at 120 °C | IRHD | -3 | FMVSS 116 |
-3
IRHD
FMVSS 116
|
| Natural at 70 °C (as required by ISO 4925) | mm | 0.42 | FMVSS 116 |
0.42
mm
FMVSS 116
|
| Approvals | DOT 5.1, ISO 4925 Class 5.1, SAE J 1704 |
DOT 5.1, ISO 4925 Class 5.1, SAE J 1704
|
Cooling system
Coolant
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.
Compliance with the requirements:
DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C
- Available packaging
- Product parameters
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.
That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
RAVENOL HTC Hybrid Technology Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.
Application Note
RAVENOL HTC Hybrid Technology Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Add RAVENOL HTC Hybrid Technology Coolant Premix -40°C to radiator to fill line.
RAVENOL HTC Hybrid Technology Coolant Premix -40°C can also be used as a “ready for use” dilution in geothermal probes and geothermal collectors as recommended list of LaWa (Federal / State Working Group on Water in Germany).
RAVENOL HTC Hybrid Technology Coolant Concentrate is included in the list of recommendations of the LaWa for water management requirements for geothermal probes and geothermal collectors.
Characteristics
- Excellent for use in cast iron or aluminium engines, or alloys of the two metals, and aluminium andcopper alloy radiators
- Good reserve alkalinity
- Protection from corrosion and cavitation
- Prevents sediments and foaming in the cooling system
- Compatible with elastomers used in automotive radiators
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | ASTM D3306, ASTM D4340, ASTM D4985, Audi, BMW 81229407454, BMW 83192211191, DAF, DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford AF Plus, Ford ESE-M978B4H-A, GM 1825M, GM 1899M, GM 93740140, GM 93740141, GM SATURN, Honda OL999-9011, Jaguar, John Deere, MAN 324 NF, MB (A 000 989 08 25 10), MB 325.0 (Konzentrat), MB 326.0 (Premix), NATO S-759, Opel/GM QL130100, Porsche, Renault Glaceol RX Type D, ROVER, SAAB, SAE J1034, VW TL 774-C (entspricht G11) |
ASTM D3306, ASTM D4340, ASTM D4985, Audi, BMW 81229407454, BMW 83192211191, DAF, DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford AF Plus, Ford ESE-M978B4H-A, GM 1825M, GM 1899M, GM 93740140, GM 93740141, GM SATURN, Honda OL999-9011, Jaguar, John Deere, MAN 324 NF, MB (A 000 989 08 25 10), MB 325.0 (Konzentrat), MB 326.0 (Premix), NATO S-759, Opel/GM QL130100, Porsche, Renault Glaceol RX Type D, ROVER, SAAB, SAE J1034, VW TL 774-C (entspricht G11)
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| ASTM | D3306, D4340, D4985 |
D3306, D4340, D4985
|
||
| Recomendations | DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C |
DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C
|
||
| Suitable for | DAF, GM SATURN, Jaguar, John Deere, Porsche, ROVER, SAAB, VW |
DAF, GM SATURN, Jaguar, John Deere, Porsche, ROVER, SAAB, VW
|
||
| Compliant products | BMW 81229407454, BMW 83192211191, Ford AF Plus, GM 93740140, GM 93740141, Honda OL999-9011, MB A 000 989 08 25 10 |
BMW 81229407454, BMW 83192211191, Ford AF Plus, GM 93740140, GM 93740141, Honda OL999-9011, MB A 000 989 08 25 10
|
||
| Density at 20 °C | g/cm³ | 1080 | EN ISO 12185 |
1080
g/cm³
EN ISO 12185
|
| Color | Blue | visual |
Blue
visual
|
|
| pH - value at 20 °C | 7,5 | ASTM D1287 |
7,5
ASTM D1287
|
|
| Freezing point | °C | -40 | ASTM D1177 |
-40
°C
ASTM D1177
|
| Approvals | DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C |
DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C
|
Coolant
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.
Compliance with the requirements:
DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C
Equivalents OEM:
BMW 83195A1E3B6,
BMW 81229407454,
BMW 83192211191,
BMW 83192211195,
BMW 83192211913,
BMW 83192211914,
BMW 83192304068,
BMW 83192304069,
BMW 83512355290,
BMW 83512355291,
BMW 83512355293,
BMW 83512355296,
BMW 83600005416,
FEBI 05011,
FEBI 22268,
FEBI 22270,
Ford 1047035,
GM 10101,
GM 105034,
GM 9163329,
GM 10953464,
GM 12346290,
GM 12378512,
GM 12378560,
GM 12378561,
GM 12378562,
GM 93165162,
GM 93170402,
GM 93740140,
GM 93740141,
GM 93742646
BMW 83195A1E3B6, BMW 81229407454, BMW 83192211191, BMW 83192211195, BMW 83192211913, BMW 83192211914, BMW 83192304068, BMW 83192304069, BMW 83512355290, BMW 83512355291, BMW 83512355293, BMW 83512355296, BMW 83600005416, FEBI 05011, FEBI 22268, FEBI 22270, Ford 1047035, GM 10101, GM 105034, GM 9163329, GM 10953464, GM 12346290, GM 12378512, GM 12378560, GM 12378561, GM 12378562, GM 93165162, GM 93170402, GM 93740140, GM 93740141, GM 93742646, GM 93742647, Honda 08CLAE020S0, Land Rover PDA500300, MB A000989082510, MB A000989082513, MB A000989082520, MB A000989082521, MB A000989082522, MB A000989082523, MB A0009892125, MB A989082510, MB A990989280020, MB A990989280021, MB A990989280022, MB A990989280023, SsangYong 0000000294, Subaru 000016218, Subaru K0679GA102, VAG G011A8CA1, VAG G011A8CA1, Volvo 9437650, Volvo 9437651, Volvo 31439720, Volvo 31439721
Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.
- Available packaging
- Product parameters
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.
That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
RAVENOL HTC Hybrid Technology Coolant Concentrate protects the cooling system from rust, frost, and in summer, from overheating.
Application Note
RAVENOL HTC Hybrid Technology Coolant Concentrate with frost and rust protection for year-round use in automotive engines. Mix according to chart. Follow manufacturer's recommendations.
Instructions: Clean cooling system, check for leaks, flush.
Mix RAVENOL HTC Hybrid Technology Coolant Concentrate with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.
RAVENOL HTC Hybrid Technology Coolant Concentrate can also be used in geothermal probes and geothermal collectors as recommended list of LaWa (Federal / State Working Group on Water in Germany).
| Table of mixing ratios | ||
|---|---|---|
| Antifreeze protection until | Parts Antifreeze | Parts Water |
| -20°C | 35% | 65% |
| -37°C | 50% | 50% |
| -50°C | 60% | 40% |
Characteristics
- Excellent for use in cast iron or aluminium engines, or alloys of the two metals, and aluminium and copper alloy radiators
- Excellent reserve alkalinity
- Protection from corrosion and cavitation
- Prevents sediments and foaming in the cooling system
- Compatible with elastomers used in automotive radiators
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | ASTM D3306, ASTM D4340, ASTM D4985, Audi, BMW 81229407454, BMW 83192211191, DAF, DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford AF Plus, Ford ESE-M978B4H-A, GM 1825M, GM 1899M, GM 93740140, GM 93740141, GM SATURN, Honda OL999-9011, Jaguar, John Deere, MAN 324 NF, MB (A 000 989 08 25 10), MB 325.0 (Konzentrat), MB 326.0 (Premix), NATO S-759, Opel/GM QL130100, Porsche, Renault Glaceol RX Type D, ROVER, SAAB, SAE J1034, VW TL 774-C (entspricht G11) |
ASTM D3306, ASTM D4340, ASTM D4985, Audi, BMW 81229407454, BMW 83192211191, DAF, DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford AF Plus, Ford ESE-M978B4H-A, GM 1825M, GM 1899M, GM 93740140, GM 93740141, GM SATURN, Honda OL999-9011, Jaguar, John Deere, MAN 324 NF, MB (A 000 989 08 25 10), MB 325.0 (Konzentrat), MB 326.0 (Premix), NATO S-759, Opel/GM QL130100, Porsche, Renault Glaceol RX Type D, ROVER, SAAB, SAE J1034, VW TL 774-C (entspricht G11)
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| ASTM | D3306, D4340, D4985 |
D3306, D4340, D4985
|
||
| Recomendations | DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C |
DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C
|
||
| Suitable for | DAF, GM SATURN, Jaguar, John Deere, Porsche, ROVER, SAAB, VW |
DAF, GM SATURN, Jaguar, John Deere, Porsche, ROVER, SAAB, VW
|
||
| Compliant products | BMW 81229407454, BMW 83192211191, Ford AF Plus, GM 93740140, GM 93740141, Honda OL999-9011, MB A 000 989 08 25 10 |
BMW 81229407454, BMW 83192211191, Ford AF Plus, GM 93740140, GM 93740141, Honda OL999-9011, MB A 000 989 08 25 10
|
||
| Density at 20 °C | g/cm³ | 1130 | EN ISO 12185 |
1130
g/cm³
EN ISO 12185
|
| Color | Blue | visual |
Blue
visual
|
|
| Reserve alkalinity | mgKOH/g | 15 — | ASTM D1120 |
15 —
mgKOH/g
ASTM D1120
|
| Boiling point | °C | 160 — | ASTM D1121 |
160 —
°C
ASTM D1121
|
| Water content | % | — 5 | ASTM D1123 |
— 5
%
ASTM D1123
|
| Flashpoint | °C | 100 — | DIN 51758 |
100 —
°C
DIN 51758
|
| Freezing point (50 % solution) | °C | -37 | ASTM D1177 |
-37
°C
ASTM D1177
|
| pH - value at 20 °C (50 Vol %) | 7,0 - 8,0 | ASTM D1287 |
7,0 - 8,0
ASTM D1287
|
|
| Approvals | DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C |
DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C
|
For batteries
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
Compliance with the requirements:
DIN 43530-4, DIN EN 50272
Equivalents OEM:
BMW 83190394350, BMW 83190394350
- Available packaging
- Product parameters
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.
RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.
Application Note
RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser |
DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
||
| Approvals | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
Additive
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
Equivalents OEM:
Ford MP14300500AB
- Available packaging
- Product parameters
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.
Application Note
RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.
Area of application:
Radiator repairs
In the event of reduced radiator performance
In the event of deposits in the cooling system
Changing coolant
For cleaning purposes after engine repairs due to oil in the cooling system
Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.
Fill in
RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.
RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.
Characteristics
- Cleaning of the cooling and heating system
- Protection of the new coolant against prior contamination
- Elimination of sludge and corrosion residue
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Color | Colorless | visual |
Colorless
visual
|
|
| Density at 20 °C | g/cm³ | 1003 | EN ISO 12185 |
1003
g/cm³
EN ISO 12185
|
| pH - value at 20 °C | 10,25 | DIN 19268 |
10,25
DIN 19268
|
|
| Brand | RAVENOL |
RAVENOL
|
