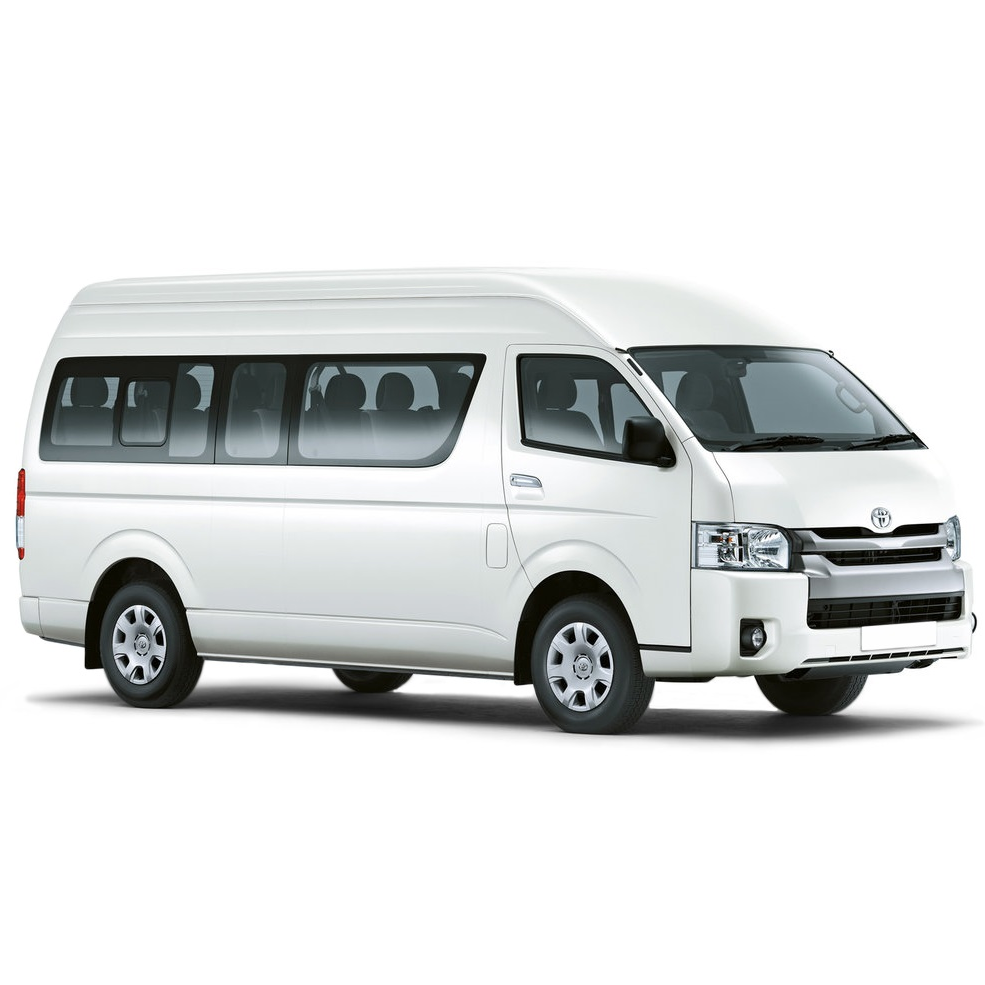

Toyota Hiace V / RegiusAce V, H200 2.0 2WD (1TR-FE) (TRH200), year of issue from 2004 date to 2019 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.
Engine 1TR-FE
Liquid volume (filter): 0.5 L
RAVENOL DXG 5W-30
For engine
For the development of RAVENOL DXG SAE 5W-30 the proven formulation of tri-nuclear molybdenum and OFM (Organic Friction Modifiers) was used. A highly polar Group V base oil was used in this formula, which has good compatibility with the PAO used.
Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034
Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1111124-001
Code:
4014835732315
Volume:
4 L
vendor code:
1111124-004
Code:
4014835732391
Volume:
5 L (4+1)
vendor code:
1111124-A05
Code:
4014835851689
Volume:
5 L
vendor code:
1111124-005
Code:
4014835732353
Volume:
10 L
vendor code:
1111124-010
Code:
4014835732346
Volume:
20 L, ecobox
vendor code:
1111124-B20
Code:
4014835773820
Volume:
60 L, print
vendor code:
1111124-D60
Code:
4014835732339
Volume:
208 L
vendor code:
1111124-208
Code:
4014835732384
Volume:
208 L, print
vendor code:
1111124-D28
Volume:
20 L
vendor code:
1111124-020
Code:
4014835732322
Volume:
60 L
vendor code:
1111124-060
For the development of RAVENOL DXG SAE 5W-30 the proven formulation of tri-nuclear molybdenum and OFM (Organic Friction Modifiers) was used. A highly polar Group V base oil was used in this formula, which has good compatibility with the PAO used.
Due to the USVO®technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
With its new formulation, RAVENOL DXG SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
By significantly reducing fuel consumption, RAVENOL DXG SAE 5W-30 helps to protect the environment by reducing emissions.
RAVENOL DXG SAE 5W-30 helps to avoid low speed pre-ignition LSPI (Low Speed Pre-ignition). This can help avoid engine damage.
Extended oil change intervals according to the manufacturer’s instructions.
Application instructions
RAVENOL DXG SAE 5W-30 is a high-performance low-friction engine oil for modern engines, and is recommended by OPEL/GENERAL MOTORS to the latest GM dexos 1 specification for modern GM gasoline-engined vehicles under all operating conditions.
RAVENOL DXG SAE 5W-30 is also suitable fort he shown specifications of Ford, Chrysler and Honda.
Characteristics
- New formula with dexos1™ Gen 3 approval
- Particularly suitable for GDI engines
- Avoids low speed pre-ignition (LSPI)
- No oil-related deposits in combustion chambers, in the piston ring zone and on valves
- Fuel savings potential under both part and full load operation
- Latest low SAPS technology = low Sulphated Ash, Phosphorus and Sulphur
- A very stable viscosity behavior and an excellent shear stability
- Very good cold starting properties
- A safe lubricant film even at very high operating temperatures
- Exceptional wear and corrosion protection
- Excellent detergent and dispersant capabilities for cleaner engines, prevents foaming
- Long service life through high oxidation stability
- Suitable for catalyst-equipped vehicles
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30 |
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-30 |
5W-30
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | SQ (RC) |
SQ (RC)
|
||
| ILSAC | GF-7A |
GF-7A
|
||
| Manufacturer Approved | GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034 |
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034
|
||
| Recomendations | Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30 |
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
|
||
| Density at 20 °C | g/cm³ | 846 | EN ISO 12185 |
846
g/cm³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.1 | DIN 51562-1 |
11.1
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 65.6 | DIN 51562-1 |
65.6
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 163 | DIN ISO 2909 |
163
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 3.25 | ASTM D5481 |
3.25
mPa*s
ASTM D5481
|
| CCS Viscosity at -30 °C | mPa*s | 3990 | ASTM D5293 |
3990
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 11.800 | ASTM D4684 |
11.800
mPa*s
ASTM D4684
|
| Pourpoint | °C | -57 | DIN ISO 3016 |
-57
°C
DIN ISO 3016
|
| Noack Volatility | % | 6 | ASTM D5800 |
6
%
ASTM D5800
|
| Flashpoint | °C | 244 | DIN EN ISO 2592 |
244
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.8 | ASTM D2896 |
7.8
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.8 | DIN 51575 |
0.8
%wt.
DIN 51575
|
| Approvals | Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034 |
Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
|
RAVENOL FDS 5W-30
For engine
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
Manufacturer Approved:
Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB-Approval 229.6, Renault RN 0700
Compliance with the requirements:
Fiat 9.55535-G1, Ford WSS-M2C 913-C, VWC 53036
SAE: 5W-30
Equivalents OEM:
Alpine 0100181,
Alpine 0100182,
Alpine 100181,
Alpine 100182,
Alpine 100189,
Ford 14E8B9,
Ford 14E8BA,
Ford 14E9EC,
Ford 14E9ED,
Ford 15CF53,
Ford 15CF54,
Ford 15D5E4,
Ford 15D5E7,
Ford 15D5E9,
Ford 151FF2,
Ford 151FF2,
Ford 151FF3,
Ford 151FF5,
Ford 155D3A,
Ford 155D4A,
Ford 155D4B,
Ford 1515DA,
Ford 15594D,
Ford 15595E,
Ford 15595F,
Ford 1370044,
GM 12345885,
Hyundai Motor 0510000141,
Hyundai Motor 0510000441,
Land Rover STC50527,
Mazda 053001TFE
Alpine 0100181, Alpine 0100182, Alpine 100181, Alpine 100182, Alpine 100189, Ford 14E8B9, Ford 14E8BA, Ford 14E9EC, Ford 14E9ED, Ford 15CF53, Ford 15CF54, Ford 15D5E4, Ford 15D5E7, Ford 15D5E9, Ford 151FF2, Ford 151FF2, Ford 151FF3, Ford 151FF5, Ford 155D3A, Ford 155D4A, Ford 155D4B, Ford 1515DA, Ford 15594D, Ford 15595E, Ford 15595F, Ford 1370044, GM 12345885, Hyundai Motor 0510000141, Hyundai Motor 0510000441, Land Rover STC50527, Mazda 053001TFE, Mazda 053005TFE, Mazda 53005TFE, Mazda 830077279, Mazda 830077280, Mazda 830077991, Mazda 830077992, Mazda 8300771772, Nissan KE90099933, Nissan KE90099933R, Nissan KE90099933VA, Nissan KE90099943, Nissan KE90099943R, Pentosin 1082107, Pentosin 1082206, Pentosin 4008849132117, Pentosin 4008849152238, Renault 7711943682, Renault 7711943683, Renault 7711943684, Toyota 0888083944, Volvo 31316299, Volvo 31316300
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1111139-001
Code:
4014835795617
Volume:
4 L
vendor code:
1111139-004
Code:
4014835795693
Volume:
5 L
vendor code:
1111139-005
Code:
4014835795655
Volume:
10 L
vendor code:
1111139-010
Code:
4014835795648
Volume:
20 L
vendor code:
1111139-020
Code:
4014835795624
Volume:
20 L, ecobox
vendor code:
1111139-B20
Code:
4014835797925
Volume:
60 L
vendor code:
1111139-060
Code:
4014835795662
Volume:
60 L, print
vendor code:
1111139-D60
Volume:
208 L
vendor code:
1111139-208
Code:
4014835795686
Volume:
208 L, print
vendor code:
1111139-D28
Volume:
1000 L
vendor code:
1111139-700
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
With its new formulation, RAVENOL FDS SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
By significantly reducing fuel consumption, RAVENOL FDS SAE 5W-30 helps to protect the environment by reducing emissions. It minimizes friction, wear and fuel consumption with excellent cold start characteristics.
RAVENOL FDS SAE 5W-30 ensures operational safety in all driving conditions such as in extreme stop-and-go traffic and high-speed motorway driving.
Extended oil change intervals according to the manufacturer’s instructions.
Application instructions
RAVENOL FDS SAE 5W-30 is suitable as motor oil for fuel-efficient year-round use in modern petrol and diesel engines in passenger cars, station wagon's, vans and similar vehicles from FORD, RENAULT, Toyota, Hyundai, KIA, Mazda, Honda, Nissan und Mitsubishi, when the specifications ACEA A5/B5 are required.
Characteristics
- Excellent cold starting properties even at low temperatures of below -30 ° C
- A very stable and excellent viscosity characteristics, shear stability
- Fuel efficiency under all operating conditions
- Excellent detergency and dispersing properties
- Neutrality towards sealing materials
- Low evaporation loss, thereby lower oil consumption
- An extensive protection against wear, corrosion and foaming
- Catalyst suitability
- Extended oil change intervals to protect natural resources
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Fiat 9.55535-G1, Ford WSS-M2C913-C, VWC 53036 |
Fiat 9.55535-G1, Ford WSS-M2C913-C, VWC 53036
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-30 |
5W-30
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | CF, SP |
CF, SP
|
||
| ACEA | A5, A7, B5, B7 |
A5, A7, B5, B7
|
||
| Manufacturer Approved | Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB-Approval 229.6, Renault RN 0700 |
Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB-Approval 229.6, Renault RN 0700
|
||
| Recomendations | Fiat 9.55535-G1, Ford WSS-M2C 913-C, VWC 53036 |
Fiat 9.55535-G1, Ford WSS-M2C 913-C, VWC 53036
|
||
| Density at 20 °C | g/cm³ | 843 | EN ISO 12185 |
843
g/cm³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 10.2 | DIN 51562-1 |
10.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 58.35 | DIN 51562-1 |
58.35
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 163 | DIN ISO 2909 |
163
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 3 | ASTM D5481 |
3
mPa*s
ASTM D5481
|
| CCS Viscosity at -30 °C | mPa*s | 3880 | ASTM D5293 |
3880
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 10.400 | ASTM D4684 |
10.400
mPa*s
ASTM D4684
|
| Pourpoint | °C | -51 | DIN ISO 3016 |
-51
°C
DIN ISO 3016
|
| Noack Volatility | % | 8.9 | ASTM D5800 |
8.9
%
ASTM D5800
|
| Flashpoint | °C | 228 | DIN EN ISO 2592 |
228
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 12.5 | ASTM D2896 |
12.5
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.2 | DIN 51575 |
1.2
%wt.
DIN 51575
|
| Approvals | Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036 |
Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036
|
RAVENOL Expert SHPD 10W-40
Engine oil
RAVENOL Expert SHPD SAE 10W-40 has an excellent flow behaviour even at low temperatures. The quick reach of critical lubrication points provides a considerable corrosion reduction during the warm-up period. Exclusive additives guarantee the best engine cleanness even at short distances.
Manufacturer Approved:
Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3
Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1122105-001
Code:
4014835725812
Volume:
5 L
vendor code:
1122105-005
Code:
4014835725850
Volume:
7 L
vendor code:
1122105-007
Code:
4014835853515
Volume:
10 L
vendor code:
1122105-010
Code:
4014835725843
Volume:
20 L
vendor code:
1122105-020
Code:
4014835725829
Volume:
20 L, ecobox
vendor code:
1122105-B20
Code:
4014835776227
Volume:
60 L
vendor code:
1122105-060
Code:
4014835725867
Volume:
60 L, print
vendor code:
1122105-D60
Code:
4014835839533
Volume:
208 L
vendor code:
1122105-208
Code:
4014835725881
Volume:
208 L, print
vendor code:
1122105-D28
Code:
4014835725805
Volume:
1000 L
vendor code:
1122105-700
RAVENOL Expert SHPD SAE 10W-40 has an excellent flow behaviour even at low temperatures. The quick reach of critical lubrication points provides a considerable corrosion reduction during the warm-up period. Exclusive additives guarantee the best engine cleanness even at short distances.
Application instructions
RAVENOL Expert SHPD SAE 10W-40 is low-friction long-life engine oil for all kind of diesel engines with and without turbocharging in trucks, buses and machinery. Suitable for the longest oil change intervals.
Characteristics
- Excellent detergent and dispersant characteristics
- Low evaporation
- A high ageing stability
- Protection of reflecting surface formation
- Very good cold start characteristics
- Reduces oil and fuel consumption
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Allison C4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, DAF, Global DHD-1, IVECO, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500 00, VW 505 00 |
Allison C4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, DAF, Global DHD-1, IVECO, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500 00, VW 505 00
|
||
| SAE | 10W-40 |
10W-40
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | CI-4, SL |
CI-4, SL
|
||
| ACEA | A3, B4, E4, E7 |
A3, B4, E4, E7
|
||
| Manufacturer Approved | Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3 |
Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3
|
||
| Recomendations | Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00 |
Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00
|
||
| Suitable for | DAF, IVECO, YaMZ |
DAF, IVECO, YaMZ
|
||
| Density at 20 °C | g/cm³ | 862 | EN ISO 12185 |
862
g/cm³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 15.4 | DIN 51562-1 |
15.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 109.7 | DIN 51562-1 |
109.7
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 155 | DIN ISO 2909 |
155
DIN ISO 2909
|
|
| CCS Viscosity at -25 °C | mPa*s | 6480 | ASTM D5293 |
6480
mPa*s
ASTM D5293
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Noack Volatility | % | 7.3 | ASTM D5800 |
7.3
%
ASTM D5800
|
| Flashpoint | °C | 234 | DIN EN ISO 2592 |
234
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 11 | ASTM D2896 |
11
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.25 | DIN 51575 |
1.25
%wt.
DIN 51575
|
| Approvals | Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD-2, Scania LDF, TEDOM 258-3, Voith Retarder B, Volvo VDS-3, VW 500.00, VW 505.00 |
Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD-2, Scania LDF, TEDOM 258-3, Voith Retarder B, Volvo VDS-3, VW 500.00, VW 505.00
|
RAVENOL FO 5W-30
For engine
RAVENOL FO SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.
Compliance with the requirements:
Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700, VWC 53036
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1111115-001
Code:
4014835722613
Volume:
4 L
vendor code:
1111115-004
Code:
4014835722699
Volume:
5 L
vendor code:
1111115-005
Code:
4014835722651
Volume:
10 L
vendor code:
1111115-010
Code:
4014835722644
Volume:
20 L
vendor code:
1111115-020
Code:
4014835722620
Volume:
20 L, ecobox
vendor code:
1111115-B20
Code:
4014835772922
Volume:
60 L
vendor code:
1111115-060
Code:
4014835722668
Volume:
60 L, print
vendor code:
1111115-D60
Code:
4014835722637
Volume:
208 L
vendor code:
1111115-208
Code:
4014835722682
Volume:
208 L, print
vendor code:
1111115-D28
Code:
4014835722606
Volume:
1000 L
vendor code:
1111115-700
RAVENOL FO SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.
Because of a considerable fuel saving RAVENOL FO SAE 5W-30 contributes to protect the environment by reducing the emissions.
RAVENOL FO SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
Suitable for extended oil change intervals where recommended by manufacturer.
Application instructions
RAVENOL FO SAE 5W-30 is suitable as motor oil for fuel-efficient year-round use in modern petrol and diesel engines in passenger cars, station wagon's, vans and similar vehicles from FORD, RENAULT, Toyota, Hyundai, KIA, Mazda, Honda, Nissan und Mitsubishi.
Characteristics
- Fuel economy in part and full power operation.
- Very stable and excellent viscosity behaviour.
- Excellent shear stability.
- Excellent cold starting characteristics.
- A safe lubricant film at high operating temperatures.
- High wear and corrosion protection, high oxidation stability.
- Prevention of sludge formation.
- Excellent detergent- and dispersant characteristics.
- Catalyst cleaning.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Fiat 9.55535-G1, Ford WSS-M2C913-A, Ford WSS-M2C913-B, Ford WSS-M2C913-C, Ford WSS-M2C913-D, Jaguar Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036 |
Fiat 9.55535-G1, Ford WSS-M2C913-A, Ford WSS-M2C913-B, Ford WSS-M2C913-C, Ford WSS-M2C913-D, Jaguar Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-30 |
5W-30
|
||
| Type | Synthetic |
Synthetic
|
||
| API | CF, SL |
CF, SL
|
||
| ACEA | A5, B5 |
A5, B5
|
||
| Recomendations | Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700, VWC 53036 |
Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700, VWC 53036
|
||
| Density at 20 °C | g/cm³ | 849 | EN ISO 12185 |
849
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 10 | DIN 51562-1 |
10
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 56.6 | DIN 51562-1 |
56.6
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 165 | DIN ISO 2909 |
165
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 3.08 | ASTM D5481 |
3.08
mPa*s
ASTM D5481
|
| CCS Viscosity at -30 °C | mPa*s | 4300 | ASTM D5293 |
4300
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 14.000 | ASTM D4684 |
14.000
mPa*s
ASTM D4684
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Noack Volatility | % | 9.4 | ASTM D5800 |
9.4
%
ASTM D5800
|
| Flashpoint | °C | 240 | DIN EN ISO 2592 |
240
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 10.9 | ASTM D2896 |
10.9
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.3 | DIN 51575 |
1.3
%wt.
DIN 51575
|
| Approvals | Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036 |
Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036
|
Engine oil
RAVENOL Performance Truck SAE 10W-40 is low-friction long-life engine oil for all kind of diesel engines with and without turbocharging in trucks, buses and machinery. Suitable for the longest oil change intervals.
Manufacturer Approved:
Deutz DQC III-10, DTFR 15B120, Mack EO-N, MAN M 3277, MTU Type 3, Renault RLD-2, TEDOM 258-4, Volvo VDS-3
Compliance with the requirements:
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF HP-1, DAF HP-2, DTFR 13D100 (MB 235.27), DTFR 13D110 (MB 235.28), Global DHD-1, Mack EO-M Plus, MB 228.5, MB 235.27, MB 235.28, Scania LDF-2, Voith Retarder B
SAE: 10W-40
Equivalents OEM:
Alpine 0100340,
Alpine 0100342,
Alpine 0100343,
Alpine 0100344,
Alpine 0100345,
MB A000989460413FBFR,
MB A000989460417FBFR,
MB A000989470413,
MB A000989470413FBFR,
MB A000989470417FBFR,
MB A000989620417BBCR,
MB A000989850215ABFE,
MB A000989850217ABFE,
MB A0009899601AAA4,
MB A0009899601AAA5,
MB A001989750117FBFE,
MB A001989750117FBFE,
MB A001989750117FBFK,
MB A001989750117FBGN,
MB A001989750118FBFE,
MB A001989750119FBFD,
MB A001989750119FBFK,
MB A094989000015CBFZ,
MB A094989000017CBFZ,
MB A094989020017ABFE,
MB A094989020017ABFW,
MB A094989170013FBFE,
MB A094989170013FBFK,
MB A094989170013FBFR,
MB A094989170015FBFK,
MB A094989170017FBFD
Alpine 0100340, Alpine 0100342, Alpine 0100343, Alpine 0100344, Alpine 0100345, MB A000989460413FBFR, MB A000989460417FBFR, MB A000989470413, MB A000989470413FBFR, MB A000989470417FBFR, MB A000989620417BBCR, MB A000989850215ABFE, MB A000989850217ABFE, MB A0009899601AAA4, MB A0009899601AAA5, MB A001989750117FBFE, MB A001989750117FBFE, MB A001989750117FBFK, MB A001989750117FBGN, MB A001989750118FBFE, MB A001989750119FBFD, MB A001989750119FBFK, MB A094989000015CBFZ, MB A094989000017CBFZ, MB A094989020017ABFE, MB A094989020017ABFW, MB A094989170013FBFE, MB A094989170013FBFK, MB A094989170013FBFR, MB A094989170015FBFK, MB A094989170017FBFD, MB A094989170017FBFE, MB A094989170017FBFK, MB A094989170017FBFR, MB A094989170018FBFE, MB A094989170019FBFD, MB A094989170019FBFK, Pentosin 1115208, Pentosin 1115305, Pentosin 114000000, Pentosin 2200000013903, Pentosin 4008849167584, Scania 2021366
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1122106-001
Volume:
5 L
vendor code:
1122106-005
Volume:
20 L, ecobox
vendor code:
1122106-B20
Volume:
1000 L
vendor code:
1122106-700
RAVENOL Performance Truck SAE 10W-40 is low-friction long-life engine oil for all kind of diesel engines with and without turbocharging in trucks, buses and machinery. Suitable for the longest oil change intervals.
Application instructions
RAVENOL Performance Truck SAE 10W-40 has a higher performance than conventional high-performance engine oils. International such oils are called UHPD oils (UHPD = Ultra High Performance Diesel Oil). Regardless of the particular mileage, older diesel engines on RAVENOL Performance Truck SAE 10W-40 should be changed without rinsing.
Characteristics
- High wear protection even under constant load at full throttle
- Reduced fuel consumption by low-friction characteristics
- Quick oil circulation reduces cold-start and warm-up wear
- Protection against bore polishing of cylinder paths
- Reduction of exhaust particles
- Protects against corrosion, even when using diesel fuels with high sulfur content
- Safe protection against deposits and sticking, both under extreme thermal loads and short haul
- Optimum compatibility with seal materials
- Environmentally friendly due longest oil change intervals and low evaporation losses
- Guaranteed extended drain intervals for the long-haul truck or transport
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF HP-1, DAF HP-2, DTFR 13D100 (MB 235.27), DTFR 13D110 (MB 235.28), Global DHD-1, JASO DH-1, Mack EO-M Plus, MB 228.5, MB 235.27, MB 235.28, Scania LDF-2, Voith Retarder B |
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF HP-1, DAF HP-2, DTFR 13D100 (MB 235.27), DTFR 13D110 (MB 235.28), Global DHD-1, JASO DH-1, Mack EO-M Plus, MB 228.5, MB 235.27, MB 235.28, Scania LDF-2, Voith Retarder B
|
||
| SAE | 10W-40 |
10W-40
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | CF, CI-4 |
CF, CI-4
|
||
| ACEA | E4, E7 |
E4, E7
|
||
| JASO | DH-1 |
DH-1
|
||
| Manufacturer Approved | Deutz DQC III-10, DTFR 15B120, Mack EO-N, MAN M 3277, MTU Type 3, Renault RLD-2, TEDOM 258-4, Volvo VDS-3 |
Deutz DQC III-10, DTFR 15B120, Mack EO-N, MAN M 3277, MTU Type 3, Renault RLD-2, TEDOM 258-4, Volvo VDS-3
|
||
| Recomendations | Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF HP-1, DAF HP-2, DTFR 13D100 (MB 235.27), DTFR 13D110 (MB 235.28), Global DHD-1, Mack EO-M Plus, MB 228.5, MB 235.27, MB 235.28, Scania LDF-2, Voith Retarder B |
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF HP-1, DAF HP-2, DTFR 13D100 (MB 235.27), DTFR 13D110 (MB 235.28), Global DHD-1, Mack EO-M Plus, MB 228.5, MB 235.27, MB 235.28, Scania LDF-2, Voith Retarder B
|
||
| Density at 20 °C | g/cm³ | 863 | EN ISO 12185 |
863
g/cm³
EN ISO 12185
|
| Color | Dark brown | visual |
Dark brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 15.3 | DIN 51562-1 |
15.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 102.1 | DIN 51562-1 |
102.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 158 | DIN ISO 2909 |
158
DIN ISO 2909
|
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Flashpoint | °C | 234 | DIN EN ISO 2592 |
234
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 13.2 | ASTM D2896 |
13.2
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.47 | DIN 51575 |
1.47
%wt.
DIN 51575
|
| Approvals | Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF HP-1, DAF HP-2, Deutz DQC III-10, DTFR 13D100 (MB 235.27), DTFR 13D110 (MB 235.28), DTFR 15B120, Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3277, MB 228.5, MB 235.27, MB 235.28, MTU Type 3, Renault RLD-2, Scania LDF-2, TEDOM 258-4, Voith Retarder B, Volvo VDS-3 |
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF HP-1, DAF HP-2, Deutz DQC III-10, DTFR 13D100 (MB 235.27), DTFR 13D110 (MB 235.28), DTFR 15B120, Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3277, MB 228.5, MB 235.27, MB 235.28, MTU Type 3, Renault RLD-2, Scania LDF-2, TEDOM 258-4, Voith Retarder B, Volvo VDS-3
|
- Available packaging
- Product parameters
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 0W-30 |
0W-30
|
||
| Type | Full synthetic |
Full synthetic
|
RAVENOL Professional Engine Cleaner
Additive
RAVENOL Professional Engine Cleaner can also be used in motorcycles.
- Available packaging
- Product parameters
Volume:
0.3 L
vendor code:
1390321-300
Code:
4014835862869
RAVENOL Professional Engine Cleaner can also be used in motorcycles.
RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.
RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.
Application Note
RAVENOL Professional Engine Cleaner is added to the warm motor oil.
Area of application:
-If black sludge is suspected
-In the event of hydraulic tappets rattling
-In the event of delayed oil change
-For soiled engines or used oil
-Preventively at every oil change to avoid contamination of the engine
-Also suitable for oldtimers
Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.
Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.
RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.
Characteristics
- Long-term effectiveness and clean fresh oil
- Remedy for soiled engines
- Protection against compression loss in the area of the piston rings
- Leads to better exhaust emissions and increases the performance of the engine
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Color | Light brown | visual |
Light brown
visual
|
|
| Flashpoint (PM) | °C | 62 | DIN ISO 3679 |
62
°C
DIN ISO 3679
|
| Density at 20 °C | 805 | EN ISO 12185 |
805
EN ISO 12185
|
|
| Viscosity at 40 °C | mm²/s | 7 | DIN EN ISO 3104 |
7
mm²/s
DIN EN ISO 3104
|
| Brand | RAVENOL |
RAVENOL
|
Transmission, automatic in a unit with final drive 4/1
RAVENOL ATF T-IV Fluid
Transmission fluid
RAVENOL ATF T-IV Fluid is universal ATF (Automatic Transmission Fluid) for automatic transmission of Toyota und Aisin AW.
Compliance with the requirements:
Aisin Warner Automatic Gearbox, ESSO JWS 3317, Fiat 9.55550-AV1, Ford WSS-M2C 924-A, JWS 3309, Nissan Matic K, VW G 055 025
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1212102-001
Code:
4014835733015
Volume:
4 L
vendor code:
1212102-004
Code:
4014835733091
Volume:
10 L
vendor code:
1212102-010
Code:
4014835733046
Volume:
20 L
vendor code:
1212102-020
Code:
4014835733022
Volume:
20 L, ecobox
vendor code:
1212102-B20
Code:
4014835787223
Volume:
60 L, print
vendor code:
1212102-D60
Code:
4014835733039
Volume:
208 L, print
vendor code:
1212102-D28
Code:
4014835733008
Volume:
1000 L
vendor code:
1212102-700
Volume:
60 L
vendor code:
1212102-060
Volume:
208 L
vendor code:
1212102-208
RAVENOL ATF T-IV Fluid is universal ATF (Automatic Transmission Fluid) for automatic transmission of Toyota und Aisin AW.
RAVENOL ATF T-IV Fluid guarantees maximum wear protection in all operating conditions.
Application instructions
RAVENOL ATF T-IV Fluid was developed for use in automatic transmission, especially for Toyota and Aisin AW.
RAVENOL ATF T-IV Fluid can replace T, T-II and T-III Fluids.
It is advisable to flush with RAVENOL ATF T-IV Fluid before filling with RAVENOL ATF T-IV Fluid .
Characteristics
- Very good lubricating properties also at low temperatures in winter
- High, stable viscosity index
- Very low pour point
- Excellent oxidation stability
- Protection against wear, corrosion and foaming
- Good concerted friction characteristic
- Neutral behavior towards sealing materials
- Neutral behavior by inhibition to non-ferrous metals
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | , Aisin Warner Automatic Gearbox, BMW 83220402413 für MINI 6-Speed Aisin F21 (nur US, BMW 83227542290 für MINI 6-Speed Aisin F21, ESSO JWS3317, Fiat 9.55550-AV1, Ford 1327936, Ford WSS-M2C924-A, Ford XT-8QAW, GM 9986195, JWS 3309, Land Rover LR002748 6-Speed Aisin F21, Land Rover LR022460, Matic K, Mazda K020-W0-049, Nissan 999MP-MTK00P für RE5F22A, Opel/GM 1940771, Opel/GM 1940774, Renault 7711172225 für Getriebe SU0 und SU1, Renault 7711218368 SU1 Gear, Suzuki 99000-22800-001, Toyota 00279-000T4, Toyota 08886-01705, Toyota 08886-81016, Volvo 1161540, VW/Audi G 055 025 A2 |
, Aisin Warner Automatic Gearbox, BMW 83220402413 für MINI 6-Speed Aisin F21 (nur US, BMW 83227542290 für MINI 6-Speed Aisin F21, ESSO JWS3317, Fiat 9.55550-AV1, Ford 1327936, Ford WSS-M2C924-A, Ford XT-8QAW, GM 9986195, JWS 3309, Land Rover LR002748 6-Speed Aisin F21, Land Rover LR022460, Matic K, Mazda K020-W0-049, Nissan 999MP-MTK00P für RE5F22A, Opel/GM 1940771, Opel/GM 1940774, Renault 7711172225 für Getriebe SU0 und SU1, Renault 7711218368 SU1 Gear, Suzuki 99000-22800-001, Toyota 00279-000T4, Toyota 08886-01705, Toyota 08886-81016, Volvo 1161540, VW/Audi G 055 025 A2
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| Recomendations | Aisin Warner Automatic Gearbox, ESSO JWS 3317, Fiat 9.55550-AV1, Ford WSS-M2C 924-A, JWS 3309, Nissan Matic K, VW G 055 025 |
Aisin Warner Automatic Gearbox, ESSO JWS 3317, Fiat 9.55550-AV1, Ford WSS-M2C 924-A, JWS 3309, Nissan Matic K, VW G 055 025
|
||
| Suitable for | BMW for MINI 6-Speed Aisin F21, BMW for MINI 6-Speed Aisin F21 only USA, Land Rover 6-Speed Aisin F21, Renault AT SU0 / SU1, Renault AT SU1 |
BMW for MINI 6-Speed Aisin F21, BMW for MINI 6-Speed Aisin F21 only USA, Land Rover 6-Speed Aisin F21, Renault AT SU0 / SU1, Renault AT SU1
|
||
| Compliant products | BMW 83220402413, BMW 83227542290, Ford 1327936, GM 1940771, GM 1940774, GM 9986195, Land Rover LR002748, Land Rover LR022460, Mazda K020-W0-049, Motorcraft XT-8QAW, Nissan 999MP-MTK00P, Renault 7711172225, Renault 7711218368, Suzuki 99000-22800-001, Toyota 00279-000T4, Toyota 08886-01705, Toyota 08886-81016, Volvo 1161540, VW G 055 025 |
BMW 83220402413, BMW 83227542290, Ford 1327936, GM 1940771, GM 1940774, GM 9986195, Land Rover LR002748, Land Rover LR022460, Mazda K020-W0-049, Motorcraft XT-8QAW, Nissan 999MP-MTK00P, Renault 7711172225, Renault 7711218368, Suzuki 99000-22800-001, Toyota 00279-000T4, Toyota 08886-01705, Toyota 08886-81016, Volvo 1161540, VW G 055 025
|
||
| Density at 20 °C | g/cm³ | 847 | EN ISO 12185 |
847
g/cm³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Pourpoint | °C | -48 | DIN ISO 3016 |
-48
°C
DIN ISO 3016
|
| Approvals | Aisin Warner Automatic Gearbox, ESSO JWS 3317, Fiat 9.55550-AV1, Ford WSS-M2C 924-A, JWS 3309, Nissan Matic K, VW G 055 025 |
Aisin Warner Automatic Gearbox, ESSO JWS 3317, Fiat 9.55550-AV1, Ford WSS-M2C 924-A, JWS 3309, Nissan Matic K, VW G 055 025
|
Power steering system
RAVENOL ATF DEXRON III H
For automatic transmission
RAVENOL ATF DEXRON III H is universal ATF (Automatic Transmission Fluid) for all automatic transmission with and without controlled torque converter lockup clutch (so-called GKÜB = gear-clutch-lock) which are required for the transmission fluid type Dexron III H.
Manufacturer Approved:
Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B
Compliance with the requirements:
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.5, MB 236.6, MB 236.9, MB 236.10, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1212100-001
Code:
4014835732810
Volume:
4 L
vendor code:
1212100-004
Code:
4014835732896
Volume:
10 L
vendor code:
1212100-010
Code:
4014835732841
Volume:
20 L
vendor code:
1212100-020
Code:
4014835732827
Volume:
20 L, ecobox
vendor code:
1212100-B20
Code:
4014835787025
Volume:
60 L
vendor code:
1212100-060
Code:
4014835732865
Volume:
60 L, print
vendor code:
1212100-D60
Code:
4014835732834
Volume:
208 L
vendor code:
1212100-208
Code:
4014835732889
Volume:
208 L, print
vendor code:
1212100-D28
Code:
4014835732803
Volume:
1000 L
vendor code:
1212100-700
RAVENOL ATF DEXRON III H is universal ATF (Automatic Transmission Fluid) for all automatic transmission with and without controlled torque converter lockup clutch (so-called GKÜB = gear-clutch-lock) which are required for the transmission fluid type Dexron III H.
Application instructions
RAVENOL ATF DEXRON III H was developed for use in automatic transmissions with electronically controlled converter lockup clutch.
RAVENOL ATF DEXRON III H is especially suitable for use in transmissions with ATF Dexron III H specification.
RAVENOL ATF DEXRON III H is backwards compatible and can be used in transmissions with specification ATF Dexron F III.
RAVENOL ATF DEXRON III H is mixable with all ATF brands. It is advised to rinse with RAVENOL ATF DEXRON III H before, beforehand the final filling with RAVENOL ATF DEXRON III H is made.
Characteristics
- Very good lubricating properties even at low temperatures in winter
- High and stable viscosity index
- Very low flow point
- Excellent oxidation stability
- Extensive protection against wear, corrosion and foaming
- Well-tuned friction properties
- Neutral behaviour towards sealing materials
- Neutral behaviour by inhibition towards non-ferrous metals
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| ATF | Dexron III H |
Dexron III H
|
||
| Recommendations | Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON® M-940717, MAN 339 L1, MAN 339 V1, MAN 339 Z1, MAN 339 Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Nissan, Volvo 1161521, Volvo 1161621, VOLVO Transmission Oil 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C |
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON® M-940717, MAN 339 L1, MAN 339 V1, MAN 339 Z1, MAN 339 Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Nissan, Volvo 1161521, Volvo 1161621, VOLVO Transmission Oil 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| Manufacturer Approved | Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B |
Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B
|
||
| Recomendations | Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C |
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
|
||
| specification | Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H |
Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H
|
||
| Suitable for | Nissan |
Nissan
|
||
| Compliant products | Volvo 1161521, Volvo 1161621 |
Volvo 1161521, Volvo 1161621
|
||
| Density at 20 °C | g/cm³ | 847 | EN ISO 12185 |
847
g/cm³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.2 | DIN 51562-1 |
7.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 33.9 | DIN 51562-1 |
33.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 185 | DIN ISO 2909 |
185
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 14.200 | ASTM D2983 |
14.200
mPa*s
ASTM D2983
|
| Pourpoint | °C | -51 | DIN ISO 3016 |
-51
°C
DIN ISO 3016
|
| Flashpoint | °C | 210 | DIN EN ISO 2592 |
210
°C
DIN EN ISO 2592
|
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| tbn | mgKOH/g | 1.8 | ASTM D2896 |
1.8
mgKOH/g
ASTM D2896
|
| Approvals | Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B |
Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B
|
Hydraulic brake system
DOT 4
- Available packaging
- Product parameters
| Parameter | Unit | Value | Audit |
|---|
Cooling system
Coolant
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.
Compliance with the requirements:
Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant
- Available packaging
- Product parameters
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.
That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
RAVENOL HJC Hybrid Japanese Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.
Application instructions
RAVENOL HJC Hybrid Japanese Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Add RAVENOL HJC Hybrid Japanese Coolant Premix -40°C to radiator to fill line.
Characteristics
- Excellent for light metal engines
- Good reserve alkalinity
- High-quality corrosion additives for optimal corrosion protection
- Elastomer compatible with elastomers used in automotive radiators
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | 08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant |
08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant |
Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant
|
||
| Compliant products | Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944 |
Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944
|
||
| Density at 20 °C | g/cm³ | 1082 | EN ISO 12185 |
1082
g/cm³
EN ISO 12185
|
| Color | Green | visual |
Green
visual
|
|
| pH - value | 7 — 8.5 | ASTM D1287 |
7 — 8.5
ASTM D1287
|
|
| Freezing point | °C | -40 | ASTM D1177 |
-40
°C
ASTM D1177
|
| Approvals | Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant |
Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant
|
Coolant
It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.
Compliance with the requirements:
Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant
Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.
- Available packaging
- Product parameters
It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.
Therefore manufacturers subject coolants to long corrosion and cavitation tests.
RAVENOL HJC Hybrid Japanese Coolant Concentrate protects the cooling system from corrosion, frost, and in the summer from overheating.
Application instructions
RAVENOL HJC Hybrid Japanese Coolant Concentrate with frost and rust protection. Use according to the mixing chart. Follow manufacturer’s recommendations.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Clean cooling system, check for leaks, flush.
Mix RAVENOL HJC Hybrid Japanese Coolant Concentrate with distilled water (per mixing table) and add. Allow engine and heater to warm up, add coolant to fill level.
| Table of mixing ratios | ||
|---|---|---|
| Antifreeze protection until | Parts Antifreeze | Parts Water |
| -20°C | 35% | 65% |
| -37°C | 50% | 50% |
| -50°C | 60% | 40% |
Characteristics
- Excellent for light metal engines
- Good reserve alkalinity
- High-quality corrosion additives for optimal corrosion protection
- Elastomer compatible with elastomers used in automotive radiators
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | 08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant |
08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant |
Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant
|
||
| Compliant products | Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944 |
Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944
|
||
| Density at 20 °C | g/cm³ | 1132 | EN ISO 12185 |
1132
g/cm³
EN ISO 12185
|
| Color | Green | visual |
Green
visual
|
|
| Reserve alkalinity | mgKOH/g | 15 — | ASTM D1120 |
15 —
mgKOH/g
ASTM D1120
|
| Boiling point | °C | 150 — | ASTM D1121 |
150 —
°C
ASTM D1121
|
| Water content | % | — 5 | ASTM D1123 |
— 5
%
ASTM D1123
|
| Flashpoint | °C | 110 — | DIN 51758 |
110 —
°C
DIN 51758
|
| Freezing point (50 % solution) | °C | -37 | ASTM D1177 |
-37
°C
ASTM D1177
|
| pH - value at 20 °C (50 Vol %) | 7,0 - 8,5 | ASTM D1287 |
7,0 - 8,5
ASTM D1287
|
|
| Approvals | Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant |
Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant
|
For batteries
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
Compliance with the requirements:
DIN 43530-4, DIN EN 50272
Equivalents OEM:
BMW 83190394350, BMW 83190394350
- Available packaging
- Product parameters
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.
RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.
Application instructions
RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser |
DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
||
| Approvals | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
Additive
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
Equivalents OEM:
Ford MP14300500AB
- Available packaging
- Product parameters
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.
Application instructions
RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.
Area of application:
Radiator repairs
In the event of reduced radiator performance
In the event of deposits in the cooling system
Changing coolant
For cleaning purposes after engine repairs due to oil in the cooling system
Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.
Fill in
RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.
RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.
Characteristics
- Cleaning of the cooling and heating system
- Protection of the new coolant against prior contamination
- Elimination of sludge and corrosion residue
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Color | Colorless | visual |
Colorless
visual
|
|
| Density at 20 °C | g/cm³ | 1003 | EN ISO 12185 |
1003
g/cm³
EN ISO 12185
|
| pH - value at 20 °C | 10,25 | DIN 19268 |
10,25
DIN 19268
|
|
| Brand | RAVENOL |
RAVENOL
|
