BMW

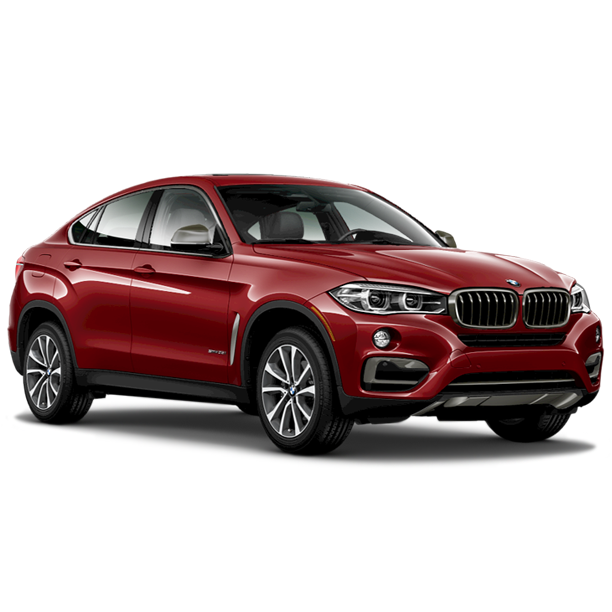

Oil for BMW - X6, F16 / F86 / F96 - X6 M PF

BMW X6, F16 / F86 / F96 X6 M PF, year of issue from 2018 date to 2019 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Add to Garage

Nodes and assemblies

Engine S63T S63 / S63T / S63M / S63R / S63B44B

Liquid volume (basic): 9.5 L
HSW 0W-30

HSW 0W-30

RAVENOL HSW SAE 0W-30 lengthens the service life of the diesel particulate filter by reducing the concentration of ash-forming particles in the exhaust gas. It reduces the emissions of gases which are harmful to the environment. It delivers a higher degree of security by providing lasting protection for engines.

Manufacturer Approved:
BMW Longlife-04, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00

show details hide details

SAE: 0W-30

API: SN

ACEA: C3

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1112118-001

Code:
4014835889545

Volume:
4 L

vendor code:
1112118-004

Code:
4014835889576

Volume:
5 L

vendor code:
1112118-005

Code:
4014835889606

Volume:
10 L

vendor code:
1112118-010

Code:
4014835889637

Volume:
20 L

vendor code:
1112118-020

Code:
4014835889651

Volume:
20 L, ecobox

vendor code:
1112118-B20

Code:
4014835889729

Volume:
60 L

vendor code:
1112118-060

Code:
4014835889675

Volume:
208 L

vendor code:
1112118-208

Code:
4014835889699

Volume:
1000 L

vendor code:
1112118-700

RAVENOL HSW SAE 0W-30 lengthens the service life of the diesel particulate filter by reducing the concentration of ash-forming particles in the exhaust gas. It reduces the emissions of gases which are harmful to the environment. It delivers a higher degree of security by providing lasting protection for engines.

With its formulation, RAVENOL HSW SAE 0W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By reducing fuel consumption, RAVENOL HSW SAE 0W-30 helps to protect the environment by reducing emissions. It minimizes friction, wear and fuel consumption.

RAVENOL HSW SAE 0W-30 guarantees operational safety in all driving conditions, such as extreme stop-and-go traffic as well as high-speed highway driving.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL HSW SAE 0W-30 can be used in all vehicles with and without LongLife Service and is therefore suitable for extended oil change intervals and vehicles with and without DPF filters. The operating instructions of the vehicle and engine manufacturers must be observed.

Characteristics

  • Particularly low-friction characteristics and an outstanding range of benefits thanks to special additives.
  • Outstanding engine protection even after a cold start and in tougher conditions.
  • Guarantees rapid engine lubrication even at low temperatures of under -30°C and a sufficiently thick film of lubrication even at oil temperatures of >150°C during high-speed journeys.
  • Good protection against wear and tear and the high level of engine cleanliness while also consuming less fuel (fuel economy characteristic).
  • The hydraulic tappets are guaranteed to function at all temperatures due to adequate oil pressure.
  • Does not have an impact on sealants.
  • Safeguards the engine against sludge formation, coking, lacquering and corrosion even in unfavourable operating conditions.
Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
SAE 0W-30
0W-30
Type Synthetic
Synthetic
API SN
SN
ACEA C3
C3
Manufacturer Approved BMW Longlife-04, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00
BMW Longlife-04, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00
Density at 20 °C g/cm³ 836 EN ISO 12185
836 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 12.2 DIN 51562-1
12.2 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 62.4 DIN 51562-1
62.4 mm²/s DIN 51562-1
Viscosity Index VI 197 DIN ISO 2909
197 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 3.7 ASTM D5481
3.7 mPa*s ASTM D5481
CCS Viscosity at -35 °C mPa*s 5890 ASTM D5293
5890 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C mPa*s 19.200 ASTM D4684
19.200 mPa*s ASTM D4684
Pourpoint °C -54 DIN ISO 3016
-54 °C DIN ISO 3016
Noack Volatility % 10 ASTM D5800
10 % ASTM D5800
Flashpoint °C 228 DIN EN ISO 2592
228 °C DIN EN ISO 2592
tbn mgKOH/g 8.3 ASTM D2896
8.3 mgKOH/g ASTM D2896
Sulphated Ash %wt. 0.7 DIN 51575
0.7 %wt. DIN 51575
Approvals BMW Longlife-04, MB 229.51, MB 229.52, Porsche C30, VW 504.00, VW 507.00
BMW Longlife-04, MB 229.51, MB 229.52, Porsche C30, VW 504.00, VW 507.00
VSW 0W-30

VSW 0W-30

CleanSynto®
USVO®
For diesels

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
BMW Longlife-04, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00

Compliance with the requirements:
Chrysler MS-11106

show details hide details

SAE: 0W-30

API: SN

ACEA: C3

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1111106-001

Code:
4014835842786

Volume:
4 L

vendor code:
1111106-004

Code:
4014835842816

Volume:
5 L

vendor code:
1111106-005

Code:
4014835842847

Volume:
10 L

vendor code:
1111106-010

Code:
4014835845107

Volume:
20 L

vendor code:
1111106-020

Code:
4014835845121

Volume:
20 L, ecobox

vendor code:
1111106-B20

Code:
4014835850996

Volume:
60 L

vendor code:
1111106-060

Volume:
208 L

vendor code:
1111106-208

Code:
4014835845169

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

RAVENOL VSW SAE 0W-30 lengthens the service life of the diesel particulate filter by reducing the concentration of ash-forming particles in the exhaust gas. It reduces the emissions of gases which are harmful to the environment. It delivers a higher degree of security by providing lasting protection for engines.

With its new formulation, RAVENOL VSW SAE 0W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL VSW SAE 0W-30 helps to protect the environment by reducing emissions.

RAVENOL VSW SAE 0W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL VSW SAE 0W-30 guarantees operational safety in all driving conditions, such as extreme stop-and-go traffic as well as high-speed highway driving.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL VSW SAE 0W-30 can be used in all VW vehicles with and without LongLife Service and is therefore suitable for extended oil change intervals and vehicles with and without DPF filters. The operating instructions of the vehicle and engine manufcturers must be observed.

Characteristics

  • Particularly low-friction characteristics and an outstanding range of benefits thanks to special additives.
  • Outstanding engine protection even after a cold start and in tougher conditions.
  • Guarantees rapid engine lubrication even at low temperatures of under -30°C and a sufficiently thick film of lubrication even at oil temperatures of >150°C during high-speed journeys.
  • Guarantees the best possible protection against wear and tear and the highest level of engine cleanliness while also consuming less fuel (fuel economy characteristic).
  • The hydraulic tappets are guaranteed to function at all temperatures due to adequate oil pressure.
  • Does not have an impact on sealants.
  • Safeguards the engine against sludge formation, coking, lacquering and corrosion even in unfavourable operating conditions.
Parameter Unit Value Audit
Recommendations Chrysler MS-11106
Chrysler MS-11106
Brand RAVENOL
RAVENOL
SAE 0W-30
0W-30
Type Full synthetic
Full synthetic
API SN
SN
ACEA C3
C3
Manufacturer Approved BMW Longlife-04, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00
BMW Longlife-04, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00
Recomendations Chrysler MS-11106
Chrysler MS-11106
Density at 20 °C g/cm³ 846 EN ISO 12185
846 g/cm³ EN ISO 12185
Color Brown visual
Brown visual
Viscosity at 100 °C mm²/s 12 DIN 51562-1
12 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 60.8 DIN 51562-1
60.8 mm²/s DIN 51562-1
Viscosity Index VI 197 DIN ISO 2909
197 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 3.6 ASTM D5481
3.6 mPa*s ASTM D5481
CCS Viscosity at -35 °C mPa*s 5565 ASTM D5293
5565 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C mPa*s 14.800 ASTM D4684
14.800 mPa*s ASTM D4684
Pourpoint °C -60 DIN ISO 3016
-60 °C DIN ISO 3016
Noack Volatility % 9 ASTM D5800
9 % ASTM D5800
Flashpoint °C 234 DIN EN ISO 2592
234 °C DIN EN ISO 2592
tbn mgKOH/g 7.6 ASTM D2896
7.6 mgKOH/g ASTM D2896
Sulphated Ash %wt. 0.63 DIN 51575
0.63 %wt. DIN 51575
Approvals BMW Longlife-04, Chrysler MS-11106, MB 229.31, MB 229.51, MB 229.52, Porsche C30, VW 504.00, VW 507.00
BMW Longlife-04, Chrysler MS-11106, MB 229.31, MB 229.51, MB 229.52, Porsche C30, VW 504.00, VW 507.00
FES 0W-30

FES 0W-30

CleanSynto®
USVO®
For engine

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
BMW Longlife-12 FE, DTFR 15D100, MB-Approval 229.61

Compliance with the requirements:
Chrysler MS-13340, E-REV (Range Extender Electric Vehicle), Fiat 9.55535-DS1, Fiat 9.55535-GS1, Ford WSS-M2C 950-A, IVECO 18-1811 CLASS SC1 LV, Jaguar/Land Rover STJLR.03.5007, MB 227.61, PSA B71 2290, PSA B71 2312

show details hide details

SAE: 0W-30

ILSAC: GF-6A

API: SP (RC)

ACEA: A5, B5, C2

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1111146-001

Code:
4014835842724

Volume:
4 L

vendor code:
1111146-004

Code:
4014835842755

Volume:
5 L

vendor code:
1111146-005

Code:
4014835859012

Volume:
10 L

vendor code:
1111146-010

Code:
4014835888197

Volume:
20 L

vendor code:
1111146-020

Code:
4014835853188

Volume:
20 L, ecobox

vendor code:
1111146-B20

Code:
4014835853164

Volume:
60 L

vendor code:
1111146-060

Volume:
60 L, print

vendor code:
1111146-D60

Code:
4014835853201

Volume:
208 L

vendor code:
1111146-208

Code:
4014835853263

Volume:
208 L, print

vendor code:
1111146-D28

Code:
4014835853249

Volume:
1000 L

vendor code:
1111146-700

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

RAVENOL FES SAE 0W-30 is based on additives with low ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. HTHS >2,9mPa.s. Developed for fuel economy especially for the latest petrol and diesel engines of BMW, PSA, FIAT, IVECO and Jaguar Land Rover.

With its new formulation, RAVENOL FES SAE 0W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL FES SAE 0W-30 helps to protect the environment by reducing emissions.

RAVENOL FES SAE 0W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL FES SAE 0W-30 is a universal fuel economy, especially designed engine oil for modern gasoline and diesel engines with and without turbo charger in passenger cars and vans with extended oil change intervals of BMW, PSA, FIAT, IVECO and Jaguar Land Rover. Extends the lifespan of the particle filter.

Due to the specific composition is RAVENOL FES SAE 0W-30 excellent suitable for use for indicated OEM requirements.

Characteristics

  • Fuel economy in part and full power operation
  • Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine
  • Excellent cold starting characteristics also at low temperatures
  • A safe lubricant film at high operating temperatures
  • Low evaporative tendency, so lower oil consumption
  • No deposits in combustion chambers, in the piston ring zone and valves because of oil conditioned
  • Neutrality towards sealing materials
  • Extended oil change intervals to protect natural resources
Parameter Unit Value Audit
Recommendations Chrysler MS-13340, Fiat 9.55535-DS1, Fiat 9.55535-GS1, Ford WSS-M2C950-A, IVECO 18-1811 CLASSE SC1 LV, Jaguar Land Rover STJLR.03.5007, MB 227.61, PSA B71 2290, PSA B71 2312
Chrysler MS-13340, Fiat 9.55535-DS1, Fiat 9.55535-GS1, Ford WSS-M2C950-A, IVECO 18-1811 CLASSE SC1 LV, Jaguar Land Rover STJLR.03.5007, MB 227.61, PSA B71 2290, PSA B71 2312
Brand RAVENOL
RAVENOL
SAE 0W-30
0W-30
Type Full synthetic
Full synthetic
API SP (RC)
SP (RC)
ACEA A5, B5, C2
A5, B5, C2
ILSAC GF-6A
GF-6A
Manufacturer Approved BMW Longlife-12 FE, DTFR 15D100, MB-Approval 229.61
BMW Longlife-12 FE, DTFR 15D100, MB-Approval 229.61
Recomendations Chrysler MS-13340, Fiat 9.55535-DS1, Fiat 9.55535-GS1, Ford WSS-M2C 950-A, IVECO 18-1811 CLASS SC1 LV, Jaguar/Land Rover STJLR.03.5007, MB 227.61, PSA B71 2290, PSA B71 2312
Chrysler MS-13340, Fiat 9.55535-DS1, Fiat 9.55535-GS1, Ford WSS-M2C 950-A, IVECO 18-1811 CLASS SC1 LV, Jaguar/Land Rover STJLR.03.5007, MB 227.61, PSA B71 2290, PSA B71 2312
Density at 20 °C g/cm³ 844 EN ISO 12185
844 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 9.4 DIN 51562-1
9.4 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 47.3 DIN 51562-1
47.3 mm²/s DIN 51562-1
Viscosity Index VI 186 DIN ISO 2909
186 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 3 ASTM D5481
3 mPa*s ASTM D5481
CCS Viscosity at -35 °C mPa*s 4800 ASTM D5293
4800 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C mPa*s 12.300 ASTM D4684
12.300 mPa*s ASTM D4684
Pourpoint °C -57 DIN ISO 3016
-57 °C DIN ISO 3016
Noack Volatility % 9 ASTM D5800
9 % ASTM D5800
Flashpoint °C 236 DIN EN ISO 2592
236 °C DIN EN ISO 2592
tbn mgKOH/g 9.4 ASTM D2896
9.4 mgKOH/g ASTM D2896
Sulphated Ash %wt. 0.76 DIN 51575
0.76 %wt. DIN 51575
Approvals BMW Longlife-12 FE, Chrysler MS-13340, DTFR 15D100, Fiat 9.55535-DS1, Fiat 9.55535-GS1, Ford WSS-M2C 950-A, IVECO 18-1811 CLASS SC1 LV, Jaguar/Land Rover STJLR.03.5007, MB 227.61, MB 229.61, PSA B71 2290, PSA B71 2312
BMW Longlife-12 FE, Chrysler MS-13340, DTFR 15D100, Fiat 9.55535-DS1, Fiat 9.55535-GS1, Ford WSS-M2C 950-A, IVECO 18-1811 CLASS SC1 LV, Jaguar/Land Rover STJLR.03.5007, MB 227.61, MB 229.61, PSA B71 2290, PSA B71 2312
Professional Engine Cleaner

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details hide details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

  • Available packaging
  • Full description
  • Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

  • Long-term effectiveness and clean fresh oil
  • Remedy for soiled engines
  • Protection against compression loss in the area of the piston rings
  • Leads to better exhaust emissions and increases the performance of the engine
Parameter Unit Value Audit
Color Light brown visual
Light brown visual
Flashpoint (PM) °C 62 DIN ISO 3679
62 °C DIN ISO 3679
Density at 20 °C 805 EN ISO 12185
805 EN ISO 12185
Viscosity at 40 °C mm²/s 7 DIN EN ISO 3104
7 mm²/s DIN EN ISO 3104
Brand RAVENOL
RAVENOL

Transmission, automatic ZF GA8HP 8/1

Liquid volume (basic): 8.7 L
ATF 8HP Fluid

ATF 8HP Fluid

Transmission fluid

RAVENOL ATF 8HP Fluid is a automatic transmission oil ATF of the latest generation for all 8 stroke automatic transmissions of ZF. It guarantees in any mode for maximum wear protection.

Compliance with the requirements:
Acura ATF Type 3.0, ATF L 12108, BMW ATF 3+, Fiat 9.55550-AV5, Honda ATF Type 3.1, VW G 055 162, VW G 060 162, ZF TE-ML 11 9HP28, ZF TE-ML 11 9HP48, ZF TE-ML 11 9HP50

show details hide details

Equivalents OEM:
Alpine 0101590, Alpine 0101591, Alpine 0101592, Alpine 0101593, Alpine 0101594, Alpine 0101595, Alpine 101590, Alpine 101591, Alpine 101592, Alpine 101593, Alpine 101595, Honda 0820009017, Jaguar 02JDE26444S1, Land Rover LR02328, VAG G055162S0, VW G060162, VW G060162A1, VW G060162A1, VW G060162A2, VW G060162A2S1, VW G060162A2S2, VW G060162A2S3, VW G060162S0, VW G060162S1, VW G060162S2

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1211124-001

Code:
4014835719514

Volume:
4 L

vendor code:
1211124-004

Code:
4014835719590

Volume:
10 L

vendor code:
1211124-010

Code:
4014835719545

Volume:
20 L

vendor code:
1211124-020

Code:
4014835719521

Volume:
20 L, ecobox

vendor code:
1211124-B20

Code:
4014835786622

Volume:
60 L

vendor code:
1211124-060

Volume:
60 L, print

vendor code:
1211124-D60

Code:
4014835719538

Volume:
208 L

vendor code:
1211124-208

Volume:
208 L, print

vendor code:
1211124-D28

Code:
4014835719507

Volume:
1000 L

vendor code:
1211124-700

RAVENOL ATF 8HP Fluid is a automatic transmission oil ATF of the latest generation for all 8 stroke automatic transmissions of ZF. It guarantees in any mode for maximum wear protection.

RAVENOL ATF 8HP Fluid is green colored.

Application Note

RAVENOL ATF 8HP Fluid is suitable for use in automatic ZF transmission of 8HP-Series 8HP45, 8HP55, 6HP26, 8HP70, 8HP90, also for ZF transmission 6-stroke automatic 6HP-series - 6HP19X for AUDI Q7, 6HP19A, 6HP28AF. It is also suitable in ZF transmission series 9HP28, 9HP48, 9HP50.

Please observe OEM Part Numbers.

Characteristics

  • Very good lubricating ability even at low temperatures in winter
  • A high, stable viscosity index
  • Very good oxidation stability
  • Protection against wear, corrosion and foam formation
  • Good balanced coefficient of friction
  • A high thermal and oxidative stability
  • An excellent cooling capacity
Parameter Unit Value Audit
Recommendations Acura 08200-9016A, Acura ATF Type 3.0, ATF L 12108, BMW 83222289720, BMW 83222305397 (83222152426), BMW ATF 3+, Fiat 9.55550-AV5, Honda 08200-9017, Honda ATF Type 3.1, Land Rover LR023288, Land Rover LR023289, Mopar 68157995AB, Mopar 68218925AA, VW/Audi G 055 162, VW/Audi G 060 162 A2, VW/Audi G 060 162 A1, VW/Audi G 060 162 A6, ZF S671 090 312, ZF TE-ML 11 9HP28, ZF TE-ML 11 9HP48, ZF TE-ML 11 9HP50
Acura 08200-9016A, Acura ATF Type 3.0, ATF L 12108, BMW 83222289720, BMW 83222305397 (83222152426), BMW ATF 3+, Fiat 9.55550-AV5, Honda 08200-9017, Honda ATF Type 3.1, Land Rover LR023288, Land Rover LR023289, Mopar 68157995AB, Mopar 68218925AA, VW/Audi G 055 162, VW/Audi G 060 162 A2, VW/Audi G 060 162 A1, VW/Audi G 060 162 A6, ZF S671 090 312, ZF TE-ML 11 9HP28, ZF TE-ML 11 9HP48, ZF TE-ML 11 9HP50
Brand RAVENOL
RAVENOL
Type Synthetic
Synthetic
Recomendations Acura ATF Type 3.0, ATF L 12108, BMW ATF 3+, Fiat 9.55550-AV5, Honda ATF Type 3.1, VW G 055 162, VW G 060 162, ZF TE-ML 11 9HP28, ZF TE-ML 11 9HP48, ZF TE-ML 11 9HP50
Acura ATF Type 3.0, ATF L 12108, BMW ATF 3+, Fiat 9.55550-AV5, Honda ATF Type 3.1, VW G 055 162, VW G 060 162, ZF TE-ML 11 9HP28, ZF TE-ML 11 9HP48, ZF TE-ML 11 9HP50
Compliant products Acura 08200-9016A, BMW 83222152426, BMW 83222289720, BMW 83222305397, Honda 08200-9017, Land Rover LR023288, Land Rover LR023289, Mopar 68157995AB, Mopar 68218925AA, VW G 060 162, ZF S671 090 312
Acura 08200-9016A, BMW 83222152426, BMW 83222289720, BMW 83222305397, Honda 08200-9017, Land Rover LR023288, Land Rover LR023289, Mopar 68157995AB, Mopar 68218925AA, VW G 060 162, ZF S671 090 312
Density at 20 °C g/cm³ 838.5 EN ISO 12185
838.5 g/cm³ EN ISO 12185
Color Green visual
Green visual
Pourpoint °C -48 DIN ISO 3016
-48 °C DIN ISO 3016
Approvals Acura ATF Type 3.0, ATF L 12108, BMW ATF 3+, Fiat 9.55550-AV5, Honda ATF Type 3.1, VW G 055 162, VW G 060 162, ZF TE-ML 11 9HP28, ZF TE-ML 11 9HP48, ZF TE-ML 11 9HP50
Acura ATF Type 3.0, ATF L 12108, BMW ATF 3+, Fiat 9.55550-AV5, Honda ATF Type 3.1, VW G 055 162, VW G 060 162, ZF TE-ML 11 9HP28, ZF TE-ML 11 9HP48, ZF TE-ML 11 9HP50

Transfer case ATC 45L

Liquid volume (basic): 0.6 L
Transfer Fluid DTF-1

Transfer Fluid DTF-1

For transfer cases

RAVENOL Transfer Fluid DTF-1 is a full synthetic gear lubricant for use in electronically controlled active transfer case.

Compliance with the requirements:
ATF TF-0753, ATF TF-0870, BMW DTF-1, BorgWarner BorgWarner, MB 235.64, MB 239.41, VW G 052 515, VW G 052 533, VW G 052 536

show details hide details

Equivalents OEM:
BMW 83220306816, BMW 83220397224, BMW 83220397224, BMW 83220397244, BMW 83222397244, BMW 83222409710, FEBI 170367, GM 104100, GM 19331044, Hyundai 0023219066, Hyundai Motor 0220000140, Jaguar C2Z25586, Land Rover IYK500010, MB A0009893402, MB A000989340209, MB A0009894406, MB A000989440611CDNW, Nissan 999MPTF0870P, Nissan KLD2200001, Nissan KLD2200001EU, Nissan KLD2299901EU, Porsche 00004330036, Porsche 00004330036K01, Porsche 00004330136, Porsche 00004330563, SWAG 33100200, VAG G05251A2, VAG G052515, VAG G052515A2, VAG G052515B1, VAG G052515S0 BMW 83220306816, BMW 83220397224, BMW 83220397224, BMW 83220397244, BMW 83222397244, BMW 83222409710, FEBI 170367, GM 104100, GM 19331044, Hyundai 0023219066, Hyundai Motor 0220000140, Jaguar C2Z25586, Land Rover IYK500010, MB A0009893402, MB A000989340209, MB A0009894406, MB A000989440611CDNW, Nissan 999MPTF0870P, Nissan KLD2200001, Nissan KLD2200001EU, Nissan KLD2299901EU, Porsche 00004330036, Porsche 00004330036K01, Porsche 00004330136, Porsche 00004330563, SWAG 33100200, VAG G05251A2, VAG G052515, VAG G052515A2, VAG G052515B1, VAG G052515S0, VAG G052533, VAG G052533A2, VAG G052533S0, VAG G052536, VAG G052536A2, VAG G052536S0, VAG G055015A2, VAG G055515, VAG G055515A2, VAG N052515A0, VAG N052515B0, ZF S671090710

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1211128-001

Code:
4014835795419

Volume:
4 L

vendor code:
1211128-004

Code:
4014835840073

Volume:
10 L

vendor code:
1211128-010

Code:
4014835795440

Volume:
20 L

vendor code:
1211128-020

Volume:
20 L, ecobox

vendor code:
1211128-B20

Code:
4014835828612

Volume:
60 L

vendor code:
1211128-060

Code:
4014835840102

Volume:
208 L

vendor code:
1211128-208

Volume:
1000 L

vendor code:
1211128-700

RAVENOL Transfer Fluid DTF-1 is a full synthetic gear lubricant for use in electronically controlled active transfer case.

RAVENOL Transfer Fluid DTF-1 ensures optimum power transmission.

Application Note

RAVENOL Transfer Fluid DTF-1 was developed for use in active transfer case (Active Transfer Case).

RAVENOL Transfer Fluid DTF-1 provides a stable viscosity even under the highest loads.

RAVENOL Transfer Fluid DTF-1is tried and tested for aggregates specifying:

Land Rover IYK500010, ATF TF-0753, ATF TF-0870;

MB 239.41 Torque-on-Demand (TOD) Transfer case in Type 167 GLE, Type 463 G-Class, Type 470 X-Class, Type 471 with engine OM642;

Porsche 000.043.301.36 Cayenne 9PA/9PA1 955 / 957 (from 2002 to 2010) Transfer Case PL72 ATC (NV325), 000.043.305.63 Porsche Macan 95B (from 2014) and Cayenne 92A / 958 (Petrol engines from 2010 to 2018) Transfer Case Hang-On PL72 ATC;

VW G052 515 A2 (afterwards: G055 515 A2) for Transfer Case 0AD and 0BV for Touareg, Q7; VW G052 533 A2 for Transfer Case 0C7 for Amarok;VW G052 536 A2 for Transfer Case 0BU for Touareg, Amarok and Audi Q7

Characteristics

  • Very good lubricating ability even at very low temperatures in winter
  • A high, stable viscosity index
  • Very good oxidation stability
  • Protection against wear, corrosion and foam formation
  • Good balanced coefficient of friction
  • Neutral towards sealing materials
  • Neutral behavior by inhibition compared with non-ferrous metals
Parameter Unit Value Audit
Recommendations ATC300, ATC350, ATC400, ATC450, ATC500, ATC700, ATF TF-0753, ATF TF-0870, BMW 83220306816 für Transfer Case xDrive, BMW 83222397244, BMW DTF-1 83222409710, Genesis (USA) 5.0 GDI AWD, Genesis (USA) G90 3.3 T-GDI, KIA (EU) 3.3 T-GDI AWD, KIA (EU) Stinger 2.2 CRDI, Land Rover IYK500010, MB 235.64, MB 239.41 Torque-on-Demand (TOD) Verteilergetriebe, Mopar 68049954AA für BorgWarner 44-40 Verteilgetr., NIssan 999MP-ATFD3MP, Nissan 999MP-TF0870P, Nissan KLD22-00001EU für Transfer Case ATX90A, Porsche 000.043.301.36, Porsche 000.043.305.63, VW G 052 515 A2, VW G 052 533 A2, VW G 052 536 A2
ATC300, ATC350, ATC400, ATC450, ATC500, ATC700, ATF TF-0753, ATF TF-0870, BMW 83220306816 für Transfer Case xDrive, BMW 83222397244, BMW DTF-1 83222409710, Genesis (USA) 5.0 GDI AWD, Genesis (USA) G90 3.3 T-GDI, KIA (EU) 3.3 T-GDI AWD, KIA (EU) Stinger 2.2 CRDI, Land Rover IYK500010, MB 235.64, MB 239.41 Torque-on-Demand (TOD) Verteilergetriebe, Mopar 68049954AA für BorgWarner 44-40 Verteilgetr., NIssan 999MP-ATFD3MP, Nissan 999MP-TF0870P, Nissan KLD22-00001EU für Transfer Case ATX90A, Porsche 000.043.301.36, Porsche 000.043.305.63, VW G 052 515 A2, VW G 052 533 A2, VW G 052 536 A2
Brand RAVENOL
RAVENOL
Type Full synthetic
Full synthetic
Recomendations ATF TF-0753, ATF TF-0870, BMW DTF-1, BorgWarner BorgWarner, MB 235.64, MB 239.41, VW G 052 515, VW G 052 533, VW G 052 536
ATF TF-0753, ATF TF-0870, BMW DTF-1, BorgWarner BorgWarner, MB 235.64, MB 239.41, VW G 052 515, VW G 052 533, VW G 052 536
Suitable for BMW ATC300, BMW ATC350, BMW ATC400, BMW ATC450, BMW ATC500, BMW ATC700, Hyundai Genesis (USA) 5.0 GDI AWD, Hyundai Genesis (USA) G90 3.3 T-GDI, KIA (EU) 3.3 T-GDI AWD, KIA (EU) Stinger 2.2 CRDI, Nissan Transfer Case ATX90A
BMW ATC300, BMW ATC350, BMW ATC400, BMW ATC450, BMW ATC500, BMW ATC700, Hyundai Genesis (USA) 5.0 GDI AWD, Hyundai Genesis (USA) G90 3.3 T-GDI, KIA (EU) 3.3 T-GDI AWD, KIA (EU) Stinger 2.2 CRDI, Nissan Transfer Case ATX90A
Compliant products BMW 83220306816, BMW 83222397244, BMW 83222409710, Land Rover IYK500010, Mopar 68049954AA, NIssan 999MP-ATFD3MP, Nissan 999MP-TF0870P, Nissan KLD22-00001EU, Porsche 000.043.301.36, Porsche 000.043.305.63, VW G 052 515, VW G 052 533, VW G 052 536
BMW 83220306816, BMW 83222397244, BMW 83222409710, Land Rover IYK500010, Mopar 68049954AA, NIssan 999MP-ATFD3MP, Nissan 999MP-TF0870P, Nissan KLD22-00001EU, Porsche 000.043.301.36, Porsche 000.043.305.63, VW G 052 515, VW G 052 533, VW G 052 536
Density at 20 °C g/cm³ 831 EN ISO 12185
831 g/cm³ EN ISO 12185
Color Yellow visual
Yellow visual
Pourpoint °C -63 DIN ISO 3016
-63 °C DIN ISO 3016
Approvals ATF TF-0753, ATF TF-0870, BMW DTF-1, BorgWarner BorgWarner, MB 235.64, MB 239.41, VW G 052 515, VW G 052 533, VW G 052 536
ATF TF-0753, ATF TF-0870, BMW DTF-1, BorgWarner BorgWarner, MB 235.64, MB 239.41, VW G 052 515, VW G 052 533, VW G 052 536

Differential, rear outer sections QMVH

Liquid volume (basic): 1.2 L
MDL Multi-Disc locking differentials

MDL Multi-Disc locking differentials

For differentials

RAVENOL MDL Multi-Disc locking differentials is designed based on high-quality base oils with special additive treatment and inhibition for higher stress on clutch-type lamella limited slip differentials and ensuring trouble-free transmission function.

Compliance with the requirements:
BOT 720, VW G 052 196

show details hide details

Equivalents OEM:
BMW 83120445832, BMW 83120445838, BMW 83120446012, BMW 83122149458, Land Rover LR019727, Land Rover LR050750, Land Rover LR093996, Land Rover LRN500070, Land Rover LRN500070, Land Rover TYK500070, Porsche 00004330037, VAG G052196A2

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1222103-001

Code:
4014835795716

Volume:
20 L, ecobox

vendor code:
1222103-B20

Code:
4014835828735

Volume:
1000 L

vendor code:
1222103-700

RAVENOL MDL Multi-Disc locking differentials is designed based on high-quality base oils with special additive treatment and inhibition for higher stress on clutch-type lamella limited slip differentials and ensuring trouble-free transmission function.

Application Note

RAVENOL MDL Multi-Disc locking differentials was developed specifically for use in lamella limited slip differentials. RAVENOL MDL Multi-Disc locking differentials is suitable for Porsche Cayenne, Porsche Panamera.

Characteristics

  • excellent oxidation stability
  • excellent protection against rust and corrosion
  • prevents foaming
  • outstanding extreme pressure properties
  • excellent limited slip properties
  • fuel savings
Parameter Unit Value Audit
Recommendations AC Delco 10-4032, GM 92184900, Land Rover BOT 720, Land Rover LR019727, Land Rover TYK500070, Porsche 000.043.300.37, Porsche 000.043.305.03, VW G 052 196 A2 für VW Touareg
AC Delco 10-4032, GM 92184900, Land Rover BOT 720, Land Rover LR019727, Land Rover TYK500070, Porsche 000.043.300.37, Porsche 000.043.305.03, VW G 052 196 A2 für VW Touareg
Brand RAVENOL
RAVENOL
Type Synthetic
Synthetic
Recomendations BOT 720, VW G 052 196
BOT 720, VW G 052 196
Compliant products AcDelco 10-4032, GM 92184900, Land Rover LR019727, Land Rover TYK500070, Porsche 000.043.300.37, Porsche 000.043.305.03, VW G 052 196
AcDelco 10-4032, GM 92184900, Land Rover LR019727, Land Rover TYK500070, Porsche 000.043.300.37, Porsche 000.043.305.03, VW G 052 196
Density at 20 °C g/cm³ 839 EN ISO 12185
839 g/cm³ EN ISO 12185
Color Yellow visual
Yellow visual
Brookfield Viscosity at -40 °C mPa*s 84.300 ASTM D2983
84.300 mPa*s ASTM D2983
Pourpoint °C -42 DIN ISO 3016
-42 °C DIN ISO 3016
Copper Strip Test at 121 °C 1b ASTM D130
1b ASTM D130
Approvals BOT 720, VW G 052 196
BOT 720, VW G 052 196

Differential, rear middle section QMVH

Liquid volume (basic): 0.9 L
DGL 75W-85 GL-5 LS

DGL 75W-85 GL-5 LS

For transmission

RAVENOL DGL SAE 75W-85 GL-5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2 , BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.7, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18

show details hide details

SAE: 75W-85

API: GL-5 LS

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1221107-001

Code:
4014835848610

Volume:
4 L

vendor code:
1221107-004

Code:
4014835848641

Volume:
10 L

vendor code:
1221107-010

Code:
4014835848672

Volume:
20 L

vendor code:
1221107-020

Code:
4014835848719

Volume:
20 L, ecobox

vendor code:
1221107-B20

Code:
4014835848696

Volume:
60 L

vendor code:
1221107-060

Code:
4014835848757

Volume:
60 L, print

vendor code:
1221107-D60

Volume:
208 L

vendor code:
1221107-208

Volume:
208 L, print

vendor code:
1221107-D28

Volume:
1000 L

vendor code:
1221107-700

RAVENOL DGL SAE 75W-85 GL-5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL DGL SAE 75W-85 GL-5 LS is excellent developed to the increased loads of gear oils to ensure the proper functioning of the transmission. It is especially suited for applications requiring "limited slip" (LS) properties.

Application Note

RAVENOL DGL SAE 75W-85 GL-5 LS is high-performance gear oil for the supply of transfer cases and differentials with and without limited slip "Limited Slip" of motor vehicles.

RAVENOL DGL SAE 75W-85 GL-5 LS ensures a proper lubrication in the transmission. The operating instructions of the vehicle and transmission manufacturers must be observed.

RAVENOL DGL SAE 75W-85 GL-5 LS is suitable for Honda Crosstour 2010-2015, Pilot 2006-2015, Ridgeline 2006-2014 and Acura MDX 2003-2014, Acura RDX 2007-2014, Acura RL 2005-2012, Acura TL 2009-2014, Acura ZDX 2010-2013

Characteristics

  • A high pressure stable lubricating film even at high oil temperatures and under high stress.
  • Outstanding shearing stability and excellent thermal stability.
  • Excellent viscosity-temperature properties.
  • High oxidation stability.
  • Excellent wear protection, outstanding EP properties.
  • Low foaming properties even at high speeds.
  • Good compatibility with non-ferrous metals and sealing materials.
  • Good shifting behaviour even in low temperatures, low pour point.
  • Extended life.
  • A stable lubricating film even at high oil temperatures and under high stress.
  • Well adhering lubricating film and outstanding LS additive treatment for reduced transmission noise even when oil is hot.
Parameter Unit Value Audit
Recommendations AC Delco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BMW Jeep, BOT 448, BOT 799, Chrysler ELSD Rear Axle, Dodge, DTFR 12B120, Fiat 9.55550 F426.E06, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, Lexus, MB 235.15 (A 001 989 59 03), MB 235.31, MB 235.33, MB 235.62, MB 235.7 (A 001 989 83 03), MB 235.74 (A 001 989 33 03), MB 239.71 (A 001 989 88 03), Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, Toyota JWS 2273, VW G 052 190 A2, VW G 052 196 A2, VW G 052 518 A2, VW G 055 190 A2, VW G 060 190 A2, VW TL 52190, ZF TE-ML 18
AC Delco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BMW Jeep, BOT 448, BOT 799, Chrysler ELSD Rear Axle, Dodge, DTFR 12B120, Fiat 9.55550 F426.E06, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, Lexus, MB 235.15 (A 001 989 59 03), MB 235.31, MB 235.33, MB 235.62, MB 235.7 (A 001 989 83 03), MB 235.74 (A 001 989 33 03), MB 239.71 (A 001 989 88 03), Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, Toyota JWS 2273, VW G 052 190 A2, VW G 052 196 A2, VW G 052 518 A2, VW G 055 190 A2, VW G 060 190 A2, VW TL 52190, ZF TE-ML 18
Brand RAVENOL
RAVENOL
SAE 75W-85
75W-85
Type Full synthetic
Full synthetic
API GL-5 LS
GL-5 LS
Recomendations BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18
BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18
specification MIL-L-2105 D
MIL-L-2105 D
Suitable for BMW|Jeep, Chrysler ELSD Rear Axle, Dodge, Lexus
BMW|Jeep, Chrysler ELSD Rear Axle, Dodge, Lexus
Compliant products AcDelco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, MB A 001 989 33 03, MB A 001 989 59 03, MB A 001 989 83 03, MB A 001 989 88 03, Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, VW G 052 190, VW G 052 196, VW G 055 190
AcDelco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, MB A 001 989 33 03, MB A 001 989 59 03, MB A 001 989 83 03, MB A 001 989 88 03, Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, VW G 052 190, VW G 052 196, VW G 055 190
Density at 20 °C g/cm³ 862 EN ISO 12185
862 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 11.6 DIN 51562-1
11.6 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 64.3 DIN 51562-1
64.3 mm²/s DIN 51562-1
Viscosity Index VI 177 DIN ISO 2909
177 DIN ISO 2909
Brookfield Viscosity at -40 °C mPa*s 26.000 ASTM D2983
26.000 mPa*s ASTM D2983
Pourpoint °C -51 DIN ISO 3016
-51 °C DIN ISO 3016
Flashpoint °C 215 DIN EN ISO 2592
215 °C DIN EN ISO 2592
Seq. I at 24 °C ml/ml 5/0 ASTM D892
5/0 ml/ml ASTM D892
Seq. II at 93,5 °C ml/ml 10/0 ASTM D892
10/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C ml/ml 5/0 ASTM D892
5/0 ml/ml ASTM D892
Copper Strip Test at 121 °C 1b ASTM D130
1b ASTM D130
Approvals BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, MIL-L-2105 D, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18
BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, MIL-L-2105 D, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18

Differential, front

Liquid volume (basic): 0.6 L
VSG 75W-90

VSG 75W-90

For transmission

RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.

Compliance with the requirements:
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.8, MB 235.9, MB 235.11, MB 235.21, MB 235.72, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B

show details hide details

SAE: 75W-90

API: GL-4, GL-5

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1221101-001

Code:
4014835733916

Volume:
4 L

vendor code:
1221101-004

Code:
4014835733992

Volume:
10 L

vendor code:
1221101-010

Code:
4014835733947

Volume:
20 L

vendor code:
1221101-020

Code:
4014835733923

Volume:
20 L, ecobox

vendor code:
1221101-B20

Code:
4014835846654

Volume:
60 L

vendor code:
1221101-060

Code:
2200000083081

Volume:
60 L, print

vendor code:
1221101-D60

Code:
4014835733930

Volume:
208 L

vendor code:
1221101-208

Code:
4014835733985

Volume:
208 L, print

vendor code:
1221101-D28

Code:
4014835733909

Volume:
1000 L

vendor code:
1221101-700

RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.

Application Note

RAVENOL VSG SAE 75W-90 is excellent for use of highly stressed axle drives.

RAVENOL VSG SAE 75W-90 is suitable for synchronised and non-synchronised manual transmissions, transfer cases and ancillary transmission requiring API GL-5 or GL-4 oil.

RAVENOL VSG SAE 75W-90 is suitable for Ford-transmission IB5, B5, MTX75, GM5, MT285/6, MMT6/6, MT75, R15M-D, R15MX-D, MT82 and Porsche Full-Time Transfer Case with Torsen (PL72T) for Cayenne 92A / 958 Diesel and S Hybrid from 2010 to 2018.

Characteristics

  • high additive reserves for prolonged oil change intervals according to the manufacturer specifications
  • excellent cold flow properties
  • best wear protection and best transmission efficiency
  • Fuel savings even with short distances in low outdoor temperatures
  • stable lubricating film even under high stress
  • extraordinary corrosion protection and good compatibility with non-ferrous metal
  • high oxidation resistance prevents oil thickening and deposits
  • outstanding dirt-carrying capacity, i.e. aggregates are clean even after very long oil change intervals
  • excellent elastomer compatibility to prevent leaks
  • extreme shearing stability, remains within the clean oil viscosity per SAE class 75W-90 even after very long periods of use
  • very high protection from rust, corrosion and foaming
  • extreme low pour point
  • excellent EP properties
  • fuel savings
Parameter Unit Value Audit
Recommendations BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 911 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 911 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
Brand RAVENOL
RAVENOL
SAE 75W-90
75W-90
Type Full synthetic
Full synthetic
API GL-4, GL-5
GL-4, GL-5
Recomendations BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
Suitable for IVECO
IVECO
Compliant products BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911
BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911
Density at 20 °C g/cm³ 839.8 EN ISO 12185
839.8 g/cm³ EN ISO 12185
Color Yellow visual
Yellow visual
Viscosity at 100 °C mm²/s 16.8 DIN 51562-1
16.8 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 108.8 DIN 51562-1
108.8 mm²/s DIN 51562-1
Viscosity Index VI 168 DIN ISO 2909
168 DIN ISO 2909
Brookfield Viscosity at -40 °C mPa*s 47.000 ASTM D2983
47.000 mPa*s ASTM D2983
Pourpoint °C -57 DIN ISO 3016
-57 °C DIN ISO 3016
Flashpoint °C 224 DIN EN ISO 2592
224 °C DIN EN ISO 2592
Seq. I at 24 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Seq. II at 93,5 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Copper Strip Test at 121 °C 1a ASTM D130
1a ASTM D130
Approvals BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B

Hydraulic power steering AFS/ARS (CHF lid)

Liquid volume (basic): 1 L
SSF Special Servolenkung Fluid

SSF Special Servolenkung Fluid

For power steering

Application NoteRAVENOL SSF Special Servolenkung Fluid is designed for use from -55°C bis +130°C and is therefore recommended for the latest developments in the vehicle market.

Compliance with the requirements:
DTFR 31B120 (MB 345.0), Ford WSS-M2C204-A, Ford WSS-M2C204-A2, Hyundai/Kia PSF-4, Land Rover Cold Climate PAS Fluid 14315, MB 343.0, MB 344.0, MB 345.0, Toyota PSF NEW-W, VW G 002 000, VW G 004 000, VW TL 521 46, ZF TE-ML 02K

show details hide details
  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1181100-001

Code:
4014835736412

Volume:
4 L

vendor code:
1181100-004

Code:
4014835736498

Volume:
10 L

vendor code:
1181100-010

Code:
4014835736443

Volume:
20 L

vendor code:
1181100-020

Code:
4014835736429

Volume:
20 L, ecobox

vendor code:
1181100-B20

Code:
4014835784321

Volume:
60 L

vendor code:
1181100-060

Code:
4014835736467

Volume:
208 L

vendor code:
1181100-208

Code:
4014835736481

Application Note

RAVENOL SSF Special Servolenkung Fluid is designed for use from -55°C bis +130°C and is therefore recommended for the latest developments in the vehicle market.

RAVENOL SSF Special Servolenkung Fluid fulfils the requirements of VW-Specification TL 521 46 and has therefore an optimal performance behaviour as central hydraulic oil in power steering, rear axle steering, level control, hydro pneumatic suspension, shock absorbers, for active damping and engine protection, for hydrostatic drive of fan, alternator and air conditioning, for stability and traction systems (ABS/ASR/ASC), central locking, electro-hydraulic convertible top control, hydraulic brake booster and hydro pneumatic suspension for VW, Audi, Seat, Skoda. Especially to be used in cold countries.

Characteristics

  • Extremely low pour point
  • Improved viscosity and coefficient of friction behaviour
  • A very good protection against consumption
  • Excellent thermal stability
  • Improved EP-characteristics
  • A good foaming behaviour
  • Neutral behaviour towards sealing materials
  • Reliable protection against corrosion
Parameter Unit Value Audit
Recommendations BMW 83290429576, CHF11S, CHF202, Citroën 9979 A1, DTFR 31B120 (MB 345.0), Ford 1384110, Ford M2C-204 A2, Hyundai/Kia PSF-4 03100-00130, Land Rover Cold Climate PAS Fluid 14315 LRN2261, MB 343.0, MB 344.0, MB 345.0, Opel 1940715, Opel 1940766, SAAB 93160548, Toyota 08886-01115, Toyota PSF NEW-W, Volvo 30741424, VW G 002 000, VW G 004 000 M2, VW TL 52146, ZF TE-ML 02K
BMW 83290429576, CHF11S, CHF202, Citroën 9979 A1, DTFR 31B120 (MB 345.0), Ford 1384110, Ford M2C-204 A2, Hyundai/Kia PSF-4 03100-00130, Land Rover Cold Climate PAS Fluid 14315 LRN2261, MB 343.0, MB 344.0, MB 345.0, Opel 1940715, Opel 1940766, SAAB 93160548, Toyota 08886-01115, Toyota PSF NEW-W, Volvo 30741424, VW G 002 000, VW G 004 000 M2, VW TL 52146, ZF TE-ML 02K
Brand RAVENOL
RAVENOL
Type Full synthetic
Full synthetic
Recomendations DTFR 31B120 (MB 345.0), Ford WSS-M2C204-A, Ford WSS-M2C204-A2, Hyundai/Kia PSF-4, Land Rover Cold Climate PAS Fluid 14315, MB 343.0, MB 344.0, MB 345.0, Toyota PSF NEW-W, VW G 002 000, VW G 004 000, VW TL 521 46, ZF TE-ML 02K
DTFR 31B120 (MB 345.0), Ford WSS-M2C204-A, Ford WSS-M2C204-A2, Hyundai/Kia PSF-4, Land Rover Cold Climate PAS Fluid 14315, MB 343.0, MB 344.0, MB 345.0, Toyota PSF NEW-W, VW G 002 000, VW G 004 000, VW TL 521 46, ZF TE-ML 02K
specification DIN 51524-2, ISO 7308
DIN 51524-2, ISO 7308
Compliant products BMW 83290429576, Ford 1384110, Hyundai/Kia 03100-00130, Land Rover LRN2261, Opel 1940715, Opel 1940766, Pentosin CHF 11S, Pentosin CHF 202, PSA 9979.A1, SAAB 93160548, Toyota 08886-01115, Volvo 30741424, VW G 004 000
BMW 83290429576, Ford 1384110, Hyundai/Kia 03100-00130, Land Rover LRN2261, Opel 1940715, Opel 1940766, Pentosin CHF 11S, Pentosin CHF 202, PSA 9979.A1, SAAB 93160548, Toyota 08886-01115, Volvo 30741424, VW G 004 000
Density at 20 °C g/cm³ 829 EN ISO 12185
829 g/cm³ EN ISO 12185
Color Green visual
Green visual
Viscosity at 100 °C mm²/s 6.6 DIN 51562-1
6.6 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 19.7 DIN 51562-1
19.7 mm²/s DIN 51562-1
Viscosity at -40 °C mm²/s 900 ASTM D445
900 mm²/s ASTM D445
Viscosity Index VI 333 DIN ISO 2909
333 DIN ISO 2909
Brookfield Viscosity at -40 °C mPa*s 980 ASTM D2983
980 mPa*s ASTM D2983
Pourpoint °C -55 DIN ISO 3016
-55 °C DIN ISO 3016
Flashpoint °C 166 DIN EN ISO 2592
166 °C DIN EN ISO 2592
Approvals DIN 51524-2, DTFR 31B120 (MB 345.0), Ford WSS-M2C204-A, Ford WSS-M2C204-A2, Hyundai/Kia PSF-4, ISO 7308, Land Rover Cold Climate PAS Fluid 14315, MB 343.0, MB 344.0, MB 345.0, Toyota PSF NEW-W, VW G 002 000, VW G 004 000, VW TL 521 46, ZF TE-ML 02K
DIN 51524-2, DTFR 31B120 (MB 345.0), Ford WSS-M2C204-A, Ford WSS-M2C204-A2, Hyundai/Kia PSF-4, ISO 7308, Land Rover Cold Climate PAS Fluid 14315, MB 343.0, MB 344.0, MB 345.0, Toyota PSF NEW-W, VW G 002 000, VW G 004 000, VW TL 521 46, ZF TE-ML 02K

Hydraulic brake/clutch system DSC

Liquid volume (basic): 1 L
DOT 4

DOT 4

For brake system

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

show details hide details


Usage mode: normal

Replacement via, MONTH: 24

Replacement via, MONTH: 36

  • Available packaging
  • Full description
  • Product parameters

Volume:
250 ml

vendor code:
1350601-250

Code:
4014835692121

Volume:
500 ml

vendor code:
1350601-500

Code:
4014835692152

Volume:
1 L

vendor code:
1350601-001

Code:
4014835692114

Volume:
20 L

vendor code:
1350601-020

DOT 4

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

Application Note

RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.

RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.

RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113).

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

  • optimum ABS characteristics
  • chemical stability
  • best lubrication efficiency
  • neutral behaviour regarding brake parts
  • low viscosity at low temperatures
  • miscible with all brake fluids of the same specifications
Parameter Unit Value Audit
FMVSS 116 specifications (DOT) DOT-4
DOT-4
Brand RAVENOL
RAVENOL
Type Synthetic
Synthetic
specification DOT 4, ISO 4925 Class 4, SAE J 1704
DOT 4, ISO 4925 Class 4, SAE J 1704
Density at 20 °C g/cm³ 1052 EN ISO 12185
1052 g/cm³ EN ISO 12185
Color light yellow visual
light yellow visual
Viscosity at 100 °C mPa*s 2.41 ASTM D445
2.41 mPa*s ASTM D445
Viscosity at -40 °C cSt 1340 ASTM D445
1340 cSt ASTM D445
Boiling point °C 271 FMVSS 116
271 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point °C 169 FMVSS 116
169 °C FMVSS 116
High Temperature Stability °C -1 FMVSS 116
-1 °C FMVSS 116
Chemical Stability °C 1 FMVSS 116
1 °C FMVSS 116
Evaporation %w/w 61 FMVSS 116
61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C i.O., 4s FMVSS 116
i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C i.O., 8s FMVSS 116
i.O., 8s FMVSS 116
Water Tolerance at -40 °C transparent, 3s FMVSS 116
transparent, 3s FMVSS 116
Water Tolerance at +60 °C Transparent FMVSS 116
Transparent FMVSS 116
Compatibility at -40 °C Transparent FMVSS 116
Transparent FMVSS 116
Compatibility at +60 °C Transparent FMVSS 116
Transparent FMVSS 116
Water content % — 0.2 DIN 51777-1
— 0.2 % DIN 51777-1
Tinned Iron Δ mg/cm² 0.04 FMVSS 116
0.04 Δ mg/cm² FMVSS 116
Steel mg/cm² -0.01 FMVSS 116
-0.01 mg/cm² FMVSS 116
Aluminium mg/cm² 0.02 FMVSS 116
0.02 mg/cm² FMVSS 116
Cast Iron Δ mg/cm² -0,03 FMVSS 116
-0,03 Δ mg/cm² FMVSS 116
Brass mg/cm² -0.08 FMVSS 116
-0.08 mg/cm² FMVSS 116
Copper mg/cm² -0.05 FMVSS 116
-0.05 mg/cm² FMVSS 116
Zinc mg/cm² 0.01 FMVSS 116
0.01 mg/cm² FMVSS 116
Sediment % — 0.05 FMVSS 116
— 0.05 % FMVSS 116
pH - value 8.2 FMVSS 116
8.2 FMVSS 116
Rubber Diameter Change 0.16 FMVSS 116
0.16 FMVSS 116
Hardness Change °IRHD -4 FMVSS 116
-4 °IRHD FMVSS 116
Appearance i.O. FMVSS 116
i.O. FMVSS 116
SBR at 70 °C mm 0.56 FMVSS 116
0.56 mm FMVSS 116
SBR at 120 °C mm 0.73 FMVSS 116
0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703) IRHD -2 FMVSS 116
-2 IRHD FMVSS 116
EPDM at 120 °C IRHD -2 FMVSS 116
-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925) mm 0.38 FMVSS 116
0.38 mm FMVSS 116
Approvals DOT 4, ISO 4925 Class 4, SAE J 1704
DOT 4, ISO 4925 Class 4, SAE J 1704
DOT 5.1

DOT 5.1

For brake system

The specific formulation of RAVENOL DOT 5.1 offers international DOT 5.1 specifications SAE J 1704, ISO 4925 and fulfills FMVSS 116 DOT 5.1.

show details hide details

Equivalents OEM:
Motorcraft PM21, Renault 7711575552, Toyota 0882300061, Toyota 0882300061, Toyota 0882380004, Toyota 0882380005, Toyota 0882380005EE, Toyota 0882380007, Yamalube YMD650490100, Yamalube YMD650490101, Yamalube YMD650490102, Yamalube YMD650490103



Usage mode: normal

Replacement via, MONTH: 24

Replacement via, MONTH: 36

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1350602-001

Code:
4014835692213

Volume:
20 L

vendor code:
1350602-020

Volume:
200 L

vendor code:
1350602-200

DOT 5.1

The specific formulation of RAVENOL DOT 5.1 offers international DOT 5.1 specifications SAE J 1704, ISO 4925 and fulfills FMVSS 116 DOT 5.1.

RAVENOL DOT 5.1 fluid is an ideal brake fluid for modern vehicles with the brake circuit accompanying systems such as ESP and ABS due to its low viscosity. The safety potential of the aggregates is enhanced by the excellent properties of RAVENOL DOT 5.1 even at low temperatures.

Application Note

RAVENOL DOT 5.1 brake fluid can be used in all vehicles where DOT 5.1 specification is required. It is suitable for all hydraulic brake systems with synthetic fluid.

RAVENOL DOT 5.1 brake fluid is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT 5.1, a complete change of the brake fluid is recommended.

RAVENOL DOT 5.1 is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113).

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

  • Optimal ABS properties
  • Chemical stability
  • High lubricating power
  • Neutral behavior towards brake parts
  • Low viscosity at low temperatures
  • Miscibility with all brake fluids of the same specification.
Parameter Unit Value Audit
FMVSS 116 specifications (DOT) DOT-5.1
DOT-5.1
Brand RAVENOL
RAVENOL
Type Synthetic
Synthetic
specification DOT 5.1, ISO 4925 Class 5.1, SAE J 1704
DOT 5.1, ISO 4925 Class 5.1, SAE J 1704
Density at 20 °C g/cm³ 1069 EN ISO 12185
1069 g/cm³ EN ISO 12185
Color light yellow visual
light yellow visual
Viscosity at 100 °C mPa*s 2.16 ASTM D445
2.16 mPa*s ASTM D445
Viscosity at -40 °C cSt 810 ASTM D445
810 cSt ASTM D445
Boiling point °C 269 FMVSS 116
269 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point °C 187 FMVSS 116
187 °C FMVSS 116
Chemical Stability °C 1.5 FMVSS 116
1.5 °C FMVSS 116
Evaporation %w/w 68 FMVSS 116
68 %w/w FMVSS 116
Fluidity & Appearance at -40 °C i.O., 2s FMVSS 116
i.O., 2s FMVSS 116
Fluidity & Appearance at -50 °C i.O., 4s FMVSS 116
i.O., 4s FMVSS 116
Water Tolerance at -40 °C transparent, 2s FMVSS 116
transparent, 2s FMVSS 116
Water Tolerance at +60 °C Transparent FMVSS 116
Transparent FMVSS 116
Compatibility at -40 °C Transparent FMVSS 116
Transparent FMVSS 116
Compatibility at +60 °C Transparent FMVSS 116
Transparent FMVSS 116
Water content % 0.1 DIN 51777-1
0.1 % DIN 51777-1
Tinned Iron Δ mg/cm² -0.01 FMVSS 116
-0.01 Δ mg/cm² FMVSS 116
Steel mg/cm² -0.004 FMVSS 116
-0.004 mg/cm² FMVSS 116
Aluminium mg/cm² -0.01 FMVSS 116
-0.01 mg/cm² FMVSS 116
Cast Iron Δ mg/cm² -0,01 FMVSS 116
-0,01 Δ mg/cm² FMVSS 116
Brass mg/cm² -0.05 FMVSS 116
-0.05 mg/cm² FMVSS 116
Copper mg/cm² -0.03 FMVSS 116
-0.03 mg/cm² FMVSS 116
Zinc mg/cm² 0.03 FMVSS 116
0.03 mg/cm² FMVSS 116
Sediment % — 0.05 FMVSS 116
— 0.05 % FMVSS 116
pH - value 7.33 FMVSS 116
7.33 FMVSS 116
Rubber Diameter Change 0.03 FMVSS 116
0.03 FMVSS 116
Hardness Change °IRHD -6 FMVSS 116
-6 °IRHD FMVSS 116
Appearance i.O. FMVSS 116
i.O. FMVSS 116
SBR at 70 °C mm 0.44 FMVSS 116
0.44 mm FMVSS 116
SBR at 120 °C mm 0.72 FMVSS 116
0.72 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703) IRHD -2 FMVSS 116
-2 IRHD FMVSS 116
EPDM at 120 °C IRHD -3 FMVSS 116
-3 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925) mm 0.42 FMVSS 116
0.42 mm FMVSS 116
Approvals DOT 5.1, ISO 4925 Class 5.1, SAE J 1704
DOT 5.1, ISO 4925 Class 5.1, SAE J 1704

Cooling system models manufactured before 31. 07. 2018

Liquid volume (basic): 16.8 L
HTC - Protect MB325.0 Premix -40°C

HTC - Protect MB325.0 Premix -40°C

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

Compliance with the requirements:
DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C

show details hide details
  • Available packaging
  • Full description
  • Product parameters

Volume:
1.5 L

vendor code:
1410121-150

Code:
4014835755710

Volume:
5 L

vendor code:
1410121-005

Code:
4014835755758

Volume:
10 L

vendor code:
1410121-010

Volume:
20 L

vendor code:
1410121-020

Code:
4014835755727

Volume:
20 L, ecobox

vendor code:
1410121-B20

Code:
4014835855403

Volume:
60 L

vendor code:
1410121-060

Code:
4014835755765

Volume:
208 L

vendor code:
1410121-208

Code:
4014835755789

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL HTC Hybrid Technology Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL HTC Hybrid Technology Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL HTC Hybrid Technology Coolant Premix -40°C to radiator to fill line.

RAVENOL HTC Hybrid Technology Coolant Premix -40°C can also be used as a “ready for use” dilution in geothermal probes and geothermal collectors as recommended list of LaWa (Federal / State Working Group on Water in Germany).

RAVENOL HTC Hybrid Technology Coolant Concentrate is included in the list of recommendations of the LaWa for water management requirements for geothermal probes and geothermal collectors.

Characteristics

  • Excellent for use in cast iron or aluminium engines, or alloys of the two metals, and aluminium andcopper alloy radiators
  • Good reserve alkalinity
  • Protection from corrosion and cavitation
  • Prevents sediments and foaming in the cooling system
  • Compatible with elastomers used in automotive radiators
Parameter Unit Value Audit
Recommendations ASTM D3306, ASTM D4340, ASTM D4985, Audi, BMW 81229407454, BMW 83192211191, DAF, DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford AF Plus, Ford ESE-M978B4H-A, GM 1825M, GM 1899M, GM 93740140, GM 93740141, GM SATURN, Honda OL999-9011, Jaguar, John Deere, MAN 324 NF, MB (A 000 989 08 25 10), MB 325.0 (Konzentrat), MB 326.0 (Premix), NATO S-759, Opel/GM QL130100, Porsche, Renault Glaceol RX Type D, ROVER, SAAB, SAE J1034, VW TL 774-C (entspricht G11)
ASTM D3306, ASTM D4340, ASTM D4985, Audi, BMW 81229407454, BMW 83192211191, DAF, DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford AF Plus, Ford ESE-M978B4H-A, GM 1825M, GM 1899M, GM 93740140, GM 93740141, GM SATURN, Honda OL999-9011, Jaguar, John Deere, MAN 324 NF, MB (A 000 989 08 25 10), MB 325.0 (Konzentrat), MB 326.0 (Premix), NATO S-759, Opel/GM QL130100, Porsche, Renault Glaceol RX Type D, ROVER, SAAB, SAE J1034, VW TL 774-C (entspricht G11)
Brand RAVENOL
RAVENOL
ASTM D3306, D4340, D4985
D3306, D4340, D4985
Recomendations DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C
DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C
Suitable for DAF, GM SATURN, Jaguar, John Deere, Porsche, ROVER, SAAB, VW
DAF, GM SATURN, Jaguar, John Deere, Porsche, ROVER, SAAB, VW
Compliant products BMW 81229407454, BMW 83192211191, Ford AF Plus, GM 93740140, GM 93740141, Honda OL999-9011, MB A 000 989 08 25 10
BMW 81229407454, BMW 83192211191, Ford AF Plus, GM 93740140, GM 93740141, Honda OL999-9011, MB A 000 989 08 25 10
Density at 20 °C g/cm³ 1080 EN ISO 12185
1080 g/cm³ EN ISO 12185
Color Blue visual
Blue visual
pH - value at 20 °C 7,5 ASTM D1287
7,5 ASTM D1287
Freezing point °C -40 ASTM D1177
-40 °C ASTM D1177
Approvals DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C
DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C
HTC - Protect MB325.0 Concentrate

HTC - Protect MB325.0 Concentrate

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

Compliance with the requirements:
DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C

show details hide details

Equivalents OEM:
BMW 83195A1E3B6, BMW 81229407454, BMW 83192211191, BMW 83192211195, BMW 83192211913, BMW 83192211914, BMW 83192304068, BMW 83192304069, BMW 83512355290, BMW 83512355291, BMW 83512355293, BMW 83512355296, BMW 83600005416, FEBI 05011, FEBI 22268, FEBI 22270, Ford 1047035, GM 10101, GM 105034, GM 9163329, GM 10953464, GM 12346290, GM 12378512, GM 12378560, GM 12378561, GM 12378562, GM 93165162, GM 93170402, GM 93740140, GM 93740141, GM 93742646 BMW 83195A1E3B6, BMW 81229407454, BMW 83192211191, BMW 83192211195, BMW 83192211913, BMW 83192211914, BMW 83192304068, BMW 83192304069, BMW 83512355290, BMW 83512355291, BMW 83512355293, BMW 83512355296, BMW 83600005416, FEBI 05011, FEBI 22268, FEBI 22270, Ford 1047035, GM 10101, GM 105034, GM 9163329, GM 10953464, GM 12346290, GM 12378512, GM 12378560, GM 12378561, GM 12378562, GM 93165162, GM 93170402, GM 93740140, GM 93740141, GM 93742646, GM 93742647, Honda 08CLAE020S0, Land Rover PDA500300, MB A000989082510, MB A000989082513, MB A000989082520, MB A000989082521, MB A000989082522, MB A000989082523, MB A0009892125, MB A989082510, MB A990989280020, MB A990989280021, MB A990989280022, MB A990989280023, SsangYong 0000000294, Subaru 000016218, Subaru K0679GA102, VAG G011A8CA1, VAG G011A8CA1, Volvo 9437650, Volvo 9437651, Volvo 31439720, Volvo 31439721

Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.
  • Available packaging
  • Full description
  • Product parameters

Volume:
1.5 L

vendor code:
1410120-150

Code:
4014835755611

Volume:
5 L

vendor code:
1410120-005

Code:
4014835755659

Volume:
10 L

vendor code:
1410120-010

Volume:
20 L

vendor code:
1410120-020

Code:
4014835755628

Volume:
20 L, ecobox

vendor code:
1410120-B20

Code:
4014835852730

Volume:
60 L

vendor code:
1410120-060

Code:
4014835755666

Volume:
208 L

vendor code:
1410120-208

Code:
4014835755680

Volume:
1000 L

vendor code:
1410120-700

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL HTC Hybrid Technology Coolant Concentrate protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL HTC Hybrid Technology Coolant Concentrate with frost and rust protection for year-round use in automotive engines. Mix according to chart. Follow manufacturer's recommendations.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL HTC Hybrid Technology Coolant Concentrate with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

RAVENOL HTC Hybrid Technology Coolant Concentrate can also be used in geothermal probes and geothermal collectors as recommended list of LaWa (Federal / State Working Group on Water in Germany).

Table of mixing ratios
Antifreeze protection until Parts Antifreeze Parts Water
-20°C 35% 65%
-37°C 50% 50%
-50°C 60% 40%

Characteristics

  • Excellent for use in cast iron or aluminium engines, or alloys of the two metals, and aluminium and copper alloy radiators
  • Excellent reserve alkalinity
  • Protection from corrosion and cavitation
  • Prevents sediments and foaming in the cooling system
  • Compatible with elastomers used in automotive radiators
Parameter Unit Value Audit
Recommendations ASTM D3306, ASTM D4340, ASTM D4985, Audi, BMW 81229407454, BMW 83192211191, DAF, DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford AF Plus, Ford ESE-M978B4H-A, GM 1825M, GM 1899M, GM 93740140, GM 93740141, GM SATURN, Honda OL999-9011, Jaguar, John Deere, MAN 324 NF, MB (A 000 989 08 25 10), MB 325.0 (Konzentrat), MB 326.0 (Premix), NATO S-759, Opel/GM QL130100, Porsche, Renault Glaceol RX Type D, ROVER, SAAB, SAE J1034, VW TL 774-C (entspricht G11)
ASTM D3306, ASTM D4340, ASTM D4985, Audi, BMW 81229407454, BMW 83192211191, DAF, DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford AF Plus, Ford ESE-M978B4H-A, GM 1825M, GM 1899M, GM 93740140, GM 93740141, GM SATURN, Honda OL999-9011, Jaguar, John Deere, MAN 324 NF, MB (A 000 989 08 25 10), MB 325.0 (Konzentrat), MB 326.0 (Premix), NATO S-759, Opel/GM QL130100, Porsche, Renault Glaceol RX Type D, ROVER, SAAB, SAE J1034, VW TL 774-C (entspricht G11)
Brand RAVENOL
RAVENOL
ASTM D3306, D4340, D4985
D3306, D4340, D4985
Recomendations DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C
DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C
Suitable for DAF, GM SATURN, Jaguar, John Deere, Porsche, ROVER, SAAB, VW
DAF, GM SATURN, Jaguar, John Deere, Porsche, ROVER, SAAB, VW
Compliant products BMW 81229407454, BMW 83192211191, Ford AF Plus, GM 93740140, GM 93740141, Honda OL999-9011, MB A 000 989 08 25 10
BMW 81229407454, BMW 83192211191, Ford AF Plus, GM 93740140, GM 93740141, Honda OL999-9011, MB A 000 989 08 25 10
Density at 20 °C g/cm³ 1130 EN ISO 12185
1130 g/cm³ EN ISO 12185
Color Blue visual
Blue visual
Reserve alkalinity mgKOH/g 15 — ASTM D1120
15 — mgKOH/g ASTM D1120
Boiling point °C 160 — ASTM D1121
160 — °C ASTM D1121
Water content % — 5 ASTM D1123
— 5 % ASTM D1123
Flashpoint °C 100 — DIN 51758
100 — °C DIN 51758
Freezing point (50 % solution) °C -37 ASTM D1177
-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %) 7,0 - 8,0 ASTM D1287
7,0 - 8,0 ASTM D1287
Approvals DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C
DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C
Destilliertes Wasser (entionisiert)

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details hide details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter Unit Value Audit
Recommendations DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand RAVENOL
RAVENOL
Recomendations DIN 43530-4, DIN EN 50272
DIN 43530-4, DIN EN 50272
Approvals DIN 43530-4, DIN EN 50272
DIN 43530-4, DIN EN 50272
Professional Radiator Cleaner

Professional Radiator Cleaner

Additive

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

show details hide details

Equivalents OEM:
Ford MP14300500AB

  • Available packaging
  • Full description
  • Product parameters

Volume:
0.25 L

vendor code:
1390302-250

Code:
4014835802667

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.

Application Note

RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.

Area of application:

Radiator repairs

In the event of reduced radiator performance

In the event of deposits in the cooling system

Changing coolant

For cleaning purposes after engine repairs due to oil in the cooling system

Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.

Fill in

RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.

RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.

Characteristics

  • Cleaning of the cooling and heating system
  • Protection of the new coolant against prior contamination
  • Elimination of sludge and corrosion residue
Parameter Unit Value Audit
Color Colorless visual
Colorless visual
Density at 20 °C g/cm³ 1003 EN ISO 12185
1003 g/cm³ EN ISO 12185
pH - value at 20 °C 10,25 DIN 19268
10,25 DIN 19268
Brand RAVENOL
RAVENOL

Our website uses cookies to improve your site experience, efficiency and usability. By continuing to use our site, you agree to the use of cookies.

+ - Configure cookies
Good
