Kawasaki KDX 125, year of issue from 1989 date to 1993 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.
Fuel: Gasoline
car drive: chain
Number of cylinders: 1
Working volume: 124 cc
Power: 12 hp / 9 kW
Nodes and assemblies
Engine
For 2 stroke
RAVENOL MPS Motocross Powersynth 2T is formulated with synthetic base oils with effectively low ash additives. The special formulation supports rapid combustion of the mixture, excellent throttle response and provides outstanding wear protection. Designed for 2-stroke engines of modern European and Asian manufacturers.
- Available packaging
- Product parameters
RAVENOL MPS Motocross Powersynth 2T is formulated with synthetic base oils with effectively low ash additives. The special formulation supports rapid combustion of the mixture, excellent throttle response and provides outstanding wear protection. Designed for 2-stroke engines of modern European and Asian manufacturers.
Application instructions
RAVENOL MPS Motocross Powersynth 2T can generally be mixed with regular petrol 1:100. Due to its selected additive package the product is ideal for racing and on the road. Especially with air- and water-cooled 2-stroke gasoline engines with very high speeds and severely loaded Enduro, Motocross & Trial engines achieves optimum lubrication.
Characteristics
- A proper lubrication of all engine parts
- A strong cleaning effect, for clean combustion chambers. Cleans intake and exhaust ports from combustion residues and deposits
- Clean spark plugs provide optimal performance of the engines
- A very high wear and corrosion protection
- Low exhaust emission levels by good combustion
- Very low Pourpoint, also to use at very low temperature
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Engine cycle | 2T |
2T
|
||
| Recommendations | Beta, GasGas, Honda, Husqvarna, Kawasaki, KTM, Suzuki, Yamaha |
Beta, GasGas, Honda, Husqvarna, Kawasaki, KTM, Suzuki, Yamaha
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | TC |
TC
|
||
| JASO | FD |
FD
|
||
| specification | ISO L-EGD |
ISO L-EGD
|
||
| Suitable for | GasGas, Honda, Husqvarna, Kawasaki, KTM, Suzuki, Yamaha |
GasGas, Honda, Husqvarna, Kawasaki, KTM, Suzuki, Yamaha
|
||
| Density at 20 °C | g/cm³ | 864 | EN ISO 12185 |
864
g/cm³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Viscosity at 100 °C | mm²/s | 10.6 | DIN 51562-1 |
10.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 67.9 | DIN 51562-1 |
67.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 144 | DIN ISO 2909 |
144
DIN ISO 2909
|
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Flashpoint | °C | 132 | DIN EN ISO 2592 |
132
°C
DIN EN ISO 2592
|
| Approvals | ISO L-EGD |
ISO L-EGD
|
For karts

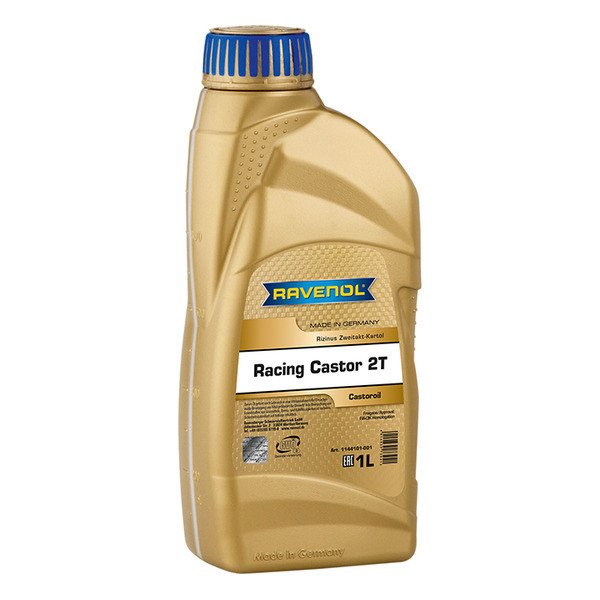

RAVENOL Racing Castor 2T is used in modern air-cooled 100 cc kart engines with highest demands on today's two stroke oils. Speeds up to 20,000 U/min. produce very high temperatures and extreme-bearing, piston pressures and reduced oil supply in the shift operation. In push mode, RAVENOL Racing Castor 2T is almost impossible to maintain a lubricating film and to ensure a hydrodynamic lubrication. Especially for such extreme stress our product RAVENOL Racing Castor 2T has been developed.
Manufacturer Approved:
FIA-CIK Homologation
Equivalents OEM:
Honda 08C35AH21S01
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1144101-020
Volume:
208 L
vendor code:
1144101-208
Volume:
208 L, print
vendor code:
1144101-D28
RAVENOL Racing Castor 2T is used in modern air-cooled 100 cc kart engines with highest demands on today's two stroke oils. Speeds up to 20,000 U/min. produce very high temperatures and extreme-bearing, piston pressures and reduced oil supply in the shift operation. In push mode, RAVENOL Racing Castor 2T is almost impossible to maintain a lubricating film and to ensure a hydrodynamic lubrication. Especially for such extreme stress our product RAVENOL Racing Castor 2T has been developed.
RAVENOL Racing Castor 2T contains more than 75% Castoroil.
Application instructions
RAVENOL Racing Castor 2T is a 2-cycle kart oil with synthetic esters and Castor Technology-Additives for 2-stroke engines with methanol and ethanol as a fuel, e.g. speedway kart engines and motors.
RAVENOL Racing Castor 2T will be miscible with gasoline, methanol and ethanol.
RAVENOL Racing Castor 2T is not miscible with mineral and synthetic 2-stroke oils. Mix thoroughly, even after long periods of time (about 1 week). Recommended pre-mix ratio is 20:1
RAVENOL Racing Castor 2T is for storage always at temperatures higher 5°C. Do not frost!
Characteristics
- Reduced carbon deposits resulting from its clean burning characteristics.
- High shear stability even under the severest conditions.
- Prevention of oil-induced piston seizure due to its hight lubricity.
- Complete absence of lacquer, gumming and ring sticking.
- Extremely low rates of wear.
- Increased engine reliability.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Engine cycle | 2T |
2T
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Manufacturer Approved | FIA-CIK Homologation |
FIA-CIK Homologation
|
||
| Density at 20 °C | g/cm³ | 951 | EN ISO 12185 |
951
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 19 | DIN 51562-1 |
19
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 250 | DIN 51562-1 |
250
mm²/s
DIN 51562-1
|
| Approvals | FIA-CIK Homologation |
FIA-CIK Homologation
|
RAVENOL Professional Engine Cleaner
Additive
RAVENOL Professional Engine Cleaner can also be used in motorcycles.
- Available packaging
- Product parameters
Volume:
0.3 L
vendor code:
1390321-300
Code:
4014835862869
RAVENOL Professional Engine Cleaner can also be used in motorcycles.
RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.
RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.
Application Note
RAVENOL Professional Engine Cleaner is added to the warm motor oil.
Area of application:
-If black sludge is suspected
-In the event of hydraulic tappets rattling
-In the event of delayed oil change
-For soiled engines or used oil
-Preventively at every oil change to avoid contamination of the engine
-Also suitable for oldtimers
Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.
Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.
RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.
Characteristics
- Long-term effectiveness and clean fresh oil
- Remedy for soiled engines
- Protection against compression loss in the area of the piston rings
- Leads to better exhaust emissions and increases the performance of the engine
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Color | Light brown | visual |
Light brown
visual
|
|
| Flashpoint (PM) | °C | 62 | DIN ISO 3679 |
62
°C
DIN ISO 3679
|
| Density at 20 °C | 805 | EN ISO 12185 |
805
EN ISO 12185
|
|
| Viscosity at 40 °C | mm²/s | 7 | DIN EN ISO 3104 |
7
mm²/s
DIN EN ISO 3104
|
| Brand | RAVENOL |
RAVENOL
|
Transmission
RAVENOL Motobike 4-T Ester 10W-40
For motorcycles
With RAVENOL Motobike 4-T Ester SAE 10W-40 a solid and high loadable engine oil was developed. The excellent cold start behaviour provides an optimum lubrication safety during the cold run phase.
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1172112-001
Code:
4014835731110
Volume:
4 L
vendor code:
1172112-004
Code:
4014835731196
Volume:
20 L
vendor code:
1172112-020
Volume:
20 L, ecobox
vendor code:
1172112-B20
Code:
4014835783423
Volume:
60 L
vendor code:
1172112-060
Volume:
60 L, print
vendor code:
1172112-D60
Code:
4014835783430
Volume:
208 L
vendor code:
1172112-208
Volume:
208 L, print
vendor code:
1172112-D28
Volume:
1000 L
vendor code:
1172112-700
Volume:
10 L
vendor code:
1172112-010
Code:
4014835888579
With RAVENOL Motobike 4-T Ester SAE 10W-40 a solid and high loadable engine oil was developed. The excellent cold start behaviour provides an optimum lubrication safety during the cold run phase.
RAVENOL Motobike 4-T Ester SAE 10W-40 fulfils the high tech demands of the latest powerful engine generation.
Application instructions
RAVENOL Motobike 4-T Ester SAE 10W-40 is suitable as a high performance low friction engine oil for all motorbikes in case the specification SAE 10W-40 JASO MA/MA2 is requested.
Characteristics
- a quick lubrication of the engine
- a low evaporation tendency, therefore a lower oil consumption
- safety against sludge accumulation, cokings and corrosion even under unfavourable operating conditions
- guarantee of the function of the hydro tappets at all temperatures
- no oil limited deposits in combustion chambers, at the piston ring and valves
- unchanged viscosity during the whole oil change interval, a high viscosity index
- neutral against sealing materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Engine cycle | 4T |
4T
|
||
| Recommendations | Aprilia, BMW, Ducati, Honda, Kawasaki, Moto-Guzzi, Suzuki, Triumph, Yamaha |
Aprilia, BMW, Ducati, Honda, Kawasaki, Moto-Guzzi, Suzuki, Triumph, Yamaha
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 10W-40 |
10W-40
|
||
| Type | Synthetic |
Synthetic
|
||
| API | SN |
SN
|
||
| JASO | MA2 |
MA2
|
||
| JASO T904 DFI | 1.98 | JASO T904 |
1.98
JASO T904
|
|
| JASO T904 SFI | 1.69 | JASO T904 |
1.69
JASO T904
|
|
| JASO T904 STI | 1.94 | JASO T904 |
1.94
JASO T904
|
|
| Suitable for | Aprilia, BMW, Ducati, Honda, Kawasaki, Moto-Guzzi, Suzuki, Triumph, Yamaha |
Aprilia, BMW, Ducati, Honda, Kawasaki, Moto-Guzzi, Suzuki, Triumph, Yamaha
|
||
| Density at 20 °C | g/cm³ | 850 | EN ISO 12185 |
850
g/cm³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.16 | DIN 51562-1 |
14.16
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 94.73 | DIN 51562-1 |
94.73
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 154 | DIN ISO 2909 |
154
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 4.22 | ASTM D5481 |
4.22
mPa*s
ASTM D5481
|
| CCS Viscosity at -25 °C | mPa*s | 5900 | ASTM D5293 |
5900
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -30 °C | mPa*s | 21.300 | ASTM D4684 |
21.300
mPa*s
ASTM D4684
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Noack Volatility | % | 3.6 | ASTM D5800 |
3.6
%
ASTM D5800
|
| Flashpoint | °C | 254 | DIN EN ISO 2592 |
254
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.8 | ASTM D2896 |
7.8
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.85 | DIN 51575 |
0.85
%wt.
DIN 51575
|
For motorcycles
With RAVENOL Motobike 4-T Ester SAE 10W-30 a solid and high loadable engine oil was developed. The excellent cold start behaviour provides an optimum lubrication safety during the cold run phase.
SAE: 10W-30
API: SN
Equivalents OEM:
BRP 779464,
Honda 08C35A131L01,
Honda 08C35A131L02,
Honda 08C35A131M01,
Honda 08C35A131M02,
Honda 08C35SYN1030M,
Honda 08221888010MP,
Honda 08221888061HE,
Honda 08221888061MP,
Honda 08221888101HE,
Honda 08221888101MP,
Honda 08221888600HE,
Honda 08232M99K0BA1,
Honda 08232M99K1JHE,
Honda 08232M99K60HE,
Honda 08232M99S1LHE,
Honda 08232M99S4LHE,
Honda 08232M99S6LHE,
Honda 08232M99S60HE,
Honda 08232M99SL1HE,
Honda 08232M99SL2HE,
Honda 08232M99SL4HE,
Honda 082332MAK1LT3,
Honda 082332MAK1LT3F,
Honda 082332MAK6LT3,
Honda 082332MAK8LT1,
Honda 082332MAK8LT1F,
Honda 082332MBK6LT3,
Honda 082332MBK8LT1,
Honda 082332MBK8LT1F,
Honda 082332MBK9LT3
BRP 779464, Honda 08C35A131L01, Honda 08C35A131L02, Honda 08C35A131M01, Honda 08C35A131M02, Honda 08C35SYN1030M, Honda 08221888010MP, Honda 08221888061HE, Honda 08221888061MP, Honda 08221888101HE, Honda 08221888101MP, Honda 08221888600HE, Honda 08232M99K0BA1, Honda 08232M99K1JHE, Honda 08232M99K60HE, Honda 08232M99S1LHE, Honda 08232M99S4LHE, Honda 08232M99S6LHE, Honda 08232M99S60HE, Honda 08232M99SL1HE, Honda 08232M99SL2HE, Honda 08232M99SL4HE, Honda 082332MAK1LT3, Honda 082332MAK1LT3F, Honda 082332MAK6LT3, Honda 082332MAK8LT1, Honda 082332MAK8LT1F, Honda 082332MBK6LT3, Honda 082332MBK8LT1, Honda 082332MBK8LT1F, Honda 082332MBK9LT3, Honda 082332MBK9LT3F, Honda 082332MBK9LT3F, Honda 082342MBK8LT1, Honda 082342MBK8LT3, Honda 082342MBK8LT3F, Honda 0823499961, Honda 0823799951HA, Yamalube ACCY40103012, Yamalube LUB15W30FS12
- Available packaging
- Product parameters
With RAVENOL Motobike 4-T Ester SAE 10W-30 a solid and high loadable engine oil was developed. The excellent cold start behaviour provides an optimum lubrication safety during the cold run phase.
RAVENOL Motobike 4-T Ester SAE 10W-30 fulfils the high tech demands of the latest powerful engine generation.
Application instructions
RAVENOL Motobike 4-T Ester SAE 10W-30 is suitable as a high performance low friction engine oil for all motorbikes in case the specification SAE 10W-30 JASO MA/MA2 is requested.
Characteristics
- A quick lubrication of the engine
- A low evaporation tendency, therefore a lower oil consumption
- Safety against sludge accumulation, cokings and corrosion even under unfavourable operating conditions
- Guarantee of the function of the hydro tappets at all temperatures
- No oil limited deposits in combustion chambers, at the piston ring and valves
- Unchanged viscosity during the whole oil change interval, a high viscosity index
- Neutral against sealing materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Engine cycle | 4T |
4T
|
||
| Recommendations | Aprilia, BMW, Ducati, Honda, Kawasaki, Moto-Guzzi, Suzuki, Triumph, Yamaha |
Aprilia, BMW, Ducati, Honda, Kawasaki, Moto-Guzzi, Suzuki, Triumph, Yamaha
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 10W-30 |
10W-30
|
||
| Type | Synthetic |
Synthetic
|
||
| API | SN |
SN
|
||
| JASO | MA2 |
MA2
|
||
| Suitable for | Aprilia, BMW, Ducati, Honda, Kawasaki, Moto-Guzzi, Suzuki, Triumph, Yamaha |
Aprilia, BMW, Ducati, Honda, Kawasaki, Moto-Guzzi, Suzuki, Triumph, Yamaha
|
||
| Density at 20 °C | g/cm³ | 851 | EN ISO 12185 |
851
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 12 | DIN 51562-1 |
12
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 78.9 | DIN 51562-1 |
78.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 148 | DIN ISO 2909 |
148
DIN ISO 2909
|
|
| CCS Viscosity at -25 °C | mPa*s | 5660 | ASTM D5293 |
5660
mPa*s
ASTM D5293
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Noack Volatility | % | 3.3 | ASTM D5800 |
3.3
%
ASTM D5800
|
| Flashpoint | °C | 260 | DIN EN ISO 2592 |
260
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.9 | ASTM D2896 |
7.9
mgKOH/g
ASTM D2896
|
End fork
For motorsports
RAVENOL FORKOIL Medium 10W is especially characterised by a high and stable viscosity index as well as a solid corrosion protection. Efficient additives offer even under extreme loads an excellent corrosion protection. The behaviour against sealing materials is neutral.
- Available packaging
- Product parameters
Volume:
4 L
vendor code:
1182104-004
Volume:
20 L, ecobox
vendor code:
1182104-B20

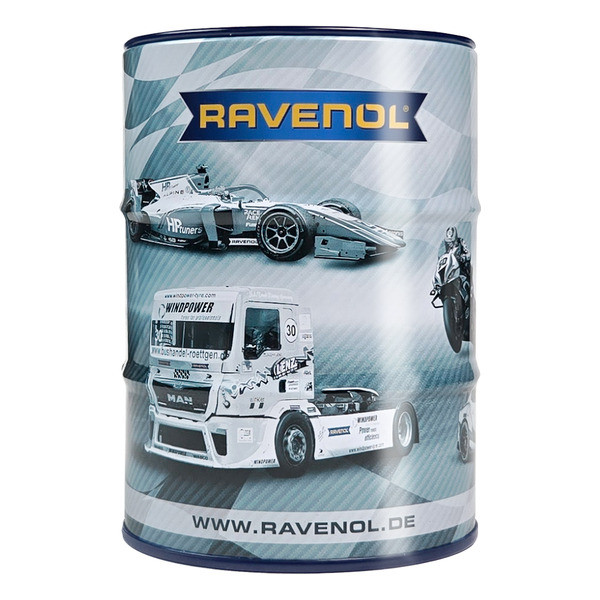

Volume:
60 L
vendor code:
1182104-060
Volume:
20 L
vendor code:
1182104-020
RAVENOL FORKOIL Medium 10W is especially characterised by a high and stable viscosity index as well as a solid corrosion protection. Efficient additives offer even under extreme loads an excellent corrosion protection. The behaviour against sealing materials is neutral.
Application instructions
RAVENOL FORKOIL Medium 10W was developed for the use in all chassis components of two-wheeler vehicles and offers good power characteristics. In order to obtain the optimum viscosity for the vehicle and operating condition the mineral fork oils are miscible among each other.
Characteristics
- good damping characteristics at all temperatures
- a high and stable viscosity index
- an excellent protection against corrosion, therefore a longer endurance of the fork components
- as far as possible protection against corrosion of the inside components
- a very good air and water separation behaviour to prevent foam formation
- neutral behaviour against sealings made of plastics
- a very low pour point
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Aprilia, BMW, Ducati, Honda, Kawasaki, Moto-Guzzi, Suzuki, Triumph, Yamaha |
Aprilia, BMW, Ducati, Honda, Kawasaki, Moto-Guzzi, Suzuki, Triumph, Yamaha
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 10W |
10W
|
||
| Type | Mineral |
Mineral
|
||
| Suitable for | Aprilia, BMW, Ducati, Honda, Kawasaki, Moto-Guzzi, Suzuki, Triumph, Yamaha |
Aprilia, BMW, Ducati, Honda, Kawasaki, Moto-Guzzi, Suzuki, Triumph, Yamaha
|
||
| Density at 20 °C | g/cm³ | 846 | EN ISO 12185 |
846
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 6.6 | DIN 51562-1 |
6.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 32.8 | DIN 51562-1 |
32.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 162 | DIN ISO 2909 |
162
DIN ISO 2909
|
|
| Flashpoint | °C | 228 | DIN EN ISO 2592 |
228
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 0.4 | ASTM D2896 |
0.4
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.06 | DIN 51575 |
0.06
%wt.
DIN 51575
|
Hydraulic brake system
RAVENOL DOT 4
For brake system
Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.
- Available packaging
- Product parameters
Volume:
250 ml
vendor code:
1350601-250
Code:
4014835692121
Volume:
500 ml
vendor code:
1350601-500
Code:
4014835692152
Volume:
1 L
vendor code:
1350601-001
Code:
4014835692114
Volume:
20 L
vendor code:
1350601-020
DOT 4
Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.
Application Note
RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.
RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.
RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).
FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.
STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.
Dispose of used brake fluid responsibly (EU waste code 160113).
Brake fluid damages paint work –if spilt wash off immediately with plenty of water.
Characteristics
- optimum ABS characteristics
- chemical stability
- best lubrication efficiency
- neutral behaviour regarding brake parts
- low viscosity at low temperatures
- miscible with all brake fluids of the same specifications
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| FMVSS 116 specifications (DOT) | DOT-4 |
DOT-4
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| specification | DOT 4, ISO 4925 Class 4, SAE J 1704 |
DOT 4, ISO 4925 Class 4, SAE J 1704
|
||
| Density at 20 °C | g/cm³ | 1052 | EN ISO 12185 |
1052
g/cm³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mPa*s | 2.41 | ASTM D445 |
2.41
mPa*s
ASTM D445
|
| Viscosity at -40 °C | cSt | 1340 | ASTM D445 |
1340
cSt
ASTM D445
|
| Boiling point | °C | 271 | FMVSS 116 |
271
°C
FMVSS 116
|
| Wet Equilibrium Reflux Boiling Point | °C | 169 | FMVSS 116 |
169
°C
FMVSS 116
|
| High Temperature Stability | °C | -1 | FMVSS 116 |
-1
°C
FMVSS 116
|
| Chemical Stability | °C | 1 | FMVSS 116 |
1
°C
FMVSS 116
|
| Evaporation | %w/w | 61 | FMVSS 116 |
61
%w/w
FMVSS 116
|
| Fluidity & Appearance at -40 °C | i.O., 4s | FMVSS 116 |
i.O., 4s
FMVSS 116
|
|
| Fluidity & Appearance at -50 °C | i.O., 8s | FMVSS 116 |
i.O., 8s
FMVSS 116
|
|
| Water Tolerance at -40 °C | transparent, 3s | FMVSS 116 |
transparent, 3s
FMVSS 116
|
|
| Water Tolerance at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at -40 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Water content | % | — 0.2 | DIN 51777-1 |
— 0.2
%
DIN 51777-1
|
| Tinned Iron | Δ mg/cm² | 0.04 | FMVSS 116 |
0.04
Δ mg/cm²
FMVSS 116
|
| Steel | mg/cm² | -0.01 | FMVSS 116 |
-0.01
mg/cm²
FMVSS 116
|
| Aluminium | mg/cm² | 0.02 | FMVSS 116 |
0.02
mg/cm²
FMVSS 116
|
| Cast Iron | Δ mg/cm² | -0,03 | FMVSS 116 |
-0,03
Δ mg/cm²
FMVSS 116
|
| Brass | mg/cm² | -0.08 | FMVSS 116 |
-0.08
mg/cm²
FMVSS 116
|
| Copper | mg/cm² | -0.05 | FMVSS 116 |
-0.05
mg/cm²
FMVSS 116
|
| Zinc | mg/cm² | 0.01 | FMVSS 116 |
0.01
mg/cm²
FMVSS 116
|
| Sediment | % | — 0.05 | FMVSS 116 |
— 0.05
%
FMVSS 116
|
| pH - value | 8.2 | FMVSS 116 |
8.2
FMVSS 116
|
|
| Rubber Diameter Change | 0.16 | FMVSS 116 |
0.16
FMVSS 116
|
|
| Hardness Change | °IRHD | -4 | FMVSS 116 |
-4
°IRHD
FMVSS 116
|
| Appearance | i.O. | FMVSS 116 |
i.O.
FMVSS 116
|
|
| SBR at 70 °C | mm | 0.56 | FMVSS 116 |
0.56
mm
FMVSS 116
|
| SBR at 120 °C | mm | 0.73 | FMVSS 116 |
0.73
mm
FMVSS 116
|
| EPDM at 70 °C (as required by SAE J1703) | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| EPDM at 120 °C | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| Natural at 70 °C (as required by ISO 4925) | mm | 0.38 | FMVSS 116 |
0.38
mm
FMVSS 116
|
| Approvals | DOT 4, ISO 4925 Class 4, SAE J 1704 |
DOT 4, ISO 4925 Class 4, SAE J 1704
|
Lubrication points oilers
For CV joint
RAVENOL Mehrzweckfett mit MoS2 is formulated with a highly refined base oil mixture which contains less than 3% polycyclic aromatics.
Equivalents OEM:
Alpine 0101061, Alpine 0101062, Alpine 0101063, Alpine 0101064, Alpine 0101065, Alpine 0101066, BMW 83230417754, FEBI 02582, FEBI 02597, FEBI 2582, FEBI 2597, Ford 1019761, Ford 1720193, Hyundai Motor 4959022B00A, MB A001989035112, Polaris 2871515, Polaris 2871551, Polaris 2871551, SWAG 99830001, VAG G052172A2, VAG G052723A2, Yamalube ACCMOLDMGS10
- Available packaging
- Product parameters
RAVENOL Mehrzweckfett mit MoS2 is formulated with a highly refined base oil mixture which contains less than 3% polycyclic aromatics.
The optimized formulation of RAVENOL Mehrzweckfett mit MoS2 has distinctive friction-reducing properties and so-called dry running properties.
Application instructions
RAVENOL Mehrzweckfett mit MoS2 has been designed for applications exposed to extreme pressure and shock loaded bearings with relatively slow sliding movements.
RAVENOL Mehrzweckfett mit MoS2 is recommended for friction and roller bearings of all types during aggravated operating conditions.
RAVENOL Mehrzweckfett mit MoS2 is also used for chassis lubricating.
Characteristics
- Extreme shear stability
- Excellent corrosion protection
- Very good mechanical and chemical stability
- Very good aging resistant
- Good pump output also at low temperatures
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| specification | DIN 51502 KPF2K-30, ISO 6743-9: ISO-L-XCCIB2 |
DIN 51502 KPF2K-30, ISO 6743-9: ISO-L-XCCIB2
|
||
| Color | Black gray | visual |
Black gray
visual
|
|
| Thickener | lithium soap | DIN 51757 |
lithium soap
DIN 51757
|
|
| Additives | molybdenum disulfide | DIN 51757 |
molybdenum disulfide
DIN 51757
|
|
| NLGI-Class | 2 | DIN 51818 |
2
DIN 51818
|
|
| Product Classification | KPF2K-30 | DIN 51502 |
KPF2K-30
DIN 51502
|
|
| Working Temperature | °C | 0 | DIN 51825 |
0
°C
DIN 51825
|
| Short term temperature up to | °C | 130 | DIN 51757 |
130
°C
DIN 51757
|
| Worked Penetration at 60 Strokes | 265-295 | ISO 2137 |
265-295
ISO 2137
|
|
| Corrosion (SKF Emcor dist. Water) | 1 | DIN 51802 |
1
DIN 51802
|
|
| Dropping Point | °C | 180 — | DIN ISO 2176 |
180 —
°C
DIN ISO 2176
|
| Copper Corrosion (24h/120 °C) | 1 | DIN 51811 |
1
DIN 51811
|
|
| Water Resistance (3h/90 °C) | °C | 1-90 | DIN 51807-1 |
1-90
°C
DIN 51807-1
|
| VKA Pressure Carrying Capacity | N | 2800 — 3000 | DIN 51350-4 |
2800 — 3000
N
DIN 51350-4
|
| Kinematic Viscosity (Base Oil) at 40 °C | mm²/s | 80 | DIN 51562-1 |
80
mm²/s
DIN 51562-1
|
| Approvals | DIN 51502 KPF2K-30, ISO 6743-9: ISO-L-XCCIB2 |
DIN 51502 KPF2K-30, ISO 6743-9: ISO-L-XCCIB2
|
For lubrication
RAVENOL Mehrzweckfett OML has an extreme mechanical stability and a very low friction value. Therefore it can be transported easily.
Equivalents OEM:
Alpine 0101001, Alpine 0101002, Alpine 0101003, Alpine 0101004, Alpine 0101005, Alpine 0101005
- Available packaging
- Product parameters
RAVENOL Mehrzweckfett OML has an extreme mechanical stability and a very low friction value. Therefore it can be transported easily.
Application Note
RAVENOL Mehrzweckfett OML is used for the lubrication of easy loaded antifriction bearings and machine components. It is also suited as multipurpose lubrication grease for vehicles.
Characteristics
- Universal use, multipurpose characteristic for a mixed car pool
- Extreme shear stability
- Excellent corrosion protection
- Excellent wear protection
- Very good mechanical and chemical stability
- Very good aging resistant
- Good pumpability, even at low temperatures
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| specification | DIN 51502 K2K-30, ISO 6743-9: ISO-L-XCCEA2 |
DIN 51502 K2K-30, ISO 6743-9: ISO-L-XCCEA2
|
||
| Color | Light brown | visual |
Light brown
visual
|
|
| Thickener | lithium soap | DIN 51757 |
lithium soap
DIN 51757
|
|
| NLGI-Class | 2 | DIN 51818 |
2
DIN 51818
|
|
| Product Classification | K2K-30 | DIN 51502 |
K2K-30
DIN 51502
|
|
| Working Temperature | °C | 0 | DIN 51825 |
0
°C
DIN 51825
|
| Short term temperature up to | °C | 130 | DIN 51757 |
130
°C
DIN 51757
|
| Worked Penetration at 60 Strokes | 265-295 | ISO 2137 |
265-295
ISO 2137
|
|
| Corrosion (SKF Emcor dist. Water) | 1 | DIN 51802 |
1
DIN 51802
|
|
| Dropping Point | °C | 180 — | DIN ISO 2176 |
180 —
°C
DIN ISO 2176
|
| Copper Corrosion (24h/120 °C) | 1 | DIN 51811 |
1
DIN 51811
|
|
| Water Resistance (3h/90 °C) | °C | 1-90 | DIN 51807-1 |
1-90
°C
DIN 51807-1
|
| VKA Pressure Carrying Capacity | N | 2000 — 2200 | DIN 51350-4 |
2000 — 2200
N
DIN 51350-4
|
| Kinematic Viscosity (Base Oil) at 40 °C | mm²/s | 130 | DIN 51562-1 |
130
mm²/s
DIN 51562-1
|
| Approvals | DIN 51502 K2K-30, ISO 6743-9: ISO-L-XCCEA2 |
DIN 51502 K2K-30, ISO 6743-9: ISO-L-XCCEA2
|
For lubrication
RAVENOL Mehrzweckfett mit Graphit is formulated with a highly refined base oil mixture which contains less than 3% polycyclic aromatics.Through the graphite at high temperatures a lubrication film on the metals is formed, and the graphite takes lubrication to achieve optimal results.
Equivalents OEM:
VAG G060735A2
- Available packaging
- Product parameters
RAVENOL Mehrzweckfett mit Graphit is formulated with a highly refined base oil mixture which contains less than 3% polycyclic aromatics.Through the graphite at high temperatures a lubrication film on the metals is formed, and the graphite takes lubrication to achieve optimal results.
The optimized formulation of RAVENOL Mehrzweckfett mit Graphit can also capture temperature peaks in the application.
Application instructions
RAVENOL Mehrzweckfett mit Graphit has been designed for applications exposed to high temperatures and shock loads.
RAVENOL Mehrzweckfett mit Graphit is used in oven conveyor belts, pistons in hydraulic pumps and all types of bearings that run at low speeds.
RAVENOL Mehrzweckfett mit Graphit is also used as a sealant in high temperature gaskets from steam pipes and other hot pipe connections.
Characteristics
- Extreme shear stability
- Excellent corrosion protection
- Very good mechanical and chemical stability
- Very good aging resistant
- Good pump output also at low temperatures
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| specification | DIN 51502 KPF2K-30, ISO I6743-9: ISO-L-XCCFB2 |
DIN 51502 KPF2K-30, ISO I6743-9: ISO-L-XCCFB2
|
||
| Color | Black gray | visual |
Black gray
visual
|
|
| Thickener | lithium soap | DIN 51757 |
lithium soap
DIN 51757
|
|
| Additives | graphite | DIN 51757 |
graphite
DIN 51757
|
|
| NLGI-Class | 2 | DIN 51818 |
2
DIN 51818
|
|
| Product Classification | KPF2K-30 | DIN 51502 |
KPF2K-30
DIN 51502
|
|
| Working Temperature | °C | 0 | DIN 51825 |
0
°C
DIN 51825
|
| Short term temperature up to | °C | 130 | DIN 51757 |
130
°C
DIN 51757
|
| Worked Penetration at 60 Strokes | 265-295 | ISO 2137 |
265-295
ISO 2137
|
|
| Corrosion (SKF Emcor dist. Water) | 1 | DIN 51802 |
1
DIN 51802
|
|
| Dropping Point | °C | 180 — | DIN ISO 2176 |
180 —
°C
DIN ISO 2176
|
| Copper Corrosion (24h/120 °C) | 1 | DIN 51811 |
1
DIN 51811
|
|
| Water Resistance (3h/90 °C) | °C | 1-90 | DIN 51807-1 |
1-90
°C
DIN 51807-1
|
| VKA Pressure Carrying Capacity | N | 2000 — 2200 | DIN 51350-4 |
2000 — 2200
N
DIN 51350-4
|
| Kinematic Viscosity (Base Oil) at 40 °C | mm²/s | 80 | DIN 51562-1 |
80
mm²/s
DIN 51562-1
|
| Approvals | DIN 51502 KPF2K-30, ISO I6743-9: ISO-L-XCCFB2 |
DIN 51502 KPF2K-30, ISO I6743-9: ISO-L-XCCFB2
|
