Getriebeoel UTTO

Application NoteRAVENOL Getriebeöl UTTO is a special developed universal oil for the lubrication and power transmission of combined hydraulic and transmission systems as it mostly requested for farming tractors and diggers.

Manufacturer Approved:
ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 17E, ZF TE-ML 21F

Compliance with the requirements:
Allison C-4, Case IH MS 1206, Case IH MS 1207, Caterpillar TO-2, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, Ford ESN-M2C 86-B, Ford ESN-M2C 86-C, Ford ESN-M2C 134-D, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, MAT 3505, MAT 3506, MAT 3525, New Holland 410B, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K

show details

API: GL-4

Equivalents OEM:
Alpine 0100803, Alpine 0100804, Alpine 0100805, Honda 0820899903HE, Volvo 11706212, Volvo 11998770, Volvo VOE11706212, Volvo VOE11998770, ZF 0671090535, ZF 0671090536, ZF 0671090537, ZF 0681200752, ZF 0681200752, ZF 0769126671

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1310700-005

Volume:
10 L

vendor code:
1310700-010

Code:
4014835740648

Volume:
20 L

vendor code:
1310700-020

Code:
4014835740624

Volume:
20 L, ecobox

vendor code:
1310700-B20

Volume:
60 L

vendor code:
1310700-060

Code:
4014835740662

Volume:
60 L, print

vendor code:
1310700-D60

Volume:
208 L

vendor code:
1310700-208

Code:
4014835740686

Volume:
1000 L

vendor code:
1310700-700

Application Note

RAVENOL Getriebeöl UTTO is a special developed universal oil for the lubrication and power transmission of combined hydraulic and transmission systems as it mostly requested for farming tractors and diggers.

RAVENOL Getriebeöl UTTO is suitable for wet brakes of load change couplings and minor drives.

Characteristics

a very high stable viscosity index
a very low pour point
a high oxidation stability
a very high pressure absorption capacity
protection against corrosion and foam formation as far as possible
a convenient coefficient of friction during running brakes in oil bath (wet brakes) of load changecouplings and minor drives

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		GL-4		GL-4
Manufacturer Approved		ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 17E, ZF TE-ML 21F		ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 17E, ZF TE-ML 21F
Recomendations		Allison C-4, Case IH MS 1206, Case IH MS 1207, Caterpillar TO-2, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, Ford ESN-M2C 86-C, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, MAT 3505, MAT 3506, MAT 3525, New Holland 410B, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K		Allison C-4, Case IH MS 1206, Case IH MS 1207, Caterpillar TO-2, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, Ford ESN-M2C 86-C, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, MAT 3505, MAT 3506, MAT 3525, New Holland 410B, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K
Density at 20 °C	kg/m³	856	EN ISO 12185	856 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	9.7	DIN 51562-1	9.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	57.6	DIN 51562-1	57.6 mm²/s DIN 51562-1
Viscosity Index VI		152	DIN ISO 2909	152 DIN ISO 2909
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	230	DIN EN ISO 2592	230 °C DIN EN ISO 2592
tbn	mgKOH/g	9.7	ASTM D2896	9.7 mgKOH/g ASTM D2896
Noack Volatility	% M/M	10.1	ASTM D5800	10.1 % M/M ASTM D5800
Approvals		Allison C-4, Case IH MS 1206, Case IH MS 1207, Caterpillar TO-2, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, Ford ESN-M2C 86-C, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, MAT 3505, MAT 3506, MAT 3525, New Holland 410B, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06K, ZF TE-ML 17E, ZF TE-ML 21F		Allison C-4, Case IH MS 1206, Case IH MS 1207, Caterpillar TO-2, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, Ford ESN-M2C 86-C, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, MAT 3505, MAT 3506, MAT 3525, New Holland 410B, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06K, ZF TE-ML 17E, ZF TE-ML 21F

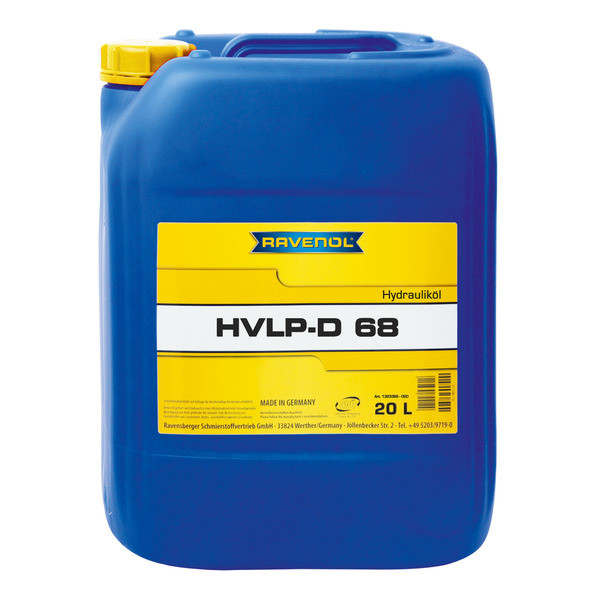

RAVENOL Hydraulikoel HVLP-D 68

RAVENOL Hydraulikoel HVLP-D 68 is designed with selected base oils with additives to prevent corrosion, wear and friction.

Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136

show details

SAE: 68

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1323366-020

Volume:
60 L

vendor code:
1323366-060

Volume:
208 L

vendor code:
1323366-208

RAVENOL Hydraulikoel HVLP-D 68 is designed with selected base oils with additives to prevent corrosion, wear and friction.

RAVENOL Hydraulikoel HVLP-D 68 is characterized by a good viscosity-temperature behavior, high aging resistance and reliable corrosion protection.

RAVENOL Hydraulikoel HVLP-D 68 also contains detergent and dispersing agents, which always provide for a clean hydraulic system.

These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.

Application Note

RAVENOL Hydraulikoel HVLP-D 68 is used in hydraulic systems which are exposed to very fluctuating operating temperatures, abrasion, dirt and water.

RAVENOL Hydraulikoel HVLP-D 68 is designed for heavily loaded hydraulic systems of agricultural, forestry and construction machinery and stationary hydraulic systems, e.g. Industrial equipment.

Characteristics

Reliable corrosion protection even when absorbing moisture
Good air and water separation capacity, prevention of foam formation
Excellent wear protection
Good oxidation stability
Excellent detergent and dispersing properties
Neutral behavior against sealing materials
Very low flow point

Parameter	Unit	Value	Audit
SAE		68		68
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		AFNOR 48-603 HV, Cetop RP 91H HV, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136		AFNOR 48-603 HV, Cetop RP 91H HV, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136
specification		DIN 51524-3		DIN 51524-3
Density at 20 °C	kg/m³	858	EN ISO 12185	858 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	11.6	DIN 51562-1	11.6 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	66.5	DIN 51562-1	66.5 mm²/s DIN 51562-1
Viscosity Index VI		171	DIN ISO 2909	171 DIN ISO 2909
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Flashpoint	°C	242	DIN EN ISO 2592	242 °C DIN EN ISO 2592
Approvals		AFNOR 48-603 HV, Cetop RP 91H HV, DIN 51524-3, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136		AFNOR 48-603 HV, Cetop RP 91H HV, DIN 51524-3, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136

UTTO Synthetic

Application NoteRAVENOL UTTO Synthetic is a special developed universal oil for the lubrication and power transmission of combined hydraulic and transmission systems as it mostly requested for farming tractors and diggers.

Manufacturer Approved:
ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 17E, ZF TE-ML 21F

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, CNH 410 B, CNH MAT 3506, CNH MAT 3525, CNH MS 1206, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, Ford ESN-M2C 86-B, Ford ESN-M2C 134-D, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K, ZF TE-ML 06R, ZF TE-ML 06S

show details

SAE: NONE

API: GL-4

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1310712-005

Volume:
10 L

vendor code:
1310712-010

Volume:
20 L

vendor code:
1310712-020

Volume:
20 L, ecobox

vendor code:
1310712-B20

Volume:
60 L

vendor code:
1310712-060

Volume:
208 L

vendor code:
1310712-208

Volume:
1000 L

vendor code:
1310712-700

Application Note

RAVENOL UTTO Synthetic is a special developed universal oil for the lubrication and power transmission of combined hydraulic and transmission systems as it mostly requested for farming tractors and diggers.

RAVENOL UTTO Synthetic is suitable for wet brakes of load change couplings and minor drives.

Characteristics

a very high stable viscosity index
a very low pour point
a high oxidation stability
a very high pressure absorption capacity
protection against corrosion and foam formation as far as possible
a convenient coefficient of friction during running brakes in oil bath (wet brakes) of load change couplings and minor drives
high shear stability

Parameter	Unit	Value	Audit
SAE		NONE		NONE
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
API		GL-4		GL-4
Manufacturer Approved		ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 17E, ZF TE-ML 21F		ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 17E, ZF TE-ML 21F
Recomendations		Allison C-4, Caterpillar TO-2, CNH 410 B, CNH MAT 3506, CNH MAT 3525, CNH MS 1206, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K, ZF TE-ML 06R, ZF TE-ML 06S		Allison C-4, Caterpillar TO-2, CNH 410 B, CNH MAT 3506, CNH MAT 3525, CNH MS 1206, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 06K, ZF TE-ML 06R, ZF TE-ML 06S
specification		DIN 51524-3		DIN 51524-3
Density at 20 °C	kg/m³	848	EN ISO 12185	848 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	12.4	DIN 51562-1	12.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	71	DIN 51562-1	71 mm²/s DIN 51562-1
Viscosity Index VI		175	DIN ISO 2909	175 DIN ISO 2909
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Approvals		Allison C-4, Caterpillar TO-2, CNH 410 B, CNH MAT 3506, CNH MAT 3525, CNH MS 1206, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06K, ZF TE-ML 06R, ZF TE-ML 06S, ZF TE-ML 17E, ZF TE-ML 21F		Allison C-4, Caterpillar TO-2, CNH 410 B, CNH MAT 3506, CNH MAT 3525, CNH MS 1206, CNH MS 1210, Deutz-Allis AC Power Fluid 821 XL, DIN 51524-3, Ford ESN-M2C 134-D, Ford ESN-M2C 86-B, John Deere J20 C, John Deere J21 A, Massey Ferguson CMS M1135, Massey Ferguson CMS M1141, Massey Ferguson CMS M1143, Massey Ferguson CMS M1145, Renault 180596, SDFG OT-1891A, Volvo WB 101, White Farm (AGCO) Q-1802, White Farm (AGCO) Q-182616, ZF TE-ML 03E, ZF TE-ML 05F, ZF TE-ML 06K, ZF TE-ML 06R, ZF TE-ML 06S, ZF TE-ML 17E, ZF TE-ML 21F

Hydraulikoel HVLP-D 46

RAVENOL Hydraulikoel HVLP-D 46 is designed with selected base oils with additives to prevent corrosion, wear and friction.

Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136

show details

SAE: 46

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1323365-020

Volume:
60 L

vendor code:
1323365-060

Volume:
208 L

vendor code:
1323365-208

Volume:
1000 L

vendor code:
1323365-700

RAVENOL Hydraulikoel HVLP-D 46 is designed with selected base oils with additives to prevent corrosion, wear and friction.

RAVENOL Hydraulikoel HVLP-D 46 is characterized by a good viscosity-temperature behavior, high aging resistance and reliable corrosion protection.

RAVENOL Hydraulikoel HVLP-D 46 also contains detergent and dispersing agents, which always provide for a clean hydraulic system.

These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.

Application Note

RAVENOL Hydraulikoel HVLP-D 46 is used in hydraulic systems which are exposed to very fluctuating operating temperatures, abrasion, dirt and water.

RAVENOL Hydraulikoel HVLP-D 46 is designed for heavily loaded hydraulic systems of agricultural, forestry and construction machinery and stationary hydraulic systems, e.g. Industrial equipment.

Characteristics

Reliable corrosion protection even when absorbing moisture
Good air and water separation capacity, prevention of foam formation
Excellent wear protection
Good oxidation stability
Excellent detergent and dispersing properties
Neutral behavior against sealing materials
Very low flow point

Parameter	Unit	Value	Audit
SAE		46		46
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		AFNOR 48-603 HV, Cetop RP 91H HV, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136		AFNOR 48-603 HV, Cetop RP 91H HV, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136
specification		DIN 51524-3		DIN 51524-3
Density at 20 °C	kg/m³	858	EN ISO 12185	858 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	8.5	DIN 51562-1	8.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	46.1	DIN 51562-1	46.1 mm²/s DIN 51562-1
Viscosity Index VI		163	DIN ISO 2909	163 DIN ISO 2909
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Flashpoint	°C	230	DIN EN ISO 2592	230 °C DIN EN ISO 2592
Approvals		AFNOR 48-603 HV, Cetop RP 91H HV, DIN 51524-3, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136		AFNOR 48-603 HV, Cetop RP 91H HV, DIN 51524-3, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743/4-HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 136

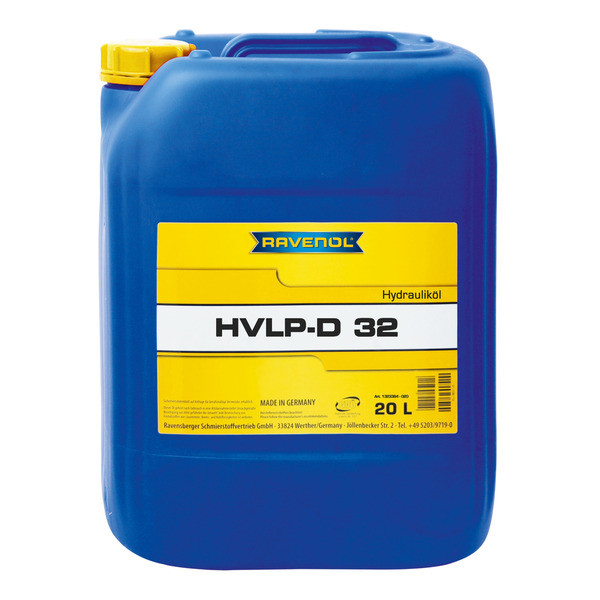

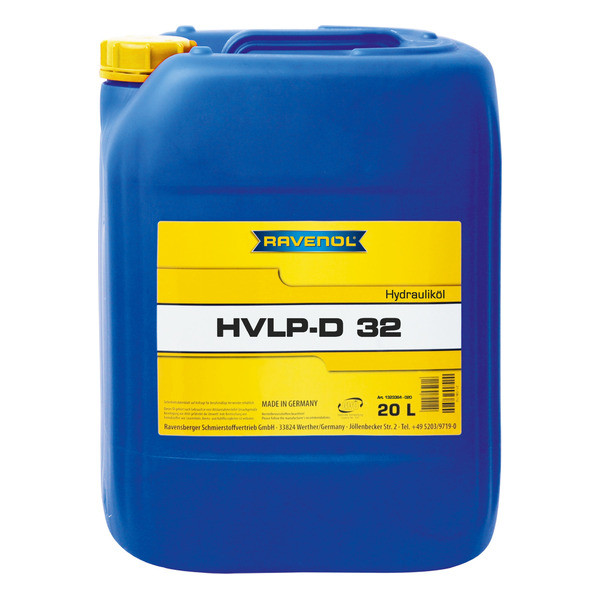

Hydraulikoel HVLP-D 32

RAVENOL Hydraulikoel HVLP-D 32 is designed with selected base oils with additives to prevent corrosion, wear and friction.

Compliance with the requirements:
AFNOR 48-603, AFNOR 48-690/1, Cetop RP 91H HV, ISO 6743-4, ISO 11158 HV

show details

SAE: 32W

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1323364-020

Volume:
60 L

vendor code:
1323364-060

Volume:
208 L

vendor code:
1323364-208

RAVENOL Hydraulikoel HVLP-D 32 is designed with selected base oils with additives to prevent corrosion, wear and friction.

RAVENOL Hydraulikoel HVLP-D 32 is characterized by a good viscosity-temperature behavior, high aging resistance and reliable corrosion protection.

RAVENOL Hydraulikoel HVLP-D 32 also contains detergent and dispersing agents, which always provide for a clean hydraulic system.

These additives dissolve contaminants, hold them in suspension and enabling the cleaning of contaminated hydraulic systems. The functional elements of a hydraulic system thereby remain free of deposits and bonds. This will emulsified penetrating water and ensure trouble-free operation of the hydraulic system.

Application Note

RAVENOL Hydraulikoel HVLP-D 32 is used in hydraulic systems which are exposed to very fluctuating operating temperatures, abrasion, dirt and water.

RAVENOL Hydraulikoel HVLP-D 32 is designed for heavily loaded hydraulic systems of agricultural, forestry and construction machinery and stationary hydraulic systems, e.g. Industrial equipment.

Characteristics

Reliable corrosion protection even when absorbing moisture
Good air and water separation capacity, prevention of foam formation
Excellent wear protection
Good oxidation stability
Excellent detergent and dispersing properties
Neutral behavior against sealing materials
Very low flow point

Parameter	Unit	Value	Audit
SAE		32W		32W
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		AFNOR 48-603, AFNOR 48-690/1, Cetop RP 91H HV, ISO 11158 HV, ISO 6743-4		AFNOR 48-603, AFNOR 48-690/1, Cetop RP 91H HV, ISO 11158 HV, ISO 6743-4
specification		DIN 51524-3		DIN 51524-3
Density at 20 °C	kg/m³	845.1	EN ISO 12185	845.1 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	6.6	DIN 51562-1	6.6 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	32.3	DIN 51562-1	32.3 mm²/s DIN 51562-1
Viscosity Index VI		165	DIN ISO 2909	165 DIN ISO 2909
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	218	DIN EN ISO 2592	218 °C DIN EN ISO 2592
Approvals		AFNOR 48-603, AFNOR 48-690/1, Cetop RP 91H HV, DIN 51524-3, ISO 11158 HV, ISO 6743-4		AFNOR 48-603, AFNOR 48-690/1, Cetop RP 91H HV, DIN 51524-3, ISO 11158 HV, ISO 6743-4

Hydraulikol TSX 100

Application NoteRAVENOL Hydraulikoel TSX 100 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136

show details

SAE: 100

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1323207-020

Volume:
20 L, ecobox

vendor code:
1323207-B20

Volume:
60 L

vendor code:
1323207-060

Volume:
208 L

vendor code:
1323207-208

Code:
4014835760486

Application Note

RAVENOL Hydraulikoel TSX 100 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Characteristics

A high and stable viscosity index
An excellent corrosion protection
An excellent protection against wear
A very good air and water separation behaviour to prevent foam formation
Neutral behaviour towards sealing of plastics
A very low pour point

Parameter	Unit	Value	Audit
SAE		100		100
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		AFNOR 48-603 HV, Cetop RP 91H HV, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136		AFNOR 48-603 HV, Cetop RP 91H HV, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136
specification		DIN 51524, DIN 51524-3, ISO 6743-4 HV		DIN 51524, DIN 51524-3, ISO 6743-4 HV
Density at 20 °C	kg/m³	871	EN ISO 12185	871 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	14.4	DIN 51562-1	14.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	99.9	DIN 51562-1	99.9 mm²/s DIN 51562-1
Viscosity Index VI		148	DIN ISO 2909	148 DIN ISO 2909
Pourpoint	°C	-30	DIN ISO 3016	-30 °C DIN ISO 3016
Flashpoint	°C	260	DIN EN ISO 2592	260 °C DIN EN ISO 2592
Approvals		AFNOR 48-603 HV, Cetop RP 91H HV, DIN 51524, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136		AFNOR 48-603 HV, Cetop RP 91H HV, DIN 51524, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136

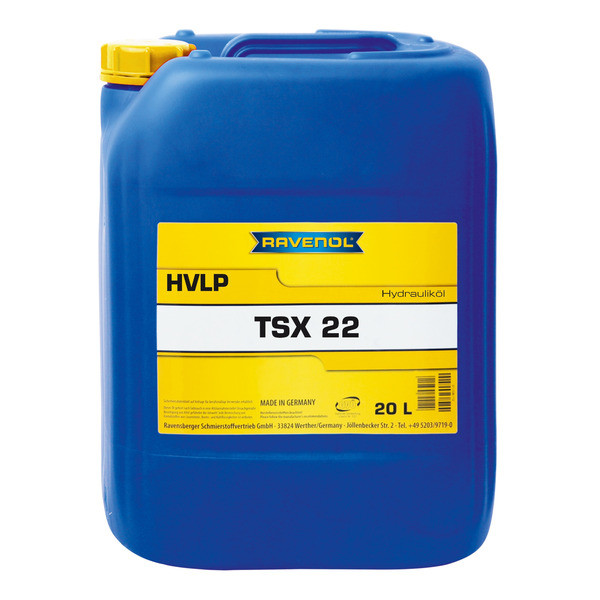

Hydraulikoel TSX 22 (HVLP)

Application NoteRAVENOL Hydraulikoel TSX 22 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump

show details

SAE: 22

Equivalents OEM:
GM 88865214, GM 88865214, Scania 2252146

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1323203-005

Volume:
20 L

vendor code:
1323203-020

Code:
4014835760028

Volume:
20 L, ecobox

vendor code:
1323203-B20

Volume:
60 L

vendor code:
1323203-060

Volume:
208 L

vendor code:
1323203-208

Code:
4014835760080

Volume:
1000 L

vendor code:
1323203-700

Application Note

RAVENOL Hydraulikoel TSX 22 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Characteristics

A high and stable viscosity index
An excellent corrosion protection
An excellent protection against wear
A very good air and water separation behaviour to prevent foam formation
Neutral behaviour towards sealing of plastics
A very low pour point

Parameter	Unit	Value	Audit
SAE		22		22
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
specification		DIN 51524-3, ISO 6743-4 HV		DIN 51524-3, ISO 6743-4 HV
Density at 20 °C	kg/m³	840	EN ISO 12185	840 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	5	DIN 51562-1	5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	22.5	DIN 51562-1	22.5 mm²/s DIN 51562-1
Viscosity Index VI		156	DIN ISO 2909	156 DIN ISO 2909
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	206	DIN EN ISO 2592	206 °C DIN EN ISO 2592
Approvals		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump

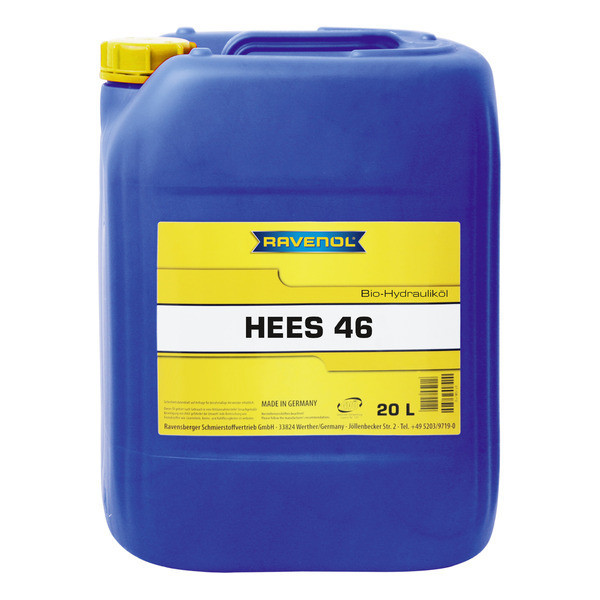

BIO-Hydraulikoel HEES 46

Compared with products of vegetable triglyceride base, RAVENOL BIO-Hydraulikoel HEES 46 has much better high temperature oxidation stability.

Compliance with the requirements:
JCMAS P042 HKB, Parker Denison HF-1, Parker Denison HF-2, Parker Denison HF-6, US Vessel General Permit (VGP), VDMA 24568, VDMA 24570

show details

SAE: 46

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1321105-020

Volume:
20 L, ecobox

vendor code:
1321105-B20

Volume:
60 L

vendor code:
1321105-060

Volume:
208 L

vendor code:
1321105-208

Volume:
1000 L

vendor code:
1321105-700

Compared with products of vegetable triglyceride base, RAVENOL BIO-Hydraulikoel HEES 46 has much better high temperature oxidation stability.

RAVENOL BIO-Hydraulikoel HEES 46 can be used year-round due to its outstanding low-temperature behaviour and provides excellent wear and corrosion protection.

Application Note

RAVENOL BIO-Hydraulikoel HEES 46 is used wherever there is the danger of hydraulic fluid leaking into the ground-or waste water. This includes all equipment operating in or near areas of water purification or water protection or near surface water, such as e.g. sewage treatment plants, dredging ships and floating dredges, lock hydraulics and river weirs, pipe and tunnel driving machines, hydraulic aggregates in forests and on fields, earth moving machines in water and forestry machines.

Characteristics

Biodegradability
Excellent corrosion protection
Outstanding cold behaviour
Excellent oxidation stability

Parameter	Unit	Value	Audit
SAE		46		46
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
Recomendations		JCMAS P042 HKB, Parker Denison HF-1, Parker Denison HF-2, Parker Denison HF-6, US Vessel General Permit (VGP), VDMA 24568, VDMA 24570		JCMAS P042 HKB, Parker Denison HF-1, Parker Denison HF-2, Parker Denison HF-6, US Vessel General Permit (VGP), VDMA 24568, VDMA 24570
specification		DIN 51524-1, DIN 51524-2, DIN 51524-3, Eaton Brochure 03-401-2010, ISO 15380 HEES (Dry ISO 4263-3)		DIN 51524-1, DIN 51524-2, DIN 51524-3, Eaton Brochure 03-401-2010, ISO 15380 HEES (Dry ISO 4263-3)
Density at 20 °C	kg/m³	917	EN ISO 12185	917 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	9.45	DIN 51562-1	9.45 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	46	DIN 51562-1	46 mm²/s DIN 51562-1
Viscosity Index VI		190	DIN ISO 2909	190 DIN ISO 2909
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	296	DIN EN ISO 2592	296 °C DIN EN ISO 2592
Seq. I at 24 °C	ml/ml	10/0	ASTM D892	10/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	5/0	ASTM D892	5/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	10/0	ASTM D892	10/0 ml/ml ASTM D892
Copper Strip Test at 121 °C		1a	ASTM D130	1a ASTM D130
Air release at 50 °C	max.	2	DIN ISO 9120	2 max. DIN ISO 9120
Approvals		DIN 51524-1, DIN 51524-2, DIN 51524-3, Eaton Brochure 03-401-2010, ISO 15380 HEES (Dry ISO 4263-3), JCMAS P042 HKB, Parker Denison HF-1, Parker Denison HF-2, Parker Denison HF-6, US Vessel General Permit (VGP), VDMA 24568, VDMA 24570		DIN 51524-1, DIN 51524-2, DIN 51524-3, Eaton Brochure 03-401-2010, ISO 15380 HEES (Dry ISO 4263-3), JCMAS P042 HKB, Parker Denison HF-1, Parker Denison HF-2, Parker Denison HF-6, US Vessel General Permit (VGP), VDMA 24568, VDMA 24570

Hydraulikol TSX 68

Application NoteRAVENOL Hydraulikoel TSX 68 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Manufacturer Approved:
LOVAT LOV-204

Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump

show details

SAE: 68

Equivalents OEM:
Volvo 11708322, Volvo 11708323, Volvo VOE11708322, Volvo VOE11708323, Volvo VOE11708323

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1323206-020

Code:
4014835760325

Volume:
20 L, ecobox

vendor code:
1323206-B20

Volume:
60 L

vendor code:
1323206-060

Volume:
208 L

vendor code:
1323206-208

Volume:
1000 L

vendor code:
1323206-700

Application Note

RAVENOL Hydraulikoel TSX 68 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Characteristics

A high and stable viscosity index
An excellent corrosion protection
An excellent protection against wear
A very good air and water separation behaviour to prevent foam formation
Neutral behaviour towards sealing of plastics
A very low pour point

Parameter	Unit	Value	Audit
SAE		68		68
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Manufacturer Approved		LOVAT LOV-204		LOVAT LOV-204
Recomendations		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
specification		DIN 51524, DIN 51524-3, ISO 6743-4 HV		DIN 51524, DIN 51524-3, ISO 6743-4 HV
Density at 20 °C	kg/m³	862	EN ISO 12185	862 kg/m³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.4	DIN 51562-1	11.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	68.5	DIN 51562-1	68.5 mm²/s DIN 51562-1
Viscosity Index VI		161	DIN ISO 2909	161 DIN ISO 2909
Pourpoint	°C	-35	DIN ISO 3016	-35 °C DIN ISO 3016
Flashpoint	°C	242	DIN EN ISO 2592	242 °C DIN EN ISO 2592
tbn	mgKOH/g	0.4	ASTM D2896	0.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.06	DIN 51575	0.06 %wt. DIN 51575
Approvals		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, LOVAT LOV-204, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, LOVAT LOV-204, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump

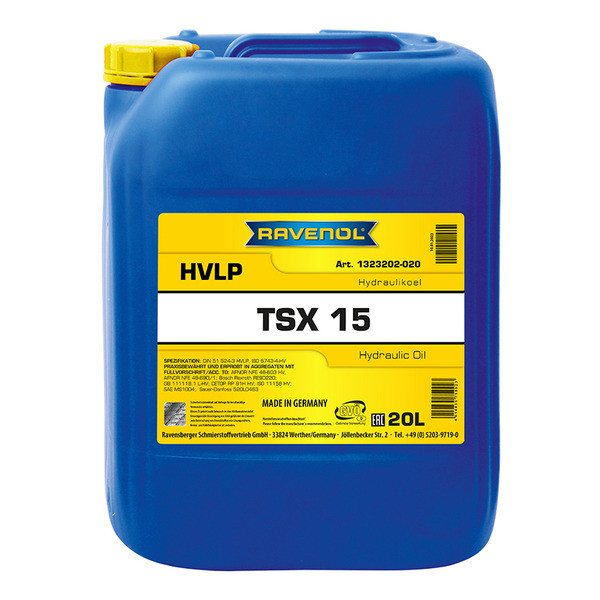

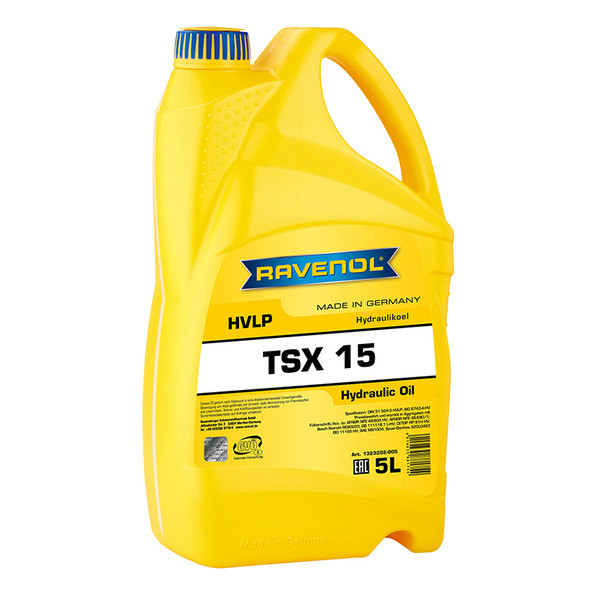

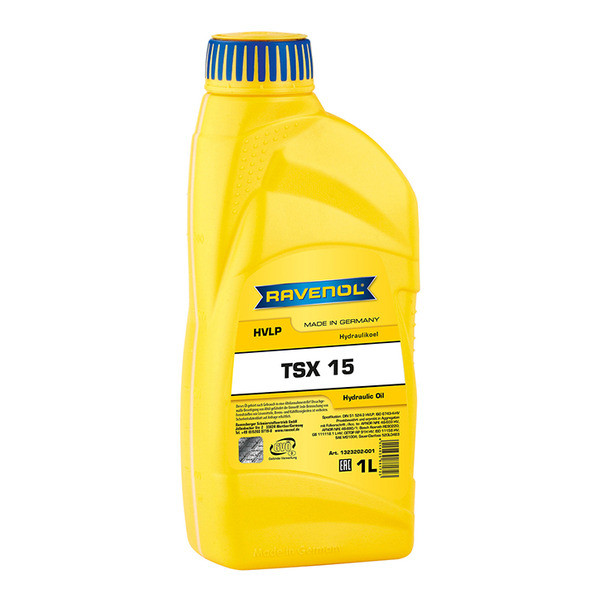

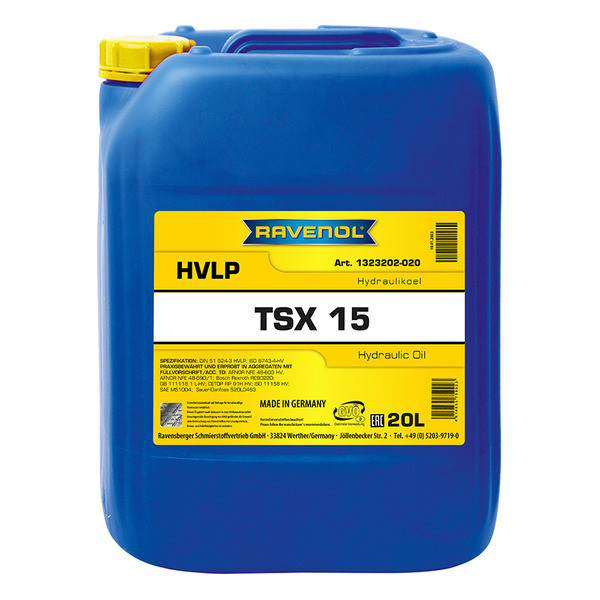

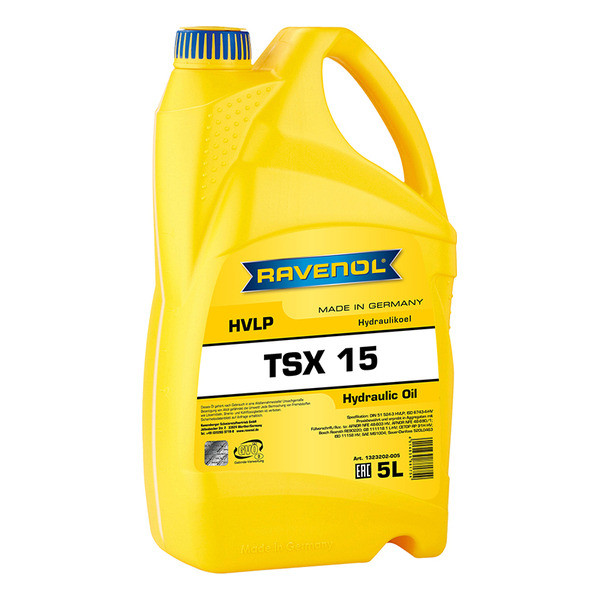

Hydraulikol TSX 15 (HVPL)

Application NoteRAVENOL Hydraulikoel TSX 15 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Compliance with the requirements:
AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS 1004, Sauer-Danfoss 520L0463

show details

SAE: 15

Equivalents OEM:
Scania 2252143

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
-

Volume:
20 L, ecobox

vendor code:
1323202-B20

Volume:
60 L

vendor code:
1323202-060

Code:
4014835759961

Volume:
208 L

vendor code:
1323202-208

Code:
4014835759985

Volume:
1000 L

vendor code:
1323202-700

Volume:
20 L

vendor code:
1323202-020

Volume:
1 L

vendor code:
1323202-001

Volume:
5 L

vendor code:
1323202-005

Application Note

RAVENOL Hydraulikoel TSX 15 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Characteristics

A high and stable viscosity index
An excellent corrosion protection
An excellent protection against wear
A very good air and water separation behaviour to prevent foam formation
Neutral behaviour towards sealing of plastics
A very low pour point

Parameter	Unit	Value	Audit
SAE		15		15
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS 1004, Sauer-Danfoss 520L0463		AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, GB 111118.1 L-HV, ISO 11158 HV, SAE MS 1004, Sauer-Danfoss 520L0463
specification		DIN 51524-3, ISO 6743-4 HV		DIN 51524-3, ISO 6743-4 HV
Density at 20 °C	kg/m³	839.2	EN ISO 12185	839.2 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	3.9	DIN 51562-1	3.9 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	15.1	DIN 51562-1	15.1 mm²/s DIN 51562-1
Viscosity Index VI		166	DIN ISO 2909	166 DIN ISO 2909
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Flashpoint	°C	180	DIN EN ISO 2592	180 °C DIN EN ISO 2592
Approvals		AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, SAE MS 1004, Sauer-Danfoss 520L0463		AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, SAE MS 1004, Sauer-Danfoss 520L0463

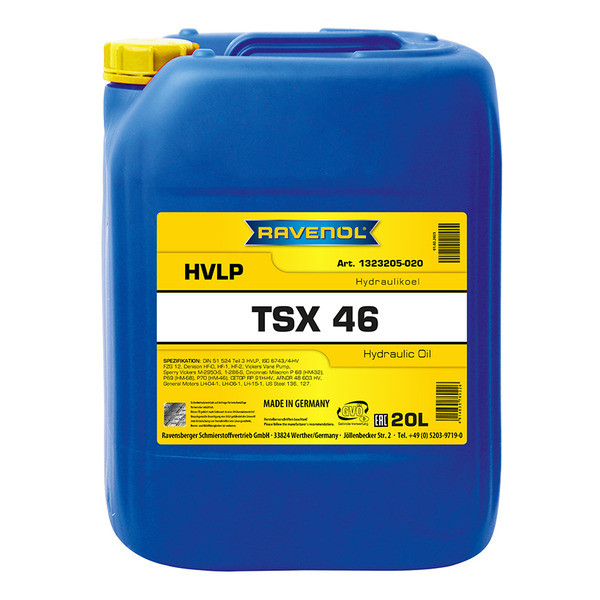

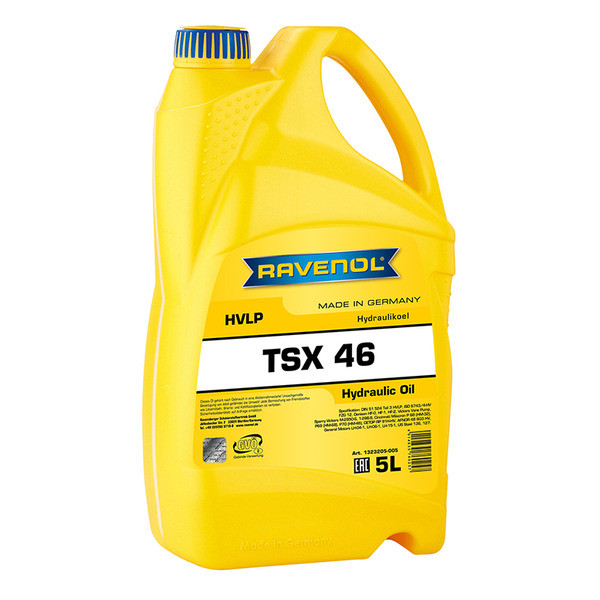

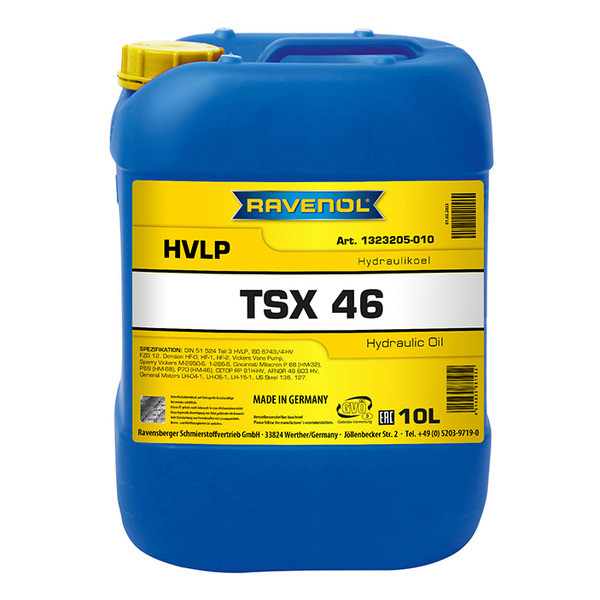

Hydraulikol TSX 46

Application NoteRAVENOL Hydraulikoel TSX 46 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Compliance with the requirements:
AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump

show details

SAE: 46

Equivalents OEM:
Alpine 0100831, Alpine 0100832, Alpine 0100832, Scania 2252141, Volvo 11706210, Volvo 11706211, Volvo 11713238, Volvo 15030482, Volvo 15030580, Volvo VOE11706210, Volvo VOE11706211, Volvo VOE11713238, Volvo VOE15030482, Volvo VOE15030580

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1323205-005

Volume:
20 L

vendor code:
1323205-020

Code:
4014835760226

Volume:
20 L, ecobox

vendor code:
1323205-B20

Volume:
60 L

vendor code:
1323205-060

Volume:
208 L

vendor code:
1323205-208

Code:
4014835760288

Volume:
208 L, print

vendor code:
1323205-D28

Volume:
1000 L

vendor code:
1323205-700

Volume:
10 L

vendor code:
1323205-010

Application Note

RAVENOL Hydraulikoel TSX 46 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Characteristics

A high and stable viscosity index
An excellent corrosion protection
An excellent protection against wear
A very good air and water separation behaviour to prevent foam formation
Neutral behaviour towards sealing of plastics
A very low pour point

Parameter	Unit	Value	Audit
SAE		46		46
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump
specification		DIN 51524-3, ISO 6743-4 HV		DIN 51524-3, ISO 6743-4 HV
Density at 20 °C	kg/m³	855	EN ISO 12185	855 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	7.9	DIN 51562-1	7.9 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	45	DIN 51562-1	45 mm²/s DIN 51562-1
Viscosity Index VI		148	DIN ISO 2909	148 DIN ISO 2909
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
Approvals		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump		AFNOR 48-603 HV, Cetop RP 91H HV, Cincinnati Milacron P-68, Cincinnati Milacron P-69, Cincinnati Milacron P-70, DIN 51524-3, FZG 12, GM LH-04-1, GM LH-06-1, GM LH-15-1, ISO 6743-4 HV, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sperry Vickers I-286-S, Sperry Vickers M-2950-S, U.S. Steel 127, U.S. Steel 136, Vickers Vane Pump

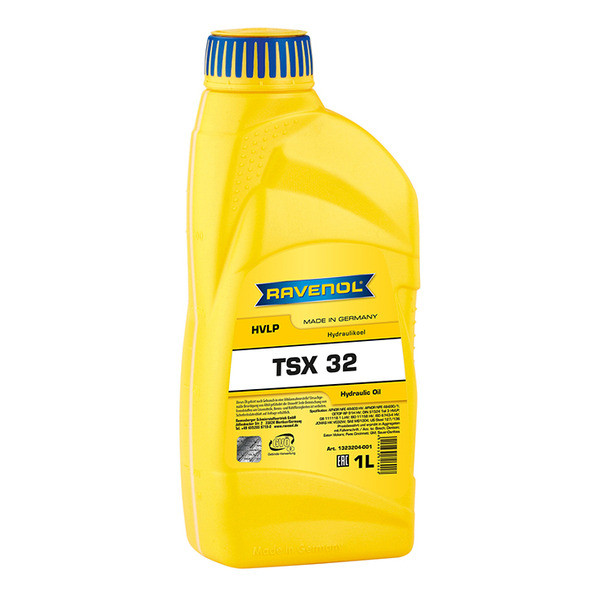

Hydraulikol TSX 32

Application NoteRAVENOL Hydraulikoel TSX 32 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Compliance with the requirements:
Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463

show details

SAE: 32W

Equivalents OEM:
Alpine 0100836, Alpine 0100837, Alpine 0100837, Scania 2252140, Volvo 11706208, Volvo 11706209, Volvo VOE11706208, Volvo VOE11706209

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1323204-005

Volume:
20 L

vendor code:
1323204-020

Code:
4014835760127

Volume:
20 L, ecobox

vendor code:
1323204-B20

Volume:
60 L

vendor code:
1323204-060

Code:
4014835760165

Volume:
208 L

vendor code:
1323204-208

Code:
4014835760189

Volume:
1000 L

vendor code:
1323204-700

Volume:
1 L

vendor code:
1323204-001

Application Note

RAVENOL Hydraulikoel TSX 32 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.

Characteristics

A high and stable viscosity index
An excellent corrosion protection
An excellent protection against wear
A very good air and water separation behaviour to prevent foam formation
Neutral behaviour towards sealing of plastics
A very low pour point

Parameter	Unit	Value	Audit
SAE		32W		32W
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463		Bosch Rexroth RE 90220, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GM LH-03-1-04, GM LS-2, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, Sauer-Danfoss 520L0463
specification		AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, SAE MS 1004, U.S. Steel 127, U.S. Steel 136		AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Cetop RP 91H HV, DIN 51524-3, GB 111118.1 L-HV, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, SAE MS 1004, U.S. Steel 127, U.S. Steel 136
Density at 20 °C	kg/m³	845	EN ISO 12185	845 kg/m³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	6.3	DIN 51562-1	6.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	32	DIN 51562-1	32 mm²/s DIN 51562-1
Viscosity Index VI		152	DIN ISO 2909	152 DIN ISO 2909
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Flashpoint	°C	227	DIN EN ISO 2592	227 °C DIN EN ISO 2592
tbn	mgKOH/g	0.4	ASTM D2896	0.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.06	DIN 51575	0.06 %wt. DIN 51575
Approvals		AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GB 111118.1 L-HV, GM LH-03-1-04, GM LS-2, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004, Sauer-Danfoss 520L0463, U.S. Steel 127, U.S. Steel 136		AFNOR NFE 48-603 HV, AFNOR NFE 48-690/1, Bosch Rexroth RE 90220, Cetop RP 91H HV, DIN 51524-3, Eaton Vickers I-286-S, Eaton Vickers M-2950-S, Fives Cincinnati P-68, GB 111118.1 L-HV, GM LH-03-1-04, GM LS-2, ISO 11158 HV, ISO 6743-4 HV, JCMAS HK VG32W, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004, Sauer-Danfoss 520L0463, U.S. Steel 127, U.S. Steel 136

Search results for query «DIN 51524-3»

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics

Application Note

Characteristics
