Oil for FAW - Bestune M9 - 2.0T 2WD Hybrid (CA4GC20TD-35)

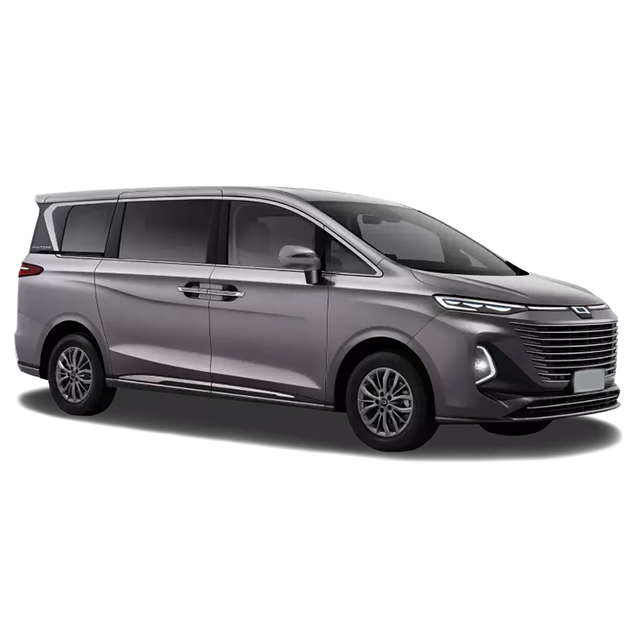

FAW Bestune M9 2.0T 2WD Hybrid (CA4GC20TD-35), year of issue from 2023 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Add to Garage

Nodes and assemblies

Engine CA4GC20TD-35
Transmission, automatic in a unit with final drive 6/1
Hydraulic brake system
Cooling system

Engine CA4GC20TD-35

Liquid volume (basic): 5 L

VollSynth Turbo VST 5W-40

For engine

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
BMW Longlife-01, MB-Approval 229.5, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296

show details

SAE: 5W-40

API: SN Plus, SP

ACEA: A3, B4

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111136-001

Code:
4014835790117

Volume:
4 L

vendor code:
1111136-004

Code:
4014835790193

Volume:
5 L

vendor code:
1111136-005

Code:
4014835790155

Volume:
10 L

vendor code:
1111136-010

Code:
4014835790148

Volume:
20 L, ecobox

vendor code:
1111136-B20

Code:
4014835790223

Volume:
60 L

vendor code:
1111136-060

Volume:
60 L, print

vendor code:
1111136-D60

Code:
4014835790131

Volume:
208 L

vendor code:
1111136-208

Volume:
208 L, print

vendor code:
1111136-D28

Code:
4014835798502

Volume:
1000 L

vendor code:
1111136-700

Volume:
20 L

vendor code:
1111136-020

Code:
4014835798526

RAVENOL VollSynth Turbo VST SAE 5W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL VollSynth Turbo VST SAE 5W-40 guarantees operational safety concerning all driving conditions as for example regarding extreme stop and go traffic as well as high speed drives on motorways.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL VollSynth Turbo VST SAE 5W-40 is suitable for the energy saving operation all the year of all modern cars with petrol and diesel engines in passenger cars, vans, small transporters and similar vehicles and was specially developed for turbo chargers as well as the catalytic operation.

Characteristics

High abrasion resistance.
Fuel saving because of easy running characteristics.
Excellent detergent and dispersant characteristics.
Prevention of black sludge creation.
Long endurance because of high oxidation stability.
Excellent cold start performance.
Very good viscosity temperature behaviour.
Low evaporation.
Suitable for catalysts.

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-12991 (MS-10896), Fiat 9.55535-Z2, MB 226.5, MB 229.3, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-12991 (MS-10896), Fiat 9.55535-Z2, MB 226.5, MB 229.3, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296
Brand		RAVENOL		RAVENOL
SAE		5W-40		5W-40
Type		Full synthetic		Full synthetic
API		SN Plus, SP		SN Plus, SP
ACEA		A3, B4		A3, B4
Manufacturer Approved		BMW Longlife-01, MB-Approval 229.5, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00		BMW Longlife-01, MB-Approval 229.5, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
Recomendations		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296
Density at 20 °C	g/cm³	848	EN ISO 12185	848 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	13.5	DIN 51562-1	13.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	79.4	DIN 51562-1	79.4 mm²/s DIN 51562-1
Viscosity Index VI		174	DIN ISO 2909	174 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.9	ASTM D5481	3.9 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4700	ASTM D5293	4700 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	13.900	ASTM D4684	13.900 mPa*s ASTM D4684
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Noack Volatility	%	7.3	ASTM D5800	7.3 % ASTM D5800
Flashpoint	°C	236	DIN EN ISO 2592	236 °C DIN EN ISO 2592
tbn	mgKOH/g	11.9	ASTM D2896	11.9 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.1	DIN 51575	1.1 %wt. DIN 51575
Approvals		BMW Longlife-01, Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, MB 229.5, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, MB 229.5, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

DXG 5W-30

For engine

For the development of RAVENOL DXG SAE 5W-30 the proven formulation of tri-nuclear molybdenum and OFM (Organic Friction Modifiers) was used. A highly polar Group V base oil was used in this formula, which has good compatibility with the PAO used.

Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034

Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30

show details

SAE: 5W-30

ILSAC: GF-7A

API: SQ (RC)

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111124-001

Code:
4014835732315

Volume:
4 L

vendor code:
1111124-004

Code:
4014835732391

Volume:
5 L (4+1)

vendor code:
1111124-A05

Code:
4014835851689

Volume:
5 L

vendor code:
1111124-005

Code:
4014835732353

Volume:
10 L

vendor code:
1111124-010

Code:
4014835732346

Volume:
20 L, ecobox

vendor code:
1111124-B20

Code:
4014835773820

Volume:
60 L, print

vendor code:
1111124-D60

Code:
4014835732339

Volume:
208 L

vendor code:
1111124-208

Code:
4014835732384

Volume:
208 L, print

vendor code:
1111124-D28

Volume:
20 L

vendor code:
1111124-020

Code:
4014835732322

Volume:
60 L

vendor code:
1111124-060

For the development of RAVENOL DXG SAE 5W-30 the proven formulation of tri-nuclear molybdenum and OFM (Organic Friction Modifiers) was used. A highly polar Group V base oil was used in this formula, which has good compatibility with the PAO used.

Due to the USVO®technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

With its new formulation, RAVENOL DXG SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL DXG SAE 5W-30 helps to protect the environment by reducing emissions.

RAVENOL DXG SAE 5W-30 helps to avoid low speed pre-ignition LSPI (Low Speed Pre-ignition). This can help avoid engine damage.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL DXG SAE 5W-30 is a high-performance low-friction engine oil for modern engines, and is recommended by OPEL/GENERAL MOTORS to the latest GM dexos 1 specification for modern GM gasoline-engined vehicles under all operating conditions.

RAVENOL DXG SAE 5W-30 is also suitable fort he shown specifications of Ford, Chrysler and Honda.

Characteristics

New formula with dexos1™ Gen 3 approval
Particularly suitable for GDI engines
Avoids low speed pre-ignition (LSPI)
No oil-related deposits in combustion chambers, in the piston ring zone and on valves
Fuel savings potential under both part and full load operation
Latest low SAPS technology = low Sulphated Ash, Phosphorus and Sulphur
A very stable viscosity behavior and an excellent shear stability
Very good cold starting properties
A safe lubricant film even at very high operating temperatures
Exceptional wear and corrosion protection
Excellent detergent and dispersant capabilities for cleaner engines, prevents foaming
Long service life through high oxidation stability
Suitable for catalyst-equipped vehicles

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Full synthetic		Full synthetic
API		SQ (RC)		SQ (RC)
ILSAC		GF-7A		GF-7A
Manufacturer Approved		GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034		GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034
Recomendations		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
Density at 20 °C	g/cm³	846	EN ISO 12185	846 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	11.1	DIN 51562-1	11.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	65.6	DIN 51562-1	65.6 mm²/s DIN 51562-1
Viscosity Index VI		163	DIN ISO 2909	163 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.25	ASTM D5481	3.25 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	3990	ASTM D5293	3990 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	11.800	ASTM D4684	11.800 mPa*s ASTM D4684
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Noack Volatility	%	6	ASTM D5800	6 % ASTM D5800
Flashpoint	°C	244	DIN EN ISO 2592	244 °C DIN EN ISO 2592
tbn	mgKOH/g	7.8	ASTM D2896	7.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.8	DIN 51575	0.8 %wt. DIN 51575
Approvals		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034

FDS 5W-30

For engine

Manufacturer Approved:
Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB-Approval 229.6, Renault RN 0700

Compliance with the requirements:
Fiat 9.55535-G1, Ford WSS-M2C 913-C, VWC 53036

show details

SAE: 5W-30

API: CF, SP

ACEA: A5, A7, B5, B7

Equivalents OEM:
Alpine 0100181, Alpine 0100182, Alpine 100181, Alpine 100182, Alpine 100189, Ford 14E8B9, Ford 14E8BA, Ford 14E9EC, Ford 14E9ED, Ford 15CF53, Ford 15CF54, Ford 15D5E4, Ford 15D5E7, Ford 15D5E9, Ford 151FF2, Ford 151FF2, Ford 151FF3, Ford 151FF5, Ford 155D3A, Ford 155D4A, Ford 155D4B, Ford 1515DA, Ford 15594D, Ford 15595E, Ford 15595F, Ford 1370044, GM 12345885, Hyundai Motor 0510000141, Hyundai Motor 0510000441, Land Rover STC50527, Mazda 053001TFE Alpine 0100181, Alpine 0100182, Alpine 100181, Alpine 100182, Alpine 100189, Ford 14E8B9, Ford 14E8BA, Ford 14E9EC, Ford 14E9ED, Ford 15CF53, Ford 15CF54, Ford 15D5E4, Ford 15D5E7, Ford 15D5E9, Ford 151FF2, Ford 151FF2, Ford 151FF3, Ford 151FF5, Ford 155D3A, Ford 155D4A, Ford 155D4B, Ford 1515DA, Ford 15594D, Ford 15595E, Ford 15595F, Ford 1370044, GM 12345885, Hyundai Motor 0510000141, Hyundai Motor 0510000441, Land Rover STC50527, Mazda 053001TFE, Mazda 053005TFE, Mazda 53005TFE, Mazda 830077279, Mazda 830077280, Mazda 830077991, Mazda 830077992, Mazda 8300771772, Nissan KE90099933, Nissan KE90099933R, Nissan KE90099933VA, Nissan KE90099943, Nissan KE90099943R, Pentosin 1082107, Pentosin 1082206, Pentosin 4008849132117, Pentosin 4008849152238, Renault 7711943682, Renault 7711943683, Renault 7711943684, Toyota 0888083944, Volvo 31316299, Volvo 31316300

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111139-001

Code:
4014835795617

Volume:
4 L

vendor code:
1111139-004

Code:
4014835795693

Volume:
5 L

vendor code:
1111139-005

Code:
4014835795655

Volume:
10 L

vendor code:
1111139-010

Code:
4014835795648

Volume:
20 L

vendor code:
1111139-020

Code:
4014835795624

Volume:
20 L, ecobox

vendor code:
1111139-B20

Code:
4014835797925

Volume:
60 L

vendor code:
1111139-060

Code:
4014835795662

Volume:
60 L, print

vendor code:
1111139-D60

Volume:
208 L

vendor code:
1111139-208

Code:
4014835795686

Volume:
208 L, print

vendor code:
1111139-D28

Volume:
1000 L

vendor code:
1111139-700

With its new formulation, RAVENOL FDS SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL FDS SAE 5W-30 helps to protect the environment by reducing emissions. It minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL FDS SAE 5W-30 ensures operational safety in all driving conditions such as in extreme stop-and-go traffic and high-speed motorway driving.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL FDS SAE 5W-30 is suitable as motor oil for fuel-efficient year-round use in modern petrol and diesel engines in passenger cars, station wagon's, vans and similar vehicles from FORD, RENAULT, Toyota, Hyundai, KIA, Mazda, Honda, Nissan und Mitsubishi, when the specifications ACEA A5/B5 are required.

Characteristics

Excellent cold starting properties even at low temperatures of below -30 ° C
A very stable and excellent viscosity characteristics, shear stability
Fuel efficiency under all operating conditions
Excellent detergency and dispersing properties
Neutrality towards sealing materials
Low evaporation loss, thereby lower oil consumption
An extensive protection against wear, corrosion and foaming
Catalyst suitability
Extended oil change intervals to protect natural resources

Parameter	Unit	Value	Audit
Recommendations		Fiat 9.55535-G1, Ford WSS-M2C913-C, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C913-C, VWC 53036
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Full synthetic		Full synthetic
API		CF, SP		CF, SP
ACEA		A5, A7, B5, B7		A5, A7, B5, B7
Manufacturer Approved		Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB-Approval 229.6, Renault RN 0700		Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB-Approval 229.6, Renault RN 0700
Recomendations		Fiat 9.55535-G1, Ford WSS-M2C 913-C, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C 913-C, VWC 53036
Density at 20 °C	g/cm³	843	EN ISO 12185	843 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	10.2	DIN 51562-1	10.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	58.35	DIN 51562-1	58.35 mm²/s DIN 51562-1
Viscosity Index VI		163	DIN ISO 2909	163 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3	ASTM D5481	3 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	3880	ASTM D5293	3880 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	10.400	ASTM D4684	10.400 mPa*s ASTM D4684
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Noack Volatility	%	8.9	ASTM D5800	8.9 % ASTM D5800
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	12.5	ASTM D2896	12.5 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.2	DIN 51575	1.2 %wt. DIN 51575
Approvals		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036

FO 5W-30

For engine

RAVENOL FO SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Compliance with the requirements:
Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700, VWC 53036

show details

SAE: 5W-30

API: CF, SL

ACEA: A5, B5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111115-001

Code:
4014835722613

Volume:
4 L

vendor code:
1111115-004

Code:
4014835722699

Volume:
5 L

vendor code:
1111115-005

Code:
4014835722651

Volume:
10 L

vendor code:
1111115-010

Code:
4014835722644

Volume:
20 L

vendor code:
1111115-020

Code:
4014835722620

Volume:
20 L, ecobox

vendor code:
1111115-B20

Code:
4014835772922

Volume:
60 L

vendor code:
1111115-060

Code:
4014835722668

Volume:
60 L, print

vendor code:
1111115-D60

Code:
4014835722637

Volume:
208 L

vendor code:
1111115-208

Code:
4014835722682

Volume:
208 L, print

vendor code:
1111115-D28

Code:
4014835722606

Volume:
1000 L

vendor code:
1111115-700

RAVENOL FO SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL FO SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL FO SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL FO SAE 5W-30 is suitable as motor oil for fuel-efficient year-round use in modern petrol and diesel engines in passenger cars, station wagon's, vans and similar vehicles from FORD, RENAULT, Toyota, Hyundai, KIA, Mazda, Honda, Nissan und Mitsubishi.

Characteristics

Fuel economy in part and full power operation.
Very stable and excellent viscosity behaviour.
Excellent shear stability.
Excellent cold starting characteristics.
A safe lubricant film at high operating temperatures.
High wear and corrosion protection, high oxidation stability.
Prevention of sludge formation.
Excellent detergent- and dispersant characteristics.
Catalyst cleaning.

Parameter	Unit	Value	Audit
Recommendations		Fiat 9.55535-G1, Ford WSS-M2C913-A, Ford WSS-M2C913-B, Ford WSS-M2C913-C, Ford WSS-M2C913-D, Jaguar Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C913-A, Ford WSS-M2C913-B, Ford WSS-M2C913-C, Ford WSS-M2C913-D, Jaguar Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CF, SL		CF, SL
ACEA		A5, B5		A5, B5
Recomendations		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700, VWC 53036
Density at 20 °C	g/cm³	849	EN ISO 12185	849 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	10	DIN 51562-1	10 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	56.6	DIN 51562-1	56.6 mm²/s DIN 51562-1
Viscosity Index VI		165	DIN ISO 2909	165 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.08	ASTM D5481	3.08 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4300	ASTM D5293	4300 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	14.000	ASTM D4684	14.000 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	%	9.4	ASTM D5800	9.4 % ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	10.9	ASTM D2896	10.9 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.3	DIN 51575	1.3 %wt. DIN 51575
Approvals		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036

HCS 5W-40

Engine oil

Application NoteRAVENOL HCS SAE 5W-40 is suitable for an energy saving all year use for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.

Manufacturer Approved:
MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296

show details

SAE: 5W-40

API: CF, SN

ACEA: A3, B4

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1112105-001

Code:
4014835723917

Volume:
4 L

vendor code:
1112105-004

Code:
4014835723993

Volume:
5 L

vendor code:
1112105-005

Code:
4014835723955

Volume:
10 L

vendor code:
1112105-010

Code:
4014835723948

Volume:
20 L, ecobox

vendor code:
1112105-B20

Code:
4014835774322

Volume:
60 L

vendor code:
1112105-060

Code:
4014835723962

Volume:
60 L, print

vendor code:
1112105-D60

Code:
4014835723931

Volume:
208 L

vendor code:
1112105-208

Code:
4014835723986

Volume:
208 L, print

vendor code:
1112105-D28

Code:
4014835723900

Volume:
1000 L

vendor code:
1112105-700

Volume:
20 L

vendor code:
1112105-020

Code:
4014835723924

Application Note

RAVENOL HCS SAE 5W-40 is suitable for an energy saving all year use for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.

Characteristics

High protection against wear
Fuel economy by low friction property
Excellent detergent- and dispersant property
Prevention of black sludge formation
Improved cleaner engine
Extended lifetime because of oxidation stability
Excellent cold starting characteristics
Excellent viscosity-temperature- characteristics
Low evaporation tendency
Catalyst cleaning

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, MB 226.5, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, MB 226.5, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296
Brand		RAVENOL		RAVENOL
SAE		5W-40		5W-40
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		A3, B4		A3, B4
Manufacturer Approved		MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00		MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
Recomendations		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296
Density at 20 °C	g/cm³	849	EN ISO 12185	849 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.4	DIN 51562-1	14.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	87.5	DIN 51562-1	87.5 mm²/s DIN 51562-1
Viscosity Index VI		171	DIN ISO 2909	171 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.9	ASTM D5481	3.9 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5370	ASTM D5293	5370 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	28.500	ASTM D4684	28.500 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	8.4	ASTM D5800	8.4 % ASTM D5800
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	10.4	ASTM D2896	10.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.26	DIN 51575	1.26 %wt. DIN 51575
Approvals		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

HDX 5W-30

For engine

With its new formulation, RAVENOL HDX SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking.

Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3

Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034

show details

SAE: 5W-30

ILSAC: GF-7A

API: SQ (RC)

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111125-001

Code:
4014835858541

Volume:
4 L

vendor code:
1111125-004

Code:
4014835858572

Volume:
5 L

vendor code:
1111125-005

Code:
4014835858602

Volume:
10 L

vendor code:
1111125-010

Code:
4014835858633

Volume:
20 L, ecobox

vendor code:
1111125-B20

Code:
4014835858657

Volume:
60 L

vendor code:
1111125-060

Code:
4014835858718

Volume:
60 L, print

vendor code:
1111125-D60

Volume:
208 L

vendor code:
1111125-208

Code:
4014835858756

Volume:
208 L, print

vendor code:
1111125-D28

Volume:
1000 L

vendor code:
1111125-700

Volume:
20 L

vendor code:
1111125-020

Code:
4014835858671

With its new formulation, RAVENOL HDX SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking.

RAVENOL HDX SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HDX SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL HDX SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL HDX SAE 5W-30 helps to avoid low speed pre-ignition LSPI (Low Speed Pre-ignition). This can help avoid engine damage.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HDX SAE 5W-30 is a high-performance low-friction engine oil for modern engines. It is recommended by OPEL/GENERAL MOTORS corresponding to dexos1 specification for modern car engines under all operating conditions.

RAVENOL HDX SAE 5W-30 is also suitable for the shown specifications of Ford, Chrysler and Fiat.

Characteristics

Fuel savings in partial and full load operation
Outstanding wear protection and high viscosity index ensure engine longevity, even under high-speed driving conditions
Excellent cold-start properties even at low temperatures below -25°C
A safe lubricating film at high operating temperatures
Low evaporation tendency, thus low oil consumption
No oil-based deposits in combustion chambers, in the piston ring zone and on valves
Neutrality towards sealing materials
Extended oil change intervals protect natural resources

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		SQ (RC)		SQ (RC)
ILSAC		GF-7A		GF-7A
Manufacturer Approved		GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3		GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
Recomendations		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
Density at 20 °C	g/cm³	844	EN ISO 12185	844 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	10.8	DIN 51562-1	10.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	59.8	DIN 51562-1	59.8 mm²/s DIN 51562-1
Viscosity Index VI		173	DIN ISO 2909	173 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.4	ASTM D5481	3.4 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	3630	ASTM D5293	3630 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	13.500	ASTM D4684	13.500 mPa*s ASTM D4684
Pourpoint	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Noack Volatility	%	8.1	ASTM D5800	8.1 % ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	7.8	ASTM D2896	7.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.86	DIN 51575	0.86 %wt. DIN 51575
Approvals		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

Available packaging
Full description
Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

Long-term effectiveness and clean fresh oil
Remedy for soiled engines
Protection against compression loss in the area of the piston rings
Leads to better exhaust emissions and increases the performance of the engine

Parameter	Unit	Value	Audit
Color		Light brown	visual	Light brown visual
Flashpoint (PM)	°C	62	DIN ISO 3679	62 °C DIN ISO 3679
Density at 20 °C		805	EN ISO 12185	805 EN ISO 12185
Viscosity at 40 °C	mm²/s	7	DIN EN ISO 3104	7 mm²/s DIN EN ISO 3104
Brand		RAVENOL		RAVENOL

Transmission, automatic in a unit with final drive 6/1

Liquid volume (basic): 6 L

ATF T-WS Lifetime

Hydraulic fluid

RAVENOL ATF T-WS Lifetime fulfils the transmission oil specifications for latest automatic transmissions of Toyota and Aisin Warner.

Compliance with the requirements:
Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1211106-001

Code:
4014835743311

Volume:
4 L

vendor code:
1211106-004

Code:
4014835743397

Volume:
10 L

vendor code:
1211106-010

Code:
4014835743342

Volume:
20 L

vendor code:
1211106-020

Code:
4014835743328

Volume:
20 L, ecobox

vendor code:
1211106-B20

Code:
4014835784925

Volume:
60 L

vendor code:
1211106-060

Volume:
60 L, print

vendor code:
1211106-D60

Code:
4014835743335

Volume:
208 L

vendor code:
1211106-208

Volume:
208 L, print

vendor code:
1211106-D28

Code:
4014835743304

RAVENOL ATF T-WS Lifetime fulfils the transmission oil specifications for latest automatic transmissions of Toyota and Aisin Warner.

Application Note

RAVENOL ATF T-WS Lifetime is recommended for latest automatic transmissions of Toyota and Aisin Warner. LEXUS / TOYOTA: AB60F, A750E(F), U341E(F), U140E(F), U250E, U241E, U151E(F), U340E. Aisin TF-80SC (AWF21, AF40-6, AM6, AW6A-EL), TF-81SC (AF21 and AWF-21) for Alfa Romeo 159 - 1.9 JTDm, 2.4 JTDm, 3.2 JTS Alfa Romeo Brera - 2.4 JTDm, 3.2 JTS Alfa Romeo Spider - 2.4 JTDm, 3.2 JTS Cadillac BLS - 1.9 D, 1.9 D (TST), Chevrolet Cruze (US market, 2.0L Turbo Diesel), Citroën C4, Citroën C5, Citroën C6, Citroën DS4, Citroën DS5, Fiat Croma - 1.9 JTDm, 2.4 JTDm, Ford Five Handred, Ford Fusion, Ford Mondeo, Lancia Delta (2008) - 1.8 DI Turbo, Land Rover Freelander 2, Land Rover, Range Rover Evoque, Lincoln Zephyr, Lincoln MKZ, Mazda 6, Mazda CX-7, Mazda CX-9, Mazda MPV, Mercury Milan, Mercury Montego, Opel/Vauxhall Astra, Opel / Vauxhall Vectra / Signum, Opel / Vauxhall Zafira, Opel / Vauxhall Insignia, Peugeot 307, Peugeot 308, Peugeot 407, Peugeot 508, Peugeot 607, Peugeot 3008, Peugeot 5008, Renault Espace, Renault Vel Satis, Saab 9-3 - 1.9 TiD, 1.9 TTiD, Volvo C30 D3 and D4, Volvo S40 D3 and D4, Volvo V50 D3 and D4, Volvo S60 2.4D, D5, D5 AWD, T6 AWD and R AWD 06-07, 08- Volvo V60 D3, D5, D5 AWD, T6 AWD, Volvo S80 2.5T, 3.2, T6 AWD, V8 AWD, D5 and D5 AWD, Volvo V70 2.5T, 3.2, T6 AWD, 2.4D, D5, D5 AWD and R AWD 06-07, 08- Volvo XC60, Volvo XC70, Volvo XC90 3.2 and V8 AWD, Aisin TF60SN, TF61SN and TF62SN, VW 09G, 09K, 09M for Volkswagen, Audi, Skoda.

Characteristics

phenomenal resistance of lubricant failure under hard operating conditions
a longer oil durability, extension of the durability of the transmission, offers longer changing intervals
phenomenal resistance of oil sludge and deposit accumulation
an excellent oxidation resistance and thermic stability
a superior corrosion protection, a much better foaming resistance for a smooth switching operation as well
as a lower corrosion of the bearings, sleeves and gear wheels
an excellent flow behaviour at low temperatures
a more constant switching operation performance, optimised friction characteristics
prevention of coupling grinding regarding modulation rotary conversion
a longer durability of oil and coupling, offers a smooth switching operation at low temperatures
an improved shear stability

Parameter	Unit	Value	Audit
Recommendations		Aisin TF-80SC (AWF21, AF 40-6, AM6, AW6A-EL), Aisin TF-80SD, Aisin TF-81SC (AF21 und AWF-21), Aisin TF-82SC, Aisin TG-81SC (AWF8F35, A881F und GA8F22AW), Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW 2 Gran Tourer F46, BMW 83222355599, BMW ATF 6, BMW X1 F48, BMW X2 F39, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Fiat 9.55550-AV2, Fuzhen FA840, Geely 6608136626 ATF-GS, GM 1940773, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Land Rover LR022460, Mini Cooper F54, Mini Countryman F60, SAAB 93165147, Toyota / Lexus JWS3324, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540 A2, VW/Audi Getriebe 0C8 (Touareg 2011-Q7 2010-), Xuanfu 6AT18, Xuanfu 6AT20, Xuanfu 6AT28		Aisin TF-80SC (AWF21, AF 40-6, AM6, AW6A-EL), Aisin TF-80SD, Aisin TF-81SC (AF21 und AWF-21), Aisin TF-82SC, Aisin TG-81SC (AWF8F35, A881F und GA8F22AW), Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW 2 Gran Tourer F46, BMW 83222355599, BMW ATF 6, BMW X1 F48, BMW X2 F39, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Fiat 9.55550-AV2, Fuzhen FA840, Geely 6608136626 ATF-GS, GM 1940773, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Land Rover LR022460, Mini Cooper F54, Mini Countryman F60, SAAB 93165147, Toyota / Lexus JWS3324, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540 A2, VW/Audi Getriebe 0C8 (Touareg 2011-Q7 2010-), Xuanfu 6AT18, Xuanfu 6AT20, Xuanfu 6AT28
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Recomendations		Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540		Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540
Suitable for		Aisin AF21, AWF-21, Aisin AWF21, AF 40-6, AM6, AW6A-EL, Aisin AWF8F35, A881F, GA8F22AW, BMW 2 Gran Tourer F46, BMW X1 F48, BMW X2 F39, Mini Cooper F54, Mini Countryman F60, VW Getriebe 0C8 (Touareg 2011-Q7 2010-)		Aisin AF21, AWF-21, Aisin AWF21, AF 40-6, AM6, AW6A-EL, Aisin AWF8F35, A881F, GA8F22AW, BMW 2 Gran Tourer F46, BMW X1 F48, BMW X2 F39, Mini Cooper F54, Mini Countryman F60, VW Getriebe 0C8 (Touareg 2011-Q7 2010-)
Compliant products		BMW 83222355599, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Geely 6608136626 ATF-GS, GM 1940773, Land Rover LR022460, SAAB 93165147, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540, Xuanfu 6AT18, Xuanfu AT20, Xuanfu AT28		BMW 83222355599, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Geely 6608136626 ATF-GS, GM 1940773, Land Rover LR022460, SAAB 93165147, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540, Xuanfu 6AT18, Xuanfu AT20, Xuanfu AT28
Density at 20 °C	g/cm³	838	EN ISO 12185	838 g/cm³ EN ISO 12185
Color		Red	visual	Red visual
Pourpoint	°C	-54	DIN ISO 3016	-54 °C DIN ISO 3016
Approvals		Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540		Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540

Hydraulic brake system

Liquid volume (basic): 0.8 L

DOT 4

For brake system

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

show details

Available packaging
Full description
Product parameters

Volume:
250 ml

vendor code:
1350601-250

Code:
4014835692121

Volume:
500 ml

vendor code:
1350601-500

Code:
4014835692152

Volume:
1 L

vendor code:
1350601-001

Code:
4014835692114

Volume:
20 L

vendor code:
1350601-020

DOT 4

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

Application Note

RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.

RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.

RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113).

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

optimum ABS characteristics
chemical stability
best lubrication efficiency
neutral behaviour regarding brake parts
low viscosity at low temperatures
miscible with all brake fluids of the same specifications

Parameter	Unit	Value	Audit
FMVSS 116 specifications (DOT)		DOT-4		DOT-4
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
specification		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704
Density at 20 °C	g/cm³	1052	EN ISO 12185	1052 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mPa*s	2.41	ASTM D445	2.41 mPa*s ASTM D445
Viscosity at -40 °C	cSt	1340	ASTM D445	1340 cSt ASTM D445
Boiling point	°C	271	FMVSS 116	271 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point	°C	169	FMVSS 116	169 °C FMVSS 116
High Temperature Stability	°C	-1	FMVSS 116	-1 °C FMVSS 116
Chemical Stability	°C	1	FMVSS 116	1 °C FMVSS 116
Evaporation	%w/w	61	FMVSS 116	61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C		i.O., 4s	FMVSS 116	i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C		i.O., 8s	FMVSS 116	i.O., 8s FMVSS 116
Water Tolerance at -40 °C		transparent, 3s	FMVSS 116	transparent, 3s FMVSS 116
Water Tolerance at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at -40 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Water content	%	— 0.2	DIN 51777-1	— 0.2 % DIN 51777-1
Tinned Iron	Δ mg/cm²	0.04	FMVSS 116	0.04 Δ mg/cm² FMVSS 116
Steel	mg/cm²	-0.01	FMVSS 116	-0.01 mg/cm² FMVSS 116
Aluminium	mg/cm²	0.02	FMVSS 116	0.02 mg/cm² FMVSS 116
Cast Iron	Δ mg/cm²	-0,03	FMVSS 116	-0,03 Δ mg/cm² FMVSS 116
Brass	mg/cm²	-0.08	FMVSS 116	-0.08 mg/cm² FMVSS 116
Copper	mg/cm²	-0.05	FMVSS 116	-0.05 mg/cm² FMVSS 116
Zinc	mg/cm²	0.01	FMVSS 116	0.01 mg/cm² FMVSS 116
Sediment	%	— 0.05	FMVSS 116	— 0.05 % FMVSS 116
pH - value		8.2	FMVSS 116	8.2 FMVSS 116
Rubber Diameter Change		0.16	FMVSS 116	0.16 FMVSS 116
Hardness Change	°IRHD	-4	FMVSS 116	-4 °IRHD FMVSS 116
Appearance		i.O.	FMVSS 116	i.O. FMVSS 116
SBR at 70 °C	mm	0.56	FMVSS 116	0.56 mm FMVSS 116
SBR at 120 °C	mm	0.73	FMVSS 116	0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703)	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
EPDM at 120 °C	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925)	mm	0.38	FMVSS 116	0.38 mm FMVSS 116
Approvals		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704

Cooling system

Liquid volume (basic): 8 L

OTC Organic Technology Coolant Premix -40°C

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

Compliance with the requirements:
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

show details

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410112-150

Code:
4014835755512

Volume:
5 L

vendor code:
1410112-005

Code:
4014835755550

Volume:
10 L

vendor code:
1410112-010

Volume:
20 L

vendor code:
1410112-020

Code:
4014835755529

Volume:
20 L, ecobox

vendor code:
1410112-B20

Code:
4014835855953

Volume:
60 L, plastic

vendor code:
1410112-060

Code:
4014835755567

Volume:
208 L

vendor code:
1410112-208

Code:
4014835755581

Volume:
1000 L

vendor code:
1410112-700

RAVENOL OTC Organic Techn. Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL OTC Organic Techn. Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL OTC Organic Techn. Coolant Premix -40°C to radiator to fill line.

RAVENOL OTC Organic Techn. Coolant Premix -40°C can also be used as a “ready for use” dilution in geothermal probes and geothermal collectors as recommended list of LAWA (Federal / State Working Group on Water in Germany). RAVENOL OTC Organic Techn. Coolant Concentrate is included in the list of recommendations of the LAWA for water management requirements for geothermal probes and geothermal collectors.

Characteristics

Excellent for light metal engines
Good reserve alkalinity
Premium corrosion additives for optimal rust protection for all metals and metal alloys used in coolsystems, including aluminium
Prevents sediments and foaming in the cooling system
Compatible with elastomers used in automotive radiators
Can be mixed with other coolant types

Parameter	Unit	Value	Audit
Recommendations		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, MB 326.3 (Premix), Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, MB 326.3 (Premix), Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
Brand		RAVENOL		RAVENOL
Recomendations		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
Suitable for		Jaguar Land Rover STJLR.651.5003, Porsche		Jaguar Land Rover STJLR.651.5003, Porsche
Compliant products		Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F		Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
Density at 20 °C	g/cm³	1070	EN ISO 12185	1070 g/cm³ EN ISO 12185
Color		Violet	visual	Violet visual
pH - value at 20 °C		7,5 - 8,5	ASTM D1287	7,5 - 8,5 ASTM D1287
Freezing point	°C	-40	ASTM D1177	-40 °C ASTM D1177
Approvals		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

OTC - Protect C12+ Concentrate

Coolant

Compliance with the requirements:
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

show details

Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410110-150

Code:
4014835755413

Volume:
5 L

vendor code:
1410110-005

Code:
4014835755451

Volume:
10 L

vendor code:
1410110-010

Volume:
20 L

vendor code:
1410110-020

Code:
4014835755420

Volume:
20 L, ecobox

vendor code:
1410110-B20

Code:
4014835855212

Volume:
60 L, plastic

vendor code:
-

Code:
4014835755437

Volume:
60 L

vendor code:
1410110-060

Code:
4014835755468

Volume:
60 L, print

vendor code:
1410110-D60

Volume:
1000 L

vendor code:
1410110-700

Volume:
208 L

vendor code:
1410110-208

Code:
4014835755482

RAVENOL OTC Organic Techn. Coolant Concentrate C12+ protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with highly effective frost and rust protection. Usable in cooling systems with all-aluminium engines. Mix according to chart. Follow manufacturer's recommendations.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

RAVENOL OTC Organic Techn. Coolant Concentrate C12+ can also be used in geothermal probes and geothermal collectors as recommended list of LAWA (Federal / State Working Group on Water in Germany).

MAN information for use:

Mixing prohibited with Type NF and Type N. Do not use silicone radiator hoses per MAN 334 Type 3 (blue) with coolants per MAN 324 Type SNF.

Table of mixing ratios
Antifreeze protection until	Parts Antifreeze	Parts Water
-20°C	35%	65%
-37°C	50%	50%
-50°C	60%	40%

Characteristics

Excellent for light metal engines
Good reserve alkalinity
Premium corrosion additives for optimal rust protection for all metals and metal alloys used in cool
systems, including aluminium
Prevents sediments and foaming in the cooling system
Compatible with elastomers used in automotive radiators
Can be mixed with other coolant types

Parameter	Unit	Value	Audit
Recommendations		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
Brand		RAVENOL		RAVENOL
Recomendations		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
Suitable for		Jaguar Land Rover STJLR.651.5003, Porsche		Jaguar Land Rover STJLR.651.5003, Porsche
Compliant products		Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F		Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
Density at 20 °C	g/cm³	1130	EN ISO 12185	1130 g/cm³ EN ISO 12185
Color		Violet	visual	Violet visual
Reserve alkalinity	mgKOH/g	5.5 —	ASTM D1120	5.5 — mgKOH/g ASTM D1120
Boiling point	°C	187	ASTM D1121	187 °C ASTM D1121
Water content	%	— 5	ASTM D1123	— 5 % ASTM D1123
Flashpoint	°C	110 —	DIN 51758	110 — °C DIN 51758
Freezing point (50 % solution)	°C	-37	ASTM D1177	-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %)		7,5 - 8,5	ASTM D1287	7,5 - 8,5 ASTM D1287
Approvals		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter	Value
Recommendations	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand	RAVENOL	RAVENOL
Recomendations	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272
Approvals	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272

Professional Radiator Cleaner

Additive

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

show details

Equivalents OEM:
Ford MP14300500AB

Available packaging
Full description
Product parameters

Volume:
0.25 L

vendor code:
1390302-250

Code:
4014835802667

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.

Application Note

RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.

Area of application:

Radiator repairs

In the event of reduced radiator performance

In the event of deposits in the cooling system

Changing coolant

For cleaning purposes after engine repairs due to oil in the cooling system

Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.

Fill in

RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.

RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.

Characteristics

Cleaning of the cooling and heating system
Protection of the new coolant against prior contamination
Elimination of sludge and corrosion residue

Parameter	Unit	Value	Audit
Color		Colorless	visual	Colorless visual
Density at 20 °C	g/cm³	1003	EN ISO 12185	1003 g/cm³ EN ISO 12185
pH - value at 20 °C		10,25	DIN 19268	10,25 DIN 19268
Brand		RAVENOL		RAVENOL
