Oil for Fiat - Ducato, 290 - Ducato 2.3 MultiJet 150 Euro 5

Fiat Ducato, 290 Ducato 2.3 MultiJet 150 Euro 5, year of issue from 2014 date to 2022 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Power: 130 hp / kW

Add to Garage

Nodes and assemblies

Engine F1AE3481D
Mechanical gearbox in a unit with final drive MLGU 6/1
Transmission, semi-automatic M38 6/1
Hydraulic actuation, gearbox
Power steering
Hydraulic brakes/clutch system
Lubrication points/fittings homokinetic connections, wheel side
Cooling system

Engine F1AE3481D

Liquid volume (basic): 5.9 L

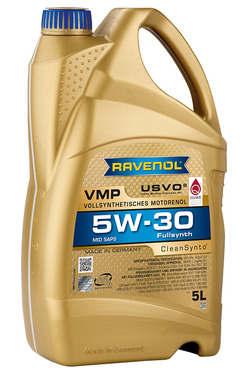

VMP 5W-30

For engine

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00

Compliance with the requirements:
Audi Motorsport V31 748 026, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195

show details

SAE: 5W-30

API: SN

ACEA: C3

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111122-001

Code:
4014835723313

Volume:
4 L

vendor code:
1111122-004

Code:
4014835723399

Volume:
5 L

vendor code:
1111122-005

Code:
4014835723351

Volume:
10 L

vendor code:
1111122-010

Code:
4014835723344

Volume:
20 L

vendor code:
1111122-020

Code:
4014835723320

Volume:
20 L, ecobox

vendor code:
1111122-B20

Code:
4014835773622

Volume:
60 L

vendor code:
1111122-060

Code:
4014835723368

Volume:
60 L, print

vendor code:
1111122-D60

Code:
4014835723337

Volume:
208 L

vendor code:
1111122-208

Code:
4014835723382

Volume:
208 L, print

vendor code:
-

Code:
4014835723306

Volume:
1000 L

vendor code:
1111122-700

RAVENOL VMP SAE 5W-30 is based on additives with reduced ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

RAVENOL VMP SAE 5W-30 achieved by its formulation with special base oils a high viscosity index. The excellent cold start behaviour ensures a optimal lubrication safety in the cold running phase.

Due to a significant fuel economy RAVENOL VMP SAE 5W-30 contributes by reduction of emissions to conservation the environment. Minimal wear extends the lifespan of the engine.

RAVENOL VMP SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL VMP SAE 5W-30 is a universal fuel economy, especially collected engine oil for modern gasoline and diesel engines with and without turbo charger in passenger cars and vans with extended oil change intervals. Extend the lifespan of the particle filter. Due to the specific composition is RAVENOL VMP SAE 5W-30 excellent suitable for use for several of the latest OEM requirements.

Characteristics

Fuel economy in part and full power operation
MID SAPS = reduced Sulphated ash, Phosphor and Sulfur
Excellent wear protection and high viscosity index also under high-speed driving conditions, the longlife of the engine
Excellent cold starting characteristics also at low temperatures
A safe lubricant film at high operating temperatures
Low evaporative tendency, so lower oil consumption
No deposits in combustion chambers, in the piston ring zone and valves because of oil conditioned
Neutrality towards sealing materials
Extended oil change intervals to protect natural resources

Parameter	Unit	Value	Audit
Recommendations		Audi Motorsport V31 748 026, BMW 83210398507, BMW/Mini 83 21 0 398 508, Chrysler MS-11106, Fiat 9.55535-S1, MB (A 000 989 89 01 10), MB 229.31, Stellantis FPW9.55535/03, VW/Audi G 052 195 M2, VW/Audi G 052 195 M4, VW/Audi G 052 195 M6		Audi Motorsport V31 748 026, BMW 83210398507, BMW/Mini 83 21 0 398 508, Chrysler MS-11106, Fiat 9.55535-S1, MB (A 000 989 89 01 10), MB 229.31, Stellantis FPW9.55535/03, VW/Audi G 052 195 M2, VW/Audi G 052 195 M4, VW/Audi G 052 195 M6
Application area		Audi Motorsport V31 748 026		Audi Motorsport V31 748 026
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Full synthetic		Full synthetic
API		SN		SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00		BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00
Recomendations		Audi Motorsport V31 748 026, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195		Audi Motorsport V31 748 026, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195
Compliant products		BMW 83210398507, BMW 83210398508, MB A 000 989 89 01 10, VW G 052 195		BMW 83210398507, BMW 83210398508, MB A 000 989 89 01 10, VW G 052 195
Density at 20 °C	g/cm³	849	EN ISO 12185	849 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.9	DIN 51562-1	11.9 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	66.3	DIN 51562-1	66.3 mm²/s DIN 51562-1
Viscosity Index VI		179	DIN ISO 2909	179 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.7	ASTM D5481	3.7 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4740	ASTM D5293	4740 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	12.000	ASTM D4684	12.000 mPa*s ASTM D4684
Pourpoint	°C	-60	DIN ISO 3016	-60 °C DIN ISO 3016
Noack Volatility	%	6.4	ASTM D5800	6.4 % ASTM D5800
Flashpoint	°C	238	DIN EN ISO 2592	238 °C DIN EN ISO 2592
tbn	mgKOH/g	8.8	ASTM D2896	8.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.7	DIN 51575	0.7 %wt. DIN 51575
Approvals		Audi Motorsport V31 748 026, BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, MB 229.51, Porsche C30, Stellantis FPW9.55535/03, VW 504.00, VW 507.00, VW G 052 195		Audi Motorsport V31 748 026, BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, MB 229.51, Porsche C30, Stellantis FPW9.55535/03, VW 504.00, VW 507.00, VW G 052 195

SMP 5W-30

Engine oil

RAVENOL SMP SAE 5W-30 is based on synthetic base oils and contains additives with reduced ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

Manufacturer Approved:
BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00

Compliance with the requirements:
Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195

show details

SAE: 5W-30

API: SN, SP

ACEA: C3

Equivalents OEM:
Alpine 0100271, Alpine 0100272, Alpine 0100273, Alpine 0100274, Alpine 0100275, Alpine 0100279, Alpine 100271, Alpine 100272, Alpine 100273, Alpine 100274, Alpine 100274, Alpine 100279, BMW 83212465851, FEBI 32945, FEBI 32946, FEBI 32947, FEBI 32948, FEBI 39337, MB A000989780110, MB A000989890110, MB A0009899301, SWAG 15932945, SWAG 15932946, SWAG 15932947, SWAG 15932948, SWAG 99939337

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111126-001

Code:
4014835856981

Volume:
4 L

vendor code:
1111126-004

Code:
4014835857018

Volume:
5 L

vendor code:
1111126-005

Code:
4014835857049

Volume:
10 L

vendor code:
1111126-010

Code:
4014835857070

Volume:
20 L

vendor code:
1111126-020

Code:
4014835857117

Volume:
20 L, ecobox

vendor code:
1111126-B20

Code:
4014835857094

Volume:
60 L

vendor code:
1111126-060

Code:
4014835857155

Volume:
60 L, print

vendor code:
1111126-D60

Code:
4014835857131

Volume:
208 L

vendor code:
1111126-208

Code:
4014835857193

Volume:
208 L, print

vendor code:
1111126-D28

Volume:
1000 L

vendor code:
1111126-700

RAVENOL SMP SAE 5W-30 is based on synthetic base oils and contains additives with reduced ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

RAVENOL SMP SAE 5W-30 achieved by its formulation with special base oils a high viscosity index. The excellent cold start behaviour ensures an optimal lubrication safety in the cold running phase.

Because of a considerable fuel saving RAVENOL SMP SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL SMP SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL SMP SAE 5W-30 is universal fuel economy, especially formulated engine oil for modern gasoline and diesel engines with and without turbo charger in passenger cars and vans with extended oil change intervals. Extend the lifespan of the particle filter.

Due to the specific composition is RAVENOL SMP SAE 5W-30 excellent suitable for use for several of the latest OEM requirements.

Characteristics

Fuel economy in part and full power operation
MID SAPS = reduced Sulphated ash, Phosphor and Sulfur
Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine
Excellent cold starting characteristics also at low temperatures
A safe lubricant film at high operating temperatures
Low evaporative tendency, so lower oil consumption
No deposits in combustion chambers, in the piston ring zone and valvesbecause of oil conditioned
Neutrality towards sealing materials
Extended oil change intervals to protect natural resources

Parameter	Unit	Value	Audit
Recommendations		BMW 83210398507, BMW/Mini 83 21 0 398 508, Chrysler MS-11106, Fiat 9.55535-S1, MB (A 000 989 89 01 10), MB 229.31, Stellantis FPW9.55535/03, VW/Audi G 052 195 M2, VW/Audi G 052 195 M4, VW/Audi G 052 195 M6		BMW 83210398507, BMW/Mini 83 21 0 398 508, Chrysler MS-11106, Fiat 9.55535-S1, MB (A 000 989 89 01 10), MB 229.31, Stellantis FPW9.55535/03, VW/Audi G 052 195 M2, VW/Audi G 052 195 M4, VW/Audi G 052 195 M6
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		SN, SP		SN, SP
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00		BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00
Recomendations		Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195		Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195
Compliant products		BMW 83210398507, BMW 83210398508, MB A 000 989 89 01 10, VW G 052 195		BMW 83210398507, BMW 83210398508, MB A 000 989 89 01 10, VW G 052 195
Density at 20 °C	g/cm³	846	EN ISO 12185	846 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	11.95	DIN 51562-1	11.95 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	70.4	DIN 51562-1	70.4 mm²/s DIN 51562-1
Viscosity Index VI		167	DIN ISO 2909	167 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.63	ASTM D5481	3.63 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5820	ASTM D5293	5820 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	20.900	ASTM D4684	20.900 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	9.8	ASTM D5800	9.8 % ASTM D5800
Flashpoint	°C	233	DIN EN ISO 2592	233 °C DIN EN ISO 2592
tbn	mgKOH/g	8.8	ASTM D2896	8.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.7	DIN 51575	0.7 %wt. DIN 51575
Approvals		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, MB 229.51, Porsche C30, Stellantis FPW9.55535/03, VW 504.00, VW 507.00, VW G 052 195		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, MB 229.51, Porsche C30, Stellantis FPW9.55535/03, VW 504.00, VW 507.00, VW G 052 195

HSW 0W-30

RAVENOL HSW SAE 0W-30 lengthens the service life of the diesel particulate filter by reducing the concentration of ash-forming particles in the exhaust gas. It reduces the emissions of gases which are harmful to the environment. It delivers a higher degree of security by providing lasting protection for engines.

Manufacturer Approved:
BMW Longlife-04, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00

show details

SAE: 0W-30

API: SN

ACEA: C3

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1112118-001

Code:
4014835889545

Volume:
4 L

vendor code:
1112118-004

Code:
4014835889576

Volume:
5 L

vendor code:
1112118-005

Code:
4014835889606

Volume:
10 L

vendor code:
1112118-010

Code:
4014835889637

Volume:
20 L

vendor code:
1112118-020

Code:
4014835889651

Volume:
20 L, ecobox

vendor code:
1112118-B20

Code:
4014835889729

Volume:
60 L

vendor code:
1112118-060

Code:
4014835889675

Volume:
208 L

vendor code:
1112118-208

Code:
4014835889699

Volume:
1000 L

vendor code:
1112118-700

RAVENOL HSW SAE 0W-30 lengthens the service life of the diesel particulate filter by reducing the concentration of ash-forming particles in the exhaust gas. It reduces the emissions of gases which are harmful to the environment. It delivers a higher degree of security by providing lasting protection for engines.

With its formulation, RAVENOL HSW SAE 0W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By reducing fuel consumption, RAVENOL HSW SAE 0W-30 helps to protect the environment by reducing emissions. It minimizes friction, wear and fuel consumption.

RAVENOL HSW SAE 0W-30 guarantees operational safety in all driving conditions, such as extreme stop-and-go traffic as well as high-speed highway driving.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL HSW SAE 0W-30 can be used in all vehicles with and without LongLife Service and is therefore suitable for extended oil change intervals and vehicles with and without DPF filters. The operating instructions of the vehicle and engine manufacturers must be observed.

Characteristics

Particularly low-friction characteristics and an outstanding range of benefits thanks to special additives.
Outstanding engine protection even after a cold start and in tougher conditions.
Guarantees rapid engine lubrication even at low temperatures of under -30°C and a sufficiently thick film of lubrication even at oil temperatures of >150°C during high-speed journeys.
Good protection against wear and tear and the high level of engine cleanliness while also consuming less fuel (fuel economy characteristic).
The hydraulic tappets are guaranteed to function at all temperatures due to adequate oil pressure.
Does not have an impact on sealants.
Safeguards the engine against sludge formation, coking, lacquering and corrosion even in unfavourable operating conditions.

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		0W-30		0W-30
Type		Synthetic		Synthetic
API		SN		SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00		BMW Longlife-04, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00
Density at 20 °C	g/cm³	836	EN ISO 12185	836 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	62.4	DIN 51562-1	62.4 mm²/s DIN 51562-1
Viscosity Index VI		197	DIN ISO 2909	197 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.7	ASTM D5481	3.7 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5890	ASTM D5293	5890 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	19.200	ASTM D4684	19.200 mPa*s ASTM D4684
Pourpoint	°C	-54	DIN ISO 3016	-54 °C DIN ISO 3016
Noack Volatility	%	10	ASTM D5800	10 % ASTM D5800
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	8.3	ASTM D2896	8.3 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.7	DIN 51575	0.7 %wt. DIN 51575
Approvals		BMW Longlife-04, MB 229.51, MB 229.52, Porsche C30, VW 504.00, VW 507.00		BMW Longlife-04, MB 229.51, MB 229.52, Porsche C30, VW 504.00, VW 507.00

FEL 5W-30

For engine

RAVENOL FEL SAE 5W-30 is based on additives with low ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. HTHS >2,9 mPa*s. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

Compliance with the requirements:
Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290

show details

SAE: 5W-30

API: CF, SN

ACEA: C2

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111123-001

Code:
4014835723412

Volume:
4 L

vendor code:
1111123-004

Code:
4014835723498

Volume:
10 L

vendor code:
1111123-010

Code:
4014835723443

Volume:
20 L

vendor code:
1111123-020

Code:
4014835723429

Volume:
20 L, ecobox

vendor code:
1111123-B20

Code:
4014835773721

Volume:
60 L

vendor code:
1111123-060

Volume:
60 L, print

vendor code:
1111123-D60

Code:
4014835723436

Volume:
208 L, print

vendor code:
1111123-D28

Code:
4014835723405

Volume:
1000 L

vendor code:
1111123-700

Volume:
5 L

vendor code:
1111123-005

Code:
4014835723450

Volume:
208 L

vendor code:
1111123-208

Code:
4014835723481

RAVENOL FEL SAE 5W-30 is based on additives with low ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. HTHS >2,9 mPa*s. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

RAVENOL FEL SAE 5W-30 achieved by its formulation with special base oils a high viscosity index. The excellent cold start behaviour ensures a optimal lubrication safety in the cold running phase.

Because of a considerable fuel saving RAVENOL FEL SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL FEL SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL FEL SAE 5W-30 is an universal fuel economy, especially collected engine oil for modern gasoline and diesel engines with and without turbo charger in passenger cars and vans with extended oil change intervals. Extend the lifespan of the particle filter. Due to the specific composition is RAVENOL FEL SAE 5W-30 excellent suitable for use for indicated OEM requirements.

Characteristics

Fuel economy in part and full power operation
Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine
Excellent cold starting characteristics also at low temperatures below -25°C
A safe lubricant film at high operating temperatures
Low evaporative tendency, so lower oil consumption
No deposits in combustion chambers, in the piston ring zone and valves because of oil conditioned
Neutrality towards sealing materials
Extended oil change intervals to protect natural resources

Parameter	Unit	Value	Audit
Recommendations		Fiat 9.55535-S1, Honda i-CTDi, Honda i-DTEC, IVECO 18-1811 CLASSE SC1, Mazda MZ-CD, Mazda 183418, Mazda 183419, Mazda CiTD, Mazda MZR-CD, PSA B71 2290, Subaru Boxer Diesel, Suzuki, Toyota 08880-83388, Toyota 08880-83389		Fiat 9.55535-S1, Honda i-CTDi, Honda i-DTEC, IVECO 18-1811 CLASSE SC1, Mazda MZ-CD, Mazda 183418, Mazda 183419, Mazda CiTD, Mazda MZR-CD, PSA B71 2290, Subaru Boxer Diesel, Suzuki, Toyota 08880-83388, Toyota 08880-83389
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		C2		C2
JASO		DL-1		DL-1
Recomendations		Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290		Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290
Suitable for		Honda i-CTDi, Honda i-DTEC, Mazda CiTD, Mazda MZ-CD, Mazda MZR-CD, Subaru Boxer Diesel, Suzuki		Honda i-CTDi, Honda i-DTEC, Mazda CiTD, Mazda MZ-CD, Mazda MZR-CD, Subaru Boxer Diesel, Suzuki
Compliant products		Mazda 183418, Mazda 183419, Toyota 08880-83388, Toyota 08880-83389		Mazda 183418, Mazda 183419, Toyota 08880-83388, Toyota 08880-83389
Density at 20 °C	g/cm³	850	EN ISO 12185	850 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	10.7	DIN 51562-1	10.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	61.4	DIN 51562-1	61.4 mm²/s DIN 51562-1
Viscosity Index VI		166	DIN ISO 2909	166 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.2	ASTM D5481	3.2 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4765	ASTM D5293	4765 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	16.100	ASTM D4684	16.100 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	9	ASTM D5800	9 % ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	7.7	ASTM D2896	7.7 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.53	DIN 51575	0.53 %wt. DIN 51575
Approvals		Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290		Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290

VSW 0W-30

For diesels

Manufacturer Approved:
BMW Longlife-04, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00

Compliance with the requirements:
Chrysler MS-11106

show details

SAE: 0W-30

API: SN

ACEA: C3

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111106-001

Code:
4014835842786

Volume:
4 L

vendor code:
1111106-004

Code:
4014835842816

Volume:
5 L

vendor code:
1111106-005

Code:
4014835842847

Volume:
10 L

vendor code:
1111106-010

Code:
4014835845107

Volume:
20 L

vendor code:
1111106-020

Code:
4014835845121

Volume:
20 L, ecobox

vendor code:
1111106-B20

Code:
4014835850996

Volume:
60 L

vendor code:
1111106-060

Volume:
208 L

vendor code:
1111106-208

Code:
4014835845169

RAVENOL VSW SAE 0W-30 lengthens the service life of the diesel particulate filter by reducing the concentration of ash-forming particles in the exhaust gas. It reduces the emissions of gases which are harmful to the environment. It delivers a higher degree of security by providing lasting protection for engines.

With its new formulation, RAVENOL VSW SAE 0W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL VSW SAE 0W-30 helps to protect the environment by reducing emissions.

RAVENOL VSW SAE 0W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL VSW SAE 0W-30 guarantees operational safety in all driving conditions, such as extreme stop-and-go traffic as well as high-speed highway driving.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL VSW SAE 0W-30 can be used in all VW vehicles with and without LongLife Service and is therefore suitable for extended oil change intervals and vehicles with and without DPF filters. The operating instructions of the vehicle and engine manufcturers must be observed.

Characteristics

Particularly low-friction characteristics and an outstanding range of benefits thanks to special additives.
Outstanding engine protection even after a cold start and in tougher conditions.
Guarantees rapid engine lubrication even at low temperatures of under -30°C and a sufficiently thick film of lubrication even at oil temperatures of >150°C during high-speed journeys.
Guarantees the best possible protection against wear and tear and the highest level of engine cleanliness while also consuming less fuel (fuel economy characteristic).
The hydraulic tappets are guaranteed to function at all temperatures due to adequate oil pressure.
Does not have an impact on sealants.
Safeguards the engine against sludge formation, coking, lacquering and corrosion even in unfavourable operating conditions.

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-11106		Chrysler MS-11106
Brand		RAVENOL		RAVENOL
SAE		0W-30		0W-30
Type		Full synthetic		Full synthetic
API		SN		SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00		BMW Longlife-04, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00
Recomendations		Chrysler MS-11106		Chrysler MS-11106
Density at 20 °C	g/cm³	846	EN ISO 12185	846 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	12	DIN 51562-1	12 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	60.8	DIN 51562-1	60.8 mm²/s DIN 51562-1
Viscosity Index VI		197	DIN ISO 2909	197 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.6	ASTM D5481	3.6 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5565	ASTM D5293	5565 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	14.800	ASTM D4684	14.800 mPa*s ASTM D4684
Pourpoint	°C	-60	DIN ISO 3016	-60 °C DIN ISO 3016
Noack Volatility	%	9	ASTM D5800	9 % ASTM D5800
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
tbn	mgKOH/g	7.6	ASTM D2896	7.6 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.63	DIN 51575	0.63 %wt. DIN 51575
Approvals		BMW Longlife-04, Chrysler MS-11106, MB 229.31, MB 229.51, MB 229.52, Porsche C30, VW 504.00, VW 507.00		BMW Longlife-04, Chrysler MS-11106, MB 229.31, MB 229.51, MB 229.52, Porsche C30, VW 504.00, VW 507.00

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

Available packaging
Full description
Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

Long-term effectiveness and clean fresh oil
Remedy for soiled engines
Protection against compression loss in the area of the piston rings
Leads to better exhaust emissions and increases the performance of the engine

Parameter	Unit	Value	Audit
Color		Light brown	visual	Light brown visual
Flashpoint (PM)	°C	62	DIN ISO 3679	62 °C DIN ISO 3679
Density at 20 °C		805	EN ISO 12185	805 EN ISO 12185
Viscosity at 40 °C	mm²/s	7	DIN EN ISO 3104	7 mm²/s DIN EN ISO 3104
Brand		RAVENOL		RAVENOL

Mechanical gearbox in a unit with final drive MLGU 6/1

Liquid volume (basic): 2.7 L

MTF-1 75W-85

For gearbox

RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513

show details

SAE: 75W-85

API: GL-4, GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221102-001

Code:
4014835719613

Volume:
4 L

vendor code:
1221102-004

Code:
4014835719699

Volume:
10 L

vendor code:
1221102-010

Code:
4014835719644

Volume:
20 L

vendor code:
1221102-020

Code:
4014835719620

Volume:
20 L, ecobox

vendor code:
1221102-B20

Code:
4014835788329

Volume:
60 L

vendor code:
1221102-060

Code:
4014835719668

Volume:
60 L, print

vendor code:
1221102-D60

Volume:
208 L

vendor code:
1221102-208

Code:
4014835719682

Volume:
208 L, print

vendor code:
1221102-D28

Volume:
1000 L

vendor code:
1221102-700

RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL MTF-1 SAE 75W-85 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.

Application Note

RAVENOL MTF-1 SAE 75W-85 is high-performance gear oil for manual transmission, transfer cases and differential gears.

Characteristics

Excellent thermal stability.
High protection from rust, corrosion, foaming.
Low solidification point.
Excellent EP properties.
Good shifting behavior in low temperatures.
Extended life.
Fuel savings.

Parameter	Unit	Value	Audit
Recommendations		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513
SAE		75W-85		75W-85
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
API		GL-4, GL-5		GL-4, GL-5
Recomendations		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
Compliant products		GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060		GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060
Density at 20 °C	g/cm³	855	EN ISO 12185	855 g/cm³ EN ISO 12185
Color		Red	visual	Red visual
Brookfield Viscosity at -40 °C	mPa*s	38.800	ASTM D2983	38.800 mPa*s ASTM D2983
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513

MTF-2 75W-80

For gearbox

RAVENOL MTF-2 SAE 75W-80 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538

show details

SAE: 75W-80

API: GL-4, MT-1

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221103-001

Code:
4014835719712

Volume:
4 L

vendor code:
1221103-004

Code:
4014835719798

Volume:
10 L

vendor code:
1221103-010

Code:
4014835719743

Volume:
20 L

vendor code:
1221103-020

Volume:
20 L, ecobox

vendor code:
1221103-B20

Code:
4014835788428

Volume:
60 L

vendor code:
1221103-060

Code:
4014835719767

Volume:
60 L, print

vendor code:
1221103-D60

Volume:
208 L

vendor code:
1221103-208

Volume:
208 L, print

vendor code:
1221103-D28

Volume:
1000 L

vendor code:
1221103-700

RAVENOL MTF-2 SAE 75W-80 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL MTF-2 SAE 75W-80 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.

Application Note

RAVENOL MTF-2 SAE 75W-80 is a full synthetic transmission oil for manual transmissions.

Characteristics

A high-pressure stable lubricating film even at high oil temperatures and under high stress.
Outstanding shearing stability and excellent thermal stability.
Excellent viscosity-temperature properties.
High oxidation stability.
Excellent wear protection, outstanding EP properties.
Low foaming property even at high speeds
Good shifting behaviour even in low temperatures, extremely low pour point.
Extended life.

Parameter	Unit	Value	Audit
Recommendations		AC Delco 10-403, Audi G052532, Audi G055532, BMW 23001434404 MTF-LT-1, BMW 23007533513 MTF-LT-2, BMW 83220309031 MTF-LT-1, Fiat 14621616, Fiat 9.55550-MZ2, Fiat F178.B06, Ford 1382914, Ford 1547953, Ford WSS-M2C200-C3, Ford WSS-M2C200-D2, GM 1940711, GM 88861800, GM 88861801, Honda 08261-99964 Genuine MTF Fluid, Honda 08798-9031 MTF-7289, Hyundai 02200-00130 TOD, Land Rover STC 9157, Land Rover STC 9158, Land Rover TYK500030, MB 235.10 (A 001 989 26 03), Mitsubishi 3005401, Mitsubishi MZ312644, MTF-94 Fluid für Land Rover, MG und Mini Cooper, Nissan 999MP-MTF20P, Nissan KE91699932R, Peugeot 9730A2, PSA B71 2330, Subaru K0321-F0090, Toyota 08885-00705, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, Volvo 1161681, Volvo 1161745, VW/Audi G 052 911 A2, VW/Audi G 055 538 A2 für ZF 6S450 Amarok 0C6		AC Delco 10-403, Audi G052532, Audi G055532, BMW 23001434404 MTF-LT-1, BMW 23007533513 MTF-LT-2, BMW 83220309031 MTF-LT-1, Fiat 14621616, Fiat 9.55550-MZ2, Fiat F178.B06, Ford 1382914, Ford 1547953, Ford WSS-M2C200-C3, Ford WSS-M2C200-D2, GM 1940711, GM 88861800, GM 88861801, Honda 08261-99964 Genuine MTF Fluid, Honda 08798-9031 MTF-7289, Hyundai 02200-00130 TOD, Land Rover STC 9157, Land Rover STC 9158, Land Rover TYK500030, MB 235.10 (A 001 989 26 03), Mitsubishi 3005401, Mitsubishi MZ312644, MTF-94 Fluid für Land Rover, MG und Mini Cooper, Nissan 999MP-MTF20P, Nissan KE91699932R, Peugeot 9730A2, PSA B71 2330, Subaru K0321-F0090, Toyota 08885-00705, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, Volvo 1161681, Volvo 1161745, VW/Audi G 052 911 A2, VW/Audi G 055 538 A2 für ZF 6S450 Amarok 0C6
SAE		75W-80		75W-80
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
API		GL-4, MT-1		GL-4, MT-1
Recomendations		BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538		BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538
Compliant products		AcDelco 10-403, Fiat 14621616, Ford 1382914, Ford 1547953, GM 1940711, GM 88861800, GM 88861801, Honda 08261-99964, Honda 08798-9031, Hyundai 02200-00130 TOD, Land Rover STC9157, Land Rover STC9158, Land Rover TYK500030, MB A 001 989 26 03, Mitsubishi 3005401, Mitsubishi MZ312644, Nissan 999MP-MTF20P, Nissan KE91699932R, PSA 9730.A2, Subaru K0321-F0090, Toyota 08885-00705, Volvo 1161681, Volvo 1161745, VW G 052 911, VW G 055 538		AcDelco 10-403, Fiat 14621616, Ford 1382914, Ford 1547953, GM 1940711, GM 88861800, GM 88861801, Honda 08261-99964, Honda 08798-9031, Hyundai 02200-00130 TOD, Land Rover STC9157, Land Rover STC9158, Land Rover TYK500030, MB A 001 989 26 03, Mitsubishi 3005401, Mitsubishi MZ312644, Nissan 999MP-MTF20P, Nissan KE91699932R, PSA 9730.A2, Subaru K0321-F0090, Toyota 08885-00705, Volvo 1161681, Volvo 1161745, VW G 052 911, VW G 055 538
Density at 20 °C	g/cm³	847.5	EN ISO 12185	847.5 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	9.1	DIN 51562-1	9.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	50.8	DIN 51562-1	50.8 mm²/s DIN 51562-1
Viscosity Index VI		163	DIN ISO 2909	163 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	21.900	ASTM D2983	21.900 mPa*s ASTM D2983
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	248	DIN EN ISO 2592	248 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538		BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538

SSG Spec Synt LKW Getriebeol 75W-80

For gearbox

RAVENOL SSG Spec Synt LKW Getriebeoel 75W-80 is designed based on synthetic base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Manufacturer Approved:
MAN 341 Type Z4, ZF TE-ML 01L, ZF TE-ML 02L, ZF TE-ML 16K

Compliance with the requirements:
DTFR 13D120 (MB 235.29), Eaton Extended drain, MAN 341 Type E3, MAN 341 Type VR, MAN 341 Type Z5, Voith Type C, Volvo 97305, Volvo 97307, ZF TE-ML 01E, ZF TE-ML 02E, ZF TE-ML 16P

show details

SAE: 75W-80

API: GL-4

Equivalents OEM:
Alpine 0101683, Alpine 0101684, Alpine 0101685, DAF 09052IT, DAF 09069EU, DAF 09069IT, DAF 09069RU, DAF 09225RU, DAF 09226BN, DAF 1659981, DAF 1659982, DAF 1659982G, DAF 1659988, DAF 1659988G, DAF 1659989, FEBI 170126, FEBI 170127, FEBI 170134, Hyundai Motor 0450000440, MAN 09110700672, Pentosin 1027107, Porsche 00004330300, Volvo 1161950, Volvo 85108170, Volvo 85108171, Volvo 85113903, Volvo 85113904, Volvo 85123561, Volvo 85123562, Volvo 85136277, Volvo 85136278 Alpine 0101683, Alpine 0101684, Alpine 0101685, DAF 09052IT, DAF 09069EU, DAF 09069IT, DAF 09069RU, DAF 09225RU, DAF 09226BN, DAF 1659981, DAF 1659982, DAF 1659982G, DAF 1659988, DAF 1659988G, DAF 1659989, FEBI 170126, FEBI 170127, FEBI 170134, Hyundai Motor 0450000440, MAN 09110700672, Pentosin 1027107, Porsche 00004330300, Volvo 1161950, Volvo 85108170, Volvo 85108171, Volvo 85113903, Volvo 85113904, Volvo 85123561, Volvo 85123562, Volvo 85136277, Volvo 85136278, Volvo MVBVISHIFT75W80JUG, Volvo VPO120548, Volvo VPO120548, Volvo VPO120549, ZF 0671090383, ZF 0671090384, ZF 0671090385, ZF 0671090386, ZF 671090383, ZF 671090384, ZF 671090385, ZF 671090386, ZF S0671090383, ZF S0671090384, ZF S0671090385, ZF S0671090386, ZF S671090385

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221100-001

Volume:
4 L

vendor code:
1221100-004

Volume:
10 L

vendor code:
1221100-010

Code:
4014835733848

Volume:
20 L

vendor code:
1221100-020

Code:
4014835733824

Volume:
20 L, ecobox

vendor code:
1221100-B20

Code:
4014835788121

Volume:
60 L

vendor code:
1221100-060

Code:
4014835733862

Volume:
60 L, print

vendor code:
1221100-D60

Volume:
208 L

vendor code:
1221100-208

Code:
4014835733886

Volume:
208 L, print

vendor code:
1221100-D28

Code:
4014835733800

Volume:
1000 L

vendor code:
1221100-700

RAVENOL SSG Spec Synt LKW Getriebeoel 75W-80 is designed based on synthetic base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL SSG Spec Synt LKW Getriebeoel 75W-80 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.

Application Note

RAVENOL SSG Spec Synt LKW Getriebeoel 75W-80 is a heavy duty transmission oil to care for synchronised manual transmissions in commercial vehicles with intarder or retarder. Shift comfort isnoticeably increased. Extreme oil change intervals according as specified by the manufacturer at up to 500,000 km reduce maintenance costs and increase cost-effectiveness.

Characteristics

Excellent thermal stability
High protection from rust, corrosion, foaming
Low solidification point
Excellent EP properties
Good shifting behaviour in low temperatures
Extended life
Fuel savings

Parameter	Unit	Value	Audit
Recommendations		DAF/VOLVO 97305, DAF/VOLVO 97307, DTFR 13D120 (MB 235.29), Eaton (Extended drain), IVECO, MAN 341 E3, MAN 341 VR, MAN 341 Z5, Renault, Voith Typ C, VOLVO 97317, ZF TE-ML 01E, ZF TE-ML 02E, ZF TE-ML 16P		DAF/VOLVO 97305, DAF/VOLVO 97307, DTFR 13D120 (MB 235.29), Eaton (Extended drain), IVECO, MAN 341 E3, MAN 341 VR, MAN 341 Z5, Renault, Voith Typ C, VOLVO 97317, ZF TE-ML 01E, ZF TE-ML 02E, ZF TE-ML 16P
Brand		RAVENOL		RAVENOL
SAE		75W-80		75W-80
Type		Synthetic		Synthetic
API		GL-4		GL-4
Manufacturer Approved		MAN 341 Type Z4, ZF TE-ML 01L, ZF TE-ML 02L, ZF TE-ML 16K		MAN 341 Type Z4, ZF TE-ML 01L, ZF TE-ML 02L, ZF TE-ML 16K
Recomendations		DTFR 13D120 (MB 235.29), Eaton Extended drain, MAN 341 Type E3, MAN 341 Type VR, MAN 341 Type Z5, Voith Type C, Volvo 97305, Volvo 97307, ZF TE-ML 01E, ZF TE-ML 02E, ZF TE-ML 16P		DTFR 13D120 (MB 235.29), Eaton Extended drain, MAN 341 Type E3, MAN 341 Type VR, MAN 341 Type Z5, Voith Type C, Volvo 97305, Volvo 97307, ZF TE-ML 01E, ZF TE-ML 02E, ZF TE-ML 16P
specification		MIL-L-2105		MIL-L-2105
Suitable for		IVECO, Renault		IVECO, Renault
Compliant products		Volvo 97317		Volvo 97317
Density at 20 °C	g/cm³	855	EN ISO 12185	855 g/cm³ EN ISO 12185
Color		Red	visual	Red visual
Viscosity at 100 °C	mm²/s	9.29	DIN 51562-1	9.29 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	51.97	DIN 51562-1	51.97 mm²/s DIN 51562-1
Viscosity Index VI		163	DIN ISO 2909	163 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	38.800	ASTM D2983	38.800 mPa*s ASTM D2983
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Flashpoint	°C	238	DIN EN ISO 2592	238 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		DTFR 13D120 (MB 235.29), Eaton Extended drain, MAN 341 Type E3, MAN 341 Type VR, MAN 341 Type Z4, MAN 341 Type Z5, MIL-L-2105, Voith Type C, Volvo 97305, Volvo 97307, ZF TE-ML 01E, ZF TE-ML 01L, ZF TE-ML 02E, ZF TE-ML 02L, ZF TE-ML 16K, ZF TE-ML 16P		DTFR 13D120 (MB 235.29), Eaton Extended drain, MAN 341 Type E3, MAN 341 Type VR, MAN 341 Type Z4, MAN 341 Type Z5, MIL-L-2105, Voith Type C, Volvo 97305, Volvo 97307, ZF TE-ML 01E, ZF TE-ML 01L, ZF TE-ML 02E, ZF TE-ML 02L, ZF TE-ML 16K, ZF TE-ML 16P

Transmission, semi-automatic M38 6/1

Liquid volume (basic): 2.9 L

MTF-1 75W-85

For gearbox

RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513

show details

SAE: 75W-85

API: GL-4, GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221102-001

Code:
4014835719613

Volume:
4 L

vendor code:
1221102-004

Code:
4014835719699

Volume:
10 L

vendor code:
1221102-010

Code:
4014835719644

Volume:
20 L

vendor code:
1221102-020

Code:
4014835719620

Volume:
20 L, ecobox

vendor code:
1221102-B20

Code:
4014835788329

Volume:
60 L

vendor code:
1221102-060

Code:
4014835719668

Volume:
60 L, print

vendor code:
1221102-D60

Volume:
208 L

vendor code:
1221102-208

Code:
4014835719682

Volume:
208 L, print

vendor code:
1221102-D28

Volume:
1000 L

vendor code:
1221102-700

RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL MTF-1 SAE 75W-85 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.

Application Note

RAVENOL MTF-1 SAE 75W-85 is high-performance gear oil for manual transmission, transfer cases and differential gears.

Characteristics

Excellent thermal stability.
High protection from rust, corrosion, foaming.
Low solidification point.
Excellent EP properties.
Good shifting behavior in low temperatures.
Extended life.
Fuel savings.

Parameter	Unit	Value	Audit
Recommendations		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513
SAE		75W-85		75W-85
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
API		GL-4, GL-5		GL-4, GL-5
Recomendations		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
Compliant products		GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060		GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060
Density at 20 °C	g/cm³	855	EN ISO 12185	855 g/cm³ EN ISO 12185
Color		Red	visual	Red visual
Brookfield Viscosity at -40 °C	mPa*s	38.800	ASTM D2983	38.800 mPa*s ASTM D2983
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513

MTF-2 75W-80

For gearbox

RAVENOL MTF-2 SAE 75W-80 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

show details

SAE: 75W-80

API: GL-4, MT-1

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221103-001

Code:
4014835719712

Volume:
4 L

vendor code:
1221103-004

Code:
4014835719798

Volume:
10 L

vendor code:
1221103-010

Code:
4014835719743

Volume:
20 L

vendor code:
1221103-020

Volume:
20 L, ecobox

vendor code:
1221103-B20

Code:
4014835788428

Volume:
60 L

vendor code:
1221103-060

Code:
4014835719767

Volume:
60 L, print

vendor code:
1221103-D60

Volume:
208 L

vendor code:
1221103-208

Volume:
208 L, print

vendor code:
1221103-D28

Volume:
1000 L

vendor code:
1221103-700

RAVENOL MTF-2 SAE 75W-80 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL MTF-2 SAE 75W-80 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.

Application Note

RAVENOL MTF-2 SAE 75W-80 is a full synthetic transmission oil for manual transmissions.

Characteristics

A high-pressure stable lubricating film even at high oil temperatures and under high stress.
Outstanding shearing stability and excellent thermal stability.
Excellent viscosity-temperature properties.
High oxidation stability.
Excellent wear protection, outstanding EP properties.
Low foaming property even at high speeds
Good shifting behaviour even in low temperatures, extremely low pour point.
Extended life.

Parameter	Unit	Value	Audit
Recommendations		AC Delco 10-403, Audi G052532, Audi G055532, BMW 23001434404 MTF-LT-1, BMW 23007533513 MTF-LT-2, BMW 83220309031 MTF-LT-1, Fiat 14621616, Fiat 9.55550-MZ2, Fiat F178.B06, Ford 1382914, Ford 1547953, Ford WSS-M2C200-C3, Ford WSS-M2C200-D2, GM 1940711, GM 88861800, GM 88861801, Honda 08261-99964 Genuine MTF Fluid, Honda 08798-9031 MTF-7289, Hyundai 02200-00130 TOD, Land Rover STC 9157, Land Rover STC 9158, Land Rover TYK500030, MB 235.10 (A 001 989 26 03), Mitsubishi 3005401, Mitsubishi MZ312644, MTF-94 Fluid für Land Rover, MG und Mini Cooper, Nissan 999MP-MTF20P, Nissan KE91699932R, Peugeot 9730A2, PSA B71 2330, Subaru K0321-F0090, Toyota 08885-00705, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, Volvo 1161681, Volvo 1161745, VW/Audi G 052 911 A2, VW/Audi G 055 538 A2 für ZF 6S450 Amarok 0C6		AC Delco 10-403, Audi G052532, Audi G055532, BMW 23001434404 MTF-LT-1, BMW 23007533513 MTF-LT-2, BMW 83220309031 MTF-LT-1, Fiat 14621616, Fiat 9.55550-MZ2, Fiat F178.B06, Ford 1382914, Ford 1547953, Ford WSS-M2C200-C3, Ford WSS-M2C200-D2, GM 1940711, GM 88861800, GM 88861801, Honda 08261-99964 Genuine MTF Fluid, Honda 08798-9031 MTF-7289, Hyundai 02200-00130 TOD, Land Rover STC 9157, Land Rover STC 9158, Land Rover TYK500030, MB 235.10 (A 001 989 26 03), Mitsubishi 3005401, Mitsubishi MZ312644, MTF-94 Fluid für Land Rover, MG und Mini Cooper, Nissan 999MP-MTF20P, Nissan KE91699932R, Peugeot 9730A2, PSA B71 2330, Subaru K0321-F0090, Toyota 08885-00705, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, Volvo 1161681, Volvo 1161745, VW/Audi G 052 911 A2, VW/Audi G 055 538 A2 für ZF 6S450 Amarok 0C6
SAE		75W-80		75W-80
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
API		GL-4, MT-1		GL-4, MT-1
Recomendations		BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538		BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538
Compliant products		AcDelco 10-403, Fiat 14621616, Ford 1382914, Ford 1547953, GM 1940711, GM 88861800, GM 88861801, Honda 08261-99964, Honda 08798-9031, Hyundai 02200-00130 TOD, Land Rover STC9157, Land Rover STC9158, Land Rover TYK500030, MB A 001 989 26 03, Mitsubishi 3005401, Mitsubishi MZ312644, Nissan 999MP-MTF20P, Nissan KE91699932R, PSA 9730.A2, Subaru K0321-F0090, Toyota 08885-00705, Volvo 1161681, Volvo 1161745, VW G 052 911, VW G 055 538		AcDelco 10-403, Fiat 14621616, Ford 1382914, Ford 1547953, GM 1940711, GM 88861800, GM 88861801, Honda 08261-99964, Honda 08798-9031, Hyundai 02200-00130 TOD, Land Rover STC9157, Land Rover STC9158, Land Rover TYK500030, MB A 001 989 26 03, Mitsubishi 3005401, Mitsubishi MZ312644, Nissan 999MP-MTF20P, Nissan KE91699932R, PSA 9730.A2, Subaru K0321-F0090, Toyota 08885-00705, Volvo 1161681, Volvo 1161745, VW G 052 911, VW G 055 538
Density at 20 °C	g/cm³	847.5	EN ISO 12185	847.5 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	9.1	DIN 51562-1	9.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	50.8	DIN 51562-1	50.8 mm²/s DIN 51562-1
Viscosity Index VI		163	DIN ISO 2909	163 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	21.900	ASTM D2983	21.900 mPa*s ASTM D2983
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	248	DIN EN ISO 2592	248 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538		BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538

Hydraulic actuation, gearbox

Liquid volume (basic): 0.7 L

Gearbox Hydraulic Actuator GHA-F

For transmission

The properties of RAVENOL Gearbox Hydraulic Actuator Fluid GHA-F are decisively determined by its special formulation. We guarantee an excellent low temperature stability.

Compliance with the requirements:
Fiat 9.55550-SA1, Fiat F005.F98, Suzuki AMT Actuator Fluid

show details

Equivalents OEM:
Fiat 14621616, PSA 00009979A4, PSA 00009979A4, PSA 9979A4, Suzuki 99000M24121135, Toyota 0888602206

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1181201-001

Code:
4014835766013

Volume:
20 L, ecobox

vendor code:
1181201-B20

The properties of RAVENOL Gearbox Hydraulic Actuator Fluid GHA-F are decisively determined by its special formulation. We guarantee an excellent low temperature stability.

Application Note

RAVENOL Gearbox Hydraulic Actuator Fluid GHA-F is designed for a range of application from -40°C to +100°C.

RAVENOL Gearbox Hydraulic Actuator Fluid GHA-F is used in electrically controlled MCP gearboxes from Peugeot/Citroën and in Dualogic and Selespeed gearboxes from FIAT/Alfa Romeo and therefore, shows ideal performance as a special hydraulic fluid in electrohydraulic and electrically controlled gears and gearshifts.

Characteristics

Extremely low pour point.
Improved viscosity and friction value characteristics.
Very good wear protection.
An excellent thermal stability.
Improved EP properties.
Good foaming characteristics.
Neutral behaviour towards sealing compounds.
Reliable protection against corrosion.

Parameter	Unit	Value	Audit
Recommendations		Fiat 14621616, Fiat 9.55550-SA1, Fiat F005.F98, Fiat/Alfa Romeo 15081616 CS SPEED für Dualogic, Peugeot/Citroën 9979.A4 für MCP Automated Gearbox, Suzuki 99000M24121-135, Suzuki AMT Actuator Fluid		Fiat 14621616, Fiat 9.55550-SA1, Fiat F005.F98, Fiat/Alfa Romeo 15081616 CS SPEED für Dualogic, Peugeot/Citroën 9979.A4 für MCP Automated Gearbox, Suzuki 99000M24121-135, Suzuki AMT Actuator Fluid
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Recomendations		Fiat 9.55550-SA1, Fiat F005.F98, Suzuki AMT Actuator Fluid		Fiat 9.55550-SA1, Fiat F005.F98, Suzuki AMT Actuator Fluid
Suitable for		Fiat/Alfa Romeo 5081616 CS SPEED für Dualogic		Fiat/Alfa Romeo 5081616 CS SPEED für Dualogic
Compliant products		Fiat 14621616, PSA 9979.A4, Suzuki 99000M24121-135		Fiat 14621616, PSA 9979.A4, Suzuki 99000M24121-135
Density at 20 °C	g/cm³	827	EN ISO 12185	827 g/cm³ EN ISO 12185
Color		Green	visual	Green visual
Viscosity at 100 °C	mm²/s	6.6	DIN 51562-1	6.6 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	19.7	DIN 51562-1	19.7 mm²/s DIN 51562-1
Viscosity Index VI		333	DIN ISO 2909	333 DIN ISO 2909
Pourpoint	°C	-54	DIN ISO 3016	-54 °C DIN ISO 3016
Flashpoint	°C	164	DIN EN ISO 2592	164 °C DIN EN ISO 2592
Approvals		Fiat 9.55550-SA1, Fiat F005.F98, Suzuki AMT Actuator Fluid		Fiat 9.55550-SA1, Fiat F005.F98, Suzuki AMT Actuator Fluid

Power steering

Liquid volume (basic): 1.5 L

ATF Dexron III H

For automatic transmission

RAVENOL ATF DEXRON III H is universal ATF (Automatic Transmission Fluid) for all automatic transmission with and without controlled torque converter lockup clutch (so-called GKÜB = gear-clutch-lock) which are required for the transmission fluid type Dexron III H.

Manufacturer Approved:
Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B

Compliance with the requirements:
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.5, MB 236.6, MB 236.9, MB 236.10, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1212100-001

Code:
4014835732810

Volume:
4 L

vendor code:
1212100-004

Code:
4014835732896

Volume:
10 L

vendor code:
1212100-010

Code:
4014835732841

Volume:
20 L

vendor code:
1212100-020

Code:
4014835732827

Volume:
20 L, ecobox

vendor code:
1212100-B20

Code:
4014835787025

Volume:
60 L

vendor code:
1212100-060

Code:
4014835732865

Volume:
60 L, print

vendor code:
1212100-D60

Code:
4014835732834

Volume:
208 L

vendor code:
1212100-208

Code:
4014835732889

Volume:
208 L, print

vendor code:
1212100-D28

Code:
4014835732803

Volume:
1000 L

vendor code:
1212100-700

RAVENOL ATF DEXRON III H is universal ATF (Automatic Transmission Fluid) for all automatic transmission with and without controlled torque converter lockup clutch (so-called GKÜB = gear-clutch-lock) which are required for the transmission fluid type Dexron III H.

Application Note

RAVENOL ATF DEXRON III H was developed for use in automatic transmissions with electronically controlled converter lockup clutch.

RAVENOL ATF DEXRON III H is especially suitable for use in transmissions with ATF Dexron III H specification.

RAVENOL ATF DEXRON III H is backwards compatible and can be used in transmissions with specification ATF Dexron F III.

RAVENOL ATF DEXRON III H is mixable with all ATF brands. It is advised to rinse with RAVENOL ATF DEXRON III H before, beforehand the final filling with RAVENOL ATF DEXRON III H is made.

Characteristics

Very good lubricating properties even at low temperatures in winter
High and stable viscosity index
Very low flow point
Excellent oxidation stability
Extensive protection against wear, corrosion and foaming
Well-tuned friction properties
Neutral behaviour towards sealing materials
Neutral behaviour by inhibition towards non-ferrous metals

Parameter	Unit	Value	Audit
ATF		Dexron III H		Dexron III H
Recommendations		Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON® M-940717, MAN 339 L1, MAN 339 V1, MAN 339 Z1, MAN 339 Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Nissan, Volvo 1161521, Volvo 1161621, VOLVO Transmission Oil 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C		Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON® M-940717, MAN 339 L1, MAN 339 V1, MAN 339 Z1, MAN 339 Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Nissan, Volvo 1161521, Volvo 1161621, VOLVO Transmission Oil 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Manufacturer Approved		Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B		Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B
Recomendations		Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C		Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
specification		Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H		Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H
Suitable for		Nissan		Nissan
Compliant products		Volvo 1161521, Volvo 1161621		Volvo 1161521, Volvo 1161621
Density at 20 °C	g/cm³	847	EN ISO 12185	847 g/cm³ EN ISO 12185
Color		Red	visual	Red visual
Viscosity at 100 °C	mm²/s	7.2	DIN 51562-1	7.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	33.9	DIN 51562-1	33.9 mm²/s DIN 51562-1
Viscosity Index VI		185	DIN ISO 2909	185 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	14.200	ASTM D2983	14.200 mPa*s ASTM D2983
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	210	DIN EN ISO 2592	210 °C DIN EN ISO 2592
Seq. I at 24 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
tbn	mgKOH/g	1.8	ASTM D2896	1.8 mgKOH/g ASTM D2896
Approvals		Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B		Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B

Hydraulic brakes/clutch system

Liquid volume (basic): 0.6 L

DOT 4

For brake system

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

show details

Available packaging
Full description
Product parameters

Volume:
250 ml

vendor code:
1350601-250

Code:
4014835692121

Volume:
500 ml

vendor code:
1350601-500

Code:
4014835692152

Volume:
1 L

vendor code:
1350601-001

Code:
4014835692114

Volume:
20 L

vendor code:
1350601-020

DOT 4

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

Application Note

RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.

RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.

RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113).

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

optimum ABS characteristics
chemical stability
best lubrication efficiency
neutral behaviour regarding brake parts
low viscosity at low temperatures
miscible with all brake fluids of the same specifications

Parameter	Unit	Value	Audit
FMVSS 116 specifications (DOT)		DOT-4		DOT-4
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
specification		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704
Density at 20 °C	g/cm³	1052	EN ISO 12185	1052 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mPa*s	2.41	ASTM D445	2.41 mPa*s ASTM D445
Viscosity at -40 °C	cSt	1340	ASTM D445	1340 cSt ASTM D445
Boiling point	°C	271	FMVSS 116	271 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point	°C	169	FMVSS 116	169 °C FMVSS 116
High Temperature Stability	°C	-1	FMVSS 116	-1 °C FMVSS 116
Chemical Stability	°C	1	FMVSS 116	1 °C FMVSS 116
Evaporation	%w/w	61	FMVSS 116	61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C		i.O., 4s	FMVSS 116	i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C		i.O., 8s	FMVSS 116	i.O., 8s FMVSS 116
Water Tolerance at -40 °C		transparent, 3s	FMVSS 116	transparent, 3s FMVSS 116
Water Tolerance at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at -40 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Water content	%	— 0.2	DIN 51777-1	— 0.2 % DIN 51777-1
Tinned Iron	Δ mg/cm²	0.04	FMVSS 116	0.04 Δ mg/cm² FMVSS 116
Steel	mg/cm²	-0.01	FMVSS 116	-0.01 mg/cm² FMVSS 116
Aluminium	mg/cm²	0.02	FMVSS 116	0.02 mg/cm² FMVSS 116
Cast Iron	Δ mg/cm²	-0,03	FMVSS 116	-0,03 Δ mg/cm² FMVSS 116
Brass	mg/cm²	-0.08	FMVSS 116	-0.08 mg/cm² FMVSS 116
Copper	mg/cm²	-0.05	FMVSS 116	-0.05 mg/cm² FMVSS 116
Zinc	mg/cm²	0.01	FMVSS 116	0.01 mg/cm² FMVSS 116
Sediment	%	— 0.05	FMVSS 116	— 0.05 % FMVSS 116
pH - value		8.2	FMVSS 116	8.2 FMVSS 116
Rubber Diameter Change		0.16	FMVSS 116	0.16 FMVSS 116
Hardness Change	°IRHD	-4	FMVSS 116	-4 °IRHD FMVSS 116
Appearance		i.O.	FMVSS 116	i.O. FMVSS 116
SBR at 70 °C	mm	0.56	FMVSS 116	0.56 mm FMVSS 116
SBR at 120 °C	mm	0.73	FMVSS 116	0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703)	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
EPDM at 120 °C	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925)	mm	0.38	FMVSS 116	0.38 mm FMVSS 116
Approvals		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704

Lubrication points/fittings homokinetic connections, wheel side

Mehrzweckfett mit MoS2

For CV joint

RAVENOL Mehrzweckfett mit MoS2 is formulated with a highly refined base oil mixture which contains less than 3% polycyclic aromatics.

show details

Equivalents OEM:
Alpine 0101061, Alpine 0101062, Alpine 0101063, Alpine 0101064, Alpine 0101065, Alpine 0101066, BMW 83230417754, FEBI 02582, FEBI 02597, FEBI 2582, FEBI 2597, Ford 1019761, Ford 1720193, Hyundai Motor 4959022B00A, MB A001989035112, Polaris 2871515, Polaris 2871551, Polaris 2871551, SWAG 99830001, VAG G052172A2, VAG G052723A2, Yamalube ACCMOLDMGS10

Available packaging
Full description
Product parameters

Volume:
100 g

vendor code:
1340103-100

Code:
4014835844452

Volume:
200 g

vendor code:
1340103-200

Volume:
400 g

vendor code:
1340103-400

Code:
4014835768246

Volume:
1 kg

vendor code:
1340103-001

Code:
4014835200333

Volume:
5 kg

vendor code:
1340103-005

Code:
4014835200357

Volume:
10 kg

vendor code:
1340103-010

Code:
4014835200319

Volume:
15 kg

vendor code:
1340103-015

Volume:
25 kg

vendor code:
1340103-025

Code:
4014835200326

Volume:
180 kg

vendor code:
1340103-180

Code:
4014835200371

RAVENOL Mehrzweckfett mit MoS2 is formulated with a highly refined base oil mixture which contains less than 3% polycyclic aromatics.

The optimized formulation of RAVENOL Mehrzweckfett mit MoS2 has distinctive friction-reducing properties and so-called dry running properties.

Application Note

RAVENOL Mehrzweckfett mit MoS2 has been designed for applications exposed to extreme pressure and shock loaded bearings with relatively slow sliding movements.

RAVENOL Mehrzweckfett mit MoS2 is recommended for friction and roller bearings of all types during aggravated operating conditions.

RAVENOL Mehrzweckfett mit MoS2 is also used for chassis lubricating.

Characteristics

Extreme shear stability
Excellent corrosion protection
Very good mechanical and chemical stability
Very good aging resistant
Good pump output also at low temperatures

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
specification		DIN 51502 KPF2K-30, ISO 6743-9: ISO-L-XCCIB2		DIN 51502 KPF2K-30, ISO 6743-9: ISO-L-XCCIB2
Color		Black gray	visual	Black gray visual
Thickener		lithium soap	DIN 51757	lithium soap DIN 51757
Additives		molybdenum disulfide	DIN 51757	molybdenum disulfide DIN 51757
NLGI-Class		2	DIN 51818	2 DIN 51818
Product Classification		KPF2K-30	DIN 51502	KPF2K-30 DIN 51502
Working Temperature	°C	-30 / +120	DIN 51825	-30 / +120 °C DIN 51825
Short term temperature up to	°C	130	DIN 51757	130 °C DIN 51757
Worked Penetration at 60 Strokes		265-295	ISO 2137	265-295 ISO 2137
Corrosion (SKF Emcor dist. Water)		1	DIN 51802	1 DIN 51802
Dropping Point	°C	180 —	DIN ISO 2176	180 — °C DIN ISO 2176
Copper Corrosion (24h/120 °C)		1	DIN 51811	1 DIN 51811
Water Resistance (3h/90 °C)	°C	1-90	DIN 51807-1	1-90 °C DIN 51807-1
VKA Pressure Carrying Capacity	N	2800 — 3000	DIN 51350-4	2800 — 3000 N DIN 51350-4
Kinematic Viscosity (Base Oil) at 40 °C	mm²/s	80	DIN 51562-1	80 mm²/s DIN 51562-1
Approvals		DIN 51502 KPF2K-30, ISO 6743-9: ISO-L-XCCIB2		DIN 51502 KPF2K-30, ISO 6743-9: ISO-L-XCCIB2

Hochleistungsfett mit MOS-2

Grease

show details

Available packaging
Product parameters

Parameter	Unit	Value	Audit

Arctic Tripoid Grease ATG 2 mit MoS2

For bearings

RAVENOL Arctic Tripoid grease ATG 2 mit MoS2 shows high shear stability is oxidation and water resistant and has excellent corrosion and wear protection properties. The selected additives, MoS2 and a special ester formulation help reduce wear even during heavy, continuous operation and significantly prolong service life.

show details

Equivalents OEM:
Yamalube ACCSMBGRSE14, Yamalube ACCSMBPF14CS, Yamalube ACCSYNPFGR, Yamalube ACCSYNPFGR

Available packaging
Full description
Product parameters

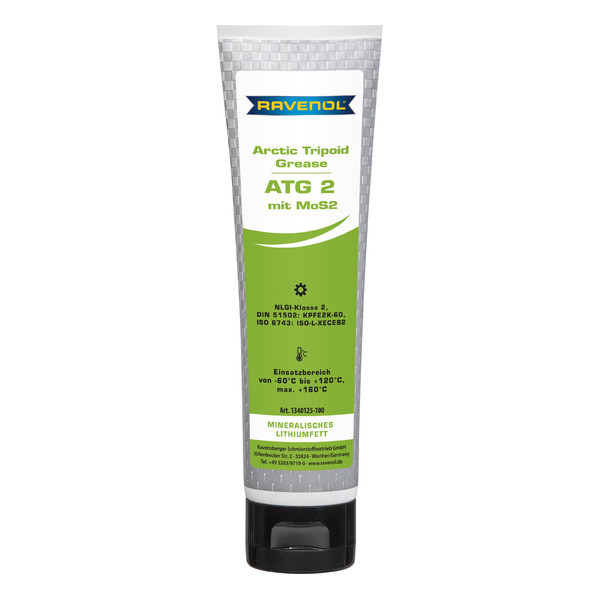

Volume:
100 g

vendor code:
1340125-100

Code:
4014835756793

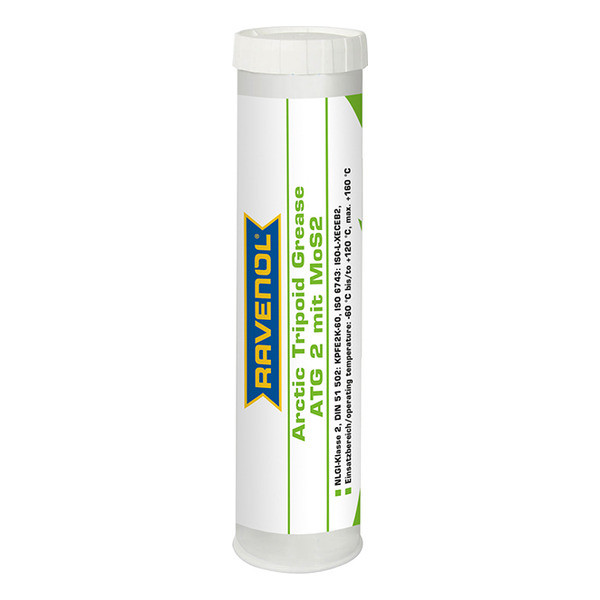

Volume:
400 g

vendor code:
1340125-400

Code:
4014835756748

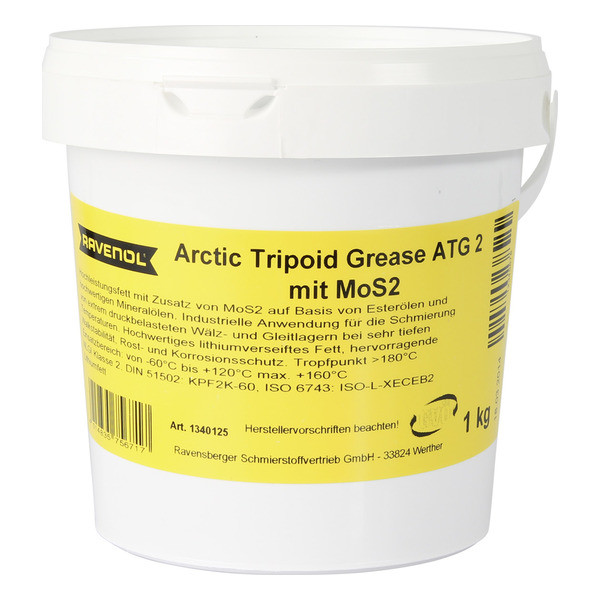

Volume:
1 kg

vendor code:
1340125-001

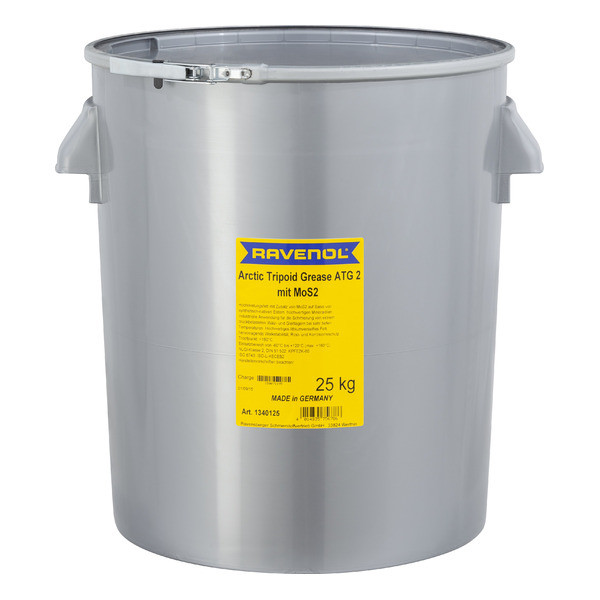

Volume:
25 kg

vendor code:
1340125-025

Code:
4014835756786

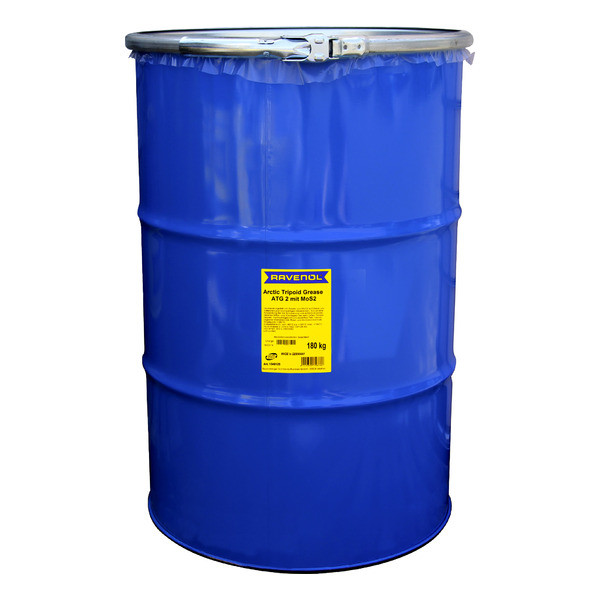

Volume:
180 kg

vendor code:
1340125-180

RAVENOL Arctic Tripoid grease ATG 2 mit MoS2 shows high shear stability is oxidation and water resistant and has excellent corrosion and wear protection properties. The selected additives, MoS2 and a special ester formulation help reduce wear even during heavy, continuous operation and significantly prolong service life.

Application Note

RAVENOL Arctic Tripoid Grease ATG 2 mit MoS2 is used with roller and friction bearings and heavy-duty bearings under extreme pressure at very low temperatures. Use for lubricating bearings on aggregates and machines in cold stores.

RAVENOL Arctic Tripoid Grease ATG 2 mit MoS2 especially recommended for the lubrication of constant velocity universal joints (except needle bearing) at very low temperatures.

Also suitable for valve shafts in mineral oil pipes in Arctic conditions. Applications include motor vehicles, construction machinery, agricultural machinery and industrial machinery of all kinds. It is particularly for devices that operate at low and high temperatures.

The upper operating temperature for RAVENOL Arctic Tripoid Grease ATG 2 mit MoS2 in continuous operation is 120°C. A maximum threshold of 160°C should not be exceeded.

Excessively high temperatures lead to a shortened service life. Regular lubrication improves materials and saves costs.

Characteristics

Work resistance
Oxidation resistance
Water resistance
Good corrosion protection characteristics
Extreme thermal load capacity
Very high pressure susceptibility
Good adhesion

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
specification		DIN 51502 KPFE2K-60, ISO 6743-9: ISO-L-XECEB2		DIN 51502 KPFE2K-60, ISO 6743-9: ISO-L-XECEB2
Color		Black	visual	Black visual
Thickener		lithium soap	DIN 51757	lithium soap DIN 51757
Additives		molybdenum disulfide	DIN 51757	molybdenum disulfide DIN 51757
NLGI-Class		2	DIN 51818	2 DIN 51818
Product Classification		KPFE2K-60	DIN 51502	KPFE2K-60 DIN 51502
Brookfield Viscosity at -40 °C	mPa*s	140	DIN 51562-1	140 mPa*s DIN 51562-1
Working Temperature	°C	-60 / +120	DIN 51825	-60 / +120 °C DIN 51825
Short term temperature up to	°C	160	DIN 51757	160 °C DIN 51757
Worked Penetration at 60 Strokes		265-295	ISO 2137	265-295 ISO 2137
Dropping Point	°C	180 —	DIN ISO 2176	180 — °C DIN ISO 2176
Copper Corrosion (24h/120 °C)		1	DIN 51811	1 DIN 51811
Water Resistance (3h/90 °C)	°C	1-90	DIN 51807-1	1-90 °C DIN 51807-1
VKA Pressure carrying capacity ( four-ball-tester)	N	3200	DIN 51350-4	3200 N DIN 51350-4
VKA Wearing Characteristics (four-ball-tester)	mm	0.56	DIN 51350-5	0.56 mm DIN 51350-5
Kinematic Viscosity (Base Oil) at 40 °C	mm²/s	20	DIN 51562-1	20 mm²/s DIN 51562-1
Approvals		DIN 51502 KPFE2K-60, ISO 6743-9: ISO-L-XECEB2		DIN 51502 KPFE2K-60, ISO 6743-9: ISO-L-XECEB2

Cooling system

Liquid volume (basic): 9.6 L

TTC - Protect C11 Premix -40ºC

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

Compliance with the requirements:
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C

show details

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410105-150

Code:
4014835755314

Volume:
5 L

vendor code:
1410105-005

Code:
4014835755352

Volume:
10 L

vendor code:
1410105-010

Code:
4014835755345

Volume:
20 L

vendor code:
1410105-020

Code:
4014835755321

Volume:
20 L, ecobox

vendor code:
1410105-B20

Code:
4014835855939

Volume:
60 L

vendor code:
1410105-060

Code:
4014835755369

Volume:
208 L

vendor code:
1410105-208

Code:
4014835755383

Volume:
1000 L

vendor code:
1410105-700

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL TTC Trad. Techn. Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL TTC Trad. Techn. Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL TTC Trad. Techn. Coolant Premix -40°C to radiator to fill line.

Characteristics

Excellent for light metal engines
Good reserve alkalinity
High-quality corrosion additives for optimal corrosion protection
Elastomer compatible with elastome

Parameter	Unit	Value	Audit
Recommendations		AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)		AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
Brand		RAVENOL		RAVENOL
ASTM		D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF		D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF
Recomendations		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
Suitable for		Suzuki		Suzuki
Density at 20 °C	g/cm³	1080	EN ISO 12185	1080 g/cm³ EN ISO 12185
Color		yellow green	visual	yellow green visual
pH - value at 20 °C		7,8	ASTM D1287	7,8 ASTM D1287
Freezing point	°C	-40	ASTM D1177	-40 °C ASTM D1177
Approvals		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C

TTC - Protect C11 Concentrate

Coolant

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

show details

Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410100-150

Code:
4014835755215

Volume:
5 L

vendor code:
1410100-005

Code:
4014835755253

Volume:
10 L

vendor code:
1410100-010

Volume:
20 L

vendor code:
1410100-020

Code:
4014835755222

Volume:
20 L, ecobox

vendor code:
1410100-B20

Volume:
60 L

vendor code:
1410100-060

Code:
4014835755260

Volume:
60 L, plastic

vendor code:
-

Code:
4014835755239

Volume:
60 L, print

vendor code:
1410100-D60

Volume:
208 L

vendor code:
1410100-208

Code:
4014835755208

Volume:
1000 L

vendor code:
1410100-700

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

Therefore manufacturers subject coolants to long corrosion and cavitation tests.

RAVENOL TTC Trad. Techn. Coolant Concentrate protects the cooling system from corrosion, frost, and in the summer from overheating.

Application Note

RAVENOL TTC Trad. Techn. Coolant Concentrate with frost and rust protection. Use according to the mixing chart. Follow manufacturer’s recommendations.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL TTC Trad. Techn. Coolant Concentrate with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

Table of mixing ratios
Antifreeze protection until	Parts Antifreeze	Parts Water
-20°C	35%	65%
-37°C	50%	50%
-50°C	60%	40%

Characteristics

Excellent for light metal engines
Good reserve alkalinity
High-quality corrosion additives for optimal corrosion protection
Elastomer compatible with elastomers used in automotive radiators

Parameter	Unit	Value	Audit
Recommendations		AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)		AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
Brand		RAVENOL		RAVENOL
ASTM		D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF		D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF
Recomendations		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
Suitable for		Suzuki		Suzuki
Density at 20 °C	g/cm³	1130	EN ISO 12185	1130 g/cm³ EN ISO 12185
Color		yellow green	visual	yellow green visual
Reserve alkalinity	mgKOH/g	— 20	ASTM D1121	— 20 mgKOH/g ASTM D1121
Boiling point	°C	155	ASTM D1120	155 °C ASTM D1120
Water content	%	— 5	ASTM D1123	— 5 % ASTM D1123
Flashpoint	°C	112	DIN 51758	112 °C DIN 51758
Freezing point (50 % solution)	°C	-37	ASTM D1177	-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %)		8,4	ASTM D1287	8,4 ASTM D1287
Approvals		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter	Value
Recommendations	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand	RAVENOL	RAVENOL
Recomendations	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272
Approvals	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272

Professional Radiator Cleaner

Additive

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

show details

Equivalents OEM:
Ford MP14300500AB

Available packaging
Full description
Product parameters

Volume:
0.25 L

vendor code:
1390302-250

Code:
4014835802667

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.

Application Note

RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.

Area of application:

Radiator repairs

In the event of reduced radiator performance

In the event of deposits in the cooling system

Changing coolant

For cleaning purposes after engine repairs due to oil in the cooling system

Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.

Fill in

RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.

RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.

Characteristics

Cleaning of the cooling and heating system
Protection of the new coolant against prior contamination
Elimination of sludge and corrosion residue

Parameter	Unit	Value	Audit
Color		Colorless	visual	Colorless visual
Density at 20 °C	g/cm³	1003	EN ISO 12185	1003 g/cm³ EN ISO 12185
pH - value at 20 °C		10,25	DIN 19268	10,25 DIN 19268
Brand		RAVENOL		RAVENOL
