Oil for Honda Civic VIII, FA / FD / FG / FK / FN Civic 1.6i-VTEC 2WD (R16A2) (FD6) (year of issue from 2005 date to present). Motor, automatic transmission oil, transmission, antifreeze, gur fluid, brake fluid

Search by VIN, make, model, vehicle type, unit name, or by article number of any oil:

Oil for Honda - Civic VIII, FA / FD / FG / FK / FN - Civic 1.6i-VTEC 2WD (R16A2) (FD6)

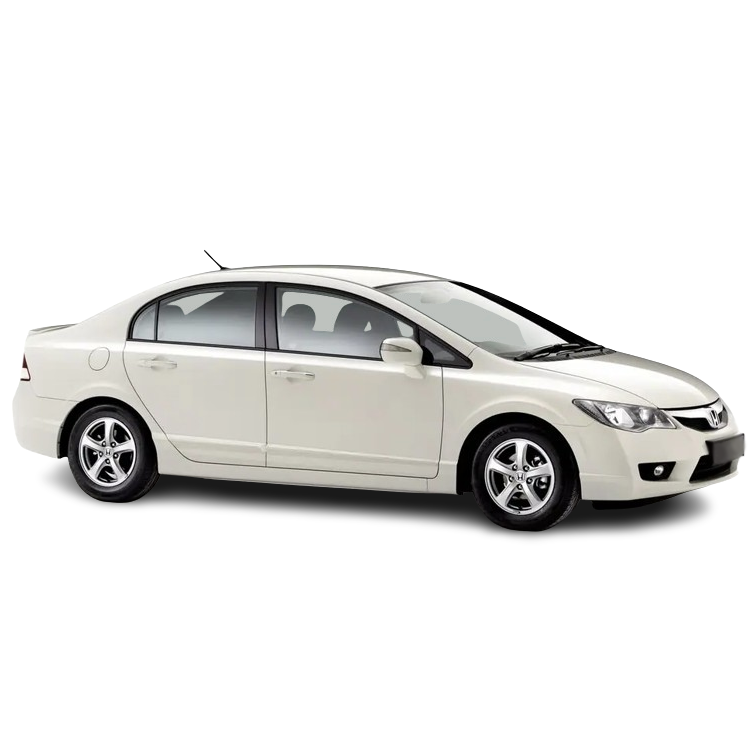

Honda Civic VIII, FA / FD / FG / FK / FN Civic 1.6i-VTEC 2WD (R16A2) (FD6), year of issue from 2005 date to 2011 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Add to Garage

Nodes and assemblies

Engine R16A2 1.6L i-VTEC

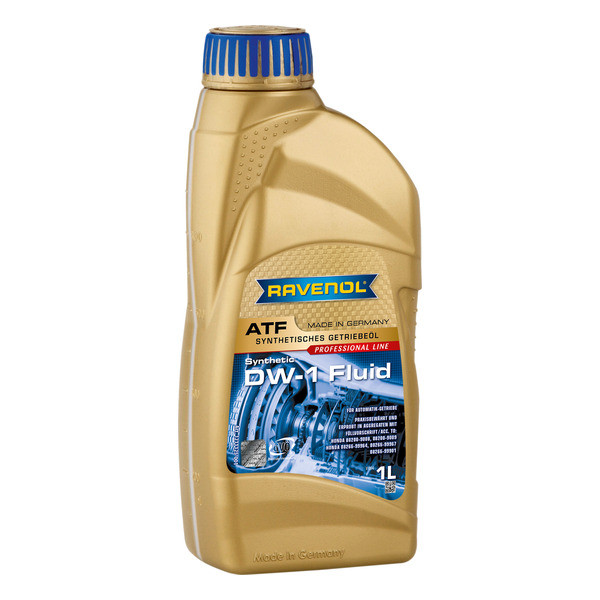

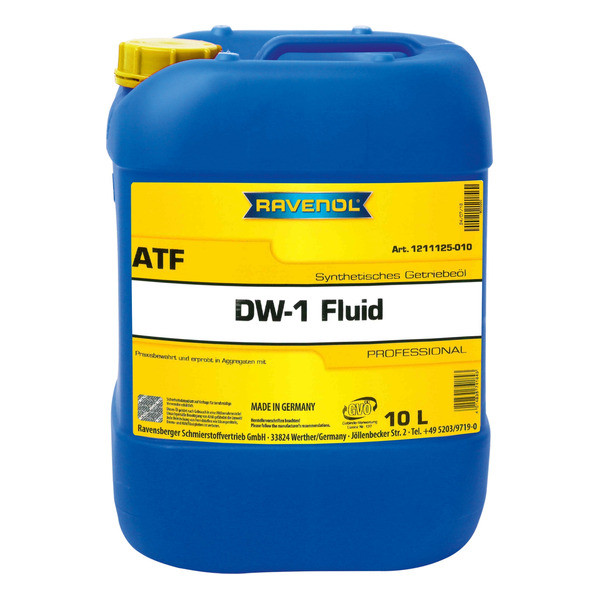

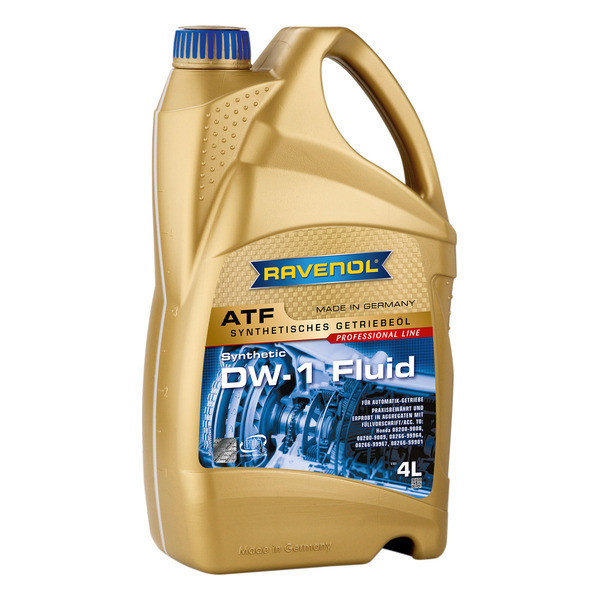

Transmission, automatic in a unit with final drive 5/1
Mechanical gearbox in a unit with final drive 5/1

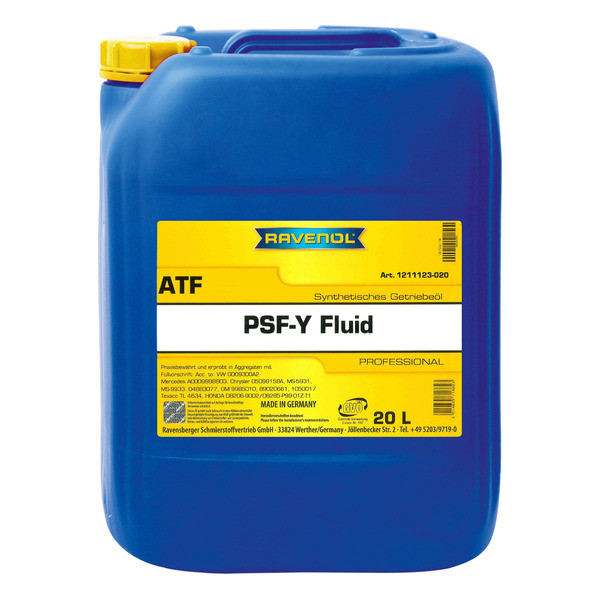

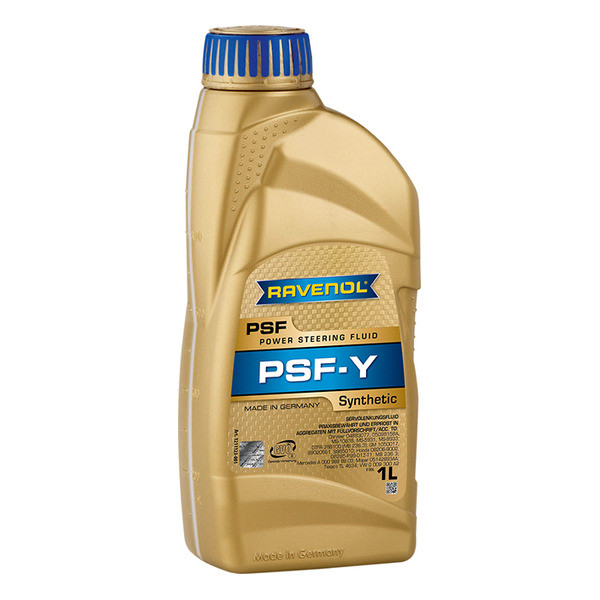

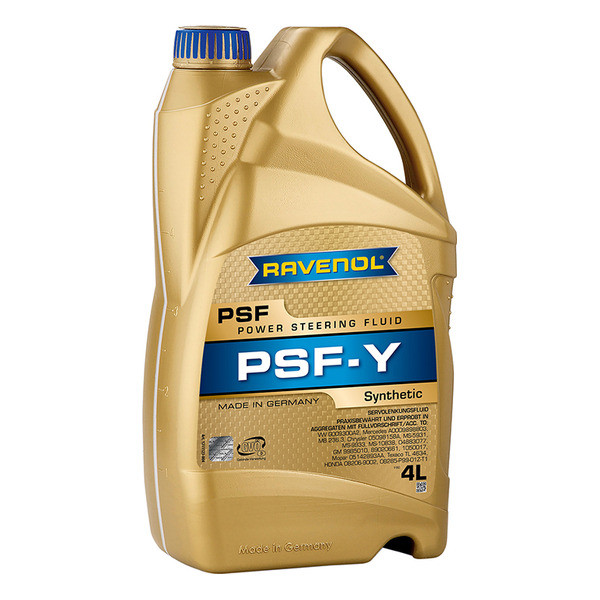

Power steering
Hydraulic brakes/clutch system
Cooling system

Engine R16A2 1.6L i-VTEC

Liquid volume (basic): 3.7 L
Liquid volume (filter): 0.2 L

SSV 0W-30

For engine

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
MB-Approval 229.6, Volvo VCC 95200377

show details

SAE: 0W-30

API: SP

ACEA: A5, B5

Equivalents OEM:
Alpine 0101641, Alpine 0101642, Alpine 0101643, Alpine 0101644, Alpine 0101645, Alpine 101641, Alpine 101642, Alpine 101643, Alpine 101644, Alpine 101645, BMW 83212431037, BMW 83212431038, BMW 83212431039, BMW 83212449994, BMW 83212462939, BMW 83212462942, GM 1942019, GM 1942020, GM 1942021, GM 1942029, GM 93160348, GM 93160349, GM 93160350, GM 93160353, Land Rover LR007129, Nissan KLAN100302, Nissan KLAN100304, Nissan KLAPN00304, Nissan KLAPN00304

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111145-001

Code:
4014835842458

Volume:
4 L

vendor code:
1111145-004

Code:
4014835842489

Volume:
5 L

vendor code:
1111145-005

Code:
4014835867536

Volume:
10 L

vendor code:
1111145-010

Code:
4014835860391

Volume:
20 L

vendor code:
1111145-020

Code:
4014835842519

Volume:
20 L, ecobox

vendor code:
1111145-B20

Code:
4014835842533

Volume:
60 L

vendor code:
1111145-060

Volume:
60 L, print

vendor code:
1111145-D60

Code:
4014835842557

Volume:
208 L

vendor code:
1111145-208

Code:
4014835842571

Volume:
208 L, print

vendor code:
1111145-D28

With its new formulation, RAVENOL SSV Fuel Economy SAE 0W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL SSV Fuel Economy SAE 0W-30 helps to protect the environment by reducing emissions.

RAVENOL SSV Fuel Economy SAE 0W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL SSV Fuel Economy SAE 0W-30 is universal, fuel-efficient engine oil. It is a premium product for gasoline and diesel engine passenger cars. Suitable for all petrol and diesel passenger cars with and without turbo charger, especially recommended for full synthetic all-season motor oils.

Characteristics

universal application in all modern petrol and diesel engines
quick lubrication of the engine even at temperatures below -30 °C
low evaporation tendency, therefore a lower oil consumption
safety against accumulation of sludge, coking and corrosion even under unfavourable operating conditions
guarantee of the function of the hydro tappets at all temperatures
no oil limited deposits in combustion chambers, at the piston ring and valves
unchanged viscosity during the whole oil change interval, high viscosity index
neutral against sealing materials
miscibility with all commercially available engine oils. Flushing is not required

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		0W-30		0W-30
Type		Full synthetic		Full synthetic
API		SP		SP
ACEA		A5, B5		A5, B5
Manufacturer Approved		MB-Approval 229.6, Volvo VCC 95200377		MB-Approval 229.6, Volvo VCC 95200377
Density at 20 °C	g/cm³	838	EN ISO 12185	838 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	10.3	DIN 51562-1	10.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	58	DIN 51562-1	58 mm²/s DIN 51562-1
Viscosity Index VI		167	DIN ISO 2909	167 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	2.97	ASTM D5481	2.97 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5540	ASTM D5293	5540 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	16.300	ASTM D4684	16.300 mPa*s ASTM D4684
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Noack Volatility	%	8.1	ASTM D5800	8.1 % ASTM D5800
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
tbn	mgKOH/g	12.5	ASTM D2896	12.5 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.2	DIN 51575	1.2 %wt. DIN 51575
Approvals		MB 229.6, Volvo VCC 95200377		MB 229.6, Volvo VCC 95200377

Super Fuel Economy SFE 5W-20

For engine

Manufacturer Approved:
Ford WSS-M2C 948-B, Jaguar/Land Rover STJLR.03.5004

Compliance with the requirements:
Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Honda/Acura HTO-06

show details

SAE: 5W-20

ILSAC: GF-6A

API: SN Plus, SP (RC)

ACEA: A5, B5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111110-001

Code:
4014835722514

Volume:
4 L

vendor code:
1111110-004

Code:
4014835722590

Volume:
5 L

vendor code:
1111110-005

Code:
4014835722552

Volume:
10 L

vendor code:
1111110-010

Code:
4014835722545

Volume:
20 L

vendor code:
1111110-020

Code:
4014835722521

Volume:
20 L, ecobox

vendor code:
1111110-B20

Code:
4014835772823

Volume:
60 L, print

vendor code:
1111110-D60

Code:
4014835722538

Volume:
1000 L

vendor code:
1111110-700

Volume:
60 L

vendor code:
1111110-060

Volume:
208 L

vendor code:
1111110-208

RAVENOL Super Fuel Economy SFE SAE 5W-20 has a high viscosity index because of its formulation with special base oils. The formulation avoids premature fuel ignition LSPI (Low Speed Prevention), thereby avoiding engine damage. Recommended for turbo gasoline engines with direct injection (Turbo-GDI).

Because of a considerable fuel saving RAVENOL Super Fuel Economy SFE SAE 5W-20 contributes to protect the environment by reducing the emissions.

RAVENOL Super Fuel Economy SFE SAE 5W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL Super Fuel Economy SFE SAE 5W-20 is an universal fuel-efficient engine oil, a top-quality product for modern passenger cars with gasoline and diesel engines of the latest generation.

Characteristics

Guaranteed fastest possible lubrication of the engine.
High fuel economy (FE) effect due to the base oils and additives used. Low volatilization tendency, thereby lower oil consumption.
Provides protection against sludging, coking, varnish and corrosion even under unfavorable operatingconditions.
No oil-related deposits in combustion chambers in the piston ring zone and on valves.
Ensures the function of the hydraulic tappets at all temperatures.
Stable engine oil, no NOx oxidation.
Good aging behavior, confirmed by the Hot Tube Test.
Good soot absorption and dispersion.
Neutral towards sealing materials.
Protects turbocharger, EPS and engines running with ethanol-containing fuels up to E85.
Compatibility with exhaust gas after treatment systems.

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C925-A, Ford WSS-M2C925-B, Ford WSS-M2C930-A, Ford WSS-M2C930-B, Honda/Acura HTO-06, Mazda, Nissan, Suzuki, Toyota		Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C925-A, Ford WSS-M2C925-B, Ford WSS-M2C930-A, Ford WSS-M2C930-B, Honda/Acura HTO-06, Mazda, Nissan, Suzuki, Toyota
Brand		RAVENOL		RAVENOL
SAE		5W-20		5W-20
Type		Full synthetic		Full synthetic
API		SN Plus, SP (RC)		SN Plus, SP (RC)
ACEA		A5, B5		A5, B5
ILSAC		GF-6A		GF-6A
Manufacturer Approved		Ford WSS-M2C 948-B, Jaguar/Land Rover STJLR.03.5004		Ford WSS-M2C 948-B, Jaguar/Land Rover STJLR.03.5004
Recomendations		Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Honda/Acura HTO-06		Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Honda/Acura HTO-06
Suitable for		Mazda, Nissan, Suzuki, Toyota		Mazda, Nissan, Suzuki, Toyota
Density at 20 °C	g/cm³	842	EN ISO 12185	842 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	8.5	DIN 51562-1	8.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	47.2	DIN 51562-1	47.2 mm²/s DIN 51562-1
Viscosity Index VI		160	DIN ISO 2909	160 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	2.9	ASTM D5481	2.9 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	3640	ASTM D5293	3640 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	9.700	ASTM D4684	9.700 mPa*s ASTM D4684
Pourpoint	°C	-63	DIN ISO 3016	-63 °C DIN ISO 3016
Noack Volatility	%	8.3	ASTM D5800	8.3 % ASTM D5800
Flashpoint	°C	238	DIN EN ISO 2592	238 °C DIN EN ISO 2592
tbn	mgKOH/g	8	ASTM D2896	8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.8	DIN 51575	0.8 %wt. DIN 51575
Approvals		Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Ford WSS-M2C 948-B, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5004		Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Ford WSS-M2C 948-B, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5004

FDS 5W-30

For engine

Manufacturer Approved:
Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB-Approval 229.6, Renault RN 0700

Compliance with the requirements:
Fiat 9.55535-G1, Ford WSS-M2C 913-C, VWC 53036

show details

SAE: 5W-30

API: CF, SP

ACEA: A5, A7, B5, B7

Equivalents OEM:
Alpine 0100181, Alpine 0100182, Alpine 100181, Alpine 100182, Alpine 100189, Ford 14E8B9, Ford 14E8BA, Ford 14E9EC, Ford 14E9ED, Ford 15CF53, Ford 15CF54, Ford 15D5E4, Ford 15D5E7, Ford 15D5E9, Ford 151FF2, Ford 151FF2, Ford 151FF3, Ford 151FF5, Ford 155D3A, Ford 155D4A, Ford 155D4B, Ford 1515DA, Ford 15594D, Ford 15595E, Ford 15595F, Ford 1370044, GM 12345885, Hyundai Motor 0510000141, Hyundai Motor 0510000441, Land Rover STC50527, Mazda 053001TFE Alpine 0100181, Alpine 0100182, Alpine 100181, Alpine 100182, Alpine 100189, Ford 14E8B9, Ford 14E8BA, Ford 14E9EC, Ford 14E9ED, Ford 15CF53, Ford 15CF54, Ford 15D5E4, Ford 15D5E7, Ford 15D5E9, Ford 151FF2, Ford 151FF2, Ford 151FF3, Ford 151FF5, Ford 155D3A, Ford 155D4A, Ford 155D4B, Ford 1515DA, Ford 15594D, Ford 15595E, Ford 15595F, Ford 1370044, GM 12345885, Hyundai Motor 0510000141, Hyundai Motor 0510000441, Land Rover STC50527, Mazda 053001TFE, Mazda 053005TFE, Mazda 53005TFE, Mazda 830077279, Mazda 830077280, Mazda 830077991, Mazda 830077992, Mazda 8300771772, Nissan KE90099933, Nissan KE90099933R, Nissan KE90099933VA, Nissan KE90099943, Nissan KE90099943R, Pentosin 1082107, Pentosin 1082206, Pentosin 4008849132117, Pentosin 4008849152238, Renault 7711943682, Renault 7711943683, Renault 7711943684, Toyota 0888083944, Volvo 31316299, Volvo 31316300

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111139-001

Code:
4014835795617

Volume:
4 L

vendor code:
1111139-004

Code:
4014835795693

Volume:
5 L

vendor code:
1111139-005

Code:
4014835795655

Volume:
10 L

vendor code:
1111139-010

Code:
4014835795648

Volume:
20 L

vendor code:
1111139-020

Code:
4014835795624

Volume:
20 L, ecobox

vendor code:
1111139-B20

Code:
4014835797925

Volume:
60 L

vendor code:
1111139-060

Code:
4014835795662

Volume:
60 L, print

vendor code:
1111139-D60

Volume:
208 L

vendor code:
1111139-208

Code:
4014835795686

Volume:
208 L, print

vendor code:
1111139-D28

Volume:
1000 L

vendor code:
1111139-700

With its new formulation, RAVENOL FDS SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL FDS SAE 5W-30 helps to protect the environment by reducing emissions. It minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL FDS SAE 5W-30 ensures operational safety in all driving conditions such as in extreme stop-and-go traffic and high-speed motorway driving.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL FDS SAE 5W-30 is suitable as motor oil for fuel-efficient year-round use in modern petrol and diesel engines in passenger cars, station wagon's, vans and similar vehicles from FORD, RENAULT, Toyota, Hyundai, KIA, Mazda, Honda, Nissan und Mitsubishi, when the specifications ACEA A5/B5 are required.

Characteristics

Excellent cold starting properties even at low temperatures of below -30 ° C
A very stable and excellent viscosity characteristics, shear stability
Fuel efficiency under all operating conditions
Excellent detergency and dispersing properties
Neutrality towards sealing materials
Low evaporation loss, thereby lower oil consumption
An extensive protection against wear, corrosion and foaming
Catalyst suitability
Extended oil change intervals to protect natural resources

Parameter	Unit	Value	Audit
Recommendations		Fiat 9.55535-G1, Ford WSS-M2C913-C, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C913-C, VWC 53036
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Full synthetic		Full synthetic
API		CF, SP		CF, SP
ACEA		A5, A7, B5, B7		A5, A7, B5, B7
Manufacturer Approved		Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB-Approval 229.6, Renault RN 0700		Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB-Approval 229.6, Renault RN 0700
Recomendations		Fiat 9.55535-G1, Ford WSS-M2C 913-C, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C 913-C, VWC 53036
Density at 20 °C	g/cm³	843	EN ISO 12185	843 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	10.2	DIN 51562-1	10.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	58.35	DIN 51562-1	58.35 mm²/s DIN 51562-1
Viscosity Index VI		163	DIN ISO 2909	163 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3	ASTM D5481	3 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	3880	ASTM D5293	3880 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	10.400	ASTM D4684	10.400 mPa*s ASTM D4684
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Noack Volatility	%	8.9	ASTM D5800	8.9 % ASTM D5800
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	12.5	ASTM D2896	12.5 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.2	DIN 51575	1.2 %wt. DIN 51575
Approvals		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036

Eco Synth ECS 0W-20

For engine

Manufacturer Approved:
Jaguar/Land Rover STJLR.51.5122, MB-Approval 229.71, Opel OV 040 1547 - A20

Compliance with the requirements:
Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, PSA B71 2010

show details

SAE: 0W-20

ILSAC: GF-5

API: SN (RC)

ACEA: C5, C6

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111102-001

Code:
4014835718517

Volume:
4 L

vendor code:
1111102-004

Code:
4014835718593

Volume:
5 L

vendor code:
1111102-005

Code:
4014835718555

Volume:
10 L

vendor code:
1111102-010

Code:
4014835718548

Volume:
20 L

vendor code:
1111102-020

Code:
4014835718524

Volume:
20 L, ecobox

vendor code:
1111102-B20

Code:
4014835772625

Volume:
60 L, print

vendor code:
1111102-D60

Code:
4014835718531

Volume:
208 L

vendor code:
1111102-208

Volume:
208 L, print

vendor code:
1111102-D28

Code:
4014835718500

Volume:
1000 L

vendor code:
1111102-700

With its new formulation, RAVENOL Eco Synth ECS SAE 0W-20 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL Eco Synth ECS SAE 0W-20 helps to protect the environment by reducing emissions.

RAVENOL Eco Synth ECS SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL Eco Synth ECS SAE 0W-20 is universal fuel-economy engine oil, suitable for all modern passenger car gasoline and diesel engines where this grade of oil is recommended. It is also suitable for use in hybrid vehicles from various manufacturers.

Characteristics

Guaranteed fastest possible lubrication of the engine.
High fuel economy (FE) effect due to the base oils and additives used. Low volatilization tendency, thereby lower oil consumption.
Provides protection against sludging, coking, varnish and corrosion even under unfavorable
operating conditions.
No oil-related deposits in combustion chambers in the piston ring zone and on valves.
Ensures the function of the hydraulic tappets at all temperatures.
Stable engine oil, no NOx oxidation.
Good aging behavior, confirmed by the Hot Tube Test.
Good soot absorption and dispersion.
Neutral towards sealing materials.
Ideal for hybrid vehicles

Parameter	Unit	Value	Audit
Recommendations		Buick , Cadillac, Chevrolet, Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C952-A1, Ford WSS-M2C947-A, GM 6094M, GM dexos1 (First Generation), Honda/Acura HTO-06, Infiniti, Jaguar Land Rover STJLR.03.5006, Lexus, Mazda, Mitsubishi, Nissan, PSA B71 2010, Subaru, Suzuki, Toyota		Buick , Cadillac, Chevrolet, Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C952-A1, Ford WSS-M2C947-A, GM 6094M, GM dexos1 (First Generation), Honda/Acura HTO-06, Infiniti, Jaguar Land Rover STJLR.03.5006, Lexus, Mazda, Mitsubishi, Nissan, PSA B71 2010, Subaru, Suzuki, Toyota
Brand		RAVENOL		RAVENOL
SAE		0W-20		0W-20
Type		Full synthetic		Full synthetic
API		SN (RC)		SN (RC)
ACEA		C5, C6		C5, C6
ILSAC		GF-5		GF-5
Manufacturer Approved		Jaguar/Land Rover STJLR.51.5122, MB-Approval 229.71, Opel OV 040 1547 - A20		Jaguar/Land Rover STJLR.51.5122, MB-Approval 229.71, Opel OV 040 1547 - A20
Recomendations		Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, PSA B71 2010		Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, PSA B71 2010
Suitable for		Buick, Cadillac, Chevrolet, Infiniti, Lexus, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota		Buick, Cadillac, Chevrolet, Infiniti, Lexus, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota
Density at 20 °C	g/cm³	839	EN ISO 12185	839 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	8.3	DIN 51562-1	8.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	41.3	DIN 51562-1	41.3 mm²/s DIN 51562-1
Viscosity Index VI		177	DIN ISO 2909	177 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	2.64	ASTM D5481	2.64 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	4890	ASTM D5293	4890 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	10.000	ASTM D4684	10.000 mPa*s ASTM D4684
Pourpoint	°C	-63	DIN ISO 3016	-63 °C DIN ISO 3016
Noack Volatility	%	9.4	ASTM D5800	9.4 % ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	9.2	ASTM D2896	9.2 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.79	DIN 51575	0.79 %wt. DIN 51575
Approvals		Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, Jaguar/Land Rover STJLR.51.5122, MB 229.71, Opel OV 040 1547 - A20, PSA B71 2010		Chrysler MS-6395, Fiat 9.55535-DSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094M, GM dexos1® Gen 1, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5006, Jaguar/Land Rover STJLR.51.5122, MB 229.71, Opel OV 040 1547 - A20, PSA B71 2010

HSV 0W-30

With its new formulation, RAVENOL HSV SAE 0W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

Manufacturer Approved:
MB-Approval 229.6, Volvo VCC 95200377

show details

SAE: 0W-30

API: SP

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1112117-001

Code:
4014835889835

Volume:
4 L

vendor code:
1112117-004

Code:
4014835889866

Volume:
5 L

vendor code:
1112117-005

Code:
4014835889897

Volume:
10 L

vendor code:
1112117-010

Code:
4014835889927

Volume:
20 L

vendor code:
1112117-020

Code:
4014835889941

Volume:
20 L, ecobox

vendor code:
1112117-B20

Code:
4014835890015

Volume:
60 L

vendor code:
1112117-060

Volume:
208 L

vendor code:
1112117-208

Volume:
1000 L

vendor code:
1112117-700

With its new formulation, RAVENOL HSV SAE 0W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL HSV SAE 0W-30 helps to protect the environment by reducing emissions.

RAVENOL HSV SAE 0W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL HSV SAE 0W-30 is a universal, fuel-efficient engine oil for gasoline engines in passenger cars. It is suitable for vehicles with and without turbocharging as a synthetic all-season engine oil. Due to the current API SP (RC) specification, additional protection against LSPI (Low Speed Pre Ignition).

Characteristics

Fuel savings in part and full load range
Universal application in all modern petrol engines
Quick lubrication of the engine even at temperatures below -30 °C
Low evaporation tendency, therefore a lower oil consumption
Safety against accumulation of sludge, coking and corrosion even under unfavourable operating conditions
No oil limited deposits in combustion chambers, at the piston ring and valves
Unchanged viscosity during the whole oil change interval, high viscosity index
Neutral against sealing materials
Miscibility with all commercially available engine oils. Flushing is not required

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		0W-30		0W-30
Type		Synthetic		Synthetic
API		SP		SP
Manufacturer Approved		MB-Approval 229.6, Volvo VCC 95200377		MB-Approval 229.6, Volvo VCC 95200377
Density at 20 °C	g/cm³	840	EN ISO 12185	840 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	10.9	DIN 51562-1	10.9 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	58.4	DIN 51562-1	58.4 mm²/s DIN 51562-1
Viscosity Index VI		182	DIN ISO 2909	182 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.32	ASTM D5481	3.32 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5160	ASTM D5293	5160 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	24.900	ASTM D4684	24.900 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	10.2	ASTM D5800	10.2 % ASTM D5800
Flashpoint	°C	238	DIN EN ISO 2592	238 °C DIN EN ISO 2592
tbn	mgKOH/g	8.8	ASTM D2896	8.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.2	DIN 51575	1.2 %wt. DIN 51575
Approvals		MB 229.6, Volvo VCC 95200377		MB 229.6, Volvo VCC 95200377

FO 5W-30

For engine

RAVENOL FO SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Compliance with the requirements:
Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700, VWC 53036

show details

SAE: 5W-30

API: CF, SL

ACEA: A5, B5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111115-001

Code:
4014835722613

Volume:
4 L

vendor code:
1111115-004

Code:
4014835722699

Volume:
5 L

vendor code:
1111115-005

Code:
4014835722651

Volume:
10 L

vendor code:
1111115-010

Code:
4014835722644

Volume:
20 L

vendor code:
1111115-020

Code:
4014835722620

Volume:
20 L, ecobox

vendor code:
1111115-B20

Code:
4014835772922

Volume:
60 L

vendor code:
1111115-060

Code:
4014835722668

Volume:
60 L, print

vendor code:
1111115-D60

Code:
4014835722637

Volume:
208 L

vendor code:
1111115-208

Code:
4014835722682

Volume:
208 L, print

vendor code:
1111115-D28

Code:
4014835722606

Volume:
1000 L

vendor code:
1111115-700

RAVENOL FO SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL FO SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL FO SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL FO SAE 5W-30 is suitable as motor oil for fuel-efficient year-round use in modern petrol and diesel engines in passenger cars, station wagon's, vans and similar vehicles from FORD, RENAULT, Toyota, Hyundai, KIA, Mazda, Honda, Nissan und Mitsubishi.

Characteristics

Fuel economy in part and full power operation.
Very stable and excellent viscosity behaviour.
Excellent shear stability.
Excellent cold starting characteristics.
A safe lubricant film at high operating temperatures.
High wear and corrosion protection, high oxidation stability.
Prevention of sludge formation.
Excellent detergent- and dispersant characteristics.
Catalyst cleaning.

Parameter	Unit	Value	Audit
Recommendations		Fiat 9.55535-G1, Ford WSS-M2C913-A, Ford WSS-M2C913-B, Ford WSS-M2C913-C, Ford WSS-M2C913-D, Jaguar Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C913-A, Ford WSS-M2C913-B, Ford WSS-M2C913-C, Ford WSS-M2C913-D, Jaguar Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CF, SL		CF, SL
ACEA		A5, B5		A5, B5
Recomendations		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700, VWC 53036
Density at 20 °C	g/cm³	849	EN ISO 12185	849 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	10	DIN 51562-1	10 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	56.6	DIN 51562-1	56.6 mm²/s DIN 51562-1
Viscosity Index VI		165	DIN ISO 2909	165 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.08	ASTM D5481	3.08 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4300	ASTM D5293	4300 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	14.000	ASTM D4684	14.000 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	%	9.4	ASTM D5800	9.4 % ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	10.9	ASTM D2896	10.9 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.3	DIN 51575	1.3 %wt. DIN 51575
Approvals		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

Available packaging
Full description
Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

Long-term effectiveness and clean fresh oil
Remedy for soiled engines
Protection against compression loss in the area of the piston rings
Leads to better exhaust emissions and increases the performance of the engine

Parameter	Unit	Value	Audit
Color		Light brown	visual	Light brown visual
Flashpoint (PM)	°C	62	DIN ISO 3679	62 °C DIN ISO 3679
Density at 20 °C		805	EN ISO 12185	805 EN ISO 12185
Viscosity at 40 °C	mm²/s	7	DIN EN ISO 3104	7 mm²/s DIN EN ISO 3104
Brand		RAVENOL		RAVENOL

Transmission, automatic in a unit with final drive 5/1

Liquid volume (basic): 5.9 L

ATF DW-1 Fluid

For automatic transmission

Due to its special formulation the properties of RAVENOL DW-1 Fluid are crucial. We assure an excellent cold stability.

show details

Equivalents OEM:
Honda 0820009001, Honda 082009008, Honda 082009008A, Honda 0820090080, Honda 082009009, Honda 082009009A, Honda 082009015A, Honda 082069001, Honda 0820899915HE, Honda 0826399951HB, Honda 08266LUB004, Honda 0826699964, Honda 0826699967, Honda 08268P99ZAY1, Honda 0826899901, Honda 0826899901, Honda 0826899901HE, Honda 0826899904HE, Honda 0826899920HE, Honda 08268999205HE, Honda 82009008, Honda CA66844

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1211125-001

Code:
4014835741812

Volume:
4 L

vendor code:
1211125-004

Code:
4014835741898

Volume:
10 L

vendor code:
1211125-010

Code:
4014835741843

Volume:
20 L

vendor code:
1211125-020

Code:
4014835741829

Volume:
20 L, ecobox

vendor code:
1211125-B20

Code:
4014835786721

Volume:
60 L

vendor code:
1211125-060

Volume:
60 L, print

vendor code:
1211125-D60

Volume:
208 L

vendor code:
1211125-208

Volume:
208 L, print

vendor code:
1211125-D28

Due to its special formulation the properties of RAVENOL DW-1 Fluid are crucial. We assure an excellent cold stability.

Application Note

RAVENOL DW-1 Fluid is specially designed for use in the latest automatic transmissions of Honda.Please note: Follow manufacturer’s original equipment number!

Characteristics

Extremely low pour point
Improved viscosity and coefficient of friction behaviour
A very good protection against consumption
Excellent thermal stability
Improved EP-characteristics
A good foaming behaviour
Neutral behaviour towards sealing materials
Reliable protection against corrosion

Parameter	Unit	Value	Audit
Recommendations		Honda 08200-9008, Honda 08200-9009, Honda 08266-99901, Honda 08266-99964, Honda 08266-99967		Honda 08200-9008, Honda 08200-9009, Honda 08266-99901, Honda 08266-99964, Honda 08266-99967
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Compliant products		Honda 08200-9008, Honda 08200-9009, Honda 08266-99901, Honda 08266-99964, Honda 08266-99967		Honda 08200-9008, Honda 08200-9009, Honda 08266-99901, Honda 08266-99964, Honda 08266-99967
Density at 20 °C	g/cm³	838	EN ISO 12185	838 g/cm³ EN ISO 12185
Color		Red	visual	Red visual
Pourpoint	°C	-54	DIN ISO 3016	-54 °C DIN ISO 3016

Mechanical gearbox in a unit with final drive 5/1

Liquid volume (basic): 1.6 L

MTF-2 75W-80

For gearbox

RAVENOL MTF-2 SAE 75W-80 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538

show details

SAE: 75W-80

API: GL-4, MT-1

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221103-001

Code:
4014835719712

Volume:
4 L

vendor code:
1221103-004

Code:
4014835719798

Volume:
10 L

vendor code:
1221103-010

Code:
4014835719743

Volume:
20 L

vendor code:
1221103-020

Volume:
20 L, ecobox

vendor code:
1221103-B20

Code:
4014835788428

Volume:
60 L

vendor code:
1221103-060

Code:
4014835719767

Volume:
60 L, print

vendor code:
1221103-D60

Volume:
208 L

vendor code:
1221103-208

Volume:
208 L, print

vendor code:
1221103-D28

Volume:
1000 L

vendor code:
1221103-700

RAVENOL MTF-2 SAE 75W-80 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL MTF-2 SAE 75W-80 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.

Application Note

RAVENOL MTF-2 SAE 75W-80 is a full synthetic transmission oil for manual transmissions.

Characteristics

A high-pressure stable lubricating film even at high oil temperatures and under high stress.
Outstanding shearing stability and excellent thermal stability.
Excellent viscosity-temperature properties.
High oxidation stability.
Excellent wear protection, outstanding EP properties.
Low foaming property even at high speeds
Good shifting behaviour even in low temperatures, extremely low pour point.
Extended life.

Parameter	Unit	Value	Audit
Recommendations		AC Delco 10-403, Audi G052532, Audi G055532, BMW 23001434404 MTF-LT-1, BMW 23007533513 MTF-LT-2, BMW 83220309031 MTF-LT-1, Fiat 14621616, Fiat 9.55550-MZ2, Fiat F178.B06, Ford 1382914, Ford 1547953, Ford WSS-M2C200-C3, Ford WSS-M2C200-D2, GM 1940711, GM 88861800, GM 88861801, Honda 08261-99964 Genuine MTF Fluid, Honda 08798-9031 MTF-7289, Hyundai 02200-00130 TOD, Land Rover STC 9157, Land Rover STC 9158, Land Rover TYK500030, MB 235.10 (A 001 989 26 03), Mitsubishi 3005401, Mitsubishi MZ312644, MTF-94 Fluid für Land Rover, MG und Mini Cooper, Nissan 999MP-MTF20P, Nissan KE91699932R, Peugeot 9730A2, PSA B71 2330, Subaru K0321-F0090, Toyota 08885-00705, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, Volvo 1161681, Volvo 1161745, VW/Audi G 052 911 A2, VW/Audi G 055 538 A2 für ZF 6S450 Amarok 0C6		AC Delco 10-403, Audi G052532, Audi G055532, BMW 23001434404 MTF-LT-1, BMW 23007533513 MTF-LT-2, BMW 83220309031 MTF-LT-1, Fiat 14621616, Fiat 9.55550-MZ2, Fiat F178.B06, Ford 1382914, Ford 1547953, Ford WSS-M2C200-C3, Ford WSS-M2C200-D2, GM 1940711, GM 88861800, GM 88861801, Honda 08261-99964 Genuine MTF Fluid, Honda 08798-9031 MTF-7289, Hyundai 02200-00130 TOD, Land Rover STC 9157, Land Rover STC 9158, Land Rover TYK500030, MB 235.10 (A 001 989 26 03), Mitsubishi 3005401, Mitsubishi MZ312644, MTF-94 Fluid für Land Rover, MG und Mini Cooper, Nissan 999MP-MTF20P, Nissan KE91699932R, Peugeot 9730A2, PSA B71 2330, Subaru K0321-F0090, Toyota 08885-00705, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, Volvo 1161681, Volvo 1161745, VW/Audi G 052 911 A2, VW/Audi G 055 538 A2 für ZF 6S450 Amarok 0C6
SAE		75W-80		75W-80
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
API		GL-4, MT-1		GL-4, MT-1
Recomendations		BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538		BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538
Compliant products		AcDelco 10-403, Fiat 14621616, Ford 1382914, Ford 1547953, GM 1940711, GM 88861800, GM 88861801, Honda 08261-99964, Honda 08798-9031, Hyundai 02200-00130 TOD, Land Rover STC9157, Land Rover STC9158, Land Rover TYK500030, MB A 001 989 26 03, Mitsubishi 3005401, Mitsubishi MZ312644, Nissan 999MP-MTF20P, Nissan KE91699932R, PSA 9730.A2, Subaru K0321-F0090, Toyota 08885-00705, Volvo 1161681, Volvo 1161745, VW G 052 911, VW G 055 538		AcDelco 10-403, Fiat 14621616, Ford 1382914, Ford 1547953, GM 1940711, GM 88861800, GM 88861801, Honda 08261-99964, Honda 08798-9031, Hyundai 02200-00130 TOD, Land Rover STC9157, Land Rover STC9158, Land Rover TYK500030, MB A 001 989 26 03, Mitsubishi 3005401, Mitsubishi MZ312644, Nissan 999MP-MTF20P, Nissan KE91699932R, PSA 9730.A2, Subaru K0321-F0090, Toyota 08885-00705, Volvo 1161681, Volvo 1161745, VW G 052 911, VW G 055 538
Density at 20 °C	g/cm³	847.5	EN ISO 12185	847.5 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	9.1	DIN 51562-1	9.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	50.8	DIN 51562-1	50.8 mm²/s DIN 51562-1
Viscosity Index VI		163	DIN ISO 2909	163 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	21.900	ASTM D2983	21.900 mPa*s ASTM D2983
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	248	DIN EN ISO 2592	248 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538		BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538

Power steering

Liquid volume (basic): 1 L

PSF-Y Fluid

For power steering

Due to its special formulation the properties of RAVENOL PSF-Y Fluid are crucial. We assure an excellent cold stability.

Compliance with the requirements:
Chrysler MS-5931, Chrysler MS-9933, Chrysler MS-10838, DTFR 38B100 (MB 236.3), MB 236.3, VW G 009 300, VW TL 4634

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1211123-001

Code:
4014835718616

Volume:
4 L

vendor code:
1211123-004

Volume:
20 L

vendor code:
1211123-020

Volume:
20 L, ecobox

vendor code:
1211123-B20

Code:
4014835786523

Volume:
60 L

vendor code:
1211123-060

Volume:
60 L, print

vendor code:
1211123-D60

Volume:
208 L

vendor code:
1211123-208

Volume:
208 L, print

vendor code:
1211123-D28

Due to its special formulation the properties of RAVENOL PSF-Y Fluid are crucial. We assure an excellent cold stability.

Application Note

RAVENOL PSF-Y Fluid is specially designed for use in the latest power steering of Volkswagen, Mercedes and Chrysler. Please note: Follow manufacturer’s original equipment number!

Characteristics

Extremely low pour point
Improved viscosity and coefficient of friction behaviour
A very good protection against consumption
Excellent thermal stability
Improved EP-characteristics
A good foaming behaviour
Neutral behaviour towards sealing materials
Reliable protection against corrosion

Parameter	Unit	Value	Audit
Recommendations		Chrysler 04883077, Chrysler 05098158A, Chrysler MS-10838, Chrysler MS-5931, Chrysler MS-9933, DTFR 38B100 (MB 236.3), GM 1050017, GM 89020661, GM 9985010, Honda 08206-9002, Honda 08285-P99-01Z-T1, MB 236.3, Mercedes A 000 989 88 03, Mopar 05142893AA, Texaco TL 4634, VW G 009 300 A2		Chrysler 04883077, Chrysler 05098158A, Chrysler MS-10838, Chrysler MS-5931, Chrysler MS-9933, DTFR 38B100 (MB 236.3), GM 1050017, GM 89020661, GM 9985010, Honda 08206-9002, Honda 08285-P99-01Z-T1, MB 236.3, Mercedes A 000 989 88 03, Mopar 05142893AA, Texaco TL 4634, VW G 009 300 A2
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Recomendations		Chrysler MS-10838, Chrysler MS-5931, Chrysler MS-9933, DTFR 38B100 (MB 236.3), MB 236.3, VW G 009 300, VW TL 4634		Chrysler MS-10838, Chrysler MS-5931, Chrysler MS-9933, DTFR 38B100 (MB 236.3), MB 236.3, VW G 009 300, VW TL 4634
Compliant products		Chrysler 04883077, Chrysler 05098158A, GM 1050017, GM 89020661, GM 9985010, Honda 08206-9002, Honda 08285-P99-01Z-T1, MB A 000 989 88 03, Mopar 05142893AA, VW G 009 300		Chrysler 04883077, Chrysler 05098158A, GM 1050017, GM 89020661, GM 9985010, Honda 08206-9002, Honda 08285-P99-01Z-T1, MB A 000 989 88 03, Mopar 05142893AA, VW G 009 300
Density at 20 °C	g/cm³	849	EN ISO 12185	849 g/cm³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	7.2	DIN 51562-1	7.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	34.9	DIN 51562-1	34.9 mm²/s DIN 51562-1
Viscosity Index VI		177	DIN ISO 2909	177 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	12800	ASTM D2983	12800 mPa*s ASTM D2983
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	210	DIN EN ISO 2592	210 °C DIN EN ISO 2592
Approvals		Chrysler MS-10838, Chrysler MS-5931, Chrysler MS-9933, DTFR 38B100 (MB 236.3), MB 236.3, VW G 009 300, VW TL 4634		Chrysler MS-10838, Chrysler MS-5931, Chrysler MS-9933, DTFR 38B100 (MB 236.3), MB 236.3, VW G 009 300, VW TL 4634

Hydraulic brakes/clutch system

Liquid volume (basic): 1 L

DOT 4

For brake system

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

show details

Available packaging
Full description
Product parameters

Volume:
250 ml

vendor code:
1350601-250

Code:
4014835692121

Volume:
500 ml

vendor code:
1350601-500

Code:
4014835692152

Volume:
1 L

vendor code:
1350601-001

Code:
4014835692114

Volume:
20 L

vendor code:
1350601-020

DOT 4

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

Application Note

RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.

RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.

RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113).

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

optimum ABS characteristics
chemical stability
best lubrication efficiency
neutral behaviour regarding brake parts
low viscosity at low temperatures
miscible with all brake fluids of the same specifications

Parameter	Unit	Value	Audit
FMVSS 116 specifications (DOT)		DOT-4		DOT-4
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
specification		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704
Density at 20 °C	g/cm³	1052	EN ISO 12185	1052 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mPa*s	2.41	ASTM D445	2.41 mPa*s ASTM D445
Viscosity at -40 °C	cSt	1340	ASTM D445	1340 cSt ASTM D445
Boiling point	°C	271	FMVSS 116	271 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point	°C	169	FMVSS 116	169 °C FMVSS 116
High Temperature Stability	°C	-1	FMVSS 116	-1 °C FMVSS 116
Chemical Stability	°C	1	FMVSS 116	1 °C FMVSS 116
Evaporation	%w/w	61	FMVSS 116	61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C		i.O., 4s	FMVSS 116	i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C		i.O., 8s	FMVSS 116	i.O., 8s FMVSS 116
Water Tolerance at -40 °C		transparent, 3s	FMVSS 116	transparent, 3s FMVSS 116
Water Tolerance at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at -40 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Water content	%	— 0.2	DIN 51777-1	— 0.2 % DIN 51777-1
Tinned Iron	Δ mg/cm²	0.04	FMVSS 116	0.04 Δ mg/cm² FMVSS 116
Steel	mg/cm²	-0.01	FMVSS 116	-0.01 mg/cm² FMVSS 116
Aluminium	mg/cm²	0.02	FMVSS 116	0.02 mg/cm² FMVSS 116
Cast Iron	Δ mg/cm²	-0,03	FMVSS 116	-0,03 Δ mg/cm² FMVSS 116
Brass	mg/cm²	-0.08	FMVSS 116	-0.08 mg/cm² FMVSS 116
Copper	mg/cm²	-0.05	FMVSS 116	-0.05 mg/cm² FMVSS 116
Zinc	mg/cm²	0.01	FMVSS 116	0.01 mg/cm² FMVSS 116
Sediment	%	— 0.05	FMVSS 116	— 0.05 % FMVSS 116
pH - value		8.2	FMVSS 116	8.2 FMVSS 116
Rubber Diameter Change		0.16	FMVSS 116	0.16 FMVSS 116
Hardness Change	°IRHD	-4	FMVSS 116	-4 °IRHD FMVSS 116
Appearance		i.O.	FMVSS 116	i.O. FMVSS 116
SBR at 70 °C	mm	0.56	FMVSS 116	0.56 mm FMVSS 116
SBR at 120 °C	mm	0.73	FMVSS 116	0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703)	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
EPDM at 120 °C	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925)	mm	0.38	FMVSS 116	0.38 mm FMVSS 116
Approvals		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704

Cooling system

Liquid volume (basic): 6.7 L

HTC - Protect MB325.0 Premix -40°C

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

Compliance with the requirements:
DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C

show details

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410121-150

Code:
4014835755710

Volume:
5 L

vendor code:
1410121-005

Code:
4014835755758

Volume:
10 L

vendor code:
1410121-010

Volume:
20 L

vendor code:
1410121-020

Code:
4014835755727

Volume:
20 L, ecobox

vendor code:
1410121-B20

Code:
4014835855403

Volume:
60 L

vendor code:
1410121-060

Code:
4014835755765

Volume:
208 L

vendor code:
1410121-208

Code:
4014835755789

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL HTC Hybrid Technology Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL HTC Hybrid Technology Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL HTC Hybrid Technology Coolant Premix -40°C to radiator to fill line.

RAVENOL HTC Hybrid Technology Coolant Premix -40°C can also be used as a “ready for use” dilution in geothermal probes and geothermal collectors as recommended list of LaWa (Federal / State Working Group on Water in Germany).

RAVENOL HTC Hybrid Technology Coolant Concentrate is included in the list of recommendations of the LaWa for water management requirements for geothermal probes and geothermal collectors.

Characteristics

Excellent for use in cast iron or aluminium engines, or alloys of the two metals, and aluminium andcopper alloy radiators
Good reserve alkalinity
Protection from corrosion and cavitation
Prevents sediments and foaming in the cooling system
Compatible with elastomers used in automotive radiators

Parameter	Unit	Value	Audit
Recommendations		ASTM D3306, ASTM D4340, ASTM D4985, Audi, BMW 81229407454, BMW 83192211191, DAF, DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford AF Plus, Ford ESE-M978B4H-A, GM 1825M, GM 1899M, GM 93740140, GM 93740141, GM SATURN, Honda OL999-9011, Jaguar, John Deere, MAN 324 NF, MB (A 000 989 08 25 10), MB 325.0 (Konzentrat), MB 326.0 (Premix), NATO S-759, Opel/GM QL130100, Porsche, Renault Glaceol RX Type D, ROVER, SAAB, SAE J1034, VW TL 774-C (entspricht G11)		ASTM D3306, ASTM D4340, ASTM D4985, Audi, BMW 81229407454, BMW 83192211191, DAF, DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford AF Plus, Ford ESE-M978B4H-A, GM 1825M, GM 1899M, GM 93740140, GM 93740141, GM SATURN, Honda OL999-9011, Jaguar, John Deere, MAN 324 NF, MB (A 000 989 08 25 10), MB 325.0 (Konzentrat), MB 326.0 (Premix), NATO S-759, Opel/GM QL130100, Porsche, Renault Glaceol RX Type D, ROVER, SAAB, SAE J1034, VW TL 774-C (entspricht G11)
Brand		RAVENOL		RAVENOL
ASTM		D3306, D4340, D4985		D3306, D4340, D4985
Recomendations		DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C		DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C
Suitable for		DAF, GM SATURN, Jaguar, John Deere, Porsche, ROVER, SAAB, VW		DAF, GM SATURN, Jaguar, John Deere, Porsche, ROVER, SAAB, VW
Compliant products		BMW 81229407454, BMW 83192211191, Ford AF Plus, GM 93740140, GM 93740141, Honda OL999-9011, MB A 000 989 08 25 10		BMW 81229407454, BMW 83192211191, Ford AF Plus, GM 93740140, GM 93740141, Honda OL999-9011, MB A 000 989 08 25 10
Density at 20 °C	g/cm³	1080	EN ISO 12185	1080 g/cm³ EN ISO 12185
Color		Blue	visual	Blue visual
pH - value at 20 °C		7,5	ASTM D1287	7,5 ASTM D1287
Freezing point	°C	-40	ASTM D1177	-40 °C ASTM D1177
Approvals		DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C		DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C

HTC - Protect MB325.0 Concentrate

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

show details

Equivalents OEM:
BMW 83195A1E3B6, BMW 81229407454, BMW 83192211191, BMW 83192211195, BMW 83192211913, BMW 83192211914, BMW 83192304068, BMW 83192304069, BMW 83512355290, BMW 83512355291, BMW 83512355293, BMW 83512355296, BMW 83600005416, FEBI 05011, FEBI 22268, FEBI 22270, Ford 1047035, GM 10101, GM 105034, GM 9163329, GM 10953464, GM 12346290, GM 12378512, GM 12378560, GM 12378561, GM 12378562, GM 93165162, GM 93170402, GM 93740140, GM 93740141, GM 93742646 BMW 83195A1E3B6, BMW 81229407454, BMW 83192211191, BMW 83192211195, BMW 83192211913, BMW 83192211914, BMW 83192304068, BMW 83192304069, BMW 83512355290, BMW 83512355291, BMW 83512355293, BMW 83512355296, BMW 83600005416, FEBI 05011, FEBI 22268, FEBI 22270, Ford 1047035, GM 10101, GM 105034, GM 9163329, GM 10953464, GM 12346290, GM 12378512, GM 12378560, GM 12378561, GM 12378562, GM 93165162, GM 93170402, GM 93740140, GM 93740141, GM 93742646, GM 93742647, Honda 08CLAE020S0, Land Rover PDA500300, MB A000989082510, MB A000989082513, MB A000989082520, MB A000989082521, MB A000989082522, MB A000989082523, MB A0009892125, MB A989082510, MB A990989280020, MB A990989280021, MB A990989280022, MB A990989280023, SsangYong 0000000294, Subaru 000016218, Subaru K0679GA102, VAG G011A8CA1, VAG G011A8CA1, Volvo 9437650, Volvo 9437651, Volvo 31439720, Volvo 31439721

Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410120-150

Code:
4014835755611

Volume:
5 L

vendor code:
1410120-005

Code:
4014835755659

Volume:
10 L

vendor code:
1410120-010

Volume:
20 L

vendor code:
1410120-020

Code:
4014835755628

Volume:
20 L, ecobox

vendor code:
1410120-B20

Code:
4014835852730

Volume:
60 L

vendor code:
1410120-060

Code:
4014835755666

Volume:

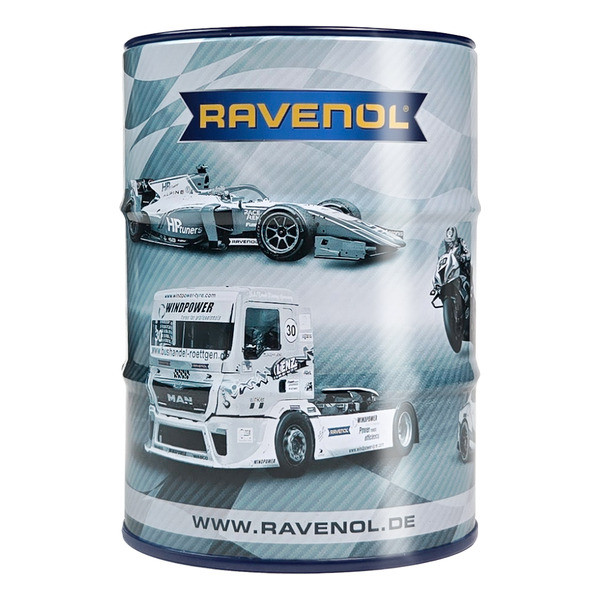

208 L

vendor code:
1410120-208

Code:
4014835755680

Volume:
1000 L

vendor code:
1410120-700

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL HTC Hybrid Technology Coolant Concentrate protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL HTC Hybrid Technology Coolant Concentrate with frost and rust protection for year-round use in automotive engines. Mix according to chart. Follow manufacturer's recommendations.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL HTC Hybrid Technology Coolant Concentrate with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

RAVENOL HTC Hybrid Technology Coolant Concentrate can also be used in geothermal probes and geothermal collectors as recommended list of LaWa (Federal / State Working Group on Water in Germany).

Table of mixing ratios
Antifreeze protection until	Parts Antifreeze	Parts Water
-20°C	35%	65%
-37°C	50%	50%
-50°C	60%	40%

Characteristics

Excellent for use in cast iron or aluminium engines, or alloys of the two metals, and aluminium and copper alloy radiators
Excellent reserve alkalinity
Protection from corrosion and cavitation
Prevents sediments and foaming in the cooling system
Compatible with elastomers used in automotive radiators

Parameter	Unit	Value	Audit
Recommendations		ASTM D3306, ASTM D4340, ASTM D4985, Audi, BMW 81229407454, BMW 83192211191, DAF, DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford AF Plus, Ford ESE-M978B4H-A, GM 1825M, GM 1899M, GM 93740140, GM 93740141, GM SATURN, Honda OL999-9011, Jaguar, John Deere, MAN 324 NF, MB (A 000 989 08 25 10), MB 325.0 (Konzentrat), MB 326.0 (Premix), NATO S-759, Opel/GM QL130100, Porsche, Renault Glaceol RX Type D, ROVER, SAAB, SAE J1034, VW TL 774-C (entspricht G11)		ASTM D3306, ASTM D4340, ASTM D4985, Audi, BMW 81229407454, BMW 83192211191, DAF, DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford AF Plus, Ford ESE-M978B4H-A, GM 1825M, GM 1899M, GM 93740140, GM 93740141, GM SATURN, Honda OL999-9011, Jaguar, John Deere, MAN 324 NF, MB (A 000 989 08 25 10), MB 325.0 (Konzentrat), MB 326.0 (Premix), NATO S-759, Opel/GM QL130100, Porsche, Renault Glaceol RX Type D, ROVER, SAAB, SAE J1034, VW TL 774-C (entspricht G11)
Brand		RAVENOL		RAVENOL
ASTM		D3306, D4340, D4985		D3306, D4340, D4985
Recomendations		DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C		DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C
Suitable for		DAF, GM SATURN, Jaguar, John Deere, Porsche, ROVER, SAAB, VW		DAF, GM SATURN, Jaguar, John Deere, Porsche, ROVER, SAAB, VW
Compliant products		BMW 81229407454, BMW 83192211191, Ford AF Plus, GM 93740140, GM 93740141, Honda OL999-9011, MB A 000 989 08 25 10		BMW 81229407454, BMW 83192211191, Ford AF Plus, GM 93740140, GM 93740141, Honda OL999-9011, MB A 000 989 08 25 10
Density at 20 °C	g/cm³	1130	EN ISO 12185	1130 g/cm³ EN ISO 12185
Color		Blue	visual	Blue visual
Reserve alkalinity	mgKOH/g	15 —	ASTM D1120	15 — mgKOH/g ASTM D1120
Boiling point	°C	160 —	ASTM D1121	160 — °C ASTM D1121
Water content	%	— 5	ASTM D1123	— 5 % ASTM D1123
Flashpoint	°C	100 —	DIN 51758	100 — °C DIN 51758
Freezing point (50 % solution)	°C	-37	ASTM D1177	-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %)		7,0 - 8,0	ASTM D1287	7,0 - 8,0 ASTM D1287
Approvals		DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C		DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter	Value
Recommendations	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand	RAVENOL	RAVENOL
Recomendations	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272
Approvals	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272

Professional Radiator Cleaner

Additive

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

show details

Equivalents OEM:
Ford MP14300500AB

Available packaging
Full description
Product parameters

Volume:
0.25 L

vendor code:
1390302-250

Code:
4014835802667

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.

Application Note

RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.

Area of application:

Radiator repairs

In the event of reduced radiator performance

In the event of deposits in the cooling system

Changing coolant

For cleaning purposes after engine repairs due to oil in the cooling system

Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.

Fill in

RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.

RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.

Characteristics

Cleaning of the cooling and heating system
Protection of the new coolant against prior contamination
Elimination of sludge and corrosion residue

Parameter	Unit	Value	Audit
Color		Colorless	visual	Colorless visual
Density at 20 °C	g/cm³	1003	EN ISO 12185	1003 g/cm³ EN ISO 12185
pH - value at 20 °C		10,25	DIN 19268	10,25 DIN 19268
Brand		RAVENOL		RAVENOL
