Mitsubishi

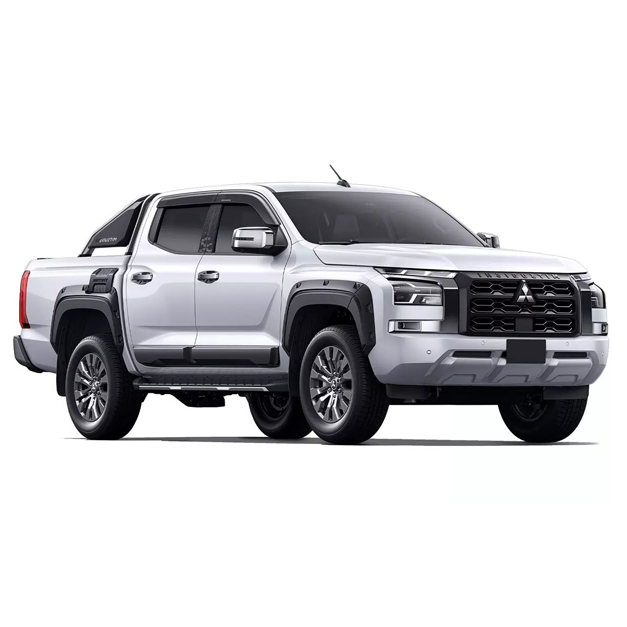

Oil for Mitsubishi - L200 VI - 2.4D 4WD (4N16)

Mitsubishi L200 VI 2.4D 4WD (4N16), year of issue from 2023 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Add to Garage

Nodes and assemblies

Engine 4N16

Liquid volume (basic): 6.7 L
VMP 5W-30

VMP 5W-30

CleanSynto®
USVO®
For engine

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00

Compliance with the requirements:
Audi Motorsport V31 748 026, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195

show details hide details

SAE: 5W-30

API: SN

ACEA: C3

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1111122-001

Code:
4014835723313

Volume:
4 L

vendor code:
1111122-004

Code:
4014835723399

Volume:
5 L

vendor code:
1111122-005

Code:
4014835723351

Volume:
10 L

vendor code:
1111122-010

Code:
4014835723344

Volume:
20 L

vendor code:
1111122-020

Code:
4014835723320

Volume:
20 L, ecobox

vendor code:
1111122-B20

Code:
4014835773622

Volume:
60 L

vendor code:
1111122-060

Code:
4014835723368

Volume:
60 L, print

vendor code:
1111122-D60

Code:
4014835723337

Volume:
208 L

vendor code:
1111122-208

Code:
4014835723382

Volume:
208 L, print

vendor code:
-

Code:
4014835723306

Volume:
1000 L

vendor code:
1111122-700

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

RAVENOL VMP SAE 5W-30 is based on additives with reduced ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

RAVENOL VMP SAE 5W-30 achieved by its formulation with special base oils a high viscosity index. The excellent cold start behaviour ensures a optimal lubrication safety in the cold running phase.

Due to a significant fuel economy RAVENOL VMP SAE 5W-30 contributes by reduction of emissions to conservation the environment. Minimal wear extends the lifespan of the engine.

RAVENOL VMP SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL VMP SAE 5W-30 is a universal fuel economy, especially collected engine oil for modern gasoline and diesel engines with and without turbo charger in passenger cars and vans with extended oil change intervals. Extend the lifespan of the particle filter. Due to the specific composition is RAVENOL VMP SAE 5W-30 excellent suitable for use for several of the latest OEM requirements.

Characteristics

  • Fuel economy in part and full power operation
  • MID SAPS = reduced Sulphated ash, Phosphor and Sulfur
  • Excellent wear protection and high viscosity index also under high-speed driving conditions, the longlife of the engine
  • Excellent cold starting characteristics also at low temperatures
  • A safe lubricant film at high operating temperatures
  • Low evaporative tendency, so lower oil consumption
  • No deposits in combustion chambers, in the piston ring zone and valves because of oil conditioned
  • Neutrality towards sealing materials
  • Extended oil change intervals to protect natural resources
Parameter Unit Value Audit
Recommendations Audi Motorsport V31 748 026, BMW 83210398507, BMW/Mini 83 21 0 398 508, Chrysler MS-11106, Fiat 9.55535-S1, MB (A 000 989 89 01 10), MB 229.31, Stellantis FPW9.55535/03, VW/Audi G 052 195 M2, VW/Audi G 052 195 M4, VW/Audi G 052 195 M6
Audi Motorsport V31 748 026, BMW 83210398507, BMW/Mini 83 21 0 398 508, Chrysler MS-11106, Fiat 9.55535-S1, MB (A 000 989 89 01 10), MB 229.31, Stellantis FPW9.55535/03, VW/Audi G 052 195 M2, VW/Audi G 052 195 M4, VW/Audi G 052 195 M6
Application area Audi Motorsport V31 748 026
Audi Motorsport V31 748 026
Brand RAVENOL
RAVENOL
SAE 5W-30
5W-30
Type Full synthetic
Full synthetic
API SN
SN
ACEA C3
C3
Manufacturer Approved BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00
BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00
Recomendations Audi Motorsport V31 748 026, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195
Audi Motorsport V31 748 026, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195
Compliant products BMW 83210398507, BMW 83210398508, MB A 000 989 89 01 10, VW G 052 195
BMW 83210398507, BMW 83210398508, MB A 000 989 89 01 10, VW G 052 195
Density at 20 °C g/cm³ 849 EN ISO 12185
849 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 11.9 DIN 51562-1
11.9 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 66.3 DIN 51562-1
66.3 mm²/s DIN 51562-1
Viscosity Index VI 179 DIN ISO 2909
179 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 3.7 ASTM D5481
3.7 mPa*s ASTM D5481
CCS Viscosity at -30 °C mPa*s 4740 ASTM D5293
4740 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C mPa*s 12.000 ASTM D4684
12.000 mPa*s ASTM D4684
Pourpoint °C -60 DIN ISO 3016
-60 °C DIN ISO 3016
Noack Volatility % 6.4 ASTM D5800
6.4 % ASTM D5800
Flashpoint °C 238 DIN EN ISO 2592
238 °C DIN EN ISO 2592
tbn mgKOH/g 8.8 ASTM D2896
8.8 mgKOH/g ASTM D2896
Sulphated Ash %wt. 0.7 DIN 51575
0.7 %wt. DIN 51575
Approvals Audi Motorsport V31 748 026, BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, MB 229.51, Porsche C30, Stellantis FPW9.55535/03, VW 504.00, VW 507.00, VW G 052 195
Audi Motorsport V31 748 026, BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, MB 229.51, Porsche C30, Stellantis FPW9.55535/03, VW 504.00, VW 507.00, VW G 052 195
SMP 5W-30

SMP 5W-30

CleanSynto®
Engine oil

RAVENOL SMP SAE 5W-30 is based on synthetic base oils and contains additives with reduced ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

Manufacturer Approved:
BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00

Compliance with the requirements:
Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195

show details hide details

SAE: 5W-30

API: SN, SP

ACEA: C3

Equivalents OEM:
Alpine 0100271, Alpine 0100272, Alpine 0100273, Alpine 0100274, Alpine 0100275, Alpine 0100279, Alpine 100271, Alpine 100272, Alpine 100273, Alpine 100274, Alpine 100274, Alpine 100279, BMW 83212465851, FEBI 32945, FEBI 32946, FEBI 32947, FEBI 32948, FEBI 39337, MB A000989780110, MB A000989890110, MB A0009899301, SWAG 15932945, SWAG 15932946, SWAG 15932947, SWAG 15932948, SWAG 99939337

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1111126-001

Code:
4014835856981

Volume:
4 L

vendor code:
1111126-004

Code:
4014835857018

Volume:
5 L

vendor code:
1111126-005

Code:
4014835857049

Volume:
10 L

vendor code:
1111126-010

Code:
4014835857070

Volume:
20 L

vendor code:
1111126-020

Code:
4014835857117

Volume:
20 L, ecobox

vendor code:
1111126-B20

Code:
4014835857094

Volume:
60 L

vendor code:
1111126-060

Code:
4014835857155

Volume:
60 L, print

vendor code:
1111126-D60

Code:
4014835857131

Volume:
208 L

vendor code:
1111126-208

Code:
4014835857193

Volume:
208 L, print

vendor code:
1111126-D28

Volume:
1000 L

vendor code:
1111126-700

RAVENOL SMP SAE 5W-30 is based on synthetic base oils and contains additives with reduced ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

RAVENOL SMP SAE 5W-30 achieved by its formulation with special base oils a high viscosity index. The excellent cold start behaviour ensures an optimal lubrication safety in the cold running phase.

Because of a considerable fuel saving RAVENOL SMP SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL SMP SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL SMP SAE 5W-30 is universal fuel economy, especially formulated engine oil for modern gasoline and diesel engines with and without turbo charger in passenger cars and vans with extended oil change intervals. Extend the lifespan of the particle filter.

Due to the specific composition is RAVENOL SMP SAE 5W-30 excellent suitable for use for several of the latest OEM requirements.

Characteristics

  • Fuel economy in part and full power operation
  • MID SAPS = reduced Sulphated ash, Phosphor and Sulfur
  • Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine
  • Excellent cold starting characteristics also at low temperatures
  • A safe lubricant film at high operating temperatures
  • Low evaporative tendency, so lower oil consumption
  • No deposits in combustion chambers, in the piston ring zone and valvesbecause of oil conditioned
  • Neutrality towards sealing materials
  • Extended oil change intervals to protect natural resources
Parameter Unit Value Audit
Recommendations BMW 83210398507, BMW/Mini 83 21 0 398 508, Chrysler MS-11106, Fiat 9.55535-S1, MB (A 000 989 89 01 10), MB 229.31, Stellantis FPW9.55535/03, VW/Audi G 052 195 M2, VW/Audi G 052 195 M4, VW/Audi G 052 195 M6
BMW 83210398507, BMW/Mini 83 21 0 398 508, Chrysler MS-11106, Fiat 9.55535-S1, MB (A 000 989 89 01 10), MB 229.31, Stellantis FPW9.55535/03, VW/Audi G 052 195 M2, VW/Audi G 052 195 M4, VW/Audi G 052 195 M6
Brand RAVENOL
RAVENOL
SAE 5W-30
5W-30
Type Synthetic
Synthetic
API SN, SP
SN, SP
ACEA C3
C3
Manufacturer Approved BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00
BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00
Recomendations Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195
Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195
Compliant products BMW 83210398507, BMW 83210398508, MB A 000 989 89 01 10, VW G 052 195
BMW 83210398507, BMW 83210398508, MB A 000 989 89 01 10, VW G 052 195
Density at 20 °C g/cm³ 846 EN ISO 12185
846 g/cm³ EN ISO 12185
Color Brown visual
Brown visual
Viscosity at 100 °C mm²/s 11.95 DIN 51562-1
11.95 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 70.4 DIN 51562-1
70.4 mm²/s DIN 51562-1
Viscosity Index VI 167 DIN ISO 2909
167 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 3.63 ASTM D5481
3.63 mPa*s ASTM D5481
CCS Viscosity at -30 °C mPa*s 5820 ASTM D5293
5820 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C mPa*s 20.900 ASTM D4684
20.900 mPa*s ASTM D4684
Pourpoint °C -42 DIN ISO 3016
-42 °C DIN ISO 3016
Noack Volatility % 9.8 ASTM D5800
9.8 % ASTM D5800
Flashpoint °C 233 DIN EN ISO 2592
233 °C DIN EN ISO 2592
tbn mgKOH/g 8.8 ASTM D2896
8.8 mgKOH/g ASTM D2896
Sulphated Ash %wt. 0.7 DIN 51575
0.7 %wt. DIN 51575
Approvals BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, MB 229.51, Porsche C30, Stellantis FPW9.55535/03, VW 504.00, VW 507.00, VW G 052 195
BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, MB 229.51, Porsche C30, Stellantis FPW9.55535/03, VW 504.00, VW 507.00, VW G 052 195
HLS 5W-30

HLS 5W-30

CleanSynto®
For engine

RAVENOL HLS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01

Compliance with the requirements:
Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00

show details hide details

SAE: 5W-30

API: CF, SN

ACEA: C3

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1111119-001

Code:
4014835723016

Volume:
4 L

vendor code:
1111119-004

Code:
4014835723092

Volume:
5 L

vendor code:
1111119-005

Code:
4014835723054

Volume:
10 L

vendor code:
1111119-010

Code:
4014835723047

Volume:
20 L

vendor code:
1111119-020

Code:
4014835723023

Volume:
20 L, ecobox

vendor code:
1111119-B20

Code:
4014835773325

Volume:
60 L

vendor code:
1111119-060

Code:
4014835723061

Volume:
60 L, print

vendor code:
1111119-D60

Code:
4014835723030

Volume:
208 L

vendor code:
1111119-208

Code:
4014835723085

Volume:
208 L, print

vendor code:
1111119-D28

Code:
4014835723009

Volume:
1000 L

vendor code:
1111119-700

RAVENOL HLS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HLS SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL HLS SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL HLS SAE 5W-30 is Mid SAPS Oils which prevents effectively the reset of the diesel soot particulate filter.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HLS SAE 5W-30 is suitable for demanding motors as a high performance low friction motor oil. It is recommended for all modern passenger car gasoline and diesel engines, including turbo versions, for direct injection motors and it is also recommended for all operation conditions. RAVENOL HLS SAE 5W-30 is recommended for use in vehicles with diesel particulate filters.

Characteristics

  • Fuel economy in part and full power operation.
  • Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine.
  • Excellent cold starting characteristics also at low temperatures below -30°C.
  • A safe lubricant film at high operating temperatures.
  • Low evaporative tendency, so lower oil consumption.
  • No deposits in combustion chambers, in the piston ring zone and valves.
  • Neutrality towards sealing materials.
  • Extended oil change intervals to protect natural resources.
Parameter Unit Value Audit
Recommendations Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502 00
Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502 00
Brand RAVENOL
RAVENOL
SAE 5W-30
5W-30
Type Synthetic
Synthetic
API CF, SN
CF, SN
ACEA C3
C3
Manufacturer Approved BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01
BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01
Recomendations Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00
Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00
Density at 20 °C g/cm³ 847 EN ISO 12185
847 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 12.2 DIN 51562-1
12.2 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 72.7 DIN 51562-1
72.7 mm²/s DIN 51562-1
Viscosity Index VI 166 DIN ISO 2909
166 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 3.51 ASTM D5481
3.51 mPa*s ASTM D5481
CCS Viscosity at -30 °C mPa*s 5216 ASTM D5293
5216 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C mPa*s 23000 ASTM D4684
23000 mPa*s ASTM D4684
Pourpoint °C -39 DIN ISO 3016
-39 °C DIN ISO 3016
Noack Volatility % 6.9 ASTM D5800
6.9 % ASTM D5800
Flashpoint °C 234 DIN EN ISO 2592
234 °C DIN EN ISO 2592
tbn mgKOH/g 7.8 ASTM D2896
7.8 mgKOH/g ASTM D2896
Sulphated Ash %wt. 0.8 DIN 51575
0.8 %wt. DIN 51575
Approvals BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S3, GM dexos2®, MB 229.31, MB 229.51, MB 229.52, Opel OV 040 1547 - D30, Stellantis FPW9.55535/03, VW 502.00, VW 505.00, VW 505.01
BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S3, GM dexos2®, MB 229.31, MB 229.51, MB 229.52, Opel OV 040 1547 - D30, Stellantis FPW9.55535/03, VW 502.00, VW 505.00, VW 505.01
FLJ 5W-30

FLJ 5W-30

CleanSynto®
For engine

RAVENOL FLJ SAE 5W-30 is based on additives with reduced ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. HTHS >2.9mPa*s. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

Manufacturer Approved:
Jaguar/Land Rover STJLR.03.5005

Compliance with the requirements:
Ford WSS-M2C 934-A, Ford WSS-M2C 934-B

show details hide details

SAE: 5W-30

ACEA: C2

Equivalents OEM:
Mazda 053001DPF, Mazda 053001DPF

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1111143-001

Code:
4014835807150

Volume:
4 L

vendor code:
1111143-004

Code:
4014835808201

Volume:
5 L

vendor code:
1111143-005

Code:
4014835808232

Volume:
10 L

vendor code:
1111143-010

Code:
4014835810976

Volume:
20 L

vendor code:
1111143-020

Code:
4014835840027

Volume:
20 L, ecobox

vendor code:
1111143-B20

Code:
4014835811119

Volume:
60 L

vendor code:
1111143-060

Code:
4014835812031

Volume:
60 L, print

vendor code:
1111143-D60

Code:
4014835811928

Volume:
208 L

vendor code:
1111143-208

Volume:
208 L, print

vendor code:
1111143-D28

Code:
4014835812161

Volume:
1000 L

vendor code:
1111143-700

RAVENOL FLJ SAE 5W-30 is based on additives with reduced ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. HTHS >2.9mPa*s. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

RAVENOL FLJ SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase. Because of a considerable fuel saving RAVENOL FLJ SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL FLJ SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL FLJ SAE 5W-30 is a universal, fuel-saving, specially-composed motor oil for modern gasoline and diesel engines with and without turbocharging, for use in passenger cars and vans with extended oil change intervals. It extends the service life of particle filters.

Due to its special formulation, RAVENOL FLJ SAE 5W-30 is ideally suited for use in accordance with the indicated OEM specifications.

Characteristics

  • Fuel saving in partial and full load operation.
  • Low SAPS = reduced Sulphated ash, Phosphorous and Sulfur.
  • Excellent wear protection and a high viscosity index ensure the long service life of the engine even under high speed driving conditions.
  • Excellent cold start properties even at low temperatures of below -30°C.
  • A reliable lubrication film even at high operating temperatures.
  • Low volatility, resulting in low oil consumption.
  • No oil-related deposits in combustion chambers, in the piston ring zone and on valves.
  • Compatible with sealing materials.
  • Extended oil change intervals protect natural resources.
Parameter Unit Value Audit
Recommendations Ford WSS-M2C934-A, Ford WSS-M2C934-B, Mazda, Mitsubishi
Ford WSS-M2C934-A, Ford WSS-M2C934-B, Mazda, Mitsubishi
Brand RAVENOL
RAVENOL
SAE 5W-30
5W-30
Type Synthetic
Synthetic
ACEA C2
C2
Manufacturer Approved Jaguar/Land Rover STJLR.03.5005
Jaguar/Land Rover STJLR.03.5005
Recomendations Ford WSS-M2C 934-A, Ford WSS-M2C 934-B
Ford WSS-M2C 934-A, Ford WSS-M2C 934-B
Suitable for Mazda, Mitsubishi
Mazda, Mitsubishi
Density at 20 °C g/cm³ 841 EN ISO 12185
841 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 10 DIN 51562-1
10 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 54.4 DIN 51562-1
54.4 mm²/s DIN 51562-1
Viscosity Index VI 175 DIN ISO 2909
175 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 3.1 ASTM D5481
3.1 mPa*s ASTM D5481
CCS Viscosity at -30 °C mPa*s 3848 ASTM D5293
3848 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C mPa*s 12.215 ASTM D4684
12.215 mPa*s ASTM D4684
Pourpoint °C -36 DIN ISO 3016
-36 °C DIN ISO 3016
Noack Volatility % 11.1 ASTM D5800
11.1 % ASTM D5800
Flashpoint °C 228 DIN EN ISO 2592
228 °C DIN EN ISO 2592
tbn mgKOH/g 6.8 ASTM D2896
6.8 mgKOH/g ASTM D2896
Sulphated Ash %wt. 0.49 DIN 51575
0.49 %wt. DIN 51575
Approvals Ford WSS-M2C 934-A, Ford WSS-M2C 934-B, Jaguar/Land Rover STJLR.03.5005
Ford WSS-M2C 934-A, Ford WSS-M2C 934-B, Jaguar/Land Rover STJLR.03.5005
FES 0W-30

FES 0W-30

CleanSynto®
USVO®
For engine

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
BMW Longlife-12 FE, DTFR 15D100, MB-Approval 229.61

Compliance with the requirements:
Chrysler MS-13340, E-REV (Range Extender Electric Vehicle), Fiat 9.55535-DS1, Fiat 9.55535-GS1, Ford WSS-M2C 950-A, IVECO 18-1811 CLASS SC1 LV, Jaguar/Land Rover STJLR.03.5007, MB 227.61, PSA B71 2290, PSA B71 2312

show details hide details

SAE: 0W-30

ILSAC: GF-6A

API: SP (RC)

ACEA: A5, B5, C2

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1111146-001

Code:
4014835842724

Volume:
4 L

vendor code:
1111146-004

Code:
4014835842755

Volume:
5 L

vendor code:
1111146-005

Code:
4014835859012

Volume:
10 L

vendor code:
1111146-010

Code:
4014835888197

Volume:
20 L

vendor code:
1111146-020

Code:
4014835853188

Volume:
20 L, ecobox

vendor code:
1111146-B20

Code:
4014835853164

Volume:
60 L

vendor code:
1111146-060

Volume:
60 L, print

vendor code:
1111146-D60

Code:
4014835853201

Volume:
208 L

vendor code:
1111146-208

Code:
4014835853263

Volume:
208 L, print

vendor code:
1111146-D28

Code:
4014835853249

Volume:
1000 L

vendor code:
1111146-700

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

RAVENOL FES SAE 0W-30 is based on additives with low ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. HTHS >2,9mPa.s. Developed for fuel economy especially for the latest petrol and diesel engines of BMW, PSA, FIAT, IVECO and Jaguar Land Rover.

With its new formulation, RAVENOL FES SAE 0W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL FES SAE 0W-30 helps to protect the environment by reducing emissions.

RAVENOL FES SAE 0W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL FES SAE 0W-30 is a universal fuel economy, especially designed engine oil for modern gasoline and diesel engines with and without turbo charger in passenger cars and vans with extended oil change intervals of BMW, PSA, FIAT, IVECO and Jaguar Land Rover. Extends the lifespan of the particle filter.

Due to the specific composition is RAVENOL FES SAE 0W-30 excellent suitable for use for indicated OEM requirements.

Characteristics

  • Fuel economy in part and full power operation
  • Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine
  • Excellent cold starting characteristics also at low temperatures
  • A safe lubricant film at high operating temperatures
  • Low evaporative tendency, so lower oil consumption
  • No deposits in combustion chambers, in the piston ring zone and valves because of oil conditioned
  • Neutrality towards sealing materials
  • Extended oil change intervals to protect natural resources
Parameter Unit Value Audit
Recommendations Chrysler MS-13340, Fiat 9.55535-DS1, Fiat 9.55535-GS1, Ford WSS-M2C950-A, IVECO 18-1811 CLASSE SC1 LV, Jaguar Land Rover STJLR.03.5007, MB 227.61, PSA B71 2290, PSA B71 2312
Chrysler MS-13340, Fiat 9.55535-DS1, Fiat 9.55535-GS1, Ford WSS-M2C950-A, IVECO 18-1811 CLASSE SC1 LV, Jaguar Land Rover STJLR.03.5007, MB 227.61, PSA B71 2290, PSA B71 2312
Brand RAVENOL
RAVENOL
SAE 0W-30
0W-30
Type Full synthetic
Full synthetic
API SP (RC)
SP (RC)
ACEA A5, B5, C2
A5, B5, C2
ILSAC GF-6A
GF-6A
Manufacturer Approved BMW Longlife-12 FE, DTFR 15D100, MB-Approval 229.61
BMW Longlife-12 FE, DTFR 15D100, MB-Approval 229.61
Recomendations Chrysler MS-13340, Fiat 9.55535-DS1, Fiat 9.55535-GS1, Ford WSS-M2C 950-A, IVECO 18-1811 CLASS SC1 LV, Jaguar/Land Rover STJLR.03.5007, MB 227.61, PSA B71 2290, PSA B71 2312
Chrysler MS-13340, Fiat 9.55535-DS1, Fiat 9.55535-GS1, Ford WSS-M2C 950-A, IVECO 18-1811 CLASS SC1 LV, Jaguar/Land Rover STJLR.03.5007, MB 227.61, PSA B71 2290, PSA B71 2312
Density at 20 °C g/cm³ 844 EN ISO 12185
844 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 9.4 DIN 51562-1
9.4 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 47.3 DIN 51562-1
47.3 mm²/s DIN 51562-1
Viscosity Index VI 186 DIN ISO 2909
186 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 3 ASTM D5481
3 mPa*s ASTM D5481
CCS Viscosity at -35 °C mPa*s 4800 ASTM D5293
4800 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C mPa*s 12.300 ASTM D4684
12.300 mPa*s ASTM D4684
Pourpoint °C -57 DIN ISO 3016
-57 °C DIN ISO 3016
Noack Volatility % 9 ASTM D5800
9 % ASTM D5800
Flashpoint °C 236 DIN EN ISO 2592
236 °C DIN EN ISO 2592
tbn mgKOH/g 9.4 ASTM D2896
9.4 mgKOH/g ASTM D2896
Sulphated Ash %wt. 0.76 DIN 51575
0.76 %wt. DIN 51575
Approvals BMW Longlife-12 FE, Chrysler MS-13340, DTFR 15D100, Fiat 9.55535-DS1, Fiat 9.55535-GS1, Ford WSS-M2C 950-A, IVECO 18-1811 CLASS SC1 LV, Jaguar/Land Rover STJLR.03.5007, MB 227.61, MB 229.61, PSA B71 2290, PSA B71 2312
BMW Longlife-12 FE, Chrysler MS-13340, DTFR 15D100, Fiat 9.55535-DS1, Fiat 9.55535-GS1, Ford WSS-M2C 950-A, IVECO 18-1811 CLASS SC1 LV, Jaguar/Land Rover STJLR.03.5007, MB 227.61, MB 229.61, PSA B71 2290, PSA B71 2312
Professional Engine Cleaner

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details hide details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

  • Available packaging
  • Full description
  • Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

  • Long-term effectiveness and clean fresh oil
  • Remedy for soiled engines
  • Protection against compression loss in the area of the piston rings
  • Leads to better exhaust emissions and increases the performance of the engine
Parameter Unit Value Audit
Color Light brown visual
Light brown visual
Flashpoint (PM) °C 62 DIN ISO 3679
62 °C DIN ISO 3679
Density at 20 °C 805 EN ISO 12185
805 EN ISO 12185
Viscosity at 40 °C mm²/s 7 DIN EN ISO 3104
7 mm²/s DIN EN ISO 3104
Brand RAVENOL
RAVENOL

Transmission, automatic in a unit with final drive V6AWH-M-DA 6/1

Liquid volume (basic): 10.4 L
ATF T-WS Lifetime

ATF T-WS Lifetime

Hydraulic fluid

RAVENOL ATF T-WS Lifetime fulfils the transmission oil specifications for latest automatic transmissions of Toyota and Aisin Warner.

Compliance with the requirements:
Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540

show details hide details
  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1211106-001

Code:
4014835743311

Volume:
4 L

vendor code:
1211106-004

Code:
4014835743397

Volume:
10 L

vendor code:
1211106-010

Code:
4014835743342

Volume:
20 L

vendor code:
1211106-020

Code:
4014835743328

Volume:
20 L, ecobox

vendor code:
1211106-B20

Code:
4014835784925

Volume:
60 L

vendor code:
1211106-060

Volume:
60 L, print

vendor code:
1211106-D60

Code:
4014835743335

Volume:
208 L

vendor code:
1211106-208

Volume:
208 L, print

vendor code:
1211106-D28

Code:
4014835743304

RAVENOL ATF T-WS Lifetime fulfils the transmission oil specifications for latest automatic transmissions of Toyota and Aisin Warner.

Application Note

RAVENOL ATF T-WS Lifetime is recommended for latest automatic transmissions of Toyota and Aisin Warner. LEXUS / TOYOTA: AB60F, A750E(F), U341E(F), U140E(F), U250E, U241E, U151E(F), U340E. Aisin TF-80SC (AWF21, AF40-6, AM6, AW6A-EL), TF-81SC (AF21 and AWF-21) for Alfa Romeo 159 - 1.9 JTDm, 2.4 JTDm, 3.2 JTS Alfa Romeo Brera - 2.4 JTDm, 3.2 JTS Alfa Romeo Spider - 2.4 JTDm, 3.2 JTS Cadillac BLS - 1.9 D, 1.9 D (TST), Chevrolet Cruze (US market, 2.0L Turbo Diesel), Citroën C4, Citroën C5, Citroën C6, Citroën DS4, Citroën DS5, Fiat Croma - 1.9 JTDm, 2.4 JTDm, Ford Five Handred, Ford Fusion, Ford Mondeo, Lancia Delta (2008) - 1.8 DI Turbo, Land Rover Freelander 2, Land Rover, Range Rover Evoque, Lincoln Zephyr, Lincoln MKZ, Mazda 6, Mazda CX-7, Mazda CX-9, Mazda MPV, Mercury Milan, Mercury Montego, Opel/Vauxhall Astra, Opel / Vauxhall Vectra / Signum, Opel / Vauxhall Zafira, Opel / Vauxhall Insignia, Peugeot 307, Peugeot 308, Peugeot 407, Peugeot 508, Peugeot 607, Peugeot 3008, Peugeot 5008, Renault Espace, Renault Vel Satis, Saab 9-3 - 1.9 TiD, 1.9 TTiD, Volvo C30 D3 and D4, Volvo S40 D3 and D4, Volvo V50 D3 and D4, Volvo S60 2.4D, D5, D5 AWD, T6 AWD and R AWD 06-07, 08- Volvo V60 D3, D5, D5 AWD, T6 AWD, Volvo S80 2.5T, 3.2, T6 AWD, V8 AWD, D5 and D5 AWD, Volvo V70 2.5T, 3.2, T6 AWD, 2.4D, D5, D5 AWD and R AWD 06-07, 08- Volvo XC60, Volvo XC70, Volvo XC90 3.2 and V8 AWD, Aisin TF60SN, TF61SN and TF62SN, VW 09G, 09K, 09M for Volkswagen, Audi, Skoda.

Characteristics

  • phenomenal resistance of lubricant failure under hard operating conditions
  • a longer oil durability, extension of the durability of the transmission, offers longer changing intervals
  • phenomenal resistance of oil sludge and deposit accumulation
  • an excellent oxidation resistance and thermic stability
  • a superior corrosion protection, a much better foaming resistance for a smooth switching operation as well
  • as a lower corrosion of the bearings, sleeves and gear wheels
  • an excellent flow behaviour at low temperatures
  • a more constant switching operation performance, optimised friction characteristics
  • prevention of coupling grinding regarding modulation rotary conversion
  • a longer durability of oil and coupling, offers a smooth switching operation at low temperatures
  • an improved shear stability
Parameter Unit Value Audit
Recommendations Aisin TF-80SC (AWF21, AF 40-6, AM6, AW6A-EL), Aisin TF-80SD, Aisin TF-81SC (AF21 und AWF-21), Aisin TF-82SC, Aisin TG-81SC (AWF8F35, A881F und GA8F22AW), Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW 2 Gran Tourer F46, BMW 83222355599, BMW ATF 6, BMW X1 F48, BMW X2 F39, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Fiat 9.55550-AV2, Fuzhen FA840, Geely 6608136626 ATF-GS, GM 1940773, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Land Rover LR022460, Mini Cooper F54, Mini Countryman F60, SAAB 93165147, Toyota / Lexus JWS3324, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540 A2, VW/Audi Getriebe 0C8 (Touareg 2011-Q7 2010-), Xuanfu 6AT18, Xuanfu 6AT20, Xuanfu 6AT28
Aisin TF-80SC (AWF21, AF 40-6, AM6, AW6A-EL), Aisin TF-80SD, Aisin TF-81SC (AF21 und AWF-21), Aisin TF-82SC, Aisin TG-81SC (AWF8F35, A881F und GA8F22AW), Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW 2 Gran Tourer F46, BMW 83222355599, BMW ATF 6, BMW X1 F48, BMW X2 F39, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Fiat 9.55550-AV2, Fuzhen FA840, Geely 6608136626 ATF-GS, GM 1940773, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Land Rover LR022460, Mini Cooper F54, Mini Countryman F60, SAAB 93165147, Toyota / Lexus JWS3324, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540 A2, VW/Audi Getriebe 0C8 (Touareg 2011-Q7 2010-), Xuanfu 6AT18, Xuanfu 6AT20, Xuanfu 6AT28
Brand RAVENOL
RAVENOL
Type Synthetic
Synthetic
Recomendations Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540
Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540
Suitable for Aisin AF21, AWF-21, Aisin AWF21, AF 40-6, AM6, AW6A-EL, Aisin AWF8F35, A881F, GA8F22AW, BMW 2 Gran Tourer F46, BMW X1 F48, BMW X2 F39, Mini Cooper F54, Mini Countryman F60, VW Getriebe 0C8 (Touareg 2011-Q7 2010-)
Aisin AF21, AWF-21, Aisin AWF21, AF 40-6, AM6, AW6A-EL, Aisin AWF8F35, A881F, GA8F22AW, BMW 2 Gran Tourer F46, BMW X1 F48, BMW X2 F39, Mini Cooper F54, Mini Countryman F60, VW Getriebe 0C8 (Touareg 2011-Q7 2010-)
Compliant products BMW 83222355599, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Geely 6608136626 ATF-GS, GM 1940773, Land Rover LR022460, SAAB 93165147, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540, Xuanfu 6AT18, Xuanfu AT20, Xuanfu AT28
BMW 83222355599, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Geely 6608136626 ATF-GS, GM 1940773, Land Rover LR022460, SAAB 93165147, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540, Xuanfu 6AT18, Xuanfu AT20, Xuanfu AT28
Density at 20 °C g/cm³ 838 EN ISO 12185
838 g/cm³ EN ISO 12185
Color Red visual
Red visual
Pourpoint °C -54 DIN ISO 3016
-54 °C DIN ISO 3016
Approvals Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540
Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540

Mechanical gearbox in a unit with final drive 6/1 V6M5A

Liquid volume (basic): 2.2 L
MTF-1 75W-85

MTF-1 75W-85

For gearbox

RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513

show details hide details

SAE: 75W-85

API: GL-4, GL-5

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1221102-001

Code:
4014835719613

Volume:
4 L

vendor code:
1221102-004

Code:
4014835719699

Volume:
10 L

vendor code:
1221102-010

Code:
4014835719644

Volume:
20 L

vendor code:
1221102-020

Code:
4014835719620

Volume:
20 L, ecobox

vendor code:
1221102-B20

Code:
4014835788329

Volume:
60 L

vendor code:
1221102-060

Code:
4014835719668

Volume:
60 L, print

vendor code:
1221102-D60

Volume:
208 L

vendor code:
1221102-208

Code:
4014835719682

Volume:
208 L, print

vendor code:
1221102-D28

Volume:
1000 L

vendor code:
1221102-700

RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL MTF-1 SAE 75W-85 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.

Application Note

RAVENOL MTF-1 SAE 75W-85 is high-performance gear oil for manual transmission, transfer cases and differential gears.

Characteristics

  • Excellent thermal stability.
  • High protection from rust, corrosion, foaming.
  • Low solidification point.
  • Excellent EP properties.
  • Good shifting behavior in low temperatures.
  • Extended life.
  • Fuel savings.
Parameter Unit Value Audit
Recommendations DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513
SAE 75W-85
75W-85
Brand RAVENOL
RAVENOL
Type Full synthetic
Full synthetic
API GL-4, GL-5
GL-4, GL-5
Recomendations DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
Compliant products GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060
GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060
Density at 20 °C g/cm³ 855 EN ISO 12185
855 g/cm³ EN ISO 12185
Color Red visual
Red visual
Brookfield Viscosity at -40 °C mPa*s 38.800 ASTM D2983
38.800 mPa*s ASTM D2983
Pourpoint °C -42 DIN ISO 3016
-42 °C DIN ISO 3016
Copper Strip Test at 121 °C 1b ASTM D130
1b ASTM D130
Approvals DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513

Transfer case

Liquid volume (basic): 2 L
MTF-1 75W-85

MTF-1 75W-85

For gearbox

RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513

show details hide details

SAE: 75W-85

API: GL-4, GL-5

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1221102-001

Code:
4014835719613

Volume:
4 L

vendor code:
1221102-004

Code:
4014835719699

Volume:
10 L

vendor code:
1221102-010

Code:
4014835719644

Volume:
20 L

vendor code:
1221102-020

Code:
4014835719620

Volume:
20 L, ecobox

vendor code:
1221102-B20

Code:
4014835788329

Volume:
60 L

vendor code:
1221102-060

Code:
4014835719668

Volume:
60 L, print

vendor code:
1221102-D60

Volume:
208 L

vendor code:
1221102-208

Code:
4014835719682

Volume:
208 L, print

vendor code:
1221102-D28

Volume:
1000 L

vendor code:
1221102-700

RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL MTF-1 SAE 75W-85 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.

Application Note

RAVENOL MTF-1 SAE 75W-85 is high-performance gear oil for manual transmission, transfer cases and differential gears.

Characteristics

  • Excellent thermal stability.
  • High protection from rust, corrosion, foaming.
  • Low solidification point.
  • Excellent EP properties.
  • Good shifting behavior in low temperatures.
  • Extended life.
  • Fuel savings.
Parameter Unit Value Audit
Recommendations DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513
SAE 75W-85
75W-85
Brand RAVENOL
RAVENOL
Type Full synthetic
Full synthetic
API GL-4, GL-5
GL-4, GL-5
Recomendations DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
Compliant products GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060
GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060
Density at 20 °C g/cm³ 855 EN ISO 12185
855 g/cm³ EN ISO 12185
Color Red visual
Red visual
Brookfield Viscosity at -40 °C mPa*s 38.800 ASTM D2983
38.800 mPa*s ASTM D2983
Pourpoint °C -42 DIN ISO 3016
-42 °C DIN ISO 3016
Copper Strip Test at 121 °C 1b ASTM D130
1b ASTM D130
Approvals DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513

Differential, rear

Liquid volume (basic): 2.3 L
DGL 75W-85 GL-5 LS

DGL 75W-85 GL-5 LS

For transmission

RAVENOL DGL SAE 75W-85 GL-5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2 , BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.7, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18

show details hide details

SAE: 75W-85

API: GL-5 LS

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1221107-001

Code:
4014835848610

Volume:
4 L

vendor code:
1221107-004

Code:
4014835848641

Volume:
10 L

vendor code:
1221107-010

Code:
4014835848672

Volume:
20 L

vendor code:
1221107-020

Code:
4014835848719

Volume:
20 L, ecobox

vendor code:
1221107-B20

Code:
4014835848696

Volume:
60 L

vendor code:
1221107-060

Code:
4014835848757

Volume:
60 L, print

vendor code:
1221107-D60

Volume:
208 L

vendor code:
1221107-208

Volume:
208 L, print

vendor code:
1221107-D28

Volume:
1000 L

vendor code:
1221107-700

RAVENOL DGL SAE 75W-85 GL-5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL DGL SAE 75W-85 GL-5 LS is excellent developed to the increased loads of gear oils to ensure the proper functioning of the transmission. It is especially suited for applications requiring "limited slip" (LS) properties.

Application Note

RAVENOL DGL SAE 75W-85 GL-5 LS is high-performance gear oil for the supply of transfer cases and differentials with and without limited slip "Limited Slip" of motor vehicles.

RAVENOL DGL SAE 75W-85 GL-5 LS ensures a proper lubrication in the transmission. The operating instructions of the vehicle and transmission manufacturers must be observed.

RAVENOL DGL SAE 75W-85 GL-5 LS is suitable for Honda Crosstour 2010-2015, Pilot 2006-2015, Ridgeline 2006-2014 and Acura MDX 2003-2014, Acura RDX 2007-2014, Acura RL 2005-2012, Acura TL 2009-2014, Acura ZDX 2010-2013

Characteristics

  • A high pressure stable lubricating film even at high oil temperatures and under high stress.
  • Outstanding shearing stability and excellent thermal stability.
  • Excellent viscosity-temperature properties.
  • High oxidation stability.
  • Excellent wear protection, outstanding EP properties.
  • Low foaming properties even at high speeds.
  • Good compatibility with non-ferrous metals and sealing materials.
  • Good shifting behaviour even in low temperatures, low pour point.
  • Extended life.
  • A stable lubricating film even at high oil temperatures and under high stress.
  • Well adhering lubricating film and outstanding LS additive treatment for reduced transmission noise even when oil is hot.
Parameter Unit Value Audit
Recommendations AC Delco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BMW Jeep, BOT 448, BOT 799, Chrysler ELSD Rear Axle, Dodge, DTFR 12B120, Fiat 9.55550 F426.E06, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, Lexus, MB 235.15 (A 001 989 59 03), MB 235.31, MB 235.33, MB 235.62, MB 235.7 (A 001 989 83 03), MB 235.74 (A 001 989 33 03), MB 239.71 (A 001 989 88 03), Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, Toyota JWS 2273, VW G 052 190 A2, VW G 052 196 A2, VW G 052 518 A2, VW G 055 190 A2, VW G 060 190 A2, VW TL 52190, ZF TE-ML 18
AC Delco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BMW Jeep, BOT 448, BOT 799, Chrysler ELSD Rear Axle, Dodge, DTFR 12B120, Fiat 9.55550 F426.E06, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, Lexus, MB 235.15 (A 001 989 59 03), MB 235.31, MB 235.33, MB 235.62, MB 235.7 (A 001 989 83 03), MB 235.74 (A 001 989 33 03), MB 239.71 (A 001 989 88 03), Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, Toyota JWS 2273, VW G 052 190 A2, VW G 052 196 A2, VW G 052 518 A2, VW G 055 190 A2, VW G 060 190 A2, VW TL 52190, ZF TE-ML 18
Brand RAVENOL
RAVENOL
SAE 75W-85
75W-85
Type Full synthetic
Full synthetic
API GL-5 LS
GL-5 LS
Recomendations BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18
BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18
specification MIL-L-2105 D
MIL-L-2105 D
Suitable for BMW|Jeep, Chrysler ELSD Rear Axle, Dodge, Lexus
BMW|Jeep, Chrysler ELSD Rear Axle, Dodge, Lexus
Compliant products AcDelco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, MB A 001 989 33 03, MB A 001 989 59 03, MB A 001 989 83 03, MB A 001 989 88 03, Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, VW G 052 190, VW G 052 196, VW G 055 190
AcDelco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, MB A 001 989 33 03, MB A 001 989 59 03, MB A 001 989 83 03, MB A 001 989 88 03, Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, VW G 052 190, VW G 052 196, VW G 055 190
Density at 20 °C g/cm³ 862 EN ISO 12185
862 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 11.6 DIN 51562-1
11.6 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 64.3 DIN 51562-1
64.3 mm²/s DIN 51562-1
Viscosity Index VI 177 DIN ISO 2909
177 DIN ISO 2909
Brookfield Viscosity at -40 °C mPa*s 26.000 ASTM D2983
26.000 mPa*s ASTM D2983
Pourpoint °C -51 DIN ISO 3016
-51 °C DIN ISO 3016
Flashpoint °C 215 DIN EN ISO 2592
215 °C DIN EN ISO 2592
Seq. I at 24 °C ml/ml 5/0 ASTM D892
5/0 ml/ml ASTM D892
Seq. II at 93,5 °C ml/ml 10/0 ASTM D892
10/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C ml/ml 5/0 ASTM D892
5/0 ml/ml ASTM D892
Copper Strip Test at 121 °C 1b ASTM D130
1b ASTM D130
Approvals BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, MIL-L-2105 D, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18
BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, MIL-L-2105 D, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18

Differential, front

Liquid volume (basic): 1.2 L
DGL 75W-85 GL-5 LS

DGL 75W-85 GL-5 LS

For transmission

RAVENOL DGL SAE 75W-85 GL-5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2 , BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.7, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18

show details hide details

SAE: 75W-85

API: GL-5 LS

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1221107-001

Code:
4014835848610

Volume:
4 L

vendor code:
1221107-004

Code:
4014835848641

Volume:
10 L

vendor code:
1221107-010

Code:
4014835848672

Volume:
20 L

vendor code:
1221107-020

Code:
4014835848719

Volume:
20 L, ecobox

vendor code:
1221107-B20

Code:
4014835848696

Volume:
60 L

vendor code:
1221107-060

Code:
4014835848757

Volume:
60 L, print

vendor code:
1221107-D60

Volume:
208 L

vendor code:
1221107-208

Volume:
208 L, print

vendor code:
1221107-D28

Volume:
1000 L

vendor code:
1221107-700

RAVENOL DGL SAE 75W-85 GL-5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL DGL SAE 75W-85 GL-5 LS is excellent developed to the increased loads of gear oils to ensure the proper functioning of the transmission. It is especially suited for applications requiring "limited slip" (LS) properties.

Application Note

RAVENOL DGL SAE 75W-85 GL-5 LS is high-performance gear oil for the supply of transfer cases and differentials with and without limited slip "Limited Slip" of motor vehicles.

RAVENOL DGL SAE 75W-85 GL-5 LS ensures a proper lubrication in the transmission. The operating instructions of the vehicle and transmission manufacturers must be observed.

RAVENOL DGL SAE 75W-85 GL-5 LS is suitable for Honda Crosstour 2010-2015, Pilot 2006-2015, Ridgeline 2006-2014 and Acura MDX 2003-2014, Acura RDX 2007-2014, Acura RL 2005-2012, Acura TL 2009-2014, Acura ZDX 2010-2013

Characteristics

  • A high pressure stable lubricating film even at high oil temperatures and under high stress.
  • Outstanding shearing stability and excellent thermal stability.
  • Excellent viscosity-temperature properties.
  • High oxidation stability.
  • Excellent wear protection, outstanding EP properties.
  • Low foaming properties even at high speeds.
  • Good compatibility with non-ferrous metals and sealing materials.
  • Good shifting behaviour even in low temperatures, low pour point.
  • Extended life.
  • A stable lubricating film even at high oil temperatures and under high stress.
  • Well adhering lubricating film and outstanding LS additive treatment for reduced transmission noise even when oil is hot.
Parameter Unit Value Audit
Recommendations AC Delco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BMW Jeep, BOT 448, BOT 799, Chrysler ELSD Rear Axle, Dodge, DTFR 12B120, Fiat 9.55550 F426.E06, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, Lexus, MB 235.15 (A 001 989 59 03), MB 235.31, MB 235.33, MB 235.62, MB 235.7 (A 001 989 83 03), MB 235.74 (A 001 989 33 03), MB 239.71 (A 001 989 88 03), Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, Toyota JWS 2273, VW G 052 190 A2, VW G 052 196 A2, VW G 052 518 A2, VW G 055 190 A2, VW G 060 190 A2, VW TL 52190, ZF TE-ML 18
AC Delco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BMW Jeep, BOT 448, BOT 799, Chrysler ELSD Rear Axle, Dodge, DTFR 12B120, Fiat 9.55550 F426.E06, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, Lexus, MB 235.15 (A 001 989 59 03), MB 235.31, MB 235.33, MB 235.62, MB 235.7 (A 001 989 83 03), MB 235.74 (A 001 989 33 03), MB 239.71 (A 001 989 88 03), Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, Toyota JWS 2273, VW G 052 190 A2, VW G 052 196 A2, VW G 052 518 A2, VW G 055 190 A2, VW G 060 190 A2, VW TL 52190, ZF TE-ML 18
Brand RAVENOL
RAVENOL
SAE 75W-85
75W-85
Type Full synthetic
Full synthetic
API GL-5 LS
GL-5 LS
Recomendations BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18
BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18
specification MIL-L-2105 D
MIL-L-2105 D
Suitable for BMW|Jeep, Chrysler ELSD Rear Axle, Dodge, Lexus
BMW|Jeep, Chrysler ELSD Rear Axle, Dodge, Lexus
Compliant products AcDelco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, MB A 001 989 33 03, MB A 001 989 59 03, MB A 001 989 83 03, MB A 001 989 88 03, Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, VW G 052 190, VW G 052 196, VW G 055 190
AcDelco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, MB A 001 989 33 03, MB A 001 989 59 03, MB A 001 989 83 03, MB A 001 989 88 03, Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, VW G 052 190, VW G 052 196, VW G 055 190
Density at 20 °C g/cm³ 862 EN ISO 12185
862 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 11.6 DIN 51562-1
11.6 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 64.3 DIN 51562-1
64.3 mm²/s DIN 51562-1
Viscosity Index VI 177 DIN ISO 2909
177 DIN ISO 2909
Brookfield Viscosity at -40 °C mPa*s 26.000 ASTM D2983
26.000 mPa*s ASTM D2983
Pourpoint °C -51 DIN ISO 3016
-51 °C DIN ISO 3016
Flashpoint °C 215 DIN EN ISO 2592
215 °C DIN EN ISO 2592
Seq. I at 24 °C ml/ml 5/0 ASTM D892
5/0 ml/ml ASTM D892
Seq. II at 93,5 °C ml/ml 10/0 ASTM D892
10/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C ml/ml 5/0 ASTM D892
5/0 ml/ml ASTM D892
Copper Strip Test at 121 °C 1b ASTM D130
1b ASTM D130
Approvals BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, MIL-L-2105 D, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18
BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, MIL-L-2105 D, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18

Power steering

Liquid volume (basic): 1 L
Hydraulik PSF Fluid

Hydraulik PSF Fluid

For power steering

RAVENOL Hydraulik PSF Fluid is guaranteeing an optimized power transmission.

Compliance with the requirements:
Honda PSF-S, KIA PSF-III, Mazda PSF, Mitsubishi DIAMOND PSF-2M, Subaru PS Fluid, Toyota PSF-EH

show details hide details
  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1181000-001

Code:
4014835736313

Volume:
4 L

vendor code:
1181000-004

Code:
4014835736399

Volume:
10 L

vendor code:
1181000-010

Code:
4014835736344

Volume:
20 L

vendor code:
1181000-020

Volume:
20 L, ecobox

vendor code:
1181000-B20

Code:
4014835784222

Volume:
60 L

vendor code:
1181000-060

Volume:
208 L

vendor code:
1181000-208

Code:
4014835736382

Volume:
1000 L

vendor code:
1181000-700

RAVENOL Hydraulik PSF Fluid is guaranteeing an optimized power transmission.

RAVENOL Hydraulik PSF Fluid is produced on the basis of high quality base oils with special additives and inhibition which guarantees a perfect function of the hydraulics.

Application Note

RAVENOL Hydraulik PSF Fluid is especially developed for the use as a hydraulic fluid in power transmissions.

Characteristics

  • A very low pour point
  • An excellent foam prevention, no foam formation
  • A good lubricating ability even at low temperatures in winter
  • A high, stable viscosity index
  • A very good oxidation stability
  • Excellent protection against wear and tear, corrosion and foam formation
  • Fine tuned coefficient of friction
  • eutral behaviour against sealing materials
  • Neutral behaviour because of inhibition against non ferrous metals
Parameter Unit Value Audit
Recommendations Citroën/Peugeot 9735EJ für C-Crosser, Peugeot 4007, Honda PSF-S, Hyundai PSF-3, KIA PSF-III, Mazda PSF, Mitsubishi Diamond PSF-2M, Peugeot 4007, Subaru PS Fluid, Toyota PSF-EH
Citroën/Peugeot 9735EJ für C-Crosser, Peugeot 4007, Honda PSF-S, Hyundai PSF-3, KIA PSF-III, Mazda PSF, Mitsubishi Diamond PSF-2M, Peugeot 4007, Subaru PS Fluid, Toyota PSF-EH
Brand RAVENOL
RAVENOL
Type Synthetic
Synthetic
Recomendations Honda PSF-S, KIA PSF-III, Mazda PSF, Mitsubishi DIAMOND PSF-2M, Subaru PS Fluid, Toyota PSF-EH
Honda PSF-S, KIA PSF-III, Mazda PSF, Mitsubishi DIAMOND PSF-2M, Subaru PS Fluid, Toyota PSF-EH
Suitable for PSA 4007
PSA 4007
Compliant products Hyundai PSF-3, PSA 9735.EJ
Hyundai PSF-3, PSA 9735.EJ
Density at 20 °C g/cm³ 847 EN ISO 12185
847 g/cm³ EN ISO 12185
Color Red visual
Red visual
Viscosity at 100 °C mm²/s 7.2 DIN 51562-1
7.2 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 34.8 DIN 51562-1
34.8 mm²/s DIN 51562-1
Viscosity Index VI 178 DIN ISO 2909
178 DIN ISO 2909
Brookfield Viscosity at -40 °C mPa*s 12800 ASTM D2983
12800 mPa*s ASTM D2983
Pourpoint °C -48 DIN ISO 3016
-48 °C DIN ISO 3016
Flashpoint °C 211 DIN EN ISO 2592
211 °C DIN EN ISO 2592
Approvals Honda PSF-S, KIA PSF-III, Mazda PSF, Mitsubishi DIAMOND PSF-2M, Subaru PS Fluid, Toyota PSF-EH
Honda PSF-S, KIA PSF-III, Mazda PSF, Mitsubishi DIAMOND PSF-2M, Subaru PS Fluid, Toyota PSF-EH

Hydraulic brake system

Liquid volume (basic): 1 L
DOT 4

DOT 4

For brake system

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

show details hide details
  • Available packaging
  • Full description
  • Product parameters

Volume:
250 ml

vendor code:
1350601-250

Code:
4014835692121

Volume:
500 ml

vendor code:
1350601-500

Code:
4014835692152

Volume:
1 L

vendor code:
1350601-001

Code:
4014835692114

Volume:
20 L

vendor code:
1350601-020

DOT 4

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

Application Note

RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.

RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.

RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113).

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

  • optimum ABS characteristics
  • chemical stability
  • best lubrication efficiency
  • neutral behaviour regarding brake parts
  • low viscosity at low temperatures
  • miscible with all brake fluids of the same specifications
Parameter Unit Value Audit
FMVSS 116 specifications (DOT) DOT-4
DOT-4
Brand RAVENOL
RAVENOL
Type Synthetic
Synthetic
specification DOT 4, ISO 4925 Class 4, SAE J 1704
DOT 4, ISO 4925 Class 4, SAE J 1704
Density at 20 °C g/cm³ 1052 EN ISO 12185
1052 g/cm³ EN ISO 12185
Color light yellow visual
light yellow visual
Viscosity at 100 °C mPa*s 2.41 ASTM D445
2.41 mPa*s ASTM D445
Viscosity at -40 °C cSt 1340 ASTM D445
1340 cSt ASTM D445
Boiling point °C 271 FMVSS 116
271 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point °C 169 FMVSS 116
169 °C FMVSS 116
High Temperature Stability °C -1 FMVSS 116
-1 °C FMVSS 116
Chemical Stability °C 1 FMVSS 116
1 °C FMVSS 116
Evaporation %w/w 61 FMVSS 116
61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C i.O., 4s FMVSS 116
i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C i.O., 8s FMVSS 116
i.O., 8s FMVSS 116
Water Tolerance at -40 °C transparent, 3s FMVSS 116
transparent, 3s FMVSS 116
Water Tolerance at +60 °C Transparent FMVSS 116
Transparent FMVSS 116
Compatibility at -40 °C Transparent FMVSS 116
Transparent FMVSS 116
Compatibility at +60 °C Transparent FMVSS 116
Transparent FMVSS 116
Water content % — 0.2 DIN 51777-1
— 0.2 % DIN 51777-1
Tinned Iron Δ mg/cm² 0.04 FMVSS 116
0.04 Δ mg/cm² FMVSS 116
Steel mg/cm² -0.01 FMVSS 116
-0.01 mg/cm² FMVSS 116
Aluminium mg/cm² 0.02 FMVSS 116
0.02 mg/cm² FMVSS 116
Cast Iron Δ mg/cm² -0,03 FMVSS 116
-0,03 Δ mg/cm² FMVSS 116
Brass mg/cm² -0.08 FMVSS 116
-0.08 mg/cm² FMVSS 116
Copper mg/cm² -0.05 FMVSS 116
-0.05 mg/cm² FMVSS 116
Zinc mg/cm² 0.01 FMVSS 116
0.01 mg/cm² FMVSS 116
Sediment % — 0.05 FMVSS 116
— 0.05 % FMVSS 116
pH - value 8.2 FMVSS 116
8.2 FMVSS 116
Rubber Diameter Change 0.16 FMVSS 116
0.16 FMVSS 116
Hardness Change °IRHD -4 FMVSS 116
-4 °IRHD FMVSS 116
Appearance i.O. FMVSS 116
i.O. FMVSS 116
SBR at 70 °C mm 0.56 FMVSS 116
0.56 mm FMVSS 116
SBR at 120 °C mm 0.73 FMVSS 116
0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703) IRHD -2 FMVSS 116
-2 IRHD FMVSS 116
EPDM at 120 °C IRHD -2 FMVSS 116
-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925) mm 0.38 FMVSS 116
0.38 mm FMVSS 116
Approvals DOT 4, ISO 4925 Class 4, SAE J 1704
DOT 4, ISO 4925 Class 4, SAE J 1704

Cooling system

Liquid volume (basic): 7.7 L
OTC Organic Technology Coolant Premix -40°C

OTC Organic Technology Coolant Premix -40°C

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

Compliance with the requirements:
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

show details hide details
  • Available packaging
  • Full description
  • Product parameters

Volume:
1.5 L

vendor code:
1410112-150

Code:
4014835755512

Volume:
5 L

vendor code:
1410112-005

Code:
4014835755550

Volume:
10 L

vendor code:
1410112-010

Volume:
20 L

vendor code:
1410112-020

Code:
4014835755529

Volume:
20 L, ecobox

vendor code:
1410112-B20

Code:
4014835855953

Volume:
60 L, plastic

vendor code:
1410112-060

Code:
4014835755567

Volume:
208 L

vendor code:
1410112-208

Code:
4014835755581

Volume:
1000 L

vendor code:
1410112-700

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL OTC Organic Techn. Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL OTC Organic Techn. Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL OTC Organic Techn. Coolant Premix -40°C to radiator to fill line.

RAVENOL OTC Organic Techn. Coolant Premix -40°C can also be used as a “ready for use” dilution in geothermal probes and geothermal collectors as recommended list of LAWA (Federal / State Working Group on Water in Germany). RAVENOL OTC Organic Techn. Coolant Concentrate is included in the list of recommendations of the LAWA for water management requirements for geothermal probes and geothermal collectors.

Characteristics

  • Excellent for light metal engines
  • Good reserve alkalinity
  • Premium corrosion additives for optimal rust protection for all metals and metal alloys used in coolsystems, including aluminium
  • Prevents sediments and foaming in the cooling system
  • Compatible with elastomers used in automotive radiators
  • Can be mixed with other coolant types
Parameter Unit Value Audit
Recommendations DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, MB 326.3 (Premix), Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, MB 326.3 (Premix), Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
Brand RAVENOL
RAVENOL
Recomendations DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
Suitable for Jaguar Land Rover STJLR.651.5003, Porsche
Jaguar Land Rover STJLR.651.5003, Porsche
Compliant products Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
Density at 20 °C g/cm³ 1070 EN ISO 12185
1070 g/cm³ EN ISO 12185
Color Violet visual
Violet visual
pH - value at 20 °C 7,5 - 8,5 ASTM D1287
7,5 - 8,5 ASTM D1287
Freezing point °C -40 ASTM D1177
-40 °C ASTM D1177
Approvals DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
OTC - Protect C12+ Concentrate

OTC - Protect C12+ Concentrate

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

Compliance with the requirements:
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

show details hide details
Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.
  • Available packaging
  • Full description
  • Product parameters

Volume:
1.5 L

vendor code:
1410110-150

Code:
4014835755413

Volume:
5 L

vendor code:
1410110-005

Code:
4014835755451

Volume:
10 L

vendor code:
1410110-010

Volume:
20 L

vendor code:
1410110-020

Code:
4014835755420

Volume:
20 L, ecobox

vendor code:
1410110-B20

Code:
4014835855212

Volume:
60 L, plastic

vendor code:
-

Code:
4014835755437

Volume:
60 L

vendor code:
1410110-060

Code:
4014835755468

Volume:
60 L, print

vendor code:
1410110-D60

Volume:
1000 L

vendor code:
1410110-700

Volume:
208 L

vendor code:
1410110-208

Code:
4014835755482

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL OTC Organic Techn. Coolant Concentrate C12+ protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with highly effective frost and rust protection. Usable in cooling systems with all-aluminium engines. Mix according to chart. Follow manufacturer's recommendations.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

RAVENOL OTC Organic Techn. Coolant Concentrate C12+ can also be used in geothermal probes and geothermal collectors as recommended list of LAWA (Federal / State Working Group on Water in Germany).

MAN information for use:

Mixing prohibited with Type NF and Type N. Do not use silicone radiator hoses per MAN 334 Type 3 (blue) with coolants per MAN 324 Type SNF.

Table of mixing ratios
Antifreeze protection until Parts Antifreeze Parts Water
-20°C 35% 65%
-37°C 50% 50%
-50°C 60% 40%

Characteristics

  • Excellent for light metal engines
  • Good reserve alkalinity
  • Premium corrosion additives for optimal rust protection for all metals and metal alloys used in cool
  • systems, including aluminium
  • Prevents sediments and foaming in the cooling system
  • Compatible with elastomers used in automotive radiators
  • Can be mixed with other coolant types
Parameter Unit Value Audit
Recommendations DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
Brand RAVENOL
RAVENOL
Recomendations DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
Suitable for Jaguar Land Rover STJLR.651.5003, Porsche
Jaguar Land Rover STJLR.651.5003, Porsche
Compliant products Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
Density at 20 °C g/cm³ 1130 EN ISO 12185
1130 g/cm³ EN ISO 12185
Color Violet visual
Violet visual
Reserve alkalinity mgKOH/g 5.5 — ASTM D1120
5.5 — mgKOH/g ASTM D1120
Boiling point °C 187 ASTM D1121
187 °C ASTM D1121
Water content % — 5 ASTM D1123
— 5 % ASTM D1123
Flashpoint °C 110 — DIN 51758
110 — °C DIN 51758
Freezing point (50 % solution) °C -37 ASTM D1177
-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %) 7,5 - 8,5 ASTM D1287
7,5 - 8,5 ASTM D1287
Approvals DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
Destilliertes Wasser (entionisiert)

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details hide details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter Unit Value Audit
Recommendations DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand RAVENOL
RAVENOL
Recomendations DIN 43530-4, DIN EN 50272
DIN 43530-4, DIN EN 50272
Approvals DIN 43530-4, DIN EN 50272
DIN 43530-4, DIN EN 50272
Professional Radiator Cleaner

Professional Radiator Cleaner

Additive

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

show details hide details

Equivalents OEM:
Ford MP14300500AB

  • Available packaging
  • Full description
  • Product parameters

Volume:
0.25 L

vendor code:
1390302-250

Code:
4014835802667

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.

Application Note

RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.

Area of application:

Radiator repairs

In the event of reduced radiator performance

In the event of deposits in the cooling system

Changing coolant

For cleaning purposes after engine repairs due to oil in the cooling system

Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.

Fill in

RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.

RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.

Characteristics

  • Cleaning of the cooling and heating system
  • Protection of the new coolant against prior contamination
  • Elimination of sludge and corrosion residue
Parameter Unit Value Audit
Color Colorless visual
Colorless visual
Density at 20 °C g/cm³ 1003 EN ISO 12185
1003 g/cm³ EN ISO 12185
pH - value at 20 °C 10,25 DIN 19268
10,25 DIN 19268
Brand RAVENOL
RAVENOL

Our website uses cookies to improve your site experience, efficiency and usability. By continuing to use our site, you agree to the use of cookies.

+ - Configure cookies
Good
