Oil for Skoda - Octavia III, A7 5E / NL / NM / NR / 5E3 / 5E5 / 5E6 / NL3 / NM3 / NM4 / NM5 - Octavia III 1.6 MPI (66 kW) / (81 kW)

Skoda Octavia III, A7 5E / NL / NM / NR / 5E3 / 5E5 / 5E6 / NL3 / NM3 / NM4 / NM5 Octavia III 1.6 MPI (66 kW) / (81 kW), year of issue from 2014 date to 2021 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Fuel: Gasoline
Number of cylinders: 4
Valves per cylinder: 4
Working volume: 1598 cc
Power: 110 hp / 81 kW

Add to Garage

Nodes and assemblies

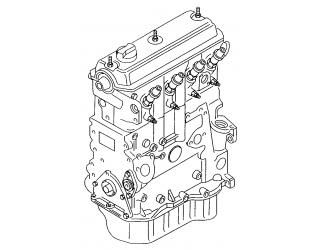

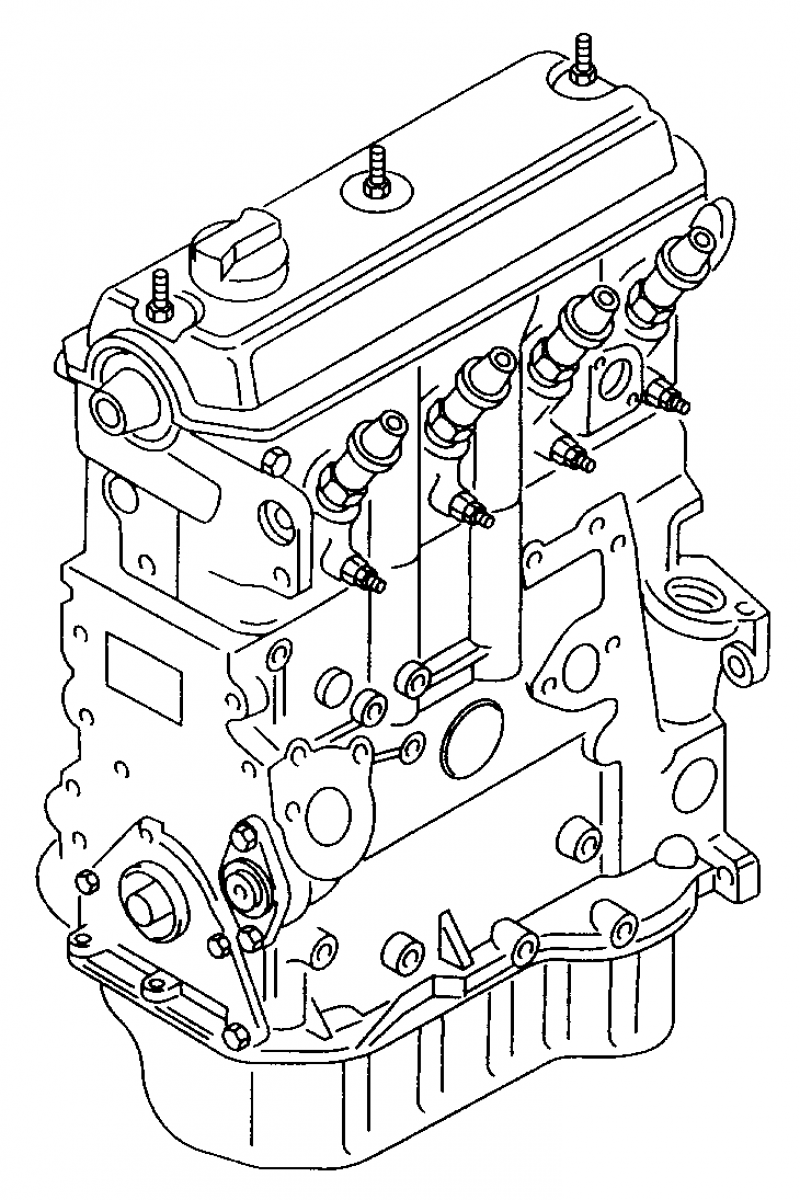

Engine CWVA / CSR / CSRA

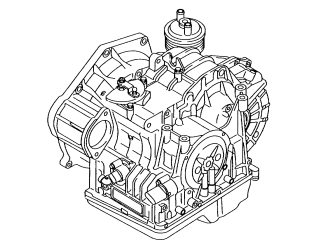

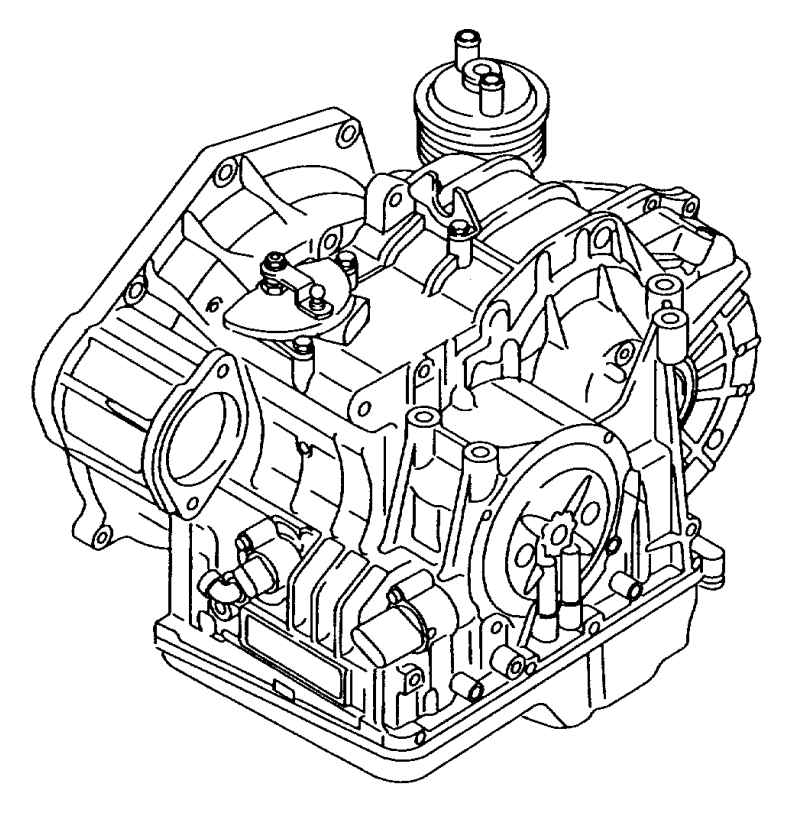

Transmission, automatic in a unit with final drive 09G / AQ160

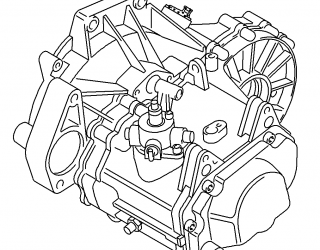

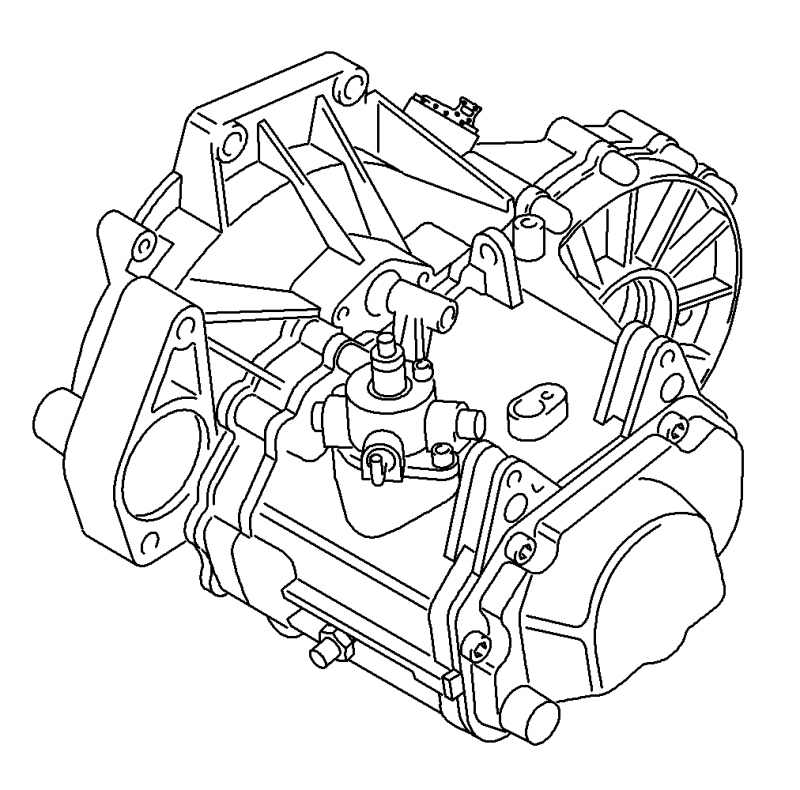

Mechanical gearbox in a unit with final drive 0AF / MQ200
Hydraulic brakes/clutch system

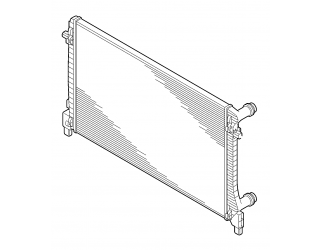

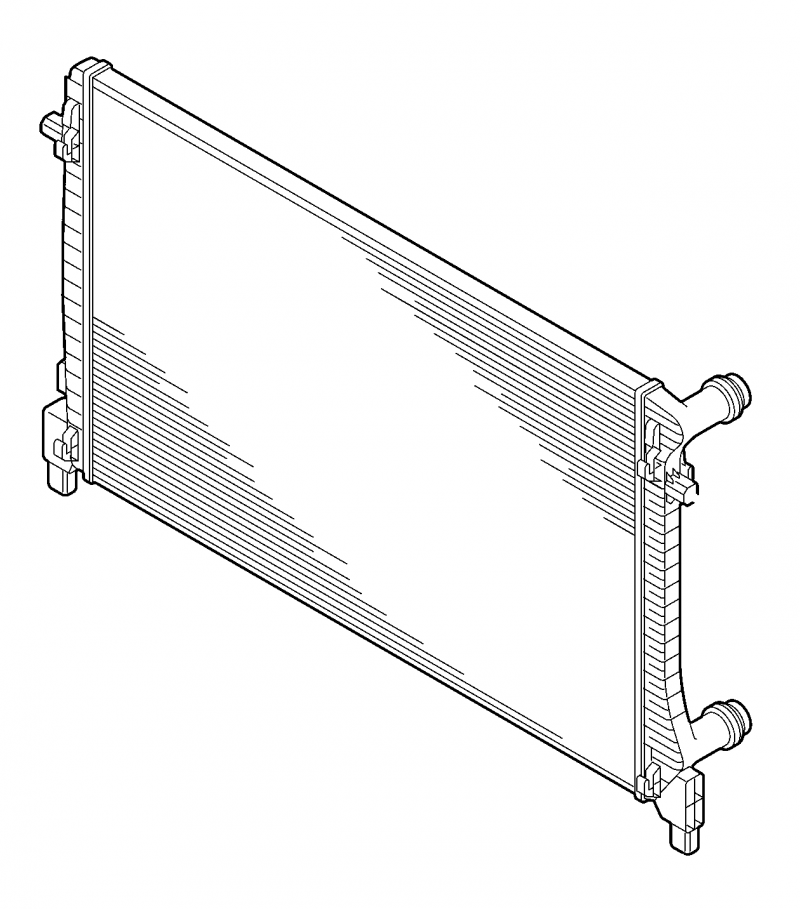

Cooling system

Engine CWVA / CSR / CSRA
OEM: 04E100037C / 04E100038D , 04E100098KX / 04E100037CX , 04E100037B / 04E100037BX

Liquid volume (basic): 4.3 L

VollSynth Turbo VST 5W-40

For engine

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
BMW Longlife-01, MB-Approval 229.5, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296

show details

SAE: 5W-40

API: SN Plus, SP

ACEA: A3, B4

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111136-001

Code:
4014835790117

Volume:
4 L

vendor code:
1111136-004

Code:
4014835790193

Volume:
5 L

vendor code:
1111136-005

Code:
4014835790155

Volume:
10 L

vendor code:
1111136-010

Code:
4014835790148

Volume:
20 L, ecobox

vendor code:
1111136-B20

Code:
4014835790223

Volume:
60 L

vendor code:
1111136-060

Volume:
60 L, print

vendor code:
1111136-D60

Code:
4014835790131

Volume:
208 L

vendor code:
1111136-208

Volume:
208 L, print

vendor code:
1111136-D28

Code:
4014835798502

Volume:
1000 L

vendor code:
1111136-700

Volume:
20 L

vendor code:
1111136-020

Code:
4014835798526

RAVENOL VollSynth Turbo VST SAE 5W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL VollSynth Turbo VST SAE 5W-40 guarantees operational safety concerning all driving conditions as for example regarding extreme stop and go traffic as well as high speed drives on motorways.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL VollSynth Turbo VST SAE 5W-40 is suitable for the energy saving operation all the year of all modern cars with petrol and diesel engines in passenger cars, vans, small transporters and similar vehicles and was specially developed for turbo chargers as well as the catalytic operation.

Characteristics

High abrasion resistance.
Fuel saving because of easy running characteristics.
Excellent detergent and dispersant characteristics.
Prevention of black sludge creation.
Long endurance because of high oxidation stability.
Excellent cold start performance.
Very good viscosity temperature behaviour.
Low evaporation.
Suitable for catalysts.

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-12991 (MS-10896), Fiat 9.55535-Z2, MB 226.5, MB 229.3, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-12991 (MS-10896), Fiat 9.55535-Z2, MB 226.5, MB 229.3, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296
Brand		RAVENOL		RAVENOL
SAE		5W-40		5W-40
Type		Full synthetic		Full synthetic
API		SN Plus, SP		SN Plus, SP
ACEA		A3, B4		A3, B4
Manufacturer Approved		BMW Longlife-01, MB-Approval 229.5, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00		BMW Longlife-01, MB-Approval 229.5, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
Recomendations		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296
Density at 20 °C	g/cm³	848	EN ISO 12185	848 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	13.5	DIN 51562-1	13.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	79.4	DIN 51562-1	79.4 mm²/s DIN 51562-1
Viscosity Index VI		174	DIN ISO 2909	174 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.9	ASTM D5481	3.9 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4700	ASTM D5293	4700 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	13.900	ASTM D4684	13.900 mPa*s ASTM D4684
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Noack Volatility	%	7.3	ASTM D5800	7.3 % ASTM D5800
Flashpoint	°C	236	DIN EN ISO 2592	236 °C DIN EN ISO 2592
tbn	mgKOH/g	11.9	ASTM D2896	11.9 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.1	DIN 51575	1.1 %wt. DIN 51575
Approvals		BMW Longlife-01, Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, MB 229.5, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, MB 229.5, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

VMP 5W-30

For engine

Manufacturer Approved:
BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00

Compliance with the requirements:
Audi Motorsport V31 748 026, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195

show details

SAE: 5W-30

API: SN

ACEA: C3

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111122-001

Code:
4014835723313

Volume:
4 L

vendor code:
1111122-004

Code:
4014835723399

Volume:
5 L

vendor code:
1111122-005

Code:
4014835723351

Volume:
10 L

vendor code:
1111122-010

Code:
4014835723344

Volume:
20 L

vendor code:
1111122-020

Code:
4014835723320

Volume:
20 L, ecobox

vendor code:
1111122-B20

Code:
4014835773622

Volume:
60 L

vendor code:
1111122-060

Code:
4014835723368

Volume:
60 L, print

vendor code:
1111122-D60

Code:
4014835723337

Volume:
208 L

vendor code:
1111122-208

Code:
4014835723382

Volume:
208 L, print

vendor code:
-

Code:
4014835723306

Volume:
1000 L

vendor code:
1111122-700

RAVENOL VMP SAE 5W-30 is based on additives with reduced ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

RAVENOL VMP SAE 5W-30 achieved by its formulation with special base oils a high viscosity index. The excellent cold start behaviour ensures a optimal lubrication safety in the cold running phase.

Due to a significant fuel economy RAVENOL VMP SAE 5W-30 contributes by reduction of emissions to conservation the environment. Minimal wear extends the lifespan of the engine.

RAVENOL VMP SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL VMP SAE 5W-30 is a universal fuel economy, especially collected engine oil for modern gasoline and diesel engines with and without turbo charger in passenger cars and vans with extended oil change intervals. Extend the lifespan of the particle filter. Due to the specific composition is RAVENOL VMP SAE 5W-30 excellent suitable for use for several of the latest OEM requirements.

Characteristics

Fuel economy in part and full power operation
MID SAPS = reduced Sulphated ash, Phosphor and Sulfur
Excellent wear protection and high viscosity index also under high-speed driving conditions, the longlife of the engine
Excellent cold starting characteristics also at low temperatures
A safe lubricant film at high operating temperatures
Low evaporative tendency, so lower oil consumption
No deposits in combustion chambers, in the piston ring zone and valves because of oil conditioned
Neutrality towards sealing materials
Extended oil change intervals to protect natural resources

Parameter	Unit	Value	Audit
Recommendations		Audi Motorsport V31 748 026, BMW 83210398507, BMW/Mini 83 21 0 398 508, Chrysler MS-11106, Fiat 9.55535-S1, MB (A 000 989 89 01 10), MB 229.31, Stellantis FPW9.55535/03, VW/Audi G 052 195 M2, VW/Audi G 052 195 M4, VW/Audi G 052 195 M6		Audi Motorsport V31 748 026, BMW 83210398507, BMW/Mini 83 21 0 398 508, Chrysler MS-11106, Fiat 9.55535-S1, MB (A 000 989 89 01 10), MB 229.31, Stellantis FPW9.55535/03, VW/Audi G 052 195 M2, VW/Audi G 052 195 M4, VW/Audi G 052 195 M6
Application area		Audi Motorsport V31 748 026		Audi Motorsport V31 748 026
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Full synthetic		Full synthetic
API		SN		SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00		BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00
Recomendations		Audi Motorsport V31 748 026, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195		Audi Motorsport V31 748 026, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195
Compliant products		BMW 83210398507, BMW 83210398508, MB A 000 989 89 01 10, VW G 052 195		BMW 83210398507, BMW 83210398508, MB A 000 989 89 01 10, VW G 052 195
Density at 20 °C	g/cm³	849	EN ISO 12185	849 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.9	DIN 51562-1	11.9 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	66.3	DIN 51562-1	66.3 mm²/s DIN 51562-1
Viscosity Index VI		179	DIN ISO 2909	179 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.7	ASTM D5481	3.7 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4740	ASTM D5293	4740 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	12.000	ASTM D4684	12.000 mPa*s ASTM D4684
Pourpoint	°C	-60	DIN ISO 3016	-60 °C DIN ISO 3016
Noack Volatility	%	6.4	ASTM D5800	6.4 % ASTM D5800
Flashpoint	°C	238	DIN EN ISO 2592	238 °C DIN EN ISO 2592
tbn	mgKOH/g	8.8	ASTM D2896	8.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.7	DIN 51575	0.7 %wt. DIN 51575
Approvals		Audi Motorsport V31 748 026, BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, MB 229.51, Porsche C30, Stellantis FPW9.55535/03, VW 504.00, VW 507.00, VW G 052 195		Audi Motorsport V31 748 026, BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, MB 229.51, Porsche C30, Stellantis FPW9.55535/03, VW 504.00, VW 507.00, VW G 052 195

SMP 5W-30

Engine oil

RAVENOL SMP SAE 5W-30 is based on synthetic base oils and contains additives with reduced ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

Manufacturer Approved:
BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00

Compliance with the requirements:
Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195

show details

SAE: 5W-30

API: SN, SP

ACEA: C3

Equivalents OEM:
Alpine 0100271, Alpine 0100272, Alpine 0100273, Alpine 0100274, Alpine 0100275, Alpine 0100279, Alpine 100271, Alpine 100272, Alpine 100273, Alpine 100274, Alpine 100274, Alpine 100279, BMW 83212465851, FEBI 32945, FEBI 32946, FEBI 32947, FEBI 32948, FEBI 39337, MB A000989780110, MB A000989890110, MB A0009899301, SWAG 15932945, SWAG 15932946, SWAG 15932947, SWAG 15932948, SWAG 99939337

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111126-001

Code:
4014835856981

Volume:
4 L

vendor code:
1111126-004

Code:
4014835857018

Volume:
5 L

vendor code:
1111126-005

Code:
4014835857049

Volume:
10 L

vendor code:
1111126-010

Code:
4014835857070

Volume:
20 L

vendor code:
1111126-020

Code:
4014835857117

Volume:
20 L, ecobox

vendor code:
1111126-B20

Code:
4014835857094

Volume:
60 L

vendor code:
1111126-060

Code:
4014835857155

Volume:
60 L, print

vendor code:
1111126-D60

Code:
4014835857131

Volume:
208 L

vendor code:
1111126-208

Code:
4014835857193

Volume:
208 L, print

vendor code:
1111126-D28

Volume:
1000 L

vendor code:
1111126-700

RAVENOL SMP SAE 5W-30 is based on synthetic base oils and contains additives with reduced ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

RAVENOL SMP SAE 5W-30 achieved by its formulation with special base oils a high viscosity index. The excellent cold start behaviour ensures an optimal lubrication safety in the cold running phase.

Because of a considerable fuel saving RAVENOL SMP SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL SMP SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL SMP SAE 5W-30 is universal fuel economy, especially formulated engine oil for modern gasoline and diesel engines with and without turbo charger in passenger cars and vans with extended oil change intervals. Extend the lifespan of the particle filter.

Due to the specific composition is RAVENOL SMP SAE 5W-30 excellent suitable for use for several of the latest OEM requirements.

Characteristics

Fuel economy in part and full power operation
MID SAPS = reduced Sulphated ash, Phosphor and Sulfur
Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine
Excellent cold starting characteristics also at low temperatures
A safe lubricant film at high operating temperatures
Low evaporative tendency, so lower oil consumption
No deposits in combustion chambers, in the piston ring zone and valvesbecause of oil conditioned
Neutrality towards sealing materials
Extended oil change intervals to protect natural resources

Parameter	Unit	Value	Audit
Recommendations		BMW 83210398507, BMW/Mini 83 21 0 398 508, Chrysler MS-11106, Fiat 9.55535-S1, MB (A 000 989 89 01 10), MB 229.31, Stellantis FPW9.55535/03, VW/Audi G 052 195 M2, VW/Audi G 052 195 M4, VW/Audi G 052 195 M6		BMW 83210398507, BMW/Mini 83 21 0 398 508, Chrysler MS-11106, Fiat 9.55535-S1, MB (A 000 989 89 01 10), MB 229.31, Stellantis FPW9.55535/03, VW/Audi G 052 195 M2, VW/Audi G 052 195 M4, VW/Audi G 052 195 M6
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		SN, SP		SN, SP
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00		BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00
Recomendations		Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195		Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195
Compliant products		BMW 83210398507, BMW 83210398508, MB A 000 989 89 01 10, VW G 052 195		BMW 83210398507, BMW 83210398508, MB A 000 989 89 01 10, VW G 052 195
Density at 20 °C	g/cm³	846	EN ISO 12185	846 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	11.95	DIN 51562-1	11.95 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	70.4	DIN 51562-1	70.4 mm²/s DIN 51562-1
Viscosity Index VI		167	DIN ISO 2909	167 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.63	ASTM D5481	3.63 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5820	ASTM D5293	5820 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	20.900	ASTM D4684	20.900 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	9.8	ASTM D5800	9.8 % ASTM D5800
Flashpoint	°C	233	DIN EN ISO 2592	233 °C DIN EN ISO 2592
tbn	mgKOH/g	8.8	ASTM D2896	8.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.7	DIN 51575	0.7 %wt. DIN 51575
Approvals		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, MB 229.51, Porsche C30, Stellantis FPW9.55535/03, VW 504.00, VW 507.00, VW G 052 195		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, MB 229.51, Porsche C30, Stellantis FPW9.55535/03, VW 504.00, VW 507.00, VW G 052 195

HSW 0W-30

RAVENOL HSW SAE 0W-30 lengthens the service life of the diesel particulate filter by reducing the concentration of ash-forming particles in the exhaust gas. It reduces the emissions of gases which are harmful to the environment. It delivers a higher degree of security by providing lasting protection for engines.

Manufacturer Approved:
BMW Longlife-04, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00

show details

SAE: 0W-30

API: SN

ACEA: C3

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1112118-001

Code:
4014835889545

Volume:
4 L

vendor code:
1112118-004

Code:
4014835889576

Volume:
5 L

vendor code:
1112118-005

Code:
4014835889606

Volume:
10 L

vendor code:
1112118-010

Code:
4014835889637

Volume:
20 L

vendor code:
1112118-020

Code:
4014835889651

Volume:
20 L, ecobox

vendor code:
1112118-B20

Code:
4014835889729

Volume:
60 L

vendor code:
1112118-060

Code:
4014835889675

Volume:
208 L

vendor code:
1112118-208

Code:
4014835889699

Volume:
1000 L

vendor code:
1112118-700

RAVENOL HSW SAE 0W-30 lengthens the service life of the diesel particulate filter by reducing the concentration of ash-forming particles in the exhaust gas. It reduces the emissions of gases which are harmful to the environment. It delivers a higher degree of security by providing lasting protection for engines.

With its formulation, RAVENOL HSW SAE 0W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By reducing fuel consumption, RAVENOL HSW SAE 0W-30 helps to protect the environment by reducing emissions. It minimizes friction, wear and fuel consumption.

RAVENOL HSW SAE 0W-30 guarantees operational safety in all driving conditions, such as extreme stop-and-go traffic as well as high-speed highway driving.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL HSW SAE 0W-30 can be used in all vehicles with and without LongLife Service and is therefore suitable for extended oil change intervals and vehicles with and without DPF filters. The operating instructions of the vehicle and engine manufacturers must be observed.

Characteristics

Particularly low-friction characteristics and an outstanding range of benefits thanks to special additives.
Outstanding engine protection even after a cold start and in tougher conditions.
Guarantees rapid engine lubrication even at low temperatures of under -30°C and a sufficiently thick film of lubrication even at oil temperatures of >150°C during high-speed journeys.
Good protection against wear and tear and the high level of engine cleanliness while also consuming less fuel (fuel economy characteristic).
The hydraulic tappets are guaranteed to function at all temperatures due to adequate oil pressure.
Does not have an impact on sealants.
Safeguards the engine against sludge formation, coking, lacquering and corrosion even in unfavourable operating conditions.

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		0W-30		0W-30
Type		Synthetic		Synthetic
API		SN		SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00		BMW Longlife-04, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00
Density at 20 °C	g/cm³	836	EN ISO 12185	836 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	62.4	DIN 51562-1	62.4 mm²/s DIN 51562-1
Viscosity Index VI		197	DIN ISO 2909	197 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.7	ASTM D5481	3.7 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5890	ASTM D5293	5890 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	19.200	ASTM D4684	19.200 mPa*s ASTM D4684
Pourpoint	°C	-54	DIN ISO 3016	-54 °C DIN ISO 3016
Noack Volatility	%	10	ASTM D5800	10 % ASTM D5800
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	8.3	ASTM D2896	8.3 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.7	DIN 51575	0.7 %wt. DIN 51575
Approvals		BMW Longlife-04, MB 229.51, MB 229.52, Porsche C30, VW 504.00, VW 507.00		BMW Longlife-04, MB 229.51, MB 229.52, Porsche C30, VW 504.00, VW 507.00

HCS 5W-40

Engine oil

Application NoteRAVENOL HCS SAE 5W-40 is suitable for an energy saving all year use for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.

Manufacturer Approved:
MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296

show details

SAE: 5W-40

API: CF, SN

ACEA: A3, B4

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1112105-001

Code:
4014835723917

Volume:
4 L

vendor code:
1112105-004

Code:
4014835723993

Volume:
5 L

vendor code:
1112105-005

Code:
4014835723955

Volume:
10 L

vendor code:
1112105-010

Code:
4014835723948

Volume:
20 L, ecobox

vendor code:
1112105-B20

Code:
4014835774322

Volume:
60 L

vendor code:
1112105-060

Code:
4014835723962

Volume:
60 L, print

vendor code:
1112105-D60

Code:
4014835723931

Volume:
208 L

vendor code:
1112105-208

Code:
4014835723986

Volume:
208 L, print

vendor code:
1112105-D28

Code:
4014835723900

Volume:
1000 L

vendor code:
1112105-700

Volume:
20 L

vendor code:
1112105-020

Code:
4014835723924

Application Note

RAVENOL HCS SAE 5W-40 is suitable for an energy saving all year use for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.

Characteristics

High protection against wear
Fuel economy by low friction property
Excellent detergent- and dispersant property
Prevention of black sludge formation
Improved cleaner engine
Extended lifetime because of oxidation stability
Excellent cold starting characteristics
Excellent viscosity-temperature- characteristics
Low evaporation tendency
Catalyst cleaning

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, MB 226.5, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, MB 226.5, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296
Brand		RAVENOL		RAVENOL
SAE		5W-40		5W-40
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		A3, B4		A3, B4
Manufacturer Approved		MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00		MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
Recomendations		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296
Density at 20 °C	g/cm³	849	EN ISO 12185	849 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.4	DIN 51562-1	14.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	87.5	DIN 51562-1	87.5 mm²/s DIN 51562-1
Viscosity Index VI		171	DIN ISO 2909	171 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.9	ASTM D5481	3.9 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5370	ASTM D5293	5370 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	28.500	ASTM D4684	28.500 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	8.4	ASTM D5800	8.4 % ASTM D5800
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	10.4	ASTM D2896	10.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.26	DIN 51575	1.26 %wt. DIN 51575
Approvals		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

VSW 0W-30

For diesels

Manufacturer Approved:
BMW Longlife-04, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00

Compliance with the requirements:
Chrysler MS-11106

show details

SAE: 0W-30

API: SN

ACEA: C3

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111106-001

Code:
4014835842786

Volume:
4 L

vendor code:
1111106-004

Code:
4014835842816

Volume:
5 L

vendor code:
1111106-005

Code:
4014835842847

Volume:
10 L

vendor code:
1111106-010

Code:
4014835845107

Volume:
20 L

vendor code:
1111106-020

Code:
4014835845121

Volume:
20 L, ecobox

vendor code:
1111106-B20

Code:
4014835850996

Volume:
60 L

vendor code:
1111106-060

Volume:
208 L

vendor code:
1111106-208

Code:
4014835845169

RAVENOL VSW SAE 0W-30 lengthens the service life of the diesel particulate filter by reducing the concentration of ash-forming particles in the exhaust gas. It reduces the emissions of gases which are harmful to the environment. It delivers a higher degree of security by providing lasting protection for engines.

With its new formulation, RAVENOL VSW SAE 0W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL VSW SAE 0W-30 helps to protect the environment by reducing emissions.

RAVENOL VSW SAE 0W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL VSW SAE 0W-30 guarantees operational safety in all driving conditions, such as extreme stop-and-go traffic as well as high-speed highway driving.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL VSW SAE 0W-30 can be used in all VW vehicles with and without LongLife Service and is therefore suitable for extended oil change intervals and vehicles with and without DPF filters. The operating instructions of the vehicle and engine manufcturers must be observed.

Characteristics

Particularly low-friction characteristics and an outstanding range of benefits thanks to special additives.
Outstanding engine protection even after a cold start and in tougher conditions.
Guarantees rapid engine lubrication even at low temperatures of under -30°C and a sufficiently thick film of lubrication even at oil temperatures of >150°C during high-speed journeys.
Guarantees the best possible protection against wear and tear and the highest level of engine cleanliness while also consuming less fuel (fuel economy characteristic).
The hydraulic tappets are guaranteed to function at all temperatures due to adequate oil pressure.
Does not have an impact on sealants.
Safeguards the engine against sludge formation, coking, lacquering and corrosion even in unfavourable operating conditions.

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-11106		Chrysler MS-11106
Brand		RAVENOL		RAVENOL
SAE		0W-30		0W-30
Type		Full synthetic		Full synthetic
API		SN		SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00		BMW Longlife-04, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00
Recomendations		Chrysler MS-11106		Chrysler MS-11106
Density at 20 °C	g/cm³	846	EN ISO 12185	846 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	12	DIN 51562-1	12 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	60.8	DIN 51562-1	60.8 mm²/s DIN 51562-1
Viscosity Index VI		197	DIN ISO 2909	197 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.6	ASTM D5481	3.6 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5565	ASTM D5293	5565 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	14.800	ASTM D4684	14.800 mPa*s ASTM D4684
Pourpoint	°C	-60	DIN ISO 3016	-60 °C DIN ISO 3016
Noack Volatility	%	9	ASTM D5800	9 % ASTM D5800
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
tbn	mgKOH/g	7.6	ASTM D2896	7.6 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.63	DIN 51575	0.63 %wt. DIN 51575
Approvals		BMW Longlife-04, Chrysler MS-11106, MB 229.31, MB 229.51, MB 229.52, Porsche C30, VW 504.00, VW 507.00		BMW Longlife-04, Chrysler MS-11106, MB 229.31, MB 229.51, MB 229.52, Porsche C30, VW 504.00, VW 507.00

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

Available packaging
Full description
Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

Long-term effectiveness and clean fresh oil
Remedy for soiled engines
Protection against compression loss in the area of the piston rings
Leads to better exhaust emissions and increases the performance of the engine

Parameter	Unit	Value	Audit
Color		Light brown	visual	Light brown visual
Flashpoint (PM)	°C	62	DIN ISO 3679	62 °C DIN ISO 3679
Density at 20 °C		805	EN ISO 12185	805 EN ISO 12185
Viscosity at 40 °C	mm²/s	7	DIN EN ISO 3104	7 mm²/s DIN EN ISO 3104
Brand		RAVENOL		RAVENOL

Transmission, automatic in a unit with final drive 09G / AQ160
OEM: 09G300032H , 09G300032HX

Liquid volume (basic): 7 L

ATF T-WS Lifetime

Hydraulic fluid

RAVENOL ATF T-WS Lifetime fulfils the transmission oil specifications for latest automatic transmissions of Toyota and Aisin Warner.

Compliance with the requirements:
Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1211106-001

Code:
4014835743311

Volume:
4 L

vendor code:
1211106-004

Code:
4014835743397

Volume:
10 L

vendor code:
1211106-010

Code:
4014835743342

Volume:
20 L

vendor code:
1211106-020

Code:
4014835743328

Volume:
20 L, ecobox

vendor code:
1211106-B20

Code:
4014835784925

Volume:
60 L

vendor code:
1211106-060

Volume:
60 L, print

vendor code:
1211106-D60

Code:
4014835743335

Volume:
208 L

vendor code:
1211106-208

Volume:
208 L, print

vendor code:
1211106-D28

Code:
4014835743304

RAVENOL ATF T-WS Lifetime fulfils the transmission oil specifications for latest automatic transmissions of Toyota and Aisin Warner.

Application Note

RAVENOL ATF T-WS Lifetime is recommended for latest automatic transmissions of Toyota and Aisin Warner. LEXUS / TOYOTA: AB60F, A750E(F), U341E(F), U140E(F), U250E, U241E, U151E(F), U340E. Aisin TF-80SC (AWF21, AF40-6, AM6, AW6A-EL), TF-81SC (AF21 and AWF-21) for Alfa Romeo 159 - 1.9 JTDm, 2.4 JTDm, 3.2 JTS Alfa Romeo Brera - 2.4 JTDm, 3.2 JTS Alfa Romeo Spider - 2.4 JTDm, 3.2 JTS Cadillac BLS - 1.9 D, 1.9 D (TST), Chevrolet Cruze (US market, 2.0L Turbo Diesel), Citroën C4, Citroën C5, Citroën C6, Citroën DS4, Citroën DS5, Fiat Croma - 1.9 JTDm, 2.4 JTDm, Ford Five Handred, Ford Fusion, Ford Mondeo, Lancia Delta (2008) - 1.8 DI Turbo, Land Rover Freelander 2, Land Rover, Range Rover Evoque, Lincoln Zephyr, Lincoln MKZ, Mazda 6, Mazda CX-7, Mazda CX-9, Mazda MPV, Mercury Milan, Mercury Montego, Opel/Vauxhall Astra, Opel / Vauxhall Vectra / Signum, Opel / Vauxhall Zafira, Opel / Vauxhall Insignia, Peugeot 307, Peugeot 308, Peugeot 407, Peugeot 508, Peugeot 607, Peugeot 3008, Peugeot 5008, Renault Espace, Renault Vel Satis, Saab 9-3 - 1.9 TiD, 1.9 TTiD, Volvo C30 D3 and D4, Volvo S40 D3 and D4, Volvo V50 D3 and D4, Volvo S60 2.4D, D5, D5 AWD, T6 AWD and R AWD 06-07, 08- Volvo V60 D3, D5, D5 AWD, T6 AWD, Volvo S80 2.5T, 3.2, T6 AWD, V8 AWD, D5 and D5 AWD, Volvo V70 2.5T, 3.2, T6 AWD, 2.4D, D5, D5 AWD and R AWD 06-07, 08- Volvo XC60, Volvo XC70, Volvo XC90 3.2 and V8 AWD, Aisin TF60SN, TF61SN and TF62SN, VW 09G, 09K, 09M for Volkswagen, Audi, Skoda.

Characteristics

phenomenal resistance of lubricant failure under hard operating conditions
a longer oil durability, extension of the durability of the transmission, offers longer changing intervals
phenomenal resistance of oil sludge and deposit accumulation
an excellent oxidation resistance and thermic stability
a superior corrosion protection, a much better foaming resistance for a smooth switching operation as well
as a lower corrosion of the bearings, sleeves and gear wheels
an excellent flow behaviour at low temperatures
a more constant switching operation performance, optimised friction characteristics
prevention of coupling grinding regarding modulation rotary conversion
a longer durability of oil and coupling, offers a smooth switching operation at low temperatures
an improved shear stability

Parameter	Unit	Value	Audit
Recommendations		Aisin TF-80SC (AWF21, AF 40-6, AM6, AW6A-EL), Aisin TF-80SD, Aisin TF-81SC (AF21 und AWF-21), Aisin TF-82SC, Aisin TG-81SC (AWF8F35, A881F und GA8F22AW), Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW 2 Gran Tourer F46, BMW 83222355599, BMW ATF 6, BMW X1 F48, BMW X2 F39, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Fiat 9.55550-AV2, Fuzhen FA840, Geely 6608136626 ATF-GS, GM 1940773, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Land Rover LR022460, Mini Cooper F54, Mini Countryman F60, SAAB 93165147, Toyota / Lexus JWS3324, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540 A2, VW/Audi Getriebe 0C8 (Touareg 2011-Q7 2010-), Xuanfu 6AT18, Xuanfu 6AT20, Xuanfu 6AT28		Aisin TF-80SC (AWF21, AF 40-6, AM6, AW6A-EL), Aisin TF-80SD, Aisin TF-81SC (AF21 und AWF-21), Aisin TF-82SC, Aisin TG-81SC (AWF8F35, A881F und GA8F22AW), Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW 2 Gran Tourer F46, BMW 83222355599, BMW ATF 6, BMW X1 F48, BMW X2 F39, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Fiat 9.55550-AV2, Fuzhen FA840, Geely 6608136626 ATF-GS, GM 1940773, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Land Rover LR022460, Mini Cooper F54, Mini Countryman F60, SAAB 93165147, Toyota / Lexus JWS3324, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540 A2, VW/Audi Getriebe 0C8 (Touareg 2011-Q7 2010-), Xuanfu 6AT18, Xuanfu 6AT20, Xuanfu 6AT28
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Recomendations		Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540		Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540
Suitable for		Aisin AF21, AWF-21, Aisin AWF21, AF 40-6, AM6, AW6A-EL, Aisin AWF8F35, A881F, GA8F22AW, BMW 2 Gran Tourer F46, BMW X1 F48, BMW X2 F39, Mini Cooper F54, Mini Countryman F60, VW Getriebe 0C8 (Touareg 2011-Q7 2010-)		Aisin AF21, AWF-21, Aisin AWF21, AF 40-6, AM6, AW6A-EL, Aisin AWF8F35, A881F, GA8F22AW, BMW 2 Gran Tourer F46, BMW X1 F48, BMW X2 F39, Mini Cooper F54, Mini Countryman F60, VW Getriebe 0C8 (Touareg 2011-Q7 2010-)
Compliant products		BMW 83222355599, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Geely 6608136626 ATF-GS, GM 1940773, Land Rover LR022460, SAAB 93165147, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540, Xuanfu 6AT18, Xuanfu AT20, Xuanfu AT28		BMW 83222355599, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Geely 6608136626 ATF-GS, GM 1940773, Land Rover LR022460, SAAB 93165147, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540, Xuanfu 6AT18, Xuanfu AT20, Xuanfu AT28
Density at 20 °C	g/cm³	838	EN ISO 12185	838 g/cm³ EN ISO 12185
Color		Red	visual	Red visual
Pourpoint	°C	-54	DIN ISO 3016	-54 °C DIN ISO 3016
Approvals		Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540		Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540

Mechanical gearbox in a unit with final drive 0AF / MQ200

Liquid volume (basic): 2.1 L

MTF-3 75W

For gearbox

RAVENOL MTF-3 SAE 75W is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2

show details

SAE: 75W

API: GL-4

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221104-001

Code:
4014835719811

Volume:
4 L

vendor code:
1221104-004

Code:
4014835719897

Volume:
10 L

vendor code:
1221104-010

Code:
4014835719842

Volume:
20 L

vendor code:
1221104-020

Volume:
20 L, ecobox

vendor code:
1221104-B20

Code:
4014835788527

Volume:
60 L

vendor code:
1221104-060

Code:
4014835736061

Volume:
60 L, print

vendor code:
1221104-D60

Volume:
208 L

vendor code:
1221104-208

Volume:
208 L, print

vendor code:
1221104-D28

Volume:
1000 L

vendor code:
1221104-700

RAVENOL MTF-3 SAE 75W is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL MTF-3 SAE 75W is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.

Application Note

RAVENOL MTF-3 SAE 75W is a full synthetic transmission oil for manual transmissions.

Characteristics

A high pressure stable lubricating film even at high oil temperatures and under high stress.
Outstanding shearing stability and excellent thermal stability.
Excellent viscosity-temperature properties.
High oxidation stability.
Excellent wear protection, outstanding EP properties.
Low foaming properties even at high speeds.
Good shifting behaviour even in low temperatures, extremely low pour point.
Extended life.
A stable lubricating film even at high oil temperatures and under high stress.

Parameter	Unit	Value	Audit
Recommendations		AC Delco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83220396706 MTF-LT-3, BMW 83227533818 MTF-LT-3, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C200-D2, Ford WSS-M2C200-D3, Ford WSS-M2C200-E1, GM 19259104, GM 19259105, GM 1940004, JWS 2271, MB 235.10, Mercedes A 001 989 840 309, Opel B0402167, PSA 9730A8, PSA B71 2310, PSA B71 2316, PSA B71 2317, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317 A2, VW G 052 171 A2, VW G 052 512 A2, VW G 052 527 A2, VW G 055 512 A2, VW G 055 532 A2, VW G 070 726 A2, VW G F53 061 M2, VW/Audi G 060 726 A2		AC Delco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83220396706 MTF-LT-3, BMW 83227533818 MTF-LT-3, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C200-D2, Ford WSS-M2C200-D3, Ford WSS-M2C200-E1, GM 19259104, GM 19259105, GM 1940004, JWS 2271, MB 235.10, Mercedes A 001 989 840 309, Opel B0402167, PSA 9730A8, PSA B71 2310, PSA B71 2316, PSA B71 2317, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317 A2, VW G 052 171 A2, VW G 052 512 A2, VW G 052 527 A2, VW G 055 512 A2, VW G 055 532 A2, VW G 070 726 A2, VW G F53 061 M2, VW/Audi G 060 726 A2
SAE		75W		75W
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
API		GL-4		GL-4
Recomendations		BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2		BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2
Compliant products		AcDelco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83227533818, GM 19259104, GM 19259105, GM 1940004, MB A 001 989 840 309, PSA 9730.A8, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726		AcDelco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83227533818, GM 19259104, GM 19259105, GM 1940004, MB A 001 989 840 309, PSA 9730.A8, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726
Density at 20 °C	g/cm³	840	EN ISO 12185	840 g/cm³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	7.4	DIN 51562-1	7.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	35.1	DIN 51562-1	35.1 mm²/s DIN 51562-1
Viscosity Index VI		184	DIN ISO 2909	184 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	8.800	ASTM D2983	8.800 mPa*s ASTM D2983
Pourpoint	°C	-48	DIN ISO 3016	-48 °C DIN ISO 3016
Flashpoint	°C	216	DIN EN ISO 2592	216 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2		BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2

Hydraulic brakes/clutch system

Liquid volume (basic): 1.15 L

DOT 4 LV

Brake fluid

The specific formulation of RAVENOL DOT 4 LV also meets current international specifications US FMVSS 116 DOT 3, DOT 4, SAE J 1703, SAE J 1704 and ISO 4925 (Classes 3 & 4).

Compliance with the requirements:
Ford WSS-M6C 65-A2, VW 501.14

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1350605-001

Code:
4014835862326

Volume:
20 L

vendor code:
1350605-020

DOT 4

The specific formulation of RAVENOL DOT 4 LV also meets current international specifications US FMVSS 116 DOT 3, DOT 4, SAE J 1703, SAE J 1704 and ISO 4925 (Classes 3 & 4).

With its exceptional viscosity performance even at extremely Low Viskosity (max. 750 cSt @ -40°C) RAVENOL DOT 4 LV is especially recommended for use in the hydraulic brake and clutch systems of vehicles fitted with ESP / ASR (Electronic Stability Program) systems.

The safety potential of the aggregates is enhanced by the excellent properties of RAVENOL DOT 4 LV even at low temperatures.

RAVENOL DOT 4 LV mixes safely with other brake and clutch fluids that meet the above specifications.

Application Note

RAVENOL DOT 4 LV brake fluid can be used in all vehicles where ISO 4925 Class 6 specification is required.

RAVENOL DOT 4 LV is recommended for use in the hydraulic brake and clutch systems of vehicles fitted with ESP / ASR (Electronic Stability Program) systems.

RAVENOL DOT 4 LV is also recommended for use in the hydraulic brake and clutch systems of all cars, commercial vehicles and motorcycles for which a non-petroleum based fluid of this type is specified.

RAVENOL DOT 4 LV brake fluid is miscible with all known brake fluids of the same specification.

To use the high performance level of RAVENOL DOT 4 LV, a complete change of the brake fluid is recommended.

RAVENOL DOT 4 LV is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113)Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

Fluidity even at very low temperatures
Optimal ABS properties.
Chemical stability.
High lubricating power
Neutral behavior towards brake parts.
Can be mixed with all brake fluids of the same specification.

Parameter	Unit	Value	Audit
FMVSS 116 specifications (DOT)		DOT-4 LV		DOT-4 LV
Recommendations		Ford WSS-M6C65-A2, VW 501 14		Ford WSS-M6C65-A2, VW 501 14
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Recomendations		Ford WSS-M6C 65-A2, VW 501.14		Ford WSS-M6C 65-A2, VW 501.14
specification		DOT 3, DOT 4, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704		DOT 3, DOT 4, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704
Density at 20 °C	g/cm³	1052	EN ISO 12185	1052 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mPa*s	2.1	ASTM D445	2.1 mPa*s ASTM D445
Viscosity at -40 °C	cSt	675	ASTM D445	675 cSt ASTM D445
Boiling point	°C	267	FMVSS 116	267 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point	°C	172	FMVSS 116	172 °C FMVSS 116
High Temperature Stability	°C	-1	FMVSS 116	-1 °C FMVSS 116
Chemical Stability	°C	1	FMVSS 116	1 °C FMVSS 116
Evaporation	%w/w	61	FMVSS 116	61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C		i.O., 4s	FMVSS 116	i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C		i.O., 8s	FMVSS 116	i.O., 8s FMVSS 116
Water Tolerance at -40 °C		transparent, 3s	FMVSS 116	transparent, 3s FMVSS 116
Water Tolerance at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at -40 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Water content	%	— 0.2	DIN 51777-1	— 0.2 % DIN 51777-1
Tinned Iron	Δ mg/cm²	0.04	FMVSS 116	0.04 Δ mg/cm² FMVSS 116
Steel	mg/cm²	-0.01	FMVSS 116	-0.01 mg/cm² FMVSS 116
Aluminium	mg/cm²	0.02	FMVSS 116	0.02 mg/cm² FMVSS 116
Cast Iron	Δ mg/cm²	-0,03	FMVSS 116	-0,03 Δ mg/cm² FMVSS 116
Brass	mg/cm²	-0.08	FMVSS 116	-0.08 mg/cm² FMVSS 116
Copper	mg/cm²	-0.05	FMVSS 116	-0.05 mg/cm² FMVSS 116
Zinc	mg/cm²	0.01	FMVSS 116	0.01 mg/cm² FMVSS 116
Sediment	%	— 0.05	FMVSS 116	— 0.05 % FMVSS 116
pH - value		8.2	FMVSS 116	8.2 FMVSS 116
Rubber Diameter Change		0.16	FMVSS 116	0.16 FMVSS 116
Hardness Change	°IRHD	-4	FMVSS 116	-4 °IRHD FMVSS 116
Appearance		i.O.	FMVSS 116	i.O. FMVSS 116
SBR at 70 °C	mm	0.56	FMVSS 116	0.56 mm FMVSS 116
SBR at 120 °C	mm	0.73	FMVSS 116	0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703)	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
EPDM at 120 °C	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925)	mm	0.38	FMVSS 116	0.38 mm FMVSS 116
Approvals		DOT 3, DOT 4, Ford WSS-M6C 65-A2, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704, VW 501.14		DOT 3, DOT 4, Ford WSS-M6C 65-A2, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704, VW 501.14

Cooling system
OEM: 5Q0121251HC

Liquid volume (basic): 7 L

LTC - Protect C12++ Premix -40°C

Coolant

RAVENOL LTC Lobrid Technology Coolant Premix -40°C is free from 2-ethylhexanoic acid, borate, nitrite, amine and phosphate.

Compliance with the requirements:
Chrysler MS-90032, DTFR 29C120 (MB 325.5), DTFR 29D120 (MB 326.5), MAN 324 Type Si-OAT, MB 325.5, MB 326.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J

show details

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410126-150

Code:
4014835756113

Volume:
5 L

vendor code:
1410126-005

Code:
4014835756151

Volume:
10 L

vendor code:
1410126-010

Volume:
20 L

vendor code:
1410126-020

Code:
4014835756120

Volume:
20 L, ecobox

vendor code:
1410126-B20

Code:
4014835858893

Volume:
208 L

vendor code:
1410126-208

Code:
4014835756182

Volume:
1000 L

vendor code:
1410126-700

Volume:
60 L

vendor code:
1410126-060

Code:
4014835756168

RAVENOL LTC Lobrid Technology Coolant Premix -40°C is free from 2-ethylhexanoic acid, borate, nitrite, amine and phosphate.

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL LTC Lobrid Technology Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL LTC Lobrid Technology Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL LTC Lobrid Technology Coolant Premix -40°C to radiator to fill line.

Characteristics

Excellent for all-aluminium engines
Good reserve alkalinity
Premium corrosion additives for optimal rust protection for all metals and metal alloys used in cooling systems, including aluminium
Prevents sediments and foaming in the cooling system
Compatible with elastomers used in automotive radiators
Can be mixed with other coolant types

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-90032, DTFR 29C120 (MB 325.5), DTFR 29D120 (MB 326.5), MAN 324 Si-OAT, MB (A 000 989 08 25 10), MB 325.5, MB 326.6 (Premix), Mopar 68163848AA, Mopar 68163849AA, Scania TB 1451, VW G 012 A8G M1, VW G 012 A8G M8, VW G 012 A8G M9, VW G 013 A8J M1, VW G 013 A8J M8, VW G 013 A8J M9, VW TL 774-G (entspricht G12++), VW TL 774-J (entspricht G13)		Chrysler MS-90032, DTFR 29C120 (MB 325.5), DTFR 29D120 (MB 326.5), MAN 324 Si-OAT, MB (A 000 989 08 25 10), MB 325.5, MB 326.6 (Premix), Mopar 68163848AA, Mopar 68163849AA, Scania TB 1451, VW G 012 A8G M1, VW G 012 A8G M8, VW G 012 A8G M9, VW G 013 A8J M1, VW G 013 A8J M8, VW G 013 A8J M9, VW TL 774-G (entspricht G12++), VW TL 774-J (entspricht G13)
Brand		RAVENOL		RAVENOL
Recomendations		Chrysler MS-90032, DTFR 29C120 (MB 325.5), DTFR 29D120 (MB 326.5), MAN 324 Type Si-OAT, MB 325.5, MB 326.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J		Chrysler MS-90032, DTFR 29C120 (MB 325.5), DTFR 29D120 (MB 326.5), MAN 324 Type Si-OAT, MB 325.5, MB 326.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J
Compliant products		MB A 000 989 08 25 10, Mopar 68163848AA, Mopar 68163849AA, VW G 012 A8G, VW G 013 A8J		MB A 000 989 08 25 10, Mopar 68163848AA, Mopar 68163849AA, VW G 012 A8G, VW G 013 A8J
Density at 20 °C	g/cm³	1079	EN ISO 12185	1079 g/cm³ EN ISO 12185
Color		Violet	visual	Violet visual
pH - value at 20 °C		8,2	ASTM D1287	8,2 ASTM D1287
Freezing point	°C	-40	ASTM D1177	-40 °C ASTM D1177
Approvals		Chrysler MS-90032, DTFR 29C120 (MB 325.5), DTFR 29D120 (MB 326.5), MAN 324 Type Si-OAT, MB 325.5, MB 326.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J		Chrysler MS-90032, DTFR 29C120 (MB 325.5), DTFR 29D120 (MB 326.5), MAN 324 Type Si-OAT, MB 325.5, MB 326.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J

LTC - Protect C12++ Concentrate

Coolant

RAVENOL LTC Lobrid Technology Coolant Concentrate is free from 2-ethylhexanoic acid, borate, nitrite, amine and phosphate.

Compliance with the requirements:
Chrysler MS-90032, DTFR 29C120 (MB 325.5), MAN 324 Type Si-OAT, MB 325.5, MB 325.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J

show details

Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410125-150

Code:
4014835756014

Volume:
5 L

vendor code:
1410125-005

Code:
4014835756052

Volume:
10 L

vendor code:
1410125-010

Volume:
20 L

vendor code:
1410125-020

Code:
4014835756021

Volume:
20 L, ecobox

vendor code:
1410125-B20

Volume:
60 L

vendor code:
1410125-060

Volume:
208 L

vendor code:
1410125-208

Volume:
1000 L

vendor code:
1410125-700

RAVENOL LTC Lobrid Technology Coolant Concentrate is free from 2-ethylhexanoic acid, borate, nitrite, amine and phosphate.

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL LTC Lobrid Technology Coolant Concentrate protects the cooling system from corrosion, frost, and in the summer from overheating.

Application Note

RAVENOL LTC Lobrid Technology Coolant Concentrate with frost and rust protection for year-round use in all-aluminium engines. Use according to the mixing chart. Follow manufacturer’s recommendations.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL LTC Lobrid Technology Coolant Concentrate with distilled water (per mixing table) and add. Allow engine and heater to warm up, add coolant to fill level.

Table of mixing ratios
Antifreeze protection until	Parts Antifreeze	Parts Water
-20°C	35%	65%
-37°C	50%	50%
-50°C	60%	40%

Characteristics

Excellent for all-aluminium engines
Good reserve alkalinity
Premium corrosion additives for optimal rust protection for all metals and metal alloys used in coolsystems, including aluminium
Prevents sediments and foaming in the cooling system
Compatible with elastomers used in automotive radiators
Can be mixed with other coolant types

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-90032, DTFR 29C120 (MB 325.5), MAN 324 Si-OAT, MB 325.5, MB 325.6, Mopar 68163848AA, Mopar 68163849AA, Scania TB 1451, VW G 012 A8G M1, VW G 012 A8G M8, VW G 012 A8G M9, VW G 013 A8J M1, VW G 013 A8J M8, VW G 013 A8J M9, VW TL 774-G (entspricht G12++), VW TL 774-J (entspricht G13)		Chrysler MS-90032, DTFR 29C120 (MB 325.5), MAN 324 Si-OAT, MB 325.5, MB 325.6, Mopar 68163848AA, Mopar 68163849AA, Scania TB 1451, VW G 012 A8G M1, VW G 012 A8G M8, VW G 012 A8G M9, VW G 013 A8J M1, VW G 013 A8J M8, VW G 013 A8J M9, VW TL 774-G (entspricht G12++), VW TL 774-J (entspricht G13)
Brand		RAVENOL		RAVENOL
Recomendations		Chrysler MS-90032, DTFR 29C120 (MB 325.5), MAN 324 Type Si-OAT, MB 325.5, MB 325.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J		Chrysler MS-90032, DTFR 29C120 (MB 325.5), MAN 324 Type Si-OAT, MB 325.5, MB 325.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J
Compliant products		Mopar 68163848AA, Mopar 68163849AA, VW G 012 A8G, VW G 013 A8J		Mopar 68163848AA, Mopar 68163849AA, VW G 012 A8G, VW G 013 A8J
Density at 20 °C	g/cm³	1120	EN ISO 12185	1120 g/cm³ EN ISO 12185
Color		Violet	visual	Violet visual
Reserve alkalinity	mgKOH/g	5.5 —	ASTM D1120	5.5 — mgKOH/g ASTM D1120
Boiling point	°C	175 —	ASTM D1121	175 — °C ASTM D1121
Water content	%	— 5	ASTM D1123	— 5 % ASTM D1123
Flashpoint	°C	115	DIN 51758	115 °C DIN 51758
Freezing point (50 % solution)	°C	-37	ASTM D1177	-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %)		8,1	ASTM D1287	8,1 ASTM D1287
Approvals		Chrysler MS-90032, DTFR 29C120 (MB 325.5), MAN 324 Type Si-OAT, MB 325.5, MB 325.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J		Chrysler MS-90032, DTFR 29C120 (MB 325.5), MAN 324 Type Si-OAT, MB 325.5, MB 325.6, Scania TB 1451, VW G 012 A8G, VW G 013 A8J, VW TL 774-G, VW TL 774-J

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter	Value
Recommendations	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand	RAVENOL	RAVENOL
Recomendations	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272
Approvals	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272

Professional Radiator Cleaner

Additive

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

show details

Equivalents OEM:
Ford MP14300500AB

Available packaging
Full description
Product parameters

Volume:
0.25 L

vendor code:
1390302-250

Code:
4014835802667

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.

Application Note

RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.

Area of application:

Radiator repairs

In the event of reduced radiator performance

In the event of deposits in the cooling system

Changing coolant

For cleaning purposes after engine repairs due to oil in the cooling system

Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.

Fill in

RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.

RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.

Characteristics

Cleaning of the cooling and heating system
Protection of the new coolant against prior contamination
Elimination of sludge and corrosion residue

Parameter	Unit	Value	Audit
Color		Colorless	visual	Colorless visual
Density at 20 °C	g/cm³	1003	EN ISO 12185	1003 g/cm³ EN ISO 12185
pH - value at 20 °C		10,25	DIN 19268	10,25 DIN 19268
Brand		RAVENOL		RAVENOL
