Oil for BMW - 7 series, F01 / F02 / F03 / F04 - 730d / 730ld (180 kW) / (190 kW)

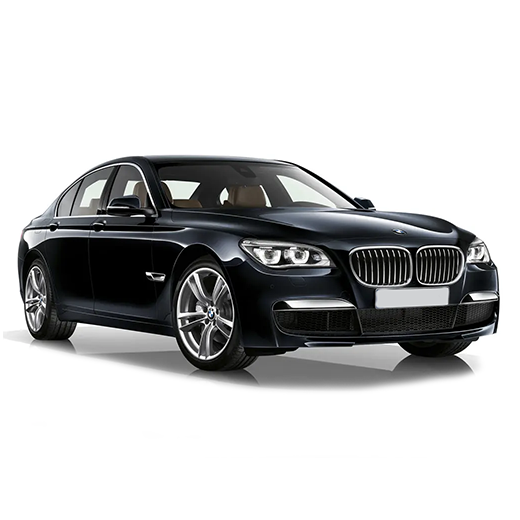

BMW 7 series, F01 / F02 / F03 / F04 730d / 730ld (180 kW) / (190 kW), year of issue from 2008 date to 2015 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Add to Garage

Nodes and assemblies

Engine N57D30 N57 / N57D / N57D30 / N57D30A / N57D30O0 / N57D30O1
Transmission, automatic 8/1 ZF GA8HP

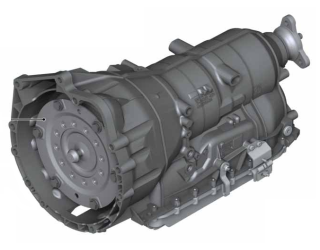

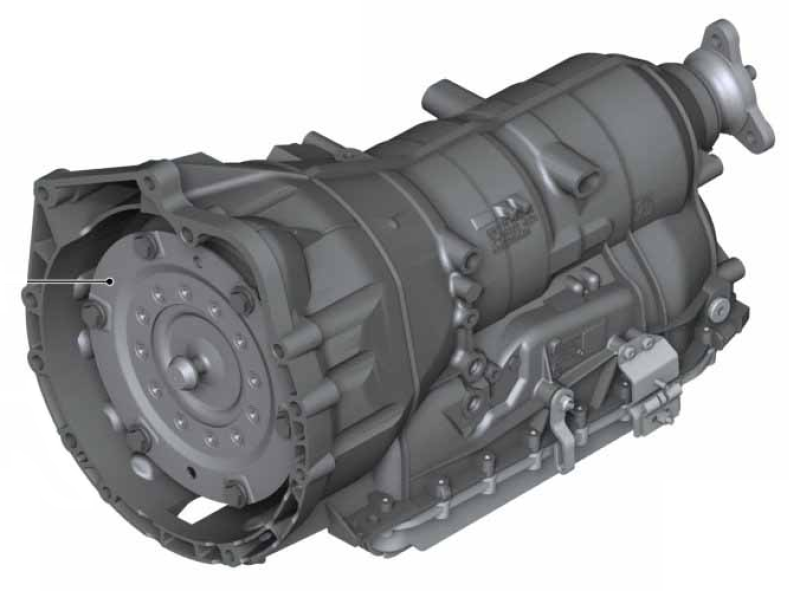

Transmission, automatic ZF GA6HP19Z/GA6HP26Z 6/1 ZF GA6HP19Z / GA6HP26Z

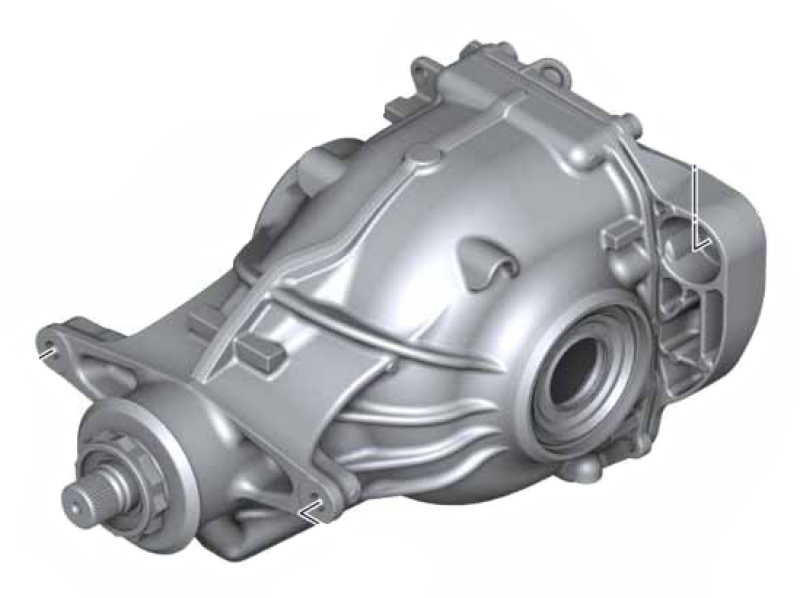

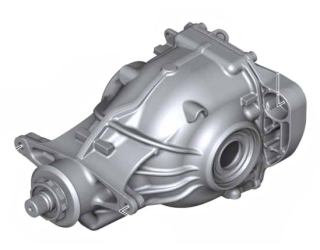

Differential, rear
Hydraulic power steering separate system (filler cap for automatic transmission fluid)
Hydraulic power steering AFS/ARS (CHF lid)
Hydraulic system of brakes/clutch, ABS

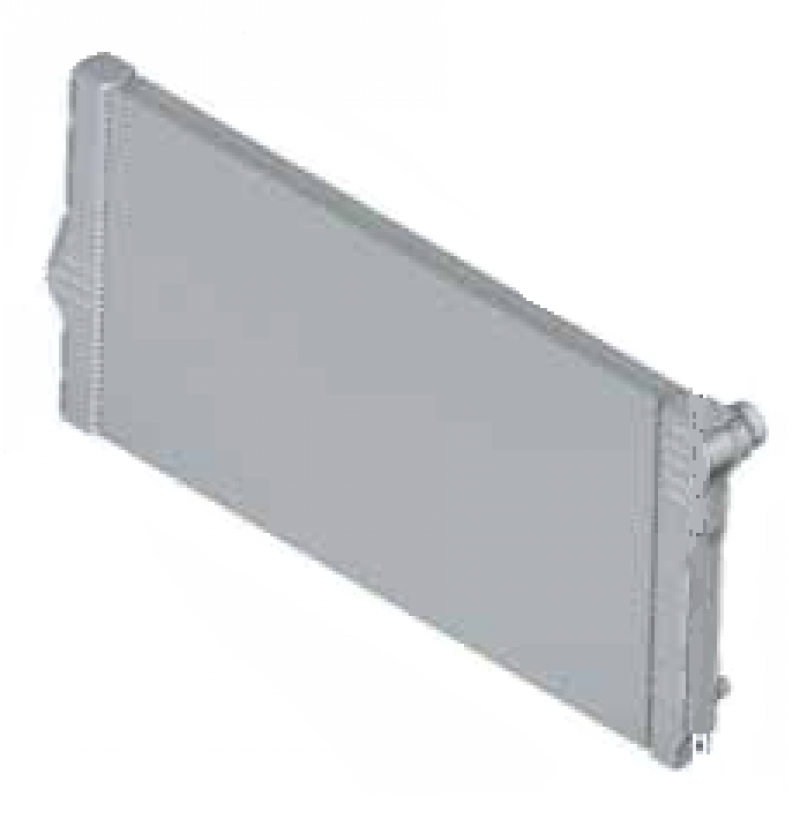

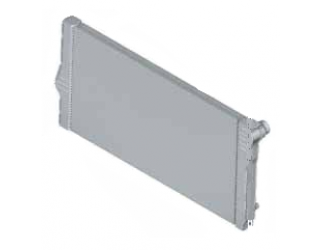

Cooling system

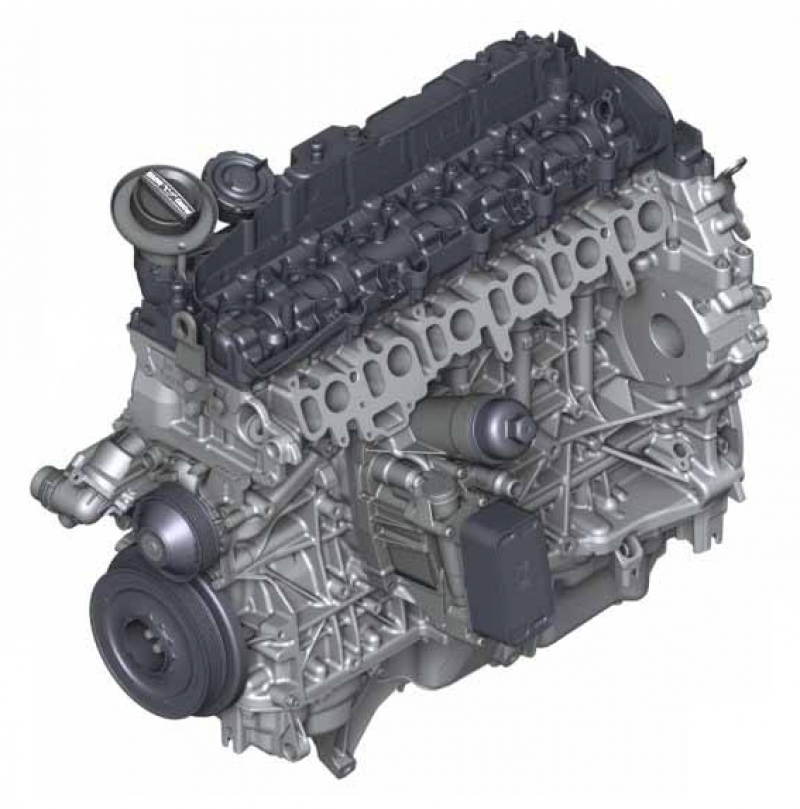

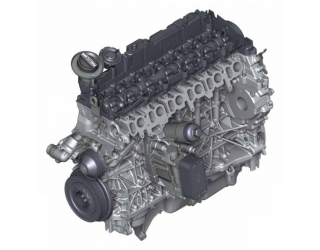

Engine N57D30 N57 / N57D / N57D30 / N57D30A / N57D30O0 / N57D30O1
OEM: 11002162169 , 11002162170

Liquid volume (basic): 7 L

VMP 5W-30

For engine

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00

Compliance with the requirements:
Audi Motorsport V31 748 026, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195

show details

SAE: 5W-30

API: SN

ACEA: C3

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111122-001

Code:
4014835723313

Volume:
4 L

vendor code:
1111122-004

Code:
4014835723399

Volume:
5 L

vendor code:
1111122-005

Code:
4014835723351

Volume:
10 L

vendor code:
1111122-010

Code:
4014835723344

Volume:
20 L

vendor code:
1111122-020

Code:
4014835723320

Volume:
20 L, ecobox

vendor code:
1111122-B20

Code:
4014835773622

Volume:
60 L

vendor code:
1111122-060

Code:
4014835723368

Volume:
60 L, print

vendor code:
1111122-D60

Code:
4014835723337

Volume:
208 L

vendor code:
1111122-208

Code:
4014835723382

Volume:
208 L, print

vendor code:
-

Code:
4014835723306

Volume:
1000 L

vendor code:
1111122-700

RAVENOL VMP SAE 5W-30 is based on additives with reduced ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

RAVENOL VMP SAE 5W-30 achieved by its formulation with special base oils a high viscosity index. The excellent cold start behaviour ensures a optimal lubrication safety in the cold running phase.

Due to a significant fuel economy RAVENOL VMP SAE 5W-30 contributes by reduction of emissions to conservation the environment. Minimal wear extends the lifespan of the engine.

RAVENOL VMP SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL VMP SAE 5W-30 is a universal fuel economy, especially collected engine oil for modern gasoline and diesel engines with and without turbo charger in passenger cars and vans with extended oil change intervals. Extend the lifespan of the particle filter. Due to the specific composition is RAVENOL VMP SAE 5W-30 excellent suitable for use for several of the latest OEM requirements.

Characteristics

Fuel economy in part and full power operation
MID SAPS = reduced Sulphated ash, Phosphor and Sulfur
Excellent wear protection and high viscosity index also under high-speed driving conditions, the longlife of the engine
Excellent cold starting characteristics also at low temperatures
A safe lubricant film at high operating temperatures
Low evaporative tendency, so lower oil consumption
No deposits in combustion chambers, in the piston ring zone and valves because of oil conditioned
Neutrality towards sealing materials
Extended oil change intervals to protect natural resources

Parameter	Unit	Value	Audit
Recommendations		Audi Motorsport V31 748 026, BMW 83210398507, BMW/Mini 83 21 0 398 508, Chrysler MS-11106, Fiat 9.55535-S1, MB (A 000 989 89 01 10), MB 229.31, Stellantis FPW9.55535/03, VW/Audi G 052 195 M2, VW/Audi G 052 195 M4, VW/Audi G 052 195 M6		Audi Motorsport V31 748 026, BMW 83210398507, BMW/Mini 83 21 0 398 508, Chrysler MS-11106, Fiat 9.55535-S1, MB (A 000 989 89 01 10), MB 229.31, Stellantis FPW9.55535/03, VW/Audi G 052 195 M2, VW/Audi G 052 195 M4, VW/Audi G 052 195 M6
Application area		Audi Motorsport V31 748 026		Audi Motorsport V31 748 026
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Full synthetic		Full synthetic
API		SN		SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00		BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00
Recomendations		Audi Motorsport V31 748 026, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195		Audi Motorsport V31 748 026, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195
Compliant products		BMW 83210398507, BMW 83210398508, MB A 000 989 89 01 10, VW G 052 195		BMW 83210398507, BMW 83210398508, MB A 000 989 89 01 10, VW G 052 195
Density at 20 °C	g/cm³	849	EN ISO 12185	849 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.9	DIN 51562-1	11.9 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	66.3	DIN 51562-1	66.3 mm²/s DIN 51562-1
Viscosity Index VI		179	DIN ISO 2909	179 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.7	ASTM D5481	3.7 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4740	ASTM D5293	4740 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	12.000	ASTM D4684	12.000 mPa*s ASTM D4684
Pourpoint	°C	-60	DIN ISO 3016	-60 °C DIN ISO 3016
Noack Volatility	%	6.4	ASTM D5800	6.4 % ASTM D5800
Flashpoint	°C	238	DIN EN ISO 2592	238 °C DIN EN ISO 2592
tbn	mgKOH/g	8.8	ASTM D2896	8.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.7	DIN 51575	0.7 %wt. DIN 51575
Approvals		Audi Motorsport V31 748 026, BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, MB 229.51, Porsche C30, Stellantis FPW9.55535/03, VW 504.00, VW 507.00, VW G 052 195		Audi Motorsport V31 748 026, BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, MB 229.51, Porsche C30, Stellantis FPW9.55535/03, VW 504.00, VW 507.00, VW G 052 195

HSW 0W-30

RAVENOL HSW SAE 0W-30 lengthens the service life of the diesel particulate filter by reducing the concentration of ash-forming particles in the exhaust gas. It reduces the emissions of gases which are harmful to the environment. It delivers a higher degree of security by providing lasting protection for engines.

Manufacturer Approved:
BMW Longlife-04, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00

show details

SAE: 0W-30

API: SN

ACEA: C3

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1112118-001

Code:
4014835889545

Volume:
4 L

vendor code:
1112118-004

Code:
4014835889576

Volume:
5 L

vendor code:
1112118-005

Code:
4014835889606

Volume:
10 L

vendor code:
1112118-010

Code:
4014835889637

Volume:
20 L

vendor code:
1112118-020

Code:
4014835889651

Volume:
20 L, ecobox

vendor code:
1112118-B20

Code:
4014835889729

Volume:
60 L

vendor code:
1112118-060

Code:
4014835889675

Volume:
208 L

vendor code:
1112118-208

Code:
4014835889699

Volume:
1000 L

vendor code:
1112118-700

RAVENOL HSW SAE 0W-30 lengthens the service life of the diesel particulate filter by reducing the concentration of ash-forming particles in the exhaust gas. It reduces the emissions of gases which are harmful to the environment. It delivers a higher degree of security by providing lasting protection for engines.

With its formulation, RAVENOL HSW SAE 0W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By reducing fuel consumption, RAVENOL HSW SAE 0W-30 helps to protect the environment by reducing emissions. It minimizes friction, wear and fuel consumption.

RAVENOL HSW SAE 0W-30 guarantees operational safety in all driving conditions, such as extreme stop-and-go traffic as well as high-speed highway driving.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL HSW SAE 0W-30 can be used in all vehicles with and without LongLife Service and is therefore suitable for extended oil change intervals and vehicles with and without DPF filters. The operating instructions of the vehicle and engine manufacturers must be observed.

Characteristics

Particularly low-friction characteristics and an outstanding range of benefits thanks to special additives.
Outstanding engine protection even after a cold start and in tougher conditions.
Guarantees rapid engine lubrication even at low temperatures of under -30°C and a sufficiently thick film of lubrication even at oil temperatures of >150°C during high-speed journeys.
Good protection against wear and tear and the high level of engine cleanliness while also consuming less fuel (fuel economy characteristic).
The hydraulic tappets are guaranteed to function at all temperatures due to adequate oil pressure.
Does not have an impact on sealants.
Safeguards the engine against sludge formation, coking, lacquering and corrosion even in unfavourable operating conditions.

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
SAE		0W-30		0W-30
Type		Synthetic		Synthetic
API		SN		SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00		BMW Longlife-04, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00
Density at 20 °C	g/cm³	836	EN ISO 12185	836 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	62.4	DIN 51562-1	62.4 mm²/s DIN 51562-1
Viscosity Index VI		197	DIN ISO 2909	197 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.7	ASTM D5481	3.7 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5890	ASTM D5293	5890 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	19.200	ASTM D4684	19.200 mPa*s ASTM D4684
Pourpoint	°C	-54	DIN ISO 3016	-54 °C DIN ISO 3016
Noack Volatility	%	10	ASTM D5800	10 % ASTM D5800
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	8.3	ASTM D2896	8.3 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.7	DIN 51575	0.7 %wt. DIN 51575
Approvals		BMW Longlife-04, MB 229.51, MB 229.52, Porsche C30, VW 504.00, VW 507.00		BMW Longlife-04, MB 229.51, MB 229.52, Porsche C30, VW 504.00, VW 507.00

VMO 5W-40

For engine

RAVENOL VMO SAE 5W-40 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, VW 505.00, VW 505.01

Compliance with the requirements:
Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, Porsche C40, VW 502.00

show details

SAE: 5W-40

API: CF, SN

ACEA: C3

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111133-001

Code:
4014835723818

Volume:
4 L

vendor code:
1111133-004

Code:
4014835723894

Volume:
5 L

vendor code:
1111133-005

Code:
4014835723856

Volume:
10 L

vendor code:
1111133-010

Code:
4014835723849

Volume:
20 L

vendor code:
1111133-020

Code:
4014835723825

Volume:
20 L, ecobox

vendor code:
1111133-B20

Code:
4014835774223

Volume:
60 L

vendor code:
1111133-060

Code:
4014835723863

Volume:
60 L, print

vendor code:
1111133-D60

Code:
4014835723832

Volume:
208 L

vendor code:
1111133-208

Code:
4014835723887

Volume:
208 L, print

vendor code:
1111133-D28

Code:
4014835723801

Volume:
1000 L

vendor code:
1111133-700

RAVENOL VMO SAE 5W-40 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

RAVENOL VMO SAE 5W-40 extends long life of DPF and TWC. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

RAVENOL VMO SAE 5W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics. Because of a considerable fuel saving RAVENOL VMO SAE 5W-40 contributes to protect the environment by reducing the emissions.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL VMO SAE 5W-40 is an universal, synthetic low friction motor oil especially developed for Pumpe-Düse-diesel engines. Moreover, this lubricant is excellent suitable for gasoline and diesel engines in passenger cars and vans with and without turbo charger. Due to the specific composition is RAVENOL VMO SAE 5W-40 excellent suitable for use for several OEM requirements.

Characteristics

Fuel economy in part and full power operation.
MID SAPS = reduced Sulphated Ash, Phosphorous and Sulphur.
Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine.
Excellent cold starting characteristics also at low temperatures below -30°C.
The function of the hydro tappet is ensure at all temperatures.
A safe lubricant film at high operating temperatures.
Low evaporative tendency, so lower oil consumption.
No deposits in combustion chambers, in the piston ring zone and valves because of oil conditioned.
Neutrality towards sealing materials.
Extended oil change intervals to protect natural resources.

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C917-A, Porsche C40, VW 502 00		Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C917-A, Porsche C40, VW 502 00
Brand		RAVENOL		RAVENOL
SAE		5W-40		5W-40
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, VW 505.00, VW 505.01		BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, VW 505.00, VW 505.01
Recomendations		Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, Porsche C40, VW 502.00		Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, Porsche C40, VW 502.00
Density at 20 °C	g/cm³	848	EN ISO 12185	848 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	13.3	DIN 51562-1	13.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	80	DIN 51562-1	80 mm²/s DIN 51562-1
Viscosity Index VI		170	DIN ISO 2909	170 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	4	ASTM D5481	4 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	6375	ASTM D5293	6375 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	27.000	ASTM D4684	27.000 mPa*s ASTM D4684
Pourpoint	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Noack Volatility	%	8.8	ASTM D5800	8.8 % ASTM D5800
Flashpoint	°C	242	DIN EN ISO 2592	242 °C DIN EN ISO 2592
tbn	mgKOH/g	8.7	ASTM D2896	8.7 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.77	DIN 51575	0.77 %wt. DIN 51575
Approvals		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, GM dexos2®, MB 229.31, MB 229.51, Porsche C40, VW 502.00, VW 505.00, VW 505.01		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, GM dexos2®, MB 229.31, MB 229.51, Porsche C40, VW 502.00, VW 505.00, VW 505.01

HLS 5W-30

For engine

RAVENOL HLS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01

Compliance with the requirements:
Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00

show details

SAE: 5W-30

API: CF, SN

ACEA: C3

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111119-001

Code:
4014835723016

Volume:
4 L

vendor code:
1111119-004

Code:
4014835723092

Volume:
5 L

vendor code:
1111119-005

Code:
4014835723054

Volume:
10 L

vendor code:
1111119-010

Code:
4014835723047

Volume:
20 L

vendor code:
1111119-020

Code:
4014835723023

Volume:
20 L, ecobox

vendor code:
1111119-B20

Code:
4014835773325

Volume:
60 L

vendor code:
1111119-060

Code:
4014835723061

Volume:
60 L, print

vendor code:
1111119-D60

Code:
4014835723030

Volume:
208 L

vendor code:
1111119-208

Code:
4014835723085

Volume:
208 L, print

vendor code:
1111119-D28

Code:
4014835723009

Volume:
1000 L

vendor code:
1111119-700

RAVENOL HLS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HLS SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL HLS SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL HLS SAE 5W-30 is Mid SAPS Oils which prevents effectively the reset of the diesel soot particulate filter.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HLS SAE 5W-30 is suitable for demanding motors as a high performance low friction motor oil. It is recommended for all modern passenger car gasoline and diesel engines, including turbo versions, for direct injection motors and it is also recommended for all operation conditions. RAVENOL HLS SAE 5W-30 is recommended for use in vehicles with diesel particulate filters.

Characteristics

Fuel economy in part and full power operation.
Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine.
Excellent cold starting characteristics also at low temperatures below -30°C.
A safe lubricant film at high operating temperatures.
Low evaporative tendency, so lower oil consumption.
No deposits in combustion chambers, in the piston ring zone and valves.
Neutrality towards sealing materials.
Extended oil change intervals to protect natural resources.

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502 00		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502 00
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01		BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01
Recomendations		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00
Density at 20 °C	g/cm³	847	EN ISO 12185	847 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	72.7	DIN 51562-1	72.7 mm²/s DIN 51562-1
Viscosity Index VI		166	DIN ISO 2909	166 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.51	ASTM D5481	3.51 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5216	ASTM D5293	5216 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	23000	ASTM D4684	23000 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	%	6.9	ASTM D5800	6.9 % ASTM D5800
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
tbn	mgKOH/g	7.8	ASTM D2896	7.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.8	DIN 51575	0.8 %wt. DIN 51575
Approvals		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S3, GM dexos2®, MB 229.31, MB 229.51, MB 229.52, Opel OV 040 1547 - D30, Stellantis FPW9.55535/03, VW 502.00, VW 505.00, VW 505.01		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S3, GM dexos2®, MB 229.31, MB 229.51, MB 229.52, Opel OV 040 1547 - D30, Stellantis FPW9.55535/03, VW 502.00, VW 505.00, VW 505.01

VSW 0W-30

For diesels

Manufacturer Approved:
BMW Longlife-04, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00

Compliance with the requirements:
Chrysler MS-11106

show details

SAE: 0W-30

API: SN

ACEA: C3

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111106-001

Code:
4014835842786

Volume:
4 L

vendor code:
1111106-004

Code:
4014835842816

Volume:
5 L

vendor code:
1111106-005

Code:
4014835842847

Volume:
10 L

vendor code:
1111106-010

Code:
4014835845107

Volume:
20 L

vendor code:
1111106-020

Code:
4014835845121

Volume:
20 L, ecobox

vendor code:
1111106-B20

Code:
4014835850996

Volume:
60 L

vendor code:
1111106-060

Volume:
208 L

vendor code:
1111106-208

Code:
4014835845169

RAVENOL VSW SAE 0W-30 lengthens the service life of the diesel particulate filter by reducing the concentration of ash-forming particles in the exhaust gas. It reduces the emissions of gases which are harmful to the environment. It delivers a higher degree of security by providing lasting protection for engines.

With its new formulation, RAVENOL VSW SAE 0W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL VSW SAE 0W-30 helps to protect the environment by reducing emissions.

RAVENOL VSW SAE 0W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL VSW SAE 0W-30 guarantees operational safety in all driving conditions, such as extreme stop-and-go traffic as well as high-speed highway driving.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL VSW SAE 0W-30 can be used in all VW vehicles with and without LongLife Service and is therefore suitable for extended oil change intervals and vehicles with and without DPF filters. The operating instructions of the vehicle and engine manufcturers must be observed.

Characteristics

Particularly low-friction characteristics and an outstanding range of benefits thanks to special additives.
Outstanding engine protection even after a cold start and in tougher conditions.
Guarantees rapid engine lubrication even at low temperatures of under -30°C and a sufficiently thick film of lubrication even at oil temperatures of >150°C during high-speed journeys.
Guarantees the best possible protection against wear and tear and the highest level of engine cleanliness while also consuming less fuel (fuel economy characteristic).
The hydraulic tappets are guaranteed to function at all temperatures due to adequate oil pressure.
Does not have an impact on sealants.
Safeguards the engine against sludge formation, coking, lacquering and corrosion even in unfavourable operating conditions.

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-11106		Chrysler MS-11106
Brand		RAVENOL		RAVENOL
SAE		0W-30		0W-30
Type		Full synthetic		Full synthetic
API		SN		SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00		BMW Longlife-04, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Porsche C30, VW 504.00, VW 507.00
Recomendations		Chrysler MS-11106		Chrysler MS-11106
Density at 20 °C	g/cm³	846	EN ISO 12185	846 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	12	DIN 51562-1	12 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	60.8	DIN 51562-1	60.8 mm²/s DIN 51562-1
Viscosity Index VI		197	DIN ISO 2909	197 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.6	ASTM D5481	3.6 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5565	ASTM D5293	5565 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	14.800	ASTM D4684	14.800 mPa*s ASTM D4684
Pourpoint	°C	-60	DIN ISO 3016	-60 °C DIN ISO 3016
Noack Volatility	%	9	ASTM D5800	9 % ASTM D5800
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
tbn	mgKOH/g	7.6	ASTM D2896	7.6 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.63	DIN 51575	0.63 %wt. DIN 51575
Approvals		BMW Longlife-04, Chrysler MS-11106, MB 229.31, MB 229.51, MB 229.52, Porsche C30, VW 504.00, VW 507.00		BMW Longlife-04, Chrysler MS-11106, MB 229.31, MB 229.51, MB 229.52, Porsche C30, VW 504.00, VW 507.00

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

Available packaging
Full description
Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

Long-term effectiveness and clean fresh oil
Remedy for soiled engines
Protection against compression loss in the area of the piston rings
Leads to better exhaust emissions and increases the performance of the engine

Parameter	Unit	Value	Audit
Color		Light brown	visual	Light brown visual
Flashpoint (PM)	°C	62	DIN ISO 3679	62 °C DIN ISO 3679
Density at 20 °C		805	EN ISO 12185	805 EN ISO 12185
Viscosity at 40 °C	mm²/s	7	DIN EN ISO 3104	7 mm²/s DIN EN ISO 3104
Brand		RAVENOL		RAVENOL

Transmission, automatic 8/1 ZF GA8HP

Liquid volume (basic): 8.5 L

ATF 8HP Fluid

Transmission fluid

RAVENOL ATF 8HP Fluid is a automatic transmission oil ATF of the latest generation for all 8 stroke automatic transmissions of ZF. It guarantees in any mode for maximum wear protection.

Compliance with the requirements:
Acura ATF Type 3.0, ATF L 12108, BMW ATF 3+, Fiat 9.55550-AV5, Honda ATF Type 3.1, VW G 055 162, VW G 060 162, ZF TE-ML 11 9HP28, ZF TE-ML 11 9HP48, ZF TE-ML 11 9HP50

show details

Equivalents OEM:
Alpine 0101590, Alpine 0101591, Alpine 0101592, Alpine 0101593, Alpine 0101594, Alpine 0101595, Alpine 101590, Alpine 101591, Alpine 101592, Alpine 101593, Alpine 101595, Honda 0820009017, Jaguar 02JDE26444S1, Land Rover LR02328, VAG G055162S0, VW G060162, VW G060162A1, VW G060162A1, VW G060162A2, VW G060162A2S1, VW G060162A2S2, VW G060162A2S3, VW G060162S0, VW G060162S1, VW G060162S2

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1211124-001

Code:
4014835719514

Volume:
4 L

vendor code:
1211124-004

Code:
4014835719590

Volume:
10 L

vendor code:
1211124-010

Code:
4014835719545

Volume:
20 L

vendor code:
1211124-020

Code:
4014835719521

Volume:
20 L, ecobox

vendor code:
1211124-B20

Code:
4014835786622

Volume:
60 L

vendor code:
1211124-060

Volume:
60 L, print

vendor code:
1211124-D60

Code:
4014835719538

Volume:
208 L

vendor code:
1211124-208

Volume:
208 L, print

vendor code:
1211124-D28

Code:
4014835719507

Volume:
1000 L

vendor code:
1211124-700

RAVENOL ATF 8HP Fluid is a automatic transmission oil ATF of the latest generation for all 8 stroke automatic transmissions of ZF. It guarantees in any mode for maximum wear protection.

RAVENOL ATF 8HP Fluid is green colored.

Application Note

RAVENOL ATF 8HP Fluid is suitable for use in automatic ZF transmission of 8HP-Series 8HP45, 8HP55, 6HP26, 8HP70, 8HP90, also for ZF transmission 6-stroke automatic 6HP-series - 6HP19X for AUDI Q7, 6HP19A, 6HP28AF. It is also suitable in ZF transmission series 9HP28, 9HP48, 9HP50.

Please observe OEM Part Numbers.

Characteristics

Very good lubricating ability even at low temperatures in winter
A high, stable viscosity index
Very good oxidation stability
Protection against wear, corrosion and foam formation
Good balanced coefficient of friction
A high thermal and oxidative stability
An excellent cooling capacity

Parameter	Unit	Value	Audit
Recommendations		Acura 08200-9016A, Acura ATF Type 3.0, ATF L 12108, BMW 83222289720, BMW 83222305397 (83222152426), BMW ATF 3+, Fiat 9.55550-AV5, Honda 08200-9017, Honda ATF Type 3.1, Land Rover LR023288, Land Rover LR023289, Mopar 68157995AB, Mopar 68218925AA, VW/Audi G 055 162, VW/Audi G 060 162 A2, VW/Audi G 060 162 A1, VW/Audi G 060 162 A6, ZF S671 090 312, ZF TE-ML 11 9HP28, ZF TE-ML 11 9HP48, ZF TE-ML 11 9HP50		Acura 08200-9016A, Acura ATF Type 3.0, ATF L 12108, BMW 83222289720, BMW 83222305397 (83222152426), BMW ATF 3+, Fiat 9.55550-AV5, Honda 08200-9017, Honda ATF Type 3.1, Land Rover LR023288, Land Rover LR023289, Mopar 68157995AB, Mopar 68218925AA, VW/Audi G 055 162, VW/Audi G 060 162 A2, VW/Audi G 060 162 A1, VW/Audi G 060 162 A6, ZF S671 090 312, ZF TE-ML 11 9HP28, ZF TE-ML 11 9HP48, ZF TE-ML 11 9HP50
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Recomendations		Acura ATF Type 3.0, ATF L 12108, BMW ATF 3+, Fiat 9.55550-AV5, Honda ATF Type 3.1, VW G 055 162, VW G 060 162, ZF TE-ML 11 9HP28, ZF TE-ML 11 9HP48, ZF TE-ML 11 9HP50		Acura ATF Type 3.0, ATF L 12108, BMW ATF 3+, Fiat 9.55550-AV5, Honda ATF Type 3.1, VW G 055 162, VW G 060 162, ZF TE-ML 11 9HP28, ZF TE-ML 11 9HP48, ZF TE-ML 11 9HP50
Compliant products		Acura 08200-9016A, BMW 83222152426, BMW 83222289720, BMW 83222305397, Honda 08200-9017, Land Rover LR023288, Land Rover LR023289, Mopar 68157995AB, Mopar 68218925AA, VW G 060 162, ZF S671 090 312		Acura 08200-9016A, BMW 83222152426, BMW 83222289720, BMW 83222305397, Honda 08200-9017, Land Rover LR023288, Land Rover LR023289, Mopar 68157995AB, Mopar 68218925AA, VW G 060 162, ZF S671 090 312
Density at 20 °C	g/cm³	838.5	EN ISO 12185	838.5 g/cm³ EN ISO 12185
Color		Green	visual	Green visual
Pourpoint	°C	-48	DIN ISO 3016	-48 °C DIN ISO 3016
Approvals		Acura ATF Type 3.0, ATF L 12108, BMW ATF 3+, Fiat 9.55550-AV5, Honda ATF Type 3.1, VW G 055 162, VW G 060 162, ZF TE-ML 11 9HP28, ZF TE-ML 11 9HP48, ZF TE-ML 11 9HP50		Acura ATF Type 3.0, ATF L 12108, BMW ATF 3+, Fiat 9.55550-AV5, Honda ATF Type 3.1, VW G 055 162, VW G 060 162, ZF TE-ML 11 9HP28, ZF TE-ML 11 9HP48, ZF TE-ML 11 9HP50

Transmission, automatic ZF GA6HP19Z/GA6HP26Z 6/1 ZF GA6HP19Z / GA6HP26Z
OEM: 24007631067 , 24007590327

Liquid volume (basic): 10 L

ATF 6HP Fluid

For automatic transmission ZF

RAVENOL ATF 6 HP Fluid is one of the ATF (Automatic Transmission Fluid) for all 6-motion automatic transmission of ZF. A maximum of wear protection in every operating state is guaranteed.

Compliance with the requirements:
ATF M 1375.4, Ford MERCON® SP, Ford WSS-M2C 919-D, VW G 055 005

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1211112-001

Code:
4014835732711

Volume:
4 L

vendor code:
1211112-004

Code:
4014835732797

Volume:
10 L

vendor code:
1211112-010

Code:
4014835732742

Volume:
20 L

vendor code:
1211112-020

Code:
4014835732728

Volume:
20 L, ecobox

vendor code:
1211112-B20

Code:
4014835785427

Volume:
60 L

vendor code:
1211112-060

Code:
4014835732766

Volume:
60 L, print

vendor code:
1211112-D60

Code:
4014835732735

Volume:
208 L

vendor code:
1211112-208

Code:
4014835732780

Volume:
208 L, print

vendor code:
1211112-D28

Code:
4014835732704

Volume:
1000 L

vendor code:
1211112-700

RAVENOL ATF 6 HP Fluid is one of the ATF (Automatic Transmission Fluid) for all 6-motion automatic transmission of ZF. A maximum of wear protection in every operating state is guaranteed.

RAVENOL ATF 6 HP Fluid has a neutrally brown colour.

Application Note

RAVENOL ATF 6 HP Fluid was developed for use in the newly developed 6HP-series transmission of ZF 6HP19, 6HP21, 6HP26, 6HP28, 6HP32, 6HP34, also for 5-motion automatic transmission 5HP-series. It is backwardly compatible for all earlier versions of ZF 4 and 5 gear passenger car automatic transmission with the exception of 6 HP26A61 in vehicles with AUDI W12 (only original VW G055162A2 blue) and 6HP19X for AUDI Q7, 6HP19A, 6HP28AF (only original VW G060162A2 green). For these specifications we recommend RAVENOL ATF 8HP Fluid.

Characteristics

a very good lubricating ability even at low temperatures in winter
a high, stable viscosity index
a very low pour point
a very good oxidation stability
as far as possible protection against corrosion and foam formation
good balanced coefficient of friction
a neutral behaviour against sealing materials
a high thermal and oxidative stability
a exzellent cooling capacity
a exzellent shear stability
lowest evaporation losses
a neutral behaviour because of inhibition against non ferrous metals

Parameter	Unit	Value	Audit
Recommendations		ATF M 1375.4, BMW 83220142516, BMW 83220144137, BMW 83222305396 (ATF2), Ford MERCON® SP XT-6-QSP (6R60 6R75 6R80), Ford WSS-M2C919-D, Jaguar C2C 8432, Land Rover TYK50 0050, VW/Audi G 055 005 A1, VW/Audi G 055 005 A2, VW/Audi G 055 005 A6, ZF S671 090 252, ZF S671 090 253, ZF S671 090 255		ATF M 1375.4, BMW 83220142516, BMW 83220144137, BMW 83222305396 (ATF2), Ford MERCON® SP XT-6-QSP (6R60 6R75 6R80), Ford WSS-M2C919-D, Jaguar C2C 8432, Land Rover TYK50 0050, VW/Audi G 055 005 A1, VW/Audi G 055 005 A2, VW/Audi G 055 005 A6, ZF S671 090 252, ZF S671 090 253, ZF S671 090 255
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Recomendations		ATF M 1375.4, Ford MERCON® SP, Ford WSS-M2C 919-D, VW G 055 005		ATF M 1375.4, Ford MERCON® SP, Ford WSS-M2C 919-D, VW G 055 005
Compliant products		BMW 83220142516, BMW 83220144137, BMW 83222305396, Jaguar C2C 8432, Land Rover TYK500050, VW G 055 005, ZF S671 090 252, ZF S671 090 253, ZF S671 090 255		BMW 83220142516, BMW 83220144137, BMW 83222305396, Jaguar C2C 8432, Land Rover TYK500050, VW G 055 005, ZF S671 090 252, ZF S671 090 253, ZF S671 090 255
Density at 20 °C	g/cm³	835	EN ISO 12185	835 g/cm³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Pourpoint	°C	-54	DIN ISO 3016	-54 °C DIN ISO 3016
Approvals		ATF M 1375.4, Ford MERCON® SP, Ford WSS-M2C 919-D, VW G 055 005		ATF M 1375.4, Ford MERCON® SP, Ford WSS-M2C 919-D, VW G 055 005

Differential, rear
OEM: 33107577100 , 33107630828

Liquid volume (basic): 0.9 L

VSG 75W-90

For transmission

RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.

Compliance with the requirements:
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.8, MB 235.9, MB 235.11, MB 235.21, MB 235.72, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B

show details

SAE: 75W-90

API: GL-4, GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221101-001

Code:
4014835733916

Volume:
4 L

vendor code:
1221101-004

Code:
4014835733992

Volume:
10 L

vendor code:
1221101-010

Code:
4014835733947

Volume:
20 L

vendor code:
1221101-020

Code:
4014835733923

Volume:
20 L, ecobox

vendor code:
1221101-B20

Code:
4014835846654

Volume:
60 L

vendor code:
1221101-060

Code:
2200000083081

Volume:
60 L, print

vendor code:
1221101-D60

Code:
4014835733930

Volume:
208 L

vendor code:
1221101-208

Code:
4014835733985

Volume:
208 L, print

vendor code:
1221101-D28

Code:
4014835733909

Volume:
1000 L

vendor code:
1221101-700

RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.

Application Note

RAVENOL VSG SAE 75W-90 is excellent for use of highly stressed axle drives.

RAVENOL VSG SAE 75W-90 is suitable for synchronised and non-synchronised manual transmissions, transfer cases and ancillary transmission requiring API GL-5 or GL-4 oil.

RAVENOL VSG SAE 75W-90 is suitable for Ford-transmission IB5, B5, MTX75, GM5, MT285/6, MMT6/6, MT75, R15M-D, R15MX-D, MT82 and Porsche Full-Time Transfer Case with Torsen (PL72T) for Cayenne 92A / 958 Diesel and S Hybrid from 2010 to 2018.

Characteristics

high additive reserves for prolonged oil change intervals according to the manufacturer specifications
excellent cold flow properties
best wear protection and best transmission efficiency
Fuel savings even with short distances in low outdoor temperatures
stable lubricating film even under high stress
extraordinary corrosion protection and good compatibility with non-ferrous metal
high oxidation resistance prevents oil thickening and deposits
outstanding dirt-carrying capacity, i.e. aggregates are clean even after very long oil change intervals
excellent elastomer compatibility to prevent leaks
extreme shearing stability, remains within the clean oil viscosity per SAE class 75W-90 even after very long periods of use
very high protection from rust, corrosion and foaming
extreme low pour point
excellent EP properties
fuel savings

Parameter	Unit	Value	Audit
Recommendations		BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 911 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B		BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 911 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
Brand		RAVENOL		RAVENOL
SAE		75W-90		75W-90
Type		Full synthetic		Full synthetic
API		GL-4, GL-5		GL-4, GL-5
Recomendations		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
Suitable for		IVECO		IVECO
Compliant products		BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911		BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911
Density at 20 °C	g/cm³	839.8	EN ISO 12185	839.8 g/cm³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	16.8	DIN 51562-1	16.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	108.8	DIN 51562-1	108.8 mm²/s DIN 51562-1
Viscosity Index VI		168	DIN ISO 2909	168 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	47.000	ASTM D2983	47.000 mPa*s ASTM D2983
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Flashpoint	°C	224	DIN EN ISO 2592	224 °C DIN EN ISO 2592
Seq. I at 24 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Copper Strip Test at 121 °C		1a	ASTM D130	1a ASTM D130
Approvals		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B

Hydraulic power steering separate system (filler cap for automatic transmission fluid)

Liquid volume (basic): 1 L

ATF Dexron D II

For automatic transmission

Application NoteRAVENOL ATF Dexron D II was developed for the use in automatic transmissions, hydro steering mechanisms, converters and power transmissions and can be used as a universal ATF (Automatic-Transmission-Fluid) for all vehicles and working machines.

Manufacturer Approved:
Voith H55.6335.xx

Compliance with the requirements:
Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1213102-001

Code:
4014835733510

Volume:
4 L

vendor code:
1213102-004

Code:
4014835733596

Volume:
10 L

vendor code:
1213102-010

Code:
4014835733541

Volume:
20 L

vendor code:
1213102-020

Code:
4014835733527

Volume:
20 L, ecobox

vendor code:
1213102-B20

Code:
4014835787827

Volume:
60 L

vendor code:
1213102-060

Code:
4014835733565

Volume:
208 L

vendor code:
1213102-208

Code:
4014835733589

Volume:
208 L, print

vendor code:
1213102-D28

Volume:
1000 L

vendor code:
1213102-700

Application Note

RAVENOL ATF Dexron D II was developed for the use in automatic transmissions, hydro steering mechanisms, converters and power transmissions and can be used as a universal ATF (Automatic-Transmission-Fluid) for all vehicles and working machines.

Characteristics

protection against corrosion, sludge and sticking
an excellent and very shear stable viscosity temperature behaviour
no problems concerning very low respectively very high temperatures
an excellent high thermal capacity
free of foam even under hardest loads
neutral behaviour against sealing materials
mixable and compatible with all kinds of ATF

Parameter	Unit	Value	Audit
ATF		Dexron D II		Dexron D II
Recommendations		Caterpillar TO-2, CVT, DTFR 13C140 (MB 236.7), Ford M2C-138 CJ, Ford M2C-166H, Ford M2C-185A, Ford MERCON®, Ford SQM-9010B, MAN 339 Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C		Caterpillar TO-2, CVT, DTFR 13C140 (MB 236.7), Ford M2C-138 CJ, Ford M2C-166H, Ford M2C-185A, Ford MERCON®, Ford SQM-9010B, MAN 339 Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Manufacturer Approved		Voith H55.6335.xx		Voith H55.6335.xx
Recomendations		Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C		Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
specification		Allison C-3, Allison C-4, GM Dexron® II D		Allison C-3, Allison C-4, GM Dexron® II D
Suitable for		CVT		CVT
Density at 20 °C	g/cm³	848	EN ISO 12185	848 g/cm³ EN ISO 12185
Color		Red	visual	Red visual
Viscosity at 100 °C	mm²/s	7.3	DIN 51562-1	7.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	34.3	DIN 51562-1	34.3 mm²/s DIN 51562-1
Viscosity Index VI		185	DIN ISO 2909	185 DIN ISO 2909
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	210	DIN EN ISO 2592	210 °C DIN EN ISO 2592
Approvals		Allison C-3, Allison C-4, Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, GM Dexron® II D, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, Voith H55.6335.xx, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C		Allison C-3, Allison C-4, Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, GM Dexron® II D, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, Voith H55.6335.xx, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C

Hydraulic power steering AFS/ARS (CHF lid)

Liquid volume (basic): 1 L

SSF Special Servolenkung Fluid

For power steering

Application NoteRAVENOL SSF Special Servolenkung Fluid is designed for use from -55°C bis +130°C and is therefore recommended for the latest developments in the vehicle market.

Compliance with the requirements:
DTFR 31B120 (MB 345.0), Ford WSS-M2C204-A, Ford WSS-M2C204-A2, Hyundai/Kia PSF-4, Land Rover Cold Climate PAS Fluid 14315, MB 343.0, MB 344.0, MB 345.0, Toyota PSF NEW-W, VW G 002 000, VW G 004 000, VW TL 521 46, ZF TE-ML 02K

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1181100-001

Code:
4014835736412

Volume:
4 L

vendor code:
1181100-004

Code:
4014835736498

Volume:
10 L

vendor code:
1181100-010

Code:
4014835736443

Volume:
20 L

vendor code:
1181100-020

Code:
4014835736429

Volume:
20 L, ecobox

vendor code:
1181100-B20

Code:
4014835784321

Volume:
60 L

vendor code:
1181100-060

Code:
4014835736467

Volume:
208 L

vendor code:
1181100-208

Code:
4014835736481

Application Note

RAVENOL SSF Special Servolenkung Fluid is designed for use from -55°C bis +130°C and is therefore recommended for the latest developments in the vehicle market.

RAVENOL SSF Special Servolenkung Fluid fulfils the requirements of VW-Specification TL 521 46 and has therefore an optimal performance behaviour as central hydraulic oil in power steering, rear axle steering, level control, hydro pneumatic suspension, shock absorbers, for active damping and engine protection, for hydrostatic drive of fan, alternator and air conditioning, for stability and traction systems (ABS/ASR/ASC), central locking, electro-hydraulic convertible top control, hydraulic brake booster and hydro pneumatic suspension for VW, Audi, Seat, Skoda. Especially to be used in cold countries.

Characteristics

Extremely low pour point
Improved viscosity and coefficient of friction behaviour
A very good protection against consumption
Excellent thermal stability
Improved EP-characteristics
A good foaming behaviour
Neutral behaviour towards sealing materials
Reliable protection against corrosion

Parameter	Unit	Value	Audit
Recommendations		BMW 83290429576, CHF11S, CHF202, Citroën 9979 A1, DTFR 31B120 (MB 345.0), Ford 1384110, Ford M2C-204 A2, Hyundai/Kia PSF-4 03100-00130, Land Rover Cold Climate PAS Fluid 14315 LRN2261, MB 343.0, MB 344.0, MB 345.0, Opel 1940715, Opel 1940766, SAAB 93160548, Toyota 08886-01115, Toyota PSF NEW-W, Volvo 30741424, VW G 002 000, VW G 004 000 M2, VW TL 52146, ZF TE-ML 02K		BMW 83290429576, CHF11S, CHF202, Citroën 9979 A1, DTFR 31B120 (MB 345.0), Ford 1384110, Ford M2C-204 A2, Hyundai/Kia PSF-4 03100-00130, Land Rover Cold Climate PAS Fluid 14315 LRN2261, MB 343.0, MB 344.0, MB 345.0, Opel 1940715, Opel 1940766, SAAB 93160548, Toyota 08886-01115, Toyota PSF NEW-W, Volvo 30741424, VW G 002 000, VW G 004 000 M2, VW TL 52146, ZF TE-ML 02K
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
Recomendations		DTFR 31B120 (MB 345.0), Ford WSS-M2C204-A, Ford WSS-M2C204-A2, Hyundai/Kia PSF-4, Land Rover Cold Climate PAS Fluid 14315, MB 343.0, MB 344.0, MB 345.0, Toyota PSF NEW-W, VW G 002 000, VW G 004 000, VW TL 521 46, ZF TE-ML 02K		DTFR 31B120 (MB 345.0), Ford WSS-M2C204-A, Ford WSS-M2C204-A2, Hyundai/Kia PSF-4, Land Rover Cold Climate PAS Fluid 14315, MB 343.0, MB 344.0, MB 345.0, Toyota PSF NEW-W, VW G 002 000, VW G 004 000, VW TL 521 46, ZF TE-ML 02K
specification		DIN 51524-2, ISO 7308		DIN 51524-2, ISO 7308
Compliant products		BMW 83290429576, Ford 1384110, Hyundai/Kia 03100-00130, Land Rover LRN2261, Opel 1940715, Opel 1940766, Pentosin CHF 11S, Pentosin CHF 202, PSA 9979.A1, SAAB 93160548, Toyota 08886-01115, Volvo 30741424, VW G 004 000		BMW 83290429576, Ford 1384110, Hyundai/Kia 03100-00130, Land Rover LRN2261, Opel 1940715, Opel 1940766, Pentosin CHF 11S, Pentosin CHF 202, PSA 9979.A1, SAAB 93160548, Toyota 08886-01115, Volvo 30741424, VW G 004 000
Density at 20 °C	g/cm³	829	EN ISO 12185	829 g/cm³ EN ISO 12185
Color		Green	visual	Green visual
Viscosity at 100 °C	mm²/s	6.6	DIN 51562-1	6.6 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	19.7	DIN 51562-1	19.7 mm²/s DIN 51562-1
Viscosity at -40 °C	mm²/s	900	ASTM D445	900 mm²/s ASTM D445
Viscosity Index VI		333	DIN ISO 2909	333 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	980	ASTM D2983	980 mPa*s ASTM D2983
Pourpoint	°C	-55	DIN ISO 3016	-55 °C DIN ISO 3016
Flashpoint	°C	166	DIN EN ISO 2592	166 °C DIN EN ISO 2592
Approvals		DIN 51524-2, DTFR 31B120 (MB 345.0), Ford WSS-M2C204-A, Ford WSS-M2C204-A2, Hyundai/Kia PSF-4, ISO 7308, Land Rover Cold Climate PAS Fluid 14315, MB 343.0, MB 344.0, MB 345.0, Toyota PSF NEW-W, VW G 002 000, VW G 004 000, VW TL 521 46, ZF TE-ML 02K		DIN 51524-2, DTFR 31B120 (MB 345.0), Ford WSS-M2C204-A, Ford WSS-M2C204-A2, Hyundai/Kia PSF-4, ISO 7308, Land Rover Cold Climate PAS Fluid 14315, MB 343.0, MB 344.0, MB 345.0, Toyota PSF NEW-W, VW G 002 000, VW G 004 000, VW TL 521 46, ZF TE-ML 02K

Hydraulic system of brakes/clutch, ABS

Liquid volume (basic): 1 L

DOT 4

For brake system

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

show details

Available packaging
Full description
Product parameters

Volume:
250 ml

vendor code:
1350601-250

Code:
4014835692121

Volume:
500 ml

vendor code:
1350601-500

Code:
4014835692152

Volume:
1 L

vendor code:
1350601-001

Code:
4014835692114

Volume:
20 L

vendor code:
1350601-020

DOT 4

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

Application Note

RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.

RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.

RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113).

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

optimum ABS characteristics
chemical stability
best lubrication efficiency
neutral behaviour regarding brake parts
low viscosity at low temperatures
miscible with all brake fluids of the same specifications

Parameter	Unit	Value	Audit
FMVSS 116 specifications (DOT)		DOT-4		DOT-4
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
specification		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704
Density at 20 °C	g/cm³	1052	EN ISO 12185	1052 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mPa*s	2.41	ASTM D445	2.41 mPa*s ASTM D445
Viscosity at -40 °C	cSt	1340	ASTM D445	1340 cSt ASTM D445
Boiling point	°C	271	FMVSS 116	271 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point	°C	169	FMVSS 116	169 °C FMVSS 116
High Temperature Stability	°C	-1	FMVSS 116	-1 °C FMVSS 116
Chemical Stability	°C	1	FMVSS 116	1 °C FMVSS 116
Evaporation	%w/w	61	FMVSS 116	61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C		i.O., 4s	FMVSS 116	i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C		i.O., 8s	FMVSS 116	i.O., 8s FMVSS 116
Water Tolerance at -40 °C		transparent, 3s	FMVSS 116	transparent, 3s FMVSS 116
Water Tolerance at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at -40 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Water content	%	— 0.2	DIN 51777-1	— 0.2 % DIN 51777-1
Tinned Iron	Δ mg/cm²	0.04	FMVSS 116	0.04 Δ mg/cm² FMVSS 116
Steel	mg/cm²	-0.01	FMVSS 116	-0.01 mg/cm² FMVSS 116
Aluminium	mg/cm²	0.02	FMVSS 116	0.02 mg/cm² FMVSS 116
Cast Iron	Δ mg/cm²	-0,03	FMVSS 116	-0,03 Δ mg/cm² FMVSS 116
Brass	mg/cm²	-0.08	FMVSS 116	-0.08 mg/cm² FMVSS 116
Copper	mg/cm²	-0.05	FMVSS 116	-0.05 mg/cm² FMVSS 116
Zinc	mg/cm²	0.01	FMVSS 116	0.01 mg/cm² FMVSS 116
Sediment	%	— 0.05	FMVSS 116	— 0.05 % FMVSS 116
pH - value		8.2	FMVSS 116	8.2 FMVSS 116
Rubber Diameter Change		0.16	FMVSS 116	0.16 FMVSS 116
Hardness Change	°IRHD	-4	FMVSS 116	-4 °IRHD FMVSS 116
Appearance		i.O.	FMVSS 116	i.O. FMVSS 116
SBR at 70 °C	mm	0.56	FMVSS 116	0.56 mm FMVSS 116
SBR at 120 °C	mm	0.73	FMVSS 116	0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703)	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
EPDM at 120 °C	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925)	mm	0.38	FMVSS 116	0.38 mm FMVSS 116
Approvals		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704

Cooling system
OEM: 17118509175

Liquid volume (basic): 8 L

HTC - Protect MB325.0 Premix -40°C

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

Compliance with the requirements:
DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C

show details

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410121-150

Code:
4014835755710

Volume:
5 L

vendor code:
1410121-005

Code:
4014835755758

Volume:
10 L

vendor code:
1410121-010

Volume:
20 L

vendor code:
1410121-020

Code:
4014835755727

Volume:
20 L, ecobox

vendor code:
1410121-B20

Code:
4014835855403

Volume:
60 L

vendor code:
1410121-060

Code:
4014835755765

Volume:
208 L

vendor code:
1410121-208

Code:
4014835755789

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL HTC Hybrid Technology Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL HTC Hybrid Technology Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL HTC Hybrid Technology Coolant Premix -40°C to radiator to fill line.

RAVENOL HTC Hybrid Technology Coolant Premix -40°C can also be used as a “ready for use” dilution in geothermal probes and geothermal collectors as recommended list of LaWa (Federal / State Working Group on Water in Germany).

RAVENOL HTC Hybrid Technology Coolant Concentrate is included in the list of recommendations of the LaWa for water management requirements for geothermal probes and geothermal collectors.

Characteristics

Excellent for use in cast iron or aluminium engines, or alloys of the two metals, and aluminium andcopper alloy radiators
Good reserve alkalinity
Protection from corrosion and cavitation
Prevents sediments and foaming in the cooling system
Compatible with elastomers used in automotive radiators

Parameter	Unit	Value	Audit
Recommendations		ASTM D3306, ASTM D4340, ASTM D4985, Audi, BMW 81229407454, BMW 83192211191, DAF, DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford AF Plus, Ford ESE-M978B4H-A, GM 1825M, GM 1899M, GM 93740140, GM 93740141, GM SATURN, Honda OL999-9011, Jaguar, John Deere, MAN 324 NF, MB (A 000 989 08 25 10), MB 325.0 (Konzentrat), MB 326.0 (Premix), NATO S-759, Opel/GM QL130100, Porsche, Renault Glaceol RX Type D, ROVER, SAAB, SAE J1034, VW TL 774-C (entspricht G11)		ASTM D3306, ASTM D4340, ASTM D4985, Audi, BMW 81229407454, BMW 83192211191, DAF, DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford AF Plus, Ford ESE-M978B4H-A, GM 1825M, GM 1899M, GM 93740140, GM 93740141, GM SATURN, Honda OL999-9011, Jaguar, John Deere, MAN 324 NF, MB (A 000 989 08 25 10), MB 325.0 (Konzentrat), MB 326.0 (Premix), NATO S-759, Opel/GM QL130100, Porsche, Renault Glaceol RX Type D, ROVER, SAAB, SAE J1034, VW TL 774-C (entspricht G11)
Brand		RAVENOL		RAVENOL
ASTM		D3306, D4340, D4985		D3306, D4340, D4985
Recomendations		DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C		DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C
Suitable for		DAF, GM SATURN, Jaguar, John Deere, Porsche, ROVER, SAAB, VW		DAF, GM SATURN, Jaguar, John Deere, Porsche, ROVER, SAAB, VW
Compliant products		BMW 81229407454, BMW 83192211191, Ford AF Plus, GM 93740140, GM 93740141, Honda OL999-9011, MB A 000 989 08 25 10		BMW 81229407454, BMW 83192211191, Ford AF Plus, GM 93740140, GM 93740141, Honda OL999-9011, MB A 000 989 08 25 10
Density at 20 °C	g/cm³	1080	EN ISO 12185	1080 g/cm³ EN ISO 12185
Color		Blue	visual	Blue visual
pH - value at 20 °C		7,5	ASTM D1287	7,5 ASTM D1287
Freezing point	°C	-40	ASTM D1177	-40 °C ASTM D1177
Approvals		DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C		DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C

HTC - Protect MB325.0 Concentrate

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

show details

Equivalents OEM:
BMW 83195A1E3B6, BMW 81229407454, BMW 83192211191, BMW 83192211195, BMW 83192211913, BMW 83192211914, BMW 83192304068, BMW 83192304069, BMW 83512355290, BMW 83512355291, BMW 83512355293, BMW 83512355296, BMW 83600005416, FEBI 05011, FEBI 22268, FEBI 22270, Ford 1047035, GM 10101, GM 105034, GM 9163329, GM 10953464, GM 12346290, GM 12378512, GM 12378560, GM 12378561, GM 12378562, GM 93165162, GM 93170402, GM 93740140, GM 93740141, GM 93742646 BMW 83195A1E3B6, BMW 81229407454, BMW 83192211191, BMW 83192211195, BMW 83192211913, BMW 83192211914, BMW 83192304068, BMW 83192304069, BMW 83512355290, BMW 83512355291, BMW 83512355293, BMW 83512355296, BMW 83600005416, FEBI 05011, FEBI 22268, FEBI 22270, Ford 1047035, GM 10101, GM 105034, GM 9163329, GM 10953464, GM 12346290, GM 12378512, GM 12378560, GM 12378561, GM 12378562, GM 93165162, GM 93170402, GM 93740140, GM 93740141, GM 93742646, GM 93742647, Honda 08CLAE020S0, Land Rover PDA500300, MB A000989082510, MB A000989082513, MB A000989082520, MB A000989082521, MB A000989082522, MB A000989082523, MB A0009892125, MB A989082510, MB A990989280020, MB A990989280021, MB A990989280022, MB A990989280023, SsangYong 0000000294, Subaru 000016218, Subaru K0679GA102, VAG G011A8CA1, VAG G011A8CA1, Volvo 9437650, Volvo 9437651, Volvo 31439720, Volvo 31439721

Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410120-150

Code:
4014835755611

Volume:
5 L

vendor code:
1410120-005

Code:
4014835755659

Volume:
10 L

vendor code:
1410120-010

Volume:
20 L

vendor code:
1410120-020

Code:
4014835755628

Volume:
20 L, ecobox

vendor code:
1410120-B20

Code:
4014835852730

Volume:
60 L

vendor code:
1410120-060

Code:
4014835755666

Volume:
208 L

vendor code:
1410120-208

Code:
4014835755680

Volume:
1000 L

vendor code:
1410120-700

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL HTC Hybrid Technology Coolant Concentrate protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL HTC Hybrid Technology Coolant Concentrate with frost and rust protection for year-round use in automotive engines. Mix according to chart. Follow manufacturer's recommendations.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL HTC Hybrid Technology Coolant Concentrate with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

RAVENOL HTC Hybrid Technology Coolant Concentrate can also be used in geothermal probes and geothermal collectors as recommended list of LaWa (Federal / State Working Group on Water in Germany).

Table of mixing ratios
Antifreeze protection until	Parts Antifreeze	Parts Water
-20°C	35%	65%
-37°C	50%	50%
-50°C	60%	40%

Characteristics

Excellent for use in cast iron or aluminium engines, or alloys of the two metals, and aluminium and copper alloy radiators
Excellent reserve alkalinity
Protection from corrosion and cavitation
Prevents sediments and foaming in the cooling system
Compatible with elastomers used in automotive radiators

Parameter	Unit	Value	Audit
Recommendations		ASTM D3306, ASTM D4340, ASTM D4985, Audi, BMW 81229407454, BMW 83192211191, DAF, DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford AF Plus, Ford ESE-M978B4H-A, GM 1825M, GM 1899M, GM 93740140, GM 93740141, GM SATURN, Honda OL999-9011, Jaguar, John Deere, MAN 324 NF, MB (A 000 989 08 25 10), MB 325.0 (Konzentrat), MB 326.0 (Premix), NATO S-759, Opel/GM QL130100, Porsche, Renault Glaceol RX Type D, ROVER, SAAB, SAE J1034, VW TL 774-C (entspricht G11)		ASTM D3306, ASTM D4340, ASTM D4985, Audi, BMW 81229407454, BMW 83192211191, DAF, DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford AF Plus, Ford ESE-M978B4H-A, GM 1825M, GM 1899M, GM 93740140, GM 93740141, GM SATURN, Honda OL999-9011, Jaguar, John Deere, MAN 324 NF, MB (A 000 989 08 25 10), MB 325.0 (Konzentrat), MB 326.0 (Premix), NATO S-759, Opel/GM QL130100, Porsche, Renault Glaceol RX Type D, ROVER, SAAB, SAE J1034, VW TL 774-C (entspricht G11)
Brand		RAVENOL		RAVENOL
ASTM		D3306, D4340, D4985		D3306, D4340, D4985
Recomendations		DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C		DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C
Suitable for		DAF, GM SATURN, Jaguar, John Deere, Porsche, ROVER, SAAB, VW		DAF, GM SATURN, Jaguar, John Deere, Porsche, ROVER, SAAB, VW
Compliant products		BMW 81229407454, BMW 83192211191, Ford AF Plus, GM 93740140, GM 93740141, Honda OL999-9011, MB A 000 989 08 25 10		BMW 81229407454, BMW 83192211191, Ford AF Plus, GM 93740140, GM 93740141, Honda OL999-9011, MB A 000 989 08 25 10
Density at 20 °C	g/cm³	1130	EN ISO 12185	1130 g/cm³ EN ISO 12185
Color		Blue	visual	Blue visual
Reserve alkalinity	mgKOH/g	15 —	ASTM D1120	15 — mgKOH/g ASTM D1120
Boiling point	°C	160 —	ASTM D1121	160 — °C ASTM D1121
Water content	%	— 5	ASTM D1123	— 5 % ASTM D1123
Flashpoint	°C	100 —	DIN 51758	100 — °C DIN 51758
Freezing point (50 % solution)	°C	-37	ASTM D1177	-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %)		7,0 - 8,0	ASTM D1287	7,0 - 8,0 ASTM D1287
Approvals		DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C		DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter	Value
Recommendations	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand	RAVENOL	RAVENOL
Recomendations	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272
Approvals	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272

Professional Radiator Cleaner

Additive

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

show details

Equivalents OEM:
Ford MP14300500AB

Available packaging
Full description
Product parameters

Volume:
0.25 L

vendor code:
1390302-250

Code:
4014835802667

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.

Application Note

RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.

Area of application:

Radiator repairs

In the event of reduced radiator performance

In the event of deposits in the cooling system

Changing coolant

For cleaning purposes after engine repairs due to oil in the cooling system

Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.

Fill in

RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.

RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.

Characteristics

Cleaning of the cooling and heating system
Protection of the new coolant against prior contamination
Elimination of sludge and corrosion residue

Parameter	Unit	Value	Audit
Color		Colorless	visual	Colorless visual
Density at 20 °C	g/cm³	1003	EN ISO 12185	1003 g/cm³ EN ISO 12185
pH - value at 20 °C		10,25	DIN 19268	10,25 DIN 19268
Brand		RAVENOL		RAVENOL
