Landini Legend NG 130, year of issue from 2002 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.
Fuel: Diesel fuel
car drive: Rear wheel drive/All-wheel drive
Engine: Single row
Number of cylinders: 6
Valves per cylinder: 2
Working volume: 6000 cc
Power: 126 hp / 93 kW
Engine Perkins 1006.60T
For engine
It is also suitable for use gasoline (petrol) engines. It has an excellent lubricating film adhesion and very good shear stability and an excellent cleaning power and high resistance to aging.
Manufacturer Approved:
VW 501.01, VW 505.00
Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, ZF TE-ML 07C
SAE: 15W-40
Equivalents OEM:
GM 19375071, GM 19375072, GM 19375073, VAG G052107M2, VAG G052107M4, VAG G052107M6, VAG G052107S0, VAG G052107S0
- Available packaging
- Product parameters
Volume:
4 L
vendor code:
1113103-004
Volume:
20 L, ecobox
vendor code:
1113103-B20
Volume:
60 L, print
vendor code:
1113103-D60
Volume:
208 L, print
vendor code:
1113103-D28
Volume:
1000 L
vendor code:
1113103-700
It is also suitable for use gasoline (petrol) engines. It has an excellent lubricating film adhesion and very good shear stability and an excellent cleaning power and high resistance to aging.
Application Note
RAVENOL Turbo-C HD-C SAE 15W-40 is perfectly suited as all-season motor oil for the mixed fleet. It can be uses in the commercial vehicle sector for operation and extended oil change interval (up to 45,000 kilometres are possible) according to manufacturer's specifications.
Characteristics
- An excellent shear stability
- Very good cold start characteristics
- A very high oxidation stability
- Avoids the formation of coking and accumulation of mud (black sludge)
- A very stable and excellent viscosity behaviour
- Suitable for catalysts
- Convincing detergent and dispersant attributes
- High security reserves even under limited lubrication conditions
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Allison C4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Typ 2, VOLVO VDS, ZF TE-ML 07C |
Allison C4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Typ 2, VOLVO VDS, ZF TE-ML 07C
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 15W-40 |
15W-40
|
||
| Type | Mineral |
Mineral
|
||
| API | CF, CF-4, SL |
CF, CF-4, SL
|
||
| ACEA | A3, B4, E2 |
A3, B4, E2
|
||
| Manufacturer Approved | VW 501.01, VW 505.00 |
VW 501.01, VW 505.00
|
||
| Recomendations | Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, ZF TE-ML 07C |
Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, ZF TE-ML 07C
|
||
| Density at 20 °C | g/cm³ | 873 | EN ISO 12185 |
873
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.4 | DIN 51562-1 |
14.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 107.2 | DIN 51562-1 |
107.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 137 | DIN ISO 2909 |
137
DIN ISO 2909
|
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Flashpoint | °C | 244 | DIN EN ISO 2592 |
244
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 8.5 | ASTM D2896 |
8.5
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.1 | DIN 51575 |
1.1
%wt.
DIN 51575
|
| Approvals | Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, VW 501.01, VW 505.00, ZF TE-ML 07C |
Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, VW 501.01, VW 505.00, ZF TE-ML 07C
|
For agricultural machinery
RAVENOL STOU SAE 15W-40 is equal to use in engines, transmissions and hydraulic systems of modern tractors. Top-grade solvent refined base oils and special synthetic based additives ensure trouble-free operation of all units in all seasons.
Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Ford ESN-M2C 86-A, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, John Deere J27, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, MB 227.1, New Holland 410B, New Holland 420A, ZF TE-ML 06B, ZF TE-ML 07B
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1310113-005
Volume:
20 L, ecobox
vendor code:
1310113-B20
Volume:
60 L
vendor code:
1310113-060
Volume:
208 L
vendor code:
1310113-208
Volume:
1000 L
vendor code:
1310113-700
RAVENOL STOU SAE 15W-40 is equal to use in engines, transmissions and hydraulic systems of modern tractors. Top-grade solvent refined base oils and special synthetic based additives ensure trouble-free operation of all units in all seasons.
Application Note
RAVENOL STOU SAE 15W-40 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.
RAVENOL STOU SAE 15W-40 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil.
Characteristics
- A powerful dispersion and detergency
- A high activity against wear, corrosion and foam
- A very strong resistance to oxidation
- Excellent extreme pressure properties
- A high and stable viscosity index
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Allison C4, Caterpillar TO-2, Ford M2C-134 D, Ford M2C-159 C, Ford M2C-86 A, John Deere J27, Massey Ferguson M1143, Massey Ferguson M1144, MB 227.1, NH 410B, NH 420A, ZF TE-ML 06B, ZF TE-ML 07B |
Allison C4, Caterpillar TO-2, Ford M2C-134 D, Ford M2C-159 C, Ford M2C-86 A, John Deere J27, Massey Ferguson M1143, Massey Ferguson M1144, MB 227.1, NH 410B, NH 420A, ZF TE-ML 06B, ZF TE-ML 07B
|
||
| SAE | 15W-40 |
15W-40
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| API | CE, CF-4, GL-4, SF |
CE, CF-4, GL-4, SF
|
||
| ACEA | E1 |
E1
|
||
| Recomendations | Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Ford ESN-M2C 86-A, John Deere J27, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, MB 227.1, New Holland 410B, New Holland 420A, ZF TE-ML 06B, ZF TE-ML 07B |
Allison C-4, Caterpillar TO-2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Ford ESN-M2C 86-A, John Deere J27, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, MB 227.1, New Holland 410B, New Holland 420A, ZF TE-ML 06B, ZF TE-ML 07B
|
||
| specification | CCMC D4, CCMC G2 |
CCMC D4, CCMC G2
|
||
| Density at 20 °C | g/cm³ | 865 | EN ISO 12185 |
865
g/cm³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 13.3 | DIN 51562-1 |
13.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 94.2 | DIN 51562-1 |
94.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 141 | DIN ISO 2909 |
141
DIN ISO 2909
|
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Flashpoint | °C | 228 | DIN EN ISO 2592 |
228
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 12.8 | ASTM D2896 |
12.8
mgKOH/g
ASTM D2896
|
| Approvals | Allison C-4, Caterpillar TO-2, CCMC D4, CCMC G2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Ford ESN-M2C 86-A, John Deere J27, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, MB 227.1, New Holland 410B, New Holland 420A, ZF TE-ML 06B, ZF TE-ML 07B |
Allison C-4, Caterpillar TO-2, CCMC D4, CCMC G2, Ford ESN-M2C 134-D, Ford ESN-M2C 159-C, Ford ESN-M2C 86-A, John Deere J27, Massey Ferguson CMS M1143, Massey Ferguson CMS M1144, MB 227.1, New Holland 410B, New Holland 420A, ZF TE-ML 06B, ZF TE-ML 07B
|
For diesels
Application NoteRAVENOL Formel Diesel Super SAE 15W-40 is suitable for the mixed car pool and can be used the whole year. Regarding commercial vehicles it can be used for a complicated operation and extended oil change intervals according to the manufacturer specification.
Manufacturer Approved:
Renault RLD, Renault RLD-2, TEDOM 258-2
Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C
- Available packaging
- Product parameters
Volume:
60 L, print
vendor code:
1123215-D60
Volume:
208 L, print
vendor code:
1123215-D28
Volume:
1000 L
vendor code:
1123215-700
Volume:
1 L
vendor code:
1123215-001
Volume:
1000 L
vendor code:
-
Code:
4014835630987
Application Note
RAVENOL Formel Diesel Super SAE 15W-40 is suitable for the mixed car pool and can be used the whole year. Regarding commercial vehicles it can be used for a complicated operation and extended oil change intervals according to the manufacturer specification.
Characteristics
- Very good shear stability
- Very good cold start attributes
- High oxidation stability
- Excellent viscosity temperature behaviour
- No problems with the use in catalyst vehicles
- Convincing detergent and dispersant characteristics
- High safety reserves even under limited lubrication circumstances
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Allison C4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Typ 2, VOLVO VDS, VW 505 00, ZF TE-ML 07C |
Allison C4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Typ 2, VOLVO VDS, VW 505 00, ZF TE-ML 07C
|
||
| SAE | 15W-40 |
15W-40
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| API | CF-4 |
CF-4
|
||
| ACEA | B4, E2 |
B4, E2
|
||
| Manufacturer Approved | Renault RLD, Renault RLD-2, TEDOM 258-2 |
Renault RLD, Renault RLD-2, TEDOM 258-2
|
||
| Recomendations | Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C |
Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C
|
||
| Density at 20 °C | g/cm³ | 873 | EN ISO 12185 |
873
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.4 | DIN 51562-1 |
14.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 107.2 | DIN 51562-1 |
107.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 137 | DIN ISO 2909 |
137
DIN ISO 2909
|
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Flashpoint | °C | 240 | DIN EN ISO 2592 |
240
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 8.6 | ASTM D2896 |
8.6
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.1 | DIN 51575 |
1.1
%wt.
DIN 51575
|
| Approvals | Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-2, Volvo VDS, VW 505.00, ZF TE-ML 07C |
Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-2, Volvo VDS, VW 505.00, ZF TE-ML 07C
|
For mixed park
RAVENOL EURO IV Truck SAE 10W-40 is UHPD-Motoroil (Ultra High Performance Diesel) with special requirements for Diesel Particular Filters DPF for the LOW SPAsh Technology. Offers low content of sulphur, phosphor and low ash content.
Manufacturer Approved:
Deutz DQC IV-10 LA, DTFR 15C110, Mack EO-N, Renault RLD-2, Tatra TDS 30/12, Volvo VDS-3
Compliance with the requirements:
DAF HP-2, MAN M 3277, MAN M 3477, MB 228.51, MTU Type 3, MTU Type 3.1, Renault RXD, Scania LDF
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1122107-001
Volume:
20 L, ecobox
vendor code:
1122107-B20
Volume:
1000 L
vendor code:
1122107-700
RAVENOL EURO IV Truck SAE 10W-40 is UHPD-Motoroil (Ultra High Performance Diesel) with special requirements for Diesel Particular Filters DPF for the LOW SPAsh Technology. Offers low content of sulphur, phosphor and low ash content.
Application Note
RAVENOL EURO IV Truck SAE 10W-40 is maximum efficiency engine oil which can be used the whole year and which was produced for the new exhaust gas emission directives respectively for vehicles with exhaust gas return systems.
RAVENOL EURO IV Truck SAE 10W-40 can be used in all diesel engines with and without turbo charging. Suitable for EURO I, II, III, IV and EURO V engines.
Characteristics
- High corrosion protection
- An excellent oxidation stability
- An excellent high temperature stability
- Excellent detergent and dispersant characteristics
- Profitability because of a low fuel consumption
- Long endurance because of a high oxidation stability
- An excellent cold start behaviour, a quick engine lubrication at low temperatures
- A very good viscosity temperature behaviour
- Neutrality of sealing
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DAF HP-2, MAN M 3277 (CRF Abgasrückführung), MAN M 3477, MB 228.51, MTU Typ 3, MTU Typ 3.1, Renault RXD, Scania LDF |
DAF HP-2, MAN M 3277 (CRF Abgasrückführung), MAN M 3477, MB 228.51, MTU Typ 3, MTU Typ 3.1, Renault RXD, Scania LDF
|
||
| SAE | 10W-40 |
10W-40
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | CI-4 |
CI-4
|
||
| ACEA | E6, E7 |
E6, E7
|
||
| Manufacturer Approved | Deutz DQC IV-10 LA, DTFR 15C110, Mack EO-N, Renault RLD-2, Tatra TDS 30/12, Volvo VDS-3 |
Deutz DQC IV-10 LA, DTFR 15C110, Mack EO-N, Renault RLD-2, Tatra TDS 30/12, Volvo VDS-3
|
||
| Recomendations | DAF HP-2, MAN M 3277, MAN M 3477, MB 228.51, MTU Type 3, MTU Type 3.1, Renault RXD, Scania LDF |
DAF HP-2, MAN M 3277, MAN M 3477, MB 228.51, MTU Type 3, MTU Type 3.1, Renault RXD, Scania LDF
|
||
| Density at 20 °C | g/cm³ | 856 | EN ISO 12185 |
856
g/cm³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.7 | DIN 51562-1 |
14.7
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 99.3 | DIN 51562-1 |
99.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 153 | DIN ISO 2909 |
153
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 4.1 | ASTM D5481 |
4.1
mPa*s
ASTM D5481
|
| CCS Viscosity at -25 °C | mPa*s | 6600 | ASTM D5293 |
6600
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -30 °C | mPa*s | 19.700 | ASTM D4684 |
19.700
mPa*s
ASTM D4684
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Noack Volatility | % | 6.7 | ASTM D5800 |
6.7
%
ASTM D5800
|
| Flashpoint | °C | 249 | DIN EN ISO 2592 |
249
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 10.4 | ASTM D2896 |
10.4
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.87 | DIN 51575 |
0.87
%wt.
DIN 51575
|
| Approvals | DAF HP-2, Deutz DQC IV-10 LA, DTFR 15C110, Mack EO-N, MAN M 3277, MAN M 3477, MB 228.51, MTU Type 3, MTU Type 3.1, Renault RLD-2, Renault RXD, Scania LDF, Tatra TDS 30/12, Volvo VDS-3 |
DAF HP-2, Deutz DQC IV-10 LA, DTFR 15C110, Mack EO-N, MAN M 3277, MAN M 3477, MB 228.51, MTU Type 3, MTU Type 3.1, Renault RLD-2, Renault RXD, Scania LDF, Tatra TDS 30/12, Volvo VDS-3
|
For mixed fleet
RAVENOL Turbo plus SHPD SAE 15W-40 can be used for diesel and petrol engines, also with turbochargers.
Manufacturer Approved:
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-3, Volvo VDS-3
Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C
SAE: 15W-40
Equivalents OEM:
Alpine 0100323,
Alpine 100324,
Chrysler 68024966AA,
Chrysler 68024966PB,
Chrysler 68024966PD,
Chrysler 68024967AA,
Chrysler 68218940AA,
Chrysler 68218940AB,
Chrysler 68218940AC,
Chrysler 68218940AD,
Chrysler 68218940CB,
Chrysler 68218941AA,
Chrysler 68218941AB,
Chrysler 68218941AC,
Chrysler 68218941CB,
Chrysler 68218941CB,
Chrysler 68218942AA,
Chrysler 68218943AA,
Chrysler 68218943AD,
Chrysler 68218944AA,
FEBI 32925,
FEBI 32926,
FEBI 32927,
FEBI 32928,
FEBI 32929,
FEBI 32930,
Motorcraft XO15W40BSD,
Motorcraft XO15W40DSD,
Motorcraft XO15W40DSDR,
Motorcraft XO15W40QSD,
Motorcraft XO15W40QSD1
Alpine 0100323, Alpine 100324, Chrysler 68024966AA, Chrysler 68024966PB, Chrysler 68024966PD, Chrysler 68024967AA, Chrysler 68218940AA, Chrysler 68218940AB, Chrysler 68218940AC, Chrysler 68218940AD, Chrysler 68218940CB, Chrysler 68218941AA, Chrysler 68218941AB, Chrysler 68218941AC, Chrysler 68218941CB, Chrysler 68218941CB, Chrysler 68218942AA, Chrysler 68218943AA, Chrysler 68218943AD, Chrysler 68218944AA, FEBI 32925, FEBI 32926, FEBI 32927, FEBI 32928, FEBI 32929, FEBI 32930, Motorcraft XO15W40BSD, Motorcraft XO15W40DSD, Motorcraft XO15W40DSDR, Motorcraft XO15W40QSD, Motorcraft XO15W40QSD1, Motorcraft XO15W40QSDF, Motorcraft XO15W40QSDW, Motorcraft XO15W40TBSD, Motorcraft XO15W405Q3SD, Motorcraft XO15W405QSD, Motorcraft XO15W406GSD, SWAG 15932925, SWAG 15932926, SWAG 15932927, SWAG 15932928, SWAG 15932929, SWAG 15932930, Toyota 0888080805, Toyota 0888080806, Volvo 85102464
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1123115-001
Volume:
4 L
vendor code:
1123115-004
Volume:
7 L
vendor code:
1123115-007
Volume:
1000 L
vendor code:
1123115-700
RAVENOL Turbo plus SHPD SAE 15W-40 can be used for diesel and petrol engines, also with turbochargers.
RAVENOL Turbo plus SHPD SAE 15W-40 has been especially developed for extended oil change intervals, according to manufacturer’s recommendations.
Application Note
RAVENOL Turbo-Plus SHPD SAE 15W-40 is recommended by the engine manufacturers for extended oil change intervals as SAE 15W-40 multigrade engine oil in heavy duty commercial vehicle diesel engines.
RAVENOL Turbo-Plus SHPD SAE 15W-40 is the preferred use for extended oil life in turbo charged diesel engines according to manufacturer’s recommendations.
Characteristics
- Extremely high pressure absorption capacity
- Very high oxidation stability
- Excellent aging stability
- Excellent viscosity and temperature behaviour
- High security reserves even under limited lubrication circumstances
- Suitable for extended oil change intervals
- Suitable for heavy operating conditions
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Allison C4, Caterpillar TO-2, Global DHD-1, IVECO, JASO DH-1, John Deere JDQ-78A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1 (Multigrades), MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C |
Allison C4, Caterpillar TO-2, Global DHD-1, IVECO, JASO DH-1, John Deere JDQ-78A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1 (Multigrades), MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C
|
||
| SAE | 15W-40 |
15W-40
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| API | CI-4, SL |
CI-4, SL
|
||
| ACEA | A3, B4, E7 |
A3, B4, E7
|
||
| JASO | DH-1 |
DH-1
|
||
| Manufacturer Approved | Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-3, Volvo VDS-3 |
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-3, Volvo VDS-3
|
||
| Recomendations | Allison C-4, Caterpillar TO-2, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C |
Allison C-4, Caterpillar TO-2, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C
|
||
| Suitable for | IVECO, Steyr Motor GAZ 560, YaMZ |
IVECO, Steyr Motor GAZ 560, YaMZ
|
||
| Density at 20 °C | g/cm³ | 870 | EN ISO 12185 |
870
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 15 | DIN 51562-1 |
15
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 115.7 | DIN 51562-1 |
115.7
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 134 | DIN ISO 2909 |
134
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 4 | ASTM D5481 |
4
mPa*s
ASTM D5481
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Flashpoint | °C | 238 | DIN EN ISO 2592 |
238
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 10.5 | ASTM D2896 |
10.5
mgKOH/g
ASTM D2896
|
| Approvals | Allison C-4, Caterpillar TO-2, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD, Renault RLD-2, Scania LDF-2, TEDOM 258-3, Volvo VDS-3, ZF TE-ML 07C |
Allison C-4, Caterpillar TO-2, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD, Renault RLD-2, Scania LDF-2, TEDOM 258-3, Volvo VDS-3, ZF TE-ML 07C
|
Wheel reducers in front
For transmission
RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.
Compliance with the requirements:
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.8, MB 235.9, MB 235.11, MB 235.21, MB 235.72, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
- Available packaging
- Product parameters
RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.
Application Note
RAVENOL VSG SAE 75W-90 is excellent for use of highly stressed axle drives.
RAVENOL VSG SAE 75W-90 is suitable for synchronised and non-synchronised manual transmissions, transfer cases and ancillary transmission requiring API GL-5 or GL-4 oil.
RAVENOL VSG SAE 75W-90 is suitable for Ford-transmission IB5, B5, MTX75, GM5, MT285/6, MMT6/6, MT75, R15M-D, R15MX-D, MT82 and Porsche Full-Time Transfer Case with Torsen (PL72T) for Cayenne 92A / 958 Diesel and S Hybrid from 2010 to 2018.
Characteristics
- high additive reserves for prolonged oil change intervals according to the manufacturer specifications
- excellent cold flow properties
- best wear protection and best transmission efficiency
- Fuel savings even with short distances in low outdoor temperatures
- stable lubricating film even under high stress
- extraordinary corrosion protection and good compatibility with non-ferrous metal
- high oxidation resistance prevents oil thickening and deposits
- outstanding dirt-carrying capacity, i.e. aggregates are clean even after very long oil change intervals
- excellent elastomer compatibility to prevent leaks
- extreme shearing stability, remains within the clean oil viscosity per SAE class 75W-90 even after very long periods of use
- very high protection from rust, corrosion and foaming
- extreme low pour point
- excellent EP properties
- fuel savings
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 911 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B |
BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 911 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-90 |
75W-90
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4, GL-5 |
GL-4, GL-5
|
||
| Recomendations | BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B |
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
|
||
| Suitable for | IVECO |
IVECO
|
||
| Compliant products | BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911 |
BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911
|
||
| Density at 20 °C | g/cm³ | 839.8 | EN ISO 12185 |
839.8
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 16.8 | DIN 51562-1 |
16.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 108.8 | DIN 51562-1 |
108.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 168 | DIN ISO 2909 |
168
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 47.000 | ASTM D2983 |
47.000
mPa*s
ASTM D2983
|
| Pourpoint | °C | -57 | DIN ISO 3016 |
-57
°C
DIN ISO 3016
|
| Flashpoint | °C | 224 | DIN EN ISO 2592 |
224
°C
DIN EN ISO 2592
|
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Strip Test at 121 °C | 1a | ASTM D130 |
1a
ASTM D130
|
|
| Approvals | BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B |
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
|
For gearbox
RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is designed based on high-quality solvent refined and synthetic base oils and specially harmonised additive treatment with extreme pressure (EP) active ingredients and other additives. This exceeds the needs of today's application requirements.
Compliance with the requirements:
CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.8, MB 235.9, MB 235.14, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
- Available packaging
- Product parameters
RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is designed based on high-quality solvent refined and synthetic base oils and specially harmonised additive treatment with extreme pressure (EP) active ingredients and other additives. This exceeds the needs of today's application requirements.
Application Note
RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is a maximum duty transmission oil for use in maximum duty, hypoid geared transmissions (axle drives, manual transmissions, etc.), where maximum duty transmission oils are required.
Characteristics
- Excellent oxidation stability
- Greatest possible protection from rust, corrosion, foaming
- Low solidification point
- Excellent extreme pressure (EP) properties
- High viscosity index
- Fuel savings
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford M2C-9002A, GM, Mack GO-G, MAN 342 M2 (160.000 km), MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A |
CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford M2C-9002A, GM, Mack GO-G, MAN 342 M2 (160.000 km), MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-90 |
75W-90
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | GL-5 |
GL-5
|
||
| Recomendations | CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A |
CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
|
||
| specification | MIL-L-2105 D |
MIL-L-2105 D
|
||
| Suitable for | GM |
GM
|
||
| Density at 20 °C | g/cm³ | 842 | EN ISO 12185 |
842
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 15.7 | DIN 51562-1 |
15.7
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 97.3 | DIN 51562-1 |
97.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 173 | DIN ISO 2909 |
173
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 70.000 | ASTM D2983 |
70.000
mPa*s
ASTM D2983
|
| Pourpoint | °C | -45 | DIN ISO 3016 |
-45
°C
DIN ISO 3016
|
| Flashpoint | °C | 215 | DIN EN ISO 2592 |
215
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A |
CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
|
Transmission in a unit with transmission/hydraulic system
Getriebeol UTTO Arctic
For tractors
can be mixed and is compatible with all diesel fuels (except Biodiesel) as well as fuel oils EL. Hi gher dosings as recommended are harmless. Demixing won’t occur.Practical experiences show that unde r consideration of the diferent kind of diesel fuels and fuel oils EL offered on the market followin g cold properties are given. With different manufacturers of diesel fuel, the effect can vary.Ad dition: Liter RavenolFließverbesserer to LiterDiesel fuel respectively fuel oil ELOperating temp eratureSummer-Diesel fuel as well as fuel oil EL1 : 1000 *)- 10°C2 : 1000- 18°C 3 : 1000- 23°C4 : 1000- 25°CWinter-Diesel-fuel1 : 1000- 25°C2 : 100 0- 28°C3 : 1000- 31°C*) The cold properties depend on the used DK respectively fuel o il EL. When admixing in a ratio of 1:1000 normally an improvement of the cold properties by 5°C to 1 0°C are possible.Characteristics:The basic advantages of
- Product parameters
can be mixed and is compatible with all diesel fuels (except Biodiesel) as well as fuel oils EL. Hi gher dosings as recommended are harmless. Demixing won’t occur.Practical experiences show that unde r consideration of the diferent kind of diesel fuels and fuel oils EL offered on the market followin g cold properties are given. With different manufacturers of diesel fuel, the effect can vary.Ad dition: Liter RavenolFließverbesserer to LiterDiesel fuel respectively fuel oil ELOperating temp eratureSummer-Diesel fuel as well as fuel oil EL1 : 1000 *)- 10°C2 : 1000- 18°C 3 : 1000- 23°C4 : 1000- 25°CWinter-Diesel-fuel1 : 1000- 25°C2 : 100 0- 28°C3 : 1000- 31°C*) The cold properties depend on the used DK respectively fuel o il EL. When admixing in a ratio of 1:1000 normally an improvement of the cold properties by 5°C to 1 0°C are possible.Characteristics:The basic advantages of
RAVENOL Fließverbesserer
are:complete restless burningno erosion of the flammabilityno change of the hazard categoryno r eduction of the viscosity, no illegal wastage in the pumpApplication note:Diesel fuel and fuel o il EL must have a temperature of more than 5°C when
RAVENOL Fließverbesserer
is used (this is given when the goods are stored in an underground tank!).
RAVENOL Fließverbesserer
itself must have a temperature of more than 0°C in case of use. Therefore, don’t store it outside.
RAVENOL Fließverbesserer
will become viscous below 0°C – this will not influence the product quality.Please follow!In or der to guarantee an optimum mixing the diesel fuel should have a temperature of more than 0°C and th e fuel oil EL more than 5°C. As the average temperatures are between 6°C and 9°C in case of a normal underground tank storage and diesel fuel and fuel oil EL are normally delivered with higher tempera tures than the annual average it satisfies to pour the necessary quantity of
RAVENOL Fließverbesserer
into the fixed tank or vehicle tank before the vehicle is fuelled. The “splash” during the filling of the vehicle secures the necessary stable mixing.Concerning overground positioned tanks approxim ately the half of diesel fuel or fuel oil quantity should be poured during the filling. If there is a deposit in the tank before filling a mixing with a temperature of more than 0°C can be secured. T hen the necessary quantity of
RAVENOL Fließverbesserer
has to be poured and afterwards the second half of diesel fuel or fuel oil has to be tanked.After having added
RAVENOL Fließverbesserer
(after having fuelled!) the engine of vehicles and working machines has to run approximately 10 min utes. Hereby it is secured that the
RAVENOL Fließverbesserer
reaches the fuel filter and the injection pump and can be effective there. This prevents starting p roblems.ATTENTION!Before use in common rail or pump injector vehicles be sure to read the operati ng instructions of the vehicle and follow the instructions of the vehicle manufacturer!
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
Differential, front
Getriebeol UTTO Arctic
For tractors
can be mixed and is compatible with all diesel fuels (except Biodiesel) as well as fuel oils EL. Hi gher dosings as recommended are harmless. Demixing won’t occur.Practical experiences show that unde r consideration of the diferent kind of diesel fuels and fuel oils EL offered on the market followin g cold properties are given. With different manufacturers of diesel fuel, the effect can vary.Ad dition: Liter RavenolFließverbesserer to LiterDiesel fuel respectively fuel oil ELOperating temp eratureSummer-Diesel fuel as well as fuel oil EL1 : 1000 *)- 10°C2 : 1000- 18°C 3 : 1000- 23°C4 : 1000- 25°CWinter-Diesel-fuel1 : 1000- 25°C2 : 100 0- 28°C3 : 1000- 31°C*) The cold properties depend on the used DK respectively fuel o il EL. When admixing in a ratio of 1:1000 normally an improvement of the cold properties by 5°C to 1 0°C are possible.Characteristics:The basic advantages of
- Product parameters
can be mixed and is compatible with all diesel fuels (except Biodiesel) as well as fuel oils EL. Hi gher dosings as recommended are harmless. Demixing won’t occur.Practical experiences show that unde r consideration of the diferent kind of diesel fuels and fuel oils EL offered on the market followin g cold properties are given. With different manufacturers of diesel fuel, the effect can vary.Ad dition: Liter RavenolFließverbesserer to LiterDiesel fuel respectively fuel oil ELOperating temp eratureSummer-Diesel fuel as well as fuel oil EL1 : 1000 *)- 10°C2 : 1000- 18°C 3 : 1000- 23°C4 : 1000- 25°CWinter-Diesel-fuel1 : 1000- 25°C2 : 100 0- 28°C3 : 1000- 31°C*) The cold properties depend on the used DK respectively fuel o il EL. When admixing in a ratio of 1:1000 normally an improvement of the cold properties by 5°C to 1 0°C are possible.Characteristics:The basic advantages of
RAVENOL Fließverbesserer
are:complete restless burningno erosion of the flammabilityno change of the hazard categoryno r eduction of the viscosity, no illegal wastage in the pumpApplication note:Diesel fuel and fuel o il EL must have a temperature of more than 5°C when
RAVENOL Fließverbesserer
is used (this is given when the goods are stored in an underground tank!).
RAVENOL Fließverbesserer
itself must have a temperature of more than 0°C in case of use. Therefore, don’t store it outside.
RAVENOL Fließverbesserer
will become viscous below 0°C – this will not influence the product quality.Please follow!In or der to guarantee an optimum mixing the diesel fuel should have a temperature of more than 0°C and th e fuel oil EL more than 5°C. As the average temperatures are between 6°C and 9°C in case of a normal underground tank storage and diesel fuel and fuel oil EL are normally delivered with higher tempera tures than the annual average it satisfies to pour the necessary quantity of
RAVENOL Fließverbesserer
into the fixed tank or vehicle tank before the vehicle is fuelled. The “splash” during the filling of the vehicle secures the necessary stable mixing.Concerning overground positioned tanks approxim ately the half of diesel fuel or fuel oil quantity should be poured during the filling. If there is a deposit in the tank before filling a mixing with a temperature of more than 0°C can be secured. T hen the necessary quantity of
RAVENOL Fließverbesserer
has to be poured and afterwards the second half of diesel fuel or fuel oil has to be tanked.After having added
RAVENOL Fließverbesserer
(after having fuelled!) the engine of vehicles and working machines has to run approximately 10 min utes. Hereby it is secured that the
RAVENOL Fließverbesserer
reaches the fuel filter and the injection pump and can be effective there. This prevents starting p roblems.ATTENTION!Before use in common rail or pump injector vehicles be sure to read the operati ng instructions of the vehicle and follow the instructions of the vehicle manufacturer!
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|

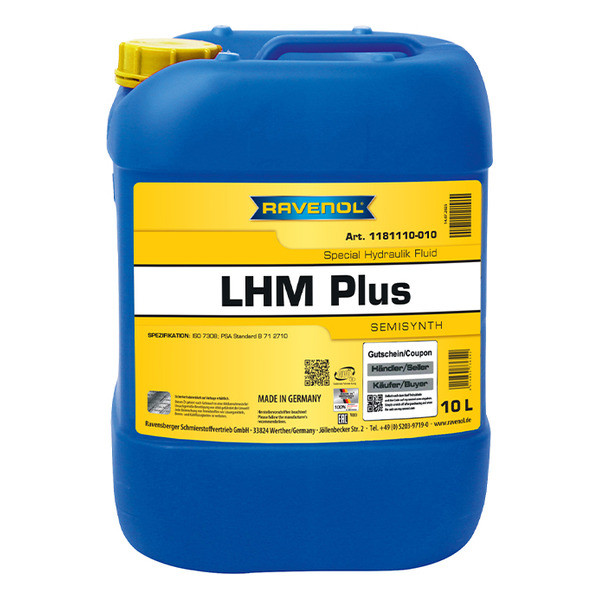

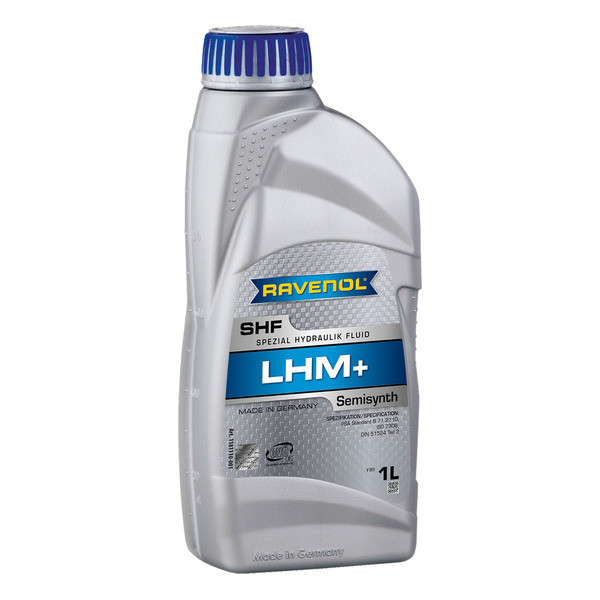

Hydraulic clutch system, brake
For brake system
Due to its special formulation RAVENOL LHM PLUS Fluid has significantly improved low temperature viscosity and fulfils the PSA approval specification.
- Available packaging
- Product parameters

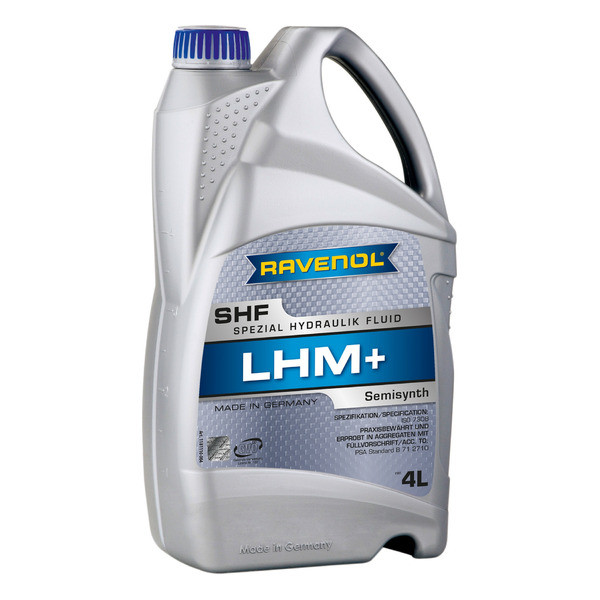

Volume:
4 L
vendor code:
1181110-004

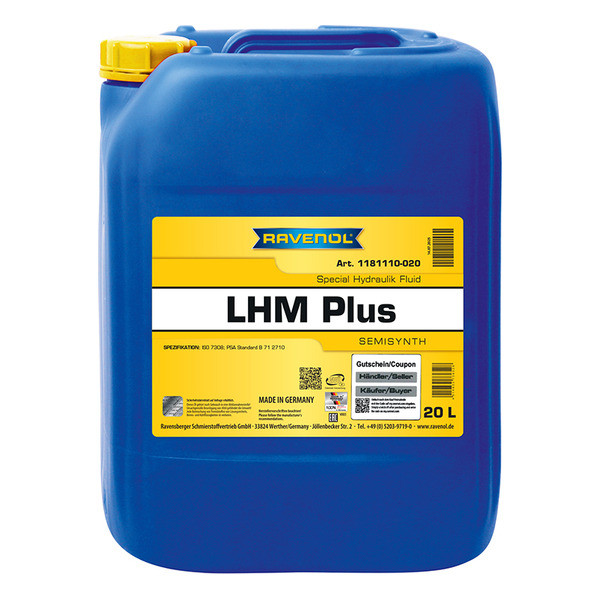

Volume:
20 L
vendor code:
1181110-020
Volume:
20 L, ecobox
vendor code:
1181110-B20
Volume:
1000 L
vendor code:
1181110-700
Due to its special formulation RAVENOL LHM PLUS Fluid has significantly improved low temperature viscosity and fulfils the PSA approval specification.
Application Note
RAVENOL LHM PLUS Fluid is used in vehicles with appropriately marked fluid reservoir for the hydraulic operation or support of braking, steering and suspension functions.
RAVENOL LHM PLUS Fuid is miscible with earlier LHM fluids.
Characteristics
- A low pour point.
- Excellent viscosity behavior at low temperatures.
- An extremely high viscosity index.
- Low viscosity at low temperatures.
- Neutral behavior towards sealing materials.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| specification | ISO 7308, PSA B71 2710 |
ISO 7308, PSA B71 2710
|
||
| Density at 20 °C | g/cm³ | 831 | EN ISO 12185 |
831
g/cm³
EN ISO 12185
|
| Color | Green | visual |
Green
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.2 | DIN 51562-1 |
7.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 25.3 | DIN 51562-1 |
25.3
mm²/s
DIN 51562-1
|
| Viscosity at -40 °C | 2600 | ASTM D445 |
2600
ASTM D445
|
|
| Viscosity Index VI | 273 | DIN ISO 2909 |
273
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 3460 | ASTM D2983 |
3460
mPa*s
ASTM D2983
|
| Pourpoint | °C | -72 | DIN ISO 3016 |
-72
°C
DIN ISO 3016
|
| Flashpoint | °C | 172 | DIN EN ISO 2592 |
172
°C
DIN EN ISO 2592
|
| Approvals | ISO 7308, PSA B71 2710 |
ISO 7308, PSA B71 2710
|
Lubrication points oilers
For bearings
RAVENOL Super EP-Langzeitfett is due to its smooth structure is easily conveyed.
Manufacturer Approved:
LOVAT LOV-204
- Available packaging
- Product parameters
RAVENOL Super EP-Langzeitfett is due to its smooth structure is easily conveyed.
RAVENOL Super EP-Langzeitfett is based on high-quality base oil by using lithium soaps (Li-12-hydroxy stearate) as thickener.
Due to this they avail of an outstanding work resistance. Futhermore, RAVENOL Super EP-Langzeitfett contain additives to improve the rust and corrosion-preventing behaviour.
Application Note
RAVENOL Super EP-Langzeitfett is used for the lubrication of heavily loaded plain and rolling bearings under the influence of moisture, vibration and shock loads. The standard applies to the lubrication of chassis, wheel bearings and universal joints in the automotive sector as well as machinery and general industry, construction industry, agriculture.
Characteristics
- Universal application, multi-purpose mixed pattern for machinery
- Excellent impact and wear-EP
- Very good oxidation and corrosion protection even in the presence of moisture
- Very good mechanical stability
- Excellent water resistance
- Long service life and thus extended lubrication intervals possible
- Very good resistance to aging
- Good pumpability, even at low temperatures
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Manufacturer Approved | LOVAT LOV-204 |
LOVAT LOV-204
|
||
| specification | DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2 |
DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2
|
||
| Color | Brown | visual |
Brown
visual
|
|
| Thickener | lithium soap | DIN 51757 |
lithium soap
DIN 51757
|
|
| NLGI-Class | 2 | DIN 51818 |
2
DIN 51818
|
|
| Product Classification | KP2K-30 | DIN 51502 |
KP2K-30
DIN 51502
|
|
| Working Temperature | °C | -30 / +120 | DIN 51825 |
-30 / +120
°C
DIN 51825
|
| Short term temperature up to | °C | 130 | DIN 51757 |
130
°C
DIN 51757
|
| Worked Penetration at 60 Strokes | 265-295 | ISO 2137 |
265-295
ISO 2137
|
|
| Corrosion (SKF Emcor dist. Water) | 1 | DIN 51802 |
1
DIN 51802
|
|
| Dropping Point | °C | 180 — | DIN ISO 2176 |
180 —
°C
DIN ISO 2176
|
| Copper Corrosion (24h/120 °C) | 1 | DIN 51811 |
1
DIN 51811
|
|
| Water Resistance (3h/90 °C) | °C | 1-90 | DIN 51807-1 |
1-90
°C
DIN 51807-1
|
| VKA Pressure Carrying Capacity | N | 2400 — 2600 | DIN 51350-4 |
2400 — 2600
N
DIN 51350-4
|
| Kinematic Viscosity (Base Oil) at 40 °C | mm²/s | 130 | DIN 51562-1 |
130
mm²/s
DIN 51562-1
|
| Approvals | DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2, LOVAT LOV-204 |
DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2, LOVAT LOV-204
|
For bearings
Application NoteRAVENOL Hot Red Grease HRG 2 is used for the lubrication of roller and friction bearings under extreme pressure at high bearing temperatures.
Manufacturer Approved:
MAN 284 Li-H2, MB-Approval 265.1
Equivalents OEM:
BMW 83190447919, Land Rover STC3435, SWAG 10921909, VAG G052133A2, VAG G052133A2
- Available packaging
- Product parameters
Application Note
RAVENOL Hot Red Grease HRG 2 is used for the lubrication of roller and friction bearings under extreme pressure at high bearing temperatures.
RAVENOL Hot Red Grease HRG 2 is particularly recommended for the lubrication of commercial vehicles and for high-speed passenger car wheel bearings.
Characteristics
- Work resistance
- Resistance to oxidation
- Water resistance
- Good corrosion protection characteristics
- High thermal load capacity
- High pressure susceptibility
- Good adhesion
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| Manufacturer Approved | MAN 284 Li-H2, MB-Approval 265.1 |
MAN 284 Li-H2, MB-Approval 265.1
|
||
| specification | DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2 |
DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2
|
||
| Color | Red | visual |
Red
visual
|
|
| Thickener | lithium soap | DIN 51757 |
lithium soap
DIN 51757
|
|
| NLGI-Class | 2 | DIN 51818 |
2
DIN 51818
|
|
| Product Classification | KP2P-35 | DIN 51502 |
KP2P-35
DIN 51502
|
|
| Working Temperature | °C | -35 / +160 | DIN 51825 |
-35 / +160
°C
DIN 51825
|
| Short term temperature up to | °C | 200 | DIN 51757 |
200
°C
DIN 51757
|
| Worked Penetration at 60 Strokes | 265-295 | ISO 2137 |
265-295
ISO 2137
|
|
| Dropping Point | °C | 260 — | DIN ISO 2176 |
260 —
°C
DIN ISO 2176
|
| Copper Corrosion (24h/120 °C) | 1 | DIN 51811 |
1
DIN 51811
|
|
| Water Resistance (3h/90 °C) | °C | 1-90 | DIN 51807-1 |
1-90
°C
DIN 51807-1
|
| VKA Pressure Carrying Capacity | N | 2600 — 2800 | DIN 51350-4 |
2600 — 2800
N
DIN 51350-4
|
| Kinematic Viscosity (Base Oil) at 40 °C | mm²/s | 140 | DIN 51562-1 |
140
mm²/s
DIN 51562-1
|
| Approvals | DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2, MAN 284 Li-H2, MB 265.1 |
DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2, MAN 284 Li-H2, MB 265.1
|
For bearings
RAVENOL Arctic Green Grease AGG 2 offers excellent working resistance, rust and corrosion protection.
- Available packaging
- Product parameters
Volume:
200 g
vendor code:
1340126-200
Volume:
1 kg
vendor code:
1340126-001
Volume:
180 kg
vendor code:
1340126-180
RAVENOL Arctic Green Grease AGG 2 offers excellent working resistance, rust and corrosion protection.
Application for the lubrication of roller and friction bearings under extreme pressure at extremely low temperatures. Selected additives help reduce wear, even during severe continuous operation and significantly prolong the service life.
Application Note
RAVENOL Arctic Green Grease AGG 2 is used in roller and friction bearings under extreme pressure at extremely low temperatures.
The highest application temperature for RAVENOL Arctic Green Grease AGG 2 in continuous operation is 120°C. Peak performances of 160°C should not be exceeded.
Extremely high temperatures shorten the service life. Routine relubrication preserves material and saves costs.
Characteristics
- Working resistance
- Oxidation resistance
- Water resistance
- Good corrosion protection characteristics
- High thermal load capacity
- High pressure susceptibility
- Good adhesion
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Full synthetic |
Full synthetic
|
||
| specification | DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2 |
DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2
|
||
| Color | Green | visual |
Green
visual
|
|
| Thickener | lithium soap | DIN 51757 |
lithium soap
DIN 51757
|
|
| NLGI-Class | 2 | DIN 51818 |
2
DIN 51818
|
|
| Product Classification | KPE2K-60 | DIN 51502 |
KPE2K-60
DIN 51502
|
|
| Working Temperature | °C | -60 / +120 | DIN 51825 |
-60 / +120
°C
DIN 51825
|
| Short term temperature up to | °C | 160 | DIN 51757 |
160
°C
DIN 51757
|
| Worked Penetration at 60 Strokes | 265-295 | ISO 2137 |
265-295
ISO 2137
|
|
| Dropping Point | °C | 180 — | DIN ISO 2176 |
180 —
°C
DIN ISO 2176
|
| Copper Corrosion (24h/120 °C) | 1 | DIN 51811 |
1
DIN 51811
|
|
| Water Resistance (3h/90 °C) | °C | 1-90 | DIN 51807-1 |
1-90
°C
DIN 51807-1
|
| VKA Pressure Carrying Capacity | N | 3000 — 3200 | DIN 51350-4 |
3000 — 3200
N
DIN 51350-4
|
| Kinematic Viscosity (Base Oil) at 40 °C | mm²/s | 20 | DIN 51562-1 |
20
mm²/s
DIN 51562-1
|
| Approvals | DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2 |
DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2
|
Cooling system
Coolant
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.
Compliance with the requirements:
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
- Available packaging
- Product parameters
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.
That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
RAVENOL TTC Trad. Techn. Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.
Application Note
RAVENOL TTC Trad. Techn. Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Add RAVENOL TTC Trad. Techn. Coolant Premix -40°C to radiator to fill line.
Characteristics
- Excellent for light metal engines
- Good reserve alkalinity
- High-quality corrosion additives for optimal corrosion protection
- Elastomer compatible with elastome
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11) |
AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| ASTM | D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF |
D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF
|
||
| Recomendations | AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C |
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
|
||
| Suitable for | Suzuki |
Suzuki
|
||
| Density at 20 °C | g/cm³ | 1080 | EN ISO 12185 |
1080
g/cm³
EN ISO 12185
|
| Color | yellow green | visual |
yellow green
visual
|
|
| pH - value at 20 °C | 7,8 | ASTM D1287 |
7,8
ASTM D1287
|
|
| Freezing point | °C | -40 | ASTM D1177 |
-40
°C
ASTM D1177
|
| Approvals | AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C |
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
|
Coolant
It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.
Compliance with the requirements:
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
Equivalents OEM:
Alpine 0101141,
Alpine 0101142,
Alpine 0101143,
Alpine 0101144,
Alpine 0101145,
Alpine 101141,
Alpine 101142,
Alpine 101143,
Alpine 101144,
Alpine 101145,
Chrysler 04267020AA,
Chrysler 04267020AB,
Chrysler 04267020AC,
Chrysler 04267020AD,
Chrysler 04267020GA,
Chrysler 04267020GB,
Chrysler 04267020GC,
Chrysler 04267020GD,
Chrysler 4267020GA,
Chrysler 4267020GB,
Chrysler 4267020GD,
FEBI 02374,
FEBI 2374,
FEBI 88541,
Ford 1326830,
Ford CVC5,
Ford CVC7B2,
Ford VC5,
Ford VC7B,
Ford VC7D,
Ford VC7DILB
Alpine 0101141, Alpine 0101142, Alpine 0101143, Alpine 0101144, Alpine 0101145, Alpine 101141, Alpine 101142, Alpine 101143, Alpine 101144, Alpine 101145, Chrysler 04267020AA, Chrysler 04267020AB, Chrysler 04267020AC, Chrysler 04267020AD, Chrysler 04267020GA, Chrysler 04267020GB, Chrysler 04267020GC, Chrysler 04267020GD, Chrysler 4267020GA, Chrysler 4267020GB, Chrysler 4267020GD, FEBI 02374, FEBI 2374, FEBI 88541, Ford 1326830, Ford CVC5, Ford CVC7B2, Ford VC5, Ford VC7B, Ford VC7D, Ford VC7DILB, GM 19284967, GM 19375289, GM 19375290, GM 19375291, Nissan 7711170548, Renault 7711170548, Renault 7711428132, SsangYong 0000000242, Toyota 0888980042, Toyota 0888980043, VAG G0118ACA1, VAG N052774C0, Volvo 11715725, Volvo 11715726, Volvo 11715727, Volvo 11715727, Volvo 85108901, Volvo VOE11715725, Volvo VOE11715726
Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.
- Available packaging
- Product parameters
Volume:
10 L
vendor code:
1410100-010
Volume:
20 L, ecobox
vendor code:
1410100-B20
Volume:
60 L, print
vendor code:
1410100-D60
Volume:
1000 L
vendor code:
1410100-700
It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.
Therefore manufacturers subject coolants to long corrosion and cavitation tests.
RAVENOL TTC Trad. Techn. Coolant Concentrate protects the cooling system from corrosion, frost, and in the summer from overheating.
Application Note
RAVENOL TTC Trad. Techn. Coolant Concentrate with frost and rust protection. Use according to the mixing chart. Follow manufacturer’s recommendations.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Clean cooling system, check for leaks, flush.
Mix RAVENOL TTC Trad. Techn. Coolant Concentrate with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.
| Table of mixing ratios | ||
|---|---|---|
| Antifreeze protection until | Parts Antifreeze | Parts Water |
| -20°C | 35% | 65% |
| -37°C | 50% | 50% |
| -50°C | 60% | 40% |
Characteristics
- Excellent for light metal engines
- Good reserve alkalinity
- High-quality corrosion additives for optimal corrosion protection
- Elastomer compatible with elastomers used in automotive radiators
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11) |
AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| ASTM | D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF |
D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF
|
||
| Recomendations | AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C |
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
|
||
| Suitable for | Suzuki |
Suzuki
|
||
| Density at 20 °C | g/cm³ | 1130 | EN ISO 12185 |
1130
g/cm³
EN ISO 12185
|
| Color | yellow green | visual |
yellow green
visual
|
|
| Reserve alkalinity | mgKOH/g | — 20 | ASTM D1121 |
— 20
mgKOH/g
ASTM D1121
|
| Boiling point | °C | 155 | ASTM D1120 |
155
°C
ASTM D1120
|
| Water content | % | — 5 | ASTM D1123 |
— 5
%
ASTM D1123
|
| Flashpoint | °C | 112 | DIN 51758 |
112
°C
DIN 51758
|
| Freezing point (50 % solution) | °C | -37 | ASTM D1177 |
-37
°C
ASTM D1177
|
| pH - value at 20 °C (50 Vol %) | 8,4 | ASTM D1287 |
8,4
ASTM D1287
|
|
| Approvals | AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C |
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
|
For batteries
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
Compliance with the requirements:
DIN 43530-4, DIN EN 50272
Equivalents OEM:
BMW 83190394350, BMW 83190394350
- Available packaging
- Product parameters
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.
RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.
Application Note
RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser |
DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
||
| Approvals | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
