RAVENOL SCR PAO 68 Screw Kompressorenoel
RAVENOL SCR PAO 68 Screw Kompressorenöl is full synthetic compressoroil with ISO VG Class 68, which is specifically designed to provide effective lubrication in rotary screw air compressors.
Compliance with the requirements:
DIN 51 506 VDL
SAE: 68
- Available packaging
- Product parameters
RAVENOL SCR PAO 68 Screw Kompressorenöl is also specifically designed to significantly extend service life in rotary screw compressors.
RAVENOL SCR PAO 68 Screw Kompressorenöl has excellent resistance to oxi dative breakdown caused by exposure to air at high discharge temperatures it has excellent thermal s tability for reducing carbon deposit formation.
RAVENOL SCR PAO 68 Screw Kompressorenöl shows good p rotection against wear, protects against rust and corrosion. Low volatility reduces oil carry-over i nto the air system. Reduces fluid consumption.
The full benefits of a change to RAVENOL SCR PAO 68 Screw Kompressorenöl will only be realized by minimizing contamination with the previously used oil. Certain makes of compressors do not permit completedraining, so if the drained oil is heavily oxid ized (shown by significant increase in the oil’s total acid number and viscosity), recharging with RAVENOL SCR PAO 68 Screw Kompressorenöl may not result in optimum performance and fluid service life.
RAVENOL SCR PAO 68 Screw Kompressorenöl has excellent oxidation stability, corrosion,deposit contr ol and low volatility and provides up to 8,000 hours of continuous worry-free service for lubricatio n, sealing and effective heat removal for efficient compressor performance.
Application Note:
RAVENOL SCR PAO 68 Screw Kompressorenöl is recommended for use in rotary screw air compressors.
While RAVENOL SCR PAO 68 Screw Kompressorenöl is fully compatible with most mineral and synthetic comp ressor fluids, it should not be mixed or contaminated with fluids containing polyalkylene glycols or silicones.
Characteristics:
- High oxidation stability
- Excellent protection against rust and corrosion.
- Excellent resistance to oxidative breakdown.
- caused by exposure to air at high discharge temperatures
- Higher thermal stability reduces carbon deposit formation
- Improved viscosity index and good low temperature properties
- Good protection against wear
- Protects against rust and corrosion
- Low volatility reduces oil carry-over into the air system
- Reduces fluid consumption
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 68 |
68
|
||
| Type | Full synthetic |
Full synthetic
|
||
| ASTM |
|
|||
| Manufacturer Approved |
|
|||
| Recomendations | DIN 51 506 VDL |
DIN 51 506 VDL
|
||
| Rennstrecken-Partnerschaft |
|
|||
| Rennstrecken-Partner |
|
|||
| specification |
|
|||
| Suitable for |
|
|||
| Compliant products |
|
|||
| Density at 20 °C | kg/m³ | 843 | EN ISO 12185 |
843
kg/m³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.4 | DIN 51562-1 |
11.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 66.4 | DIN 51562-1 |
66.4
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 166 | DIN ISO 2909 |
166
DIN ISO 2909
|
|
| Pourpoint | °C | -63 | DIN ISO 3016 |
-63
°C
DIN ISO 3016
|
| Flashpoint | °C | 240 | DIN EN ISO 2592 |
240
°C
DIN EN ISO 2592
|
| Acid Number TAN | mgKOH/g | 0.13 | ASTM D664 |
0.13
mgKOH/g
ASTM D664
|
| Water separation | ml/54°Cmin | 41-39-0 (15) | ASTM D1401 |
41-39-0 (15)
ml/54°Cmin
ASTM D1401
|
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Corrosion: | 3h 100 °C | 1a | ASTM D130 |
1a
3h 100 °C
ASTM D130
|
| Rust A – distilled Water | passed | ASTM D665 |
passed
ASTM D665
|
|
| Rust B – Synthetic Sea Water | passed | ASTM D665 |
passed
ASTM D665
|
|
| Conradson Carbon Residue mass | % | 0.1 | ASTM D524 |
0.1
%
ASTM D524
|
| Approvals | DIN 51 506 VDL |
DIN 51 506 VDL
|
RAVENOL Kompressorenoel PAO VDL 68 contains additives, which ensure an excellent wear protection and protects against residue and corrosion (both steel and non-ferrous metal). Most compressors have to work under high temperature so that the used oil has to have a good aging resistance but also a low residue building.
Compliance with the requirements:
DIN 51 506 VDL
SAE: 68
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1330116-005
Volume:
20 L
vendor code:
1330116-020
Volume:
60 L
vendor code:
1330116-060
RAVENOL Kompressorenoel PAO VDL 68 contains additives, which ensure an excellent wear protection and protects against residue and corrosion (both steel and non-ferrous metal). Most compressors have to work under high temperature so that the used oil has to have a good aging resistance but also a low residue building.
In addition RAVENOL Kompressorenoel PAO VDL 68 conforms to its ISO VG Class and shows a remarkable low evaporative behavior an outstanding demulsifying power as well as excellent air separation ability. It ensures certain lubrication not only in the high temperature range but also in cold condition of the compressor to reach a wear minimisation. By the use of selected and matched additives the tendency of coking and flammable residues is minimized.
Application Note
RAVENOL Kompressorenoel PAO VDL 68 is recommended for all compressors especially in rotary scew air compressors.
Characteristics
- High oxidation stability.
- Excellent protection against rust and corrosion.
- Best wear protection. Keeps compressor components free of sludge and varnish to ensure trouble free operation and lower maintenance costs on fluid change-out.
- Very low evaporative behavior and an outstanding demulsifying power.
- Excellent air separation ability.
- Better resistance to oxidative breakdown
- Extends oil change intervals up to 8.000 hours service in rotary screw compressors and 1.000 hours service in rotary vane compressors.
- Improves compressor operating efficiency, lower energy consumption costs by reducing of oil thickening.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 68 |
68
|
||
| Type | Full synthetic |
Full synthetic
|
||
| Recomendations | DIN 51 506 VDL |
DIN 51 506 VDL
|
||
| Density at 20 °C | kg/m³ | 854 | EN ISO 12185 |
854
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 11.6 | DIN 51562-1 |
11.6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 71.3 | DIN 51562-1 |
71.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 157 | DIN ISO 2909 |
157
DIN ISO 2909
|
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Flashpoint | °C | 271 | DIN EN ISO 2592 |
271
°C
DIN EN ISO 2592
|
| Acid Number TAN | mgKOH/g | 0.13 | ASTM D664 |
0.13
mgKOH/g
ASTM D664
|
| Water separation | ml/54°Cmin | 41-39-0 (15) | ASTM D1401 |
41-39-0 (15)
ml/54°Cmin
ASTM D1401
|
| Seq. I at 24 °C | ml/ml | 5/0 | ASTM D892 |
5/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 20/0 | ASTM D892 |
20/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Corrosion: | 3h 100 °C | 1a | ASTM D130 |
1a
3h 100 °C
ASTM D130
|
| Rust A – distilled Water | passed | ASTM D665 |
passed
ASTM D665
|
|
| Rust B – Synthetic Sea Water | passed | ASTM D665 |
passed
ASTM D665
|
|
| Conradson Carbon Residue mass | % | — 0.1 | ASTM D524 |
— 0.1
%
ASTM D524
|
| Approvals | DIN 51 506 VDL |
DIN 51 506 VDL
|
RAVENOL SCR PAO 100 Screw Kompressorenöl is also specifically designed to significantly extend service life in rotary screw compressors.
Compliance with the requirements:
DIN 51 506 VDL
SAE: 100
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1330317-005
Volume:
20 L
vendor code:
1330317-020
Volume:
60 L
vendor code:
1330317-060
Volume:
205 L
vendor code:
1330317-205
Volume:
208 L
vendor code:
1330317-208
RAVENOL SCR PAO 100 Screw Kompressorenöl is also specifically designed to significantly extend service life in rotary screw compressors.
RAVENOL SCR PAO 100 Screw Kompressorenöl has excellent resistance to oxidative breakdown caused by exposure to air at high discharge temperatures it has excellent thermal stability for reducing carbon deposit formation.
RAVENOL SCR PAO 100 Screw Kompressorenöl shows good protection against wear, protects against rust and corrosion. Low volatility reduces oil carry-over into the air system. Reduces fluid consumption.
The full benefits of a change to RAVENOL SCR PAO 100 Screw Kompressorenöl will only be realized by minimizing contamination with the previously used oil. Certain makes of compressors do not permit completedraining, so if the drained oil is heavily oxidized (shown by significant increase in the oil’s total acid number and viscosity), recharging with RAVENOL SCR PAO 100 Screw Kompressorenöl may not result in optimum performance and fluid service life.
RAVENOL SCR PAO 100 Screw Kompressorenöl has excellent oxidation stability, corrosion,deposit control and low volatility and provides up to 8,000 hours of continuous worry-free service for lubrication, sealing and effective heat removal for efficient compressor performance.
Application Note
RAVENOL SCR PAO 100 Screw Kompressorenöl is recommended for use in rotary screw air compressors.
While RAVENOL SCR PAO 100 Screw Kompressorenöl is fully compatible with most mineral and synthetic compressor fluids, it should not be mixed or contaminated with fluids containing polyalkylene glycols or silicones.
Characteristics
- High oxidation stability
- Excellent protection against rust and corrosion.
- Excellent resistance to oxidative breakdown caused by exposure toair at high discharge temperatures
- Higher thermal stability reduces carbon deposit formation
- Improved viscosity index and good low temperature properties
- Good protection against wear
- Protects against rust and corrosion
- Low volatility reduces oil carry-over into the air system
- Reduces fluid consumption
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 100 |
100
|
||
| Type | Full synthetic |
Full synthetic
|
||
| Recomendations | DIN 51 506 VDL |
DIN 51 506 VDL
|
||
| Density at 20 °C | kg/m³ | 845 | EN ISO 12185 |
845
kg/m³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 15.7 | DIN 51562-1 |
15.7
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 97.8 | DIN 51562-1 |
97.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 171 | DIN ISO 2909 |
171
DIN ISO 2909
|
|
| Pourpoint | °C | -60 | DIN ISO 3016 |
-60
°C
DIN ISO 3016
|
| Flashpoint | °C | 256 | DIN EN ISO 2592 |
256
°C
DIN EN ISO 2592
|
| Acid Number TAN | mgKOH/g | 0.11 | ASTM D664 |
0.11
mgKOH/g
ASTM D664
|
| Water separation | ml/54°Cmin | 41-39-0 (10) | ASTM D1401 |
41-39-0 (10)
ml/54°Cmin
ASTM D1401
|
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Corrosion: | 3h 100 °C | 1a | ASTM D130 |
1a
3h 100 °C
ASTM D130
|
| Rust A – distilled Water | passed | ASTM D665 |
passed
ASTM D665
|
|
| Rust B – Synthetic Sea Water | passed | ASTM D665 |
passed
ASTM D665
|
|
| Conradson Carbon Residue mass | % | — 0.1 | ASTM D524 |
— 0.1
%
ASTM D524
|
| Approvals | DIN 51 506 VDL |
DIN 51 506 VDL
|
RAVENOL Kompressorenoel PAO VDL 46 contains additives, which ensure an excellent wear protection and protects against residue and corrosion (both steel and non-ferrous metal). Most compressors have to work under high temperature so that the used oil has to have a good aging resistance but also a low residue building.
Compliance with the requirements:
DIN 51 506 VDL
SAE: 46
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1330115-005
Volume:
60 L
vendor code:
1330115-060
Volume:
208 L
vendor code:
1330115-208
Volume:
20 L
vendor code:
1330115-020
RAVENOL Kompressorenoel PAO VDL 46 contains additives, which ensure an excellent wear protection and protects against residue and corrosion (both steel and non-ferrous metal). Most compressors have to work under high temperature so that the used oil has to have a good aging resistance but also a low residue building.
In addition RAVENOL Kompressorenoel PAO VDL 46 conforms to its ISO VG Class and shows a remarkable low evaporative behavior an outstanding demulsifying power as well as excellent air separation ability. It ensures certain lubrication not only in the high temperature range but also in cold condition of the compressor to reach a wear minimisation. By the use of selected and matched additives the tendency of coking and flammable residues is minimized.
Application Note
RAVENOL Kompressorenoel PAO VDL 46 is recommended for all compressors especially in rotary screw air compressors.
Characteristics
- High oxidation stability.
- Excellent protection against rust and corrosion.
- Best wear protection. Keeps compressor components free of sludge and varnish to ensure trouble free operation and lower maintenance costs on fluid change-out.
- Very low evaporative behavior and an outstanding demulsifying power.
- Excellent air separation ability.
- Better resistance to oxidative breakdown.
- Extends oil change intervals up to 8.000 hours service in rotary screw compressors and 1.000 hours service in rotary vane compressors.
- Improves compressor operating efficiency, lower energy consumption costs by reducing of oil thickeng
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 46 |
46
|
||
| Type | Full synthetic |
Full synthetic
|
||
| Recomendations | DIN 51 506 VDL |
DIN 51 506 VDL
|
||
| Density at 20 °C | kg/m³ | 843 | EN ISO 12185 |
843
kg/m³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 8.3 | DIN 51562-1 |
8.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 45.4 | DIN 51562-1 |
45.4
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 159 | DIN ISO 2909 |
159
DIN ISO 2909
|
|
| Pourpoint | °C | -65 | DIN ISO 3016 |
-65
°C
DIN ISO 3016
|
| Flashpoint | °C | 239 | DIN EN ISO 2592 |
239
°C
DIN EN ISO 2592
|
| Acid Number TAN | mgKOH/g | 0.14 | ASTM D664 |
0.14
mgKOH/g
ASTM D664
|
| Water separation | ml/54°Cmin | 40-40-0 (15) | ASTM D1401 |
40-40-0 (15)
ml/54°Cmin
ASTM D1401
|
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Corrosion: | 3h 100 °C | 1a | ASTM D130 |
1a
3h 100 °C
ASTM D130
|
| Rust A – distilled Water | passed | ASTM D665 |
passed
ASTM D665
|
|
| Rust B – Synthetic Sea Water | passed | ASTM D665 |
passed
ASTM D665
|
|
| Conradson Carbon Residue mass | % | — 0.1 | ASTM D524 |
— 0.1
%
ASTM D524
|
| Approvals | DIN 51 506 VDL |
DIN 51 506 VDL
|
RAVENOL SCR PAO 46 Screw Kompressorenöl is also specifically designed to significantly extend service life in rotary screw compressors.
Compliance with the requirements:
DIN 51 506 VDL
SAE: 46
- Available packaging
- Product parameters
RAVENOL SCR PAO 46 Screw Kompressorenöl is also specifically designed to significantly extend service life in rotary screw compressors.
RAVENOL SCR PAO 46 Screw Kompressorenöl has excellent resistance to oxidative breakdown caused by exposure to air at high discharge temperatures it has excellent thermal stability for reducing carbon deposit formation.
RAVENOL SCR PAO 46 Screw Kompressorenöl shows good protection against wear, protects against rust and corrosion. Low volatility reduces oil carry-over into the air system. Reduces fluid consumption. The full benefits of a change to RAVENOL SCR PAO 46 Screw Kompressorenöl will only be realized by minimizing contamination with the previously used oil. Certain makes of compressors do not permit completedraining, so if the drained oil is heavily oxidized (shown by significant increase in the oil’s total acid number and viscosity), recharging with RAVENOL SCR PAO 46 Screw Kompressorenöl may not result in optimum performance and fluid service life.
RAVENOL SCR PAO 46 Screw Kompressorenöl has excellent oxidation stability, corrosion, deposit control and low volatility and provides up to 8,000 hours of continuous worry-free service for lubrication, sealing and effective heat removal for efficient compressor performance.
Application Note
RAVENOL SCR PAO 46 Screw Kompressorenöl is recommended for use in rotary screw air compressors.
While RAVENOL SCR PAO 46 Screw Kompressorenöl is fully compatible with most mineral and synthetic compressor fluids, it should not be mixed or contaminated with fluids containing polyalkylene glycols or silicones
Characteristics
- High oxidation stability.
- Excellent protection against rust and corrosion.
- Excellent resistance to oxidative breakdown caused by exposure to air at high discharge temperatures.
- Higher thermal lstability reduces carbon deposit formation
- Improved viscosity index and good low temperature properties
- Good protection against wear
- Protects against rust and corrosion
- Low volatility reduces oil carry-over into the air system
- Reduces fluid consumption
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 46 |
46
|
||
| Type | Full synthetic |
Full synthetic
|
||
| Recomendations | DIN 51 506 VDL |
DIN 51 506 VDL
|
||
| Density at 20 °C | kg/m³ | 840 | EN ISO 12185 |
840
kg/m³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 8.3 | DIN 51562-1 |
8.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 45.4 | DIN 51562-1 |
45.4
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 160 | DIN ISO 2909 |
160
DIN ISO 2909
|
|
| Pourpoint | °C | -66 | DIN ISO 3016 |
-66
°C
DIN ISO 3016
|
| Flashpoint | °C | 240 | DIN EN ISO 2592 |
240
°C
DIN EN ISO 2592
|
| Acid Number TAN | mgKOH/g | 0.14 | ASTM D664 |
0.14
mgKOH/g
ASTM D664
|
| Water separation | ml/54°Cmin | 40-40-0 (15) | ASTM D1401 |
40-40-0 (15)
ml/54°Cmin
ASTM D1401
|
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Corrosion: | 3h 100 °C | 1a | ASTM D130 |
1a
3h 100 °C
ASTM D130
|
| Rust A – distilled Water | passed | ASTM D665 |
passed
ASTM D665
|
|
| Rust B – Synthetic Sea Water | passed | ASTM D665 |
passed
ASTM D665
|
|
| Conradson Carbon Residue mass | % | — 0.1 | ASTM D524 |
— 0.1
%
ASTM D524
|
| Approvals | DIN 51 506 VDL |
DIN 51 506 VDL
|
RAVENOL SCR PAO 32 Screw Kompressorenöl is also specifically designed to significantly extend service life in rotary screw compressors.
Compliance with the requirements:
DIN 51 506 VDL
SAE: 32W
- Available packaging
- Product parameters
RAVENOL SCR PAO 32 Screw Kompressorenöl is also specifically designed to significantly extend service life in rotary screw compressors.
RAVENOL SCR PAO 32 Screw Kompressorenöl has excellent resistance to oxidative breakdown caused by exposure to air at high discharge temperatures it has excellent thermal stability for reducing carbon deposit formation.
RAVENOL SCR PAO 32 Screw Kompressorenöl shows good protection against wear, protects against rust and corrosion. Low volatility reduces oil carry-over into the air system. Reduces fluid consumption.
The full benefits of a change to RAVENOL SCR PAO 32 Screw Kompressorenöl will only be realized by minimizing contamination with the previously used oil. Certain makes of compressors do not permit completedraining, so if the drained oil is heavily oxidized (shown by significant increase in the oil’s total acid number and viscosity), recharging with RAVENOL SCR PAO 32 Screw Kompressorenöl may not result in optimum performance and fluid service life.
RAVENOL SCR PAO 32 Screw Kompressorenöl has excellent oxidation stability, corrosion, deposit control and low volatility and provides up to 8,000 hours of continuous worry-free service for lubrication, sealing and effective heat removal for efficient compressor performance.
Application Note
RAVENOL SCR PAO 32 Screw Kompressorenöl is recommended for use in rotary screw air compressors.
While RAVENOL SCR PAO 32 Screw Kompressorenöl is fully compatible with most mineral and synthetic compressor fluids, it should not be mixed or contaminated with fluids containing polyalkylene glycols or silicones.
Characteristics
- High oxidation stability.
- Excellent protection against rust and corrosion.
- Excellent resistance to oxidative breakdown caused by exposure to air at high discharge temperatures
- Higher thermal stability reduces carbon deposit formation.
- Improved viscosity index and good low temperature properties.
- Good protection against wear.
- Protects against rust and corrosion.
- Low volatility reduces oil carry-over into the air system.
- Reduces fluid consumption.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 32W |
32W
|
||
| Type | Full synthetic |
Full synthetic
|
||
| Recomendations | DIN 51 506 VDL |
DIN 51 506 VDL
|
||
| specification | ISO ISO VG Class 32 |
ISO ISO VG Class 32
|
||
| Density at 20 °C | kg/m³ | 839 | EN ISO 12185 |
839
kg/m³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 6 | DIN 51562-1 |
6
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 30.9 | DIN 51562-1 |
30.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 142 | DIN ISO 2909 |
142
DIN ISO 2909
|
|
| Pourpoint | °C | -69 | DIN ISO 3016 |
-69
°C
DIN ISO 3016
|
| Flashpoint | °C | 250 | DIN EN ISO 2592 |
250
°C
DIN EN ISO 2592
|
| Acid Number TAN | mgKOH/g | 0.15 | ASTM D664 |
0.15
mgKOH/g
ASTM D664
|
| Water separation | ml/54°Cmin | 40-40-0 (5) | ASTM D1401 |
40-40-0 (5)
ml/54°Cmin
ASTM D1401
|
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Corrosion: | 3h 100 °C | 1a | ASTM D130 |
1a
3h 100 °C
ASTM D130
|
| Rust A – distilled Water | passed | ASTM D665 |
passed
ASTM D665
|
|
| Rust B – Synthetic Sea Water | passed | ASTM D665 |
passed
ASTM D665
|
|
| Conradson Carbon Residue mass | % | — 0.1 | ASTM D524 |
— 0.1
%
ASTM D524
|
| Approvals | DIN 51 506 VDL, ISO ISO VG Class 32 |
DIN 51 506 VDL, ISO ISO VG Class 32
|

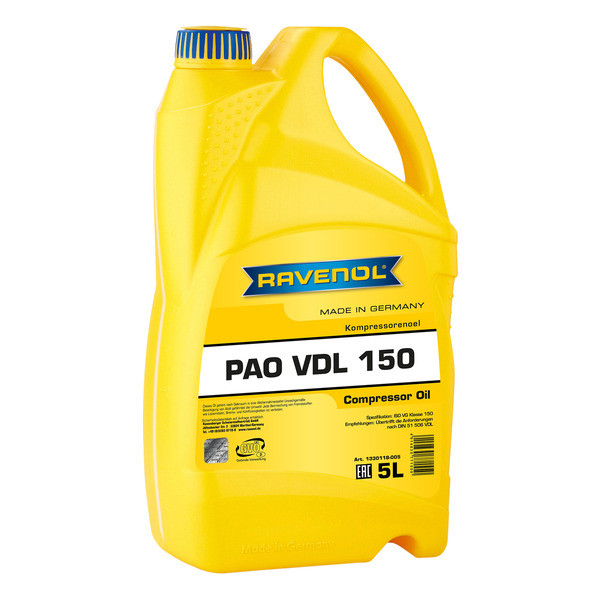

RAVENOL Kompressorenoel PAO VDL 150 contains additives, which ensure an excellent wear protection and protects against residue and corrosion (both steel and non-ferrous metal). Most compressors have to work under high temperature so that the used oil has to have a good aging resistance but also a low residue building.
Compliance with the requirements:
DIN 51 506 VDL
SAE: 150
- Available packaging
- Product parameters
RAVENOL Kompressorenoel PAO VDL 150 contains additives, which ensure an excellent wear protection and protects against residue and corrosion (both steel and non-ferrous metal). Most compressors have to work under high temperature so that the used oil has to have a good aging resistance but also a low residue building.
In addition RAVENOL Kompressorenoel PAO VDL 150 conforms to its ISO VG Class and shows a remarkable low evaporative behavior an outstanding demulsifying power as well as excellent air separation ability. It ensures certain lubrication not only in the high temperature range but also in cold condition of the compressor to reach a wear minimisation. By the use of selected and matched additives the tendency of coking and flammable residues is minimized.
Application Note
RAVENOL Kompressorenoel PAO VDL 150 is recommended for all compressors especially in rotary screw air compressors.
Characteristics
- High oxidation stability.
- Excellent protection against rust and corrosion.
- Best wear protection. Keeps compressor components free of sludge and varnish to ensure trouble free operation and lower maintenance costs on fluid change-out.
- Very low evaporative behavior and an outstanding demulsifying power.
- Excellent air separation ability.
- Better resistance to oxidative breakdown.
- Extends oil change intervals up to 8.000 hours service in rotary screw compressors and 1.000 hours service in rotary vane compressors.
- Improves compressor operating efficiency, lower energy consumption costs by reducing of oil thickening.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Noack Volatility | % M/M | 1.32 | ASTM D5800 |
1.32
% M/M
ASTM D5800
|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 150 |
150
|
||
| Type | Full synthetic |
Full synthetic
|
||
| Recomendations | DIN 51 506 VDL |
DIN 51 506 VDL
|
||
| specification | ISO VG Class 150 |
ISO VG Class 150
|
||
| Density at 20 °C | kg/m³ | 868 | EN ISO 12185 |
868
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 16.1 | DIN 51562-1 |
16.1
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 146.5 | DIN 51562-1 |
146.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 115 | DIN ISO 2909 |
115
DIN ISO 2909
|
|
| Pourpoint | °C | -24 | DIN ISO 3016 |
-24
°C
DIN ISO 3016
|
| Flashpoint | °C | 287 | DIN EN ISO 2592 |
287
°C
DIN EN ISO 2592
|
| Acid Number TAN | mgKOH/g | 0.14 | ASTM D664 |
0.14
mgKOH/g
ASTM D664
|
| Water separation | ml/54°Cmin | 41-40-0 (10) | ASTM D1401 |
41-40-0 (10)
ml/54°Cmin
ASTM D1401
|
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 10/0 | ASTM D892 |
10/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Corrosion: | 3h 100 °C | 1a | ASTM D130 |
1a
3h 100 °C
ASTM D130
|
| Rust A – distilled Water | passed | ASTM D665 |
passed
ASTM D665
|
|
| Rust B – Synthetic Sea Water | passed | ASTM D665 |
passed
ASTM D665
|
|
| Conradson Carbon Residue mass | % | — 0.1 | ASTM D524 |
— 0.1
%
ASTM D524
|
| Approvals | DIN 51 506 VDL, ISO VG Class 150 |
DIN 51 506 VDL, ISO VG Class 150
|
RAVENOL Kompressorenoel PAO VDL 100 contains additives, which ensure an excellent wear protection and protects against residue and corrosion (both steel and non-ferrous metal). Most compressors have to work under high temperature so that the used oil has to have a good aging resistance but also a low residue building.
Compliance with the requirements:
DIN 51 506 VDL
SAE: 100
- Available packaging
- Product parameters
Volume:
5 L
vendor code:
1330117-005
Volume:
60 L
vendor code:
1330117-060
Volume:
208 L
vendor code:
1330117-208
RAVENOL Kompressorenoel PAO VDL 100 contains additives, which ensure an excellent wear protection and protects against residue and corrosion (both steel and non-ferrous metal). Most compressors have to work under high temperature so that the used oil has to have a good aging resistance but also a low residue building.
In addition RAVENOL Kompressorenoel PAO VDL 100 conforms to its ISO VG Class and shows a remarkable low evaporative behavior an outstanding demulsifying power as well as excellent air separation ability. It ensures certain lubrication not only in the high temperature range but also in cold condition of the compressor to reach a wear minimisation. By the use of selected and matched additives the tendency of coking and flammable residues is minimized.
Application Note
RAVENOL Kompressorenoel PAO VDL 100 is recommended for all compressors especially in rotary screw air compressors.
Characteristics
- High oxidation stability.
- Excellent protection against rust and corrosion.
- Best wear protection. Keeps compressor components free of sludge and varnish to ensure trouble free operation and lower maintenance costs on fluid change-out.
- Very low evaporative behavior and an outstanding demulsifying power
- Excellent air separation ability.
- Better resistance to oxidative breakdown.
- Extends oil change intervals up to 8.000 hours service in rotary screw compressors and 1.000 hours service in rotary vane compressors.
- Improves compressor operating efficiency, lower energy consumption costs by reducing of oil thickening.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Noack Volatility | % M/M | 2.54 | ASTM D5800 |
2.54
% M/M
ASTM D5800
|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 100 |
100
|
||
| Type | Full synthetic |
Full synthetic
|
||
| Recomendations | DIN 51 506 VDL |
DIN 51 506 VDL
|
||
| Density at 20 °C | kg/m³ | 866 | EN ISO 12185 |
866
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.1 | DIN 51562-1 |
14.1
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 100.7 | DIN 51562-1 |
100.7
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 143 | DIN ISO 2909 |
143
DIN ISO 2909
|
|
| Pourpoint | °C | -27 | DIN ISO 3016 |
-27
°C
DIN ISO 3016
|
| Flashpoint | °C | 263 | DIN EN ISO 2592 |
263
°C
DIN EN ISO 2592
|
| Acid Number TAN | mgKOH/g | 0.11 | ASTM D664 |
0.11
mgKOH/g
ASTM D664
|
| Water separation | ml/54°Cmin | 41-39-0 (10) | ASTM D1401 |
41-39-0 (10)
ml/54°Cmin
ASTM D1401
|
| Seq. I at 24 °C | ml/ml | 10/0 | ASTM D892 |
10/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Corrosion: | 3h 100 °C | 1a | ASTM D130 |
1a
3h 100 °C
ASTM D130
|
| Rust A – distilled Water | passed | ASTM D665 |
passed
ASTM D665
|
|
| Rust B – Synthetic Sea Water | passed | ASTM D665 |
passed
ASTM D665
|
|
| Conradson Carbon Residue mass | % | — 0.1 | ASTM D524 |
— 0.1
%
ASTM D524
|
| Approvals | DIN 51 506 VDL |
DIN 51 506 VDL
|
RAVENOL Kompressorenoel VDL 32 has a good adhesion, is water repellent and wear reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.
SAE: 32W
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1330097-020
Volume:
208 L
vendor code:
1330097-208
RAVENOL Kompressorenoel VDL 32 has a good adhesion, is water repellent and wear reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.
RAVENOL Kompressorenoel VDL 32 provides a secure lubrication not only in the upper temperature range, also in the cold state of the compressor to achieve a reduction of wear. By selected and coordinated additive composition the tendency to coking and the formation of flammable residues is minimized.
Application Note
RAVENOL Kompressorenoel VDL 32 can be used in stationary and mobile compressors with discharge temperatures up to 220 °C.
RAVENOL Kompressorenoel VDL 32 can also be used for lubrication of engines and diesel engines where the manufacturer does not stipulate any HD motor oil.
Exceeds the requirements for VBL- and VCL-Oils.
Characteristics
- Excellent aging resistance
- Reliable wear protection
- Excellent viscosity-temperature behavior
- Very good cold starting properties
- Low coking tendency
- Neutral towards sealing materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 32W |
32W
|
||
| Type | Mineral |
Mineral
|
||
| specification | DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH |
DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH
|
||
| Suitable for | ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER |
ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER
|
||
| Density at 20 °C | kg/m³ | 854 | EN ISO 12185 |
854
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 5.8 | DIN 51562-1 |
5.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 32.1 | DIN 51562-1 |
32.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 122 | DIN ISO 2909 |
122
DIN ISO 2909
|
|
| Pourpoint | °C | -27 | DIN ISO 3016 |
-27
°C
DIN ISO 3016
|
| Flashpoint | °C | 222 | DIN EN ISO 2592 |
222
°C
DIN EN ISO 2592
|
| Approvals | DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH |
DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH
|

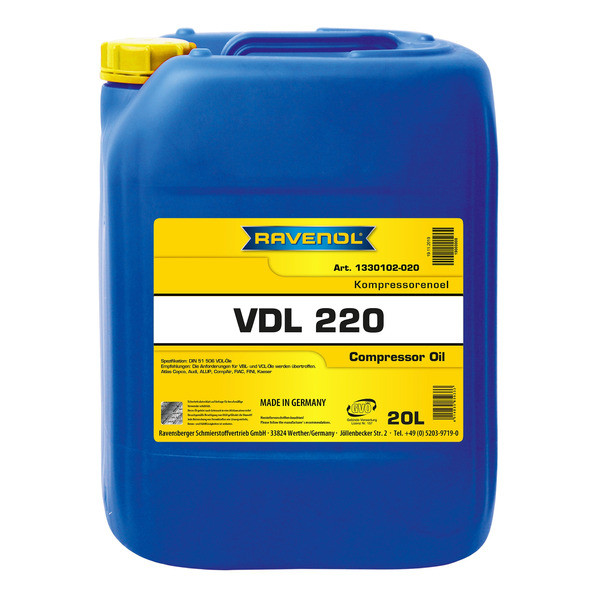

RAVENOL Kompressorenoel VDL 220 has a good adhesion, is water repellent and wear reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.
SAE: 220
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1330102-020
Volume:
60 L
vendor code:
1330102-060
Volume:
208 L
vendor code:
1330102-208
RAVENOL Kompressorenoel VDL 220 has a good adhesion, is water repellent and wear reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.
RAVENOL Kompressorenoel VDL 220 provides a secure lubrication not only in the upper temperature range, also in the cold state of the compressor to achieve a reduction of wear. By selected and coordinated additive composition the tendency to coking and the formation of flammable residues is minimized.
Application Note
RAVENOL Kompressorenoel VDL 220 can be used in stationary and mobile compressors with discharge temperatures up to 220°C.
RAVENOL Kompressorenoel VDL 220 can also be used for lubrication of engines and diesel engines where the manufacturer does not stipulate any HD motor oil.
Exceeds the requirements for VBL- and VCL-oils.
Characteristics
- Excellent aging resistance
- Best wear protection
- Excellent viscosity-temperature behavior
- Very good cold starting properties
- Low coking tendency
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 220 |
220
|
||
| Type | Mineral |
Mineral
|
||
| specification | DIN 51506 VDL |
DIN 51506 VDL
|
||
| Suitable for | ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER, VW |
ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER, VW
|
||
| Density at 20 °C | kg/m³ | 893 | EN ISO 12185 |
893
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 18.8 | DIN 51562-1 |
18.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 226.5 | DIN 51562-1 |
226.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 93 | DIN ISO 2909 |
93
DIN ISO 2909
|
|
| Pourpoint | °C | -9 | DIN ISO 3016 |
-9
°C
DIN ISO 3016
|
| Flashpoint | °C | 276 | DIN EN ISO 2592 |
276
°C
DIN EN ISO 2592
|
| Approvals | DIN 51506 VDL |
DIN 51506 VDL
|

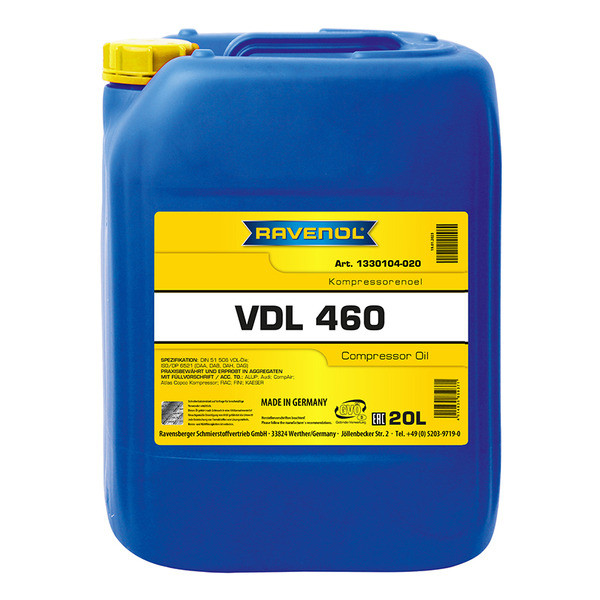

RAVENOL Kompressorenoel VDL 460 has a good adhesion, is water repellent and wear reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.
SAE: 460
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1330104-020
RAVENOL Kompressorenoel VDL 460 has a good adhesion, is water repellent and wear reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.
RAVENOL Kompressorenoel VDL 460 provides a secure lubrication not only in the upper temperature range, also in the cold state of the compressor to achieve a reduction of wear. By selected and coordinated additive composition the tendency to coking and the formation of flammable residues is minimized.
Application Note
RAVENOL Kompressorenoel VDL 460 can be used in stationary and mobile compressors with discharge temperatures up to 220°C.
RAVENOL Kompressorenoel VDL 460 can also be used for lubrication of engines and diesel engines where the manufacturer does not stipulate any HD motor oil.
Exceeds the requirements for VBL- and VCL-oils.
Characteristics
- Excellent aging resistance
- Reliable wear protection
- Excellent viscosity-temperature behavior
- Good cold starting properties
- Low coking tendency
- Neutral towards sealing materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 460 |
460
|
||
| Type | Mineral |
Mineral
|
||
| specification | DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH |
DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH
|
||
| Suitable for | ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER, VW |
ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER, VW
|
||
| Density at 20 °C | kg/m³ | 899 | EN ISO 12185 |
899
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 29.8 | DIN 51562-1 |
29.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 463 | DIN 51562-1 |
463
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 92 | DIN ISO 2909 |
92
DIN ISO 2909
|
|
| Pourpoint | °C | -9 | DIN ISO 3016 |
-9
°C
DIN ISO 3016
|
| Flashpoint | °C | 310 | DIN EN ISO 2592 |
310
°C
DIN EN ISO 2592
|
| Approvals | DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH |
DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH
|

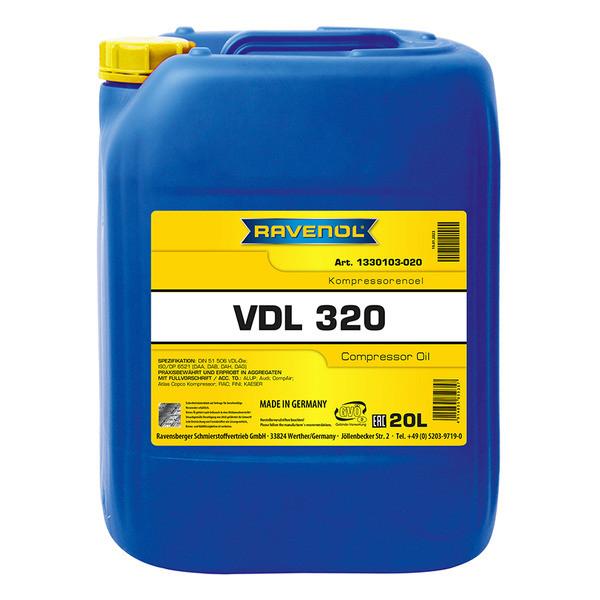

RAVENOL Kompressorenoel VDL 320 has a good adhesion, is water repellent and wear reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.
SAE: 320
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1330103-020
RAVENOL Kompressorenoel VDL 320 has a good adhesion, is water repellent and wear reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.
RAVENOL Kompressorenoel VDL 320 provides a secure lubrication not only in the upper temperature range, also in the cold state of the compressor to achieve a reduction of wear. By selected and coordinated additive composition the tendency to coking and the formation of flammable residues is minimized.
Application Note
RAVENOL Kompressorenoel VDL 320 can be used in stationary and mobile compressors with discharge temperatures up to 220°C.
RAVENOL Kompressorenoel VDL 320 can also be used for lubrication of engines and diesel engines where the manufacturer does not stipulate any HD motor oil.
Exceeds the requirements for VBL- and VCL-oils.
Characteristics
- Excellent aging resistance
- Reliable wear protection
- Excellent viscosity-temperature behavior
- Good cold starting properties
- Low coking tendency
- Neutral towards sealing materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 320 |
320
|
||
| Type | Mineral |
Mineral
|
||
| specification | DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH |
DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH
|
||
| Suitable for | ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER, VW |
ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER, VW
|
||
| Density at 20 °C | kg/m³ | 987 | EN ISO 12185 |
987
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 24 | DIN 51562-1 |
24
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 330.4 | DIN 51562-1 |
330.4
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 93 | DIN ISO 2909 |
93
DIN ISO 2909
|
|
| Pourpoint | °C | -9 | DIN ISO 3016 |
-9
°C
DIN ISO 3016
|
| Flashpoint | °C | 294 | DIN EN ISO 2592 |
294
°C
DIN EN ISO 2592
|
| Approvals | DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH |
DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH
|
is a special ageing-resistant-lubricating oils offering minimal coking based on high-quality age-resistant base oils with ash less additives to improve corrosion protection and ageing stability and meets the high requirements of DIN 51 506.
SAE: 68
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1330099-001
Volume:
5 L
vendor code:
1330099-005
Volume:
20 L
vendor code:
1330099-020
is a special ageing-resistant-lubricating oils offering minimal coking based on high-quality age-resistant base oils with ash less additives to improve corrosion protection and ageing stability and meets the high requirements of DIN 51 506.
RAVENOL Kompressorenoel VDL 68 has a good adhesion, is water repellent and wear reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.
RAVENOL Kompressorenoel VDL 68 provides a secure lubrication not only in the upper temperature range, also in the cold state of the compressor to achieve a reduction of wear. By selected and coordinated additive composition the tendency to coking and the formation of flammable residues is minimized.
Application Note
RAVENOL Kompressorenoel VDL 68 can be used in stationary and mobile compressors with discharge temperatures up to 220°C.
RAVENOL Kompressorenoel VDL 68 can also be used for lubrication of engines and diesel engines where the manufacturer does not stipulate any HD motor oil.
RAVENOL Kompressorenoel VDL 68 is not recommended for ATLAS COPCA GA xx series compressors.
Exceeds the requirements for VBL- and VCL-Oils.
Characteristics
- Ashless active substances
- Excellent aging resistance
- Reliable wear protection
- Excellent viscosity-temperature behavior
- Very good cold starting properties
- Low coking tendency
- Neutral towards sealing materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 68 |
68
|
||
| Type | Mineral |
Mineral
|
||
| specification | DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH |
DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH
|
||
| Suitable for | ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER, VW |
ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER, VW
|
||
| Density at 20 °C | kg/m³ | 868 | EN ISO 12185 |
868
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 9 | DIN 51562-1 |
9
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 69 | DIN 51562-1 |
69
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 104 | DIN ISO 2909 |
104
DIN ISO 2909
|
|
| Pourpoint | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
| Flashpoint | °C | 262 | DIN EN ISO 2592 |
262
°C
DIN EN ISO 2592
|
| Approvals | DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH |
DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH
|
RAVENOL Kompressorenoel VDL 46 has a good adhesion, is water repellent and wear reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.
SAE: 46
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1330098-001
Volume:
5 L
vendor code:
1330098-005
Volume:
20 L
vendor code:
1330098-020
Volume:
208 L
vendor code:
1330098-208
Volume:
10 L
vendor code:
1330098-010
RAVENOL Kompressorenoel VDL 46 has a good adhesion, is water repellent and wear reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.
RAVENOL Kompressorenoel VDL 46 provides a secure lubrication not only in the upper temperature range, also in the cold state of the compressor to achieve a reduction of wear. By selected and coordinated additive composition the tendency to coking and the formation of flammable residues is minimized.
Application Note
RAVENOL Kompressorenoel VDL 46 can be used in stationary and mobile compressors with discharge temperatures up to 220°C.
RAVENOL Kompressorenoel VDL 46 can also be used for lubrication of engines and diesel engines where the manufacturer does not stipulate any HD motor oil.
RAVENOL Kompressorenoel VDL 46 is not recommended for ATLAS COPCA GA xx series compressors.
Exceeds the requirements for VBL- and VCL-Oils.
Characteristics
- Ashless active substances
- Excellent aging resistance
- Reliable wear protection
- Excellent viscosity-temperature behavior
- Very good cold starting properties
- Low coking tendency
- Neutral towards sealing materials
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 46 |
46
|
||
| Type | Mineral |
Mineral
|
||
| specification | DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH |
DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH
|
||
| Suitable for | ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER, VW |
ALUP, Atlas Copco Kompressor, CompAir, FIAC, FINI, KAESER, VW
|
||
| Density at 20 °C | kg/m³ | 840 | EN ISO 12185 |
840
kg/m³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.8 | DIN 51562-1 |
7.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 46.1 | DIN 51562-1 |
46.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 137 | DIN ISO 2909 |
137
DIN ISO 2909
|
|
| Pourpoint | °C | -24 | DIN ISO 3016 |
-24
°C
DIN ISO 3016
|
| Flashpoint | °C | 274 | DIN EN ISO 2592 |
274
°C
DIN EN ISO 2592
|
| Approvals | DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH |
DIN 51506 VDL, ISO/DP 6521 L-DAA, ISO/DP 6521 L-DAB, ISO/DP 6521 L-DAG, ISO/DP 6521 L-DAH
|

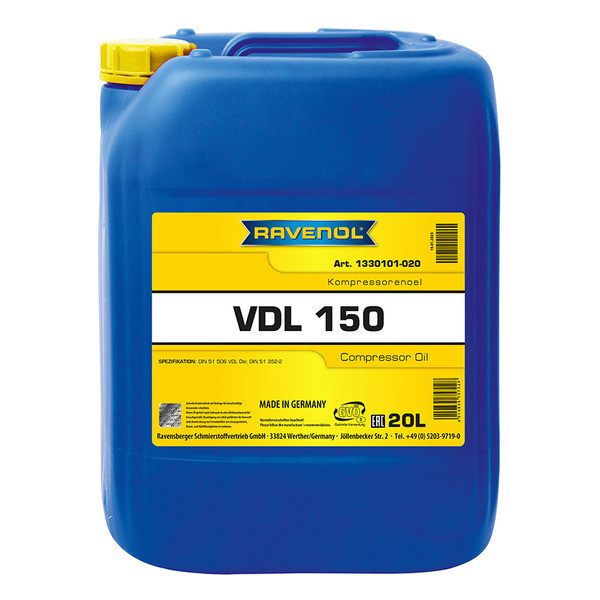

RAVENOL Kompressorenoel VDL 150 has a good adhesion, is water repellent and wear-reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.
SAE: 150
- Available packaging
- Product parameters
Volume:
20 L, ecobox
vendor code:
1330101-B20
Volume:
1000 L
vendor code:
1330101-700
Volume:
60 L
vendor code:
1330101-060
RAVENOL Kompressorenoel VDL 150 has a good adhesion, is water repellent and wear-reducing. As many compressors operate at high temperatures, the oil should have good aging resistance at very low residue formation.
RAVENOL Kompressorenoel VDL 150 provides a secure lubrication not only in the upper temperature range, also in the cold state of the compressor to achieve a reduction of wear. By selected and coordinated additive composition the tendency to coking and the formation of flammable residues is minimized.
Application Note
RAVENOL Kompressorenoel VDL 150 can be used in stationary and mobile compressors with discharge temperatures up to 220°C.
RAVENOL Kompressorenoel VDL 150 can also be used for circular lubrication of engines and diesel engines where the manufacturer does not stipulate any HD motor oil.
Characteristics
- Excellent aging resistance
- Best wear protection
- Excellent viscosity-temperature behavior
- Very good cold starting properties
- Low coking tendency
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 150 |
150
|
||
| Type | Mineral |
Mineral
|
||
| specification | DIN 51352-2, DIN 51506 VDL |
DIN 51352-2, DIN 51506 VDL
|
||
| Density at 20 °C | kg/m³ | 885 | EN ISO 12185 |
885
kg/m³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.4 | DIN 51562-1 |
14.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 148.2 | DIN 51562-1 |
148.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 97 | DIN ISO 2909 |
97
DIN ISO 2909
|
|
| Pourpoint | °C | -20 | DIN ISO 3016 |
-20
°C
DIN ISO 3016
|
| Flashpoint | °C | 240 | DIN EN ISO 2592 |
240
°C
DIN EN ISO 2592
|
| Acid Number TAN | mgKOH/g | 0.45 | ASTM D664 |
0.45
mgKOH/g
ASTM D664
|
| Approvals | DIN 51506 VDL, DIN 51352-2 |
DIN 51506 VDL, DIN 51352-2
|
