Search results for query «S-200 Oxidation Tubes»

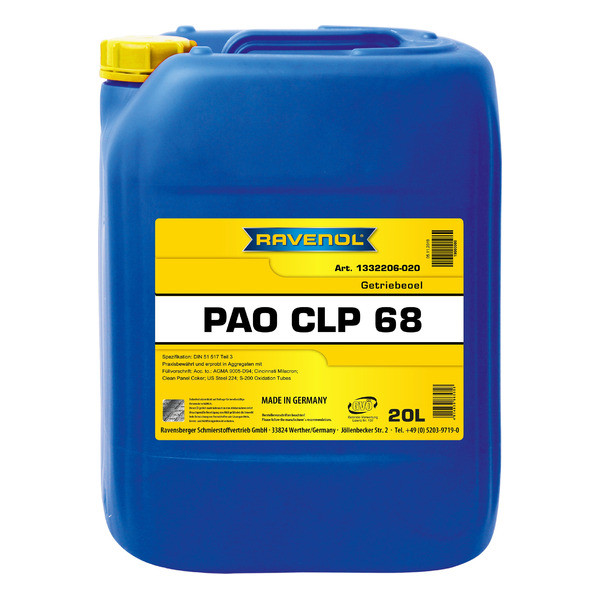

Getriebeoel PAO CLP 68

Getriebeoel PAO CLP 68

RAVENOL Getriebeoel PAO CLP 68 is formulated using PAO synthetic base oils and additive technologies to deliver excellent wear properties, outstanding extreme temperature performance for extended component and fluid life.

Compliance with the requirements:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224

show details hide details
  • Available packaging
  • Full description
  • Product parameters

Volume:
20 L

vendor code:
1332206-020

Code:
4014835865358

Volume:
208 L

vendor code:
1332206-208

Volume:
20 L

vendor code:
1332206-020

RAVENOL Getriebeoel PAO CLP 68 is formulated using PAO synthetic base oils and additive technologies to deliver excellent wear properties, outstanding extreme temperature performance for extended component and fluid life.

RAVENOL Getriebeoel PAO CLP 68 enhances gear box efficiency over a wide temperature range and can reduce power consumption.

Application Note

RAVENOL Getriebeoel PAO CLP 68 is recommended for enclosed industrial gear drives and bearings particularly where they are operated under heavy duty conditions such as heavy loading, slow speed, shock loads and in wide extremes of temperature.The tough oil film of RAVENOL Getriebeoel PAO CLP 68 and low coefficient of friction save energy in gearboxes. The high viscosity index of RAVENOL Getriebeoel PAO CLP 68 means they retain their viscosity at high operating temperatures. This often allows the use of a lower ISO grade than with conventional gear oil resulting in even greater energy savings.

RAVENOL Getriebeoel PAO CLP 68 is designed to combat these conditions and will run cooler while maintaining a high lubricant film strength. For gearboxes that operate outdoors. When converting a gearbox to RAVENOL Getriebeoel PAO CLP 68, it is recommended to be cleaned and flushed first to gain the full benefit of the product.

RAVENOL Getriebeoel PAO CLP 68 operates over the temperature range from -50°C to 150°C, with simultaneous corrosion protection for colored metal parts.

Characteristics

  • A very stable high-pressure capacity for impact loads
  • Excellent performance at extreme temperatures, protects the plant.
  • A very low pour point.
  • Excellent wear protection.
  • Provides excellent resistance to rust and copper corrosion.
  • Low foaming.
  • Protects equipment that operates under harsh conditions and high loads.
  • Extends the service life of the gearboxes and bearings and thus of the systems.
  • Provides trouble-free operation over a wide temperature and load range.
  • Excellent film strength and high pressure properties.
  • Reduces the likelihood of chafing and fretting wear, as well as breakage of the gear teeth and bearing surface under high loads.
  • The synthetic formulation reduces friction, therefore energy efficient in a wide temperature range.
  • High viscosity index (VI) for a wide operating temperature range.
Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
Type Full synthetic
Full synthetic
Recomendations AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
specification DIN 51517-3
DIN 51517-3
Suitable for Cincinnati Milacron
Cincinnati Milacron
Density at 20 °C kg/m³ 843 EN ISO 12185
843 kg/m³ EN ISO 12185
Color light yellow visual
light yellow visual
Viscosity at 100 °C mm²/s 11.7 DIN 51562-1
11.7 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 66.5 DIN 51562-1
66.5 mm²/s DIN 51562-1
Viscosity Index VI 173 DIN ISO 2909
173 DIN ISO 2909
Pourpoint °C -63 DIN ISO 3016
-63 °C DIN ISO 3016
Flashpoint °C 252 DIN EN ISO 2592
252 °C DIN EN ISO 2592
Copper Strip Test at 150 °C 1a ASTM D130
1a ASTM D130
Approvals AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
Getriebeöl PAO CLP 680

Getriebeöl PAO CLP 680

RAVENOL Getriebeoel CLP 680 has a low pour point and therefore, an extremely good low-temperature performance.

Compliance with the requirements:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224

show details hide details

SAE: 680

  • Available packaging
  • Full description
  • Product parameters

Volume:
20 L

vendor code:
1332112-020

Volume:
20 L, ecobox

vendor code:
1332112-B20

Volume:
1000 L

vendor code:
1332112-700

Volume:
208 L

vendor code:
1332112-208

RAVENOL Getriebeoel CLP 680 has a low pour point and therefore, an extremely good low-temperature performance.

Application Note

RAVENOL Getriebeoel CLP 680 can be used as a lubricant in almost all industrial gears under heavy load and / or shock load due to its excellent properties.

Characteristics

  • Excellent, stable high pressure absorption capacity for impact loads
  • Stable properties in increased temperatures
  • A good rust-inhibiting and anticorrosive effect
  • Excellent wear protection
  • Very good effect against foaming
  • A low pour point
  • Excellent low-temperature performance
Parameter Unit Value Audit
SAE 680
680
Brand RAVENOL
RAVENOL
Type Mineral
Mineral
Recomendations AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
specification DIN 51517-3
DIN 51517-3
Suitable for Cincinnati Milacron
Cincinnati Milacron
Density at 20 °C kg/m³ 903 EN ISO 12185
903 kg/m³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 37.4 DIN 51562-1
37.4 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 666.2 DIN 51562-1
666.2 mm²/s DIN 51562-1
Viscosity Index VI 91 DIN ISO 2909
91 DIN ISO 2909
Pourpoint °C -12 DIN ISO 3016
-12 °C DIN ISO 3016
Flashpoint °C 312 DIN EN ISO 2592
312 °C DIN EN ISO 2592
Approvals AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224

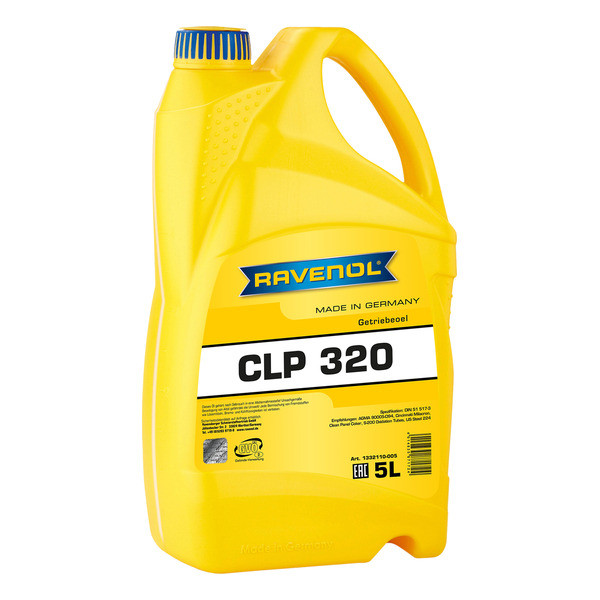

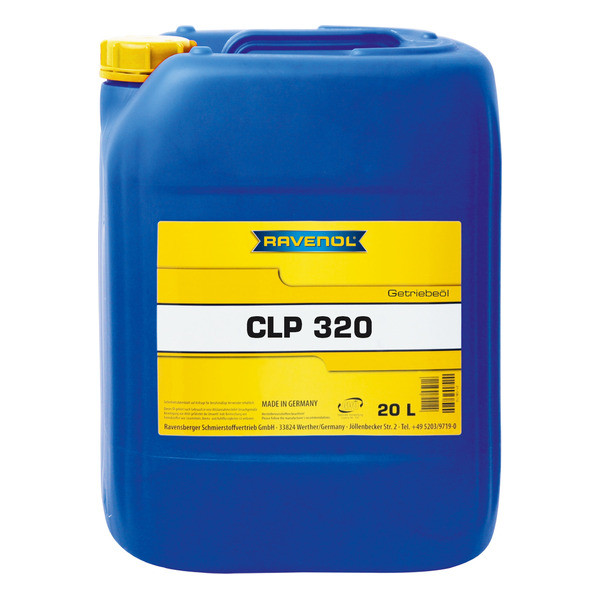

Getriebeoel CLP 320

Getriebeoel CLP 320

RAVENOL Getriebeoel CLP 320 is a high quality, mineral-based gear oil formulated with lead-free high-pressure additives (EP add itives). Its special active substance combination provides a good, stable high-pressure impact load capacity.

Compliance with the requirements:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224

show details hide details

SAE: 320

  • Available packaging
  • Full description
  • Product parameters

RAVENOL Getriebeoel CLP 320 has a low pour point and therefore a very good cold behaviour.

Application Note:

RAVENOL Getriebeoel CLP 320 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impac t characteristics.

Characteristics:

  • A very good, stable high-pressure impact capacity.
  • Resistant characteristics at high temperatures
  • A good rust and corrosion impeding effect
  • Excellent wear protection
  • Very good anti-foaming characteristics
  • A low pour point
  • Very good cold behaviour

Parameter Unit Value Audit
SAE 320
320
Type Mineral
Mineral
ASTM
Manufacturer Approved
Recomendations AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
Rennstrecken-Partnerschaft
Rennstrecken-Partner
specification DIN 51517-3
DIN 51517-3
Suitable for Cincinnati Milacron
Cincinnati Milacron
Compliant products
Density at 20 °C kg/m³ 395 EN ISO 12185
395 kg/m³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 24.3 DIN 51562-1
24.3 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 327.6 DIN 51562-1
327.6 mm²/s DIN 51562-1
Viscosity Index VI 95 DIN ISO 2909
95 DIN ISO 2909
Pourpoint °C -9 DIN ISO 3016
-9 °C DIN ISO 3016
Flashpoint °C 244 DIN EN ISO 2592
244 °C DIN EN ISO 2592
Approvals AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
Getriebeöl CLP 46

Getriebeöl CLP 46

Application NoteRAVENOL Getriebeoel CLP 46 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.

Compliance with the requirements:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224

show details hide details

SAE: 46

  • Available packaging
  • Full description
  • Product parameters

Volume:
20 L

vendor code:
1332105-020

Volume:
208 L

vendor code:
1332105-208

Application Note

RAVENOL Getriebeoel CLP 46 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.

Characteristics

  • A very good, stable high-pressure absorption capacity under shock loads.
  • Resistant properties at elevated temperatures
  • A good anti-rust and anti-corrosion effect
  • Excellent wear protection
  • A very good effect against foam formation
  • A low pour point
  • Very good cold behavior
Parameter Unit Value Audit
SAE 46
46
Brand RAVENOL
RAVENOL
Type Mineral
Mineral
Recomendations AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
specification DIN 51517-3
DIN 51517-3
Suitable for Cincinnati Milacron
Cincinnati Milacron
Density at 20 °C kg/m³ 857 EN ISO 12185
857 kg/m³ EN ISO 12185
Color Yellow visual
Yellow visual
Viscosity at 100 °C mm²/s 7 DIN 51562-1
7 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 44.8 DIN 51562-1
44.8 mm²/s DIN 51562-1
Viscosity Index VI 114 DIN ISO 2909
114 DIN ISO 2909
Pourpoint °C -30 DIN ISO 3016
-30 °C DIN ISO 3016
Flashpoint °C 224 DIN EN ISO 2592
224 °C DIN EN ISO 2592
Approvals AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
Getriebeoel CLP 32

Getriebeoel CLP 32

is a high quality, mineral-based gear oil formulated with selected high-pressure additives (EP additives). Its special active substance combination provides a good, stable high-pressure impact load capacity.

Compliance with the requirements:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224

show details hide details

SAE: 32W

  • Available packaging
  • Full description
  • Product parameters

Volume:
20 L

vendor code:
1332104-020

is a high quality, mineral-based gear oil formulated with selected high-pressure additives (EP additives). Its special active substance combination provides a good, stable high-pressure impact load capacity.

RAVENOL Getriebeoel CLP 32

has a low pour point and therefore a very good cold behaviour.

Application Note

RAVENOL Getriebeoel CLP 3

can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.

Characteristics

  • A very good, stable high-pressure absorption capacity under shock loads.
  • Resistant properties at elevated temperatures
  • A good anti-rust and anti-corrosion effect
  • Excellent wear protection
  • A very good effect against foam formation
  • A low pour point
  • A very good cold behavior
Parameter Unit Value Audit
SAE 32W
32W
Brand RAVENOL
RAVENOL
Type Mineral
Mineral
Recomendations AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
specification DIN 51517-3
DIN 51517-3
Suitable for Cincinnati Milacron
Cincinnati Milacron
Density at 20 °C kg/m³ 854 EN ISO 12185
854 kg/m³ EN ISO 12185
Color Yellow visual
Yellow visual
Viscosity at 100 °C mm²/s 6 DIN 51562-1
6 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 34.6 DIN 51562-1
34.6 mm²/s DIN 51562-1
Viscosity Index VI 119 DIN ISO 2909
119 DIN ISO 2909
Pourpoint °C -30 DIN ISO 3016
-30 °C DIN ISO 3016
Flashpoint °C 205 DIN EN ISO 2592
205 °C DIN EN ISO 2592
Approvals AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224

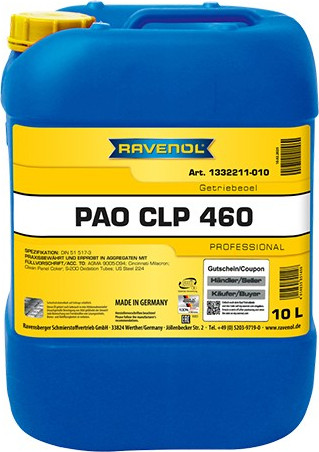

Getriebeoel PAO CLP 460

Getriebeoel PAO CLP 460

RAVENOL Getriebeöl PAO CLP 460 is formulated using PAO synthetic base oils and additive technologies to deliver excellent wear properties, outstanding extreme temperature performance for extended component and fluid life.

Compliance with the requirements:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224

show details hide details

SAE: 460

  • Available packaging
  • Full description
  • Product parameters

Volume:
20 L

vendor code:
1332211-020

Code:
4014835762428

Volume:
60 L

vendor code:
1332211-060

Volume:
208 L

vendor code:
1332211-208

Volume:
10 L

vendor code:
1332211-010

RAVENOL Getriebeöl PAO CLP 460 is formulated using PAO synthetic base oils and additive technologies to deliver excellent wear properties, outstanding extreme temperature performance for extended component and fluid life.

RAVENOL Getriebeöl PAO CLP 460 enhances gear box efficiency over a wide temperature range and can reduce power consumption.

RAVENOL Getriebeöl PAO CLP 460 is free of zinc and ash due to its formulation.

Application Note

RAVENOL Getriebeöl PAO CLP 460 is recommended for enclosed industrial gear drives and bearings particularly where they are operated under heavy duty conditions such as heavy loading, slow speed, shock loads and in wide extremes of temperature.

The tough oil film of RAVENOL Getriebeöl PAO CLP 460 and low coefficient of friction save energy in gearboxes. The high viscosity index of RAVENOL Getriebeöl PAO CLP 460 means they retain their viscosity at high operating temperatures. This often allows the use of a lower ISO grade than with conventional gear oil resulting in even greater energy savings.

RAVENOL Getriebeöl PAO CLP 460 is designed to combat these conditions and will run cooler while maintaining a high lubricant film strength. For gearboxes that operate outdoors.

When converting a gearbox to RAVENOL Getriebeöl PAO CLP 460, it is recommended to be cleaned and flushed first to gain the full benefit of the product.

RAVENOL Getriebeöl PAO CLP 460 is compatible with mineral oils, polyalphaolefin lubricants and most seal materials except natural rubber.

RAVENOL Getriebeöl PAO CLP 460 operates over the temperature range from -50°C to 120°C.

Characteristics

  • An excellent wear protection
  • Extends the life of gears and bearings and the plant
  • Protects plants, which are operated under harsh conditions and high load
  • Allows trouble-free operation in a wide temperature and load range
  • A very stable high-pressure absorption capacity under shock loads
  • A low foaming tendency
  • The synthetic formulation reduces friction, and is energy-efficient in a wide temperature range
  • An excellent low-temperature behavior
  • An excellent rust and corrosion protection
Parameter Unit Value Audit
SAE 460
460
Brand RAVENOL
RAVENOL
Type Full synthetic
Full synthetic
Recomendations AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
specification DIN 51517-3
DIN 51517-3
Suitable for Cincinnati Milacron
Cincinnati Milacron
Density at 20 °C kg/m³ 854 EN ISO 12185
854 kg/m³ EN ISO 12185
Color light yellow visual
light yellow visual
Viscosity at 100 °C mm²/s 58.7 DIN 51562-1
58.7 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 453.6 DIN 51562-1
453.6 mm²/s DIN 51562-1
Viscosity Index VI 200 DIN ISO 2909
200 DIN ISO 2909
Pourpoint °C -45 DIN ISO 3016
-45 °C DIN ISO 3016
Flashpoint °C 268 DIN EN ISO 2592
268 °C DIN EN ISO 2592
Copper Strip Test at 150 °C 1a ASTM D130
1a ASTM D130
Approvals AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224

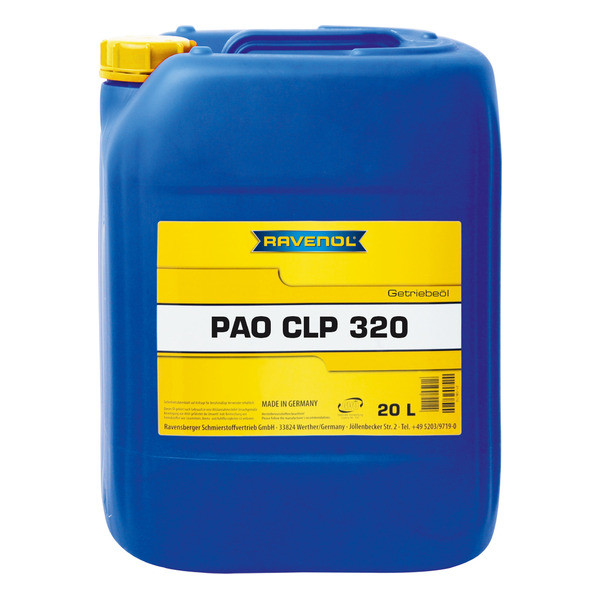

Getriebeoel PAO CLP 320

Getriebeoel PAO CLP 320

RAVENOL Getriebeöl PAO CLP 320 is formulated using PAO synthetic base oils and additive technologies to deliver excellent wear properties, outstanding extreme temperature performance for extended component and fluid life.

Compliance with the requirements:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224

show details hide details

SAE: 320

  • Available packaging
  • Full description
  • Product parameters

Volume:
20 L

vendor code:
1332210-020

Code:
4014835762329

Volume:
60 L

vendor code:
1332210-060

Volume:
208 L

vendor code:
1332210-208

Volume:
1000 L

vendor code:
1332210-700

RAVENOL Getriebeöl PAO CLP 320 is formulated using PAO synthetic base oils and additive technologies to deliver excellent wear properties, outstanding extreme temperature performance for extended component and fluid life.

RAVENOL Getriebeöl PAO CLP 320 enhances gear box efficiency over a wide temperature range and can reduce power consumption.

RAVENOL Getriebeöl PAO CLP 320 is free of zinc and ash due to its formulation.

Application Note

RAVENOL Getriebeöl PAO CLP 320 is recommended for enclosed industrial gear drives and bearings particularly where they are operated under heavy duty conditions such as heavy loading, slow speed, shock loads and in wide extremes of temperature.

The tough oil film of RAVENOL Getriebeöl PAO CLP 320 and low coefficient of friction save energy in gearboxes.

The high viscosity index of RAVENOL Getriebeöl PAO CLP 320 means they retain their viscosity at high operating temperatures. This often allows the use of a lower ISO grade than with conventional gear oil resulting in even greater energy savings.

RAVENOL Getriebeöl PAO CLP 320 is designed to combat these conditions and will run cooler while maintaining a high lubricant film strength. For gearboxes that operate outdoors. When converting a gearbox to RAVENOL Getriebeöl PAO CLP 320, it is recommended to be cleaned and flushed first to gain the full benefit of the product.

RAVENOL Getriebeöl PAO CLP 320 is compatible with mineral oils, polyalphaolefin lubricants and most seal materials except natural rubber.

RAVENOL Getriebeöl PAO CLP 320 operates over the temperature range from -50°C to 150°C.

Characteristics

  • An excellent wear protection
  • Extends the life of gears and bearings and the plant
  • Protects plants, which are operated under harsh conditions and high load
  • Allows trouble-free operation in a wide temperature and load range
  • A very stable high-pressure absorption capacity under shock loads
  • A low foaming tendency
  • The synthetic formulation reduces friction, and is energy-efficient in a wide temperature range
  • An excellent low-temperature behavior
  • An excellent rust and corrosion protection
Parameter Unit Value Audit
SAE 320
320
Brand RAVENOL
RAVENOL
Type Full synthetic
Full synthetic
Recomendations AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
specification DIN 51517-3
DIN 51517-3
Suitable for Cincinnati Milacron
Cincinnati Milacron
Density at 20 °C kg/m³ 857.2 EN ISO 12185
857.2 kg/m³ EN ISO 12185
Color light yellow visual
light yellow visual
Viscosity at 100 °C mm²/s 43.1 DIN 51562-1
43.1 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 327.3 DIN 51562-1
327.3 mm²/s DIN 51562-1
Viscosity Index VI 189 DIN ISO 2909
189 DIN ISO 2909
Pourpoint °C -54 DIN ISO 3016
-54 °C DIN ISO 3016
Flashpoint °C 244 DIN EN ISO 2592
244 °C DIN EN ISO 2592
Copper Strip Test at 121 °C 1b ASTM D130
1b ASTM D130
Copper Strip Test at 150 °C 1a ASTM D130
1a ASTM D130
Approvals AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
Getriebeoel PAO CLP 220

Getriebeoel PAO CLP 220

RAVENOL Getriebeoel CLP 220 is a high quality, mineral-based gear oil formulated with lead-free high-pressure additives (EP add itives). Its special active substance combination provides a good, stable high-pressure impact load capacity.

Compliance with the requirements:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224

show details hide details

SAE: 220

  • Available packaging
  • Full description
  • Product parameters

RAVENOL Getriebeoel CLP 220 has a low pour point and therefore a very good cold behaviour.

Application Note:

RAVENOL Getriebeoel CLP 220 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impac t characteristics.

Characteristics:

  • A very good, stable high-pressure impact capacity
  • Resistant characteristics at high temperatures
  • A good rust and corrosion impeding effect
  • Excellent wear protection
  • Very good anti-foaming characteristics
  • A low pour point
  • Very good cold behaviour

Parameter Unit Value Audit
SAE 220
220
Type Mineral
Mineral
ASTM
Manufacturer Approved
Recomendations AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
Rennstrecken-Partnerschaft
Rennstrecken-Partner
specification DIN 51517-3
DIN 51517-3
Suitable for Cincinnati Milacron
Cincinnati Milacron
Compliant products
Density at 20 °C kg/m³ 888 EN ISO 12185
888 kg/m³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 18.4 DIN 51562-1
18.4 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 207.6 DIN 51562-1
207.6 mm²/s DIN 51562-1
Viscosity Index VI 98 DIN ISO 2909
98 DIN ISO 2909
Pourpoint °C -9 DIN ISO 3016
-9 °C DIN ISO 3016
Flashpoint °C 252 DIN EN ISO 2592
252 °C DIN EN ISO 2592
Approvals AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
Getriebeoel PAO CLP 150

Getriebeoel PAO CLP 150

RAVENOL Getriebeöl PAO CLP 150 is formulated using PAO synthetic base oils and additive technologies to deliver excellent wear properties, outstanding extreme temperature performance for extended component and fluid life.

Compliance with the requirements:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224

show details hide details

SAE: 150

  • Available packaging
  • Full description
  • Product parameters

Volume:
5 L

vendor code:
1332208-005

Volume:
20 L

vendor code:
1332208-020

Code:
4014835762121

Volume:
60 L

vendor code:
1332208-060

Volume:
208 L

vendor code:
1332208-208

Code:
4014835762183

RAVENOL Getriebeöl PAO CLP 150 is formulated using PAO synthetic base oils and additive technologies to deliver excellent wear properties, outstanding extreme temperature performance for extended component and fluid life.

RAVENOL Getriebeöl PAO CLP 150 enhances gear box efficiency over a wide temperature range and can reduce power consumption.

RAVENOL Getriebeöl PAO CLP 150 is free of zinc and ash due to its formulation.

Application Note

RAVENOL Getriebeöl PAO CLP 150 is recommended for enclosed industrial gear drives and bearings particularly where they are operated under heavy duty conditions such as heavy loading, slow speed, shock loads and in wide extremes of temperature.

The tough oil film of RAVENOL Getriebeöl PAO CLP 150 and low coefficient of friction save energy in gearboxes. The high viscosity index of RAVENOL Getriebeöl PAO CLP 150 means they retain their viscosity at high operating temperatures. This often allows the use of a lower ISO grade than with conventional gear oil resulting in even greater energy savings.

RAVENOL Getriebeöl PAO CLP 150 is designed to combat these conditions and will run cooler while maintaining a high lubricant film strength. For gearboxes that operate outdoors.

When converting a gearbox to RAVENOL Getriebeöl PAO CLP 150, it is recommended to be cleaned and flushed first to gain the full benefit of the product.

RAVENOL Getriebeöl PAO CLP 150 is compatible with mineral oils, polyalphaolefin lubricants and most seal materials except natural rubber.

RAVENOL Getriebeöl PAO CLP 150 operates over the temperature range from -50°C to 150°C.

Characteristics

  • An excellent wear protection
  • Extends the life of gears and bearings and the plan
  • Protects plants, which are operated under harsh conditions and high load
  • Allows trouble-free operation in a wide temperature and load range
  • A very stable high-pressure absorption capacity under shock loads
  • A low foaming tendency
  • The synthetic formulation reduces friction, and is energy-efficient in a wide temperature range
  • An excellent low-temperature behavior
  • An excellent rust and corrosion protection
Parameter Unit Value Audit
SAE 150
150
Brand RAVENOL
RAVENOL
Type Full synthetic
Full synthetic
Recomendations AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
specification DIN 51517-3
DIN 51517-3
Suitable for Cincinnati Milacron
Cincinnati Milacron
Density at 20 °C kg/m³ 853.1 EN ISO 12185
853.1 kg/m³ EN ISO 12185
Color light yellow visual
light yellow visual
Viscosity at 100 °C mm²/s 23.3 DIN 51562-1
23.3 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 155.5 DIN 51562-1
155.5 mm²/s DIN 51562-1
Viscosity Index VI 180 DIN ISO 2909
180 DIN ISO 2909
Pourpoint °C -54 DIN ISO 3016
-54 °C DIN ISO 3016
Flashpoint °C 238 DIN EN ISO 2592
238 °C DIN EN ISO 2592
Copper Strip Test at 121 °C 1b ASTM D130
1b ASTM D130
Copper Strip Test at 150 °C 1a ASTM D130
1a ASTM D130
Approvals AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
Getriebeoel CLP 460

Getriebeoel CLP 460

RAVENOL Getriebeoel CLP 460 has a low pour point and therefore a very good cold behaviour.

Compliance with the requirements:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224

show details hide details

SAE: 460

  • Available packaging
  • Full description
  • Product parameters

Volume:
5 L

vendor code:
1332111-005

Volume:
20 L

vendor code:
1332111-020

Code:
4014835761926

Volume:
20 L, ecobox

vendor code:
1332111-B20

Volume:
60 L

vendor code:
1332111-060

Code:
4014835761964

Volume:
208 L

vendor code:
1332111-208

Volume:
1000 L

vendor code:
1332111-700

RAVENOL Getriebeoel CLP 460 has a low pour point and therefore a very good cold behaviour.

Application Note

RAVENOL Getriebeoel CLP 460 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.

Characteristics

  • A very good, stable high-pressure impact capacity
  • Resistant characteristics at high temperatures
  • A good rust and corrosion impeding effect
  • Excellent wear protection
  • Very good anti-foaming characteristics
  • A low pour point
  • Very good cold behaviour
Parameter Unit Value Audit
SAE 460
460
Brand RAVENOL
RAVENOL
Type Mineral
Mineral
Recomendations AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
specification DIN 51517-3
DIN 51517-3
Suitable for Cincinnati Milacron
Cincinnati Milacron
Density at 20 °C kg/m³ 900 EN ISO 12185
900 kg/m³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 31.2 DIN 51562-1
31.2 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 490.3 DIN 51562-1
490.3 mm²/s DIN 51562-1
Viscosity Index VI 93 DIN ISO 2909
93 DIN ISO 2909
Pourpoint °C -12 DIN ISO 3016
-12 °C DIN ISO 3016
Flashpoint °C 224 DIN EN ISO 2592
224 °C DIN EN ISO 2592
Approvals AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
Getriebeoel CLP 320

Getriebeoel CLP 320

RAVENOL Getriebeoel CLP 320 has a low pour point and therefore a very good cold behaviour.

Compliance with the requirements:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224

show details hide details

SAE: 320

  • Available packaging
  • Full description
  • Product parameters

Volume:
20 L

vendor code:
1332110-020

Code:
4014835761827

Volume:
20 L, ecobox

vendor code:
1332110-B20

Volume:
60 L

vendor code:
1332110-060

Code:
4014835757165

Volume:
208 L

vendor code:
1332110-208

Code:
4014835761889

Volume:
1000 L

vendor code:
1332110-700

Volume:
5 L

vendor code:
1332110-005

RAVENOL Getriebeoel CLP 320 has a low pour point and therefore a very good cold behaviour.

Application Note

RAVENOL Getriebeoel CLP 320 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.

Characteristics

  • A very good, stable high-pressure impact capacity.
  • Resistant characteristics at high temperatures
  • A good rust and corrosion impeding effect
  • Excellent wear protection
  • Very good anti-foaming characteristics
  • A low pour point
  • Very good cold behaviour
Parameter Unit Value Audit
SAE 320
320
Brand RAVENOL
RAVENOL
Type Mineral
Mineral
Recomendations AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
specification DIN 51517-3
DIN 51517-3
Suitable for Cincinnati Milacron
Cincinnati Milacron
Density at 20 °C kg/m³ 395 EN ISO 12185
395 kg/m³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 24.3 DIN 51562-1
24.3 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 327.6 DIN 51562-1
327.6 mm²/s DIN 51562-1
Viscosity Index VI 95 DIN ISO 2909
95 DIN ISO 2909
Pourpoint °C -9 DIN ISO 3016
-9 °C DIN ISO 3016
Flashpoint °C 244 DIN EN ISO 2592
244 °C DIN EN ISO 2592
Approvals AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
Getriebeoel CLP 220

Getriebeoel CLP 220

RAVENOL Getriebeoel CLP 220 has a low pour point and therefore a very good cold behaviour.

Compliance with the requirements:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224

show details hide details

SAE: 220

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1332109-001

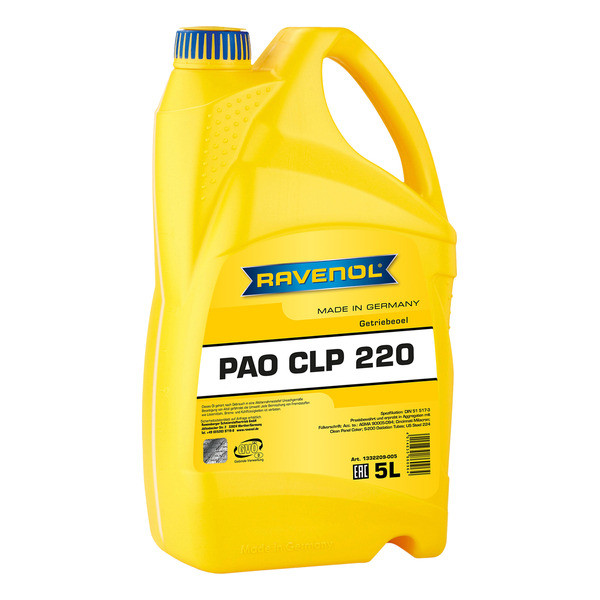

Volume:
5 L

vendor code:
1332209-005

Volume:
5 L

vendor code:
1332109-005

Volume:
20 L

vendor code:
1332109-020

Code:
4014835761728

Volume:
20 L, ecobox

vendor code:
1332109-B20

Volume:
60 L

vendor code:
1332209-060

Volume:
60 L

vendor code:
1332109-060

Volume:

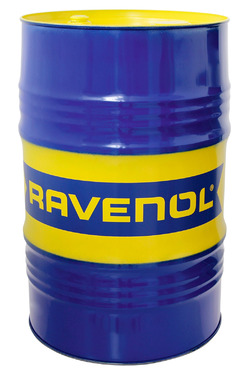

208 L

vendor code:
1332109-208

Code:
4014835761780

Volume:
208 L

vendor code:
1332209-208

Volume:
1000 L

vendor code:
1332109-700

RAVENOL Getriebeoel CLP 220 has a low pour point and therefore a very good cold behaviour.

Application Note

RAVENOL Getriebeoel CLP 220 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.

Characteristics

  • A very good, stable high-pressure impact capacity
  • Resistant characteristics at high temperatures
  • A good rust and corrosion impeding effect
  • Excellent wear protection
  • Very good anti-foaming characteristics
  • A low pour point
  • Very good cold behaviour
Parameter Unit Value Audit
SAE 220
220
Brand RAVENOL
RAVENOL
Type Mineral
Mineral
Recomendations AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224
specification DIN 51517-3
DIN 51517-3
Suitable for Cincinnati Milacron
Cincinnati Milacron
Density at 20 °C kg/m³ 888 EN ISO 12185
888 kg/m³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 18.4 DIN 51562-1
18.4 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 207.6 DIN 51562-1
207.6 mm²/s DIN 51562-1
Viscosity Index VI 98 DIN ISO 2909
98 DIN ISO 2909
Pourpoint °C -9 DIN ISO 3016
-9 °C DIN ISO 3016
Flashpoint °C 252 DIN EN ISO 2592
252 °C DIN EN ISO 2592
Approvals AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224
Getriebeoel CLP 150

Getriebeoel CLP 150

RAVENOL Getriebeoel CLP 150 has a low pour point and therefore a very good cold behaviour.

Compliance with the requirements:
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H

show details hide details

SAE: 150

  • Available packaging
  • Full description
  • Product parameters

Volume:
60 L

vendor code:
1332108-060

Volume:
208 L

vendor code:
1332108-208

Code:
4014835761681

Volume:
1000 L

vendor code:
1332108-700

Volume:
20 L

vendor code:
1332108-020

Code:
4014835761629

RAVENOL Getriebeoel CLP 150 has a low pour point and therefore a very good cold behaviour.

Application Note

RAVENOL Getriebeoel CLP 150 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.

Characteristics

  • A very good, stable high-pressure impact capacity.
  • Resistant characteristics at high temperatures
  • A good rust and corrosion impeding effect
  • Excellent wear protection
  • Very good anti-foaming characteristics
  • A low pour point
  • Very good cold behaviour
Parameter Unit Value Audit
SAE 150
150
Brand RAVENOL
RAVENOL
Type Mineral
Mineral
Recomendations AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H
AGMA 9005-D94, Clean Panel Coker, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H
specification DIN 51517-3
DIN 51517-3
Suitable for Cincinnati Milacron
Cincinnati Milacron
Density at 20 °C kg/m³ 884 EN ISO 12185
884 kg/m³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 14.8 DIN 51562-1
14.8 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 152.9 DIN 51562-1
152.9 mm²/s DIN 51562-1
Viscosity Index VI 96 DIN ISO 2909
96 DIN ISO 2909
Pourpoint °C -30 DIN ISO 3016
-30 °C DIN ISO 3016
Flashpoint °C 256 DIN EN ISO 2592
256 °C DIN EN ISO 2592
Approvals AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H
Getriebeoel CLP 100

Getriebeoel CLP 100

RAVENOL Getriebeoel CLP 100 has a low pour point and therefore a very good cold behaviour.

Compliance with the requirements:
AGMA 9005-D94, Clean Panel Coker, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H

show details hide details

SAE: 100

  • Available packaging
  • Full description
  • Product parameters

Volume:
20 L

vendor code:
1332107-020

Volume:
208 L

vendor code:
1332107-208

Code:
4014835761582

Volume:
1000 L

vendor code:
1332107-700

Volume:
20 L, ecobox

vendor code:
1332107-B20

RAVENOL Getriebeoel CLP 100 has a low pour point and therefore a very good cold behaviour.

Application Note

RAVENOL Getriebeoel CLP 100 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impact characteristics.

Characteristics

  • A very good, stable high-pressure impact capacity
  • Resistant characteristics at high temperatures
  • A good rust and corrosion impeding effect
  • Excellent wear protection
  • Very good anti-foaming characteristics
  • A low pour point
  • Very good cold behaviour
Parameter Unit Value Audit
SAE 100
100
Brand RAVENOL
RAVENOL
Type Mineral
Mineral
Recomendations AGMA 9005-D94, Clean Panel Coker, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H
AGMA 9005-D94, Clean Panel Coker, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H
specification DIN 51517-3
DIN 51517-3
Suitable for Cincinnati Milacron
Cincinnati Milacron
Density at 20 °C kg/m³ 875 EN ISO 12185
875 kg/m³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 11.4 DIN 51562-1
11.4 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 106.3 DIN 51562-1
106.3 mm²/s DIN 51562-1
Viscosity Index VI 106 DIN ISO 2909
106 DIN ISO 2909
Pourpoint °C -21 DIN ISO 3016
-21 °C DIN ISO 3016
Flashpoint °C 242 DIN EN ISO 2592
242 °C DIN EN ISO 2592
Approvals AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224, ZF TE-ML 04H
Getriebeoel CLP 68

Getriebeoel CLP 68

RAVENOL Getriebeoel CLP 68 has a low pour point and therefore a very good cold behaviour.

Compliance with the requirements:
AGMA 9005-D94, Clean Panel Coker, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224

show details hide details

SAE: 68

  • Available packaging
  • Full description
  • Product parameters

Volume:
20 L

vendor code:
1332106-020

Code:
4014835761421

Volume:
20 L, ecobox

vendor code:
1332106-B20

Volume:
208 L

vendor code:
1332106-208

Volume:
1000 L

vendor code:
1332106-700

RAVENOL Getriebeoel CLP 68 has a low pour point and therefore a very good cold behaviour.

Application Note:

RAVENOL Getriebeoel CLP 68 can be used as a lubricant in nearly all industrial gear drives due to its good stress and/or impac t characteristics.

Characteristics:

  • A very good, stable high-pressure impact capacity
  • Resistant characteristics at high temperatures
  • A good rust and corrosion impeding effect
  • Excellent wear protection
  • Very good anti-foaming characteristics
  • A low pour point
  • Very good cold behaviour

Parameter Unit Value Audit
SAE 68
68
Brand RAVENOL
RAVENOL
Type Mineral
Mineral
Recomendations AGMA 9005-D94, Clean Panel Coker, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224
specification DIN 51517-3
DIN 51517-3
Suitable for Cincinnati Milacron
Cincinnati Milacron
Density at 20 °C kg/m³ 879 EN ISO 12185
879 kg/m³ EN ISO 12185
Color Brown visual
Brown visual
Viscosity at 100 °C mm²/s 8.6 DIN 51562-1
8.6 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 67 DIN 51562-1
67 mm²/s DIN 51562-1
Viscosity Index VI 100 DIN ISO 2909
100 DIN ISO 2909
Pourpoint °C -24 DIN ISO 3016
-24 °C DIN ISO 3016
Flashpoint °C 220 DIN EN ISO 2592
220 °C DIN EN ISO 2592
Approvals AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224
AGMA 9005-D94, Clean Panel Coker, DIN 51517-3, FZG 12, S-200 Oxidation Tubes, U.S. Steel 224

Our website uses cookies to improve your site experience, efficiency and usability. By continuing to use our site, you agree to the use of cookies.

Good
