Oil for Hyundai H100 / Porter, HR H 100 2.6 D (year of issue from 2010 date to present). Motor, automatic transmission oil, transmission, antifreeze, gur fluid, brake fluid

Search by VIN, make, model, vehicle type, unit name, or by article number of any oil:

Oil for Hyundai - H100 / Porter, HR - H 100 2.6 D

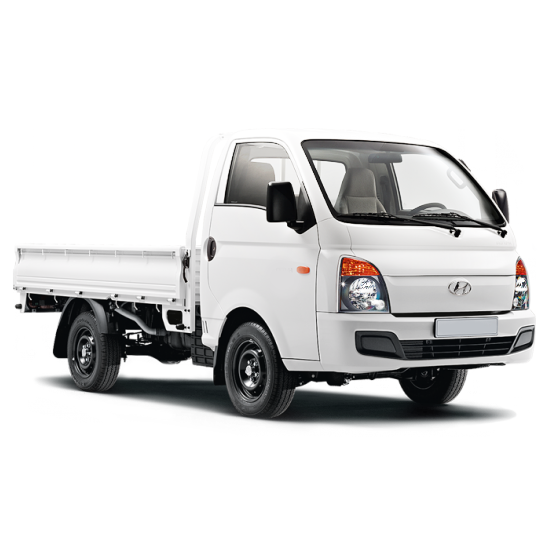

Hyundai H100 / Porter, HR H 100 2.6 D, year of issue from 2010 date to 2012 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Fuel: Diesel fuel
car drive: Rear wheel drive
Engine: Single row
Number of cylinders: 4
Valves per cylinder: 2
Working volume: 2607 cc
Power: 78 hp / 58 kW

Add to Garage

Nodes and assemblies

Engine D4BB
Mechanical gearbox 5/1
Differential, rear
Power steering
Hydraulic brakes/clutch system
Lubrication points oilers, wheel bearings, rear,, front
Cooling system

Engine D4BB

Liquid volume (basic): 6.9 L
Liquid volume (filter): 0.6 L

Super Performance Truck 5W-30

For engine

Application NoteRAVENOL Super Performance Truck SAE 5W-30 is a high-performance engine oil for commercial vehicles which can be used the whole year and which is adapted to the new exhaust gas emission rules (also for EURO I, II, III, IV and EURO V engines).

Manufacturer Approved:
Renault RXD

Compliance with the requirements:
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DTFR 13D110 (MB 235.28), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, MAN M 3277, MB 228.5, MB 235.28, MTU Type 3, Scania LDF-3, Voith Retarder B, Volvo VDS-3

show details

SAE: 5W-30

API: CF, CI-4

ACEA: E4, E7

Equivalents OEM:
Isuzu 1884059300, Isuzu 1884059300

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1122102-005

Code:
4014835725751

Volume:
10 L

vendor code:
1122102-010

Code:
4014835725744

Volume:
20 L

vendor code:
1122102-020

Code:
4014835725720

Volume:
20 L, ecobox

vendor code:
1122102-B20

Volume:
60 L, print

vendor code:
1122102-D60

Code:
4014835725737

Volume:
208 L

vendor code:
1122102-208

Code:
4014835725782

Volume:
208 L, print

vendor code:
1122102-D28

Code:
4014835725706

Volume:
1000 L

vendor code:
1122102-700

Volume:
1 L

vendor code:
1122102-001

Volume:
60 L

vendor code:
1122102-060

Application Note

RAVENOL Super Performance Truck SAE 5W-30 is a high-performance engine oil for commercial vehicles which can be used the whole year and which is adapted to the new exhaust gas emission rules (also for EURO I, II, III, IV and EURO V engines).

RAVENOL Super Performance Truck SAE 5W-3 is suitable for oil change intervals up to more than 100.000 km according to the manufacturer’s specifications.

Characteristics

Protection against corrosion
An excellent oxidation stability
An excellent high temperature stability
Excellent detergent and dispersant attributes
Profitability because of a low fuel consumption
Long endurance because of a high oxidation stability
Excellent cold start attributes
A very good viscosity temperature behaviour
Low evaporation

Parameter	Unit	Value	Audit
Recommendations		Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DTFR 13D110 (MB 235.28), DTFR 15B120 (MB 228.5), Global DHD-1, IVECO, JASO DH-1, Mack EO-M Plus, MAN M 3277, MB 228.5, MB 235.28, MTU Typ 3, Scania LDF-3, Voith Retarder B, VOLVO VDS-3		Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DTFR 13D110 (MB 235.28), DTFR 15B120 (MB 228.5), Global DHD-1, IVECO, JASO DH-1, Mack EO-M Plus, MAN M 3277, MB 228.5, MB 235.28, MTU Typ 3, Scania LDF-3, Voith Retarder B, VOLVO VDS-3
SAE		5W-30		5W-30
Brand		RAVENOL		RAVENOL
Type		Semi-synthetic		Semi-synthetic
API		CF, CI-4		CF, CI-4
ACEA		E4, E7		E4, E7
JASO		DH-1		DH-1
Manufacturer Approved		Renault RXD		Renault RXD
Recomendations		Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DTFR 13D110 (MB 235.28), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, MAN M 3277, MB 228.5, MB 235.28, MTU Type 3, Scania LDF-3, Voith Retarder B, Volvo VDS-3		Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DTFR 13D110 (MB 235.28), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, MAN M 3277, MB 228.5, MB 235.28, MTU Type 3, Scania LDF-3, Voith Retarder B, Volvo VDS-3
Suitable for		IVECO		IVECO
Density at 20 °C	g/cm³	854	EN ISO 12185	854 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.5	DIN 51562-1	11.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	69.3	DIN 51562-1	69.3 mm²/s DIN 51562-1
Viscosity Index VI		161	DIN ISO 2909	161 DIN ISO 2909
CCS Viscosity at -30 °C	mPa*s	6000	ASTM D5293	6000 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	16.200	ASTM D4684	16.200 mPa*s ASTM D4684
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Noack Volatility	%	10.1	ASTM D5800	10.1 % ASTM D5800
Flashpoint	°C	242	DIN EN ISO 2592	242 °C DIN EN ISO 2592
tbn	mgKOH/g	13	ASTM D2896	13 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1	DIN 51575	1 %wt. DIN 51575
Approvals		Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DTFR 13D110 (MB 235.28), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, MAN M 3277, MB 228.5, MB 235.28, MTU Type 3, Renault RXD, Scania LDF-3, Voith Retarder B, Volvo VDS-3		Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DTFR 13D110 (MB 235.28), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, MAN M 3277, MB 228.5, MB 235.28, MTU Type 3, Renault RXD, Scania LDF-3, Voith Retarder B, Volvo VDS-3

Arctic Truck 0W-30

For engine

show details

SAE: 0W-30

Available packaging
Product parameters

Parameter	Unit	Value	Audit
SAE		0W-30		0W-30
Type		Full synthetic		Full synthetic

MGS 15W-40

For gas engines

Application NoteRAVENOL MGS SAE 15W-40 is suitable to apply as a multi-grade engine oil for natural gasengines.

Manufacturer Approved:
TEDOM Group 1P (61-0-0281.2)

Compliance with the requirements:
MB 226.9

show details

SAE: 15W-40

API: CF-4, SJ

ACEA: A3, B4, E2

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1133100-001

Code:
4014835726611

Volume:
4 L

vendor code:
1133100-004

Volume:
5 L

vendor code:
1133100-005

Code:
4014835726659

Volume:
10 L

vendor code:
1133100-010

Code:
4014835726642

Volume:
20 L

vendor code:
1133100-020

Volume:
20 L, ecobox

vendor code:
1133100-B20

Volume:
60 L

vendor code:
1133100-060

Code:
4014835726666

Volume:
208 L

vendor code:
1133100-208

Code:
4014835726680

Volume:
1000 L

vendor code:
1133100-700

Application Note

RAVENOL MGS SAE 15W-40 is suitable to apply as a multi-grade engine oil for natural gasengines.

Characteristics

A very good shear stability
Very good cold start behaviour
A high oxidation stability
Avoids the formation of accumulations of mud (black sludge)
An excellent viscosity temperature behaviour
No problems with the use in catalyst vehicles
Convincing detergent and dispersant attributes
High security reserves even under limited lubrication conditions

Parameter	Unit	Value	Audit
Recommendations		MB 226.9		MB 226.9
Brand		RAVENOL		RAVENOL
SAE		15W-40		15W-40
Type		Mineral		Mineral
API		CF-4, SJ		CF-4, SJ
ACEA		A3, B4, E2		A3, B4, E2
Manufacturer Approved		TEDOM Group 1P (61-0-0281.2)		TEDOM Group 1P (61-0-0281.2)
Recomendations		MB 226.9		MB 226.9
Density at 20 °C	g/cm³	873	EN ISO 12185	873 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.4	DIN 51562-1	14.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	107.2	DIN 51562-1	107.2 mm²/s DIN 51562-1
Viscosity Index VI		137	DIN ISO 2909	137 DIN ISO 2909
Pourpoint	°C	-30	DIN ISO 3016	-30 °C DIN ISO 3016
Flashpoint	°C	242	DIN EN ISO 2592	242 °C DIN EN ISO 2592
tbn	mgKOH/g	8.1	ASTM D2896	8.1 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.1	DIN 51575	1.1 %wt. DIN 51575
Approvals		MB 226.9, TEDOM Group 1P (61-0-0281.2)		MB 226.9, TEDOM Group 1P (61-0-0281.2)

Turbo-C HD-C 15W-40

For engine

It is also suitable for use gasoline (petrol) engines. It has an excellent lubricating film adhesion and very good shear stability and an excellent cleaning power and high resistance to aging.

Manufacturer Approved:
VW 501.01, VW 505.00

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, ZF TE-ML 07C

show details

SAE: 15W-40

API: CF, CF-4, SL

ACEA: A3, B4, E2

Equivalents OEM:
GM 19375071, GM 19375072, GM 19375073, VAG G052107M2, VAG G052107M4, VAG G052107M6, VAG G052107S0, VAG G052107S0

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1113103-001

Code:
4014835724518

Volume:
4 L

vendor code:
1113103-004

Volume:
5 L

vendor code:
1113103-005

Code:
4014835724556

Volume:
10 L

vendor code:
1113103-010

Code:
4014835724549

Volume:
20 L

vendor code:
1113103-020

Code:
4014835724525

Volume:
20 L, ecobox

vendor code:
1113103-B20

Volume:
60 L

vendor code:
1113103-060

Code:
4014835724563

Volume:
60 L, print

vendor code:
1113103-D60

Volume:
208 L

vendor code:
1113103-208

Code:
4014835724587

Volume:
208 L, print

vendor code:
1113103-D28

Volume:
1000 L

vendor code:
1113103-700

It is also suitable for use gasoline (petrol) engines. It has an excellent lubricating film adhesion and very good shear stability and an excellent cleaning power and high resistance to aging.

Application Note

RAVENOL Turbo-C HD-C SAE 15W-40 is perfectly suited as all-season motor oil for the mixed fleet. It can be uses in the commercial vehicle sector for operation and extended oil change interval (up to 45,000 kilometres are possible) according to manufacturer's specifications.

Characteristics

An excellent shear stability
Very good cold start characteristics
A very high oxidation stability
Avoids the formation of coking and accumulation of mud (black sludge)
A very stable and excellent viscosity behaviour
Suitable for catalysts
Convincing detergent and dispersant attributes
High security reserves even under limited lubrication conditions

Parameter	Unit	Value	Audit
Recommendations		Allison C4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Typ 2, VOLVO VDS, ZF TE-ML 07C		Allison C4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Typ 2, VOLVO VDS, ZF TE-ML 07C
Brand		RAVENOL		RAVENOL
SAE		15W-40		15W-40
Type		Mineral		Mineral
API		CF, CF-4, SL		CF, CF-4, SL
ACEA		A3, B4, E2		A3, B4, E2
Manufacturer Approved		VW 501.01, VW 505.00		VW 501.01, VW 505.00
Recomendations		Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, ZF TE-ML 07C
Density at 20 °C	g/cm³	873	EN ISO 12185	873 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.4	DIN 51562-1	14.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	107.2	DIN 51562-1	107.2 mm²/s DIN 51562-1
Viscosity Index VI		137	DIN ISO 2909	137 DIN ISO 2909
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Flashpoint	°C	244	DIN EN ISO 2592	244 °C DIN EN ISO 2592
tbn	mgKOH/g	8.5	ASTM D2896	8.5 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.1	DIN 51575	1.1 %wt. DIN 51575
Approvals		Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, VW 501.01, VW 505.00, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, VW 501.01, VW 505.00, ZF TE-ML 07C

Super Synthetic Hydrocrack SSH 0W-30

For engine

RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
MB-Approval 229.5, Renault RN 0710, Volvo VCC 95200356 - Service Fill

Compliance with the requirements:
BMW Longlife-98, Renault RN 0700, VW 502.00, VW 505.00

show details

SAE: 0W-30

API: SM

ACEA: A3, B4

Equivalents OEM:
Honda 08232P99B1CB1, Honda 08232P99B1LHE, Honda 08232P99B2LHE, Honda 08232P99B4LHE, Honda 08232P99B5LHE, Honda 08232P99B6CB1, Honda 08232P99B6LHE, Honda 08250P99B1BA1, Honda 08250P99B6BA1, Hyundai XTeer 1011122, Hyundai XTeer 1041122, Hyundai XTeer 1201122, Mitsubishi MZ320150, Mitsubishi MZ320151, Toyota 0888082644, Toyota 0888082644GO, Toyota 0888082645, VAG G055167M2, VAG G055167M4, VAG G055167M6, VAG G055167M9, VAG GR55167M2, VAG GR55167M4, VAG GR55167M6, VAG GR55167M9, VAG GV55167M2, VAG GVWR55167M2, Volvo 1161711, Volvo 1161719, Volvo 1161726, Volvo 1161726 Honda 08232P99B1CB1, Honda 08232P99B1LHE, Honda 08232P99B2LHE, Honda 08232P99B4LHE, Honda 08232P99B5LHE, Honda 08232P99B6CB1, Honda 08232P99B6LHE, Honda 08250P99B1BA1, Honda 08250P99B6BA1, Hyundai XTeer 1011122, Hyundai XTeer 1041122, Hyundai XTeer 1201122, Mitsubishi MZ320150, Mitsubishi MZ320151, Toyota 0888082644, Toyota 0888082644GO, Toyota 0888082645, VAG G055167M2, VAG G055167M4, VAG G055167M6, VAG G055167M9, VAG GR55167M2, VAG GR55167M4, VAG GR55167M6, VAG GR55167M9, VAG GV55167M2, VAG GVWR55167M2, Volvo 1161711, Volvo 1161719, Volvo 1161726, Volvo 1161726

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111138-001

Code:
4014835795310

Volume:
4 L

vendor code:
1111138-004

Code:
4014835795396

Volume:
5 L

vendor code:
1111138-005

Code:
4014835795358

Volume:
10 L

vendor code:
1111138-010

Code:
4014835795341

Volume:
20 L

vendor code:
1111138-020

Code:
4014835795327

Volume:
20 L, ecobox

vendor code:
1111138-B20

Code:
4014835868250

Volume:
60 L, print

vendor code:
1111138-D60

Code:
4014835795334

Volume:
208 L, print

vendor code:
1111138-D28

Code:
4014835795303

Volume:
1000 L

vendor code:
1111138-700

RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 contributes to protect the environment by reducing the emissions.

RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 guarantees operational safety for all driving conditions, such as extreme stop and go traffic as well as high speed highway trips.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 is suitable as an universal fuel economy motor oil for year-round use in all gasoline and diesel engines in passenger cars, station wagons, delivery vans and similar vehicles.

Characteristics

High abrasion resistance
Fuel saving because of easy running characteristics
Excellent detergent and dispersant characteristics
Prevention of black sludge creation
Long endurance because of high oxidation stability
Excellent cold start performance
Very good viscosity temperature behaviour
Low evaporation
Suitable for catalysts

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-98, Renault RN0700, VW 502 00, VW 505 00		BMW Longlife-98, Renault RN0700, VW 502 00, VW 505 00
Brand		RAVENOL		RAVENOL
SAE		0W-30		0W-30
Type		Synthetic		Synthetic
API		SM		SM
ACEA		A3, B4		A3, B4
Manufacturer Approved		MB-Approval 229.5, Renault RN 0710, Volvo VCC 95200356 - Service Fill		MB-Approval 229.5, Renault RN 0710, Volvo VCC 95200356 - Service Fill
Recomendations		BMW Longlife-98, Renault RN 0700, VW 502.00, VW 505.00		BMW Longlife-98, Renault RN 0700, VW 502.00, VW 505.00
Density at 20 °C	g/cm³	842	EN ISO 12185	842 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.1	DIN 51562-1	12.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	67.2	DIN 51562-1	67.2 mm²/s DIN 51562-1
Viscosity Index VI		178	DIN ISO 2909	178 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.53	ASTM D5481	3.53 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5940	ASTM D5293	5940 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	24.300	ASTM D4684	24.300 mPa*s ASTM D4684
Pourpoint	°C	-49	DIN ISO 3016	-49 °C DIN ISO 3016
Noack Volatility	%	9	ASTM D5800	9 % ASTM D5800
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	10	ASTM D2896	10 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.35	DIN 51575	1.35 %wt. DIN 51575
Approvals		BMW Longlife-98, MB 229.5, Renault RN0700, Renault RN0710, Volvo VCC 95200356 - Service Fill, VW 502.00, VW 505.00		BMW Longlife-98, MB 229.5, Renault RN0700, Renault RN0710, Volvo VCC 95200356 - Service Fill, VW 502.00, VW 505.00

HPS 5W-30

For engine

RAVENOL HPS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Compliance with the requirements:
BMW Longlife-98, MB 229.3, VW 502.00, VW 505.00

show details

SAE: 5W-30

API: CF, SL

ACEA: A3, B4

Equivalents OEM:
Chrysler 4761838AD, Chrysler 4761838MA, Chrysler 4761844MA, Honda 087989014, Hyundai Motor 0510000110, Hyundai Motor 0510000141, Hyundai Motor 0510000410, Hyundai Motor 0510000441, Hyundai Motor 510000110, LADA 88889M05400100, LADA 88889M05400400, Mazda 0000775W30QT, Mazda 151289, Mazda 452349R, Mazda 452362R, Mazda 530208TFE, Mazda 830077281, Mazda K004W0508C, Mazda K004W0512J, Mazda K020W0512J, Mazda K020W0512J, MB A000989510411FHFE, MB A000989510413FHFE, MB A000989510417FHFE, MB A000989510419FHFE, Mitsubishi 3601401, Mitsubishi 3601610, Nissan KLAM305301, Nissan KLAM305304, Subaru K0215Y0271, Suzuki 9900021A40036 Chrysler 4761838AD, Chrysler 4761838MA, Chrysler 4761844MA, Honda 087989014, Hyundai Motor 0510000110, Hyundai Motor 0510000141, Hyundai Motor 0510000410, Hyundai Motor 0510000441, Hyundai Motor 510000110, LADA 88889M05400100, LADA 88889M05400400, Mazda 0000775W30QT, Mazda 151289, Mazda 452349R, Mazda 452362R, Mazda 530208TFE, Mazda 830077281, Mazda K004W0508C, Mazda K004W0512J, Mazda K020W0512J, Mazda K020W0512J, MB A000989510411FHFE, MB A000989510413FHFE, MB A000989510417FHFE, MB A000989510419FHFE, Mitsubishi 3601401, Mitsubishi 3601610, Nissan KLAM305301, Nissan KLAM305304, Subaru K0215Y0271, Suzuki 9900021A40036, Toyota 0888007705, Toyota 0888007706, Toyota 0888009105, Toyota 0888009106, Toyota 0888081015, Toyota 0888381013

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111117-001

Code:
4014835722811

Volume:
4 L

vendor code:
1111117-004

Code:
4014835722897

Volume:
5 L

vendor code:
1111117-005

Code:
4014835722859

Volume:
10 L

vendor code:
1111117-010

Code:
4014835722842

Volume:
20 L

vendor code:
1111117-020

Code:
4014835722828

Volume:
20 L, ecobox

vendor code:
1111117-B20

Code:
4014835773127

Volume:
60 L

vendor code:
1111117-060

Code:
4014835722866

Volume:
60 L, print

vendor code:
1111117-D60

Code:
4014835722835

Volume:
208 L

vendor code:
1111117-208

Code:
4014835722880

Volume:
208 L, print

vendor code:
1111117-D28

Code:
4014835722804

Volume:
1000 L

vendor code:
1111117-700

RAVENOL HPS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HPS SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL HPS SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HPS SAE 5W-30 is low friction motor oil, which is suitable for performance motors. It is recommended for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.

Characteristics

Fuel economy in part and full power operation.
Very stable and excellent viscosity behaviour.
Excellent shear stability.
Excellent cold starting characteristics.
A safe lubricant film at high operating temperatures.
Excellent detergent- and dispersant characteristics.
High wear and corrosion protection, high oxidation stability.
Prevention of sludge formation.
Extended lifetime because of oxidation stability.
Suitable for catalysts.

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-98, MB 229.3, VW 502 00, VW 505 00		BMW Longlife-98, MB 229.3, VW 502 00, VW 505 00
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Semi-synthetic		Semi-synthetic
API		CF, SL		CF, SL
ACEA		A3, B4		A3, B4
Recomendations		BMW Longlife-98, MB 229.3, VW 502.00, VW 505.00		BMW Longlife-98, MB 229.3, VW 502.00, VW 505.00
Density at 20 °C	g/cm³	850	EN ISO 12185	850 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.15	DIN 51562-1	12.15 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	70.9	DIN 51562-1	70.9 mm²/s DIN 51562-1
Viscosity Index VI		170	DIN ISO 2909	170 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.71	ASTM D5481	3.71 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	6140	ASTM D5293	6140 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	20.800	ASTM D4684	20.800 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	%	8.9	ASTM D5800	8.9 % ASTM D5800
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	11	ASTM D2896	11 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.18	DIN 51575	1.18 %wt. DIN 51575
Approvals		BMW Longlife-98, MB 229.3, VW 502.00, VW 505.00		BMW Longlife-98, MB 229.3, VW 502.00, VW 505.00

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

Available packaging
Full description
Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

Long-term effectiveness and clean fresh oil
Remedy for soiled engines
Protection against compression loss in the area of the piston rings
Leads to better exhaust emissions and increases the performance of the engine

Parameter	Unit	Value	Audit
Color		Light brown	visual	Light brown visual
Flashpoint (PM)	°C	62	DIN ISO 3679	62 °C DIN ISO 3679
Density at 20 °C		805	EN ISO 12185	805 EN ISO 12185
Viscosity at 40 °C	mm²/s	7	DIN EN ISO 3104	7 mm²/s DIN EN ISO 3104
Brand		RAVENOL		RAVENOL

Mechanical gearbox 5/1

Liquid volume (basic): 2.4 L

MTF-2 75W-80

For gearbox

RAVENOL MTF-2 SAE 75W-80 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538

show details

SAE: 75W-80

API: GL-4, MT-1

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221103-001

Code:
4014835719712

Volume:
4 L

vendor code:
1221103-004

Code:
4014835719798

Volume:
10 L

vendor code:
1221103-010

Code:
4014835719743

Volume:
20 L

vendor code:
1221103-020

Volume:
20 L, ecobox

vendor code:
1221103-B20

Code:
4014835788428

Volume:
60 L

vendor code:
1221103-060

Code:
4014835719767

Volume:
60 L, print

vendor code:
1221103-D60

Volume:
208 L

vendor code:
1221103-208

Volume:
208 L, print

vendor code:
1221103-D28

Volume:
1000 L

vendor code:
1221103-700

RAVENOL MTF-2 SAE 75W-80 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL MTF-2 SAE 75W-80 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.

Application Note

RAVENOL MTF-2 SAE 75W-80 is a full synthetic transmission oil for manual transmissions.

Characteristics

A high-pressure stable lubricating film even at high oil temperatures and under high stress.
Outstanding shearing stability and excellent thermal stability.
Excellent viscosity-temperature properties.
High oxidation stability.
Excellent wear protection, outstanding EP properties.
Low foaming property even at high speeds
Good shifting behaviour even in low temperatures, extremely low pour point.
Extended life.

Parameter	Unit	Value	Audit
Recommendations		AC Delco 10-403, Audi G052532, Audi G055532, BMW 23001434404 MTF-LT-1, BMW 23007533513 MTF-LT-2, BMW 83220309031 MTF-LT-1, Fiat 14621616, Fiat 9.55550-MZ2, Fiat F178.B06, Ford 1382914, Ford 1547953, Ford WSS-M2C200-C3, Ford WSS-M2C200-D2, GM 1940711, GM 88861800, GM 88861801, Honda 08261-99964 Genuine MTF Fluid, Honda 08798-9031 MTF-7289, Hyundai 02200-00130 TOD, Land Rover STC 9157, Land Rover STC 9158, Land Rover TYK500030, MB 235.10 (A 001 989 26 03), Mitsubishi 3005401, Mitsubishi MZ312644, MTF-94 Fluid für Land Rover, MG und Mini Cooper, Nissan 999MP-MTF20P, Nissan KE91699932R, Peugeot 9730A2, PSA B71 2330, Subaru K0321-F0090, Toyota 08885-00705, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, Volvo 1161681, Volvo 1161745, VW/Audi G 052 911 A2, VW/Audi G 055 538 A2 für ZF 6S450 Amarok 0C6		AC Delco 10-403, Audi G052532, Audi G055532, BMW 23001434404 MTF-LT-1, BMW 23007533513 MTF-LT-2, BMW 83220309031 MTF-LT-1, Fiat 14621616, Fiat 9.55550-MZ2, Fiat F178.B06, Ford 1382914, Ford 1547953, Ford WSS-M2C200-C3, Ford WSS-M2C200-D2, GM 1940711, GM 88861800, GM 88861801, Honda 08261-99964 Genuine MTF Fluid, Honda 08798-9031 MTF-7289, Hyundai 02200-00130 TOD, Land Rover STC 9157, Land Rover STC 9158, Land Rover TYK500030, MB 235.10 (A 001 989 26 03), Mitsubishi 3005401, Mitsubishi MZ312644, MTF-94 Fluid für Land Rover, MG und Mini Cooper, Nissan 999MP-MTF20P, Nissan KE91699932R, Peugeot 9730A2, PSA B71 2330, Subaru K0321-F0090, Toyota 08885-00705, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, Volvo 1161681, Volvo 1161745, VW/Audi G 052 911 A2, VW/Audi G 055 538 A2 für ZF 6S450 Amarok 0C6
SAE		75W-80		75W-80
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
API		GL-4, MT-1		GL-4, MT-1
Recomendations		BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538		BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538
Compliant products		AcDelco 10-403, Fiat 14621616, Ford 1382914, Ford 1547953, GM 1940711, GM 88861800, GM 88861801, Honda 08261-99964, Honda 08798-9031, Hyundai 02200-00130 TOD, Land Rover STC9157, Land Rover STC9158, Land Rover TYK500030, MB A 001 989 26 03, Mitsubishi 3005401, Mitsubishi MZ312644, Nissan 999MP-MTF20P, Nissan KE91699932R, PSA 9730.A2, Subaru K0321-F0090, Toyota 08885-00705, Volvo 1161681, Volvo 1161745, VW G 052 911, VW G 055 538		AcDelco 10-403, Fiat 14621616, Ford 1382914, Ford 1547953, GM 1940711, GM 88861800, GM 88861801, Honda 08261-99964, Honda 08798-9031, Hyundai 02200-00130 TOD, Land Rover STC9157, Land Rover STC9158, Land Rover TYK500030, MB A 001 989 26 03, Mitsubishi 3005401, Mitsubishi MZ312644, Nissan 999MP-MTF20P, Nissan KE91699932R, PSA 9730.A2, Subaru K0321-F0090, Toyota 08885-00705, Volvo 1161681, Volvo 1161745, VW G 052 911, VW G 055 538
Density at 20 °C	g/cm³	847.5	EN ISO 12185	847.5 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	9.1	DIN 51562-1	9.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	50.8	DIN 51562-1	50.8 mm²/s DIN 51562-1
Viscosity Index VI		163	DIN ISO 2909	163 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	21.900	ASTM D2983	21.900 mPa*s ASTM D2983
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	248	DIN EN ISO 2592	248 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538		BMW 23001434404 CROSS, BMW 23007533513 CROSS, BMW 83220309031 CROSS, BMW MTF-LT-1 N, BMW MTF-LT-2 N, Fiat 9.55550-MZ2, Fiat F178.B06, Ford WSS-M2C 200-C3, Ford WSS-M2C 200-D2, MB 235.10, MTF-94, PSA B71 2330, Toyota MTF 97309, Toyota MTF ETL8997B, Toyota MTF XT4447 M+, VW G 052 911, VW G 055 532, VW G 055 538

MTF-1 75W-85

For gearbox

RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513

show details

SAE: 75W-85

API: GL-4, GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221102-001

Code:
4014835719613

Volume:
4 L

vendor code:
1221102-004

Code:
4014835719699

Volume:
10 L

vendor code:
1221102-010

Code:
4014835719644

Volume:
20 L

vendor code:
1221102-020

Code:
4014835719620

Volume:
20 L, ecobox

vendor code:
1221102-B20

Code:
4014835788329

Volume:
60 L

vendor code:
1221102-060

Code:
4014835719668

Volume:
60 L, print

vendor code:
1221102-D60

Volume:
208 L

vendor code:
1221102-208

Code:
4014835719682

Volume:
208 L, print

vendor code:
1221102-D28

Volume:
1000 L

vendor code:
1221102-700

RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL MTF-1 SAE 75W-85 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.

Application Note

RAVENOL MTF-1 SAE 75W-85 is high-performance gear oil for manual transmission, transfer cases and differential gears.

Characteristics

Excellent thermal stability.
High protection from rust, corrosion, foaming.
Low solidification point.
Excellent EP properties.
Good shifting behavior in low temperatures.
Extended life.
Fuel savings.

Parameter	Unit	Value	Audit
Recommendations		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513
SAE		75W-85		75W-85
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
API		GL-4, GL-5		GL-4, GL-5
Recomendations		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
Compliant products		GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060		GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060
Density at 20 °C	g/cm³	855	EN ISO 12185	855 g/cm³ EN ISO 12185
Color		Red	visual	Red visual
Brookfield Viscosity at -40 °C	mPa*s	38.800	ASTM D2983	38.800 mPa*s ASTM D2983
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513

Differential, rear

Liquid volume (basic): 1.5 L

TGO 75W-90 API GL 5

For gearbox

RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is designed based on high-quality solvent refined and synthetic base oils and specially harmonised additive treatment with extreme pressure (EP) active ingredients and other additives. This exceeds the needs of today's application requirements.

Compliance with the requirements:
CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.8, MB 235.9, MB 235.14, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A

show details

SAE: 75W-90

API: GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1222105-001

Code:
4014835734418

Volume:
4 L

vendor code:
1222105-004

Code:
4014835734494

Volume:
10 L

vendor code:
1222105-010

Code:
4014835734449

Volume:
20 L

vendor code:
1222105-020

Code:
4014835734425

Volume:
20 L, ecobox

vendor code:
1222105-B20

Code:
4014835789128

Volume:
60 L, print

vendor code:
1222105-D60

Code:
4014835734432

Volume:
208 L

vendor code:
1222105-208

Code:
4014835734487

Volume:
208 L, print

vendor code:
1222105-D28

Code:
4014835734401

Volume:
1000 L

vendor code:
1222105-700

Volume:
60 L

vendor code:
1222105-060

RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is designed based on high-quality solvent refined and synthetic base oils and specially harmonised additive treatment with extreme pressure (EP) active ingredients and other additives. This exceeds the needs of today's application requirements.

Application Note

RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is a maximum duty transmission oil for use in maximum duty, hypoid geared transmissions (axle drives, manual transmissions, etc.), where maximum duty transmission oils are required.

Characteristics

Excellent oxidation stability
Greatest possible protection from rust, corrosion, foaming
Low solidification point
Excellent extreme pressure (EP) properties
High viscosity index
Fuel savings

Parameter	Unit	Value	Audit
Recommendations		CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford M2C-9002A, GM, Mack GO-G, MAN 342 M2 (160.000 km), MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A		CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford M2C-9002A, GM, Mack GO-G, MAN 342 M2 (160.000 km), MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
Brand		RAVENOL		RAVENOL
SAE		75W-90		75W-90
Type		Semi-synthetic		Semi-synthetic
API		GL-5		GL-5
Recomendations		CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A		CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
specification		MIL-L-2105 D		MIL-L-2105 D
Suitable for		GM		GM
Density at 20 °C	g/cm³	842	EN ISO 12185	842 g/cm³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	15.7	DIN 51562-1	15.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	97.3	DIN 51562-1	97.3 mm²/s DIN 51562-1
Viscosity Index VI		173	DIN ISO 2909	173 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	70.000	ASTM D2983	70.000 mPa*s ASTM D2983
Pourpoint	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Flashpoint	°C	215	DIN EN ISO 2592	215 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A		CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A

Getriebeoel EPX 80W-90 GL 5

For transmission

RAVENOL Getriebeoel EPX SAE 80W-90 GL-5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.

Manufacturer Approved:
LOVAT LOV-204, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A

Compliance with the requirements:
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D

show details

SAE: 80W-90

API: GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1223205-001

Code:
4014835734715

Volume:
4 L

vendor code:
1223205-004

Code:
4014835734791

Volume:
10 L

vendor code:
1223205-010

Code:
4014835734746

Volume:
20 L

vendor code:
1223205-020

Code:
4014835734722

Volume:
20 L, ecobox

vendor code:
1223205-B20

Code:
4014835789722

Volume:
60 L

vendor code:
1223205-060

Code:
4014835734760

Volume:
208 L

vendor code:
1223205-208

Code:
4014835734784

Volume:
208 L, print

vendor code:
1223205-D28

Volume:
1000 L

vendor code:
1223205-700

RAVENOL Getriebeoel EPX SAE 80W-90 GL-5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.

Application Note

RAVENOL Getriebeoel EPX SAE 80W-90 GL-5 is compatible with all brand-name transmission oils. No “flushing” required when switching to RAVENOL Getriebeoel EPX SAE 80W-90 GL-5.

Use RAVENOL Getriebeoel EPX SAE 80W-90 GL-5 in hypoid gears for hypoid gearbox, manual transmissions, axle drives, distributor and intermediate transmissions in vehicles and working machines.

Characteristics

Optimal cold flow property
Outstanding wear protection even with short trips in winter
High pressure stable lubrication film, thus outstanding wear protection under any stress
Reduced transmission noise and the best transmission efficiency under full load, i.e. even with very hot oil
Outstanding shearing stability
Excellent oxidation stability, no foaming
No oil thickening or deposits
Extraordinary ageing stability
Excellent viscosity-temperature properties
Effective wear protection
Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
Neutral to sealants, transmissions stay tight, no oil loss

Parameter	Unit	Value	Audit
Recommendations		DTFR 12B100 (MB 235.0), Ford SQM-2C-9002 AA, MAN 342 M1, MB 235.0, MIL-L-2105 D		DTFR 12B100 (MB 235.0), Ford SQM-2C-9002 AA, MAN 342 M1, MB 235.0, MIL-L-2105 D
Brand		RAVENOL		RAVENOL
SAE		80W-90		80W-90
Type		Mineral		Mineral
API		GL-5		GL-5
Manufacturer Approved		LOVAT LOV-204, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A		LOVAT LOV-204, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
Recomendations		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D
Density at 20 °C	g/cm³	882	EN ISO 12185	882 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.3	DIN 51562-1	14.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	130.3	DIN 51562-1	130.3 mm²/s DIN 51562-1
Viscosity Index VI		108	DIN ISO 2909	108 DIN ISO 2909
Brookfield Viscosity at -26 °C	mPa*s	60.100	ASTM D2983	60.100 mPa*s ASTM D2983
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	222	DIN EN ISO 2592	222 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, LOVAT LOV-204, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, LOVAT LOV-204, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A

Power steering

Liquid volume (basic): 0.8 L

Hydraulik PSF Fluid

For power steering

RAVENOL Hydraulik PSF Fluid is guaranteeing an optimized power transmission.

Compliance with the requirements:
Honda PSF-S, KIA PSF-III, Mazda PSF, Mitsubishi DIAMOND PSF-2M, Subaru PS Fluid, Toyota PSF-EH

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1181000-001

Code:
4014835736313

Volume:
4 L

vendor code:
1181000-004

Code:
4014835736399

Volume:
10 L

vendor code:
1181000-010

Code:
4014835736344

Volume:
20 L

vendor code:
1181000-020

Volume:
20 L, ecobox

vendor code:
1181000-B20

Code:
4014835784222

Volume:
60 L

vendor code:
1181000-060

Volume:
208 L

vendor code:
1181000-208

Code:
4014835736382

Volume:
1000 L

vendor code:
1181000-700

RAVENOL Hydraulik PSF Fluid is guaranteeing an optimized power transmission.

RAVENOL Hydraulik PSF Fluid is produced on the basis of high quality base oils with special additives and inhibition which guarantees a perfect function of the hydraulics.

Application Note

RAVENOL Hydraulik PSF Fluid is especially developed for the use as a hydraulic fluid in power transmissions.

Characteristics

A very low pour point
An excellent foam prevention, no foam formation
A good lubricating ability even at low temperatures in winter
A high, stable viscosity index
A very good oxidation stability
Excellent protection against wear and tear, corrosion and foam formation
Fine tuned coefficient of friction
eutral behaviour against sealing materials
Neutral behaviour because of inhibition against non ferrous metals

Parameter	Unit	Value	Audit
Recommendations		Citroën/Peugeot 9735EJ für C-Crosser, Peugeot 4007, Honda PSF-S, Hyundai PSF-3, KIA PSF-III, Mazda PSF, Mitsubishi Diamond PSF-2M, Peugeot 4007, Subaru PS Fluid, Toyota PSF-EH		Citroën/Peugeot 9735EJ für C-Crosser, Peugeot 4007, Honda PSF-S, Hyundai PSF-3, KIA PSF-III, Mazda PSF, Mitsubishi Diamond PSF-2M, Peugeot 4007, Subaru PS Fluid, Toyota PSF-EH
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Recomendations		Honda PSF-S, KIA PSF-III, Mazda PSF, Mitsubishi DIAMOND PSF-2M, Subaru PS Fluid, Toyota PSF-EH		Honda PSF-S, KIA PSF-III, Mazda PSF, Mitsubishi DIAMOND PSF-2M, Subaru PS Fluid, Toyota PSF-EH
Suitable for		PSA 4007		PSA 4007
Compliant products		Hyundai PSF-3, PSA 9735.EJ		Hyundai PSF-3, PSA 9735.EJ
Density at 20 °C	g/cm³	847	EN ISO 12185	847 g/cm³ EN ISO 12185
Color		Red	visual	Red visual
Viscosity at 100 °C	mm²/s	7.2	DIN 51562-1	7.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	34.8	DIN 51562-1	34.8 mm²/s DIN 51562-1
Viscosity Index VI		178	DIN ISO 2909	178 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	12800	ASTM D2983	12800 mPa*s ASTM D2983
Pourpoint	°C	-48	DIN ISO 3016	-48 °C DIN ISO 3016
Flashpoint	°C	211	DIN EN ISO 2592	211 °C DIN EN ISO 2592
Approvals		Honda PSF-S, KIA PSF-III, Mazda PSF, Mitsubishi DIAMOND PSF-2M, Subaru PS Fluid, Toyota PSF-EH		Honda PSF-S, KIA PSF-III, Mazda PSF, Mitsubishi DIAMOND PSF-2M, Subaru PS Fluid, Toyota PSF-EH

Hydraulic brakes/clutch system

DOT 4

For brake system

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

show details

Available packaging
Full description
Product parameters

Volume:
250 ml

vendor code:
1350601-250

Code:
4014835692121

Volume:
500 ml

vendor code:
1350601-500

Code:
4014835692152

Volume:
1 L

vendor code:
1350601-001

Code:
4014835692114

Volume:
20 L

vendor code:
1350601-020

DOT 4

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

Application Note

RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.

RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.

RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113).

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

optimum ABS characteristics
chemical stability
best lubrication efficiency
neutral behaviour regarding brake parts
low viscosity at low temperatures
miscible with all brake fluids of the same specifications

Parameter	Unit	Value	Audit
FMVSS 116 specifications (DOT)		DOT-4		DOT-4
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
specification		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704
Density at 20 °C	g/cm³	1052	EN ISO 12185	1052 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mPa*s	2.41	ASTM D445	2.41 mPa*s ASTM D445
Viscosity at -40 °C	cSt	1340	ASTM D445	1340 cSt ASTM D445
Boiling point	°C	271	FMVSS 116	271 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point	°C	169	FMVSS 116	169 °C FMVSS 116
High Temperature Stability	°C	-1	FMVSS 116	-1 °C FMVSS 116
Chemical Stability	°C	1	FMVSS 116	1 °C FMVSS 116
Evaporation	%w/w	61	FMVSS 116	61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C		i.O., 4s	FMVSS 116	i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C		i.O., 8s	FMVSS 116	i.O., 8s FMVSS 116
Water Tolerance at -40 °C		transparent, 3s	FMVSS 116	transparent, 3s FMVSS 116
Water Tolerance at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at -40 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Water content	%	— 0.2	DIN 51777-1	— 0.2 % DIN 51777-1
Tinned Iron	Δ mg/cm²	0.04	FMVSS 116	0.04 Δ mg/cm² FMVSS 116
Steel	mg/cm²	-0.01	FMVSS 116	-0.01 mg/cm² FMVSS 116
Aluminium	mg/cm²	0.02	FMVSS 116	0.02 mg/cm² FMVSS 116
Cast Iron	Δ mg/cm²	-0,03	FMVSS 116	-0,03 Δ mg/cm² FMVSS 116
Brass	mg/cm²	-0.08	FMVSS 116	-0.08 mg/cm² FMVSS 116
Copper	mg/cm²	-0.05	FMVSS 116	-0.05 mg/cm² FMVSS 116
Zinc	mg/cm²	0.01	FMVSS 116	0.01 mg/cm² FMVSS 116
Sediment	%	— 0.05	FMVSS 116	— 0.05 % FMVSS 116
pH - value		8.2	FMVSS 116	8.2 FMVSS 116
Rubber Diameter Change		0.16	FMVSS 116	0.16 FMVSS 116
Hardness Change	°IRHD	-4	FMVSS 116	-4 °IRHD FMVSS 116
Appearance		i.O.	FMVSS 116	i.O. FMVSS 116
SBR at 70 °C	mm	0.56	FMVSS 116	0.56 mm FMVSS 116
SBR at 120 °C	mm	0.73	FMVSS 116	0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703)	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
EPDM at 120 °C	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925)	mm	0.38	FMVSS 116	0.38 mm FMVSS 116
Approvals		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704

Lubrication points oilers, wheel bearings, rear,, front

Mehrzweckfett mit Graphit

For lubrication

RAVENOL Mehrzweckfett mit Graphit is formulated with a highly refined base oil mixture which contains less than 3% polycyclic aromatics.Through the graphite at high temperatures a lubrication film on the metals is formed, and the graphite takes lubrication to achieve optimal results.

show details

Equivalents OEM:
VAG G060735A2

Usage mode: normal

Available packaging
Full description
Product parameters

Volume:
100 g

vendor code:
1340102-100

Code:
4014835844391

Volume:
200 g

vendor code:
1340102-200

Volume:
400 g

vendor code:
1340102-400

Code:
4014835768147

Volume:
1 kg

vendor code:
1340102-001

Code:
4014835200210

Volume:
5 kg

vendor code:
1340102-005

Code:
4014835200265

Volume:
10 kg

vendor code:
1340102-010

Code:
4014835200227

Volume:
15 kg

vendor code:
1340102-015

Volume:
25 kg

vendor code:
1340102-025

Code:
4014835200258

Volume:
180 kg

vendor code:
1340102-180

Code:
4014835200272

RAVENOL Mehrzweckfett mit Graphit is formulated with a highly refined base oil mixture which contains less than 3% polycyclic aromatics.Through the graphite at high temperatures a lubrication film on the metals is formed, and the graphite takes lubrication to achieve optimal results.

The optimized formulation of RAVENOL Mehrzweckfett mit Graphit can also capture temperature peaks in the application.

Application Note

RAVENOL Mehrzweckfett mit Graphit has been designed for applications exposed to high temperatures and shock loads.

RAVENOL Mehrzweckfett mit Graphit is used in oven conveyor belts, pistons in hydraulic pumps and all types of bearings that run at low speeds.

RAVENOL Mehrzweckfett mit Graphit is also used as a sealant in high temperature gaskets from steam pipes and other hot pipe connections.

Characteristics

Extreme shear stability
Excellent corrosion protection
Very good mechanical and chemical stability
Very good aging resistant
Good pump output also at low temperatures

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
specification		DIN 51502 KPF2K-30, ISO I6743-9: ISO-L-XCCFB2		DIN 51502 KPF2K-30, ISO I6743-9: ISO-L-XCCFB2
Color		Black gray	visual	Black gray visual
Thickener		lithium soap	DIN 51757	lithium soap DIN 51757
Additives		graphite	DIN 51757	graphite DIN 51757
NLGI-Class		2	DIN 51818	2 DIN 51818
Product Classification		KPF2K-30	DIN 51502	KPF2K-30 DIN 51502
Working Temperature	°C	-30 / +120	DIN 51825	-30 / +120 °C DIN 51825
Short term temperature up to	°C	130	DIN 51757	130 °C DIN 51757
Worked Penetration at 60 Strokes		265-295	ISO 2137	265-295 ISO 2137
Corrosion (SKF Emcor dist. Water)		1	DIN 51802	1 DIN 51802
Dropping Point	°C	180 —	DIN ISO 2176	180 — °C DIN ISO 2176
Copper Corrosion (24h/120 °C)		1	DIN 51811	1 DIN 51811
Water Resistance (3h/90 °C)	°C	1-90	DIN 51807-1	1-90 °C DIN 51807-1
VKA Pressure Carrying Capacity	N	2000 — 2200	DIN 51350-4	2000 — 2200 N DIN 51350-4
Kinematic Viscosity (Base Oil) at 40 °C	mm²/s	80	DIN 51562-1	80 mm²/s DIN 51562-1
Approvals		DIN 51502 KPF2K-30, ISO I6743-9: ISO-L-XCCFB2		DIN 51502 KPF2K-30, ISO I6743-9: ISO-L-XCCFB2

Mehrzweckfett OML

For lubrication

RAVENOL Mehrzweckfett OML has an extreme mechanical stability and a very low friction value. Therefore it can be transported easily.

show details

Equivalents OEM:
Alpine 0101001, Alpine 0101002, Alpine 0101003, Alpine 0101004, Alpine 0101005, Alpine 0101005

Usage mode: normal

Available packaging
Full description
Product parameters

Volume:
100 g

vendor code:
1340101-100

Code:
4014835844339

Volume:
200 g

vendor code:
1340101-200

Volume:
400 g

vendor code:
1340101-400

Code:
4014835768048

Volume:
5 kg

vendor code:
1340101-005

Code:
4014835200159

Volume:
10 kg

vendor code:
1340101-010

Code:
4014835200111

Volume:
15 kg

vendor code:
1340101-015

Volume:
25 kg

vendor code:
1340101-025

Code:
4014835200128

Volume:
180 kg

vendor code:
1340101-180

Code:
4014835200142

RAVENOL Mehrzweckfett OML has an extreme mechanical stability and a very low friction value. Therefore it can be transported easily.

Application Note

RAVENOL Mehrzweckfett OML is used for the lubrication of easy loaded antifriction bearings and machine components. It is also suited as multipurpose lubrication grease for vehicles.

Characteristics

Universal use, multipurpose characteristic for a mixed car pool
Extreme shear stability
Excellent corrosion protection
Excellent wear protection
Very good mechanical and chemical stability
Very good aging resistant
Good pumpability, even at low temperatures

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
specification		DIN 51502 K2K-30, ISO 6743-9: ISO-L-XCCEA2		DIN 51502 K2K-30, ISO 6743-9: ISO-L-XCCEA2
Color		Light brown	visual	Light brown visual
Thickener		lithium soap	DIN 51757	lithium soap DIN 51757
NLGI-Class		2	DIN 51818	2 DIN 51818
Product Classification		K2K-30	DIN 51502	K2K-30 DIN 51502
Working Temperature	°C	-30 / +120	DIN 51825	-30 / +120 °C DIN 51825
Short term temperature up to	°C	130	DIN 51757	130 °C DIN 51757
Worked Penetration at 60 Strokes		265-295	ISO 2137	265-295 ISO 2137
Corrosion (SKF Emcor dist. Water)		1	DIN 51802	1 DIN 51802
Dropping Point	°C	180 —	DIN ISO 2176	180 — °C DIN ISO 2176
Copper Corrosion (24h/120 °C)		1	DIN 51811	1 DIN 51811
Water Resistance (3h/90 °C)	°C	1-90	DIN 51807-1	1-90 °C DIN 51807-1
VKA Pressure Carrying Capacity	N	2000 — 2200	DIN 51350-4	2000 — 2200 N DIN 51350-4
Kinematic Viscosity (Base Oil) at 40 °C	mm²/s	130	DIN 51562-1	130 mm²/s DIN 51562-1
Approvals		DIN 51502 K2K-30, ISO 6743-9: ISO-L-XCCEA2		DIN 51502 K2K-30, ISO 6743-9: ISO-L-XCCEA2

Mehrzweckfett mit MoS2

For CV joint

RAVENOL Mehrzweckfett mit MoS2 is formulated with a highly refined base oil mixture which contains less than 3% polycyclic aromatics.

show details

Equivalents OEM:
Alpine 0101061, Alpine 0101062, Alpine 0101063, Alpine 0101064, Alpine 0101065, Alpine 0101066, BMW 83230417754, FEBI 02582, FEBI 02597, FEBI 2582, FEBI 2597, Ford 1019761, Ford 1720193, Hyundai Motor 4959022B00A, MB A001989035112, Polaris 2871515, Polaris 2871551, Polaris 2871551, SWAG 99830001, VAG G052172A2, VAG G052723A2, Yamalube ACCMOLDMGS10

Usage mode: normal

Available packaging
Full description
Product parameters

Volume:
100 g

vendor code:
1340103-100

Code:
4014835844452

Volume:
200 g

vendor code:
1340103-200

Volume:
400 g

vendor code:
1340103-400

Code:
4014835768246

Volume:
1 kg

vendor code:
1340103-001

Code:
4014835200333

Volume:
5 kg

vendor code:
1340103-005

Code:
4014835200357

Volume:
10 kg

vendor code:
1340103-010

Code:
4014835200319

Volume:
15 kg

vendor code:
1340103-015

Volume:
25 kg

vendor code:
1340103-025

Code:
4014835200326

Volume:
180 kg

vendor code:
1340103-180

Code:
4014835200371

RAVENOL Mehrzweckfett mit MoS2 is formulated with a highly refined base oil mixture which contains less than 3% polycyclic aromatics.

The optimized formulation of RAVENOL Mehrzweckfett mit MoS2 has distinctive friction-reducing properties and so-called dry running properties.

Application Note

RAVENOL Mehrzweckfett mit MoS2 has been designed for applications exposed to extreme pressure and shock loaded bearings with relatively slow sliding movements.

RAVENOL Mehrzweckfett mit MoS2 is recommended for friction and roller bearings of all types during aggravated operating conditions.

RAVENOL Mehrzweckfett mit MoS2 is also used for chassis lubricating.

Characteristics

Extreme shear stability
Excellent corrosion protection
Very good mechanical and chemical stability
Very good aging resistant
Good pump output also at low temperatures

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
specification		DIN 51502 KPF2K-30, ISO 6743-9: ISO-L-XCCIB2		DIN 51502 KPF2K-30, ISO 6743-9: ISO-L-XCCIB2
Color		Black gray	visual	Black gray visual
Thickener		lithium soap	DIN 51757	lithium soap DIN 51757
Additives		molybdenum disulfide	DIN 51757	molybdenum disulfide DIN 51757
NLGI-Class		2	DIN 51818	2 DIN 51818
Product Classification		KPF2K-30	DIN 51502	KPF2K-30 DIN 51502
Working Temperature	°C	-30 / +120	DIN 51825	-30 / +120 °C DIN 51825
Short term temperature up to	°C	130	DIN 51757	130 °C DIN 51757
Worked Penetration at 60 Strokes		265-295	ISO 2137	265-295 ISO 2137
Corrosion (SKF Emcor dist. Water)		1	DIN 51802	1 DIN 51802
Dropping Point	°C	180 —	DIN ISO 2176	180 — °C DIN ISO 2176
Copper Corrosion (24h/120 °C)		1	DIN 51811	1 DIN 51811
Water Resistance (3h/90 °C)	°C	1-90	DIN 51807-1	1-90 °C DIN 51807-1
VKA Pressure Carrying Capacity	N	2800 — 3000	DIN 51350-4	2800 — 3000 N DIN 51350-4
Kinematic Viscosity (Base Oil) at 40 °C	mm²/s	80	DIN 51562-1	80 mm²/s DIN 51562-1
Approvals		DIN 51502 KPF2K-30, ISO 6743-9: ISO-L-XCCIB2		DIN 51502 KPF2K-30, ISO 6743-9: ISO-L-XCCIB2

Cooling system

Liquid volume (basic): 8 L

OTC Organic Technology Coolant Premix -40°C

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

Compliance with the requirements:
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

show details

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410112-150

Code:
4014835755512

Volume:
5 L

vendor code:
1410112-005

Code:
4014835755550

Volume:
10 L

vendor code:
1410112-010

Volume:
20 L

vendor code:
1410112-020

Code:
4014835755529

Volume:
20 L, ecobox

vendor code:
1410112-B20

Code:
4014835855953

Volume:
60 L, plastic

vendor code:
1410112-060

Code:
4014835755567

Volume:
208 L

vendor code:
1410112-208

Code:
4014835755581

Volume:
1000 L

vendor code:
1410112-700

RAVENOL OTC Organic Techn. Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL OTC Organic Techn. Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL OTC Organic Techn. Coolant Premix -40°C to radiator to fill line.

RAVENOL OTC Organic Techn. Coolant Premix -40°C can also be used as a “ready for use” dilution in geothermal probes and geothermal collectors as recommended list of LAWA (Federal / State Working Group on Water in Germany). RAVENOL OTC Organic Techn. Coolant Concentrate is included in the list of recommendations of the LAWA for water management requirements for geothermal probes and geothermal collectors.

Characteristics

Excellent for light metal engines
Good reserve alkalinity
Premium corrosion additives for optimal rust protection for all metals and metal alloys used in coolsystems, including aluminium
Prevents sediments and foaming in the cooling system
Compatible with elastomers used in automotive radiators
Can be mixed with other coolant types

Parameter	Unit	Value	Audit
Recommendations		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, MB 326.3 (Premix), Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, MB 326.3 (Premix), Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
Brand		RAVENOL		RAVENOL
Recomendations		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
Suitable for		Jaguar Land Rover STJLR.651.5003, Porsche		Jaguar Land Rover STJLR.651.5003, Porsche
Compliant products		Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F		Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
Density at 20 °C	g/cm³	1070	EN ISO 12185	1070 g/cm³ EN ISO 12185
Color		Violet	visual	Violet visual
pH - value at 20 °C		7,5 - 8,5	ASTM D1287	7,5 - 8,5 ASTM D1287
Freezing point	°C	-40	ASTM D1177	-40 °C ASTM D1177
Approvals		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

OTC - Protect C12+ Concentrate

Coolant

Compliance with the requirements:
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

show details

Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410110-150

Code:
4014835755413

Volume:
5 L

vendor code:
1410110-005

Code:
4014835755451

Volume:
10 L

vendor code:
1410110-010

Volume:
20 L

vendor code:
1410110-020

Code:
4014835755420

Volume:
20 L, ecobox

vendor code:
1410110-B20

Code:
4014835855212

Volume:
60 L, plastic

vendor code:
-

Code:
4014835755437

Volume:
60 L

vendor code:
1410110-060

Code:
4014835755468

Volume:
60 L, print

vendor code:
1410110-D60

Volume:
1000 L

vendor code:
1410110-700

Volume:
208 L

vendor code:
1410110-208

Code:
4014835755482

RAVENOL OTC Organic Techn. Coolant Concentrate C12+ protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with highly effective frost and rust protection. Usable in cooling systems with all-aluminium engines. Mix according to chart. Follow manufacturer's recommendations.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

RAVENOL OTC Organic Techn. Coolant Concentrate C12+ can also be used in geothermal probes and geothermal collectors as recommended list of LAWA (Federal / State Working Group on Water in Germany).

MAN information for use:

Mixing prohibited with Type NF and Type N. Do not use silicone radiator hoses per MAN 334 Type 3 (blue) with coolants per MAN 324 Type SNF.

Table of mixing ratios
Antifreeze protection until	Parts Antifreeze	Parts Water
-20°C	35%	65%
-37°C	50%	50%
-50°C	60%	40%

Characteristics

Excellent for light metal engines
Good reserve alkalinity
Premium corrosion additives for optimal rust protection for all metals and metal alloys used in cool
systems, including aluminium
Prevents sediments and foaming in the cooling system
Compatible with elastomers used in automotive radiators
Can be mixed with other coolant types

Parameter	Unit	Value	Audit
Recommendations		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
Brand		RAVENOL		RAVENOL
Recomendations		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
Suitable for		Jaguar Land Rover STJLR.651.5003, Porsche		Jaguar Land Rover STJLR.651.5003, Porsche
Compliant products		Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F		Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
Density at 20 °C	g/cm³	1130	EN ISO 12185	1130 g/cm³ EN ISO 12185
Color		Violet	visual	Violet visual
Reserve alkalinity	mgKOH/g	5.5 —	ASTM D1120	5.5 — mgKOH/g ASTM D1120
Boiling point	°C	187	ASTM D1121	187 °C ASTM D1121
Water content	%	— 5	ASTM D1123	— 5 % ASTM D1123
Flashpoint	°C	110 —	DIN 51758	110 — °C DIN 51758
Freezing point (50 % solution)	°C	-37	ASTM D1177	-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %)		7,5 - 8,5	ASTM D1287	7,5 - 8,5 ASTM D1287
Approvals		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter	Value
Recommendations	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand	RAVENOL	RAVENOL
Recomendations	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272
Approvals	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272

Professional Radiator Cleaner

Additive

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

show details

Equivalents OEM:
Ford MP14300500AB

Available packaging
Full description
Product parameters

Volume:
0.25 L

vendor code:
1390302-250

Code:
4014835802667

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.

Application Note

RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.

Area of application:

Radiator repairs

In the event of reduced radiator performance

In the event of deposits in the cooling system

Changing coolant

For cleaning purposes after engine repairs due to oil in the cooling system

Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.

Fill in

RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.

RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.

Characteristics

Cleaning of the cooling and heating system
Protection of the new coolant against prior contamination
Elimination of sludge and corrosion residue

Parameter	Unit	Value	Audit
Color		Colorless	visual	Colorless visual
Density at 20 °C	g/cm³	1003	EN ISO 12185	1003 g/cm³ EN ISO 12185
pH - value at 20 °C		10,25	DIN 19268	10,25 DIN 19268
Brand		RAVENOL		RAVENOL
