Oil for Isuzu Gemini II, JT150 1.5D 2WD (4EC1) (JT600) (year of issue from 1985 date to present). Motor, automatic transmission oil, transmission, antifreeze, gur fluid, brake fluid

Search by VIN, make, model, vehicle type, unit name, or by article number of any oil:

Oil for Isuzu - Gemini II, JT150 - 1.5D 2WD (4EC1) (JT600)

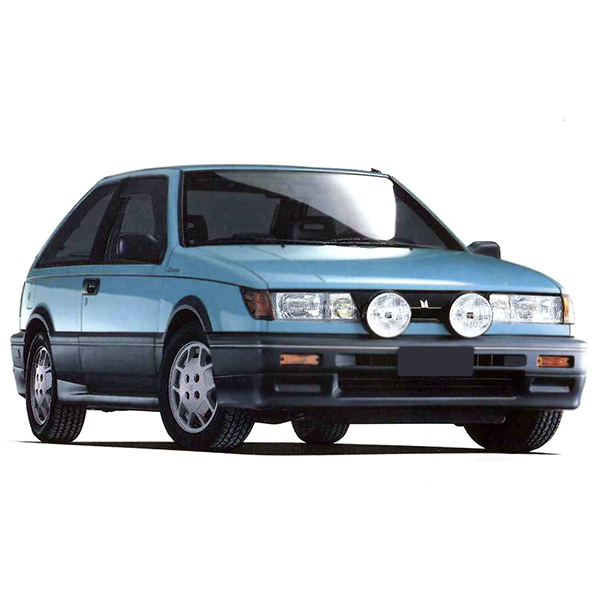

Isuzu Gemini II, JT150 1.5D 2WD (4EC1) (JT600), year of issue from 1985 date to 1990 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Fuel: Gasoline
car drive: Front-wheel drive
Engine: Single row

Add to Garage

Nodes and assemblies

Engine 4EC1
Transmission, automatic in a unit with final drive M 24 A 4/1
Mechanical gearbox in a unit with final drive S 20 5/1
Power steering
Hydraulic brakes/clutch system
Cooling system

Engine 4EC1

Liquid volume (basic): 4 L
Liquid volume (filter): 0.3 L

Expert SHPD 10W-40

Engine oil

RAVENOL Expert SHPD SAE 10W-40 has an excellent flow behaviour even at low temperatures. The quick reach of critical lubrication points provides a considerable corrosion reduction during the warm-up period. Exclusive additives guarantee the best engine cleanness even at short distances.

Manufacturer Approved:
Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00

show details

SAE: 10W-40

API: CI-4, SL

ACEA: A3, B4, E4, E7

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1122105-001

Code:
4014835725812

Volume:
5 L

vendor code:
1122105-005

Code:
4014835725850

Volume:
7 L

vendor code:
1122105-007

Code:
4014835853515

Volume:
10 L

vendor code:
1122105-010

Code:
4014835725843

Volume:
20 L

vendor code:
1122105-020

Code:
4014835725829

Volume:
20 L, ecobox

vendor code:
1122105-B20

Code:
4014835776227

Volume:
60 L

vendor code:
1122105-060

Code:
4014835725867

Volume:
60 L, print

vendor code:
1122105-D60

Code:
4014835839533

Volume:
208 L

vendor code:
1122105-208

Code:
4014835725881

Volume:
208 L, print

vendor code:
1122105-D28

Code:
4014835725805

Volume:
1000 L

vendor code:
1122105-700

RAVENOL Expert SHPD SAE 10W-40 has an excellent flow behaviour even at low temperatures. The quick reach of critical lubrication points provides a considerable corrosion reduction during the warm-up period. Exclusive additives guarantee the best engine cleanness even at short distances.

Application Note

RAVENOL Expert SHPD SAE 10W-40 is low-friction long-life engine oil for all kind of diesel engines with and without turbocharging in trucks, buses and machinery. Suitable for the longest oil change intervals.

Characteristics

Excellent detergent and dispersant characteristics
Low evaporation
A high ageing stability
Protection of reflecting surface formation
Very good cold start characteristics
Reduces oil and fuel consumption

Parameter	Unit	Value	Audit
Recommendations		Allison C4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, DAF, Global DHD-1, IVECO, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500 00, VW 505 00		Allison C4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, DAF, Global DHD-1, IVECO, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500 00, VW 505 00
SAE		10W-40		10W-40
Brand		RAVENOL		RAVENOL
Type		Semi-synthetic		Semi-synthetic
API		CI-4, SL		CI-4, SL
ACEA		A3, B4, E4, E7		A3, B4, E4, E7
Manufacturer Approved		Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3		Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3
Recomendations		Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00		Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00
Suitable for		DAF, IVECO, YaMZ		DAF, IVECO, YaMZ
Density at 20 °C	g/cm³	866	EN ISO 12185	866 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	14.2	DIN 51562-1	14.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	93.5	DIN 51562-1	93.5 mm²/s DIN 51562-1
Viscosity Index VI		155	DIN ISO 2909	155 DIN ISO 2909
CCS Viscosity at -25 °C	mPa*s	6480	ASTM D5293	6480 mPa*s ASTM D5293
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Noack Volatility	%	7.3	ASTM D5800	7.3 % ASTM D5800
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
tbn	mgKOH/g	11	ASTM D2896	11 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.45	DIN 51575	1.45 %wt. DIN 51575
Approvals		Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD-2, Scania LDF, TEDOM 258-3, Voith Retarder B, Volvo VDS-3, VW 500.00, VW 505.00		Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD-2, Scania LDF, TEDOM 258-3, Voith Retarder B, Volvo VDS-3, VW 500.00, VW 505.00

DLO 10W-40

For engine

Application NoteRAVENOL DLO SAE 10W-40 is suitable for year-round use in all modern passenger car diesel engines which require this grade of engine oil. Ideal for both turbocharged and non-turbocharged engines, it is also suitable for use in gasoline engines which require this type of product.

Manufacturer Approved:
BMW Special Oil, VW 501.01, VW 505.00

Compliance with the requirements:
MB 229.1, VW 500.00

show details

SAE: 10W-40

API: CF

ACEA: A3, B4

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1112111-001

Code:
4014835724211

Volume:
4 L

vendor code:
1112111-004

Code:
4014835724297

Volume:
5 L

vendor code:
1112111-005

Code:
4014835724259

Volume:
10 L

vendor code:
1112111-010

Code:
4014835724242

Volume:
20 L

vendor code:
1112111-020

Code:
4014835724228

Volume:
20 L, ecobox

vendor code:
1112111-B20

Code:
4014835774629

Volume:
60 L

vendor code:
1112111-060

Code:
4014835724266

Volume:
60 L, print

vendor code:
1112111-D60

Code:
4014835724235

Volume:
208 L

vendor code:
1112111-208

Code:
4014835724280

Volume:
208 L, print

vendor code:
1112111-D28

Code:
4014835724204

Volume:
1000 L

vendor code:
1112111-700

Application Note

RAVENOL DLO SAE 10W-40 is suitable for year-round use in all modern passenger car diesel engines which require this grade of engine oil. Ideal for both turbocharged and non-turbocharged engines, it is also suitable for use in gasoline engines which require this type of product.

Characteristics

High wear protection
Fuel efficient formulation
Excellent detergent and dispersant package for cleaner engines
Prevention of black sludge and carbon deposit formation
Long service life through high oxidation stability
Excellent cold starting properties
A very good viscosity-temperature behavior
Low volatility
Catalyst suitability

Parameter	Unit	Value	Audit
Recommendations		MB 229.1, Porsche, VW 500 00		MB 229.1, Porsche, VW 500 00
Brand		RAVENOL		RAVENOL
SAE		10W-40		10W-40
Type		Semi-synthetic		Semi-synthetic
API		CF		CF
ACEA		A3, B4		A3, B4
Manufacturer Approved		BMW Special Oil, VW 501.01, VW 505.00		BMW Special Oil, VW 501.01, VW 505.00
Recomendations		MB 229.1, VW 500.00		MB 229.1, VW 500.00
Suitable for		Porsche		Porsche
Density at 20 °C	g/cm³	857.4	EN ISO 12185	857.4 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.4	DIN 51562-1	14.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	97.6	DIN 51562-1	97.6 mm²/s DIN 51562-1
Viscosity Index VI		153	DIN ISO 2909	153 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	4	ASTM D5481	4 mPa*s ASTM D5481
CCS Viscosity at -25 °C	mPa*s	4900	ASTM D5293	4900 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -30 °C	mPa*s	22.000	ASTM D4684	22.000 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	%	9.5	ASTM D5800	9.5 % ASTM D5800
Flashpoint	°C	230	DIN EN ISO 2592	230 °C DIN EN ISO 2592
tbn	mgKOH/g	10.9	ASTM D2896	10.9 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.3	DIN 51575	1.3 %wt. DIN 51575
Approvals		BMW Special Oil, MB 229.1, VW 500.00, VW 501.01, VW 505.00		BMW Special Oil, MB 229.1, VW 500.00, VW 501.01, VW 505.00

VDL 5W-40

For engine

RAVENOL VDL SAE 5W-40 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Compliance with the requirements:
BMW Longlife-98, Fiat 9.55535-M2, GM GM-LL-B-025, MB 229.3, VW 505.00

show details

SAE: 5W-40

API: CF

ACEA: B3, B4

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111132-001

Code:
4014835723719

Volume:
4 L

vendor code:
1111132-004

Code:
4014835723795

Volume:
5 L

vendor code:
1111132-005

Code:
4014835723757

Volume:
10 L

vendor code:
1111132-010

Code:
4014835723740

Volume:
20 L

vendor code:
1111132-020

Code:
4014835723726

Volume:
20 L, ecobox

vendor code:
1111132-B20

Code:
4014835774124

Volume:
60 L

vendor code:
1111132-060

Code:
4014835723764

Volume:
60 L, print

vendor code:
1111132-D60

Code:
4014835723733

Volume:
208 L

vendor code:
1111132-208

Code:
4014835723788

Volume:
208 L, print

vendor code:
1111132-D28

Code:
4014835723702

Volume:
1000 L

vendor code:
1111132-700

RAVENOL VDL SAE 5W-40 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL VDL SAE 5W-40 contributes to protect the environment by reducing the emissions.

RAVENOL VDL SAE 5W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL VDL SAE 5W-40 is ideally suited for energy-saving year-round use in passenger car diesel engines with turbocharger and catalytic converter operation.

RAVENOL VDL SAE 5W-40 guarantees operational safety in all driving conditions, such as extreme stop-and-go traffic as well as high-speed highway driving.

Characteristics

High abrasion resistance.
Fuel economy by low friction property.
Excellent detergent and dispersant property.
Prevention of black sludge formation.
Extended endurance because of oxidation stability.
Excellent cold start characteristics.
Excellent viscosity-temperature- characteristics.
Low evaporation tendency.
Suitable for catalysts.

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-98, Fiat 9.55535-M2, MB 229.3, Mitsubishi, Nissan, Opel/GM-LL-B-025, Toyota Common Rail, VW 505 00		BMW Longlife-98, Fiat 9.55535-M2, MB 229.3, Mitsubishi, Nissan, Opel/GM-LL-B-025, Toyota Common Rail, VW 505 00
Brand		RAVENOL		RAVENOL
SAE		5W-40		5W-40
Type		Full synthetic		Full synthetic
API		CF		CF
ACEA		B3, B4		B3, B4
Recomendations		BMW Longlife-98, Fiat 9.55535-M2, GM GM-LL-B-025, MB 229.3, VW 505.00		BMW Longlife-98, Fiat 9.55535-M2, GM GM-LL-B-025, MB 229.3, VW 505.00
Suitable for		Mitsubishi, Nissan, Toyota Common Rail		Mitsubishi, Nissan, Toyota Common Rail
Density at 20 °C	g/cm³	844	EN ISO 12185	844 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.4	DIN 51562-1	14.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	87.7	DIN 51562-1	87.7 mm²/s DIN 51562-1
Viscosity Index VI		170	DIN ISO 2909	170 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.8	ASTM D5481	3.8 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4220	ASTM D5293	4220 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	18.600	ASTM D4684	18.600 mPa*s ASTM D4684
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Noack Volatility	%	6.9	ASTM D5800	6.9 % ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	10	ASTM D2896	10 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.39	DIN 51575	1.39 %wt. DIN 51575
Approvals		BMW Longlife-98, Fiat 9.55535-M2, GM GM-LL-B-025, MB 229.3, VW 505.00		BMW Longlife-98, Fiat 9.55535-M2, GM GM-LL-B-025, MB 229.3, VW 505.00

Turbo plus SHPD 15W-40

For mixed fleet

RAVENOL Turbo plus SHPD SAE 15W-40 can be used for diesel and petrol engines, also with turbochargers.

Manufacturer Approved:
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-3, Volvo VDS-3

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C

show details

SAE: 15W-40

API: CI-4, SL

ACEA: A3, B4, E7

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1123115-001

Volume:
4 L

vendor code:
1123115-004

Volume:
5 L

vendor code:
1123115-005

Code:
4014835726154

Volume:
7 L

vendor code:
1123115-007

Volume:
10 L

vendor code:
1123115-010

Code:
4014835726147

Volume:
20 L

vendor code:
1123115-020

Code:
4014835726123

Volume:
20 L, ecobox

vendor code:
1123115-B20

Code:
4014835776821

Volume:
60 L

vendor code:
1123115-060

Code:
4014835726161

Volume:
60 L, print

vendor code:
1123115-D60

Code:
4014835726130

Volume:
208 L

vendor code:
1123115-208

Code:
4014835726185

Volume:
208 L, print

vendor code:
1123115-D28

Code:
4014835726109

Volume:
1000 L

vendor code:
1123115-700

RAVENOL Turbo plus SHPD SAE 15W-40 can be used for diesel and petrol engines, also with turbochargers.

RAVENOL Turbo plus SHPD SAE 15W-40 has been especially developed for extended oil change intervals, according to manufacturer’s recommendations.

Application Note

RAVENOL Turbo-Plus SHPD SAE 15W-40 is recommended by the engine manufacturers for extended oil change intervals as SAE 15W-40 multigrade engine oil in heavy duty commercial vehicle diesel engines.

RAVENOL Turbo-Plus SHPD SAE 15W-40 is the preferred use for extended oil life in turbo charged diesel engines according to manufacturer’s recommendations.

Characteristics

Extremely high pressure absorption capacity
Very high oxidation stability
Excellent aging stability
Excellent viscosity and temperature behaviour
High security reserves even under limited lubrication circumstances
Suitable for extended oil change intervals
Suitable for heavy operating conditions

Parameter	Unit	Value	Audit
Recommendations		Allison C4, Caterpillar TO-2, Global DHD-1, IVECO, JASO DH-1, John Deere JDQ-78A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1 (Multigrades), MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C		Allison C4, Caterpillar TO-2, Global DHD-1, IVECO, JASO DH-1, John Deere JDQ-78A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1 (Multigrades), MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C
SAE		15W-40		15W-40
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		CI-4, SL		CI-4, SL
ACEA		A3, B4, E7		A3, B4, E7
JASO		DH-1		DH-1
Manufacturer Approved		Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-3, Volvo VDS-3		Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-3, Volvo VDS-3
Recomendations		Allison C-4, Caterpillar TO-2, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C
Suitable for		IVECO, Steyr Motor GAZ 560, YaMZ		IVECO, Steyr Motor GAZ 560, YaMZ
Density at 20 °C	g/cm³	870	EN ISO 12185	870 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	15	DIN 51562-1	15 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	115.7	DIN 51562-1	115.7 mm²/s DIN 51562-1
Viscosity Index VI		134	DIN ISO 2909	134 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	4	ASTM D5481	4 mPa*s ASTM D5481
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	238	DIN EN ISO 2592	238 °C DIN EN ISO 2592
tbn	mgKOH/g	10.5	ASTM D2896	10.5 mgKOH/g ASTM D2896
Approvals		Allison C-4, Caterpillar TO-2, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD, Renault RLD-2, Scania LDF-2, TEDOM 258-3, Volvo VDS-3, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD, Renault RLD-2, Scania LDF-2, TEDOM 258-3, Volvo VDS-3, ZF TE-ML 07C

Turbo Plus SHPD 10W-30

For mixed park

RAVENOL Turbo Plus SHPD SAE 10W-30 meets the requirements of SAE-Class 10W-30. This adjustment of viscosity also ensures a good lubricating film at high temperatures.

Compliance with the requirements:
Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3

show details

SAE: 10W-30

API: CI-4, SL

ACEA: A3, B4, E3, E5, E7

Equivalents OEM:
Caterpillar 3E9844, Caterpillar 143465, Hino HRLIE10W30C, Hyundai Motor 0520000100, Hyundai Motor 0520000400, Hyundai Motor 0520000600, Hyundai XTeer 1011014, Hyundai XTeer 1061002, Nissan KLB2M10302, Nissan KLBFA10301, Nissan KLBFA10302, Nissan KLBFA10302, Nissan KLBFO10301, Nissan KLBFO10302, Nissan KLBFO10304, Nissan KLBH010302

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1123105-001

Volume:
5 L

vendor code:
1123105-005

Volume:
10 L

vendor code:
1123105-010

Code:
4014835737747

Volume:
20 L

vendor code:
1123105-020

Code:
4014835637726

Volume:
20 L, ecobox

vendor code:
1123105-B20

Volume:
60 L

vendor code:
1123105-060

Code:
4014835737761

Volume:
208 L

vendor code:
1123105-208

Code:
4014835737785

Volume:
1000 L

vendor code:
1123105-700

RAVENOL Turbo Plus SHPD SAE 10W-30 meets the requirements of SAE-Class 10W-30. This adjustment of viscosity also ensures a good lubricating film at high temperatures.

RAVENOL Turbo Plus SHPD SAE 10W-30 is particularly suitable for engines with already high performance.

Application Note

RAVENOL Turbo Plus SHPD SAE 10W-30 is approved, tried and tested for aggregates specifying:

Specifications: API CI-4/ SL, ACEA E7, E5, E3, ACEA A3/B4

Approval: YaMZ

Recommendations: Caterpillar ECF-2, TO-2; Cummins CES 20071, -72, -76, -77, -78; DAF; DDC 93K215; Deutz DQC III-10; Global DHD-1; JASO DH-1; Mack EO-N; MAN M 3275-1; MB 228.3;MTU Type 2, MTU Type 3; Renault RLD, Renault VI RLD-2; Volvo VDS 3.

Parameter	Unit	Value	Audit
Recommendations		Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF, Detroit Diesel DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, JASO DH-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Typ 2, MTU Typ 3, Renault RLD, Renault VI RLD-2, VOLVO VDS-3		Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF, Detroit Diesel DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, JASO DH-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Typ 2, MTU Typ 3, Renault RLD, Renault VI RLD-2, VOLVO VDS-3
SAE		10W-30		10W-30
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		CI-4, SL		CI-4, SL
ACEA		A3, B4, E3, E5, E7		A3, B4, E3, E5, E7
JASO		DH-1		DH-1
Recomendations		Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3		Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3
Suitable for		DAF, YaMZ		DAF, YaMZ
Density at 20 °C	g/cm³	865	EN ISO 12185	865 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12	DIN 51562-1	12 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	74.9	DIN 51562-1	74.9 mm²/s DIN 51562-1
Viscosity Index VI		156	DIN ISO 2909	156 DIN ISO 2909
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	10.2	ASTM D2896	10.2 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.4	DIN 51575	1.4 %wt. DIN 51575
Approvals		Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3		Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3

Expert SHPD 5W-30

For engine

RAVENOL Expert SHPD SAE 5W-30 ensures a reliable cold start at low outside temperatures and full lubricity at high operating temperatures thanks to the SAE 5W-30 viscosity range. Friction losses and wear are reduced.

Compliance with the requirements:
Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3

show details

SAE: 5W-30

API: CI-4, SL

ACEA: A3, B4, E3, E5, E7

Equivalents OEM:
MB A000989240713FBDR, MB A000989240717FBDR, MB A000989630413BEER, MB A000989630417BEER, MB A000989730217BGEZ, MB A000989780715CDDB, MB A000989860219AEED, MB A000989890613ABDE, MB A000989890613ABDS, MB A000989890615ABDS, MB A000989890617ABDS, MB A000989890618ABDS, MB A0019890801AAA0, MB A0019890801AAA4, MB A0019890801AAA8, MB A0019890801AAA9, MB A0019890801ADA0, MB A0019890801ADA4, MB A0019890801ADA6, MB A0019890801ADA6, MB A0019890801ARU8, MB A0019890801BAA0, MB A0019890801BRD2, MB A002989370313FDDW, MB A094989210013ABDE, MB A094989210015ABDS, MB A094989210017ABDS, MB A094989210018ABDS, MB A094989260013FBDR, MB A094989260017FBDR

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1121104-001

Code:
4014835863842

Volume:
5 L

vendor code:
1121104-005

Code:
4014835863460

Volume:
7 L

vendor code:
1121104-007

Code:
4014835867949

Volume:
10 L

vendor code:
1121104-010

Code:
4014835864085

Volume:
20 L

vendor code:
1121104-020

Code:
4014835863491

Volume:
20 L, ecobox

vendor code:
1121104-B20

Code:
4014835863606

Volume:
60 L

vendor code:
1121104-060

Code:
4014835863583

Volume:
60 L, print

vendor code:
1121104-D60

Volume:
208 L

vendor code:
1121104-208

Code:
4014835863514

Volume:
208 L, print

vendor code:
1121104-D28

Volume:
1000 L

vendor code:
1121104-700

RAVENOL Expert SHPD SAE 5W-30 ensures a reliable cold start at low outside temperatures and full lubricity at high operating temperatures thanks to the SAE 5W-30 viscosity range. Friction losses and wear are reduced.

RAVENOL Expert SHPD SAE 5W-30 was designed as SHPD engine oil (Super High Performance Diesel) for use in turbocharged and non-turbocharged engines.

Application Note

RAVENOL Expert SHPD SAE 5W-30 is a year-round high performance engine oil designed for the truck fleet and buses according to the specified specifications.

RAVENOL Expert SHPD SAE 5W-30 is universally applicable in truck diesel engines with and without turbocharging. It can be used for EURO 4, EURO 5 and EURO 6 engines.Please follow the manufacturer's instructions.

Parameter	Unit	Value	Audit
Recommendations		Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, Detroit Diesel DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Typ 2, Renault VI RLD-2, VOLVO VDS-3		Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, Detroit Diesel DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Typ 2, Renault VI RLD-2, VOLVO VDS-3
SAE		5W-30		5W-30
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
API		CI-4, SL		CI-4, SL
ACEA		A3, B4, E3, E5, E7		A3, B4, E3, E5, E7
Recomendations		Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3		Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3
Density at 20 °C	g/cm³	851	EN ISO 12185	851 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	74.2	DIN 51562-1	74.2 mm²/s DIN 51562-1
Viscosity Index VI		161	DIN ISO 2909	161 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.53	ASTM D5481	3.53 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	6340	ASTM D5293	6340 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	25.890	ASTM D4684	25.890 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	8.3	ASTM D5800	8.3 % ASTM D5800
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	10.7	ASTM D2896	10.7 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.29	DIN 51575	1.29 %wt. DIN 51575
Approvals		Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3		Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

Available packaging
Full description
Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

Long-term effectiveness and clean fresh oil
Remedy for soiled engines
Protection against compression loss in the area of the piston rings
Leads to better exhaust emissions and increases the performance of the engine

Parameter	Unit	Value	Audit
Color		Light brown	visual	Light brown visual
Flashpoint (PM)	°C	62	DIN ISO 3679	62 °C DIN ISO 3679
Density at 20 °C		805	EN ISO 12185	805 EN ISO 12185
Viscosity at 40 °C	mm²/s	7	DIN EN ISO 3104	7 mm²/s DIN EN ISO 3104
Brand		RAVENOL		RAVENOL

Transmission, automatic in a unit with final drive M 24 A 4/1

Liquid volume (basic): 2.7 L

ATF Dexron D II

For automatic transmission

Application NoteRAVENOL ATF Dexron D II was developed for the use in automatic transmissions, hydro steering mechanisms, converters and power transmissions and can be used as a universal ATF (Automatic-Transmission-Fluid) for all vehicles and working machines.

Manufacturer Approved:
Voith H55.6335.xx

Compliance with the requirements:
Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1213102-001

Code:
4014835733510

Volume:
4 L

vendor code:
1213102-004

Code:
4014835733596

Volume:
10 L

vendor code:
1213102-010

Code:
4014835733541

Volume:
20 L

vendor code:
1213102-020

Code:
4014835733527

Volume:
20 L, ecobox

vendor code:
1213102-B20

Code:
4014835787827

Volume:
60 L

vendor code:
1213102-060

Code:
4014835733565

Volume:
208 L

vendor code:
1213102-208

Code:
4014835733589

Volume:
208 L, print

vendor code:
1213102-D28

Volume:
1000 L

vendor code:
1213102-700

Application Note

RAVENOL ATF Dexron D II was developed for the use in automatic transmissions, hydro steering mechanisms, converters and power transmissions and can be used as a universal ATF (Automatic-Transmission-Fluid) for all vehicles and working machines.

Characteristics

protection against corrosion, sludge and sticking
an excellent and very shear stable viscosity temperature behaviour
no problems concerning very low respectively very high temperatures
an excellent high thermal capacity
free of foam even under hardest loads
neutral behaviour against sealing materials
mixable and compatible with all kinds of ATF

Parameter	Unit	Value	Audit
ATF		Dexron D II		Dexron D II
Recommendations		Caterpillar TO-2, CVT, DTFR 13C140 (MB 236.7), Ford M2C-138 CJ, Ford M2C-166H, Ford M2C-185A, Ford MERCON®, Ford SQM-9010B, MAN 339 Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C		Caterpillar TO-2, CVT, DTFR 13C140 (MB 236.7), Ford M2C-138 CJ, Ford M2C-166H, Ford M2C-185A, Ford MERCON®, Ford SQM-9010B, MAN 339 Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Manufacturer Approved		Voith H55.6335.xx		Voith H55.6335.xx
Recomendations		Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C		Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
specification		Allison C-3, Allison C-4, GM Dexron® II D		Allison C-3, Allison C-4, GM Dexron® II D
Suitable for		CVT		CVT
Density at 20 °C	g/cm³	848	EN ISO 12185	848 g/cm³ EN ISO 12185
Color		Red	visual	Red visual
Viscosity at 100 °C	mm²/s	7.3	DIN 51562-1	7.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	34.3	DIN 51562-1	34.3 mm²/s DIN 51562-1
Viscosity Index VI		185	DIN ISO 2909	185 DIN ISO 2909
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	210	DIN EN ISO 2592	210 °C DIN EN ISO 2592
Approvals		Allison C-3, Allison C-4, Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, GM Dexron® II D, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, Voith H55.6335.xx, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C		Allison C-3, Allison C-4, Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, GM Dexron® II D, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, Voith H55.6335.xx, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C

Mechanical gearbox in a unit with final drive S 20 5/1

Liquid volume (basic): 1.8 L

Getriebeoel TSG 75W-90

For transmission

RAVENOL Getriebeoel TSG SAE 75W-90 is designed based on high-quality synthetic base oils with special additive treatment and inhibition coordinated to the increased stress on manual transmission oils and ensuring trouble-free transmission function.

Compliance with the requirements:
Ford ESF-M2C 175, GM B0401043, VW 501.50, VW G 052 911, VW G 060 726

show details

SAE: 75W-90

API: GL-4

Equivalents OEM:
Ford 97SXM2C200AA, Ford 97SXM2C200BA, Ford 1045737, Ford 1045738, Ford 5012119, Ford 5012119, Ford 5015547, Ford 5015548, Ford A86SX2C175AA, Ford A86SX2C175BA, Ford XT4QGL, Geely SH550027967, Hyundai Motor 043005L1A0, Hyundai Motor 043005L1A00001, Hyundai Motor 043005L1AO, Hyundai Motor 043005L6A0, Hyundai XTeer 1011435, Hyundai XTeer 1041435, Hyundai XTeer 1120435, Toyota 0888501513, Toyota 0888581023, Toyota 0888581026, UAZ 000000473400800, UAZ 473400800, UAZ 473401200, VAG G052178A2, VAG G052178S0, Volvo 1161647, Volvo 1161723, Volvo 1161724

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1222101-001

Code:
4014835734210

Volume:
4 L

vendor code:
1222101-004

Code:
4014835734296

Volume:
10 L

vendor code:
1222101-010

Code:
4014835734241

Volume:
20 L

vendor code:
1222101-020

Code:
4014835734227

Volume:
20 L, ecobox

vendor code:
1222101-B20

Code:
4014835788923

Volume:
60 L, print

vendor code:
1222101-D60

Code:
4014835734234

Volume:
208 L

vendor code:
1222101-208

Code:
4014835734289

Volume:
208 L, print

vendor code:
1222101-D28

Code:
4014835734203

Volume:
1000 L

vendor code:
1222101-700

Volume:
60 L

vendor code:
1222101-060

RAVENOL Getriebeoel TSG SAE 75W-90 is designed based on high-quality synthetic base oils with special additive treatment and inhibition coordinated to the increased stress on manual transmission oils and ensuring trouble-free transmission function.

Application Note

RAVENOL Getriebeoel TSG SAE 75W-90 is suitable for highly stressed manual transmissions (with and without synchronising), transfer cases and steering gearboxes in vehicles and work machines.

Characteristics

excellent ageing resistance
extra high pressure absorption properties
optimal viscosity-temperature properties
excellent low temperature properties
shearing stability
stable lubricating film even under high stress
extremely low pour point
good elastomer compatibility to prevent leaks

Parameter	Unit	Value	Audit
Recommendations		Ford M2C-175, Opel/GM B0401043, VW 501 50, VW G 052 911 A2, VW G 060 726 A2		Ford M2C-175, Opel/GM B0401043, VW 501 50, VW G 052 911 A2, VW G 060 726 A2
Brand		RAVENOL		RAVENOL
SAE		75W-90		75W-90
Type		Synthetic		Synthetic
API		GL-4		GL-4
Recomendations		Ford ESF-M2C 175, GM B0401043, VW 501.50, VW G 052 911, VW G 060 726		Ford ESF-M2C 175, GM B0401043, VW 501.50, VW G 052 911, VW G 060 726
Compliant products		VW G 052 911, VW G 060 726		VW G 052 911, VW G 060 726
Density at 20 °C	g/cm³	837.5	EN ISO 12185	837.5 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mm²/s	15.7	DIN 51562-1	15.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	95.7	DIN 51562-1	95.7 mm²/s DIN 51562-1
Viscosity Index VI		176	DIN ISO 2909	176 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	88.700	ASTM D2983	88.700 mPa*s ASTM D2983
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		Ford ESF-M2C 175, GM B0401043, VW 501.50, VW G 052 911, VW G 060 726		Ford ESF-M2C 175, GM B0401043, VW 501.50, VW G 052 911, VW G 060 726

Power steering

Liquid volume (basic): 1.1 L

PSF-Y Fluid

For power steering

Due to its special formulation the properties of RAVENOL PSF-Y Fluid are crucial. We assure an excellent cold stability.

Compliance with the requirements:
Chrysler MS-5931, Chrysler MS-9933, Chrysler MS-10838, DTFR 38B100 (MB 236.3), MB 236.3, VW G 009 300, VW TL 4634

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1211123-001

Code:
4014835718616

Volume:
4 L

vendor code:
1211123-004

Volume:
20 L

vendor code:
1211123-020

Volume:
20 L, ecobox

vendor code:
1211123-B20

Code:
4014835786523

Volume:
60 L

vendor code:
1211123-060

Volume:
60 L, print

vendor code:
1211123-D60

Volume:
208 L

vendor code:
1211123-208

Volume:
208 L, print

vendor code:
1211123-D28

Due to its special formulation the properties of RAVENOL PSF-Y Fluid are crucial. We assure an excellent cold stability.

Application Note

RAVENOL PSF-Y Fluid is specially designed for use in the latest power steering of Volkswagen, Mercedes and Chrysler. Please note: Follow manufacturer’s original equipment number!

Characteristics

Extremely low pour point
Improved viscosity and coefficient of friction behaviour
A very good protection against consumption
Excellent thermal stability
Improved EP-characteristics
A good foaming behaviour
Neutral behaviour towards sealing materials
Reliable protection against corrosion

Parameter	Unit	Value	Audit
Recommendations		Chrysler 04883077, Chrysler 05098158A, Chrysler MS-10838, Chrysler MS-5931, Chrysler MS-9933, DTFR 38B100 (MB 236.3), GM 1050017, GM 89020661, GM 9985010, Honda 08206-9002, Honda 08285-P99-01Z-T1, MB 236.3, Mercedes A 000 989 88 03, Mopar 05142893AA, Texaco TL 4634, VW G 009 300 A2		Chrysler 04883077, Chrysler 05098158A, Chrysler MS-10838, Chrysler MS-5931, Chrysler MS-9933, DTFR 38B100 (MB 236.3), GM 1050017, GM 89020661, GM 9985010, Honda 08206-9002, Honda 08285-P99-01Z-T1, MB 236.3, Mercedes A 000 989 88 03, Mopar 05142893AA, Texaco TL 4634, VW G 009 300 A2
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Recomendations		Chrysler MS-10838, Chrysler MS-5931, Chrysler MS-9933, DTFR 38B100 (MB 236.3), MB 236.3, VW G 009 300, VW TL 4634		Chrysler MS-10838, Chrysler MS-5931, Chrysler MS-9933, DTFR 38B100 (MB 236.3), MB 236.3, VW G 009 300, VW TL 4634
Compliant products		Chrysler 04883077, Chrysler 05098158A, GM 1050017, GM 89020661, GM 9985010, Honda 08206-9002, Honda 08285-P99-01Z-T1, MB A 000 989 88 03, Mopar 05142893AA, VW G 009 300		Chrysler 04883077, Chrysler 05098158A, GM 1050017, GM 89020661, GM 9985010, Honda 08206-9002, Honda 08285-P99-01Z-T1, MB A 000 989 88 03, Mopar 05142893AA, VW G 009 300
Density at 20 °C	g/cm³	849	EN ISO 12185	849 g/cm³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	7.2	DIN 51562-1	7.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	34.9	DIN 51562-1	34.9 mm²/s DIN 51562-1
Viscosity Index VI		177	DIN ISO 2909	177 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	12800	ASTM D2983	12800 mPa*s ASTM D2983
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	210	DIN EN ISO 2592	210 °C DIN EN ISO 2592
Approvals		Chrysler MS-10838, Chrysler MS-5931, Chrysler MS-9933, DTFR 38B100 (MB 236.3), MB 236.3, VW G 009 300, VW TL 4634		Chrysler MS-10838, Chrysler MS-5931, Chrysler MS-9933, DTFR 38B100 (MB 236.3), MB 236.3, VW G 009 300, VW TL 4634

Hydraulic brakes/clutch system

Liquid volume (basic): 1 L

DOT 4

For brake system

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

show details

Available packaging
Full description
Product parameters

Volume:
250 ml

vendor code:
1350601-250

Code:
4014835692121

Volume:
500 ml

vendor code:
1350601-500

Code:
4014835692152

Volume:
1 L

vendor code:
1350601-001

Code:
4014835692114

Volume:
20 L

vendor code:
1350601-020

DOT 4

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

Application Note

RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.

RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.

RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113).

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

optimum ABS characteristics
chemical stability
best lubrication efficiency
neutral behaviour regarding brake parts
low viscosity at low temperatures
miscible with all brake fluids of the same specifications

Parameter	Unit	Value	Audit
FMVSS 116 specifications (DOT)		DOT-4		DOT-4
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
specification		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704
Density at 20 °C	g/cm³	1052	EN ISO 12185	1052 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mPa*s	2.41	ASTM D445	2.41 mPa*s ASTM D445
Viscosity at -40 °C	cSt	1340	ASTM D445	1340 cSt ASTM D445
Boiling point	°C	271	FMVSS 116	271 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point	°C	169	FMVSS 116	169 °C FMVSS 116
High Temperature Stability	°C	-1	FMVSS 116	-1 °C FMVSS 116
Chemical Stability	°C	1	FMVSS 116	1 °C FMVSS 116
Evaporation	%w/w	61	FMVSS 116	61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C		i.O., 4s	FMVSS 116	i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C		i.O., 8s	FMVSS 116	i.O., 8s FMVSS 116
Water Tolerance at -40 °C		transparent, 3s	FMVSS 116	transparent, 3s FMVSS 116
Water Tolerance at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at -40 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Water content	%	— 0.2	DIN 51777-1	— 0.2 % DIN 51777-1
Tinned Iron	Δ mg/cm²	0.04	FMVSS 116	0.04 Δ mg/cm² FMVSS 116
Steel	mg/cm²	-0.01	FMVSS 116	-0.01 mg/cm² FMVSS 116
Aluminium	mg/cm²	0.02	FMVSS 116	0.02 mg/cm² FMVSS 116
Cast Iron	Δ mg/cm²	-0,03	FMVSS 116	-0,03 Δ mg/cm² FMVSS 116
Brass	mg/cm²	-0.08	FMVSS 116	-0.08 mg/cm² FMVSS 116
Copper	mg/cm²	-0.05	FMVSS 116	-0.05 mg/cm² FMVSS 116
Zinc	mg/cm²	0.01	FMVSS 116	0.01 mg/cm² FMVSS 116
Sediment	%	— 0.05	FMVSS 116	— 0.05 % FMVSS 116
pH - value		8.2	FMVSS 116	8.2 FMVSS 116
Rubber Diameter Change		0.16	FMVSS 116	0.16 FMVSS 116
Hardness Change	°IRHD	-4	FMVSS 116	-4 °IRHD FMVSS 116
Appearance		i.O.	FMVSS 116	i.O. FMVSS 116
SBR at 70 °C	mm	0.56	FMVSS 116	0.56 mm FMVSS 116
SBR at 120 °C	mm	0.73	FMVSS 116	0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703)	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
EPDM at 120 °C	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925)	mm	0.38	FMVSS 116	0.38 mm FMVSS 116
Approvals		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704

Cooling system

Liquid volume (basic): 4.5 L

TTC - Protect C11 Premix -40ºC

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

Compliance with the requirements:
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C

show details

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410105-150

Code:
4014835755314

Volume:
5 L

vendor code:
1410105-005

Code:
4014835755352

Volume:
10 L

vendor code:
1410105-010

Code:
4014835755345

Volume:
20 L

vendor code:
1410105-020

Code:
4014835755321

Volume:
20 L, ecobox

vendor code:
1410105-B20

Code:
4014835855939

Volume:
60 L

vendor code:
1410105-060

Code:
4014835755369

Volume:
208 L

vendor code:
1410105-208

Code:
4014835755383

Volume:
1000 L

vendor code:
1410105-700

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL TTC Trad. Techn. Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL TTC Trad. Techn. Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL TTC Trad. Techn. Coolant Premix -40°C to radiator to fill line.

Characteristics

Excellent for light metal engines
Good reserve alkalinity
High-quality corrosion additives for optimal corrosion protection
Elastomer compatible with elastome

Parameter	Unit	Value	Audit
Recommendations		AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)		AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
Brand		RAVENOL		RAVENOL
ASTM		D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF		D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF
Recomendations		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
Suitable for		Suzuki		Suzuki
Density at 20 °C	g/cm³	1080	EN ISO 12185	1080 g/cm³ EN ISO 12185
Color		yellow green	visual	yellow green visual
pH - value at 20 °C		7,8	ASTM D1287	7,8 ASTM D1287
Freezing point	°C	-40	ASTM D1177	-40 °C ASTM D1177
Approvals		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C

TTC - Protect C11 Concentrate

Coolant

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

show details

Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410100-150

Code:
4014835755215

Volume:
5 L

vendor code:
1410100-005

Code:
4014835755253

Volume:
10 L

vendor code:
1410100-010

Volume:
20 L

vendor code:
1410100-020

Code:
4014835755222

Volume:
20 L, ecobox

vendor code:
1410100-B20

Volume:
60 L

vendor code:
1410100-060

Code:
4014835755260

Volume:
60 L, plastic

vendor code:
-

Code:
4014835755239

Volume:
60 L, print

vendor code:
1410100-D60

Volume:
208 L

vendor code:
1410100-208

Code:
4014835755208

Volume:
1000 L

vendor code:
1410100-700

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

Therefore manufacturers subject coolants to long corrosion and cavitation tests.

RAVENOL TTC Trad. Techn. Coolant Concentrate protects the cooling system from corrosion, frost, and in the summer from overheating.

Application Note

RAVENOL TTC Trad. Techn. Coolant Concentrate with frost and rust protection. Use according to the mixing chart. Follow manufacturer’s recommendations.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL TTC Trad. Techn. Coolant Concentrate with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

Table of mixing ratios
Antifreeze protection until	Parts Antifreeze	Parts Water
-20°C	35%	65%
-37°C	50%	50%
-50°C	60%	40%

Characteristics

Excellent for light metal engines
Good reserve alkalinity
High-quality corrosion additives for optimal corrosion protection
Elastomer compatible with elastomers used in automotive radiators

Parameter	Unit	Value	Audit
Recommendations		AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)		AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
Brand		RAVENOL		RAVENOL
ASTM		D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF		D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF
Recomendations		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
Suitable for		Suzuki		Suzuki
Density at 20 °C	g/cm³	1130	EN ISO 12185	1130 g/cm³ EN ISO 12185
Color		yellow green	visual	yellow green visual
Reserve alkalinity	mgKOH/g	— 20	ASTM D1121	— 20 mgKOH/g ASTM D1121
Boiling point	°C	155	ASTM D1120	155 °C ASTM D1120
Water content	%	— 5	ASTM D1123	— 5 % ASTM D1123
Flashpoint	°C	112	DIN 51758	112 °C DIN 51758
Freezing point (50 % solution)	°C	-37	ASTM D1177	-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %)		8,4	ASTM D1287	8,4 ASTM D1287
Approvals		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter	Value
Recommendations	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand	RAVENOL	RAVENOL
Recomendations	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272
Approvals	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272

Professional Radiator Cleaner

Additive

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

show details

Equivalents OEM:
Ford MP14300500AB

Available packaging
Full description
Product parameters

Volume:
0.25 L

vendor code:
1390302-250

Code:
4014835802667

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.

Application Note

RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.

Area of application:

Radiator repairs

In the event of reduced radiator performance

In the event of deposits in the cooling system

Changing coolant

For cleaning purposes after engine repairs due to oil in the cooling system

Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.

Fill in

RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.

RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.

Characteristics

Cleaning of the cooling and heating system
Protection of the new coolant against prior contamination
Elimination of sludge and corrosion residue

Parameter	Unit	Value	Audit
Color		Colorless	visual	Colorless visual
Density at 20 °C	g/cm³	1003	EN ISO 12185	1003 g/cm³ EN ISO 12185
pH - value at 20 °C		10,25	DIN 19268	10,25 DIN 19268
Brand		RAVENOL		RAVENOL
