Oil for JAC - S3 / Refine S3 / Ruifeng S3 - S3 / Refine S3 1.5 2WD (HFC4GB2.3D) (HFC715)

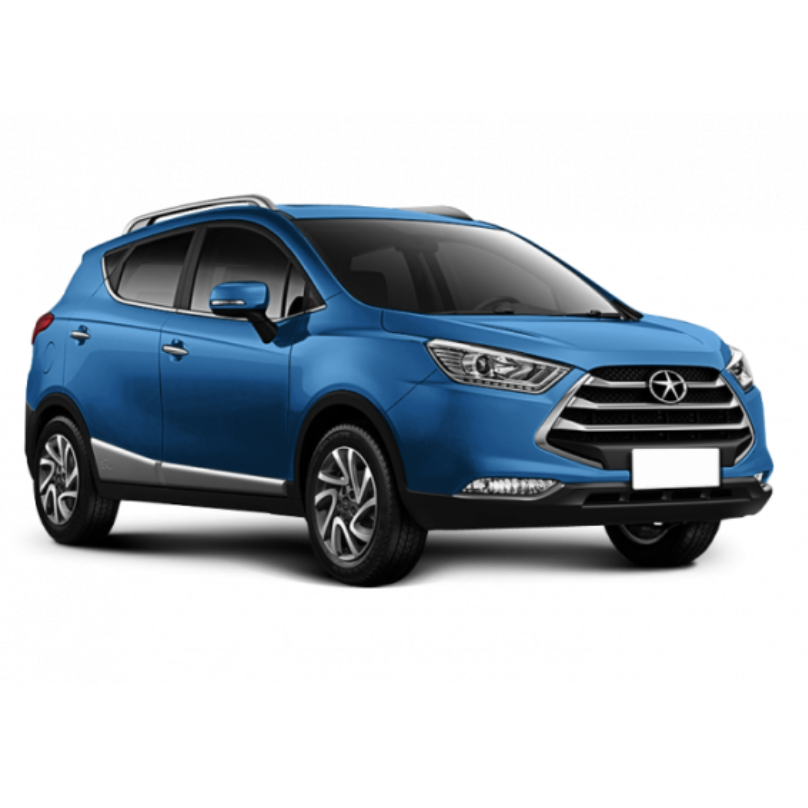

JAC S3 / Refine S3 / Ruifeng S3 S3 / Refine S3 1.5 2WD (HFC4GB2.3D) (HFC715), year of issue from 2015 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Fuel: Gasoline

Add to Garage

Nodes and assemblies

Engine, HFC4GB2.3D / HFC4GB2.3E
CVT gearbox in a unit with final drive 1/1
Mechanical gearbox in a unit with final drive 6/1
Hydraulic brake system
Cooling system

Engine, HFC4GB2.3D / HFC4GB2.3E

Liquid volume (basic): 4 L

DXG 5W-30

For engine

For the development of RAVENOL DXG SAE 5W-30 the proven formulation of tri-nuclear molybdenum and OFM (Organic Friction Modifiers) was used. A highly polar Group V base oil was used in this formula, which has good compatibility with the PAO used.

Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034

Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30

show details

SAE: 5W-30

ILSAC: GF-7A

API: SQ (RC)

Usage mode: normal

Replacement every 5000 KM or 6 MONTH.

Replacement every 3000 KM or 3 MONTH.

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111124-001

Code:
4014835732315

Volume:
4 L

vendor code:
1111124-004

Code:
4014835732391

Volume:
5 L (4+1)

vendor code:
1111124-A05

Code:
4014835851689

Volume:
5 L

vendor code:
1111124-005

Code:
4014835732353

Volume:
10 L

vendor code:
1111124-010

Code:
4014835732346

Volume:
20 L, ecobox

vendor code:
1111124-B20

Code:
4014835773820

Volume:
60 L, print

vendor code:
1111124-D60

Code:
4014835732339

Volume:
208 L

vendor code:
1111124-208

Code:
4014835732384

Volume:
208 L, print

vendor code:
1111124-D28

Volume:
20 L

vendor code:
1111124-020

Code:
4014835732322

Volume:
60 L

vendor code:
1111124-060

For the development of RAVENOL DXG SAE 5W-30 the proven formulation of tri-nuclear molybdenum and OFM (Organic Friction Modifiers) was used. A highly polar Group V base oil was used in this formula, which has good compatibility with the PAO used.

Due to the USVO®technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

With its new formulation, RAVENOL DXG SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL DXG SAE 5W-30 helps to protect the environment by reducing emissions.

RAVENOL DXG SAE 5W-30 helps to avoid low speed pre-ignition LSPI (Low Speed Pre-ignition). This can help avoid engine damage.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL DXG SAE 5W-30 is a high-performance low-friction engine oil for modern engines, and is recommended by OPEL/GENERAL MOTORS to the latest GM dexos 1 specification for modern GM gasoline-engined vehicles under all operating conditions.

RAVENOL DXG SAE 5W-30 is also suitable fort he shown specifications of Ford, Chrysler and Honda.

Characteristics

New formula with dexos1™ Gen 3 approval
Particularly suitable for GDI engines
Avoids low speed pre-ignition (LSPI)
No oil-related deposits in combustion chambers, in the piston ring zone and on valves
Fuel savings potential under both part and full load operation
Latest low SAPS technology = low Sulphated Ash, Phosphorus and Sulphur
A very stable viscosity behavior and an excellent shear stability
Very good cold starting properties
A safe lubricant film even at very high operating temperatures
Exceptional wear and corrosion protection
Excellent detergent and dispersant capabilities for cleaner engines, prevents foaming
Long service life through high oxidation stability
Suitable for catalyst-equipped vehicles

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Full synthetic		Full synthetic
API		SQ (RC)		SQ (RC)
ILSAC		GF-7A		GF-7A
Manufacturer Approved		GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034		GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034
Recomendations		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
Density at 20 °C	g/cm³	846	EN ISO 12185	846 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	11.1	DIN 51562-1	11.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	65.6	DIN 51562-1	65.6 mm²/s DIN 51562-1
Viscosity Index VI		163	DIN ISO 2909	163 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.25	ASTM D5481	3.25 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	3990	ASTM D5293	3990 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	11.800	ASTM D4684	11.800 mPa*s ASTM D4684
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Noack Volatility	%	6	ASTM D5800	6 % ASTM D5800
Flashpoint	°C	244	DIN EN ISO 2592	244 °C DIN EN ISO 2592
tbn	mgKOH/g	7.8	ASTM D2896	7.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.8	DIN 51575	0.8 %wt. DIN 51575
Approvals		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034

VMO 5W-40

For engine

RAVENOL VMO SAE 5W-40 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, VW 505.00, VW 505.01

Compliance with the requirements:
Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, Porsche C40, VW 502.00

show details

SAE: 5W-40

API: CF, SN

ACEA: C3

Usage mode: normal

Replacement every 5000 KM or 6 MONTH.

Replacement every 3000 KM or 3 MONTH.

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111133-001

Code:
4014835723818

Volume:
4 L

vendor code:
1111133-004

Code:
4014835723894

Volume:
5 L

vendor code:
1111133-005

Code:
4014835723856

Volume:
10 L

vendor code:
1111133-010

Code:
4014835723849

Volume:
20 L

vendor code:
1111133-020

Code:
4014835723825

Volume:
20 L, ecobox

vendor code:
1111133-B20

Code:
4014835774223

Volume:
60 L

vendor code:
1111133-060

Code:
4014835723863

Volume:
60 L, print

vendor code:
1111133-D60

Code:
4014835723832

Volume:
208 L

vendor code:
1111133-208

Code:
4014835723887

Volume:
208 L, print

vendor code:
1111133-D28

Code:
4014835723801

Volume:
1000 L

vendor code:
1111133-700

RAVENOL VMO SAE 5W-40 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

RAVENOL VMO SAE 5W-40 extends long life of DPF and TWC. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

RAVENOL VMO SAE 5W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics. Because of a considerable fuel saving RAVENOL VMO SAE 5W-40 contributes to protect the environment by reducing the emissions.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL VMO SAE 5W-40 is an universal, synthetic low friction motor oil especially developed for Pumpe-Düse-diesel engines. Moreover, this lubricant is excellent suitable for gasoline and diesel engines in passenger cars and vans with and without turbo charger. Due to the specific composition is RAVENOL VMO SAE 5W-40 excellent suitable for use for several OEM requirements.

Characteristics

Fuel economy in part and full power operation.
MID SAPS = reduced Sulphated Ash, Phosphorous and Sulphur.
Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine.
Excellent cold starting characteristics also at low temperatures below -30°C.
The function of the hydro tappet is ensure at all temperatures.
A safe lubricant film at high operating temperatures.
Low evaporative tendency, so lower oil consumption.
No deposits in combustion chambers, in the piston ring zone and valves because of oil conditioned.
Neutrality towards sealing materials.
Extended oil change intervals to protect natural resources.

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C917-A, Porsche C40, VW 502 00		Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C917-A, Porsche C40, VW 502 00
Brand		RAVENOL		RAVENOL
SAE		5W-40		5W-40
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, VW 505.00, VW 505.01		BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, VW 505.00, VW 505.01
Recomendations		Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, Porsche C40, VW 502.00		Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, Porsche C40, VW 502.00
Density at 20 °C	g/cm³	848	EN ISO 12185	848 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	13.3	DIN 51562-1	13.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	80	DIN 51562-1	80 mm²/s DIN 51562-1
Viscosity Index VI		170	DIN ISO 2909	170 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	4	ASTM D5481	4 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	6375	ASTM D5293	6375 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	27.000	ASTM D4684	27.000 mPa*s ASTM D4684
Pourpoint	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Noack Volatility	%	8.8	ASTM D5800	8.8 % ASTM D5800
Flashpoint	°C	242	DIN EN ISO 2592	242 °C DIN EN ISO 2592
tbn	mgKOH/g	8.7	ASTM D2896	8.7 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.77	DIN 51575	0.77 %wt. DIN 51575
Approvals		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, GM dexos2®, MB 229.31, MB 229.51, Porsche C40, VW 502.00, VW 505.00, VW 505.01		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, GM dexos2®, MB 229.31, MB 229.51, Porsche C40, VW 502.00, VW 505.00, VW 505.01

HLS 5W-30

For engine

RAVENOL HLS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01

Compliance with the requirements:
Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00

show details

SAE: 5W-30

API: CF, SN

ACEA: C3

Usage mode: normal

Replacement every 5000 KM or 6 MONTH.

Replacement every 3000 KM or 3 MONTH.

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111119-001

Code:
4014835723016

Volume:
4 L

vendor code:
1111119-004

Code:
4014835723092

Volume:
5 L

vendor code:
1111119-005

Code:
4014835723054

Volume:
10 L

vendor code:
1111119-010

Code:
4014835723047

Volume:
20 L

vendor code:
1111119-020

Code:
4014835723023

Volume:
20 L, ecobox

vendor code:
1111119-B20

Code:
4014835773325

Volume:
60 L

vendor code:
1111119-060

Code:
4014835723061

Volume:
60 L, print

vendor code:
1111119-D60

Code:
4014835723030

Volume:
208 L

vendor code:
1111119-208

Code:
4014835723085

Volume:
208 L, print

vendor code:
1111119-D28

Code:
4014835723009

Volume:
1000 L

vendor code:
1111119-700

RAVENOL HLS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HLS SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL HLS SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL HLS SAE 5W-30 is Mid SAPS Oils which prevents effectively the reset of the diesel soot particulate filter.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HLS SAE 5W-30 is suitable for demanding motors as a high performance low friction motor oil. It is recommended for all modern passenger car gasoline and diesel engines, including turbo versions, for direct injection motors and it is also recommended for all operation conditions. RAVENOL HLS SAE 5W-30 is recommended for use in vehicles with diesel particulate filters.

Characteristics

Fuel economy in part and full power operation.
Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine.
Excellent cold starting characteristics also at low temperatures below -30°C.
A safe lubricant film at high operating temperatures.
Low evaporative tendency, so lower oil consumption.
No deposits in combustion chambers, in the piston ring zone and valves.
Neutrality towards sealing materials.
Extended oil change intervals to protect natural resources.

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502 00		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502 00
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01		BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01
Recomendations		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00
Density at 20 °C	g/cm³	847	EN ISO 12185	847 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	72.7	DIN 51562-1	72.7 mm²/s DIN 51562-1
Viscosity Index VI		166	DIN ISO 2909	166 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.51	ASTM D5481	3.51 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5216	ASTM D5293	5216 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	23000	ASTM D4684	23000 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	%	6.9	ASTM D5800	6.9 % ASTM D5800
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
tbn	mgKOH/g	7.8	ASTM D2896	7.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.8	DIN 51575	0.8 %wt. DIN 51575
Approvals		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S3, GM dexos2®, MB 229.31, MB 229.51, MB 229.52, Opel OV 040 1547 - D30, Stellantis FPW9.55535/03, VW 502.00, VW 505.00, VW 505.01		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S3, GM dexos2®, MB 229.31, MB 229.51, MB 229.52, Opel OV 040 1547 - D30, Stellantis FPW9.55535/03, VW 502.00, VW 505.00, VW 505.01

HCL 5W-30

For engine

RAVENOL HCL SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
BMW Longlife-01, MB-Approval 229.5, VW 502.00, VW 505.00

Compliance with the requirements:
BMW Longlife-01 FE, VW 501.01

show details

SAE: 5W-30

API: CF, SN

ACEA: A3, B4

Usage mode: normal

Replacement every 5000 KM or 6 MONTH.

Replacement every 3000 KM or 3 MONTH.

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111118-001

Code:
4014835722910

Volume:
4 L

vendor code:
1111118-004

Code:
4014835722996

Volume:
5 L

vendor code:
1111118-005

Code:
4014835722958

Volume:
10 L

vendor code:
1111118-010

Code:
4014835722941

Volume:
20 L

vendor code:
1111118-020

Code:
4014835722927

Volume:
20 L, ecobox

vendor code:
1111118-B20

Code:
4014835773226

Volume:
60 L

vendor code:
1111118-060

Code:
4014835722965

Volume:
60 L, print

vendor code:
1111118-D60

Code:
4014835722934

Volume:
208 L

vendor code:
1111118-208

Code:
4014835722989

Volume:
208 L, print

vendor code:
1111118-D28

Code:
4014835722903

Volume:
1000 L

vendor code:
1111118-700

RAVENOL HCL SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HCL SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL HCL SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HCL SAE 5W-30 is an universal fuel-efficient engine oil, a top-quality product for petrol and passenger car diesel engines with or without turbochargers in passenger cars and vans.

Characteristics

Fuel economy in part and full power operation.
Very stable and excellent viscosity behaviour.
Excellent shear stability.
Excellent cold start characteristics.
A safe lubricant film at high operating temperatures.
Excellent detergency and dispersing properties.
High wear and corrosion protection, high oxidation stability.
Protection against foaming.
Excellent detergent- and dispersant characteristics.
Longlife characteristics through high oxidation stability.
Catalyst suitability.

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-01 FE, VW 501 01		BMW Longlife-01 FE, VW 501 01
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		A3, B4		A3, B4
Manufacturer Approved		BMW Longlife-01, MB-Approval 229.5, VW 502.00, VW 505.00		BMW Longlife-01, MB-Approval 229.5, VW 502.00, VW 505.00
Recomendations		BMW Longlife-01 FE, VW 501.01		BMW Longlife-01 FE, VW 501.01
Density at 20 °C	g/cm³	850	EN ISO 12185	850 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	72.3	DIN 51562-1	72.3 mm²/s DIN 51562-1
Viscosity Index VI		168	DIN ISO 2909	168 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.57	ASTM D5481	3.57 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5591	ASTM D5293	5591 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	24.100	ASTM D4684	24.100 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	%	8.6	ASTM D5800	8.6 % ASTM D5800
Flashpoint	°C	238	DIN EN ISO 2592	238 °C DIN EN ISO 2592
tbn	mgKOH/g	10.2	ASTM D2896	10.2 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.31	DIN 51575	1.31 %wt. DIN 51575
Approvals		BMW Longlife-01, BMW Longlife-01 FE, MB 229.5, VW 501.01, VW 502.00, VW 505.00		BMW Longlife-01, BMW Longlife-01 FE, MB 229.5, VW 501.01, VW 502.00, VW 505.00

HDX 5W-30

For engine

With its new formulation, RAVENOL HDX SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking.

Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3

Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034

show details

SAE: 5W-30

ILSAC: GF-7A

API: SQ (RC)

Usage mode: normal

Replacement every 5000 KM or 6 MONTH.

Replacement every 3000 KM or 3 MONTH.

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111125-001

Code:
4014835858541

Volume:
4 L

vendor code:
1111125-004

Code:
4014835858572

Volume:
5 L

vendor code:
1111125-005

Code:
4014835858602

Volume:
10 L

vendor code:
1111125-010

Code:
4014835858633

Volume:
20 L, ecobox

vendor code:
1111125-B20

Code:
4014835858657

Volume:
60 L

vendor code:
1111125-060

Code:
4014835858718

Volume:
60 L, print

vendor code:
1111125-D60

Volume:
208 L

vendor code:
1111125-208

Code:
4014835858756

Volume:
208 L, print

vendor code:
1111125-D28

Volume:
1000 L

vendor code:
1111125-700

Volume:
20 L

vendor code:
1111125-020

Code:
4014835858671

With its new formulation, RAVENOL HDX SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking.

RAVENOL HDX SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HDX SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL HDX SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL HDX SAE 5W-30 helps to avoid low speed pre-ignition LSPI (Low Speed Pre-ignition). This can help avoid engine damage.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HDX SAE 5W-30 is a high-performance low-friction engine oil for modern engines. It is recommended by OPEL/GENERAL MOTORS corresponding to dexos1 specification for modern car engines under all operating conditions.

RAVENOL HDX SAE 5W-30 is also suitable for the shown specifications of Ford, Chrysler and Fiat.

Characteristics

Fuel savings in partial and full load operation
Outstanding wear protection and high viscosity index ensure engine longevity, even under high-speed driving conditions
Excellent cold-start properties even at low temperatures below -25°C
A safe lubricating film at high operating temperatures
Low evaporation tendency, thus low oil consumption
No oil-based deposits in combustion chambers, in the piston ring zone and on valves
Neutrality towards sealing materials
Extended oil change intervals protect natural resources

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		SQ (RC)		SQ (RC)
ILSAC		GF-7A		GF-7A
Manufacturer Approved		GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3		GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
Recomendations		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
Density at 20 °C	g/cm³	844	EN ISO 12185	844 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	10.8	DIN 51562-1	10.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	59.8	DIN 51562-1	59.8 mm²/s DIN 51562-1
Viscosity Index VI		173	DIN ISO 2909	173 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.4	ASTM D5481	3.4 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	3630	ASTM D5293	3630 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	13.500	ASTM D4684	13.500 mPa*s ASTM D4684
Pourpoint	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Noack Volatility	%	8.1	ASTM D5800	8.1 % ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	7.8	ASTM D2896	7.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.86	DIN 51575	0.86 %wt. DIN 51575
Approvals		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

Usage mode: normal

Replacement every 5000 KM or 6 MONTH.

Replacement every 3000 KM or 3 MONTH.

Available packaging
Full description
Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

Long-term effectiveness and clean fresh oil
Remedy for soiled engines
Protection against compression loss in the area of the piston rings
Leads to better exhaust emissions and increases the performance of the engine

Parameter	Unit	Value	Audit
Color		Light brown	visual	Light brown visual
Flashpoint (PM)	°C	62	DIN ISO 3679	62 °C DIN ISO 3679
Density at 20 °C		805	EN ISO 12185	805 EN ISO 12185
Viscosity at 40 °C	mm²/s	7	DIN EN ISO 3104	7 mm²/s DIN EN ISO 3104
Brand		RAVENOL		RAVENOL

CVT gearbox in a unit with final drive 1/1

Liquid volume (basic): 4.2 L

CVT Fluid

Transmission oil

RAVENOL CVT Fluid guarantees an optimum of power transmission.

Compliance with the requirements:
BMW CVT EZL 799A, Chery 025CHA/QR025CHA, CVTF WCF-1, Five Hundred CFT30, Ford WSS-M2C 928-A, Ford WSS-M2C 933-A, Mazda JWS 3320, Mazda TFF CVT Fluid TC, MB 236.20, Mini Cooper CVT, Nissan CVT Fluid NS-1, Punch Powertrain VT1F, Punch Powertrain VT2, Punch Powertrain VT3, Subaru CVT Lineartronic II, Subaru i-CVT Fluid, Suzuki S-CVT, Toyota CVT Fluid TC, VW G 052 180, VW G 052 516, VW TL 521 80

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1211110-001

Code:
4014835732513

Volume:
4 L

vendor code:
1211110-004

Code:
4014835732599

Volume:
20 L

vendor code:
1211110-020

Code:
4014835732520

Volume:
20 L, ecobox

vendor code:
1211110-B20

Code:
4014835785328

Volume:
60 L

vendor code:
1211110-060

Code:
4014835732568

Volume:
60 L, print

vendor code:
1211110-D60

Code:
4014835732537

Volume:
208 L

vendor code:
1211110-208

Volume:
208 L, print

vendor code:
1211110-D28

Code:
4014835732506

Volume:
1000 L

vendor code:
1211110-700

Volume:
10 L

vendor code:
1211110-010

Code:
4014835732544

RAVENOL CVT Fluid guarantees an optimum of power transmission.

RAVENOL CVT Fluid is based on high-quality hydrocrack oils with special additives and inhibition to ensure the proper operation of the automatic transmission.

Application Note

RAVENOL CVT Fluid was developed for use in CVT transmission (Steel Belt Continuously Variable Transmission).

RAVENOL CVT Fluid ensures a stable viscosity under high mechanical stress in the transmission elements (push belt).

Characteristics

Very good lubricating ability even at low temperatures in winter
A high, stable viscosity index
Very low pour point
Very good oxidation stability
Protection against corrosion and foam formation
Good balanced coefficient of friction
Neutral behaviour towards sealing materials
Neutral behaviour by inhibition to non-ferrous metals

Parameter	Unit	Value	Audit
Recommendations		BMW CVT EZL 799A, Chery 018CHA/QR018CHA, Chery 025CHA-4004011AA10, Chery 025CHA/QR025CHA, Chery 025CHC/QR025CHC, Chery CVT18, Chery CVT25, CVTF WCF-1, Five Hundred CFT30, Ford EU WSS-M2C-928 A, Ford Focus C-Max CFT23, Ford USA WSS-M2C933-A, Ford XT-7-QCFT Freestyle, HMMF Ultra Fluid 08260-99904, HMMF Ultra Fluid 08260-99907, Honda CVT Fluid 08200-9006, Hunan Jianglu & Rongda 150R, Hunan Jianglu & Rongda R0CF15A2, Hunan Jianglu & Rongda R0CF15A3, Hunan Jianglu & Rongda RDC15, Hunan Jianglu & Rongda RDC15-FB, Mazda TFF CVT Fluid TC JWS3320 K020-W0-051W, MB 236.20 (A 001 989 46 03), Mini Cooper CVT, Nissan CVT Fluid NS-1, Nissan KLE50 00002, Nissan KLE50 00004, Opel/GM 1940713, Punch Powertrain VT1F, Punch Powertrain VT2, Punch Powertrain VT3, Subaru CVT Lineartronic II K0425Y0711, Subaru i-CVT Fluid K0415-YA090, Suzuki S-CVT 99000-22801-000, TL 52180, Toyota CVT Fluid TC 08886-02105, VW G 052 516 A2, VW/Audi G 052 180 A1, VW/Audi G 052 180 A2, VW/Audi G 052 180 A6		BMW CVT EZL 799A, Chery 018CHA/QR018CHA, Chery 025CHA-4004011AA10, Chery 025CHA/QR025CHA, Chery 025CHC/QR025CHC, Chery CVT18, Chery CVT25, CVTF WCF-1, Five Hundred CFT30, Ford EU WSS-M2C-928 A, Ford Focus C-Max CFT23, Ford USA WSS-M2C933-A, Ford XT-7-QCFT Freestyle, HMMF Ultra Fluid 08260-99904, HMMF Ultra Fluid 08260-99907, Honda CVT Fluid 08200-9006, Hunan Jianglu & Rongda 150R, Hunan Jianglu & Rongda R0CF15A2, Hunan Jianglu & Rongda R0CF15A3, Hunan Jianglu & Rongda RDC15, Hunan Jianglu & Rongda RDC15-FB, Mazda TFF CVT Fluid TC JWS3320 K020-W0-051W, MB 236.20 (A 001 989 46 03), Mini Cooper CVT, Nissan CVT Fluid NS-1, Nissan KLE50 00002, Nissan KLE50 00004, Opel/GM 1940713, Punch Powertrain VT1F, Punch Powertrain VT2, Punch Powertrain VT3, Subaru CVT Lineartronic II K0425Y0711, Subaru i-CVT Fluid K0415-YA090, Suzuki S-CVT 99000-22801-000, TL 52180, Toyota CVT Fluid TC 08886-02105, VW G 052 516 A2, VW/Audi G 052 180 A1, VW/Audi G 052 180 A2, VW/Audi G 052 180 A6
Type		Synthetic		Synthetic
Brand		RAVENOL		RAVENOL
Recomendations		BMW CVT EZL 799A, Chery 025CHA/QR025CHA, CVTF WCF-1, Five Hundred CFT30, Ford WSS-M2C 928-A, Ford WSS-M2C 933-A, Mazda JWS 3320, Mazda TFF CVT Fluid TC, MB 236.20, Mini Cooper CVT, Nissan CVT Fluid NS-1, Punch Powertrain VT1F, Punch Powertrain VT2, Punch Powertrain VT3, Subaru CVT Lineartronic II, Subaru i-CVT Fluid, Suzuki S-CVT, Toyota CVT Fluid TC, VW G 052 180, VW G 052 516, VW TL 521 80		BMW CVT EZL 799A, Chery 025CHA/QR025CHA, CVTF WCF-1, Five Hundred CFT30, Ford WSS-M2C 928-A, Ford WSS-M2C 933-A, Mazda JWS 3320, Mazda TFF CVT Fluid TC, MB 236.20, Mini Cooper CVT, Nissan CVT Fluid NS-1, Punch Powertrain VT1F, Punch Powertrain VT2, Punch Powertrain VT3, Subaru CVT Lineartronic II, Subaru i-CVT Fluid, Suzuki S-CVT, Toyota CVT Fluid TC, VW G 052 180, VW G 052 516, VW TL 521 80
Suitable for		Ford Focus C-Max CFT23, Hunan Jianglu & Rongda 50R, Hunan Jianglu & Rongda R0CF15A2, Hunan Jianglu & Rongda R0CF15A3, Hunan Jianglu & Rongda RDC15, Hunan Jianglu & Rongda RDC15-FB		Ford Focus C-Max CFT23, Hunan Jianglu & Rongda 50R, Hunan Jianglu & Rongda R0CF15A2, Hunan Jianglu & Rongda R0CF15A3, Hunan Jianglu & Rongda RDC15, Hunan Jianglu & Rongda RDC15-FB
Compliant products		Chery 018CHA/QR018CHA, Chery 025CHA-4004011AA10, Chery 025CHC/QR025CHC, Chery CVT18, Chery CVT25, GM 1940713, Honda 08200-9006, Honda 08260-99904, Honda 08260-99907, Honda CVT Fluid, Mazda K020-W0-051W, MB A 001 989 46 03, Motorcraft XT-7-QCFT, Nissan KLE50 00002, Nissan KLE50 00004, Subaru K0415-YA090, Subaru K0425Y0711, Suzuki 99000-22801-000, Toyota 08886-02105, VW G 052 180, VW G 052 516		Chery 018CHA/QR018CHA, Chery 025CHA-4004011AA10, Chery 025CHC/QR025CHC, Chery CVT18, Chery CVT25, GM 1940713, Honda 08200-9006, Honda 08260-99904, Honda 08260-99907, Honda CVT Fluid, Mazda K020-W0-051W, MB A 001 989 46 03, Motorcraft XT-7-QCFT, Nissan KLE50 00002, Nissan KLE50 00004, Subaru K0415-YA090, Subaru K0425Y0711, Suzuki 99000-22801-000, Toyota 08886-02105, VW G 052 180, VW G 052 516
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	7.3	DIN 51562-1	7.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	35.5	DIN 51562-1	35.5 mm²/s DIN 51562-1
Viscosity Index VI		175	DIN ISO 2909	175 DIN ISO 2909
Density at 20 °C	g/cm³	841	EN ISO 12185	841 g/cm³ EN ISO 12185
Pourpoint	°C	-48	DIN ISO 3016	-48 °C DIN ISO 3016
Approvals		BMW CVT EZL 799A, Chery 025CHA/QR025CHA, CVTF WCF-1, Five Hundred CFT30, Ford WSS-M2C 928-A, Ford WSS-M2C 933-A, Mazda JWS 3320, Mazda TFF CVT Fluid TC, MB 236.20, Mini Cooper CVT, Nissan CVT Fluid NS-1, Punch Powertrain VT1F, Punch Powertrain VT2, Punch Powertrain VT3, Subaru CVT Lineartronic II, Subaru i-CVT Fluid, Suzuki S-CVT, Toyota CVT Fluid TC, VW G 052 180, VW G 052 516, VW TL 521 80		BMW CVT EZL 799A, Chery 025CHA/QR025CHA, CVTF WCF-1, Five Hundred CFT30, Ford WSS-M2C 928-A, Ford WSS-M2C 933-A, Mazda JWS 3320, Mazda TFF CVT Fluid TC, MB 236.20, Mini Cooper CVT, Nissan CVT Fluid NS-1, Punch Powertrain VT1F, Punch Powertrain VT2, Punch Powertrain VT3, Subaru CVT Lineartronic II, Subaru i-CVT Fluid, Suzuki S-CVT, Toyota CVT Fluid TC, VW G 052 180, VW G 052 516, VW TL 521 80

Mechanical gearbox in a unit with final drive 6/1

Liquid volume (basic): 2 L

VSG 75W-90

For transmission

RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.

Compliance with the requirements:
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.8, MB 235.9, MB 235.11, MB 235.21, MB 235.72, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B

show details

SAE: 75W-90

API: GL-4, GL-5

Usage mode: normal

Check every 10000 KM or 6 MONTH.

Replacement every 20000 KM or 12 MONTH.

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221101-001

Code:
4014835733916

Volume:
4 L

vendor code:
1221101-004

Code:
4014835733992

Volume:
10 L

vendor code:
1221101-010

Code:
4014835733947

Volume:
20 L

vendor code:
1221101-020

Code:
4014835733923

Volume:
20 L, ecobox

vendor code:
1221101-B20

Code:
4014835846654

Volume:
60 L

vendor code:
1221101-060

Code:
2200000083081

Volume:
60 L, print

vendor code:
1221101-D60

Code:
4014835733930

Volume:
208 L

vendor code:
1221101-208

Code:
4014835733985

Volume:
208 L, print

vendor code:
1221101-D28

Code:
4014835733909

Volume:
1000 L

vendor code:
1221101-700

RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.

Application Note

RAVENOL VSG SAE 75W-90 is excellent for use of highly stressed axle drives.

RAVENOL VSG SAE 75W-90 is suitable for synchronised and non-synchronised manual transmissions, transfer cases and ancillary transmission requiring API GL-5 or GL-4 oil.

RAVENOL VSG SAE 75W-90 is suitable for Ford-transmission IB5, B5, MTX75, GM5, MT285/6, MMT6/6, MT75, R15M-D, R15MX-D, MT82 and Porsche Full-Time Transfer Case with Torsen (PL72T) for Cayenne 92A / 958 Diesel and S Hybrid from 2010 to 2018.

Characteristics

high additive reserves for prolonged oil change intervals according to the manufacturer specifications
excellent cold flow properties
best wear protection and best transmission efficiency
Fuel savings even with short distances in low outdoor temperatures
stable lubricating film even under high stress
extraordinary corrosion protection and good compatibility with non-ferrous metal
high oxidation resistance prevents oil thickening and deposits
outstanding dirt-carrying capacity, i.e. aggregates are clean even after very long oil change intervals
excellent elastomer compatibility to prevent leaks
extreme shearing stability, remains within the clean oil viscosity per SAE class 75W-90 even after very long periods of use
very high protection from rust, corrosion and foaming
extreme low pour point
excellent EP properties
fuel savings

Parameter	Unit	Value	Audit
Recommendations		BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 911 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B		BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 911 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
Brand		RAVENOL		RAVENOL
SAE		75W-90		75W-90
Type		Full synthetic		Full synthetic
API		GL-4, GL-5		GL-4, GL-5
Recomendations		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
Suitable for		IVECO		IVECO
Compliant products		BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911		BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911
Density at 20 °C	g/cm³	839.8	EN ISO 12185	839.8 g/cm³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	16.8	DIN 51562-1	16.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	108.8	DIN 51562-1	108.8 mm²/s DIN 51562-1
Viscosity Index VI		168	DIN ISO 2909	168 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	47.000	ASTM D2983	47.000 mPa*s ASTM D2983
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Flashpoint	°C	224	DIN EN ISO 2592	224 °C DIN EN ISO 2592
Seq. I at 24 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Copper Strip Test at 121 °C		1a	ASTM D130	1a ASTM D130
Approvals		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B

MTF-1 75W-85

For gearbox

RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513

show details

SAE: 75W-85

API: GL-4, GL-5

Usage mode: normal

Check every 10000 KM or 6 MONTH.

Replacement every 20000 KM or 12 MONTH.

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221102-001

Code:
4014835719613

Volume:
4 L

vendor code:
1221102-004

Code:
4014835719699

Volume:
10 L

vendor code:
1221102-010

Code:
4014835719644

Volume:
20 L

vendor code:
1221102-020

Code:
4014835719620

Volume:
20 L, ecobox

vendor code:
1221102-B20

Code:
4014835788329

Volume:
60 L

vendor code:
1221102-060

Code:
4014835719668

Volume:
60 L, print

vendor code:
1221102-D60

Volume:
208 L

vendor code:
1221102-208

Code:
4014835719682

Volume:
208 L, print

vendor code:
1221102-D28

Volume:
1000 L

vendor code:
1221102-700

RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL MTF-1 SAE 75W-85 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.

Application Note

RAVENOL MTF-1 SAE 75W-85 is high-performance gear oil for manual transmission, transfer cases and differential gears.

Characteristics

Excellent thermal stability.
High protection from rust, corrosion, foaming.
Low solidification point.
Excellent EP properties.
Good shifting behavior in low temperatures.
Extended life.
Fuel savings.

Parameter	Unit	Value	Audit
Recommendations		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513
SAE		75W-85		75W-85
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
API		GL-4, GL-5		GL-4, GL-5
Recomendations		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
Compliant products		GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060		GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060
Density at 20 °C	g/cm³	855	EN ISO 12185	855 g/cm³ EN ISO 12185
Color		Red	visual	Red visual
Brookfield Viscosity at -40 °C	mPa*s	38.800	ASTM D2983	38.800 mPa*s ASTM D2983
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513

Getriebeoel TSG 75W-90

For transmission

RAVENOL Getriebeoel TSG SAE 75W-90 is designed based on high-quality synthetic base oils with special additive treatment and inhibition coordinated to the increased stress on manual transmission oils and ensuring trouble-free transmission function.

Compliance with the requirements:
Ford ESF-M2C 175, GM B0401043, VW 501.50, VW G 052 911, VW G 060 726

show details

SAE: 75W-90

API: GL-4

Equivalents OEM:
Ford 97SXM2C200AA, Ford 97SXM2C200BA, Ford 1045737, Ford 1045738, Ford 5012119, Ford 5012119, Ford 5015547, Ford 5015548, Ford A86SX2C175AA, Ford A86SX2C175BA, Ford XT4QGL, Geely SH550027967, Hyundai Motor 043005L1A0, Hyundai Motor 043005L1A00001, Hyundai Motor 043005L1AO, Hyundai Motor 043005L6A0, Hyundai XTeer 1011435, Hyundai XTeer 1041435, Hyundai XTeer 1120435, Toyota 0888501513, Toyota 0888581023, Toyota 0888581026, UAZ 000000473400800, UAZ 473400800, UAZ 473401200, VAG G052178A2, VAG G052178S0, Volvo 1161647, Volvo 1161723, Volvo 1161724

Usage mode: normal

Check every 10000 KM or 6 MONTH.

Replacement every 20000 KM or 12 MONTH.

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1222101-001

Code:
4014835734210

Volume:
4 L

vendor code:
1222101-004

Code:
4014835734296

Volume:
10 L

vendor code:
1222101-010

Code:
4014835734241

Volume:
20 L

vendor code:
1222101-020

Code:
4014835734227

Volume:
20 L, ecobox

vendor code:
1222101-B20

Code:
4014835788923

Volume:
60 L, print

vendor code:
1222101-D60

Code:
4014835734234

Volume:
208 L

vendor code:
1222101-208

Code:
4014835734289

Volume:
208 L, print

vendor code:
1222101-D28

Code:
4014835734203

Volume:
1000 L

vendor code:
1222101-700

Volume:
60 L

vendor code:
1222101-060

RAVENOL Getriebeoel TSG SAE 75W-90 is designed based on high-quality synthetic base oils with special additive treatment and inhibition coordinated to the increased stress on manual transmission oils and ensuring trouble-free transmission function.

Application Note

RAVENOL Getriebeoel TSG SAE 75W-90 is suitable for highly stressed manual transmissions (with and without synchronising), transfer cases and steering gearboxes in vehicles and work machines.

Characteristics

excellent ageing resistance
extra high pressure absorption properties
optimal viscosity-temperature properties
excellent low temperature properties
shearing stability
stable lubricating film even under high stress
extremely low pour point
good elastomer compatibility to prevent leaks

Parameter	Unit	Value	Audit
Recommendations		Ford M2C-175, Opel/GM B0401043, VW 501 50, VW G 052 911 A2, VW G 060 726 A2		Ford M2C-175, Opel/GM B0401043, VW 501 50, VW G 052 911 A2, VW G 060 726 A2
Brand		RAVENOL		RAVENOL
SAE		75W-90		75W-90
Type		Synthetic		Synthetic
API		GL-4		GL-4
Recomendations		Ford ESF-M2C 175, GM B0401043, VW 501.50, VW G 052 911, VW G 060 726		Ford ESF-M2C 175, GM B0401043, VW 501.50, VW G 052 911, VW G 060 726
Compliant products		VW G 052 911, VW G 060 726		VW G 052 911, VW G 060 726
Density at 20 °C	g/cm³	837.5	EN ISO 12185	837.5 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mm²/s	15.7	DIN 51562-1	15.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	95.7	DIN 51562-1	95.7 mm²/s DIN 51562-1
Viscosity Index VI		176	DIN ISO 2909	176 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	88.700	ASTM D2983	88.700 mPa*s ASTM D2983
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		Ford ESF-M2C 175, GM B0401043, VW 501.50, VW G 052 911, VW G 060 726		Ford ESF-M2C 175, GM B0401043, VW 501.50, VW G 052 911, VW G 060 726

Hydraulic brake system

Liquid volume (basic): 0.65 L

DOT 4

For brake system

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

show details

Usage mode: normal

Check every 10000 KM or 6 MONTH.

Replacement every 40000 KM or 24 MONTH.

Available packaging
Full description
Product parameters

Volume:
250 ml

vendor code:
1350601-250

Code:
4014835692121

Volume:
500 ml

vendor code:
1350601-500

Code:
4014835692152

Volume:
1 L

vendor code:
1350601-001

Code:
4014835692114

Volume:
20 L

vendor code:
1350601-020

DOT 4

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

Application Note

RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.

RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.

RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113).

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

optimum ABS characteristics
chemical stability
best lubrication efficiency
neutral behaviour regarding brake parts
low viscosity at low temperatures
miscible with all brake fluids of the same specifications

Parameter	Unit	Value	Audit
FMVSS 116 specifications (DOT)		DOT-4		DOT-4
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
specification		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704
Density at 20 °C	g/cm³	1052	EN ISO 12185	1052 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mPa*s	2.41	ASTM D445	2.41 mPa*s ASTM D445
Viscosity at -40 °C	cSt	1340	ASTM D445	1340 cSt ASTM D445
Boiling point	°C	271	FMVSS 116	271 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point	°C	169	FMVSS 116	169 °C FMVSS 116
High Temperature Stability	°C	-1	FMVSS 116	-1 °C FMVSS 116
Chemical Stability	°C	1	FMVSS 116	1 °C FMVSS 116
Evaporation	%w/w	61	FMVSS 116	61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C		i.O., 4s	FMVSS 116	i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C		i.O., 8s	FMVSS 116	i.O., 8s FMVSS 116
Water Tolerance at -40 °C		transparent, 3s	FMVSS 116	transparent, 3s FMVSS 116
Water Tolerance at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at -40 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Water content	%	— 0.2	DIN 51777-1	— 0.2 % DIN 51777-1
Tinned Iron	Δ mg/cm²	0.04	FMVSS 116	0.04 Δ mg/cm² FMVSS 116
Steel	mg/cm²	-0.01	FMVSS 116	-0.01 mg/cm² FMVSS 116
Aluminium	mg/cm²	0.02	FMVSS 116	0.02 mg/cm² FMVSS 116
Cast Iron	Δ mg/cm²	-0,03	FMVSS 116	-0,03 Δ mg/cm² FMVSS 116
Brass	mg/cm²	-0.08	FMVSS 116	-0.08 mg/cm² FMVSS 116
Copper	mg/cm²	-0.05	FMVSS 116	-0.05 mg/cm² FMVSS 116
Zinc	mg/cm²	0.01	FMVSS 116	0.01 mg/cm² FMVSS 116
Sediment	%	— 0.05	FMVSS 116	— 0.05 % FMVSS 116
pH - value		8.2	FMVSS 116	8.2 FMVSS 116
Rubber Diameter Change		0.16	FMVSS 116	0.16 FMVSS 116
Hardness Change	°IRHD	-4	FMVSS 116	-4 °IRHD FMVSS 116
Appearance		i.O.	FMVSS 116	i.O. FMVSS 116
SBR at 70 °C	mm	0.56	FMVSS 116	0.56 mm FMVSS 116
SBR at 120 °C	mm	0.73	FMVSS 116	0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703)	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
EPDM at 120 °C	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925)	mm	0.38	FMVSS 116	0.38 mm FMVSS 116
Approvals		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704

Cooling system

Liquid volume (basic): 5.5 L

TTC - Protect C11 Premix -40ºC

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

Compliance with the requirements:
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C

show details

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410105-150

Code:
4014835755314

Volume:
5 L

vendor code:
1410105-005

Code:
4014835755352

Volume:
10 L

vendor code:
1410105-010

Code:
4014835755345

Volume:
20 L

vendor code:
1410105-020

Code:
4014835755321

Volume:
20 L, ecobox

vendor code:
1410105-B20

Code:
4014835855939

Volume:
60 L

vendor code:
1410105-060

Code:
4014835755369

Volume:
208 L

vendor code:
1410105-208

Code:
4014835755383

Volume:
1000 L

vendor code:
1410105-700

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL TTC Trad. Techn. Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL TTC Trad. Techn. Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL TTC Trad. Techn. Coolant Premix -40°C to radiator to fill line.

Characteristics

Excellent for light metal engines
Good reserve alkalinity
High-quality corrosion additives for optimal corrosion protection
Elastomer compatible with elastome

Parameter	Unit	Value	Audit
Recommendations		AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)		AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
Brand		RAVENOL		RAVENOL
ASTM		D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF		D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF
Recomendations		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
Suitable for		Suzuki		Suzuki
Density at 20 °C	g/cm³	1080	EN ISO 12185	1080 g/cm³ EN ISO 12185
Color		yellow green	visual	yellow green visual
pH - value at 20 °C		7,8	ASTM D1287	7,8 ASTM D1287
Freezing point	°C	-40	ASTM D1177	-40 °C ASTM D1177
Approvals		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C

TTC - Protect C11 Concentrate

Coolant

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

show details

Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410100-150

Code:
4014835755215

Volume:
5 L

vendor code:
1410100-005

Code:
4014835755253

Volume:
10 L

vendor code:
1410100-010

Volume:
20 L

vendor code:
1410100-020

Code:
4014835755222

Volume:
20 L, ecobox

vendor code:
1410100-B20

Volume:
60 L

vendor code:
1410100-060

Code:
4014835755260

Volume:
60 L, plastic

vendor code:
-

Code:
4014835755239

Volume:
60 L, print

vendor code:
1410100-D60

Volume:
208 L

vendor code:
1410100-208

Code:
4014835755208

Volume:
1000 L

vendor code:
1410100-700

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

Therefore manufacturers subject coolants to long corrosion and cavitation tests.

RAVENOL TTC Trad. Techn. Coolant Concentrate protects the cooling system from corrosion, frost, and in the summer from overheating.

Application Note

RAVENOL TTC Trad. Techn. Coolant Concentrate with frost and rust protection. Use according to the mixing chart. Follow manufacturer’s recommendations.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL TTC Trad. Techn. Coolant Concentrate with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

Table of mixing ratios
Antifreeze protection until	Parts Antifreeze	Parts Water
-20°C	35%	65%
-37°C	50%	50%
-50°C	60%	40%

Characteristics

Excellent for light metal engines
Good reserve alkalinity
High-quality corrosion additives for optimal corrosion protection
Elastomer compatible with elastomers used in automotive radiators

Parameter	Unit	Value	Audit
Recommendations		AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)		AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
Brand		RAVENOL		RAVENOL
ASTM		D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF		D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF
Recomendations		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
Suitable for		Suzuki		Suzuki
Density at 20 °C	g/cm³	1130	EN ISO 12185	1130 g/cm³ EN ISO 12185
Color		yellow green	visual	yellow green visual
Reserve alkalinity	mgKOH/g	— 20	ASTM D1121	— 20 mgKOH/g ASTM D1121
Boiling point	°C	155	ASTM D1120	155 °C ASTM D1120
Water content	%	— 5	ASTM D1123	— 5 % ASTM D1123
Flashpoint	°C	112	DIN 51758	112 °C DIN 51758
Freezing point (50 % solution)	°C	-37	ASTM D1177	-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %)		8,4	ASTM D1287	8,4 ASTM D1287
Approvals		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter	Value
Recommendations	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand	RAVENOL	RAVENOL
Recomendations	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272
Approvals	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272

Professional Radiator Cleaner

Additive

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

show details

Equivalents OEM:
Ford MP14300500AB

Available packaging
Full description
Product parameters

Volume:
0.25 L

vendor code:
1390302-250

Code:
4014835802667

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.

Application Note

RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.

Area of application:

Radiator repairs

In the event of reduced radiator performance

In the event of deposits in the cooling system

Changing coolant

For cleaning purposes after engine repairs due to oil in the cooling system

Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.

Fill in

RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.

RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.

Characteristics

Cleaning of the cooling and heating system
Protection of the new coolant against prior contamination
Elimination of sludge and corrosion residue

Parameter	Unit	Value	Audit
Color		Colorless	visual	Colorless visual
Density at 20 °C	g/cm³	1003	EN ISO 12185	1003 g/cm³ EN ISO 12185
pH - value at 20 °C		10,25	DIN 19268	10,25 DIN 19268
Brand		RAVENOL		RAVENOL
