Exeed

Oil for Exeed - TXL / TX / LINGYUN, T22 - 2.0 AWD / 4WD (SQRF4J20C)

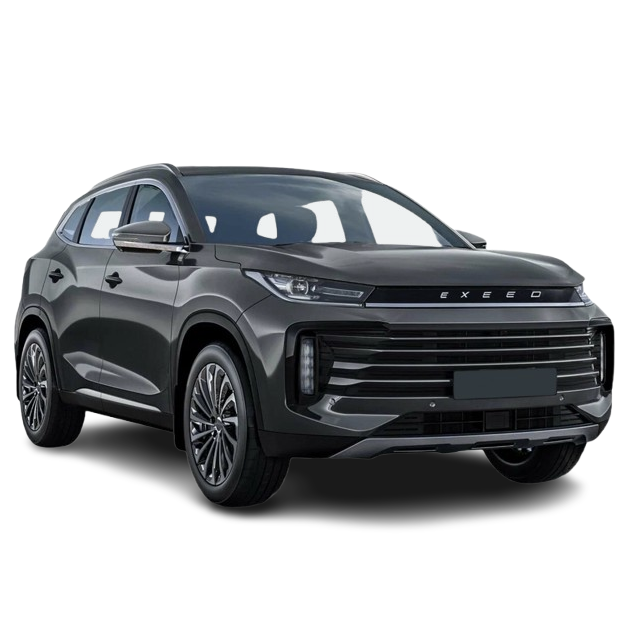

Exeed TXL / TX / LINGYUN, T22 2.0 AWD / 4WD (SQRF4J20C), year of issue from 2020 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Add to Garage

Nodes and assemblies

Engine SQRF4J20C

Liquid volume (basic): 5.5 L
Super Fuel Economy SFE 5W-20

Super Fuel Economy SFE 5W-20

CleanSynto®
USVO®
For engine

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
Ford WSS-M2C 948-B, Jaguar/Land Rover STJLR.03.5004

Compliance with the requirements:
Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Honda/Acura HTO-06

show details hide details

SAE: 5W-20

ILSAC: GF-6A

API: SN Plus, SP (RC)

ACEA: A5, B5

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1111110-001

Code:
4014835722514

Volume:
4 L

vendor code:
1111110-004

Code:
4014835722590

Volume:
5 L

vendor code:
1111110-005

Code:
4014835722552

Volume:
10 L

vendor code:
1111110-010

Code:
4014835722545

Volume:
20 L

vendor code:
1111110-020

Code:
4014835722521

Volume:
20 L, ecobox

vendor code:
1111110-B20

Code:
4014835772823

Volume:
60 L, print

vendor code:
1111110-D60

Code:
4014835722538

Volume:
1000 L

vendor code:
1111110-700

Volume:
60 L

vendor code:
1111110-060

Volume:
208 L

vendor code:
1111110-208

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

RAVENOL Super Fuel Economy SFE SAE 5W-20 has a high viscosity index because of its formulation with special base oils. The formulation avoids premature fuel ignition LSPI (Low Speed Prevention), thereby avoiding engine damage. Recommended for turbo gasoline engines with direct injection (Turbo-GDI).

Because of a considerable fuel saving RAVENOL Super Fuel Economy SFE SAE 5W-20 contributes to protect the environment by reducing the emissions.

RAVENOL Super Fuel Economy SFE SAE 5W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL Super Fuel Economy SFE SAE 5W-20 is an universal fuel-efficient engine oil, a top-quality product for modern passenger cars with gasoline and diesel engines of the latest generation.

Characteristics

  • Guaranteed fastest possible lubrication of the engine.
  • High fuel economy (FE) effect due to the base oils and additives used. Low volatilization tendency, thereby lower oil consumption.
  • Provides protection against sludging, coking, varnish and corrosion even under unfavorable operatingconditions.
  • No oil-related deposits in combustion chambers in the piston ring zone and on valves.
  • Ensures the function of the hydraulic tappets at all temperatures.
  • Stable engine oil, no NOx oxidation.
  • Good aging behavior, confirmed by the Hot Tube Test.
  • Good soot absorption and dispersion.
  • Neutral towards sealing materials.
  • Protects turbocharger, EPS and engines running with ethanol-containing fuels up to E85.
  • Compatibility with exhaust gas after treatment systems.
Parameter Unit Value Audit
Recommendations Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C925-A, Ford WSS-M2C925-B, Ford WSS-M2C930-A, Ford WSS-M2C930-B, Honda/Acura HTO-06, Mazda, Nissan, Suzuki, Toyota
Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C925-A, Ford WSS-M2C925-B, Ford WSS-M2C930-A, Ford WSS-M2C930-B, Honda/Acura HTO-06, Mazda, Nissan, Suzuki, Toyota
Brand RAVENOL
RAVENOL
SAE 5W-20
5W-20
Type Full synthetic
Full synthetic
API SN Plus, SP (RC)
SN Plus, SP (RC)
ACEA A5, B5
A5, B5
ILSAC GF-6A
GF-6A
Manufacturer Approved Ford WSS-M2C 948-B, Jaguar/Land Rover STJLR.03.5004
Ford WSS-M2C 948-B, Jaguar/Land Rover STJLR.03.5004
Recomendations Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Honda/Acura HTO-06
Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Honda/Acura HTO-06
Suitable for Mazda, Nissan, Suzuki, Toyota
Mazda, Nissan, Suzuki, Toyota
Density at 20 °C g/cm³ 842 EN ISO 12185
842 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 8.5 DIN 51562-1
8.5 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 47.2 DIN 51562-1
47.2 mm²/s DIN 51562-1
Viscosity Index VI 160 DIN ISO 2909
160 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 2.9 ASTM D5481
2.9 mPa*s ASTM D5481
CCS Viscosity at -30 °C mPa*s 3640 ASTM D5293
3640 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C mPa*s 9.700 ASTM D4684
9.700 mPa*s ASTM D4684
Pourpoint °C -63 DIN ISO 3016
-63 °C DIN ISO 3016
Noack Volatility % 8.3 ASTM D5800
8.3 % ASTM D5800
Flashpoint °C 238 DIN EN ISO 2592
238 °C DIN EN ISO 2592
tbn mgKOH/g 8 ASTM D2896
8 mgKOH/g ASTM D2896
Sulphated Ash %wt. 0.8 DIN 51575
0.8 %wt. DIN 51575
Approvals Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Ford WSS-M2C 948-B, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5004
Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 925-A, Ford WSS-M2C 925-B, Ford WSS-M2C 930-A, Ford WSS-M2C 930-B, Ford WSS-M2C 948-B, Honda/Acura HTO-06, Jaguar/Land Rover STJLR.03.5004
DFE 0W-20

DFE 0W-20

CleanSynto®
USVO®
For passenger cars

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3

Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Ford WSS-M2C 947-A, Ford WSS-M2C 947-B1

show details hide details

SAE: 0W-20

ILSAC: GF-7A

API: SQ (RC)

Equivalents OEM:
Alpine 0100191, Alpine 0100192, Alpine 0100193, Alpine 0100194, Alpine 0100195, Alpine 0100199, Alpine 100191, Alpine 100192, Alpine 100193, Alpine 100194, Alpine 100195, Alpine 100199, GM 109236, GM 19259487, GM 88865553, Honda 00W20BASN0LDRM, Honda 0821199904, Honda 0821199906, Honda 0821199907, Honda 0821799974, Honda 0821799976, Honda 0821799977, Honda 0822799974, Honda 08232P99A1HMR, Honda 08232P99A1LHE, Honda 08232P99A6HMR, Honda 08232P99A30HE, Honda 08232P99C1HMR, Honda 08232P99C3HMR, Honda 08232P99D1LHE, Honda 08232P99D4LHE Alpine 0100191, Alpine 0100192, Alpine 0100193, Alpine 0100194, Alpine 0100195, Alpine 0100199, Alpine 100191, Alpine 100192, Alpine 100193, Alpine 100194, Alpine 100195, Alpine 100199, GM 109236, GM 19259487, GM 88865553, Honda 00W20BASN0LDRM, Honda 0821199904, Honda 0821199906, Honda 0821199907, Honda 0821799974, Honda 0821799976, Honda 0821799977, Honda 0822799974, Honda 08232P99A1HMR, Honda 08232P99A1LHE, Honda 08232P99A6HMR, Honda 08232P99A30HE, Honda 08232P99C1HMR, Honda 08232P99C3HMR, Honda 08232P99D1LHE, Honda 08232P99D4LHE, Honda 08232P99D6LHE, Honda 087989029, Honda 087989037, Honda 087989081, Honda 087989081, Honda 087989137, Honda 87989036, Hyundai Motor 0510000161, Hyundai Motor 0510000461, Mitsubishi 3013611, Motorcraft XO0W20DSP, Motorcraft XO0W20Q1SP, Motorcraft XO0W20QSP, Motorcraft XO0W205Q3SP, Toyota 0888009209, Toyota 0888009210, Toyota 0888082654

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1111109-001

Code:
4014835853737

Volume:
4 L

vendor code:
1111109-004

Code:
4014835853768

Volume:
5 L

vendor code:
1111109-005

Code:
4014835853799

Volume:
10 L

vendor code:
1111109-010

Code:
4014835853829

Volume:
20 L

vendor code:
1111109-020

Code:
4014835853843

Volume:
20 L, ecobox

vendor code:
1111109-B20

Code:
4014835853867

Volume:
60 L

vendor code:
1111109-060

Volume:
60 L, print

vendor code:
1111109-D60

Code:
4014835854192

Volume:
208 L

vendor code:
1111109-208

Volume:
208 L, print

vendor code:
1111109-D28

Volume:
1000 L

vendor code:
1111109-700

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

RAVENOL DFE SAE 0W-20 ensures the prevention of premature fuel ignition LSPI (Low Speed ​​Pre-ignition), thus avoiding engine damage. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL DFE SAE 0W-20 helps to protect the environment by reducing emissions.

RAVENOL DFE SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Extended oil change intervals according to the manufacturer 's instructions.

Application Note

RAVENOL DFE SAE 0W-20 is suitable as a high-performance light-running engine oil for demanding engines. It is recommended for modern passenger car engines from OPEL, GENERAL MOTORS, Chevrolet, Daewoo and Holden according to Dexos1 specification under all operating conditions.

RAVENOL DFE SAE 0W-20 is also applicable to the specified specifications of Ford and Chrysler and suitable for use in hybrid vehicles from various manufacturers.

Characteristics

  • Fuel savings in partial and full load operation.
  • LowSAPS = Low sulfate ash, phosphorus and sulfur.
  • Very stable and excellent viscosity behavior.
  • Excellent shear stability.
  • Very good cold start characteristics.
  • A safe lubrication film at very high operating temperatures.
  • Very good detergents and dispersing properties.
  • Very good wear and corrosion protection.
  • Protection from foam formation.
  • Excellent detergent and dispersant properties.
  • Long life due to high oxidation stability.
  • Catalyst suitability.
  • Ideal for hybrid vehicles.
Parameter Unit Value Audit
Recommendations Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C947-A, Ford WSS-M2C947-B1
Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C947-A, Ford WSS-M2C947-B1
Brand RAVENOL
RAVENOL
SAE 0W-20
0W-20
Type Full synthetic
Full synthetic
API SQ (RC)
SQ (RC)
ILSAC GF-7A
GF-7A
Manufacturer Approved GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
Recomendations Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 947-B1
Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 947-B1
Density at 20 °C g/cm³ 840 EN ISO 12185
840 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 8.93 DIN 51562-1
8.93 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 50.5 DIN 51562-1
50.5 mm²/s DIN 51562-1
Viscosity Index VI 158 DIN ISO 2909
158 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 2.78 ASTM D5481
2.78 mPa*s ASTM D5481
CCS Viscosity at -35 °C mPa*s 5400 ASTM D5293
5400 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C mPa*s 14.600 ASTM D4684
14.600 mPa*s ASTM D4684
Pourpoint °C -63 DIN ISO 3016
-63 °C DIN ISO 3016
Noack Volatility % 5.9 ASTM D5800
5.9 % ASTM D5800
Flashpoint °C 248 DIN EN ISO 2592
248 °C DIN EN ISO 2592
tbn mgKOH/g 7.8 ASTM D2896
7.8 mgKOH/g ASTM D2896
Sulphated Ash %wt. 0.8 DIN 51575
0.8 %wt. DIN 51575
Approvals Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 947-B1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 947-B1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
GFE 5W-20

GFE 5W-20

CleanSynto®
For engine

RAVENOL GFE SAE 5W-20 achieves a high viscosity index through its formulation with special base oils.The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3

Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Ford WSS-M2C 945-B1, Ford WSS-M2C 960-A1

show details hide details

SAE: 5W-20

ILSAC: GF-7A

API: SQ (RC)

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1111111-001

Code:
4014835857810

Volume:
4 L

vendor code:
1111111-004

Code:
4014835857841

Volume:
5 L

vendor code:
1111111-005

Code:
4014835857872

Volume:
10 L

vendor code:
1111111-010

Code:
4014835857902

Volume:
20 L

vendor code:
1111111-020

Volume:
20 L, ecobox

vendor code:
1111111-B20

Code:
4014835857926

Volume:
60 L

vendor code:
1111111-060

Code:
4014835857964

Volume:
60 L, print

vendor code:
1111111-D60

Volume:
208 L

vendor code:
1111111-208

Code:
4014835857988

Volume:
208 L, print

vendor code:
1111111-D28

Volume:
1000 L

vendor code:
1111111-700

RAVENOL GFE SAE 5W-20 achieves a high viscosity index through its formulation with special base oils.The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL GFE SAE 5W-20 contributes to protect the environment by reducing the emissions.

RAVENOL GFE SAE 5W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL GFE SAE 5W-20 also meets the specification WSS-M2C945-B1 and API SN PLUS, therefore it can reduce the problem of oil derived low speed pre-ignition.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL GFE SAE 5W-20 is an universal fuel-efficient engine oil, a top-quality product for modern passenger cars with gasoline and diesel engines. It is also suitable for use in hybrid vehicles from various manufacturers.

Characteristics

  • Guaranteed fastest possible lubrication of the engine.
  • High fuel economy (FE) effect due to the base oils and additives used. Low volatilization tendency,
  • thereby lower oil consumption.
  • Can reduce oil derived low speed pre-ignition.
  • Provides protection against sludging, coking, varnish and corrosion even under unfavorable operating conditions.
  • No oil-related deposits in combustion chambers in the piston ring zone and on valves.
  • Ensures the function of the hydraulic tappets at all temperatures.
  • Stable engine oil, no NOx oxidation.
  • Good soot absorption and dispersion.
  • Neutral towards sealing materials.
  • Ideal for hybrid vehicles.
Parameter Unit Value Audit
Recommendations Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C945-B1, Ford WSS-M2C960-A1
Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C945-B1, Ford WSS-M2C960-A1
Brand RAVENOL
RAVENOL
SAE 5W-20
5W-20
Type Synthetic
Synthetic
API SQ (RC)
SQ (RC)
ILSAC GF-7A
GF-7A
Manufacturer Approved GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
Recomendations Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 945-B1, Ford WSS-M2C 960-A1
Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 945-B1, Ford WSS-M2C 960-A1
Density at 20 °C g/cm³ 851 EN ISO 12185
851 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 8.6 DIN 51562-1
8.6 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 47.1 DIN 51562-1
47.1 mm²/s DIN 51562-1
Viscosity Index VI 163 DIN ISO 2909
163 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 2.76 ASTM D5481
2.76 mPa*s ASTM D5481
CCS Viscosity at -30 °C mPa*s 5200 ASTM D5293
5200 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C mPa*s 13.300 ASTM D4684
13.300 mPa*s ASTM D4684
Pourpoint °C -42 DIN ISO 3016
-42 °C DIN ISO 3016
Noack Volatility % 11.6 ASTM D5800
11.6 % ASTM D5800
Flashpoint °C 232 DIN EN ISO 2592
232 °C DIN EN ISO 2592
tbn mgKOH/g 7.7 ASTM D2896
7.7 mgKOH/g ASTM D2896
Sulphated Ash %wt. 0.78 DIN 51575
0.78 %wt. DIN 51575
Approvals Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 945-B1, Ford WSS-M2C 960-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
Chrysler MS-13340, Chrysler MS-6395, Ford WSS-M2C 945-B1, Ford WSS-M2C 960-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
EHS 0W-20

EHS 0W-20

CleanSynto®
For engine

RAVENOL EHS SAE 0W-20 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

Manufacturer Approved:
BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE

Compliance with the requirements:
BMW Longlife-14 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, Ford WSS-M2C 954-A1, Ford WSS-M2C 962-A1, Jaguar/Land Rover STJLR.03.5006, Opel OV 040 1547 - A20, PSA B71 2010, VWC 53037, VWC 53057

show details hide details

SAE: 0W-20

ILSAC: GF-7A

API: SQ (RC)

ACEA: C5, C6

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1111113-001

Code:
4014835858077

Volume:
4 L

vendor code:
1111113-004

Code:
4014835858107

Volume:
5 L

vendor code:
1111113-005

Code:
4014835858138

Volume:
20 L

vendor code:
1111113-020

Code:
4014835858312

Volume:
20 L, ecobox

vendor code:
1111113-B20

Code:
4014835858336

Volume:
60 L

vendor code:
1111113-060

Code:
4014835858374

Volume:
60 L, print

vendor code:
1111113-D60

Volume:
208 L

vendor code:
1111113-208

Code:
4014835858411

Volume:
208 L, print

vendor code:
1111113-D28

Volume:
1000 L

vendor code:
1111113-700

Volume:
10 L

vendor code:
1111113-010

Code:
4014835886735

RAVENOL EHS SAE 0W-20 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By a significant fuel economy RAVENOL EHS SAE 0W-20 contributes by reducing emissions to protect the environment. It minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL EHS SAE 0W-20 ensures compliance with the viscosity class even over long oil runtimes over the entire oil change interval.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL EHS SAE 0W-20 is a universal fuel-efficient engine oil, a top product for modern passenger car petrol and diesel engines. It is also suitable for use in hybrid vehicles from various manufacturers.

Characteristics

  • Guaranteed fastest possible lubrication of the engine.
  • High fuel economy (FE) effect due to the base oils and additives used.
  • Low volatilization tendency, thereby lower oil consumption.
  • Provides protection against sludging, coking, varnish and corrosion even under unfavorable operating conditions.
  • No oil-related deposits in combustion chambers in the piston ring zone and on valves.
  • Ensures the function of the hydraulic tappets at all temperatures.
  • Stable engine oil, no NOx oxidation.
  • Good soot absorption and dispersion.
  • Neutral towards sealing materials.
  • Reduces CO2 emissions, protect the environment.
  • Ideal for hybrid vehicles.
Parameter Unit Value Audit
Recommendations BMW Longlife-14 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C947-A, Ford WSS-M2C952-A1, Ford WSS-M2C954-A1, Ford WSS-M2C962-A1, Geely, Jaguar Land Rover STJLR.03.5006, Lynk & Co, Opel OV 040 1547 - A20, Polestar, PSA B71 2010, Volvo, VWC 53037, VWC 53057
BMW Longlife-14 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C947-A, Ford WSS-M2C952-A1, Ford WSS-M2C954-A1, Ford WSS-M2C962-A1, Geely, Jaguar Land Rover STJLR.03.5006, Lynk & Co, Opel OV 040 1547 - A20, Polestar, PSA B71 2010, Volvo, VWC 53037, VWC 53057
Brand RAVENOL
RAVENOL
SAE 0W-20
0W-20
Type Synthetic
Synthetic
API SQ (RC)
SQ (RC)
ACEA C5, C6
C5, C6
ILSAC GF-7A
GF-7A
Manufacturer Approved BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE
BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE
Recomendations BMW Longlife-14 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, Ford WSS-M2C 954-A1, Ford WSS-M2C 962-A1, Jaguar/Land Rover STJLR.03.5006, Opel OV 040 1547 - A20, PSA B71 2010, VWC 53037, VWC 53057
BMW Longlife-14 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, Ford WSS-M2C 954-A1, Ford WSS-M2C 962-A1, Jaguar/Land Rover STJLR.03.5006, Opel OV 040 1547 - A20, PSA B71 2010, VWC 53037, VWC 53057
Suitable for Geely, Lynk & Co, Polestar, Volvo
Geely, Lynk & Co, Polestar, Volvo
Density at 20 °C g/cm³ 842 EN ISO 12185
842 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 8.5 DIN 51562-1
8.5 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 43.8 DIN 51562-1
43.8 mm²/s DIN 51562-1
Viscosity Index VI 174 DIN ISO 2909
174 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 2.76 ASTM D5481
2.76 mPa*s ASTM D5481
CCS Viscosity at -35 °C mPa*s 5490 ASTM D5293
5490 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C mPa*s 12.700 ASTM D4684
12.700 mPa*s ASTM D4684
Pourpoint °C -54 DIN ISO 3016
-54 °C DIN ISO 3016
Noack Volatility % 10.4 ASTM D5800
10.4 % ASTM D5800
Flashpoint °C 232 DIN EN ISO 2592
232 °C DIN EN ISO 2592
tbn mgKOH/g 8.8 ASTM D2896
8.8 mgKOH/g ASTM D2896
Sulphated Ash %wt. 0.64 DIN 51575
0.64 %wt. DIN 51575
Approvals BMW Longlife-14 FE+, BMW Longlife-17 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, Ford WSS-M2C 954-A1, Ford WSS-M2C 962-A1, Jaguar/Land Rover STJLR.03.5006, MB 229.71, MB 229.72, Opel OV 040 1547 - A20, PSA B71 2010, Volvo VCC RBS0-2AE, VWC 53037, VWC 53057
BMW Longlife-14 FE+, BMW Longlife-17 FE+, Chrysler MS-12145, Fiat 9.55535-DSX, Fiat 9.55535-GSX, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, Ford WSS-M2C 954-A1, Ford WSS-M2C 962-A1, Jaguar/Land Rover STJLR.03.5006, MB 229.71, MB 229.72, Opel OV 040 1547 - A20, PSA B71 2010, Volvo VCC RBS0-2AE, VWC 53037, VWC 53057
EFS EcoFullSynth. 0W-20

EFS EcoFullSynth. 0W-20

CleanSynto®
USVO®
For engine

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE

Compliance with the requirements:
Chrysler MS-13340, Opel OV 040 1547 - A20, PSA B71 2010

show details hide details

SAE: 0W-20

ILSAC: GF-7A

API: SQ (RC)

ACEA: C5, C6

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1111105-001

Code:
4014835843127

Volume:
4 L

vendor code:
1111105-004

Code:
4014835843158

Volume:
10 L

vendor code:
1111105-010

Code:
4014835860377

Volume:
20 L

vendor code:
1111105-020

Code:
4014835846753

Volume:
20 L, ecobox

vendor code:
1111105-B20

Code:
4014835846777

Volume:
60 L

vendor code:
1111105-060

Code:
4014835846791

Volume:
208 L

vendor code:
1111105-208

Code:
4014835846814

Volume:
1000 L

vendor code:
1111105-700

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

RAVENOL Eco Synth EFS SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

With its new formulation, RAVENOL Eco Synth EFS SAE 0W-20 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

RAVENOL Eco Synth EFS SAE 0W-20 helps to avoid low speed pre-ignition LSPI (Low Speed ​​Pre-ignition). This can help avoid engine damage.

By significantly reducing fuel consumption, RAVENOL Eco Synth EFS SAE 0W-20 helps to protect the environment by reducing emissions.

RAVENOL Eco Synth EFS SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL Eco Synth EFS SAE 0W-20 is universal fuel-economy engine oil, suitable for all modern passenger car gasoline and diesel engines where this grade of oil is recommended. It is also suitable for use in hybrid vehicles from various manufacturers.

Characteristics

  • Guaranteed fastest possible lubrication of the engine.
  • High fuel economy (FE) effect due to the base oils and additives used. Low volatilization tendency, thereby lower oil consumption.
  • Provides protection against sludging, coking, varnish and corrosion even under unfavorable operating conditions.
  • No oil-related deposits in combustion chambers in the piston ring zone and on valves.
  • Ensures the function of the hydraulic tappets at all temperatures.
  • Stable engine oil, no NOx oxidation.
  • Good soot absorption and dispersion.
  • Neutral towards sealing materials.
  • Ideal for hybrid vehicles.
Parameter Unit Value Audit
Recommendations Chrysler MS-13340, Geely, Honda, Lynk & Co, Mazda, Nissan, Opel OV 040 1547 - A20, Polestar, PSA B71 2010, Suzuki, Toyota, Volvo
Chrysler MS-13340, Geely, Honda, Lynk & Co, Mazda, Nissan, Opel OV 040 1547 - A20, Polestar, PSA B71 2010, Suzuki, Toyota, Volvo
Brand RAVENOL
RAVENOL
SAE 0W-20
0W-20
Type Full synthetic
Full synthetic
API SQ (RC)
SQ (RC)
ACEA C5, C6
C5, C6
ILSAC GF-7A
GF-7A
Manufacturer Approved BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE
BMW Longlife-17 FE+, MB-Approval 229.71, MB-Approval 229.72, Volvo VCC RBS0-2AE
Recomendations Chrysler MS-13340, Opel OV 040 1547 - A20, PSA B71 2010
Chrysler MS-13340, Opel OV 040 1547 - A20, PSA B71 2010
Suitable for Geely, Honda, Lynk & Co, Mazda, Nissan, Polestar, Suzuki, Toyota, Volvo
Geely, Honda, Lynk & Co, Mazda, Nissan, Polestar, Suzuki, Toyota, Volvo
Density at 20 °C g/cm³ 844 EN ISO 12185
844 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 8.3 DIN 51562-1
8.3 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 42.7 DIN 51562-1
42.7 mm²/s DIN 51562-1
Viscosity Index VI 173 DIN ISO 2909
173 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 2.65 ASTM D5481
2.65 mPa*s ASTM D5481
CCS Viscosity at -35 °C mPa*s 4700 ASTM D5293
4700 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C mPa*s 10.240 ASTM D4684
10.240 mPa*s ASTM D4684
Pourpoint °C -63 DIN ISO 3016
-63 °C DIN ISO 3016
Noack Volatility % 9.7 ASTM D5800
9.7 % ASTM D5800
Flashpoint °C 230 DIN EN ISO 2592
230 °C DIN EN ISO 2592
tbn mgKOH/g 7.5 ASTM D2896
7.5 mgKOH/g ASTM D2896
Sulphated Ash %wt. 0.47 DIN 51575
0.47 %wt. DIN 51575
Approvals BMW Longlife-17 FE+, Chrysler MS-13340, MB 229.71, MB 229.72, Opel OV 040 1547 - A20, PSA B71 2010, Volvo VCC RBS0-2AE
BMW Longlife-17 FE+, Chrysler MS-13340, MB 229.71, MB 229.72, Opel OV 040 1547 - A20, PSA B71 2010, Volvo VCC RBS0-2AE
EHC 0W-20

EHC 0W-20

RAVENOL EHC SAE 0W-20 achieves a high viscosity index through its formulation with special base oils.The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

Compliance with the requirements:
Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 3, Honda/Acura HTO-06

show details hide details

SAE: 0W-20

ILSAC: GF-7A

API: SQ (RC)

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1111128-001

Code:
4014835880702

Volume:
4 L

vendor code:
1111128-004

Code:
4014835880733

Volume:
5 L

vendor code:
1111128-005

Code:
4014835880764

Volume:
20 L

vendor code:
1111128-020

Code:
4014835880795

Volume:
20 L, ecobox

vendor code:
1111128-B20

Code:
4014835880863

Volume:
60 L

vendor code:
1111128-060

Volume:
208 L

vendor code:
1111128-208

Volume:
1000 L

vendor code:
1111128-700

Volume:
10 L

vendor code:
1111128-010

Code:
4014835881273

RAVENOL EHC SAE 0W-20 achieves a high viscosity index through its formulation with special base oils.The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By a significant fuel economy RAVENOL EHC SAE 0W-20 contributes by reducing emissions to protect the environment.

RAVENOL EHC SAE 0W-20 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL EHC SAE 0W-20 ensures compliance with the viscosity class even over long oil runtimes over the entire oil change interval.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL EHC SAE 0W-20 is a universal fuel-efficient engine oil, a top product for modern passenger car petrol engines. It is also suitable for use in hybrid vehicles from various manufacturers. The operating instructions of the engine manufacturers must be observed.

Characteristics

  • Guaranteed fastest possible lubrication of the engine
  • High fuel economy (FE) effect due to the base oils and additives used
  • Low volatilization tendency, thereby lower oil consumption
  • Provides protection against sludging, coking, varnish and corrosion even under unfavorable operatingconditions.
  • No oil-related deposits in combustion chambers in the piston ring zone and on valves
  • Ensures the function of the hydraulic tappets at all temperatures
  • Stable engine oil, no NOx oxidation
  • Good soot absorption and dispersion
  • Neutral towards sealing materials
  • Reduces CO2 emissions, protects the environment
  • Ideal for hybrid vehicles
Parameter Unit Value Audit
Recommendations Buick , Cadillac, Chevrolet, Chrysler MS-6395, Ford WSS-M2C947-A, Ford WSS-M2C952-A1, GM 6094M, GM dexos1™ Gen 3, Honda/Acura HTO-06, Infiniti, Lexus, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota
Buick , Cadillac, Chevrolet, Chrysler MS-6395, Ford WSS-M2C947-A, Ford WSS-M2C952-A1, GM 6094M, GM dexos1™ Gen 3, Honda/Acura HTO-06, Infiniti, Lexus, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota
Brand RAVENOL
RAVENOL
SAE 0W-20
0W-20
Type Synthetic
Synthetic
API SQ (RC)
SQ (RC)
ILSAC GF-7A
GF-7A
Recomendations Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 3, Honda/Acura HTO-06
Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094 M, GM dexos1® Gen 3, Honda/Acura HTO-06
Suitable for Buick, Cadillac, Chevrolet, Infiniti, Lexus, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota
Buick, Cadillac, Chevrolet, Infiniti, Lexus, Mazda, Mitsubishi, Nissan, Subaru, Suzuki, Toyota
Density at 20 °C g/cm³ 842 EN ISO 12185
842 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 8.5 DIN 51562-1
8.5 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 44.2 DIN 51562-1
44.2 mm²/s DIN 51562-1
Viscosity Index VI 173 DIN ISO 2909
173 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 2.62 ASTM D5481
2.62 mPa*s ASTM D5481
CCS Viscosity at -35 °C mPa*s 5490 ASTM D5293
5490 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C mPa*s 16.800 ASTM D4684
16.800 mPa*s ASTM D4684
Pourpoint °C -45 DIN ISO 3016
-45 °C DIN ISO 3016
Noack Volatility % 10.4 ASTM D5800
10.4 % ASTM D5800
Flashpoint °C 232 DIN EN ISO 2592
232 °C DIN EN ISO 2592
tbn mgKOH/g 7.8 ASTM D2896
7.8 mgKOH/g ASTM D2896
Sulphated Ash %wt. 0.79 DIN 51575
0.79 %wt. DIN 51575
Approvals Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094M, GM dexos1® Gen 3, Honda/Acura HTO-06
Chrysler MS-6395, Ford WSS-M2C 947-A, Ford WSS-M2C 952-A1, GM 6094M, GM dexos1® Gen 3, Honda/Acura HTO-06
Professional Engine Cleaner

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details hide details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

  • Available packaging
  • Full description
  • Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

  • Long-term effectiveness and clean fresh oil
  • Remedy for soiled engines
  • Protection against compression loss in the area of the piston rings
  • Leads to better exhaust emissions and increases the performance of the engine
Parameter Unit Value Audit
Color Light brown visual
Light brown visual
Flashpoint (PM) °C 62 DIN ISO 3679
62 °C DIN ISO 3679
Density at 20 °C 805 EN ISO 12185
805 EN ISO 12185
Viscosity at 40 °C mm²/s 7 DIN EN ISO 3104
7 mm²/s DIN EN ISO 3104
Brand RAVENOL
RAVENOL

Transmission, automatic in a unit with final drive Fuzhen FA840 8/1

Liquid volume (basic): 6.5 L
ATF T-WS Lifetime

ATF T-WS Lifetime

Hydraulic fluid

RAVENOL ATF T-WS Lifetime fulfils the transmission oil specifications for latest automatic transmissions of Toyota and Aisin Warner.

Compliance with the requirements:
Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540

show details hide details
  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1211106-001

Code:
4014835743311

Volume:
4 L

vendor code:
1211106-004

Code:
4014835743397

Volume:
10 L

vendor code:
1211106-010

Code:
4014835743342

Volume:
20 L

vendor code:
1211106-020

Code:
4014835743328

Volume:
20 L, ecobox

vendor code:
1211106-B20

Code:
4014835784925

Volume:
60 L

vendor code:
1211106-060

Volume:
60 L, print

vendor code:
1211106-D60

Code:
4014835743335

Volume:
208 L

vendor code:
1211106-208

Volume:
208 L, print

vendor code:
1211106-D28

Code:
4014835743304

RAVENOL ATF T-WS Lifetime fulfils the transmission oil specifications for latest automatic transmissions of Toyota and Aisin Warner.

Application Note

RAVENOL ATF T-WS Lifetime is recommended for latest automatic transmissions of Toyota and Aisin Warner. LEXUS / TOYOTA: AB60F, A750E(F), U341E(F), U140E(F), U250E, U241E, U151E(F), U340E. Aisin TF-80SC (AWF21, AF40-6, AM6, AW6A-EL), TF-81SC (AF21 and AWF-21) for Alfa Romeo 159 - 1.9 JTDm, 2.4 JTDm, 3.2 JTS Alfa Romeo Brera - 2.4 JTDm, 3.2 JTS Alfa Romeo Spider - 2.4 JTDm, 3.2 JTS Cadillac BLS - 1.9 D, 1.9 D (TST), Chevrolet Cruze (US market, 2.0L Turbo Diesel), Citroën C4, Citroën C5, Citroën C6, Citroën DS4, Citroën DS5, Fiat Croma - 1.9 JTDm, 2.4 JTDm, Ford Five Handred, Ford Fusion, Ford Mondeo, Lancia Delta (2008) - 1.8 DI Turbo, Land Rover Freelander 2, Land Rover, Range Rover Evoque, Lincoln Zephyr, Lincoln MKZ, Mazda 6, Mazda CX-7, Mazda CX-9, Mazda MPV, Mercury Milan, Mercury Montego, Opel/Vauxhall Astra, Opel / Vauxhall Vectra / Signum, Opel / Vauxhall Zafira, Opel / Vauxhall Insignia, Peugeot 307, Peugeot 308, Peugeot 407, Peugeot 508, Peugeot 607, Peugeot 3008, Peugeot 5008, Renault Espace, Renault Vel Satis, Saab 9-3 - 1.9 TiD, 1.9 TTiD, Volvo C30 D3 and D4, Volvo S40 D3 and D4, Volvo V50 D3 and D4, Volvo S60 2.4D, D5, D5 AWD, T6 AWD and R AWD 06-07, 08- Volvo V60 D3, D5, D5 AWD, T6 AWD, Volvo S80 2.5T, 3.2, T6 AWD, V8 AWD, D5 and D5 AWD, Volvo V70 2.5T, 3.2, T6 AWD, 2.4D, D5, D5 AWD and R AWD 06-07, 08- Volvo XC60, Volvo XC70, Volvo XC90 3.2 and V8 AWD, Aisin TF60SN, TF61SN and TF62SN, VW 09G, 09K, 09M for Volkswagen, Audi, Skoda.

Characteristics

  • phenomenal resistance of lubricant failure under hard operating conditions
  • a longer oil durability, extension of the durability of the transmission, offers longer changing intervals
  • phenomenal resistance of oil sludge and deposit accumulation
  • an excellent oxidation resistance and thermic stability
  • a superior corrosion protection, a much better foaming resistance for a smooth switching operation as well
  • as a lower corrosion of the bearings, sleeves and gear wheels
  • an excellent flow behaviour at low temperatures
  • a more constant switching operation performance, optimised friction characteristics
  • prevention of coupling grinding regarding modulation rotary conversion
  • a longer durability of oil and coupling, offers a smooth switching operation at low temperatures
  • an improved shear stability
Parameter Unit Value Audit
Recommendations Aisin TF-80SC (AWF21, AF 40-6, AM6, AW6A-EL), Aisin TF-80SD, Aisin TF-81SC (AF21 und AWF-21), Aisin TF-82SC, Aisin TG-81SC (AWF8F35, A881F und GA8F22AW), Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW 2 Gran Tourer F46, BMW 83222355599, BMW ATF 6, BMW X1 F48, BMW X2 F39, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Fiat 9.55550-AV2, Fuzhen FA840, Geely 6608136626 ATF-GS, GM 1940773, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Land Rover LR022460, Mini Cooper F54, Mini Countryman F60, SAAB 93165147, Toyota / Lexus JWS3324, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540 A2, VW/Audi Getriebe 0C8 (Touareg 2011-Q7 2010-), Xuanfu 6AT18, Xuanfu 6AT20, Xuanfu 6AT28
Aisin TF-80SC (AWF21, AF 40-6, AM6, AW6A-EL), Aisin TF-80SD, Aisin TF-81SC (AF21 und AWF-21), Aisin TF-82SC, Aisin TG-81SC (AWF8F35, A881F und GA8F22AW), Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW 2 Gran Tourer F46, BMW 83222355599, BMW ATF 6, BMW X1 F48, BMW X2 F39, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Fiat 9.55550-AV2, Fuzhen FA840, Geely 6608136626 ATF-GS, GM 1940773, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Land Rover LR022460, Mini Cooper F54, Mini Countryman F60, SAAB 93165147, Toyota / Lexus JWS3324, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540 A2, VW/Audi Getriebe 0C8 (Touareg 2011-Q7 2010-), Xuanfu 6AT18, Xuanfu 6AT20, Xuanfu 6AT28
Brand RAVENOL
RAVENOL
Type Synthetic
Synthetic
Recomendations Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540
Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540
Suitable for Aisin AF21, AWF-21, Aisin AWF21, AF 40-6, AM6, AW6A-EL, Aisin AWF8F35, A881F, GA8F22AW, BMW 2 Gran Tourer F46, BMW X1 F48, BMW X2 F39, Mini Cooper F54, Mini Countryman F60, VW Getriebe 0C8 (Touareg 2011-Q7 2010-)
Aisin AF21, AWF-21, Aisin AWF21, AF 40-6, AM6, AW6A-EL, Aisin AWF8F35, A881F, GA8F22AW, BMW 2 Gran Tourer F46, BMW X1 F48, BMW X2 F39, Mini Cooper F54, Mini Countryman F60, VW Getriebe 0C8 (Touareg 2011-Q7 2010-)
Compliant products BMW 83222355599, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Geely 6608136626 ATF-GS, GM 1940773, Land Rover LR022460, SAAB 93165147, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540, Xuanfu 6AT18, Xuanfu AT20, Xuanfu AT28
BMW 83222355599, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Geely 6608136626 ATF-GS, GM 1940773, Land Rover LR022460, SAAB 93165147, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540, Xuanfu 6AT18, Xuanfu AT20, Xuanfu AT28
Density at 20 °C g/cm³ 838 EN ISO 12185
838 g/cm³ EN ISO 12185
Color Red visual
Red visual
Pourpoint °C -54 DIN ISO 3016
-54 °C DIN ISO 3016
Approvals Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540
Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540

Transmission in a unit with final drive, robotic 7/1 738DHA

Liquid volume (basic): 4.3 L
DCT-DSG LV Fluid

DCT-DSG LV Fluid

Transmission oil

RAVENOL DCT-LV Fluid was developed for the use of the third generation in the 7-speed dual clutch transmission by Magna GETRAG especially for the Daimler specification MB 239.21.

Compliance with the requirements:
BMW DCTF-2, BOT 351 C4, Ford F-DC, Ford WSS-M2C 218-A1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW TL 52529-C

show details hide details

Equivalents OEM:
BMW 83225B3AC81, BMW 83222433157, Chery 9009011085, FEBI 171871, FEBI 4054224718711, Ford 2426698, Ford KU7JM2C218AA, Hyundai 0023219101, Hyundai 043002N110, Hyundai 043002N110EU, Hyundai UM020CH266, MB A0009892002, MB A0009896104, MB A000989610409, MB A000989610410, MB A000989610411, MB A000989610412, Renault 7711579594, Renault 7711782057, Renault 7711785242, Renault 7711785243, Renault 7711945804, Renault 7711945805, Renault 7711945827, Renault 9141860904, SWAG 33101041, SWAG 4054228718717, VAG G055529A2, VAG G055529Z2, Volvo 32240419, Volvo 32240419 BMW 83225B3AC81, BMW 83222433157, Chery 9009011085, FEBI 171871, FEBI 4054224718711, Ford 2426698, Ford KU7JM2C218AA, Hyundai 0023219101, Hyundai 043002N110, Hyundai 043002N110EU, Hyundai UM020CH266, MB A0009892002, MB A0009896104, MB A000989610409, MB A000989610410, MB A000989610411, MB A000989610412, Renault 7711579594, Renault 7711782057, Renault 7711785242, Renault 7711785243, Renault 7711945804, Renault 7711945805, Renault 7711945827, Renault 9141860904, SWAG 33101041, SWAG 4054228718717, VAG G055529A2, VAG G055529Z2, Volvo 32240419, Volvo 32240419

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1212107-001

Code:
4014835878587

Volume:
4 L

vendor code:
1212107-004

Code:
4014835878648

Volume:
10 L

vendor code:
1212107-010

Code:
4014835878679

Volume:
20 L

vendor code:
1212107-020

Code:
4014835878693

Volume:
20 L, ecobox

vendor code:
1212107-B20

Code:
4014835878761

Volume:
60 L

vendor code:
1212107-060

Code:
4014835878716

Volume:
60 L, print

vendor code:
1212107-D60

Volume:
208 L

vendor code:
1212107-208

Code:
4014835878730

Volume:
208 L, print

vendor code:
1212107-D28

Volume:
1000 L

vendor code:
1212107-700

RAVENOL DCT-LV Fluid was developed for the use of the third generation in the 7-speed dual clutch transmission by Magna GETRAG especially for the Daimler specification MB 239.21.

RAVENOL DCT-LV Fluid guarantees an optimum of power transmission and excellent clutch performance under extreme loads in midsummer as well as at low temperatures in winter.

Application Note

RAVENOL DCT-LV Fluid was specially developed for dual-clutch transmissions from various car manufacturers such as BMW, Ford, Mercedes, VW/Audi.

RAVENOL DCT-LV Fluid is used to lubricate clutches in 7-speed Magna GETRAG dual-clutch transmissions (7DCT300/ 6DCT200/ 6DCT150). It can be used in direct shift transmissions with wet or dry clutches.

Characteristics

  • Very good lubricating ability even at low temperatures
  • A high, stable viscosity index
  • Protection against wear, corrosion and foam formation
  • Excellent viscosity-temperature behavior
  • High thermal and oxidative stability
  • Neutral behavior towards sealing materials
  • Stable lubricating film under extreme loads in summer
Parameter Unit Value Audit
Viscosity at 100 °C mm²/s 5.55 DIN 51562-1
5.55 mm²/s DIN 51562-1
Copper Strip Test at 121 °C 1b ASTM D130
1b ASTM D130
Viscosity at 40 °C mm²/s 23.77 DIN 51562-1
23.77 mm²/s DIN 51562-1
Brookfield Viscosity at -40 °C mPa*s 3100 ASTM D2983
3100 mPa*s ASTM D2983
Viscosity Index VI 187 DIN ISO 2909
187 DIN ISO 2909
Recommendations BMW 83222433157, BMW DCTF-2, BOT 351 C4, Chery 730DHB/DHC 7DCT300, Chery 738DHA 7DCT380, Chery 9009011085, Ford F-DC, Ford WSS-M2C218-A1, Great Wall GW7DCT1, Great Wall GWM 7DCT450, Hyundai/Kia 04300-2N110 WDHO-1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault 7711785243, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW G 055 529 A2, VW TL 52529-C
BMW 83222433157, BMW DCTF-2, BOT 351 C4, Chery 730DHB/DHC 7DCT300, Chery 738DHA 7DCT380, Chery 9009011085, Ford F-DC, Ford WSS-M2C218-A1, Great Wall GW7DCT1, Great Wall GWM 7DCT450, Hyundai/Kia 04300-2N110 WDHO-1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault 7711785243, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW G 055 529 A2, VW TL 52529-C
Brookfield Viscosity at -55 °C mPa*s 17200 ASTM D2983
17200 mPa*s ASTM D2983
Type Full synthetic
Full synthetic
Brand RAVENOL
RAVENOL
Recomendations BMW DCTF-2, BOT 351 C4, Ford F-DC, Ford WSS-M2C 218-A1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW TL 52529-C
BMW DCTF-2, BOT 351 C4, Ford F-DC, Ford WSS-M2C 218-A1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW TL 52529-C
Compliant products BMW 83222433157, Chery 730DHB/DHC 7DCT300, Chery 738DHA 7DCT380, Chery 9009011085, Hyundai/Kia 04300-2N110 WDHO-1, Renault 7711785243, VW G 055 529
BMW 83222433157, Chery 730DHB/DHC 7DCT300, Chery 738DHA 7DCT380, Chery 9009011085, Hyundai/Kia 04300-2N110 WDHO-1, Renault 7711785243, VW G 055 529
Density at 20 °C g/cm³ 832 EN ISO 12185
832 g/cm³ EN ISO 12185
Color Yellow visual
Yellow visual
Pourpoint °C -75 DIN ISO 3016
-75 °C DIN ISO 3016
Approvals BMW DCTF-2, BOT 351 C4, Ford F-DC, Ford WSS-M2C 218-A1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW TL 52529-C
BMW DCTF-2, BOT 351 C4, Ford F-DC, Ford WSS-M2C 218-A1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW TL 52529-C

Transfer case
OEM: Chery 154000310AA

Liquid volume (basic): 0.34 L
VSG 75W-90

VSG 75W-90

For transmission

RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.

Compliance with the requirements:
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.8, MB 235.9, MB 235.11, MB 235.21, MB 235.72, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B

show details hide details

SAE: 75W-90

API: GL-4, GL-5

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1221101-001

Code:
4014835733916

Volume:
4 L

vendor code:
1221101-004

Code:
4014835733992

Volume:
10 L

vendor code:
1221101-010

Code:
4014835733947

Volume:
20 L

vendor code:
1221101-020

Code:
4014835733923

Volume:
20 L, ecobox

vendor code:
1221101-B20

Code:
4014835846654

Volume:
60 L

vendor code:
1221101-060

Code:
2200000083081

Volume:
60 L, print

vendor code:
1221101-D60

Code:
4014835733930

Volume:
208 L

vendor code:
1221101-208

Code:
4014835733985

Volume:
208 L, print

vendor code:
1221101-D28

Code:
4014835733909

Volume:
1000 L

vendor code:
1221101-700

RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.

Application Note

RAVENOL VSG SAE 75W-90 is excellent for use of highly stressed axle drives.

RAVENOL VSG SAE 75W-90 is suitable for synchronised and non-synchronised manual transmissions, transfer cases and ancillary transmission requiring API GL-5 or GL-4 oil.

RAVENOL VSG SAE 75W-90 is suitable for Ford-transmission IB5, B5, MTX75, GM5, MT285/6, MMT6/6, MT75, R15M-D, R15MX-D, MT82 and Porsche Full-Time Transfer Case with Torsen (PL72T) for Cayenne 92A / 958 Diesel and S Hybrid from 2010 to 2018.

Characteristics

  • high additive reserves for prolonged oil change intervals according to the manufacturer specifications
  • excellent cold flow properties
  • best wear protection and best transmission efficiency
  • Fuel savings even with short distances in low outdoor temperatures
  • stable lubricating film even under high stress
  • extraordinary corrosion protection and good compatibility with non-ferrous metal
  • high oxidation resistance prevents oil thickening and deposits
  • outstanding dirt-carrying capacity, i.e. aggregates are clean even after very long oil change intervals
  • excellent elastomer compatibility to prevent leaks
  • extreme shearing stability, remains within the clean oil viscosity per SAE class 75W-90 even after very long periods of use
  • very high protection from rust, corrosion and foaming
  • extreme low pour point
  • excellent EP properties
  • fuel savings
Parameter Unit Value Audit
Recommendations BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 911 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 911 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
Brand RAVENOL
RAVENOL
SAE 75W-90
75W-90
Type Full synthetic
Full synthetic
API GL-4, GL-5
GL-4, GL-5
Recomendations BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
Suitable for IVECO
IVECO
Compliant products BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911
BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911
Density at 20 °C g/cm³ 839.8 EN ISO 12185
839.8 g/cm³ EN ISO 12185
Color Yellow visual
Yellow visual
Viscosity at 100 °C mm²/s 16.8 DIN 51562-1
16.8 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 108.8 DIN 51562-1
108.8 mm²/s DIN 51562-1
Viscosity Index VI 168 DIN ISO 2909
168 DIN ISO 2909
Brookfield Viscosity at -40 °C mPa*s 47.000 ASTM D2983
47.000 mPa*s ASTM D2983
Pourpoint °C -57 DIN ISO 3016
-57 °C DIN ISO 3016
Flashpoint °C 224 DIN EN ISO 2592
224 °C DIN EN ISO 2592
Seq. I at 24 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Seq. II at 93,5 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Copper Strip Test at 121 °C 1a ASTM D130
1a ASTM D130
Approvals BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B

All-wheel drive clutch Haldex

Liquid volume (basic): 0.6 L
AWD-H Fluid

AWD-H Fluid

For automatic transmission

RAVENOL AWD-H FLUID is a special high-performance transmission oil for Haldex's Allrad, Quattro and 4motion powertrains.How the Haldex coupling operates: The axle closest to the engine is constantly powered. All-wheel drive powertrains with a Haldex coupling automatically direct engine power to the other axle where required, without any intervention from the driver. Depending on the electronically-controlled blocking effect of the Haldex coupling, a variable proportion of the engine power is transferred to this axle as required.

Compliance with the requirements:
VW G 052 175, VW G 055 175, VW G 060 175, VW G 065 175 A2

show details hide details

Equivalents OEM:
BMW 83222413513, FEBI 101170, FEBI 101171, FEBI 101172, Ford 8U7J8708687A, Ford 8U7J8708687AA, Ford 1524498, Ford 1931273, Ford FU7J8708687AA, GM 1940057, GM 88863349, GM 88863350, GM 93165387, Jaguar/Land Rover T4A15328, Land Rover 469815DE01, Land Rover LR003136, Land Rover LR054941, Land Rover LR160851, Land Rover SL12301, Motorcraft XL13, Porsche 00004330540, SWAG 30101170, SWAG 30101171, SWAG 30101172, VAG G052175, VAG G052175A1, VAG G052175A2, VAG G052175S0, VAG G055175, VAG G055175A1, VAG G055175A2 BMW 83222413513, FEBI 101170, FEBI 101171, FEBI 101172, Ford 8U7J8708687A, Ford 8U7J8708687AA, Ford 1524498, Ford 1931273, Ford FU7J8708687AA, GM 1940057, GM 88863349, GM 88863350, GM 93165387, Jaguar/Land Rover T4A15328, Land Rover 469815DE01, Land Rover LR003136, Land Rover LR054941, Land Rover LR160851, Land Rover SL12301, Motorcraft XL13, Porsche 00004330540, SWAG 30101170, SWAG 30101171, SWAG 30101172, VAG G052175, VAG G052175A1, VAG G052175A2, VAG G052175S0, VAG G055175, VAG G055175A1, VAG G055175A2, VAG G055175S0, VAG G055175S2, VAG G060175, VAG G060175A2, VAG G060175S0, VAG G065175, VAG G065175A2, VAG N052175Y0, VAG N052175Z0, Volvo 1161641, Volvo 30759648, Volvo 31325136, Volvo 31367940, Volvo 31367941, Volvo 32240904, Volvo 32240904, Volvo 313679940

  • Available packaging
  • Full description
  • Product parameters

Volume:
300 ml

vendor code:
1211140-300

Code:
4014835855755

Volume:
1 L

vendor code:
1211140-001

Code:
4014835855786

RAVENOL AWD-H FLUID is a special high-performance transmission oil for Haldex's Allrad, Quattro and 4motion powertrains.How the Haldex coupling operates: The axle closest to the engine is constantly powered. All-wheel drive powertrains with a Haldex coupling automatically direct engine power to the other axle where required, without any intervention from the driver. Depending on the electronically-controlled blocking effect of the Haldex coupling, a variable proportion of the engine power is transferred to this axle as required.

RAVENOL AWD-H FLUID supports this power transfer process with its outstanding qualities.

Application Note

RAVENOL AWD-H Fluid is suitable for use with all-wheel drive powertrains with Haldex couplings in AUDI, VOLKSWAGEN, SEAT, SKODA, OPEL, LANDROVER and VOLVO vehicles.

RAVENOL AWD-H Fluid should be changed every 60.000 km in order to avoid damage to the powertrain.

RAVENOL recommendation: When changing the oil, always change the oil filter of the Haldex coupling and clean the pre-filter of the oil pump or replace it at the same time. This prevents damage to the Haldex caused by deposits or clogging of the filters.

Characteristics

  • An excellent flow behaviour at low temperatures
  • High, stable viscosity index
  • Very good oxidation stability
  • Reliable protection against wear, corrosion and foaming
  • Excellent coefficient of friction constancy
  • High thermal and oxidative stability
  • Excellent cooling ability
  • Improved shear stability
Parameter Unit Value Audit
Recommendations BMW 83222413513, GM 93165387, Land Rover LR 003136 (Haldex-Öl Baujahr 2011-2014), Land Rover LR054941 (Haldex-Öl Baujahr 2011-2014), Opel 1940057, VOLVO 31367940, VW G 052 175 A2, VW G 055 175 A2, VW G 060 175 A2, VW G 065 175 A2
BMW 83222413513, GM 93165387, Land Rover LR 003136 (Haldex-Öl Baujahr 2011-2014), Land Rover LR054941 (Haldex-Öl Baujahr 2011-2014), Opel 1940057, VOLVO 31367940, VW G 052 175 A2, VW G 055 175 A2, VW G 060 175 A2, VW G 065 175 A2
Brand RAVENOL
RAVENOL
Type Full synthetic
Full synthetic
Recomendations VW G 052 175, VW G 055 175, VW G 060 175, VW G 065 175 A2
VW G 052 175, VW G 055 175, VW G 060 175, VW G 065 175 A2
Compliant products BMW 83222413513, GM 93165387, Land Rover LR003136, Land Rover LR054941, Opel 1940057, Volvo 31367940, VW G 052 175, VW G 055 175, VW G 060 175
BMW 83222413513, GM 93165387, Land Rover LR003136, Land Rover LR054941, Opel 1940057, Volvo 31367940, VW G 052 175, VW G 055 175, VW G 060 175
Density at 20 °C g/cm³ 855 EN ISO 12185
855 g/cm³ EN ISO 12185
Color light yellow visual
light yellow visual
Colour Code 1 DIN ISO 2049
1 DIN ISO 2049
Viscosity at 100 °C mm²/s 5.4 DIN 51562-1
5.4 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 24.5 DIN 51562-1
24.5 mm²/s DIN 51562-1
Viscosity Index VI 166 DIN ISO 2909
166 DIN ISO 2909
Brookfield Viscosity at -40 °C mPa*s 6060 ASTM D5481
6060 mPa*s ASTM D5481
Pourpoint °C -63 DIN ISO 3016
-63 °C DIN ISO 3016
Flashpoint °C 192 DIN EN ISO 2592
192 °C DIN EN ISO 2592
VKA Four Ball Test (Wear) mm 0.58 DIN 51350-3
0.58 mm DIN 51350-3
VKA Four Ball Test (EP Extreme Pressure) N 2000 / 2200 DIN 51350-3
2000 / 2200 N DIN 51350-3
Seq. I at 24 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Seq. II at 93,5 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Copper Strip Test at 150 °C 1a ASTM D130
1a ASTM D130
Approvals VW G 052 175, VW G 055 175, VW G 060 175, VW G 065 175 A2
VW G 052 175, VW G 055 175, VW G 060 175, VW G 065 175 A2

Differential, rear

Liquid volume (basic): 0.5 L
DGL 75W-85 GL-5 LS

DGL 75W-85 GL-5 LS

For transmission

RAVENOL DGL SAE 75W-85 GL-5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2 , BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.7, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18

show details hide details

SAE: 75W-85

API: GL-5 LS

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1221107-001

Code:
4014835848610

Volume:
4 L

vendor code:
1221107-004

Code:
4014835848641

Volume:
10 L

vendor code:
1221107-010

Code:
4014835848672

Volume:
20 L

vendor code:
1221107-020

Code:
4014835848719

Volume:
20 L, ecobox

vendor code:
1221107-B20

Code:
4014835848696

Volume:
60 L

vendor code:
1221107-060

Code:
4014835848757

Volume:
60 L, print

vendor code:
1221107-D60

Volume:
208 L

vendor code:
1221107-208

Volume:
208 L, print

vendor code:
1221107-D28

Volume:
1000 L

vendor code:
1221107-700

RAVENOL DGL SAE 75W-85 GL-5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL DGL SAE 75W-85 GL-5 LS is excellent developed to the increased loads of gear oils to ensure the proper functioning of the transmission. It is especially suited for applications requiring "limited slip" (LS) properties.

Application Note

RAVENOL DGL SAE 75W-85 GL-5 LS is high-performance gear oil for the supply of transfer cases and differentials with and without limited slip "Limited Slip" of motor vehicles.

RAVENOL DGL SAE 75W-85 GL-5 LS ensures a proper lubrication in the transmission. The operating instructions of the vehicle and transmission manufacturers must be observed.

RAVENOL DGL SAE 75W-85 GL-5 LS is suitable for Honda Crosstour 2010-2015, Pilot 2006-2015, Ridgeline 2006-2014 and Acura MDX 2003-2014, Acura RDX 2007-2014, Acura RL 2005-2012, Acura TL 2009-2014, Acura ZDX 2010-2013

Characteristics

  • A high pressure stable lubricating film even at high oil temperatures and under high stress.
  • Outstanding shearing stability and excellent thermal stability.
  • Excellent viscosity-temperature properties.
  • High oxidation stability.
  • Excellent wear protection, outstanding EP properties.
  • Low foaming properties even at high speeds.
  • Good compatibility with non-ferrous metals and sealing materials.
  • Good shifting behaviour even in low temperatures, low pour point.
  • Extended life.
  • A stable lubricating film even at high oil temperatures and under high stress.
  • Well adhering lubricating film and outstanding LS additive treatment for reduced transmission noise even when oil is hot.
Parameter Unit Value Audit
Recommendations AC Delco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BMW Jeep, BOT 448, BOT 799, Chrysler ELSD Rear Axle, Dodge, DTFR 12B120, Fiat 9.55550 F426.E06, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, Lexus, MB 235.15 (A 001 989 59 03), MB 235.31, MB 235.33, MB 235.62, MB 235.7 (A 001 989 83 03), MB 235.74 (A 001 989 33 03), MB 239.71 (A 001 989 88 03), Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, Toyota JWS 2273, VW G 052 190 A2, VW G 052 196 A2, VW G 052 518 A2, VW G 055 190 A2, VW G 060 190 A2, VW TL 52190, ZF TE-ML 18
AC Delco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BMW Jeep, BOT 448, BOT 799, Chrysler ELSD Rear Axle, Dodge, DTFR 12B120, Fiat 9.55550 F426.E06, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, Lexus, MB 235.15 (A 001 989 59 03), MB 235.31, MB 235.33, MB 235.62, MB 235.7 (A 001 989 83 03), MB 235.74 (A 001 989 33 03), MB 239.71 (A 001 989 88 03), Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, Toyota JWS 2273, VW G 052 190 A2, VW G 052 196 A2, VW G 052 518 A2, VW G 055 190 A2, VW G 060 190 A2, VW TL 52190, ZF TE-ML 18
Brand RAVENOL
RAVENOL
SAE 75W-85
75W-85
Type Full synthetic
Full synthetic
API GL-5 LS
GL-5 LS
Recomendations BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18
BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18
specification MIL-L-2105 D
MIL-L-2105 D
Suitable for BMW|Jeep, Chrysler ELSD Rear Axle, Dodge, Lexus
BMW|Jeep, Chrysler ELSD Rear Axle, Dodge, Lexus
Compliant products AcDelco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, MB A 001 989 33 03, MB A 001 989 59 03, MB A 001 989 83 03, MB A 001 989 88 03, Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, VW G 052 190, VW G 052 196, VW G 055 190
AcDelco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, MB A 001 989 33 03, MB A 001 989 59 03, MB A 001 989 83 03, MB A 001 989 88 03, Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, VW G 052 190, VW G 052 196, VW G 055 190
Density at 20 °C g/cm³ 862 EN ISO 12185
862 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 11.6 DIN 51562-1
11.6 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 64.3 DIN 51562-1
64.3 mm²/s DIN 51562-1
Viscosity Index VI 177 DIN ISO 2909
177 DIN ISO 2909
Brookfield Viscosity at -40 °C mPa*s 26.000 ASTM D2983
26.000 mPa*s ASTM D2983
Pourpoint °C -51 DIN ISO 3016
-51 °C DIN ISO 3016
Flashpoint °C 215 DIN EN ISO 2592
215 °C DIN EN ISO 2592
Seq. I at 24 °C ml/ml 5/0 ASTM D892
5/0 ml/ml ASTM D892
Seq. II at 93,5 °C ml/ml 10/0 ASTM D892
10/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C ml/ml 5/0 ASTM D892
5/0 ml/ml ASTM D892
Copper Strip Test at 121 °C 1b ASTM D130
1b ASTM D130
Approvals BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, MIL-L-2105 D, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18
BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, MIL-L-2105 D, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18

Hydraulic brake system

Liquid volume (basic): 1 L
DOT 4 LV

DOT 4 LV

Brake fluid

The specific formulation of RAVENOL DOT 4 LV also meets current international specifications US FMVSS 116 DOT 3, DOT 4, SAE J 1703, SAE J 1704 and ISO 4925 (Classes 3 & 4).

Compliance with the requirements:
Ford WSS-M6C 65-A2, VW 501.14

show details hide details
  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1350605-001

Code:
4014835862326

Volume:
20 L

vendor code:
1350605-020

DOT 4

The specific formulation of RAVENOL DOT 4 LV also meets current international specifications US FMVSS 116 DOT 3, DOT 4, SAE J 1703, SAE J 1704 and ISO 4925 (Classes 3 & 4).

With its exceptional viscosity performance even at extremely Low Viskosity (max. 750 cSt @ -40°C) RAVENOL DOT 4 LV is especially recommended for use in the hydraulic brake and clutch systems of vehicles fitted with ESP / ASR (Electronic Stability Program) systems.

The safety potential of the aggregates is enhanced by the excellent properties of RAVENOL DOT 4 LV even at low temperatures.

RAVENOL DOT 4 LV mixes safely with other brake and clutch fluids that meet the above specifications.

Application Note

RAVENOL DOT 4 LV brake fluid can be used in all vehicles where ISO 4925 Class 6 specification is required.

RAVENOL DOT 4 LV is recommended for use in the hydraulic brake and clutch systems of vehicles fitted with ESP / ASR (Electronic Stability Program) systems.

RAVENOL DOT 4 LV is also recommended for use in the hydraulic brake and clutch systems of all cars, commercial vehicles and motorcycles for which a non-petroleum based fluid of this type is specified.

RAVENOL DOT 4 LV brake fluid is miscible with all known brake fluids of the same specification.

To use the high performance level of RAVENOL DOT 4 LV, a complete change of the brake fluid is recommended.

RAVENOL DOT 4 LV is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113)Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

  • Fluidity even at very low temperatures
  • Optimal ABS properties.
  • Chemical stability.
  • High lubricating power
  • Neutral behavior towards brake parts.
  • Can be mixed with all brake fluids of the same specification.
Parameter Unit Value Audit
FMVSS 116 specifications (DOT) DOT-4 LV
DOT-4 LV
Recommendations Ford WSS-M6C65-A2, VW 501 14
Ford WSS-M6C65-A2, VW 501 14
Brand RAVENOL
RAVENOL
Type Synthetic
Synthetic
Recomendations Ford WSS-M6C 65-A2, VW 501.14
Ford WSS-M6C 65-A2, VW 501.14
specification DOT 3, DOT 4, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704
DOT 3, DOT 4, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704
Density at 20 °C g/cm³ 1052 EN ISO 12185
1052 g/cm³ EN ISO 12185
Color light yellow visual
light yellow visual
Viscosity at 100 °C mPa*s 2.1 ASTM D445
2.1 mPa*s ASTM D445
Viscosity at -40 °C cSt 675 ASTM D445
675 cSt ASTM D445
Boiling point °C 267 FMVSS 116
267 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point °C 172 FMVSS 116
172 °C FMVSS 116
High Temperature Stability °C -1 FMVSS 116
-1 °C FMVSS 116
Chemical Stability °C 1 FMVSS 116
1 °C FMVSS 116
Evaporation %w/w 61 FMVSS 116
61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C i.O., 4s FMVSS 116
i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C i.O., 8s FMVSS 116
i.O., 8s FMVSS 116
Water Tolerance at -40 °C transparent, 3s FMVSS 116
transparent, 3s FMVSS 116
Water Tolerance at +60 °C Transparent FMVSS 116
Transparent FMVSS 116
Compatibility at -40 °C Transparent FMVSS 116
Transparent FMVSS 116
Compatibility at +60 °C Transparent FMVSS 116
Transparent FMVSS 116
Water content % — 0.2 DIN 51777-1
— 0.2 % DIN 51777-1
Tinned Iron Δ mg/cm² 0.04 FMVSS 116
0.04 Δ mg/cm² FMVSS 116
Steel mg/cm² -0.01 FMVSS 116
-0.01 mg/cm² FMVSS 116
Aluminium mg/cm² 0.02 FMVSS 116
0.02 mg/cm² FMVSS 116
Cast Iron Δ mg/cm² -0,03 FMVSS 116
-0,03 Δ mg/cm² FMVSS 116
Brass mg/cm² -0.08 FMVSS 116
-0.08 mg/cm² FMVSS 116
Copper mg/cm² -0.05 FMVSS 116
-0.05 mg/cm² FMVSS 116
Zinc mg/cm² 0.01 FMVSS 116
0.01 mg/cm² FMVSS 116
Sediment % — 0.05 FMVSS 116
— 0.05 % FMVSS 116
pH - value 8.2 FMVSS 116
8.2 FMVSS 116
Rubber Diameter Change 0.16 FMVSS 116
0.16 FMVSS 116
Hardness Change °IRHD -4 FMVSS 116
-4 °IRHD FMVSS 116
Appearance i.O. FMVSS 116
i.O. FMVSS 116
SBR at 70 °C mm 0.56 FMVSS 116
0.56 mm FMVSS 116
SBR at 120 °C mm 0.73 FMVSS 116
0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703) IRHD -2 FMVSS 116
-2 IRHD FMVSS 116
EPDM at 120 °C IRHD -2 FMVSS 116
-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925) mm 0.38 FMVSS 116
0.38 mm FMVSS 116
Approvals DOT 3, DOT 4, Ford WSS-M6C 65-A2, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704, VW 501.14
DOT 3, DOT 4, Ford WSS-M6C 65-A2, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704, VW 501.14
DOT 4

DOT 4

For brake system

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

show details hide details
  • Available packaging
  • Full description
  • Product parameters

Volume:
250 ml

vendor code:
1350601-250

Code:
4014835692121

Volume:
500 ml

vendor code:
1350601-500

Code:
4014835692152

Volume:
1 L

vendor code:
1350601-001

Code:
4014835692114

Volume:
20 L

vendor code:
1350601-020

DOT 4

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

Application Note

RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.

RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.

RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113).

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

  • optimum ABS characteristics
  • chemical stability
  • best lubrication efficiency
  • neutral behaviour regarding brake parts
  • low viscosity at low temperatures
  • miscible with all brake fluids of the same specifications
Parameter Unit Value Audit
FMVSS 116 specifications (DOT) DOT-4
DOT-4
Brand RAVENOL
RAVENOL
Type Synthetic
Synthetic
specification DOT 4, ISO 4925 Class 4, SAE J 1704
DOT 4, ISO 4925 Class 4, SAE J 1704
Density at 20 °C g/cm³ 1052 EN ISO 12185
1052 g/cm³ EN ISO 12185
Color light yellow visual
light yellow visual
Viscosity at 100 °C mPa*s 2.41 ASTM D445
2.41 mPa*s ASTM D445
Viscosity at -40 °C cSt 1340 ASTM D445
1340 cSt ASTM D445
Boiling point °C 271 FMVSS 116
271 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point °C 169 FMVSS 116
169 °C FMVSS 116
High Temperature Stability °C -1 FMVSS 116
-1 °C FMVSS 116
Chemical Stability °C 1 FMVSS 116
1 °C FMVSS 116
Evaporation %w/w 61 FMVSS 116
61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C i.O., 4s FMVSS 116
i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C i.O., 8s FMVSS 116
i.O., 8s FMVSS 116
Water Tolerance at -40 °C transparent, 3s FMVSS 116
transparent, 3s FMVSS 116
Water Tolerance at +60 °C Transparent FMVSS 116
Transparent FMVSS 116
Compatibility at -40 °C Transparent FMVSS 116
Transparent FMVSS 116
Compatibility at +60 °C Transparent FMVSS 116
Transparent FMVSS 116
Water content % — 0.2 DIN 51777-1
— 0.2 % DIN 51777-1
Tinned Iron Δ mg/cm² 0.04 FMVSS 116
0.04 Δ mg/cm² FMVSS 116
Steel mg/cm² -0.01 FMVSS 116
-0.01 mg/cm² FMVSS 116
Aluminium mg/cm² 0.02 FMVSS 116
0.02 mg/cm² FMVSS 116
Cast Iron Δ mg/cm² -0,03 FMVSS 116
-0,03 Δ mg/cm² FMVSS 116
Brass mg/cm² -0.08 FMVSS 116
-0.08 mg/cm² FMVSS 116
Copper mg/cm² -0.05 FMVSS 116
-0.05 mg/cm² FMVSS 116
Zinc mg/cm² 0.01 FMVSS 116
0.01 mg/cm² FMVSS 116
Sediment % — 0.05 FMVSS 116
— 0.05 % FMVSS 116
pH - value 8.2 FMVSS 116
8.2 FMVSS 116
Rubber Diameter Change 0.16 FMVSS 116
0.16 FMVSS 116
Hardness Change °IRHD -4 FMVSS 116
-4 °IRHD FMVSS 116
Appearance i.O. FMVSS 116
i.O. FMVSS 116
SBR at 70 °C mm 0.56 FMVSS 116
0.56 mm FMVSS 116
SBR at 120 °C mm 0.73 FMVSS 116
0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703) IRHD -2 FMVSS 116
-2 IRHD FMVSS 116
EPDM at 120 °C IRHD -2 FMVSS 116
-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925) mm 0.38 FMVSS 116
0.38 mm FMVSS 116
Approvals DOT 4, ISO 4925 Class 4, SAE J 1704
DOT 4, ISO 4925 Class 4, SAE J 1704

Cooling system

Liquid volume (basic): 7.6 L
OTC Organic Technology Coolant Premix -40°C

OTC Organic Technology Coolant Premix -40°C

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

Compliance with the requirements:
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

show details hide details
  • Available packaging
  • Full description
  • Product parameters

Volume:
1.5 L

vendor code:
1410112-150

Code:
4014835755512

Volume:
5 L

vendor code:
1410112-005

Code:
4014835755550

Volume:
10 L

vendor code:
1410112-010

Volume:
20 L

vendor code:
1410112-020

Code:
4014835755529

Volume:
20 L, ecobox

vendor code:
1410112-B20

Code:
4014835855953

Volume:
60 L, plastic

vendor code:
1410112-060

Code:
4014835755567

Volume:
208 L

vendor code:
1410112-208

Code:
4014835755581

Volume:
1000 L

vendor code:
1410112-700

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL OTC Organic Techn. Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL OTC Organic Techn. Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL OTC Organic Techn. Coolant Premix -40°C to radiator to fill line.

RAVENOL OTC Organic Techn. Coolant Premix -40°C can also be used as a “ready for use” dilution in geothermal probes and geothermal collectors as recommended list of LAWA (Federal / State Working Group on Water in Germany). RAVENOL OTC Organic Techn. Coolant Concentrate is included in the list of recommendations of the LAWA for water management requirements for geothermal probes and geothermal collectors.

Characteristics

  • Excellent for light metal engines
  • Good reserve alkalinity
  • Premium corrosion additives for optimal rust protection for all metals and metal alloys used in coolsystems, including aluminium
  • Prevents sediments and foaming in the cooling system
  • Compatible with elastomers used in automotive radiators
  • Can be mixed with other coolant types
Parameter Unit Value Audit
Recommendations DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, MB 326.3 (Premix), Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, MB 326.3 (Premix), Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
Brand RAVENOL
RAVENOL
Recomendations DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
Suitable for Jaguar Land Rover STJLR.651.5003, Porsche
Jaguar Land Rover STJLR.651.5003, Porsche
Compliant products Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
Density at 20 °C g/cm³ 1070 EN ISO 12185
1070 g/cm³ EN ISO 12185
Color Violet visual
Violet visual
pH - value at 20 °C 7,5 - 8,5 ASTM D1287
7,5 - 8,5 ASTM D1287
Freezing point °C -40 ASTM D1177
-40 °C ASTM D1177
Approvals DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
OTC - Protect C12+ Concentrate

OTC - Protect C12+ Concentrate

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

Compliance with the requirements:
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

show details hide details
Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.
  • Available packaging
  • Full description
  • Product parameters

Volume:
1.5 L

vendor code:
1410110-150

Code:
4014835755413

Volume:
5 L

vendor code:
1410110-005

Code:
4014835755451

Volume:
10 L

vendor code:
1410110-010

Volume:
20 L

vendor code:
1410110-020

Code:
4014835755420

Volume:
20 L, ecobox

vendor code:
1410110-B20

Code:
4014835855212

Volume:
60 L, plastic

vendor code:
-

Code:
4014835755437

Volume:
60 L

vendor code:
1410110-060

Code:
4014835755468

Volume:
60 L, print

vendor code:
1410110-D60

Volume:
1000 L

vendor code:
1410110-700

Volume:
208 L

vendor code:
1410110-208

Code:
4014835755482

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL OTC Organic Techn. Coolant Concentrate C12+ protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with highly effective frost and rust protection. Usable in cooling systems with all-aluminium engines. Mix according to chart. Follow manufacturer's recommendations.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

RAVENOL OTC Organic Techn. Coolant Concentrate C12+ can also be used in geothermal probes and geothermal collectors as recommended list of LAWA (Federal / State Working Group on Water in Germany).

MAN information for use:

Mixing prohibited with Type NF and Type N. Do not use silicone radiator hoses per MAN 334 Type 3 (blue) with coolants per MAN 324 Type SNF.

Table of mixing ratios
Antifreeze protection until Parts Antifreeze Parts Water
-20°C 35% 65%
-37°C 50% 50%
-50°C 60% 40%

Characteristics

  • Excellent for light metal engines
  • Good reserve alkalinity
  • Premium corrosion additives for optimal rust protection for all metals and metal alloys used in cool
  • systems, including aluminium
  • Prevents sediments and foaming in the cooling system
  • Compatible with elastomers used in automotive radiators
  • Can be mixed with other coolant types
Parameter Unit Value Audit
Recommendations DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
Brand RAVENOL
RAVENOL
Recomendations DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
Suitable for Jaguar Land Rover STJLR.651.5003, Porsche
Jaguar Land Rover STJLR.651.5003, Porsche
Compliant products Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
Density at 20 °C g/cm³ 1130 EN ISO 12185
1130 g/cm³ EN ISO 12185
Color Violet visual
Violet visual
Reserve alkalinity mgKOH/g 5.5 — ASTM D1120
5.5 — mgKOH/g ASTM D1120
Boiling point °C 187 ASTM D1121
187 °C ASTM D1121
Water content % — 5 ASTM D1123
— 5 % ASTM D1123
Flashpoint °C 110 — DIN 51758
110 — °C DIN 51758
Freezing point (50 % solution) °C -37 ASTM D1177
-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %) 7,5 - 8,5 ASTM D1287
7,5 - 8,5 ASTM D1287
Approvals DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
Destilliertes Wasser (entionisiert)

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details hide details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter Unit Value Audit
Recommendations DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand RAVENOL
RAVENOL
Recomendations DIN 43530-4, DIN EN 50272
DIN 43530-4, DIN EN 50272
Approvals DIN 43530-4, DIN EN 50272
DIN 43530-4, DIN EN 50272
Professional Radiator Cleaner

Professional Radiator Cleaner

Additive

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

show details hide details

Equivalents OEM:
Ford MP14300500AB

  • Available packaging
  • Full description
  • Product parameters

Volume:
0.25 L

vendor code:
1390302-250

Code:
4014835802667

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.

Application Note

RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.

Area of application:

Radiator repairs

In the event of reduced radiator performance

In the event of deposits in the cooling system

Changing coolant

For cleaning purposes after engine repairs due to oil in the cooling system

Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.

Fill in

RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.

RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.

Characteristics

  • Cleaning of the cooling and heating system
  • Protection of the new coolant against prior contamination
  • Elimination of sludge and corrosion residue
Parameter Unit Value Audit
Color Colorless visual
Colorless visual
Density at 20 °C g/cm³ 1003 EN ISO 12185
1003 g/cm³ EN ISO 12185
pH - value at 20 °C 10,25 DIN 19268
10,25 DIN 19268
Brand RAVENOL
RAVENOL

Our website uses cookies to improve your site experience, efficiency and usability. By continuing to use our site, you agree to the use of cookies.

+ - Configure cookies
Good
