Oil for Mitsubishi Fuso - Canter, FB - 2.8 2WD (4DR7) (FB308B/FB308A)

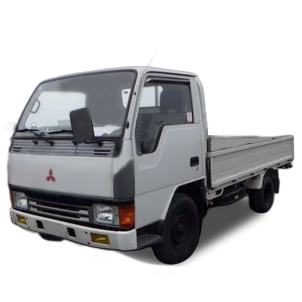

Mitsubishi Fuso Canter, FB 2.8 2WD (4DR7) (FB308B/FB308A), year of issue from 1989 date to 1993 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.
Nodes and assemblies
- Engine 4DR7
- Transmission, semi-automatic clutch section M038S6 (DUONIC)
- Transmission, semi-automatic transmission section M038S6 (DUONIC) 6/1
- Differential, rear
- Differential, rear self-locking
- Power steering
- Hydraulic brake system
- Lubrication points oilers, wheel bearings
- Lubrication points oilers, drive shaft connections
- Cooling system
Engine 4DR7
Liquid volume (filter): 0.5 L
For engine
RAVENOL Expert SHPD SAE 5W-30 ensures a reliable cold start at low outside temperatures and full lubricity at high operating temperatures thanks to the SAE 5W-30 viscosity range. Friction losses and wear are reduced.
Compliance with the requirements:
Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3
SAE: 5W-30
Equivalents OEM:
MB A000989240713FBDR, MB A000989240717FBDR, MB A000989630413BEER, MB A000989630417BEER, MB A000989730217BGEZ, MB A000989780715CDDB, MB A000989860219AEED, MB A000989890613ABDE, MB A000989890613ABDS, MB A000989890615ABDS, MB A000989890617ABDS, MB A000989890618ABDS, MB A0019890801AAA0, MB A0019890801AAA4, MB A0019890801AAA8, MB A0019890801AAA9, MB A0019890801ADA0, MB A0019890801ADA4, MB A0019890801ADA6, MB A0019890801ADA6, MB A0019890801ARU8, MB A0019890801BAA0, MB A0019890801BRD2, MB A002989370313FDDW, MB A094989210013ABDE, MB A094989210015ABDS, MB A094989210017ABDS, MB A094989210018ABDS, MB A094989260013FBDR, MB A094989260017FBDR
- Available packaging
- Product parameters
Volume:
60 L, print
vendor code:
1121104-D60
Volume:
208 L, print
vendor code:
1121104-D28
Volume:
1000 L
vendor code:
1121104-700
RAVENOL Expert SHPD SAE 5W-30 ensures a reliable cold start at low outside temperatures and full lubricity at high operating temperatures thanks to the SAE 5W-30 viscosity range. Friction losses and wear are reduced.
RAVENOL Expert SHPD SAE 5W-30 was designed as SHPD engine oil (Super High Performance Diesel) for use in turbocharged and non-turbocharged engines.
Application Note
RAVENOL Expert SHPD SAE 5W-30 is a year-round high performance engine oil designed for the truck fleet and buses according to the specified specifications.
RAVENOL Expert SHPD SAE 5W-30 is universally applicable in truck diesel engines with and without turbocharging. It can be used for EURO 4, EURO 5 and EURO 6 engines.Please follow the manufacturer's instructions.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, Detroit Diesel DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Typ 2, Renault VI RLD-2, VOLVO VDS-3 |
Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, Detroit Diesel DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Typ 2, Renault VI RLD-2, VOLVO VDS-3
|
||
| SAE | 5W-30 |
5W-30
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| API | CI-4, SL |
CI-4, SL
|
||
| ACEA | A3, B4, E3, E5, E7 |
A3, B4, E3, E5, E7
|
||
| Recomendations | Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3 |
Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3
|
||
| Density at 20 °C | g/cm³ | 851 | EN ISO 12185 |
851
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 12.2 | DIN 51562-1 |
12.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 74.2 | DIN 51562-1 |
74.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 161 | DIN ISO 2909 |
161
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 3.53 | ASTM D5481 |
3.53
mPa*s
ASTM D5481
|
| CCS Viscosity at -30 °C | mPa*s | 6340 | ASTM D5293 |
6340
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 25.890 | ASTM D4684 |
25.890
mPa*s
ASTM D4684
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Noack Volatility | % | 8.3 | ASTM D5800 |
8.3
%
ASTM D5800
|
| Flashpoint | °C | 228 | DIN EN ISO 2592 |
228
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 10.7 | ASTM D2896 |
10.7
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.29 | DIN 51575 |
1.29
%wt.
DIN 51575
|
| Approvals | Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3 |
Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3
|
For mixed park
RAVENOL Turbo Plus SHPD SAE 10W-30 meets the requirements of SAE-Class 10W-30. This adjustment of viscosity also ensures a good lubricating film at high temperatures.
Compliance with the requirements:
Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3
SAE: 10W-30
Equivalents OEM:
Caterpillar 3E9844, Caterpillar 143465, Hino HRLIE10W30C, Hyundai Motor 0520000100, Hyundai Motor 0520000400, Hyundai Motor 0520000600, Hyundai XTeer 1011014, Hyundai XTeer 1061002, Nissan KLB2M10302, Nissan KLBFA10301, Nissan KLBFA10302, Nissan KLBFA10302, Nissan KLBFO10301, Nissan KLBFO10302, Nissan KLBFO10304, Nissan KLBH010302
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1123105-001
Volume:
5 L
vendor code:
1123105-005
Volume:
20 L, ecobox
vendor code:
1123105-B20
Volume:
1000 L
vendor code:
1123105-700
RAVENOL Turbo Plus SHPD SAE 10W-30 meets the requirements of SAE-Class 10W-30. This adjustment of viscosity also ensures a good lubricating film at high temperatures.
RAVENOL Turbo Plus SHPD SAE 10W-30 is particularly suitable for engines with already high performance.
Application Note
RAVENOL Turbo Plus SHPD SAE 10W-30 is approved, tried and tested for aggregates specifying:
Specifications: API CI-4/ SL, ACEA E7, E5, E3, ACEA A3/B4
Approval: YaMZ
Recommendations: Caterpillar ECF-2, TO-2; Cummins CES 20071, -72, -76, -77, -78; DAF; DDC 93K215; Deutz DQC III-10; Global DHD-1; JASO DH-1; Mack EO-N; MAN M 3275-1; MB 228.3;MTU Type 2, MTU Type 3; Renault RLD, Renault VI RLD-2; Volvo VDS 3.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF, Detroit Diesel DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, JASO DH-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Typ 2, MTU Typ 3, Renault RLD, Renault VI RLD-2, VOLVO VDS-3 |
Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF, Detroit Diesel DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, JASO DH-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Typ 2, MTU Typ 3, Renault RLD, Renault VI RLD-2, VOLVO VDS-3
|
||
| SAE | 10W-30 |
10W-30
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| API | CI-4, SL |
CI-4, SL
|
||
| ACEA | A3, B4, E3, E5, E7 |
A3, B4, E3, E5, E7
|
||
| JASO | DH-1 |
DH-1
|
||
| Recomendations | Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3 |
Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3
|
||
| Suitable for | DAF, YaMZ |
DAF, YaMZ
|
||
| Density at 20 °C | g/cm³ | 865 | EN ISO 12185 |
865
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 12 | DIN 51562-1 |
12
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 74.9 | DIN 51562-1 |
74.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 156 | DIN ISO 2909 |
156
DIN ISO 2909
|
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Flashpoint | °C | 232 | DIN EN ISO 2592 |
232
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 10.2 | ASTM D2896 |
10.2
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.4 | DIN 51575 |
1.4
%wt.
DIN 51575
|
| Approvals | Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3 |
Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3
|
For mixed fleet
RAVENOL Turbo plus SHPD SAE 15W-40 can be used for diesel and petrol engines, also with turbochargers.
Manufacturer Approved:
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-3, Volvo VDS-3
Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C
SAE: 15W-40
Equivalents OEM:
Alpine 0100323,
Alpine 100324,
Chrysler 68024966AA,
Chrysler 68024966PB,
Chrysler 68024966PD,
Chrysler 68024967AA,
Chrysler 68218940AA,
Chrysler 68218940AB,
Chrysler 68218940AC,
Chrysler 68218940AD,
Chrysler 68218940CB,
Chrysler 68218941AA,
Chrysler 68218941AB,
Chrysler 68218941AC,
Chrysler 68218941CB,
Chrysler 68218941CB,
Chrysler 68218942AA,
Chrysler 68218943AA,
Chrysler 68218943AD,
Chrysler 68218944AA,
FEBI 32925,
FEBI 32926,
FEBI 32927,
FEBI 32928,
FEBI 32929,
FEBI 32930,
Motorcraft XO15W40BSD,
Motorcraft XO15W40DSD,
Motorcraft XO15W40DSDR,
Motorcraft XO15W40QSD,
Motorcraft XO15W40QSD1
Alpine 0100323, Alpine 100324, Chrysler 68024966AA, Chrysler 68024966PB, Chrysler 68024966PD, Chrysler 68024967AA, Chrysler 68218940AA, Chrysler 68218940AB, Chrysler 68218940AC, Chrysler 68218940AD, Chrysler 68218940CB, Chrysler 68218941AA, Chrysler 68218941AB, Chrysler 68218941AC, Chrysler 68218941CB, Chrysler 68218941CB, Chrysler 68218942AA, Chrysler 68218943AA, Chrysler 68218943AD, Chrysler 68218944AA, FEBI 32925, FEBI 32926, FEBI 32927, FEBI 32928, FEBI 32929, FEBI 32930, Motorcraft XO15W40BSD, Motorcraft XO15W40DSD, Motorcraft XO15W40DSDR, Motorcraft XO15W40QSD, Motorcraft XO15W40QSD1, Motorcraft XO15W40QSDF, Motorcraft XO15W40QSDW, Motorcraft XO15W40TBSD, Motorcraft XO15W405Q3SD, Motorcraft XO15W405QSD, Motorcraft XO15W406GSD, SWAG 15932925, SWAG 15932926, SWAG 15932927, SWAG 15932928, SWAG 15932929, SWAG 15932930, Toyota 0888080805, Toyota 0888080806, Volvo 85102464
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1123115-001
Volume:
4 L
vendor code:
1123115-004
Volume:
7 L
vendor code:
1123115-007
Volume:
1000 L
vendor code:
1123115-700
RAVENOL Turbo plus SHPD SAE 15W-40 can be used for diesel and petrol engines, also with turbochargers.
RAVENOL Turbo plus SHPD SAE 15W-40 has been especially developed for extended oil change intervals, according to manufacturer’s recommendations.
Application Note
RAVENOL Turbo-Plus SHPD SAE 15W-40 is recommended by the engine manufacturers for extended oil change intervals as SAE 15W-40 multigrade engine oil in heavy duty commercial vehicle diesel engines.
RAVENOL Turbo-Plus SHPD SAE 15W-40 is the preferred use for extended oil life in turbo charged diesel engines according to manufacturer’s recommendations.
Characteristics
- Extremely high pressure absorption capacity
- Very high oxidation stability
- Excellent aging stability
- Excellent viscosity and temperature behaviour
- High security reserves even under limited lubrication circumstances
- Suitable for extended oil change intervals
- Suitable for heavy operating conditions
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Allison C4, Caterpillar TO-2, Global DHD-1, IVECO, JASO DH-1, John Deere JDQ-78A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1 (Multigrades), MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C |
Allison C4, Caterpillar TO-2, Global DHD-1, IVECO, JASO DH-1, John Deere JDQ-78A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1 (Multigrades), MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C
|
||
| SAE | 15W-40 |
15W-40
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| API | CI-4, SL |
CI-4, SL
|
||
| ACEA | A3, B4, E7 |
A3, B4, E7
|
||
| JASO | DH-1 |
DH-1
|
||
| Manufacturer Approved | Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-3, Volvo VDS-3 |
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-3, Volvo VDS-3
|
||
| Recomendations | Allison C-4, Caterpillar TO-2, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C |
Allison C-4, Caterpillar TO-2, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C
|
||
| Suitable for | IVECO, Steyr Motor GAZ 560, YaMZ |
IVECO, Steyr Motor GAZ 560, YaMZ
|
||
| Density at 20 °C | g/cm³ | 870 | EN ISO 12185 |
870
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 15 | DIN 51562-1 |
15
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 115.7 | DIN 51562-1 |
115.7
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 134 | DIN ISO 2909 |
134
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 4 | ASTM D5481 |
4
mPa*s
ASTM D5481
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Flashpoint | °C | 238 | DIN EN ISO 2592 |
238
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 10.5 | ASTM D2896 |
10.5
mgKOH/g
ASTM D2896
|
| Approvals | Allison C-4, Caterpillar TO-2, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD, Renault RLD-2, Scania LDF-2, TEDOM 258-3, Volvo VDS-3, ZF TE-ML 07C |
Allison C-4, Caterpillar TO-2, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD, Renault RLD-2, Scania LDF-2, TEDOM 258-3, Volvo VDS-3, ZF TE-ML 07C
|
Engine oil
RAVENOL Expert SHPD SAE 10W-40 has an excellent flow behaviour even at low temperatures. The quick reach of critical lubrication points provides a considerable corrosion reduction during the warm-up period. Exclusive additives guarantee the best engine cleanness even at short distances.
Manufacturer Approved:
Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3
Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00
- Available packaging
- Product parameters
RAVENOL Expert SHPD SAE 10W-40 has an excellent flow behaviour even at low temperatures. The quick reach of critical lubrication points provides a considerable corrosion reduction during the warm-up period. Exclusive additives guarantee the best engine cleanness even at short distances.
Application Note
RAVENOL Expert SHPD SAE 10W-40 is low-friction long-life engine oil for all kind of diesel engines with and without turbocharging in trucks, buses and machinery. Suitable for the longest oil change intervals.
Characteristics
- Excellent detergent and dispersant characteristics
- Low evaporation
- A high ageing stability
- Protection of reflecting surface formation
- Very good cold start characteristics
- Reduces oil and fuel consumption
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Allison C4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, DAF, Global DHD-1, IVECO, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500 00, VW 505 00 |
Allison C4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, DAF, Global DHD-1, IVECO, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500 00, VW 505 00
|
||
| SAE | 10W-40 |
10W-40
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | CI-4, SL |
CI-4, SL
|
||
| ACEA | A3, B4, E4, E7 |
A3, B4, E4, E7
|
||
| Manufacturer Approved | Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3 |
Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3
|
||
| Recomendations | Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00 |
Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00
|
||
| Suitable for | DAF, IVECO, YaMZ |
DAF, IVECO, YaMZ
|
||
| Density at 20 °C | g/cm³ | 866 | EN ISO 12185 |
866
g/cm³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.2 | DIN 51562-1 |
14.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 93.5 | DIN 51562-1 |
93.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 155 | DIN ISO 2909 |
155
DIN ISO 2909
|
|
| CCS Viscosity at -25 °C | mPa*s | 6480 | ASTM D5293 |
6480
mPa*s
ASTM D5293
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Noack Volatility | % | 7.3 | ASTM D5800 |
7.3
%
ASTM D5800
|
| Flashpoint | °C | 234 | DIN EN ISO 2592 |
234
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 11 | ASTM D2896 |
11
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.45 | DIN 51575 |
1.45
%wt.
DIN 51575
|
| Approvals | Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD-2, Scania LDF, TEDOM 258-3, Voith Retarder B, Volvo VDS-3, VW 500.00, VW 505.00 |
Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD-2, Scania LDF, TEDOM 258-3, Voith Retarder B, Volvo VDS-3, VW 500.00, VW 505.00
|
Additive
RAVENOL Professional Engine Cleaner can also be used in motorcycles.
- Available packaging
- Product parameters
RAVENOL Professional Engine Cleaner can also be used in motorcycles.
RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.
RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.
Application Note
RAVENOL Professional Engine Cleaner is added to the warm motor oil.
Area of application:
-If black sludge is suspected
-In the event of hydraulic tappets rattling
-In the event of delayed oil change
-For soiled engines or used oil
-Preventively at every oil change to avoid contamination of the engine
-Also suitable for oldtimers
Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.
Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.
RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.
Characteristics
- Long-term effectiveness and clean fresh oil
- Remedy for soiled engines
- Protection against compression loss in the area of the piston rings
- Leads to better exhaust emissions and increases the performance of the engine
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Color | Light brown | visual |
Light brown
visual
|
|
| Flashpoint (PM) | °C | 62 | DIN ISO 3679 |
62
°C
DIN ISO 3679
|
| Density at 20 °C | 805 | EN ISO 12185 |
805
EN ISO 12185
|
|
| Viscosity at 40 °C | mm²/s | 7 | DIN EN ISO 3104 |
7
mm²/s
DIN EN ISO 3104
|
| Brand | RAVENOL |
RAVENOL
|
Transmission, semi-automatic clutch section M038S6 (DUONIC)
For automatic transmission
RAVENOL ATF DEXRON III H is universal ATF (Automatic Transmission Fluid) for all automatic transmission with and without controlled torque converter lockup clutch (so-called GKÜB = gear-clutch-lock) which are required for the transmission fluid type Dexron III H.
Manufacturer Approved:
Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B
Compliance with the requirements:
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.5, MB 236.6, MB 236.9, MB 236.10, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
- Available packaging
- Product parameters
RAVENOL ATF DEXRON III H is universal ATF (Automatic Transmission Fluid) for all automatic transmission with and without controlled torque converter lockup clutch (so-called GKÜB = gear-clutch-lock) which are required for the transmission fluid type Dexron III H.
Application Note
RAVENOL ATF DEXRON III H was developed for use in automatic transmissions with electronically controlled converter lockup clutch.
RAVENOL ATF DEXRON III H is especially suitable for use in transmissions with ATF Dexron III H specification.
RAVENOL ATF DEXRON III H is backwards compatible and can be used in transmissions with specification ATF Dexron F III.
RAVENOL ATF DEXRON III H is mixable with all ATF brands. It is advised to rinse with RAVENOL ATF DEXRON III H before, beforehand the final filling with RAVENOL ATF DEXRON III H is made.
Characteristics
- Very good lubricating properties even at low temperatures in winter
- High and stable viscosity index
- Very low flow point
- Excellent oxidation stability
- Extensive protection against wear, corrosion and foaming
- Well-tuned friction properties
- Neutral behaviour towards sealing materials
- Neutral behaviour by inhibition towards non-ferrous metals
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| ATF | Dexron III H |
Dexron III H
|
||
| Recommendations | Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON® M-940717, MAN 339 L1, MAN 339 V1, MAN 339 Z1, MAN 339 Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Nissan, Volvo 1161521, Volvo 1161621, VOLVO Transmission Oil 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C |
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON® M-940717, MAN 339 L1, MAN 339 V1, MAN 339 Z1, MAN 339 Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Nissan, Volvo 1161521, Volvo 1161621, VOLVO Transmission Oil 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| Manufacturer Approved | Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B |
Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B
|
||
| Recomendations | Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C |
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
|
||
| specification | Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H |
Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H
|
||
| Suitable for | Nissan |
Nissan
|
||
| Compliant products | Volvo 1161521, Volvo 1161621 |
Volvo 1161521, Volvo 1161621
|
||
| Density at 20 °C | g/cm³ | 847 | EN ISO 12185 |
847
g/cm³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.2 | DIN 51562-1 |
7.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 33.9 | DIN 51562-1 |
33.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 185 | DIN ISO 2909 |
185
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 14.200 | ASTM D2983 |
14.200
mPa*s
ASTM D2983
|
| Pourpoint | °C | -51 | DIN ISO 3016 |
-51
°C
DIN ISO 3016
|
| Flashpoint | °C | 210 | DIN EN ISO 2592 |
210
°C
DIN EN ISO 2592
|
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| tbn | mgKOH/g | 1.8 | ASTM D2896 |
1.8
mgKOH/g
ASTM D2896
|
| Approvals | Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B |
Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B
|
Transmission, semi-automatic transmission section M038S6 (DUONIC) 6/1
For transmission
Application NoteRAVENOL Getriebeoel MZG SAE 80W-90 GL is suitable for lubricating manual transmissions, differential- and steering gears in vehicles requiring EP transmission oil according to manufacturer specifications.
Manufacturer Approved:
ZF TE-ML 16A, ZF TE-ML 17A, ZF TE-ML 19A
Compliance with the requirements:
DTFR 13B100 (MB 235.1), Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, ZF TE-ML 02B
SAE: 80W-90
API: GL-4
Equivalents OEM:
Alpine 0100681,
Alpine 0100682,
Alpine 0100683,
Alpine 0100684,
Alpine 0100685,
Alpine 100681,
Alpine 100682,
Alpine 100683,
Alpine 100684,
Alpine 100685,
DAF 1660082,
DAF 1660083,
DAF 1660084,
DAF 1678853,
DAF 1731974,
DAF 1739298,
FEBI 170153,
FEBI 170154,
FEBI 170154,
Hyundai Motor 0430000460,
Hyundai Motor 430000460,
Hyundai XTeer 1011018,
Hyundai XTeer 1041421,
Hyundai XTeer 1120007,
SsangYong 0000000801,
Volvo 1161280,
Volvo 1161932,
Volvo 1161933,
ZF 0671090498,
ZF 0671090503,
ZF 0671090504
Alpine 0100681, Alpine 0100682, Alpine 0100683, Alpine 0100684, Alpine 0100685, Alpine 100681, Alpine 100682, Alpine 100683, Alpine 100684, Alpine 100685, DAF 1660082, DAF 1660083, DAF 1660084, DAF 1678853, DAF 1731974, DAF 1739298, FEBI 170153, FEBI 170154, FEBI 170154, Hyundai Motor 0430000460, Hyundai Motor 430000460, Hyundai XTeer 1011018, Hyundai XTeer 1041421, Hyundai XTeer 1120007, SsangYong 0000000801, Volvo 1161280, Volvo 1161932, Volvo 1161933, ZF 0671090498, ZF 0671090503, ZF 0671090504
- Available packaging
- Product parameters
Application Note
RAVENOL Getriebeoel MZG SAE 80W-90 GL is suitable for lubricating manual transmissions, differential- and steering gears in vehicles requiring EP transmission oil according to manufacturer specifications.
Characteristics
- well adhering, pressure resistant lubricating films
- excellent oxidation stability
- above-average viscosity-temperature properties
- anti-wear effect
- good air release characteristics, no foaming
- neutral to metal and sealants
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DTFR 13B100 (MB 235.1), Ford SQM-2C-9008 A, MAN 341 E1, MAN 341 Z1, MB 235.1, MB 235.14, ZF TE-ML 02B |
DTFR 13B100 (MB 235.1), Ford SQM-2C-9008 A, MAN 341 E1, MAN 341 Z1, MB 235.1, MB 235.14, ZF TE-ML 02B
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 80W-90 |
80W-90
|
||
| Type | Mineral |
Mineral
|
||
| API | GL-4 |
GL-4
|
||
| Manufacturer Approved | ZF TE-ML 16A, ZF TE-ML 17A, ZF TE-ML 19A |
ZF TE-ML 16A, ZF TE-ML 17A, ZF TE-ML 19A
|
||
| Recomendations | DTFR 13B100 (MB 235.1), Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, ZF TE-ML 02B |
DTFR 13B100 (MB 235.1), Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, ZF TE-ML 02B
|
||
| specification | MIL-L-2105 D |
MIL-L-2105 D
|
||
| Density at 20 °C | g/cm³ | 879 | EN ISO 12185 |
879
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 14 | DIN 51562-1 |
14
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 126.9 | DIN 51562-1 |
126.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 108 | DIN ISO 2909 |
108
DIN ISO 2909
|
|
| Brookfield Viscosity at -26 °C | mPa*s | 45.600 | ASTM D2983 |
45.600
mPa*s
ASTM D2983
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 244 | DIN EN ISO 2592 |
244
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | DTFR 13B100 (MB 235.1), Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, MIL-L-2105 D, ZF TE-ML 02B, ZF TE-ML 16A, ZF TE-ML 17A, ZF TE-ML 19A |
DTFR 13B100 (MB 235.1), Ford SQM-2C 9008-A, MAN 341 Type E1, MAN 341 Type Z1, MB 235.1, MB 235.14, MIL-L-2105 D, ZF TE-ML 02B, ZF TE-ML 16A, ZF TE-ML 17A, ZF TE-ML 19A
|
For transmission
RAVENOL Getriebeoel TSG SAE 75W-90 is designed based on high-quality synthetic base oils with special additive treatment and inhibition coordinated to the increased stress on manual transmission oils and ensuring trouble-free transmission function.
Compliance with the requirements:
Ford ESF-M2C 175, GM B0401043, VW 501.50, VW G 052 911, VW G 060 726
SAE: 75W-90
API: GL-4
Equivalents OEM:
Ford 97SXM2C200AA, Ford 97SXM2C200BA, Ford 1045737, Ford 1045738, Ford 5012119, Ford 5012119, Ford 5015547, Ford 5015548, Ford A86SX2C175AA, Ford A86SX2C175BA, Ford XT4QGL, Geely SH550027967, Hyundai Motor 043005L1A0, Hyundai Motor 043005L1A00001, Hyundai Motor 043005L1AO, Hyundai Motor 043005L6A0, Hyundai XTeer 1011435, Hyundai XTeer 1041435, Hyundai XTeer 1120435, Toyota 0888501513, Toyota 0888581023, Toyota 0888581026, UAZ 000000473400800, UAZ 473400800, UAZ 473401200, VAG G052178A2, VAG G052178S0, Volvo 1161647, Volvo 1161723, Volvo 1161724
- Available packaging
- Product parameters
RAVENOL Getriebeoel TSG SAE 75W-90 is designed based on high-quality synthetic base oils with special additive treatment and inhibition coordinated to the increased stress on manual transmission oils and ensuring trouble-free transmission function.
Application Note
RAVENOL Getriebeoel TSG SAE 75W-90 is suitable for highly stressed manual transmissions (with and without synchronising), transfer cases and steering gearboxes in vehicles and work machines.
Characteristics
- excellent ageing resistance
- extra high pressure absorption properties
- optimal viscosity-temperature properties
- excellent low temperature properties
- shearing stability
- stable lubricating film even under high stress
- extremely low pour point
- good elastomer compatibility to prevent leaks
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Ford M2C-175, Opel/GM B0401043, VW 501 50, VW G 052 911 A2, VW G 060 726 A2 |
Ford M2C-175, Opel/GM B0401043, VW 501 50, VW G 052 911 A2, VW G 060 726 A2
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-90 |
75W-90
|
||
| Type | Synthetic |
Synthetic
|
||
| API | GL-4 |
GL-4
|
||
| Recomendations | Ford ESF-M2C 175, GM B0401043, VW 501.50, VW G 052 911, VW G 060 726 |
Ford ESF-M2C 175, GM B0401043, VW 501.50, VW G 052 911, VW G 060 726
|
||
| Compliant products | VW G 052 911, VW G 060 726 |
VW G 052 911, VW G 060 726
|
||
| Density at 20 °C | g/cm³ | 837.5 | EN ISO 12185 |
837.5
g/cm³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 15.7 | DIN 51562-1 |
15.7
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 95.7 | DIN 51562-1 |
95.7
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 176 | DIN ISO 2909 |
176
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 88.700 | ASTM D2983 |
88.700
mPa*s
ASTM D2983
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | Ford ESF-M2C 175, GM B0401043, VW 501.50, VW G 052 911, VW G 060 726 |
Ford ESF-M2C 175, GM B0401043, VW 501.50, VW G 052 911, VW G 060 726
|
Differential, rear
For gearbox
RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is designed based on high-quality solvent refined and synthetic base oils and specially harmonised additive treatment with extreme pressure (EP) active ingredients and other additives. This exceeds the needs of today's application requirements.
Compliance with the requirements:
CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.8, MB 235.9, MB 235.14, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
- Available packaging
- Product parameters
RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is designed based on high-quality solvent refined and synthetic base oils and specially harmonised additive treatment with extreme pressure (EP) active ingredients and other additives. This exceeds the needs of today's application requirements.
Application Note
RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is a maximum duty transmission oil for use in maximum duty, hypoid geared transmissions (axle drives, manual transmissions, etc.), where maximum duty transmission oils are required.
Characteristics
- Excellent oxidation stability
- Greatest possible protection from rust, corrosion, foaming
- Low solidification point
- Excellent extreme pressure (EP) properties
- High viscosity index
- Fuel savings
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford M2C-9002A, GM, Mack GO-G, MAN 342 M2 (160.000 km), MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A |
CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford M2C-9002A, GM, Mack GO-G, MAN 342 M2 (160.000 km), MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-90 |
75W-90
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | GL-5 |
GL-5
|
||
| Recomendations | CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A |
CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
|
||
| specification | MIL-L-2105 D |
MIL-L-2105 D
|
||
| Suitable for | GM |
GM
|
||
| Density at 20 °C | g/cm³ | 842 | EN ISO 12185 |
842
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 15.7 | DIN 51562-1 |
15.7
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 97.3 | DIN 51562-1 |
97.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 173 | DIN ISO 2909 |
173
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 70.000 | ASTM D2983 |
70.000
mPa*s
ASTM D2983
|
| Pourpoint | °C | -45 | DIN ISO 3016 |
-45
°C
DIN ISO 3016
|
| Flashpoint | °C | 215 | DIN EN ISO 2592 |
215
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A |
CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
|
Differential, rear self-locking
For differentials
RAVENOL Getriebeoel LS SAE 75W-90 is designed based on high-quality solvent refined and synthetic base oils with special additive treatment and inhibition for higher stress on manual transmission oils and ensuring trouble-free transmission function.
Compliance with the requirements:
ZF TE-ML 05C, ZF TE-ML 05D
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1222102-020
Volume:
1000 L
vendor code:
1222102-700
Volume:
60 L
vendor code:
1222102-060
Volume:
208 L
vendor code:
1222102-208
RAVENOL Getriebeoel LS SAE 75W-90 is designed based on high-quality solvent refined and synthetic base oils with special additive treatment and inhibition for higher stress on manual transmission oils and ensuring trouble-free transmission function.
Application Note
RAVENOL Getriebeoel LS SAE 75W-90 was developed specifically for use in differential gear units with limited slip. It also ensures trouble-free lubrication in self-locking, hypoid geared transmissions.
Characteristics
- excellent oxidation stability
- excellent protection against rust and corrosion
- prevents foaming
- outstanding extreme pressure properties
- excellent limited slip properties
- fuel savings
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | GM 1940058, GM 88862624, GM 88862625, GM 93165388, ZF TE-ML 05C, ZF TE-ML 05D |
GM 1940058, GM 88862624, GM 88862625, GM 93165388, ZF TE-ML 05C, ZF TE-ML 05D
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-90 |
75W-90
|
||
| Type | Synthetic |
Synthetic
|
||
| API | GL-5 LS |
GL-5 LS
|
||
| Recomendations | ZF TE-ML 05C, ZF TE-ML 05D |
ZF TE-ML 05C, ZF TE-ML 05D
|
||
| specification | MIL-L-2105 D |
MIL-L-2105 D
|
||
| Compliant products | GM 1940058, GM 88862624, GM 88862625, GM 93165388 |
GM 1940058, GM 88862624, GM 88862625, GM 93165388
|
||
| Density at 20 °C | g/cm³ | 839 | EN ISO 12185 |
839
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 17.1 | DIN 51562-1 |
17.1
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 102.1 | DIN 51562-1 |
102.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 182 | DIN ISO 2909 |
182
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 84.300 | ASTM D2983 |
84.300
mPa*s
ASTM D2983
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Flashpoint | °C | 210 | DIN EN ISO 2592 |
210
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 05D |
MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 05D
|
Power steering
For automatic transmission
Application NoteRAVENOL ATF Dexron D II was developed for the use in automatic transmissions, hydro steering mechanisms, converters and power transmissions and can be used as a universal ATF (Automatic-Transmission-Fluid) for all vehicles and working machines.
Manufacturer Approved:
Voith H55.6335.xx
Compliance with the requirements:
Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
- Available packaging
- Product parameters
Application Note
RAVENOL ATF Dexron D II was developed for the use in automatic transmissions, hydro steering mechanisms, converters and power transmissions and can be used as a universal ATF (Automatic-Transmission-Fluid) for all vehicles and working machines.
Characteristics
- protection against corrosion, sludge and sticking
- an excellent and very shear stable viscosity temperature behaviour
- no problems concerning very low respectively very high temperatures
- an excellent high thermal capacity
- free of foam even under hardest loads
- neutral behaviour against sealing materials
- mixable and compatible with all kinds of ATF
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| ATF | Dexron D II |
Dexron D II
|
||
| Recommendations | Caterpillar TO-2, CVT, DTFR 13C140 (MB 236.7), Ford M2C-138 CJ, Ford M2C-166H, Ford M2C-185A, Ford MERCON®, Ford SQM-9010B, MAN 339 Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C |
Caterpillar TO-2, CVT, DTFR 13C140 (MB 236.7), Ford M2C-138 CJ, Ford M2C-166H, Ford M2C-185A, Ford MERCON®, Ford SQM-9010B, MAN 339 Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Manufacturer Approved | Voith H55.6335.xx |
Voith H55.6335.xx
|
||
| Recomendations | Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C |
Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
|
||
| specification | Allison C-3, Allison C-4, GM Dexron® II D |
Allison C-3, Allison C-4, GM Dexron® II D
|
||
| Suitable for | CVT |
CVT
|
||
| Density at 20 °C | g/cm³ | 848 | EN ISO 12185 |
848
g/cm³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.3 | DIN 51562-1 |
7.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 34.3 | DIN 51562-1 |
34.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 185 | DIN ISO 2909 |
185
DIN ISO 2909
|
|
| Pourpoint | °C | -51 | DIN ISO 3016 |
-51
°C
DIN ISO 3016
|
| Flashpoint | °C | 210 | DIN EN ISO 2592 |
210
°C
DIN EN ISO 2592
|
| Approvals | Allison C-3, Allison C-4, Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, GM Dexron® II D, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, Voith H55.6335.xx, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C |
Allison C-3, Allison C-4, Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, GM Dexron® II D, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, Voith H55.6335.xx, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
|
For automatic transmission
RAVENOL ATF DEXRON III H is universal ATF (Automatic Transmission Fluid) for all automatic transmission with and without controlled torque converter lockup clutch (so-called GKÜB = gear-clutch-lock) which are required for the transmission fluid type Dexron III H.
Manufacturer Approved:
Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B
Compliance with the requirements:
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.5, MB 236.6, MB 236.9, MB 236.10, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
- Available packaging
- Product parameters
RAVENOL ATF DEXRON III H is universal ATF (Automatic Transmission Fluid) for all automatic transmission with and without controlled torque converter lockup clutch (so-called GKÜB = gear-clutch-lock) which are required for the transmission fluid type Dexron III H.
Application Note
RAVENOL ATF DEXRON III H was developed for use in automatic transmissions with electronically controlled converter lockup clutch.
RAVENOL ATF DEXRON III H is especially suitable for use in transmissions with ATF Dexron III H specification.
RAVENOL ATF DEXRON III H is backwards compatible and can be used in transmissions with specification ATF Dexron F III.
RAVENOL ATF DEXRON III H is mixable with all ATF brands. It is advised to rinse with RAVENOL ATF DEXRON III H before, beforehand the final filling with RAVENOL ATF DEXRON III H is made.
Characteristics
- Very good lubricating properties even at low temperatures in winter
- High and stable viscosity index
- Very low flow point
- Excellent oxidation stability
- Extensive protection against wear, corrosion and foaming
- Well-tuned friction properties
- Neutral behaviour towards sealing materials
- Neutral behaviour by inhibition towards non-ferrous metals
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| ATF | Dexron III H |
Dexron III H
|
||
| Recommendations | Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON® M-940717, MAN 339 L1, MAN 339 V1, MAN 339 Z1, MAN 339 Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Nissan, Volvo 1161521, Volvo 1161621, VOLVO Transmission Oil 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C |
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON® M-940717, MAN 339 L1, MAN 339 V1, MAN 339 Z1, MAN 339 Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Nissan, Volvo 1161521, Volvo 1161621, VOLVO Transmission Oil 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| Manufacturer Approved | Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B |
Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B
|
||
| Recomendations | Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C |
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
|
||
| specification | Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H |
Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H
|
||
| Suitable for | Nissan |
Nissan
|
||
| Compliant products | Volvo 1161521, Volvo 1161621 |
Volvo 1161521, Volvo 1161621
|
||
| Density at 20 °C | g/cm³ | 847 | EN ISO 12185 |
847
g/cm³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.2 | DIN 51562-1 |
7.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 33.9 | DIN 51562-1 |
33.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 185 | DIN ISO 2909 |
185
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 14.200 | ASTM D2983 |
14.200
mPa*s
ASTM D2983
|
| Pourpoint | °C | -51 | DIN ISO 3016 |
-51
°C
DIN ISO 3016
|
| Flashpoint | °C | 210 | DIN EN ISO 2592 |
210
°C
DIN EN ISO 2592
|
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| tbn | mgKOH/g | 1.8 | ASTM D2896 |
1.8
mgKOH/g
ASTM D2896
|
| Approvals | Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B |
Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B
|
Hydraulic brake system
For brake system
Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.
- Available packaging
- Product parameters
DOT 4
Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.
Application Note
RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.
RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.
RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).
FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.
STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.
Dispose of used brake fluid responsibly (EU waste code 160113).
Brake fluid damages paint work –if spilt wash off immediately with plenty of water.
Characteristics
- optimum ABS characteristics
- chemical stability
- best lubrication efficiency
- neutral behaviour regarding brake parts
- low viscosity at low temperatures
- miscible with all brake fluids of the same specifications
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| FMVSS 116 specifications (DOT) | DOT-4 |
DOT-4
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| specification | DOT 4, ISO 4925 Class 4, SAE J 1704 |
DOT 4, ISO 4925 Class 4, SAE J 1704
|
||
| Density at 20 °C | g/cm³ | 1052 | EN ISO 12185 |
1052
g/cm³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mPa*s | 2.41 | ASTM D445 |
2.41
mPa*s
ASTM D445
|
| Viscosity at -40 °C | cSt | 1340 | ASTM D445 |
1340
cSt
ASTM D445
|
| Boiling point | °C | 271 | FMVSS 116 |
271
°C
FMVSS 116
|
| Wet Equilibrium Reflux Boiling Point | °C | 169 | FMVSS 116 |
169
°C
FMVSS 116
|
| High Temperature Stability | °C | -1 | FMVSS 116 |
-1
°C
FMVSS 116
|
| Chemical Stability | °C | 1 | FMVSS 116 |
1
°C
FMVSS 116
|
| Evaporation | %w/w | 61 | FMVSS 116 |
61
%w/w
FMVSS 116
|
| Fluidity & Appearance at -40 °C | i.O., 4s | FMVSS 116 |
i.O., 4s
FMVSS 116
|
|
| Fluidity & Appearance at -50 °C | i.O., 8s | FMVSS 116 |
i.O., 8s
FMVSS 116
|
|
| Water Tolerance at -40 °C | transparent, 3s | FMVSS 116 |
transparent, 3s
FMVSS 116
|
|
| Water Tolerance at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at -40 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Water content | % | — 0.2 | DIN 51777-1 |
— 0.2
%
DIN 51777-1
|
| Tinned Iron | Δ mg/cm² | 0.04 | FMVSS 116 |
0.04
Δ mg/cm²
FMVSS 116
|
| Steel | mg/cm² | -0.01 | FMVSS 116 |
-0.01
mg/cm²
FMVSS 116
|
| Aluminium | mg/cm² | 0.02 | FMVSS 116 |
0.02
mg/cm²
FMVSS 116
|
| Cast Iron | Δ mg/cm² | -0,03 | FMVSS 116 |
-0,03
Δ mg/cm²
FMVSS 116
|
| Brass | mg/cm² | -0.08 | FMVSS 116 |
-0.08
mg/cm²
FMVSS 116
|
| Copper | mg/cm² | -0.05 | FMVSS 116 |
-0.05
mg/cm²
FMVSS 116
|
| Zinc | mg/cm² | 0.01 | FMVSS 116 |
0.01
mg/cm²
FMVSS 116
|
| Sediment | % | — 0.05 | FMVSS 116 |
— 0.05
%
FMVSS 116
|
| pH - value | 8.2 | FMVSS 116 |
8.2
FMVSS 116
|
|
| Rubber Diameter Change | 0.16 | FMVSS 116 |
0.16
FMVSS 116
|
|
| Hardness Change | °IRHD | -4 | FMVSS 116 |
-4
°IRHD
FMVSS 116
|
| Appearance | i.O. | FMVSS 116 |
i.O.
FMVSS 116
|
|
| SBR at 70 °C | mm | 0.56 | FMVSS 116 |
0.56
mm
FMVSS 116
|
| SBR at 120 °C | mm | 0.73 | FMVSS 116 |
0.73
mm
FMVSS 116
|
| EPDM at 70 °C (as required by SAE J1703) | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| EPDM at 120 °C | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| Natural at 70 °C (as required by ISO 4925) | mm | 0.38 | FMVSS 116 |
0.38
mm
FMVSS 116
|
| Approvals | DOT 4, ISO 4925 Class 4, SAE J 1704 |
DOT 4, ISO 4925 Class 4, SAE J 1704
|
For brake system
The specific formulation of RAVENOL DOT 5.1 offers international DOT 5.1 specifications SAE J 1704, ISO 4925 and fulfills FMVSS 116 DOT 5.1.
- Available packaging
- Product parameters
DOT 5.1
The specific formulation of RAVENOL DOT 5.1 offers international DOT 5.1 specifications SAE J 1704, ISO 4925 and fulfills FMVSS 116 DOT 5.1.
RAVENOL DOT 5.1 fluid is an ideal brake fluid for modern vehicles with the brake circuit accompanying systems such as ESP and ABS due to its low viscosity. The safety potential of the aggregates is enhanced by the excellent properties of RAVENOL DOT 5.1 even at low temperatures.
Application Note
RAVENOL DOT 5.1 brake fluid can be used in all vehicles where DOT 5.1 specification is required. It is suitable for all hydraulic brake systems with synthetic fluid.
RAVENOL DOT 5.1 brake fluid is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT 5.1, a complete change of the brake fluid is recommended.
RAVENOL DOT 5.1 is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).
FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.
STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.
Dispose of used brake fluid responsibly (EU waste code 160113).
Brake fluid damages paint work –if spilt wash off immediately with plenty of water.
Characteristics
- Optimal ABS properties
- Chemical stability
- High lubricating power
- Neutral behavior towards brake parts
- Low viscosity at low temperatures
- Miscibility with all brake fluids of the same specification.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| FMVSS 116 specifications (DOT) | DOT-5.1 |
DOT-5.1
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| specification | DOT 5.1, ISO 4925 Class 5.1, SAE J 1704 |
DOT 5.1, ISO 4925 Class 5.1, SAE J 1704
|
||
| Density at 20 °C | g/cm³ | 1069 | EN ISO 12185 |
1069
g/cm³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mPa*s | 2.16 | ASTM D445 |
2.16
mPa*s
ASTM D445
|
| Viscosity at -40 °C | cSt | 810 | ASTM D445 |
810
cSt
ASTM D445
|
| Boiling point | °C | 269 | FMVSS 116 |
269
°C
FMVSS 116
|
| Wet Equilibrium Reflux Boiling Point | °C | 187 | FMVSS 116 |
187
°C
FMVSS 116
|
| Chemical Stability | °C | 1.5 | FMVSS 116 |
1.5
°C
FMVSS 116
|
| Evaporation | %w/w | 68 | FMVSS 116 |
68
%w/w
FMVSS 116
|
| Fluidity & Appearance at -40 °C | i.O., 2s | FMVSS 116 |
i.O., 2s
FMVSS 116
|
|
| Fluidity & Appearance at -50 °C | i.O., 4s | FMVSS 116 |
i.O., 4s
FMVSS 116
|
|
| Water Tolerance at -40 °C | transparent, 2s | FMVSS 116 |
transparent, 2s
FMVSS 116
|
|
| Water Tolerance at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at -40 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Water content | % | 0.1 | DIN 51777-1 |
0.1
%
DIN 51777-1
|
| Tinned Iron | Δ mg/cm² | -0.01 | FMVSS 116 |
-0.01
Δ mg/cm²
FMVSS 116
|
| Steel | mg/cm² | -0.004 | FMVSS 116 |
-0.004
mg/cm²
FMVSS 116
|
| Aluminium | mg/cm² | -0.01 | FMVSS 116 |
-0.01
mg/cm²
FMVSS 116
|
| Cast Iron | Δ mg/cm² | -0,01 | FMVSS 116 |
-0,01
Δ mg/cm²
FMVSS 116
|
| Brass | mg/cm² | -0.05 | FMVSS 116 |
-0.05
mg/cm²
FMVSS 116
|
| Copper | mg/cm² | -0.03 | FMVSS 116 |
-0.03
mg/cm²
FMVSS 116
|
| Zinc | mg/cm² | 0.03 | FMVSS 116 |
0.03
mg/cm²
FMVSS 116
|
| Sediment | % | — 0.05 | FMVSS 116 |
— 0.05
%
FMVSS 116
|
| pH - value | 7.33 | FMVSS 116 |
7.33
FMVSS 116
|
|
| Rubber Diameter Change | 0.03 | FMVSS 116 |
0.03
FMVSS 116
|
|
| Hardness Change | °IRHD | -6 | FMVSS 116 |
-6
°IRHD
FMVSS 116
|
| Appearance | i.O. | FMVSS 116 |
i.O.
FMVSS 116
|
|
| SBR at 70 °C | mm | 0.44 | FMVSS 116 |
0.44
mm
FMVSS 116
|
| SBR at 120 °C | mm | 0.72 | FMVSS 116 |
0.72
mm
FMVSS 116
|
| EPDM at 70 °C (as required by SAE J1703) | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| EPDM at 120 °C | IRHD | -3 | FMVSS 116 |
-3
IRHD
FMVSS 116
|
| Natural at 70 °C (as required by ISO 4925) | mm | 0.42 | FMVSS 116 |
0.42
mm
FMVSS 116
|
| Approvals | DOT 5.1, ISO 4925 Class 5.1, SAE J 1704 |
DOT 5.1, ISO 4925 Class 5.1, SAE J 1704
|
Lubrication points oilers, wheel bearings
For bearings
RAVENOL Arctic Green Grease AGG 2 offers excellent working resistance, rust and corrosion protection.
- Available packaging
- Product parameters
Volume:
200 g
vendor code:
1340126-200
Volume:
1 kg
vendor code:
1340126-001
Volume:
180 kg
vendor code:
1340126-180
RAVENOL Arctic Green Grease AGG 2 offers excellent working resistance, rust and corrosion protection.
Application for the lubrication of roller and friction bearings under extreme pressure at extremely low temperatures. Selected additives help reduce wear, even during severe continuous operation and significantly prolong the service life.
Application Note
RAVENOL Arctic Green Grease AGG 2 is used in roller and friction bearings under extreme pressure at extremely low temperatures.
The highest application temperature for RAVENOL Arctic Green Grease AGG 2 in continuous operation is 120°C. Peak performances of 160°C should not be exceeded.
Extremely high temperatures shorten the service life. Routine relubrication preserves material and saves costs.
Characteristics
- Working resistance
- Oxidation resistance
- Water resistance
- Good corrosion protection characteristics
- High thermal load capacity
- High pressure susceptibility
- Good adhesion
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Full synthetic |
Full synthetic
|
||
| specification | DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2 |
DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2
|
||
| Color | Green | visual |
Green
visual
|
|
| Thickener | lithium soap | DIN 51757 |
lithium soap
DIN 51757
|
|
| NLGI-Class | 2 | DIN 51818 |
2
DIN 51818
|
|
| Product Classification | KPE2K-60 | DIN 51502 |
KPE2K-60
DIN 51502
|
|
| Working Temperature | °C | -60 / +120 | DIN 51825 |
-60 / +120
°C
DIN 51825
|
| Short term temperature up to | °C | 160 | DIN 51757 |
160
°C
DIN 51757
|
| Worked Penetration at 60 Strokes | 265-295 | ISO 2137 |
265-295
ISO 2137
|
|
| Dropping Point | °C | 180 — | DIN ISO 2176 |
180 —
°C
DIN ISO 2176
|
| Copper Corrosion (24h/120 °C) | 1 | DIN 51811 |
1
DIN 51811
|
|
| Water Resistance (3h/90 °C) | °C | 1-90 | DIN 51807-1 |
1-90
°C
DIN 51807-1
|
| VKA Pressure Carrying Capacity | N | 3000 — 3200 | DIN 51350-4 |
3000 — 3200
N
DIN 51350-4
|
| Kinematic Viscosity (Base Oil) at 40 °C | mm²/s | 20 | DIN 51562-1 |
20
mm²/s
DIN 51562-1
|
| Approvals | DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2 |
DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2
|
For bearings
Application NoteRAVENOL Hot Red Grease HRG 2 is used for the lubrication of roller and friction bearings under extreme pressure at high bearing temperatures.
Manufacturer Approved:
MAN 284 Li-H2, MB-Approval 265.1
Equivalents OEM:
BMW 83190447919, Land Rover STC3435, SWAG 10921909, VAG G052133A2, VAG G052133A2
- Available packaging
- Product parameters
Application Note
RAVENOL Hot Red Grease HRG 2 is used for the lubrication of roller and friction bearings under extreme pressure at high bearing temperatures.
RAVENOL Hot Red Grease HRG 2 is particularly recommended for the lubrication of commercial vehicles and for high-speed passenger car wheel bearings.
Characteristics
- Work resistance
- Resistance to oxidation
- Water resistance
- Good corrosion protection characteristics
- High thermal load capacity
- High pressure susceptibility
- Good adhesion
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| Manufacturer Approved | MAN 284 Li-H2, MB-Approval 265.1 |
MAN 284 Li-H2, MB-Approval 265.1
|
||
| specification | DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2 |
DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2
|
||
| Color | Red | visual |
Red
visual
|
|
| Thickener | lithium soap | DIN 51757 |
lithium soap
DIN 51757
|
|
| NLGI-Class | 2 | DIN 51818 |
2
DIN 51818
|
|
| Product Classification | KP2P-35 | DIN 51502 |
KP2P-35
DIN 51502
|
|
| Working Temperature | °C | -35 / +160 | DIN 51825 |
-35 / +160
°C
DIN 51825
|
| Short term temperature up to | °C | 200 | DIN 51757 |
200
°C
DIN 51757
|
| Worked Penetration at 60 Strokes | 265-295 | ISO 2137 |
265-295
ISO 2137
|
|
| Dropping Point | °C | 260 — | DIN ISO 2176 |
260 —
°C
DIN ISO 2176
|
| Copper Corrosion (24h/120 °C) | 1 | DIN 51811 |
1
DIN 51811
|
|
| Water Resistance (3h/90 °C) | °C | 1-90 | DIN 51807-1 |
1-90
°C
DIN 51807-1
|
| VKA Pressure Carrying Capacity | N | 2600 — 2800 | DIN 51350-4 |
2600 — 2800
N
DIN 51350-4
|
| Kinematic Viscosity (Base Oil) at 40 °C | mm²/s | 140 | DIN 51562-1 |
140
mm²/s
DIN 51562-1
|
| Approvals | DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2, MAN 284 Li-H2, MB 265.1 |
DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2, MAN 284 Li-H2, MB 265.1
|
For bearings
RAVENOL Super EP-Langzeitfett is due to its smooth structure is easily conveyed.
Manufacturer Approved:
LOVAT LOV-204
- Available packaging
- Product parameters
RAVENOL Super EP-Langzeitfett is due to its smooth structure is easily conveyed.
RAVENOL Super EP-Langzeitfett is based on high-quality base oil by using lithium soaps (Li-12-hydroxy stearate) as thickener.
Due to this they avail of an outstanding work resistance. Futhermore, RAVENOL Super EP-Langzeitfett contain additives to improve the rust and corrosion-preventing behaviour.
Application Note
RAVENOL Super EP-Langzeitfett is used for the lubrication of heavily loaded plain and rolling bearings under the influence of moisture, vibration and shock loads. The standard applies to the lubrication of chassis, wheel bearings and universal joints in the automotive sector as well as machinery and general industry, construction industry, agriculture.
Characteristics
- Universal application, multi-purpose mixed pattern for machinery
- Excellent impact and wear-EP
- Very good oxidation and corrosion protection even in the presence of moisture
- Very good mechanical stability
- Excellent water resistance
- Long service life and thus extended lubrication intervals possible
- Very good resistance to aging
- Good pumpability, even at low temperatures
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Manufacturer Approved | LOVAT LOV-204 |
LOVAT LOV-204
|
||
| specification | DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2 |
DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2
|
||
| Color | Brown | visual |
Brown
visual
|
|
| Thickener | lithium soap | DIN 51757 |
lithium soap
DIN 51757
|
|
| NLGI-Class | 2 | DIN 51818 |
2
DIN 51818
|
|
| Product Classification | KP2K-30 | DIN 51502 |
KP2K-30
DIN 51502
|
|
| Working Temperature | °C | -30 / +120 | DIN 51825 |
-30 / +120
°C
DIN 51825
|
| Short term temperature up to | °C | 130 | DIN 51757 |
130
°C
DIN 51757
|
| Worked Penetration at 60 Strokes | 265-295 | ISO 2137 |
265-295
ISO 2137
|
|
| Corrosion (SKF Emcor dist. Water) | 1 | DIN 51802 |
1
DIN 51802
|
|
| Dropping Point | °C | 180 — | DIN ISO 2176 |
180 —
°C
DIN ISO 2176
|
| Copper Corrosion (24h/120 °C) | 1 | DIN 51811 |
1
DIN 51811
|
|
| Water Resistance (3h/90 °C) | °C | 1-90 | DIN 51807-1 |
1-90
°C
DIN 51807-1
|
| VKA Pressure Carrying Capacity | N | 2400 — 2600 | DIN 51350-4 |
2400 — 2600
N
DIN 51350-4
|
| Kinematic Viscosity (Base Oil) at 40 °C | mm²/s | 130 | DIN 51562-1 |
130
mm²/s
DIN 51562-1
|
| Approvals | DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2, LOVAT LOV-204 |
DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2, LOVAT LOV-204
|
Lubrication points oilers, drive shaft connections
For bearings
RAVENOL Arctic Green Grease AGG 2 offers excellent working resistance, rust and corrosion protection.
- Available packaging
- Product parameters
Volume:
200 g
vendor code:
1340126-200
Volume:
1 kg
vendor code:
1340126-001
Volume:
180 kg
vendor code:
1340126-180
RAVENOL Arctic Green Grease AGG 2 offers excellent working resistance, rust and corrosion protection.
Application for the lubrication of roller and friction bearings under extreme pressure at extremely low temperatures. Selected additives help reduce wear, even during severe continuous operation and significantly prolong the service life.
Application Note
RAVENOL Arctic Green Grease AGG 2 is used in roller and friction bearings under extreme pressure at extremely low temperatures.
The highest application temperature for RAVENOL Arctic Green Grease AGG 2 in continuous operation is 120°C. Peak performances of 160°C should not be exceeded.
Extremely high temperatures shorten the service life. Routine relubrication preserves material and saves costs.
Characteristics
- Working resistance
- Oxidation resistance
- Water resistance
- Good corrosion protection characteristics
- High thermal load capacity
- High pressure susceptibility
- Good adhesion
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Full synthetic |
Full synthetic
|
||
| specification | DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2 |
DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2
|
||
| Color | Green | visual |
Green
visual
|
|
| Thickener | lithium soap | DIN 51757 |
lithium soap
DIN 51757
|
|
| NLGI-Class | 2 | DIN 51818 |
2
DIN 51818
|
|
| Product Classification | KPE2K-60 | DIN 51502 |
KPE2K-60
DIN 51502
|
|
| Working Temperature | °C | -60 / +120 | DIN 51825 |
-60 / +120
°C
DIN 51825
|
| Short term temperature up to | °C | 160 | DIN 51757 |
160
°C
DIN 51757
|
| Worked Penetration at 60 Strokes | 265-295 | ISO 2137 |
265-295
ISO 2137
|
|
| Dropping Point | °C | 180 — | DIN ISO 2176 |
180 —
°C
DIN ISO 2176
|
| Copper Corrosion (24h/120 °C) | 1 | DIN 51811 |
1
DIN 51811
|
|
| Water Resistance (3h/90 °C) | °C | 1-90 | DIN 51807-1 |
1-90
°C
DIN 51807-1
|
| VKA Pressure Carrying Capacity | N | 3000 — 3200 | DIN 51350-4 |
3000 — 3200
N
DIN 51350-4
|
| Kinematic Viscosity (Base Oil) at 40 °C | mm²/s | 20 | DIN 51562-1 |
20
mm²/s
DIN 51562-1
|
| Approvals | DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2 |
DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2
|
For bearings
Application NoteRAVENOL Hot Red Grease HRG 2 is used for the lubrication of roller and friction bearings under extreme pressure at high bearing temperatures.
Manufacturer Approved:
MAN 284 Li-H2, MB-Approval 265.1
Equivalents OEM:
BMW 83190447919, Land Rover STC3435, SWAG 10921909, VAG G052133A2, VAG G052133A2
- Available packaging
- Product parameters
Application Note
RAVENOL Hot Red Grease HRG 2 is used for the lubrication of roller and friction bearings under extreme pressure at high bearing temperatures.
RAVENOL Hot Red Grease HRG 2 is particularly recommended for the lubrication of commercial vehicles and for high-speed passenger car wheel bearings.
Characteristics
- Work resistance
- Resistance to oxidation
- Water resistance
- Good corrosion protection characteristics
- High thermal load capacity
- High pressure susceptibility
- Good adhesion
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| Manufacturer Approved | MAN 284 Li-H2, MB-Approval 265.1 |
MAN 284 Li-H2, MB-Approval 265.1
|
||
| specification | DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2 |
DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2
|
||
| Color | Red | visual |
Red
visual
|
|
| Thickener | lithium soap | DIN 51757 |
lithium soap
DIN 51757
|
|
| NLGI-Class | 2 | DIN 51818 |
2
DIN 51818
|
|
| Product Classification | KP2P-35 | DIN 51502 |
KP2P-35
DIN 51502
|
|
| Working Temperature | °C | -35 / +160 | DIN 51825 |
-35 / +160
°C
DIN 51825
|
| Short term temperature up to | °C | 200 | DIN 51757 |
200
°C
DIN 51757
|
| Worked Penetration at 60 Strokes | 265-295 | ISO 2137 |
265-295
ISO 2137
|
|
| Dropping Point | °C | 260 — | DIN ISO 2176 |
260 —
°C
DIN ISO 2176
|
| Copper Corrosion (24h/120 °C) | 1 | DIN 51811 |
1
DIN 51811
|
|
| Water Resistance (3h/90 °C) | °C | 1-90 | DIN 51807-1 |
1-90
°C
DIN 51807-1
|
| VKA Pressure Carrying Capacity | N | 2600 — 2800 | DIN 51350-4 |
2600 — 2800
N
DIN 51350-4
|
| Kinematic Viscosity (Base Oil) at 40 °C | mm²/s | 140 | DIN 51562-1 |
140
mm²/s
DIN 51562-1
|
| Approvals | DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2, MAN 284 Li-H2, MB 265.1 |
DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2, MAN 284 Li-H2, MB 265.1
|
For bearings
RAVENOL Super EP-Langzeitfett is due to its smooth structure is easily conveyed.
Manufacturer Approved:
LOVAT LOV-204
- Available packaging
- Product parameters
RAVENOL Super EP-Langzeitfett is due to its smooth structure is easily conveyed.
RAVENOL Super EP-Langzeitfett is based on high-quality base oil by using lithium soaps (Li-12-hydroxy stearate) as thickener.
Due to this they avail of an outstanding work resistance. Futhermore, RAVENOL Super EP-Langzeitfett contain additives to improve the rust and corrosion-preventing behaviour.
Application Note
RAVENOL Super EP-Langzeitfett is used for the lubrication of heavily loaded plain and rolling bearings under the influence of moisture, vibration and shock loads. The standard applies to the lubrication of chassis, wheel bearings and universal joints in the automotive sector as well as machinery and general industry, construction industry, agriculture.
Characteristics
- Universal application, multi-purpose mixed pattern for machinery
- Excellent impact and wear-EP
- Very good oxidation and corrosion protection even in the presence of moisture
- Very good mechanical stability
- Excellent water resistance
- Long service life and thus extended lubrication intervals possible
- Very good resistance to aging
- Good pumpability, even at low temperatures
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Manufacturer Approved | LOVAT LOV-204 |
LOVAT LOV-204
|
||
| specification | DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2 |
DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2
|
||
| Color | Brown | visual |
Brown
visual
|
|
| Thickener | lithium soap | DIN 51757 |
lithium soap
DIN 51757
|
|
| NLGI-Class | 2 | DIN 51818 |
2
DIN 51818
|
|
| Product Classification | KP2K-30 | DIN 51502 |
KP2K-30
DIN 51502
|
|
| Working Temperature | °C | -30 / +120 | DIN 51825 |
-30 / +120
°C
DIN 51825
|
| Short term temperature up to | °C | 130 | DIN 51757 |
130
°C
DIN 51757
|
| Worked Penetration at 60 Strokes | 265-295 | ISO 2137 |
265-295
ISO 2137
|
|
| Corrosion (SKF Emcor dist. Water) | 1 | DIN 51802 |
1
DIN 51802
|
|
| Dropping Point | °C | 180 — | DIN ISO 2176 |
180 —
°C
DIN ISO 2176
|
| Copper Corrosion (24h/120 °C) | 1 | DIN 51811 |
1
DIN 51811
|
|
| Water Resistance (3h/90 °C) | °C | 1-90 | DIN 51807-1 |
1-90
°C
DIN 51807-1
|
| VKA Pressure Carrying Capacity | N | 2400 — 2600 | DIN 51350-4 |
2400 — 2600
N
DIN 51350-4
|
| Kinematic Viscosity (Base Oil) at 40 °C | mm²/s | 130 | DIN 51562-1 |
130
mm²/s
DIN 51562-1
|
| Approvals | DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2, LOVAT LOV-204 |
DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2, LOVAT LOV-204
|
Cooling system
Coolant
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.
Compliance with the requirements:
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
- Available packaging
- Product parameters
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.
That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
RAVENOL TTC Trad. Techn. Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.
Application Note
RAVENOL TTC Trad. Techn. Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Add RAVENOL TTC Trad. Techn. Coolant Premix -40°C to radiator to fill line.
Characteristics
- Excellent for light metal engines
- Good reserve alkalinity
- High-quality corrosion additives for optimal corrosion protection
- Elastomer compatible with elastome
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11) |
AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| ASTM | D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF |
D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF
|
||
| Recomendations | AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C |
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
|
||
| Suitable for | Suzuki |
Suzuki
|
||
| Density at 20 °C | g/cm³ | 1080 | EN ISO 12185 |
1080
g/cm³
EN ISO 12185
|
| Color | yellow green | visual |
yellow green
visual
|
|
| pH - value at 20 °C | 7,8 | ASTM D1287 |
7,8
ASTM D1287
|
|
| Freezing point | °C | -40 | ASTM D1177 |
-40
°C
ASTM D1177
|
| Approvals | AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C |
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
|
Coolant
It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.
Compliance with the requirements:
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
Equivalents OEM:
Alpine 0101141,
Alpine 0101142,
Alpine 0101143,
Alpine 0101144,
Alpine 0101145,
Alpine 101141,
Alpine 101142,
Alpine 101143,
Alpine 101144,
Alpine 101145,
Chrysler 04267020AA,
Chrysler 04267020AB,
Chrysler 04267020AC,
Chrysler 04267020AD,
Chrysler 04267020GA,
Chrysler 04267020GB,
Chrysler 04267020GC,
Chrysler 04267020GD,
Chrysler 4267020GA,
Chrysler 4267020GB,
Chrysler 4267020GD,
FEBI 02374,
FEBI 2374,
FEBI 88541,
Ford 1326830,
Ford CVC5,
Ford CVC7B2,
Ford VC5,
Ford VC7B,
Ford VC7D,
Ford VC7DILB
Alpine 0101141, Alpine 0101142, Alpine 0101143, Alpine 0101144, Alpine 0101145, Alpine 101141, Alpine 101142, Alpine 101143, Alpine 101144, Alpine 101145, Chrysler 04267020AA, Chrysler 04267020AB, Chrysler 04267020AC, Chrysler 04267020AD, Chrysler 04267020GA, Chrysler 04267020GB, Chrysler 04267020GC, Chrysler 04267020GD, Chrysler 4267020GA, Chrysler 4267020GB, Chrysler 4267020GD, FEBI 02374, FEBI 2374, FEBI 88541, Ford 1326830, Ford CVC5, Ford CVC7B2, Ford VC5, Ford VC7B, Ford VC7D, Ford VC7DILB, GM 19284967, GM 19375289, GM 19375290, GM 19375291, Nissan 7711170548, Renault 7711170548, Renault 7711428132, SsangYong 0000000242, Toyota 0888980042, Toyota 0888980043, VAG G0118ACA1, VAG N052774C0, Volvo 11715725, Volvo 11715726, Volvo 11715727, Volvo 11715727, Volvo 85108901, Volvo VOE11715725, Volvo VOE11715726
Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.
- Available packaging
- Product parameters
Volume:
10 L
vendor code:
1410100-010
Volume:
20 L, ecobox
vendor code:
1410100-B20
Volume:
60 L, print
vendor code:
1410100-D60
Volume:
1000 L
vendor code:
1410100-700
It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.
Therefore manufacturers subject coolants to long corrosion and cavitation tests.
RAVENOL TTC Trad. Techn. Coolant Concentrate protects the cooling system from corrosion, frost, and in the summer from overheating.
Application Note
RAVENOL TTC Trad. Techn. Coolant Concentrate with frost and rust protection. Use according to the mixing chart. Follow manufacturer’s recommendations.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Clean cooling system, check for leaks, flush.
Mix RAVENOL TTC Trad. Techn. Coolant Concentrate with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.
| Table of mixing ratios | ||
|---|---|---|
| Antifreeze protection until | Parts Antifreeze | Parts Water |
| -20°C | 35% | 65% |
| -37°C | 50% | 50% |
| -50°C | 60% | 40% |
Characteristics
- Excellent for light metal engines
- Good reserve alkalinity
- High-quality corrosion additives for optimal corrosion protection
- Elastomer compatible with elastomers used in automotive radiators
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11) |
AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| ASTM | D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF |
D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF
|
||
| Recomendations | AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C |
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
|
||
| Suitable for | Suzuki |
Suzuki
|
||
| Density at 20 °C | g/cm³ | 1130 | EN ISO 12185 |
1130
g/cm³
EN ISO 12185
|
| Color | yellow green | visual |
yellow green
visual
|
|
| Reserve alkalinity | mgKOH/g | — 20 | ASTM D1121 |
— 20
mgKOH/g
ASTM D1121
|
| Boiling point | °C | 155 | ASTM D1120 |
155
°C
ASTM D1120
|
| Water content | % | — 5 | ASTM D1123 |
— 5
%
ASTM D1123
|
| Flashpoint | °C | 112 | DIN 51758 |
112
°C
DIN 51758
|
| Freezing point (50 % solution) | °C | -37 | ASTM D1177 |
-37
°C
ASTM D1177
|
| pH - value at 20 °C (50 Vol %) | 8,4 | ASTM D1287 |
8,4
ASTM D1287
|
|
| Approvals | AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C |
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
|
For batteries
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
Compliance with the requirements:
DIN 43530-4, DIN EN 50272
Equivalents OEM:
BMW 83190394350, BMW 83190394350
- Available packaging
- Product parameters
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.
RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.
Application Note
RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser |
DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
||
| Approvals | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
Additive
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
Equivalents OEM:
Ford MP14300500AB
- Available packaging
- Product parameters
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.
Application Note
RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.
Area of application:
Radiator repairs
In the event of reduced radiator performance
In the event of deposits in the cooling system
Changing coolant
For cleaning purposes after engine repairs due to oil in the cooling system
Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.
Fill in
RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.
RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.
Characteristics
- Cleaning of the cooling and heating system
- Protection of the new coolant against prior contamination
- Elimination of sludge and corrosion residue
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Color | Colorless | visual |
Colorless
visual
|
|
| Density at 20 °C | g/cm³ | 1003 | EN ISO 12185 |
1003
g/cm³
EN ISO 12185
|
| pH - value at 20 °C | 10,25 | DIN 19268 |
10,25
DIN 19268
|
|
| Brand | RAVENOL |
RAVENOL
|
