Oil for Nissan - Elgrand / Quest, E52 - 3.5 2WD (VQ35DE) (PE52)

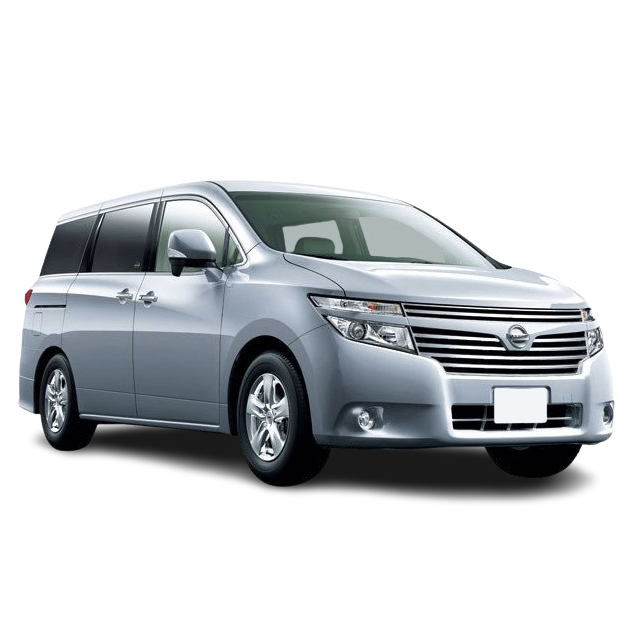

Nissan Elgrand / Quest, E52 3.5 2WD (VQ35DE) (PE52), year of issue from 2010 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Fuel: Gasoline
car drive: Front-wheel drive
Engine: V-shaped
Number of cylinders: 6
Valves per cylinder: 4
Working volume: 3498 cc
Power: 280 hp / 206 kW

Add to Garage

Nodes and assemblies

Engine VQ35DE
CVT gearbox in a unit with final drive 1/1 XTRONIC
Power steering
Hydraulic brake system
Cooling system

Engine VQ35DE

Liquid volume (basic): 4.6 L
Liquid volume (filter): 0.3 L

DXG 5W-30

For engine

For the development of RAVENOL DXG SAE 5W-30 the proven formulation of tri-nuclear molybdenum and OFM (Organic Friction Modifiers) was used. A highly polar Group V base oil was used in this formula, which has good compatibility with the PAO used.

Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034

Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30

show details

SAE: 5W-30

ILSAC: GF-7A

API: SQ (RC)

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111124-001

Code:
4014835732315

Volume:
4 L

vendor code:
1111124-004

Code:
4014835732391

Volume:
5 L (4+1)

vendor code:
1111124-A05

Code:
4014835851689

Volume:
5 L

vendor code:
1111124-005

Code:
4014835732353

Volume:
10 L

vendor code:
1111124-010

Code:
4014835732346

Volume:
20 L, ecobox

vendor code:
1111124-B20

Code:
4014835773820

Volume:
60 L, print

vendor code:
1111124-D60

Code:
4014835732339

Volume:
208 L

vendor code:
1111124-208

Code:
4014835732384

Volume:
208 L, print

vendor code:
1111124-D28

Volume:
20 L

vendor code:
1111124-020

Code:
4014835732322

Volume:
60 L

vendor code:
1111124-060

For the development of RAVENOL DXG SAE 5W-30 the proven formulation of tri-nuclear molybdenum and OFM (Organic Friction Modifiers) was used. A highly polar Group V base oil was used in this formula, which has good compatibility with the PAO used.

Due to the USVO®technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

With its new formulation, RAVENOL DXG SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL DXG SAE 5W-30 helps to protect the environment by reducing emissions.

RAVENOL DXG SAE 5W-30 helps to avoid low speed pre-ignition LSPI (Low Speed Pre-ignition). This can help avoid engine damage.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL DXG SAE 5W-30 is a high-performance low-friction engine oil for modern engines, and is recommended by OPEL/GENERAL MOTORS to the latest GM dexos 1 specification for modern GM gasoline-engined vehicles under all operating conditions.

RAVENOL DXG SAE 5W-30 is also suitable fort he shown specifications of Ford, Chrysler and Honda.

Characteristics

New formula with dexos1™ Gen 3 approval
Particularly suitable for GDI engines
Avoids low speed pre-ignition (LSPI)
No oil-related deposits in combustion chambers, in the piston ring zone and on valves
Fuel savings potential under both part and full load operation
Latest low SAPS technology = low Sulphated Ash, Phosphorus and Sulphur
A very stable viscosity behavior and an excellent shear stability
Very good cold starting properties
A safe lubricant film even at very high operating temperatures
Exceptional wear and corrosion protection
Excellent detergent and dispersant capabilities for cleaner engines, prevents foaming
Long service life through high oxidation stability
Suitable for catalyst-equipped vehicles

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Full synthetic		Full synthetic
API		SQ (RC)		SQ (RC)
ILSAC		GF-7A		GF-7A
Manufacturer Approved		GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034		GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, VWC 53034
Recomendations		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30
Density at 20 °C	g/cm³	846	EN ISO 12185	846 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	11.1	DIN 51562-1	11.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	65.6	DIN 51562-1	65.6 mm²/s DIN 51562-1
Viscosity Index VI		163	DIN ISO 2909	163 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.25	ASTM D5481	3.25 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	3990	ASTM D5293	3990 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	11.800	ASTM D4684	11.800 mPa*s ASTM D4684
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Noack Volatility	%	6	ASTM D5800	6 % ASTM D5800
Flashpoint	°C	244	DIN EN ISO 2592	244 °C DIN EN ISO 2592
tbn	mgKOH/g	7.8	ASTM D2896	7.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.8	DIN 51575	0.8 %wt. DIN 51575
Approvals		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034

FO 5W-30

For engine

RAVENOL FO SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Compliance with the requirements:
Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700, VWC 53036

show details

SAE: 5W-30

API: CF, SL

ACEA: A5, B5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111115-001

Code:
4014835722613

Volume:
4 L

vendor code:
1111115-004

Code:
4014835722699

Volume:
5 L

vendor code:
1111115-005

Code:
4014835722651

Volume:
10 L

vendor code:
1111115-010

Code:
4014835722644

Volume:
20 L

vendor code:
1111115-020

Code:
4014835722620

Volume:
20 L, ecobox

vendor code:
1111115-B20

Code:
4014835772922

Volume:
60 L

vendor code:
1111115-060

Code:
4014835722668

Volume:
60 L, print

vendor code:
1111115-D60

Code:
4014835722637

Volume:
208 L

vendor code:
1111115-208

Code:
4014835722682

Volume:
208 L, print

vendor code:
1111115-D28

Code:
4014835722606

Volume:
1000 L

vendor code:
1111115-700

RAVENOL FO SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL FO SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL FO SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL FO SAE 5W-30 is suitable as motor oil for fuel-efficient year-round use in modern petrol and diesel engines in passenger cars, station wagon's, vans and similar vehicles from FORD, RENAULT, Toyota, Hyundai, KIA, Mazda, Honda, Nissan und Mitsubishi.

Characteristics

Fuel economy in part and full power operation.
Very stable and excellent viscosity behaviour.
Excellent shear stability.
Excellent cold starting characteristics.
A safe lubricant film at high operating temperatures.
High wear and corrosion protection, high oxidation stability.
Prevention of sludge formation.
Excellent detergent- and dispersant characteristics.
Catalyst cleaning.

Parameter	Unit	Value	Audit
Recommendations		Fiat 9.55535-G1, Ford WSS-M2C913-A, Ford WSS-M2C913-B, Ford WSS-M2C913-C, Ford WSS-M2C913-D, Jaguar Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C913-A, Ford WSS-M2C913-B, Ford WSS-M2C913-C, Ford WSS-M2C913-D, Jaguar Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CF, SL		CF, SL
ACEA		A5, B5		A5, B5
Recomendations		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700, VWC 53036
Density at 20 °C	g/cm³	849	EN ISO 12185	849 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	10	DIN 51562-1	10 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	56.6	DIN 51562-1	56.6 mm²/s DIN 51562-1
Viscosity Index VI		165	DIN ISO 2909	165 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.08	ASTM D5481	3.08 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4300	ASTM D5293	4300 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	14.000	ASTM D4684	14.000 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	%	9.4	ASTM D5800	9.4 % ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	10.9	ASTM D2896	10.9 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.3	DIN 51575	1.3 %wt. DIN 51575
Approvals		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036

HLS 5W-30

For engine

RAVENOL HLS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01

Compliance with the requirements:
Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00

show details

SAE: 5W-30

API: CF, SN

ACEA: C3

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111119-001

Code:
4014835723016

Volume:
4 L

vendor code:
1111119-004

Code:
4014835723092

Volume:
5 L

vendor code:
1111119-005

Code:
4014835723054

Volume:
10 L

vendor code:
1111119-010

Code:
4014835723047

Volume:
20 L

vendor code:
1111119-020

Code:
4014835723023

Volume:
20 L, ecobox

vendor code:
1111119-B20

Code:
4014835773325

Volume:
60 L

vendor code:
1111119-060

Code:
4014835723061

Volume:
60 L, print

vendor code:
1111119-D60

Code:
4014835723030

Volume:
208 L

vendor code:
1111119-208

Code:
4014835723085

Volume:
208 L, print

vendor code:
1111119-D28

Code:
4014835723009

Volume:
1000 L

vendor code:
1111119-700

RAVENOL HLS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HLS SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL HLS SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL HLS SAE 5W-30 is Mid SAPS Oils which prevents effectively the reset of the diesel soot particulate filter.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HLS SAE 5W-30 is suitable for demanding motors as a high performance low friction motor oil. It is recommended for all modern passenger car gasoline and diesel engines, including turbo versions, for direct injection motors and it is also recommended for all operation conditions. RAVENOL HLS SAE 5W-30 is recommended for use in vehicles with diesel particulate filters.

Characteristics

Fuel economy in part and full power operation.
Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine.
Excellent cold starting characteristics also at low temperatures below -30°C.
A safe lubricant film at high operating temperatures.
Low evaporative tendency, so lower oil consumption.
No deposits in combustion chambers, in the piston ring zone and valves.
Neutrality towards sealing materials.
Extended oil change intervals to protect natural resources.

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502 00		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502 00
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01		BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01
Recomendations		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00
Density at 20 °C	g/cm³	847	EN ISO 12185	847 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	72.7	DIN 51562-1	72.7 mm²/s DIN 51562-1
Viscosity Index VI		166	DIN ISO 2909	166 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.51	ASTM D5481	3.51 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5216	ASTM D5293	5216 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	23000	ASTM D4684	23000 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	%	6.9	ASTM D5800	6.9 % ASTM D5800
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
tbn	mgKOH/g	7.8	ASTM D2896	7.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.8	DIN 51575	0.8 %wt. DIN 51575
Approvals		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S3, GM dexos2®, MB 229.31, MB 229.51, MB 229.52, Opel OV 040 1547 - D30, Stellantis FPW9.55535/03, VW 502.00, VW 505.00, VW 505.01		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S3, GM dexos2®, MB 229.31, MB 229.51, MB 229.52, Opel OV 040 1547 - D30, Stellantis FPW9.55535/03, VW 502.00, VW 505.00, VW 505.01

HCS 5W-40

Engine oil

Application NoteRAVENOL HCS SAE 5W-40 is suitable for an energy saving all year use for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.

Manufacturer Approved:
MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296

show details

SAE: 5W-40

API: CF, SN

ACEA: A3, B4

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1112105-001

Code:
4014835723917

Volume:
4 L

vendor code:
1112105-004

Code:
4014835723993

Volume:
5 L

vendor code:
1112105-005

Code:
4014835723955

Volume:
10 L

vendor code:
1112105-010

Code:
4014835723948

Volume:
20 L, ecobox

vendor code:
1112105-B20

Code:
4014835774322

Volume:
60 L

vendor code:
1112105-060

Code:
4014835723962

Volume:
60 L, print

vendor code:
1112105-D60

Code:
4014835723931

Volume:
208 L

vendor code:
1112105-208

Code:
4014835723986

Volume:
208 L, print

vendor code:
1112105-D28

Code:
4014835723900

Volume:
1000 L

vendor code:
1112105-700

Volume:
20 L

vendor code:
1112105-020

Code:
4014835723924

Application Note

RAVENOL HCS SAE 5W-40 is suitable for an energy saving all year use for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.

Characteristics

High protection against wear
Fuel economy by low friction property
Excellent detergent- and dispersant property
Prevention of black sludge formation
Improved cleaner engine
Extended lifetime because of oxidation stability
Excellent cold starting characteristics
Excellent viscosity-temperature- characteristics
Low evaporation tendency
Catalyst cleaning

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, MB 226.5, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, MB 226.5, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296
Brand		RAVENOL		RAVENOL
SAE		5W-40		5W-40
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		A3, B4		A3, B4
Manufacturer Approved		MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00		MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
Recomendations		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296
Density at 20 °C	g/cm³	849	EN ISO 12185	849 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.4	DIN 51562-1	14.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	87.5	DIN 51562-1	87.5 mm²/s DIN 51562-1
Viscosity Index VI		171	DIN ISO 2909	171 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.9	ASTM D5481	3.9 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5370	ASTM D5293	5370 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	28.500	ASTM D4684	28.500 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	8.4	ASTM D5800	8.4 % ASTM D5800
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	10.4	ASTM D2896	10.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.26	DIN 51575	1.26 %wt. DIN 51575
Approvals		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

Super Synthetic Hydrocrack SSH 0W-30

For engine

RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
MB-Approval 229.5, Renault RN 0710, Volvo VCC 95200356 - Service Fill

Compliance with the requirements:
BMW Longlife-98, Renault RN 0700, VW 502.00, VW 505.00

show details

SAE: 0W-30

API: SM

ACEA: A3, B4

Equivalents OEM:
Honda 08232P99B1CB1, Honda 08232P99B1LHE, Honda 08232P99B2LHE, Honda 08232P99B4LHE, Honda 08232P99B5LHE, Honda 08232P99B6CB1, Honda 08232P99B6LHE, Honda 08250P99B1BA1, Honda 08250P99B6BA1, Hyundai XTeer 1011122, Hyundai XTeer 1041122, Hyundai XTeer 1201122, Mitsubishi MZ320150, Mitsubishi MZ320151, Toyota 0888082644, Toyota 0888082644GO, Toyota 0888082645, VAG G055167M2, VAG G055167M4, VAG G055167M6, VAG G055167M9, VAG GR55167M2, VAG GR55167M4, VAG GR55167M6, VAG GR55167M9, VAG GV55167M2, VAG GVWR55167M2, Volvo 1161711, Volvo 1161719, Volvo 1161726, Volvo 1161726 Honda 08232P99B1CB1, Honda 08232P99B1LHE, Honda 08232P99B2LHE, Honda 08232P99B4LHE, Honda 08232P99B5LHE, Honda 08232P99B6CB1, Honda 08232P99B6LHE, Honda 08250P99B1BA1, Honda 08250P99B6BA1, Hyundai XTeer 1011122, Hyundai XTeer 1041122, Hyundai XTeer 1201122, Mitsubishi MZ320150, Mitsubishi MZ320151, Toyota 0888082644, Toyota 0888082644GO, Toyota 0888082645, VAG G055167M2, VAG G055167M4, VAG G055167M6, VAG G055167M9, VAG GR55167M2, VAG GR55167M4, VAG GR55167M6, VAG GR55167M9, VAG GV55167M2, VAG GVWR55167M2, Volvo 1161711, Volvo 1161719, Volvo 1161726, Volvo 1161726

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111138-001

Code:
4014835795310

Volume:
4 L

vendor code:
1111138-004

Code:
4014835795396

Volume:
5 L

vendor code:
1111138-005

Code:
4014835795358

Volume:
10 L

vendor code:
1111138-010

Code:
4014835795341

Volume:
20 L

vendor code:
1111138-020

Code:
4014835795327

Volume:
20 L, ecobox

vendor code:
1111138-B20

Code:
4014835868250

Volume:
60 L, print

vendor code:
1111138-D60

Code:
4014835795334

Volume:
208 L, print

vendor code:
1111138-D28

Code:
4014835795303

Volume:
1000 L

vendor code:
1111138-700

RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 contributes to protect the environment by reducing the emissions.

RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 guarantees operational safety for all driving conditions, such as extreme stop and go traffic as well as high speed highway trips.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 is suitable as an universal fuel economy motor oil for year-round use in all gasoline and diesel engines in passenger cars, station wagons, delivery vans and similar vehicles.

Characteristics

High abrasion resistance
Fuel saving because of easy running characteristics
Excellent detergent and dispersant characteristics
Prevention of black sludge creation
Long endurance because of high oxidation stability
Excellent cold start performance
Very good viscosity temperature behaviour
Low evaporation
Suitable for catalysts

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-98, Renault RN0700, VW 502 00, VW 505 00		BMW Longlife-98, Renault RN0700, VW 502 00, VW 505 00
Brand		RAVENOL		RAVENOL
SAE		0W-30		0W-30
Type		Synthetic		Synthetic
API		SM		SM
ACEA		A3, B4		A3, B4
Manufacturer Approved		MB-Approval 229.5, Renault RN 0710, Volvo VCC 95200356 - Service Fill		MB-Approval 229.5, Renault RN 0710, Volvo VCC 95200356 - Service Fill
Recomendations		BMW Longlife-98, Renault RN 0700, VW 502.00, VW 505.00		BMW Longlife-98, Renault RN 0700, VW 502.00, VW 505.00
Density at 20 °C	g/cm³	842	EN ISO 12185	842 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.1	DIN 51562-1	12.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	67.2	DIN 51562-1	67.2 mm²/s DIN 51562-1
Viscosity Index VI		178	DIN ISO 2909	178 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.53	ASTM D5481	3.53 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5940	ASTM D5293	5940 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	24.300	ASTM D4684	24.300 mPa*s ASTM D4684
Pourpoint	°C	-49	DIN ISO 3016	-49 °C DIN ISO 3016
Noack Volatility	%	9	ASTM D5800	9 % ASTM D5800
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	10	ASTM D2896	10 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.35	DIN 51575	1.35 %wt. DIN 51575
Approvals		BMW Longlife-98, MB 229.5, Renault RN0700, Renault RN0710, Volvo VCC 95200356 - Service Fill, VW 502.00, VW 505.00		BMW Longlife-98, MB 229.5, Renault RN0700, Renault RN0710, Volvo VCC 95200356 - Service Fill, VW 502.00, VW 505.00

HDX 5W-30

For engine

With its new formulation, RAVENOL HDX SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking.

Manufacturer Approved:
GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3

Compliance with the requirements:
Chrysler MS-6395, Chrysler MS-13340, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034

show details

SAE: 5W-30

ILSAC: GF-7A

API: SQ (RC)

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111125-001

Code:
4014835858541

Volume:
4 L

vendor code:
1111125-004

Code:
4014835858572

Volume:
5 L

vendor code:
1111125-005

Code:
4014835858602

Volume:
10 L

vendor code:
1111125-010

Code:
4014835858633

Volume:
20 L, ecobox

vendor code:
1111125-B20

Code:
4014835858657

Volume:
60 L

vendor code:
1111125-060

Code:
4014835858718

Volume:
60 L, print

vendor code:
1111125-D60

Volume:
208 L

vendor code:
1111125-208

Code:
4014835858756

Volume:
208 L, print

vendor code:
1111125-D28

Volume:
1000 L

vendor code:
1111125-700

Volume:
20 L

vendor code:
1111125-020

Code:
4014835858671

With its new formulation, RAVENOL HDX SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking.

RAVENOL HDX SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HDX SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL HDX SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL HDX SAE 5W-30 helps to avoid low speed pre-ignition LSPI (Low Speed Pre-ignition). This can help avoid engine damage.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HDX SAE 5W-30 is a high-performance low-friction engine oil for modern engines. It is recommended by OPEL/GENERAL MOTORS corresponding to dexos1 specification for modern car engines under all operating conditions.

RAVENOL HDX SAE 5W-30 is also suitable for the shown specifications of Ford, Chrysler and Fiat.

Characteristics

Fuel savings in partial and full load operation
Outstanding wear protection and high viscosity index ensure engine longevity, even under high-speed driving conditions
Excellent cold-start properties even at low temperatures below -25°C
A safe lubricating film at high operating temperatures
Low evaporation tendency, thus low oil consumption
No oil-based deposits in combustion chambers, in the piston ring zone and on valves
Neutrality towards sealing materials
Extended oil change intervals protect natural resources

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C929-A, Ford WSS-M2C946-A, Ford WSS-M2C946-B1, Ford WSS-M2C961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		SQ (RC)		SQ (RC)
ILSAC		GF-7A		GF-7A
Manufacturer Approved		GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3		GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3
Recomendations		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034
Density at 20 °C	g/cm³	844	EN ISO 12185	844 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	10.8	DIN 51562-1	10.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	59.8	DIN 51562-1	59.8 mm²/s DIN 51562-1
Viscosity Index VI		173	DIN ISO 2909	173 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.4	ASTM D5481	3.4 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	3630	ASTM D5293	3630 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	13.500	ASTM D4684	13.500 mPa*s ASTM D4684
Pourpoint	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Noack Volatility	%	8.1	ASTM D5800	8.1 % ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	7.8	ASTM D2896	7.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.86	DIN 51575	0.86 %wt. DIN 51575
Approvals		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034		Chrysler MS-13340, Chrysler MS-6395, Fiat 9.55535-CR1, Ford WSS-M2C 929-A, Ford WSS-M2C 946-A, Ford WSS-M2C 946-B1, Ford WSS-M2C 961-A1, GM dexos1® Gen 1, GM dexos1® Gen 2, GM dexos1® Gen 3, Honda/Acura HTO-06, Opel OV 040 1547 - G30, VWC 53034

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

Available packaging
Full description
Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

Long-term effectiveness and clean fresh oil
Remedy for soiled engines
Protection against compression loss in the area of the piston rings
Leads to better exhaust emissions and increases the performance of the engine

Parameter	Unit	Value	Audit
Color		Light brown	visual	Light brown visual
Flashpoint (PM)	°C	62	DIN ISO 3679	62 °C DIN ISO 3679
Density at 20 °C		805	EN ISO 12185	805 EN ISO 12185
Viscosity at 40 °C	mm²/s	7	DIN EN ISO 3104	7 mm²/s DIN EN ISO 3104
Brand		RAVENOL		RAVENOL

CVT gearbox in a unit with final drive 1/1 XTRONIC

Liquid volume (basic): 10.2 L

CVTF NS3/J4 Fluid

For transmission

RAVENOL CVTF NS3/J4 Fluid is a CVTF of the latest generation. It is especially developed for the CVT transmission of JATCO. It guarantees in any mode for maximum wear protection.

Compliance with the requirements:
ATF J4, ATF NS-3, Suzuki CVT Fluid Green-2

show details

Equivalents OEM:
Geely EZL799A45, Mitsubishi MZ102652, Mitsubishi MZ102658, Mitsubishi MZ320185, Mitsubishi MZ320261, Mitsubishi MZ320262, Mitsubishi MZ320288, Mitsubishi MZ320289, Mitsubishi MZ320290, Mitsubishi MZ320293, Mitsubishi MZ320327, Mitsubishi MZ320335, Mitsubishi MZ320806, Mitsubishi MZ320806, Mitsubishi MZ321008, Mitsubishi RU000274, Mitsubishi S0001610, Nissan 999MPCV0NS3, Nissan 999MPNS300P, Nissan KE90999943, Nissan KE90999943R, Nissan KLE53TSC01, Nissan KLE53TSC04, Nissan KLE53TSCS1, Nissan KLE5300001, Nissan KLE5300002, Nissan KLE5300004, Nissan KLES0NS3V1, Nissan KLES0NS301, Renault 7711783565, Renault 7711783566 Geely EZL799A45, Mitsubishi MZ102652, Mitsubishi MZ102658, Mitsubishi MZ320185, Mitsubishi MZ320261, Mitsubishi MZ320262, Mitsubishi MZ320288, Mitsubishi MZ320289, Mitsubishi MZ320290, Mitsubishi MZ320293, Mitsubishi MZ320327, Mitsubishi MZ320335, Mitsubishi MZ320806, Mitsubishi MZ320806, Mitsubishi MZ321008, Mitsubishi RU000274, Mitsubishi S0001610, Nissan 999MPCV0NS3, Nissan 999MPNS300P, Nissan KE90999943, Nissan KE90999943R, Nissan KLE53TSC01, Nissan KLE53TSC04, Nissan KLE53TSCS1, Nissan KLE5300001, Nissan KLE5300002, Nissan KLE5300004, Nissan KLES0NS3V1, Nissan KLES0NS301, Renault 7711783565, Renault 7711783566, Subaru 9900022B63046, Suzuki 9900022B24046

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1211132-001

Code:
4014835803732

Volume:
4 L

vendor code:
1211132-004

Code:
4014835803749

Volume:
10 L

vendor code:
1211132-010

Code:
4014835853614

Volume:
20 L

vendor code:
1211132-020

Volume:
20 L, ecobox

vendor code:
1211132-B20

Code:
4014835808652

Volume:
60 L

vendor code:
1211132-060

Volume:
208 L, print

vendor code:
1211132-D28

Code:
4014835862210

RAVENOL CVTF NS3/J4 Fluid is a CVTF of the latest generation. It is especially developed for the CVT transmission of JATCO. It guarantees in any mode for maximum wear protection.

RAVENOL CVTF NS3/J4 Fluid is green colored.

Application Note

RAVENOL CVTF NS3/J4 Fluid is suitable for use in CVT transmission of following vehicles:

Nissan Qashqai J11 2013-, Nissan Pathfinder R52 2013-, Nissan Altima L33 2013-, Nissan Teana L33 2013-, Nissan Sylphe B17 2012-, Nissan Tiida C12 2014-, Nissan X-Trail T32 2013-, Nissan Elgrand E52 2013-, Nissan Murano Z51 2013-, Nissan Murano Z52 2015- , Mitsubishi Outlander GF7W/8W 2012- , Mitsubishi Delica D5 2012- , Mitsubishi Lancer 2012- , Mitsubishi ASX 2014- , Renault Koleos 2014- , Samsung QM5 2013- , Peugeot 4008 2014- , Citroen C4 Aircross 2014- an others with CVT-transmission JATCO JF016E or JF017E.

Maintenance-filling under normal operating conditions.

Characteristics

Very good lubricating ability even at low temperatures in winter
A high, stable viscosity index
Very good oxidation stability
Protection against corrosion and foam formation
Good balanced coefficient of friction
A high thermal and oxidative stability
An excellent cooling capacity

Parameter	Unit	Value	Audit
Recommendations		999MP-NS300P, ATF J4, ATF NS-3, Mitsubishi MZ102658, Mitsubishi MZ320261, Mitsubishi MZ320262, Mitsubishi MZ320288, Nissan KLE53-00002, Nissan KLE53-00004, Suzuki CVT Fluid Green-2 99000-22B24-046, Suzuki CVT Fluid Green-2 990N0-22B24-004		999MP-NS300P, ATF J4, ATF NS-3, Mitsubishi MZ102658, Mitsubishi MZ320261, Mitsubishi MZ320262, Mitsubishi MZ320288, Nissan KLE53-00002, Nissan KLE53-00004, Suzuki CVT Fluid Green-2 99000-22B24-046, Suzuki CVT Fluid Green-2 990N0-22B24-004
Type		Synthetic		Synthetic
Brand		RAVENOL		RAVENOL
Recomendations		ATF J4, ATF NS-3, Suzuki CVT Fluid Green-2		ATF J4, ATF NS-3, Suzuki CVT Fluid Green-2
Compliant products		Mitsubishi MZ102658, Mitsubishi MZ320261, Mitsubishi MZ320262, Mitsubishi MZ320288, Nissan 999MP-NS300P, Nissan KLE53-00002, Nissan KLE53-00004, Suzuki 99000-22B24-046, Suzuki 990N0-22B24-004		Mitsubishi MZ102658, Mitsubishi MZ320261, Mitsubishi MZ320262, Mitsubishi MZ320288, Nissan 999MP-NS300P, Nissan KLE53-00002, Nissan KLE53-00004, Suzuki 99000-22B24-046, Suzuki 990N0-22B24-004
Color		Green	visual	Green visual
Density at 20 °C	g/cm³	836	EN ISO 12185	836 g/cm³ EN ISO 12185
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Approvals		ATF J4, ATF NS-3, Suzuki CVT Fluid Green-2		ATF J4, ATF NS-3, Suzuki CVT Fluid Green-2

Power steering

Liquid volume (basic): 1 L

E-PSF Fluid

For power steering

RAVENOL E- PSF Fluid is guaranteeing an optimized power transmission.

Compliance with the requirements:
Fiat 9.55550-AG3, JTEKT EHPS, JTEKT EHS, MAN M3289, Nissan E-PSF, PSA S71 2710, Renault PSF Class 1, Toyota PSF-EH

show details

Equivalents OEM:
Chrysler 68068618AA, Chrysler 68088485AA, Chrysler 68088485AB, Chrysler 68088485GA, Chrysler 68088485GB, Chrysler 68088485LB, Citroen 333263012255, Nissan 999MPEPSF00P, Nissan KLF3000001, Nissan KLF3000004, Nissan KLF5100001, Nissan KLF5100001EU, Nissan KLF300000101, Nissan KLF300000401, PSA 9730A5, PSA 9979A3, PSA 1615099680, PSA 1615099680, Toyota 0888601206, Toyota 0888681250, Toyota SU001A2832, Toyota SU001A4824

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1181002-001

Code:
4014835839908

RAVENOL E- PSF Fluid is guaranteeing an optimized power transmission.

RAVENOL E- PSF Fluid is designed on the basis of particularly high quality base oils with special additives and inhibition which ensures the proper functioning of the electro-hydraulic power steering system.

Application Note

RAVENOL E- PSF Fluid is especially developed for the use in electro-hydraulic power steering systems of Nissan and Toyota (JTEKT EHS Elektro-Hydraulik Servolenkung/EHPS Electro-Hydraulic Power Steering).

RAVENOL E- PSF Fluid is also suitable for the hydropneumatic Hydractive III und Hydractive III+ suspension of Citroën.

Characteristics

A very low pour point
An excellent foam prevention, no foam formation
A good lubricating ability even at low temperatures in winter
A high and stable viscosity index
A very good oxidation stability
Excellent protection against wear and tear, corrosion and foam formation
Well-tuned friction characteristics
Neutral behaviour against sealing materials
Neutral behaviour because of inhibition against non-ferrous metals

Parameter	Unit	Value	Audit
Recommendations		Citroën DA 9730 A5, Citroën LDS 9979 A3, Fiat 9.55550-AG3, JTEKT EHS/ EHPS, MAN M 3289, Nissan 999MP-EPSF00P, Nissan E-PSF, Nissan KLF51-00001, PSA S71 2710, Renault PSF Klasse 1 (Renault Laguna III), Toyota 08886-01206, Toyota PSF-EH		Citroën DA 9730 A5, Citroën LDS 9979 A3, Fiat 9.55550-AG3, JTEKT EHS/ EHPS, MAN M 3289, Nissan 999MP-EPSF00P, Nissan E-PSF, Nissan KLF51-00001, PSA S71 2710, Renault PSF Klasse 1 (Renault Laguna III), Toyota 08886-01206, Toyota PSF-EH
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
Recomendations		Fiat 9.55550-AG3, JTEKT EHPS, JTEKT EHS, MAN M3289, Nissan E-PSF, PSA S71 2710, Renault PSF Class 1, Toyota PSF-EH		Fiat 9.55550-AG3, JTEKT EHPS, JTEKT EHS, MAN M3289, Nissan E-PSF, PSA S71 2710, Renault PSF Class 1, Toyota PSF-EH
Suitable for		PSA DA, PSA LSD		PSA DA, PSA LSD
Compliant products		Nissan 999MP-EPSF00P, Nissan KLF51-00001, PSA 9730.A5, PSA 9979.A3, Toyota 08886-01206		Nissan 999MP-EPSF00P, Nissan KLF51-00001, PSA 9730.A5, PSA 9979.A3, Toyota 08886-01206
Density at 20 °C	g/cm³	821	EN ISO 12185	821 g/cm³ EN ISO 12185
Color		Colorless	visual	Colorless visual
Viscosity at 100 °C	mm²/s	6.1	DIN 51562-1	6.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	19	DIN 51562-1	19 mm²/s DIN 51562-1
Viscosity at -40 °C	mm²/s	960	ASTM D445	960 mm²/s ASTM D445
Viscosity Index VI		312	DIN ISO 2909	312 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	900	ASTM D2983	900 mPa*s ASTM D2983
Pourpoint	°C	-75	DIN ISO 3016	-75 °C DIN ISO 3016
Flashpoint	°C	154	DIN EN ISO 2592	154 °C DIN EN ISO 2592
Approvals		Fiat 9.55550-AG3, JTEKT EHPS, JTEKT EHS, MAN M 3289, Nissan E-PSF, PSA S71 2710, Renault PSF Class 1, Toyota PSF-EH		Fiat 9.55550-AG3, JTEKT EHPS, JTEKT EHS, MAN M 3289, Nissan E-PSF, PSA S71 2710, Renault PSF Class 1, Toyota PSF-EH

Hydraulic brake system

Liquid volume (basic): 1 L

DOT 4

For brake system

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

show details

Available packaging
Full description
Product parameters

Volume:
250 ml

vendor code:
1350601-250

Code:
4014835692121

Volume:
500 ml

vendor code:
1350601-500

Code:
4014835692152

Volume:
1 L

vendor code:
1350601-001

Code:
4014835692114

Volume:
20 L

vendor code:
1350601-020

DOT 4

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

Application Note

RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.

RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.

RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113).

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

optimum ABS characteristics
chemical stability
best lubrication efficiency
neutral behaviour regarding brake parts
low viscosity at low temperatures
miscible with all brake fluids of the same specifications

Parameter	Unit	Value	Audit
FMVSS 116 specifications (DOT)		DOT-4		DOT-4
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
specification		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704
Density at 20 °C	g/cm³	1052	EN ISO 12185	1052 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mPa*s	2.41	ASTM D445	2.41 mPa*s ASTM D445
Viscosity at -40 °C	cSt	1340	ASTM D445	1340 cSt ASTM D445
Boiling point	°C	271	FMVSS 116	271 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point	°C	169	FMVSS 116	169 °C FMVSS 116
High Temperature Stability	°C	-1	FMVSS 116	-1 °C FMVSS 116
Chemical Stability	°C	1	FMVSS 116	1 °C FMVSS 116
Evaporation	%w/w	61	FMVSS 116	61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C		i.O., 4s	FMVSS 116	i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C		i.O., 8s	FMVSS 116	i.O., 8s FMVSS 116
Water Tolerance at -40 °C		transparent, 3s	FMVSS 116	transparent, 3s FMVSS 116
Water Tolerance at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at -40 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Water content	%	— 0.2	DIN 51777-1	— 0.2 % DIN 51777-1
Tinned Iron	Δ mg/cm²	0.04	FMVSS 116	0.04 Δ mg/cm² FMVSS 116
Steel	mg/cm²	-0.01	FMVSS 116	-0.01 mg/cm² FMVSS 116
Aluminium	mg/cm²	0.02	FMVSS 116	0.02 mg/cm² FMVSS 116
Cast Iron	Δ mg/cm²	-0,03	FMVSS 116	-0,03 Δ mg/cm² FMVSS 116
Brass	mg/cm²	-0.08	FMVSS 116	-0.08 mg/cm² FMVSS 116
Copper	mg/cm²	-0.05	FMVSS 116	-0.05 mg/cm² FMVSS 116
Zinc	mg/cm²	0.01	FMVSS 116	0.01 mg/cm² FMVSS 116
Sediment	%	— 0.05	FMVSS 116	— 0.05 % FMVSS 116
pH - value		8.2	FMVSS 116	8.2 FMVSS 116
Rubber Diameter Change		0.16	FMVSS 116	0.16 FMVSS 116
Hardness Change	°IRHD	-4	FMVSS 116	-4 °IRHD FMVSS 116
Appearance		i.O.	FMVSS 116	i.O. FMVSS 116
SBR at 70 °C	mm	0.56	FMVSS 116	0.56 mm FMVSS 116
SBR at 120 °C	mm	0.73	FMVSS 116	0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703)	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
EPDM at 120 °C	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925)	mm	0.38	FMVSS 116	0.38 mm FMVSS 116
Approvals		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704

Cooling system

Liquid volume (basic): 11 L

HJC Hybrid Japanese Coolant PREMIX -40°C

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

Compliance with the requirements:
Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant

show details

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410123-150

Code:
4014835755918

Volume:
5 L

vendor code:
1410123-005

Code:
4014835755956

Volume:
10 L

vendor code:
1410123-010

Volume:
20 L

vendor code:
1410123-020

Code:
4014835755925

Volume:
20 L, ecobox

vendor code:
1410123-B20

Code:
4014835855977

Volume:
60 L, plastic

vendor code:
1410123-060

Code:
4014835755963

Volume:
208 L

vendor code:
1410123-208

Code:
4014835755987

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL HJC Hybrid Japanese Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL HJC Hybrid Japanese Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL HJC Hybrid Japanese Coolant Premix -40°C to radiator to fill line.

Characteristics

Excellent for light metal engines
Good reserve alkalinity
High-quality corrosion additives for optimal corrosion protection
Elastomer compatible with elastomers used in automotive radiators

Parameter	Unit	Value	Audit
Recommendations		08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant		08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant
Brand		RAVENOL		RAVENOL
Recomendations		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant
Compliant products		Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944		Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944
Density at 20 °C	g/cm³	1082	EN ISO 12185	1082 g/cm³ EN ISO 12185
Color		Green	visual	Green visual
pH - value		7 — 8.5	ASTM D1287	7 — 8.5 ASTM D1287
Freezing point	°C	-40	ASTM D1177	-40 °C ASTM D1177
Approvals		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant

HJC Hybrid Japanese Coolant Concentrate

Coolant

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

Compliance with the requirements:
Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant

show details

Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410122-150

Code:
4014835755819

Volume:
5 L

vendor code:
1410122-005

Code:
4014835755857

Volume:
10 L

vendor code:
1410122-010

Volume:
20 L

vendor code:
1410122-020

Code:
4014835755826

Volume:
20 L, ecobox

vendor code:
1410122-B20

Code:
4014835855489

Volume:
60 L

vendor code:
1410122-060

Code:
4014835755864

Volume:
208 L

vendor code:
1410122-208

Code:
4014835755888

Volume:
1000 L

vendor code:
1410122-700

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

Therefore manufacturers subject coolants to long corrosion and cavitation tests.

RAVENOL HJC Hybrid Japanese Coolant Concentrate protects the cooling system from corrosion, frost, and in the summer from overheating.

Application Note

RAVENOL HJC Hybrid Japanese Coolant Concentrate with frost and rust protection. Use according to the mixing chart. Follow manufacturer’s recommendations.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL HJC Hybrid Japanese Coolant Concentrate with distilled water (per mixing table) and add. Allow engine and heater to warm up, add coolant to fill level.

Table of mixing ratios
Antifreeze protection until	Parts Antifreeze	Parts Water
-20°C	35%	65%
-37°C	50%	50%
-50°C	60%	40%

Characteristics

Excellent for light metal engines
Good reserve alkalinity
High-quality corrosion additives for optimal corrosion protection
Elastomer compatible with elastomers used in automotive radiators

Parameter	Unit	Value	Audit
Recommendations		08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant		08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant
Brand		RAVENOL		RAVENOL
Recomendations		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant
Compliant products		Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944		Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944
Density at 20 °C	g/cm³	1132	EN ISO 12185	1132 g/cm³ EN ISO 12185
Color		Green	visual	Green visual
Reserve alkalinity	mgKOH/g	15 —	ASTM D1120	15 — mgKOH/g ASTM D1120
Boiling point	°C	150 —	ASTM D1121	150 — °C ASTM D1121
Water content	%	— 5	ASTM D1123	— 5 % ASTM D1123
Flashpoint	°C	110 —	DIN 51758	110 — °C DIN 51758
Freezing point (50 % solution)	°C	-37	ASTM D1177	-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %)		7,0 - 8,5	ASTM D1287	7,0 - 8,5 ASTM D1287
Approvals		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter	Value
Recommendations	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand	RAVENOL	RAVENOL
Recomendations	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272
Approvals	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272

Professional Radiator Cleaner

Additive

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

show details

Equivalents OEM:
Ford MP14300500AB

Available packaging
Full description
Product parameters

Volume:
0.25 L

vendor code:
1390302-250

Code:
4014835802667

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.

Application Note

RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.

Area of application:

Radiator repairs

In the event of reduced radiator performance

In the event of deposits in the cooling system

Changing coolant

For cleaning purposes after engine repairs due to oil in the cooling system

Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.

Fill in

RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.

RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.

Characteristics

Cleaning of the cooling and heating system
Protection of the new coolant against prior contamination
Elimination of sludge and corrosion residue

Parameter	Unit	Value	Audit
Color		Colorless	visual	Colorless visual
Density at 20 °C	g/cm³	1003	EN ISO 12185	1003 g/cm³ EN ISO 12185
pH - value at 20 °C		10,25	DIN 19268	10,25 DIN 19268
Brand		RAVENOL		RAVENOL
