Oil for Peugeot - 307 - 2.0 16V 138 147 2WD (EW10J4) (RFN)

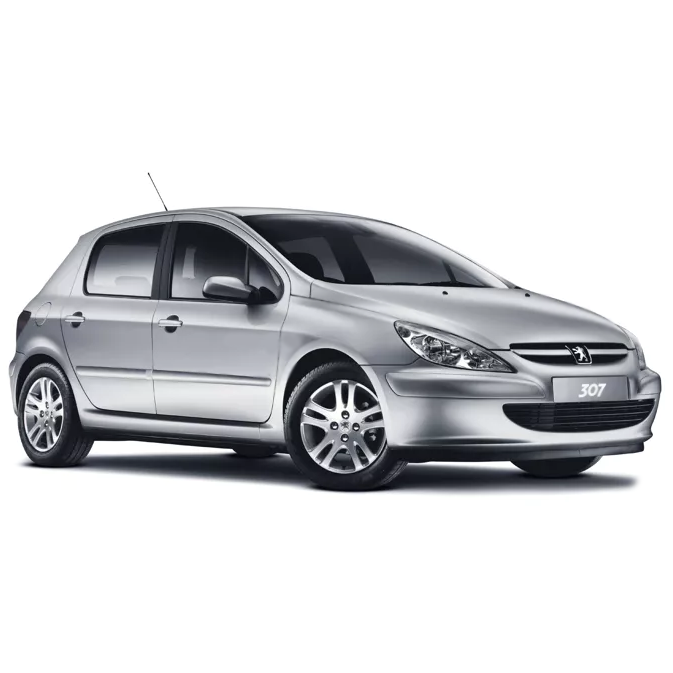

Peugeot 307 2.0 16V 138 147 2WD (EW10J4) (RFN), year of issue from 2001 date to 2006 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Fuel: Gasoline
car drive: Front-wheel drive
Engine: Single row
Number of cylinders: 4
Valves per cylinder: 4
Working volume: 1997 cc

Add to Garage

Nodes and assemblies

Engine EW10J4
Transmission, automatic in a unit with final drive 4/1 AL4 / BVA4
Mechanical gearbox in a unit with final drive 5/1 BE4 / BE4/5 / BE4R / BE4S / BVM5
Power steering
Hydraulic brakes/clutch system
Cooling system

Engine EW10J4

Liquid volume (basic): 4 L

HLS 5W-30

For engine

RAVENOL HLS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01

Compliance with the requirements:
Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00

show details

SAE: 5W-30

API: CF, SN

ACEA: C3

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111119-001

Code:
4014835723016

Volume:
4 L

vendor code:
1111119-004

Code:
4014835723092

Volume:
5 L

vendor code:
1111119-005

Code:
4014835723054

Volume:
10 L

vendor code:
1111119-010

Code:
4014835723047

Volume:
20 L

vendor code:
1111119-020

Code:
4014835723023

Volume:
20 L, ecobox

vendor code:
1111119-B20

Code:
4014835773325

Volume:
60 L

vendor code:
1111119-060

Code:
4014835723061

Volume:
60 L, print

vendor code:
1111119-D60

Code:
4014835723030

Volume:
208 L

vendor code:
1111119-208

Code:
4014835723085

Volume:
208 L, print

vendor code:
1111119-D28

Code:
4014835723009

Volume:
1000 L

vendor code:
1111119-700

RAVENOL HLS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HLS SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL HLS SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL HLS SAE 5W-30 is Mid SAPS Oils which prevents effectively the reset of the diesel soot particulate filter.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HLS SAE 5W-30 is suitable for demanding motors as a high performance low friction motor oil. It is recommended for all modern passenger car gasoline and diesel engines, including turbo versions, for direct injection motors and it is also recommended for all operation conditions. RAVENOL HLS SAE 5W-30 is recommended for use in vehicles with diesel particulate filters.

Characteristics

Fuel economy in part and full power operation.
Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine.
Excellent cold starting characteristics also at low temperatures below -30°C.
A safe lubricant film at high operating temperatures.
Low evaporative tendency, so lower oil consumption.
No deposits in combustion chambers, in the piston ring zone and valves.
Neutrality towards sealing materials.
Extended oil change intervals to protect natural resources.

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502 00		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502 00
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01		BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01
Recomendations		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00
Density at 20 °C	g/cm³	847	EN ISO 12185	847 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	72.7	DIN 51562-1	72.7 mm²/s DIN 51562-1
Viscosity Index VI		166	DIN ISO 2909	166 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.51	ASTM D5481	3.51 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5216	ASTM D5293	5216 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	23000	ASTM D4684	23000 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	%	6.9	ASTM D5800	6.9 % ASTM D5800
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
tbn	mgKOH/g	7.8	ASTM D2896	7.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.8	DIN 51575	0.8 %wt. DIN 51575
Approvals		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S3, GM dexos2®, MB 229.31, MB 229.51, MB 229.52, Opel OV 040 1547 - D30, Stellantis FPW9.55535/03, VW 502.00, VW 505.00, VW 505.01		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S3, GM dexos2®, MB 229.31, MB 229.51, MB 229.52, Opel OV 040 1547 - D30, Stellantis FPW9.55535/03, VW 502.00, VW 505.00, VW 505.01

HCS 5W-40

Engine oil

Application NoteRAVENOL HCS SAE 5W-40 is suitable for an energy saving all year use for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.

Manufacturer Approved:
MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296

show details

SAE: 5W-40

API: CF, SN

ACEA: A3, B4

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1112105-001

Code:
4014835723917

Volume:
4 L

vendor code:
1112105-004

Code:
4014835723993

Volume:
5 L

vendor code:
1112105-005

Code:
4014835723955

Volume:
10 L

vendor code:
1112105-010

Code:
4014835723948

Volume:
20 L, ecobox

vendor code:
1112105-B20

Code:
4014835774322

Volume:
60 L

vendor code:
1112105-060

Code:
4014835723962

Volume:
60 L, print

vendor code:
1112105-D60

Code:
4014835723931

Volume:
208 L

vendor code:
1112105-208

Code:
4014835723986

Volume:
208 L, print

vendor code:
1112105-D28

Code:
4014835723900

Volume:
1000 L

vendor code:
1112105-700

Volume:
20 L

vendor code:
1112105-020

Code:
4014835723924

Application Note

RAVENOL HCS SAE 5W-40 is suitable for an energy saving all year use for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.

Characteristics

High protection against wear
Fuel economy by low friction property
Excellent detergent- and dispersant property
Prevention of black sludge formation
Improved cleaner engine
Extended lifetime because of oxidation stability
Excellent cold starting characteristics
Excellent viscosity-temperature- characteristics
Low evaporation tendency
Catalyst cleaning

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, MB 226.5, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, MB 226.5, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296
Brand		RAVENOL		RAVENOL
SAE		5W-40		5W-40
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		A3, B4		A3, B4
Manufacturer Approved		MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00		MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
Recomendations		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296
Density at 20 °C	g/cm³	849	EN ISO 12185	849 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.4	DIN 51562-1	14.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	87.5	DIN 51562-1	87.5 mm²/s DIN 51562-1
Viscosity Index VI		171	DIN ISO 2909	171 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.9	ASTM D5481	3.9 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5370	ASTM D5293	5370 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	28.500	ASTM D4684	28.500 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	8.4	ASTM D5800	8.4 % ASTM D5800
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	10.4	ASTM D2896	10.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.26	DIN 51575	1.26 %wt. DIN 51575
Approvals		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

LLO 10W-40

For engine

RAVENOL LLO SAE 10W-40 is produced on the basis of hydro crack oils which correspond to the high tech demands.

Manufacturer Approved:
VW 501.01, VW 505.00

Compliance with the requirements:
BMW Special Oil, MB 229.1, Renault RN 0700, VW 500.00

show details

SAE: 10W-40

API: CF, SN

ACEA: A3, B4

Equivalents OEM:
SsangYong 0000000390, SsangYong 0000000399, UAZ 000000473400700, UAZ 000101001104001, UAZ 000101004104001, UAZ 473400700, UAZ 473400700

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1112112-001

Code:
4014835724310

Volume:
4 L

vendor code:
1112112-004

Code:
4014835724396

Volume:
5 L

vendor code:
1112112-005

Code:
4014835724358

Volume:
10 L

vendor code:
1112112-010

Code:
4014835724341

Volume:
20 L

vendor code:
1112112-020

Code:
4014835724327

Volume:
20 L, ecobox

vendor code:
1112112-B20

Code:
4014835774728

Volume:
60 L

vendor code:
1112112-060

Code:
4014835724365

Volume:
60 L, print

vendor code:
1112112-D60

Code:
4014835724334

Volume:
208 L

vendor code:
1112112-208

Code:
4014835724389

Volume:
208 L, print

vendor code:
1112112-D28

Code:
4014835724303

Volume:
1000 L

vendor code:
1112112-700

RAVENOL LLO SAE 10W-40 is produced on the basis of hydro crack oils which correspond to the high tech demands.

Application Note

RAVENOL LLO SAE 10W-40 is suitable for the use of all modern cars with Otto and Diesel engines all the year; no sludge in the motor, excellent results during the test run. A high engine cleanness is guaranteed also in case of turbo charging and a complete catalyst operation as well as multi valves and diesel direct injections.

Characteristics

High abrasion resistance
Fuel saving because of easy running characteristics
Excellent detergent and dispersant characteristics
Prevention of black sludge creation
Long endurance because of high oxidation stability
An excellent cold start performance
A very good viscosity temperature behaviour
Low evaporation
Suitable for catalysts

Parameter	Unit	Value	Audit
Recommendations		BMW Special Oil, MB 229.1, Renault RN0700, VW 500 00		BMW Special Oil, MB 229.1, Renault RN0700, VW 500 00
Brand		RAVENOL		RAVENOL
SAE		10W-40		10W-40
Type		Semi-synthetic		Semi-synthetic
API		CF, SN		CF, SN
ACEA		A3, B4		A3, B4
Manufacturer Approved		VW 501.01, VW 505.00		VW 501.01, VW 505.00
Recomendations		BMW Special Oil, MB 229.1, Renault RN 0700, VW 500.00		BMW Special Oil, MB 229.1, Renault RN 0700, VW 500.00
Density at 20 °C	g/cm³	854	EN ISO 12185	854 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	15	DIN 51562-1	15 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	96.4	DIN 51562-1	96.4 mm²/s DIN 51562-1
Viscosity Index VI		164	DIN ISO 2909	164 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	4.26	ASTM D5481	4.26 mPa*s ASTM D5481
CCS Viscosity at -25 °C	mPa*s	4300	ASTM D5293	4300 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -30 °C	mPa*s	19.200	ASTM D4684	19.200 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	%	10.5	ASTM D5800	10.5 % ASTM D5800
Flashpoint	°C	226	DIN EN ISO 2592	226 °C DIN EN ISO 2592
tbn	mgKOH/g	10.8	ASTM D2896	10.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.23	DIN 51575	1.23 %wt. DIN 51575
Approvals		BMW Special Oil, MB 229.1, Renault RN0700, VW 500.00, VW 501.01, VW 505.00		BMW Special Oil, MB 229.1, Renault RN0700, VW 500.00, VW 501.01, VW 505.00

Super Synthetic Hydrocrack SSH 0W-30

For engine

RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
MB-Approval 229.5, Renault RN 0710, Volvo VCC 95200356 - Service Fill

Compliance with the requirements:
BMW Longlife-98, Renault RN 0700, VW 502.00, VW 505.00

show details

SAE: 0W-30

API: SM

ACEA: A3, B4

Equivalents OEM:
Honda 08232P99B1CB1, Honda 08232P99B1LHE, Honda 08232P99B2LHE, Honda 08232P99B4LHE, Honda 08232P99B5LHE, Honda 08232P99B6CB1, Honda 08232P99B6LHE, Honda 08250P99B1BA1, Honda 08250P99B6BA1, Hyundai XTeer 1011122, Hyundai XTeer 1041122, Hyundai XTeer 1201122, Mitsubishi MZ320150, Mitsubishi MZ320151, Toyota 0888082644, Toyota 0888082644GO, Toyota 0888082645, VAG G055167M2, VAG G055167M4, VAG G055167M6, VAG G055167M9, VAG GR55167M2, VAG GR55167M4, VAG GR55167M6, VAG GR55167M9, VAG GV55167M2, VAG GVWR55167M2, Volvo 1161711, Volvo 1161719, Volvo 1161726, Volvo 1161726 Honda 08232P99B1CB1, Honda 08232P99B1LHE, Honda 08232P99B2LHE, Honda 08232P99B4LHE, Honda 08232P99B5LHE, Honda 08232P99B6CB1, Honda 08232P99B6LHE, Honda 08250P99B1BA1, Honda 08250P99B6BA1, Hyundai XTeer 1011122, Hyundai XTeer 1041122, Hyundai XTeer 1201122, Mitsubishi MZ320150, Mitsubishi MZ320151, Toyota 0888082644, Toyota 0888082644GO, Toyota 0888082645, VAG G055167M2, VAG G055167M4, VAG G055167M6, VAG G055167M9, VAG GR55167M2, VAG GR55167M4, VAG GR55167M6, VAG GR55167M9, VAG GV55167M2, VAG GVWR55167M2, Volvo 1161711, Volvo 1161719, Volvo 1161726, Volvo 1161726

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111138-001

Code:
4014835795310

Volume:
4 L

vendor code:
1111138-004

Code:
4014835795396

Volume:
5 L

vendor code:
1111138-005

Code:
4014835795358

Volume:
10 L

vendor code:
1111138-010

Code:
4014835795341

Volume:
20 L

vendor code:
1111138-020

Code:
4014835795327

Volume:
20 L, ecobox

vendor code:
1111138-B20

Code:
4014835868250

Volume:
60 L, print

vendor code:
1111138-D60

Code:
4014835795334

Volume:
208 L, print

vendor code:
1111138-D28

Code:
4014835795303

Volume:
1000 L

vendor code:
1111138-700

RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 contributes to protect the environment by reducing the emissions.

RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 guarantees operational safety for all driving conditions, such as extreme stop and go traffic as well as high speed highway trips.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 is suitable as an universal fuel economy motor oil for year-round use in all gasoline and diesel engines in passenger cars, station wagons, delivery vans and similar vehicles.

Characteristics

High abrasion resistance
Fuel saving because of easy running characteristics
Excellent detergent and dispersant characteristics
Prevention of black sludge creation
Long endurance because of high oxidation stability
Excellent cold start performance
Very good viscosity temperature behaviour
Low evaporation
Suitable for catalysts

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-98, Renault RN0700, VW 502 00, VW 505 00		BMW Longlife-98, Renault RN0700, VW 502 00, VW 505 00
Brand		RAVENOL		RAVENOL
SAE		0W-30		0W-30
Type		Synthetic		Synthetic
API		SM		SM
ACEA		A3, B4		A3, B4
Manufacturer Approved		MB-Approval 229.5, Renault RN 0710, Volvo VCC 95200356 - Service Fill		MB-Approval 229.5, Renault RN 0710, Volvo VCC 95200356 - Service Fill
Recomendations		BMW Longlife-98, Renault RN 0700, VW 502.00, VW 505.00		BMW Longlife-98, Renault RN 0700, VW 502.00, VW 505.00
Density at 20 °C	g/cm³	842	EN ISO 12185	842 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.1	DIN 51562-1	12.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	67.2	DIN 51562-1	67.2 mm²/s DIN 51562-1
Viscosity Index VI		178	DIN ISO 2909	178 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.53	ASTM D5481	3.53 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5940	ASTM D5293	5940 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	24.300	ASTM D4684	24.300 mPa*s ASTM D4684
Pourpoint	°C	-49	DIN ISO 3016	-49 °C DIN ISO 3016
Noack Volatility	%	9	ASTM D5800	9 % ASTM D5800
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	10	ASTM D2896	10 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.35	DIN 51575	1.35 %wt. DIN 51575
Approvals		BMW Longlife-98, MB 229.5, Renault RN0700, Renault RN0710, Volvo VCC 95200356 - Service Fill, VW 502.00, VW 505.00		BMW Longlife-98, MB 229.5, Renault RN0700, Renault RN0710, Volvo VCC 95200356 - Service Fill, VW 502.00, VW 505.00

HST 5W-40

Engine oil

RAVENOL HST SAE 5W-40 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
BMW Longlife-01, MB-Approval 229.5, Porsche A40, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, PSA B71 2296

show details

SAE: 5W-40

API: SN Plus, SP

ACEA: A3, B4

Equivalents OEM:
Geely 92432F100, Geely 92432F100, Geely 92432F101, Renault 7711658110, Renault 7711658111, Renault 7711943689, Renault 7711943690, Renault 7711943691, UAZ 000000473400600, UAZ 000101001054002, UAZ 000101004054002, UAZ 473400600

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111147-001

Code:
4014835856523

Volume:
4 L

vendor code:
1111147-004

Code:
4014835856554

Volume:
5 L

vendor code:
1111147-005

Code:
4014835856585

Volume:
10 L

vendor code:
1111147-010

Code:
4014835856615

Volume:
20 L

vendor code:
1111147-020

Volume:
20 L, ecobox

vendor code:
1111147-B20

Code:
4014835856639

Volume:
60 L

vendor code:
1111147-060

Volume:
60 L, print

vendor code:
1111147-D60

Volume:
208 L

vendor code:
1111147-208

Volume:
208 L, print

vendor code:
1111147-D28

Volume:
1000 L

vendor code:
1111147-700

RAVENOL HST SAE 5W-40 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HST SAE 5W-40 contributes to protect the environment by reducing the emissions.

RAVENOL HST SAE 5W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL HST SAE 5W-40 guarantees operational safety concerning all driving conditions as for example regarding extreme stop and go traffic as well as high speed drives on motorways.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HST SAE 5W-40 is suitable for the energy saving operation year-round of all modern cars with gasoline and diesel engines in passenger cars, vans, small transporters and similar vehicles and was specially developed for turbo chargers as well as the catalytic operation.

Characteristics

High abrasion resistance
Fuel saving because of easy running characteristics
Excellent detergent and dispersant characteristics
Prevention of black sludge creation
Long endurance because of high oxidation stability
Excellent cold start performance
Very good viscosity temperature behaviour
Low evaporation
Suitable for catalysts

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-12991 (MS-10896), Fiat 9.55535-Z2, MB 226.5, MB 229.3, Opel/GM-LL-B-025, PSA B71 2296		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-12991 (MS-10896), Fiat 9.55535-Z2, MB 226.5, MB 229.3, Opel/GM-LL-B-025, PSA B71 2296
Brand		RAVENOL		RAVENOL
SAE		5W-40		5W-40
Type		Synthetic		Synthetic
API		SN Plus, SP		SN Plus, SP
ACEA		A3, B4		A3, B4
Manufacturer Approved		BMW Longlife-01, MB-Approval 229.5, Porsche A40, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00		BMW Longlife-01, MB-Approval 229.5, Porsche A40, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
Recomendations		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, PSA B71 2296		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, PSA B71 2296
Density at 20 °C	g/cm³	847	EN ISO 12185	847 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	13.3	DIN 51562-1	13.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	78.2	DIN 51562-1	78.2 mm²/s DIN 51562-1
Viscosity Index VI		173	DIN ISO 2909	173 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.91	ASTM D5481	3.91 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5480	ASTM D5293	5480 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	25.000	ASTM D4684	25.000 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	7.4	ASTM D5800	7.4 % ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	12	ASTM D2896	12 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.19	DIN 51575	1.19 %wt. DIN 51575
Approvals		BMW Longlife-01, Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, MB 229.5, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, MB 229.5, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

SHL 0W-40

For engine

RAVENOL SHL SAE 0W-40 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

Manufacturer Approved:
MB-Approval 229.5, Porsche A40, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
BMW Longlife-01, Ford WSS-M2C 937-A, Renault RN 0700

show details

SAE: 0W-40

API: SN

ACEA: A3, B4

Equivalents OEM:
BMW 83210144459, BMW 83212365515, BMW 83212405609, BMW 83212405635, BMW 83212405635, BMW 83212406983, FEBI 101140, FEBI 101141, FEBI 101142, FEBI 101143, FEBI 101144, Renault 8671000073, Renault 8671000074, Renault 8671000075, SWAG 30101140, SWAG 30101141, SWAG 30101142, SWAG 30101143, SWAG 30101144

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111127-001

Code:
4014835868809

Volume:
4 L

vendor code:
1111127-004

Code:
4014835868830

Volume:
5 L

vendor code:
1111127-005

Code:
4014835868861

Volume:
10 L

vendor code:
1111127-010

Code:
4014835868892

Volume:
20 L

vendor code:
1111127-020

Code:
4014835868915

Volume:
20 L, ecobox

vendor code:
1111127-B20

Code:
4014835868977

Volume:
60 L

vendor code:
1111127-060

Volume:
60 L, print

vendor code:
1111127-D60

Code:
4014835868991

Volume:
208 L

vendor code:
1111127-208

Volume:
208 L, print

vendor code:
1111127-D28

Code:
4014835869011

RAVENOL SHL SAE 0W-40 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL SHL SAE 0W-40 helps to protect the environment by reducing emissions.

RAVENOL SHL SAE 0W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL SHL SAE 0W-40 guarantees operational safety in all driving conditions such as extreme stop-and-go traffic and high-speed highway driving.

RAVENOL SHL SAE 0W-40 is universal fuel-efficient synthetic engine oil suitable for petrol and diesel engines, with or without turbocharger, in cars and vans with the specified quality classifications.

Characteristics

Excellent cold starting behavior
Fuel savings for part and full load
A very stable and excellent viscosity behavior
Good shear stability
A safe lubricant film at very high operating temperatures
Excellent detergent and dispersant properties
A broad protection against wear, corrosion and foaming
Excellent aging stability
Low evaporation loss
Excellent engine cleanliness

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-01, Ford WSS-M2C937-A, Renault RN0700		BMW Longlife-01, Ford WSS-M2C937-A, Renault RN0700
Brand		RAVENOL		RAVENOL
SAE		0W-40		0W-40
Type		Synthetic		Synthetic
API		SN		SN
ACEA		A3, B4		A3, B4
Manufacturer Approved		MB-Approval 229.5, Porsche A40, Renault RN 0710, VW 502.00, VW 505.00		MB-Approval 229.5, Porsche A40, Renault RN 0710, VW 502.00, VW 505.00
Recomendations		BMW Longlife-01, Ford WSS-M2C 937-A, Renault RN 0700		BMW Longlife-01, Ford WSS-M2C 937-A, Renault RN 0700
Density at 20 °C	g/cm³	842	EN ISO 12185	842 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	13.46	DIN 51562-1	13.46 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	75	DIN 51562-1	75 mm²/s DIN 51562-1
Viscosity Index VI		185	DIN ISO 2909	185 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.84	ASTM D5481	3.84 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5950	ASTM D5293	5950 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	28.600	ASTM D4684	28.600 mPa*s ASTM D4684
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	28.600	ASTM D4684	28.600 mPa*s ASTM D4684
Pourpoint	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Noack Volatility	%	9.4	ASTM D5800	9.4 % ASTM D5800
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	10.46	ASTM D2896	10.46 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.15	DIN 51575	1.15 %wt. DIN 51575
Approvals		BMW Longlife-01, Ford WSS-M2C 937-A, MB 229.5, Porsche A40, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, Ford WSS-M2C 937-A, MB 229.5, Porsche A40, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

Available packaging
Full description
Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

Long-term effectiveness and clean fresh oil
Remedy for soiled engines
Protection against compression loss in the area of the piston rings
Leads to better exhaust emissions and increases the performance of the engine

Parameter	Unit	Value	Audit
Color		Light brown	visual	Light brown visual
Flashpoint (PM)	°C	62	DIN ISO 3679	62 °C DIN ISO 3679
Density at 20 °C		805	EN ISO 12185	805 EN ISO 12185
Viscosity at 40 °C	mm²/s	7	DIN EN ISO 3104	7 mm²/s DIN EN ISO 3104
Brand		RAVENOL		RAVENOL

Transmission, automatic in a unit with final drive 4/1 AL4 / BVA4

Liquid volume (basic): 4.2 L

ATF 5/4 HP Fluid

Transmission fluid

RAVENOL ATF 5/4 HP Fluid is ATF (Automatic Transmission Fluid) for all 4- and 5 stroke automatic transmissions of ZF. It guarantees in any mode for maximum wear protection.

Compliance with the requirements:
ATF LA 2634, ATF LT 71141, DTFR 13C110 (MB 236.11), MB 236.11, Renault DP0, VW G 052 162, VW TL 521 62

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1212104-001

Code:
4014835733213

Volume:
4 L

vendor code:
1212104-004

Code:
4014835733299

Volume:
10 L

vendor code:
1212104-010

Code:
4014835733244

Volume:
20 L

vendor code:
1212104-020

Code:
4014835733220

Volume:
20 L, ecobox

vendor code:
1212104-B20

Code:
4014835787421

Volume:
60 L, print

vendor code:
1212104-D60

Code:
4014835733237

Volume:
208 L

vendor code:
1212104-208

Code:
4014835733282

Volume:
208 L, print

vendor code:
1212104-D28

Code:
4014835733206

Volume:
1000 L

vendor code:
1212104-700

Volume:
60 L

vendor code:
1212104-060

RAVENOL ATF 5/4 HP Fluid is ATF (Automatic Transmission Fluid) for all 4- and 5 stroke automatic transmissions of ZF. It guarantees in any mode for maximum wear protection.

RAVENOL ATF 5/4 HP Fluid is natural brown colored.

Application Note

RAVENOL ATF 5/4 HP Fluid is suitable for use in automatic transmission of ZF Serie 4 HP (4HP20, 4HP22, 4HP24) und 5HP (5HP18, 5HP19, 5HP24, 5HP30). Maintenance-filling under normal operating conditions.

Characteristics

Very good lubricating ability even at low temperatures in winter
A high, stable viscosity index
Very good oxidation stability
Protection against corrosion and foam formation
Good balanced coefficient of friction
A high thermal and oxidative stability
An excellent cooling capacity

Parameter	Unit	Value	Audit
Recommendations		Alfa Romeo 20HP 14891900, ATF LA 2634, ATF LT 71141, BMW 83229407765, BMW 83229407807, Citroën/Peugeot AL4 PR 9736.22, DTFR 13C110 (MB 236.11), Jaguar JLM 20237, Land Rover STC4863, MB 236.11, Mercedes A 001 989 22 03, Porsche 999.917.547.00, Renault DP0, VW TL 52162, VW/Audi G 052 162 A1, VW/Audi G 052 162 A2, VW/Audi G 052 162 A6, ZF S671 090 170		Alfa Romeo 20HP 14891900, ATF LA 2634, ATF LT 71141, BMW 83229407765, BMW 83229407807, Citroën/Peugeot AL4 PR 9736.22, DTFR 13C110 (MB 236.11), Jaguar JLM 20237, Land Rover STC4863, MB 236.11, Mercedes A 001 989 22 03, Porsche 999.917.547.00, Renault DP0, VW TL 52162, VW/Audi G 052 162 A1, VW/Audi G 052 162 A2, VW/Audi G 052 162 A6, ZF S671 090 170
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Recomendations		ATF LA 2634, ATF LT 71141, DTFR 13C110 (MB 236.11), MB 236.11, Renault DP0, VW G 052 162, VW TL 521 62		ATF LA 2634, ATF LT 71141, DTFR 13C110 (MB 236.11), MB 236.11, Renault DP0, VW G 052 162, VW TL 521 62
Suitable for		Alfa Romeo 20HP, PSA AL4 PR		Alfa Romeo 20HP, PSA AL4 PR
Compliant products		Alfa Romeo 14891900, BMW 83229407765, BMW 83229407807, Jaguar JLM 20237, Land Rover STC4863, MB A 001 989 22 03, Porsche 999.917.547.00, PSA 9736.22, VW G 052 162, ZF S671 090 170		Alfa Romeo 14891900, BMW 83229407765, BMW 83229407807, Jaguar JLM 20237, Land Rover STC4863, MB A 001 989 22 03, Porsche 999.917.547.00, PSA 9736.22, VW G 052 162, ZF S671 090 170
Density at 20 °C	g/cm³	849	EN ISO 12185	849 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Pourpoint	°C	-54	DIN ISO 3016	-54 °C DIN ISO 3016
Approvals		ATF LA 2634, ATF LT 71141, DTFR 13C110 (MB 236.11), MB 236.11, Renault DP0, VW G 052 162, VW TL 521 62		ATF LA 2634, ATF LT 71141, DTFR 13C110 (MB 236.11), MB 236.11, Renault DP0, VW G 052 162, VW TL 521 62

Mechanical gearbox in a unit with final drive 5/1 BE4 / BE4/5 / BE4R / BE4S / BVM5

Liquid volume (basic): 1.9 L

Getriebeol PSA 75W-80

For transmission

RAVENOL Getriebeoel PSA SAE 75W-80 has a special formula for outstanding wear protection and lubrication properties.

Compliance with the requirements:
PSA B71 2315

show details

SAE: 75W-80

API: GL-4

Equivalents OEM:
GM 1940711, GM 9163335, Nissan 999MPMTF20P, Nissan KE91600Q40, Nissan KE91699012, Nissan KE91699012, Nissan KE91699033, Nissan KE91699071R, Nissan KE9169903301, Nissan KLD9275801, Peugeot 9730AG, Peugeot 1615100080, Peugeot 1618078480, Peugeot 1635055880, PSA 9730A2, PSA 9730AA, PSA 973641, Renault 7711143534

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1222100-001

Code:
4014835734111

Volume:
4 L

vendor code:
1222100-004

Code:
4014835734197

Volume:
10 L

vendor code:
1222100-010

Code:
4014835734142

Volume:
20 L

vendor code:
1222100-020

Volume:
20 L, ecobox

vendor code:
1222100-B20

Code:
4014835788824

Volume:
60 L

vendor code:
1222100-060

Volume:
60 L, print

vendor code:
1222100-D60

Volume:
208 L

vendor code:
1222100-208

Volume:
208 L, print

vendor code:
1222100-D28

Volume:
1000 L

vendor code:
1222100-700

RAVENOL Getriebeoel PSA SAE 75W-80 has a special formula for outstanding wear protection and lubrication properties.

Application Note

RAVENOL Getriebeoel PSA SAE 75W-80 is used in manual shift transmissions requiring trouble-free lubrication.

RAVENOL Getriebeoel PSA SAE 75W-80 can be used in manual transmissions where the manufacturer specifies a low-viscosity oil.

Characteristics

Outstanding oxidation protection.
Low viscosity in low temperatures.
Excellent wear protection.
Enhanced EP properties.
Good foaming properties.
Neutral to sealants.
Outstanding protection from rust and corrosion.

Parameter	Unit	Value	Audit
Recommendations		PSA B71 2315		PSA B71 2315
Brand		RAVENOL		RAVENOL
SAE		75W-80		75W-80
Type		Semi-synthetic		Semi-synthetic
API		GL-4		GL-4
Recomendations		PSA B71 2315		PSA B71 2315
Density at 20 °C	g/cm³	843	EN ISO 12185	843 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mm²/s	8.5	DIN 51562-1	8.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	43.1	DIN 51562-1	43.1 mm²/s DIN 51562-1
Viscosity Index VI		178	DIN ISO 2909	178 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	52.500	ASTM D2983	52.500 mPa*s ASTM D2983
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		PSA B71 2315		PSA B71 2315

Power steering

Liquid volume (basic): 1 L

ATF Dexron III H

For automatic transmission

RAVENOL ATF DEXRON III H is universal ATF (Automatic Transmission Fluid) for all automatic transmission with and without controlled torque converter lockup clutch (so-called GKÜB = gear-clutch-lock) which are required for the transmission fluid type Dexron III H.

Manufacturer Approved:
Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B

Compliance with the requirements:
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.5, MB 236.6, MB 236.9, MB 236.10, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1212100-001

Code:
4014835732810

Volume:
4 L

vendor code:
1212100-004

Code:
4014835732896

Volume:
10 L

vendor code:
1212100-010

Code:
4014835732841

Volume:
20 L

vendor code:
1212100-020

Code:
4014835732827

Volume:
20 L, ecobox

vendor code:
1212100-B20

Code:
4014835787025

Volume:
60 L

vendor code:
1212100-060

Code:
4014835732865

Volume:
60 L, print

vendor code:
1212100-D60

Code:
4014835732834

Volume:
208 L

vendor code:
1212100-208

Code:
4014835732889

Volume:
208 L, print

vendor code:
1212100-D28

Code:
4014835732803

Volume:
1000 L

vendor code:
1212100-700

RAVENOL ATF DEXRON III H is universal ATF (Automatic Transmission Fluid) for all automatic transmission with and without controlled torque converter lockup clutch (so-called GKÜB = gear-clutch-lock) which are required for the transmission fluid type Dexron III H.

Application Note

RAVENOL ATF DEXRON III H was developed for use in automatic transmissions with electronically controlled converter lockup clutch.

RAVENOL ATF DEXRON III H is especially suitable for use in transmissions with ATF Dexron III H specification.

RAVENOL ATF DEXRON III H is backwards compatible and can be used in transmissions with specification ATF Dexron F III.

RAVENOL ATF DEXRON III H is mixable with all ATF brands. It is advised to rinse with RAVENOL ATF DEXRON III H before, beforehand the final filling with RAVENOL ATF DEXRON III H is made.

Characteristics

Very good lubricating properties even at low temperatures in winter
High and stable viscosity index
Very low flow point
Excellent oxidation stability
Extensive protection against wear, corrosion and foaming
Well-tuned friction properties
Neutral behaviour towards sealing materials
Neutral behaviour by inhibition towards non-ferrous metals

Parameter	Unit	Value	Audit
ATF		Dexron III H		Dexron III H
Recommendations		Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON® M-940717, MAN 339 L1, MAN 339 V1, MAN 339 Z1, MAN 339 Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Nissan, Volvo 1161521, Volvo 1161621, VOLVO Transmission Oil 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C		Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON® M-940717, MAN 339 L1, MAN 339 V1, MAN 339 Z1, MAN 339 Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Nissan, Volvo 1161521, Volvo 1161621, VOLVO Transmission Oil 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Manufacturer Approved		Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B		Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B
Recomendations		Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C		Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
specification		Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H		Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H
Suitable for		Nissan		Nissan
Compliant products		Volvo 1161521, Volvo 1161621		Volvo 1161521, Volvo 1161621
Density at 20 °C	g/cm³	847	EN ISO 12185	847 g/cm³ EN ISO 12185
Color		Red	visual	Red visual
Viscosity at 100 °C	mm²/s	7.2	DIN 51562-1	7.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	33.9	DIN 51562-1	33.9 mm²/s DIN 51562-1
Viscosity Index VI		185	DIN ISO 2909	185 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	14.200	ASTM D2983	14.200 mPa*s ASTM D2983
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	210	DIN EN ISO 2592	210 °C DIN EN ISO 2592
Seq. I at 24 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
tbn	mgKOH/g	1.8	ASTM D2896	1.8 mgKOH/g ASTM D2896
Approvals		Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B		Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B

ATF Dexron D II

For automatic transmission

Application NoteRAVENOL ATF Dexron D II was developed for the use in automatic transmissions, hydro steering mechanisms, converters and power transmissions and can be used as a universal ATF (Automatic-Transmission-Fluid) for all vehicles and working machines.

Manufacturer Approved:
Voith H55.6335.xx

Compliance with the requirements:
Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1213102-001

Code:
4014835733510

Volume:
4 L

vendor code:
1213102-004

Code:
4014835733596

Volume:
10 L

vendor code:
1213102-010

Code:
4014835733541

Volume:
20 L

vendor code:
1213102-020

Code:
4014835733527

Volume:
20 L, ecobox

vendor code:
1213102-B20

Code:
4014835787827

Volume:
60 L

vendor code:
1213102-060

Code:
4014835733565

Volume:
208 L

vendor code:
1213102-208

Code:
4014835733589

Volume:
208 L, print

vendor code:
1213102-D28

Volume:
1000 L

vendor code:
1213102-700

Application Note

RAVENOL ATF Dexron D II was developed for the use in automatic transmissions, hydro steering mechanisms, converters and power transmissions and can be used as a universal ATF (Automatic-Transmission-Fluid) for all vehicles and working machines.

Characteristics

protection against corrosion, sludge and sticking
an excellent and very shear stable viscosity temperature behaviour
no problems concerning very low respectively very high temperatures
an excellent high thermal capacity
free of foam even under hardest loads
neutral behaviour against sealing materials
mixable and compatible with all kinds of ATF

Parameter	Unit	Value	Audit
ATF		Dexron D II		Dexron D II
Recommendations		Caterpillar TO-2, CVT, DTFR 13C140 (MB 236.7), Ford M2C-138 CJ, Ford M2C-166H, Ford M2C-185A, Ford MERCON®, Ford SQM-9010B, MAN 339 Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C		Caterpillar TO-2, CVT, DTFR 13C140 (MB 236.7), Ford M2C-138 CJ, Ford M2C-166H, Ford M2C-185A, Ford MERCON®, Ford SQM-9010B, MAN 339 Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Manufacturer Approved		Voith H55.6335.xx		Voith H55.6335.xx
Recomendations		Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C		Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
specification		Allison C-3, Allison C-4, GM Dexron® II D		Allison C-3, Allison C-4, GM Dexron® II D
Suitable for		CVT		CVT
Density at 20 °C	g/cm³	848	EN ISO 12185	848 g/cm³ EN ISO 12185
Color		Red	visual	Red visual
Viscosity at 100 °C	mm²/s	7.3	DIN 51562-1	7.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	34.3	DIN 51562-1	34.3 mm²/s DIN 51562-1
Viscosity Index VI		185	DIN ISO 2909	185 DIN ISO 2909
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	210	DIN EN ISO 2592	210 °C DIN EN ISO 2592
Approvals		Allison C-3, Allison C-4, Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, GM Dexron® II D, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, Voith H55.6335.xx, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C		Allison C-3, Allison C-4, Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, GM Dexron® II D, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, Voith H55.6335.xx, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C

Hydraulic brakes/clutch system

DOT 4

For brake system

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

show details

Available packaging
Full description
Product parameters

Volume:
250 ml

vendor code:
1350601-250

Code:
4014835692121

Volume:
500 ml

vendor code:
1350601-500

Code:
4014835692152

Volume:
1 L

vendor code:
1350601-001

Code:
4014835692114

Volume:
20 L

vendor code:
1350601-020

DOT 4

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

Application Note

RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.

RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.

RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113).

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

optimum ABS characteristics
chemical stability
best lubrication efficiency
neutral behaviour regarding brake parts
low viscosity at low temperatures
miscible with all brake fluids of the same specifications

Parameter	Unit	Value	Audit
FMVSS 116 specifications (DOT)		DOT-4		DOT-4
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
specification		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704
Density at 20 °C	g/cm³	1052	EN ISO 12185	1052 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mPa*s	2.41	ASTM D445	2.41 mPa*s ASTM D445
Viscosity at -40 °C	cSt	1340	ASTM D445	1340 cSt ASTM D445
Boiling point	°C	271	FMVSS 116	271 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point	°C	169	FMVSS 116	169 °C FMVSS 116
High Temperature Stability	°C	-1	FMVSS 116	-1 °C FMVSS 116
Chemical Stability	°C	1	FMVSS 116	1 °C FMVSS 116
Evaporation	%w/w	61	FMVSS 116	61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C		i.O., 4s	FMVSS 116	i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C		i.O., 8s	FMVSS 116	i.O., 8s FMVSS 116
Water Tolerance at -40 °C		transparent, 3s	FMVSS 116	transparent, 3s FMVSS 116
Water Tolerance at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at -40 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Water content	%	— 0.2	DIN 51777-1	— 0.2 % DIN 51777-1
Tinned Iron	Δ mg/cm²	0.04	FMVSS 116	0.04 Δ mg/cm² FMVSS 116
Steel	mg/cm²	-0.01	FMVSS 116	-0.01 mg/cm² FMVSS 116
Aluminium	mg/cm²	0.02	FMVSS 116	0.02 mg/cm² FMVSS 116
Cast Iron	Δ mg/cm²	-0,03	FMVSS 116	-0,03 Δ mg/cm² FMVSS 116
Brass	mg/cm²	-0.08	FMVSS 116	-0.08 mg/cm² FMVSS 116
Copper	mg/cm²	-0.05	FMVSS 116	-0.05 mg/cm² FMVSS 116
Zinc	mg/cm²	0.01	FMVSS 116	0.01 mg/cm² FMVSS 116
Sediment	%	— 0.05	FMVSS 116	— 0.05 % FMVSS 116
pH - value		8.2	FMVSS 116	8.2 FMVSS 116
Rubber Diameter Change		0.16	FMVSS 116	0.16 FMVSS 116
Hardness Change	°IRHD	-4	FMVSS 116	-4 °IRHD FMVSS 116
Appearance		i.O.	FMVSS 116	i.O. FMVSS 116
SBR at 70 °C	mm	0.56	FMVSS 116	0.56 mm FMVSS 116
SBR at 120 °C	mm	0.73	FMVSS 116	0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703)	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
EPDM at 120 °C	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925)	mm	0.38	FMVSS 116	0.38 mm FMVSS 116
Approvals		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704

Cooling system

Liquid volume (basic): 7 L

TTC - Protect C11 Premix -40ºC

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

Compliance with the requirements:
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C

show details

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410105-150

Code:
4014835755314

Volume:
5 L

vendor code:
1410105-005

Code:
4014835755352

Volume:
10 L

vendor code:
1410105-010

Code:
4014835755345

Volume:
20 L

vendor code:
1410105-020

Code:
4014835755321

Volume:
20 L, ecobox

vendor code:
1410105-B20

Code:
4014835855939

Volume:
60 L

vendor code:
1410105-060

Code:
4014835755369

Volume:
208 L

vendor code:
1410105-208

Code:
4014835755383

Volume:
1000 L

vendor code:
1410105-700

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL TTC Trad. Techn. Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL TTC Trad. Techn. Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL TTC Trad. Techn. Coolant Premix -40°C to radiator to fill line.

Characteristics

Excellent for light metal engines
Good reserve alkalinity
High-quality corrosion additives for optimal corrosion protection
Elastomer compatible with elastome

Parameter	Unit	Value	Audit
Recommendations		AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)		AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
Brand		RAVENOL		RAVENOL
ASTM		D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF		D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF
Recomendations		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
Suitable for		Suzuki		Suzuki
Density at 20 °C	g/cm³	1080	EN ISO 12185	1080 g/cm³ EN ISO 12185
Color		yellow green	visual	yellow green visual
pH - value at 20 °C		7,8	ASTM D1287	7,8 ASTM D1287
Freezing point	°C	-40	ASTM D1177	-40 °C ASTM D1177
Approvals		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C

TTC - Protect C11 Concentrate

Coolant

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

show details

Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410100-150

Code:
4014835755215

Volume:
5 L

vendor code:
1410100-005

Code:
4014835755253

Volume:
10 L

vendor code:
1410100-010

Volume:
20 L

vendor code:
1410100-020

Code:
4014835755222

Volume:
20 L, ecobox

vendor code:
1410100-B20

Volume:
60 L

vendor code:
1410100-060

Code:
4014835755260

Volume:
60 L, plastic

vendor code:
-

Code:
4014835755239

Volume:
60 L, print

vendor code:
1410100-D60

Volume:
208 L

vendor code:
1410100-208

Code:
4014835755208

Volume:
1000 L

vendor code:
1410100-700

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

Therefore manufacturers subject coolants to long corrosion and cavitation tests.

RAVENOL TTC Trad. Techn. Coolant Concentrate protects the cooling system from corrosion, frost, and in the summer from overheating.

Application Note

RAVENOL TTC Trad. Techn. Coolant Concentrate with frost and rust protection. Use according to the mixing chart. Follow manufacturer’s recommendations.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL TTC Trad. Techn. Coolant Concentrate with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

Table of mixing ratios
Antifreeze protection until	Parts Antifreeze	Parts Water
-20°C	35%	65%
-37°C	50%	50%
-50°C	60%	40%

Characteristics

Excellent for light metal engines
Good reserve alkalinity
High-quality corrosion additives for optimal corrosion protection
Elastomer compatible with elastomers used in automotive radiators

Parameter	Unit	Value	Audit
Recommendations		AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)		AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
Brand		RAVENOL		RAVENOL
ASTM		D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF		D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF
Recomendations		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
Suitable for		Suzuki		Suzuki
Density at 20 °C	g/cm³	1130	EN ISO 12185	1130 g/cm³ EN ISO 12185
Color		yellow green	visual	yellow green visual
Reserve alkalinity	mgKOH/g	— 20	ASTM D1121	— 20 mgKOH/g ASTM D1121
Boiling point	°C	155	ASTM D1120	155 °C ASTM D1120
Water content	%	— 5	ASTM D1123	— 5 % ASTM D1123
Flashpoint	°C	112	DIN 51758	112 °C DIN 51758
Freezing point (50 % solution)	°C	-37	ASTM D1177	-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %)		8,4	ASTM D1287	8,4 ASTM D1287
Approvals		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C		AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter	Value
Recommendations	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand	RAVENOL	RAVENOL
Recomendations	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272
Approvals	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272

Professional Radiator Cleaner

Additive

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

show details

Equivalents OEM:
Ford MP14300500AB

Available packaging
Full description
Product parameters

Volume:
0.25 L

vendor code:
1390302-250

Code:
4014835802667

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.

Application Note

RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.

Area of application:

Radiator repairs

In the event of reduced radiator performance

In the event of deposits in the cooling system

Changing coolant

For cleaning purposes after engine repairs due to oil in the cooling system

Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.

Fill in

RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.

RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.

Characteristics

Cleaning of the cooling and heating system
Protection of the new coolant against prior contamination
Elimination of sludge and corrosion residue

Parameter	Unit	Value	Audit
Color		Colorless	visual	Colorless visual
Density at 20 °C	g/cm³	1003	EN ISO 12185	1003 g/cm³ EN ISO 12185
pH - value at 20 °C		10,25	DIN 19268	10,25 DIN 19268
Brand		RAVENOL		RAVENOL
