Toyota Hilux VIII, AN110 / AN120 / AN130 Hilux 3.0 D 4WD (1KD-FTV) (KUN126/KUN126L/KUN126R), year of issue from 2015 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.
Nodes and assemblies
- Engine 1KD-FTV

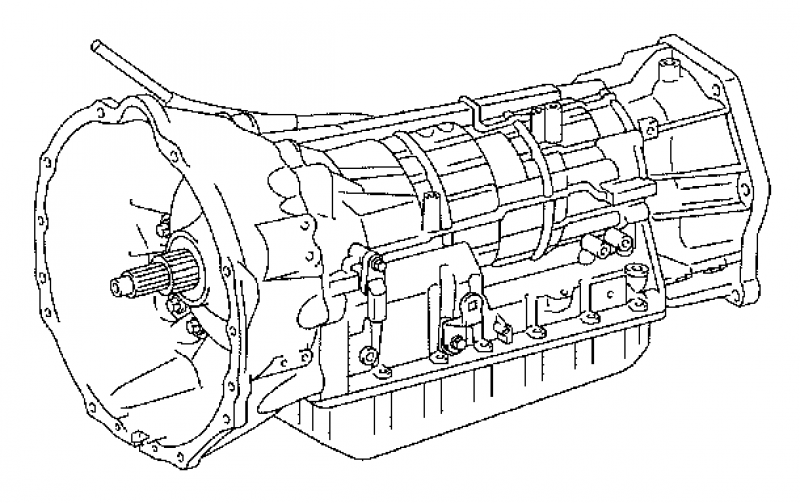

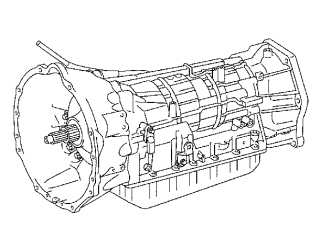

- Transmission, automatic A750F

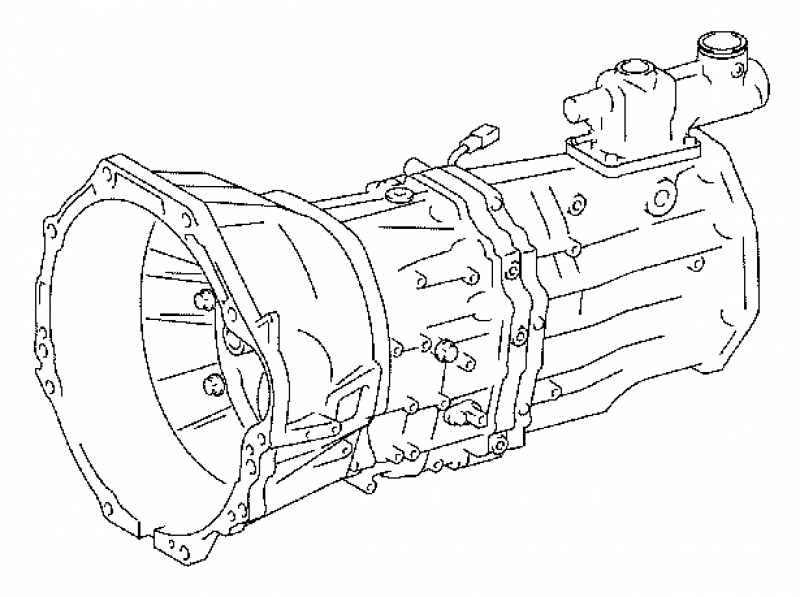

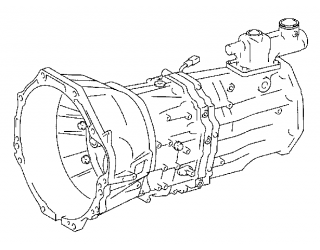

- Transmission, automatic RC60F

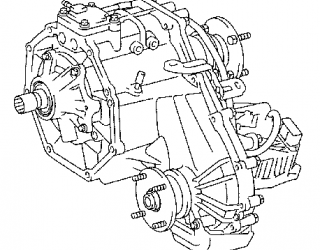

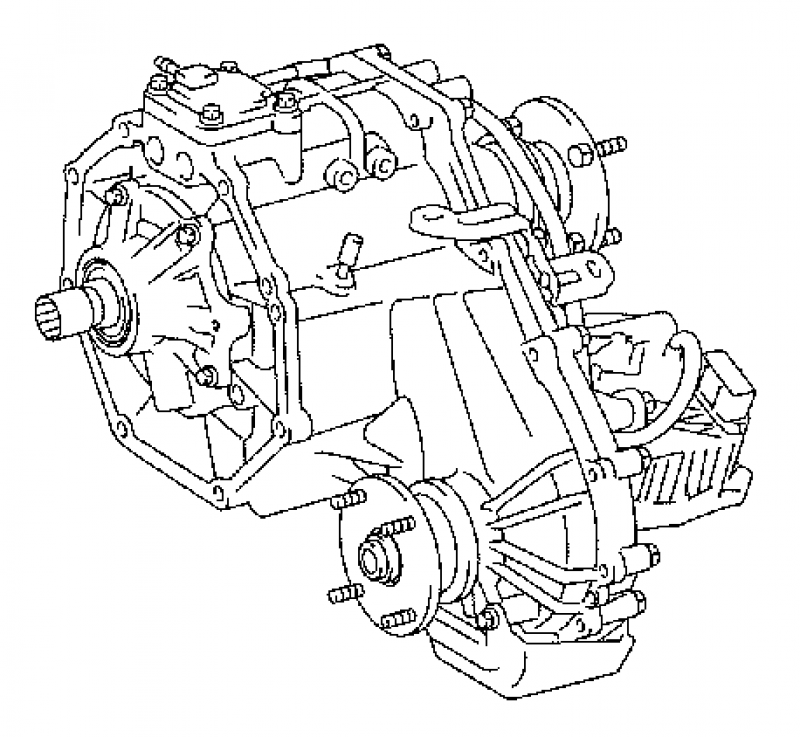

- Transfer case VF2CM
- Differential, rear BD20
- Differential, rear BD22
- Differential, rear Dana
- Differential, rear with lock mechanism BD22
- Differential, rear with lock mechanism Dana
- Differential, front without A. D. D. (automatic unlock)
- Differential, front with A. D. D. (automatic unlock)
- Power steering
- Hydraulic brake system
- Cooling system
Engine 1KD-FTV
Liquid volume (filter): 0.4 L
For engine
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
Manufacturer Approved:
Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB-Approval 229.6, Renault RN 0700
Compliance with the requirements:
Fiat 9.55535-G1, Ford WSS-M2C 913-C, VWC 53036
SAE: 5W-30
Equivalents OEM:
Alpine 0100181,
Alpine 0100182,
Alpine 100181,
Alpine 100182,
Alpine 100189,
Ford 14E8B9,
Ford 14E8BA,
Ford 14E9EC,
Ford 14E9ED,
Ford 15CF53,
Ford 15CF54,
Ford 15D5E4,
Ford 15D5E7,
Ford 15D5E9,
Ford 151FF2,
Ford 151FF2,
Ford 151FF3,
Ford 151FF5,
Ford 155D3A,
Ford 155D4A,
Ford 155D4B,
Ford 1515DA,
Ford 15594D,
Ford 15595E,
Ford 15595F,
Ford 1370044,
GM 12345885,
Hyundai Motor 0510000141,
Hyundai Motor 0510000441,
Land Rover STC50527,
Mazda 053001TFE
Alpine 0100181, Alpine 0100182, Alpine 100181, Alpine 100182, Alpine 100189, Ford 14E8B9, Ford 14E8BA, Ford 14E9EC, Ford 14E9ED, Ford 15CF53, Ford 15CF54, Ford 15D5E4, Ford 15D5E7, Ford 15D5E9, Ford 151FF2, Ford 151FF2, Ford 151FF3, Ford 151FF5, Ford 155D3A, Ford 155D4A, Ford 155D4B, Ford 1515DA, Ford 15594D, Ford 15595E, Ford 15595F, Ford 1370044, GM 12345885, Hyundai Motor 0510000141, Hyundai Motor 0510000441, Land Rover STC50527, Mazda 053001TFE, Mazda 053005TFE, Mazda 53005TFE, Mazda 830077279, Mazda 830077280, Mazda 830077991, Mazda 830077992, Mazda 8300771772, Nissan KE90099933, Nissan KE90099933R, Nissan KE90099933VA, Nissan KE90099943, Nissan KE90099943R, Pentosin 1082107, Pentosin 1082206, Pentosin 4008849132117, Pentosin 4008849152238, Renault 7711943682, Renault 7711943683, Renault 7711943684, Toyota 0888083944, Volvo 31316299, Volvo 31316300
- Available packaging
- Product parameters
Volume:
60 L, print
vendor code:
1111139-D60
Volume:
208 L, print
vendor code:
1111139-D28
Volume:
1000 L
vendor code:
1111139-700
Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.
With its new formulation, RAVENOL FDS SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.
By significantly reducing fuel consumption, RAVENOL FDS SAE 5W-30 helps to protect the environment by reducing emissions. It minimizes friction, wear and fuel consumption with excellent cold start characteristics.
RAVENOL FDS SAE 5W-30 ensures operational safety in all driving conditions such as in extreme stop-and-go traffic and high-speed motorway driving.
Extended oil change intervals according to the manufacturer’s instructions.
Application Note
RAVENOL FDS SAE 5W-30 is suitable as motor oil for fuel-efficient year-round use in modern petrol and diesel engines in passenger cars, station wagon's, vans and similar vehicles from FORD, RENAULT, Toyota, Hyundai, KIA, Mazda, Honda, Nissan und Mitsubishi, when the specifications ACEA A5/B5 are required.
Characteristics
- Excellent cold starting properties even at low temperatures of below -30 ° C
- A very stable and excellent viscosity characteristics, shear stability
- Fuel efficiency under all operating conditions
- Excellent detergency and dispersing properties
- Neutrality towards sealing materials
- Low evaporation loss, thereby lower oil consumption
- An extensive protection against wear, corrosion and foaming
- Catalyst suitability
- Extended oil change intervals to protect natural resources
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Fiat 9.55535-G1, Ford WSS-M2C913-C, VWC 53036 |
Fiat 9.55535-G1, Ford WSS-M2C913-C, VWC 53036
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-30 |
5W-30
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | CF, SP |
CF, SP
|
||
| ACEA | A5, A7, B5, B7 |
A5, A7, B5, B7
|
||
| Manufacturer Approved | Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB-Approval 229.6, Renault RN 0700 |
Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB-Approval 229.6, Renault RN 0700
|
||
| Recomendations | Fiat 9.55535-G1, Ford WSS-M2C 913-C, VWC 53036 |
Fiat 9.55535-G1, Ford WSS-M2C 913-C, VWC 53036
|
||
| Density at 20 °C | g/cm³ | 843 | EN ISO 12185 |
843
g/cm³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 10.2 | DIN 51562-1 |
10.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 58.35 | DIN 51562-1 |
58.35
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 163 | DIN ISO 2909 |
163
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 3 | ASTM D5481 |
3
mPa*s
ASTM D5481
|
| CCS Viscosity at -30 °C | mPa*s | 3880 | ASTM D5293 |
3880
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 10.400 | ASTM D4684 |
10.400
mPa*s
ASTM D4684
|
| Pourpoint | °C | -51 | DIN ISO 3016 |
-51
°C
DIN ISO 3016
|
| Noack Volatility | % | 8.9 | ASTM D5800 |
8.9
%
ASTM D5800
|
| Flashpoint | °C | 228 | DIN EN ISO 2592 |
228
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 12.5 | ASTM D2896 |
12.5
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.2 | DIN 51575 |
1.2
%wt.
DIN 51575
|
| Approvals | Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036 |
Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036
|
For engine
RAVENOL HCL SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.
Manufacturer Approved:
BMW Longlife-01, MB-Approval 229.5, VW 502.00, VW 505.00
Compliance with the requirements:
BMW Longlife-01 FE, VW 501.01
- Available packaging
- Product parameters
RAVENOL HCL SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.
Because of a considerable fuel saving RAVENOL HCL SAE 5W-30 contributes to protect the environment by reducing the emissions.
RAVENOL HCL SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
Suitable for extended oil change intervals where recommended by manufacturer.
Application Note
RAVENOL HCL SAE 5W-30 is an universal fuel-efficient engine oil, a top-quality product for petrol and passenger car diesel engines with or without turbochargers in passenger cars and vans.
Characteristics
- Fuel economy in part and full power operation.
- Very stable and excellent viscosity behaviour.
- Excellent shear stability.
- Excellent cold start characteristics.
- A safe lubricant film at high operating temperatures.
- Excellent detergency and dispersing properties.
- High wear and corrosion protection, high oxidation stability.
- Protection against foaming.
- Excellent detergent- and dispersant characteristics.
- Longlife characteristics through high oxidation stability.
- Catalyst suitability.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | BMW Longlife-01 FE, VW 501 01 |
BMW Longlife-01 FE, VW 501 01
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-30 |
5W-30
|
||
| Type | Synthetic |
Synthetic
|
||
| API | CF, SN |
CF, SN
|
||
| ACEA | A3, B4 |
A3, B4
|
||
| Manufacturer Approved | BMW Longlife-01, MB-Approval 229.5, VW 502.00, VW 505.00 |
BMW Longlife-01, MB-Approval 229.5, VW 502.00, VW 505.00
|
||
| Recomendations | BMW Longlife-01 FE, VW 501.01 |
BMW Longlife-01 FE, VW 501.01
|
||
| Density at 20 °C | g/cm³ | 850 | EN ISO 12185 |
850
g/cm³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 12.2 | DIN 51562-1 |
12.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 72.3 | DIN 51562-1 |
72.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 168 | DIN ISO 2909 |
168
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 3.57 | ASTM D5481 |
3.57
mPa*s
ASTM D5481
|
| CCS Viscosity at -30 °C | mPa*s | 5591 | ASTM D5293 |
5591
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 24.100 | ASTM D4684 |
24.100
mPa*s
ASTM D4684
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Noack Volatility | % | 8.6 | ASTM D5800 |
8.6
%
ASTM D5800
|
| Flashpoint | °C | 238 | DIN EN ISO 2592 |
238
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 10.2 | ASTM D2896 |
10.2
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.31 | DIN 51575 |
1.31
%wt.
DIN 51575
|
| Approvals | BMW Longlife-01, BMW Longlife-01 FE, MB 229.5, VW 501.01, VW 502.00, VW 505.00 |
BMW Longlife-01, BMW Longlife-01 FE, MB 229.5, VW 501.01, VW 502.00, VW 505.00
|
For mixed park
RAVENOL Turbo Plus SHPD SAE 10W-30 meets the requirements of SAE-Class 10W-30. This adjustment of viscosity also ensures a good lubricating film at high temperatures.
Compliance with the requirements:
Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3
SAE: 10W-30
Equivalents OEM:
Caterpillar 3E9844, Caterpillar 143465, Hino HRLIE10W30C, Hyundai Motor 0520000100, Hyundai Motor 0520000400, Hyundai Motor 0520000600, Hyundai XTeer 1011014, Hyundai XTeer 1061002, Nissan KLB2M10302, Nissan KLBFA10301, Nissan KLBFA10302, Nissan KLBFA10302, Nissan KLBFO10301, Nissan KLBFO10302, Nissan KLBFO10304, Nissan KLBH010302
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1123105-001
Volume:
5 L
vendor code:
1123105-005
Volume:
20 L, ecobox
vendor code:
1123105-B20
Volume:
1000 L
vendor code:
1123105-700
RAVENOL Turbo Plus SHPD SAE 10W-30 meets the requirements of SAE-Class 10W-30. This adjustment of viscosity also ensures a good lubricating film at high temperatures.
RAVENOL Turbo Plus SHPD SAE 10W-30 is particularly suitable for engines with already high performance.
Application Note
RAVENOL Turbo Plus SHPD SAE 10W-30 is approved, tried and tested for aggregates specifying:
Specifications: API CI-4/ SL, ACEA E7, E5, E3, ACEA A3/B4
Approval: YaMZ
Recommendations: Caterpillar ECF-2, TO-2; Cummins CES 20071, -72, -76, -77, -78; DAF; DDC 93K215; Deutz DQC III-10; Global DHD-1; JASO DH-1; Mack EO-N; MAN M 3275-1; MB 228.3;MTU Type 2, MTU Type 3; Renault RLD, Renault VI RLD-2; Volvo VDS 3.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF, Detroit Diesel DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, JASO DH-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Typ 2, MTU Typ 3, Renault RLD, Renault VI RLD-2, VOLVO VDS-3 |
Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF, Detroit Diesel DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, JASO DH-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Typ 2, MTU Typ 3, Renault RLD, Renault VI RLD-2, VOLVO VDS-3
|
||
| SAE | 10W-30 |
10W-30
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| API | CI-4, SL |
CI-4, SL
|
||
| ACEA | A3, B4, E3, E5, E7 |
A3, B4, E3, E5, E7
|
||
| JASO | DH-1 |
DH-1
|
||
| Recomendations | Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3 |
Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3
|
||
| Suitable for | DAF, YaMZ |
DAF, YaMZ
|
||
| Density at 20 °C | g/cm³ | 865 | EN ISO 12185 |
865
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 12 | DIN 51562-1 |
12
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 74.9 | DIN 51562-1 |
74.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 156 | DIN ISO 2909 |
156
DIN ISO 2909
|
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Flashpoint | °C | 232 | DIN EN ISO 2592 |
232
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 10.2 | ASTM D2896 |
10.2
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.4 | DIN 51575 |
1.4
%wt.
DIN 51575
|
| Approvals | Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3 |
Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3
|
- Available packaging
- Product parameters
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| SAE | 0W-30 |
0W-30
|
||
| Type | Full synthetic |
Full synthetic
|
For engine
RAVENOL HPS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.
Compliance with the requirements:
BMW Longlife-98, MB 229.3, VW 502.00, VW 505.00
SAE: 5W-30
Equivalents OEM:
Chrysler 4761838AD,
Chrysler 4761838MA,
Chrysler 4761844MA,
Honda 087989014,
Hyundai Motor 0510000110,
Hyundai Motor 0510000141,
Hyundai Motor 0510000410,
Hyundai Motor 0510000441,
Hyundai Motor 510000110,
LADA 88889M05400100,
LADA 88889M05400400,
Mazda 0000775W30QT,
Mazda 151289,
Mazda 452349R,
Mazda 452362R,
Mazda 530208TFE,
Mazda 830077281,
Mazda K004W0508C,
Mazda K004W0512J,
Mazda K020W0512J,
Mazda K020W0512J,
MB A000989510411FHFE,
MB A000989510413FHFE,
MB A000989510417FHFE,
MB A000989510419FHFE,
Mitsubishi 3601401,
Mitsubishi 3601610,
Nissan KLAM305301,
Nissan KLAM305304,
Subaru K0215Y0271,
Suzuki 9900021A40036
Chrysler 4761838AD, Chrysler 4761838MA, Chrysler 4761844MA, Honda 087989014, Hyundai Motor 0510000110, Hyundai Motor 0510000141, Hyundai Motor 0510000410, Hyundai Motor 0510000441, Hyundai Motor 510000110, LADA 88889M05400100, LADA 88889M05400400, Mazda 0000775W30QT, Mazda 151289, Mazda 452349R, Mazda 452362R, Mazda 530208TFE, Mazda 830077281, Mazda K004W0508C, Mazda K004W0512J, Mazda K020W0512J, Mazda K020W0512J, MB A000989510411FHFE, MB A000989510413FHFE, MB A000989510417FHFE, MB A000989510419FHFE, Mitsubishi 3601401, Mitsubishi 3601610, Nissan KLAM305301, Nissan KLAM305304, Subaru K0215Y0271, Suzuki 9900021A40036, Toyota 0888007705, Toyota 0888007706, Toyota 0888009105, Toyota 0888009106, Toyota 0888081015, Toyota 0888381013
- Available packaging
- Product parameters
RAVENOL HPS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.
Because of a considerable fuel saving RAVENOL HPS SAE 5W-30 contributes to protect the environment by reducing the emissions.
RAVENOL HPS SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
Suitable for extended oil change intervals where recommended by manufacturer.
Application Note
RAVENOL HPS SAE 5W-30 is low friction motor oil, which is suitable for performance motors. It is recommended for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.
Characteristics
- Fuel economy in part and full power operation.
- Very stable and excellent viscosity behaviour.
- Excellent shear stability.
- Excellent cold starting characteristics.
- A safe lubricant film at high operating temperatures.
- Excellent detergent- and dispersant characteristics.
- High wear and corrosion protection, high oxidation stability.
- Prevention of sludge formation.
- Extended lifetime because of oxidation stability.
- Suitable for catalysts.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | BMW Longlife-98, MB 229.3, VW 502 00, VW 505 00 |
BMW Longlife-98, MB 229.3, VW 502 00, VW 505 00
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-30 |
5W-30
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | CF, SL |
CF, SL
|
||
| ACEA | A3, B4 |
A3, B4
|
||
| Recomendations | BMW Longlife-98, MB 229.3, VW 502.00, VW 505.00 |
BMW Longlife-98, MB 229.3, VW 502.00, VW 505.00
|
||
| Density at 20 °C | g/cm³ | 850 | EN ISO 12185 |
850
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 12.15 | DIN 51562-1 |
12.15
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 70.9 | DIN 51562-1 |
70.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 170 | DIN ISO 2909 |
170
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 3.71 | ASTM D5481 |
3.71
mPa*s
ASTM D5481
|
| CCS Viscosity at -30 °C | mPa*s | 6140 | ASTM D5293 |
6140
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 20.800 | ASTM D4684 |
20.800
mPa*s
ASTM D4684
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Noack Volatility | % | 8.9 | ASTM D5800 |
8.9
%
ASTM D5800
|
| Flashpoint | °C | 232 | DIN EN ISO 2592 |
232
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 11 | ASTM D2896 |
11
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.18 | DIN 51575 |
1.18
%wt.
DIN 51575
|
| Approvals | BMW Longlife-98, MB 229.3, VW 502.00, VW 505.00 |
BMW Longlife-98, MB 229.3, VW 502.00, VW 505.00
|
For engine
The extremely conditioning and cleaning additives in RAVENOL SVE Standard Viscosity Ester Oil SAE 5W-30 revitalise critical engine parts and particularly protect gaskets. This can extend the life, particularly in older vehicles with high mileage.
Compliance with the requirements:
BMW Longlife-01, MB 229.5, VW 501.01, VW 502.00, VW 505.00
SAE: 5W-30
Equivalents OEM:
Chrysler 68349315AA, Chrysler 68349315AA, Chrysler 68523017AA, Chrysler 68523018AA
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1116101-020
Volume:
60 L
vendor code:
1116101-060
Volume:
208 L
vendor code:
1116101-208
The extremely conditioning and cleaning additives in RAVENOL SVE Standard Viscosity Ester Oil SAE 5W-30 revitalise critical engine parts and particularly protect gaskets. This can extend the life, particularly in older vehicles with high mileage.
RAVENOL SVE Standard Viscosity Ester Oil SAE 5W-30 features outstanding lubrication and excellent shear stability, and the added conditioners simultaneously reduce oil consumption and protect from sludge and wear.
Application Note
RAVENOL SVE Standard Viscosity Ester Oil SAE 5W-30 is perfectly suited for year-round use in high mileage petrol and diesel engines with 100,000 km and more, and promotes low oil consumption. A very clean engine is guaranteed.
RAVENOL SVE Standard Viscosity Ester Oil SAE 5W-30 extends the life of the engine in older vehicles by reducing oil consumption and protecting from sludge and wear. A very clean engine is guaranteed.
Characteristics
- High wear protection
- Fuel saving because of easy running characteristics
- Outstanding detergent and dispersant properties prevent sludge
- High oxidation stability for a long life
- Brilliant cold cranking behaviour through special additives
- Excellent viscosity-temperature behaviour
- Low vaporisation characteristics, therefore reduced oil consumption
- Suitable for catalytic converters
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | BMW Longlife-01, MB 229.5, VW 501 01, VW 502 00, VW 505 00 |
BMW Longlife-01, MB 229.5, VW 501 01, VW 502 00, VW 505 00
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-30 |
5W-30
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | CF, SN |
CF, SN
|
||
| ACEA | A3, B4 |
A3, B4
|
||
| Recomendations | BMW Longlife-01, MB 229.5, VW 501.01, VW 502.00, VW 505.00 |
BMW Longlife-01, MB 229.5, VW 501.01, VW 502.00, VW 505.00
|
||
| Density at 20 °C | g/cm³ | 850 | EN ISO 12185 |
850
g/cm³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 12.35 | DIN 51562-1 |
12.35
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 72.33 | DIN 51562-1 |
72.33
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 170 | DIN ISO 2909 |
170
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 3.57 | ASTM D5481 |
3.57
mPa*s
ASTM D5481
|
| CCS Viscosity at -30 °C | mPa*s | 5590 | ASTM D5293 |
5590
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 24.100 | ASTM D4684 |
24.100
mPa*s
ASTM D4684
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Noack Volatility | % | 9.3 | ASTM D5800 |
9.3
%
ASTM D5800
|
| Flashpoint | °C | 236 | DIN EN ISO 2592 |
236
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 9.8 | ASTM D2896 |
9.8
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.31 | DIN 51575 |
1.31
%wt.
DIN 51575
|
| Approvals | BMW Longlife-01, MB 229.5, VW 501.01, VW 502.00, VW 505.00 |
BMW Longlife-01, MB 229.5, VW 501.01, VW 502.00, VW 505.00
|
Additive
RAVENOL Professional Engine Cleaner can also be used in motorcycles.
- Available packaging
- Product parameters
RAVENOL Professional Engine Cleaner can also be used in motorcycles.
RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.
RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.
Application Note
RAVENOL Professional Engine Cleaner is added to the warm motor oil.
Area of application:
-If black sludge is suspected
-In the event of hydraulic tappets rattling
-In the event of delayed oil change
-For soiled engines or used oil
-Preventively at every oil change to avoid contamination of the engine
-Also suitable for oldtimers
Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.
Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.
RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.
Characteristics
- Long-term effectiveness and clean fresh oil
- Remedy for soiled engines
- Protection against compression loss in the area of the piston rings
- Leads to better exhaust emissions and increases the performance of the engine
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Color | Light brown | visual |
Light brown
visual
|
|
| Flashpoint (PM) | °C | 62 | DIN ISO 3679 |
62
°C
DIN ISO 3679
|
| Density at 20 °C | 805 | EN ISO 12185 |
805
EN ISO 12185
|
|
| Viscosity at 40 °C | mm²/s | 7 | DIN EN ISO 3104 |
7
mm²/s
DIN EN ISO 3104
|
| Brand | RAVENOL |
RAVENOL
|
Transmission, automatic
A750F
OEM:
35000-71400
Hydraulic fluid
RAVENOL ATF T-WS Lifetime fulfils the transmission oil specifications for latest automatic transmissions of Toyota and Aisin Warner.
Compliance with the requirements:
Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540
- Available packaging
- Product parameters
RAVENOL ATF T-WS Lifetime fulfils the transmission oil specifications for latest automatic transmissions of Toyota and Aisin Warner.
Application Note
RAVENOL ATF T-WS Lifetime is recommended for latest automatic transmissions of Toyota and Aisin Warner. LEXUS / TOYOTA: AB60F, A750E(F), U341E(F), U140E(F), U250E, U241E, U151E(F), U340E. Aisin TF-80SC (AWF21, AF40-6, AM6, AW6A-EL), TF-81SC (AF21 and AWF-21) for Alfa Romeo 159 - 1.9 JTDm, 2.4 JTDm, 3.2 JTS Alfa Romeo Brera - 2.4 JTDm, 3.2 JTS Alfa Romeo Spider - 2.4 JTDm, 3.2 JTS Cadillac BLS - 1.9 D, 1.9 D (TST), Chevrolet Cruze (US market, 2.0L Turbo Diesel), Citroën C4, Citroën C5, Citroën C6, Citroën DS4, Citroën DS5, Fiat Croma - 1.9 JTDm, 2.4 JTDm, Ford Five Handred, Ford Fusion, Ford Mondeo, Lancia Delta (2008) - 1.8 DI Turbo, Land Rover Freelander 2, Land Rover, Range Rover Evoque, Lincoln Zephyr, Lincoln MKZ, Mazda 6, Mazda CX-7, Mazda CX-9, Mazda MPV, Mercury Milan, Mercury Montego, Opel/Vauxhall Astra, Opel / Vauxhall Vectra / Signum, Opel / Vauxhall Zafira, Opel / Vauxhall Insignia, Peugeot 307, Peugeot 308, Peugeot 407, Peugeot 508, Peugeot 607, Peugeot 3008, Peugeot 5008, Renault Espace, Renault Vel Satis, Saab 9-3 - 1.9 TiD, 1.9 TTiD, Volvo C30 D3 and D4, Volvo S40 D3 and D4, Volvo V50 D3 and D4, Volvo S60 2.4D, D5, D5 AWD, T6 AWD and R AWD 06-07, 08- Volvo V60 D3, D5, D5 AWD, T6 AWD, Volvo S80 2.5T, 3.2, T6 AWD, V8 AWD, D5 and D5 AWD, Volvo V70 2.5T, 3.2, T6 AWD, 2.4D, D5, D5 AWD and R AWD 06-07, 08- Volvo XC60, Volvo XC70, Volvo XC90 3.2 and V8 AWD, Aisin TF60SN, TF61SN and TF62SN, VW 09G, 09K, 09M for Volkswagen, Audi, Skoda.
Characteristics
- phenomenal resistance of lubricant failure under hard operating conditions
- a longer oil durability, extension of the durability of the transmission, offers longer changing intervals
- phenomenal resistance of oil sludge and deposit accumulation
- an excellent oxidation resistance and thermic stability
- a superior corrosion protection, a much better foaming resistance for a smooth switching operation as well
- as a lower corrosion of the bearings, sleeves and gear wheels
- an excellent flow behaviour at low temperatures
- a more constant switching operation performance, optimised friction characteristics
- prevention of coupling grinding regarding modulation rotary conversion
- a longer durability of oil and coupling, offers a smooth switching operation at low temperatures
- an improved shear stability
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Aisin TF-80SC (AWF21, AF 40-6, AM6, AW6A-EL), Aisin TF-80SD, Aisin TF-81SC (AF21 und AWF-21), Aisin TF-82SC, Aisin TG-81SC (AWF8F35, A881F und GA8F22AW), Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW 2 Gran Tourer F46, BMW 83222355599, BMW ATF 6, BMW X1 F48, BMW X2 F39, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Fiat 9.55550-AV2, Fuzhen FA840, Geely 6608136626 ATF-GS, GM 1940773, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Land Rover LR022460, Mini Cooper F54, Mini Countryman F60, SAAB 93165147, Toyota / Lexus JWS3324, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540 A2, VW/Audi Getriebe 0C8 (Touareg 2011-Q7 2010-), Xuanfu 6AT18, Xuanfu 6AT20, Xuanfu 6AT28 |
Aisin TF-80SC (AWF21, AF 40-6, AM6, AW6A-EL), Aisin TF-80SD, Aisin TF-81SC (AF21 und AWF-21), Aisin TF-82SC, Aisin TG-81SC (AWF8F35, A881F und GA8F22AW), Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW 2 Gran Tourer F46, BMW 83222355599, BMW ATF 6, BMW X1 F48, BMW X2 F39, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Fiat 9.55550-AV2, Fuzhen FA840, Geely 6608136626 ATF-GS, GM 1940773, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Land Rover LR022460, Mini Cooper F54, Mini Countryman F60, SAAB 93165147, Toyota / Lexus JWS3324, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540 A2, VW/Audi Getriebe 0C8 (Touareg 2011-Q7 2010-), Xuanfu 6AT18, Xuanfu 6AT20, Xuanfu 6AT28
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| Recomendations | Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540 |
Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540
|
||
| Suitable for | Aisin AF21, AWF-21, Aisin AWF21, AF 40-6, AM6, AW6A-EL, Aisin AWF8F35, A881F, GA8F22AW, BMW 2 Gran Tourer F46, BMW X1 F48, BMW X2 F39, Mini Cooper F54, Mini Countryman F60, VW Getriebe 0C8 (Touareg 2011-Q7 2010-) |
Aisin AF21, AWF-21, Aisin AWF21, AF 40-6, AM6, AW6A-EL, Aisin AWF8F35, A881F, GA8F22AW, BMW 2 Gran Tourer F46, BMW X1 F48, BMW X2 F39, Mini Cooper F54, Mini Countryman F60, VW Getriebe 0C8 (Touareg 2011-Q7 2010-)
|
||
| Compliant products | BMW 83222355599, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Geely 6608136626 ATF-GS, GM 1940773, Land Rover LR022460, SAAB 93165147, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540, Xuanfu 6AT18, Xuanfu AT20, Xuanfu AT28 |
BMW 83222355599, Chrysler 05189978AA, Chrysler 05189979AA, Chrysler Mopar AS68RC, Geely 6608136626 ATF-GS, GM 1940773, Land Rover LR022460, SAAB 93165147, Toyota 00289-ATFWS, Toyota 08886-02305, Toyota 08886-81210, Volvo 31256774, Volvo 31256775, Volvo 31256776, VW G 055 540, Xuanfu 6AT18, Xuanfu AT20, Xuanfu AT28
|
||
| Density at 20 °C | g/cm³ | 838 | EN ISO 12185 |
838
g/cm³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Pourpoint | °C | -54 | DIN ISO 3016 |
-54
°C
DIN ISO 3016
|
| Approvals | Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540 |
Aisin TF-80SC, Aisin TF-80SD, Aisin TF-81SC, Aisin TF-82SC, Aisin TG-81SC, Aisin Warner Automatic Gearbox ab 2008, Aisin Warner AW-1, BMW ATF 6, Fiat 9.55550-AV2, Fuzhen FA840, Isuzu 2-90531-200-0, Isuzu 2-90531-201-0, Toyota JWS 3324, VW G 055 540
|
Transmission, automatic
RC60F
OEM:
33030-0KD60
,
33030-0KE40
For transmission
RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.
Compliance with the requirements:
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.8, MB 235.9, MB 235.11, MB 235.21, MB 235.72, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
- Available packaging
- Product parameters
RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.
Application Note
RAVENOL VSG SAE 75W-90 is excellent for use of highly stressed axle drives.
RAVENOL VSG SAE 75W-90 is suitable for synchronised and non-synchronised manual transmissions, transfer cases and ancillary transmission requiring API GL-5 or GL-4 oil.
RAVENOL VSG SAE 75W-90 is suitable for Ford-transmission IB5, B5, MTX75, GM5, MT285/6, MMT6/6, MT75, R15M-D, R15MX-D, MT82 and Porsche Full-Time Transfer Case with Torsen (PL72T) for Cayenne 92A / 958 Diesel and S Hybrid from 2010 to 2018.
Characteristics
- high additive reserves for prolonged oil change intervals according to the manufacturer specifications
- excellent cold flow properties
- best wear protection and best transmission efficiency
- Fuel savings even with short distances in low outdoor temperatures
- stable lubricating film even under high stress
- extraordinary corrosion protection and good compatibility with non-ferrous metal
- high oxidation resistance prevents oil thickening and deposits
- outstanding dirt-carrying capacity, i.e. aggregates are clean even after very long oil change intervals
- excellent elastomer compatibility to prevent leaks
- extreme shearing stability, remains within the clean oil viscosity per SAE class 75W-90 even after very long periods of use
- very high protection from rust, corrosion and foaming
- extreme low pour point
- excellent EP properties
- fuel savings
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 911 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B |
BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 911 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-90 |
75W-90
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4, GL-5 |
GL-4, GL-5
|
||
| Recomendations | BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B |
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
|
||
| Suitable for | IVECO |
IVECO
|
||
| Compliant products | BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911 |
BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911
|
||
| Density at 20 °C | g/cm³ | 839.8 | EN ISO 12185 |
839.8
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 16.8 | DIN 51562-1 |
16.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 108.8 | DIN 51562-1 |
108.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 168 | DIN ISO 2909 |
168
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 47.000 | ASTM D2983 |
47.000
mPa*s
ASTM D2983
|
| Pourpoint | °C | -57 | DIN ISO 3016 |
-57
°C
DIN ISO 3016
|
| Flashpoint | °C | 224 | DIN EN ISO 2592 |
224
°C
DIN EN ISO 2592
|
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Strip Test at 121 °C | 1a | ASTM D130 |
1a
ASTM D130
|
|
| Approvals | BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B |
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
|
Transfer case
VF2CM
OEM:
36100-0K420
,
36100-71420
For gearbox
RAVENOL MTF-3 SAE 75W is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
Compliance with the requirements:
BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1221104-020
Volume:
60 L, print
vendor code:
1221104-D60
Volume:
208 L
vendor code:
1221104-208
Volume:
208 L, print
vendor code:
1221104-D28
Volume:
1000 L
vendor code:
1221104-700
RAVENOL MTF-3 SAE 75W is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
RAVENOL MTF-3 SAE 75W is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.
Application Note
RAVENOL MTF-3 SAE 75W is a full synthetic transmission oil for manual transmissions.
Characteristics
- A high pressure stable lubricating film even at high oil temperatures and under high stress.
- Outstanding shearing stability and excellent thermal stability.
- Excellent viscosity-temperature properties.
- High oxidation stability.
- Excellent wear protection, outstanding EP properties.
- Low foaming properties even at high speeds.
- Good shifting behaviour even in low temperatures, extremely low pour point.
- Extended life.
- A stable lubricating film even at high oil temperatures and under high stress.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | AC Delco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83220396706 MTF-LT-3, BMW 83227533818 MTF-LT-3, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C200-D2, Ford WSS-M2C200-D3, Ford WSS-M2C200-E1, GM 19259104, GM 19259105, GM 1940004, JWS 2271, MB 235.10, Mercedes A 001 989 840 309, Opel B0402167, PSA 9730A8, PSA B71 2310, PSA B71 2316, PSA B71 2317, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317 A2, VW G 052 171 A2, VW G 052 512 A2, VW G 052 527 A2, VW G 055 512 A2, VW G 055 532 A2, VW G 070 726 A2, VW G F53 061 M2, VW/Audi G 060 726 A2 |
AC Delco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83220396706 MTF-LT-3, BMW 83227533818 MTF-LT-3, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C200-D2, Ford WSS-M2C200-D3, Ford WSS-M2C200-E1, GM 19259104, GM 19259105, GM 1940004, JWS 2271, MB 235.10, Mercedes A 001 989 840 309, Opel B0402167, PSA 9730A8, PSA B71 2310, PSA B71 2316, PSA B71 2317, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317 A2, VW G 052 171 A2, VW G 052 512 A2, VW G 052 527 A2, VW G 055 512 A2, VW G 055 532 A2, VW G 070 726 A2, VW G F53 061 M2, VW/Audi G 060 726 A2
|
||
| SAE | 75W |
75W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4 |
GL-4
|
||
| Recomendations | BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2 |
BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2
|
||
| Compliant products | AcDelco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83227533818, GM 19259104, GM 19259105, GM 1940004, MB A 001 989 840 309, PSA 9730.A8, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726 |
AcDelco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83227533818, GM 19259104, GM 19259105, GM 1940004, MB A 001 989 840 309, PSA 9730.A8, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726
|
||
| Density at 20 °C | g/cm³ | 840 | EN ISO 12185 |
840
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.4 | DIN 51562-1 |
7.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 35.1 | DIN 51562-1 |
35.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 184 | DIN ISO 2909 |
184
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 8.800 | ASTM D2983 |
8.800
mPa*s
ASTM D2983
|
| Pourpoint | °C | -48 | DIN ISO 3016 |
-48
°C
DIN ISO 3016
|
| Flashpoint | °C | 216 | DIN EN ISO 2592 |
216
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2 |
BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2
|
Differential, rear BD20
For gearbox
RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
Compliance with the requirements:
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
- Available packaging
- Product parameters
Volume:
60 L, print
vendor code:
1221102-D60
Volume:
208 L, print
vendor code:
1221102-D28
Volume:
1000 L
vendor code:
1221102-700
RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
RAVENOL MTF-1 SAE 75W-85 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.
Application Note
RAVENOL MTF-1 SAE 75W-85 is high-performance gear oil for manual transmission, transfer cases and differential gears.
Characteristics
- Excellent thermal stability.
- High protection from rust, corrosion, foaming.
- Low solidification point.
- Excellent EP properties.
- Good shifting behavior in low temperatures.
- Extended life.
- Fuel savings.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513 |
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513
|
||
| SAE | 75W-85 |
75W-85
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4, GL-5 |
GL-4, GL-5
|
||
| Recomendations | DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513 |
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
|
||
| Compliant products | GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060 |
GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060
|
||
| Density at 20 °C | g/cm³ | 855 | EN ISO 12185 |
855
g/cm³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 38.800 | ASTM D2983 |
38.800
mPa*s
ASTM D2983
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513 |
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
|
Differential, rear
BD22
OEM:
41101-0K070 / 41101-0K110
,
41101-0K120 / 41110-0K580
,
41110-0K680 / 41110-0K730
,
41201-09B70 / 41201-09E50 / 41201-09E50
For gearbox
RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
Compliance with the requirements:
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
- Available packaging
- Product parameters
Volume:
60 L, print
vendor code:
1221102-D60
Volume:
208 L, print
vendor code:
1221102-D28
Volume:
1000 L
vendor code:
1221102-700
RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
RAVENOL MTF-1 SAE 75W-85 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.
Application Note
RAVENOL MTF-1 SAE 75W-85 is high-performance gear oil for manual transmission, transfer cases and differential gears.
Characteristics
- Excellent thermal stability.
- High protection from rust, corrosion, foaming.
- Low solidification point.
- Excellent EP properties.
- Good shifting behavior in low temperatures.
- Extended life.
- Fuel savings.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513 |
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513
|
||
| SAE | 75W-85 |
75W-85
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4, GL-5 |
GL-4, GL-5
|
||
| Recomendations | DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513 |
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
|
||
| Compliant products | GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060 |
GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060
|
||
| Density at 20 °C | g/cm³ | 855 | EN ISO 12185 |
855
g/cm³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 38.800 | ASTM D2983 |
38.800
mPa*s
ASTM D2983
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513 |
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
|
Differential, rear Dana
For gearbox
RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
Compliance with the requirements:
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
- Available packaging
- Product parameters
Volume:
60 L, print
vendor code:
1221102-D60
Volume:
208 L, print
vendor code:
1221102-D28
Volume:
1000 L
vendor code:
1221102-700
RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
RAVENOL MTF-1 SAE 75W-85 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.
Application Note
RAVENOL MTF-1 SAE 75W-85 is high-performance gear oil for manual transmission, transfer cases and differential gears.
Characteristics
- Excellent thermal stability.
- High protection from rust, corrosion, foaming.
- Low solidification point.
- Excellent EP properties.
- Good shifting behavior in low temperatures.
- Extended life.
- Fuel savings.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513 |
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513
|
||
| SAE | 75W-85 |
75W-85
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4, GL-5 |
GL-4, GL-5
|
||
| Recomendations | DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513 |
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
|
||
| Compliant products | GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060 |
GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060
|
||
| Density at 20 °C | g/cm³ | 855 | EN ISO 12185 |
855
g/cm³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 38.800 | ASTM D2983 |
38.800
mPa*s
ASTM D2983
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513 |
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
|
Differential, rear with lock mechanism BD22
For gearbox
RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
Compliance with the requirements:
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
- Available packaging
- Product parameters
Volume:
60 L, print
vendor code:
1221102-D60
Volume:
208 L, print
vendor code:
1221102-D28
Volume:
1000 L
vendor code:
1221102-700
RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
RAVENOL MTF-1 SAE 75W-85 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.
Application Note
RAVENOL MTF-1 SAE 75W-85 is high-performance gear oil for manual transmission, transfer cases and differential gears.
Characteristics
- Excellent thermal stability.
- High protection from rust, corrosion, foaming.
- Low solidification point.
- Excellent EP properties.
- Good shifting behavior in low temperatures.
- Extended life.
- Fuel savings.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513 |
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513
|
||
| SAE | 75W-85 |
75W-85
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4, GL-5 |
GL-4, GL-5
|
||
| Recomendations | DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513 |
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
|
||
| Compliant products | GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060 |
GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060
|
||
| Density at 20 °C | g/cm³ | 855 | EN ISO 12185 |
855
g/cm³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 38.800 | ASTM D2983 |
38.800
mPa*s
ASTM D2983
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513 |
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
|
Differential, rear with lock mechanism Dana
For gearbox
RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
Compliance with the requirements:
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
- Available packaging
- Product parameters
Volume:
60 L, print
vendor code:
1221102-D60
Volume:
208 L, print
vendor code:
1221102-D28
Volume:
1000 L
vendor code:
1221102-700
RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
RAVENOL MTF-1 SAE 75W-85 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.
Application Note
RAVENOL MTF-1 SAE 75W-85 is high-performance gear oil for manual transmission, transfer cases and differential gears.
Characteristics
- Excellent thermal stability.
- High protection from rust, corrosion, foaming.
- Low solidification point.
- Excellent EP properties.
- Good shifting behavior in low temperatures.
- Extended life.
- Fuel savings.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513 |
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513
|
||
| SAE | 75W-85 |
75W-85
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4, GL-5 |
GL-4, GL-5
|
||
| Recomendations | DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513 |
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
|
||
| Compliant products | GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060 |
GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060
|
||
| Density at 20 °C | g/cm³ | 855 | EN ISO 12185 |
855
g/cm³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 38.800 | ASTM D2983 |
38.800
mPa*s
ASTM D2983
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513 |
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
|
Differential, front without A. D. D. (automatic unlock)
For gearbox
RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
Compliance with the requirements:
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
- Available packaging
- Product parameters
Volume:
60 L, print
vendor code:
1221102-D60
Volume:
208 L, print
vendor code:
1221102-D28
Volume:
1000 L
vendor code:
1221102-700
RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
RAVENOL MTF-1 SAE 75W-85 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.
Application Note
RAVENOL MTF-1 SAE 75W-85 is high-performance gear oil for manual transmission, transfer cases and differential gears.
Characteristics
- Excellent thermal stability.
- High protection from rust, corrosion, foaming.
- Low solidification point.
- Excellent EP properties.
- Good shifting behavior in low temperatures.
- Extended life.
- Fuel savings.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513 |
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513
|
||
| SAE | 75W-85 |
75W-85
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4, GL-5 |
GL-4, GL-5
|
||
| Recomendations | DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513 |
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
|
||
| Compliant products | GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060 |
GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060
|
||
| Density at 20 °C | g/cm³ | 855 | EN ISO 12185 |
855
g/cm³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 38.800 | ASTM D2983 |
38.800
mPa*s
ASTM D2983
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513 |
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
|
Differential, front with A. D. D. (automatic unlock)
For gearbox
RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
Compliance with the requirements:
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
- Available packaging
- Product parameters
Volume:
60 L, print
vendor code:
1221102-D60
Volume:
208 L, print
vendor code:
1221102-D28
Volume:
1000 L
vendor code:
1221102-700
RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
RAVENOL MTF-1 SAE 75W-85 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.
Application Note
RAVENOL MTF-1 SAE 75W-85 is high-performance gear oil for manual transmission, transfer cases and differential gears.
Characteristics
- Excellent thermal stability.
- High protection from rust, corrosion, foaming.
- Low solidification point.
- Excellent EP properties.
- Good shifting behavior in low temperatures.
- Extended life.
- Fuel savings.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513 |
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513
|
||
| SAE | 75W-85 |
75W-85
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4, GL-5 |
GL-4, GL-5
|
||
| Recomendations | DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513 |
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
|
||
| Compliant products | GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060 |
GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060
|
||
| Density at 20 °C | g/cm³ | 855 | EN ISO 12185 |
855
g/cm³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 38.800 | ASTM D2983 |
38.800
mPa*s
ASTM D2983
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513 |
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
|
Power steering
For automatic transmission
Application NoteRAVENOL ATF Dexron D II was developed for the use in automatic transmissions, hydro steering mechanisms, converters and power transmissions and can be used as a universal ATF (Automatic-Transmission-Fluid) for all vehicles and working machines.
Manufacturer Approved:
Voith H55.6335.xx
Compliance with the requirements:
Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
- Available packaging
- Product parameters
Application Note
RAVENOL ATF Dexron D II was developed for the use in automatic transmissions, hydro steering mechanisms, converters and power transmissions and can be used as a universal ATF (Automatic-Transmission-Fluid) for all vehicles and working machines.
Characteristics
- protection against corrosion, sludge and sticking
- an excellent and very shear stable viscosity temperature behaviour
- no problems concerning very low respectively very high temperatures
- an excellent high thermal capacity
- free of foam even under hardest loads
- neutral behaviour against sealing materials
- mixable and compatible with all kinds of ATF
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| ATF | Dexron D II |
Dexron D II
|
||
| Recommendations | Caterpillar TO-2, CVT, DTFR 13C140 (MB 236.7), Ford M2C-138 CJ, Ford M2C-166H, Ford M2C-185A, Ford MERCON®, Ford SQM-9010B, MAN 339 Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C |
Caterpillar TO-2, CVT, DTFR 13C140 (MB 236.7), Ford M2C-138 CJ, Ford M2C-166H, Ford M2C-185A, Ford MERCON®, Ford SQM-9010B, MAN 339 Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| Manufacturer Approved | Voith H55.6335.xx |
Voith H55.6335.xx
|
||
| Recomendations | Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C |
Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
|
||
| specification | Allison C-3, Allison C-4, GM Dexron® II D |
Allison C-3, Allison C-4, GM Dexron® II D
|
||
| Suitable for | CVT |
CVT
|
||
| Density at 20 °C | g/cm³ | 848 | EN ISO 12185 |
848
g/cm³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.3 | DIN 51562-1 |
7.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 34.3 | DIN 51562-1 |
34.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 185 | DIN ISO 2909 |
185
DIN ISO 2909
|
|
| Pourpoint | °C | -51 | DIN ISO 3016 |
-51
°C
DIN ISO 3016
|
| Flashpoint | °C | 210 | DIN EN ISO 2592 |
210
°C
DIN EN ISO 2592
|
| Approvals | Allison C-3, Allison C-4, Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, GM Dexron® II D, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, Voith H55.6335.xx, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C |
Allison C-3, Allison C-4, Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, GM Dexron® II D, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, Voith H55.6335.xx, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
|
For automatic transmission
RAVENOL ATF DEXRON III H is universal ATF (Automatic Transmission Fluid) for all automatic transmission with and without controlled torque converter lockup clutch (so-called GKÜB = gear-clutch-lock) which are required for the transmission fluid type Dexron III H.
Manufacturer Approved:
Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B
Compliance with the requirements:
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.5, MB 236.6, MB 236.9, MB 236.10, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
- Available packaging
- Product parameters
RAVENOL ATF DEXRON III H is universal ATF (Automatic Transmission Fluid) for all automatic transmission with and without controlled torque converter lockup clutch (so-called GKÜB = gear-clutch-lock) which are required for the transmission fluid type Dexron III H.
Application Note
RAVENOL ATF DEXRON III H was developed for use in automatic transmissions with electronically controlled converter lockup clutch.
RAVENOL ATF DEXRON III H is especially suitable for use in transmissions with ATF Dexron III H specification.
RAVENOL ATF DEXRON III H is backwards compatible and can be used in transmissions with specification ATF Dexron F III.
RAVENOL ATF DEXRON III H is mixable with all ATF brands. It is advised to rinse with RAVENOL ATF DEXRON III H before, beforehand the final filling with RAVENOL ATF DEXRON III H is made.
Characteristics
- Very good lubricating properties even at low temperatures in winter
- High and stable viscosity index
- Very low flow point
- Excellent oxidation stability
- Extensive protection against wear, corrosion and foaming
- Well-tuned friction properties
- Neutral behaviour towards sealing materials
- Neutral behaviour by inhibition towards non-ferrous metals
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| ATF | Dexron III H |
Dexron III H
|
||
| Recommendations | Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON® M-940717, MAN 339 L1, MAN 339 V1, MAN 339 Z1, MAN 339 Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Nissan, Volvo 1161521, Volvo 1161621, VOLVO Transmission Oil 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C |
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON® M-940717, MAN 339 L1, MAN 339 V1, MAN 339 Z1, MAN 339 Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Nissan, Volvo 1161521, Volvo 1161621, VOLVO Transmission Oil 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| Manufacturer Approved | Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B |
Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B
|
||
| Recomendations | Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C |
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
|
||
| specification | Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H |
Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H
|
||
| Suitable for | Nissan |
Nissan
|
||
| Compliant products | Volvo 1161521, Volvo 1161621 |
Volvo 1161521, Volvo 1161621
|
||
| Density at 20 °C | g/cm³ | 847 | EN ISO 12185 |
847
g/cm³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.2 | DIN 51562-1 |
7.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 33.9 | DIN 51562-1 |
33.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 185 | DIN ISO 2909 |
185
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 14.200 | ASTM D2983 |
14.200
mPa*s
ASTM D2983
|
| Pourpoint | °C | -51 | DIN ISO 3016 |
-51
°C
DIN ISO 3016
|
| Flashpoint | °C | 210 | DIN EN ISO 2592 |
210
°C
DIN EN ISO 2592
|
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| tbn | mgKOH/g | 1.8 | ASTM D2896 |
1.8
mgKOH/g
ASTM D2896
|
| Approvals | Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B |
Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B
|
Hydraulic brake system
For brake system
Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.
- Available packaging
- Product parameters
DOT 4
Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.
Application Note
RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.
RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.
RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).
FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.
STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.
Dispose of used brake fluid responsibly (EU waste code 160113).
Brake fluid damages paint work –if spilt wash off immediately with plenty of water.
Characteristics
- optimum ABS characteristics
- chemical stability
- best lubrication efficiency
- neutral behaviour regarding brake parts
- low viscosity at low temperatures
- miscible with all brake fluids of the same specifications
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| FMVSS 116 specifications (DOT) | DOT-4 |
DOT-4
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| specification | DOT 4, ISO 4925 Class 4, SAE J 1704 |
DOT 4, ISO 4925 Class 4, SAE J 1704
|
||
| Density at 20 °C | g/cm³ | 1052 | EN ISO 12185 |
1052
g/cm³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mPa*s | 2.41 | ASTM D445 |
2.41
mPa*s
ASTM D445
|
| Viscosity at -40 °C | cSt | 1340 | ASTM D445 |
1340
cSt
ASTM D445
|
| Boiling point | °C | 271 | FMVSS 116 |
271
°C
FMVSS 116
|
| Wet Equilibrium Reflux Boiling Point | °C | 169 | FMVSS 116 |
169
°C
FMVSS 116
|
| High Temperature Stability | °C | -1 | FMVSS 116 |
-1
°C
FMVSS 116
|
| Chemical Stability | °C | 1 | FMVSS 116 |
1
°C
FMVSS 116
|
| Evaporation | %w/w | 61 | FMVSS 116 |
61
%w/w
FMVSS 116
|
| Fluidity & Appearance at -40 °C | i.O., 4s | FMVSS 116 |
i.O., 4s
FMVSS 116
|
|
| Fluidity & Appearance at -50 °C | i.O., 8s | FMVSS 116 |
i.O., 8s
FMVSS 116
|
|
| Water Tolerance at -40 °C | transparent, 3s | FMVSS 116 |
transparent, 3s
FMVSS 116
|
|
| Water Tolerance at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at -40 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Water content | % | — 0.2 | DIN 51777-1 |
— 0.2
%
DIN 51777-1
|
| Tinned Iron | Δ mg/cm² | 0.04 | FMVSS 116 |
0.04
Δ mg/cm²
FMVSS 116
|
| Steel | mg/cm² | -0.01 | FMVSS 116 |
-0.01
mg/cm²
FMVSS 116
|
| Aluminium | mg/cm² | 0.02 | FMVSS 116 |
0.02
mg/cm²
FMVSS 116
|
| Cast Iron | Δ mg/cm² | -0,03 | FMVSS 116 |
-0,03
Δ mg/cm²
FMVSS 116
|
| Brass | mg/cm² | -0.08 | FMVSS 116 |
-0.08
mg/cm²
FMVSS 116
|
| Copper | mg/cm² | -0.05 | FMVSS 116 |
-0.05
mg/cm²
FMVSS 116
|
| Zinc | mg/cm² | 0.01 | FMVSS 116 |
0.01
mg/cm²
FMVSS 116
|
| Sediment | % | — 0.05 | FMVSS 116 |
— 0.05
%
FMVSS 116
|
| pH - value | 8.2 | FMVSS 116 |
8.2
FMVSS 116
|
|
| Rubber Diameter Change | 0.16 | FMVSS 116 |
0.16
FMVSS 116
|
|
| Hardness Change | °IRHD | -4 | FMVSS 116 |
-4
°IRHD
FMVSS 116
|
| Appearance | i.O. | FMVSS 116 |
i.O.
FMVSS 116
|
|
| SBR at 70 °C | mm | 0.56 | FMVSS 116 |
0.56
mm
FMVSS 116
|
| SBR at 120 °C | mm | 0.73 | FMVSS 116 |
0.73
mm
FMVSS 116
|
| EPDM at 70 °C (as required by SAE J1703) | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| EPDM at 120 °C | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| Natural at 70 °C (as required by ISO 4925) | mm | 0.38 | FMVSS 116 |
0.38
mm
FMVSS 116
|
| Approvals | DOT 4, ISO 4925 Class 4, SAE J 1704 |
DOT 4, ISO 4925 Class 4, SAE J 1704
|
Cooling system
OEM:
16400-0L450
Coolant
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
Compliance with the requirements:
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.
- Available packaging
- Product parameters
Volume:
10 L
vendor code:
1410110-010
Volume:
60 L, plastic
vendor code:
-
Code:
4014835755437
Volume:
60 L, print
vendor code:
1410110-D60
Volume:
1000 L
vendor code:
1410110-700
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
RAVENOL OTC Organic Techn. Coolant Concentrate C12+ protects the cooling system from rust, frost, and in summer, from overheating.
Application Note
RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with highly effective frost and rust protection. Usable in cooling systems with all-aluminium engines. Mix according to chart. Follow manufacturer's recommendations.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Clean cooling system, check for leaks, flush.
Mix RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.
RAVENOL OTC Organic Techn. Coolant Concentrate C12+ can also be used in geothermal probes and geothermal collectors as recommended list of LAWA (Federal / State Working Group on Water in Germany).
MAN information for use:
Mixing prohibited with Type NF and Type N. Do not use silicone radiator hoses per MAN 334 Type 3 (blue) with coolants per MAN 324 Type SNF.
| Table of mixing ratios | ||
|---|---|---|
| Antifreeze protection until | Parts Antifreeze | Parts Water |
| -20°C | 35% | 65% |
| -37°C | 50% | 50% |
| -50°C | 60% | 40% |
Characteristics
- Excellent for light metal engines
- Good reserve alkalinity
- Premium corrosion additives for optimal rust protection for all metals and metal alloys used in cool
- systems, including aluminium
- Prevents sediments and foaming in the cooling system
- Compatible with elastomers used in automotive radiators
- Can be mixed with other coolant types
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+) |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
|
||
| Suitable for | Jaguar Land Rover STJLR.651.5003, Porsche |
Jaguar Land Rover STJLR.651.5003, Porsche
|
||
| Compliant products | Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F |
Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
|
||
| Density at 20 °C | g/cm³ | 1130 | EN ISO 12185 |
1130
g/cm³
EN ISO 12185
|
| Color | Violet | visual |
Violet
visual
|
|
| Reserve alkalinity | mgKOH/g | 5.5 — | ASTM D1120 |
5.5 —
mgKOH/g
ASTM D1120
|
| Boiling point | °C | 187 | ASTM D1121 |
187
°C
ASTM D1121
|
| Water content | % | — 5 | ASTM D1123 |
— 5
%
ASTM D1123
|
| Flashpoint | °C | 110 — | DIN 51758 |
110 —
°C
DIN 51758
|
| Freezing point (50 % solution) | °C | -37 | ASTM D1177 |
-37
°C
ASTM D1177
|
| pH - value at 20 °C (50 Vol %) | 7,5 - 8,5 | ASTM D1287 |
7,5 - 8,5
ASTM D1287
|
|
| Approvals | DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F |
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
|
For batteries
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
Compliance with the requirements:
DIN 43530-4, DIN EN 50272
Equivalents OEM:
BMW 83190394350, BMW 83190394350
- Available packaging
- Product parameters
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.
RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.
Application Note
RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser |
DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
||
| Approvals | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
Additive
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
Equivalents OEM:
Ford MP14300500AB
- Available packaging
- Product parameters
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.
Application Note
RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.
Area of application:
Radiator repairs
In the event of reduced radiator performance
In the event of deposits in the cooling system
Changing coolant
For cleaning purposes after engine repairs due to oil in the cooling system
Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.
Fill in
RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.
RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.
Characteristics
- Cleaning of the cooling and heating system
- Protection of the new coolant against prior contamination
- Elimination of sludge and corrosion residue
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Color | Colorless | visual |
Colorless
visual
|
|
| Density at 20 °C | g/cm³ | 1003 | EN ISO 12185 |
1003
g/cm³
EN ISO 12185
|
| pH - value at 20 °C | 10,25 | DIN 19268 |
10,25
DIN 19268
|
|
| Brand | RAVENOL |
RAVENOL
|
