Oil for Zotye - Nomad / Nomade / RX6400 - 1.5 2WD (4G15) (94 hp) (69 kW)

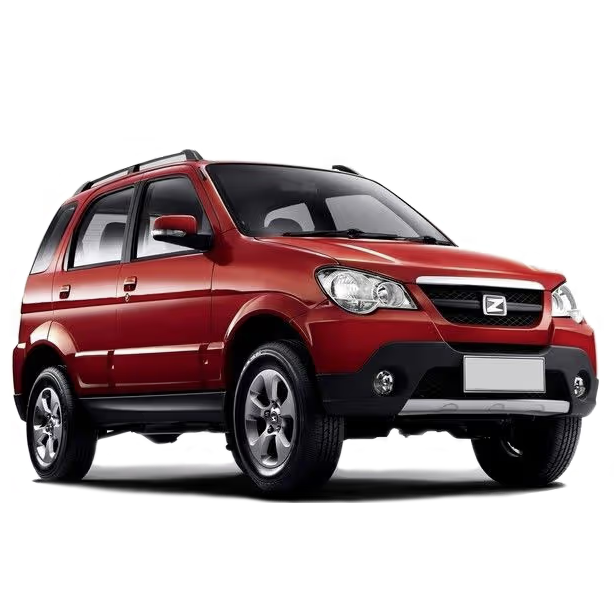

Zotye Nomad / Nomade / RX6400 1.5 2WD (4G15) (94 hp) (69 kW), year of issue from 2005 date to 2016 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Add to Garage

Nodes and assemblies

Engine 4G15
Mechanical gearbox in a unit with final drive 5/1
CVT gearbox in a unit with final drive 1/1
Hydraulic brake system
Cooling system

Engine 4G15

Liquid volume (basic): 4.2 L

VollSynth Turbo VST 5W-40

For engine

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
BMW Longlife-01, MB-Approval 229.5, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296

show details

SAE: 5W-40

API: SN Plus, SP

ACEA: A3, B4

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111136-001

Code:
4014835790117

Volume:
4 L

vendor code:
1111136-004

Code:
4014835790193

Volume:
5 L

vendor code:
1111136-005

Code:
4014835790155

Volume:
10 L

vendor code:
1111136-010

Code:
4014835790148

Volume:
20 L, ecobox

vendor code:
1111136-B20

Code:
4014835790223

Volume:
60 L

vendor code:
1111136-060

Volume:
60 L, print

vendor code:
1111136-D60

Code:
4014835790131

Volume:
208 L

vendor code:
1111136-208

Volume:
208 L, print

vendor code:
1111136-D28

Code:
4014835798502

Volume:
1000 L

vendor code:
1111136-700

Volume:
20 L

vendor code:
1111136-020

Code:
4014835798526

RAVENOL VollSynth Turbo VST SAE 5W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL VollSynth Turbo VST SAE 5W-40 guarantees operational safety concerning all driving conditions as for example regarding extreme stop and go traffic as well as high speed drives on motorways.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL VollSynth Turbo VST SAE 5W-40 is suitable for the energy saving operation all the year of all modern cars with petrol and diesel engines in passenger cars, vans, small transporters and similar vehicles and was specially developed for turbo chargers as well as the catalytic operation.

Characteristics

High abrasion resistance.
Fuel saving because of easy running characteristics.
Excellent detergent and dispersant characteristics.
Prevention of black sludge creation.
Long endurance because of high oxidation stability.
Excellent cold start performance.
Very good viscosity temperature behaviour.
Low evaporation.
Suitable for catalysts.

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-12991 (MS-10896), Fiat 9.55535-Z2, MB 226.5, MB 229.3, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-12991 (MS-10896), Fiat 9.55535-Z2, MB 226.5, MB 229.3, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296
Brand		RAVENOL		RAVENOL
SAE		5W-40		5W-40
Type		Full synthetic		Full synthetic
API		SN Plus, SP		SN Plus, SP
ACEA		A3, B4		A3, B4
Manufacturer Approved		BMW Longlife-01, MB-Approval 229.5, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00		BMW Longlife-01, MB-Approval 229.5, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
Recomendations		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296
Density at 20 °C	g/cm³	848	EN ISO 12185	848 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	13.5	DIN 51562-1	13.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	79.4	DIN 51562-1	79.4 mm²/s DIN 51562-1
Viscosity Index VI		174	DIN ISO 2909	174 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.9	ASTM D5481	3.9 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4700	ASTM D5293	4700 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	13.900	ASTM D4684	13.900 mPa*s ASTM D4684
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Noack Volatility	%	7.3	ASTM D5800	7.3 % ASTM D5800
Flashpoint	°C	236	DIN EN ISO 2592	236 °C DIN EN ISO 2592
tbn	mgKOH/g	11.9	ASTM D2896	11.9 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.1	DIN 51575	1.1 %wt. DIN 51575
Approvals		BMW Longlife-01, Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, MB 229.5, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, MB 229.5, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

SSO 0W-30

Engine oil

Manufacturer Approved:
BMW Longlife-98, MB-Approval 229.5, Renault RN 0710, Volvo VCC 95200356 - Service Fill, VW 502.00, VW 505.00

Compliance with the requirements:
BMW Longlife-01, GM GM-LL-A-025, GM GM-LL-B-025, Renault RN 0700, VW 503.01

show details

SAE: 0W-30

API: CF, SN

ACEA: A3, B4

Equivalents OEM:
Alpine 0100241, Alpine 0100242, Alpine 0100243, Alpine 0100244, Alpine 0100245, Alpine 0100248, Alpine 100241, Alpine 100242, Alpine 100243, Alpine 100244, Alpine 100245, BMW 83122219738, BMW 83122219739, BMW 83210144462, BMW 83210144464, BMW 83210144467, BMW 83212365953, BMW 83212405630, BMW 83212405636, BMW 83212405849, BMW 83212405945, BMW 83212410200, BMW 83212410201, BMW 83212410731, BMW 83212420599, BMW 83212420694, BMW 83212420694, Ford CXO0W30LAS12, Mitsubishi MZ320753, Mitsubishi MZ320754, Mitsubishi MZ320755 Alpine 0100241, Alpine 0100242, Alpine 0100243, Alpine 0100244, Alpine 0100245, Alpine 0100248, Alpine 100241, Alpine 100242, Alpine 100243, Alpine 100244, Alpine 100245, BMW 83122219738, BMW 83122219739, BMW 83210144462, BMW 83210144464, BMW 83210144467, BMW 83212365953, BMW 83212405630, BMW 83212405636, BMW 83212405849, BMW 83212405945, BMW 83212410200, BMW 83212410201, BMW 83212410731, BMW 83212420599, BMW 83212420694, BMW 83212420694, Ford CXO0W30LAS12, Mitsubishi MZ320753, Mitsubishi MZ320754, Mitsubishi MZ320755, Mitsubishi MZ321032, Mitsubishi MZ321033, Nissan KE90090132, Nissan KE90090132R, Pentosin 1000117, Toyota 0888080360, Toyota 0888080360GO, Toyota 0888080365, Toyota 0888080365G0, Toyota 0888080365GO, Toyota 0888080366, Toyota 0888080366GO, Toyota 0888082645GO, VAG G055195M4, VAG GE55167C2, VAG GR55167M2, Volvo 1161830, Volvo 1161831, Volvo 1161832

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111100-001

Code:
4014835718319

Volume:
4 L

vendor code:
1111100-004

Code:
4014835718395

Volume:
5 L

vendor code:
1111100-005

Code:
4014835718357

Volume:
10 L

vendor code:
1111100-010

Code:
4014835718340

Volume:
20 L

vendor code:
1111100-020

Code:
4014835718326

Volume:
20 L, ecobox

vendor code:
1111100-B20

Code:
4014835772427

Volume:
60 L

vendor code:
1111100-060

Volume:
60 L, print

vendor code:
1111100-D60

Code:
4014835718333

Volume:
208 L, print

vendor code:
1111100-D28

Code:
4014835718302

Volume:
208 L

vendor code:
1111100-208

Code:
4014835718388

Volume:
1000 L

vendor code:
1111100-700

With its new formulation, RAVENOL SSO SAE 0W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL SSO SAE 0W-30 helps to protect the environment by reducing emissions.

RAVENOL SSO SAE 0W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics. Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL SSO SAE 0W-30 is universal, fuel-efficient engine oil. It is a premium product for gasoline and diesel engine passenger cars. Suitable for all petrol and diesel passenger cars with and without turbo charger, especially recommended for full synthetic all-season motor oils.

Characteristics

Universal application in all modern petrol and diesel engines.
Quick lubrication of the engine even at temperatures below -30 °C.
Low evaporation tendency, therefore a lower oil consumption.
Safety against accumulation of sludge, coking and corrosion even under unfavourable operating conditions.
Guarantee of the function of the hydro tappets at all temperatures.
No oil limited deposits in combustion chambers, at the piston ring and valves.
Unchanged viscosity during the whole oil change interval, high viscosity index.
Neutral against sealing materials.
Miscibility with all commercially available engine oils. Flushing is not required.

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-01, GM-LL-A-025, GM-LL-B-025, Renault RN0700, VW 503 01		BMW Longlife-01, GM-LL-A-025, GM-LL-B-025, Renault RN0700, VW 503 01
Brand		RAVENOL		RAVENOL
SAE		0W-30		0W-30
Type		Full synthetic		Full synthetic
API		CF, SN		CF, SN
ACEA		A3, B4		A3, B4
Manufacturer Approved		BMW Longlife-98, MB-Approval 229.5, Renault RN 0710, Volvo VCC 95200356 - Service Fill, VW 502.00, VW 505.00		BMW Longlife-98, MB-Approval 229.5, Renault RN 0710, Volvo VCC 95200356 - Service Fill, VW 502.00, VW 505.00
Recomendations		BMW Longlife-01, GM GM-LL-A-025, GM GM-LL-B-025, Renault RN 0700, VW 503.01		BMW Longlife-01, GM GM-LL-A-025, GM GM-LL-B-025, Renault RN 0700, VW 503.01
Density at 20 °C	g/cm³	843	EN ISO 12185	843 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12	DIN 51562-1	12 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	60.9	DIN 51562-1	60.9 mm²/s DIN 51562-1
Viscosity Index VI		198	DIN ISO 2909	198 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.57	ASTM D5481	3.57 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5580	ASTM D5293	5580 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	16.300	ASTM D4684	16.300 mPa*s ASTM D4684
Pourpoint	°C	-60	DIN ISO 3016	-60 °C DIN ISO 3016
Noack Volatility	%	9.2	ASTM D5800	9.2 % ASTM D5800
Flashpoint	°C	236	DIN EN ISO 2592	236 °C DIN EN ISO 2592
tbn	mgKOH/g	12.5	ASTM D2896	12.5 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.3	DIN 51575	1.3 %wt. DIN 51575
Approvals		BMW Longlife-01, BMW Longlife-98, GM GM-LL-A-025, GM GM-LL-B-025, MB 229.5, Renault RN0700, Renault RN0710, Volvo VCC 95200356 - Service Fill, VW 502.00, VW 503.01, VW 505.00		BMW Longlife-01, BMW Longlife-98, GM GM-LL-A-025, GM GM-LL-B-025, MB 229.5, Renault RN0700, Renault RN0710, Volvo VCC 95200356 - Service Fill, VW 502.00, VW 503.01, VW 505.00

FDS 5W-30

For engine

Manufacturer Approved:
Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB-Approval 229.6, Renault RN 0700

Compliance with the requirements:
Fiat 9.55535-G1, Ford WSS-M2C 913-C, VWC 53036

show details

SAE: 5W-30

API: CF, SP

ACEA: A5, A7, B5, B7

Equivalents OEM:
Alpine 0100181, Alpine 0100182, Alpine 100181, Alpine 100182, Alpine 100189, Ford 14E8B9, Ford 14E8BA, Ford 14E9EC, Ford 14E9ED, Ford 15CF53, Ford 15CF54, Ford 15D5E4, Ford 15D5E7, Ford 15D5E9, Ford 151FF2, Ford 151FF2, Ford 151FF3, Ford 151FF5, Ford 155D3A, Ford 155D4A, Ford 155D4B, Ford 1515DA, Ford 15594D, Ford 15595E, Ford 15595F, Ford 1370044, GM 12345885, Hyundai Motor 0510000141, Hyundai Motor 0510000441, Land Rover STC50527, Mazda 053001TFE Alpine 0100181, Alpine 0100182, Alpine 100181, Alpine 100182, Alpine 100189, Ford 14E8B9, Ford 14E8BA, Ford 14E9EC, Ford 14E9ED, Ford 15CF53, Ford 15CF54, Ford 15D5E4, Ford 15D5E7, Ford 15D5E9, Ford 151FF2, Ford 151FF2, Ford 151FF3, Ford 151FF5, Ford 155D3A, Ford 155D4A, Ford 155D4B, Ford 1515DA, Ford 15594D, Ford 15595E, Ford 15595F, Ford 1370044, GM 12345885, Hyundai Motor 0510000141, Hyundai Motor 0510000441, Land Rover STC50527, Mazda 053001TFE, Mazda 053005TFE, Mazda 53005TFE, Mazda 830077279, Mazda 830077280, Mazda 830077991, Mazda 830077992, Mazda 8300771772, Nissan KE90099933, Nissan KE90099933R, Nissan KE90099933VA, Nissan KE90099943, Nissan KE90099943R, Pentosin 1082107, Pentosin 1082206, Pentosin 4008849132117, Pentosin 4008849152238, Renault 7711943682, Renault 7711943683, Renault 7711943684, Toyota 0888083944, Volvo 31316299, Volvo 31316300

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111139-001

Code:
4014835795617

Volume:
4 L

vendor code:
1111139-004

Code:
4014835795693

Volume:
5 L

vendor code:
1111139-005

Code:
4014835795655

Volume:
10 L

vendor code:
1111139-010

Code:
4014835795648

Volume:
20 L

vendor code:
1111139-020

Code:
4014835795624

Volume:
20 L, ecobox

vendor code:
1111139-B20

Code:
4014835797925

Volume:
60 L

vendor code:
1111139-060

Code:
4014835795662

Volume:
60 L, print

vendor code:
1111139-D60

Volume:
208 L

vendor code:
1111139-208

Code:
4014835795686

Volume:
208 L, print

vendor code:
1111139-D28

Volume:
1000 L

vendor code:
1111139-700

With its new formulation, RAVENOL FDS SAE 5W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL FDS SAE 5W-30 helps to protect the environment by reducing emissions. It minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL FDS SAE 5W-30 ensures operational safety in all driving conditions such as in extreme stop-and-go traffic and high-speed motorway driving.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL FDS SAE 5W-30 is suitable as motor oil for fuel-efficient year-round use in modern petrol and diesel engines in passenger cars, station wagon's, vans and similar vehicles from FORD, RENAULT, Toyota, Hyundai, KIA, Mazda, Honda, Nissan und Mitsubishi, when the specifications ACEA A5/B5 are required.

Characteristics

Excellent cold starting properties even at low temperatures of below -30 ° C
A very stable and excellent viscosity characteristics, shear stability
Fuel efficiency under all operating conditions
Excellent detergency and dispersing properties
Neutrality towards sealing materials
Low evaporation loss, thereby lower oil consumption
An extensive protection against wear, corrosion and foaming
Catalyst suitability
Extended oil change intervals to protect natural resources

Parameter	Unit	Value	Audit
Recommendations		Fiat 9.55535-G1, Ford WSS-M2C913-C, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C913-C, VWC 53036
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Full synthetic		Full synthetic
API		CF, SP		CF, SP
ACEA		A5, A7, B5, B7		A5, A7, B5, B7
Manufacturer Approved		Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB-Approval 229.6, Renault RN 0700		Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB-Approval 229.6, Renault RN 0700
Recomendations		Fiat 9.55535-G1, Ford WSS-M2C 913-C, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C 913-C, VWC 53036
Density at 20 °C	g/cm³	843	EN ISO 12185	843 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	10.2	DIN 51562-1	10.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	58.35	DIN 51562-1	58.35 mm²/s DIN 51562-1
Viscosity Index VI		163	DIN ISO 2909	163 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3	ASTM D5481	3 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	3880	ASTM D5293	3880 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	10.400	ASTM D4684	10.400 mPa*s ASTM D4684
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Noack Volatility	%	8.9	ASTM D5800	8.9 % ASTM D5800
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	12.5	ASTM D2896	12.5 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.2	DIN 51575	1.2 %wt. DIN 51575
Approvals		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036

FO 5W-30

For engine

RAVENOL FO SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Compliance with the requirements:
Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700, VWC 53036

show details

SAE: 5W-30

API: CF, SL

ACEA: A5, B5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111115-001

Code:
4014835722613

Volume:
4 L

vendor code:
1111115-004

Code:
4014835722699

Volume:
5 L

vendor code:
1111115-005

Code:
4014835722651

Volume:
10 L

vendor code:
1111115-010

Code:
4014835722644

Volume:
20 L

vendor code:
1111115-020

Code:
4014835722620

Volume:
20 L, ecobox

vendor code:
1111115-B20

Code:
4014835772922

Volume:
60 L

vendor code:
1111115-060

Code:
4014835722668

Volume:
60 L, print

vendor code:
1111115-D60

Code:
4014835722637

Volume:
208 L

vendor code:
1111115-208

Code:
4014835722682

Volume:
208 L, print

vendor code:
1111115-D28

Code:
4014835722606

Volume:
1000 L

vendor code:
1111115-700

RAVENOL FO SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL FO SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL FO SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL FO SAE 5W-30 is suitable as motor oil for fuel-efficient year-round use in modern petrol and diesel engines in passenger cars, station wagon's, vans and similar vehicles from FORD, RENAULT, Toyota, Hyundai, KIA, Mazda, Honda, Nissan und Mitsubishi.

Characteristics

Fuel economy in part and full power operation.
Very stable and excellent viscosity behaviour.
Excellent shear stability.
Excellent cold starting characteristics.
A safe lubricant film at high operating temperatures.
High wear and corrosion protection, high oxidation stability.
Prevention of sludge formation.
Excellent detergent- and dispersant characteristics.
Catalyst cleaning.

Parameter	Unit	Value	Audit
Recommendations		Fiat 9.55535-G1, Ford WSS-M2C913-A, Ford WSS-M2C913-B, Ford WSS-M2C913-C, Ford WSS-M2C913-D, Jaguar Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C913-A, Ford WSS-M2C913-B, Ford WSS-M2C913-C, Ford WSS-M2C913-D, Jaguar Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CF, SL		CF, SL
ACEA		A5, B5		A5, B5
Recomendations		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700, VWC 53036
Density at 20 °C	g/cm³	849	EN ISO 12185	849 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	10	DIN 51562-1	10 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	56.6	DIN 51562-1	56.6 mm²/s DIN 51562-1
Viscosity Index VI		165	DIN ISO 2909	165 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.08	ASTM D5481	3.08 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4300	ASTM D5293	4300 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	14.000	ASTM D4684	14.000 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	%	9.4	ASTM D5800	9.4 % ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	10.9	ASTM D2896	10.9 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.3	DIN 51575	1.3 %wt. DIN 51575
Approvals		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036

HCS 5W-40

Engine oil

Application NoteRAVENOL HCS SAE 5W-40 is suitable for an energy saving all year use for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.

Manufacturer Approved:
MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296

show details

SAE: 5W-40

API: CF, SN

ACEA: A3, B4

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1112105-001

Code:
4014835723917

Volume:
4 L

vendor code:
1112105-004

Code:
4014835723993

Volume:
5 L

vendor code:
1112105-005

Code:
4014835723955

Volume:
10 L

vendor code:
1112105-010

Code:
4014835723948

Volume:
20 L, ecobox

vendor code:
1112105-B20

Code:
4014835774322

Volume:
60 L

vendor code:
1112105-060

Code:
4014835723962

Volume:
60 L, print

vendor code:
1112105-D60

Code:
4014835723931

Volume:
208 L

vendor code:
1112105-208

Code:
4014835723986

Volume:
208 L, print

vendor code:
1112105-D28

Code:
4014835723900

Volume:
1000 L

vendor code:
1112105-700

Volume:
20 L

vendor code:
1112105-020

Code:
4014835723924

Application Note

RAVENOL HCS SAE 5W-40 is suitable for an energy saving all year use for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.

Characteristics

High protection against wear
Fuel economy by low friction property
Excellent detergent- and dispersant property
Prevention of black sludge formation
Improved cleaner engine
Extended lifetime because of oxidation stability
Excellent cold starting characteristics
Excellent viscosity-temperature- characteristics
Low evaporation tendency
Catalyst cleaning

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, MB 226.5, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, MB 226.5, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296
Brand		RAVENOL		RAVENOL
SAE		5W-40		5W-40
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		A3, B4		A3, B4
Manufacturer Approved		MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00		MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
Recomendations		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296
Density at 20 °C	g/cm³	849	EN ISO 12185	849 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.4	DIN 51562-1	14.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	87.5	DIN 51562-1	87.5 mm²/s DIN 51562-1
Viscosity Index VI		171	DIN ISO 2909	171 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.9	ASTM D5481	3.9 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5370	ASTM D5293	5370 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	28.500	ASTM D4684	28.500 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	8.4	ASTM D5800	8.4 % ASTM D5800
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	10.4	ASTM D2896	10.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.26	DIN 51575	1.26 %wt. DIN 51575
Approvals		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

Available packaging
Full description
Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

Long-term effectiveness and clean fresh oil
Remedy for soiled engines
Protection against compression loss in the area of the piston rings
Leads to better exhaust emissions and increases the performance of the engine

Parameter	Unit	Value	Audit
Color		Light brown	visual	Light brown visual
Flashpoint (PM)	°C	62	DIN ISO 3679	62 °C DIN ISO 3679
Density at 20 °C		805	EN ISO 12185	805 EN ISO 12185
Viscosity at 40 °C	mm²/s	7	DIN EN ISO 3104	7 mm²/s DIN EN ISO 3104
Brand		RAVENOL		RAVENOL

Mechanical gearbox in a unit with final drive 5/1

Liquid volume (basic): 2.3 L

MTF-1 75W-85

For gearbox

RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513

show details

SAE: 75W-85

API: GL-4, GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221102-001

Code:
4014835719613

Volume:
4 L

vendor code:
1221102-004

Code:
4014835719699

Volume:
10 L

vendor code:
1221102-010

Code:
4014835719644

Volume:
20 L

vendor code:
1221102-020

Code:
4014835719620

Volume:
20 L, ecobox

vendor code:
1221102-B20

Code:
4014835788329

Volume:
60 L

vendor code:
1221102-060

Code:
4014835719668

Volume:
60 L, print

vendor code:
1221102-D60

Volume:
208 L

vendor code:
1221102-208

Code:
4014835719682

Volume:
208 L, print

vendor code:
1221102-D28

Volume:
1000 L

vendor code:
1221102-700

RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL MTF-1 SAE 75W-85 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.

Application Note

RAVENOL MTF-1 SAE 75W-85 is high-performance gear oil for manual transmission, transfer cases and differential gears.

Characteristics

Excellent thermal stability.
High protection from rust, corrosion, foaming.
Low solidification point.
Excellent EP properties.
Good shifting behavior in low temperatures.
Extended life.
Fuel savings.

Parameter	Unit	Value	Audit
Recommendations		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513
SAE		75W-85		75W-85
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
API		GL-4, GL-5		GL-4, GL-5
Recomendations		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
Compliant products		GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060		GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060
Density at 20 °C	g/cm³	855	EN ISO 12185	855 g/cm³ EN ISO 12185
Color		Red	visual	Red visual
Brookfield Viscosity at -40 °C	mPa*s	38.800	ASTM D2983	38.800 mPa*s ASTM D2983
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513

CVT gearbox in a unit with final drive 1/1

Liquid volume (basic): 5.75 L

CVT Fluid

Transmission oil

RAVENOL CVT Fluid guarantees an optimum of power transmission.

Compliance with the requirements:
BMW CVT EZL 799A, Chery 025CHA/QR025CHA, CVTF WCF-1, Five Hundred CFT30, Ford WSS-M2C 928-A, Ford WSS-M2C 933-A, Mazda JWS 3320, Mazda TFF CVT Fluid TC, MB 236.20, Mini Cooper CVT, Nissan CVT Fluid NS-1, Punch Powertrain VT1F, Punch Powertrain VT2, Punch Powertrain VT3, Subaru CVT Lineartronic II, Subaru i-CVT Fluid, Suzuki S-CVT, Toyota CVT Fluid TC, VW G 052 180, VW G 052 516, VW TL 521 80

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1211110-001

Code:
4014835732513

Volume:
4 L

vendor code:
1211110-004

Code:
4014835732599

Volume:
20 L

vendor code:
1211110-020

Code:
4014835732520

Volume:
20 L, ecobox

vendor code:
1211110-B20

Code:
4014835785328

Volume:
60 L

vendor code:
1211110-060

Code:
4014835732568

Volume:
60 L, print

vendor code:
1211110-D60

Code:
4014835732537

Volume:
208 L

vendor code:
1211110-208

Volume:
208 L, print

vendor code:
1211110-D28

Code:
4014835732506

Volume:
1000 L

vendor code:
1211110-700

Volume:
10 L

vendor code:
1211110-010

Code:
4014835732544

RAVENOL CVT Fluid guarantees an optimum of power transmission.

RAVENOL CVT Fluid is based on high-quality hydrocrack oils with special additives and inhibition to ensure the proper operation of the automatic transmission.

Application Note

RAVENOL CVT Fluid was developed for use in CVT transmission (Steel Belt Continuously Variable Transmission).

RAVENOL CVT Fluid ensures a stable viscosity under high mechanical stress in the transmission elements (push belt).

Characteristics

Very good lubricating ability even at low temperatures in winter
A high, stable viscosity index
Very low pour point
Very good oxidation stability
Protection against corrosion and foam formation
Good balanced coefficient of friction
Neutral behaviour towards sealing materials
Neutral behaviour by inhibition to non-ferrous metals

Parameter	Unit	Value	Audit
Recommendations		BMW CVT EZL 799A, Chery 018CHA/QR018CHA, Chery 025CHA-4004011AA10, Chery 025CHA/QR025CHA, Chery 025CHC/QR025CHC, Chery CVT18, Chery CVT25, CVTF WCF-1, Five Hundred CFT30, Ford EU WSS-M2C-928 A, Ford Focus C-Max CFT23, Ford USA WSS-M2C933-A, Ford XT-7-QCFT Freestyle, HMMF Ultra Fluid 08260-99904, HMMF Ultra Fluid 08260-99907, Honda CVT Fluid 08200-9006, Hunan Jianglu & Rongda 150R, Hunan Jianglu & Rongda R0CF15A2, Hunan Jianglu & Rongda R0CF15A3, Hunan Jianglu & Rongda RDC15, Hunan Jianglu & Rongda RDC15-FB, Mazda TFF CVT Fluid TC JWS3320 K020-W0-051W, MB 236.20 (A 001 989 46 03), Mini Cooper CVT, Nissan CVT Fluid NS-1, Nissan KLE50 00002, Nissan KLE50 00004, Opel/GM 1940713, Punch Powertrain VT1F, Punch Powertrain VT2, Punch Powertrain VT3, Subaru CVT Lineartronic II K0425Y0711, Subaru i-CVT Fluid K0415-YA090, Suzuki S-CVT 99000-22801-000, TL 52180, Toyota CVT Fluid TC 08886-02105, VW G 052 516 A2, VW/Audi G 052 180 A1, VW/Audi G 052 180 A2, VW/Audi G 052 180 A6		BMW CVT EZL 799A, Chery 018CHA/QR018CHA, Chery 025CHA-4004011AA10, Chery 025CHA/QR025CHA, Chery 025CHC/QR025CHC, Chery CVT18, Chery CVT25, CVTF WCF-1, Five Hundred CFT30, Ford EU WSS-M2C-928 A, Ford Focus C-Max CFT23, Ford USA WSS-M2C933-A, Ford XT-7-QCFT Freestyle, HMMF Ultra Fluid 08260-99904, HMMF Ultra Fluid 08260-99907, Honda CVT Fluid 08200-9006, Hunan Jianglu & Rongda 150R, Hunan Jianglu & Rongda R0CF15A2, Hunan Jianglu & Rongda R0CF15A3, Hunan Jianglu & Rongda RDC15, Hunan Jianglu & Rongda RDC15-FB, Mazda TFF CVT Fluid TC JWS3320 K020-W0-051W, MB 236.20 (A 001 989 46 03), Mini Cooper CVT, Nissan CVT Fluid NS-1, Nissan KLE50 00002, Nissan KLE50 00004, Opel/GM 1940713, Punch Powertrain VT1F, Punch Powertrain VT2, Punch Powertrain VT3, Subaru CVT Lineartronic II K0425Y0711, Subaru i-CVT Fluid K0415-YA090, Suzuki S-CVT 99000-22801-000, TL 52180, Toyota CVT Fluid TC 08886-02105, VW G 052 516 A2, VW/Audi G 052 180 A1, VW/Audi G 052 180 A2, VW/Audi G 052 180 A6
Type		Synthetic		Synthetic
Brand		RAVENOL		RAVENOL
Recomendations		BMW CVT EZL 799A, Chery 025CHA/QR025CHA, CVTF WCF-1, Five Hundred CFT30, Ford WSS-M2C 928-A, Ford WSS-M2C 933-A, Mazda JWS 3320, Mazda TFF CVT Fluid TC, MB 236.20, Mini Cooper CVT, Nissan CVT Fluid NS-1, Punch Powertrain VT1F, Punch Powertrain VT2, Punch Powertrain VT3, Subaru CVT Lineartronic II, Subaru i-CVT Fluid, Suzuki S-CVT, Toyota CVT Fluid TC, VW G 052 180, VW G 052 516, VW TL 521 80		BMW CVT EZL 799A, Chery 025CHA/QR025CHA, CVTF WCF-1, Five Hundred CFT30, Ford WSS-M2C 928-A, Ford WSS-M2C 933-A, Mazda JWS 3320, Mazda TFF CVT Fluid TC, MB 236.20, Mini Cooper CVT, Nissan CVT Fluid NS-1, Punch Powertrain VT1F, Punch Powertrain VT2, Punch Powertrain VT3, Subaru CVT Lineartronic II, Subaru i-CVT Fluid, Suzuki S-CVT, Toyota CVT Fluid TC, VW G 052 180, VW G 052 516, VW TL 521 80
Suitable for		Ford Focus C-Max CFT23, Hunan Jianglu & Rongda 50R, Hunan Jianglu & Rongda R0CF15A2, Hunan Jianglu & Rongda R0CF15A3, Hunan Jianglu & Rongda RDC15, Hunan Jianglu & Rongda RDC15-FB		Ford Focus C-Max CFT23, Hunan Jianglu & Rongda 50R, Hunan Jianglu & Rongda R0CF15A2, Hunan Jianglu & Rongda R0CF15A3, Hunan Jianglu & Rongda RDC15, Hunan Jianglu & Rongda RDC15-FB
Compliant products		Chery 018CHA/QR018CHA, Chery 025CHA-4004011AA10, Chery 025CHC/QR025CHC, Chery CVT18, Chery CVT25, GM 1940713, Honda 08200-9006, Honda 08260-99904, Honda 08260-99907, Honda CVT Fluid, Mazda K020-W0-051W, MB A 001 989 46 03, Motorcraft XT-7-QCFT, Nissan KLE50 00002, Nissan KLE50 00004, Subaru K0415-YA090, Subaru K0425Y0711, Suzuki 99000-22801-000, Toyota 08886-02105, VW G 052 180, VW G 052 516		Chery 018CHA/QR018CHA, Chery 025CHA-4004011AA10, Chery 025CHC/QR025CHC, Chery CVT18, Chery CVT25, GM 1940713, Honda 08200-9006, Honda 08260-99904, Honda 08260-99907, Honda CVT Fluid, Mazda K020-W0-051W, MB A 001 989 46 03, Motorcraft XT-7-QCFT, Nissan KLE50 00002, Nissan KLE50 00004, Subaru K0415-YA090, Subaru K0425Y0711, Suzuki 99000-22801-000, Toyota 08886-02105, VW G 052 180, VW G 052 516
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	7.3	DIN 51562-1	7.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	35.5	DIN 51562-1	35.5 mm²/s DIN 51562-1
Viscosity Index VI		175	DIN ISO 2909	175 DIN ISO 2909
Density at 20 °C	g/cm³	841	EN ISO 12185	841 g/cm³ EN ISO 12185
Pourpoint	°C	-48	DIN ISO 3016	-48 °C DIN ISO 3016
Approvals		BMW CVT EZL 799A, Chery 025CHA/QR025CHA, CVTF WCF-1, Five Hundred CFT30, Ford WSS-M2C 928-A, Ford WSS-M2C 933-A, Mazda JWS 3320, Mazda TFF CVT Fluid TC, MB 236.20, Mini Cooper CVT, Nissan CVT Fluid NS-1, Punch Powertrain VT1F, Punch Powertrain VT2, Punch Powertrain VT3, Subaru CVT Lineartronic II, Subaru i-CVT Fluid, Suzuki S-CVT, Toyota CVT Fluid TC, VW G 052 180, VW G 052 516, VW TL 521 80		BMW CVT EZL 799A, Chery 025CHA/QR025CHA, CVTF WCF-1, Five Hundred CFT30, Ford WSS-M2C 928-A, Ford WSS-M2C 933-A, Mazda JWS 3320, Mazda TFF CVT Fluid TC, MB 236.20, Mini Cooper CVT, Nissan CVT Fluid NS-1, Punch Powertrain VT1F, Punch Powertrain VT2, Punch Powertrain VT3, Subaru CVT Lineartronic II, Subaru i-CVT Fluid, Suzuki S-CVT, Toyota CVT Fluid TC, VW G 052 180, VW G 052 516, VW TL 521 80

Hydraulic brake system

Liquid volume (basic): 1 L

DOT 4 LV

Brake fluid

The specific formulation of RAVENOL DOT 4 LV also meets current international specifications US FMVSS 116 DOT 3, DOT 4, SAE J 1703, SAE J 1704 and ISO 4925 (Classes 3 & 4).

Compliance with the requirements:
Ford WSS-M6C 65-A2, VW 501.14

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1350605-001

Code:
4014835862326

Volume:
20 L

vendor code:
1350605-020

DOT 4

The specific formulation of RAVENOL DOT 4 LV also meets current international specifications US FMVSS 116 DOT 3, DOT 4, SAE J 1703, SAE J 1704 and ISO 4925 (Classes 3 & 4).

With its exceptional viscosity performance even at extremely Low Viskosity (max. 750 cSt @ -40°C) RAVENOL DOT 4 LV is especially recommended for use in the hydraulic brake and clutch systems of vehicles fitted with ESP / ASR (Electronic Stability Program) systems.

The safety potential of the aggregates is enhanced by the excellent properties of RAVENOL DOT 4 LV even at low temperatures.

RAVENOL DOT 4 LV mixes safely with other brake and clutch fluids that meet the above specifications.

Application Note

RAVENOL DOT 4 LV brake fluid can be used in all vehicles where ISO 4925 Class 6 specification is required.

RAVENOL DOT 4 LV is recommended for use in the hydraulic brake and clutch systems of vehicles fitted with ESP / ASR (Electronic Stability Program) systems.

RAVENOL DOT 4 LV is also recommended for use in the hydraulic brake and clutch systems of all cars, commercial vehicles and motorcycles for which a non-petroleum based fluid of this type is specified.

RAVENOL DOT 4 LV brake fluid is miscible with all known brake fluids of the same specification.

To use the high performance level of RAVENOL DOT 4 LV, a complete change of the brake fluid is recommended.

RAVENOL DOT 4 LV is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113)Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

Fluidity even at very low temperatures
Optimal ABS properties.
Chemical stability.
High lubricating power
Neutral behavior towards brake parts.
Can be mixed with all brake fluids of the same specification.

Parameter	Unit	Value	Audit
FMVSS 116 specifications (DOT)		DOT-4 LV		DOT-4 LV
Recommendations		Ford WSS-M6C65-A2, VW 501 14		Ford WSS-M6C65-A2, VW 501 14
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Recomendations		Ford WSS-M6C 65-A2, VW 501.14		Ford WSS-M6C 65-A2, VW 501.14
specification		DOT 3, DOT 4, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704		DOT 3, DOT 4, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704
Density at 20 °C	g/cm³	1052	EN ISO 12185	1052 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mPa*s	2.1	ASTM D445	2.1 mPa*s ASTM D445
Viscosity at -40 °C	cSt	675	ASTM D445	675 cSt ASTM D445
Boiling point	°C	267	FMVSS 116	267 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point	°C	172	FMVSS 116	172 °C FMVSS 116
High Temperature Stability	°C	-1	FMVSS 116	-1 °C FMVSS 116
Chemical Stability	°C	1	FMVSS 116	1 °C FMVSS 116
Evaporation	%w/w	61	FMVSS 116	61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C		i.O., 4s	FMVSS 116	i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C		i.O., 8s	FMVSS 116	i.O., 8s FMVSS 116
Water Tolerance at -40 °C		transparent, 3s	FMVSS 116	transparent, 3s FMVSS 116
Water Tolerance at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at -40 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Water content	%	— 0.2	DIN 51777-1	— 0.2 % DIN 51777-1
Tinned Iron	Δ mg/cm²	0.04	FMVSS 116	0.04 Δ mg/cm² FMVSS 116
Steel	mg/cm²	-0.01	FMVSS 116	-0.01 mg/cm² FMVSS 116
Aluminium	mg/cm²	0.02	FMVSS 116	0.02 mg/cm² FMVSS 116
Cast Iron	Δ mg/cm²	-0,03	FMVSS 116	-0,03 Δ mg/cm² FMVSS 116
Brass	mg/cm²	-0.08	FMVSS 116	-0.08 mg/cm² FMVSS 116
Copper	mg/cm²	-0.05	FMVSS 116	-0.05 mg/cm² FMVSS 116
Zinc	mg/cm²	0.01	FMVSS 116	0.01 mg/cm² FMVSS 116
Sediment	%	— 0.05	FMVSS 116	— 0.05 % FMVSS 116
pH - value		8.2	FMVSS 116	8.2 FMVSS 116
Rubber Diameter Change		0.16	FMVSS 116	0.16 FMVSS 116
Hardness Change	°IRHD	-4	FMVSS 116	-4 °IRHD FMVSS 116
Appearance		i.O.	FMVSS 116	i.O. FMVSS 116
SBR at 70 °C	mm	0.56	FMVSS 116	0.56 mm FMVSS 116
SBR at 120 °C	mm	0.73	FMVSS 116	0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703)	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
EPDM at 120 °C	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925)	mm	0.38	FMVSS 116	0.38 mm FMVSS 116
Approvals		DOT 3, DOT 4, Ford WSS-M6C 65-A2, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704, VW 501.14		DOT 3, DOT 4, Ford WSS-M6C 65-A2, ISO 4925 Class 3, ISO 4925 Class 4, ISO 4925 Class 6, SAE J 1703, SAE J 1704, VW 501.14

Cooling system

Liquid volume (basic): 4.6 L

OTC Organic Technology Coolant Premix -40°C

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

Compliance with the requirements:
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

show details

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410112-150

Code:
4014835755512

Volume:
5 L

vendor code:
1410112-005

Code:
4014835755550

Volume:
10 L

vendor code:
1410112-010

Volume:
20 L

vendor code:
1410112-020

Code:
4014835755529

Volume:
20 L, ecobox

vendor code:
1410112-B20

Code:
4014835855953

Volume:
60 L, plastic

vendor code:
1410112-060

Code:
4014835755567

Volume:
208 L

vendor code:
1410112-208

Code:
4014835755581

Volume:
1000 L

vendor code:
1410112-700

RAVENOL OTC Organic Techn. Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL OTC Organic Techn. Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL OTC Organic Techn. Coolant Premix -40°C to radiator to fill line.

RAVENOL OTC Organic Techn. Coolant Premix -40°C can also be used as a “ready for use” dilution in geothermal probes and geothermal collectors as recommended list of LAWA (Federal / State Working Group on Water in Germany). RAVENOL OTC Organic Techn. Coolant Concentrate is included in the list of recommendations of the LAWA for water management requirements for geothermal probes and geothermal collectors.

Characteristics

Excellent for light metal engines
Good reserve alkalinity
Premium corrosion additives for optimal rust protection for all metals and metal alloys used in coolsystems, including aluminium
Prevents sediments and foaming in the cooling system
Compatible with elastomers used in automotive radiators
Can be mixed with other coolant types

Parameter	Unit	Value	Audit
Recommendations		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, MB 326.3 (Premix), Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, MB 326.3 (Premix), Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
Brand		RAVENOL		RAVENOL
Recomendations		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
Suitable for		Jaguar Land Rover STJLR.651.5003, Porsche		Jaguar Land Rover STJLR.651.5003, Porsche
Compliant products		Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F		Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
Density at 20 °C	g/cm³	1070	EN ISO 12185	1070 g/cm³ EN ISO 12185
Color		Violet	visual	Violet visual
pH - value at 20 °C		7,5 - 8,5	ASTM D1287	7,5 - 8,5 ASTM D1287
Freezing point	°C	-40	ASTM D1177	-40 °C ASTM D1177
Approvals		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

OTC - Protect C12+ Concentrate

Coolant

Compliance with the requirements:
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

show details

Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410110-150

Code:
4014835755413

Volume:
5 L

vendor code:
1410110-005

Code:
4014835755451

Volume:
10 L

vendor code:
1410110-010

Volume:
20 L

vendor code:
1410110-020

Code:
4014835755420

Volume:
20 L, ecobox

vendor code:
1410110-B20

Code:
4014835855212

Volume:
60 L, plastic

vendor code:
-

Code:
4014835755437

Volume:
60 L

vendor code:
1410110-060

Code:
4014835755468

Volume:
60 L, print

vendor code:
1410110-D60

Volume:
1000 L

vendor code:
1410110-700

Volume:
208 L

vendor code:
1410110-208

Code:
4014835755482

RAVENOL OTC Organic Techn. Coolant Concentrate C12+ protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with highly effective frost and rust protection. Usable in cooling systems with all-aluminium engines. Mix according to chart. Follow manufacturer's recommendations.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

RAVENOL OTC Organic Techn. Coolant Concentrate C12+ can also be used in geothermal probes and geothermal collectors as recommended list of LAWA (Federal / State Working Group on Water in Germany).

MAN information for use:

Mixing prohibited with Type NF and Type N. Do not use silicone radiator hoses per MAN 334 Type 3 (blue) with coolants per MAN 324 Type SNF.

Table of mixing ratios
Antifreeze protection until	Parts Antifreeze	Parts Water
-20°C	35%	65%
-37°C	50%	50%
-50°C	60%	40%

Characteristics

Excellent for light metal engines
Good reserve alkalinity
Premium corrosion additives for optimal rust protection for all metals and metal alloys used in cool
systems, including aluminium
Prevents sediments and foaming in the cooling system
Compatible with elastomers used in automotive radiators
Can be mixed with other coolant types

Parameter	Unit	Value	Audit
Recommendations		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
Brand		RAVENOL		RAVENOL
Recomendations		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
Suitable for		Jaguar Land Rover STJLR.651.5003, Porsche		Jaguar Land Rover STJLR.651.5003, Porsche
Compliant products		Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F		Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
Density at 20 °C	g/cm³	1130	EN ISO 12185	1130 g/cm³ EN ISO 12185
Color		Violet	visual	Violet visual
Reserve alkalinity	mgKOH/g	5.5 —	ASTM D1120	5.5 — mgKOH/g ASTM D1120
Boiling point	°C	187	ASTM D1121	187 °C ASTM D1121
Water content	%	— 5	ASTM D1123	— 5 % ASTM D1123
Flashpoint	°C	110 —	DIN 51758	110 — °C DIN 51758
Freezing point (50 % solution)	°C	-37	ASTM D1177	-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %)		7,5 - 8,5	ASTM D1287	7,5 - 8,5 ASTM D1287
Approvals		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter	Value
Recommendations	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand	RAVENOL	RAVENOL
Recomendations	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272
Approvals	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272

Professional Radiator Cleaner

Additive

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

show details

Equivalents OEM:
Ford MP14300500AB

Available packaging
Full description
Product parameters

Volume:
0.25 L

vendor code:
1390302-250

Code:
4014835802667

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.

Application Note

RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.

Area of application:

Radiator repairs

In the event of reduced radiator performance

In the event of deposits in the cooling system

Changing coolant

For cleaning purposes after engine repairs due to oil in the cooling system

Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.

Fill in

RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.

RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.

Characteristics

Cleaning of the cooling and heating system
Protection of the new coolant against prior contamination
Elimination of sludge and corrosion residue

Parameter	Unit	Value	Audit
Color		Colorless	visual	Colorless visual
Density at 20 °C	g/cm³	1003	EN ISO 12185	1003 g/cm³ EN ISO 12185
pH - value at 20 °C		10,25	DIN 19268	10,25 DIN 19268
Brand		RAVENOL		RAVENOL
