BMW

Oil for BMW - X7, G07 - X7 xDrive M60i (S68)

BMW X7, G07 X7 xDrive M60i (S68), year of issue from 2018 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Add to Garage

Nodes and assemblies

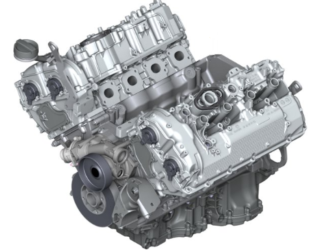

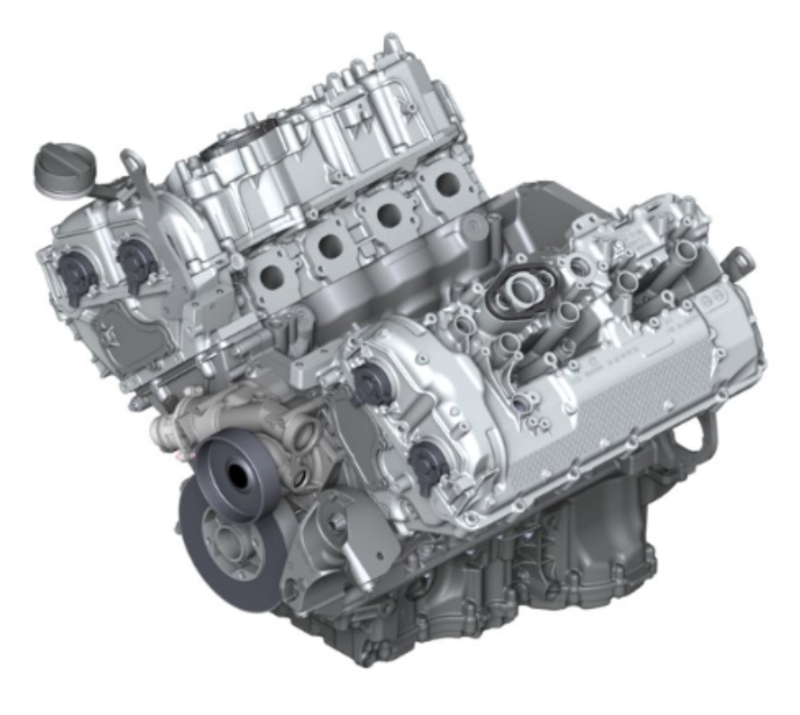

Engine S68 / S68T / S68B / S68B44 / S68B44A / S68B44T0
OEM: 11002473237 , 11005A594F5

Liquid volume (basic): 10.75 L
VollSynth Turbo VST 5W-40

VollSynth Turbo VST 5W-40

CleanSynto®
USVO®
For engine

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
BMW Longlife-01, MB-Approval 229.5, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296

show details hide details

SAE: 5W-40

API: SN Plus, SP

ACEA: A3, B4

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1111136-001

Code:
4014835790117

Volume:
4 L

vendor code:
1111136-004

Code:
4014835790193

Volume:
5 L

vendor code:
1111136-005

Code:
4014835790155

Volume:
10 L

vendor code:
1111136-010

Code:
4014835790148

Volume:
20 L, ecobox

vendor code:
1111136-B20

Code:
4014835790223

Volume:
60 L

vendor code:
1111136-060

Volume:
60 L, print

vendor code:
1111136-D60

Code:
4014835790131

Volume:
208 L

vendor code:
1111136-208

Volume:
208 L, print

vendor code:
1111136-D28

Code:
4014835798502

Volume:
1000 L

vendor code:
1111136-700

Volume:
20 L

vendor code:
1111136-020

Code:
4014835798526

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

RAVENOL VollSynth Turbo VST SAE 5W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL VollSynth Turbo VST SAE 5W-40 guarantees operational safety concerning all driving conditions as for example regarding extreme stop and go traffic as well as high speed drives on motorways.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL VollSynth Turbo VST SAE 5W-40 is suitable for the energy saving operation all the year of all modern cars with petrol and diesel engines in passenger cars, vans, small transporters and similar vehicles and was specially developed for turbo chargers as well as the catalytic operation.

Characteristics

  • High abrasion resistance.
  • Fuel saving because of easy running characteristics.
  • Excellent detergent and dispersant characteristics.
  • Prevention of black sludge creation.
  • Long endurance because of high oxidation stability.
  • Excellent cold start performance.
  • Very good viscosity temperature behaviour.
  • Low evaporation.
  • Suitable for catalysts.
Parameter Unit Value Audit
Recommendations Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-12991 (MS-10896), Fiat 9.55535-Z2, MB 226.5, MB 229.3, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296
Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-12991 (MS-10896), Fiat 9.55535-Z2, MB 226.5, MB 229.3, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296
Brand RAVENOL
RAVENOL
SAE 5W-40
5W-40
Type Full synthetic
Full synthetic
API SN Plus, SP
SN Plus, SP
ACEA A3, B4
A3, B4
Manufacturer Approved BMW Longlife-01, MB-Approval 229.5, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
BMW Longlife-01, MB-Approval 229.5, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
Recomendations Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296
Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296
Density at 20 °C g/cm³ 848 EN ISO 12185
848 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 13.5 DIN 51562-1
13.5 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 79.4 DIN 51562-1
79.4 mm²/s DIN 51562-1
Viscosity Index VI 174 DIN ISO 2909
174 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 3.9 ASTM D5481
3.9 mPa*s ASTM D5481
CCS Viscosity at -30 °C mPa*s 4700 ASTM D5293
4700 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C mPa*s 13.900 ASTM D4684
13.900 mPa*s ASTM D4684
Pourpoint °C -57 DIN ISO 3016
-57 °C DIN ISO 3016
Noack Volatility % 7.3 ASTM D5800
7.3 % ASTM D5800
Flashpoint °C 236 DIN EN ISO 2592
236 °C DIN EN ISO 2592
tbn mgKOH/g 11.9 ASTM D2896
11.9 mgKOH/g ASTM D2896
Sulphated Ash %wt. 1.1 DIN 51575
1.1 %wt. DIN 51575
Approvals BMW Longlife-01, Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, MB 229.5, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00
BMW Longlife-01, Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, MB 229.5, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00
VMP 5W-30

VMP 5W-30

CleanSynto®
USVO®
For engine

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00

Compliance with the requirements:
Audi Motorsport V31 748 026, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195

show details hide details

SAE: 5W-30

API: SN

ACEA: C3

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1111122-001

Code:
4014835723313

Volume:
4 L

vendor code:
1111122-004

Code:
4014835723399

Volume:
5 L

vendor code:
1111122-005

Code:
4014835723351

Volume:
10 L

vendor code:
1111122-010

Code:
4014835723344

Volume:
20 L

vendor code:
1111122-020

Code:
4014835723320

Volume:
20 L, ecobox

vendor code:
1111122-B20

Code:
4014835773622

Volume:
60 L

vendor code:
1111122-060

Code:
4014835723368

Volume:
60 L, print

vendor code:
1111122-D60

Code:
4014835723337

Volume:
208 L

vendor code:
1111122-208

Code:
4014835723382

Volume:
208 L, print

vendor code:
-

Code:
4014835723306

Volume:
1000 L

vendor code:
1111122-700

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

RAVENOL VMP SAE 5W-30 is based on additives with reduced ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

RAVENOL VMP SAE 5W-30 achieved by its formulation with special base oils a high viscosity index. The excellent cold start behaviour ensures a optimal lubrication safety in the cold running phase.

Due to a significant fuel economy RAVENOL VMP SAE 5W-30 contributes by reduction of emissions to conservation the environment. Minimal wear extends the lifespan of the engine.

RAVENOL VMP SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL VMP SAE 5W-30 is a universal fuel economy, especially collected engine oil for modern gasoline and diesel engines with and without turbo charger in passenger cars and vans with extended oil change intervals. Extend the lifespan of the particle filter. Due to the specific composition is RAVENOL VMP SAE 5W-30 excellent suitable for use for several of the latest OEM requirements.

Characteristics

  • Fuel economy in part and full power operation
  • MID SAPS = reduced Sulphated ash, Phosphor and Sulfur
  • Excellent wear protection and high viscosity index also under high-speed driving conditions, the longlife of the engine
  • Excellent cold starting characteristics also at low temperatures
  • A safe lubricant film at high operating temperatures
  • Low evaporative tendency, so lower oil consumption
  • No deposits in combustion chambers, in the piston ring zone and valves because of oil conditioned
  • Neutrality towards sealing materials
  • Extended oil change intervals to protect natural resources
Parameter Unit Value Audit
Recommendations Audi Motorsport V31 748 026, BMW 83210398507, BMW/Mini 83 21 0 398 508, Chrysler MS-11106, Fiat 9.55535-S1, MB (A 000 989 89 01 10), MB 229.31, Stellantis FPW9.55535/03, VW/Audi G 052 195 M2, VW/Audi G 052 195 M4, VW/Audi G 052 195 M6
Audi Motorsport V31 748 026, BMW 83210398507, BMW/Mini 83 21 0 398 508, Chrysler MS-11106, Fiat 9.55535-S1, MB (A 000 989 89 01 10), MB 229.31, Stellantis FPW9.55535/03, VW/Audi G 052 195 M2, VW/Audi G 052 195 M4, VW/Audi G 052 195 M6
Application area Audi Motorsport V31 748 026
Audi Motorsport V31 748 026
Brand RAVENOL
RAVENOL
SAE 5W-30
5W-30
Type Full synthetic
Full synthetic
API SN
SN
ACEA C3
C3
Manufacturer Approved BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00
BMW Longlife-04, MB-Approval 229.51, Porsche C30, VW 504.00, VW 507.00
Recomendations Audi Motorsport V31 748 026, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195
Audi Motorsport V31 748 026, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, Stellantis FPW9.55535/03, VW G 052 195
Compliant products BMW 83210398507, BMW 83210398508, MB A 000 989 89 01 10, VW G 052 195
BMW 83210398507, BMW 83210398508, MB A 000 989 89 01 10, VW G 052 195
Density at 20 °C g/cm³ 849 EN ISO 12185
849 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 11.9 DIN 51562-1
11.9 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 66.3 DIN 51562-1
66.3 mm²/s DIN 51562-1
Viscosity Index VI 179 DIN ISO 2909
179 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 3.7 ASTM D5481
3.7 mPa*s ASTM D5481
CCS Viscosity at -30 °C mPa*s 4740 ASTM D5293
4740 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C mPa*s 12.000 ASTM D4684
12.000 mPa*s ASTM D4684
Pourpoint °C -60 DIN ISO 3016
-60 °C DIN ISO 3016
Noack Volatility % 6.4 ASTM D5800
6.4 % ASTM D5800
Flashpoint °C 238 DIN EN ISO 2592
238 °C DIN EN ISO 2592
tbn mgKOH/g 8.8 ASTM D2896
8.8 mgKOH/g ASTM D2896
Sulphated Ash %wt. 0.7 DIN 51575
0.7 %wt. DIN 51575
Approvals Audi Motorsport V31 748 026, BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, MB 229.51, Porsche C30, Stellantis FPW9.55535/03, VW 504.00, VW 507.00, VW G 052 195
Audi Motorsport V31 748 026, BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S1, MB 229.31, MB 229.51, Porsche C30, Stellantis FPW9.55535/03, VW 504.00, VW 507.00, VW G 052 195
Super Synthenik Oel SSL 0W-40

Super Synthenik Oel SSL 0W-40

CleanSynto®
USVO®
For engine

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
MB-Approval 229.5, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
BMW Longlife-01, Chrysler MS-10725, Chrysler MS-12633, Chrysler MS-A0921, Fiat 9.55535-M2, Ford WSS-M2C 937-A, MB 226.5, MB 229.3, Porsche A40, Renault RN 0700

show details hide details

SAE: 0W-40

API: CF, SN Plus, SP

ACEA: A3, B4

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1111108-001

Code:
4014835718715

Volume:
4 L

vendor code:
1111108-004

Code:
4014835718791

Volume:
5 L

vendor code:
1111108-005

Code:
4014835718753

Volume:
10 L

vendor code:
1111108-010

Code:
4014835718746

Volume:
20 L

vendor code:
1111108-020

Volume:
20 L, ecobox

vendor code:
1111108-B20

Code:
4014835772724

Volume:
60 L

vendor code:
1111108-060

Volume:
60 L, print

vendor code:
1111108-D60

Code:
4014835718739

Volume:
208 L

vendor code:
1111108-208

Volume:
208 L, print

vendor code:
1111108-D28

Code:
4014835718708

Volume:
1000 L

vendor code:
1111108-700

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

With its new formulation, RAVENOL Super Synthetik Öl SSL SAE 0W-40 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL Super Synthetik Öl SSL SAE 0W-40 helps to protect the environment by reducing emissions.

RAVENOL Super Synthetik Öl SSL SAE 0W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL Super Synthetik Öl SSL SAE 0W-40 guarantees operational safety in all driving conditions such as extreme stop-and-go traffic and high-speed highway driving.

RAVENOL Super Synthetik Öl SSL SAE 0W-40 is universal fuel-efficient synthetic engine oil suitable for petrol and diesel engines, with or without turbocharger, in cars and vans with the specified quality classifications.

Characteristics

  • Excellent cold starting behavior.
  • Fuel savings for part and full load.
  • A very stable and excellent viscosity behavior.
  • Good shear stability.
  • A safe smear layer at very high operating temperatures.
  • Excellent detergent and dispersant properties.
  • A broad protection against wear, corrosion and foaming
  • Excellent aging stability.
  • Low evaporation loss.
  • Excellent engine cleanliness.
Parameter Unit Value Audit
Recommendations BMW Longlife-01, Chrysler MS-10725, Chrysler MS-12633, Chrysler MS-A0921, Fiat 9.55535-M2, Ford WSS-M2C937-A, MB 226.5, MB 229.3, Porsche A40, Renault RN0700
BMW Longlife-01, Chrysler MS-10725, Chrysler MS-12633, Chrysler MS-A0921, Fiat 9.55535-M2, Ford WSS-M2C937-A, MB 226.5, MB 229.3, Porsche A40, Renault RN0700
Brand RAVENOL
RAVENOL
SAE 0W-40
0W-40
Type Full synthetic
Full synthetic
API CF, SN Plus, SP
CF, SN Plus, SP
ACEA A3, B4
A3, B4
Manufacturer Approved MB-Approval 229.5, Renault RN 0710, VW 502.00, VW 505.00
MB-Approval 229.5, Renault RN 0710, VW 502.00, VW 505.00
Recomendations BMW Longlife-01, Chrysler MS-10725, Chrysler MS-12633, Chrysler MS-A0921, Fiat 9.55535-M2, Ford WSS-M2C 937-A, MB 226.5, MB 229.3, Porsche A40, Renault RN 0700
BMW Longlife-01, Chrysler MS-10725, Chrysler MS-12633, Chrysler MS-A0921, Fiat 9.55535-M2, Ford WSS-M2C 937-A, MB 226.5, MB 229.3, Porsche A40, Renault RN 0700
Density at 20 °C g/cm³ 842.9 EN ISO 12185
842.9 g/cm³ EN ISO 12185
Color Brown visual
Brown visual
Viscosity at 100 °C mm²/s 13.8 DIN 51562-1
13.8 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 78.1 DIN 51562-1
78.1 mm²/s DIN 51562-1
Viscosity Index VI 182 DIN ISO 2909
182 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 3.7 ASTM D5481
3.7 mPa*s ASTM D5481
CCS Viscosity at -35 °C mPa*s 4560 ASTM D5293
4560 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C mPa*s 21.300 ASTM D4684
21.300 mPa*s ASTM D4684
Pourpoint °C -60 DIN ISO 3016
-60 °C DIN ISO 3016
Noack Volatility % 8.5 ASTM D5800
8.5 % ASTM D5800
Flashpoint °C 236 DIN EN ISO 2592
236 °C DIN EN ISO 2592
tbn mgKOH/g 10 ASTM D2896
10 mgKOH/g ASTM D2896
Sulphated Ash %wt. 1.21 DIN 51575
1.21 %wt. DIN 51575
Approvals BMW Longlife-01, Chrysler MS-10725, Chrysler MS-12633, Chrysler MS-A0921, Fiat 9.55535-M2, Ford WSS-M2C 937-A, MB 226.5, MB 229.3, MB 229.5, Porsche A40, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00
BMW Longlife-01, Chrysler MS-10725, Chrysler MS-12633, Chrysler MS-A0921, Fiat 9.55535-M2, Ford WSS-M2C 937-A, MB 226.5, MB 229.3, MB 229.5, Porsche A40, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00
SHL 0W-40

SHL 0W-40

For engine

RAVENOL SHL SAE 0W-40 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

Manufacturer Approved:
MB-Approval 229.5, Porsche A40, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
BMW Longlife-01, Ford WSS-M2C 937-A, Renault RN 0700

show details hide details

SAE: 0W-40

API: SN

ACEA: A3, B4

Equivalents OEM:
BMW 83210144459, BMW 83212365515, BMW 83212405609, BMW 83212405635, BMW 83212405635, BMW 83212406983, FEBI 101140, FEBI 101141, FEBI 101142, FEBI 101143, FEBI 101144, Renault 8671000073, Renault 8671000074, Renault 8671000075, SWAG 30101140, SWAG 30101141, SWAG 30101142, SWAG 30101143, SWAG 30101144

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1111127-001

Code:
4014835868809

Volume:
4 L

vendor code:
1111127-004

Code:
4014835868830

Volume:
5 L

vendor code:
1111127-005

Code:
4014835868861

Volume:
10 L

vendor code:
1111127-010

Code:
4014835868892

Volume:
20 L

vendor code:
1111127-020

Code:
4014835868915

Volume:
20 L, ecobox

vendor code:
1111127-B20

Code:
4014835868977

Volume:
60 L

vendor code:
1111127-060

Volume:
60 L, print

vendor code:
1111127-D60

Code:
4014835868991

Volume:
208 L

vendor code:
1111127-208

Volume:
208 L, print

vendor code:
1111127-D28

Code:
4014835869011

RAVENOL SHL SAE 0W-40 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL SHL SAE 0W-40 helps to protect the environment by reducing emissions.

RAVENOL SHL SAE 0W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL SHL SAE 0W-40 guarantees operational safety in all driving conditions such as extreme stop-and-go traffic and high-speed highway driving.

RAVENOL SHL SAE 0W-40 is universal fuel-efficient synthetic engine oil suitable for petrol and diesel engines, with or without turbocharger, in cars and vans with the specified quality classifications.

Characteristics

  • Excellent cold starting behavior
  • Fuel savings for part and full load
  • A very stable and excellent viscosity behavior
  • Good shear stability
  • A safe lubricant film at very high operating temperatures
  • Excellent detergent and dispersant properties
  • A broad protection against wear, corrosion and foaming
  • Excellent aging stability
  • Low evaporation loss
  • Excellent engine cleanliness
Parameter Unit Value Audit
Recommendations BMW Longlife-01, Ford WSS-M2C937-A, Renault RN0700
BMW Longlife-01, Ford WSS-M2C937-A, Renault RN0700
Brand RAVENOL
RAVENOL
SAE 0W-40
0W-40
Type Synthetic
Synthetic
API SN
SN
ACEA A3, B4
A3, B4
Manufacturer Approved MB-Approval 229.5, Porsche A40, Renault RN 0710, VW 502.00, VW 505.00
MB-Approval 229.5, Porsche A40, Renault RN 0710, VW 502.00, VW 505.00
Recomendations BMW Longlife-01, Ford WSS-M2C 937-A, Renault RN 0700
BMW Longlife-01, Ford WSS-M2C 937-A, Renault RN 0700
Density at 20 °C g/cm³ 842 EN ISO 12185
842 g/cm³ EN ISO 12185
Color Brown visual
Brown visual
Viscosity at 100 °C mm²/s 13.46 DIN 51562-1
13.46 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 75 DIN 51562-1
75 mm²/s DIN 51562-1
Viscosity Index VI 185 DIN ISO 2909
185 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 3.84 ASTM D5481
3.84 mPa*s ASTM D5481
CCS Viscosity at -35 °C mPa*s 5950 ASTM D5293
5950 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C mPa*s 28.600 ASTM D4684
28.600 mPa*s ASTM D4684
Low Temp. Pumping viscosity (MRV) at -35 °C mPa*s 28.600 ASTM D4684
28.600 mPa*s ASTM D4684
Pourpoint °C -45 DIN ISO 3016
-45 °C DIN ISO 3016
Noack Volatility % 9.4 ASTM D5800
9.4 % ASTM D5800
Flashpoint °C 228 DIN EN ISO 2592
228 °C DIN EN ISO 2592
tbn mgKOH/g 10.46 ASTM D2896
10.46 mgKOH/g ASTM D2896
Sulphated Ash %wt. 1.15 DIN 51575
1.15 %wt. DIN 51575
Approvals BMW Longlife-01, Ford WSS-M2C 937-A, MB 229.5, Porsche A40, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00
BMW Longlife-01, Ford WSS-M2C 937-A, MB 229.5, Porsche A40, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00
RUP Racing Ultra Performance 5W-40

RUP Racing Ultra Performance 5W-40

USVO®
for racing

RAVENOL RUP Racing Ultra Performance SAE 5W-40 is a modern PAO (poly-alpha-olefin) based full synthetic multigrade engine oil with special USVO® Technology.

Manufacturer Approved:
BMW Longlife-04, GM dexos2®, MB-Approval 229.51, Renault RN 0710

Compliance with the requirements:
Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, MB 229.52, Opel OV 040 1547 - D40, Opel OV 040 1547 - G40, Porsche C40, VW 502.00, VW 505.00, VW 505.01, VW 511.00

show details hide details

SAE: 5W-40

API: SP

ACEA: C3

Equivalents OEM:
GM 17504564001, GM 17504564002, GM 17504564012, Nissan KLANN05402, Nissan KLANN05404, Toyota TA52000013, Toyota TA52000013, VAG G052167M4, VAG GA52579M2, VAG GA52579M4, Volvo 1161630, Volvo 1161631, Volvo 1161639, Volvo 1161649

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1141091-001

Code:
4014835853287

Volume:
4 L

vendor code:
1141091-004

Code:
4014835853317

Volume:
10 L

vendor code:
1141091-010

Code:
4014835853348

Volume:
20 L

vendor code:
1141091-020

Code:
4014835853386

Volume:
20 L, ecobox

vendor code:
1141091-B20

Code:
4014835853362

Volume:
60 L

vendor code:
1141091-060

Code:
4014835853423

Volume:
60 L, print

vendor code:
1141091-D60

Volume:
208 L

vendor code:
1141091-208

Code:
4014835853461

Volume:
208 L, print

vendor code:
1141091-D28

Volume:
1000 L

vendor code:
1141091-700

Volume:
5 L

vendor code:
1141091-005

Code:
4014835887886

RAVENOL RUP Racing Ultra Performance SAE 5W-40 is a modern PAO (poly-alpha-olefin) based full synthetic multigrade engine oil with special USVO® Technology.

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Due to the special mixture of synthetic, highly polar Group V base oils with a high proportion of high and low viscosity PAO, it could be formulated without the use of viscosity index improvers. Due to its high viscosity index, its high HTHS value, extreme shear stability and a highly effective special novel additivation, RAVENOL RUP Racing Ultra Performance SAE 5W-40 is also suitable for an extremely sporty driving style.

RAVENOL RUP Racing Ultra Performance SAE 5W-40 achieves a secure lubrication layer thanks to its unique formulation even at very high operating temperatures, protection from corrosion (oxidation) and foaming.

Application Note

RAVENOL RUP Racing Ultra Performance SAE 5W-40 is ideally suited for car racing, even when subject to the highest levels of strain.

Characteristics

  • Ultra-modern full synthetic engine oil for car race with special additives
  • Safe lubricating layer at very high operating temperatures
  • High HTHS value, extreme shear stability
  • Very stable and excellent viscosity behaviour
  • Very low evaporation tendency
  • Very good cold start characteristics
  • Very good detergent and dispersant characteristics
  • Good protection against corrosion and foam formation
Parameter Unit Value Audit
Recommendations Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C917-A, MB 229.52, Opel OV 040 1547 - D40, Opel OV 040 1547 - G40, Porsche C40, VW 502 00, VW 505 00, VW 505 01, VW 511 00
Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C917-A, MB 229.52, Opel OV 040 1547 - D40, Opel OV 040 1547 - G40, Porsche C40, VW 502 00, VW 505 00, VW 505 01, VW 511 00
Brand RAVENOL
RAVENOL
SAE 5W-40
5W-40
Type Full synthetic
Full synthetic
API SP
SP
ACEA C3
C3
Manufacturer Approved BMW Longlife-04, GM dexos2®, MB-Approval 229.51, Renault RN 0710
BMW Longlife-04, GM dexos2®, MB-Approval 229.51, Renault RN 0710
Recomendations Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, MB 229.52, Opel OV 040 1547 - D40, Opel OV 040 1547 - G40, Porsche C40, VW 502.00, VW 505.00, VW 505.01, VW 511.00
Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, MB 229.52, Opel OV 040 1547 - D40, Opel OV 040 1547 - G40, Porsche C40, VW 502.00, VW 505.00, VW 505.01, VW 511.00
Rennstrecken-Partnerschaft Nürburgring
Nürburgring
Rennstrecken-Partner Hockenheim Premium Partner, Ralf Schumacher
Hockenheim Premium Partner, Ralf Schumacher
Density at 20 °C g/cm³ 846 EN ISO 12185
846 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 13.2 DIN 51562-1
13.2 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 73.3 DIN 51562-1
73.3 mm²/s DIN 51562-1
Viscosity Index VI 185 DIN ISO 2909
185 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 3.9 ASTM D5481
3.9 mPa*s ASTM D5481
CCS Viscosity at -30 °C mPa*s 4510 ASTM D5293
4510 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C mPa*s 12.200 ASTM D4684
12.200 mPa*s ASTM D4684
Pourpoint °C -51 DIN ISO 3016
-51 °C DIN ISO 3016
Noack Volatility % 6 DIN 51581
6 % DIN 51581
Flashpoint °C 230 DIN EN ISO 2592
230 °C DIN EN ISO 2592
tbn mgKOH/g 9.5 ASTM D2896
9.5 mgKOH/g ASTM D2896
Sulphated Ash %wt. 0.73 DIN 51575
0.73 %wt. DIN 51575
Approvals BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, GM dexos2®, MB 229.51, MB 229.52, Opel OV 040 1547 - D40, Opel OV 040 1547 - G40, Porsche C40, Renault RN0710, VW 502.00, VW 505.00, VW 505.01, VW 511.00
BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, GM dexos2®, MB 229.51, MB 229.52, Opel OV 040 1547 - D40, Opel OV 040 1547 - G40, Porsche C40, Renault RN0710, VW 502.00, VW 505.00, VW 505.01, VW 511.00
HLS 5W-30

HLS 5W-30

CleanSynto®
For engine

RAVENOL HLS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01

Compliance with the requirements:
Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00

show details hide details

SAE: 5W-30

API: CF, SN

ACEA: C3

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1111119-001

Code:
4014835723016

Volume:
4 L

vendor code:
1111119-004

Code:
4014835723092

Volume:
5 L

vendor code:
1111119-005

Code:
4014835723054

Volume:
10 L

vendor code:
1111119-010

Code:
4014835723047

Volume:
20 L

vendor code:
1111119-020

Code:
4014835723023

Volume:
20 L, ecobox

vendor code:
1111119-B20

Code:
4014835773325

Volume:
60 L

vendor code:
1111119-060

Code:
4014835723061

Volume:
60 L, print

vendor code:
1111119-D60

Code:
4014835723030

Volume:
208 L

vendor code:
1111119-208

Code:
4014835723085

Volume:
208 L, print

vendor code:
1111119-D28

Code:
4014835723009

Volume:
1000 L

vendor code:
1111119-700

RAVENOL HLS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HLS SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL HLS SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL HLS SAE 5W-30 is Mid SAPS Oils which prevents effectively the reset of the diesel soot particulate filter.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HLS SAE 5W-30 is suitable for demanding motors as a high performance low friction motor oil. It is recommended for all modern passenger car gasoline and diesel engines, including turbo versions, for direct injection motors and it is also recommended for all operation conditions. RAVENOL HLS SAE 5W-30 is recommended for use in vehicles with diesel particulate filters.

Characteristics

  • Fuel economy in part and full power operation.
  • Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine.
  • Excellent cold starting characteristics also at low temperatures below -30°C.
  • A safe lubricant film at high operating temperatures.
  • Low evaporative tendency, so lower oil consumption.
  • No deposits in combustion chambers, in the piston ring zone and valves.
  • Neutrality towards sealing materials.
  • Extended oil change intervals to protect natural resources.
Parameter Unit Value Audit
Recommendations Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502 00
Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502 00
Brand RAVENOL
RAVENOL
SAE 5W-30
5W-30
Type Synthetic
Synthetic
API CF, SN
CF, SN
ACEA C3
C3
Manufacturer Approved BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01
BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01
Recomendations Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00
Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00
Density at 20 °C g/cm³ 847 EN ISO 12185
847 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 12.2 DIN 51562-1
12.2 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 72.7 DIN 51562-1
72.7 mm²/s DIN 51562-1
Viscosity Index VI 166 DIN ISO 2909
166 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 3.51 ASTM D5481
3.51 mPa*s ASTM D5481
CCS Viscosity at -30 °C mPa*s 5216 ASTM D5293
5216 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C mPa*s 23000 ASTM D4684
23000 mPa*s ASTM D4684
Pourpoint °C -39 DIN ISO 3016
-39 °C DIN ISO 3016
Noack Volatility % 6.9 ASTM D5800
6.9 % ASTM D5800
Flashpoint °C 234 DIN EN ISO 2592
234 °C DIN EN ISO 2592
tbn mgKOH/g 7.8 ASTM D2896
7.8 mgKOH/g ASTM D2896
Sulphated Ash %wt. 0.8 DIN 51575
0.8 %wt. DIN 51575
Approvals BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S3, GM dexos2®, MB 229.31, MB 229.51, MB 229.52, Opel OV 040 1547 - D30, Stellantis FPW9.55535/03, VW 502.00, VW 505.00, VW 505.01
BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S3, GM dexos2®, MB 229.31, MB 229.51, MB 229.52, Opel OV 040 1547 - D30, Stellantis FPW9.55535/03, VW 502.00, VW 505.00, VW 505.01
Professional Engine Cleaner

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details hide details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

  • Available packaging
  • Full description
  • Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

  • Long-term effectiveness and clean fresh oil
  • Remedy for soiled engines
  • Protection against compression loss in the area of the piston rings
  • Leads to better exhaust emissions and increases the performance of the engine
Parameter Unit Value Audit
Color Light brown visual
Light brown visual
Flashpoint (PM) °C 62 DIN ISO 3679
62 °C DIN ISO 3679
Density at 20 °C 805 EN ISO 12185
805 EN ISO 12185
Viscosity at 40 °C mm²/s 7 DIN EN ISO 3104
7 mm²/s DIN EN ISO 3104
Brand RAVENOL
RAVENOL

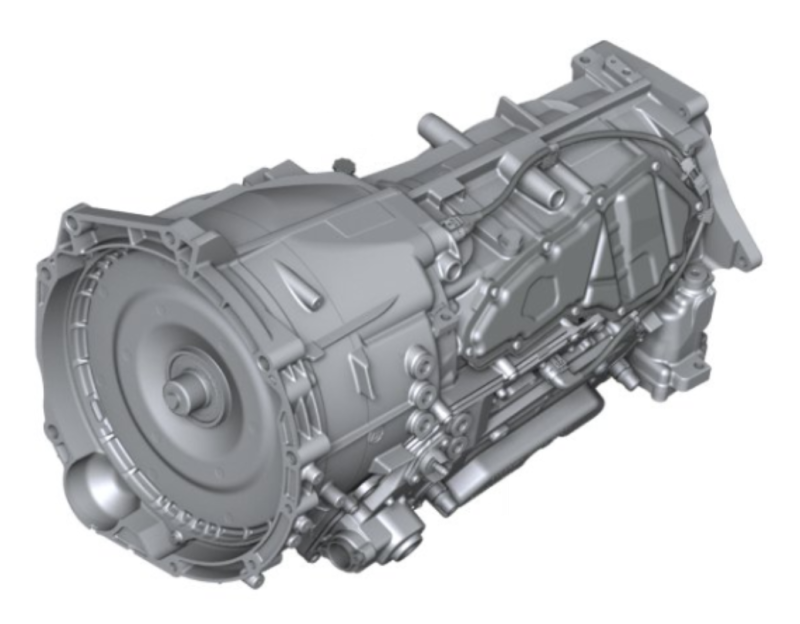

Transmission, automatic 8/1 GA8HP80XMH
OEM: 24009455282 , 24008487404 , 24005A9C105

Liquid volume (basic): 8 L
ATF 8HP Fluid

ATF 8HP Fluid

Transmission fluid

RAVENOL ATF 8HP Fluid is a automatic transmission oil ATF of the latest generation for all 8 stroke automatic transmissions of ZF. It guarantees in any mode for maximum wear protection.

Compliance with the requirements:
Acura ATF Type 3.0, ATF L 12108, BMW ATF 3+, Fiat 9.55550-AV5, Honda ATF Type 3.1, VW G 055 162, VW G 060 162, ZF TE-ML 11 9HP28, ZF TE-ML 11 9HP48, ZF TE-ML 11 9HP50

show details hide details

Equivalents OEM:
Alpine 0101590, Alpine 0101591, Alpine 0101592, Alpine 0101593, Alpine 0101594, Alpine 0101595, Alpine 101590, Alpine 101591, Alpine 101592, Alpine 101593, Alpine 101595, Honda 0820009017, Jaguar 02JDE26444S1, Land Rover LR02328, VAG G055162S0, VW G060162, VW G060162A1, VW G060162A1, VW G060162A2, VW G060162A2S1, VW G060162A2S2, VW G060162A2S3, VW G060162S0, VW G060162S1, VW G060162S2

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1211124-001

Code:
4014835719514

Volume:
4 L

vendor code:
1211124-004

Code:
4014835719590

Volume:
10 L

vendor code:
1211124-010

Code:
4014835719545

Volume:
20 L

vendor code:
1211124-020

Code:
4014835719521

Volume:
20 L, ecobox

vendor code:
1211124-B20

Code:
4014835786622

Volume:
60 L

vendor code:
1211124-060

Volume:
60 L, print

vendor code:
1211124-D60

Code:
4014835719538

Volume:
208 L

vendor code:
1211124-208

Volume:
208 L, print

vendor code:
1211124-D28

Code:
4014835719507

Volume:
1000 L

vendor code:
1211124-700

RAVENOL ATF 8HP Fluid is a automatic transmission oil ATF of the latest generation for all 8 stroke automatic transmissions of ZF. It guarantees in any mode for maximum wear protection.

RAVENOL ATF 8HP Fluid is green colored.

Application Note

RAVENOL ATF 8HP Fluid is suitable for use in automatic ZF transmission of 8HP-Series 8HP45, 8HP55, 6HP26, 8HP70, 8HP90, also for ZF transmission 6-stroke automatic 6HP-series - 6HP19X for AUDI Q7, 6HP19A, 6HP28AF. It is also suitable in ZF transmission series 9HP28, 9HP48, 9HP50.

Please observe OEM Part Numbers.

Characteristics

  • Very good lubricating ability even at low temperatures in winter
  • A high, stable viscosity index
  • Very good oxidation stability
  • Protection against wear, corrosion and foam formation
  • Good balanced coefficient of friction
  • A high thermal and oxidative stability
  • An excellent cooling capacity
Parameter Unit Value Audit
Recommendations Acura 08200-9016A, Acura ATF Type 3.0, ATF L 12108, BMW 83222289720, BMW 83222305397 (83222152426), BMW ATF 3+, Fiat 9.55550-AV5, Honda 08200-9017, Honda ATF Type 3.1, Land Rover LR023288, Land Rover LR023289, Mopar 68157995AB, Mopar 68218925AA, VW/Audi G 055 162, VW/Audi G 060 162 A2, VW/Audi G 060 162 A1, VW/Audi G 060 162 A6, ZF S671 090 312, ZF TE-ML 11 9HP28, ZF TE-ML 11 9HP48, ZF TE-ML 11 9HP50
Acura 08200-9016A, Acura ATF Type 3.0, ATF L 12108, BMW 83222289720, BMW 83222305397 (83222152426), BMW ATF 3+, Fiat 9.55550-AV5, Honda 08200-9017, Honda ATF Type 3.1, Land Rover LR023288, Land Rover LR023289, Mopar 68157995AB, Mopar 68218925AA, VW/Audi G 055 162, VW/Audi G 060 162 A2, VW/Audi G 060 162 A1, VW/Audi G 060 162 A6, ZF S671 090 312, ZF TE-ML 11 9HP28, ZF TE-ML 11 9HP48, ZF TE-ML 11 9HP50
Brand RAVENOL
RAVENOL
Type Synthetic
Synthetic
Recomendations Acura ATF Type 3.0, ATF L 12108, BMW ATF 3+, Fiat 9.55550-AV5, Honda ATF Type 3.1, VW G 055 162, VW G 060 162, ZF TE-ML 11 9HP28, ZF TE-ML 11 9HP48, ZF TE-ML 11 9HP50
Acura ATF Type 3.0, ATF L 12108, BMW ATF 3+, Fiat 9.55550-AV5, Honda ATF Type 3.1, VW G 055 162, VW G 060 162, ZF TE-ML 11 9HP28, ZF TE-ML 11 9HP48, ZF TE-ML 11 9HP50
Compliant products Acura 08200-9016A, BMW 83222152426, BMW 83222289720, BMW 83222305397, Honda 08200-9017, Land Rover LR023288, Land Rover LR023289, Mopar 68157995AB, Mopar 68218925AA, VW G 060 162, ZF S671 090 312
Acura 08200-9016A, BMW 83222152426, BMW 83222289720, BMW 83222305397, Honda 08200-9017, Land Rover LR023288, Land Rover LR023289, Mopar 68157995AB, Mopar 68218925AA, VW G 060 162, ZF S671 090 312
Density at 20 °C g/cm³ 838.5 EN ISO 12185
838.5 g/cm³ EN ISO 12185
Color Green visual
Green visual
Pourpoint °C -48 DIN ISO 3016
-48 °C DIN ISO 3016
Approvals Acura ATF Type 3.0, ATF L 12108, BMW ATF 3+, Fiat 9.55550-AV5, Honda ATF Type 3.1, VW G 055 162, VW G 060 162, ZF TE-ML 11 9HP28, ZF TE-ML 11 9HP48, ZF TE-ML 11 9HP50
Acura ATF Type 3.0, ATF L 12108, BMW ATF 3+, Fiat 9.55550-AV5, Honda ATF Type 3.1, VW G 055 162, VW G 060 162, ZF TE-ML 11 9HP28, ZF TE-ML 11 9HP48, ZF TE-ML 11 9HP50

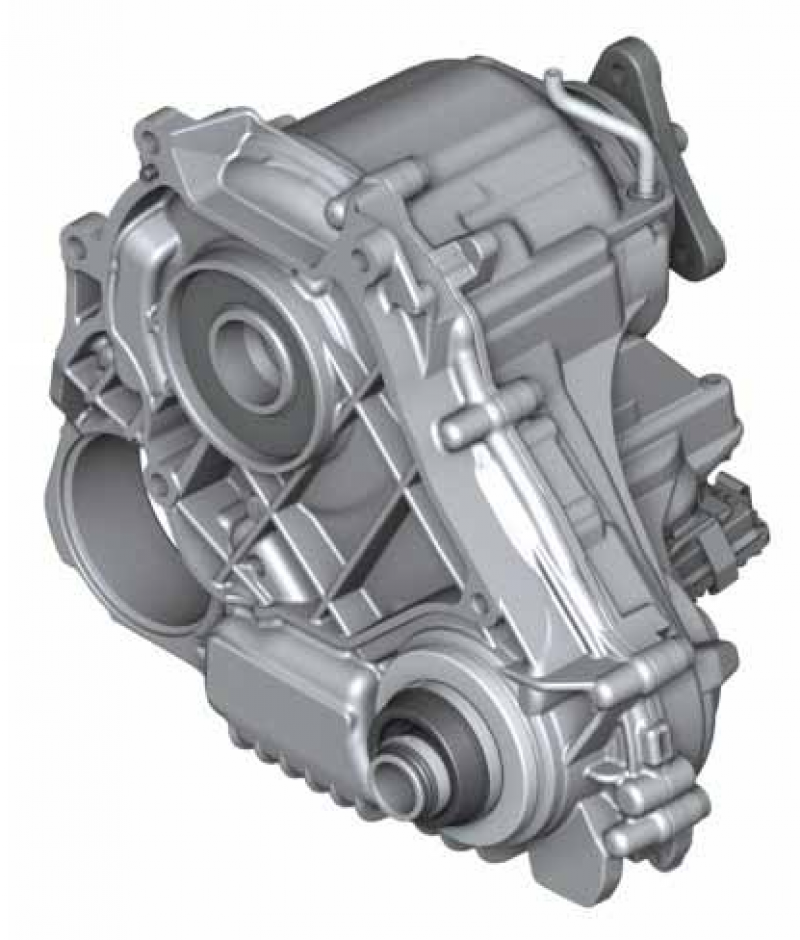

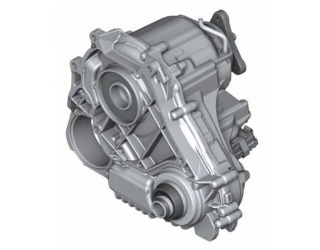

Transfer case ATC13
OEM: 27109469020 , 27108686666 , 27109847756

Liquid volume (basic): 0.7 L
Transfer Fluid DTF-1

Transfer Fluid DTF-1

For transfer cases

RAVENOL Transfer Fluid DTF-1 is a full synthetic gear lubricant for use in electronically controlled active transfer case.

Compliance with the requirements:
ATF TF-0753, ATF TF-0870, BMW DTF-1, BorgWarner BorgWarner, MB 235.64, MB 239.41, VW G 052 515, VW G 052 533, VW G 052 536

show details hide details

Equivalents OEM:
BMW 83220306816, BMW 83220397224, BMW 83220397224, BMW 83220397244, BMW 83222397244, BMW 83222409710, FEBI 170367, GM 104100, GM 19331044, Hyundai 0023219066, Hyundai Motor 0220000140, Jaguar C2Z25586, Land Rover IYK500010, MB A0009893402, MB A000989340209, MB A0009894406, MB A000989440611CDNW, Nissan 999MPTF0870P, Nissan KLD2200001, Nissan KLD2200001EU, Nissan KLD2299901EU, Porsche 00004330036, Porsche 00004330036K01, Porsche 00004330136, Porsche 00004330563, SWAG 33100200, VAG G05251A2, VAG G052515, VAG G052515A2, VAG G052515B1, VAG G052515S0 BMW 83220306816, BMW 83220397224, BMW 83220397224, BMW 83220397244, BMW 83222397244, BMW 83222409710, FEBI 170367, GM 104100, GM 19331044, Hyundai 0023219066, Hyundai Motor 0220000140, Jaguar C2Z25586, Land Rover IYK500010, MB A0009893402, MB A000989340209, MB A0009894406, MB A000989440611CDNW, Nissan 999MPTF0870P, Nissan KLD2200001, Nissan KLD2200001EU, Nissan KLD2299901EU, Porsche 00004330036, Porsche 00004330036K01, Porsche 00004330136, Porsche 00004330563, SWAG 33100200, VAG G05251A2, VAG G052515, VAG G052515A2, VAG G052515B1, VAG G052515S0, VAG G052533, VAG G052533A2, VAG G052533S0, VAG G052536, VAG G052536A2, VAG G052536S0, VAG G055015A2, VAG G055515, VAG G055515A2, VAG N052515A0, VAG N052515B0, ZF S671090710

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1211128-001

Code:
4014835795419

Volume:
4 L

vendor code:
1211128-004

Code:
4014835840073

Volume:
10 L

vendor code:
1211128-010

Code:
4014835795440

Volume:
20 L

vendor code:
1211128-020

Volume:
20 L, ecobox

vendor code:
1211128-B20

Code:
4014835828612

Volume:
60 L

vendor code:
1211128-060

Code:
4014835840102

Volume:
208 L

vendor code:
1211128-208

Volume:
1000 L

vendor code:
1211128-700

RAVENOL Transfer Fluid DTF-1 is a full synthetic gear lubricant for use in electronically controlled active transfer case.

RAVENOL Transfer Fluid DTF-1 ensures optimum power transmission.

Application Note

RAVENOL Transfer Fluid DTF-1 was developed for use in active transfer case (Active Transfer Case).

RAVENOL Transfer Fluid DTF-1 provides a stable viscosity even under the highest loads.

RAVENOL Transfer Fluid DTF-1is tried and tested for aggregates specifying:

Land Rover IYK500010, ATF TF-0753, ATF TF-0870;

MB 239.41 Torque-on-Demand (TOD) Transfer case in Type 167 GLE, Type 463 G-Class, Type 470 X-Class, Type 471 with engine OM642;

Porsche 000.043.301.36 Cayenne 9PA/9PA1 955 / 957 (from 2002 to 2010) Transfer Case PL72 ATC (NV325), 000.043.305.63 Porsche Macan 95B (from 2014) and Cayenne 92A / 958 (Petrol engines from 2010 to 2018) Transfer Case Hang-On PL72 ATC;

VW G052 515 A2 (afterwards: G055 515 A2) for Transfer Case 0AD and 0BV for Touareg, Q7; VW G052 533 A2 for Transfer Case 0C7 for Amarok;VW G052 536 A2 for Transfer Case 0BU for Touareg, Amarok and Audi Q7

Characteristics

  • Very good lubricating ability even at very low temperatures in winter
  • A high, stable viscosity index
  • Very good oxidation stability
  • Protection against wear, corrosion and foam formation
  • Good balanced coefficient of friction
  • Neutral towards sealing materials
  • Neutral behavior by inhibition compared with non-ferrous metals
Parameter Unit Value Audit
Recommendations ATC300, ATC350, ATC400, ATC450, ATC500, ATC700, ATF TF-0753, ATF TF-0870, BMW 83220306816 für Transfer Case xDrive, BMW 83222397244, BMW DTF-1 83222409710, Genesis (USA) 5.0 GDI AWD, Genesis (USA) G90 3.3 T-GDI, KIA (EU) 3.3 T-GDI AWD, KIA (EU) Stinger 2.2 CRDI, Land Rover IYK500010, MB 235.64, MB 239.41 Torque-on-Demand (TOD) Verteilergetriebe, Mopar 68049954AA für BorgWarner 44-40 Verteilgetr., NIssan 999MP-ATFD3MP, Nissan 999MP-TF0870P, Nissan KLD22-00001EU für Transfer Case ATX90A, Porsche 000.043.301.36, Porsche 000.043.305.63, VW G 052 515 A2, VW G 052 533 A2, VW G 052 536 A2
ATC300, ATC350, ATC400, ATC450, ATC500, ATC700, ATF TF-0753, ATF TF-0870, BMW 83220306816 für Transfer Case xDrive, BMW 83222397244, BMW DTF-1 83222409710, Genesis (USA) 5.0 GDI AWD, Genesis (USA) G90 3.3 T-GDI, KIA (EU) 3.3 T-GDI AWD, KIA (EU) Stinger 2.2 CRDI, Land Rover IYK500010, MB 235.64, MB 239.41 Torque-on-Demand (TOD) Verteilergetriebe, Mopar 68049954AA für BorgWarner 44-40 Verteilgetr., NIssan 999MP-ATFD3MP, Nissan 999MP-TF0870P, Nissan KLD22-00001EU für Transfer Case ATX90A, Porsche 000.043.301.36, Porsche 000.043.305.63, VW G 052 515 A2, VW G 052 533 A2, VW G 052 536 A2
Brand RAVENOL
RAVENOL
Type Full synthetic
Full synthetic
Recomendations ATF TF-0753, ATF TF-0870, BMW DTF-1, BorgWarner BorgWarner, MB 235.64, MB 239.41, VW G 052 515, VW G 052 533, VW G 052 536
ATF TF-0753, ATF TF-0870, BMW DTF-1, BorgWarner BorgWarner, MB 235.64, MB 239.41, VW G 052 515, VW G 052 533, VW G 052 536
Suitable for BMW ATC300, BMW ATC350, BMW ATC400, BMW ATC450, BMW ATC500, BMW ATC700, Hyundai Genesis (USA) 5.0 GDI AWD, Hyundai Genesis (USA) G90 3.3 T-GDI, KIA (EU) 3.3 T-GDI AWD, KIA (EU) Stinger 2.2 CRDI, Nissan Transfer Case ATX90A
BMW ATC300, BMW ATC350, BMW ATC400, BMW ATC450, BMW ATC500, BMW ATC700, Hyundai Genesis (USA) 5.0 GDI AWD, Hyundai Genesis (USA) G90 3.3 T-GDI, KIA (EU) 3.3 T-GDI AWD, KIA (EU) Stinger 2.2 CRDI, Nissan Transfer Case ATX90A
Compliant products BMW 83220306816, BMW 83222397244, BMW 83222409710, Land Rover IYK500010, Mopar 68049954AA, NIssan 999MP-ATFD3MP, Nissan 999MP-TF0870P, Nissan KLD22-00001EU, Porsche 000.043.301.36, Porsche 000.043.305.63, VW G 052 515, VW G 052 533, VW G 052 536
BMW 83220306816, BMW 83222397244, BMW 83222409710, Land Rover IYK500010, Mopar 68049954AA, NIssan 999MP-ATFD3MP, Nissan 999MP-TF0870P, Nissan KLD22-00001EU, Porsche 000.043.301.36, Porsche 000.043.305.63, VW G 052 515, VW G 052 533, VW G 052 536
Density at 20 °C g/cm³ 831 EN ISO 12185
831 g/cm³ EN ISO 12185
Color Yellow visual
Yellow visual
Pourpoint °C -63 DIN ISO 3016
-63 °C DIN ISO 3016
Approvals ATF TF-0753, ATF TF-0870, BMW DTF-1, BorgWarner BorgWarner, MB 235.64, MB 239.41, VW G 052 515, VW G 052 533, VW G 052 536
ATF TF-0753, ATF TF-0870, BMW DTF-1, BorgWarner BorgWarner, MB 235.64, MB 239.41, VW G 052 515, VW G 052 533, VW G 052 536

Differential, rear 215LWS S2T4A M Sport
OEM: 33108686661

Liquid volume (basic): 0.9 L
VGO 70W-80 LS

VGO 70W-80 LS

show details hide details

SAE: 70W-80

API: GL-5 LS, MT-1

  • Available packaging
  • Product parameters
Parameter Unit Value Audit

Differential, rear 215LW
OEM: 33108678632 , 33109454739

Liquid volume (basic): 1 L
DGL 75W-85 GL-5 LS

DGL 75W-85 GL-5 LS

For transmission

RAVENOL DGL SAE 75W-85 GL-5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2 , BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.7, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18

show details hide details

SAE: 75W-85

API: GL-5 LS

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1221107-001

Code:
4014835848610

Volume:
4 L

vendor code:
1221107-004

Code:
4014835848641

Volume:
10 L

vendor code:
1221107-010

Code:
4014835848672

Volume:
20 L

vendor code:
1221107-020

Code:
4014835848719

Volume:
20 L, ecobox

vendor code:
1221107-B20

Code:
4014835848696

Volume:
60 L

vendor code:
1221107-060

Code:
4014835848757

Volume:
60 L, print

vendor code:
1221107-D60

Volume:
208 L

vendor code:
1221107-208

Volume:
208 L, print

vendor code:
1221107-D28

Volume:
1000 L

vendor code:
1221107-700

RAVENOL DGL SAE 75W-85 GL-5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL DGL SAE 75W-85 GL-5 LS is excellent developed to the increased loads of gear oils to ensure the proper functioning of the transmission. It is especially suited for applications requiring "limited slip" (LS) properties.

Application Note

RAVENOL DGL SAE 75W-85 GL-5 LS is high-performance gear oil for the supply of transfer cases and differentials with and without limited slip "Limited Slip" of motor vehicles.

RAVENOL DGL SAE 75W-85 GL-5 LS ensures a proper lubrication in the transmission. The operating instructions of the vehicle and transmission manufacturers must be observed.

RAVENOL DGL SAE 75W-85 GL-5 LS is suitable for Honda Crosstour 2010-2015, Pilot 2006-2015, Ridgeline 2006-2014 and Acura MDX 2003-2014, Acura RDX 2007-2014, Acura RL 2005-2012, Acura TL 2009-2014, Acura ZDX 2010-2013

Characteristics

  • A high pressure stable lubricating film even at high oil temperatures and under high stress.
  • Outstanding shearing stability and excellent thermal stability.
  • Excellent viscosity-temperature properties.
  • High oxidation stability.
  • Excellent wear protection, outstanding EP properties.
  • Low foaming properties even at high speeds.
  • Good compatibility with non-ferrous metals and sealing materials.
  • Good shifting behaviour even in low temperatures, low pour point.
  • Extended life.
  • A stable lubricating film even at high oil temperatures and under high stress.
  • Well adhering lubricating film and outstanding LS additive treatment for reduced transmission noise even when oil is hot.
Parameter Unit Value Audit
Recommendations AC Delco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BMW Jeep, BOT 448, BOT 799, Chrysler ELSD Rear Axle, Dodge, DTFR 12B120, Fiat 9.55550 F426.E06, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, Lexus, MB 235.15 (A 001 989 59 03), MB 235.31, MB 235.33, MB 235.62, MB 235.7 (A 001 989 83 03), MB 235.74 (A 001 989 33 03), MB 239.71 (A 001 989 88 03), Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, Toyota JWS 2273, VW G 052 190 A2, VW G 052 196 A2, VW G 052 518 A2, VW G 055 190 A2, VW G 060 190 A2, VW TL 52190, ZF TE-ML 18
AC Delco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BMW Jeep, BOT 448, BOT 799, Chrysler ELSD Rear Axle, Dodge, DTFR 12B120, Fiat 9.55550 F426.E06, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C942-A, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, Lexus, MB 235.15 (A 001 989 59 03), MB 235.31, MB 235.33, MB 235.62, MB 235.7 (A 001 989 83 03), MB 235.74 (A 001 989 33 03), MB 239.71 (A 001 989 88 03), Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, Toyota JWS 2273, VW G 052 190 A2, VW G 052 196 A2, VW G 052 518 A2, VW G 055 190 A2, VW G 060 190 A2, VW TL 52190, ZF TE-ML 18
Brand RAVENOL
RAVENOL
SAE 75W-85
75W-85
Type Full synthetic
Full synthetic
API GL-5 LS
GL-5 LS
Recomendations BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18
BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18
specification MIL-L-2105 D
MIL-L-2105 D
Suitable for BMW|Jeep, Chrysler ELSD Rear Axle, Dodge, Lexus
BMW|Jeep, Chrysler ELSD Rear Axle, Dodge, Lexus
Compliant products AcDelco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, MB A 001 989 33 03, MB A 001 989 59 03, MB A 001 989 83 03, MB A 001 989 88 03, Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, VW G 052 190, VW G 052 196, VW G 055 190
AcDelco 10-4032, Acura 08200-9014A, BMW 83222239982, BMW 83222295532, BMW 83222413511, BMW 83222471487, GM 92184900, Honda 08200-9014, Land Rover LR052059, Land Rover LR129319, MB A 001 989 33 03, MB A 001 989 59 03, MB A 001 989 83 03, MB A 001 989 88 03, Mopar 68083381AA, Toyota 08885-81070, Toyota 08885-81081, VW G 052 190, VW G 052 196, VW G 055 190
Density at 20 °C g/cm³ 862 EN ISO 12185
862 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 11.6 DIN 51562-1
11.6 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 64.3 DIN 51562-1
64.3 mm²/s DIN 51562-1
Viscosity Index VI 177 DIN ISO 2909
177 DIN ISO 2909
Brookfield Viscosity at -40 °C mPa*s 26.000 ASTM D2983
26.000 mPa*s ASTM D2983
Pourpoint °C -51 DIN ISO 3016
-51 °C DIN ISO 3016
Flashpoint °C 215 DIN EN ISO 2592
215 °C DIN EN ISO 2592
Seq. I at 24 °C ml/ml 5/0 ASTM D892
5/0 ml/ml ASTM D892
Seq. II at 93,5 °C ml/ml 10/0 ASTM D892
10/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C ml/ml 5/0 ASTM D892
5/0 ml/ml ASTM D892
Copper Strip Test at 121 °C 1b ASTM D130
1b ASTM D130
Approvals BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, MIL-L-2105 D, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18
BMW Hypoid Axle Oil G1, BMW Hypoid Axle Oil G2, BMW Hypoid Axle Oil G5, BOT 448, BOT 799, DTFR 12B120, Fiat 9.55550-DA3, Fiat 9.55550-DA8, Fiat 9.55550-DA9, Ford WSS-M2C 942-A, MB 235.15, MB 235.31, MB 235.33, MB 235.62, MB 235.7, MB 235.74, MB 239.71, MIL-L-2105 D, Toyota JWS 2273, VW G 052 190, VW G 052 196, VW G 052 518 A2, VW G 055 190, VW G 060 190 A2, VW TL 521 90, ZF TE-ML 18
VSG 75W-90

VSG 75W-90

For transmission

RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.

Compliance with the requirements:
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.8, MB 235.9, MB 235.11, MB 235.21, MB 235.72, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B

show details hide details

SAE: 75W-90

API: GL-4, GL-5

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1221101-001

Code:
4014835733916

Volume:
4 L

vendor code:
1221101-004

Code:
4014835733992

Volume:
10 L

vendor code:
1221101-010

Code:
4014835733947

Volume:
20 L

vendor code:
1221101-020

Code:
4014835733923

Volume:
20 L, ecobox

vendor code:
1221101-B20

Code:
4014835846654

Volume:
60 L

vendor code:
1221101-060

Code:
2200000083081

Volume:
60 L, print

vendor code:
1221101-D60

Code:
4014835733930

Volume:
208 L

vendor code:
1221101-208

Code:
4014835733985

Volume:
208 L, print

vendor code:
1221101-D28

Code:
4014835733909

Volume:
1000 L

vendor code:
1221101-700

RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.

Application Note

RAVENOL VSG SAE 75W-90 is excellent for use of highly stressed axle drives.

RAVENOL VSG SAE 75W-90 is suitable for synchronised and non-synchronised manual transmissions, transfer cases and ancillary transmission requiring API GL-5 or GL-4 oil.

RAVENOL VSG SAE 75W-90 is suitable for Ford-transmission IB5, B5, MTX75, GM5, MT285/6, MMT6/6, MT75, R15M-D, R15MX-D, MT82 and Porsche Full-Time Transfer Case with Torsen (PL72T) for Cayenne 92A / 958 Diesel and S Hybrid from 2010 to 2018.

Characteristics

  • high additive reserves for prolonged oil change intervals according to the manufacturer specifications
  • excellent cold flow properties
  • best wear protection and best transmission efficiency
  • Fuel savings even with short distances in low outdoor temperatures
  • stable lubricating film even under high stress
  • extraordinary corrosion protection and good compatibility with non-ferrous metal
  • high oxidation resistance prevents oil thickening and deposits
  • outstanding dirt-carrying capacity, i.e. aggregates are clean even after very long oil change intervals
  • excellent elastomer compatibility to prevent leaks
  • extreme shearing stability, remains within the clean oil viscosity per SAE class 75W-90 even after very long periods of use
  • very high protection from rust, corrosion and foaming
  • extreme low pour point
  • excellent EP properties
  • fuel savings
Parameter Unit Value Audit
Recommendations BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 911 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 911 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
Brand RAVENOL
RAVENOL
SAE 75W-90
75W-90
Type Full synthetic
Full synthetic
API GL-4, GL-5
GL-4, GL-5
Recomendations BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
Suitable for IVECO
IVECO
Compliant products BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911
BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911
Density at 20 °C g/cm³ 839.8 EN ISO 12185
839.8 g/cm³ EN ISO 12185
Color Yellow visual
Yellow visual
Viscosity at 100 °C mm²/s 16.8 DIN 51562-1
16.8 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 108.8 DIN 51562-1
108.8 mm²/s DIN 51562-1
Viscosity Index VI 168 DIN ISO 2909
168 DIN ISO 2909
Brookfield Viscosity at -40 °C mPa*s 47.000 ASTM D2983
47.000 mPa*s ASTM D2983
Pourpoint °C -57 DIN ISO 3016
-57 °C DIN ISO 3016
Flashpoint °C 224 DIN EN ISO 2592
224 °C DIN EN ISO 2592
Seq. I at 24 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Seq. II at 93,5 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Copper Strip Test at 121 °C 1a ASTM D130
1a ASTM D130
Approvals BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B

Differential, front 168AL
OEM: 31508488199 , 31508487442

Liquid volume (basic): 0.6 L
MTF-1 75W-85

MTF-1 75W-85

For gearbox

RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513

show details hide details

SAE: 75W-85

API: GL-4, GL-5

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1221102-001

Code:
4014835719613

Volume:
4 L

vendor code:
1221102-004

Code:
4014835719699

Volume:
10 L

vendor code:
1221102-010

Code:
4014835719644

Volume:
20 L

vendor code:
1221102-020

Code:
4014835719620

Volume:
20 L, ecobox

vendor code:
1221102-B20

Code:
4014835788329

Volume:
60 L

vendor code:
1221102-060

Code:
4014835719668

Volume:
60 L, print

vendor code:
1221102-D60

Volume:
208 L

vendor code:
1221102-208

Code:
4014835719682

Volume:
208 L, print

vendor code:
1221102-D28

Volume:
1000 L

vendor code:
1221102-700

RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL MTF-1 SAE 75W-85 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.

Application Note

RAVENOL MTF-1 SAE 75W-85 is high-performance gear oil for manual transmission, transfer cases and differential gears.

Characteristics

  • Excellent thermal stability.
  • High protection from rust, corrosion, foaming.
  • Low solidification point.
  • Excellent EP properties.
  • Good shifting behavior in low temperatures.
  • Extended life.
  • Fuel savings.
Parameter Unit Value Audit
Recommendations DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513
SAE 75W-85
75W-85
Brand RAVENOL
RAVENOL
Type Full synthetic
Full synthetic
API GL-4, GL-5
GL-4, GL-5
Recomendations DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
Compliant products GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060
GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060
Density at 20 °C g/cm³ 855 EN ISO 12185
855 g/cm³ EN ISO 12185
Color Red visual
Red visual
Brookfield Viscosity at -40 °C mPa*s 38.800 ASTM D2983
38.800 mPa*s ASTM D2983
Pourpoint °C -42 DIN ISO 3016
-42 °C DIN ISO 3016
Copper Strip Test at 121 °C 1b ASTM D130
1b ASTM D130
Approvals DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
VSG 75W-90

VSG 75W-90

For transmission

RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.

Compliance with the requirements:
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.8, MB 235.9, MB 235.11, MB 235.21, MB 235.72, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B

show details hide details

SAE: 75W-90

API: GL-4, GL-5

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1221101-001

Code:
4014835733916

Volume:
4 L

vendor code:
1221101-004

Code:
4014835733992

Volume:
10 L

vendor code:
1221101-010

Code:
4014835733947

Volume:
20 L

vendor code:
1221101-020

Code:
4014835733923

Volume:
20 L, ecobox

vendor code:
1221101-B20

Code:
4014835846654

Volume:
60 L

vendor code:
1221101-060

Code:
2200000083081

Volume:
60 L, print

vendor code:
1221101-D60

Code:
4014835733930

Volume:
208 L

vendor code:
1221101-208

Code:
4014835733985

Volume:
208 L, print

vendor code:
1221101-D28

Code:
4014835733909

Volume:
1000 L

vendor code:
1221101-700

RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.

Application Note

RAVENOL VSG SAE 75W-90 is excellent for use of highly stressed axle drives.

RAVENOL VSG SAE 75W-90 is suitable for synchronised and non-synchronised manual transmissions, transfer cases and ancillary transmission requiring API GL-5 or GL-4 oil.

RAVENOL VSG SAE 75W-90 is suitable for Ford-transmission IB5, B5, MTX75, GM5, MT285/6, MMT6/6, MT75, R15M-D, R15MX-D, MT82 and Porsche Full-Time Transfer Case with Torsen (PL72T) for Cayenne 92A / 958 Diesel and S Hybrid from 2010 to 2018.

Characteristics

  • high additive reserves for prolonged oil change intervals according to the manufacturer specifications
  • excellent cold flow properties
  • best wear protection and best transmission efficiency
  • Fuel savings even with short distances in low outdoor temperatures
  • stable lubricating film even under high stress
  • extraordinary corrosion protection and good compatibility with non-ferrous metal
  • high oxidation resistance prevents oil thickening and deposits
  • outstanding dirt-carrying capacity, i.e. aggregates are clean even after very long oil change intervals
  • excellent elastomer compatibility to prevent leaks
  • extreme shearing stability, remains within the clean oil viscosity per SAE class 75W-90 even after very long periods of use
  • very high protection from rust, corrosion and foaming
  • extreme low pour point
  • excellent EP properties
  • fuel savings
Parameter Unit Value Audit
Recommendations BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 911 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 911 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
Brand RAVENOL
RAVENOL
SAE 75W-90
75W-90
Type Full synthetic
Full synthetic
API GL-4, GL-5
GL-4, GL-5
Recomendations BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
Suitable for IVECO
IVECO
Compliant products BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911
BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911
Density at 20 °C g/cm³ 839.8 EN ISO 12185
839.8 g/cm³ EN ISO 12185
Color Yellow visual
Yellow visual
Viscosity at 100 °C mm²/s 16.8 DIN 51562-1
16.8 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 108.8 DIN 51562-1
108.8 mm²/s DIN 51562-1
Viscosity Index VI 168 DIN ISO 2909
168 DIN ISO 2909
Brookfield Viscosity at -40 °C mPa*s 47.000 ASTM D2983
47.000 mPa*s ASTM D2983
Pourpoint °C -57 DIN ISO 3016
-57 °C DIN ISO 3016
Flashpoint °C 224 DIN EN ISO 2592
224 °C DIN EN ISO 2592
Seq. I at 24 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Seq. II at 93,5 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Copper Strip Test at 121 °C 1a ASTM D130
1a ASTM D130
Approvals BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B

Hydraulic brake system

Liquid volume (basic): 2 L
DOT 5.1

DOT 5.1

For brake system

The specific formulation of RAVENOL DOT 5.1 offers international DOT 5.1 specifications SAE J 1704, ISO 4925 and fulfills FMVSS 116 DOT 5.1.

show details hide details

Equivalents OEM:
Motorcraft PM21, Renault 7711575552, Toyota 0882300061, Toyota 0882300061, Toyota 0882380004, Toyota 0882380005, Toyota 0882380005EE, Toyota 0882380007, Yamalube YMD650490100, Yamalube YMD650490101, Yamalube YMD650490102, Yamalube YMD650490103

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1350602-001

Code:
4014835692213

Volume:
20 L

vendor code:
1350602-020

Volume:
200 L

vendor code:
1350602-200

DOT 5.1

The specific formulation of RAVENOL DOT 5.1 offers international DOT 5.1 specifications SAE J 1704, ISO 4925 and fulfills FMVSS 116 DOT 5.1.

RAVENOL DOT 5.1 fluid is an ideal brake fluid for modern vehicles with the brake circuit accompanying systems such as ESP and ABS due to its low viscosity. The safety potential of the aggregates is enhanced by the excellent properties of RAVENOL DOT 5.1 even at low temperatures.

Application Note

RAVENOL DOT 5.1 brake fluid can be used in all vehicles where DOT 5.1 specification is required. It is suitable for all hydraulic brake systems with synthetic fluid.

RAVENOL DOT 5.1 brake fluid is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT 5.1, a complete change of the brake fluid is recommended.

RAVENOL DOT 5.1 is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113).

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

  • Optimal ABS properties
  • Chemical stability
  • High lubricating power
  • Neutral behavior towards brake parts
  • Low viscosity at low temperatures
  • Miscibility with all brake fluids of the same specification.
Parameter Unit Value Audit
FMVSS 116 specifications (DOT) DOT-5.1
DOT-5.1
Brand RAVENOL
RAVENOL
Type Synthetic
Synthetic
specification DOT 5.1, ISO 4925 Class 5.1, SAE J 1704
DOT 5.1, ISO 4925 Class 5.1, SAE J 1704
Density at 20 °C g/cm³ 1069 EN ISO 12185
1069 g/cm³ EN ISO 12185
Color light yellow visual
light yellow visual
Viscosity at 100 °C mPa*s 2.16 ASTM D445
2.16 mPa*s ASTM D445
Viscosity at -40 °C cSt 810 ASTM D445
810 cSt ASTM D445
Boiling point °C 269 FMVSS 116
269 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point °C 187 FMVSS 116
187 °C FMVSS 116
Chemical Stability °C 1.5 FMVSS 116
1.5 °C FMVSS 116
Evaporation %w/w 68 FMVSS 116
68 %w/w FMVSS 116
Fluidity & Appearance at -40 °C i.O., 2s FMVSS 116
i.O., 2s FMVSS 116
Fluidity & Appearance at -50 °C i.O., 4s FMVSS 116
i.O., 4s FMVSS 116
Water Tolerance at -40 °C transparent, 2s FMVSS 116
transparent, 2s FMVSS 116
Water Tolerance at +60 °C Transparent FMVSS 116
Transparent FMVSS 116
Compatibility at -40 °C Transparent FMVSS 116
Transparent FMVSS 116
Compatibility at +60 °C Transparent FMVSS 116
Transparent FMVSS 116
Water content % 0.1 DIN 51777-1
0.1 % DIN 51777-1
Tinned Iron Δ mg/cm² -0.01 FMVSS 116
-0.01 Δ mg/cm² FMVSS 116
Steel mg/cm² -0.004 FMVSS 116
-0.004 mg/cm² FMVSS 116
Aluminium mg/cm² -0.01 FMVSS 116
-0.01 mg/cm² FMVSS 116
Cast Iron Δ mg/cm² -0,01 FMVSS 116
-0,01 Δ mg/cm² FMVSS 116
Brass mg/cm² -0.05 FMVSS 116
-0.05 mg/cm² FMVSS 116
Copper mg/cm² -0.03 FMVSS 116
-0.03 mg/cm² FMVSS 116
Zinc mg/cm² 0.03 FMVSS 116
0.03 mg/cm² FMVSS 116
Sediment % — 0.05 FMVSS 116
— 0.05 % FMVSS 116
pH - value 7.33 FMVSS 116
7.33 FMVSS 116
Rubber Diameter Change 0.03 FMVSS 116
0.03 FMVSS 116
Hardness Change °IRHD -6 FMVSS 116
-6 °IRHD FMVSS 116
Appearance i.O. FMVSS 116
i.O. FMVSS 116
SBR at 70 °C mm 0.44 FMVSS 116
0.44 mm FMVSS 116
SBR at 120 °C mm 0.72 FMVSS 116
0.72 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703) IRHD -2 FMVSS 116
-2 IRHD FMVSS 116
EPDM at 120 °C IRHD -3 FMVSS 116
-3 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925) mm 0.42 FMVSS 116
0.42 mm FMVSS 116
Approvals DOT 5.1, ISO 4925 Class 5.1, SAE J 1704
DOT 5.1, ISO 4925 Class 5.1, SAE J 1704
DOT 4

DOT 4

For brake system

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

show details hide details
  • Available packaging
  • Full description
  • Product parameters

Volume:
250 ml

vendor code:
1350601-250

Code:
4014835692121

Volume:
500 ml

vendor code:
1350601-500

Code:
4014835692152

Volume:
1 L

vendor code:
1350601-001

Code:
4014835692114

Volume:
20 L

vendor code:
1350601-020

DOT 4

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

Application Note

RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.

RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.

RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113).

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

  • optimum ABS characteristics
  • chemical stability
  • best lubrication efficiency
  • neutral behaviour regarding brake parts
  • low viscosity at low temperatures
  • miscible with all brake fluids of the same specifications
Parameter Unit Value Audit
FMVSS 116 specifications (DOT) DOT-4
DOT-4
Brand RAVENOL
RAVENOL
Type Synthetic
Synthetic
specification DOT 4, ISO 4925 Class 4, SAE J 1704
DOT 4, ISO 4925 Class 4, SAE J 1704
Density at 20 °C g/cm³ 1052 EN ISO 12185
1052 g/cm³ EN ISO 12185
Color light yellow visual
light yellow visual
Viscosity at 100 °C mPa*s 2.41 ASTM D445
2.41 mPa*s ASTM D445
Viscosity at -40 °C cSt 1340 ASTM D445
1340 cSt ASTM D445
Boiling point °C 271 FMVSS 116
271 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point °C 169 FMVSS 116
169 °C FMVSS 116
High Temperature Stability °C -1 FMVSS 116
-1 °C FMVSS 116
Chemical Stability °C 1 FMVSS 116
1 °C FMVSS 116
Evaporation %w/w 61 FMVSS 116
61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C i.O., 4s FMVSS 116
i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C i.O., 8s FMVSS 116
i.O., 8s FMVSS 116
Water Tolerance at -40 °C transparent, 3s FMVSS 116
transparent, 3s FMVSS 116
Water Tolerance at +60 °C Transparent FMVSS 116
Transparent FMVSS 116
Compatibility at -40 °C Transparent FMVSS 116
Transparent FMVSS 116
Compatibility at +60 °C Transparent FMVSS 116
Transparent FMVSS 116
Water content % — 0.2 DIN 51777-1
— 0.2 % DIN 51777-1
Tinned Iron Δ mg/cm² 0.04 FMVSS 116
0.04 Δ mg/cm² FMVSS 116
Steel mg/cm² -0.01 FMVSS 116
-0.01 mg/cm² FMVSS 116
Aluminium mg/cm² 0.02 FMVSS 116
0.02 mg/cm² FMVSS 116
Cast Iron Δ mg/cm² -0,03 FMVSS 116
-0,03 Δ mg/cm² FMVSS 116
Brass mg/cm² -0.08 FMVSS 116
-0.08 mg/cm² FMVSS 116
Copper mg/cm² -0.05 FMVSS 116
-0.05 mg/cm² FMVSS 116
Zinc mg/cm² 0.01 FMVSS 116
0.01 mg/cm² FMVSS 116
Sediment % — 0.05 FMVSS 116
— 0.05 % FMVSS 116
pH - value 8.2 FMVSS 116
8.2 FMVSS 116
Rubber Diameter Change 0.16 FMVSS 116
0.16 FMVSS 116
Hardness Change °IRHD -4 FMVSS 116
-4 °IRHD FMVSS 116
Appearance i.O. FMVSS 116
i.O. FMVSS 116
SBR at 70 °C mm 0.56 FMVSS 116
0.56 mm FMVSS 116
SBR at 120 °C mm 0.73 FMVSS 116
0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703) IRHD -2 FMVSS 116
-2 IRHD FMVSS 116
EPDM at 120 °C IRHD -2 FMVSS 116
-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925) mm 0.38 FMVSS 116
0.38 mm FMVSS 116
Approvals DOT 4, ISO 4925 Class 4, SAE J 1704
DOT 4, ISO 4925 Class 4, SAE J 1704

Cooling system
OEM: 17119886566

Liquid volume (basic): 16.2 L
TTC - Protect C11 Premix -40ºC

TTC - Protect C11 Premix -40ºC

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

Compliance with the requirements:
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C

show details hide details
  • Available packaging
  • Full description
  • Product parameters

Volume:
1.5 L

vendor code:
1410105-150

Code:
4014835755314

Volume:
5 L

vendor code:
1410105-005

Code:
4014835755352

Volume:
10 L

vendor code:
1410105-010

Code:
4014835755345

Volume:
20 L

vendor code:
1410105-020

Code:
4014835755321

Volume:
20 L, ecobox

vendor code:
1410105-B20

Code:
4014835855939

Volume:
60 L

vendor code:
1410105-060

Code:
4014835755369

Volume:
208 L

vendor code:
1410105-208

Code:
4014835755383

Volume:
1000 L

vendor code:
1410105-700

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL TTC Trad. Techn. Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL TTC Trad. Techn. Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL TTC Trad. Techn. Coolant Premix -40°C to radiator to fill line.

Characteristics

  • Excellent for light metal engines
  • Good reserve alkalinity
  • High-quality corrosion additives for optimal corrosion protection
  • Elastomer compatible with elastome
Parameter Unit Value Audit
Recommendations AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
Brand RAVENOL
RAVENOL
ASTM D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF
D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF
Recomendations AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
Suitable for Suzuki
Suzuki
Density at 20 °C g/cm³ 1080 EN ISO 12185
1080 g/cm³ EN ISO 12185
Color yellow green visual
yellow green visual
pH - value at 20 °C 7,8 ASTM D1287
7,8 ASTM D1287
Freezing point °C -40 ASTM D1177
-40 °C ASTM D1177
Approvals AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
TTC - Protect C11 Concentrate

TTC - Protect C11 Concentrate

Coolant

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

Compliance with the requirements:
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C

show details hide details

Equivalents OEM:
Alpine 0101141, Alpine 0101142, Alpine 0101143, Alpine 0101144, Alpine 0101145, Alpine 101141, Alpine 101142, Alpine 101143, Alpine 101144, Alpine 101145, Chrysler 04267020AA, Chrysler 04267020AB, Chrysler 04267020AC, Chrysler 04267020AD, Chrysler 04267020GA, Chrysler 04267020GB, Chrysler 04267020GC, Chrysler 04267020GD, Chrysler 4267020GA, Chrysler 4267020GB, Chrysler 4267020GD, FEBI 02374, FEBI 2374, FEBI 88541, Ford 1326830, Ford CVC5, Ford CVC7B2, Ford VC5, Ford VC7B, Ford VC7D, Ford VC7DILB Alpine 0101141, Alpine 0101142, Alpine 0101143, Alpine 0101144, Alpine 0101145, Alpine 101141, Alpine 101142, Alpine 101143, Alpine 101144, Alpine 101145, Chrysler 04267020AA, Chrysler 04267020AB, Chrysler 04267020AC, Chrysler 04267020AD, Chrysler 04267020GA, Chrysler 04267020GB, Chrysler 04267020GC, Chrysler 04267020GD, Chrysler 4267020GA, Chrysler 4267020GB, Chrysler 4267020GD, FEBI 02374, FEBI 2374, FEBI 88541, Ford 1326830, Ford CVC5, Ford CVC7B2, Ford VC5, Ford VC7B, Ford VC7D, Ford VC7DILB, GM 19284967, GM 19375289, GM 19375290, GM 19375291, Nissan 7711170548, Renault 7711170548, Renault 7711428132, SsangYong 0000000242, Toyota 0888980042, Toyota 0888980043, VAG G0118ACA1, VAG N052774C0, Volvo 11715725, Volvo 11715726, Volvo 11715727, Volvo 11715727, Volvo 85108901, Volvo VOE11715725, Volvo VOE11715726

Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.
  • Available packaging
  • Full description
  • Product parameters

Volume:
1.5 L

vendor code:
1410100-150

Code:
4014835755215

Volume:
5 L

vendor code:
1410100-005

Code:
4014835755253

Volume:
10 L

vendor code:
1410100-010

Volume:
20 L

vendor code:
1410100-020

Code:
4014835755222

Volume:
20 L, ecobox

vendor code:
1410100-B20

Volume:
60 L

vendor code:
1410100-060

Code:
4014835755260

Volume:
60 L, plastic

vendor code:
-

Code:
4014835755239

Volume:
60 L, print

vendor code:
1410100-D60

Volume:
208 L

vendor code:
1410100-208

Code:
4014835755208

Volume:
1000 L

vendor code:
1410100-700

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

Therefore manufacturers subject coolants to long corrosion and cavitation tests.

RAVENOL TTC Trad. Techn. Coolant Concentrate protects the cooling system from corrosion, frost, and in the summer from overheating.

Application Note

RAVENOL TTC Trad. Techn. Coolant Concentrate with frost and rust protection. Use according to the mixing chart. Follow manufacturer’s recommendations.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL TTC Trad. Techn. Coolant Concentrate with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

Table of mixing ratios
Antifreeze protection until Parts Antifreeze Parts Water
-20°C 35% 65%
-37°C 50% 50%
-50°C 60% 40%

Characteristics

  • Excellent for light metal engines
  • Good reserve alkalinity
  • High-quality corrosion additives for optimal corrosion protection
  • Elastomer compatible with elastomers used in automotive radiators
Parameter Unit Value Audit
Recommendations AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
Brand RAVENOL
RAVENOL
ASTM D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF
D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF
Recomendations AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
Suitable for Suzuki
Suzuki
Density at 20 °C g/cm³ 1130 EN ISO 12185
1130 g/cm³ EN ISO 12185
Color yellow green visual
yellow green visual
Reserve alkalinity mgKOH/g — 20 ASTM D1121
— 20 mgKOH/g ASTM D1121
Boiling point °C 155 ASTM D1120
155 °C ASTM D1120
Water content % — 5 ASTM D1123
— 5 % ASTM D1123
Flashpoint °C 112 DIN 51758
112 °C DIN 51758
Freezing point (50 % solution) °C -37 ASTM D1177
-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %) 8,4 ASTM D1287
8,4 ASTM D1287
Approvals AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
Destilliertes Wasser (entionisiert)

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details hide details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter Unit Value Audit
Recommendations DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand RAVENOL
RAVENOL
Recomendations DIN 43530-4, DIN EN 50272
DIN 43530-4, DIN EN 50272
Approvals DIN 43530-4, DIN EN 50272
DIN 43530-4, DIN EN 50272
Professional Radiator Cleaner

Professional Radiator Cleaner

Additive

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

show details hide details

Equivalents OEM:
Ford MP14300500AB

  • Available packaging
  • Full description
  • Product parameters

Volume:
0.25 L

vendor code:
1390302-250

Code:
4014835802667

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.

Application Note

RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.

Area of application:

Radiator repairs

In the event of reduced radiator performance

In the event of deposits in the cooling system

Changing coolant

For cleaning purposes after engine repairs due to oil in the cooling system

Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.

Fill in

RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.

RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.

Characteristics

  • Cleaning of the cooling and heating system
  • Protection of the new coolant against prior contamination
  • Elimination of sludge and corrosion residue
Parameter Unit Value Audit
Color Colorless visual
Colorless visual
Density at 20 °C g/cm³ 1003 EN ISO 12185
1003 g/cm³ EN ISO 12185
pH - value at 20 °C 10,25 DIN 19268
10,25 DIN 19268
Brand RAVENOL
RAVENOL

Our website uses cookies to improve your site experience, efficiency and usability. By continuing to use our site, you agree to the use of cookies.

+ - Configure cookies
Good
