Oil for Isuzu - NLR, NMR, NNR, NPR, NQR, NRR - NNR
Isuzu NLR, NMR, NNR, NPR, NQR, NRR NNR, year of issue from 2006 date to 2011 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.
Engine 4JJ1-X
For diesels
RAVENOL Low Emission Truck SAE 10W-40 is suitable for application in exhaust-optimized engines with exhaust gas after treatment.
Manufacturer Approved:
DTFR 15C110, DTFR 15C120, Mack EO-O Premium Plus, Renault RLD-3, Volvo VDS-4
Compliance with the requirements:
Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 13D110 (MB 235.28), MAN M 3271-1, MAN M 3477, MAN M 3575, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Scania Low Ash, Voith Retarder B
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1122109-001
Volume:
5 L
vendor code:
1122109-005
Volume:
20 L, ecobox
vendor code:
1122109-B20
Volume:
60 L
vendor code:
1122109-060
Volume:
60 L, print
vendor code:
1122109-D60
Volume:
208 L, print
vendor code:
1122109-D28
Volume:
1000 L
vendor code:
1122109-700
RAVENOL Low Emission Truck SAE 10W-40 is suitable for application in exhaust-optimized engines with exhaust gas after treatment.
RAVENOL Low Emission Truck SAE 10W-40 reduces friction, wear and fuel consumption and provides for longer oil change intervals in turbo diesel engines.
RAVENOL Low Emission Truck SAE 10W-40 with shear stable additives improves performance, reliability and cleanliness of the engines.
Application Note
RAVENOL Low Emission Truck SAE 10W-40 is a year round high performance motor oil, especially designed for economic use in Euro V and Euro VI engines with after treatment systems in the viscosity class SAE 10W -40 heavy duty vehicle diesel engines.
RAVENOL Low Emission Truck SAE 10W-40 is preferred recommended by the extended oil change intervals specified by the manufacturer in turbo diesel engines.
Characteristics
- An extremely high pressure absorption capacity
- Very high oxidation stability
- Excellent resistance to aging
- Excellent viscosity-temperature behavior
- High safety reserves even under boundary lubrication conditions
- Suitable for extended oil change intervals
- Best suitability for difficult operating conditions
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Caterpillar ECF-3, Cummins CES 20081, DAF, Detroit Diesel DDC 93K218, Deutz DQC IV-10 LA, DTFR 13D110 (MB 235.28), JASO DH-2, MAN M 3271-1, MAN M 3477, MAN M 3575, MB 228.31, MB 228.51, MB 235.28, MTU Typ 2.1, MTU Typ 3.1, Scania LowAsh, Voith Retarder B |
Caterpillar ECF-3, Cummins CES 20081, DAF, Detroit Diesel DDC 93K218, Deutz DQC IV-10 LA, DTFR 13D110 (MB 235.28), JASO DH-2, MAN M 3271-1, MAN M 3477, MAN M 3575, MB 228.31, MB 228.51, MB 235.28, MTU Typ 2.1, MTU Typ 3.1, Scania LowAsh, Voith Retarder B
|
||
| SAE | 10W-40 |
10W-40
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | CJ-4, CK-4 |
CJ-4, CK-4
|
||
| ACEA | E11, E4, E6, E7, E8, E9 |
E11, E4, E6, E7, E8, E9
|
||
| JASO | DH-2 |
DH-2
|
||
| Manufacturer Approved | DTFR 15C110, DTFR 15C120, Mack EO-O Premium Plus, Renault RLD-3, Volvo VDS-4 |
DTFR 15C110, DTFR 15C120, Mack EO-O Premium Plus, Renault RLD-3, Volvo VDS-4
|
||
| Recomendations | Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 13D110 (MB 235.28), MAN M 3271-1, MAN M 3477, MAN M 3575, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Scania Low Ash, Voith Retarder B |
Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 13D110 (MB 235.28), MAN M 3271-1, MAN M 3477, MAN M 3575, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Scania Low Ash, Voith Retarder B
|
||
| Suitable for | DAF |
DAF
|
||
| Density at 20 °C | g/cm³ | 859 | EN ISO 12185 |
859
g/cm³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.1 | DIN 51562-1 |
14.1
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 90.2 | DIN 51562-1 |
90.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 161 | DIN ISO 2909 |
161
DIN ISO 2909
|
|
| CCS Viscosity at -25 °C | mPa*s | 5089 | ASTM D5293 |
5089
mPa*s
ASTM D5293
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Flashpoint | °C | 230 | DIN EN ISO 2592 |
230
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 9.2 | ASTM D2896 |
9.2
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.83 | DIN 51575 |
0.83
%wt.
DIN 51575
|
| Approvals | Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 13D110 (MB 235.28), DTFR 15C110, DTFR 15C120, Mack EO-O Premium Plus, MAN M 3271-1, MAN M 3477, MAN M 3575, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Renault RLD-3, Scania Low Ash, Voith Retarder B, Volvo VDS-4 |
Caterpillar ECF-3, Cummins CES 20081, DDC 93K218, Deutz DQC IV-10 LA, DTFR 13D110 (MB 235.28), DTFR 15C110, DTFR 15C120, Mack EO-O Premium Plus, MAN M 3271-1, MAN M 3477, MAN M 3575, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Renault RLD-3, Scania Low Ash, Voith Retarder B, Volvo VDS-4
|
For mixed park
RAVENOL EURO IV Truck SAE 10W-40 is UHPD-Motoroil (Ultra High Performance Diesel) with special requirements for Diesel Particular Filters DPF for the LOW SPAsh Technology. Offers low content of sulphur, phosphor and low ash content.
Manufacturer Approved:
Deutz DQC IV-10 LA, DTFR 15C110, Mack EO-N, Renault RLD-2, Tatra TDS 30/12, Volvo VDS-3
Compliance with the requirements:
DAF HP-2, MAN M 3277, MAN M 3477, MB 228.51, MTU Type 3, MTU Type 3.1, Renault RXD, Scania LDF
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1122107-001
Volume:
20 L, ecobox
vendor code:
1122107-B20
Volume:
1000 L
vendor code:
1122107-700
RAVENOL EURO IV Truck SAE 10W-40 is UHPD-Motoroil (Ultra High Performance Diesel) with special requirements for Diesel Particular Filters DPF for the LOW SPAsh Technology. Offers low content of sulphur, phosphor and low ash content.
Application instructions
RAVENOL EURO IV Truck SAE 10W-40 is maximum efficiency engine oil which can be used the whole year and which was produced for the new exhaust gas emission directives respectively for vehicles with exhaust gas return systems.
RAVENOL EURO IV Truck SAE 10W-40 can be used in all diesel engines with and without turbo charging. Suitable for EURO I, II, III, IV and EURO V engines.
Characteristics
- High corrosion protection
- An excellent oxidation stability
- An excellent high temperature stability
- Excellent detergent and dispersant characteristics
- Profitability because of a low fuel consumption
- Long endurance because of a high oxidation stability
- An excellent cold start behaviour, a quick engine lubrication at low temperatures
- A very good viscosity temperature behaviour
- Neutrality of sealing
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DAF HP-2, MAN M 3277 (CRF Abgasrückführung), MAN M 3477, MB 228.51, MTU Typ 3, MTU Typ 3.1, Renault RXD, Scania LDF |
DAF HP-2, MAN M 3277 (CRF Abgasrückführung), MAN M 3477, MB 228.51, MTU Typ 3, MTU Typ 3.1, Renault RXD, Scania LDF
|
||
| SAE | 10W-40 |
10W-40
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | CI-4 |
CI-4
|
||
| ACEA | E6, E7 |
E6, E7
|
||
| Manufacturer Approved | Deutz DQC IV-10 LA, DTFR 15C110, Mack EO-N, Renault RLD-2, Tatra TDS 30/12, Volvo VDS-3 |
Deutz DQC IV-10 LA, DTFR 15C110, Mack EO-N, Renault RLD-2, Tatra TDS 30/12, Volvo VDS-3
|
||
| Recomendations | DAF HP-2, MAN M 3277, MAN M 3477, MB 228.51, MTU Type 3, MTU Type 3.1, Renault RXD, Scania LDF |
DAF HP-2, MAN M 3277, MAN M 3477, MB 228.51, MTU Type 3, MTU Type 3.1, Renault RXD, Scania LDF
|
||
| Density at 20 °C | g/cm³ | 856 | EN ISO 12185 |
856
g/cm³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.7 | DIN 51562-1 |
14.7
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 99.3 | DIN 51562-1 |
99.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 153 | DIN ISO 2909 |
153
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 4.1 | ASTM D5481 |
4.1
mPa*s
ASTM D5481
|
| CCS Viscosity at -25 °C | mPa*s | 6600 | ASTM D5293 |
6600
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -30 °C | mPa*s | 19.700 | ASTM D4684 |
19.700
mPa*s
ASTM D4684
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Noack Volatility | % | 6.7 | ASTM D5800 |
6.7
%
ASTM D5800
|
| Flashpoint | °C | 249 | DIN EN ISO 2592 |
249
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 10.4 | ASTM D2896 |
10.4
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.87 | DIN 51575 |
0.87
%wt.
DIN 51575
|
| Approvals | DAF HP-2, Deutz DQC IV-10 LA, DTFR 15C110, Mack EO-N, MAN M 3277, MAN M 3477, MB 228.51, MTU Type 3, MTU Type 3.1, Renault RLD-2, Renault RXD, Scania LDF, Tatra TDS 30/12, Volvo VDS-3 |
DAF HP-2, Deutz DQC IV-10 LA, DTFR 15C110, Mack EO-N, MAN M 3277, MAN M 3477, MB 228.51, MTU Type 3, MTU Type 3.1, Renault RLD-2, Renault RXD, Scania LDF, Tatra TDS 30/12, Volvo VDS-3
|
For diesels
RAVENOL SDT Super Duty Truck SAE 10W-40 can be used in modern trucks and “Tier 4” off-road vehicles and was designed as a SHPD engine oil (Super High Performance Diesel) for use in engines with and without a particle filter and catalytic converter and with specific requirements for Low SAPS technology. The product offers low sulphur, phosphorous and ash content.
Manufacturer Approved:
Deutz DQC IV-18 LA, DTFR 15C110, DTFR 15C120, Mack EOS-4.5, Renault RLD-3, Volvo VDS-4.5
Compliance with the requirements:
Caterpillar ECF-3, Cummins CES 20086, DAF LKW, DDC 93K222, IVECO 18-1804 TLS E9, MAN M 3477, MB 228.51, MTU Type 3.1, Scania Low Ash
SAE: 10W-40
Equivalents OEM:
Alpine 0100381, Alpine 0100382, Alpine 0100383, Alpine 0100384, Alpine 0100385, Alpine 0100393, Alpine 0100394, Alpine 0100394, Alpine 100381, Alpine 100382, Alpine 100383, Alpine 100384, Alpine 100385, Hyundai XTeer 1041006, Hyundai XTeer 1061004, Hyundai XTeer 1120002, Hyundai XTeer 1200002, MB A000989620413BBCR, MB A000989690213BCCR, MB A000989690215BCCR, MB A000989690217BCCR, MB A0009899101AAA5, Volvo 85102467, Volvo 85102468, Volvo 85102469, Volvo 385102469, Volvo RU385102469
- Available packaging
- Product parameters
Volume:
20 L, ecobox
vendor code:
1121120-B20
Volume:
60 L
vendor code:
1121120-060
Volume:
60 L, print
vendor code:
1121120-D60
Volume:
208 L, print
vendor code:
1121120-D28
Volume:
1000 L
vendor code:
1121120-700
RAVENOL SDT Super Duty Truck SAE 10W-40 can be used in modern trucks and “Tier 4” off-road vehicles and was designed as a SHPD engine oil (Super High Performance Diesel) for use in engines with and without a particle filter and catalytic converter and with specific requirements for Low SAPS technology. The product offers low sulphur, phosphorous and ash content.
RAVENOL SDT Super Duty Truck SAE 10W-40 has particularly high oxidation and shear stability as well as improved air-release properties, allowing it to fulfil and exceed the latest requirements in accordance with API CK-4.
RAVENOL SDT Super Duty Truck SAE 10W-40 offers reliable cold start performance at low outdoor temperatures and full lubricity at high operating temperatures. This reduces friction loss and wear and tear.
RAVENOL SDT Super Duty Truck SAE 10W-40 was licensed as the first European engine oil by the API with the specifications API CK-4 and API CJ-4.
The new API CK-4 specification is suitable for both current and older vehicles. It is backward compatible and can also be used for diesel fuels which contain up to 500 ppm of sulphur.
Application Note
RAVENOL SDT Super Duty Truck SAE 10W-40 is a high-performance engine oil which can be used all year round and which has been designed to meet the new exhaust gas emissions guidelines. It has been created for vehicles with exhaust gas recirculation systems. Extended oil change intervals in accordance with manufacturer instructions.
RAVENOL SDT Super Duty Truck SAE 10W-40 is particularly suitable for use in a mixed fleet including EURO 2, EURO 3, EURO 4, EURO 5 and EURO 6 engines and therefore offers the ideal solution to reducing the range of products needed. Please follow the manufacturer’s recommendations!
Characteristics
- Very stable and excellent viscosity behavior and high shear stability
- Fuel saving under all operating conditions
- Maintains the efficiency of the exhaust gas purification systems over a very long term
- Power losses caused by diesel particulate filters are prevented and a higher efficiency is achieved
- Low evaporation tendency resulting in low oil consumption
- Extended oil change intervals protect natural resources
- An excellent cold start behaviour
- Low SAPS = Low Sulphated ash, Phosphorous and Sulfur
- Can also be used in many commercial vehicles without diesel particulate filters
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Caterpillar ECF-3, Cummins CES 20086, DAF LKW (für verlängerte Intervalle), Detroit Diesel DDC 93K222, IVECO 18-1804 TLS E9, JASO DH-2, MAN M 3477, MB 228.51, MTU Typ 3.1, Scania LowAsh |
Caterpillar ECF-3, Cummins CES 20086, DAF LKW (für verlängerte Intervalle), Detroit Diesel DDC 93K222, IVECO 18-1804 TLS E9, JASO DH-2, MAN M 3477, MB 228.51, MTU Typ 3.1, Scania LowAsh
|
||
| SAE | 10W-40 |
10W-40
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| API | CJ-4, CK-4 |
CJ-4, CK-4
|
||
| ACEA | E11, E6, E7, E8, E9 |
E11, E6, E7, E8, E9
|
||
| JASO | DH-2 |
DH-2
|
||
| Manufacturer Approved | Deutz DQC IV-18 LA, DTFR 15C110, DTFR 15C120, Mack EOS-4.5, Renault RLD-3, Volvo VDS-4.5 |
Deutz DQC IV-18 LA, DTFR 15C110, DTFR 15C120, Mack EOS-4.5, Renault RLD-3, Volvo VDS-4.5
|
||
| Recomendations | Caterpillar ECF-3, Cummins CES 20086, DAF LKW, DDC 93K222, IVECO 18-1804 TLS E9, MAN M 3477, MB 228.51, MTU Type 3.1, Scania Low Ash |
Caterpillar ECF-3, Cummins CES 20086, DAF LKW, DDC 93K222, IVECO 18-1804 TLS E9, MAN M 3477, MB 228.51, MTU Type 3.1, Scania Low Ash
|
||
| Density at 20 °C | g/cm³ | 859 | EN ISO 12185 |
859
g/cm³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.9 | DIN 51562-1 |
14.9
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 99.9 | DIN 51562-1 |
99.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 155 | DIN ISO 2909 |
155
DIN ISO 2909
|
|
| CCS Viscosity at -25 °C | mPa*s | 6170 | ASTM D5293 |
6170
mPa*s
ASTM D5293
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Noack Volatility | % | 9 | ASTM D5800 |
9
%
ASTM D5800
|
| Flashpoint | °C | 234 | DIN EN ISO 2592 |
234
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 10.5 | ASTM D2896 |
10.5
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.85 | DIN 51575 |
0.85
%wt.
DIN 51575
|
| Approvals | Caterpillar ECF-3, Cummins CES 20086, DAF LKW, DDC 93K222, Deutz DQC IV-18 LA, DTFR 15C110, DTFR 15C120, IVECO 18-1804 TLS E9, Mack EOS-4.5, MAN M 3477, MB 228.51, MTU Type 3.1, Renault RLD-3, Scania Low Ash, Volvo VDS-4.5 |
Caterpillar ECF-3, Cummins CES 20086, DAF LKW, DDC 93K222, Deutz DQC IV-18 LA, DTFR 15C110, DTFR 15C120, IVECO 18-1804 TLS E9, Mack EOS-4.5, MAN M 3477, MB 228.51, MTU Type 3.1, Renault RLD-3, Scania Low Ash, Volvo VDS-4.5
|
For engine
RAVENOL VMO SAE 5W-40 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.
Manufacturer Approved:
BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, VW 505.00, VW 505.01
Compliance with the requirements:
Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, Porsche C40, VW 502.00
- Available packaging
- Product parameters
RAVENOL VMO SAE 5W-40 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.
RAVENOL VMO SAE 5W-40 extends long life of DPF and TWC. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).
RAVENOL VMO SAE 5W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics. Because of a considerable fuel saving RAVENOL VMO SAE 5W-40 contributes to protect the environment by reducing the emissions.
Suitable for extended oil change intervals where recommended by manufacturer.
Application Note
RAVENOL VMO SAE 5W-40 is an universal, synthetic low friction motor oil especially developed for Pumpe-Düse-diesel engines. Moreover, this lubricant is excellent suitable for gasoline and diesel engines in passenger cars and vans with and without turbo charger. Due to the specific composition is RAVENOL VMO SAE 5W-40 excellent suitable for use for several OEM requirements.
Characteristics
- Fuel economy in part and full power operation.
- MID SAPS = reduced Sulphated Ash, Phosphorous and Sulphur.
- Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine.
- Excellent cold starting characteristics also at low temperatures below -30°C.
- The function of the hydro tappet is ensure at all temperatures.
- A safe lubricant film at high operating temperatures.
- Low evaporative tendency, so lower oil consumption.
- No deposits in combustion chambers, in the piston ring zone and valves because of oil conditioned.
- Neutrality towards sealing materials.
- Extended oil change intervals to protect natural resources.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C917-A, Porsche C40, VW 502 00 |
Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C917-A, Porsche C40, VW 502 00
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-40 |
5W-40
|
||
| Type | Synthetic |
Synthetic
|
||
| API | CF, SN |
CF, SN
|
||
| ACEA | C3 |
C3
|
||
| Manufacturer Approved | BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, VW 505.00, VW 505.01 |
BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, VW 505.00, VW 505.01
|
||
| Recomendations | Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, Porsche C40, VW 502.00 |
Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, Porsche C40, VW 502.00
|
||
| Density at 20 °C | g/cm³ | 848 | EN ISO 12185 |
848
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 13.3 | DIN 51562-1 |
13.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 80 | DIN 51562-1 |
80
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 170 | DIN ISO 2909 |
170
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 4 | ASTM D5481 |
4
mPa*s
ASTM D5481
|
| CCS Viscosity at -30 °C | mPa*s | 6375 | ASTM D5293 |
6375
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 27.000 | ASTM D4684 |
27.000
mPa*s
ASTM D4684
|
| Pourpoint | °C | -45 | DIN ISO 3016 |
-45
°C
DIN ISO 3016
|
| Noack Volatility | % | 8.8 | ASTM D5800 |
8.8
%
ASTM D5800
|
| Flashpoint | °C | 242 | DIN EN ISO 2592 |
242
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 8.7 | ASTM D2896 |
8.7
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.77 | DIN 51575 |
0.77
%wt.
DIN 51575
|
| Approvals | BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, GM dexos2®, MB 229.31, MB 229.51, Porsche C40, VW 502.00, VW 505.00, VW 505.01 |
BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, GM dexos2®, MB 229.31, MB 229.51, Porsche C40, VW 502.00, VW 505.00, VW 505.01
|
Additive
RAVENOL Professional Engine Cleaner can also be used in motorcycles.
- Available packaging
- Product parameters
RAVENOL Professional Engine Cleaner can also be used in motorcycles.
RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.
RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.
Application Note
RAVENOL Professional Engine Cleaner is added to the warm motor oil.
Area of application:
-If black sludge is suspected
-In the event of hydraulic tappets rattling
-In the event of delayed oil change
-For soiled engines or used oil
-Preventively at every oil change to avoid contamination of the engine
-Also suitable for oldtimers
Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.
Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.
RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.
Characteristics
- Long-term effectiveness and clean fresh oil
- Remedy for soiled engines
- Protection against compression loss in the area of the piston rings
- Leads to better exhaust emissions and increases the performance of the engine
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Color | Light brown | visual |
Light brown
visual
|
|
| Flashpoint (PM) | °C | 62 | DIN ISO 3679 |
62
°C
DIN ISO 3679
|
| Density at 20 °C | 805 | EN ISO 12185 |
805
EN ISO 12185
|
|
| Viscosity at 40 °C | mm²/s | 7 | DIN EN ISO 3104 |
7
mm²/s
DIN EN ISO 3104
|
| Brand | RAVENOL |
RAVENOL
|
Hydraulic system drive transmission Nees II
For automatic transmission
RAVENOL ATF DEXRON III H is universal ATF (Automatic Transmission Fluid) for all automatic transmission with and without controlled torque converter lockup clutch (so-called GKÜB = gear-clutch-lock) which are required for the transmission fluid type Dexron III H.
Manufacturer Approved:
Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B
Compliance with the requirements:
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.5, MB 236.6, MB 236.9, MB 236.10, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
- Available packaging
- Product parameters
RAVENOL ATF DEXRON III H is universal ATF (Automatic Transmission Fluid) for all automatic transmission with and without controlled torque converter lockup clutch (so-called GKÜB = gear-clutch-lock) which are required for the transmission fluid type Dexron III H.
Application Note
RAVENOL ATF DEXRON III H was developed for use in automatic transmissions with electronically controlled converter lockup clutch.
RAVENOL ATF DEXRON III H is especially suitable for use in transmissions with ATF Dexron III H specification.
RAVENOL ATF DEXRON III H is backwards compatible and can be used in transmissions with specification ATF Dexron F III.
RAVENOL ATF DEXRON III H is mixable with all ATF brands. It is advised to rinse with RAVENOL ATF DEXRON III H before, beforehand the final filling with RAVENOL ATF DEXRON III H is made.
Characteristics
- Very good lubricating properties even at low temperatures in winter
- High and stable viscosity index
- Very low flow point
- Excellent oxidation stability
- Extensive protection against wear, corrosion and foaming
- Well-tuned friction properties
- Neutral behaviour towards sealing materials
- Neutral behaviour by inhibition towards non-ferrous metals
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| ATF | Dexron III H |
Dexron III H
|
||
| Recommendations | Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON® M-940717, MAN 339 L1, MAN 339 V1, MAN 339 Z1, MAN 339 Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Nissan, Volvo 1161521, Volvo 1161621, VOLVO Transmission Oil 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C |
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON® M-940717, MAN 339 L1, MAN 339 V1, MAN 339 Z1, MAN 339 Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Nissan, Volvo 1161521, Volvo 1161621, VOLVO Transmission Oil 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| Manufacturer Approved | Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B |
Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B
|
||
| Recomendations | Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C |
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
|
||
| specification | Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H |
Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H
|
||
| Suitable for | Nissan |
Nissan
|
||
| Compliant products | Volvo 1161521, Volvo 1161621 |
Volvo 1161521, Volvo 1161621
|
||
| Density at 20 °C | g/cm³ | 847 | EN ISO 12185 |
847
g/cm³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.2 | DIN 51562-1 |
7.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 33.9 | DIN 51562-1 |
33.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 185 | DIN ISO 2909 |
185
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 14.200 | ASTM D2983 |
14.200
mPa*s
ASTM D2983
|
| Pourpoint | °C | -51 | DIN ISO 3016 |
-51
°C
DIN ISO 3016
|
| Flashpoint | °C | 210 | DIN EN ISO 2592 |
210
°C
DIN EN ISO 2592
|
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| tbn | mgKOH/g | 1.8 | ASTM D2896 |
1.8
mgKOH/g
ASTM D2896
|
| Approvals | Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B |
Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B
|
Mechanical gearbox MYY5T 5/1
For engine
Application NoteRAVENOL DLO SAE 10W-40 is suitable for year-round use in all modern passenger car diesel engines which require this grade of engine oil. Ideal for both turbocharged and non-turbocharged engines, it is also suitable for use in gasoline engines which require this type of product.
Manufacturer Approved:
BMW Special Oil, VW 501.01, VW 505.00
- Available packaging
- Product parameters
Application Note
RAVENOL DLO SAE 10W-40 is suitable for year-round use in all modern passenger car diesel engines which require this grade of engine oil. Ideal for both turbocharged and non-turbocharged engines, it is also suitable for use in gasoline engines which require this type of product.
Characteristics
- High wear protection
- Fuel efficient formulation
- Excellent detergent and dispersant package for cleaner engines
- Prevention of black sludge and carbon deposit formation
- Long service life through high oxidation stability
- Excellent cold starting properties
- A very good viscosity-temperature behavior
- Low volatility
- Catalyst suitability
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | MB 229.1, Porsche, VW 500 00, VW 501 01, VW 505 00 |
MB 229.1, Porsche, VW 500 00, VW 501 01, VW 505 00
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 10W-40 |
10W-40
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | CF |
CF
|
||
| ACEA | A3, B4 |
A3, B4
|
||
| Manufacturer Approved | BMW Special Oil |
BMW Special Oil
|
||
| Recomendations | MB 229.1, VW 500.00, VW 501.01, VW 505.00 |
MB 229.1, VW 500.00, VW 501.01, VW 505.00
|
||
| Suitable for | Porsche |
Porsche
|
||
| Density at 20 °C | g/cm³ | 857.4 | EN ISO 12185 |
857.4
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.4 | DIN 51562-1 |
14.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 97.6 | DIN 51562-1 |
97.6
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 153 | DIN ISO 2909 |
153
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 4 | ASTM D5481 |
4
mPa*s
ASTM D5481
|
| CCS Viscosity at -25 °C | mPa*s | 4900 | ASTM D5293 |
4900
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -30 °C | mPa*s | 22.000 | ASTM D4684 |
22.000
mPa*s
ASTM D4684
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Noack Volatility | % | 9.5 | ASTM D5800 |
9.5
%
ASTM D5800
|
| Flashpoint | °C | 230 | DIN EN ISO 2592 |
230
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 10.9 | ASTM D2896 |
10.9
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.3 | DIN 51575 |
1.3
%wt.
DIN 51575
|
| Approvals | BMW Special Oil, MB 229.1, VW 500.00, VW 501.01, VW 505.00 |
BMW Special Oil, MB 229.1, VW 500.00, VW 501.01, VW 505.00
|
For diesels
Application NoteRAVENOL Formel Diesel Super SAE 15W-40 is suitable for the mixed car pool and can be used the whole year. Regarding commercial vehicles it can be used for a complicated operation and extended oil change intervals according to the manufacturer specification.
Manufacturer Approved:
Renault RLD, Renault RLD-2, TEDOM 258-2
Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C
- Available packaging
- Product parameters
Volume:
60 L, print
vendor code:
1123215-D60
Volume:
208 L, print
vendor code:
1123215-D28
Volume:
1000 L
vendor code:
1123215-700
Volume:
1 L
vendor code:
1123215-001
Volume:
1000 L
vendor code:
-
Code:
4014835630987
Application Note
RAVENOL Formel Diesel Super SAE 15W-40 is suitable for the mixed car pool and can be used the whole year. Regarding commercial vehicles it can be used for a complicated operation and extended oil change intervals according to the manufacturer specification.
Characteristics
- Very good shear stability
- Very good cold start attributes
- High oxidation stability
- Excellent viscosity temperature behaviour
- No problems with the use in catalyst vehicles
- Convincing detergent and dispersant characteristics
- High safety reserves even under limited lubrication circumstances
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Allison C4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Typ 2, VOLVO VDS, VW 505 00, ZF TE-ML 07C |
Allison C4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Typ 2, VOLVO VDS, VW 505 00, ZF TE-ML 07C
|
||
| SAE | 15W-40 |
15W-40
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Mineral |
Mineral
|
||
| API | CF-4 |
CF-4
|
||
| ACEA | B4, E2 |
B4, E2
|
||
| Manufacturer Approved | Renault RLD, Renault RLD-2, TEDOM 258-2 |
Renault RLD, Renault RLD-2, TEDOM 258-2
|
||
| Recomendations | Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C |
Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C
|
||
| Density at 20 °C | g/cm³ | 873 | EN ISO 12185 |
873
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.4 | DIN 51562-1 |
14.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 107.2 | DIN 51562-1 |
107.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 137 | DIN ISO 2909 |
137
DIN ISO 2909
|
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Flashpoint | °C | 240 | DIN EN ISO 2592 |
240
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 8.6 | ASTM D2896 |
8.6
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.1 | DIN 51575 |
1.1
%wt.
DIN 51575
|
| Approvals | Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-2, Volvo VDS, VW 505.00, ZF TE-ML 07C |
Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-2, Volvo VDS, VW 505.00, ZF TE-ML 07C
|
Engine oil
RAVENOL Performance Truck SAE 10W-40 is low-friction long-life engine oil for all kind of diesel engines with and without turbocharging in trucks, buses and machinery. Suitable for the longest oil change intervals.
Manufacturer Approved:
Deutz DQC III-10, DTFR 15B120, Mack EO-N, MAN M 3277, MTU Type 3, Renault RLD-2, TEDOM 258-4, Volvo VDS-3
Compliance with the requirements:
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF HP-1, DAF HP-2, DTFR 13D100 (MB 235.27), DTFR 13D110 (MB 235.28), Global DHD-1, Mack EO-M Plus, MB 228.5, MB 235.27, MB 235.28, Scania LDF-2, Voith Retarder B
SAE: 10W-40
Equivalents OEM:
Alpine 0100340,
Alpine 0100342,
Alpine 0100343,
Alpine 0100344,
Alpine 0100345,
MB A000989460413FBFR,
MB A000989460417FBFR,
MB A000989470413,
MB A000989470413FBFR,
MB A000989470417FBFR,
MB A000989620417BBCR,
MB A000989850215ABFE,
MB A000989850217ABFE,
MB A0009899601AAA4,
MB A0009899601AAA5,
MB A001989750117FBFE,
MB A001989750117FBFE,
MB A001989750117FBFK,
MB A001989750117FBGN,
MB A001989750118FBFE,
MB A001989750119FBFD,
MB A001989750119FBFK,
MB A094989000015CBFZ,
MB A094989000017CBFZ,
MB A094989020017ABFE,
MB A094989020017ABFW,
MB A094989170013FBFE,
MB A094989170013FBFK,
MB A094989170013FBFR,
MB A094989170015FBFK,
MB A094989170017FBFD
Alpine 0100340, Alpine 0100342, Alpine 0100343, Alpine 0100344, Alpine 0100345, MB A000989460413FBFR, MB A000989460417FBFR, MB A000989470413, MB A000989470413FBFR, MB A000989470417FBFR, MB A000989620417BBCR, MB A000989850215ABFE, MB A000989850217ABFE, MB A0009899601AAA4, MB A0009899601AAA5, MB A001989750117FBFE, MB A001989750117FBFE, MB A001989750117FBFK, MB A001989750117FBGN, MB A001989750118FBFE, MB A001989750119FBFD, MB A001989750119FBFK, MB A094989000015CBFZ, MB A094989000017CBFZ, MB A094989020017ABFE, MB A094989020017ABFW, MB A094989170013FBFE, MB A094989170013FBFK, MB A094989170013FBFR, MB A094989170015FBFK, MB A094989170017FBFD, MB A094989170017FBFE, MB A094989170017FBFK, MB A094989170017FBFR, MB A094989170018FBFE, MB A094989170019FBFD, MB A094989170019FBFK, Pentosin 1115208, Pentosin 1115305, Pentosin 114000000, Pentosin 2200000013903, Pentosin 4008849167584, Scania 2021366
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1122106-001
Volume:
5 L
vendor code:
1122106-005
Volume:
20 L, ecobox
vendor code:
1122106-B20
Volume:
1000 L
vendor code:
1122106-700
RAVENOL Performance Truck SAE 10W-40 is low-friction long-life engine oil for all kind of diesel engines with and without turbocharging in trucks, buses and machinery. Suitable for the longest oil change intervals.
Application Note
RAVENOL Performance Truck SAE 10W-40 has a higher performance than conventional high-performance engine oils. International such oils are called UHPD oils (UHPD = Ultra High Performance Diesel Oil). Regardless of the particular mileage, older diesel engines on RAVENOL Performance Truck SAE 10W-40 should be changed without rinsing.
Characteristics
- High wear protection even under constant load at full throttle
- Reduced fuel consumption by low-friction characteristics
- Quick oil circulation reduces cold-start and warm-up wear
- Protection against bore polishing of cylinder paths
- Reduction of exhaust particles
- Protects against corrosion, even when using diesel fuels with high sulfur content
- Safe protection against deposits and sticking, both under extreme thermal loads and short haul
- Optimum compatibility with seal materials
- Environmentally friendly due longest oil change intervals and low evaporation losses
- Guaranteed extended drain intervals for the long-haul truck or transport
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF HP-1, DAF HP-2, DTFR 13D100 (MB 235.27), DTFR 13D110 (MB 235.28), Global DHD-1, JASO DH-1, Mack EO-M Plus, MB 228.5, MB 235.27, MB 235.28, Scania LDF-2, Voith Retarder B |
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF HP-1, DAF HP-2, DTFR 13D100 (MB 235.27), DTFR 13D110 (MB 235.28), Global DHD-1, JASO DH-1, Mack EO-M Plus, MB 228.5, MB 235.27, MB 235.28, Scania LDF-2, Voith Retarder B
|
||
| SAE | 10W-40 |
10W-40
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | CF, CI-4 |
CF, CI-4
|
||
| ACEA | E4, E7 |
E4, E7
|
||
| JASO | DH-1 |
DH-1
|
||
| Manufacturer Approved | Deutz DQC III-10, DTFR 15B120, Mack EO-N, MAN M 3277, MTU Type 3, Renault RLD-2, TEDOM 258-4, Volvo VDS-3 |
Deutz DQC III-10, DTFR 15B120, Mack EO-N, MAN M 3277, MTU Type 3, Renault RLD-2, TEDOM 258-4, Volvo VDS-3
|
||
| Recomendations | Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF HP-1, DAF HP-2, DTFR 13D100 (MB 235.27), DTFR 13D110 (MB 235.28), Global DHD-1, Mack EO-M Plus, MB 228.5, MB 235.27, MB 235.28, Scania LDF-2, Voith Retarder B |
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF HP-1, DAF HP-2, DTFR 13D100 (MB 235.27), DTFR 13D110 (MB 235.28), Global DHD-1, Mack EO-M Plus, MB 228.5, MB 235.27, MB 235.28, Scania LDF-2, Voith Retarder B
|
||
| Density at 20 °C | g/cm³ | 863 | EN ISO 12185 |
863
g/cm³
EN ISO 12185
|
| Color | Dark brown | visual |
Dark brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 15.3 | DIN 51562-1 |
15.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 102.1 | DIN 51562-1 |
102.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 158 | DIN ISO 2909 |
158
DIN ISO 2909
|
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Flashpoint | °C | 234 | DIN EN ISO 2592 |
234
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 13.2 | ASTM D2896 |
13.2
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.47 | DIN 51575 |
1.47
%wt.
DIN 51575
|
| Approvals | Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF HP-1, DAF HP-2, Deutz DQC III-10, DTFR 13D100 (MB 235.27), DTFR 13D110 (MB 235.28), DTFR 15B120, Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3277, MB 228.5, MB 235.27, MB 235.28, MTU Type 3, Renault RLD-2, Scania LDF-2, TEDOM 258-4, Voith Retarder B, Volvo VDS-3 |
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF HP-1, DAF HP-2, Deutz DQC III-10, DTFR 13D100 (MB 235.27), DTFR 13D110 (MB 235.28), DTFR 15B120, Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3277, MB 228.5, MB 235.27, MB 235.28, MTU Type 3, Renault RLD-2, Scania LDF-2, TEDOM 258-4, Voith Retarder B, Volvo VDS-3
|
For engine
It is also suitable for use gasoline (petrol) engines. It has an excellent lubricating film adhesion and very good shear stability and an excellent cleaning power and high resistance to aging.
Manufacturer Approved:
VW 501.01, VW 505.00
Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, ZF TE-ML 07C
SAE: 15W-40
Equivalents OEM:
GM 19375071, GM 19375072, GM 19375073, VAG G052107M2, VAG G052107M4, VAG G052107M6, VAG G052107S0, VAG G052107S0
- Available packaging
- Product parameters
Volume:
4 L
vendor code:
1113103-004
Volume:
20 L, ecobox
vendor code:
1113103-B20
Volume:
60 L, print
vendor code:
1113103-D60
Volume:
208 L, print
vendor code:
1113103-D28
Volume:
1000 L
vendor code:
1113103-700
It is also suitable for use gasoline (petrol) engines. It has an excellent lubricating film adhesion and very good shear stability and an excellent cleaning power and high resistance to aging.
Application Note
RAVENOL Turbo-C HD-C SAE 15W-40 is perfectly suited as all-season motor oil for the mixed fleet. It can be uses in the commercial vehicle sector for operation and extended oil change interval (up to 45,000 kilometres are possible) according to manufacturer's specifications.
Characteristics
- An excellent shear stability
- Very good cold start characteristics
- A very high oxidation stability
- Avoids the formation of coking and accumulation of mud (black sludge)
- A very stable and excellent viscosity behaviour
- Suitable for catalysts
- Convincing detergent and dispersant attributes
- High security reserves even under limited lubrication conditions
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Allison C4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Typ 2, VOLVO VDS, VW 501 01, VW 505 00, ZF TE-ML 07C |
Allison C4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Typ 2, VOLVO VDS, VW 501 01, VW 505 00, ZF TE-ML 07C
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 15W-40 |
15W-40
|
||
| Type | Mineral |
Mineral
|
||
| API | CF, CF-4, SL |
CF, CF-4, SL
|
||
| ACEA | A3, B4, E2 |
A3, B4, E2
|
||
| Recomendations | Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, VW 501.01, VW 505.00, ZF TE-ML 07C |
Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, VW 501.01, VW 505.00, ZF TE-ML 07C
|
||
| Density at 20 °C | g/cm³ | 873 | EN ISO 12185 |
873
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.4 | DIN 51562-1 |
14.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 107.2 | DIN 51562-1 |
107.2
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 137 | DIN ISO 2909 |
137
DIN ISO 2909
|
|
| Pourpoint | °C | -39 | DIN ISO 3016 |
-39
°C
DIN ISO 3016
|
| Flashpoint | °C | 244 | DIN EN ISO 2592 |
244
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 8.5 | ASTM D2896 |
8.5
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.1 | DIN 51575 |
1.1
%wt.
DIN 51575
|
| Approvals | Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, VW 501.01, VW 505.00, ZF TE-ML 07C |
Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MAN M 3275-1, MB 229.1, MTU Type 2, Volvo VDS, VW 501.01, VW 505.00, ZF TE-ML 07C
|
For engine
RAVENOL VMO SAE 5W-40 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.
Manufacturer Approved:
BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, VW 505.00, VW 505.01
Compliance with the requirements:
Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, Porsche C40, VW 502.00
- Available packaging
- Product parameters
RAVENOL VMO SAE 5W-40 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.
RAVENOL VMO SAE 5W-40 extends long life of DPF and TWC. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).
RAVENOL VMO SAE 5W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics. Because of a considerable fuel saving RAVENOL VMO SAE 5W-40 contributes to protect the environment by reducing the emissions.
Suitable for extended oil change intervals where recommended by manufacturer.
Application Note
RAVENOL VMO SAE 5W-40 is an universal, synthetic low friction motor oil especially developed for Pumpe-Düse-diesel engines. Moreover, this lubricant is excellent suitable for gasoline and diesel engines in passenger cars and vans with and without turbo charger. Due to the specific composition is RAVENOL VMO SAE 5W-40 excellent suitable for use for several OEM requirements.
Characteristics
- Fuel economy in part and full power operation.
- MID SAPS = reduced Sulphated Ash, Phosphorous and Sulphur.
- Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine.
- Excellent cold starting characteristics also at low temperatures below -30°C.
- The function of the hydro tappet is ensure at all temperatures.
- A safe lubricant film at high operating temperatures.
- Low evaporative tendency, so lower oil consumption.
- No deposits in combustion chambers, in the piston ring zone and valves because of oil conditioned.
- Neutrality towards sealing materials.
- Extended oil change intervals to protect natural resources.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C917-A, Porsche C40, VW 502 00 |
Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C917-A, Porsche C40, VW 502 00
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-40 |
5W-40
|
||
| Type | Synthetic |
Synthetic
|
||
| API | CF, SN |
CF, SN
|
||
| ACEA | C3 |
C3
|
||
| Manufacturer Approved | BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, VW 505.00, VW 505.01 |
BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, VW 505.00, VW 505.01
|
||
| Recomendations | Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, Porsche C40, VW 502.00 |
Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, Porsche C40, VW 502.00
|
||
| Density at 20 °C | g/cm³ | 848 | EN ISO 12185 |
848
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 13.3 | DIN 51562-1 |
13.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 80 | DIN 51562-1 |
80
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 170 | DIN ISO 2909 |
170
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 4 | ASTM D5481 |
4
mPa*s
ASTM D5481
|
| CCS Viscosity at -30 °C | mPa*s | 6375 | ASTM D5293 |
6375
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 27.000 | ASTM D4684 |
27.000
mPa*s
ASTM D4684
|
| Pourpoint | °C | -45 | DIN ISO 3016 |
-45
°C
DIN ISO 3016
|
| Noack Volatility | % | 8.8 | ASTM D5800 |
8.8
%
ASTM D5800
|
| Flashpoint | °C | 242 | DIN EN ISO 2592 |
242
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 8.7 | ASTM D2896 |
8.7
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.77 | DIN 51575 |
0.77
%wt.
DIN 51575
|
| Approvals | BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, GM dexos2®, MB 229.31, MB 229.51, Porsche C40, VW 502.00, VW 505.00, VW 505.01 |
BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-GH2, Fiat 9.55535-S2, Ford WSS-M2C 917-A, GM dexos2®, MB 229.31, MB 229.51, Porsche C40, VW 502.00, VW 505.00, VW 505.01
|
Engine oil
RAVENOL Expert SHPD SAE 10W-40 has an excellent flow behaviour even at low temperatures. The quick reach of critical lubrication points provides a considerable corrosion reduction during the warm-up period. Exclusive additives guarantee the best engine cleanness even at short distances.
Manufacturer Approved:
Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3
Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00
- Available packaging
- Product parameters
RAVENOL Expert SHPD SAE 10W-40 has an excellent flow behaviour even at low temperatures. The quick reach of critical lubrication points provides a considerable corrosion reduction during the warm-up period. Exclusive additives guarantee the best engine cleanness even at short distances.
Application Note
RAVENOL Expert SHPD SAE 10W-40 is low-friction long-life engine oil for all kind of diesel engines with and without turbocharging in trucks, buses and machinery. Suitable for the longest oil change intervals.
Characteristics
- Excellent detergent and dispersant characteristics
- Low evaporation
- A high ageing stability
- Protection of reflecting surface formation
- Very good cold start characteristics
- Reduces oil and fuel consumption
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Allison C4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, DAF, Global DHD-1, IVECO, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500 00, VW 505 00 |
Allison C4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, DAF, Global DHD-1, IVECO, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500 00, VW 505 00
|
||
| SAE | 10W-40 |
10W-40
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | CI-4, SL |
CI-4, SL
|
||
| ACEA | A3, B4, E4, E7 |
A3, B4, E4, E7
|
||
| Manufacturer Approved | Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3 |
Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3
|
||
| Recomendations | Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00 |
Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00
|
||
| Suitable for | DAF, IVECO, YaMZ |
DAF, IVECO, YaMZ
|
||
| Density at 20 °C | g/cm³ | 866 | EN ISO 12185 |
866
g/cm³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.2 | DIN 51562-1 |
14.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 93.5 | DIN 51562-1 |
93.5
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 155 | DIN ISO 2909 |
155
DIN ISO 2909
|
|
| CCS Viscosity at -25 °C | mPa*s | 6480 | ASTM D5293 |
6480
mPa*s
ASTM D5293
|
| Pourpoint | °C | -36 | DIN ISO 3016 |
-36
°C
DIN ISO 3016
|
| Noack Volatility | % | 7.3 | ASTM D5800 |
7.3
%
ASTM D5800
|
| Flashpoint | °C | 234 | DIN EN ISO 2592 |
234
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 11 | ASTM D2896 |
11
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.45 | DIN 51575 |
1.45
%wt.
DIN 51575
|
| Approvals | Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD-2, Scania LDF, TEDOM 258-3, Voith Retarder B, Volvo VDS-3, VW 500.00, VW 505.00 |
Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD-2, Scania LDF, TEDOM 258-3, Voith Retarder B, Volvo VDS-3, VW 500.00, VW 505.00
|
Differential, rear
For transmission
RAVENOL Getriebeoel EPX SAE 80W-90 GL-5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.
Manufacturer Approved:
LOVAT LOV-204, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
Compliance with the requirements:
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D
- Available packaging
- Product parameters
RAVENOL Getriebeoel EPX SAE 80W-90 GL-5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.
Application Note
RAVENOL Getriebeoel EPX SAE 80W-90 GL-5 is compatible with all brand-name transmission oils. No “flushing” required when switching to RAVENOL Getriebeoel EPX SAE 80W-90 GL-5.
Use RAVENOL Getriebeoel EPX SAE 80W-90 GL-5 in hypoid gears for hypoid gearbox, manual transmissions, axle drives, distributor and intermediate transmissions in vehicles and working machines.
Characteristics
- Optimal cold flow property
- Outstanding wear protection even with short trips in winter
- High pressure stable lubrication film, thus outstanding wear protection under any stress
- Reduced transmission noise and the best transmission efficiency under full load, i.e. even with very hot oil
- Outstanding shearing stability
- Excellent oxidation stability, no foaming
- No oil thickening or deposits
- Extraordinary ageing stability
- Excellent viscosity-temperature properties
- Effective wear protection
- Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
- Neutral to sealants, transmissions stay tight, no oil loss
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DTFR 12B100 (MB 235.0), Ford SQM-2C-9002 AA, MAN 342 M1, MB 235.0, MIL-L-2105 D |
DTFR 12B100 (MB 235.0), Ford SQM-2C-9002 AA, MAN 342 M1, MB 235.0, MIL-L-2105 D
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 80W-90 |
80W-90
|
||
| Type | Mineral |
Mineral
|
||
| API | GL-5 |
GL-5
|
||
| Manufacturer Approved | LOVAT LOV-204, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A |
LOVAT LOV-204, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
|
||
| Recomendations | DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D |
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D
|
||
| Density at 20 °C | g/cm³ | 882 | EN ISO 12185 |
882
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.3 | DIN 51562-1 |
14.3
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 130.3 | DIN 51562-1 |
130.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 108 | DIN ISO 2909 |
108
DIN ISO 2909
|
|
| Brookfield Viscosity at -26 °C | mPa*s | 60.100 | ASTM D2983 |
60.100
mPa*s
ASTM D2983
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 222 | DIN EN ISO 2592 |
222
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, LOVAT LOV-204, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A |
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, LOVAT LOV-204, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
|
For gearbox

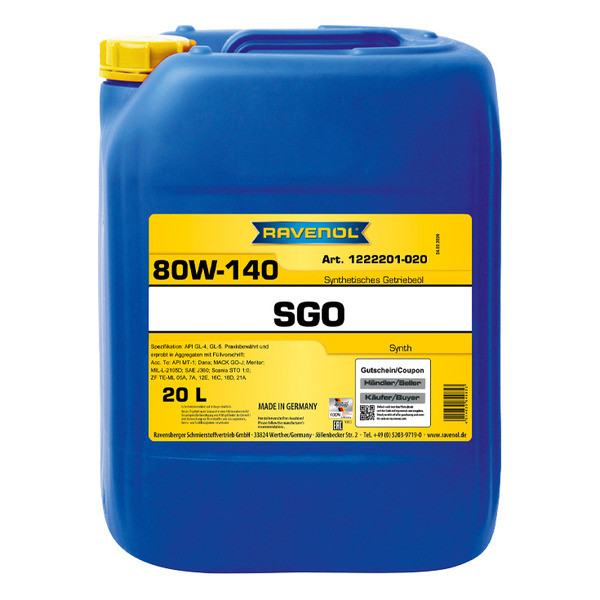

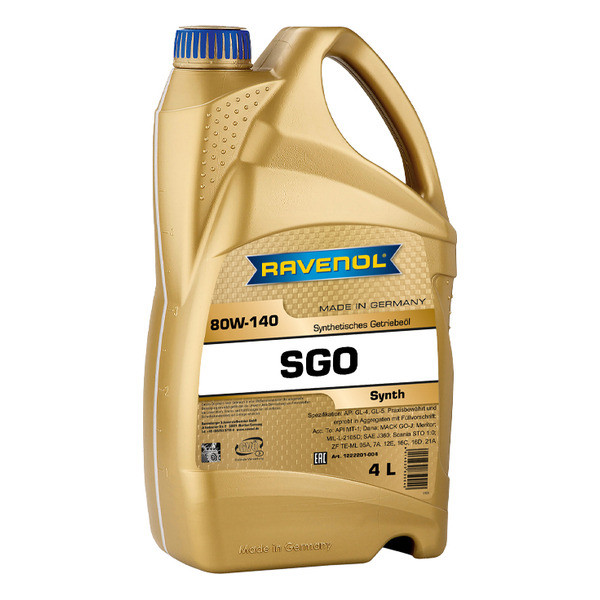

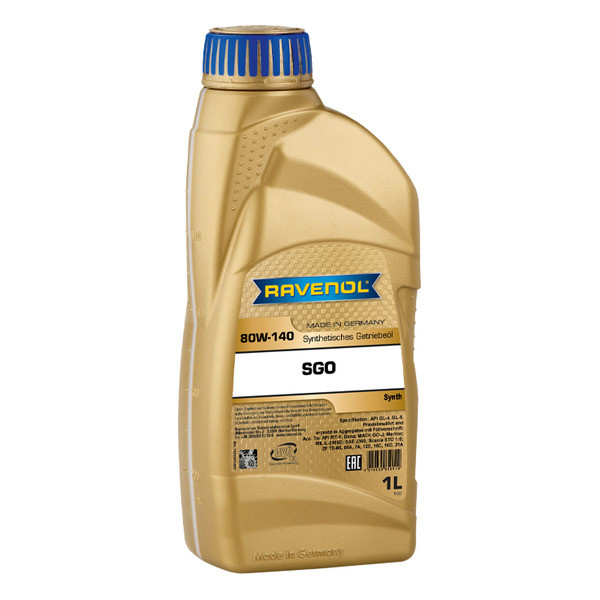

Application NoteRAVENOL SGO SAE 80W-140 GL-5 is designed for use in highly loaded, hypoid gears for hypoid gearbox, as well as for axle, transfer case, transmission gear, auxiliary gearboxes in vehicles and machinery and for use as an extreme pressure gear oil where this grade of lubricant is specified by the manufacturer.
Compliance with the requirements:
Mack GO-J, MIL-L-2105 D, SAE J 2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A
SAE: 80W-140
Equivalents OEM:
BRP 779478, GM 1940770, GM 9163336, GM 9163336, Scania 1892407, Scania 1892408, Scania 1892409, Scania 1892410, Scania 1892411, Scania 2003096
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1222201-001
Volume:
4 L
vendor code:
1222201-004
Volume:
20 L, ecobox
vendor code:
1222201-B20
Volume:
60 L
vendor code:
1222201-060
Volume:
1000 L
vendor code:
1222201-700
Application Note
RAVENOL SGO SAE 80W-140 GL-5 is designed for use in highly loaded, hypoid gears for hypoid gearbox, as well as for axle, transfer case, transmission gear, auxiliary gearboxes in vehicles and machinery and for use as an extreme pressure gear oil where this grade of lubricant is specified by the manufacturer.
Characteristics
- A pressure-resistant lubricating film, excellent high-pressure (EP) properties
- High viscosity index
- Excellent oxidation stability
- An exceptional viscosity-temperature behavior
- A low pour point
- Excellent protection against rust and corrosion
- Wear-resistant effect
- Good air separation capacity, no foam formation
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | API MT-1, Dana, Mack GO-J, Meritor, MIL-L-2105 D, SAE J2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A |
API MT-1, Dana, Mack GO-J, Meritor, MIL-L-2105 D, SAE J2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 80W-140 |
80W-140
|
||
| Type | Synthetic |
Synthetic
|
||
| API | GL-4, GL-5, MT-1 |
GL-4, GL-5, MT-1
|
||
| Recomendations | Mack GO-J, MIL-L-2105 D, SAE J 2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A |
Mack GO-J, MIL-L-2105 D, SAE J 2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A
|
||
| Suitable for | Dana |
Dana
|
||
| Density at 20 °C | g/cm³ | 850 | EN ISO 12185 |
850
g/cm³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 27.5 | DIN 51562-1 |
27.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 205.1 | DIN 51562-1 |
205.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 171 | DIN ISO 2909 |
171
DIN ISO 2909
|
|
| Brookfield Viscosity at -12 °C | mPa*s | 32.000 | ASTM D2983 |
32.000
mPa*s
ASTM D2983
|
| Pourpoint | °C | -33 | DIN ISO 3016 |
-33
°C
DIN ISO 3016
|
| Flashpoint | °C | 202 | DIN EN ISO 2592 |
202
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1a | ASTM D130 |
1a
ASTM D130
|
|
| Approvals | Mack GO-J, MIL-L-2105 D, SAE J 2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A |
Mack GO-J, MIL-L-2105 D, SAE J 2360, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 21A
|
For transmission
RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.
Compliance with the requirements:
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.8, MB 235.9, MB 235.11, MB 235.21, MB 235.72, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
- Available packaging
- Product parameters
RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.
Application Note
RAVENOL VSG SAE 75W-90 is excellent for use of highly stressed axle drives.
RAVENOL VSG SAE 75W-90 is suitable for synchronised and non-synchronised manual transmissions, transfer cases and ancillary transmission requiring API GL-5 or GL-4 oil.
RAVENOL VSG SAE 75W-90 is suitable for Ford-transmission IB5, B5, MTX75, GM5, MT285/6, MMT6/6, MT75, R15M-D, R15MX-D, MT82 and Porsche Full-Time Transfer Case with Torsen (PL72T) for Cayenne 92A / 958 Diesel and S Hybrid from 2010 to 2018.
Characteristics
- high additive reserves for prolonged oil change intervals according to the manufacturer specifications
- excellent cold flow properties
- best wear protection and best transmission efficiency
- Fuel savings even with short distances in low outdoor temperatures
- stable lubricating film even under high stress
- extraordinary corrosion protection and good compatibility with non-ferrous metal
- high oxidation resistance prevents oil thickening and deposits
- outstanding dirt-carrying capacity, i.e. aggregates are clean even after very long oil change intervals
- excellent elastomer compatibility to prevent leaks
- extreme shearing stability, remains within the clean oil viscosity per SAE class 75W-90 even after very long periods of use
- very high protection from rust, corrosion and foaming
- extreme low pour point
- excellent EP properties
- fuel savings
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford MU7J 19G518 AA, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 580, VW G 052 911 A2, VW G 060 517 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B |
BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford MU7J 19G518 AA, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 580, VW G 052 911 A2, VW G 060 517 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-90 |
75W-90
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4, GL-5 |
GL-4, GL-5
|
||
| Recomendations | BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 580, VW G 052 911, VW G 060 517 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B |
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 580, VW G 052 911, VW G 060 517 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
|
||
| Suitable for | IVECO |
IVECO
|
||
| Compliant products | BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Ford MU7J 19G518 AA, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911 |
BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Ford MU7J 19G518 AA, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911
|
||
| Density at 20 °C | g/cm³ | 839.8 | EN ISO 12185 |
839.8
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 16.8 | DIN 51562-1 |
16.8
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 108.8 | DIN 51562-1 |
108.8
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 168 | DIN ISO 2909 |
168
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 47.000 | ASTM D2983 |
47.000
mPa*s
ASTM D2983
|
| Pourpoint | °C | -57 | DIN ISO 3016 |
-57
°C
DIN ISO 3016
|
| Flashpoint | °C | 224 | DIN EN ISO 2592 |
224
°C
DIN EN ISO 2592
|
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Strip Test at 121 °C | 1a | ASTM D130 |
1a
ASTM D130
|
|
| Approvals | BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 580, VW G 052 911, VW G 060 517 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B |
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 580, VW G 052 911, VW G 060 517 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
|
For transmission
Due to viscosity modification SAE 80W-90 RAVENOL Getriebeoel SLG SAE 80W-90 offers a good after flow at low temperatures and a high shear stability at high temperatures.
Manufacturer Approved:
DTFR 12B130, MAN 342 Type M2, MAN 342 Type M2, ZF TE-ML 05A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
Compliance with the requirements:
DTFR 12B100 (MB 235.0), Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MB 235.0, MB 235.6, Scania STO 1:0, ZF TE-ML 07A, ZF TE-ML 2B, ZF TE-ML 16B, ZF TE-ML 16D
SAE: 80W-90
Equivalents OEM:
DAF 09227RU,
DAF 1659975,
FEBI 170166,
FEBI 170167,
FEBI 170168,
Ford 173576,
Ford 5016429,
Ford 5016429,
Ford XY80W90KL,
Ford XY80W90Q,
Ford XY80W90QL,
GM 1942008,
GM 88900144,
GM 93165588,
Scania 1892391,
Scania 1892392,
Scania 1892393,
Scania 1892394,
Scania 1892395,
Scania 1905038,
Volvo 11706213,
Volvo 11706214,
Volvo 11706786,
Volvo VOE11706213,
Volvo VOE11706214,
Volvo VOE11706786,
ZF 0681000410,
ZF 0681000411,
ZF 0681000412,
ZF 681000410,
ZF 681000411
DAF 09227RU, DAF 1659975, FEBI 170166, FEBI 170167, FEBI 170168, Ford 173576, Ford 5016429, Ford 5016429, Ford XY80W90KL, Ford XY80W90Q, Ford XY80W90QL, GM 1942008, GM 88900144, GM 93165588, Scania 1892391, Scania 1892392, Scania 1892393, Scania 1892394, Scania 1892395, Scania 1905038, Volvo 11706213, Volvo 11706214, Volvo 11706786, Volvo VOE11706213, Volvo VOE11706214, Volvo VOE11706786, ZF 0681000410, ZF 0681000411, ZF 0681000412, ZF 681000410, ZF 681000411, ZF 681000412
- Available packaging
- Product parameters
Volume:
1 L
vendor code:
1223305-001
Volume:
4 L
vendor code:
1223305-004
Volume:
20 L, ecobox
vendor code:
1223305-B20
Volume:
1000 L
vendor code:
1223305-700
Due to viscosity modification SAE 80W-90 RAVENOL Getriebeoel SLG SAE 80W-90 offers a good after flow at low temperatures and a high shear stability at high temperatures.
Application Note
RAVENOL Getriebeoel SLG SAE 80W-90 is high quality multifunction gear oil for manual transmissions and hypoid differentials in passenger cars, delivery vans and heavy trucks.
Characteristics
- An excellent thermal stability
- Excellent extreme pressure properties
- A good circuit behavior at low temperatures
- An extended service life
- Neutral behavior towards sealing materials
- Reliable protection against wear, sludge, adhesion and corrosion
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DAF, DTFR 12B100 (MB 235.0), IVECO, Mack GO-J, MAN 341 E2, MAN 341 Z2, MB 235.0, MB 235.6, Scania STO 1:0, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16D, ZF TE-ML 2B |
DAF, DTFR 12B100 (MB 235.0), IVECO, Mack GO-J, MAN 341 E2, MAN 341 Z2, MB 235.0, MB 235.6, Scania STO 1:0, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16D, ZF TE-ML 2B
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 80W-90 |
80W-90
|
||
| Type | Mineral |
Mineral
|
||
| API | GL-3, GL-4, GL-5, MT-1 |
GL-3, GL-4, GL-5, MT-1
|
||
| Manufacturer Approved | DTFR 12B130, MAN 342 Type M2, ZF TE-ML 05A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A |
DTFR 12B130, MAN 342 Type M2, ZF TE-ML 05A, ZF TE-ML 12E, ZF TE-ML 16C, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
|
||
| Recomendations | DTFR 12B100 (MB 235.0), Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MB 235.0, MB 235.6, Scania STO 1:0, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16D, ZF TE-ML 2B |
DTFR 12B100 (MB 235.0), Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MB 235.0, MB 235.6, Scania STO 1:0, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16D, ZF TE-ML 2B
|
||
| specification | MIL-L-2105 A, MIL-L-2105 B, MIL-L-2105 C, MIL-L-2105 D, MIL-L-2105 E, MIL-PRF 2105 E |
MIL-L-2105 A, MIL-L-2105 B, MIL-L-2105 C, MIL-L-2105 D, MIL-L-2105 E, MIL-PRF 2105 E
|
||
| Suitable for | DAF, IVECO |
DAF, IVECO
|
||
| Compliant products | Volvo 97321 |
Volvo 97321
|
||
| Density at 20 °C | g/cm³ | 889 | EN ISO 12185 |
889
g/cm³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 15.2 | DIN 51562-1 |
15.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 146.4 | DIN 51562-1 |
146.4
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 105 | DIN ISO 2909 |
105
DIN ISO 2909
|
|
| Brookfield Viscosity at -26 °C | mPa*s | 161.000 | ASTM D2983 |
161.000
mPa*s
ASTM D2983
|
| Pourpoint | °C | -30 | DIN ISO 3016 |
-30
°C
DIN ISO 3016
|
| Flashpoint | °C | 200 | DIN EN ISO 2592 |
200
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1a | ASTM D130 |
1a
ASTM D130
|
|
| Approvals | DTFR 12B100 (MB 235.0), DTFR 12B130, Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MAN 342 Type M2, MB 235.0, MB 235.6, MIL-L-2105 A, MIL-L-2105 B, MIL-L-2105 C, MIL-L-2105 D, MIL-L-2105 E, MIL-PRF 2105 E, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A, ZF TE-ML 2B |
DTFR 12B100 (MB 235.0), DTFR 12B130, Mack GO-J, MAN 341 Type E2, MAN 341 Type Z2, MAN 342 Type M2, MB 235.0, MB 235.6, MIL-L-2105 A, MIL-L-2105 B, MIL-L-2105 C, MIL-L-2105 D, MIL-L-2105 E, MIL-PRF 2105 E, Scania STO 1:0, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 12E, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A, ZF TE-ML 2B
|
For Sport
RAVENOL Getriebeoel SLS SAE 75W-140 GL 5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.
Compliance with the requirements:
Ford WSL-M2C 192-A, MIL-L-2105 D
- Available packaging
- Product parameters
Volume:
20 L, ecobox
vendor code:
1221110-B20
Volume:
60 L
vendor code:
1221110-060
Volume:
60 L, print
vendor code:
1221110-D60
Volume:
1000 L
vendor code:
1221110-700
RAVENOL Getriebeoel SLS SAE 75W-140 GL 5 LS is PAO based with a specially coordinated additive treatment. This exceeds the needs of today's application requirements.
RAVENOL Getriebeoel SLS SAE 75W-140 GL 5 LS is outstanding for use as a rationalization product also with respect to the new generation of 5- and 6-gear manual transmissions and axle drives with and without limited slip differential. Especially suited for applications requiring "limited slip" (LS) properties.
Application Note
RAVENOL Getriebeoel SLS SAE 75W-140 GL 5 LS is a high-performance transmission oil for maintaining manual transmissions and rear axles in many popular vehicles. Also suitable for highly stressed hypoid axle gears as well as spur- and bevel gears, change gears in vehicles and work machines, and steering gears. Particularly suited for applications requiring "limited slip" (LS) properties.
Characteristics
- A high pressure stable lubricating film even at high oil temperatures and under high stress.
- Outstanding shearing stability and excellent thermal stability.
- Excellent viscosity-temperature properties.
- High oxidation stability.
- Excellent wear protection, outstanding EP properties.
- Low foaming properties even at high speeds.
- Good compatibility with non-ferrous metals and sealing materials.
- Good shifting behaviour even in low temperatures, low pour point.
- Extended life.
- Well adhering lubricating film and outstanding LS additive treatment for reduced transmission noise even when oil is hot.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | MIL-L-2105 D |
MIL-L-2105 D
|
||
| Brookfield Viscosity at -50 °C | mPa*s | 121.000 | ASTM D2983 |
121.000
mPa*s
ASTM D2983
|
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-140 |
75W-140
|
||
| Type | Synthetic |
Synthetic
|
||
| API | GL-5 LS |
GL-5 LS
|
||
| Recomendations | Ford WSL-M2C 192-A, MIL-L-2105 D |
Ford WSL-M2C 192-A, MIL-L-2105 D
|
||
| Density at 20 °C | g/cm³ | 842.1 | EN ISO 12185 |
842.1
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 28.1 | DIN 51562-1 |
28.1
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 203.4 | DIN 51562-1 |
203.4
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 177 | DIN ISO 2909 |
177
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 127.600 | ASTM D2983 |
127.600
mPa*s
ASTM D2983
|
| Pourpoint | °C | -51 | DIN ISO 3016 |
-51
°C
DIN ISO 3016
|
| Flashpoint | °C | 220 | DIN EN ISO 2592 |
220
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | Ford WSL-M2C 192-A, MIL-L-2105 D |
Ford WSL-M2C 192-A, MIL-L-2105 D
|
For gearbox
RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is designed based on high-quality solvent refined and synthetic base oils and specially harmonised additive treatment with extreme pressure (EP) active ingredients and other additives. This exceeds the needs of today's application requirements.
Compliance with the requirements:
CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.8, MB 235.9, MB 235.14, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
- Available packaging
- Product parameters
RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is designed based on high-quality solvent refined and synthetic base oils and specially harmonised additive treatment with extreme pressure (EP) active ingredients and other additives. This exceeds the needs of today's application requirements.
Application Note
RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is a maximum duty transmission oil for use in maximum duty, hypoid geared transmissions (axle drives, manual transmissions, etc.), where maximum duty transmission oils are required.
Characteristics
- Excellent oxidation stability
- Greatest possible protection from rust, corrosion, foaming
- Low solidification point
- Excellent extreme pressure (EP) properties
- High viscosity index
- Fuel savings
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford M2C-9002A, GM, Mack GO-G, MAN 342 M2 (160.000 km), MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A |
CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford M2C-9002A, GM, Mack GO-G, MAN 342 M2 (160.000 km), MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-90 |
75W-90
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | GL-5 |
GL-5
|
||
| Recomendations | CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A |
CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
|
||
| specification | MIL-L-2105 D |
MIL-L-2105 D
|
||
| Suitable for | GM |
GM
|
||
| Density at 20 °C | g/cm³ | 842 | EN ISO 12185 |
842
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 15.7 | DIN 51562-1 |
15.7
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 97.3 | DIN 51562-1 |
97.3
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 173 | DIN ISO 2909 |
173
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 70.000 | ASTM D2983 |
70.000
mPa*s
ASTM D2983
|
| Pourpoint | °C | -45 | DIN ISO 3016 |
-45
°C
DIN ISO 3016
|
| Flashpoint | °C | 215 | DIN EN ISO 2592 |
215
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A |
CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
|
Power steering
For automatic transmission
RAVENOL ATF DEXRON III H is universal ATF (Automatic Transmission Fluid) for all automatic transmission with and without controlled torque converter lockup clutch (so-called GKÜB = gear-clutch-lock) which are required for the transmission fluid type Dexron III H.
Manufacturer Approved:
Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B
Compliance with the requirements:
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.5, MB 236.6, MB 236.9, MB 236.10, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
- Available packaging
- Product parameters
RAVENOL ATF DEXRON III H is universal ATF (Automatic Transmission Fluid) for all automatic transmission with and without controlled torque converter lockup clutch (so-called GKÜB = gear-clutch-lock) which are required for the transmission fluid type Dexron III H.
Application Note
RAVENOL ATF DEXRON III H was developed for use in automatic transmissions with electronically controlled converter lockup clutch.
RAVENOL ATF DEXRON III H is especially suitable for use in transmissions with ATF Dexron III H specification.
RAVENOL ATF DEXRON III H is backwards compatible and can be used in transmissions with specification ATF Dexron F III.
RAVENOL ATF DEXRON III H is mixable with all ATF brands. It is advised to rinse with RAVENOL ATF DEXRON III H before, beforehand the final filling with RAVENOL ATF DEXRON III H is made.
Characteristics
- Very good lubricating properties even at low temperatures in winter
- High and stable viscosity index
- Very low flow point
- Excellent oxidation stability
- Extensive protection against wear, corrosion and foaming
- Well-tuned friction properties
- Neutral behaviour towards sealing materials
- Neutral behaviour by inhibition towards non-ferrous metals
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| ATF | Dexron III H |
Dexron III H
|
||
| Recommendations | Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON® M-940717, MAN 339 L1, MAN 339 V1, MAN 339 Z1, MAN 339 Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Nissan, Volvo 1161521, Volvo 1161621, VOLVO Transmission Oil 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C |
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON® M-940717, MAN 339 L1, MAN 339 V1, MAN 339 Z1, MAN 339 Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Nissan, Volvo 1161521, Volvo 1161621, VOLVO Transmission Oil 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| Manufacturer Approved | Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B |
Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B
|
||
| Recomendations | Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C |
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
|
||
| specification | Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H |
Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H
|
||
| Suitable for | Nissan |
Nissan
|
||
| Compliant products | Volvo 1161521, Volvo 1161621 |
Volvo 1161521, Volvo 1161621
|
||
| Density at 20 °C | g/cm³ | 847 | EN ISO 12185 |
847
g/cm³
EN ISO 12185
|
| Color | Red | visual |
Red
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.2 | DIN 51562-1 |
7.2
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 33.9 | DIN 51562-1 |
33.9
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 185 | DIN ISO 2909 |
185
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 14.200 | ASTM D2983 |
14.200
mPa*s
ASTM D2983
|
| Pourpoint | °C | -51 | DIN ISO 3016 |
-51
°C
DIN ISO 3016
|
| Flashpoint | °C | 210 | DIN EN ISO 2592 |
210
°C
DIN EN ISO 2592
|
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
0/0
ml/ml
ASTM D892
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| tbn | mgKOH/g | 1.8 | ASTM D2896 |
1.8
mgKOH/g
ASTM D2896
|
| Approvals | Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B |
Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B
|
Hydraulic clutch system, brake
For brake system
Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.
- Available packaging
- Product parameters
DOT 4
Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.
Application Note
RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.
RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.
RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).
FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.
STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.
Dispose of used brake fluid responsibly (EU waste code 160113).
Brake fluid damages paint work –if spilt wash off immediately with plenty of water.
Characteristics
- optimum ABS characteristics
- chemical stability
- best lubrication efficiency
- neutral behaviour regarding brake parts
- low viscosity at low temperatures
- miscible with all brake fluids of the same specifications
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| FMVSS 116 specifications (DOT) | DOT-4 |
DOT-4
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| specification | DOT 4, ISO 4925 Class 4, SAE J 1704 |
DOT 4, ISO 4925 Class 4, SAE J 1704
|
||
| Density at 20 °C | g/cm³ | 1052 | EN ISO 12185 |
1052
g/cm³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mPa*s | 2.41 | ASTM D445 |
2.41
mPa*s
ASTM D445
|
| Viscosity at -40 °C | cSt | 1340 | ASTM D445 |
1340
cSt
ASTM D445
|
| Boiling point | °C | 271 | FMVSS 116 |
271
°C
FMVSS 116
|
| Wet Equilibrium Reflux Boiling Point | °C | 169 | FMVSS 116 |
169
°C
FMVSS 116
|
| High Temperature Stability | °C | -1 | FMVSS 116 |
-1
°C
FMVSS 116
|
| Chemical Stability | °C | 1 | FMVSS 116 |
1
°C
FMVSS 116
|
| Evaporation | %w/w | 61 | FMVSS 116 |
61
%w/w
FMVSS 116
|
| Fluidity & Appearance at -40 °C | i.O., 4s | FMVSS 116 |
i.O., 4s
FMVSS 116
|
|
| Fluidity & Appearance at -50 °C | i.O., 8s | FMVSS 116 |
i.O., 8s
FMVSS 116
|
|
| Water Tolerance at -40 °C | transparent, 3s | FMVSS 116 |
transparent, 3s
FMVSS 116
|
|
| Water Tolerance at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at -40 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Water content | % | — 0.2 | DIN 51777-1 |
— 0.2
%
DIN 51777-1
|
| Tinned Iron | Δ mg/cm² | 0.04 | FMVSS 116 |
0.04
Δ mg/cm²
FMVSS 116
|
| Steel | mg/cm² | -0.01 | FMVSS 116 |
-0.01
mg/cm²
FMVSS 116
|
| Aluminium | mg/cm² | 0.02 | FMVSS 116 |
0.02
mg/cm²
FMVSS 116
|
| Cast Iron | Δ mg/cm² | -0,03 | FMVSS 116 |
-0,03
Δ mg/cm²
FMVSS 116
|
| Brass | mg/cm² | -0.08 | FMVSS 116 |
-0.08
mg/cm²
FMVSS 116
|
| Copper | mg/cm² | -0.05 | FMVSS 116 |
-0.05
mg/cm²
FMVSS 116
|
| Zinc | mg/cm² | 0.01 | FMVSS 116 |
0.01
mg/cm²
FMVSS 116
|
| Sediment | % | — 0.05 | FMVSS 116 |
— 0.05
%
FMVSS 116
|
| pH - value | 8.2 | FMVSS 116 |
8.2
FMVSS 116
|
|
| Rubber Diameter Change | 0.16 | FMVSS 116 |
0.16
FMVSS 116
|
|
| Hardness Change | °IRHD | -4 | FMVSS 116 |
-4
°IRHD
FMVSS 116
|
| Appearance | i.O. | FMVSS 116 |
i.O.
FMVSS 116
|
|
| SBR at 70 °C | mm | 0.56 | FMVSS 116 |
0.56
mm
FMVSS 116
|
| SBR at 120 °C | mm | 0.73 | FMVSS 116 |
0.73
mm
FMVSS 116
|
| EPDM at 70 °C (as required by SAE J1703) | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| EPDM at 120 °C | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| Natural at 70 °C (as required by ISO 4925) | mm | 0.38 | FMVSS 116 |
0.38
mm
FMVSS 116
|
| Approvals | DOT 4, ISO 4925 Class 4, SAE J 1704 |
DOT 4, ISO 4925 Class 4, SAE J 1704
|
Cooling system
Coolant
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.
Compliance with the requirements:
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
- Available packaging
- Product parameters
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.
That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
RAVENOL TTC Trad. Techn. Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.
Application Note
RAVENOL TTC Trad. Techn. Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Add RAVENOL TTC Trad. Techn. Coolant Premix -40°C to radiator to fill line.
Characteristics
- Excellent for light metal engines
- Good reserve alkalinity
- High-quality corrosion additives for optimal corrosion protection
- Elastomer compatible with elastome
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11) |
AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| ASTM | D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF |
D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF
|
||
| Recomendations | AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C |
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
|
||
| Suitable for | Suzuki |
Suzuki
|
||
| Density at 20 °C | g/cm³ | 1080 | EN ISO 12185 |
1080
g/cm³
EN ISO 12185
|
| Color | yellow green | visual |
yellow green
visual
|
|
| pH - value at 20 °C | 7,8 | ASTM D1287 |
7,8
ASTM D1287
|
|
| Freezing point | °C | -40 | ASTM D1177 |
-40
°C
ASTM D1177
|
| Approvals | AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C |
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
|
Coolant
It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.
Compliance with the requirements:
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
Equivalents OEM:
Alpine 0101141,
Alpine 0101142,
Alpine 0101143,
Alpine 0101144,
Alpine 0101145,
Alpine 101141,
Alpine 101142,
Alpine 101143,
Alpine 101144,
Alpine 101145,
Chrysler 04267020AA,
Chrysler 04267020AB,
Chrysler 04267020AC,
Chrysler 04267020AD,
Chrysler 04267020GA,
Chrysler 04267020GB,
Chrysler 04267020GC,
Chrysler 04267020GD,
Chrysler 4267020GA,
Chrysler 4267020GB,
Chrysler 4267020GD,
FEBI 02374,
FEBI 2374,
FEBI 88541,
Ford 1326830,
Ford CVC5,
Ford CVC7B2,
Ford VC5,
Ford VC7B,
Ford VC7D,
Ford VC7DILB
Alpine 0101141, Alpine 0101142, Alpine 0101143, Alpine 0101144, Alpine 0101145, Alpine 101141, Alpine 101142, Alpine 101143, Alpine 101144, Alpine 101145, Chrysler 04267020AA, Chrysler 04267020AB, Chrysler 04267020AC, Chrysler 04267020AD, Chrysler 04267020GA, Chrysler 04267020GB, Chrysler 04267020GC, Chrysler 04267020GD, Chrysler 4267020GA, Chrysler 4267020GB, Chrysler 4267020GD, FEBI 02374, FEBI 2374, FEBI 88541, Ford 1326830, Ford CVC5, Ford CVC7B2, Ford VC5, Ford VC7B, Ford VC7D, Ford VC7DILB, GM 19284967, GM 19375289, GM 19375290, GM 19375291, Nissan 7711170548, Renault 7711170548, Renault 7711428132, SsangYong 0000000242, Toyota 0888980042, Toyota 0888980043, VAG G0118ACA1, VAG N052774C0, Volvo 11715725, Volvo 11715726, Volvo 11715727, Volvo 11715727, Volvo 85108901, Volvo VOE11715725, Volvo VOE11715726
Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.
- Available packaging
- Product parameters
Volume:
10 L
vendor code:
1410100-010
Volume:
20 L, ecobox
vendor code:
1410100-B20
Volume:
60 L, print
vendor code:
1410100-D60
Volume:
1000 L
vendor code:
1410100-700
It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.
Therefore manufacturers subject coolants to long corrosion and cavitation tests.
RAVENOL TTC Trad. Techn. Coolant Concentrate protects the cooling system from corrosion, frost, and in the summer from overheating.
Application Note
RAVENOL TTC Trad. Techn. Coolant Concentrate with frost and rust protection. Use according to the mixing chart. Follow manufacturer’s recommendations.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Clean cooling system, check for leaks, flush.
Mix RAVENOL TTC Trad. Techn. Coolant Concentrate with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.
| Table of mixing ratios | ||
|---|---|---|
| Antifreeze protection until | Parts Antifreeze | Parts Water |
| -20°C | 35% | 65% |
| -37°C | 50% | 50% |
| -50°C | 60% | 40% |
Characteristics
- Excellent for light metal engines
- Good reserve alkalinity
- High-quality corrosion additives for optimal corrosion protection
- Elastomer compatible with elastomers used in automotive radiators
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11) |
AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| ASTM | D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF |
D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF
|
||
| Recomendations | AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C |
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
|
||
| Suitable for | Suzuki |
Suzuki
|
||
| Density at 20 °C | g/cm³ | 1130 | EN ISO 12185 |
1130
g/cm³
EN ISO 12185
|
| Color | yellow green | visual |
yellow green
visual
|
|
| Reserve alkalinity | mgKOH/g | — 20 | ASTM D1121 |
— 20
mgKOH/g
ASTM D1121
|
| Boiling point | °C | 155 | ASTM D1120 |
155
°C
ASTM D1120
|
| Water content | % | — 5 | ASTM D1123 |
— 5
%
ASTM D1123
|
| Flashpoint | °C | 112 | DIN 51758 |
112
°C
DIN 51758
|
| Freezing point (50 % solution) | °C | -37 | ASTM D1177 |
-37
°C
ASTM D1177
|
| pH - value at 20 °C (50 Vol %) | 8,4 | ASTM D1287 |
8,4
ASTM D1287
|
|
| Approvals | AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C |
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
|
For batteries
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
Compliance with the requirements:
DIN 43530-4, DIN EN 50272
Equivalents OEM:
BMW 83190394350, BMW 83190394350
- Available packaging
- Product parameters
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.
RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.
Application Note
RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser |
DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
||
| Approvals | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
Additive
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
Equivalents OEM:
Ford MP14300500AB
- Available packaging
- Product parameters
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.
Application Note
RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.
Area of application:
Radiator repairs
In the event of reduced radiator performance
In the event of deposits in the cooling system
Changing coolant
For cleaning purposes after engine repairs due to oil in the cooling system
Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.
Fill in
RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.
RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.
Characteristics
- Cleaning of the cooling and heating system
- Protection of the new coolant against prior contamination
- Elimination of sludge and corrosion residue
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Color | Colorless | visual |
Colorless
visual
|
|
| Density at 20 °C | g/cm³ | 1003 | EN ISO 12185 |
1003
g/cm³
EN ISO 12185
|
| pH - value at 20 °C | 10,25 | DIN 19268 |
10,25
DIN 19268
|
|
| Brand | RAVENOL |
RAVENOL
|
