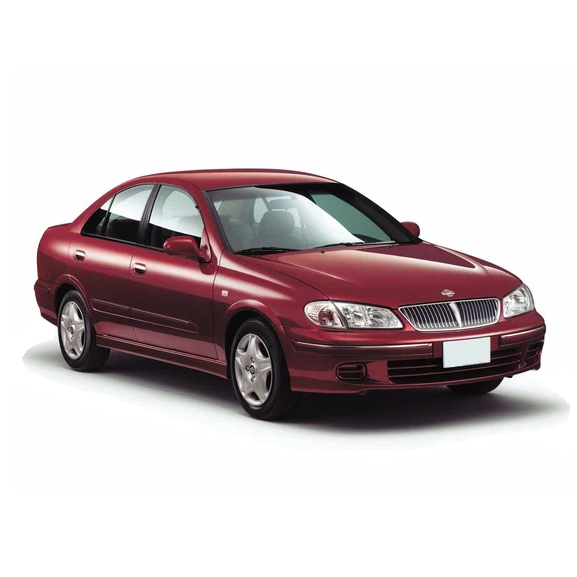

Oil for Nissan Bluebird Sylphy, G10 1.8 4WD (QG18DE) (QNG10/TA-QNG10) (year of issue from 2000 date to present). Motor, automatic transmission oil, transmission, antifreeze, gur fluid, brake fluid

Search by VIN, make, model, vehicle type, unit name, or by article number of any oil:

Oil for Nissan - Bluebird Sylphy, G10 - 1.8 4WD (QG18DE) (QNG10/TA-QNG10)

Nissan Bluebird Sylphy, G10 1.8 4WD (QG18DE) (QNG10/TA-QNG10), year of issue from 2000 date to 2005 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Add to Garage

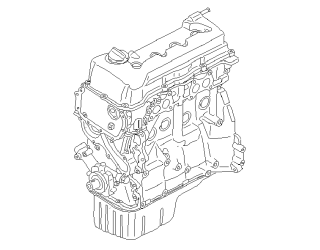

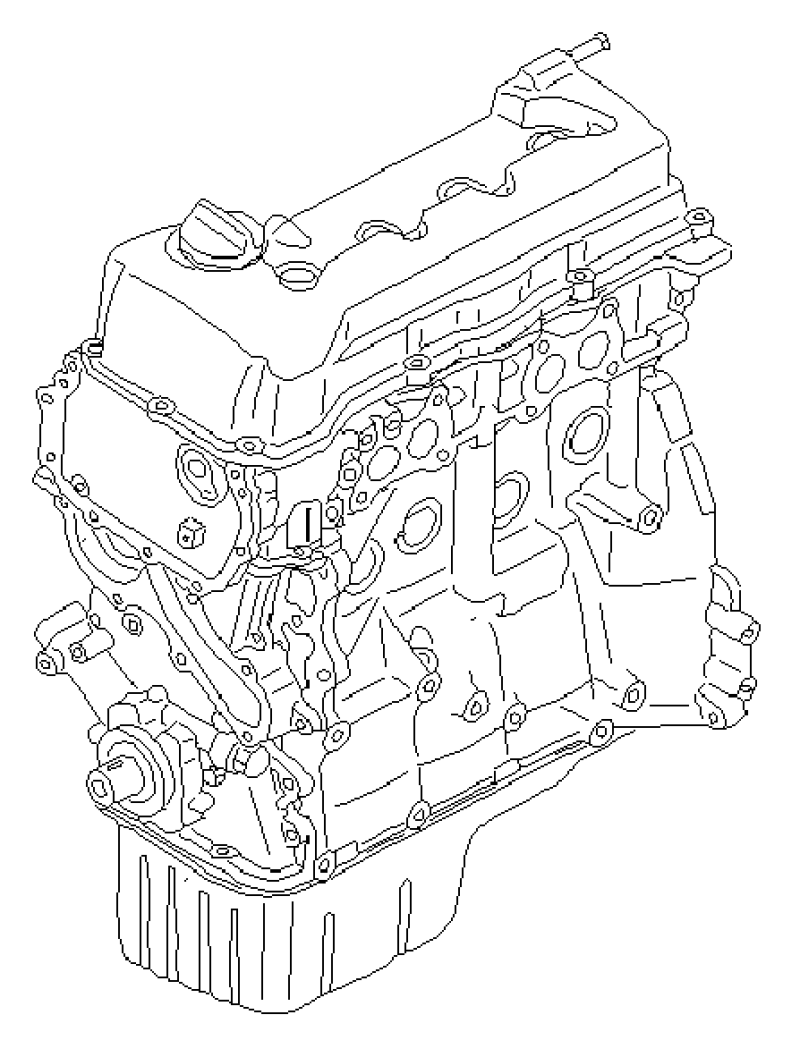

Engine QG18DE
OEM: 101026N190 / 10102WA990 , 10103WA990 / 10103WD190 , 1010B6N190 / 1010BWA990

Liquid volume (basic): 2.7 L

FO 5W-30

For engine

RAVENOL FO SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Compliance with the requirements:
Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700, VWC 53036

show details

SAE: 5W-30

API: CF, SL

ACEA: A5, B5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111115-001

Code:
4014835722613

Volume:
4 L

vendor code:
1111115-004

Code:
4014835722699

Volume:
5 L

vendor code:
1111115-005

Code:
4014835722651

Volume:
10 L

vendor code:
1111115-010

Code:
4014835722644

Volume:
20 L

vendor code:
1111115-020

Code:
4014835722620

Volume:
20 L, ecobox

vendor code:
1111115-B20

Code:
4014835772922

Volume:
60 L

vendor code:
1111115-060

Code:
4014835722668

Volume:
60 L, print

vendor code:
1111115-D60

Code:
4014835722637

Volume:
208 L

vendor code:
1111115-208

Code:
4014835722682

Volume:
208 L, print

vendor code:
1111115-D28

Code:
4014835722606

Volume:
1000 L

vendor code:
1111115-700

RAVENOL FO SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL FO SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL FO SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL FO SAE 5W-30 is suitable as motor oil for fuel-efficient year-round use in modern petrol and diesel engines in passenger cars, station wagon's, vans and similar vehicles from FORD, RENAULT, Toyota, Hyundai, KIA, Mazda, Honda, Nissan und Mitsubishi.

Characteristics

Fuel economy in part and full power operation.
Very stable and excellent viscosity behaviour.
Excellent shear stability.
Excellent cold starting characteristics.
A safe lubricant film at high operating temperatures.
High wear and corrosion protection, high oxidation stability.
Prevention of sludge formation.
Excellent detergent- and dispersant characteristics.
Catalyst cleaning.

Parameter	Unit	Value	Audit
Recommendations		Fiat 9.55535-G1, Ford WSS-M2C913-A, Ford WSS-M2C913-B, Ford WSS-M2C913-C, Ford WSS-M2C913-D, Jaguar Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C913-A, Ford WSS-M2C913-B, Ford WSS-M2C913-C, Ford WSS-M2C913-D, Jaguar Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CF, SL		CF, SL
ACEA		A5, B5		A5, B5
Recomendations		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN 0700, VWC 53036
Density at 20 °C	g/cm³	849	EN ISO 12185	849 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	10	DIN 51562-1	10 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	56.6	DIN 51562-1	56.6 mm²/s DIN 51562-1
Viscosity Index VI		165	DIN ISO 2909	165 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.08	ASTM D5481	3.08 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4300	ASTM D5293	4300 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	14.000	ASTM D4684	14.000 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	%	9.4	ASTM D5800	9.4 % ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	10.9	ASTM D2896	10.9 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.3	DIN 51575	1.3 %wt. DIN 51575
Approvals		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036		Fiat 9.55535-G1, Ford WSS-M2C 913-A, Ford WSS-M2C 913-B, Ford WSS-M2C 913-C, Ford WSS-M2C 913-D, Jaguar/Land Rover STJLR.03.5003, MB 229.6, Renault RN0700, VWC 53036

HCS 5W-40

Engine oil

Application NoteRAVENOL HCS SAE 5W-40 is suitable for an energy saving all year use for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.

Manufacturer Approved:
MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296

show details

SAE: 5W-40

API: CF, SN

ACEA: A3, B4

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1112105-001

Code:
4014835723917

Volume:
4 L

vendor code:
1112105-004

Code:
4014835723993

Volume:
5 L

vendor code:
1112105-005

Code:
4014835723955

Volume:
10 L

vendor code:
1112105-010

Code:
4014835723948

Volume:
20 L, ecobox

vendor code:
1112105-B20

Code:
4014835774322

Volume:
60 L

vendor code:
1112105-060

Code:
4014835723962

Volume:
60 L, print

vendor code:
1112105-D60

Code:
4014835723931

Volume:
208 L

vendor code:
1112105-208

Code:
4014835723986

Volume:
208 L, print

vendor code:
1112105-D28

Code:
4014835723900

Volume:
1000 L

vendor code:
1112105-700

Volume:
20 L

vendor code:
1112105-020

Code:
4014835723924

Application Note

RAVENOL HCS SAE 5W-40 is suitable for an energy saving all year use for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.

Characteristics

High protection against wear
Fuel economy by low friction property
Excellent detergent- and dispersant property
Prevention of black sludge formation
Improved cleaner engine
Extended lifetime because of oxidation stability
Excellent cold starting characteristics
Excellent viscosity-temperature- characteristics
Low evaporation tendency
Catalyst cleaning

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, MB 226.5, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, MB 226.5, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296
Brand		RAVENOL		RAVENOL
SAE		5W-40		5W-40
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		A3, B4		A3, B4
Manufacturer Approved		MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00		MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
Recomendations		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296
Density at 20 °C	g/cm³	849	EN ISO 12185	849 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.4	DIN 51562-1	14.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	87.5	DIN 51562-1	87.5 mm²/s DIN 51562-1
Viscosity Index VI		171	DIN ISO 2909	171 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.9	ASTM D5481	3.9 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5370	ASTM D5293	5370 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	28.500	ASTM D4684	28.500 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	8.4	ASTM D5800	8.4 % ASTM D5800
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	10.4	ASTM D2896	10.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.26	DIN 51575	1.26 %wt. DIN 51575
Approvals		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

Super Synthetic Hydrocrack SSH 0W-30

For engine

RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
MB-Approval 229.5, Renault RN 0710, Volvo VCC 95200356 - Service Fill

Compliance with the requirements:
BMW Longlife-98, Renault RN 0700, VW 502.00, VW 505.00

show details

SAE: 0W-30

API: SM

ACEA: A3, B4

Equivalents OEM:
Honda 08232P99B1CB1, Honda 08232P99B1LHE, Honda 08232P99B2LHE, Honda 08232P99B4LHE, Honda 08232P99B5LHE, Honda 08232P99B6CB1, Honda 08232P99B6LHE, Honda 08250P99B1BA1, Honda 08250P99B6BA1, Hyundai XTeer 1011122, Hyundai XTeer 1041122, Hyundai XTeer 1201122, Mitsubishi MZ320150, Mitsubishi MZ320151, Toyota 0888082644, Toyota 0888082644GO, Toyota 0888082645, VAG G055167M2, VAG G055167M4, VAG G055167M6, VAG G055167M9, VAG GR55167M2, VAG GR55167M4, VAG GR55167M6, VAG GR55167M9, VAG GV55167M2, VAG GVWR55167M2, Volvo 1161711, Volvo 1161719, Volvo 1161726, Volvo 1161726 Honda 08232P99B1CB1, Honda 08232P99B1LHE, Honda 08232P99B2LHE, Honda 08232P99B4LHE, Honda 08232P99B5LHE, Honda 08232P99B6CB1, Honda 08232P99B6LHE, Honda 08250P99B1BA1, Honda 08250P99B6BA1, Hyundai XTeer 1011122, Hyundai XTeer 1041122, Hyundai XTeer 1201122, Mitsubishi MZ320150, Mitsubishi MZ320151, Toyota 0888082644, Toyota 0888082644GO, Toyota 0888082645, VAG G055167M2, VAG G055167M4, VAG G055167M6, VAG G055167M9, VAG GR55167M2, VAG GR55167M4, VAG GR55167M6, VAG GR55167M9, VAG GV55167M2, VAG GVWR55167M2, Volvo 1161711, Volvo 1161719, Volvo 1161726, Volvo 1161726

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111138-001

Code:
4014835795310

Volume:
4 L

vendor code:
1111138-004

Code:
4014835795396

Volume:
5 L

vendor code:
1111138-005

Code:
4014835795358

Volume:
10 L

vendor code:
1111138-010

Code:
4014835795341

Volume:
20 L

vendor code:
1111138-020

Code:
4014835795327

Volume:
20 L, ecobox

vendor code:
1111138-B20

Code:
4014835868250

Volume:
60 L, print

vendor code:
1111138-D60

Code:
4014835795334

Volume:
208 L, print

vendor code:
1111138-D28

Code:
4014835795303

Volume:
1000 L

vendor code:
1111138-700

RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 contributes to protect the environment by reducing the emissions.

RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 guarantees operational safety for all driving conditions, such as extreme stop and go traffic as well as high speed highway trips.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 is suitable as an universal fuel economy motor oil for year-round use in all gasoline and diesel engines in passenger cars, station wagons, delivery vans and similar vehicles.

Characteristics

High abrasion resistance
Fuel saving because of easy running characteristics
Excellent detergent and dispersant characteristics
Prevention of black sludge creation
Long endurance because of high oxidation stability
Excellent cold start performance
Very good viscosity temperature behaviour
Low evaporation
Suitable for catalysts

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-98, Renault RN0700, VW 502 00, VW 505 00		BMW Longlife-98, Renault RN0700, VW 502 00, VW 505 00
Brand		RAVENOL		RAVENOL
SAE		0W-30		0W-30
Type		Synthetic		Synthetic
API		SM		SM
ACEA		A3, B4		A3, B4
Manufacturer Approved		MB-Approval 229.5, Renault RN 0710, Volvo VCC 95200356 - Service Fill		MB-Approval 229.5, Renault RN 0710, Volvo VCC 95200356 - Service Fill
Recomendations		BMW Longlife-98, Renault RN 0700, VW 502.00, VW 505.00		BMW Longlife-98, Renault RN 0700, VW 502.00, VW 505.00
Density at 20 °C	g/cm³	842	EN ISO 12185	842 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.1	DIN 51562-1	12.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	67.2	DIN 51562-1	67.2 mm²/s DIN 51562-1
Viscosity Index VI		178	DIN ISO 2909	178 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.53	ASTM D5481	3.53 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5940	ASTM D5293	5940 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	24.300	ASTM D4684	24.300 mPa*s ASTM D4684
Pourpoint	°C	-49	DIN ISO 3016	-49 °C DIN ISO 3016
Noack Volatility	%	9	ASTM D5800	9 % ASTM D5800
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	10	ASTM D2896	10 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.35	DIN 51575	1.35 %wt. DIN 51575
Approvals		BMW Longlife-98, MB 229.5, Renault RN0700, Renault RN0710, Volvo VCC 95200356 - Service Fill, VW 502.00, VW 505.00		BMW Longlife-98, MB 229.5, Renault RN0700, Renault RN0710, Volvo VCC 95200356 - Service Fill, VW 502.00, VW 505.00

HST 5W-40

Engine oil

RAVENOL HST SAE 5W-40 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
BMW Longlife-01, MB-Approval 229.5, Porsche A40, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, PSA B71 2296

show details

SAE: 5W-40

API: SN Plus, SP

ACEA: A3, B4

Equivalents OEM:
Geely 92432F100, Geely 92432F100, Geely 92432F101, Renault 7711658110, Renault 7711658111, Renault 7711943689, Renault 7711943690, Renault 7711943691, UAZ 000000473400600, UAZ 000101001054002, UAZ 000101004054002, UAZ 473400600

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111147-001

Code:
4014835856523

Volume:
4 L

vendor code:
1111147-004

Code:
4014835856554

Volume:
5 L

vendor code:
1111147-005

Code:
4014835856585

Volume:
10 L

vendor code:
1111147-010

Code:
4014835856615

Volume:
20 L

vendor code:
1111147-020

Volume:
20 L, ecobox

vendor code:
1111147-B20

Code:
4014835856639

Volume:
60 L

vendor code:
1111147-060

Volume:
60 L, print

vendor code:
1111147-D60

Volume:
208 L

vendor code:
1111147-208

Volume:
208 L, print

vendor code:
1111147-D28

Volume:
1000 L

vendor code:
1111147-700

RAVENOL HST SAE 5W-40 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HST SAE 5W-40 contributes to protect the environment by reducing the emissions.

RAVENOL HST SAE 5W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL HST SAE 5W-40 guarantees operational safety concerning all driving conditions as for example regarding extreme stop and go traffic as well as high speed drives on motorways.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HST SAE 5W-40 is suitable for the energy saving operation year-round of all modern cars with gasoline and diesel engines in passenger cars, vans, small transporters and similar vehicles and was specially developed for turbo chargers as well as the catalytic operation.

Characteristics

High abrasion resistance
Fuel saving because of easy running characteristics
Excellent detergent and dispersant characteristics
Prevention of black sludge creation
Long endurance because of high oxidation stability
Excellent cold start performance
Very good viscosity temperature behaviour
Low evaporation
Suitable for catalysts

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-12991 (MS-10896), Fiat 9.55535-Z2, MB 226.5, MB 229.3, Opel/GM-LL-B-025, PSA B71 2296		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-12991 (MS-10896), Fiat 9.55535-Z2, MB 226.5, MB 229.3, Opel/GM-LL-B-025, PSA B71 2296
Brand		RAVENOL		RAVENOL
SAE		5W-40		5W-40
Type		Synthetic		Synthetic
API		SN Plus, SP		SN Plus, SP
ACEA		A3, B4		A3, B4
Manufacturer Approved		BMW Longlife-01, MB-Approval 229.5, Porsche A40, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00		BMW Longlife-01, MB-Approval 229.5, Porsche A40, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
Recomendations		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, PSA B71 2296		Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, PSA B71 2296
Density at 20 °C	g/cm³	847	EN ISO 12185	847 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	13.3	DIN 51562-1	13.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	78.2	DIN 51562-1	78.2 mm²/s DIN 51562-1
Viscosity Index VI		173	DIN ISO 2909	173 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.91	ASTM D5481	3.91 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5480	ASTM D5293	5480 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	25.000	ASTM D4684	25.000 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	7.4	ASTM D5800	7.4 % ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	12	ASTM D2896	12 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.19	DIN 51575	1.19 %wt. DIN 51575
Approvals		BMW Longlife-01, Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, MB 229.5, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, Chrysler MS-10725, Chrysler MS-10850, Chrysler MS-10896, Chrysler MS-12991, Fiat 9.55535-Z2, GM GM-LL-B-025, MB 226.5, MB 229.3, MB 229.5, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

SHL 0W-40

For engine

RAVENOL SHL SAE 0W-40 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

Manufacturer Approved:
MB-Approval 229.5, Porsche A40, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
BMW Longlife-01, Ford WSS-M2C 937-A, Renault RN 0700

show details

SAE: 0W-40

API: SN

ACEA: A3, B4

Equivalents OEM:
BMW 83210144459, BMW 83212365515, BMW 83212405609, BMW 83212405635, BMW 83212405635, BMW 83212406983, FEBI 101140, FEBI 101141, FEBI 101142, FEBI 101143, FEBI 101144, Renault 8671000073, Renault 8671000074, Renault 8671000075, SWAG 30101140, SWAG 30101141, SWAG 30101142, SWAG 30101143, SWAG 30101144

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111127-001

Code:
4014835868809

Volume:
4 L

vendor code:
1111127-004

Code:
4014835868830

Volume:
5 L

vendor code:
1111127-005

Code:
4014835868861

Volume:
10 L

vendor code:
1111127-010

Code:
4014835868892

Volume:
20 L

vendor code:
1111127-020

Code:
4014835868915

Volume:
20 L, ecobox

vendor code:
1111127-B20

Code:
4014835868977

Volume:
60 L

vendor code:
1111127-060

Volume:
60 L, print

vendor code:
1111127-D60

Code:
4014835868991

Volume:
208 L

vendor code:
1111127-208

Volume:
208 L, print

vendor code:
1111127-D28

Code:
4014835869011

RAVENOL SHL SAE 0W-40 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL SHL SAE 0W-40 helps to protect the environment by reducing emissions.

RAVENOL SHL SAE 0W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL SHL SAE 0W-40 guarantees operational safety in all driving conditions such as extreme stop-and-go traffic and high-speed highway driving.

RAVENOL SHL SAE 0W-40 is universal fuel-efficient synthetic engine oil suitable for petrol and diesel engines, with or without turbocharger, in cars and vans with the specified quality classifications.

Characteristics

Excellent cold starting behavior
Fuel savings for part and full load
A very stable and excellent viscosity behavior
Good shear stability
A safe lubricant film at very high operating temperatures
Excellent detergent and dispersant properties
A broad protection against wear, corrosion and foaming
Excellent aging stability
Low evaporation loss
Excellent engine cleanliness

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-01, Ford WSS-M2C937-A, Renault RN0700		BMW Longlife-01, Ford WSS-M2C937-A, Renault RN0700
Brand		RAVENOL		RAVENOL
SAE		0W-40		0W-40
Type		Synthetic		Synthetic
API		SN		SN
ACEA		A3, B4		A3, B4
Manufacturer Approved		MB-Approval 229.5, Porsche A40, Renault RN 0710, VW 502.00, VW 505.00		MB-Approval 229.5, Porsche A40, Renault RN 0710, VW 502.00, VW 505.00
Recomendations		BMW Longlife-01, Ford WSS-M2C 937-A, Renault RN 0700		BMW Longlife-01, Ford WSS-M2C 937-A, Renault RN 0700
Density at 20 °C	g/cm³	842	EN ISO 12185	842 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	13.46	DIN 51562-1	13.46 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	75	DIN 51562-1	75 mm²/s DIN 51562-1
Viscosity Index VI		185	DIN ISO 2909	185 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.84	ASTM D5481	3.84 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5950	ASTM D5293	5950 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	28.600	ASTM D4684	28.600 mPa*s ASTM D4684
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	28.600	ASTM D4684	28.600 mPa*s ASTM D4684
Pourpoint	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Noack Volatility	%	9.4	ASTM D5800	9.4 % ASTM D5800
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	10.46	ASTM D2896	10.46 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.15	DIN 51575	1.15 %wt. DIN 51575
Approvals		BMW Longlife-01, Ford WSS-M2C 937-A, MB 229.5, Porsche A40, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, Ford WSS-M2C 937-A, MB 229.5, Porsche A40, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

Available packaging
Full description
Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

Long-term effectiveness and clean fresh oil
Remedy for soiled engines
Protection against compression loss in the area of the piston rings
Leads to better exhaust emissions and increases the performance of the engine

Parameter	Unit	Value	Audit
Color		Light brown	visual	Light brown visual
Flashpoint (PM)	°C	62	DIN ISO 3679	62 °C DIN ISO 3679
Density at 20 °C		805	EN ISO 12185	805 EN ISO 12185
Viscosity at 40 °C	mm²/s	7	DIN EN ISO 3104	7 mm²/s DIN EN ISO 3104
Brand		RAVENOL		RAVENOL

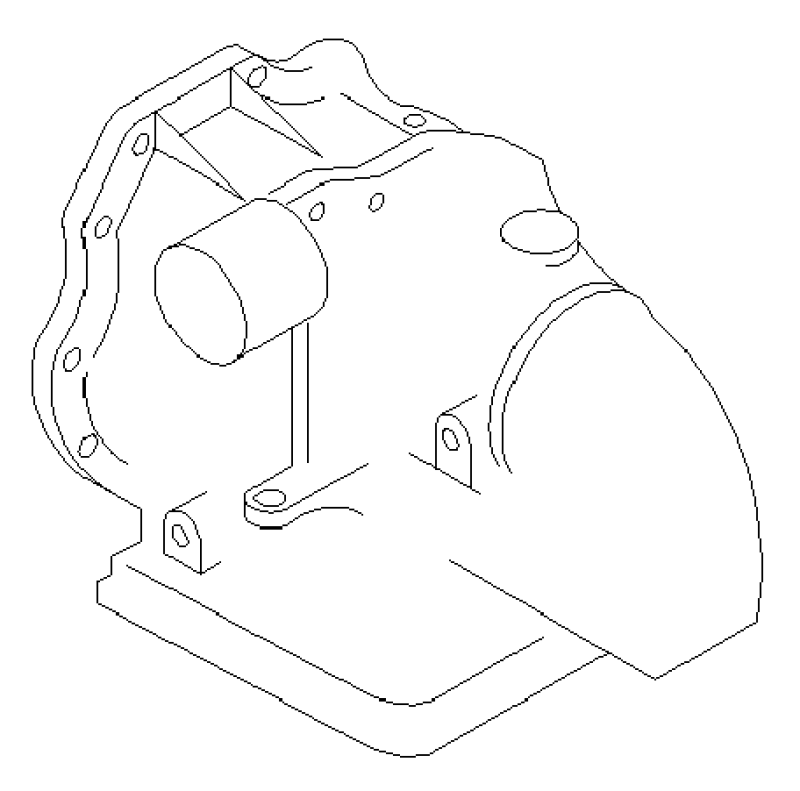

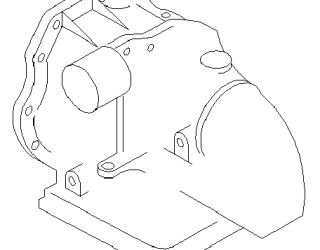

Transmission, automatic 4/1 RE4F03B
OEM: 310203AX67

Liquid volume (basic): 7.9 L

ATF Matic Fluid Type D

For automatic transmission

RAVENOL ATF Matic Fluid Type D is ATF (Automatic-Transmission-Fluid) for the latest generation of Nissan automatic transmissions. It guarantees a high wear protection in all operating conditions.

show details

Equivalents OEM:
Nissan 999MPAA100P, Nissan KE90899931, Nissan KE90899931R, Nissan KLE2A00001, Nissan KLE2AJ0001, Nissan KLE2N00001, Nissan KLE2N00001, Nissan KLE2000004, Nissan KLE2200002, Nissan KLE2200004, Nissan KLE2200020

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1211121-001

Code:
4014835743717

Volume:
4 L

vendor code:
1211121-004

Code:
4014835743793

Volume:
10 L

vendor code:
1211121-010

Code:
4014835743748

Volume:
20 L

vendor code:
1211121-020

Code:
4014835743724

Volume:
20 L, ecobox

vendor code:
1211121-B20

Code:
4014835786325

Volume:
60 L

vendor code:
1211121-060

Volume:
60 L, print

vendor code:
1211121-D60

Code:
4014835743731

Volume:
208 L

vendor code:
1211121-208

Volume:
208 L, print

vendor code:
1211121-D28

RAVENOL ATF Matic Fluid Type D is ATF (Automatic-Transmission-Fluid) for the latest generation of Nissan automatic transmissions. It guarantees a high wear protection in all operating conditions.

RAVENOL ATF Matic Fluid Type D is red colored.

Application Note

RAVENOL ATF Matic Fluid Type D is suitable for use in 4- and 5- step automatic transmissions from Nissan.

Characteristics

Very good lubricity also by low temperatures in winter
High, stable viscosity index
Very good oxidation stability
Excellent wear, corrosion and foaming protection
Excellent friction constant
High thermal and oxidative stability
Excellent cooling capacity

Parameter	Unit	Value	Audit
Recommendations		Nissan 999MP-AA100P, Nissan KE908-99931, Nissan KLE22-00002, Nissan KLE22-00004, Nissan KLE22-00020		Nissan 999MP-AA100P, Nissan KE908-99931, Nissan KLE22-00002, Nissan KLE22-00004, Nissan KLE22-00020
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Compliant products		Nissan 999MP-AA100P, Nissan KE908-99931, Nissan KLE22-00002, Nissan KLE22-00004, Nissan KLE22-00020		Nissan 999MP-AA100P, Nissan KE908-99931, Nissan KLE22-00002, Nissan KLE22-00004, Nissan KLE22-00020
Density at 20 °C	g/cm³	847	EN ISO 12185	847 g/cm³ EN ISO 12185
Color		Red	visual	Red visual
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016

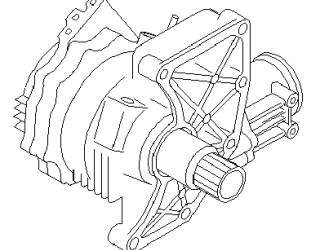

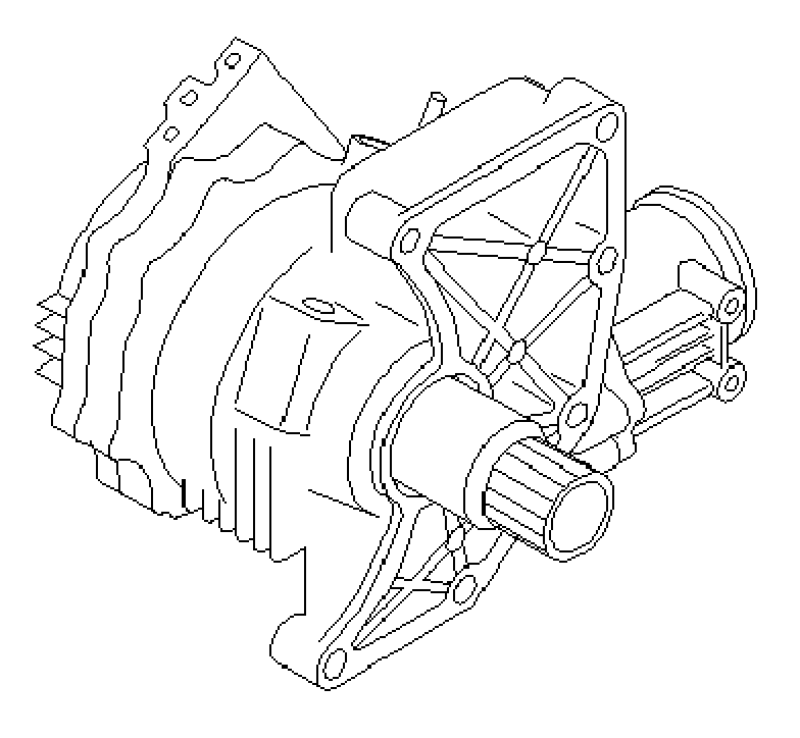

Transfer case
OEM: 331004M700

Liquid volume (basic): 0.37 L

VSG 75W-90

For transmission

RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.

Compliance with the requirements:
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.8, MB 235.9, MB 235.11, MB 235.21, MB 235.72, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B

show details

SAE: 75W-90

API: GL-4, GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221101-001

Code:
4014835733916

Volume:
4 L

vendor code:
1221101-004

Code:
4014835733992

Volume:
10 L

vendor code:
1221101-010

Code:
4014835733947

Volume:
20 L

vendor code:
1221101-020

Code:
4014835733923

Volume:
20 L, ecobox

vendor code:
1221101-B20

Code:
4014835846654

Volume:
60 L

vendor code:
1221101-060

Code:
2200000083081

Volume:
60 L, print

vendor code:
1221101-D60

Code:
4014835733930

Volume:
208 L

vendor code:
1221101-208

Code:
4014835733985

Volume:
208 L, print

vendor code:
1221101-D28

Code:
4014835733909

Volume:
1000 L

vendor code:
1221101-700

RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.

Application Note

RAVENOL VSG SAE 75W-90 is excellent for use of highly stressed axle drives.

RAVENOL VSG SAE 75W-90 is suitable for synchronised and non-synchronised manual transmissions, transfer cases and ancillary transmission requiring API GL-5 or GL-4 oil.

RAVENOL VSG SAE 75W-90 is suitable for Ford-transmission IB5, B5, MTX75, GM5, MT285/6, MMT6/6, MT75, R15M-D, R15MX-D, MT82 and Porsche Full-Time Transfer Case with Torsen (PL72T) for Cayenne 92A / 958 Diesel and S Hybrid from 2010 to 2018.

Characteristics

high additive reserves for prolonged oil change intervals according to the manufacturer specifications
excellent cold flow properties
best wear protection and best transmission efficiency
Fuel savings even with short distances in low outdoor temperatures
stable lubricating film even under high stress
extraordinary corrosion protection and good compatibility with non-ferrous metal
high oxidation resistance prevents oil thickening and deposits
outstanding dirt-carrying capacity, i.e. aggregates are clean even after very long oil change intervals
excellent elastomer compatibility to prevent leaks
extreme shearing stability, remains within the clean oil viscosity per SAE class 75W-90 even after very long periods of use
very high protection from rust, corrosion and foaming
extreme low pour point
excellent EP properties
fuel savings

Parameter	Unit	Value	Audit
Recommendations		BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 911 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B		BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 911 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
Brand		RAVENOL		RAVENOL
SAE		75W-90		75W-90
Type		Full synthetic		Full synthetic
API		GL-4, GL-5		GL-4, GL-5
Recomendations		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
Suitable for		IVECO		IVECO
Compliant products		BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911		BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911
Density at 20 °C	g/cm³	839.8	EN ISO 12185	839.8 g/cm³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	16.8	DIN 51562-1	16.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	108.8	DIN 51562-1	108.8 mm²/s DIN 51562-1
Viscosity Index VI		168	DIN ISO 2909	168 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	47.000	ASTM D2983	47.000 mPa*s ASTM D2983
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Flashpoint	°C	224	DIN EN ISO 2592	224 °C DIN EN ISO 2592
Seq. I at 24 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Copper Strip Test at 121 °C		1a	ASTM D130	1a ASTM D130
Approvals		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B

Getriebeoel EPX 80W-90 GL 5

For transmission

RAVENOL Getriebeoel EPX SAE 80W-90 GL-5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.

Manufacturer Approved:
LOVAT LOV-204, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A

Compliance with the requirements:
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D

show details

SAE: 80W-90

API: GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1223205-001

Code:
4014835734715

Volume:
4 L

vendor code:
1223205-004

Code:
4014835734791

Volume:
10 L

vendor code:
1223205-010

Code:
4014835734746

Volume:
20 L

vendor code:
1223205-020

Code:
4014835734722

Volume:
20 L, ecobox

vendor code:
1223205-B20

Code:
4014835789722

Volume:
60 L

vendor code:
1223205-060

Code:
4014835734760

Volume:
208 L

vendor code:
1223205-208

Code:
4014835734784

Volume:
208 L, print

vendor code:
1223205-D28

Volume:
1000 L

vendor code:
1223205-700

RAVENOL Getriebeoel EPX SAE 80W-90 GL-5 guarantees due to the balanced additive combination characteristics like a high pressure absorption capacity, a superior viscosity temperature behaviour, a high oxidation stability, low pour points, a good corrosion protection and non-sludging.

Application Note

RAVENOL Getriebeoel EPX SAE 80W-90 GL-5 is compatible with all brand-name transmission oils. No “flushing” required when switching to RAVENOL Getriebeoel EPX SAE 80W-90 GL-5.

Use RAVENOL Getriebeoel EPX SAE 80W-90 GL-5 in hypoid gears for hypoid gearbox, manual transmissions, axle drives, distributor and intermediate transmissions in vehicles and working machines.

Characteristics

Optimal cold flow property
Outstanding wear protection even with short trips in winter
High pressure stable lubrication film, thus outstanding wear protection under any stress
Reduced transmission noise and the best transmission efficiency under full load, i.e. even with very hot oil
Outstanding shearing stability
Excellent oxidation stability, no foaming
No oil thickening or deposits
Extraordinary ageing stability
Excellent viscosity-temperature properties
Effective wear protection
Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
Neutral to sealants, transmissions stay tight, no oil loss

Parameter	Unit	Value	Audit
Recommendations		DTFR 12B100 (MB 235.0), Ford SQM-2C-9002 AA, MAN 342 M1, MB 235.0, MIL-L-2105 D		DTFR 12B100 (MB 235.0), Ford SQM-2C-9002 AA, MAN 342 M1, MB 235.0, MIL-L-2105 D
Brand		RAVENOL		RAVENOL
SAE		80W-90		80W-90
Type		Mineral		Mineral
API		GL-5		GL-5
Manufacturer Approved		LOVAT LOV-204, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A		LOVAT LOV-204, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
Recomendations		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D
Density at 20 °C	g/cm³	882	EN ISO 12185	882 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.3	DIN 51562-1	14.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	130.3	DIN 51562-1	130.3 mm²/s DIN 51562-1
Viscosity Index VI		108	DIN ISO 2909	108 DIN ISO 2909
Brookfield Viscosity at -26 °C	mPa*s	60.100	ASTM D2983	60.100 mPa*s ASTM D2983
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	222	DIN EN ISO 2592	222 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, LOVAT LOV-204, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, LOVAT LOV-204, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A

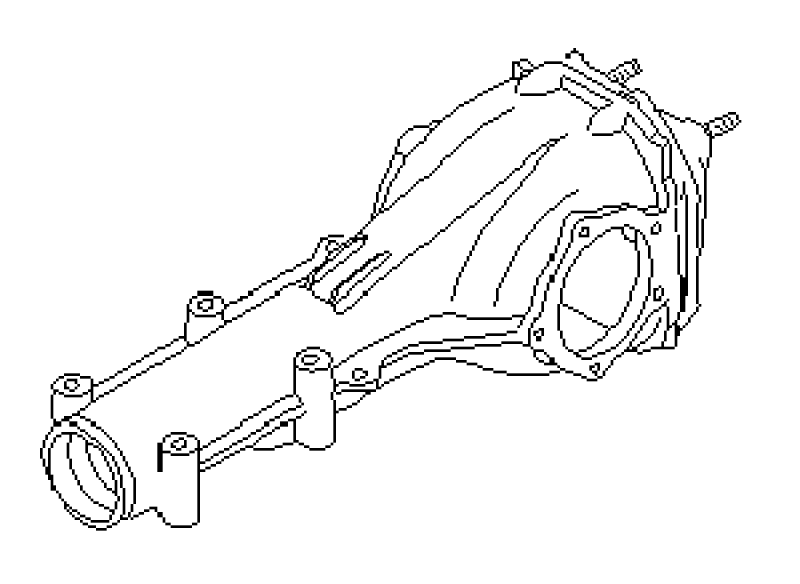

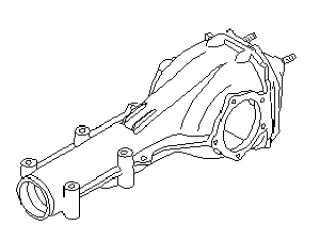

Differential, rear
OEM: 3830071Y03

Liquid volume (basic): 1 L

VSG 75W-90

For transmission

RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.

show details

SAE: 75W-90

API: GL-4, GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221101-001

Code:
4014835733916

Volume:
4 L

vendor code:
1221101-004

Code:
4014835733992

Volume:
10 L

vendor code:
1221101-010

Code:
4014835733947

Volume:
20 L

vendor code:
1221101-020

Code:
4014835733923

Volume:
20 L, ecobox

vendor code:
1221101-B20

Code:
4014835846654

Volume:
60 L

vendor code:
1221101-060

Code:
2200000083081

Volume:
60 L, print

vendor code:
1221101-D60

Code:
4014835733930

Volume:
208 L

vendor code:
1221101-208

Code:
4014835733985

Volume:
208 L, print

vendor code:
1221101-D28

Code:
4014835733909

Volume:
1000 L

vendor code:
1221101-700

RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.

Application Note

RAVENOL VSG SAE 75W-90 is excellent for use of highly stressed axle drives.

RAVENOL VSG SAE 75W-90 is suitable for synchronised and non-synchronised manual transmissions, transfer cases and ancillary transmission requiring API GL-5 or GL-4 oil.

Characteristics

high additive reserves for prolonged oil change intervals according to the manufacturer specifications
excellent cold flow properties
best wear protection and best transmission efficiency
Fuel savings even with short distances in low outdoor temperatures
stable lubricating film even under high stress
extraordinary corrosion protection and good compatibility with non-ferrous metal
high oxidation resistance prevents oil thickening and deposits
outstanding dirt-carrying capacity, i.e. aggregates are clean even after very long oil change intervals
excellent elastomer compatibility to prevent leaks
extreme shearing stability, remains within the clean oil viscosity per SAE class 75W-90 even after very long periods of use
very high protection from rust, corrosion and foaming
extreme low pour point
excellent EP properties
fuel savings

Parameter	Unit	Value	Audit
Recommendations		BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 911 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B		BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 911 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
Brand		RAVENOL		RAVENOL
SAE		75W-90		75W-90
Type		Full synthetic		Full synthetic
API		GL-4, GL-5		GL-4, GL-5
Recomendations		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
Suitable for		IVECO		IVECO
Compliant products		BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911		BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911
Density at 20 °C	g/cm³	839.8	EN ISO 12185	839.8 g/cm³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	16.8	DIN 51562-1	16.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	108.8	DIN 51562-1	108.8 mm²/s DIN 51562-1
Viscosity Index VI		168	DIN ISO 2909	168 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	47.000	ASTM D2983	47.000 mPa*s ASTM D2983
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Flashpoint	°C	224	DIN EN ISO 2592	224 °C DIN EN ISO 2592
Seq. I at 24 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Copper Strip Test at 121 °C		1a	ASTM D130	1a ASTM D130
Approvals		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B		BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B

Getriebeoel EPX 80W-90 GL 5

For transmission

Manufacturer Approved:
LOVAT LOV-204, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A

Compliance with the requirements:
DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D

show details

SAE: 80W-90

API: GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1223205-001

Code:
4014835734715

Volume:
4 L

vendor code:
1223205-004

Code:
4014835734791

Volume:
10 L

vendor code:
1223205-010

Code:
4014835734746

Volume:
20 L

vendor code:
1223205-020

Code:
4014835734722

Volume:
20 L, ecobox

vendor code:
1223205-B20

Code:
4014835789722

Volume:
60 L

vendor code:
1223205-060

Code:
4014835734760

Volume:
208 L

vendor code:
1223205-208

Code:
4014835734784

Volume:
208 L, print

vendor code:
1223205-D28

Volume:
1000 L

vendor code:
1223205-700

Application Note

RAVENOL Getriebeoel EPX SAE 80W-90 GL-5 is compatible with all brand-name transmission oils. No “flushing” required when switching to RAVENOL Getriebeoel EPX SAE 80W-90 GL-5.

Use RAVENOL Getriebeoel EPX SAE 80W-90 GL-5 in hypoid gears for hypoid gearbox, manual transmissions, axle drives, distributor and intermediate transmissions in vehicles and working machines.

Characteristics

Optimal cold flow property
Outstanding wear protection even with short trips in winter
High pressure stable lubrication film, thus outstanding wear protection under any stress
Reduced transmission noise and the best transmission efficiency under full load, i.e. even with very hot oil
Outstanding shearing stability
Excellent oxidation stability, no foaming
No oil thickening or deposits
Extraordinary ageing stability
Excellent viscosity-temperature properties
Effective wear protection
Extraordinary corrosion protection, no rust, won’t harm non-ferrous metals
Neutral to sealants, transmissions stay tight, no oil loss

Parameter	Unit	Value	Audit
Recommendations		DTFR 12B100 (MB 235.0), Ford SQM-2C-9002 AA, MAN 342 M1, MB 235.0, MIL-L-2105 D		DTFR 12B100 (MB 235.0), Ford SQM-2C-9002 AA, MAN 342 M1, MB 235.0, MIL-L-2105 D
Brand		RAVENOL		RAVENOL
SAE		80W-90		80W-90
Type		Mineral		Mineral
API		GL-5		GL-5
Manufacturer Approved		LOVAT LOV-204, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A		LOVAT LOV-204, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
Recomendations		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, MAN 342 Type M1, MB 235.0, MIL-L-2105 D
Density at 20 °C	g/cm³	882	EN ISO 12185	882 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.3	DIN 51562-1	14.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	130.3	DIN 51562-1	130.3 mm²/s DIN 51562-1
Viscosity Index VI		108	DIN ISO 2909	108 DIN ISO 2909
Brookfield Viscosity at -26 °C	mPa*s	60.100	ASTM D2983	60.100 mPa*s ASTM D2983
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	222	DIN EN ISO 2592	222 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, LOVAT LOV-204, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A		DTFR 12B100 (MB 235.0), Ford SQ-M2C 9002-AA, LOVAT LOV-204, MAN 342 Type M1, MB 235.0, MIL-L-2105 D, ZF TE-ML 16B, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A

Power steering

Liquid volume (basic): 1 L

ATF Dexron D II

For automatic transmission

Application NoteRAVENOL ATF Dexron D II was developed for the use in automatic transmissions, hydro steering mechanisms, converters and power transmissions and can be used as a universal ATF (Automatic-Transmission-Fluid) for all vehicles and working machines.

Manufacturer Approved:
Voith H55.6335.xx

Compliance with the requirements:
Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1213102-001

Code:
4014835733510

Volume:
4 L

vendor code:
1213102-004

Code:
4014835733596

Volume:
10 L

vendor code:
1213102-010

Code:
4014835733541

Volume:
20 L

vendor code:
1213102-020

Code:
4014835733527

Volume:
20 L, ecobox

vendor code:
1213102-B20

Code:
4014835787827

Volume:
60 L

vendor code:
1213102-060

Code:
4014835733565

Volume:
208 L

vendor code:
1213102-208

Code:
4014835733589

Volume:
208 L, print

vendor code:
1213102-D28

Volume:
1000 L

vendor code:
1213102-700

Application Note

RAVENOL ATF Dexron D II was developed for the use in automatic transmissions, hydro steering mechanisms, converters and power transmissions and can be used as a universal ATF (Automatic-Transmission-Fluid) for all vehicles and working machines.

Characteristics

protection against corrosion, sludge and sticking
an excellent and very shear stable viscosity temperature behaviour
no problems concerning very low respectively very high temperatures
an excellent high thermal capacity
free of foam even under hardest loads
neutral behaviour against sealing materials
mixable and compatible with all kinds of ATF

Parameter	Unit	Value	Audit
ATF		Dexron D II		Dexron D II
Recommendations		Caterpillar TO-2, CVT, DTFR 13C140 (MB 236.7), Ford M2C-138 CJ, Ford M2C-166H, Ford M2C-185A, Ford MERCON®, Ford SQM-9010B, MAN 339 Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C		Caterpillar TO-2, CVT, DTFR 13C140 (MB 236.7), Ford M2C-138 CJ, Ford M2C-166H, Ford M2C-185A, Ford MERCON®, Ford SQM-9010B, MAN 339 Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Manufacturer Approved		Voith H55.6335.xx		Voith H55.6335.xx
Recomendations		Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C		Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
specification		Allison C-3, Allison C-4, GM Dexron® II D		Allison C-3, Allison C-4, GM Dexron® II D
Suitable for		CVT		CVT
Density at 20 °C	g/cm³	848	EN ISO 12185	848 g/cm³ EN ISO 12185
Color		Red	visual	Red visual
Viscosity at 100 °C	mm²/s	7.3	DIN 51562-1	7.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	34.3	DIN 51562-1	34.3 mm²/s DIN 51562-1
Viscosity Index VI		185	DIN ISO 2909	185 DIN ISO 2909
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	210	DIN EN ISO 2592	210 °C DIN EN ISO 2592
Approvals		Allison C-3, Allison C-4, Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, GM Dexron® II D, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, Voith H55.6335.xx, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C		Allison C-3, Allison C-4, Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, GM Dexron® II D, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, Voith H55.6335.xx, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C

Brake system

Liquid volume (basic): 1 L

DOT 4

For brake system

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

show details

Available packaging
Full description
Product parameters

Volume:
250 ml

vendor code:
1350601-250

Code:
4014835692121

Volume:
500 ml

vendor code:
1350601-500

Code:
4014835692152

Volume:
1 L

vendor code:
1350601-001

Code:
4014835692114

Volume:
20 L

vendor code:
1350601-020

DOT 4

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

Application Note

RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.

RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.

RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113).

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

optimum ABS characteristics
chemical stability
best lubrication efficiency
neutral behaviour regarding brake parts
low viscosity at low temperatures
miscible with all brake fluids of the same specifications

Parameter	Unit	Value	Audit
FMVSS 116 specifications (DOT)		DOT-4		DOT-4
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
specification		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704
Density at 20 °C	g/cm³	1052	EN ISO 12185	1052 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mPa*s	2.41	ASTM D445	2.41 mPa*s ASTM D445
Viscosity at -40 °C	cSt	1340	ASTM D445	1340 cSt ASTM D445
Boiling point	°C	271	FMVSS 116	271 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point	°C	169	FMVSS 116	169 °C FMVSS 116
High Temperature Stability	°C	-1	FMVSS 116	-1 °C FMVSS 116
Chemical Stability	°C	1	FMVSS 116	1 °C FMVSS 116
Evaporation	%w/w	61	FMVSS 116	61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C		i.O., 4s	FMVSS 116	i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C		i.O., 8s	FMVSS 116	i.O., 8s FMVSS 116
Water Tolerance at -40 °C		transparent, 3s	FMVSS 116	transparent, 3s FMVSS 116
Water Tolerance at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at -40 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Water content	%	— 0.2	DIN 51777-1	— 0.2 % DIN 51777-1
Tinned Iron	Δ mg/cm²	0.04	FMVSS 116	0.04 Δ mg/cm² FMVSS 116
Steel	mg/cm²	-0.01	FMVSS 116	-0.01 mg/cm² FMVSS 116
Aluminium	mg/cm²	0.02	FMVSS 116	0.02 mg/cm² FMVSS 116
Cast Iron	Δ mg/cm²	-0,03	FMVSS 116	-0,03 Δ mg/cm² FMVSS 116
Brass	mg/cm²	-0.08	FMVSS 116	-0.08 mg/cm² FMVSS 116
Copper	mg/cm²	-0.05	FMVSS 116	-0.05 mg/cm² FMVSS 116
Zinc	mg/cm²	0.01	FMVSS 116	0.01 mg/cm² FMVSS 116
Sediment	%	— 0.05	FMVSS 116	— 0.05 % FMVSS 116
pH - value		8.2	FMVSS 116	8.2 FMVSS 116
Rubber Diameter Change		0.16	FMVSS 116	0.16 FMVSS 116
Hardness Change	°IRHD	-4	FMVSS 116	-4 °IRHD FMVSS 116
Appearance		i.O.	FMVSS 116	i.O. FMVSS 116
SBR at 70 °C	mm	0.56	FMVSS 116	0.56 mm FMVSS 116
SBR at 120 °C	mm	0.73	FMVSS 116	0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703)	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
EPDM at 120 °C	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925)	mm	0.38	FMVSS 116	0.38 mm FMVSS 116
Approvals		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704

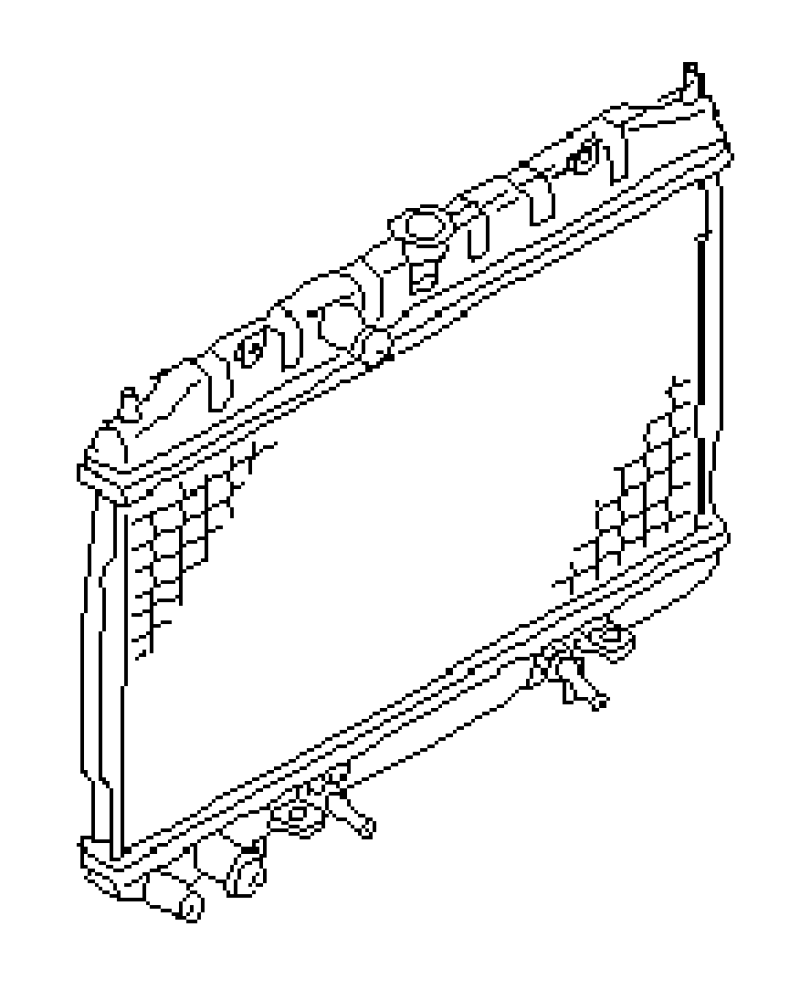

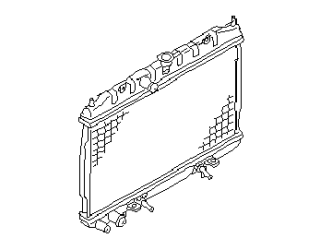

Cooling system
OEM: 214604M703

Liquid volume (basic): 6.6 L

HJC Hybrid Japanese Coolant PREMIX -40°C

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

Compliance with the requirements:
Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant

show details

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410123-150

Code:
4014835755918

Volume:
5 L

vendor code:
1410123-005

Code:
4014835755956

Volume:
10 L

vendor code:
1410123-010

Volume:
20 L

vendor code:
1410123-020

Code:
4014835755925

Volume:
20 L, ecobox

vendor code:
1410123-B20

Code:
4014835855977

Volume:
60 L, plastic

vendor code:
1410123-060

Code:
4014835755963

Volume:
208 L

vendor code:
1410123-208

Code:
4014835755987

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL HJC Hybrid Japanese Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL HJC Hybrid Japanese Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL HJC Hybrid Japanese Coolant Premix -40°C to radiator to fill line.

Characteristics

Excellent for light metal engines
Good reserve alkalinity
High-quality corrosion additives for optimal corrosion protection
Elastomer compatible with elastomers used in automotive radiators

Parameter	Unit	Value	Audit
Recommendations		08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant		08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant
Brand		RAVENOL		RAVENOL
Recomendations		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant
Compliant products		Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944		Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944
Density at 20 °C	g/cm³	1082	EN ISO 12185	1082 g/cm³ EN ISO 12185
Color		Green	visual	Green visual
pH - value		7 — 8.5	ASTM D1287	7 — 8.5 ASTM D1287
Freezing point	°C	-40	ASTM D1177	-40 °C ASTM D1177
Approvals		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant

HJC Hybrid Japanese Coolant Concentrate

Coolant

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

Compliance with the requirements:
Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant

show details

Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410122-150

Code:
4014835755819

Volume:
5 L

vendor code:
1410122-005

Code:
4014835755857

Volume:
10 L

vendor code:
1410122-010

Volume:
20 L

vendor code:
1410122-020

Code:
4014835755826

Volume:
20 L, ecobox

vendor code:
1410122-B20

Code:
4014835855489

Volume:
60 L

vendor code:
1410122-060

Code:
4014835755864

Volume:
208 L

vendor code:
1410122-208

Code:
4014835755888

Volume:
1000 L

vendor code:
1410122-700

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

Therefore manufacturers subject coolants to long corrosion and cavitation tests.

RAVENOL HJC Hybrid Japanese Coolant Concentrate protects the cooling system from corrosion, frost, and in the summer from overheating.

Application Note

RAVENOL HJC Hybrid Japanese Coolant Concentrate with frost and rust protection. Use according to the mixing chart. Follow manufacturer’s recommendations.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL HJC Hybrid Japanese Coolant Concentrate with distilled water (per mixing table) and add. Allow engine and heater to warm up, add coolant to fill level.

Table of mixing ratios
Antifreeze protection until	Parts Antifreeze	Parts Water
-20°C	35%	65%
-37°C	50%	50%
-50°C	60%	40%

Characteristics

Excellent for light metal engines
Good reserve alkalinity
High-quality corrosion additives for optimal corrosion protection
Elastomer compatible with elastomers used in automotive radiators

Parameter	Unit	Value	Audit
Recommendations		08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant		08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant
Brand		RAVENOL		RAVENOL
Recomendations		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant
Compliant products		Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944		Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944
Density at 20 °C	g/cm³	1132	EN ISO 12185	1132 g/cm³ EN ISO 12185
Color		Green	visual	Green visual
Reserve alkalinity	mgKOH/g	15 —	ASTM D1120	15 — mgKOH/g ASTM D1120
Boiling point	°C	150 —	ASTM D1121	150 — °C ASTM D1121
Water content	%	— 5	ASTM D1123	— 5 % ASTM D1123
Flashpoint	°C	110 —	DIN 51758	110 — °C DIN 51758
Freezing point (50 % solution)	°C	-37	ASTM D1177	-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %)		7,0 - 8,5	ASTM D1287	7,0 - 8,5 ASTM D1287
Approvals		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant

HJC COLD CLIMATE -60°C

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

Compliance with the requirements:
Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant

show details

Equivalents OEM:
Honda 08CLAG010S0, Honda 08CLAG010S0

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410143-150

Code:
4014835841208

Volume:
5 L

vendor code:
1410143-005

Code:
4014835841239

Volume:
10 L

vendor code:
1410143-010

Volume:
20 L

vendor code:
1410143-020

Volume:
60 L

vendor code:
1410143-060

Volume:
208 L

vendor code:
1410143-208

RAVENOL HJC COLD CLIMATE -60°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL HJC COLD CLIMATE -60°C is a prediluted coolant with frost and rust protection for year-rounduse in automotive engines for regions with cold climate.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions:

Add RAVENOL HJC COLD CLIMATE -60°C to radiator to fill line.

RAVENOL HJC COLD CLIMATE -60°C can also be used according the mixing table. Mix RAVENOL HJC COLD CLIMATE -60°C with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

Table of mixing ratios:
Antifreeze protection until	Parts Antifreeze	Parts Water
-25°C	50%	50%
-37°C	65%	35%

Characteristics

Excellent for light metal engines
Good reserve alkalinity
High-quality corrosion additives for optimal corrosion protection
Elastomer compatible with elastomers used in automotive radiators

Parameter	Unit	Value	Audit
Recommendations		08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant		08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant
Brand		RAVENOL		RAVENOL
Recomendations		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant
Compliant products		Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944		Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944
Density at 20 °C	g/cm³	1110	EN ISO 12185	1110 g/cm³ EN ISO 12185
Color		Green	visual	Green visual
pH - value		8	ASTM D1287	8 ASTM D1287
Freezing point	°C	-60	ASTM D1177	-60 °C ASTM D1177
Approvals		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter	Value
Recommendations	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand	RAVENOL	RAVENOL
Recomendations	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272
Approvals	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272

Professional Radiator Cleaner

Additive

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

show details

Equivalents OEM:
Ford MP14300500AB

Available packaging
Full description
Product parameters

Volume:
0.25 L

vendor code:
1390302-250

Code:
4014835802667

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.

Application Note

RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.

Area of application:

Radiator repairs

In the event of reduced radiator performance

In the event of deposits in the cooling system

Changing coolant

For cleaning purposes after engine repairs due to oil in the cooling system

Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.

Fill in

RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.

RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.

Characteristics

Cleaning of the cooling and heating system
Protection of the new coolant against prior contamination
Elimination of sludge and corrosion residue

Parameter	Unit	Value	Audit
Color		Colorless	visual	Colorless visual
Density at 20 °C	g/cm³	1003	EN ISO 12185	1003 g/cm³ EN ISO 12185
pH - value at 20 °C		10,25	DIN 19268	10,25 DIN 19268
Brand		RAVENOL		RAVENOL
