Mitsubishi Fuso

Oil for Mitsubishi Fuso - Canter VII - 3.0 2WD (4P10/4P10T5) (FEC92S)

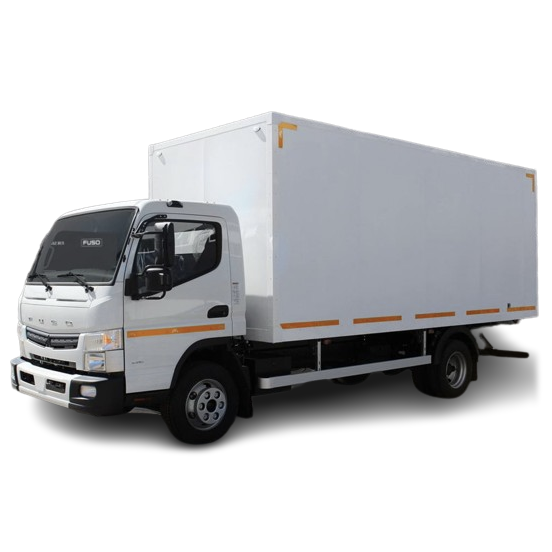

Mitsubishi Fuso Canter VII 3.0 2WD (4P10/4P10T5) (FEC92S), year of issue from 2015 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Add to Garage

Nodes and assemblies

Engine 4P10 / 4P10T5

Liquid volume (basic): 6.2 L
Super Synthetic Truck 5W-30

Super Synthetic Truck 5W-30

For turbodiesels

The cold viscosity SAE 5W ensures reliable cold starting in extreme temperatures (low cold-starting wear) and the quickest possible supply to all lubricating points. The high-temperature viscosity SAE 30 safely masters extreme stress. Friction loss and wear are reduced.

Manufacturer Approved:
DTFR 15C110, DTFR 15C120, MAN M 3677

Compliance with the requirements:
Cummins CES 20076, Cummins CES 20077, Cummins CES 20081, Cummins CES 20086, DAF Extended drain, Deutz DQC IV-10 LA, DTFR 15C100 (MB 228.31), Mack EO-O Premium Plus, MAN M 3277, MAN M 3477, MB 226.9, MB 228.51, MTU Type 3.1, Renault RLD-3, Renault RXD, Scania LDF, Scania LDF-4, Volvo VDS-4

show details hide details

SAE: 5W-30

API: CK-4, SN

ACEA: E6, E7, E8, E9, E11

Equivalents OEM:
DAF 09354RU, DAF 09354XX, DAF 09375PL, DAF 09375PL, FEBI 48416, Nissan KLBF205302, Nissan KLBF305302

  • Available packaging
  • Full description
  • Product parameters

Volume:
5 L

vendor code:
1121101-005

Code:
4014835767959

Volume:
10 L

vendor code:
1121101-010

Code:
4014835767942

Volume:
20 L

vendor code:
1121101-020

Code:
4014835767928

Volume:
20 L, ecobox

vendor code:
1121101-B20

Code:
4014835776029

Volume:
60 L

vendor code:
1121101-060

Code:
4014835767966

Volume:
60 L, print

vendor code:
1121101-D60

Code:
4014835767935

Volume:
208 L

vendor code:
1121101-208

Code:
4014835767980

Volume:
208 L, print

vendor code:
1121101-D28

Code:
4014835767904

Volume:
1000 L

vendor code:
1121101-700

The cold viscosity SAE 5W ensures reliable cold starting in extreme temperatures (low cold-starting wear) and the quickest possible supply to all lubricating points. The high-temperature viscosity SAE 30 safely masters extreme stress. Friction loss and wear are reduced.

Application Note

RAVENOL Super Synthetic Truck SAE 5W-30 is an all-season Low SAPS high performance commercial vehicle motor oil fine tuned for the new exhaust emission directives. All-season use in EURO IV, EURO V and EURO VI engines.

RAVENOL Super Synthetic Truck SAE 5W-30 is suitable for oil change intervals according to manufacturer specifications to over 100,000 km.

Characteristics

  • Outstanding detergent properties, no residues in the engine
  • Outstanding dispersing properties – prevents cold sludge and residue formation
  • Extends the life of the particle filter by reducing the tendency to form particles
  • Low sulphate ash-, phosphorus- and sulphur content “Low SAPS
  • Outstanding wear protection
  • Outstanding oxidation stability
  • Outstanding high temperature stability, high viscosity index
  • Low fuel consumption for cost effectiveness
  • Outstanding cold starting properties
Parameter Unit Value Audit
Recommendations Cummins CES 20076, Cummins CES 20077, Cummins CES 20081, Cummins CES 20086, DAF Extended drain, Deutz DQC IV-10 LA, DTFR 15C100 (MB 228.31), JASO DH-2, Mack EO-O PP (Premium Plus), MAN M 3277, MAN M 3477, MB 226.9, MB 228.51, MTU Typ 3.1, Renault RXD, Renault VI RLD-3, Scania LDF, Scania LDF-4, VOLVO VDS-4
Cummins CES 20076, Cummins CES 20077, Cummins CES 20081, Cummins CES 20086, DAF Extended drain, Deutz DQC IV-10 LA, DTFR 15C100 (MB 228.31), JASO DH-2, Mack EO-O PP (Premium Plus), MAN M 3277, MAN M 3477, MB 226.9, MB 228.51, MTU Typ 3.1, Renault RXD, Renault VI RLD-3, Scania LDF, Scania LDF-4, VOLVO VDS-4
SAE 5W-30
5W-30
Brand RAVENOL
RAVENOL
Type Synthetic
Synthetic
API CK-4, SN
CK-4, SN
ACEA E11, E6, E7, E8, E9
E11, E6, E7, E8, E9
JASO DH-2
DH-2
Manufacturer Approved DTFR 15C110, DTFR 15C120, MAN M 3677
DTFR 15C110, DTFR 15C120, MAN M 3677
Recomendations Cummins CES 20076, Cummins CES 20077, Cummins CES 20081, Cummins CES 20086, DAF Extended drain, Deutz DQC IV-10 LA, DTFR 15C100 (MB 228.31), Mack EO-O Premium Plus, MAN M 3277, MAN M 3477, MB 226.9, MB 228.51, MTU Type 3.1, Renault RLD-3, Renault RXD, Scania LDF, Scania LDF-4, Volvo VDS-4
Cummins CES 20076, Cummins CES 20077, Cummins CES 20081, Cummins CES 20086, DAF Extended drain, Deutz DQC IV-10 LA, DTFR 15C100 (MB 228.31), Mack EO-O Premium Plus, MAN M 3277, MAN M 3477, MB 226.9, MB 228.51, MTU Type 3.1, Renault RLD-3, Renault RXD, Scania LDF, Scania LDF-4, Volvo VDS-4
Density at 20 °C g/cm³ 849 EN ISO 12185
849 g/cm³ EN ISO 12185
Color Brown visual
Brown visual
Viscosity at 100 °C mm²/s 12.15 DIN 51562-1
12.15 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 70.8 DIN 51562-1
70.8 mm²/s DIN 51562-1
Viscosity Index VI 170 DIN ISO 2909
170 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 3.7 ASTM D5481
3.7 mPa*s ASTM D5481
CCS Viscosity at -35 °C mPa*s 5530 ASTM D5293
5530 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C mPa*s 22.500 ASTM D4684
22.500 mPa*s ASTM D4684
Pourpoint °C -42 DIN ISO 3016
-42 °C DIN ISO 3016
Noack Volatility % 9.1 ASTM D5800
9.1 % ASTM D5800
Flashpoint °C 228 DIN EN ISO 2592
228 °C DIN EN ISO 2592
tbn mgKOH/g 10.8 ASTM D2896
10.8 mgKOH/g ASTM D2896
Sulphated Ash %wt. 0.96 DIN 51575
0.96 %wt. DIN 51575
Approvals Cummins CES 20076, Cummins CES 20077, Cummins CES 20081, Cummins CES 20086, DAF Extended drain, Deutz DQC IV-10 LA, DTFR 15C100 (MB 228.31), DTFR 15C110, DTFR 15C120, Mack EO-O Premium Plus, MAN M 3277, MAN M 3477, MAN M 3677, MB 226.9, MB 228.51, MTU Type 3.1, Renault RLD-3, Renault RXD, Scania LDF, Scania LDF-4, Volvo VDS-4
Cummins CES 20076, Cummins CES 20077, Cummins CES 20081, Cummins CES 20086, DAF Extended drain, Deutz DQC IV-10 LA, DTFR 15C100 (MB 228.31), DTFR 15C110, DTFR 15C120, Mack EO-O Premium Plus, MAN M 3277, MAN M 3477, MAN M 3677, MB 226.9, MB 228.51, MTU Type 3.1, Renault RLD-3, Renault RXD, Scania LDF, Scania LDF-4, Volvo VDS-4
Expert SHPD 10W-40

Expert SHPD 10W-40

Engine oil

RAVENOL Expert SHPD SAE 10W-40 has an excellent flow behaviour even at low temperatures. The quick reach of critical lubrication points provides a considerable corrosion reduction during the warm-up period. Exclusive additives guarantee the best engine cleanness even at short distances.

Manufacturer Approved:
Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00

show details hide details

SAE: 10W-40

API: CI-4, SL

ACEA: A3, B4, E4, E7

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1122105-001

Code:
4014835725812

Volume:
5 L

vendor code:
1122105-005

Code:
4014835725850

Volume:
7 L

vendor code:
1122105-007

Code:
4014835853515

Volume:
10 L

vendor code:
1122105-010

Code:
4014835725843

Volume:
20 L

vendor code:
1122105-020

Code:
4014835725829

Volume:
20 L, ecobox

vendor code:
1122105-B20

Code:
4014835776227

Volume:
60 L

vendor code:
1122105-060

Code:
4014835725867

Volume:
60 L, print

vendor code:
1122105-D60

Code:
4014835839533

Volume:
208 L

vendor code:
1122105-208

Code:
4014835725881

Volume:
208 L, print

vendor code:
1122105-D28

Code:
4014835725805

Volume:
1000 L

vendor code:
1122105-700

RAVENOL Expert SHPD SAE 10W-40 has an excellent flow behaviour even at low temperatures. The quick reach of critical lubrication points provides a considerable corrosion reduction during the warm-up period. Exclusive additives guarantee the best engine cleanness even at short distances.

Application Note

RAVENOL Expert SHPD SAE 10W-40 is low-friction long-life engine oil for all kind of diesel engines with and without turbocharging in trucks, buses and machinery. Suitable for the longest oil change intervals.

Characteristics

  • Excellent detergent and dispersant characteristics
  • Low evaporation
  • A high ageing stability
  • Protection of reflecting surface formation
  • Very good cold start characteristics
  • Reduces oil and fuel consumption
Parameter Unit Value Audit
Recommendations Allison C4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, DAF, Global DHD-1, IVECO, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500 00, VW 505 00
Allison C4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, DAF, Global DHD-1, IVECO, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500 00, VW 505 00
SAE 10W-40
10W-40
Brand RAVENOL
RAVENOL
Type Semi-synthetic
Semi-synthetic
API CI-4, SL
CI-4, SL
ACEA A3, B4, E4, E7
A3, B4, E4, E7
Manufacturer Approved Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3
Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Mack EO-M Plus, Mack EO-N, MTU Type 2, Renault RLD-2, TEDOM 258-3, Volvo VDS-3
Recomendations Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00
Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Global DHD-1, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF, Voith Retarder B, VW 500.00, VW 505.00
Suitable for DAF, IVECO, YaMZ
DAF, IVECO, YaMZ
Density at 20 °C g/cm³ 866 EN ISO 12185
866 g/cm³ EN ISO 12185
Color Brown visual
Brown visual
Viscosity at 100 °C mm²/s 14.2 DIN 51562-1
14.2 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 93.5 DIN 51562-1
93.5 mm²/s DIN 51562-1
Viscosity Index VI 155 DIN ISO 2909
155 DIN ISO 2909
CCS Viscosity at -25 °C mPa*s 6480 ASTM D5293
6480 mPa*s ASTM D5293
Pourpoint °C -36 DIN ISO 3016
-36 °C DIN ISO 3016
Noack Volatility % 7.3 ASTM D5800
7.3 % ASTM D5800
Flashpoint °C 234 DIN EN ISO 2592
234 °C DIN EN ISO 2592
tbn mgKOH/g 11 ASTM D2896
11 mgKOH/g ASTM D2896
Sulphated Ash %wt. 1.45 DIN 51575
1.45 %wt. DIN 51575
Approvals Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD-2, Scania LDF, TEDOM 258-3, Voith Retarder B, Volvo VDS-3, VW 500.00, VW 505.00
Allison C-4, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD-2, Scania LDF, TEDOM 258-3, Voith Retarder B, Volvo VDS-3, VW 500.00, VW 505.00
Expert SHPD 5W-30

Expert SHPD 5W-30

For engine

RAVENOL Expert SHPD SAE 5W-30 ensures a reliable cold start at low outside temperatures and full lubricity at high operating temperatures thanks to the SAE 5W-30 viscosity range. Friction losses and wear are reduced.

Compliance with the requirements:
Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3

show details hide details

SAE: 5W-30

API: CI-4, SL

ACEA: A3, B4, E3, E5, E7

Equivalents OEM:
MB A000989240713FBDR, MB A000989240717FBDR, MB A000989630413BEER, MB A000989630417BEER, MB A000989730217BGEZ, MB A000989780715CDDB, MB A000989860219AEED, MB A000989890613ABDE, MB A000989890613ABDS, MB A000989890615ABDS, MB A000989890617ABDS, MB A000989890618ABDS, MB A0019890801AAA0, MB A0019890801AAA4, MB A0019890801AAA8, MB A0019890801AAA9, MB A0019890801ADA0, MB A0019890801ADA4, MB A0019890801ADA6, MB A0019890801ADA6, MB A0019890801ARU8, MB A0019890801BAA0, MB A0019890801BRD2, MB A002989370313FDDW, MB A094989210013ABDE, MB A094989210015ABDS, MB A094989210017ABDS, MB A094989210018ABDS, MB A094989260013FBDR, MB A094989260017FBDR

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1121104-001

Code:
4014835863842

Volume:
5 L

vendor code:
1121104-005

Code:
4014835863460

Volume:
7 L

vendor code:
1121104-007

Code:
4014835867949

Volume:
10 L

vendor code:
1121104-010

Code:
4014835864085

Volume:
20 L

vendor code:
1121104-020

Code:
4014835863491

Volume:
20 L, ecobox

vendor code:
1121104-B20

Code:
4014835863606

Volume:
60 L

vendor code:
1121104-060

Code:
4014835863583

Volume:
60 L, print

vendor code:
1121104-D60

Volume:
208 L

vendor code:
1121104-208

Code:
4014835863514

Volume:
208 L, print

vendor code:
1121104-D28

Volume:
1000 L

vendor code:
1121104-700

RAVENOL Expert SHPD SAE 5W-30 ensures a reliable cold start at low outside temperatures and full lubricity at high operating temperatures thanks to the SAE 5W-30 viscosity range. Friction losses and wear are reduced.

RAVENOL Expert SHPD SAE 5W-30 was designed as SHPD engine oil (Super High Performance Diesel) for use in turbocharged and non-turbocharged engines.

Application Note

RAVENOL Expert SHPD SAE 5W-30 is a year-round high performance engine oil designed for the truck fleet and buses according to the specified specifications.

RAVENOL Expert SHPD SAE 5W-30 is universally applicable in truck diesel engines with and without turbocharging. It can be used for EURO 4, EURO 5 and EURO 6 engines.Please follow the manufacturer's instructions.

Parameter Unit Value Audit
Recommendations Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, Detroit Diesel DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Typ 2, Renault VI RLD-2, VOLVO VDS-3
Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, Detroit Diesel DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Typ 2, Renault VI RLD-2, VOLVO VDS-3
SAE 5W-30
5W-30
Brand RAVENOL
RAVENOL
Type Synthetic
Synthetic
API CI-4, SL
CI-4, SL
ACEA A3, B4, E3, E5, E7
A3, B4, E3, E5, E7
Recomendations Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3
Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3
Density at 20 °C g/cm³ 851 EN ISO 12185
851 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 12.2 DIN 51562-1
12.2 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 74.2 DIN 51562-1
74.2 mm²/s DIN 51562-1
Viscosity Index VI 161 DIN ISO 2909
161 DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s 3.53 ASTM D5481
3.53 mPa*s ASTM D5481
CCS Viscosity at -30 °C mPa*s 6340 ASTM D5293
6340 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C mPa*s 25.890 ASTM D4684
25.890 mPa*s ASTM D4684
Pourpoint °C -42 DIN ISO 3016
-42 °C DIN ISO 3016
Noack Volatility % 8.3 ASTM D5800
8.3 % ASTM D5800
Flashpoint °C 228 DIN EN ISO 2592
228 °C DIN EN ISO 2592
tbn mgKOH/g 10.7 ASTM D2896
10.7 mgKOH/g ASTM D2896
Sulphated Ash %wt. 1.29 DIN 51575
1.29 %wt. DIN 51575
Approvals Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3
Caterpillar ECF-1a, Caterpillar ECF-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 13D110 (MB 235.28), DTFR 15B110 (MB 228.3), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, Mack EO-N, MAN M 3275-1, MB 228.1, MB 228.3, MB 228.5, MB 229.1, MB 235.28, MTU Type 2, Renault RLD-2, Volvo VDS-3
Professional Engine Cleaner

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details hide details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

  • Available packaging
  • Full description
  • Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

  • Long-term effectiveness and clean fresh oil
  • Remedy for soiled engines
  • Protection against compression loss in the area of the piston rings
  • Leads to better exhaust emissions and increases the performance of the engine
Parameter Unit Value Audit
Color Light brown visual
Light brown visual
Flashpoint (PM) °C 62 DIN ISO 3679
62 °C DIN ISO 3679
Density at 20 °C 805 EN ISO 12185
805 EN ISO 12185
Viscosity at 40 °C mm²/s 7 DIN EN ISO 3104
7 mm²/s DIN EN ISO 3104
Brand RAVENOL
RAVENOL

Transmission, semi-automatic clutch section M038S6 (DUONIC)

Liquid volume (basic): 2 L
ATF MM SP-III Fluid

ATF MM SP-III Fluid

Transmission fluid

RAVENOL ATF MM SP-III Fluid is universal ATF (Automatic Transmission Fluid) for automatic transmission of Mitsubishi, Hyundai and KIA.

Compliance with the requirements:
ATF SP-III

show details hide details
  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1212103-001

Code:
4014835733114

Volume:
4 L

vendor code:
1212103-004

Code:
4014835733190

Volume:
10 L

vendor code:
1212103-010

Code:
4014835733145

Volume:
20 L

vendor code:
1212103-020

Code:
4014835733121

Volume:
20 L, ecobox

vendor code:
1212103-B20

Code:
4014835787322

Volume:
60 L, print

vendor code:
1212103-D60

Code:
4014835733138

Volume:
208 L, print

vendor code:
1212103-D28

Code:
4014835733107

Volume:
1000 L

vendor code:
1212103-700

Volume:
60 L

vendor code:
1212103-060

Volume:
208 L

vendor code:
1212103-208

RAVENOL ATF MM SP-III Fluid is universal ATF (Automatic Transmission Fluid) for automatic transmission of Mitsubishi, Hyundai and KIA.

RAVENOL ATF MM SP-III Fluid guarantees maximum wear protection in all operating conditions.

Application Note

RAVENOL ATF MM SP-III Fluid was developed for use in automatic transmission, especially for Mitsubishi, Hyundai and KIA.

RAVENOL ATF MM SP-III Fluid can replace SP und SP-II Fluids.

It is advisable to flush with RAVENOL ATF MM SP-III Fluid before filling with RAVENOL ATF MM SP-III Fluid.

Characteristics

  • Very good lubricating properties also at low temperatures in winter
  • High, stable viscosity index
  • Very low pour point
  • Excellent oxidation stability
  • Protection against wear, corrosion and foaming
  • Good concerted friction characteristic
  • Neutral behavior towards sealing materials
  • Neutral behavior by inhibition to non-ferrous metals
Parameter Unit Value Audit
Recommendations ATF SP-3, ATF SP-III, Chery B110AX4004011SP10, Chery CHR2015CVT001, Chery CVT 019CHA/019CHB, Hyundai 00232-19012, Hyundai 04500-00100, Hyundai 04500-00400, Hyundai 04500-00A00, Mitsubishi 4024401, Mitsubishi 4024610, Mitsubishi ACH1ZC1X05, Mitsubishi MZ320159, Mitsubishi MZ320160, Mitsubishi MZ320162, Mitsubishi MZ320216
ATF SP-3, ATF SP-III, Chery B110AX4004011SP10, Chery CHR2015CVT001, Chery CVT 019CHA/019CHB, Hyundai 00232-19012, Hyundai 04500-00100, Hyundai 04500-00400, Hyundai 04500-00A00, Mitsubishi 4024401, Mitsubishi 4024610, Mitsubishi ACH1ZC1X05, Mitsubishi MZ320159, Mitsubishi MZ320160, Mitsubishi MZ320162, Mitsubishi MZ320216
Brand RAVENOL
RAVENOL
Type Synthetic
Synthetic
Recomendations ATF SP-III
ATF SP-III
Compliant products Chery B110AX4004011SP10, Chery CHR2015CVT001, Chery CVT 019CHA/019CHB, Hyundai 00232-19012, Hyundai 04500-00100, Hyundai 04500-00400, Hyundai 04500-00A00, Mitsubishi 4024401, Mitsubishi 4024610, Mitsubishi ACH1ZC1X05, Mitsubishi MZ320159, Mitsubishi MZ320160, Mitsubishi MZ320162, Mitsubishi MZ320216
Chery B110AX4004011SP10, Chery CHR2015CVT001, Chery CVT 019CHA/019CHB, Hyundai 00232-19012, Hyundai 04500-00100, Hyundai 04500-00400, Hyundai 04500-00A00, Mitsubishi 4024401, Mitsubishi 4024610, Mitsubishi ACH1ZC1X05, Mitsubishi MZ320159, Mitsubishi MZ320160, Mitsubishi MZ320162, Mitsubishi MZ320216
Density at 20 °C g/cm³ 847 EN ISO 12185
847 g/cm³ EN ISO 12185
Color Red visual
Red visual
Pourpoint °C -48 DIN ISO 3016
-48 °C DIN ISO 3016
Approvals ATF SP-III
ATF SP-III

Transmission, semi-automatic transmission section M038S6 (DUONIC) 6/1

Liquid volume (basic): 3.8 L
STOU 15W-30

STOU 15W-30

For tractors

Application NoteRAVENOL STOU SAE 15W-30 has a wide range of applications in engines, transmissions and hydraulic systems of many tractors and is suitable for use as motor oil for both petrol and diesel engines, transmission oil (including wet brakes and PTO transmissions) and as a hydraulic oil where this specification of product is required. Can also be used as compressor oil.

Compliance with the requirements:
Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B

show details hide details

SAE: 15W-30

API: CE, GL-4, SF

ACEA: E1, E2

  • Available packaging
  • Full description
  • Product parameters

Volume:
20 L, ecobox

vendor code:
1310112-B20

Volume:
60 L

vendor code:
1310112-060

Code:
4014835739963

Volume:
60 L, print

vendor code:
1310112-D60

Volume:
208 L

vendor code:
1310112-208

Volume:
1000 L

vendor code:
1310112-700

Volume:
20 L

vendor code:
1310112-020

Application Note

RAVENOL STOU SAE 15W-30 has a wide range of applications in engines, transmissions and hydraulic systems of many tractors and is suitable for use as motor oil for both petrol and diesel engines, transmission oil (including wet brakes and PTO transmissions) and as a hydraulic oil where this specification of product is required. Can also be used as compressor oil.

Characteristics

  • Excellent viscosity-temperature behaviour
  • Exceptional cold starting abilities
  • Excellent detergent and dispersant properties
  • High resistance to ageing
Parameter Unit Value Audit
Recommendations Allison C4, Atlas Copco Kompressor, Case International J I, Case MS 1118, Case MS 1206, Case MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford-Pumpentest, Getriebeöl: SAE 80W, Hydrauliköl: HLP ISO VG 68, International Harvester B6, John Deere J20C, John Deere J20D, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson M1127, Massey Ferguson M1139, Massey Ferguson M1144, MIL-L-2105, Parker Dension HF-2, Spezialtraktorenöl: John Deere J27A, Vickers-Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B
Allison C4, Atlas Copco Kompressor, Case International J I, Case MS 1118, Case MS 1206, Case MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford-Pumpentest, Getriebeöl: SAE 80W, Hydrauliköl: HLP ISO VG 68, International Harvester B6, John Deere J20C, John Deere J20D, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson M1127, Massey Ferguson M1139, Massey Ferguson M1144, MIL-L-2105, Parker Dension HF-2, Spezialtraktorenöl: John Deere J27A, Vickers-Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B
SAE 15W-30
15W-30
Brand RAVENOL
RAVENOL
Type Mineral
Mineral
API CE, GL-4, SF
CE, GL-4, SF
ACEA E1, E2
E1, E2
Recomendations Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B
Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B
Suitable for Atlas Copco Kompressor
Atlas Copco Kompressor
Density at 20 °C g/cm³ 861 EN ISO 12185
861 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 11.8 DIN 51562-1
11.8 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 71.7 DIN 51562-1
71.7 mm²/s DIN 51562-1
Viscosity Index VI 159 DIN ISO 2909
159 DIN ISO 2909
Pourpoint °C -39 DIN ISO 3016
-39 °C DIN ISO 3016
Flashpoint °C 222 DIN EN ISO 2592
222 °C DIN EN ISO 2592
tbn mgKOH/g 11.7 ASTM D2896
11.7 mgKOH/g ASTM D2896
Sulphated Ash %wt. 1.5 DIN 51575
1.5 %wt. DIN 51575
Approvals Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B
Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B
STOU 10W-30

STOU 10W-30

For tractors

RAVENOL STOU SAE 10W-30 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons. Suitable for wet brakes and shaft coupling (PTO clutches).

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B

show details hide details

SAE: 10W-30

API: CG-4, GL-4, SF

ACEA: E3

Equivalents OEM:
Isuzu 1884057500, Isuzu 1884057520, Isuzu 1884057720, Isuzu 1884057720

  • Available packaging
  • Full description
  • Product parameters

Volume:
5 L

vendor code:
1310100-005

Volume:
20 L

vendor code:
1310100-020

Code:
4014835739529

Volume:
20 L, ecobox

vendor code:
1310100-B20

Volume:
60 L

vendor code:
1310100-060

Code:
4014835739567

Volume:
208 L

vendor code:
1310100-208

Code:
4014835739581

Volume:
1000 L

vendor code:
1310100-700

RAVENOL STOU SAE 10W-30 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons. Suitable for wet brakes and shaft coupling (PTO clutches).

Application Note

RAVENOL STOU SAE 10W-30 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.

RAVENOL STOU SAE 10W-30 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil.

Characteristics

  • A powerful dispersion and detergency
  • Protection against wear, corrosion and foam
  • High resistance to oxidation
  • Excellent extreme pressure properties
  • A high and stable viscosity index
Parameter Unit Value Audit
Recommendations ACEA E3, Allison C4, API CG-4/SF, API GL-4, Atlas Copco Kompressor, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Getriebeöl: SAE 80W, Hydrauliköl: HVLP ISO VG 68, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson M1139, Massey Ferguson M1144, Massey Ferguson M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, Motorenöl: SAE 10W-30, New Holland / Ford ESN-M2C-15- 9B, Spezialtraktorenöl: John Deere J27, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B
ACEA E3, Allison C4, API CG-4/SF, API GL-4, Atlas Copco Kompressor, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Getriebeöl: SAE 80W, Hydrauliköl: HVLP ISO VG 68, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson M1139, Massey Ferguson M1144, Massey Ferguson M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, Motorenöl: SAE 10W-30, New Holland / Ford ESN-M2C-15- 9B, Spezialtraktorenöl: John Deere J27, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B
SAE 10W-30
10W-30
Brand RAVENOL
RAVENOL
API CG-4, GL-4, SF
CG-4, GL-4, SF
ACEA E3
E3
Recomendations Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B
Suitable for Atlas Copco Kompressor
Atlas Copco Kompressor
Density at 20 °C g/cm³ 867 EN ISO 12185
867 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 11.7 DIN 51562-1
11.7 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 74.7 DIN 51562-1
74.7 mm²/s DIN 51562-1
Viscosity Index VI 151 DIN ISO 2909
151 DIN ISO 2909
Pourpoint °C -36 DIN ISO 3016
-36 °C DIN ISO 3016
Flashpoint °C 226 DIN EN ISO 2592
226 °C DIN EN ISO 2592
tbn mgKOH/g 12.4 ASTM D2896
12.4 mgKOH/g ASTM D2896
Sulphated Ash %wt. 1.58 DIN 51575
1.58 %wt. DIN 51575
Approvals Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B
STOU 10W-40

STOU 10W-40

Tractor oil

RAVENOL STOU SAE 10W-40 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons.

Compliance with the requirements:
Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 68 HVLP, ISO VG 100 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B

show details hide details

SAE: 10W-40

API: CG-4, GL-4, SF

ACEA: E3

  • Available packaging
  • Full description
  • Product parameters

Volume:
5 L

vendor code:
1310111-005

Volume:
10 L

vendor code:
1310111-010

Volume:
20 L

vendor code:
1310111-020

Code:
4014835739826

Volume:
20 L, ecobox

vendor code:
1310111-B20

Volume:
60 L

vendor code:
1310111-060

Volume:
1000 L

vendor code:
1310111-700

Volume:
208 L

vendor code:
1310111-208

RAVENOL STOU SAE 10W-40 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons.

Application Note

RAVENOL STOU SAE 10W-40 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.

RAVENOL STOU SAE 10W-40 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil.

Characteristics

  • A powerful dispersion and detergency
  • A high activity against wear, corrosion and foam
  • A very strong resistance to oxidation
  • A high and stable viscosity index
  • An excellent extreme pressure properties
Parameter Unit Value Audit
Recommendations 80W-90, 85W, 85W-90, ACEA E3, Allison C4, API CG-4/SF, API GL-4, Atlas Copco Kompressor, Case IH-MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C-134 B, Ford ESN-M2C-134 C, Ford ESN-M2C-134 D, Ford ESN-M2C-159 B, Ford ESN-M2C-159 C, Getriebeöl: SAE 80W, Hydrauliköl: HVLP ISO VG 68-100, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson M1139, Massey Ferguson M1144, Massey Ferguson M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, Motorenöl: SAE 10W-40, New Holland NH 410B, Spezialtraktorenöl: John Deere J20C, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
80W-90, 85W, 85W-90, ACEA E3, Allison C4, API CG-4/SF, API GL-4, Atlas Copco Kompressor, Case IH-MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C-134 B, Ford ESN-M2C-134 C, Ford ESN-M2C-134 D, Ford ESN-M2C-159 B, Ford ESN-M2C-159 C, Getriebeöl: SAE 80W, Hydrauliköl: HVLP ISO VG 68-100, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson M1139, Massey Ferguson M1144, Massey Ferguson M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, Motorenöl: SAE 10W-40, New Holland NH 410B, Spezialtraktorenöl: John Deere J20C, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
SAE 10W-40
10W-40
Brand RAVENOL
RAVENOL
API CG-4, GL-4, SF
CG-4, GL-4, SF
ACEA E3
E3
Recomendations Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
Suitable for Atlas Copco Kompressor
Atlas Copco Kompressor
Density at 20 °C g/cm³ 864 EN ISO 12185
864 g/cm³ EN ISO 12185
Color tan visual
tan visual
Viscosity at 100 °C mm²/s 14.7 DIN 51562-1
14.7 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 101.1 DIN 51562-1
101.1 mm²/s DIN 51562-1
Viscosity Index VI 151 DIN ISO 2909
151 DIN ISO 2909
Pourpoint °C -33 DIN ISO 3016
-33 °C DIN ISO 3016
Flashpoint °C 234 DIN EN ISO 2592
234 °C DIN EN ISO 2592
tbn mgKOH/g 12.4 ASTM D2896
12.4 mgKOH/g ASTM D2896
Sulphated Ash %wt. 1.45 DIN 51575
1.45 %wt. DIN 51575
Approvals Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B

Differential, rear

Liquid volume (basic): 4.5 L
TGO 75W-90 API GL 5

TGO 75W-90 API GL 5

For gearbox

RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is designed based on high-quality solvent refined and synthetic base oils and specially harmonised additive treatment with extreme pressure (EP) active ingredients and other additives. This exceeds the needs of today's application requirements.

Compliance with the requirements:
CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.8, MB 235.9, MB 235.14, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A

show details hide details

SAE: 75W-90

API: GL-5

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1222105-001

Code:
4014835734418

Volume:
4 L

vendor code:
1222105-004

Code:
4014835734494

Volume:
10 L

vendor code:
1222105-010

Code:
4014835734449

Volume:
20 L

vendor code:
1222105-020

Code:
4014835734425

Volume:
20 L, ecobox

vendor code:
1222105-B20

Code:
4014835789128

Volume:
60 L, print

vendor code:
1222105-D60

Code:
4014835734432

Volume:
208 L

vendor code:
1222105-208

Code:
4014835734487

Volume:
208 L, print

vendor code:
1222105-D28

Code:
4014835734401

Volume:
1000 L

vendor code:
1222105-700

Volume:
60 L

vendor code:
1222105-060

RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is designed based on high-quality solvent refined and synthetic base oils and specially harmonised additive treatment with extreme pressure (EP) active ingredients and other additives. This exceeds the needs of today's application requirements.

Application Note

RAVENOL Transmission Oil TGO SAE 75W-90 API GL 5 is a maximum duty transmission oil for use in maximum duty, hypoid geared transmissions (axle drives, manual transmissions, etc.), where maximum duty transmission oils are required.

Characteristics

  • Excellent oxidation stability
  • Greatest possible protection from rust, corrosion, foaming
  • Low solidification point
  • Excellent extreme pressure (EP) properties
  • High viscosity index
  • Fuel savings
Parameter Unit Value Audit
Recommendations CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford M2C-9002A, GM, Mack GO-G, MAN 342 M2 (160.000 km), MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford M2C-9002A, GM, Mack GO-G, MAN 342 M2 (160.000 km), MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
Brand RAVENOL
RAVENOL
SAE 75W-90
75W-90
Type Semi-synthetic
Semi-synthetic
API GL-5
GL-5
Recomendations CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
specification MIL-L-2105 D
MIL-L-2105 D
Suitable for GM
GM
Density at 20 °C g/cm³ 842 EN ISO 12185
842 g/cm³ EN ISO 12185
Color Yellow visual
Yellow visual
Viscosity at 100 °C mm²/s 15.7 DIN 51562-1
15.7 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 97.3 DIN 51562-1
97.3 mm²/s DIN 51562-1
Viscosity Index VI 173 DIN ISO 2909
173 DIN ISO 2909
Brookfield Viscosity at -40 °C mPa*s 70.000 ASTM D2983
70.000 mPa*s ASTM D2983
Pourpoint °C -45 DIN ISO 3016
-45 °C DIN ISO 3016
Flashpoint °C 215 DIN EN ISO 2592
215 °C DIN EN ISO 2592
Copper Strip Test at 121 °C 1b ASTM D130
1b ASTM D130
Approvals CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
CS 3000B, DTFR 12B100 (MB 235.0), DTFR 12B140 (MB 235.8), DTFR 13B100 (MB 235.1), Ford SQ-M2C 9002-A, Mack GO-G, MAN 342 Type M2, MB 235.0, MB 235.1, MB 235.14, MB 235.8, MB 235.9, MIL-L-2105 D, ZF TE-ML 05A, ZF TE-ML 07A, ZF TE-ML 16B, ZF TE-ML 16C, ZF TE-ML 16D, ZF TE-ML 17B, ZF TE-ML 19B, ZF TE-ML 21A
VSG 75W-90

VSG 75W-90

For transmission

RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.

Compliance with the requirements:
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.8, MB 235.9, MB 235.11, MB 235.21, MB 235.72, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B

show details hide details

SAE: 75W-90

API: GL-4, GL-5

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1221101-001

Code:
4014835733916

Volume:
4 L

vendor code:
1221101-004

Code:
4014835733992

Volume:
10 L

vendor code:
1221101-010

Code:
4014835733947

Volume:
20 L

vendor code:
1221101-020

Code:
4014835733923

Volume:
20 L, ecobox

vendor code:
1221101-B20

Code:
4014835846654

Volume:
60 L

vendor code:
1221101-060

Code:
2200000083081

Volume:
60 L, print

vendor code:
1221101-D60

Code:
4014835733930

Volume:
208 L

vendor code:
1221101-208

Code:
4014835733985

Volume:
208 L, print

vendor code:
1221101-D28

Code:
4014835733909

Volume:
1000 L

vendor code:
1221101-700

RAVENOL VSG SAE 75W-90 is designed based on high-quality synthetic base oils with a special additive treatment and inhibition ensuring trouble-free transmission function.

Application Note

RAVENOL VSG SAE 75W-90 is excellent for use of highly stressed axle drives.

RAVENOL VSG SAE 75W-90 is suitable for synchronised and non-synchronised manual transmissions, transfer cases and ancillary transmission requiring API GL-5 or GL-4 oil.

RAVENOL VSG SAE 75W-90 is suitable for Ford-transmission IB5, B5, MTX75, GM5, MT285/6, MMT6/6, MT75, R15M-D, R15MX-D, MT82 and Porsche Full-Time Transfer Case with Torsen (PL72T) for Cayenne 92A / 958 Diesel and S Hybrid from 2010 to 2018.

Characteristics

  • high additive reserves for prolonged oil change intervals according to the manufacturer specifications
  • excellent cold flow properties
  • best wear protection and best transmission efficiency
  • Fuel savings even with short distances in low outdoor temperatures
  • stable lubricating film even under high stress
  • extraordinary corrosion protection and good compatibility with non-ferrous metal
  • high oxidation resistance prevents oil thickening and deposits
  • outstanding dirt-carrying capacity, i.e. aggregates are clean even after very long oil change intervals
  • excellent elastomer compatibility to prevent leaks
  • extreme shearing stability, remains within the clean oil viscosity per SAE class 75W-90 even after very long periods of use
  • very high protection from rust, corrosion and foaming
  • extreme low pour point
  • excellent EP properties
  • fuel savings
Parameter Unit Value Audit
Recommendations BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 911 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
BMW 83222339223 MTF-LT-4, BMW 83222365987, BMW 83229407768, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW (für verlängerte Intervalle), DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford 1045737, Ford 5021033, Ford WSD-M2C200-C, IVECO, Land Rover TYK500010, MAN 342 S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Porsche 000.043.305.04, Porsche 958.341.536.00 (Torsen 2010-2018), Renault LKW, Scania STO 1:0, VOLVO 97312, VOLVO 97315, VOLVO 97319, VW G 052 145 A2, VW G 052 539 A2, VW G 052 911 A2, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
Brand RAVENOL
RAVENOL
SAE 75W-90
75W-90
Type Full synthetic
Full synthetic
API GL-4, GL-5
GL-4, GL-5
Recomendations BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
Suitable for IVECO
IVECO
Compliant products BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911
BMW 83222339223, BMW 83222365987, BMW 83229407768, Ford 1045737, Ford 5021033, Land Rover TYK500010, Porsche 000.043.305.04, Porsche 958.341.536.00, Volvo 97312, Volvo 97315, Volvo 97319, VW G 052 145, VW G 052 539, VW G 052 911
Density at 20 °C g/cm³ 839.8 EN ISO 12185
839.8 g/cm³ EN ISO 12185
Color Yellow visual
Yellow visual
Viscosity at 100 °C mm²/s 16.8 DIN 51562-1
16.8 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 108.8 DIN 51562-1
108.8 mm²/s DIN 51562-1
Viscosity Index VI 168 DIN ISO 2909
168 DIN ISO 2909
Brookfield Viscosity at -40 °C mPa*s 47.000 ASTM D2983
47.000 mPa*s ASTM D2983
Pourpoint °C -57 DIN ISO 3016
-57 °C DIN ISO 3016
Flashpoint °C 224 DIN EN ISO 2592
224 °C DIN EN ISO 2592
Seq. I at 24 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Seq. II at 93,5 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Copper Strip Test at 121 °C 1a ASTM D130
1a ASTM D130
Approvals BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B
BMW MTF-LT-4, BMW OSP, BMW SAF-XO, BOT 130 M, BOT 328, BOT 720, DAF LKW, DTFR 12B140 (MB 235.8), DTFR 13B110 (MB 235.11), Ford WSD-M2C 200-C, MAN 342 Type S1, MB 235.11, MB 235.21, MB 235.72, MB 235.8, MB 235.9, MIL-L-2105 D, Renault LKW, Scania STO 1:0, VW G 052 145, VW G 052 539, VW G 052 911, ZF TE-ML 12B, ZF TE-ML 16F, ZF TE-ML 17B

Differential, rear self-locking

LS 75W-90

LS 75W-90

For differentials

RAVENOL Getriebeoel LS SAE 75W-90 is designed based on high-quality solvent refined and synthetic base oils with special additive treatment and inhibition for higher stress on manual transmission oils and ensuring trouble-free transmission function.

Compliance with the requirements:
ZF TE-ML 05C, ZF TE-ML 05D

show details hide details

SAE: 75W-90

API: GL-5 LS

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1222102-001

Code:
4014835734319

Volume:
4 L

vendor code:
1222102-004

Code:
4014835734395

Volume:
10 L

vendor code:
1222102-010

Code:
4014835734340

Volume:
20 L

vendor code:
1222102-020

Volume:
20 L, ecobox

vendor code:
1222102-B20

Code:
4014835789029

Volume:
60 L, print

vendor code:
1222102-D60

Code:
4014835734333

Volume:
208 L, print

vendor code:
1222102-D28

Code:
4014835734302

Volume:
1000 L

vendor code:
1222102-700

Volume:
60 L

vendor code:
1222102-060

Volume:
208 L

vendor code:
1222102-208

RAVENOL Getriebeoel LS SAE 75W-90 is designed based on high-quality solvent refined and synthetic base oils with special additive treatment and inhibition for higher stress on manual transmission oils and ensuring trouble-free transmission function.

Application Note

RAVENOL Getriebeoel LS SAE 75W-90 was developed specifically for use in differential gear units with limited slip. It also ensures trouble-free lubrication in self-locking, hypoid geared transmissions.

Characteristics

  • excellent oxidation stability
  • excellent protection against rust and corrosion
  • prevents foaming
  • outstanding extreme pressure properties
  • excellent limited slip properties
  • fuel savings
Parameter Unit Value Audit
Recommendations GM 1940058, GM 88862624, GM 88862625, GM 93165388, ZF TE-ML 05C, ZF TE-ML 05D
GM 1940058, GM 88862624, GM 88862625, GM 93165388, ZF TE-ML 05C, ZF TE-ML 05D
Brand RAVENOL
RAVENOL
SAE 75W-90
75W-90
Type Synthetic
Synthetic
API GL-5 LS
GL-5 LS
Recomendations ZF TE-ML 05C, ZF TE-ML 05D
ZF TE-ML 05C, ZF TE-ML 05D
specification MIL-L-2105 D
MIL-L-2105 D
Compliant products GM 1940058, GM 88862624, GM 88862625, GM 93165388
GM 1940058, GM 88862624, GM 88862625, GM 93165388
Density at 20 °C g/cm³ 839 EN ISO 12185
839 g/cm³ EN ISO 12185
Color Yellow visual
Yellow visual
Viscosity at 100 °C mm²/s 17.1 DIN 51562-1
17.1 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 102.1 DIN 51562-1
102.1 mm²/s DIN 51562-1
Viscosity Index VI 182 DIN ISO 2909
182 DIN ISO 2909
Brookfield Viscosity at -40 °C mPa*s 84.300 ASTM D2983
84.300 mPa*s ASTM D2983
Pourpoint °C -42 DIN ISO 3016
-42 °C DIN ISO 3016
Flashpoint °C 210 DIN EN ISO 2592
210 °C DIN EN ISO 2592
Copper Strip Test at 121 °C 1b ASTM D130
1b ASTM D130
Approvals MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 05D
MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 05D

Power steering

Liquid volume (basic): 1.5 L
ATF Dexron D II

ATF Dexron D II

For automatic transmission

Application NoteRAVENOL ATF Dexron D II was developed for the use in automatic transmissions, hydro steering mechanisms, converters and power transmissions and can be used as a universal ATF (Automatic-Transmission-Fluid) for all vehicles and working machines.

Manufacturer Approved:
Voith H55.6335.xx

Compliance with the requirements:
Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C

show details hide details
  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1213102-001

Code:
4014835733510

Volume:
4 L

vendor code:
1213102-004

Code:
4014835733596

Volume:
10 L

vendor code:
1213102-010

Code:
4014835733541

Volume:
20 L

vendor code:
1213102-020

Code:
4014835733527

Volume:
20 L, ecobox

vendor code:
1213102-B20

Code:
4014835787827

Volume:
60 L

vendor code:
1213102-060

Code:
4014835733565

Volume:
208 L

vendor code:
1213102-208

Code:
4014835733589

Volume:
208 L, print

vendor code:
1213102-D28

Volume:
1000 L

vendor code:
1213102-700

Application Note

RAVENOL ATF Dexron D II was developed for the use in automatic transmissions, hydro steering mechanisms, converters and power transmissions and can be used as a universal ATF (Automatic-Transmission-Fluid) for all vehicles and working machines.

Characteristics

  • protection against corrosion, sludge and sticking
  • an excellent and very shear stable viscosity temperature behaviour
  • no problems concerning very low respectively very high temperatures
  • an excellent high thermal capacity
  • free of foam even under hardest loads
  • neutral behaviour against sealing materials
  • mixable and compatible with all kinds of ATF
Parameter Unit Value Audit
ATF Dexron D II
Dexron D II
Recommendations Caterpillar TO-2, CVT, DTFR 13C140 (MB 236.7), Ford M2C-138 CJ, Ford M2C-166H, Ford M2C-185A, Ford MERCON®, Ford SQM-9010B, MAN 339 Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
Caterpillar TO-2, CVT, DTFR 13C140 (MB 236.7), Ford M2C-138 CJ, Ford M2C-166H, Ford M2C-185A, Ford MERCON®, Ford SQM-9010B, MAN 339 Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
Brand RAVENOL
RAVENOL
Type Mineral
Mineral
Manufacturer Approved Voith H55.6335.xx
Voith H55.6335.xx
Recomendations Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
specification Allison C-3, Allison C-4, GM Dexron® II D
Allison C-3, Allison C-4, GM Dexron® II D
Suitable for CVT
CVT
Density at 20 °C g/cm³ 848 EN ISO 12185
848 g/cm³ EN ISO 12185
Color Red visual
Red visual
Viscosity at 100 °C mm²/s 7.3 DIN 51562-1
7.3 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 34.3 DIN 51562-1
34.3 mm²/s DIN 51562-1
Viscosity Index VI 185 DIN ISO 2909
185 DIN ISO 2909
Pourpoint °C -51 DIN ISO 3016
-51 °C DIN ISO 3016
Flashpoint °C 210 DIN EN ISO 2592
210 °C DIN EN ISO 2592
Approvals Allison C-3, Allison C-4, Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, GM Dexron® II D, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, Voith H55.6335.xx, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
Allison C-3, Allison C-4, Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, GM Dexron® II D, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, Voith H55.6335.xx, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
ATF Dexron III H

ATF Dexron III H

For automatic transmission

RAVENOL ATF DEXRON III H is universal ATF (Automatic Transmission Fluid) for all automatic transmission with and without controlled torque converter lockup clutch (so-called GKÜB = gear-clutch-lock) which are required for the transmission fluid type Dexron III H.

Manufacturer Approved:
Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B

Compliance with the requirements:
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.5, MB 236.6, MB 236.9, MB 236.10, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C

show details hide details
  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1212100-001

Code:
4014835732810

Volume:
4 L

vendor code:
1212100-004

Code:
4014835732896

Volume:
10 L

vendor code:
1212100-010

Code:
4014835732841

Volume:
20 L

vendor code:
1212100-020

Code:
4014835732827

Volume:
20 L, ecobox

vendor code:
1212100-B20

Code:
4014835787025

Volume:
60 L

vendor code:
1212100-060

Code:
4014835732865

Volume:
60 L, print

vendor code:
1212100-D60

Code:
4014835732834

Volume:
208 L

vendor code:
1212100-208

Code:
4014835732889

Volume:
208 L, print

vendor code:
1212100-D28

Code:
4014835732803

Volume:
1000 L

vendor code:
1212100-700

RAVENOL ATF DEXRON III H is universal ATF (Automatic Transmission Fluid) for all automatic transmission with and without controlled torque converter lockup clutch (so-called GKÜB = gear-clutch-lock) which are required for the transmission fluid type Dexron III H.

Application Note

RAVENOL ATF DEXRON III H was developed for use in automatic transmissions with electronically controlled converter lockup clutch.

RAVENOL ATF DEXRON III H is especially suitable for use in transmissions with ATF Dexron III H specification.

RAVENOL ATF DEXRON III H is backwards compatible and can be used in transmissions with specification ATF Dexron F III.

RAVENOL ATF DEXRON III H is mixable with all ATF brands. It is advised to rinse with RAVENOL ATF DEXRON III H before, beforehand the final filling with RAVENOL ATF DEXRON III H is made.

Characteristics

  • Very good lubricating properties even at low temperatures in winter
  • High and stable viscosity index
  • Very low flow point
  • Excellent oxidation stability
  • Extensive protection against wear, corrosion and foaming
  • Well-tuned friction properties
  • Neutral behaviour towards sealing materials
  • Neutral behaviour by inhibition towards non-ferrous metals
Parameter Unit Value Audit
ATF Dexron III H
Dexron III H
Recommendations Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON® M-940717, MAN 339 L1, MAN 339 V1, MAN 339 Z1, MAN 339 Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Nissan, Volvo 1161521, Volvo 1161621, VOLVO Transmission Oil 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON® M-940717, MAN 339 L1, MAN 339 V1, MAN 339 Z1, MAN 339 Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Nissan, Volvo 1161521, Volvo 1161621, VOLVO Transmission Oil 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
Brand RAVENOL
RAVENOL
Type Synthetic
Synthetic
Manufacturer Approved Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B
Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B
Recomendations Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
specification Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H
Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H
Suitable for Nissan
Nissan
Compliant products Volvo 1161521, Volvo 1161621
Volvo 1161521, Volvo 1161621
Density at 20 °C g/cm³ 847 EN ISO 12185
847 g/cm³ EN ISO 12185
Color Red visual
Red visual
Viscosity at 100 °C mm²/s 7.2 DIN 51562-1
7.2 mm²/s DIN 51562-1
Viscosity at 40 °C mm²/s 33.9 DIN 51562-1
33.9 mm²/s DIN 51562-1
Viscosity Index VI 185 DIN ISO 2909
185 DIN ISO 2909
Brookfield Viscosity at -40 °C mPa*s 14.200 ASTM D2983
14.200 mPa*s ASTM D2983
Pourpoint °C -51 DIN ISO 3016
-51 °C DIN ISO 3016
Flashpoint °C 210 DIN EN ISO 2592
210 °C DIN EN ISO 2592
Seq. I at 24 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Seq. II at 93,5 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C ml/ml 0/0 ASTM D892
0/0 ml/ml ASTM D892
Copper Strip Test at 121 °C 1b ASTM D130
1b ASTM D130
tbn mgKOH/g 1.8 ASTM D2896
1.8 mgKOH/g ASTM D2896
Approvals Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B
Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B

Hydraulic brake system

DOT 4

DOT 4

For brake system

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

show details hide details
  • Available packaging
  • Full description
  • Product parameters

Volume:
250 ml

vendor code:
1350601-250

Code:
4014835692121

Volume:
500 ml

vendor code:
1350601-500

Code:
4014835692152

Volume:
1 L

vendor code:
1350601-001

Code:
4014835692114

Volume:
20 L

vendor code:
1350601-020

DOT 4

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

Application Note

RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.

RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.

RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113).

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

  • optimum ABS characteristics
  • chemical stability
  • best lubrication efficiency
  • neutral behaviour regarding brake parts
  • low viscosity at low temperatures
  • miscible with all brake fluids of the same specifications
Parameter Unit Value Audit
FMVSS 116 specifications (DOT) DOT-4
DOT-4
Brand RAVENOL
RAVENOL
Type Synthetic
Synthetic
specification DOT 4, ISO 4925 Class 4, SAE J 1704
DOT 4, ISO 4925 Class 4, SAE J 1704
Density at 20 °C g/cm³ 1052 EN ISO 12185
1052 g/cm³ EN ISO 12185
Color light yellow visual
light yellow visual
Viscosity at 100 °C mPa*s 2.41 ASTM D445
2.41 mPa*s ASTM D445
Viscosity at -40 °C cSt 1340 ASTM D445
1340 cSt ASTM D445
Boiling point °C 271 FMVSS 116
271 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point °C 169 FMVSS 116
169 °C FMVSS 116
High Temperature Stability °C -1 FMVSS 116
-1 °C FMVSS 116
Chemical Stability °C 1 FMVSS 116
1 °C FMVSS 116
Evaporation %w/w 61 FMVSS 116
61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C i.O., 4s FMVSS 116
i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C i.O., 8s FMVSS 116
i.O., 8s FMVSS 116
Water Tolerance at -40 °C transparent, 3s FMVSS 116
transparent, 3s FMVSS 116
Water Tolerance at +60 °C Transparent FMVSS 116
Transparent FMVSS 116
Compatibility at -40 °C Transparent FMVSS 116
Transparent FMVSS 116
Compatibility at +60 °C Transparent FMVSS 116
Transparent FMVSS 116
Water content % — 0.2 DIN 51777-1
— 0.2 % DIN 51777-1
Tinned Iron Δ mg/cm² 0.04 FMVSS 116
0.04 Δ mg/cm² FMVSS 116
Steel mg/cm² -0.01 FMVSS 116
-0.01 mg/cm² FMVSS 116
Aluminium mg/cm² 0.02 FMVSS 116
0.02 mg/cm² FMVSS 116
Cast Iron Δ mg/cm² -0,03 FMVSS 116
-0,03 Δ mg/cm² FMVSS 116
Brass mg/cm² -0.08 FMVSS 116
-0.08 mg/cm² FMVSS 116
Copper mg/cm² -0.05 FMVSS 116
-0.05 mg/cm² FMVSS 116
Zinc mg/cm² 0.01 FMVSS 116
0.01 mg/cm² FMVSS 116
Sediment % — 0.05 FMVSS 116
— 0.05 % FMVSS 116
pH - value 8.2 FMVSS 116
8.2 FMVSS 116
Rubber Diameter Change 0.16 FMVSS 116
0.16 FMVSS 116
Hardness Change °IRHD -4 FMVSS 116
-4 °IRHD FMVSS 116
Appearance i.O. FMVSS 116
i.O. FMVSS 116
SBR at 70 °C mm 0.56 FMVSS 116
0.56 mm FMVSS 116
SBR at 120 °C mm 0.73 FMVSS 116
0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703) IRHD -2 FMVSS 116
-2 IRHD FMVSS 116
EPDM at 120 °C IRHD -2 FMVSS 116
-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925) mm 0.38 FMVSS 116
0.38 mm FMVSS 116
Approvals DOT 4, ISO 4925 Class 4, SAE J 1704
DOT 4, ISO 4925 Class 4, SAE J 1704

Lubrication points oilers, wheel bearings

Arctic Green Grease AGG 2

Arctic Green Grease AGG 2

For bearings

RAVENOL Arctic Green Grease AGG 2 offers excellent working resistance, rust and corrosion protection.

show details hide details

Equivalents OEM:
BMW 83192157321, BRP 779163, BRP 779226, BRP 293550033, FEBI 21909, Hyundai Motor 4959022, VAG G052186A3, VAG G052738A2, Yamalube ACCPOLYGRS05, Yamalube ACCPOLYGRS05, Yamalube ACCPOLYGRS10

  • Available packaging
  • Full description
  • Product parameters

Volume:
100 g

vendor code:
1340126-100

Code:
4014835844780

Volume:
200 g

vendor code:
1340126-200

Volume:
400 g

vendor code:
1340126-400

Code:
4014835756847

Volume:
1 kg

vendor code:
1340126-001

Volume:
25 kg

vendor code:
1340126-025

Code:
4014835756885

Volume:
180 kg

vendor code:
1340126-180

RAVENOL Arctic Green Grease AGG 2 offers excellent working resistance, rust and corrosion protection.

Application for the lubrication of roller and friction bearings under extreme pressure at extremely low temperatures. Selected additives help reduce wear, even during severe continuous operation and significantly prolong the service life.

Application Note

RAVENOL Arctic Green Grease AGG 2 is used in roller and friction bearings under extreme pressure at extremely low temperatures.

The highest application temperature for RAVENOL Arctic Green Grease AGG 2 in continuous operation is 120°C. Peak performances of 160°C should not be exceeded.

Extremely high temperatures shorten the service life. Routine relubrication preserves material and saves costs.

Characteristics

  • Working resistance
  • Oxidation resistance
  • Water resistance
  • Good corrosion protection characteristics
  • High thermal load capacity
  • High pressure susceptibility
  • Good adhesion
Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
Type Full synthetic
Full synthetic
specification DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2
DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2
Color Green visual
Green visual
Thickener lithium soap DIN 51757
lithium soap DIN 51757
NLGI-Class 2 DIN 51818
2 DIN 51818
Product Classification KPE2K-60 DIN 51502
KPE2K-60 DIN 51502
Working Temperature °C -60 / +120 DIN 51825
-60 / +120 °C DIN 51825
Short term temperature up to °C 160 DIN 51757
160 °C DIN 51757
Worked Penetration at 60 Strokes 265-295 ISO 2137
265-295 ISO 2137
Dropping Point °C 180 — DIN ISO 2176
180 — °C DIN ISO 2176
Copper Corrosion (24h/120 °C) 1 DIN 51811
1 DIN 51811
Water Resistance (3h/90 °C) °C 1-90 DIN 51807-1
1-90 °C DIN 51807-1
VKA Pressure Carrying Capacity N 3000 — 3200 DIN 51350-4
3000 — 3200 N DIN 51350-4
Kinematic Viscosity (Base Oil) at 40 °C mm²/s 20 DIN 51562-1
20 mm²/s DIN 51562-1
Approvals DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2
DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2
Hot Red Grease HRG2

Hot Red Grease HRG2

For bearings

Application NoteRAVENOL Hot Red Grease HRG 2 is used for the lubrication of roller and friction bearings under extreme pressure at high bearing temperatures.

Manufacturer Approved:
MAN 284 Li-H2, MB-Approval 265.1

show details hide details

Equivalents OEM:
BMW 83190447919, Land Rover STC3435, SWAG 10921909, VAG G052133A2, VAG G052133A2

  • Available packaging
  • Full description
  • Product parameters

Volume:
100 g

vendor code:
1340121-100

Code:
4014835844636

Volume:
200 g

vendor code:
1340121-200

Volume:
400 g

vendor code:
1340121-400

Code:
4014835756540

Volume:
1 kg

vendor code:
1340121-001

Code:
4014835756519

Volume:
5 kg

vendor code:
1340121-005

Code:
4014835756557

Volume:
10 kg

vendor code:
1340121-010

Code:
4014835756533

Volume:
15 kg

vendor code:
1340121-015

Code:
4014835756564

Volume:
25 kg

vendor code:
1340121-025

Code:
4014835756571

Volume:
180 kg

vendor code:
1340121-180

Code:
4014835756588

Application Note

RAVENOL Hot Red Grease HRG 2 is used for the lubrication of roller and friction bearings under extreme pressure at high bearing temperatures.

RAVENOL Hot Red Grease HRG 2 is particularly recommended for the lubrication of commercial vehicles and for high-speed passenger car wheel bearings.

Characteristics

  • Work resistance
  • Resistance to oxidation
  • Water resistance
  • Good corrosion protection characteristics
  • High thermal load capacity
  • High pressure susceptibility
  • Good adhesion
Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
Manufacturer Approved MAN 284 Li-H2, MB-Approval 265.1
MAN 284 Li-H2, MB-Approval 265.1
specification DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2
DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2
Color Red visual
Red visual
Thickener lithium soap DIN 51757
lithium soap DIN 51757
NLGI-Class 2 DIN 51818
2 DIN 51818
Product Classification KP2P-35 DIN 51502
KP2P-35 DIN 51502
Working Temperature °C -35 / +160 DIN 51825
-35 / +160 °C DIN 51825
Short term temperature up to °C 200 DIN 51757
200 °C DIN 51757
Worked Penetration at 60 Strokes 265-295 ISO 2137
265-295 ISO 2137
Dropping Point °C 260 — DIN ISO 2176
260 — °C DIN ISO 2176
Copper Corrosion (24h/120 °C) 1 DIN 51811
1 DIN 51811
Water Resistance (3h/90 °C) °C 1-90 DIN 51807-1
1-90 °C DIN 51807-1
VKA Pressure Carrying Capacity N 2600 — 2800 DIN 51350-4
2600 — 2800 N DIN 51350-4
Kinematic Viscosity (Base Oil) at 40 °C mm²/s 140 DIN 51562-1
140 mm²/s DIN 51562-1
Approvals DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2, MAN 284 Li-H2, MB 265.1
DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2, MAN 284 Li-H2, MB 265.1
Super EP-Langzeitfett

Super EP-Langzeitfett

For bearings

RAVENOL Super EP-Langzeitfett is due to its smooth structure is easily conveyed.

Manufacturer Approved:
LOVAT LOV-204

show details hide details

Equivalents OEM:
Alpine 0101021, Alpine 0101022, Alpine 0101023, Alpine 0101024, Alpine 0101025, Alpine 0101025, Toyota 0888700101, Toyota 0888700401, Toyota 0888783010, Toyota PZ4550C0D090, Volvo 1161748

  • Available packaging
  • Full description
  • Product parameters

Volume:
100 g

vendor code:
1340104-100

Code:
4014835844513

Volume:
200 g

vendor code:
1340104-200

Volume:
400 g

vendor code:
1340104-400

Code:
4014835768345

Volume:
1 kg

vendor code:
1340104-001

Code:
4014835200418

Volume:
5 kg

vendor code:
1340104-005

Code:
4014835200456

Volume:
10 kg

vendor code:
1340104-010

Code:
4014835200463

Volume:
15 kg

vendor code:
1340104-015

Code:
4014835200432

Volume:
25 kg

vendor code:
1340104-025

Code:
4014835200425

Volume:
180 kg

vendor code:
1340104-180

Code:
4014835200708

RAVENOL Super EP-Langzeitfett is due to its smooth structure is easily conveyed.

RAVENOL Super EP-Langzeitfett is based on high-quality base oil by using lithium soaps (Li-12-hydroxy stearate) as thickener.

Due to this they avail of an outstanding work resistance. Futhermore, RAVENOL Super EP-Langzeitfett contain additives to improve the rust and corrosion-preventing behaviour.

Application Note

RAVENOL Super EP-Langzeitfett is used for the lubrication of heavily loaded plain and rolling bearings under the influence of moisture, vibration and shock loads. The standard applies to the lubrication of chassis, wheel bearings and universal joints in the automotive sector as well as machinery and general industry, construction industry, agriculture.

Characteristics

  • Universal application, multi-purpose mixed pattern for machinery
  • Excellent impact and wear-EP
  • Very good oxidation and corrosion protection even in the presence of moisture
  • Very good mechanical stability
  • Excellent water resistance
  • Long service life and thus extended lubrication intervals possible
  • Very good resistance to aging
  • Good pumpability, even at low temperatures
Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
Type Mineral
Mineral
Manufacturer Approved LOVAT LOV-204
LOVAT LOV-204
specification DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2
DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2
Color Brown visual
Brown visual
Thickener lithium soap DIN 51757
lithium soap DIN 51757
NLGI-Class 2 DIN 51818
2 DIN 51818
Product Classification KP2K-30 DIN 51502
KP2K-30 DIN 51502
Working Temperature °C -30 / +120 DIN 51825
-30 / +120 °C DIN 51825
Short term temperature up to °C 130 DIN 51757
130 °C DIN 51757
Worked Penetration at 60 Strokes 265-295 ISO 2137
265-295 ISO 2137
Corrosion (SKF Emcor dist. Water) 1 DIN 51802
1 DIN 51802
Dropping Point °C 180 — DIN ISO 2176
180 — °C DIN ISO 2176
Copper Corrosion (24h/120 °C) 1 DIN 51811
1 DIN 51811
Water Resistance (3h/90 °C) °C 1-90 DIN 51807-1
1-90 °C DIN 51807-1
VKA Pressure Carrying Capacity N 2400 — 2600 DIN 51350-4
2400 — 2600 N DIN 51350-4
Kinematic Viscosity (Base Oil) at 40 °C mm²/s 130 DIN 51562-1
130 mm²/s DIN 51562-1
Approvals DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2, LOVAT LOV-204
DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2, LOVAT LOV-204

Lubrication points oilers, drive shaft connections

Arctic Green Grease AGG 2

Arctic Green Grease AGG 2

For bearings

RAVENOL Arctic Green Grease AGG 2 offers excellent working resistance, rust and corrosion protection.

show details hide details

Equivalents OEM:
BMW 83192157321, BRP 779163, BRP 779226, BRP 293550033, FEBI 21909, Hyundai Motor 4959022, VAG G052186A3, VAG G052738A2, Yamalube ACCPOLYGRS05, Yamalube ACCPOLYGRS05, Yamalube ACCPOLYGRS10



Usage mode: normal

Replacement every 40000 KM or 24 MONTH.

  • Available packaging
  • Full description
  • Product parameters

Volume:
100 g

vendor code:
1340126-100

Code:
4014835844780

Volume:
200 g

vendor code:
1340126-200

Volume:
400 g

vendor code:
1340126-400

Code:
4014835756847

Volume:
1 kg

vendor code:
1340126-001

Volume:
25 kg

vendor code:
1340126-025

Code:
4014835756885

Volume:
180 kg

vendor code:
1340126-180

RAVENOL Arctic Green Grease AGG 2 offers excellent working resistance, rust and corrosion protection.

Application for the lubrication of roller and friction bearings under extreme pressure at extremely low temperatures. Selected additives help reduce wear, even during severe continuous operation and significantly prolong the service life.

Application Note

RAVENOL Arctic Green Grease AGG 2 is used in roller and friction bearings under extreme pressure at extremely low temperatures.

The highest application temperature for RAVENOL Arctic Green Grease AGG 2 in continuous operation is 120°C. Peak performances of 160°C should not be exceeded.

Extremely high temperatures shorten the service life. Routine relubrication preserves material and saves costs.

Characteristics

  • Working resistance
  • Oxidation resistance
  • Water resistance
  • Good corrosion protection characteristics
  • High thermal load capacity
  • High pressure susceptibility
  • Good adhesion
Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
Type Full synthetic
Full synthetic
specification DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2
DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2
Color Green visual
Green visual
Thickener lithium soap DIN 51757
lithium soap DIN 51757
NLGI-Class 2 DIN 51818
2 DIN 51818
Product Classification KPE2K-60 DIN 51502
KPE2K-60 DIN 51502
Working Temperature °C -60 / +120 DIN 51825
-60 / +120 °C DIN 51825
Short term temperature up to °C 160 DIN 51757
160 °C DIN 51757
Worked Penetration at 60 Strokes 265-295 ISO 2137
265-295 ISO 2137
Dropping Point °C 180 — DIN ISO 2176
180 — °C DIN ISO 2176
Copper Corrosion (24h/120 °C) 1 DIN 51811
1 DIN 51811
Water Resistance (3h/90 °C) °C 1-90 DIN 51807-1
1-90 °C DIN 51807-1
VKA Pressure Carrying Capacity N 3000 — 3200 DIN 51350-4
3000 — 3200 N DIN 51350-4
Kinematic Viscosity (Base Oil) at 40 °C mm²/s 20 DIN 51562-1
20 mm²/s DIN 51562-1
Approvals DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2
DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2
Hot Red Grease HRG2

Hot Red Grease HRG2

For bearings

Application NoteRAVENOL Hot Red Grease HRG 2 is used for the lubrication of roller and friction bearings under extreme pressure at high bearing temperatures.

Manufacturer Approved:
MAN 284 Li-H2, MB-Approval 265.1

show details hide details

Equivalents OEM:
BMW 83190447919, Land Rover STC3435, SWAG 10921909, VAG G052133A2, VAG G052133A2



Usage mode: normal

Replacement every 40000 KM or 24 MONTH.

  • Available packaging
  • Full description
  • Product parameters

Volume:
100 g

vendor code:
1340121-100

Code:
4014835844636

Volume:
200 g

vendor code:
1340121-200

Volume:
400 g

vendor code:
1340121-400

Code:
4014835756540

Volume:
1 kg

vendor code:
1340121-001

Code:
4014835756519

Volume:
5 kg

vendor code:
1340121-005

Code:
4014835756557

Volume:
10 kg

vendor code:
1340121-010

Code:
4014835756533

Volume:
15 kg

vendor code:
1340121-015

Code:
4014835756564

Volume:
25 kg

vendor code:
1340121-025

Code:
4014835756571

Volume:
180 kg

vendor code:
1340121-180

Code:
4014835756588

Application Note

RAVENOL Hot Red Grease HRG 2 is used for the lubrication of roller and friction bearings under extreme pressure at high bearing temperatures.

RAVENOL Hot Red Grease HRG 2 is particularly recommended for the lubrication of commercial vehicles and for high-speed passenger car wheel bearings.

Characteristics

  • Work resistance
  • Resistance to oxidation
  • Water resistance
  • Good corrosion protection characteristics
  • High thermal load capacity
  • High pressure susceptibility
  • Good adhesion
Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
Manufacturer Approved MAN 284 Li-H2, MB-Approval 265.1
MAN 284 Li-H2, MB-Approval 265.1
specification DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2
DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2
Color Red visual
Red visual
Thickener lithium soap DIN 51757
lithium soap DIN 51757
NLGI-Class 2 DIN 51818
2 DIN 51818
Product Classification KP2P-35 DIN 51502
KP2P-35 DIN 51502
Working Temperature °C -35 / +160 DIN 51825
-35 / +160 °C DIN 51825
Short term temperature up to °C 200 DIN 51757
200 °C DIN 51757
Worked Penetration at 60 Strokes 265-295 ISO 2137
265-295 ISO 2137
Dropping Point °C 260 — DIN ISO 2176
260 — °C DIN ISO 2176
Copper Corrosion (24h/120 °C) 1 DIN 51811
1 DIN 51811
Water Resistance (3h/90 °C) °C 1-90 DIN 51807-1
1-90 °C DIN 51807-1
VKA Pressure Carrying Capacity N 2600 — 2800 DIN 51350-4
2600 — 2800 N DIN 51350-4
Kinematic Viscosity (Base Oil) at 40 °C mm²/s 140 DIN 51562-1
140 mm²/s DIN 51562-1
Approvals DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2, MAN 284 Li-H2, MB 265.1
DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2, MAN 284 Li-H2, MB 265.1
Super EP-Langzeitfett

Super EP-Langzeitfett

For bearings

RAVENOL Super EP-Langzeitfett is due to its smooth structure is easily conveyed.

Manufacturer Approved:
LOVAT LOV-204

show details hide details

Equivalents OEM:
Alpine 0101021, Alpine 0101022, Alpine 0101023, Alpine 0101024, Alpine 0101025, Alpine 0101025, Toyota 0888700101, Toyota 0888700401, Toyota 0888783010, Toyota PZ4550C0D090, Volvo 1161748



Usage mode: normal

Replacement every 40000 KM or 24 MONTH.

  • Available packaging
  • Full description
  • Product parameters

Volume:
100 g

vendor code:
1340104-100

Code:
4014835844513

Volume:
200 g

vendor code:
1340104-200

Volume:
400 g

vendor code:
1340104-400

Code:
4014835768345

Volume:
1 kg

vendor code:
1340104-001

Code:
4014835200418

Volume:
5 kg

vendor code:
1340104-005

Code:
4014835200456

Volume:
10 kg

vendor code:
1340104-010

Code:
4014835200463

Volume:
15 kg

vendor code:
1340104-015

Code:
4014835200432

Volume:
25 kg

vendor code:
1340104-025

Code:
4014835200425

Volume:
180 kg

vendor code:
1340104-180

Code:
4014835200708

RAVENOL Super EP-Langzeitfett is due to its smooth structure is easily conveyed.

RAVENOL Super EP-Langzeitfett is based on high-quality base oil by using lithium soaps (Li-12-hydroxy stearate) as thickener.

Due to this they avail of an outstanding work resistance. Futhermore, RAVENOL Super EP-Langzeitfett contain additives to improve the rust and corrosion-preventing behaviour.

Application Note

RAVENOL Super EP-Langzeitfett is used for the lubrication of heavily loaded plain and rolling bearings under the influence of moisture, vibration and shock loads. The standard applies to the lubrication of chassis, wheel bearings and universal joints in the automotive sector as well as machinery and general industry, construction industry, agriculture.

Characteristics

  • Universal application, multi-purpose mixed pattern for machinery
  • Excellent impact and wear-EP
  • Very good oxidation and corrosion protection even in the presence of moisture
  • Very good mechanical stability
  • Excellent water resistance
  • Long service life and thus extended lubrication intervals possible
  • Very good resistance to aging
  • Good pumpability, even at low temperatures
Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
Type Mineral
Mineral
Manufacturer Approved LOVAT LOV-204
LOVAT LOV-204
specification DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2
DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2
Color Brown visual
Brown visual
Thickener lithium soap DIN 51757
lithium soap DIN 51757
NLGI-Class 2 DIN 51818
2 DIN 51818
Product Classification KP2K-30 DIN 51502
KP2K-30 DIN 51502
Working Temperature °C -30 / +120 DIN 51825
-30 / +120 °C DIN 51825
Short term temperature up to °C 130 DIN 51757
130 °C DIN 51757
Worked Penetration at 60 Strokes 265-295 ISO 2137
265-295 ISO 2137
Corrosion (SKF Emcor dist. Water) 1 DIN 51802
1 DIN 51802
Dropping Point °C 180 — DIN ISO 2176
180 — °C DIN ISO 2176
Copper Corrosion (24h/120 °C) 1 DIN 51811
1 DIN 51811
Water Resistance (3h/90 °C) °C 1-90 DIN 51807-1
1-90 °C DIN 51807-1
VKA Pressure Carrying Capacity N 2400 — 2600 DIN 51350-4
2400 — 2600 N DIN 51350-4
Kinematic Viscosity (Base Oil) at 40 °C mm²/s 130 DIN 51562-1
130 mm²/s DIN 51562-1
Approvals DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2, LOVAT LOV-204
DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2, LOVAT LOV-204

Lubrication points grease fittings, driving shaft bearing

Hot Red Grease HRG3

Hot Red Grease HRG3

For bearings

Application NoteRAVENOL Hot Red Grease HRG 3 is used for the lubrication of roller and friction bearings under extreme pressure at high bearing temperatures.

show details hide details

Equivalents OEM:
Land Rover LR078521

  • Available packaging
  • Full description
  • Product parameters

Volume:
100 g

vendor code:
1340122-100

Code:
4014835844698

Volume:
400 g

vendor code:
1340122-400

Code:
4014835756649

Volume:
1 kg

vendor code:
1340122-001

Code:
4014835756618

Volume:
5 kg

vendor code:
1340122-005

Code:
4014835756656

Volume:
10 kg

vendor code:
1340122-010

Code:
4014835756632

Volume:
15 kg

vendor code:
1340122-015

Code:
4014835756663

Volume:
25 kg

vendor code:
1340122-025

Code:
4014835756670

Volume:
180 kg

vendor code:
1340122-180

Code:
4014835756687

Application Note

RAVENOL Hot Red Grease HRG 3 is used for the lubrication of roller and friction bearings under extreme pressure at high bearing temperatures.

RAVENOL Hot Red Grease HRG 3 is particularly recommended for the lubrication of commercial vehicles and for high-speed passenger car wheel bearings.

Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
specification DIN 51502 KP3P-25, ISO 6743-9: ISO-L-XBEEB3
DIN 51502 KP3P-25, ISO 6743-9: ISO-L-XBEEB3
Color Red visual
Red visual
Thickener lithium soap DIN 51757
lithium soap DIN 51757
NLGI-Class 3 DIN 51818
3 DIN 51818
Product Classification KP3P-25 DIN 51502
KP3P-25 DIN 51502
Working Temperature °C -25 / +160 DIN 51825
-25 / +160 °C DIN 51825
Short term temperature up to °C 200 DIN 51757
200 °C DIN 51757
Worked Penetration at 60 Strokes 220-250 ISO 2137
220-250 ISO 2137
Dropping Point °C 260 — DIN ISO 2176
260 — °C DIN ISO 2176
Copper Corrosion (24h/120 °C) 1 DIN 51811
1 DIN 51811
Water Resistance (3h/90 °C) °C 1-90 DIN 51807-1
1-90 °C DIN 51807-1
VKA Pressure Carrying Capacity N 2600 — 2800 DIN 51350-4
2600 — 2800 N DIN 51350-4
Kinematic Viscosity (Base Oil) at 40 °C mm²/s 150 DIN 51562-1
150 mm²/s DIN 51562-1
Approvals DIN 51502 KP3P-25, ISO 6743-9: ISO-L-XBEEB3
DIN 51502 KP3P-25, ISO 6743-9: ISO-L-XBEEB3
Extreme Pressure Grease EPG3

Extreme Pressure Grease EPG3

For bearings

Due to this they avail of an outstanding work resistance.

show details hide details

Equivalents OEM:
Toyota 0888700201

  • Available packaging
  • Full description
  • Product parameters

Volume:
100 g

vendor code:
1340127-100

Code:
4014835844841

Volume:
200 g

vendor code:
1340127-200

Volume:
400 g

vendor code:
1340127-400

Volume:
1 kg

vendor code:
1340127-001

Volume:
5 kg

vendor code:
1340127-005

Volume:
10 kg

vendor code:
1340127-010

Volume:
15 kg

vendor code:
1340127-015

Volume:
25 kg

vendor code:
1340127-025

Code:
4014835765375

Volume:
180 kg

vendor code:
1340127-180

Due to this they avail of an outstanding work resistance.

Usable as grease for friction bearings and roller bearings at lubricating points of motor vehicles, equipment, machinery, conveying systems, construction machines etc.

Application Note

RAVENOL Extreme Pressure Grease EPG 3 is used as grease for the lubrication of easy loaded antifriction bearings and machine components. It is also suited as multipurpose lubrication grease for vehicles.

RAVENOL Extreme Pressure Grease EPG 3 is especially recommended as grease for friction bearings and roller bearings at lubricating points of motor vehicles, equipment, machinery, conveying systems, construction machines etc.

Characteristics

  • Universal use
  • Extreme shear stability
  • Excellent wear protection
  • Excellent corrosion protection
  • Very good mechanical and chemical stability
  • Very good aging resistant
  • Good pump output also at low temperatures
Parameter Unit Value Audit
Brand RAVENOL
RAVENOL
specification DIN 51502 KP3K-30, ISO 6743-9: ISO-L-XCCEB3
DIN 51502 KP3K-30, ISO 6743-9: ISO-L-XCCEB3
Color Light brown visual
Light brown visual
Thickener lithium soap DIN 51757
lithium soap DIN 51757
NLGI-Class 3 DIN 51818
3 DIN 51818
Product Classification KP3K-30 DIN 51502
KP3K-30 DIN 51502
Working Temperature °C -30 / +120 DIN 51825
-30 / +120 °C DIN 51825
Short term temperature up to °C 130 DIN 51757
130 °C DIN 51757
Worked Penetration at 60 Strokes 220-250 ISO 2137
220-250 ISO 2137
Corrosion (SKF Emcor dist. Water) 1 DIN 51802
1 DIN 51802
Dropping Point °C 180 — DIN ISO 2176
180 — °C DIN ISO 2176
Copper Corrosion (24h/120 °C) 1 DIN 51811
1 DIN 51811
Water Resistance (3h/90 °C) °C 1-90 DIN 51807-1
1-90 °C DIN 51807-1
VKA Pressure Carrying Capacity N 2000 — 2200 DIN 51350-4
2000 — 2200 N DIN 51350-4
Kinematic Viscosity (Base Oil) at 40 °C mm²/s 140 DIN 51562-1
140 mm²/s DIN 51562-1
Approvals DIN 51502 KP3K-30, ISO 6743-9: ISO-L-XCCEB3
DIN 51502 KP3K-30, ISO 6743-9: ISO-L-XCCEB3

Cooling system

Liquid volume (basic): 14.9 L
TTC - Protect C11 Premix -40ºC

TTC - Protect C11 Premix -40ºC

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

Compliance with the requirements:
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C

show details hide details
  • Available packaging
  • Full description
  • Product parameters

Volume:
1.5 L

vendor code:
1410105-150

Code:
4014835755314

Volume:
5 L

vendor code:
1410105-005

Code:
4014835755352

Volume:
10 L

vendor code:
1410105-010

Code:
4014835755345

Volume:
20 L

vendor code:
1410105-020

Code:
4014835755321

Volume:
20 L, ecobox

vendor code:
1410105-B20

Code:
4014835855939

Volume:
60 L

vendor code:
1410105-060

Code:
4014835755369

Volume:
208 L

vendor code:
1410105-208

Code:
4014835755383

Volume:
1000 L

vendor code:
1410105-700

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL TTC Trad. Techn. Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL TTC Trad. Techn. Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL TTC Trad. Techn. Coolant Premix -40°C to radiator to fill line.

Characteristics

  • Excellent for light metal engines
  • Good reserve alkalinity
  • High-quality corrosion additives for optimal corrosion protection
  • Elastomer compatible with elastome
Parameter Unit Value Audit
Recommendations AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
Brand RAVENOL
RAVENOL
ASTM D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF
D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF
Recomendations AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
Suitable for Suzuki
Suzuki
Density at 20 °C g/cm³ 1080 EN ISO 12185
1080 g/cm³ EN ISO 12185
Color yellow green visual
yellow green visual
pH - value at 20 °C 7,8 ASTM D1287
7,8 ASTM D1287
Freezing point °C -40 ASTM D1177
-40 °C ASTM D1177
Approvals AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
TTC - Protect C11 Concentrate

TTC - Protect C11 Concentrate

Coolant

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

Compliance with the requirements:
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C

show details hide details

Equivalents OEM:
Alpine 0101141, Alpine 0101142, Alpine 0101143, Alpine 0101144, Alpine 0101145, Alpine 101141, Alpine 101142, Alpine 101143, Alpine 101144, Alpine 101145, Chrysler 04267020AA, Chrysler 04267020AB, Chrysler 04267020AC, Chrysler 04267020AD, Chrysler 04267020GA, Chrysler 04267020GB, Chrysler 04267020GC, Chrysler 04267020GD, Chrysler 4267020GA, Chrysler 4267020GB, Chrysler 4267020GD, FEBI 02374, FEBI 2374, FEBI 88541, Ford 1326830, Ford CVC5, Ford CVC7B2, Ford VC5, Ford VC7B, Ford VC7D, Ford VC7DILB Alpine 0101141, Alpine 0101142, Alpine 0101143, Alpine 0101144, Alpine 0101145, Alpine 101141, Alpine 101142, Alpine 101143, Alpine 101144, Alpine 101145, Chrysler 04267020AA, Chrysler 04267020AB, Chrysler 04267020AC, Chrysler 04267020AD, Chrysler 04267020GA, Chrysler 04267020GB, Chrysler 04267020GC, Chrysler 04267020GD, Chrysler 4267020GA, Chrysler 4267020GB, Chrysler 4267020GD, FEBI 02374, FEBI 2374, FEBI 88541, Ford 1326830, Ford CVC5, Ford CVC7B2, Ford VC5, Ford VC7B, Ford VC7D, Ford VC7DILB, GM 19284967, GM 19375289, GM 19375290, GM 19375291, Nissan 7711170548, Renault 7711170548, Renault 7711428132, SsangYong 0000000242, Toyota 0888980042, Toyota 0888980043, VAG G0118ACA1, VAG N052774C0, Volvo 11715725, Volvo 11715726, Volvo 11715727, Volvo 11715727, Volvo 85108901, Volvo VOE11715725, Volvo VOE11715726

Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.
  • Available packaging
  • Full description
  • Product parameters

Volume:
1.5 L

vendor code:
1410100-150

Code:
4014835755215

Volume:
5 L

vendor code:
1410100-005

Code:
4014835755253

Volume:
10 L

vendor code:
1410100-010

Volume:
20 L

vendor code:
1410100-020

Code:
4014835755222

Volume:
20 L, ecobox

vendor code:
1410100-B20

Volume:
60 L

vendor code:
1410100-060

Code:
4014835755260

Volume:
60 L, plastic

vendor code:
-

Code:
4014835755239

Volume:
60 L, print

vendor code:
1410100-D60

Volume:
208 L

vendor code:
1410100-208

Code:
4014835755208

Volume:
1000 L

vendor code:
1410100-700

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

Therefore manufacturers subject coolants to long corrosion and cavitation tests.

RAVENOL TTC Trad. Techn. Coolant Concentrate protects the cooling system from corrosion, frost, and in the summer from overheating.

Application Note

RAVENOL TTC Trad. Techn. Coolant Concentrate with frost and rust protection. Use according to the mixing chart. Follow manufacturer’s recommendations.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL TTC Trad. Techn. Coolant Concentrate with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

Table of mixing ratios
Antifreeze protection until Parts Antifreeze Parts Water
-20°C 35% 65%
-37°C 50% 50%
-50°C 60% 40%

Characteristics

  • Excellent for light metal engines
  • Good reserve alkalinity
  • High-quality corrosion additives for optimal corrosion protection
  • Elastomer compatible with elastomers used in automotive radiators
Parameter Unit Value Audit
Recommendations AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
Brand RAVENOL
RAVENOL
ASTM D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF
D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF
Recomendations AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
Suitable for Suzuki
Suzuki
Density at 20 °C g/cm³ 1130 EN ISO 12185
1130 g/cm³ EN ISO 12185
Color yellow green visual
yellow green visual
Reserve alkalinity mgKOH/g — 20 ASTM D1121
— 20 mgKOH/g ASTM D1121
Boiling point °C 155 ASTM D1120
155 °C ASTM D1120
Water content % — 5 ASTM D1123
— 5 % ASTM D1123
Flashpoint °C 112 DIN 51758
112 °C DIN 51758
Freezing point (50 % solution) °C -37 ASTM D1177
-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %) 8,4 ASTM D1287
8,4 ASTM D1287
Approvals AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
Destilliertes Wasser (entionisiert)

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details hide details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

  • Available packaging
  • Full description
  • Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter Unit Value Audit
Recommendations DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand RAVENOL
RAVENOL
Recomendations DIN 43530-4, DIN EN 50272
DIN 43530-4, DIN EN 50272
Approvals DIN 43530-4, DIN EN 50272
DIN 43530-4, DIN EN 50272

Our website uses cookies to improve your site experience, efficiency and usability. By continuing to use our site, you agree to the use of cookies.

+ - Configure cookies
Good
