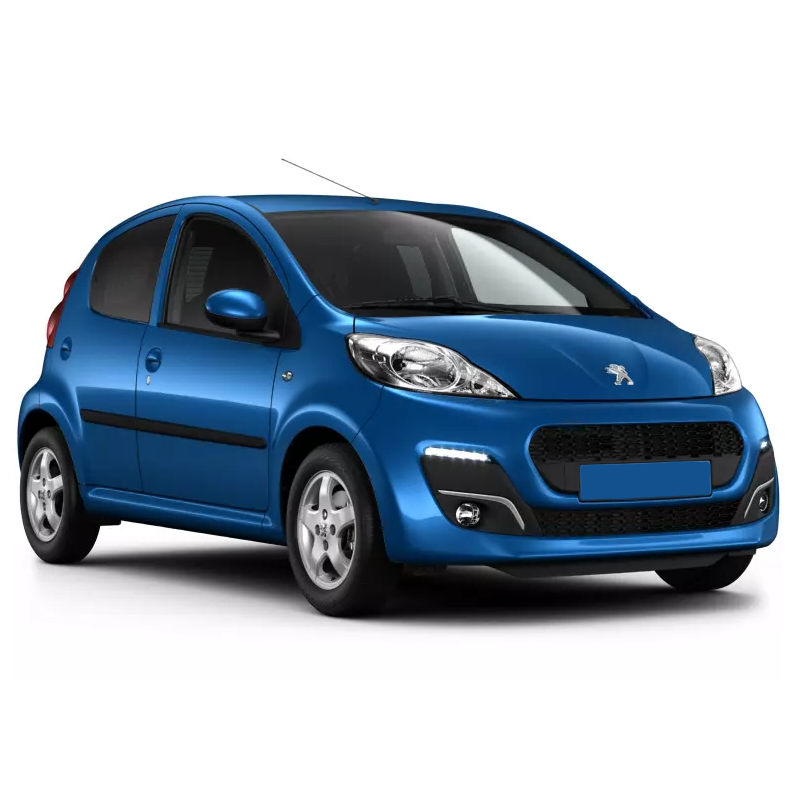

Oil for Peugeot - 107 - 1.0 2WD (1KR/1KR-FE) (CFB/CFE)
Peugeot 107 1.0 2WD (1KR/1KR-FE) (CFB/CFE), year of issue from 2005 date to 2014 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.
Engine 1KR / 1KR-FE
Liquid volume (filter): 0.1 L
For engine
RAVENOL FEL SAE 5W-30 is based on additives with low ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. HTHS >2,9 mPa*s. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).
Compliance with the requirements:
Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290
- Available packaging
- Product parameters
RAVENOL FEL SAE 5W-30 is based on additives with low ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. HTHS >2,9 mPa*s. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).
RAVENOL FEL SAE 5W-30 achieved by its formulation with special base oils a high viscosity index. The excellent cold start behaviour ensures a optimal lubrication safety in the cold running phase.
Because of a considerable fuel saving RAVENOL FEL SAE 5W-30 contributes to protect the environment by reducing the emissions.
RAVENOL FEL SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.
Suitable for extended oil change intervals where recommended by manufacturer.
Application Note
RAVENOL FEL SAE 5W-30 is an universal fuel economy, especially collected engine oil for modern gasoline and diesel engines with and without turbo charger in passenger cars and vans with extended oil change intervals. Extend the lifespan of the particle filter. Due to the specific composition is RAVENOL FEL SAE 5W-30 excellent suitable for use for indicated OEM requirements.
Characteristics
- Fuel economy in part and full power operation
- Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine
- Excellent cold starting characteristics also at low temperatures below -25°C
- A safe lubricant film at high operating temperatures
- Low evaporative tendency, so lower oil consumption
- No deposits in combustion chambers, in the piston ring zone and valves because of oil conditioned
- Neutrality towards sealing materials
- Extended oil change intervals to protect natural resources
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Fiat 9.55535-S1, Honda i-CTDi, Honda i-DTEC, IVECO 18-1811 CLASSE SC1, Mazda MZ-CD, Mazda 183418, Mazda 183419, Mazda CiTD, Mazda MZR-CD, PSA B71 2290, Subaru Boxer Diesel, Suzuki, Toyota 08880-83388, Toyota 08880-83389 |
Fiat 9.55535-S1, Honda i-CTDi, Honda i-DTEC, IVECO 18-1811 CLASSE SC1, Mazda MZ-CD, Mazda 183418, Mazda 183419, Mazda CiTD, Mazda MZR-CD, PSA B71 2290, Subaru Boxer Diesel, Suzuki, Toyota 08880-83388, Toyota 08880-83389
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 5W-30 |
5W-30
|
||
| Type | Synthetic |
Synthetic
|
||
| API | CF, SN |
CF, SN
|
||
| ACEA | C2 |
C2
|
||
| JASO | DL-1 |
DL-1
|
||
| Recomendations | Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290 |
Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290
|
||
| Suitable for | Honda i-CTDi, Honda i-DTEC, Mazda CiTD, Mazda MZ-CD, Mazda MZR-CD, Subaru Boxer Diesel, Suzuki |
Honda i-CTDi, Honda i-DTEC, Mazda CiTD, Mazda MZ-CD, Mazda MZR-CD, Subaru Boxer Diesel, Suzuki
|
||
| Compliant products | Mazda 183418, Mazda 183419, Toyota 08880-83388, Toyota 08880-83389 |
Mazda 183418, Mazda 183419, Toyota 08880-83388, Toyota 08880-83389
|
||
| Density at 20 °C | g/cm³ | 850 | EN ISO 12185 |
850
g/cm³
EN ISO 12185
|
| Color | tan | visual |
tan
visual
|
|
| Viscosity at 100 °C | mm²/s | 10.7 | DIN 51562-1 |
10.7
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 61.4 | DIN 51562-1 |
61.4
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 166 | DIN ISO 2909 |
166
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 3.2 | ASTM D5481 |
3.2
mPa*s
ASTM D5481
|
| CCS Viscosity at -30 °C | mPa*s | 4765 | ASTM D5293 |
4765
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -35 °C | mPa*s | 16.100 | ASTM D4684 |
16.100
mPa*s
ASTM D4684
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Noack Volatility | % | 9 | ASTM D5800 |
9
%
ASTM D5800
|
| Flashpoint | °C | 240 | DIN EN ISO 2592 |
240
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 7.7 | ASTM D2896 |
7.7
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 0.53 | DIN 51575 |
0.53
%wt.
DIN 51575
|
| Approvals | Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290 |
Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290
|
For engine
Extended oil change intervals according to manufacturer's instructions.
Manufacturer Approved:
BMW Special Oil, VW 501.01, VW 505.00
Compliance with the requirements:
MB 229.1, MB 229.3, VW 500.00, VW 502.00
- Available packaging
- Product parameters
Extended oil change intervals according to manufacturer's instructions.
Application Note
RAVENOL TSi SAE 10W-40 is suitable for all modern cars with petrol and diesel engines all the year; no sludge in the motor, excellent results during the test run. High engine cleanliness is guaranteed also in case of turbo charging and a complete catalyst operation as well as multi valves and diesel direct injections.
Characteristics
- High abrasion resistance
- Fuel saving because of easy running characteristics
- Excellent detergent and dispersant characteristics
- Prevention of black sludge creation
- Long endurance because of high oxidation stability
- Excellent cold start performance
- Very good viscosity temperature behaviour
- Low evaporation
- Suitable for catalysts
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | MB 229.1, MB 229.3, VW 500 00, VW 502 00 |
MB 229.1, MB 229.3, VW 500 00, VW 502 00
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 10W-40 |
10W-40
|
||
| Type | Semi-synthetic |
Semi-synthetic
|
||
| API | CF, SN Plus, SP |
CF, SN Plus, SP
|
||
| ACEA | A3, B4 |
A3, B4
|
||
| Manufacturer Approved | BMW Special Oil, VW 501.01, VW 505.00 |
BMW Special Oil, VW 501.01, VW 505.00
|
||
| Recomendations | MB 229.1, MB 229.3, VW 500.00, VW 502.00 |
MB 229.1, MB 229.3, VW 500.00, VW 502.00
|
||
| Density at 20 °C | g/cm³ | 862 | EN ISO 12185 |
862
g/cm³
EN ISO 12185
|
| Color | Brown | visual |
Brown
visual
|
|
| Viscosity at 100 °C | mm²/s | 14.5 | DIN 51562-1 |
14.5
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 97.7 | DIN 51562-1 |
97.7
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 153 | DIN ISO 2909 |
153
DIN ISO 2909
|
|
| HTHS Viscosity at 150 °C | mPa*s | 4.03 | ASTM D5481 |
4.03
mPa*s
ASTM D5481
|
| CCS Viscosity at -25 °C | mPa*s | 5940 | ASTM D5293 |
5940
mPa*s
ASTM D5293
|
| Low Temp. Pumping viscosity (MRV) at -30 °C | mPa*s | 20.800 | ASTM D4684 |
20.800
mPa*s
ASTM D4684
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Noack Volatility | % | 9.5 | ASTM D5800 |
9.5
%
ASTM D5800
|
| Flashpoint | °C | 234 | DIN EN ISO 2592 |
234
°C
DIN EN ISO 2592
|
| tbn | mgKOH/g | 10 | ASTM D2896 |
10
mgKOH/g
ASTM D2896
|
| Sulphated Ash | %wt. | 1.3 | DIN 51575 |
1.3
%wt.
DIN 51575
|
| Approvals | BMW Special Oil, MB 229.1, MB 229.3, VW 500.00, VW 501.01, VW 502.00, VW 505.00 |
BMW Special Oil, MB 229.1, MB 229.3, VW 500.00, VW 501.01, VW 502.00, VW 505.00
|
Additive
RAVENOL Professional Engine Cleaner can also be used in motorcycles.
- Available packaging
- Product parameters
RAVENOL Professional Engine Cleaner can also be used in motorcycles.
RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.
RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.
Application Note
RAVENOL Professional Engine Cleaner is added to the warm motor oil.
Area of application:
-If black sludge is suspected
-In the event of hydraulic tappets rattling
-In the event of delayed oil change
-For soiled engines or used oil
-Preventively at every oil change to avoid contamination of the engine
-Also suitable for oldtimers
Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.
Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.
RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.
Characteristics
- Long-term effectiveness and clean fresh oil
- Remedy for soiled engines
- Protection against compression loss in the area of the piston rings
- Leads to better exhaust emissions and increases the performance of the engine
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Color | Light brown | visual |
Light brown
visual
|
|
| Flashpoint (PM) | °C | 62 | DIN ISO 3679 |
62
°C
DIN ISO 3679
|
| Density at 20 °C | 805 | EN ISO 12185 |
805
EN ISO 12185
|
|
| Viscosity at 40 °C | mm²/s | 7 | DIN EN ISO 3104 |
7
mm²/s
DIN EN ISO 3104
|
| Brand | RAVENOL |
RAVENOL
|
Mechanical gearbox in a unit with final drive 5/1 C550 / C550P / C553
For gearbox
RAVENOL MTF-3 SAE 75W is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
Compliance with the requirements:
BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2
- Available packaging
- Product parameters
Volume:
20 L
vendor code:
1221104-020
Volume:
60 L, print
vendor code:
1221104-D60
Volume:
208 L
vendor code:
1221104-208
Volume:
208 L, print
vendor code:
1221104-D28
Volume:
1000 L
vendor code:
1221104-700
RAVENOL MTF-3 SAE 75W is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.
RAVENOL MTF-3 SAE 75W is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.
Application Note
RAVENOL MTF-3 SAE 75W is a full synthetic transmission oil for manual transmissions.
Characteristics
- A high pressure stable lubricating film even at high oil temperatures and under high stress.
- Outstanding shearing stability and excellent thermal stability.
- Excellent viscosity-temperature properties.
- High oxidation stability.
- Excellent wear protection, outstanding EP properties.
- Low foaming properties even at high speeds.
- Good shifting behaviour even in low temperatures, extremely low pour point.
- Extended life.
- A stable lubricating film even at high oil temperatures and under high stress.
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | AC Delco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83220396706 MTF-LT-3, BMW 83227533818 MTF-LT-3, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C200-D2, Ford WSS-M2C200-D3, Ford WSS-M2C200-E1, GM 19259104, GM 19259105, GM 1940004, JWS 2271, MB 235.10, Mercedes A 001 989 840 309, Opel B0402167, PSA 9730A8, PSA B71 2310, PSA B71 2316, PSA B71 2317, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317 A2, VW G 052 171 A2, VW G 052 512 A2, VW G 052 527 A2, VW G 055 512 A2, VW G 055 532 A2, VW G 070 726 A2, VW G F53 061 M2, VW/Audi G 060 726 A2 |
AC Delco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83220396706 MTF-LT-3, BMW 83227533818 MTF-LT-3, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C200-D2, Ford WSS-M2C200-D3, Ford WSS-M2C200-E1, GM 19259104, GM 19259105, GM 1940004, JWS 2271, MB 235.10, Mercedes A 001 989 840 309, Opel B0402167, PSA 9730A8, PSA B71 2310, PSA B71 2316, PSA B71 2317, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317 A2, VW G 052 171 A2, VW G 052 512 A2, VW G 052 527 A2, VW G 055 512 A2, VW G 055 532 A2, VW G 070 726 A2, VW G F53 061 M2, VW/Audi G 060 726 A2
|
||
| SAE | 75W |
75W
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Full synthetic |
Full synthetic
|
||
| API | GL-4 |
GL-4
|
||
| Recomendations | BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2 |
BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2
|
||
| Compliant products | AcDelco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83227533818, GM 19259104, GM 19259105, GM 1940004, MB A 001 989 840 309, PSA 9730.A8, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726 |
AcDelco 10-4037, BMW 23007533818 MTF-LT-3, BMW 83227533818, GM 19259104, GM 19259105, GM 1940004, MB A 001 989 840 309, PSA 9730.A8, Suzuki 99000-22B27-036, Toyota 08885-81001, Toyota 08885-81081, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726
|
||
| Density at 20 °C | g/cm³ | 840 | EN ISO 12185 |
840
g/cm³
EN ISO 12185
|
| Color | Yellow | visual |
Yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 7.4 | DIN 51562-1 |
7.4
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 35.1 | DIN 51562-1 |
35.1
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 184 | DIN ISO 2909 |
184
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 8.800 | ASTM D2983 |
8.800
mPa*s
ASTM D2983
|
| Pourpoint | °C | -48 | DIN ISO 3016 |
-48
°C
DIN ISO 3016
|
| Flashpoint | °C | 216 | DIN EN ISO 2592 |
216
°C
DIN EN ISO 2592
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2 |
BMW 83220396706 CROSS, BMW MTF-LT-3, BMW MTF-LT-3 N, BOT 303, BOT 350 M3, Fiat 9.55550-MZ6, Ford WSS-M2C 200-D2, Ford WSS-M2C 200-D3, Ford WSS-M2C 200-E1, JWS 2271, MB 235.10, Opel B0402167, PSA 71 2317, PSA B71 2310, PSA B71 2316, VW G 009 317, VW G 052 171, VW G 052 512, VW G 052 527, VW G 055 512, VW G 055 532, VW G 060 726, VW G 070 726, VW G F53 061 M2
|
Mechanical gearbox in a unit with final drive 5/1 20TT05
For transmission
RAVENOL Getriebeoel TSG SAE 75W-90 is designed based on high-quality synthetic base oils with special additive treatment and inhibition coordinated to the increased stress on manual transmission oils and ensuring trouble-free transmission function.
Compliance with the requirements:
Ford ESF-M2C 175, GM B0401043, VW 501.50, VW G 052 911, VW G 060 726
SAE: 75W-90
API: GL-4
Equivalents OEM:
Ford 97SXM2C200AA, Ford 97SXM2C200BA, Ford 1045737, Ford 1045738, Ford 5012119, Ford 5012119, Ford 5015547, Ford 5015548, Ford A86SX2C175AA, Ford A86SX2C175BA, Ford XT4QGL, Geely SH550027967, Hyundai Motor 043005L1A0, Hyundai Motor 043005L1A00001, Hyundai Motor 043005L1AO, Hyundai Motor 043005L6A0, Hyundai XTeer 1011435, Hyundai XTeer 1041435, Hyundai XTeer 1120435, Toyota 0888501513, Toyota 0888581023, Toyota 0888581026, UAZ 000000473400800, UAZ 473400800, UAZ 473401200, VAG G052178A2, VAG G052178S0, Volvo 1161647, Volvo 1161723, Volvo 1161724
- Available packaging
- Product parameters
RAVENOL Getriebeoel TSG SAE 75W-90 is designed based on high-quality synthetic base oils with special additive treatment and inhibition coordinated to the increased stress on manual transmission oils and ensuring trouble-free transmission function.
Application Note
RAVENOL Getriebeoel TSG SAE 75W-90 is suitable for highly stressed manual transmissions (with and without synchronising), transfer cases and steering gearboxes in vehicles and work machines.
Characteristics
- excellent ageing resistance
- extra high pressure absorption properties
- optimal viscosity-temperature properties
- excellent low temperature properties
- shearing stability
- stable lubricating film even under high stress
- extremely low pour point
- good elastomer compatibility to prevent leaks
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | Ford M2C-175, Opel/GM B0401043, VW 501 50, VW G 052 911 A2, VW G 060 726 A2 |
Ford M2C-175, Opel/GM B0401043, VW 501 50, VW G 052 911 A2, VW G 060 726 A2
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| SAE | 75W-90 |
75W-90
|
||
| Type | Synthetic |
Synthetic
|
||
| API | GL-4 |
GL-4
|
||
| Recomendations | Ford ESF-M2C 175, GM B0401043, VW 501.50, VW G 052 911, VW G 060 726 |
Ford ESF-M2C 175, GM B0401043, VW 501.50, VW G 052 911, VW G 060 726
|
||
| Compliant products | VW G 052 911, VW G 060 726 |
VW G 052 911, VW G 060 726
|
||
| Density at 20 °C | g/cm³ | 837.5 | EN ISO 12185 |
837.5
g/cm³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mm²/s | 15.7 | DIN 51562-1 |
15.7
mm²/s
DIN 51562-1
|
| Viscosity at 40 °C | mm²/s | 95.7 | DIN 51562-1 |
95.7
mm²/s
DIN 51562-1
|
| Viscosity Index VI | 176 | DIN ISO 2909 |
176
DIN ISO 2909
|
|
| Brookfield Viscosity at -40 °C | mPa*s | 88.700 | ASTM D2983 |
88.700
mPa*s
ASTM D2983
|
| Pourpoint | °C | -42 | DIN ISO 3016 |
-42
°C
DIN ISO 3016
|
| Copper Strip Test at 121 °C | 1b | ASTM D130 |
1b
ASTM D130
|
|
| Approvals | Ford ESF-M2C 175, GM B0401043, VW 501.50, VW G 052 911, VW G 060 726 |
Ford ESF-M2C 175, GM B0401043, VW 501.50, VW G 052 911, VW G 060 726
|
Hydraulic brake system ABS
For brake system
Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.
- Available packaging
- Product parameters
DOT 4
Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.
Application Note
RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.
RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.
RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).
FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.
STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.
Dispose of used brake fluid responsibly (EU waste code 160113).
Brake fluid damages paint work –if spilt wash off immediately with plenty of water.
Characteristics
- optimum ABS characteristics
- chemical stability
- best lubrication efficiency
- neutral behaviour regarding brake parts
- low viscosity at low temperatures
- miscible with all brake fluids of the same specifications
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| FMVSS 116 specifications (DOT) | DOT-4 |
DOT-4
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Type | Synthetic |
Synthetic
|
||
| specification | DOT 4, ISO 4925 Class 4, SAE J 1704 |
DOT 4, ISO 4925 Class 4, SAE J 1704
|
||
| Density at 20 °C | g/cm³ | 1052 | EN ISO 12185 |
1052
g/cm³
EN ISO 12185
|
| Color | light yellow | visual |
light yellow
visual
|
|
| Viscosity at 100 °C | mPa*s | 2.41 | ASTM D445 |
2.41
mPa*s
ASTM D445
|
| Viscosity at -40 °C | cSt | 1340 | ASTM D445 |
1340
cSt
ASTM D445
|
| Boiling point | °C | 271 | FMVSS 116 |
271
°C
FMVSS 116
|
| Wet Equilibrium Reflux Boiling Point | °C | 169 | FMVSS 116 |
169
°C
FMVSS 116
|
| High Temperature Stability | °C | -1 | FMVSS 116 |
-1
°C
FMVSS 116
|
| Chemical Stability | °C | 1 | FMVSS 116 |
1
°C
FMVSS 116
|
| Evaporation | %w/w | 61 | FMVSS 116 |
61
%w/w
FMVSS 116
|
| Fluidity & Appearance at -40 °C | i.O., 4s | FMVSS 116 |
i.O., 4s
FMVSS 116
|
|
| Fluidity & Appearance at -50 °C | i.O., 8s | FMVSS 116 |
i.O., 8s
FMVSS 116
|
|
| Water Tolerance at -40 °C | transparent, 3s | FMVSS 116 |
transparent, 3s
FMVSS 116
|
|
| Water Tolerance at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at -40 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Compatibility at +60 °C | Transparent | FMVSS 116 |
Transparent
FMVSS 116
|
|
| Water content | % | — 0.2 | DIN 51777-1 |
— 0.2
%
DIN 51777-1
|
| Tinned Iron | Δ mg/cm² | 0.04 | FMVSS 116 |
0.04
Δ mg/cm²
FMVSS 116
|
| Steel | mg/cm² | -0.01 | FMVSS 116 |
-0.01
mg/cm²
FMVSS 116
|
| Aluminium | mg/cm² | 0.02 | FMVSS 116 |
0.02
mg/cm²
FMVSS 116
|
| Cast Iron | Δ mg/cm² | -0,03 | FMVSS 116 |
-0,03
Δ mg/cm²
FMVSS 116
|
| Brass | mg/cm² | -0.08 | FMVSS 116 |
-0.08
mg/cm²
FMVSS 116
|
| Copper | mg/cm² | -0.05 | FMVSS 116 |
-0.05
mg/cm²
FMVSS 116
|
| Zinc | mg/cm² | 0.01 | FMVSS 116 |
0.01
mg/cm²
FMVSS 116
|
| Sediment | % | — 0.05 | FMVSS 116 |
— 0.05
%
FMVSS 116
|
| pH - value | 8.2 | FMVSS 116 |
8.2
FMVSS 116
|
|
| Rubber Diameter Change | 0.16 | FMVSS 116 |
0.16
FMVSS 116
|
|
| Hardness Change | °IRHD | -4 | FMVSS 116 |
-4
°IRHD
FMVSS 116
|
| Appearance | i.O. | FMVSS 116 |
i.O.
FMVSS 116
|
|
| SBR at 70 °C | mm | 0.56 | FMVSS 116 |
0.56
mm
FMVSS 116
|
| SBR at 120 °C | mm | 0.73 | FMVSS 116 |
0.73
mm
FMVSS 116
|
| EPDM at 70 °C (as required by SAE J1703) | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| EPDM at 120 °C | IRHD | -2 | FMVSS 116 |
-2
IRHD
FMVSS 116
|
| Natural at 70 °C (as required by ISO 4925) | mm | 0.38 | FMVSS 116 |
0.38
mm
FMVSS 116
|
| Approvals | DOT 4, ISO 4925 Class 4, SAE J 1704 |
DOT 4, ISO 4925 Class 4, SAE J 1704
|
Cooling system
Coolant
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.
Compliance with the requirements:
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
- Available packaging
- Product parameters
The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.
That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.
RAVENOL TTC Trad. Techn. Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.
Application Note
RAVENOL TTC Trad. Techn. Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Add RAVENOL TTC Trad. Techn. Coolant Premix -40°C to radiator to fill line.
Characteristics
- Excellent for light metal engines
- Good reserve alkalinity
- High-quality corrosion additives for optimal corrosion protection
- Elastomer compatible with elastome
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11) |
AFNOR R15-601, ASTM D1384, ASTM D2570, ASTM D2809, ASTM D3306, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| ASTM | D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF |
D1384, D2570, D2809, D3306, D4985, D6210 Type 1-FF
|
||
| Recomendations | AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C |
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
|
||
| Suitable for | Suzuki |
Suzuki
|
||
| Density at 20 °C | g/cm³ | 1080 | EN ISO 12185 |
1080
g/cm³
EN ISO 12185
|
| Color | yellow green | visual |
yellow green
visual
|
|
| pH - value at 20 °C | 7,8 | ASTM D1287 |
7,8
ASTM D1287
|
|
| Freezing point | °C | -40 | ASTM D1177 |
-40
°C
ASTM D1177
|
| Approvals | AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C |
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
|
Coolant
It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.
Compliance with the requirements:
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
Equivalents OEM:
Alpine 0101141,
Alpine 0101142,
Alpine 0101143,
Alpine 0101144,
Alpine 0101145,
Alpine 101141,
Alpine 101142,
Alpine 101143,
Alpine 101144,
Alpine 101145,
Chrysler 04267020AA,
Chrysler 04267020AB,
Chrysler 04267020AC,
Chrysler 04267020AD,
Chrysler 04267020GA,
Chrysler 04267020GB,
Chrysler 04267020GC,
Chrysler 04267020GD,
Chrysler 4267020GA,
Chrysler 4267020GB,
Chrysler 4267020GD,
FEBI 02374,
FEBI 2374,
FEBI 88541,
Ford 1326830,
Ford CVC5,
Ford CVC7B2,
Ford VC5,
Ford VC7B,
Ford VC7D,
Ford VC7DILB
Alpine 0101141, Alpine 0101142, Alpine 0101143, Alpine 0101144, Alpine 0101145, Alpine 101141, Alpine 101142, Alpine 101143, Alpine 101144, Alpine 101145, Chrysler 04267020AA, Chrysler 04267020AB, Chrysler 04267020AC, Chrysler 04267020AD, Chrysler 04267020GA, Chrysler 04267020GB, Chrysler 04267020GC, Chrysler 04267020GD, Chrysler 4267020GA, Chrysler 4267020GB, Chrysler 4267020GD, FEBI 02374, FEBI 2374, FEBI 88541, Ford 1326830, Ford CVC5, Ford CVC7B2, Ford VC5, Ford VC7B, Ford VC7D, Ford VC7DILB, GM 19284967, GM 19375289, GM 19375290, GM 19375291, Nissan 7711170548, Renault 7711170548, Renault 7711428132, SsangYong 0000000242, Toyota 0888980042, Toyota 0888980043, VAG G0118ACA1, VAG N052774C0, Volvo 11715725, Volvo 11715726, Volvo 11715727, Volvo 11715727, Volvo 85108901, Volvo VOE11715725, Volvo VOE11715726
Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.
- Available packaging
- Product parameters
Volume:
10 L
vendor code:
1410100-010
Volume:
20 L, ecobox
vendor code:
1410100-B20
Volume:
60 L, print
vendor code:
1410100-D60
Volume:
1000 L
vendor code:
1410100-700
It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.
Therefore manufacturers subject coolants to long corrosion and cavitation tests.
RAVENOL TTC Trad. Techn. Coolant Concentrate protects the cooling system from corrosion, frost, and in the summer from overheating.
Application Note
RAVENOL TTC Trad. Techn. Coolant Concentrate with frost and rust protection. Use according to the mixing chart. Follow manufacturer’s recommendations.
Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.
Instructions: Clean cooling system, check for leaks, flush.
Mix RAVENOL TTC Trad. Techn. Coolant Concentrate with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.
| Table of mixing ratios | ||
|---|---|---|
| Antifreeze protection until | Parts Antifreeze | Parts Water |
| -20°C | 35% | 65% |
| -37°C | 50% | 50% |
| -50°C | 60% | 40% |
Characteristics
- Excellent for light metal engines
- Good reserve alkalinity
- High-quality corrosion additives for optimal corrosion protection
- Elastomer compatible with elastomers used in automotive radiators
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11) |
AFNOR R15-601, ASTM D1384, ASTM D2809, ASTM D3306, ASTM D4340, ASTM D4985, ASTM D6210 Type 1-FF, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 NF, O Norm V 5123 (Österreich), SAE J1034, Suzuki, UNE 25-361 (Spanien), VW TL 774-C (entspricht G11)
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| ASTM | D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF |
D1384, D2809, D3306, D4340, D4985, D6210 Type 1-FF
|
||
| Recomendations | AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C |
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
|
||
| Suitable for | Suzuki |
Suzuki
|
||
| Density at 20 °C | g/cm³ | 1130 | EN ISO 12185 |
1130
g/cm³
EN ISO 12185
|
| Color | yellow green | visual |
yellow green
visual
|
|
| Reserve alkalinity | mgKOH/g | — 20 | ASTM D1121 |
— 20
mgKOH/g
ASTM D1121
|
| Boiling point | °C | 155 | ASTM D1120 |
155
°C
ASTM D1120
|
| Water content | % | — 5 | ASTM D1123 |
— 5
%
ASTM D1123
|
| Flashpoint | °C | 112 | DIN 51758 |
112
°C
DIN 51758
|
| Freezing point (50 % solution) | °C | -37 | ASTM D1177 |
-37
°C
ASTM D1177
|
| pH - value at 20 °C (50 Vol %) | 8,4 | ASTM D1287 |
8,4
ASTM D1287
|
|
| Approvals | AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C |
AFNOR R15-601, BS 6580 (GB), Chrysler MS-7170, CUNA NC 956-16 (Italien), Fiat 9.55523, Fiat PARAFLU 11, Ford WSS-M97 B51-A1, IVECO 18-1830, JIS K 2234 (Japan), MAN 324 Type NF, O Norm V 5123, SAE J 1034, UNE 25-361 (Spanien), VW TL 774-C
|
For batteries
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
Compliance with the requirements:
DIN 43530-4, DIN EN 50272
Equivalents OEM:
BMW 83190394350, BMW 83190394350
- Available packaging
- Product parameters
In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.
As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.
RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.
Application Note
RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Recommendations | DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser |
DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
|
||
| Brand | RAVENOL |
RAVENOL
|
||
| Recomendations | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
||
| Approvals | DIN 43530-4, DIN EN 50272 |
DIN 43530-4, DIN EN 50272
|
Additive
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
Equivalents OEM:
Ford MP14300500AB
- Available packaging
- Product parameters
RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.
RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.
Application Note
RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.
Area of application:
Radiator repairs
In the event of reduced radiator performance
In the event of deposits in the cooling system
Changing coolant
For cleaning purposes after engine repairs due to oil in the cooling system
Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.
Fill in
RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.
RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.
Characteristics
- Cleaning of the cooling and heating system
- Protection of the new coolant against prior contamination
- Elimination of sludge and corrosion residue
| Parameter | Unit | Value | Audit | |
|---|---|---|---|---|
| Color | Colorless | visual |
Colorless
visual
|
|
| Density at 20 °C | g/cm³ | 1003 | EN ISO 12185 |
1003
g/cm³
EN ISO 12185
|
| pH - value at 20 °C | 10,25 | DIN 19268 |
10,25
DIN 19268
|
|
| Brand | RAVENOL |
RAVENOL
|
