Oil for HAVAL - H4 - 1.5 GDIT 2WD (GW4B15/GW4B15A/GW4G15F)

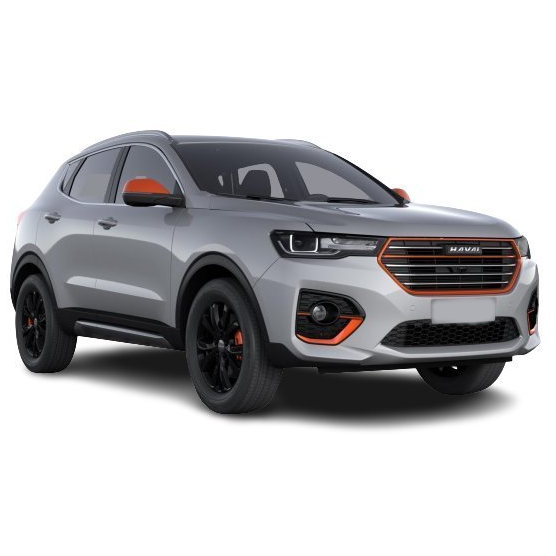

HAVAL H4 1.5 GDIT 2WD (GW4B15/GW4B15A/GW4G15F), year of issue from 2018 date to 2020 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Add to Garage

Nodes and assemblies

Engine GW4B15 / GW4B15A / GW4G15F
Mechanical gearbox in a unit with final drive 6/1 GWM 7DCT450
Mechanical gearbox in a unit with final drive 6/1 ZM016BF
Power steering
Hydraulic brake system
Cooling system

Engine GW4B15 / GW4B15A / GW4G15F

Liquid volume (basic): 4.3 L

FEL 5W-30

For engine

RAVENOL FEL SAE 5W-30 is based on additives with low ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. HTHS >2,9 mPa*s. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

Compliance with the requirements:
Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290

show details

SAE: 5W-30

API: CF, SN

ACEA: C2

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111123-001

Code:
4014835723412

Volume:
4 L

vendor code:
1111123-004

Code:
4014835723498

Volume:
10 L

vendor code:
1111123-010

Code:
4014835723443

Volume:
20 L

vendor code:
1111123-020

Code:
4014835723429

Volume:
20 L, ecobox

vendor code:
1111123-B20

Code:
4014835773721

Volume:
60 L

vendor code:
1111123-060

Volume:
60 L, print

vendor code:
1111123-D60

Code:
4014835723436

Volume:
208 L, print

vendor code:
1111123-D28

Code:
4014835723405

Volume:
1000 L

vendor code:
1111123-700

Volume:
5 L

vendor code:
1111123-005

Code:
4014835723450

Volume:
208 L

vendor code:
1111123-208

Code:
4014835723481

RAVENOL FEL SAE 5W-30 is based on additives with low ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. HTHS >2,9 mPa*s. Developed for fuel economy and energy conserving in EURO VI, EURO V and EURO IV Standard engines with normal and extended oil change intervals (until 50.000 km or 2 years possible).

RAVENOL FEL SAE 5W-30 achieved by its formulation with special base oils a high viscosity index. The excellent cold start behaviour ensures a optimal lubrication safety in the cold running phase.

Because of a considerable fuel saving RAVENOL FEL SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL FEL SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL FEL SAE 5W-30 is an universal fuel economy, especially collected engine oil for modern gasoline and diesel engines with and without turbo charger in passenger cars and vans with extended oil change intervals. Extend the lifespan of the particle filter. Due to the specific composition is RAVENOL FEL SAE 5W-30 excellent suitable for use for indicated OEM requirements.

Characteristics

Fuel economy in part and full power operation
Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine
Excellent cold starting characteristics also at low temperatures below -25°C
A safe lubricant film at high operating temperatures
Low evaporative tendency, so lower oil consumption
No deposits in combustion chambers, in the piston ring zone and valves because of oil conditioned
Neutrality towards sealing materials
Extended oil change intervals to protect natural resources

Parameter	Unit	Value	Audit
Recommendations		Fiat 9.55535-S1, Honda i-CTDi, Honda i-DTEC, IVECO 18-1811 CLASSE SC1, Mazda MZ-CD, Mazda 183418, Mazda 183419, Mazda CiTD, Mazda MZR-CD, PSA B71 2290, Subaru Boxer Diesel, Suzuki, Toyota 08880-83388, Toyota 08880-83389		Fiat 9.55535-S1, Honda i-CTDi, Honda i-DTEC, IVECO 18-1811 CLASSE SC1, Mazda MZ-CD, Mazda 183418, Mazda 183419, Mazda CiTD, Mazda MZR-CD, PSA B71 2290, Subaru Boxer Diesel, Suzuki, Toyota 08880-83388, Toyota 08880-83389
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		C2		C2
JASO		DL-1		DL-1
Recomendations		Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290		Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290
Suitable for		Honda i-CTDi, Honda i-DTEC, Mazda CiTD, Mazda MZ-CD, Mazda MZR-CD, Subaru Boxer Diesel, Suzuki		Honda i-CTDi, Honda i-DTEC, Mazda CiTD, Mazda MZ-CD, Mazda MZR-CD, Subaru Boxer Diesel, Suzuki
Compliant products		Mazda 183418, Mazda 183419, Toyota 08880-83388, Toyota 08880-83389		Mazda 183418, Mazda 183419, Toyota 08880-83388, Toyota 08880-83389
Density at 20 °C	g/cm³	850	EN ISO 12185	850 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	10.7	DIN 51562-1	10.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	61.4	DIN 51562-1	61.4 mm²/s DIN 51562-1
Viscosity Index VI		166	DIN ISO 2909	166 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.2	ASTM D5481	3.2 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	4765	ASTM D5293	4765 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	16.100	ASTM D4684	16.100 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	9	ASTM D5800	9 % ASTM D5800
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	7.7	ASTM D2896	7.7 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.53	DIN 51575	0.53 %wt. DIN 51575
Approvals		Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290		Fiat 9.55535-S1, IVECO 18-1811 CLASS SC1, PSA B71 2290

HLS 5W-30

For engine

RAVENOL HLS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01

Compliance with the requirements:
Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00

show details

SAE: 5W-30

API: CF, SN

ACEA: C3

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111119-001

Code:
4014835723016

Volume:
4 L

vendor code:
1111119-004

Code:
4014835723092

Volume:
5 L

vendor code:
1111119-005

Code:
4014835723054

Volume:
10 L

vendor code:
1111119-010

Code:
4014835723047

Volume:
20 L

vendor code:
1111119-020

Code:
4014835723023

Volume:
20 L, ecobox

vendor code:
1111119-B20

Code:
4014835773325

Volume:
60 L

vendor code:
1111119-060

Code:
4014835723061

Volume:
60 L, print

vendor code:
1111119-D60

Code:
4014835723030

Volume:
208 L

vendor code:
1111119-208

Code:
4014835723085

Volume:
208 L, print

vendor code:
1111119-D28

Code:
4014835723009

Volume:
1000 L

vendor code:
1111119-700

RAVENOL HLS SAE 5W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL HLS SAE 5W-30 contributes to protect the environment by reducing the emissions.

RAVENOL HLS SAE 5W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL HLS SAE 5W-30 is Mid SAPS Oils which prevents effectively the reset of the diesel soot particulate filter.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL HLS SAE 5W-30 is suitable for demanding motors as a high performance low friction motor oil. It is recommended for all modern passenger car gasoline and diesel engines, including turbo versions, for direct injection motors and it is also recommended for all operation conditions. RAVENOL HLS SAE 5W-30 is recommended for use in vehicles with diesel particulate filters.

Characteristics

Fuel economy in part and full power operation.
Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine.
Excellent cold starting characteristics also at low temperatures below -30°C.
A safe lubricant film at high operating temperatures.
Low evaporative tendency, so lower oil consumption.
No deposits in combustion chambers, in the piston ring zone and valves.
Neutrality towards sealing materials.
Extended oil change intervals to protect natural resources.

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502 00		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502 00
Brand		RAVENOL		RAVENOL
SAE		5W-30		5W-30
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		C3		C3
Manufacturer Approved		BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01		BMW Longlife-04, GM dexos2®, MB-Approval 229.31, MB-Approval 229.51, MB-Approval 229.52, Opel OV 040 1547 - D30, VW 505.00, VW 505.01
Recomendations		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00		Chrysler MS-11106, Fiat 9.55535-S3, Stellantis FPW9.55535/03, VW 502.00
Density at 20 °C	g/cm³	847	EN ISO 12185	847 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	72.7	DIN 51562-1	72.7 mm²/s DIN 51562-1
Viscosity Index VI		166	DIN ISO 2909	166 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.51	ASTM D5481	3.51 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5216	ASTM D5293	5216 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	23000	ASTM D4684	23000 mPa*s ASTM D4684
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Noack Volatility	%	6.9	ASTM D5800	6.9 % ASTM D5800
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
tbn	mgKOH/g	7.8	ASTM D2896	7.8 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.8	DIN 51575	0.8 %wt. DIN 51575
Approvals		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S3, GM dexos2®, MB 229.31, MB 229.51, MB 229.52, Opel OV 040 1547 - D30, Stellantis FPW9.55535/03, VW 502.00, VW 505.00, VW 505.01		BMW Longlife-04, Chrysler MS-11106, Fiat 9.55535-S3, GM dexos2®, MB 229.31, MB 229.51, MB 229.52, Opel OV 040 1547 - D30, Stellantis FPW9.55535/03, VW 502.00, VW 505.00, VW 505.01

HCS 5W-40

Engine oil

Application NoteRAVENOL HCS SAE 5W-40 is suitable for an energy saving all year use for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.

Manufacturer Approved:
MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296

show details

SAE: 5W-40

API: CF, SN

ACEA: A3, B4

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1112105-001

Code:
4014835723917

Volume:
4 L

vendor code:
1112105-004

Code:
4014835723993

Volume:
5 L

vendor code:
1112105-005

Code:
4014835723955

Volume:
10 L

vendor code:
1112105-010

Code:
4014835723948

Volume:
20 L, ecobox

vendor code:
1112105-B20

Code:
4014835774322

Volume:
60 L

vendor code:
1112105-060

Code:
4014835723962

Volume:
60 L, print

vendor code:
1112105-D60

Code:
4014835723931

Volume:
208 L

vendor code:
1112105-208

Code:
4014835723986

Volume:
208 L, print

vendor code:
1112105-D28

Code:
4014835723900

Volume:
1000 L

vendor code:
1112105-700

Volume:
20 L

vendor code:
1112105-020

Code:
4014835723924

Application Note

RAVENOL HCS SAE 5W-40 is suitable for an energy saving all year use for all modern passenger car gasoline and diesel engines, including turbo versions and for direct injection motors and also recommended for all operation conditions.

Characteristics

High protection against wear
Fuel economy by low friction property
Excellent detergent- and dispersant property
Prevention of black sludge formation
Improved cleaner engine
Extended lifetime because of oxidation stability
Excellent cold starting characteristics
Excellent viscosity-temperature- characteristics
Low evaporation tendency
Catalyst cleaning

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, MB 226.5, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, MB 226.5, Opel/GM-LL-B-025, Porsche A40, PSA B71 2296
Brand		RAVENOL		RAVENOL
SAE		5W-40		5W-40
Type		Synthetic		Synthetic
API		CF, SN		CF, SN
ACEA		A3, B4		A3, B4
Manufacturer Approved		MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00		MB-Approval 229.3, Renault RN 0700, Renault RN 0710, VW 502.00, VW 505.00
Recomendations		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, Porsche A40, PSA B71 2296
Density at 20 °C	g/cm³	849	EN ISO 12185	849 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.4	DIN 51562-1	14.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	87.5	DIN 51562-1	87.5 mm²/s DIN 51562-1
Viscosity Index VI		171	DIN ISO 2909	171 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.9	ASTM D5481	3.9 mPa*s ASTM D5481
CCS Viscosity at -30 °C	mPa*s	5370	ASTM D5293	5370 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	28.500	ASTM D4684	28.500 mPa*s ASTM D4684
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Noack Volatility	%	8.4	ASTM D5800	8.4 % ASTM D5800
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	10.4	ASTM D2896	10.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.26	DIN 51575	1.26 %wt. DIN 51575
Approvals		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, Chrysler MS-10850, Chrysler MS-10896, Fiat 9.55535-H2, GM GM-LL-B-025, MB 226.5, MB 229.3, Porsche A40, PSA B71 2296, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

Super Synthetic Hydrocrack SSH 0W-30

For engine

RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Manufacturer Approved:
MB-Approval 229.5, Renault RN 0710, Volvo VCC 95200356 - Service Fill

Compliance with the requirements:
BMW Longlife-98, Renault RN 0700, VW 502.00, VW 505.00

show details

SAE: 0W-30

API: SM

ACEA: A3, B4

Equivalents OEM:
Honda 08232P99B1CB1, Honda 08232P99B1LHE, Honda 08232P99B2LHE, Honda 08232P99B4LHE, Honda 08232P99B5LHE, Honda 08232P99B6CB1, Honda 08232P99B6LHE, Honda 08250P99B1BA1, Honda 08250P99B6BA1, Hyundai XTeer 1011122, Hyundai XTeer 1041122, Hyundai XTeer 1201122, Mitsubishi MZ320150, Mitsubishi MZ320151, Toyota 0888082644, Toyota 0888082644GO, Toyota 0888082645, VAG G055167M2, VAG G055167M4, VAG G055167M6, VAG G055167M9, VAG GR55167M2, VAG GR55167M4, VAG GR55167M6, VAG GR55167M9, VAG GV55167M2, VAG GVWR55167M2, Volvo 1161711, Volvo 1161719, Volvo 1161726, Volvo 1161726 Honda 08232P99B1CB1, Honda 08232P99B1LHE, Honda 08232P99B2LHE, Honda 08232P99B4LHE, Honda 08232P99B5LHE, Honda 08232P99B6CB1, Honda 08232P99B6LHE, Honda 08250P99B1BA1, Honda 08250P99B6BA1, Hyundai XTeer 1011122, Hyundai XTeer 1041122, Hyundai XTeer 1201122, Mitsubishi MZ320150, Mitsubishi MZ320151, Toyota 0888082644, Toyota 0888082644GO, Toyota 0888082645, VAG G055167M2, VAG G055167M4, VAG G055167M6, VAG G055167M9, VAG GR55167M2, VAG GR55167M4, VAG GR55167M6, VAG GR55167M9, VAG GV55167M2, VAG GVWR55167M2, Volvo 1161711, Volvo 1161719, Volvo 1161726, Volvo 1161726

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111138-001

Code:
4014835795310

Volume:
4 L

vendor code:
1111138-004

Code:
4014835795396

Volume:
5 L

vendor code:
1111138-005

Code:
4014835795358

Volume:
10 L

vendor code:
1111138-010

Code:
4014835795341

Volume:
20 L

vendor code:
1111138-020

Code:
4014835795327

Volume:
20 L, ecobox

vendor code:
1111138-B20

Code:
4014835868250

Volume:
60 L, print

vendor code:
1111138-D60

Code:
4014835795334

Volume:
208 L, print

vendor code:
1111138-D28

Code:
4014835795303

Volume:
1000 L

vendor code:
1111138-700

RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 contributes to protect the environment by reducing the emissions.

RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 guarantees operational safety for all driving conditions, such as extreme stop and go traffic as well as high speed highway trips.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL Super Synthetic Hydrocrack SSH SAE 0W-30 is suitable as an universal fuel economy motor oil for year-round use in all gasoline and diesel engines in passenger cars, station wagons, delivery vans and similar vehicles.

Characteristics

High abrasion resistance
Fuel saving because of easy running characteristics
Excellent detergent and dispersant characteristics
Prevention of black sludge creation
Long endurance because of high oxidation stability
Excellent cold start performance
Very good viscosity temperature behaviour
Low evaporation
Suitable for catalysts

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-98, Renault RN0700, VW 502 00, VW 505 00		BMW Longlife-98, Renault RN0700, VW 502 00, VW 505 00
Brand		RAVENOL		RAVENOL
SAE		0W-30		0W-30
Type		Synthetic		Synthetic
API		SM		SM
ACEA		A3, B4		A3, B4
Manufacturer Approved		MB-Approval 229.5, Renault RN 0710, Volvo VCC 95200356 - Service Fill		MB-Approval 229.5, Renault RN 0710, Volvo VCC 95200356 - Service Fill
Recomendations		BMW Longlife-98, Renault RN 0700, VW 502.00, VW 505.00		BMW Longlife-98, Renault RN 0700, VW 502.00, VW 505.00
Density at 20 °C	g/cm³	842	EN ISO 12185	842 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12.1	DIN 51562-1	12.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	67.2	DIN 51562-1	67.2 mm²/s DIN 51562-1
Viscosity Index VI		178	DIN ISO 2909	178 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.53	ASTM D5481	3.53 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5940	ASTM D5293	5940 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	24.300	ASTM D4684	24.300 mPa*s ASTM D4684
Pourpoint	°C	-49	DIN ISO 3016	-49 °C DIN ISO 3016
Noack Volatility	%	9	ASTM D5800	9 % ASTM D5800
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	10	ASTM D2896	10 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.35	DIN 51575	1.35 %wt. DIN 51575
Approvals		BMW Longlife-98, MB 229.5, Renault RN0700, Renault RN0710, Volvo VCC 95200356 - Service Fill, VW 502.00, VW 505.00		BMW Longlife-98, MB 229.5, Renault RN0700, Renault RN0710, Volvo VCC 95200356 - Service Fill, VW 502.00, VW 505.00

FES 0W-30

For engine

Due to the USVO® technology we achieve an extremely high viscosity stability. We avoid the disadvantages of polymeric viscosity improvers while taking advantage of them. This improves engine protection, performance, engine cleanliness and oil drain intervals. The USVO® technology makes it possible that the product has no shear losses during the entire change interval and is extremely stable to oxidation. This unique technology helps oil lubricate faster, thereby minimizing friction while keeping the engine clean and efficient.

Manufacturer Approved:
BMW Longlife-12 FE, DTFR 15D100, MB-Approval 229.61

Compliance with the requirements:
Chrysler MS-13340, E-REV (Range Extender Electric Vehicle), Fiat 9.55535-DS1, Fiat 9.55535-GS1, Ford WSS-M2C 950-A, IVECO 18-1811 CLASS SC1 LV, Jaguar/Land Rover STJLR.03.5007, MB 227.61, PSA B71 2290, PSA B71 2312

show details

SAE: 0W-30

ILSAC: GF-6A

API: SP (RC)

ACEA: A5, B5, C2

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111146-001

Code:
4014835842724

Volume:
4 L

vendor code:
1111146-004

Code:
4014835842755

Volume:
5 L

vendor code:
1111146-005

Code:
4014835859012

Volume:
10 L

vendor code:
1111146-010

Code:
4014835888197

Volume:
20 L

vendor code:
1111146-020

Code:
4014835853188

Volume:
20 L, ecobox

vendor code:
1111146-B20

Code:
4014835853164

Volume:
60 L

vendor code:
1111146-060

Volume:
60 L, print

vendor code:
1111146-D60

Code:
4014835853201

Volume:
208 L

vendor code:
1111146-208

Code:
4014835853263

Volume:
208 L, print

vendor code:
1111146-D28

Code:
4014835853249

Volume:
1000 L

vendor code:
1111146-700

RAVENOL FES SAE 0W-30 is based on additives with low ash content for use in modern passenger car with diesel and gasoline engines with excellent cold start characteristics, low oil consumption and reduced pollutant emissions. This oil will increase the DPF and TWC life. HTHS >2,9mPa.s. Developed for fuel economy especially for the latest petrol and diesel engines of BMW, PSA, FIAT, IVECO and Jaguar Land Rover.

With its new formulation, RAVENOL FES SAE 0W-30 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL FES SAE 0W-30 helps to protect the environment by reducing emissions.

RAVENOL FES SAE 0W-30 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL FES SAE 0W-30 is a universal fuel economy, especially designed engine oil for modern gasoline and diesel engines with and without turbo charger in passenger cars and vans with extended oil change intervals of BMW, PSA, FIAT, IVECO and Jaguar Land Rover. Extends the lifespan of the particle filter.

Due to the specific composition is RAVENOL FES SAE 0W-30 excellent suitable for use for indicated OEM requirements.

Characteristics

Fuel economy in part and full power operation
Excellent wear protection and high viscosity index also under high-speed driving conditions, the long life of the engine
Excellent cold starting characteristics also at low temperatures
A safe lubricant film at high operating temperatures
Low evaporative tendency, so lower oil consumption
No deposits in combustion chambers, in the piston ring zone and valves because of oil conditioned
Neutrality towards sealing materials
Extended oil change intervals to protect natural resources

Parameter	Unit	Value	Audit
Recommendations		Chrysler MS-13340, Fiat 9.55535-DS1, Fiat 9.55535-GS1, Ford WSS-M2C950-A, IVECO 18-1811 CLASSE SC1 LV, Jaguar Land Rover STJLR.03.5007, MB 227.61, PSA B71 2290, PSA B71 2312		Chrysler MS-13340, Fiat 9.55535-DS1, Fiat 9.55535-GS1, Ford WSS-M2C950-A, IVECO 18-1811 CLASSE SC1 LV, Jaguar Land Rover STJLR.03.5007, MB 227.61, PSA B71 2290, PSA B71 2312
Brand		RAVENOL		RAVENOL
SAE		0W-30		0W-30
Type		Full synthetic		Full synthetic
API		SP (RC)		SP (RC)
ACEA		A5, B5, C2		A5, B5, C2
ILSAC		GF-6A		GF-6A
Manufacturer Approved		BMW Longlife-12 FE, DTFR 15D100, MB-Approval 229.61		BMW Longlife-12 FE, DTFR 15D100, MB-Approval 229.61
Recomendations		Chrysler MS-13340, Fiat 9.55535-DS1, Fiat 9.55535-GS1, Ford WSS-M2C 950-A, IVECO 18-1811 CLASS SC1 LV, Jaguar/Land Rover STJLR.03.5007, MB 227.61, PSA B71 2290, PSA B71 2312		Chrysler MS-13340, Fiat 9.55535-DS1, Fiat 9.55535-GS1, Ford WSS-M2C 950-A, IVECO 18-1811 CLASS SC1 LV, Jaguar/Land Rover STJLR.03.5007, MB 227.61, PSA B71 2290, PSA B71 2312
Density at 20 °C	g/cm³	844	EN ISO 12185	844 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	9.4	DIN 51562-1	9.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	47.3	DIN 51562-1	47.3 mm²/s DIN 51562-1
Viscosity Index VI		186	DIN ISO 2909	186 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3	ASTM D5481	3 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	4800	ASTM D5293	4800 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	12.300	ASTM D4684	12.300 mPa*s ASTM D4684
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Noack Volatility	%	9	ASTM D5800	9 % ASTM D5800
Flashpoint	°C	236	DIN EN ISO 2592	236 °C DIN EN ISO 2592
tbn	mgKOH/g	9.4	ASTM D2896	9.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.76	DIN 51575	0.76 %wt. DIN 51575
Approvals		BMW Longlife-12 FE, Chrysler MS-13340, DTFR 15D100, Fiat 9.55535-DS1, Fiat 9.55535-GS1, Ford WSS-M2C 950-A, IVECO 18-1811 CLASS SC1 LV, Jaguar/Land Rover STJLR.03.5007, MB 227.61, MB 229.61, PSA B71 2290, PSA B71 2312		BMW Longlife-12 FE, Chrysler MS-13340, DTFR 15D100, Fiat 9.55535-DS1, Fiat 9.55535-GS1, Ford WSS-M2C 950-A, IVECO 18-1811 CLASS SC1 LV, Jaguar/Land Rover STJLR.03.5007, MB 227.61, MB 229.61, PSA B71 2290, PSA B71 2312

SHL 0W-40

For engine

RAVENOL SHL SAE 0W-40 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

Manufacturer Approved:
MB-Approval 229.5, Porsche A40, Renault RN 0710, VW 502.00, VW 505.00

Compliance with the requirements:
BMW Longlife-01, Ford WSS-M2C 937-A, Renault RN 0700

show details

SAE: 0W-40

API: SN

ACEA: A3, B4

Equivalents OEM:
BMW 83210144459, BMW 83212365515, BMW 83212405609, BMW 83212405635, BMW 83212405635, BMW 83212406983, FEBI 101140, FEBI 101141, FEBI 101142, FEBI 101143, FEBI 101144, Renault 8671000073, Renault 8671000074, Renault 8671000075, SWAG 30101140, SWAG 30101141, SWAG 30101142, SWAG 30101143, SWAG 30101144

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1111127-001

Code:
4014835868809

Volume:
4 L

vendor code:
1111127-004

Code:
4014835868830

Volume:
5 L

vendor code:
1111127-005

Code:
4014835868861

Volume:
10 L

vendor code:
1111127-010

Code:
4014835868892

Volume:
20 L

vendor code:
1111127-020

Code:
4014835868915

Volume:
20 L, ecobox

vendor code:
1111127-B20

Code:
4014835868977

Volume:
60 L

vendor code:
1111127-060

Volume:
60 L, print

vendor code:
1111127-D60

Code:
4014835868991

Volume:
208 L

vendor code:
1111127-208

Volume:
208 L, print

vendor code:
1111127-D28

Code:
4014835869011

RAVENOL SHL SAE 0W-40 provides a safe layer of lubrication even at very high operating temperatures and protects from corrosion and loss of oil through oxidation or coking. The excellent cold start behavior ensures optimum lubrication safety during the cold running phase.

By significantly reducing fuel consumption, RAVENOL SHL SAE 0W-40 helps to protect the environment by reducing emissions.

RAVENOL SHL SAE 0W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Extended oil change intervals according to the manufacturer’s instructions.

Application Note

RAVENOL SHL SAE 0W-40 guarantees operational safety in all driving conditions such as extreme stop-and-go traffic and high-speed highway driving.

RAVENOL SHL SAE 0W-40 is universal fuel-efficient synthetic engine oil suitable for petrol and diesel engines, with or without turbocharger, in cars and vans with the specified quality classifications.

Characteristics

Excellent cold starting behavior
Fuel savings for part and full load
A very stable and excellent viscosity behavior
Good shear stability
A safe lubricant film at very high operating temperatures
Excellent detergent and dispersant properties
A broad protection against wear, corrosion and foaming
Excellent aging stability
Low evaporation loss
Excellent engine cleanliness

Parameter	Unit	Value	Audit
Recommendations		BMW Longlife-01, Ford WSS-M2C937-A, Renault RN0700		BMW Longlife-01, Ford WSS-M2C937-A, Renault RN0700
Brand		RAVENOL		RAVENOL
SAE		0W-40		0W-40
Type		Synthetic		Synthetic
API		SN		SN
ACEA		A3, B4		A3, B4
Manufacturer Approved		MB-Approval 229.5, Porsche A40, Renault RN 0710, VW 502.00, VW 505.00		MB-Approval 229.5, Porsche A40, Renault RN 0710, VW 502.00, VW 505.00
Recomendations		BMW Longlife-01, Ford WSS-M2C 937-A, Renault RN 0700		BMW Longlife-01, Ford WSS-M2C 937-A, Renault RN 0700
Density at 20 °C	g/cm³	842	EN ISO 12185	842 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	13.46	DIN 51562-1	13.46 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	75	DIN 51562-1	75 mm²/s DIN 51562-1
Viscosity Index VI		185	DIN ISO 2909	185 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	3.84	ASTM D5481	3.84 mPa*s ASTM D5481
CCS Viscosity at -35 °C	mPa*s	5950	ASTM D5293	5950 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -40 °C	mPa*s	28.600	ASTM D4684	28.600 mPa*s ASTM D4684
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	28.600	ASTM D4684	28.600 mPa*s ASTM D4684
Pourpoint	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Noack Volatility	%	9.4	ASTM D5800	9.4 % ASTM D5800
Flashpoint	°C	228	DIN EN ISO 2592	228 °C DIN EN ISO 2592
tbn	mgKOH/g	10.46	ASTM D2896	10.46 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.15	DIN 51575	1.15 %wt. DIN 51575
Approvals		BMW Longlife-01, Ford WSS-M2C 937-A, MB 229.5, Porsche A40, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00		BMW Longlife-01, Ford WSS-M2C 937-A, MB 229.5, Porsche A40, Renault RN0700, Renault RN0710, VW 502.00, VW 505.00

Professional Engine Cleaner

Additive

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

show details

Equivalents OEM:
Ford MF95700400X, Ford MP15700400AB, Mitsubishi MZ100723EX, Polaris 502082, Polaris 502528, Polaris 2881413, Subaru SOA635046, Subaru SOA635046, Suzuki 990LM07590

Available packaging
Full description
Product parameters

Volume:
0.3 L

vendor code:
1390321-300

Code:
4014835862869

RAVENOL Professional Engine Cleaner can also be used in motorcycles.

RAVENOL Professional Engine Cleaner effectively breaks down dirt accumulation and sludge deposits in the engine compartment using intensive-cleaning tensides and removes these effectively when draining used oil.

RAVENOL Professional Engine Cleaner cleans and rinses the entire engine system.

Application Note

RAVENOL Professional Engine Cleaner is added to the warm motor oil.

Area of application:

-If black sludge is suspected

-In the event of hydraulic tappets rattling

-In the event of delayed oil change

-For soiled engines or used oil

-Preventively at every oil change to avoid contamination of the engine

-Also suitable for oldtimers

Dosage: 300 ml RAVENOL Professional Engine Cleaner are sufficient for one application of approx. 5L Oil, regardless of manufacturer and motor size.

Application: Add the contents to the warm motor oil before changing oil. Do not go below the minimum oil level. For maximum effect, allow to run for up to 10 minutes. Afterwards, immediately replace oil and filter.

RAVENOL Professional Engine Cleaner is tried and tested for aggregates with motor oils based on mineraloil and synthetic oil.

Characteristics

Long-term effectiveness and clean fresh oil
Remedy for soiled engines
Protection against compression loss in the area of the piston rings
Leads to better exhaust emissions and increases the performance of the engine

Parameter	Unit	Value	Audit
Color		Light brown	visual	Light brown visual
Flashpoint (PM)	°C	62	DIN ISO 3679	62 °C DIN ISO 3679
Density at 20 °C		805	EN ISO 12185	805 EN ISO 12185
Viscosity at 40 °C	mm²/s	7	DIN EN ISO 3104	7 mm²/s DIN EN ISO 3104
Brand		RAVENOL		RAVENOL

Mechanical gearbox in a unit with final drive 6/1 GWM 7DCT450

Liquid volume (basic): 4.45 L

DCT-DSG LV Fluid

Transmission oil

RAVENOL DCT-LV Fluid was developed for the use of the third generation in the 7-speed dual clutch transmission by Magna GETRAG especially for the Daimler specification MB 239.21.

Compliance with the requirements:
BMW DCTF-2, BOT 351 C4, Ford F-DC, Ford WSS-M2C 218-A1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW TL 52529-C

show details

Equivalents OEM:
BMW 83225B3AC81, BMW 83222433157, Chery 9009011085, FEBI 171871, FEBI 4054224718711, Ford 2426698, Ford KU7JM2C218AA, Hyundai 0023219101, Hyundai 043002N110, Hyundai 043002N110EU, Hyundai UM020CH266, MB A0009892002, MB A0009896104, MB A000989610409, MB A000989610410, MB A000989610411, MB A000989610412, Renault 7711579594, Renault 7711782057, Renault 7711785242, Renault 7711785243, Renault 7711945804, Renault 7711945805, Renault 7711945827, Renault 9141860904, SWAG 33101041, SWAG 4054228718717, VAG G055529A2, VAG G055529Z2, Volvo 32240419, Volvo 32240419 BMW 83225B3AC81, BMW 83222433157, Chery 9009011085, FEBI 171871, FEBI 4054224718711, Ford 2426698, Ford KU7JM2C218AA, Hyundai 0023219101, Hyundai 043002N110, Hyundai 043002N110EU, Hyundai UM020CH266, MB A0009892002, MB A0009896104, MB A000989610409, MB A000989610410, MB A000989610411, MB A000989610412, Renault 7711579594, Renault 7711782057, Renault 7711785242, Renault 7711785243, Renault 7711945804, Renault 7711945805, Renault 7711945827, Renault 9141860904, SWAG 33101041, SWAG 4054228718717, VAG G055529A2, VAG G055529Z2, Volvo 32240419, Volvo 32240419

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1212107-001

Code:
4014835878587

Volume:
4 L

vendor code:
1212107-004

Code:
4014835878648

Volume:
10 L

vendor code:
1212107-010

Code:
4014835878679

Volume:
20 L

vendor code:
1212107-020

Code:
4014835878693

Volume:
20 L, ecobox

vendor code:
1212107-B20

Code:
4014835878761

Volume:
60 L

vendor code:
1212107-060

Code:
4014835878716

Volume:
60 L, print

vendor code:
1212107-D60

Volume:
208 L

vendor code:
1212107-208

Code:
4014835878730

Volume:
208 L, print

vendor code:
1212107-D28

Volume:
1000 L

vendor code:
1212107-700

RAVENOL DCT-LV Fluid was developed for the use of the third generation in the 7-speed dual clutch transmission by Magna GETRAG especially for the Daimler specification MB 239.21.

RAVENOL DCT-LV Fluid guarantees an optimum of power transmission and excellent clutch performance under extreme loads in midsummer as well as at low temperatures in winter.

Application Note

RAVENOL DCT-LV Fluid was specially developed for dual-clutch transmissions from various car manufacturers such as BMW, Ford, Mercedes, VW/Audi.

RAVENOL DCT-LV Fluid is used to lubricate clutches in 7-speed Magna GETRAG dual-clutch transmissions (7DCT300/ 6DCT200/ 6DCT150). It can be used in direct shift transmissions with wet or dry clutches.

Characteristics

Very good lubricating ability even at low temperatures
A high, stable viscosity index
Protection against wear, corrosion and foam formation
Excellent viscosity-temperature behavior
High thermal and oxidative stability
Neutral behavior towards sealing materials
Stable lubricating film under extreme loads in summer

Parameter	Unit	Value	Audit
Viscosity at 100 °C	mm²/s	5.55	DIN 51562-1	5.55 mm²/s DIN 51562-1
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Viscosity at 40 °C	mm²/s	23.77	DIN 51562-1	23.77 mm²/s DIN 51562-1
Brookfield Viscosity at -40 °C	mPa*s	3100	ASTM D2983	3100 mPa*s ASTM D2983
Viscosity Index VI		187	DIN ISO 2909	187 DIN ISO 2909
Recommendations		BMW 83222433157, BMW DCTF-2, BOT 351 C4, Chery 730DHB/DHC 7DCT300, Chery 738DHA 7DCT380, Chery 9009011085, Ford F-DC, Ford WSS-M2C218-A1, Great Wall GW7DCT1, Great Wall GWM 7DCT450, Hyundai/Kia 04300-2N110 WDHO-1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault 7711785243, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW G 055 529 A2, VW TL 52529-C		BMW 83222433157, BMW DCTF-2, BOT 351 C4, Chery 730DHB/DHC 7DCT300, Chery 738DHA 7DCT380, Chery 9009011085, Ford F-DC, Ford WSS-M2C218-A1, Great Wall GW7DCT1, Great Wall GWM 7DCT450, Hyundai/Kia 04300-2N110 WDHO-1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault 7711785243, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW G 055 529 A2, VW TL 52529-C
Brookfield Viscosity at -55 °C	mPa*s	17200	ASTM D2983	17200 mPa*s ASTM D2983
Type		Full synthetic		Full synthetic
Brand		RAVENOL		RAVENOL
Recomendations		BMW DCTF-2, BOT 351 C4, Ford F-DC, Ford WSS-M2C 218-A1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW TL 52529-C		BMW DCTF-2, BOT 351 C4, Ford F-DC, Ford WSS-M2C 218-A1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW TL 52529-C
Compliant products		BMW 83222433157, Chery 730DHB/DHC 7DCT300, Chery 738DHA 7DCT380, Chery 9009011085, Hyundai/Kia 04300-2N110 WDHO-1, Renault 7711785243, VW G 055 529		BMW 83222433157, Chery 730DHB/DHC 7DCT300, Chery 738DHA 7DCT380, Chery 9009011085, Hyundai/Kia 04300-2N110 WDHO-1, Renault 7711785243, VW G 055 529
Density at 20 °C	g/cm³	832	EN ISO 12185	832 g/cm³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Pourpoint	°C	-75	DIN ISO 3016	-75 °C DIN ISO 3016
Approvals		BMW DCTF-2, BOT 351 C4, Ford F-DC, Ford WSS-M2C 218-A1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW TL 52529-C		BMW DCTF-2, BOT 351 C4, Ford F-DC, Ford WSS-M2C 218-A1, Kunlun DCTF-7S, MB 236.22, MB 239.21, MB 239.22, Pentonsin FFL-7A, Renault DW5, Sinopec DCTF-GS, VW G 055 529, VW TL 52529-C

Mechanical gearbox in a unit with final drive 6/1 ZM016BF

Liquid volume (basic): 2.7 L

MTF-1 75W-85

For gearbox

RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

Compliance with the requirements:
DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513

show details

SAE: 75W-85

API: GL-4, GL-5

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1221102-001

Code:
4014835719613

Volume:
4 L

vendor code:
1221102-004

Code:
4014835719699

Volume:
10 L

vendor code:
1221102-010

Code:
4014835719644

Volume:
20 L

vendor code:
1221102-020

Code:
4014835719620

Volume:
20 L, ecobox

vendor code:
1221102-B20

Code:
4014835788329

Volume:
60 L

vendor code:
1221102-060

Code:
4014835719668

Volume:
60 L, print

vendor code:
1221102-D60

Volume:
208 L

vendor code:
1221102-208

Code:
4014835719682

Volume:
208 L, print

vendor code:
1221102-D28

Volume:
1000 L

vendor code:
1221102-700

RAVENOL MTF-1 SAE 75W-85 is designed based on special selected base oils and specially coordinated additive treatment. This exceeds the needs of today's application requirements.

RAVENOL MTF-1 SAE 75W-85 is outstanding for use under severe mechanical and thermal stress on transmission oils, even with extended oil change intervals.

Application Note

RAVENOL MTF-1 SAE 75W-85 is high-performance gear oil for manual transmission, transfer cases and differential gears.

Characteristics

Excellent thermal stability.
High protection from rust, corrosion, foaming.
Low solidification point.
Excellent EP properties.
Good shifting behavior in low temperatures.
Extended life.
Fuel savings.

Parameter	Unit	Value	Audit
Recommendations		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB 235.4 (A 001 989 14 03), Mitsubishi 3717610, MTF BOT 0063 für F35/MU3 5-speed SAAB/GM/Opel, MTF BOT 402, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Opel/GM B0402071, Toyota 08885-02606, Toyota 08885-81060, VW G 052 513
SAE		75W-85		75W-85
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
API		GL-4, GL-5		GL-4, GL-5
Recomendations		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513
Compliant products		GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060		GM 1940182, GM 93740319, Hyundai 04300-00110, Hyundai 04300-00140, Hyundai 08950-00020-A, Hyundai 08950-00020-B, MB A 001 989 14 03, Mitsubishi 3717610, Nissan 999MP-MTF00P, Nissan KE91699931, Nissan KE91699942, Nissan KLD26-75802, Toyota 08885-02606, Toyota 08885-81060
Density at 20 °C	g/cm³	855	EN ISO 12185	855 g/cm³ EN ISO 12185
Color		Red	visual	Red visual
Brookfield Viscosity at -40 °C	mPa*s	38.800	ASTM D2983	38.800 mPa*s ASTM D2983
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513		DTFR 13B150 (MB 235.4), Fiat 9.55550-MZ1, Fiat 9.55550-MZ3, GM B0402071, MB 235.4, MTF BOT 0063, MTF BOT 402, VW G 052 513

Power steering

Liquid volume (basic): 0.8 L

Hydraulik PSF Fluid

For power steering

RAVENOL Hydraulik PSF Fluid is guaranteeing an optimized power transmission.

Compliance with the requirements:
Honda PSF-S, KIA PSF-III, Mazda PSF, Mitsubishi DIAMOND PSF-2M, Subaru PS Fluid, Toyota PSF-EH

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1181000-001

Code:
4014835736313

Volume:
4 L

vendor code:
1181000-004

Code:
4014835736399

Volume:
10 L

vendor code:
1181000-010

Code:
4014835736344

Volume:
20 L

vendor code:
1181000-020

Volume:
20 L, ecobox

vendor code:
1181000-B20

Code:
4014835784222

Volume:
60 L

vendor code:
1181000-060

Volume:
208 L

vendor code:
1181000-208

Code:
4014835736382

Volume:
1000 L

vendor code:
1181000-700

RAVENOL Hydraulik PSF Fluid is guaranteeing an optimized power transmission.

RAVENOL Hydraulik PSF Fluid is produced on the basis of high quality base oils with special additives and inhibition which guarantees a perfect function of the hydraulics.

Application Note

RAVENOL Hydraulik PSF Fluid is especially developed for the use as a hydraulic fluid in power transmissions.

Characteristics

A very low pour point
An excellent foam prevention, no foam formation
A good lubricating ability even at low temperatures in winter
A high, stable viscosity index
A very good oxidation stability
Excellent protection against wear and tear, corrosion and foam formation
Fine tuned coefficient of friction
eutral behaviour against sealing materials
Neutral behaviour because of inhibition against non ferrous metals

Parameter	Unit	Value	Audit
Recommendations		Citroën/Peugeot 9735EJ für C-Crosser, Peugeot 4007, Honda PSF-S, Hyundai PSF-3, KIA PSF-III, Mazda PSF, Mitsubishi Diamond PSF-2M, Peugeot 4007, Subaru PS Fluid, Toyota PSF-EH		Citroën/Peugeot 9735EJ für C-Crosser, Peugeot 4007, Honda PSF-S, Hyundai PSF-3, KIA PSF-III, Mazda PSF, Mitsubishi Diamond PSF-2M, Peugeot 4007, Subaru PS Fluid, Toyota PSF-EH
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Recomendations		Honda PSF-S, KIA PSF-III, Mazda PSF, Mitsubishi DIAMOND PSF-2M, Subaru PS Fluid, Toyota PSF-EH		Honda PSF-S, KIA PSF-III, Mazda PSF, Mitsubishi DIAMOND PSF-2M, Subaru PS Fluid, Toyota PSF-EH
Suitable for		PSA 4007		PSA 4007
Compliant products		Hyundai PSF-3, PSA 9735.EJ		Hyundai PSF-3, PSA 9735.EJ
Density at 20 °C	g/cm³	847	EN ISO 12185	847 g/cm³ EN ISO 12185
Color		Red	visual	Red visual
Viscosity at 100 °C	mm²/s	7.2	DIN 51562-1	7.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	34.8	DIN 51562-1	34.8 mm²/s DIN 51562-1
Viscosity Index VI		178	DIN ISO 2909	178 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	12800	ASTM D2983	12800 mPa*s ASTM D2983
Pourpoint	°C	-48	DIN ISO 3016	-48 °C DIN ISO 3016
Flashpoint	°C	211	DIN EN ISO 2592	211 °C DIN EN ISO 2592
Approvals		Honda PSF-S, KIA PSF-III, Mazda PSF, Mitsubishi DIAMOND PSF-2M, Subaru PS Fluid, Toyota PSF-EH		Honda PSF-S, KIA PSF-III, Mazda PSF, Mitsubishi DIAMOND PSF-2M, Subaru PS Fluid, Toyota PSF-EH

Hydraulic brake system

Liquid volume (basic): 0.85 L

DOT 4

For brake system

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

show details

Available packaging
Full description
Product parameters

Volume:
250 ml

vendor code:
1350601-250

Code:
4014835692121

Volume:
500 ml

vendor code:
1350601-500

Code:
4014835692152

Volume:
1 L

vendor code:
1350601-001

Code:
4014835692114

Volume:
20 L

vendor code:
1350601-020

DOT 4

Because of the special formulation of RAVENOL DOT 4 the international specifications SAE J 1704, ISO 4925 and the safety regulations FMVSS 116 DOT 3 and DOT 4 from the United States of America are exceeded.

Application Note

RAVENOL DOT can be used in all vehicles for which the DOT 4 specification for brake fluids is required. It is suitable for all hydraulic brake systems with synthetic fluids.

RAVENOL DOT is miscible with all known brake fluids of the same specification. To use the high performance level of RAVENOL DOT , a complete change of the brake fluid is recommended.

RAVENOL DOT is not suitable for vehicles with mineral oil systems (e.g. certain Citroën models).

FOLLOW VEHICLE MANUFACTURERS RECOMMENDATIONS WHEN ADDING BRAKE FLUID KEEP BRAKE FLUID CLEAN AND DRY. Contamination with dirt, water, petroleum products or other materials may result in brake failure or costly repairs.

STORE BRAKE FLUID ONLY IN ITS ORIGINAL CONTAINER. KEEP CONTAINER CLEAN AND TIGHTLY CLOSED TO PREVENT ADSORPTION OF WATER. CAUTION! DO NOT REFILL CONTAINER AND DO NOT USE FOR OTHER LIQUIDS.

Dispose of used brake fluid responsibly (EU waste code 160113).

Brake fluid damages paint work –if spilt wash off immediately with plenty of water.

Characteristics

optimum ABS characteristics
chemical stability
best lubrication efficiency
neutral behaviour regarding brake parts
low viscosity at low temperatures
miscible with all brake fluids of the same specifications

Parameter	Unit	Value	Audit
FMVSS 116 specifications (DOT)		DOT-4		DOT-4
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
specification		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704
Density at 20 °C	g/cm³	1052	EN ISO 12185	1052 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mPa*s	2.41	ASTM D445	2.41 mPa*s ASTM D445
Viscosity at -40 °C	cSt	1340	ASTM D445	1340 cSt ASTM D445
Boiling point	°C	271	FMVSS 116	271 °C FMVSS 116
Wet Equilibrium Reflux Boiling Point	°C	169	FMVSS 116	169 °C FMVSS 116
High Temperature Stability	°C	-1	FMVSS 116	-1 °C FMVSS 116
Chemical Stability	°C	1	FMVSS 116	1 °C FMVSS 116
Evaporation	%w/w	61	FMVSS 116	61 %w/w FMVSS 116
Fluidity & Appearance at -40 °C		i.O., 4s	FMVSS 116	i.O., 4s FMVSS 116
Fluidity & Appearance at -50 °C		i.O., 8s	FMVSS 116	i.O., 8s FMVSS 116
Water Tolerance at -40 °C		transparent, 3s	FMVSS 116	transparent, 3s FMVSS 116
Water Tolerance at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at -40 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Compatibility at +60 °C		Transparent	FMVSS 116	Transparent FMVSS 116
Water content	%	— 0.2	DIN 51777-1	— 0.2 % DIN 51777-1
Tinned Iron	Δ mg/cm²	0.04	FMVSS 116	0.04 Δ mg/cm² FMVSS 116
Steel	mg/cm²	-0.01	FMVSS 116	-0.01 mg/cm² FMVSS 116
Aluminium	mg/cm²	0.02	FMVSS 116	0.02 mg/cm² FMVSS 116
Cast Iron	Δ mg/cm²	-0,03	FMVSS 116	-0,03 Δ mg/cm² FMVSS 116
Brass	mg/cm²	-0.08	FMVSS 116	-0.08 mg/cm² FMVSS 116
Copper	mg/cm²	-0.05	FMVSS 116	-0.05 mg/cm² FMVSS 116
Zinc	mg/cm²	0.01	FMVSS 116	0.01 mg/cm² FMVSS 116
Sediment	%	— 0.05	FMVSS 116	— 0.05 % FMVSS 116
pH - value		8.2	FMVSS 116	8.2 FMVSS 116
Rubber Diameter Change		0.16	FMVSS 116	0.16 FMVSS 116
Hardness Change	°IRHD	-4	FMVSS 116	-4 °IRHD FMVSS 116
Appearance		i.O.	FMVSS 116	i.O. FMVSS 116
SBR at 70 °C	mm	0.56	FMVSS 116	0.56 mm FMVSS 116
SBR at 120 °C	mm	0.73	FMVSS 116	0.73 mm FMVSS 116
EPDM at 70 °C (as required by SAE J1703)	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
EPDM at 120 °C	IRHD	-2	FMVSS 116	-2 IRHD FMVSS 116
Natural at 70 °C (as required by ISO 4925)	mm	0.38	FMVSS 116	0.38 mm FMVSS 116
Approvals		DOT 4, ISO 4925 Class 4, SAE J 1704		DOT 4, ISO 4925 Class 4, SAE J 1704

Cooling system

Liquid volume (basic): 7.2 L

OTC Organic Technology Coolant Premix -40°C

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection. That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

Compliance with the requirements:
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

show details

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410112-150

Code:
4014835755512

Volume:
5 L

vendor code:
1410112-005

Code:
4014835755550

Volume:
10 L

vendor code:
1410112-010

Volume:
20 L

vendor code:
1410112-020

Code:
4014835755529

Volume:
20 L, ecobox

vendor code:
1410112-B20

Code:
4014835855953

Volume:
60 L, plastic

vendor code:
1410112-060

Code:
4014835755567

Volume:
208 L

vendor code:
1410112-208

Code:
4014835755581

Volume:
1000 L

vendor code:
1410112-700

RAVENOL OTC Organic Techn. Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL OTC Organic Techn. Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL OTC Organic Techn. Coolant Premix -40°C to radiator to fill line.

RAVENOL OTC Organic Techn. Coolant Premix -40°C can also be used as a “ready for use” dilution in geothermal probes and geothermal collectors as recommended list of LAWA (Federal / State Working Group on Water in Germany). RAVENOL OTC Organic Techn. Coolant Concentrate is included in the list of recommendations of the LAWA for water management requirements for geothermal probes and geothermal collectors.

Characteristics

Excellent for light metal engines
Good reserve alkalinity
Premium corrosion additives for optimal rust protection for all metals and metal alloys used in coolsystems, including aluminium
Prevents sediments and foaming in the cooling system
Compatible with elastomers used in automotive radiators
Can be mixed with other coolant types

Parameter	Unit	Value	Audit
Recommendations		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, MB 326.3 (Premix), Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, MB 326.3 (Premix), Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
Brand		RAVENOL		RAVENOL
Recomendations		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
Suitable for		Jaguar Land Rover STJLR.651.5003, Porsche		Jaguar Land Rover STJLR.651.5003, Porsche
Compliant products		Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F		Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
Density at 20 °C	g/cm³	1070	EN ISO 12185	1070 g/cm³ EN ISO 12185
Color		Violet	visual	Violet visual
pH - value at 20 °C		7,5 - 8,5	ASTM D1287	7,5 - 8,5 ASTM D1287
Freezing point	°C	-40	ASTM D1177	-40 °C ASTM D1177
Approvals		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), DTFR 29D110 (MB 326.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, MB 326.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

OTC - Protect C12+ Concentrate

Coolant

Compliance with the requirements:
DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

show details

Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410110-150

Code:
4014835755413

Volume:
5 L

vendor code:
1410110-005

Code:
4014835755451

Volume:
10 L

vendor code:
1410110-010

Volume:
20 L

vendor code:
1410110-020

Code:
4014835755420

Volume:
20 L, ecobox

vendor code:
1410110-B20

Code:
4014835855212

Volume:
60 L, plastic

vendor code:
-

Code:
4014835755437

Volume:
60 L

vendor code:
1410110-060

Code:
4014835755468

Volume:
60 L, print

vendor code:
1410110-D60

Volume:
1000 L

vendor code:
1410110-700

Volume:
208 L

vendor code:
1410110-208

Code:
4014835755482

RAVENOL OTC Organic Techn. Coolant Concentrate C12+ protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with highly effective frost and rust protection. Usable in cooling systems with all-aluminium engines. Mix according to chart. Follow manufacturer's recommendations.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL OTC Organic Techn. Coolant Concentrate C12+ with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

RAVENOL OTC Organic Techn. Coolant Concentrate C12+ can also be used in geothermal probes and geothermal collectors as recommended list of LAWA (Federal / State Working Group on Water in Germany).

MAN information for use:

Mixing prohibited with Type NF and Type N. Do not use silicone radiator hoses per MAN 334 Type 3 (blue) with coolants per MAN 324 Type SNF.

Table of mixing ratios
Antifreeze protection until	Parts Antifreeze	Parts Water
-20°C	35%	65%
-37°C	50%	50%
-50°C	60%	40%

Characteristics

Excellent for light metal engines
Good reserve alkalinity
Premium corrosion additives for optimal rust protection for all metals and metal alloys used in cool
systems, including aluminium
Prevents sediments and foaming in the cooling system
Compatible with elastomers used in automotive radiators
Can be mixed with other coolant types

Parameter	Unit	Value	Audit
Recommendations		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford 1336797, Ford 1336807, Ford 1365305, Ford WSS-M97B44-D (ab Modell 1999), Jaguar JLM 209722, Jaguar Land Rover STJLR.651.5003, Land Rover STC50529, MAN 324 SNF, MB 325.3, Mitsubishi 0103044, Mitsubishi 0103045, Mitsubishi MZ311986, Opel/GM 6277 M, Opel/GM B0401065, Porsche, SAE J1034, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VOLVO VCS (STD 418-0001), VW G 012 A8F M1, VW G 012 A8F M8, VW G 012 A8F M9, VW TL 774-F (entspricht G12+), VW/Audi TL 774-D (entspricht G12+)
Brand		RAVENOL		RAVENOL
Recomendations		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F
Suitable for		Jaguar Land Rover STJLR.651.5003, Porsche		Jaguar Land Rover STJLR.651.5003, Porsche
Compliant products		Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F		Ford 1336797, Ford 1336807, Ford 1365305, Jaguar JLM 209722, Land Rover STC50529, Mitsubishi 103044, Mitsubishi 103045, Mitsubishi MZ311986, Toyota 00272-1LLAC, Toyota 08889-00115, Toyota 08889-01005, Toyota 08889-80014, Toyota 08889-80015, Volvo 9437650, Volvo 9437651, VW G 012 A8F
Density at 20 °C	g/cm³	1130	EN ISO 12185	1130 g/cm³ EN ISO 12185
Color		Violet	visual	Violet visual
Reserve alkalinity	mgKOH/g	5.5 —	ASTM D1120	5.5 — mgKOH/g ASTM D1120
Boiling point	°C	187	ASTM D1121	187 °C ASTM D1121
Water content	%	— 5	ASTM D1123	— 5 % ASTM D1123
Flashpoint	°C	110 —	DIN 51758	110 — °C DIN 51758
Freezing point (50 % solution)	°C	-37	ASTM D1177	-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %)		7,5 - 8,5	ASTM D1287	7,5 - 8,5 ASTM D1287
Approvals		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F		DAF 74002, Deutz DQC CB-14, DTFR 29C110 (MB 325.3), Ford WSS-M97 B44-D, GM 6277 M, GM B0401065, MAN 324 Type SNF, MB 325.3, SAE J 1034, Volvo VCS, VW G 012 A8F, VW TL 774-D, VW TL 774-F

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter	Value
Recommendations	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand	RAVENOL	RAVENOL
Recomendations	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272
Approvals	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272

Professional Radiator Cleaner

Additive

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

show details

Equivalents OEM:
Ford MP14300500AB

Available packaging
Full description
Product parameters

Volume:
0.25 L

vendor code:
1390302-250

Code:
4014835802667

RAVENOL Professional Radiator Cleaner breaks down and binds greasy and oily deposits in radiators, heating systems and pipelines.

RAVENOL Professional Radiator Cleaner infiltrates and eliminates sludge and corrosion deposits.RAVENOL Professional Radiator Stop Cleaner neutralises lime residue.

Application Note

RAVENOL Professional Radiator Cleaner is added to the radiator. It is recommended to replace rubber parts affected by oil seepage.

Area of application:

Radiator repairs

In the event of reduced radiator performance

In the event of deposits in the cooling system

Changing coolant

For cleaning purposes after engine repairs due to oil in the cooling system

Application: RAVENOL Professional Radiator Cleaner suffices for up to 10 litres of coolant.

Fill in

RAVENOL Professional Radiator Cleanerin the used coolant and allow the engine to run at operating temperature for approx. 30 minutes. Drain contaminated mixture – in the case of severe contamination, repeat treatment if necessary. Rinse cooling system with clear water. Refill and remove air after cleaning the cooling system and check for leak tightness.

RAVENOL Professional Radiator Cleaner can lead to an improved cooling performance after repairs on the cooling system.

Characteristics

Cleaning of the cooling and heating system
Protection of the new coolant against prior contamination
Elimination of sludge and corrosion residue

Parameter	Unit	Value	Audit
Color		Colorless	visual	Colorless visual
Density at 20 °C	g/cm³	1003	EN ISO 12185	1003 g/cm³ EN ISO 12185
pH - value at 20 °C		10,25	DIN 19268	10,25 DIN 19268
Brand		RAVENOL		RAVENOL
