Oil for Moxy Dump trucks with articulated frame MT41 (S/N 810109->) (year of issue from 2008 date to present). Motor, automatic transmission oil, transmission, antifreeze, gur fluid, brake fluid

Search by VIN, brand, model, type of equipment or unit name, by article of any oil:

Oil for Moxy - Dump trucks with articulated frame - MT41 (S/N 810109->)

Moxy Dump trucks with articulated frame MT41 (S/N 810109->), year of issue from 2008 date to 2011 - Engine oil, automatic transmission, transmission oil, antifreeze, brake fluid, power steering fluid (power steering) and other fluids.

Add to Garage

Engine Scania DC12 Stage 3/Tier III

Liquid volume (basic): 34 L

Ultra Synthetik Truck 5W-30

For diesels

This fuel saving lubricant has mainly been developed for heavy diesel engines even under the toughest operation conditions and all the year round use.

Manufacturer Approved:
Caterpillar ECF-3, Deutz DQC IV-18 LA, DTFR 15C100, DTFR 15C110, DTFR 15C120, Mack EOS-4.5, MAN M 3677, MTU Type 3.1, Renault RLD-3, Scania LDF-4, Volvo VDS-4.5

Compliance with the requirements:
Cummins CES 20081, Cummins CES 20086, DAF PSQL 2.1E LD, DDC 93K222, Deutz TTCD-Motors, DTFR 13D110 (MB 235.28), Ford WSS-M2C 213-A1, IVECO 18-1804 TLS E6, Liebherr LH-00-ENG LA, MAN M 3271-1, MAN M 3297-1, MAN M 3477, MAN M 3575, MAN M 3691, MAN M 3777, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, Scania Low Ash, Voith Retarder B, Volvo CNG

show details

SAE: 5W-30

API: CJ-4, CK-4, SN

ACEA: E4, E6, E7, E8, E9, E11

Available packaging
Full description
Product parameters

Volume:
10 L

vendor code:
1121102-010

Code:
4014835847347

Volume:
20 L

vendor code:
1121102-020

Code:
4014835847361

Volume:
20 L, ecobox

vendor code:
1121102-B20

Volume:
60 L

vendor code:
1121102-060

Volume:
208 L

vendor code:
1121102-208

Code:
4014835847408

Volume:
208 L, print

vendor code:
1121102-D28

Volume:
1000 L

vendor code:
1121102-700

This fuel saving lubricant has mainly been developed for heavy diesel engines even under the toughest operation conditions and all the year round use.

RAVENOL Ultra Synthetik Truck SAE 5W-30 is suitable for application in engines with or without particle filters and exhaust catalysts. The SAE 5W-30 viscosity range ensures reliable cold starting at low ambient temperatures and full lubricity at high operating temperatures. The use of shearstable additives guarantees that the SAE grade 5W-30 is maintained throughout the entire oil change interval.

RAVENOL Ultra Synthetik Truck SAE 5W-30 is developed as SHPD Motoroil (Super High Performance Diesel). Extended oil change intervals according to manufacturer's specifications.

Application Note

RAVENOL Ultra Synthetik Truck SAE 5W-30 is a year round high performance motor oil, especially designed for economic use in exhaust-optimized engines with exhaust aftertreatment systems. Follow manufacturer's instructions.

Characteristics

Increased TBN
High wear protection
Outstanding oxidation stability
Excellent high temperature stability
Outstanding detergent and dispersant properties
Efficiency through low fuel consumption
Long service life due to high oxidation stability
Outstanding cold start behaviour, rapid engine oiling even at low temperatures
Very good viscosity-temperature behavior
Neutrality towards seals
Low oil consumption due to the low evaporation loss through PAO and HC base oils

Parameter	Unit	Value	Audit
Recommendations		Cummins CES 20081, Cummins CES 20086, DAF PSQL 2.1E LD, Detroit Diesel DDC 93K222, Deutz TTCD Motors, DTFR 13D110 (MB 235.28), Ford WSS-M2C213 A1, IVECO 18-1804 TLS E6, JASO DH-2, Liebherr LH-00-ENG LA, MAN 3297-1, MAN 3691, MAN M 3271-1, MAN M 3477, MAN M 3575, MAN M 3777, MB 228.31, MB 228.51, MB 235.28, MTU Typ 2.1, Scania LowAsh, Voith Retarder B, VOLVO CNG		Cummins CES 20081, Cummins CES 20086, DAF PSQL 2.1E LD, Detroit Diesel DDC 93K222, Deutz TTCD Motors, DTFR 13D110 (MB 235.28), Ford WSS-M2C213 A1, IVECO 18-1804 TLS E6, JASO DH-2, Liebherr LH-00-ENG LA, MAN 3297-1, MAN 3691, MAN M 3271-1, MAN M 3477, MAN M 3575, MAN M 3777, MB 228.31, MB 228.51, MB 235.28, MTU Typ 2.1, Scania LowAsh, Voith Retarder B, VOLVO CNG
SAE		5W-30		5W-30
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
API		CJ-4, CK-4, SN		CJ-4, CK-4, SN
ACEA		E11, E4, E6, E7, E8, E9		E11, E4, E6, E7, E8, E9
JASO		DH-2		DH-2
Manufacturer Approved		Caterpillar ECF-3, Deutz DQC IV-18 LA, DTFR 15C100, DTFR 15C110, DTFR 15C120, Mack EOS-4.5, MAN M 3677, MTU Type 3.1, Renault RLD-3, Scania LDF-4, Volvo VDS-4.5		Caterpillar ECF-3, Deutz DQC IV-18 LA, DTFR 15C100, DTFR 15C110, DTFR 15C120, Mack EOS-4.5, MAN M 3677, MTU Type 3.1, Renault RLD-3, Scania LDF-4, Volvo VDS-4.5
Recomendations		Cummins CES 20081, Cummins CES 20086, DAF PSQL 2.1E LD, DDC 93K222, Deutz TTCD-Motors, DTFR 13D110 (MB 235.28), Ford WSS-M2C 213-A1, IVECO 18-1804 TLS E6, Liebherr LH-00-ENG LA, MAN M 3271-1, MAN M 3297-1, MAN M 3477, MAN M 3575, MAN M 3691, MAN M 3777, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, Scania Low Ash, Voith Retarder B, Volvo CNG		Cummins CES 20081, Cummins CES 20086, DAF PSQL 2.1E LD, DDC 93K222, Deutz TTCD-Motors, DTFR 13D110 (MB 235.28), Ford WSS-M2C 213-A1, IVECO 18-1804 TLS E6, Liebherr LH-00-ENG LA, MAN M 3271-1, MAN M 3297-1, MAN M 3477, MAN M 3575, MAN M 3691, MAN M 3777, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, Scania Low Ash, Voith Retarder B, Volvo CNG
Density at 20 °C	g/cm³	852	EN ISO 12185	852 g/cm³ EN ISO 12185
Color		Brown	visual	Brown visual
Viscosity at 100 °C	mm²/s	12.2	DIN 51562-1	12.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	73.6	DIN 51562-1	73.6 mm²/s DIN 51562-1
Viscosity Index VI		164	DIN ISO 2909	164 DIN ISO 2909
CCS Viscosity at -30 °C	mPa*s	5900	ASTM D5293	5900 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	21.500	ASTM D4684	21.500 mPa*s ASTM D4684
Pourpoint	°C	-45	DIN ISO 3016	-45 °C DIN ISO 3016
Noack Volatility	%	11.8	ASTM D5800	11.8 % ASTM D5800
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	13.9	ASTM D2896	13.9 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	0.97	DIN 51575	0.97 %wt. DIN 51575
Approvals		Caterpillar ECF-3, Cummins CES 20081, Cummins CES 20086, DAF PSQL 2.1E LD, DDC 93K222, Deutz DQC IV-18 LA, Deutz TTCD-Motors, DTFR 13D110 (MB 235.28), DTFR 15C100, DTFR 15C110, DTFR 15C120, Ford WSS-M2C 213-A1, IVECO 18-1804 TLS E6, Liebherr LH-00-ENG LA, Mack EOS-4.5, MAN M 3271-1, MAN M 3297-1, MAN M 3477, MAN M 3575, MAN M 3677, MAN M 3691, MAN M 3777, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Renault RLD-3, Scania LDF-4, Scania Low Ash, Voith Retarder B, Volvo CNG, Volvo VDS-4.5		Caterpillar ECF-3, Cummins CES 20081, Cummins CES 20086, DAF PSQL 2.1E LD, DDC 93K222, Deutz DQC IV-18 LA, Deutz TTCD-Motors, DTFR 13D110 (MB 235.28), DTFR 15C100, DTFR 15C110, DTFR 15C120, Ford WSS-M2C 213-A1, IVECO 18-1804 TLS E6, Liebherr LH-00-ENG LA, Mack EOS-4.5, MAN M 3271-1, MAN M 3297-1, MAN M 3477, MAN M 3575, MAN M 3677, MAN M 3691, MAN M 3777, MB 228.31, MB 228.51, MB 235.28, MTU Type 2.1, MTU Type 3.1, Renault RLD-3, Scania LDF-4, Scania Low Ash, Voith Retarder B, Volvo CNG, Volvo VDS-4.5

Super Performance Truck 5W-30

For engine

Application NoteRAVENOL Super Performance Truck SAE 5W-30 is a high-performance engine oil for commercial vehicles which can be used the whole year and which is adapted to the new exhaust gas emission rules (also for EURO I, II, III, IV and EURO V engines).

Manufacturer Approved:
Renault RXD

Compliance with the requirements:
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DTFR 13D110 (MB 235.28), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, MAN M 3277, MB 228.5, MB 235.28, MTU Type 3, Scania LDF-3, Voith Retarder B, Volvo VDS-3

show details

SAE: 5W-30

API: CF, CI-4

ACEA: E4, E7

Equivalents OEM:
Isuzu 1884059300, Isuzu 1884059300

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1122102-005

Code:
4014835725751

Volume:
10 L

vendor code:
1122102-010

Code:
4014835725744

Volume:
20 L

vendor code:
1122102-020

Code:
4014835725720

Volume:
20 L, ecobox

vendor code:
1122102-B20

Volume:
60 L, print

vendor code:
1122102-D60

Code:
4014835725737

Volume:
208 L

vendor code:
1122102-208

Code:
4014835725782

Volume:
208 L, print

vendor code:
1122102-D28

Code:
4014835725706

Volume:
1000 L

vendor code:
1122102-700

Volume:
1 L

vendor code:
1122102-001

Volume:
60 L

vendor code:
1122102-060

Application Note

RAVENOL Super Performance Truck SAE 5W-30 is a high-performance engine oil for commercial vehicles which can be used the whole year and which is adapted to the new exhaust gas emission rules (also for EURO I, II, III, IV and EURO V engines).

RAVENOL Super Performance Truck SAE 5W-3 is suitable for oil change intervals up to more than 100.000 km according to the manufacturer’s specifications.

Characteristics

Protection against corrosion
An excellent oxidation stability
An excellent high temperature stability
Excellent detergent and dispersant attributes
Profitability because of a low fuel consumption
Long endurance because of a high oxidation stability
Excellent cold start attributes
A very good viscosity temperature behaviour
Low evaporation

Parameter	Unit	Value	Audit
Recommendations		Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DTFR 13D110 (MB 235.28), DTFR 15B120 (MB 228.5), Global DHD-1, IVECO, JASO DH-1, Mack EO-M Plus, MAN M 3277, MB 228.5, MB 235.28, MTU Typ 3, Scania LDF-3, Voith Retarder B, VOLVO VDS-3		Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DTFR 13D110 (MB 235.28), DTFR 15B120 (MB 228.5), Global DHD-1, IVECO, JASO DH-1, Mack EO-M Plus, MAN M 3277, MB 228.5, MB 235.28, MTU Typ 3, Scania LDF-3, Voith Retarder B, VOLVO VDS-3
SAE		5W-30		5W-30
Brand		RAVENOL		RAVENOL
Type		Semi-synthetic		Semi-synthetic
API		CF, CI-4		CF, CI-4
ACEA		E4, E7		E4, E7
JASO		DH-1		DH-1
Manufacturer Approved		Renault RXD		Renault RXD
Recomendations		Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DTFR 13D110 (MB 235.28), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, MAN M 3277, MB 228.5, MB 235.28, MTU Type 3, Scania LDF-3, Voith Retarder B, Volvo VDS-3		Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DTFR 13D110 (MB 235.28), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, MAN M 3277, MB 228.5, MB 235.28, MTU Type 3, Scania LDF-3, Voith Retarder B, Volvo VDS-3
Suitable for		IVECO		IVECO
Density at 20 °C	g/cm³	854	EN ISO 12185	854 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.5	DIN 51562-1	11.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	69.3	DIN 51562-1	69.3 mm²/s DIN 51562-1
Viscosity Index VI		161	DIN ISO 2909	161 DIN ISO 2909
CCS Viscosity at -30 °C	mPa*s	6000	ASTM D5293	6000 mPa*s ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °C	mPa*s	16.200	ASTM D4684	16.200 mPa*s ASTM D4684
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Noack Volatility	%	10.1	ASTM D5800	10.1 % ASTM D5800
Flashpoint	°C	242	DIN EN ISO 2592	242 °C DIN EN ISO 2592
tbn	mgKOH/g	13	ASTM D2896	13 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1	DIN 51575	1 %wt. DIN 51575
Approvals		Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DTFR 13D110 (MB 235.28), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, MAN M 3277, MB 228.5, MB 235.28, MTU Type 3, Renault RXD, Scania LDF-3, Voith Retarder B, Volvo VDS-3		Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DTFR 13D110 (MB 235.28), DTFR 15B120 (MB 228.5), Global DHD-1, Mack EO-M Plus, MAN M 3277, MB 228.5, MB 235.28, MTU Type 3, Renault RXD, Scania LDF-3, Voith Retarder B, Volvo VDS-3

Turbo Plus SHPD 10W-30

For mixed park

RAVENOL Turbo Plus SHPD SAE 10W-30 meets the requirements of SAE-Class 10W-30. This adjustment of viscosity also ensures a good lubricating film at high temperatures.

Compliance with the requirements:
Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3

show details

SAE: 10W-30

API: CI-4, SL

ACEA: A3, B4, E3, E5, E7

Equivalents OEM:
Caterpillar 3E9844, Caterpillar 143465, Hino HRLIE10W30C, Hyundai Motor 0520000100, Hyundai Motor 0520000400, Hyundai Motor 0520000600, Hyundai XTeer 1011014, Hyundai XTeer 1061002, Nissan KLB2M10302, Nissan KLBFA10301, Nissan KLBFA10302, Nissan KLBFA10302, Nissan KLBFO10301, Nissan KLBFO10302, Nissan KLBFO10304, Nissan KLBH010302

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1123105-001

Volume:
5 L

vendor code:
1123105-005

Volume:
10 L

vendor code:
1123105-010

Code:
4014835737747

Volume:
20 L

vendor code:
1123105-020

Code:
4014835637726

Volume:
20 L, ecobox

vendor code:
1123105-B20

Volume:
60 L

vendor code:
1123105-060

Code:
4014835737761

Volume:
208 L

vendor code:
1123105-208

Code:
4014835737785

Volume:
1000 L

vendor code:
1123105-700

RAVENOL Turbo Plus SHPD SAE 10W-30 meets the requirements of SAE-Class 10W-30. This adjustment of viscosity also ensures a good lubricating film at high temperatures.

RAVENOL Turbo Plus SHPD SAE 10W-30 is particularly suitable for engines with already high performance.

Application Note

RAVENOL Turbo Plus SHPD SAE 10W-30 is approved, tried and tested for aggregates specifying:

Specifications: API CI-4/ SL, ACEA E7, E5, E3, ACEA A3/B4

Approval: YaMZ

Recommendations: Caterpillar ECF-2, TO-2; Cummins CES 20071, -72, -76, -77, -78; DAF; DDC 93K215; Deutz DQC III-10; Global DHD-1; JASO DH-1; Mack EO-N; MAN M 3275-1; MB 228.3;MTU Type 2, MTU Type 3; Renault RLD, Renault VI RLD-2; Volvo VDS 3.

Parameter	Unit	Value	Audit
Recommendations		Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF, Detroit Diesel DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, JASO DH-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Typ 2, MTU Typ 3, Renault RLD, Renault VI RLD-2, VOLVO VDS-3		Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DAF, Detroit Diesel DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, JASO DH-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Typ 2, MTU Typ 3, Renault RLD, Renault VI RLD-2, VOLVO VDS-3
SAE		10W-30		10W-30
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		CI-4, SL		CI-4, SL
ACEA		A3, B4, E3, E5, E7		A3, B4, E3, E5, E7
JASO		DH-1		DH-1
Recomendations		Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3		Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3
Suitable for		DAF, YaMZ		DAF, YaMZ
Density at 20 °C	g/cm³	865	EN ISO 12185	865 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	12	DIN 51562-1	12 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	74.9	DIN 51562-1	74.9 mm²/s DIN 51562-1
Viscosity Index VI		156	DIN ISO 2909	156 DIN ISO 2909
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	10.2	ASTM D2896	10.2 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.4	DIN 51575	1.4 %wt. DIN 51575
Approvals		Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3		Caterpillar ECF-2, Caterpillar TO-2, Cummins CES 20071, Cummins CES 20072, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, DDC 93K215, Deutz DQC III-10, DTFR 15B110 (MB 228.3), Global DHD-1, Mack EO-N, MAN M 3275-1, MB 228.3, MTU Type 2, MTU Type 3, Renault RLD, Renault RLD-2, Volvo VDS-3

Turbo plus SHPD 15W-40

For mixed fleet

RAVENOL Turbo plus SHPD SAE 15W-40 can be used for diesel and petrol engines, also with turbochargers.

Manufacturer Approved:
Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-3, Volvo VDS-3

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C

show details

SAE: 15W-40

API: CI-4, SL

ACEA: A3, B4, E7

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1123115-001

Volume:
4 L

vendor code:
1123115-004

Volume:
5 L

vendor code:
1123115-005

Code:
4014835726154

Volume:
7 L

vendor code:
1123115-007

Volume:
10 L

vendor code:
1123115-010

Code:
4014835726147

Volume:
20 L

vendor code:
1123115-020

Code:
4014835726123

Volume:
20 L, ecobox

vendor code:
1123115-B20

Code:
4014835776821

Volume:
60 L

vendor code:
1123115-060

Code:
4014835726161

Volume:
60 L, print

vendor code:
1123115-D60

Code:
4014835726130

Volume:
208 L

vendor code:
1123115-208

Code:
4014835726185

Volume:
208 L, print

vendor code:
1123115-D28

Code:
4014835726109

Volume:
1000 L

vendor code:
1123115-700

RAVENOL Turbo plus SHPD SAE 15W-40 can be used for diesel and petrol engines, also with turbochargers.

RAVENOL Turbo plus SHPD SAE 15W-40 has been especially developed for extended oil change intervals, according to manufacturer’s recommendations.

Application Note

RAVENOL Turbo-Plus SHPD SAE 15W-40 is recommended by the engine manufacturers for extended oil change intervals as SAE 15W-40 multigrade engine oil in heavy duty commercial vehicle diesel engines.

RAVENOL Turbo-Plus SHPD SAE 15W-40 is the preferred use for extended oil life in turbo charged diesel engines according to manufacturer’s recommendations.

Characteristics

Extremely high pressure absorption capacity
Very high oxidation stability
Excellent aging stability
Excellent viscosity and temperature behaviour
High security reserves even under limited lubrication circumstances
Suitable for extended oil change intervals
Suitable for heavy operating conditions

Parameter	Unit	Value	Audit
Recommendations		Allison C4, Caterpillar TO-2, Global DHD-1, IVECO, JASO DH-1, John Deere JDQ-78A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1 (Multigrades), MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C		Allison C4, Caterpillar TO-2, Global DHD-1, IVECO, JASO DH-1, John Deere JDQ-78A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1 (Multigrades), MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C
SAE		15W-40		15W-40
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		CI-4, SL		CI-4, SL
ACEA		A3, B4, E7		A3, B4, E7
JASO		DH-1		DH-1
Manufacturer Approved		Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-3, Volvo VDS-3		Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-3, Volvo VDS-3
Recomendations		Allison C-4, Caterpillar TO-2, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, Scania LDF-2, ZF TE-ML 07C
Suitable for		IVECO, Steyr Motor GAZ 560, YaMZ		IVECO, Steyr Motor GAZ 560, YaMZ
Density at 20 °C	g/cm³	870	EN ISO 12185	870 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	15	DIN 51562-1	15 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	115.7	DIN 51562-1	115.7 mm²/s DIN 51562-1
Viscosity Index VI		134	DIN ISO 2909	134 DIN ISO 2909
HTHS Viscosity at 150 °C	mPa*s	4	ASTM D5481	4 mPa*s ASTM D5481
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	238	DIN EN ISO 2592	238 °C DIN EN ISO 2592
tbn	mgKOH/g	10.5	ASTM D2896	10.5 mgKOH/g ASTM D2896
Approvals		Allison C-4, Caterpillar TO-2, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD, Renault RLD-2, Scania LDF-2, TEDOM 258-3, Volvo VDS-3, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, Cummins CES 20076, Cummins CES 20077, Cummins CES 20078, Deutz DQC III-10, DTFR 15B110, Global DHD-1, John Deere JDQ-78 A, Mack EO-M, Mack EO-M Plus, MAN M 3275-1, MB 228.3, MB 229.1, MTU Type 2, Renault RLD, Renault RLD-2, Scania LDF-2, TEDOM 258-3, Volvo VDS-3, ZF TE-ML 07C

Arctic Truck 0W-30

For engine

show details

SAE: 0W-30

Available packaging
Product parameters

Parameter	Unit	Value	Audit
SAE		0W-30		0W-30
Type		Full synthetic		Full synthetic

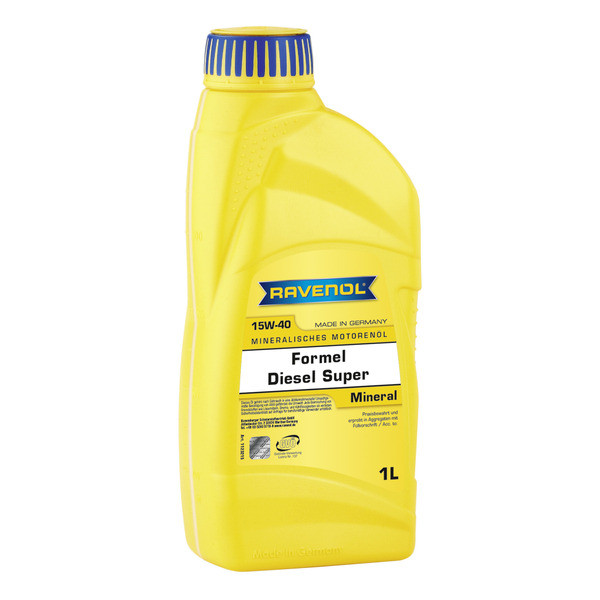

Formel Diesel Super 15W-40

For diesels

Application NoteRAVENOL Formel Diesel Super SAE 15W-40 is suitable for the mixed car pool and can be used the whole year. Regarding commercial vehicles it can be used for a complicated operation and extended oil change intervals according to the manufacturer specification.

Manufacturer Approved:
Renault RLD, Renault RLD-2, TEDOM 258-2

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C

show details

SAE: 15W-40

API: CF-4

ACEA: B4, E2

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1123215-005

Code:
4014835756953

Volume:
10 L

vendor code:
1123215-010

Code:
4014835756946

Volume:
20 L

vendor code:
1123215-020

Code:
4014835756922

Volume:
20 L, ecobox

vendor code:
1123215-B20

Code:
4014835777125

Volume:
60 L

vendor code:
1123215-060

Code:
4014835756960

Volume:
60 L, print

vendor code:
1123215-D60

Volume:
208 L

vendor code:
1123215-208

Code:
4014835756984

Volume:
208 L, print

vendor code:
1123215-D28

Volume:
1000 L

vendor code:
1123215-700

Volume:
1 L

vendor code:
1123215-001

Volume:
1000 L

vendor code:
-

Code:
4014835630987

Application Note

RAVENOL Formel Diesel Super SAE 15W-40 is suitable for the mixed car pool and can be used the whole year. Regarding commercial vehicles it can be used for a complicated operation and extended oil change intervals according to the manufacturer specification.

Characteristics

Very good shear stability
Very good cold start attributes
High oxidation stability
Excellent viscosity temperature behaviour
No problems with the use in catalyst vehicles
Convincing detergent and dispersant characteristics
High safety reserves even under limited lubrication circumstances

Parameter	Unit	Value	Audit
Recommendations		Allison C4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Typ 2, VOLVO VDS, VW 505 00, ZF TE-ML 07C		Allison C4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Typ 2, VOLVO VDS, VW 505 00, ZF TE-ML 07C
SAE		15W-40		15W-40
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		CF-4		CF-4
ACEA		B4, E2		B4, E2
Manufacturer Approved		Renault RLD, Renault RLD-2, TEDOM 258-2		Renault RLD, Renault RLD-2, TEDOM 258-2
Recomendations		Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Type 2, Volvo VDS, VW 505.00, ZF TE-ML 07C
Density at 20 °C	g/cm³	873	EN ISO 12185	873 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.4	DIN 51562-1	14.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	107.2	DIN 51562-1	107.2 mm²/s DIN 51562-1
Viscosity Index VI		137	DIN ISO 2909	137 DIN ISO 2909
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	240	DIN EN ISO 2592	240 °C DIN EN ISO 2592
tbn	mgKOH/g	8.6	ASTM D2896	8.6 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.1	DIN 51575	1.1 %wt. DIN 51575
Approvals		Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-2, Volvo VDS, VW 505.00, ZF TE-ML 07C		Allison C-4, Caterpillar TO-2, Mack EO-L, MAN 271, MB 229.1, MTU Type 2, Renault RLD, Renault RLD-2, TEDOM 258-2, Volvo VDS, VW 505.00, ZF TE-ML 07C

Transmission ZF 6WG310-4

Liquid volume (basic): 55 L

ATF Dexron III H

For automatic transmission

RAVENOL ATF DEXRON III H is universal ATF (Automatic Transmission Fluid) for all automatic transmission with and without controlled torque converter lockup clutch (so-called GKÜB = gear-clutch-lock) which are required for the transmission fluid type Dexron III H.

Manufacturer Approved:
Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B

Compliance with the requirements:
Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.5, MB 236.6, MB 236.9, MB 236.10, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C

show details

Usage mode: normal

Checking through, MONTH: 8

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1212100-001

Code:
4014835732810

Volume:
4 L

vendor code:
1212100-004

Code:
4014835732896

Volume:
10 L

vendor code:
1212100-010

Code:
4014835732841

Volume:
20 L

vendor code:
1212100-020

Code:
4014835732827

Volume:
20 L, ecobox

vendor code:
1212100-B20

Code:
4014835787025

Volume:
60 L

vendor code:
1212100-060

Code:
4014835732865

Volume:
60 L, print

vendor code:
1212100-D60

Code:
4014835732834

Volume:
208 L

vendor code:
1212100-208

Code:
4014835732889

Volume:
208 L, print

vendor code:
1212100-D28

Code:
4014835732803

Volume:
1000 L

vendor code:
1212100-700

RAVENOL ATF DEXRON III H is universal ATF (Automatic Transmission Fluid) for all automatic transmission with and without controlled torque converter lockup clutch (so-called GKÜB = gear-clutch-lock) which are required for the transmission fluid type Dexron III H.

Application Note

RAVENOL ATF DEXRON III H was developed for use in automatic transmissions with electronically controlled converter lockup clutch.

RAVENOL ATF DEXRON III H is especially suitable for use in transmissions with ATF Dexron III H specification.

RAVENOL ATF DEXRON III H is backwards compatible and can be used in transmissions with specification ATF Dexron F III.

RAVENOL ATF DEXRON III H is mixable with all ATF brands. It is advised to rinse with RAVENOL ATF DEXRON III H before, beforehand the final filling with RAVENOL ATF DEXRON III H is made.

Characteristics

Very good lubricating properties even at low temperatures in winter
High and stable viscosity index
Very low flow point
Excellent oxidation stability
Extensive protection against wear, corrosion and foaming
Well-tuned friction properties
Neutral behaviour towards sealing materials
Neutral behaviour by inhibition towards non-ferrous metals

Parameter	Unit	Value	Audit
ATF		Dexron III H		Dexron III H
Recommendations		Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON® M-940717, MAN 339 L1, MAN 339 V1, MAN 339 Z1, MAN 339 Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Nissan, Volvo 1161521, Volvo 1161621, VOLVO Transmission Oil 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C		Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON® M-940717, MAN 339 L1, MAN 339 V1, MAN 339 Z1, MAN 339 Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Nissan, Volvo 1161521, Volvo 1161621, VOLVO Transmission Oil 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Manufacturer Approved		Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B		Allison C-4, Allison TES-389, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 14B, ZF TE-ML 20B, ZF TE-ML 25B
Recomendations		Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C		Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C
specification		Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H		Allison C-4, Allison TES-389, GM Dexron® II E, GM DEXRON® III F, GM Dexron® III H
Suitable for		Nissan		Nissan
Compliant products		Volvo 1161521, Volvo 1161621		Volvo 1161521, Volvo 1161621
Density at 20 °C	g/cm³	847	EN ISO 12185	847 g/cm³ EN ISO 12185
Color		Red	visual	Red visual
Viscosity at 100 °C	mm²/s	7.2	DIN 51562-1	7.2 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	33.9	DIN 51562-1	33.9 mm²/s DIN 51562-1
Viscosity Index VI		185	DIN ISO 2909	185 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	14.200	ASTM D2983	14.200 mPa*s ASTM D2983
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	210	DIN EN ISO 2592	210 °C DIN EN ISO 2592
Seq. I at 24 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. II at 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Seq. III at 24 °C after 93,5 °C	ml/ml	0/0	ASTM D892	0/0 ml/ml ASTM D892
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
tbn	mgKOH/g	1.8	ASTM D2896	1.8 mgKOH/g ASTM D2896
Approvals		Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B		Allison C-4, Allison TES-389, Caterpillar TO-2, DTFR 13C100 (MB 236.1), DTFR 13C170 (MB 236.9), Ford MERCON®, GM Dexron® II E, GM Dexron® III F, GM Dexron® III H, MAN 339 L1, MAN 339 Type V1, MAN 339 Type Z1, MAN 339 Type Z2, MB 236.1, MB 236.10, MB 236.5, MB 236.6, MB 236.9, Voith H55.6336.3x Extended Drain (G1363), Volvo 97341, ZF TE-ML 02F, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 14A, ZF TE-ML 14B, ZF TE-ML 16L, ZF TE-ML 16R, ZF TE-ML 17C, ZF TE-ML 20B, ZF TE-ML 25B

ATF Dexron II E

Transmission fluid

Application NoteRAVENOL ATF Dexron II E is developed for use in automatic transmission and torque converter transmission and power shift transmission with required specification.

Manufacturer Approved:
Allison C-4, MB-Approval 236.8, Voith H55.6336.3x Extended Drain (G1363)

Compliance with the requirements:
Caterpillar TO-2, DTFR 13C150 (MB 236.8), MAN 339 Type V2, MAN 339 Type Z2, MB 236.5, ZF TE-ML 04D, ZF TE-ML 09X, ZF TE-ML 14B, ZF TE-ML 16L

show details

Equivalents OEM:
Alpine 0100641, Alpine 0100642, Alpine 0100643, Alpine 0100644, Alpine 0100645, Alpine 100641, Alpine 100642, Alpine 100643, Alpine 100644, Alpine 100645, Alpine 100645, Land Rover STC8261

Usage mode: normal

Checking through, MONTH: 8

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1211103-001

Code:
4014835732612

Volume:
4 L

vendor code:
1211103-004

Code:
4014835732698

Volume:
10 L

vendor code:
1211103-010

Code:
4014835732643

Volume:
20 L

vendor code:
1211103-020

Volume:
20 L, ecobox

vendor code:
1211103-B20

Volume:
60 L

vendor code:
1211103-060

Volume:
60 L, print

vendor code:
1211103-D60

Code:
4014835732636

Volume:
208 L

vendor code:
1211103-208

Volume:
208 L, print

vendor code:
1211103-D28

Volume:
1000 L

vendor code:
1211103-700

Application Note

RAVENOL ATF Dexron II E is developed for use in automatic transmission and torque converter transmission and power shift transmission with required specification.

RAVENOL ATF Dexron II E is recommended if ATF Type Dexron II E is to be used according to manufacturer’s specification.

Characteristics

reliable protection against wear, sludge, adhesion and corrosion
a very shear stable viscosity-temperature behaviour
can be used both at very low and very high temperatures
an extremely high thermal load
no foaming, even under the heaviest loads
compatibility with sealing materials

Parameter	Unit	Value	Audit
ATF		Dexron II E		Dexron II E
Recommendations		Caterpillar TO-2, DTFR 13C150 (MB 236.8), MAN 339 V2, MAN 339 Z2, MB 236.5, ZF TE-ML 04D, ZF TE-ML 09X, ZF TE-ML 14B, ZF TE-ML 16L		Caterpillar TO-2, DTFR 13C150 (MB 236.8), MAN 339 V2, MAN 339 Z2, MB 236.5, ZF TE-ML 04D, ZF TE-ML 09X, ZF TE-ML 14B, ZF TE-ML 16L
Brand		RAVENOL		RAVENOL
Type		Synthetic		Synthetic
Manufacturer Approved		Allison C-4, MB-Approval 236.8, Voith H55.6336.3x Extended Drain (G1363)		Allison C-4, MB-Approval 236.8, Voith H55.6336.3x Extended Drain (G1363)
Recomendations		Caterpillar TO-2, DTFR 13C150 (MB 236.8), MAN 339 Type V2, MAN 339 Type Z2, MB 236.5, ZF TE-ML 04D, ZF TE-ML 09X, ZF TE-ML 14B, ZF TE-ML 16L		Caterpillar TO-2, DTFR 13C150 (MB 236.8), MAN 339 Type V2, MAN 339 Type Z2, MB 236.5, ZF TE-ML 04D, ZF TE-ML 09X, ZF TE-ML 14B, ZF TE-ML 16L
specification		Ford MERCON®, GM Dexron® II E		Ford MERCON®, GM Dexron® II E
Density at 20 °C	g/cm³	834	EN ISO 12185	834 g/cm³ EN ISO 12185
Color		Red	visual	Red visual
Viscosity at 100 °C	mm²/s	7.5	DIN 51562-1	7.5 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	32	DIN 51562-1	32 mm²/s DIN 51562-1
Viscosity at -40 °C	mPa*s	8.3	ASTM D2983	8.3 mPa*s ASTM D2983
Viscosity Index VI		191	DIN ISO 2909	191 DIN ISO 2909
Pourpoint	°C	-57	DIN ISO 3016	-57 °C DIN ISO 3016
Flashpoint	°C	226	DIN EN ISO 2592	226 °C DIN EN ISO 2592
tbn	mgKOH/g	1.7	ASTM D2896	1.7 mgKOH/g ASTM D2896
Approvals		Allison C-4, Caterpillar TO-2, DTFR 13C150 (MB 236.8), Ford MERCON®, GM Dexron® II E, MAN 339 Type V2, MAN 339 Type Z2, MB 236.5, MB 236.8, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 09X, ZF TE-ML 14B, ZF TE-ML 16L		Allison C-4, Caterpillar TO-2, DTFR 13C150 (MB 236.8), Ford MERCON®, GM Dexron® II E, MAN 339 Type V2, MAN 339 Type Z2, MB 236.5, MB 236.8, Voith H55.6336.3x Extended Drain (G1363), ZF TE-ML 04D, ZF TE-ML 09X, ZF TE-ML 14B, ZF TE-ML 16L

Wheel reducers in front

Liquid volume (basic): 7.5 L

STOU 15W-30

For tractors

Application NoteRAVENOL STOU SAE 15W-30 has a wide range of applications in engines, transmissions and hydraulic systems of many tractors and is suitable for use as motor oil for both petrol and diesel engines, transmission oil (including wet brakes and PTO transmissions) and as a hydraulic oil where this specification of product is required. Can also be used as compressor oil.

Compliance with the requirements:
Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B

show details

SAE: 15W-30

API: CE, GL-4, SF

ACEA: E1, E2

Usage mode: normal

Checking through, MONTH: 500

Replacement via, MONTH: 4000

Available packaging
Full description
Product parameters

Volume:
20 L, ecobox

vendor code:
1310112-B20

Volume:
60 L

vendor code:
1310112-060

Code:
4014835739963

Volume:
60 L, print

vendor code:
1310112-D60

Volume:
208 L

vendor code:
1310112-208

Volume:
1000 L

vendor code:
1310112-700

Volume:
20 L

vendor code:
1310112-020

Application Note

RAVENOL STOU SAE 15W-30 has a wide range of applications in engines, transmissions and hydraulic systems of many tractors and is suitable for use as motor oil for both petrol and diesel engines, transmission oil (including wet brakes and PTO transmissions) and as a hydraulic oil where this specification of product is required. Can also be used as compressor oil.

Characteristics

Excellent viscosity-temperature behaviour
Exceptional cold starting abilities
Excellent detergent and dispersant properties
High resistance to ageing

Parameter	Unit	Value	Audit
Recommendations		Allison C4, Atlas Copco Kompressor, Case International J I, Case MS 1118, Case MS 1206, Case MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford-Pumpentest, Getriebeöl: SAE 80W, Hydrauliköl: HLP ISO VG 68, International Harvester B6, John Deere J20C, John Deere J20D, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson M1127, Massey Ferguson M1139, Massey Ferguson M1144, MIL-L-2105, Parker Dension HF-2, Spezialtraktorenöl: John Deere J27A, Vickers-Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B		Allison C4, Atlas Copco Kompressor, Case International J I, Case MS 1118, Case MS 1206, Case MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford-Pumpentest, Getriebeöl: SAE 80W, Hydrauliköl: HLP ISO VG 68, International Harvester B6, John Deere J20C, John Deere J20D, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson M1127, Massey Ferguson M1139, Massey Ferguson M1144, MIL-L-2105, Parker Dension HF-2, Spezialtraktorenöl: John Deere J27A, Vickers-Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B
SAE		15W-30		15W-30
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		CE, GL-4, SF		CE, GL-4, SF
ACEA		E1, E2		E1, E2
Recomendations		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B
Suitable for		Atlas Copco Kompressor		Atlas Copco Kompressor
Density at 20 °C	g/cm³	861	EN ISO 12185	861 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.8	DIN 51562-1	11.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	71.7	DIN 51562-1	71.7 mm²/s DIN 51562-1
Viscosity Index VI		159	DIN ISO 2909	159 DIN ISO 2909
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Flashpoint	°C	222	DIN EN ISO 2592	222 °C DIN EN ISO 2592
tbn	mgKOH/g	11.7	ASTM D2896	11.7 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.5	DIN 51575	1.5 %wt. DIN 51575
Approvals		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B

STOU 10W-30

For tractors

RAVENOL STOU SAE 10W-30 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons. Suitable for wet brakes and shaft coupling (PTO clutches).

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B

show details

SAE: 10W-30

API: CG-4, GL-4, SF

ACEA: E3

Equivalents OEM:
Isuzu 1884057500, Isuzu 1884057520, Isuzu 1884057720, Isuzu 1884057720

Usage mode: normal

Checking through, MONTH: 500

Replacement via, MONTH: 4000

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1310100-005

Volume:
20 L

vendor code:
1310100-020

Code:
4014835739529

Volume:
20 L, ecobox

vendor code:
1310100-B20

Volume:
60 L

vendor code:
1310100-060

Code:
4014835739567

Volume:
208 L

vendor code:
1310100-208

Code:
4014835739581

Volume:
1000 L

vendor code:
1310100-700

RAVENOL STOU SAE 10W-30 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons. Suitable for wet brakes and shaft coupling (PTO clutches).

Application Note

RAVENOL STOU SAE 10W-30 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.

RAVENOL STOU SAE 10W-30 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil.

Characteristics

A powerful dispersion and detergency
Protection against wear, corrosion and foam
High resistance to oxidation
Excellent extreme pressure properties
A high and stable viscosity index

Parameter	Unit	Value	Audit
Recommendations		ACEA E3, Allison C4, API CG-4/SF, API GL-4, Atlas Copco Kompressor, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Getriebeöl: SAE 80W, Hydrauliköl: HVLP ISO VG 68, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson M1139, Massey Ferguson M1144, Massey Ferguson M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, Motorenöl: SAE 10W-30, New Holland / Ford ESN-M2C-15- 9B, Spezialtraktorenöl: John Deere J27, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B		ACEA E3, Allison C4, API CG-4/SF, API GL-4, Atlas Copco Kompressor, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Getriebeöl: SAE 80W, Hydrauliköl: HVLP ISO VG 68, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson M1139, Massey Ferguson M1144, Massey Ferguson M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, Motorenöl: SAE 10W-30, New Holland / Ford ESN-M2C-15- 9B, Spezialtraktorenöl: John Deere J27, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B
SAE		10W-30		10W-30
Brand		RAVENOL		RAVENOL
API		CG-4, GL-4, SF		CG-4, GL-4, SF
ACEA		E3		E3
Recomendations		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B
Suitable for		Atlas Copco Kompressor		Atlas Copco Kompressor
Density at 20 °C	g/cm³	867	EN ISO 12185	867 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.7	DIN 51562-1	11.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	74.7	DIN 51562-1	74.7 mm²/s DIN 51562-1
Viscosity Index VI		151	DIN ISO 2909	151 DIN ISO 2909
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	226	DIN EN ISO 2592	226 °C DIN EN ISO 2592
tbn	mgKOH/g	12.4	ASTM D2896	12.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.58	DIN 51575	1.58 %wt. DIN 51575
Approvals		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B

STOU 10W-40

Tractor oil

RAVENOL STOU SAE 10W-40 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons.

Compliance with the requirements:
Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 68 HVLP, ISO VG 100 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B

show details

SAE: 10W-40

API: CG-4, GL-4, SF

ACEA: E3

Usage mode: normal

Checking through, MONTH: 500

Replacement via, MONTH: 4000

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1310111-005

Volume:
10 L

vendor code:
1310111-010

Volume:
20 L

vendor code:
1310111-020

Code:
4014835739826

Volume:
20 L, ecobox

vendor code:
1310111-B20

Volume:
60 L

vendor code:
1310111-060

Volume:
1000 L

vendor code:
1310111-700

Volume:
208 L

vendor code:
1310111-208

RAVENOL STOU SAE 10W-40 meets the recommendations of all well known tractor manufacturers and is equal to use in engines, transmissions and hydraulic systems of modern tractors. Ensures trouble-free operation of all units in all seasons.

Application Note

RAVENOL STOU SAE 10W-40 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.

RAVENOL STOU SAE 10W-40 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil.

Characteristics

A powerful dispersion and detergency
A high activity against wear, corrosion and foam
A very strong resistance to oxidation
A high and stable viscosity index
An excellent extreme pressure properties

Parameter	Unit	Value	Audit
Recommendations		80W-90, 85W, 85W-90, ACEA E3, Allison C4, API CG-4/SF, API GL-4, Atlas Copco Kompressor, Case IH-MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C-134 B, Ford ESN-M2C-134 C, Ford ESN-M2C-134 D, Ford ESN-M2C-159 B, Ford ESN-M2C-159 C, Getriebeöl: SAE 80W, Hydrauliköl: HVLP ISO VG 68-100, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson M1139, Massey Ferguson M1144, Massey Ferguson M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, Motorenöl: SAE 10W-40, New Holland NH 410B, Spezialtraktorenöl: John Deere J20C, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B		80W-90, 85W, 85W-90, ACEA E3, Allison C4, API CG-4/SF, API GL-4, Atlas Copco Kompressor, Case IH-MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C-134 B, Ford ESN-M2C-134 C, Ford ESN-M2C-134 D, Ford ESN-M2C-159 B, Ford ESN-M2C-159 C, Getriebeöl: SAE 80W, Hydrauliköl: HVLP ISO VG 68-100, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson M1139, Massey Ferguson M1144, Massey Ferguson M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, Motorenöl: SAE 10W-40, New Holland NH 410B, Spezialtraktorenöl: John Deere J20C, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
SAE		10W-40		10W-40
Brand		RAVENOL		RAVENOL
API		CG-4, GL-4, SF		CG-4, GL-4, SF
ACEA		E3		E3
Recomendations		Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
Suitable for		Atlas Copco Kompressor		Atlas Copco Kompressor
Density at 20 °C	g/cm³	864	EN ISO 12185	864 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.7	DIN 51562-1	14.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	101.1	DIN 51562-1	101.1 mm²/s DIN 51562-1
Viscosity Index VI		151	DIN ISO 2909	151 DIN ISO 2909
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
tbn	mgKOH/g	12.4	ASTM D2896	12.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.45	DIN 51575	1.45 %wt. DIN 51575
Approvals		Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B

Differential, rear

Liquid volume (basic): 46 L

LS 75W-90

For differentials

RAVENOL Getriebeoel LS SAE 75W-90 is designed based on high-quality solvent refined and synthetic base oils with special additive treatment and inhibition for higher stress on manual transmission oils and ensuring trouble-free transmission function.

Compliance with the requirements:
ZF TE-ML 05C, ZF TE-ML 05D

show details

SAE: 75W-90

API: GL-5 LS

Usage mode: normal

Checking through, MONTH: 500

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1222102-001

Code:
4014835734319

Volume:
4 L

vendor code:
1222102-004

Code:
4014835734395

Volume:
10 L

vendor code:
1222102-010

Code:
4014835734340

Volume:
20 L

vendor code:
1222102-020

Volume:
20 L, ecobox

vendor code:
1222102-B20

Code:
4014835789029

Volume:
60 L, print

vendor code:
1222102-D60

Code:
4014835734333

Volume:
208 L, print

vendor code:
1222102-D28

Code:
4014835734302

Volume:
1000 L

vendor code:
1222102-700

Volume:
60 L

vendor code:
1222102-060

Volume:
208 L

vendor code:
1222102-208

RAVENOL Getriebeoel LS SAE 75W-90 is designed based on high-quality solvent refined and synthetic base oils with special additive treatment and inhibition for higher stress on manual transmission oils and ensuring trouble-free transmission function.

Application Note

RAVENOL Getriebeoel LS SAE 75W-90 was developed specifically for use in differential gear units with limited slip. It also ensures trouble-free lubrication in self-locking, hypoid geared transmissions.

Characteristics

excellent oxidation stability
excellent protection against rust and corrosion
prevents foaming
outstanding extreme pressure properties
excellent limited slip properties
fuel savings

Parameter	Unit	Value	Audit
Recommendations		GM 1940058, GM 88862624, GM 88862625, GM 93165388, ZF TE-ML 05C, ZF TE-ML 05D		GM 1940058, GM 88862624, GM 88862625, GM 93165388, ZF TE-ML 05C, ZF TE-ML 05D
Brand		RAVENOL		RAVENOL
SAE		75W-90		75W-90
Type		Synthetic		Synthetic
API		GL-5 LS		GL-5 LS
Recomendations		ZF TE-ML 05C, ZF TE-ML 05D		ZF TE-ML 05C, ZF TE-ML 05D
specification		MIL-L-2105 D		MIL-L-2105 D
Compliant products		GM 1940058, GM 88862624, GM 88862625, GM 93165388		GM 1940058, GM 88862624, GM 88862625, GM 93165388
Density at 20 °C	g/cm³	839	EN ISO 12185	839 g/cm³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	17.1	DIN 51562-1	17.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	102.1	DIN 51562-1	102.1 mm²/s DIN 51562-1
Viscosity Index VI		182	DIN ISO 2909	182 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	84.300	ASTM D2983	84.300 mPa*s ASTM D2983
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Flashpoint	°C	210	DIN EN ISO 2592	210 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 05D		MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 05D

Differential, front

Liquid volume (basic): 13.2 L

LS 75W-90

For differentials

Compliance with the requirements:
ZF TE-ML 05C, ZF TE-ML 05D

show details

SAE: 75W-90

API: GL-5 LS

Usage mode: normal

Checking through, MONTH: 500

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1222102-001

Code:
4014835734319

Volume:
4 L

vendor code:
1222102-004

Code:
4014835734395

Volume:
10 L

vendor code:
1222102-010

Code:
4014835734340

Volume:
20 L

vendor code:
1222102-020

Volume:
20 L, ecobox

vendor code:
1222102-B20

Code:
4014835789029

Volume:
60 L, print

vendor code:
1222102-D60

Code:
4014835734333

Volume:
208 L, print

vendor code:
1222102-D28

Code:
4014835734302

Volume:
1000 L

vendor code:
1222102-700

Volume:
60 L

vendor code:
1222102-060

Volume:
208 L

vendor code:
1222102-208

Application Note

Characteristics

excellent oxidation stability
excellent protection against rust and corrosion
prevents foaming
outstanding extreme pressure properties
excellent limited slip properties
fuel savings

Parameter	Unit	Value	Audit
Recommendations		GM 1940058, GM 88862624, GM 88862625, GM 93165388, ZF TE-ML 05C, ZF TE-ML 05D		GM 1940058, GM 88862624, GM 88862625, GM 93165388, ZF TE-ML 05C, ZF TE-ML 05D
Brand		RAVENOL		RAVENOL
SAE		75W-90		75W-90
Type		Synthetic		Synthetic
API		GL-5 LS		GL-5 LS
Recomendations		ZF TE-ML 05C, ZF TE-ML 05D		ZF TE-ML 05C, ZF TE-ML 05D
specification		MIL-L-2105 D		MIL-L-2105 D
Compliant products		GM 1940058, GM 88862624, GM 88862625, GM 93165388		GM 1940058, GM 88862624, GM 88862625, GM 93165388
Density at 20 °C	g/cm³	839	EN ISO 12185	839 g/cm³ EN ISO 12185
Color		Yellow	visual	Yellow visual
Viscosity at 100 °C	mm²/s	17.1	DIN 51562-1	17.1 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	102.1	DIN 51562-1	102.1 mm²/s DIN 51562-1
Viscosity Index VI		182	DIN ISO 2909	182 DIN ISO 2909
Brookfield Viscosity at -40 °C	mPa*s	84.300	ASTM D2983	84.300 mPa*s ASTM D2983
Pourpoint	°C	-42	DIN ISO 3016	-42 °C DIN ISO 3016
Flashpoint	°C	210	DIN EN ISO 2592	210 °C DIN EN ISO 2592
Copper Strip Test at 121 °C		1b	ASTM D130	1b ASTM D130
Approvals		MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 05D		MIL-L-2105 D, ZF TE-ML 05C, ZF TE-ML 05D

Automatic lubrication system

Hot Red Grease HRG2

For bearings

Application NoteRAVENOL Hot Red Grease HRG 2 is used for the lubrication of roller and friction bearings under extreme pressure at high bearing temperatures.

Manufacturer Approved:
MAN 284 Li-H2, MB-Approval 265.1

show details

Equivalents OEM:
BMW 83190447919, Land Rover STC3435, SWAG 10921909, VAG G052133A2, VAG G052133A2

Available packaging
Full description
Product parameters

Volume:
100 g

vendor code:
1340121-100

Code:
4014835844636

Volume:
200 g

vendor code:
1340121-200

Volume:
400 g

vendor code:
1340121-400

Code:
4014835756540

Volume:
1 kg

vendor code:
1340121-001

Code:
4014835756519

Volume:
5 kg

vendor code:
1340121-005

Code:
4014835756557

Volume:
10 kg

vendor code:
1340121-010

Code:
4014835756533

Volume:
15 kg

vendor code:
1340121-015

Code:
4014835756564

Volume:
25 kg

vendor code:
1340121-025

Code:
4014835756571

Volume:
180 kg

vendor code:
1340121-180

Code:
4014835756588

Application Note

RAVENOL Hot Red Grease HRG 2 is used for the lubrication of roller and friction bearings under extreme pressure at high bearing temperatures.

RAVENOL Hot Red Grease HRG 2 is particularly recommended for the lubrication of commercial vehicles and for high-speed passenger car wheel bearings.

Characteristics

Work resistance
Resistance to oxidation
Water resistance
Good corrosion protection characteristics
High thermal load capacity
High pressure susceptibility
Good adhesion

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
Manufacturer Approved		MAN 284 Li-H2, MB-Approval 265.1		MAN 284 Li-H2, MB-Approval 265.1
specification		DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2		DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2
Color		Red	visual	Red visual
Thickener		lithium soap	DIN 51757	lithium soap DIN 51757
NLGI-Class		2	DIN 51818	2 DIN 51818
Product Classification		KP2P-35	DIN 51502	KP2P-35 DIN 51502
Working Temperature	°C	-35 / +160	DIN 51825	-35 / +160 °C DIN 51825
Short term temperature up to	°C	200	DIN 51757	200 °C DIN 51757
Worked Penetration at 60 Strokes		265-295	ISO 2137	265-295 ISO 2137
Dropping Point	°C	260 —	DIN ISO 2176	260 — °C DIN ISO 2176
Copper Corrosion (24h/120 °C)		1	DIN 51811	1 DIN 51811
Water Resistance (3h/90 °C)	°C	1-90	DIN 51807-1	1-90 °C DIN 51807-1
VKA Pressure Carrying Capacity	N	2600 — 2800	DIN 51350-4	2600 — 2800 N DIN 51350-4
Kinematic Viscosity (Base Oil) at 40 °C	mm²/s	140	DIN 51562-1	140 mm²/s DIN 51562-1
Approvals		DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2, MAN 284 Li-H2, MB 265.1		DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2, MAN 284 Li-H2, MB 265.1

Arctic Green Grease AGG 2

For bearings

RAVENOL Arctic Green Grease AGG 2 offers excellent working resistance, rust and corrosion protection.

show details

Equivalents OEM:
BMW 83192157321, BRP 779163, BRP 779226, BRP 293550033, FEBI 21909, Hyundai Motor 4959022, VAG G052186A3, VAG G052738A2, Yamalube ACCPOLYGRS05, Yamalube ACCPOLYGRS05, Yamalube ACCPOLYGRS10

Available packaging
Full description
Product parameters

Volume:
100 g

vendor code:
1340126-100

Code:
4014835844780

Volume:
200 g

vendor code:
1340126-200

Volume:
400 g

vendor code:
1340126-400

Code:
4014835756847

Volume:
1 kg

vendor code:
1340126-001

Volume:
25 kg

vendor code:
1340126-025

Code:
4014835756885

Volume:
180 kg

vendor code:
1340126-180

RAVENOL Arctic Green Grease AGG 2 offers excellent working resistance, rust and corrosion protection.

Application for the lubrication of roller and friction bearings under extreme pressure at extremely low temperatures. Selected additives help reduce wear, even during severe continuous operation and significantly prolong the service life.

Application Note

RAVENOL Arctic Green Grease AGG 2 is used in roller and friction bearings under extreme pressure at extremely low temperatures.

The highest application temperature for RAVENOL Arctic Green Grease AGG 2 in continuous operation is 120°C. Peak performances of 160°C should not be exceeded.

Extremely high temperatures shorten the service life. Routine relubrication preserves material and saves costs.

Characteristics

Working resistance
Oxidation resistance
Water resistance
Good corrosion protection characteristics
High thermal load capacity
High pressure susceptibility
Good adhesion

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
specification		DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2		DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2
Color		Green	visual	Green visual
Thickener		lithium soap	DIN 51757	lithium soap DIN 51757
NLGI-Class		2	DIN 51818	2 DIN 51818
Product Classification		KPE2K-60	DIN 51502	KPE2K-60 DIN 51502
Working Temperature	°C	-60 / +120	DIN 51825	-60 / +120 °C DIN 51825
Short term temperature up to	°C	160	DIN 51757	160 °C DIN 51757
Worked Penetration at 60 Strokes		265-295	ISO 2137	265-295 ISO 2137
Dropping Point	°C	180 —	DIN ISO 2176	180 — °C DIN ISO 2176
Copper Corrosion (24h/120 °C)		1	DIN 51811	1 DIN 51811
Water Resistance (3h/90 °C)	°C	1-90	DIN 51807-1	1-90 °C DIN 51807-1
VKA Pressure Carrying Capacity	N	3000 — 3200	DIN 51350-4	3000 — 3200 N DIN 51350-4
Kinematic Viscosity (Base Oil) at 40 °C	mm²/s	20	DIN 51562-1	20 mm²/s DIN 51562-1
Approvals		DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2		DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2

Super EP-Langzeitfett

For bearings

RAVENOL Super EP-Langzeitfett is due to its smooth structure is easily conveyed.

Manufacturer Approved:
LOVAT LOV-204

show details

Equivalents OEM:
Alpine 0101021, Alpine 0101022, Alpine 0101023, Alpine 0101024, Alpine 0101025, Alpine 0101025, Toyota 0888700101, Toyota 0888700401, Toyota 0888783010, Toyota PZ4550C0D090, Volvo 1161748

Available packaging
Full description
Product parameters

Volume:
100 g

vendor code:
1340104-100

Code:
4014835844513

Volume:
200 g

vendor code:
1340104-200

Volume:
400 g

vendor code:
1340104-400

Code:
4014835768345

Volume:
1 kg

vendor code:
1340104-001

Code:
4014835200418

Volume:
5 kg

vendor code:
1340104-005

Code:
4014835200456

Volume:
10 kg

vendor code:
1340104-010

Code:
4014835200463

Volume:
15 kg

vendor code:
1340104-015

Code:
4014835200432

Volume:
25 kg

vendor code:
1340104-025

Code:
4014835200425

Volume:
180 kg

vendor code:
1340104-180

Code:
4014835200708

RAVENOL Super EP-Langzeitfett is due to its smooth structure is easily conveyed.

RAVENOL Super EP-Langzeitfett is based on high-quality base oil by using lithium soaps (Li-12-hydroxy stearate) as thickener.

Due to this they avail of an outstanding work resistance. Futhermore, RAVENOL Super EP-Langzeitfett contain additives to improve the rust and corrosion-preventing behaviour.

Application Note

RAVENOL Super EP-Langzeitfett is used for the lubrication of heavily loaded plain and rolling bearings under the influence of moisture, vibration and shock loads. The standard applies to the lubrication of chassis, wheel bearings and universal joints in the automotive sector as well as machinery and general industry, construction industry, agriculture.

Characteristics

Universal application, multi-purpose mixed pattern for machinery
Excellent impact and wear-EP
Very good oxidation and corrosion protection even in the presence of moisture
Very good mechanical stability
Excellent water resistance
Long service life and thus extended lubrication intervals possible
Very good resistance to aging
Good pumpability, even at low temperatures

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Manufacturer Approved		LOVAT LOV-204		LOVAT LOV-204
specification		DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2		DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2
Color		Brown	visual	Brown visual
Thickener		lithium soap	DIN 51757	lithium soap DIN 51757
NLGI-Class		2	DIN 51818	2 DIN 51818
Product Classification		KP2K-30	DIN 51502	KP2K-30 DIN 51502
Working Temperature	°C	0	DIN 51825	0 °C DIN 51825
Short term temperature up to	°C	130	DIN 51757	130 °C DIN 51757
Worked Penetration at 60 Strokes		265-295	ISO 2137	265-295 ISO 2137
Corrosion (SKF Emcor dist. Water)		1	DIN 51802	1 DIN 51802
Dropping Point	°C	180 —	DIN ISO 2176	180 — °C DIN ISO 2176
Copper Corrosion (24h/120 °C)		1	DIN 51811	1 DIN 51811
Water Resistance (3h/90 °C)	°C	1-90	DIN 51807-1	1-90 °C DIN 51807-1
VKA Pressure Carrying Capacity	N	2400 — 2600	DIN 51350-4	2400 — 2600 N DIN 51350-4
Kinematic Viscosity (Base Oil) at 40 °C	mm²/s	130	DIN 51562-1	130 mm²/s DIN 51562-1
Approvals		DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2, LOVAT LOV-204		DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2, LOVAT LOV-204

Hydraulic system

Liquid volume (basic): 275 G

Standard Truck 10W

For diesels

Application NoteRAVENOL Standard Truck SAE 10 is mono grade motor oil for use in truck diesel engines. Also suitable for stationary plants.

Compliance with the requirements:
Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D

show details

SAE: 10W

API: CF, SF

Available packaging
Full description
Product parameters

Volume:
20 L

vendor code:
1123610-020

Volume:
20 L, ecobox

vendor code:
1123610-B20

Volume:
60 L

vendor code:
1123610-060

Volume:
208 L

vendor code:
1123610-208

Code:
4014835738188

Volume:
1000 L

vendor code:
1123610-700

Application Note

RAVENOL Standard Truck SAE 10 is mono grade motor oil for use in truck diesel engines. Also suitable for stationary plants.

Characteristics

Good shear stability
High oxidation stability
Excellent viscosity temperature behaviour
Convincing detergent and dispersant characteristics
High safety reserves
Good cold start characteristics
Best corrosion protection
Suitable for catalysts

Parameter	Unit	Value	Audit
Recommendations		Allison C4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Typ 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D		Allison C4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Typ 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D
SAE		10W		10W
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		CF, SF		CF, SF
Recomendations		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D
Density at 20 °C	g/cm³	862	EN ISO 12185	862 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	6.4	DIN 51562-1	6.4 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	36.9	DIN 51562-1	36.9 mm²/s DIN 51562-1
Viscosity Index VI		123	DIN ISO 2909	123 DIN ISO 2909
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	232	DIN EN ISO 2592	232 °C DIN EN ISO 2592
tbn	mgKOH/g	21	ASTM D2896	21 mgKOH/g ASTM D2896
Approvals		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D		Allison C-4, Caterpillar TO-2, MAN 270, MB 227.0, MIL-L-2104 E, MTU Type 1, Voith DIWA, Voith Retarder A, ZF TE-ML 02C, ZF TE-ML 03B, ZF TE-ML 04B, ZF TE-ML 06A, ZF TE-ML 07D

Hydraulikoel TS 32 (HLP)

For hydraulics

RAVENOL Hydraulikoel TS 32 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.

Compliance with the requirements:
AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, JCMAS HK, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest

show details

SAE: 32W

Equivalents OEM:
Alpine 0100823, Alpine 0100824, Alpine 0100825, GM 88861678, GM 88861679, GM 88861693, GM 88861693

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1323104-001

Code:
4014835759312

Volume:
5 L

vendor code:
1323104-005

Code:
4014835759350

Volume:
20 L

vendor code:
1323104-020

Code:
4014835759329

Volume:
20 L, ecobox

vendor code:
1323104-B20

Volume:
60 L

vendor code:
1323104-060

Code:
4014835759367

Volume:
208 L

vendor code:
1323104-208

Code:
4014835759381

Volume:
1000 L

vendor code:
1323104-700

RAVENOL Hydraulikoel TS 32 (HLP) with efficient additives offers an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.

RAVENOL Hydraulikoel TS 32 (HLP) is characterised by good viscosity temperature behaviour, a high aging resistant and a solid corrosion protection.

Application Note

RAVENOL Hydraulikoel TS 32 (HLP) is for universally use in all hydraulic systems.

RAVENOL Hydraulikoel TS 32 (HLP) is recommended in high performance hydraulic systems with high pressure pumps of all types, in sensitive control systems.

RAVENOL Hydraulikoel TS 32 (HLP) is used for hydraulic systems in agriculture, to supply small gearboxes and for use in circulating systems.

Characteristics

a high performance level
a very good viscosity temperature behaviour
a high aging resistant
an excellent corrosion protection
a solid corrosion protection
neutrality of sealing materials

Parameter	Unit	Value	Audit
Recommendations		AFNOR NFE 48-603 HM, ASTM D6158, Atos, Bosch Rexroth RE 90220, CETOP RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG-Test A 8,3/90, GB 111118.1 L-HM (conventional), GM LH-02-1-04, GM LS-2, ISO 11158 HM, JCMAS HK, M-2950-S, Metso, MIL-PRF-17672 E, Müller Weingarten, Parker Denison HF-0, Parker Denison HF-1, Parker Dension HF-2, SAE MS1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, US Steel 126, US Steel 127, US Steel 136, VDMA 24318, Vickers-Pumpentest		AFNOR NFE 48-603 HM, ASTM D6158, Atos, Bosch Rexroth RE 90220, CETOP RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG-Test A 8,3/90, GB 111118.1 L-HM (conventional), GM LH-02-1-04, GM LS-2, ISO 11158 HM, JCMAS HK, M-2950-S, Metso, MIL-PRF-17672 E, Müller Weingarten, Parker Denison HF-0, Parker Denison HF-1, Parker Dension HF-2, SAE MS1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, US Steel 126, US Steel 127, US Steel 136, VDMA 24318, Vickers-Pumpentest
Brand		RAVENOL		RAVENOL
SAE		32W		32W
Type		Mineral		Mineral
ASTM		D6158		D6158
Recomendations		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, JCMAS HK, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, Eaton Vickers I-286-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, JCMAS HK, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest
specification		DIN 51524-2, ISO 6743-4 HM		DIN 51524-2, ISO 6743-4 HM
Suitable for		Atos, Metso		Atos, Metso
Density at 20 °C	g/cm³	848	EN ISO 12185	848 g/cm³ EN ISO 12185
Color		light yellow	visual	light yellow visual
Viscosity at 100 °C	mm²/s	5.8	DIN 51562-1	5.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	32.1	DIN 51562-1	32.1 mm²/s DIN 51562-1
Viscosity Index VI		123	DIN ISO 2909	123 DIN ISO 2909
Pourpoint	°C	-30	DIN ISO 3016	-30 °C DIN ISO 3016
Flashpoint	°C	224	DIN EN ISO 2592	224 °C DIN EN ISO 2592
Approvals		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, DIN 51524-2, Eaton Vickers I-286-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest		AFNOR NFE 48-603 HM, Bosch Rexroth RE 90220, Cetop RP 91H HM, Danieli Hydraulics, DIN 51524-2, Eaton Vickers I-286-S, Fives Cincinnati P-38, Fives Cincinnati P-68, FZG Test A 8,3/90, GB 111118.1 L-HM, GM LH-02-1-04, GM LS-2, ISO 11158 HM, ISO 6743-4 HM, JCMAS HK, MIL-PRF-17672 E, Müller, Parker Denison HF-0, Parker Denison HF-1, Parker Denison HF-2, SAE MS 1004 HM, Sauer-Danfoss 520L0463, SEB 181.222, U.S. Steel 126, U.S. Steel 127, U.S. Steel 136, VDMA 24318, Vickers M-2950-S, Vickers Pumpentest

ATF Dexron D II

For automatic transmission

Application NoteRAVENOL ATF Dexron D II was developed for the use in automatic transmissions, hydro steering mechanisms, converters and power transmissions and can be used as a universal ATF (Automatic-Transmission-Fluid) for all vehicles and working machines.

Manufacturer Approved:
Voith H55.6335.xx

Compliance with the requirements:
Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C

show details

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1213102-001

Code:
4014835733510

Volume:
4 L

vendor code:
1213102-004

Code:
4014835733596

Volume:
10 L

vendor code:
1213102-010

Code:
4014835733541

Volume:
20 L

vendor code:
1213102-020

Code:
4014835733527

Volume:
20 L, ecobox

vendor code:
1213102-B20

Code:
4014835787827

Volume:
60 L

vendor code:
1213102-060

Code:
4014835733565

Volume:
208 L

vendor code:
1213102-208

Code:
4014835733589

Volume:
208 L, print

vendor code:
1213102-D28

Volume:
1000 L

vendor code:
1213102-700

Application Note

RAVENOL ATF Dexron D II was developed for the use in automatic transmissions, hydro steering mechanisms, converters and power transmissions and can be used as a universal ATF (Automatic-Transmission-Fluid) for all vehicles and working machines.

Characteristics

protection against corrosion, sludge and sticking
an excellent and very shear stable viscosity temperature behaviour
no problems concerning very low respectively very high temperatures
an excellent high thermal capacity
free of foam even under hardest loads
neutral behaviour against sealing materials
mixable and compatible with all kinds of ATF

Parameter	Unit	Value	Audit
ATF		Dexron D II		Dexron D II
Recommendations		Caterpillar TO-2, CVT, DTFR 13C140 (MB 236.7), Ford M2C-138 CJ, Ford M2C-166H, Ford M2C-185A, Ford MERCON®, Ford SQM-9010B, MAN 339 Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C		Caterpillar TO-2, CVT, DTFR 13C140 (MB 236.7), Ford M2C-138 CJ, Ford M2C-166H, Ford M2C-185A, Ford MERCON®, Ford SQM-9010B, MAN 339 Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Manufacturer Approved		Voith H55.6335.xx		Voith H55.6335.xx
Recomendations		Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C		Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C
specification		Allison C-3, Allison C-4, GM Dexron® II D		Allison C-3, Allison C-4, GM Dexron® II D
Suitable for		CVT		CVT
Density at 20 °C	g/cm³	848	EN ISO 12185	848 g/cm³ EN ISO 12185
Color		Red	visual	Red visual
Viscosity at 100 °C	mm²/s	7.3	DIN 51562-1	7.3 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	34.3	DIN 51562-1	34.3 mm²/s DIN 51562-1
Viscosity Index VI		185	DIN ISO 2909	185 DIN ISO 2909
Pourpoint	°C	-51	DIN ISO 3016	-51 °C DIN ISO 3016
Flashpoint	°C	210	DIN EN ISO 2592	210 °C DIN EN ISO 2592
Approvals		Allison C-3, Allison C-4, Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, GM Dexron® II D, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, Voith H55.6335.xx, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C		Allison C-3, Allison C-4, Caterpillar TO-2, DTFR 13C140 (MB 236.7), Ford ESD-M2C 185-A, Ford ESP-M2C 138-CJ, Ford ESP-M2C 166-H, Ford MERCON®, Ford SQM-9010B, GM Dexron® II D, MAN 339 Type Z1, MB 236.6, MB 236.7, Renk Doromat, Voith H55.6335.xx, ZF TE-ML 03D, ZF TE-ML 04D, ZF TE-ML 05L, ZF TE-ML 11A, ZF TE-ML 14A, ZF TE-ML 17C

Twin casings

Liquid volume (basic): 150 G

STOU 15W-30

For tractors

show details

SAE: 15W-30

API: CE, GL-4, SF

ACEA: E1, E2

Usage mode: normal

Checking through, MONTH: 500

Replacement via, MONTH: 4000

Available packaging
Full description
Product parameters

Volume:
20 L, ecobox

vendor code:
1310112-B20

Volume:
60 L

vendor code:
1310112-060

Code:
4014835739963

Volume:
60 L, print

vendor code:
1310112-D60

Volume:
208 L

vendor code:
1310112-208

Volume:
1000 L

vendor code:
1310112-700

Volume:
20 L

vendor code:
1310112-020

Application Note

Characteristics

Excellent viscosity-temperature behaviour
Exceptional cold starting abilities
Excellent detergent and dispersant properties
High resistance to ageing

Parameter	Unit	Value	Audit
Recommendations		Allison C4, Atlas Copco Kompressor, Case International J I, Case MS 1118, Case MS 1206, Case MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford-Pumpentest, Getriebeöl: SAE 80W, Hydrauliköl: HLP ISO VG 68, International Harvester B6, John Deere J20C, John Deere J20D, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson M1127, Massey Ferguson M1139, Massey Ferguson M1144, MIL-L-2105, Parker Dension HF-2, Spezialtraktorenöl: John Deere J27A, Vickers-Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B		Allison C4, Atlas Copco Kompressor, Case International J I, Case MS 1118, Case MS 1206, Case MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford-Pumpentest, Getriebeöl: SAE 80W, Hydrauliköl: HLP ISO VG 68, International Harvester B6, John Deere J20C, John Deere J20D, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson M1127, Massey Ferguson M1139, Massey Ferguson M1144, MIL-L-2105, Parker Dension HF-2, Spezialtraktorenöl: John Deere J27A, Vickers-Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B
SAE		15W-30		15W-30
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
API		CE, GL-4, SF		CE, GL-4, SF
ACEA		E1, E2		E1, E2
Recomendations		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B
Suitable for		Atlas Copco Kompressor		Atlas Copco Kompressor
Density at 20 °C	g/cm³	861	EN ISO 12185	861 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.8	DIN 51562-1	11.8 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	71.7	DIN 51562-1	71.7 mm²/s DIN 51562-1
Viscosity Index VI		159	DIN ISO 2909	159 DIN ISO 2909
Pourpoint	°C	-39	DIN ISO 3016	-39 °C DIN ISO 3016
Flashpoint	°C	222	DIN EN ISO 2592	222 °C DIN EN ISO 2592
tbn	mgKOH/g	11.7	ASTM D2896	11.7 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.5	DIN 51575	1.5 %wt. DIN 51575
Approvals		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B		Allison C-4, Case IH International J I, Case IH MS 1118, Case IH MS 1206, Case IH MS 1209, Caterpillar TO-2, Fiat AF 87, Ford NH 024C, Ford NH 324B, Ford NH 540B, Ford Pumpentest, International Harvester B6, ISO VG 68 HLP, John Deere J20 C, John Deere J20 D, John Deere J27A, Kompressorenöl: Holman Compair Kompressor, Massey Ferguson CMS M1127, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, MIL-L-2105, Parker Denison HF-2, Vickers Pumpentest, ZF TE-ML 06B, ZF TE-ML 07B

STOU 10W-30

For tractors

show details

SAE: 10W-30

API: CG-4, GL-4, SF

ACEA: E3

Equivalents OEM:
Isuzu 1884057500, Isuzu 1884057520, Isuzu 1884057720, Isuzu 1884057720

Usage mode: normal

Checking through, MONTH: 500

Replacement via, MONTH: 4000

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1310100-005

Volume:
20 L

vendor code:
1310100-020

Code:
4014835739529

Volume:
20 L, ecobox

vendor code:
1310100-B20

Volume:
60 L

vendor code:
1310100-060

Code:
4014835739567

Volume:
208 L

vendor code:
1310100-208

Code:
4014835739581

Volume:
1000 L

vendor code:
1310100-700

Application Note

RAVENOL STOU SAE 10W-30 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.

RAVENOL STOU SAE 10W-30 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil.

Characteristics

A powerful dispersion and detergency
Protection against wear, corrosion and foam
High resistance to oxidation
Excellent extreme pressure properties
A high and stable viscosity index

Parameter	Unit	Value	Audit
Recommendations		ACEA E3, Allison C4, API CG-4/SF, API GL-4, Atlas Copco Kompressor, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Getriebeöl: SAE 80W, Hydrauliköl: HVLP ISO VG 68, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson M1139, Massey Ferguson M1144, Massey Ferguson M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, Motorenöl: SAE 10W-30, New Holland / Ford ESN-M2C-15- 9B, Spezialtraktorenöl: John Deere J27, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B		ACEA E3, Allison C4, API CG-4/SF, API GL-4, Atlas Copco Kompressor, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Getriebeöl: SAE 80W, Hydrauliköl: HVLP ISO VG 68, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson M1139, Massey Ferguson M1144, Massey Ferguson M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, Motorenöl: SAE 10W-30, New Holland / Ford ESN-M2C-15- 9B, Spezialtraktorenöl: John Deere J27, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B
SAE		10W-30		10W-30
Brand		RAVENOL		RAVENOL
API		CG-4, GL-4, SF		CG-4, GL-4, SF
ACEA		E3		E3
Recomendations		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B
Suitable for		Atlas Copco Kompressor		Atlas Copco Kompressor
Density at 20 °C	g/cm³	867	EN ISO 12185	867 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	11.7	DIN 51562-1	11.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	74.7	DIN 51562-1	74.7 mm²/s DIN 51562-1
Viscosity Index VI		151	DIN ISO 2909	151 DIN ISO 2909
Pourpoint	°C	-36	DIN ISO 3016	-36 °C DIN ISO 3016
Flashpoint	°C	226	DIN EN ISO 2592	226 °C DIN EN ISO 2592
tbn	mgKOH/g	12.4	ASTM D2896	12.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.58	DIN 51575	1.58 %wt. DIN 51575
Approvals		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Caterpillar TO-2, DTFR 15B110 (MB 228.3), Ford ESN-M2C 159-B, ISO VG 68 HVLP, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 270, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland ESN-M2C 159-B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06D, ZF TE-ML 07B

STOU 10W-40

Tractor oil

show details

SAE: 10W-40

API: CG-4, GL-4, SF

ACEA: E3

Usage mode: normal

Checking through, MONTH: 500

Replacement via, MONTH: 4000

Available packaging
Full description
Product parameters

Volume:
5 L

vendor code:
1310111-005

Volume:
10 L

vendor code:
1310111-010

Volume:
20 L

vendor code:
1310111-020

Code:
4014835739826

Volume:
20 L, ecobox

vendor code:
1310111-B20

Volume:
60 L

vendor code:
1310111-060

Volume:
1000 L

vendor code:
1310111-700

Volume:
208 L

vendor code:
1310111-208

Application Note

RAVENOL STOU SAE 10W-40 has a wide range of applications in engines, transmissions and hydraulic systems of modern tractors.

RAVENOL STOU SAE 10W-40 is suitable as an engine oil for gasoline engines and intake and turbo charged diesel engines, also as gear oil (including wet brakes) and as hydraulic oil.

Characteristics

A powerful dispersion and detergency
A high activity against wear, corrosion and foam
A very strong resistance to oxidation
A high and stable viscosity index
An excellent extreme pressure properties

Parameter	Unit	Value	Audit
Recommendations		80W-90, 85W, 85W-90, ACEA E3, Allison C4, API CG-4/SF, API GL-4, Atlas Copco Kompressor, Case IH-MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C-134 B, Ford ESN-M2C-134 C, Ford ESN-M2C-134 D, Ford ESN-M2C-159 B, Ford ESN-M2C-159 C, Getriebeöl: SAE 80W, Hydrauliköl: HVLP ISO VG 68-100, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson M1139, Massey Ferguson M1144, Massey Ferguson M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, Motorenöl: SAE 10W-40, New Holland NH 410B, Spezialtraktorenöl: John Deere J20C, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B		80W-90, 85W, 85W-90, ACEA E3, Allison C4, API CG-4/SF, API GL-4, Atlas Copco Kompressor, Case IH-MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C-134 B, Ford ESN-M2C-134 C, Ford ESN-M2C-134 D, Ford ESN-M2C-159 B, Ford ESN-M2C-159 C, Getriebeöl: SAE 80W, Hydrauliköl: HVLP ISO VG 68-100, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson M1139, Massey Ferguson M1144, Massey Ferguson M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, Motorenöl: SAE 10W-40, New Holland NH 410B, Spezialtraktorenöl: John Deere J20C, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
SAE		10W-40		10W-40
Brand		RAVENOL		RAVENOL
API		CG-4, GL-4, SF		CG-4, GL-4, SF
ACEA		E3		E3
Recomendations		Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B
Suitable for		Atlas Copco Kompressor		Atlas Copco Kompressor
Density at 20 °C	g/cm³	864	EN ISO 12185	864 g/cm³ EN ISO 12185
Color		tan	visual	tan visual
Viscosity at 100 °C	mm²/s	14.7	DIN 51562-1	14.7 mm²/s DIN 51562-1
Viscosity at 40 °C	mm²/s	101.1	DIN 51562-1	101.1 mm²/s DIN 51562-1
Viscosity Index VI		151	DIN ISO 2909	151 DIN ISO 2909
Pourpoint	°C	-33	DIN ISO 3016	-33 °C DIN ISO 3016
Flashpoint	°C	234	DIN EN ISO 2592	234 °C DIN EN ISO 2592
tbn	mgKOH/g	12.4	ASTM D2896	12.4 mgKOH/g ASTM D2896
Sulphated Ash	%wt.	1.45	DIN 51575	1.45 %wt. DIN 51575
Approvals		Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B		Allison C-4, Case IH MS 1209, Caterpillar TO-2, DTFR 15B110 (MB 228.3), FENDT KDM 41.2011, Ford ESN-M2C 134-B, Ford ESN-M2C 134-C, Ford ESN-M2C 134-D, Ford ESN-M2C 159-B, Ford ESN-M2C 159-C, ISO VG 100 HVLP, ISO VG 68 HVLP, John Deere J20 C, John Deere J20C, John Deere J27, Kompressorenöl: Holman Compair Kompressor, MAN 271, Massey Ferguson CMS M1139, Massey Ferguson CMS M1144, Massey Ferguson CMS M1145, MAT 3525, MB 227.1, MB 228.1, MB 228.3, MIL-L-2104 D, New Holland NH 410B, ZF TE-ML 06A, ZF TE-ML 06B, ZF TE-ML 06C, ZF TE-ML 06D, ZF TE-ML 07B

Lubrication device

Hot Red Grease HRG2

For bearings

Application NoteRAVENOL Hot Red Grease HRG 2 is used for the lubrication of roller and friction bearings under extreme pressure at high bearing temperatures.

Manufacturer Approved:
MAN 284 Li-H2, MB-Approval 265.1

show details

Equivalents OEM:
BMW 83190447919, Land Rover STC3435, SWAG 10921909, VAG G052133A2, VAG G052133A2

Available packaging
Full description
Product parameters

Volume:
100 g

vendor code:
1340121-100

Code:
4014835844636

Volume:
200 g

vendor code:
1340121-200

Volume:
400 g

vendor code:
1340121-400

Code:
4014835756540

Volume:
1 kg

vendor code:
1340121-001

Code:
4014835756519

Volume:
5 kg

vendor code:
1340121-005

Code:
4014835756557

Volume:
10 kg

vendor code:
1340121-010

Code:
4014835756533

Volume:
15 kg

vendor code:
1340121-015

Code:
4014835756564

Volume:
25 kg

vendor code:
1340121-025

Code:
4014835756571

Volume:
180 kg

vendor code:
1340121-180

Code:
4014835756588

Application Note

RAVENOL Hot Red Grease HRG 2 is used for the lubrication of roller and friction bearings under extreme pressure at high bearing temperatures.

RAVENOL Hot Red Grease HRG 2 is particularly recommended for the lubrication of commercial vehicles and for high-speed passenger car wheel bearings.

Characteristics

Work resistance
Resistance to oxidation
Water resistance
Good corrosion protection characteristics
High thermal load capacity
High pressure susceptibility
Good adhesion

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
Manufacturer Approved		MAN 284 Li-H2, MB-Approval 265.1		MAN 284 Li-H2, MB-Approval 265.1
specification		DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2		DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2
Color		Red	visual	Red visual
Thickener		lithium soap	DIN 51757	lithium soap DIN 51757
NLGI-Class		2	DIN 51818	2 DIN 51818
Product Classification		KP2P-35	DIN 51502	KP2P-35 DIN 51502
Working Temperature	°C	-35 / +160	DIN 51825	-35 / +160 °C DIN 51825
Short term temperature up to	°C	200	DIN 51757	200 °C DIN 51757
Worked Penetration at 60 Strokes		265-295	ISO 2137	265-295 ISO 2137
Dropping Point	°C	260 —	DIN ISO 2176	260 — °C DIN ISO 2176
Copper Corrosion (24h/120 °C)		1	DIN 51811	1 DIN 51811
Water Resistance (3h/90 °C)	°C	1-90	DIN 51807-1	1-90 °C DIN 51807-1
VKA Pressure Carrying Capacity	N	2600 — 2800	DIN 51350-4	2600 — 2800 N DIN 51350-4
Kinematic Viscosity (Base Oil) at 40 °C	mm²/s	140	DIN 51562-1	140 mm²/s DIN 51562-1
Approvals		DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2, MAN 284 Li-H2, MB 265.1		DIN 51502 KP2P-35, ISO 6743-9: ISO-L-XCEEB2, MAN 284 Li-H2, MB 265.1

Arctic Green Grease AGG 2

For bearings

RAVENOL Arctic Green Grease AGG 2 offers excellent working resistance, rust and corrosion protection.

show details

Available packaging
Full description
Product parameters

Volume:
100 g

vendor code:
1340126-100

Code:
4014835844780

Volume:
200 g

vendor code:
1340126-200

Volume:
400 g

vendor code:
1340126-400

Code:
4014835756847

Volume:
1 kg

vendor code:
1340126-001

Volume:
25 kg

vendor code:
1340126-025

Code:
4014835756885

Volume:
180 kg

vendor code:
1340126-180

RAVENOL Arctic Green Grease AGG 2 offers excellent working resistance, rust and corrosion protection.

Application Note

RAVENOL Arctic Green Grease AGG 2 is used in roller and friction bearings under extreme pressure at extremely low temperatures.

The highest application temperature for RAVENOL Arctic Green Grease AGG 2 in continuous operation is 120°C. Peak performances of 160°C should not be exceeded.

Extremely high temperatures shorten the service life. Routine relubrication preserves material and saves costs.

Characteristics

Working resistance
Oxidation resistance
Water resistance
Good corrosion protection characteristics
High thermal load capacity
High pressure susceptibility
Good adhesion

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
Type		Full synthetic		Full synthetic
specification		DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2		DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2
Color		Green	visual	Green visual
Thickener		lithium soap	DIN 51757	lithium soap DIN 51757
NLGI-Class		2	DIN 51818	2 DIN 51818
Product Classification		KPE2K-60	DIN 51502	KPE2K-60 DIN 51502
Working Temperature	°C	-60 / +120	DIN 51825	-60 / +120 °C DIN 51825
Short term temperature up to	°C	160	DIN 51757	160 °C DIN 51757
Worked Penetration at 60 Strokes		265-295	ISO 2137	265-295 ISO 2137
Dropping Point	°C	180 —	DIN ISO 2176	180 — °C DIN ISO 2176
Copper Corrosion (24h/120 °C)		1	DIN 51811	1 DIN 51811
Water Resistance (3h/90 °C)	°C	1-90	DIN 51807-1	1-90 °C DIN 51807-1
VKA Pressure Carrying Capacity	N	3000 — 3200	DIN 51350-4	3000 — 3200 N DIN 51350-4
Kinematic Viscosity (Base Oil) at 40 °C	mm²/s	20	DIN 51562-1	20 mm²/s DIN 51562-1
Approvals		DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2		DIN 51502 KPE2K-60, ISO 6743-9: ISO-L-XECEB2

Super EP-Langzeitfett

For bearings

RAVENOL Super EP-Langzeitfett is due to its smooth structure is easily conveyed.

Manufacturer Approved:
LOVAT LOV-204

show details

Available packaging
Full description
Product parameters

Volume:
100 g

vendor code:
1340104-100

Code:
4014835844513

Volume:
200 g

vendor code:
1340104-200

Volume:
400 g

vendor code:
1340104-400

Code:
4014835768345

Volume:
1 kg

vendor code:
1340104-001

Code:
4014835200418

Volume:
5 kg

vendor code:
1340104-005

Code:
4014835200456

Volume:
10 kg

vendor code:
1340104-010

Code:
4014835200463

Volume:
15 kg

vendor code:
1340104-015

Code:
4014835200432

Volume:
25 kg

vendor code:
1340104-025

Code:
4014835200425

Volume:
180 kg

vendor code:
1340104-180

Code:
4014835200708

RAVENOL Super EP-Langzeitfett is due to its smooth structure is easily conveyed.

RAVENOL Super EP-Langzeitfett is based on high-quality base oil by using lithium soaps (Li-12-hydroxy stearate) as thickener.

Due to this they avail of an outstanding work resistance. Futhermore, RAVENOL Super EP-Langzeitfett contain additives to improve the rust and corrosion-preventing behaviour.

Application Note

Characteristics

Universal application, multi-purpose mixed pattern for machinery
Excellent impact and wear-EP
Very good oxidation and corrosion protection even in the presence of moisture
Very good mechanical stability
Excellent water resistance
Long service life and thus extended lubrication intervals possible
Very good resistance to aging
Good pumpability, even at low temperatures

Parameter	Unit	Value	Audit
Brand		RAVENOL		RAVENOL
Type		Mineral		Mineral
Manufacturer Approved		LOVAT LOV-204		LOVAT LOV-204
specification		DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2		DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2
Color		Brown	visual	Brown visual
Thickener		lithium soap	DIN 51757	lithium soap DIN 51757
NLGI-Class		2	DIN 51818	2 DIN 51818
Product Classification		KP2K-30	DIN 51502	KP2K-30 DIN 51502
Working Temperature	°C	0	DIN 51825	0 °C DIN 51825
Short term temperature up to	°C	130	DIN 51757	130 °C DIN 51757
Worked Penetration at 60 Strokes		265-295	ISO 2137	265-295 ISO 2137
Corrosion (SKF Emcor dist. Water)		1	DIN 51802	1 DIN 51802
Dropping Point	°C	180 —	DIN ISO 2176	180 — °C DIN ISO 2176
Copper Corrosion (24h/120 °C)		1	DIN 51811	1 DIN 51811
Water Resistance (3h/90 °C)	°C	1-90	DIN 51807-1	1-90 °C DIN 51807-1
VKA Pressure Carrying Capacity	N	2400 — 2600	DIN 51350-4	2400 — 2600 N DIN 51350-4
Kinematic Viscosity (Base Oil) at 40 °C	mm²/s	130	DIN 51562-1	130 mm²/s DIN 51562-1
Approvals		DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2, LOVAT LOV-204		DIN 51502 KP2K-30, ISO I6743-9: ISO-L-XCCFB2, LOVAT LOV-204

Cooling system

Liquid volume (basic): 51 L

HJC Hybrid Japanese Coolant PREMIX -40°C

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

Compliance with the requirements:
Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant

show details

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410123-150

Code:
4014835755918

Volume:
5 L

vendor code:
1410123-005

Code:
4014835755956

Volume:
10 L

vendor code:
1410123-010

Volume:
20 L

vendor code:
1410123-020

Code:
4014835755925

Volume:
20 L, ecobox

vendor code:
1410123-B20

Code:
4014835855977

Volume:
60 L, plastic

vendor code:
1410123-060

Code:
4014835755963

Volume:
208 L

vendor code:
1410123-208

Code:
4014835755987

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL HJC Hybrid Japanese Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL HJC Hybrid Japanese Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL HJC Hybrid Japanese Coolant Premix -40°C to radiator to fill line.

Characteristics

Excellent for light metal engines
Good reserve alkalinity
High-quality corrosion additives for optimal corrosion protection
Elastomer compatible with elastomers used in automotive radiators

Parameter	Unit	Value	Audit
Recommendations		08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant		08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant
Brand		RAVENOL		RAVENOL
Recomendations		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant
Compliant products		Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944		Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944
Density at 20 °C	g/cm³	1082	EN ISO 12185	1082 g/cm³ EN ISO 12185
Color		Green	visual	Green visual
pH - value		7 — 8.5	ASTM D1287	7 — 8.5 ASTM D1287
Freezing point	°C	-40	ASTM D1177	-40 °C ASTM D1177
Approvals		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant

HJC Hybrid Japanese Coolant Concentrate

Coolant

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

Compliance with the requirements:
Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant

show details

Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410122-150

Code:
4014835755819

Volume:
5 L

vendor code:
1410122-005

Code:
4014835755857

Volume:
10 L

vendor code:
1410122-010

Volume:
20 L

vendor code:
1410122-020

Code:
4014835755826

Volume:
20 L, ecobox

vendor code:
1410122-B20

Code:
4014835855489

Volume:
60 L

vendor code:
1410122-060

Code:
4014835755864

Volume:
208 L

vendor code:
1410122-208

Code:
4014835755888

Volume:
1000 L

vendor code:
1410122-700

It is no longer just the anti-freeze effect (which automatically exists in an ethylene-glycol based product) which is critical for the quality of a coolant, but also the rust protection.

Therefore manufacturers subject coolants to long corrosion and cavitation tests.

RAVENOL HJC Hybrid Japanese Coolant Concentrate protects the cooling system from corrosion, frost, and in the summer from overheating.

Application Note

RAVENOL HJC Hybrid Japanese Coolant Concentrate with frost and rust protection. Use according to the mixing chart. Follow manufacturer’s recommendations.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL HJC Hybrid Japanese Coolant Concentrate with distilled water (per mixing table) and add. Allow engine and heater to warm up, add coolant to fill level.

Table of mixing ratios
Antifreeze protection until	Parts Antifreeze	Parts Water
-20°C	35%	65%
-37°C	50%	50%
-50°C	60%	40%

Characteristics

Excellent for light metal engines
Good reserve alkalinity
High-quality corrosion additives for optimal corrosion protection
Elastomer compatible with elastomers used in automotive radiators

Parameter	Unit	Value	Audit
Recommendations		08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant		08CLAG010S0 Honda E Coolant, Ford VC-10-A2, Ford WSS-M97B55, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Mazda FL22 Coolant, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944, Subaru Coolant 16218, Suzuki Longlife Coolant
Brand		RAVENOL		RAVENOL
Recomendations		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant
Compliant products		Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944		Honda 08CLAG010S0, Hyundai 00232-19010, Hyundai 07100-00200, Hyundai 07100-00400, Hyundai Long Life Coolant, Mazda 000077508E20, Mazda C100CL005A4X, Mazda C122CL005A4X, Motorcraft VC-10-A2, Nissan Anti-freeze Coolant (L250), Nissan KE90299934, Nissan KE90299944
Density at 20 °C	g/cm³	1132	EN ISO 12185	1132 g/cm³ EN ISO 12185
Color		Green	visual	Green visual
Reserve alkalinity	mgKOH/g	15 —	ASTM D1120	15 — mgKOH/g ASTM D1120
Boiling point	°C	150 —	ASTM D1121	150 — °C ASTM D1121
Water content	%	— 5	ASTM D1123	— 5 % ASTM D1123
Flashpoint	°C	110 —	DIN 51758	110 — °C DIN 51758
Freezing point (50 % solution)	°C	-37	ASTM D1177	-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %)		7,0 - 8,5	ASTM D1287	7,0 - 8,5 ASTM D1287
Approvals		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant		Ford WSS-M97B55, Mazda FL22 Coolant, Subaru coolant 16218, Suzuki Longlife Coolant

HTC - Protect MB325.0 Premix -40°C

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

Compliance with the requirements:
DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C

show details

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410121-150

Code:
4014835755710

Volume:
5 L

vendor code:
1410121-005

Code:
4014835755758

Volume:
10 L

vendor code:
1410121-010

Volume:
20 L

vendor code:
1410121-020

Code:
4014835755727

Volume:
20 L, ecobox

vendor code:
1410121-B20

Code:
4014835855403

Volume:
60 L

vendor code:
1410121-060

Code:
4014835755765

Volume:
208 L

vendor code:
1410121-208

Code:
4014835755789

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL HTC Hybrid Technology Coolant Premix -40°C protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL HTC Hybrid Technology Coolant Premix -40°C is a prediluted coolant with frost and rust protection for year-round use in automotive engines.

Even in summer coolant must contain enough antifreeze to ensure good corrosion and overheating protection.

Instructions: Add RAVENOL HTC Hybrid Technology Coolant Premix -40°C to radiator to fill line.

RAVENOL HTC Hybrid Technology Coolant Premix -40°C can also be used as a “ready for use” dilution in geothermal probes and geothermal collectors as recommended list of LaWa (Federal / State Working Group on Water in Germany).

RAVENOL HTC Hybrid Technology Coolant Concentrate is included in the list of recommendations of the LaWa for water management requirements for geothermal probes and geothermal collectors.

Characteristics

Excellent for use in cast iron or aluminium engines, or alloys of the two metals, and aluminium andcopper alloy radiators
Good reserve alkalinity
Protection from corrosion and cavitation
Prevents sediments and foaming in the cooling system
Compatible with elastomers used in automotive radiators

Parameter	Unit	Value	Audit
Recommendations		ASTM D3306, ASTM D4340, ASTM D4985, Audi, BMW 81229407454, BMW 83192211191, DAF, DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford AF Plus, Ford ESE-M978B4H-A, GM 1825M, GM 1899M, GM 93740140, GM 93740141, GM SATURN, Honda OL999-9011, Jaguar, John Deere, MAN 324 NF, MB (A 000 989 08 25 10), MB 325.0 (Konzentrat), MB 326.0 (Premix), NATO S-759, Opel/GM QL130100, Porsche, Renault Glaceol RX Type D, ROVER, SAAB, SAE J1034, VW TL 774-C (entspricht G11)		ASTM D3306, ASTM D4340, ASTM D4985, Audi, BMW 81229407454, BMW 83192211191, DAF, DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford AF Plus, Ford ESE-M978B4H-A, GM 1825M, GM 1899M, GM 93740140, GM 93740141, GM SATURN, Honda OL999-9011, Jaguar, John Deere, MAN 324 NF, MB (A 000 989 08 25 10), MB 325.0 (Konzentrat), MB 326.0 (Premix), NATO S-759, Opel/GM QL130100, Porsche, Renault Glaceol RX Type D, ROVER, SAAB, SAE J1034, VW TL 774-C (entspricht G11)
Brand		RAVENOL		RAVENOL
ASTM		D3306, D4340, D4985		D3306, D4340, D4985
Recomendations		DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C		DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C
Suitable for		DAF, GM SATURN, Jaguar, John Deere, Porsche, ROVER, SAAB, VW		DAF, GM SATURN, Jaguar, John Deere, Porsche, ROVER, SAAB, VW
Compliant products		BMW 81229407454, BMW 83192211191, Ford AF Plus, GM 93740140, GM 93740141, Honda OL999-9011, MB A 000 989 08 25 10		BMW 81229407454, BMW 83192211191, Ford AF Plus, GM 93740140, GM 93740141, Honda OL999-9011, MB A 000 989 08 25 10
Density at 20 °C	g/cm³	1080	EN ISO 12185	1080 g/cm³ EN ISO 12185
Color		Blue	visual	Blue visual
pH - value at 20 °C		7,5	ASTM D1287	7,5 ASTM D1287
Freezing point	°C	-40	ASTM D1177	-40 °C ASTM D1177
Approvals		DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C		DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C

HTC - Protect MB325.0 Concentrate

Coolant

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

show details

Equivalents OEM:
BMW 83195A1E3B6, BMW 81229407454, BMW 83192211191, BMW 83192211195, BMW 83192211913, BMW 83192211914, BMW 83192304068, BMW 83192304069, BMW 83512355290, BMW 83512355291, BMW 83512355293, BMW 83512355296, BMW 83600005416, FEBI 05011, FEBI 22268, FEBI 22270, Ford 1047035, GM 10101, GM 105034, GM 9163329, GM 10953464, GM 12346290, GM 12378512, GM 12378560, GM 12378561, GM 12378562, GM 93165162, GM 93170402, GM 93740140, GM 93740141, GM 93742646 BMW 83195A1E3B6, BMW 81229407454, BMW 83192211191, BMW 83192211195, BMW 83192211913, BMW 83192211914, BMW 83192304068, BMW 83192304069, BMW 83512355290, BMW 83512355291, BMW 83512355293, BMW 83512355296, BMW 83600005416, FEBI 05011, FEBI 22268, FEBI 22270, Ford 1047035, GM 10101, GM 105034, GM 9163329, GM 10953464, GM 12346290, GM 12378512, GM 12378560, GM 12378561, GM 12378562, GM 93165162, GM 93170402, GM 93740140, GM 93740141, GM 93742646, GM 93742647, Honda 08CLAE020S0, Land Rover PDA500300, MB A000989082510, MB A000989082513, MB A000989082520, MB A000989082521, MB A000989082522, MB A000989082523, MB A0009892125, MB A989082510, MB A990989280020, MB A990989280021, MB A990989280022, MB A990989280023, SsangYong 0000000294, Subaru 000016218, Subaru K0679GA102, VAG G011A8CA1, VAG G011A8CA1, Volvo 9437650, Volvo 9437651, Volvo 31439720, Volvo 31439721

Attention! This is a concentrated product. Before use, it must be diluted with distilled water in a 1:1 ratio.

Available packaging
Full description
Product parameters

Volume:
1.5 L

vendor code:
1410120-150

Code:
4014835755611

Volume:
5 L

vendor code:
1410120-005

Code:
4014835755659

Volume:
10 L

vendor code:
1410120-010

Volume:
20 L

vendor code:
1410120-020

Code:
4014835755628

Volume:
20 L, ecobox

vendor code:
1410120-B20

Code:
4014835852730

Volume:
60 L

vendor code:
1410120-060

Code:
4014835755666

Volume:
208 L

vendor code:
1410120-208

Code:
4014835755680

Volume:
1000 L

vendor code:
1410120-700

The quality of an antifreeze is no longer just determined by the antifreeze effect (which automatically exists in an ethylene-glycol based product), but by the rust protection.

That is why manufacturers subject antifreeze to lengthy corrosion and cavitation tests.

RAVENOL HTC Hybrid Technology Coolant Concentrate protects the cooling system from rust, frost, and in summer, from overheating.

Application Note

RAVENOL HTC Hybrid Technology Coolant Concentrate with frost and rust protection for year-round use in automotive engines. Mix according to chart. Follow manufacturer's recommendations.

Instructions: Clean cooling system, check for leaks, flush.

Mix RAVENOL HTC Hybrid Technology Coolant Concentrate with distilled water (per mixing chart) and add. Allow engine and heater to warm up, add coolant to fill level.

RAVENOL HTC Hybrid Technology Coolant Concentrate can also be used in geothermal probes and geothermal collectors as recommended list of LaWa (Federal / State Working Group on Water in Germany).

Table of mixing ratios
Antifreeze protection until	Parts Antifreeze	Parts Water
-20°C	35%	65%
-37°C	50%	50%
-50°C	60%	40%

Characteristics

Excellent for use in cast iron or aluminium engines, or alloys of the two metals, and aluminium and copper alloy radiators
Excellent reserve alkalinity
Protection from corrosion and cavitation
Prevents sediments and foaming in the cooling system
Compatible with elastomers used in automotive radiators

Parameter	Unit	Value	Audit
Recommendations		ASTM D3306, ASTM D4340, ASTM D4985, Audi, BMW 81229407454, BMW 83192211191, DAF, DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford AF Plus, Ford ESE-M978B4H-A, GM 1825M, GM 1899M, GM 93740140, GM 93740141, GM SATURN, Honda OL999-9011, Jaguar, John Deere, MAN 324 NF, MB (A 000 989 08 25 10), MB 325.0 (Konzentrat), MB 326.0 (Premix), NATO S-759, Opel/GM QL130100, Porsche, Renault Glaceol RX Type D, ROVER, SAAB, SAE J1034, VW TL 774-C (entspricht G11)		ASTM D3306, ASTM D4340, ASTM D4985, Audi, BMW 81229407454, BMW 83192211191, DAF, DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford AF Plus, Ford ESE-M978B4H-A, GM 1825M, GM 1899M, GM 93740140, GM 93740141, GM SATURN, Honda OL999-9011, Jaguar, John Deere, MAN 324 NF, MB (A 000 989 08 25 10), MB 325.0 (Konzentrat), MB 326.0 (Premix), NATO S-759, Opel/GM QL130100, Porsche, Renault Glaceol RX Type D, ROVER, SAAB, SAE J1034, VW TL 774-C (entspricht G11)
Brand		RAVENOL		RAVENOL
ASTM		D3306, D4340, D4985		D3306, D4340, D4985
Recomendations		DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C		DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C
Suitable for		DAF, GM SATURN, Jaguar, John Deere, Porsche, ROVER, SAAB, VW		DAF, GM SATURN, Jaguar, John Deere, Porsche, ROVER, SAAB, VW
Compliant products		BMW 81229407454, BMW 83192211191, Ford AF Plus, GM 93740140, GM 93740141, Honda OL999-9011, MB A 000 989 08 25 10		BMW 81229407454, BMW 83192211191, Ford AF Plus, GM 93740140, GM 93740141, Honda OL999-9011, MB A 000 989 08 25 10
Density at 20 °C	g/cm³	1130	EN ISO 12185	1130 g/cm³ EN ISO 12185
Color		Blue	visual	Blue visual
Reserve alkalinity	mgKOH/g	15 —	ASTM D1120	15 — mgKOH/g ASTM D1120
Boiling point	°C	160 —	ASTM D1121	160 — °C ASTM D1121
Water content	%	— 5	ASTM D1123	— 5 % ASTM D1123
Flashpoint	°C	100 —	DIN 51758	100 — °C DIN 51758
Freezing point (50 % solution)	°C	-37	ASTM D1177	-37 °C ASTM D1177
pH - value at 20 °C (50 Vol %)		7,0 - 8,0	ASTM D1287	7,0 - 8,0 ASTM D1287
Approvals		DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C		DTFR 29C100 (MB 325.0), DTFR 29D100 (MB 326.0), Ford ESE-M978 B4H-A, GM 1825M, GM 1899M, GM QL130100, MAN 324 Type NF, MB 325.0, MB 326.0, NATO S-759, Renault Glaceol RX Type D, SAE J 1034, VW TL 774-C

Destilliertes Wasser (entionisiert)

For batteries

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

Compliance with the requirements:
DIN 43530-4, DIN EN 50272

show details

Equivalents OEM:
BMW 83190394350, BMW 83190394350

Available packaging
Full description
Product parameters

Volume:
1 L

vendor code:
1360010-001

Code:
4014835300453

Volume:
5 L

vendor code:
1360010-005

Code:
4014835300507

Volume:
5 L, specialist. canister

vendor code:
1360010-005

Code:
4014835300514

Volume:
20 L

vendor code:
1360010-020

Code:
4014835300422

Volume:
208 L

vendor code:
1360010-208

Volume:
1000 L

vendor code:
1360010-700

In the course of this process, the water flows through a column filled with ion exchange resin. This has theability to exchange its accumulated ions for the ions present in the water.

As the ion exchange resin cannot accumulate an infinite number of ions, they have to be “revived”, i.e. theyhave to be regenerated. This takes place using the currently most commonly used regeneration agents: sodiumchloride (water softening), hydrochloric acid (cation exchange) and sodium hydroxide (anion exchange).The conductivity of the water flowing through is constantly checked in a fully automated process and the ionexchanger unit regulates itself automatically.

RAVENOL destilliertes Wasser deionised water is regularly checked by taking samples.

Application Note

RAVENOL destilliertes Wasser is ideally suited to filling up vehicle batteries and for steam irons and aquariums (to reduce the hardness of the water).

Parameter	Value
Recommendations	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser	DIN 43 530-4 Akkumulatoren, DIN EN 50272, Elektrolyt und Nachfüllwasser
Brand	RAVENOL	RAVENOL
Recomendations	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272
Approvals	DIN 43530-4, DIN EN 50272	DIN 43530-4, DIN EN 50272
